Calibrated Viavi JDSU OLP-38 Optical Power Meter 1310/1550 nm SM 2302/13 +26 dBm

Condition: Seller refurbished

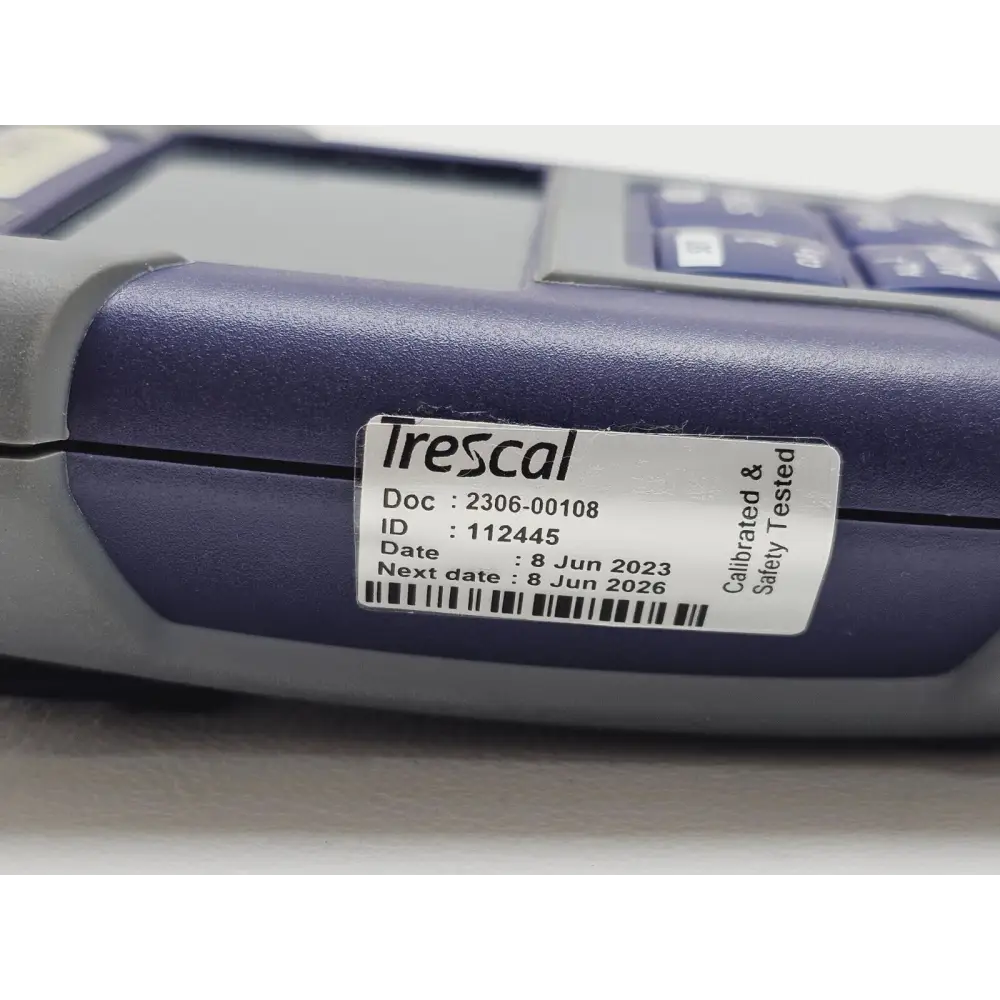

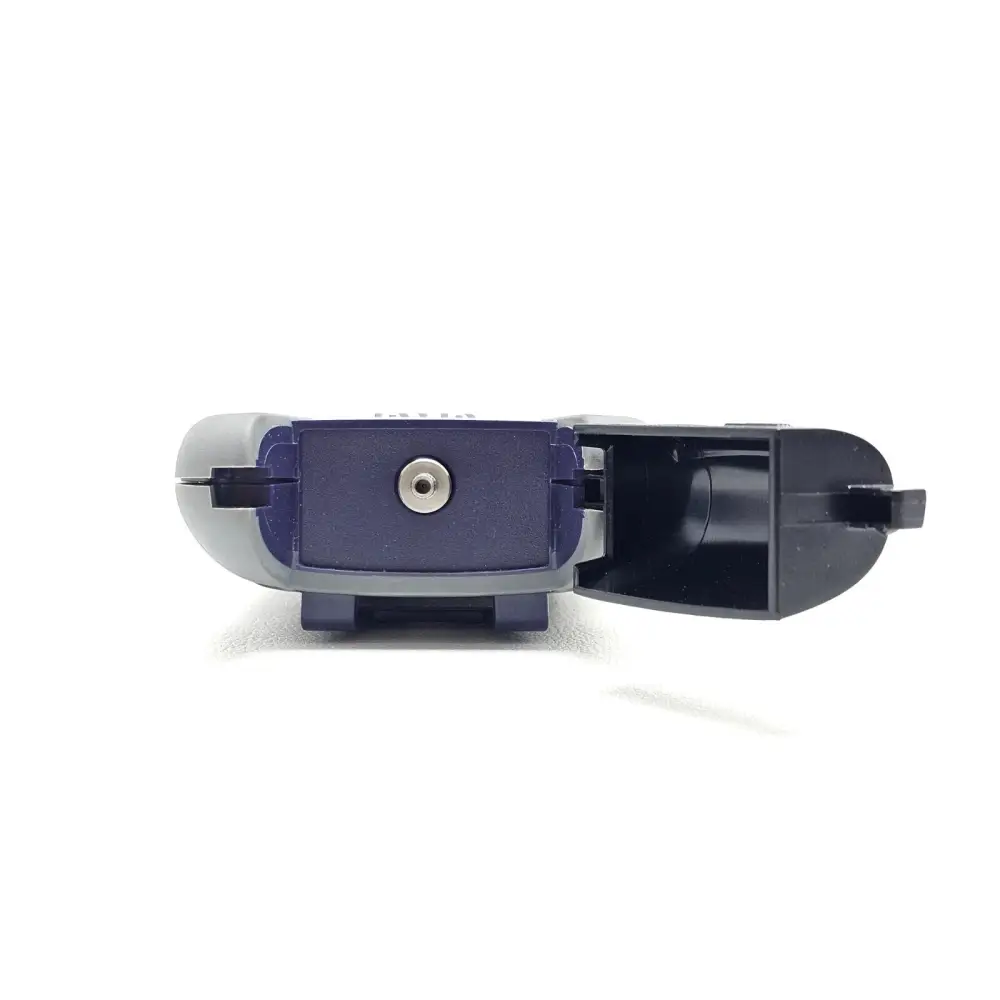

Tested and in good working condition. Calibration expiry June 2026. This is the 2302/13 superior version of the OLP-38 featuring internal data storage and USB download capability. Minor cosmetic damage — a small chip in the plastic near the USB port.

Included in the sale:

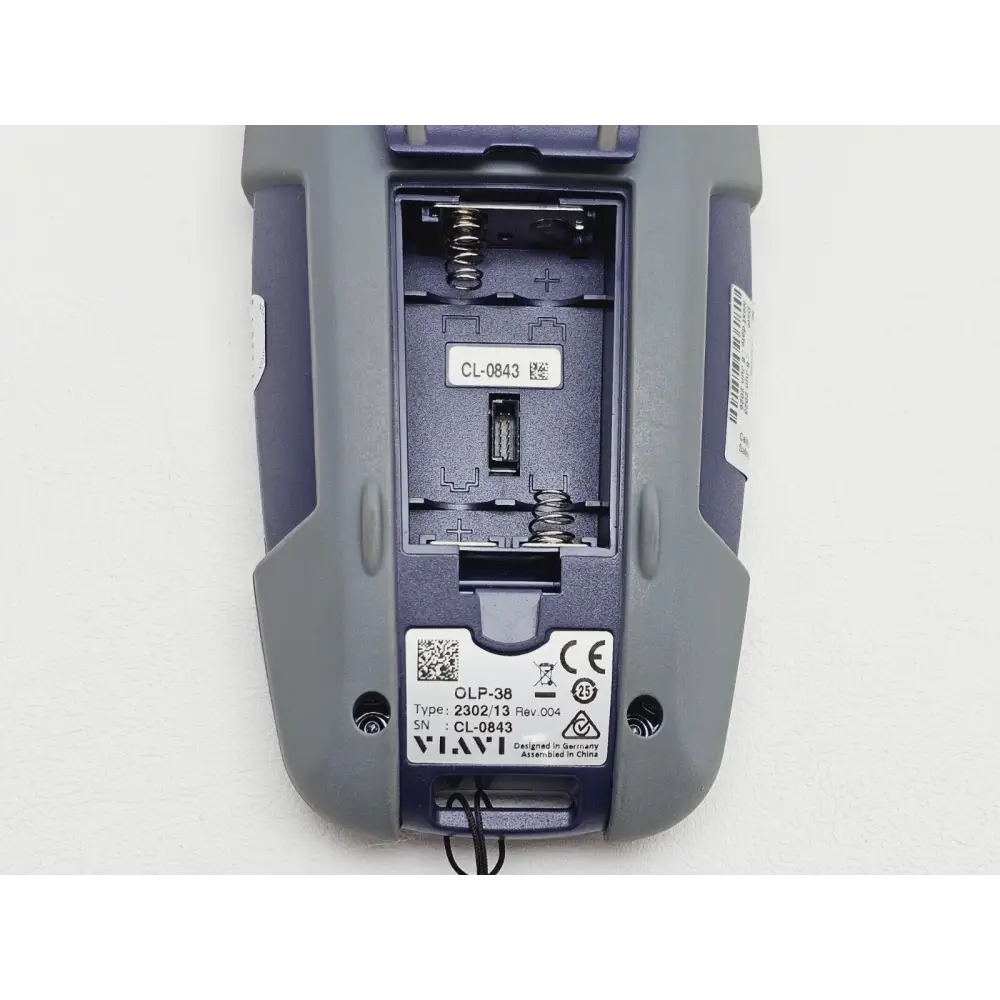

• OLP-38 BN 2302/13 optical power meter
• 2.5 mm optical adapter

Note: Batteries are NOT included.

Viavi (formerly JDSU) SmartPocket OLP-38 — Filtered InGaAs High-Power Optical Power Meter

The Viavi OLP-38 is part of the SmartPocket OLP-3x family of pocket-sized optical power meters designed for the installation and maintenance of singlemode and multimode fibre optic networks. The OLP-38 uses a Filtered InGaAs photodiode and is the high-power (+26 dBm) variant, specifically suited to CATV (with analogue RF transmission) and amplified DWDM system applications. It delivers an excellent price-to-performance ratio in a rugged, compact housing for straightforward field use.

Key Features:
- Rugged and pocket-sized design
- Large display with easy-to-use interface
- Auto-wavelength recognition for faster, error-free testing
- Internal data storage (100 results)
- Micro USB interface for PC data transfer and power supply
- Universal optical interface for all 2.5 mm connectors (1.25 mm optional)
- Individually settable wavelengths in 1 nm steps
- Quick-start operation — no warm-up required
- Can be paired with Viavi OLS-3x LED or laser light sources for insertion loss measurement
- Compatible with OFS-355 software for report generation

Applications:
- Measuring optical power levels in premises, telco, and CATV fibre networks
- High-power level tests for CATV, amplified DWDM, and military fibre applications
- Insertion loss measurement when used with a compatible Viavi light source

Technical Specifications (OLP-38 BN 2302/13):
Detector Type: Filtered InGaAs
Wavelengths: 1310 nm, 1550 nm (singlemode; settable in 1 nm steps)
Measurement Range: -50 to +26 dBm
Maximum Power Level: +26 dBm
Resolution: 0.01 dB / 0.001 µW
Display Units: dBm, dB, W
Data Storage: 100 results
Data Interface: Micro USB (PC data transfer)
Power Supply: 2× AA (Mignon) 1.5 V alkaline or 2× AA NiMH 1.2 V rechargeable; AC via Micro USB and SNT-505 adapter
Battery Life: >200 hours
Auto Power-Off: After 20 minutes (ECON mode)
Optical Interface: Universal 2.5 mm (SC, ST, FC); 1.25 mm (LC) optional
Calibration Period: 3 years (recommended)
Operating Temperature: -10 to +55°C (+14 to +131°F)
Storage Temperature: -20 to +70°C (-4 to +158°F)
Dimensions (H × W × D): 30 × 80 × 150 mm (1.2 × 3.1 × 5.9 in)
Weight (with batteries): 200 g (0.45 lb)
EMC/Safety Compliance: CE compliant
