Condition: Seller refurbished

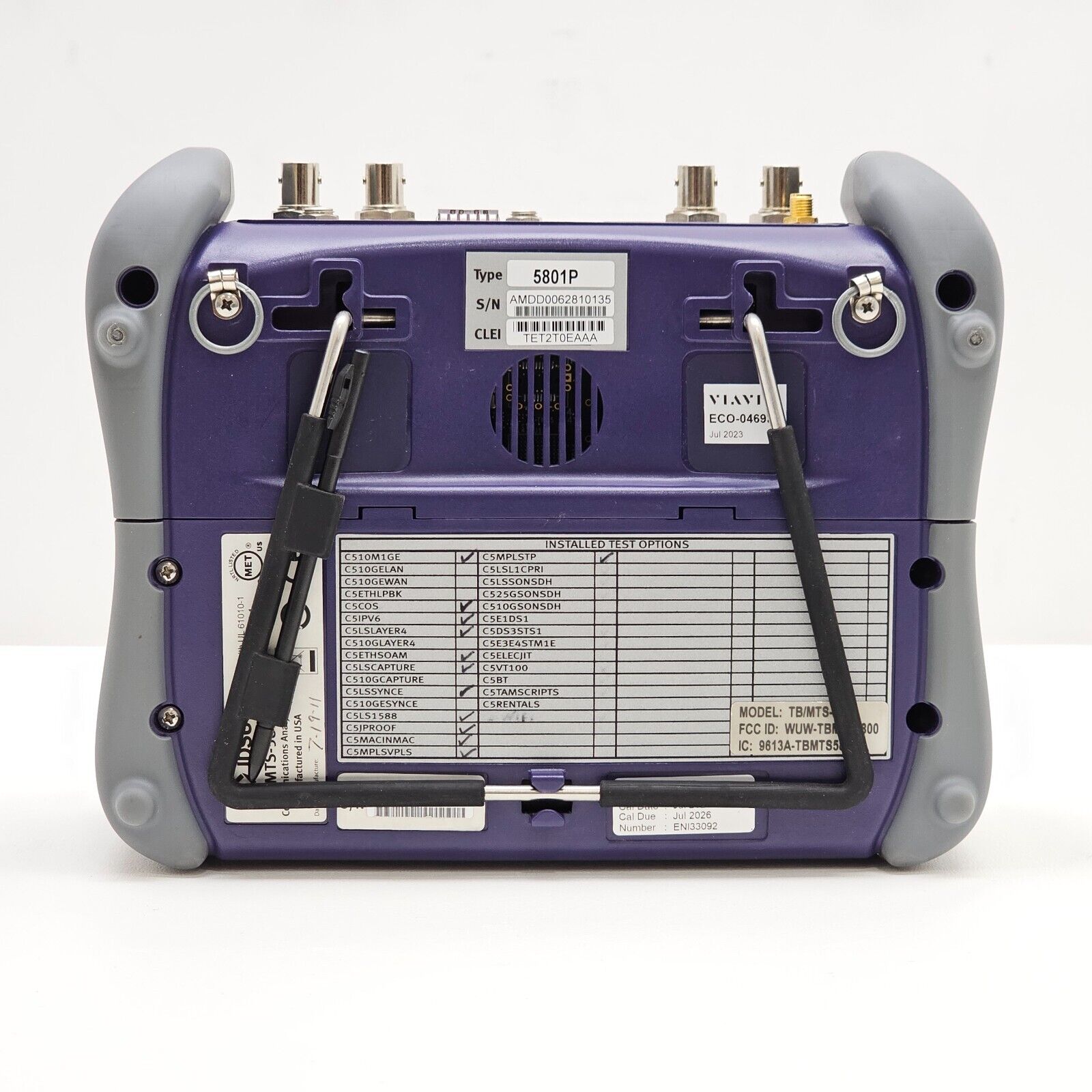

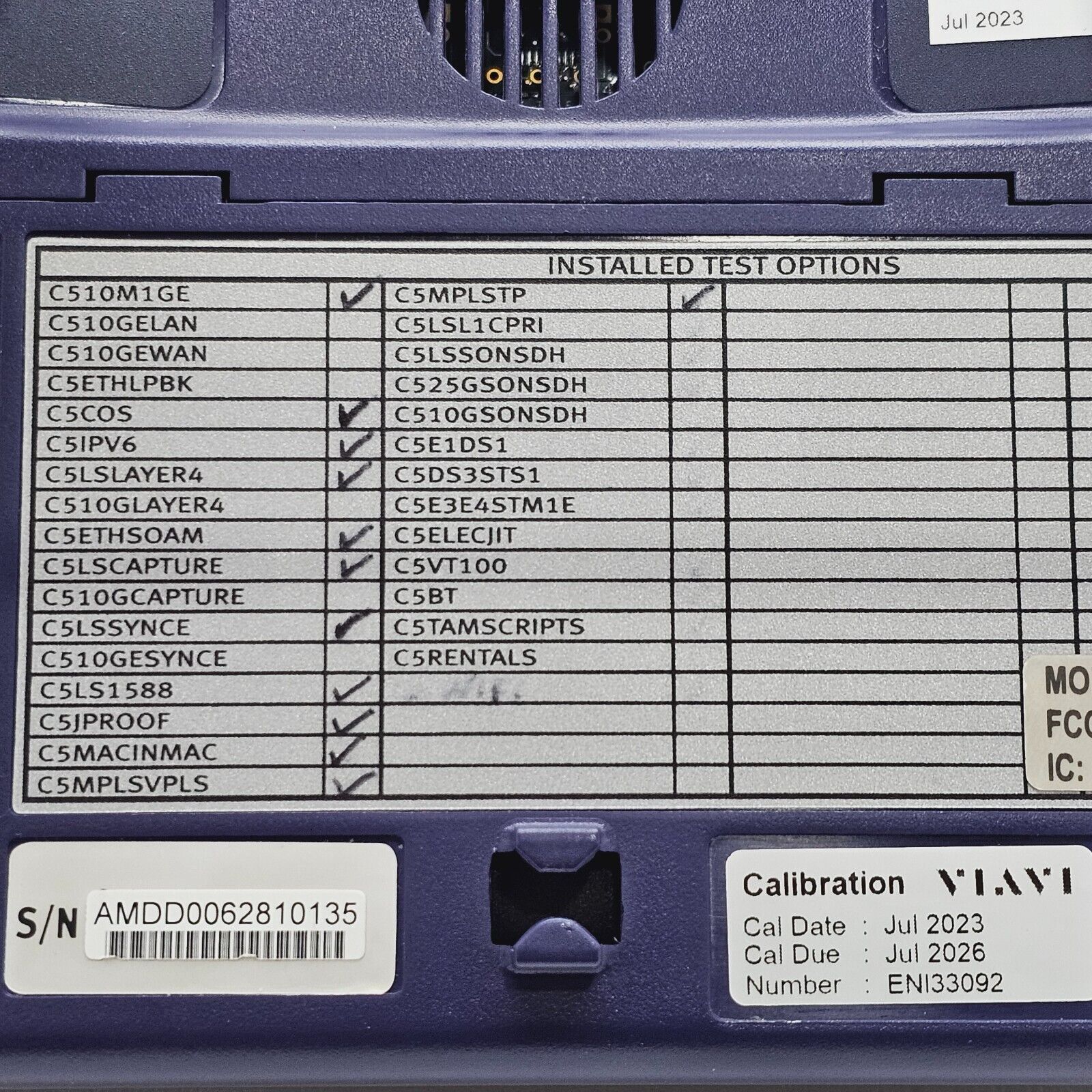

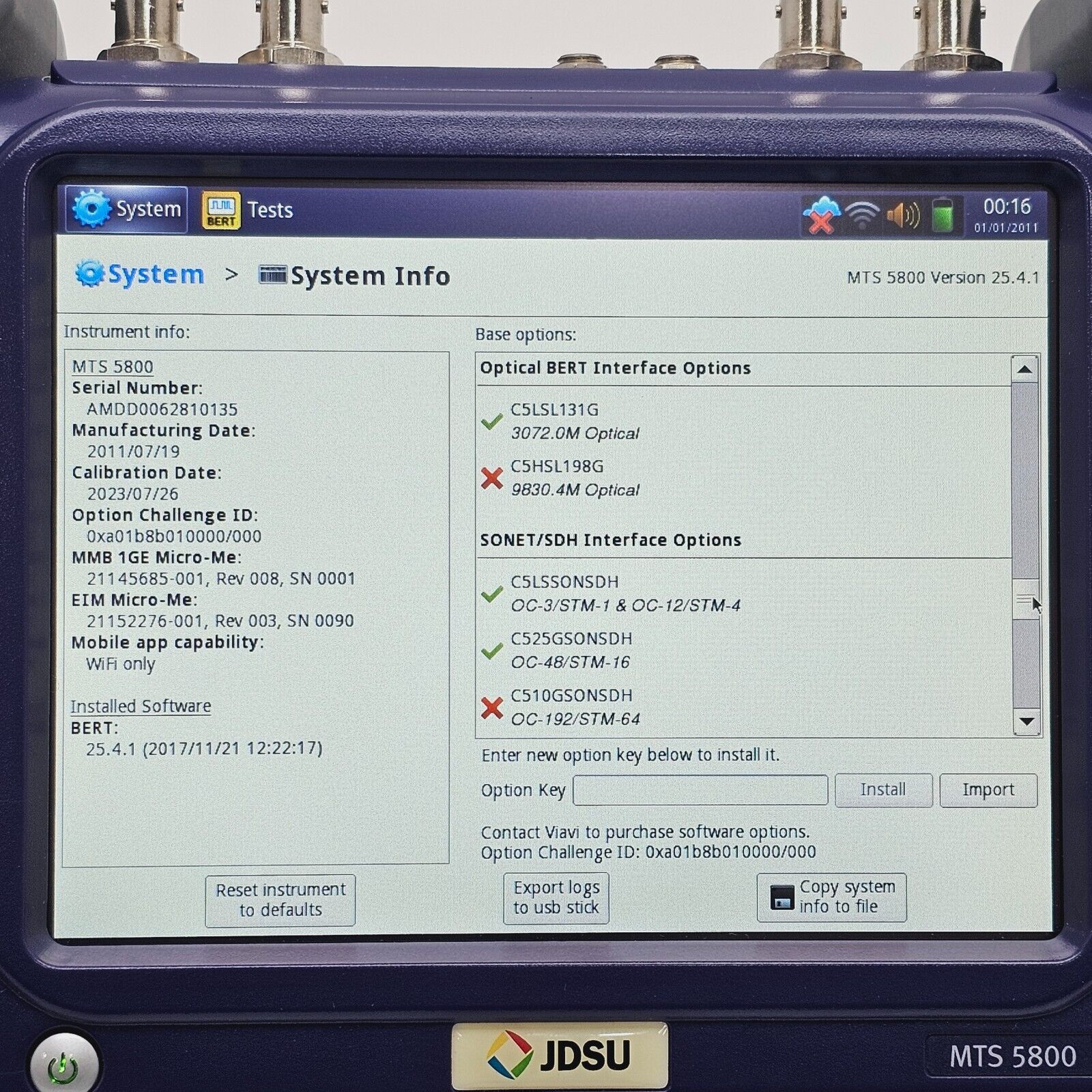

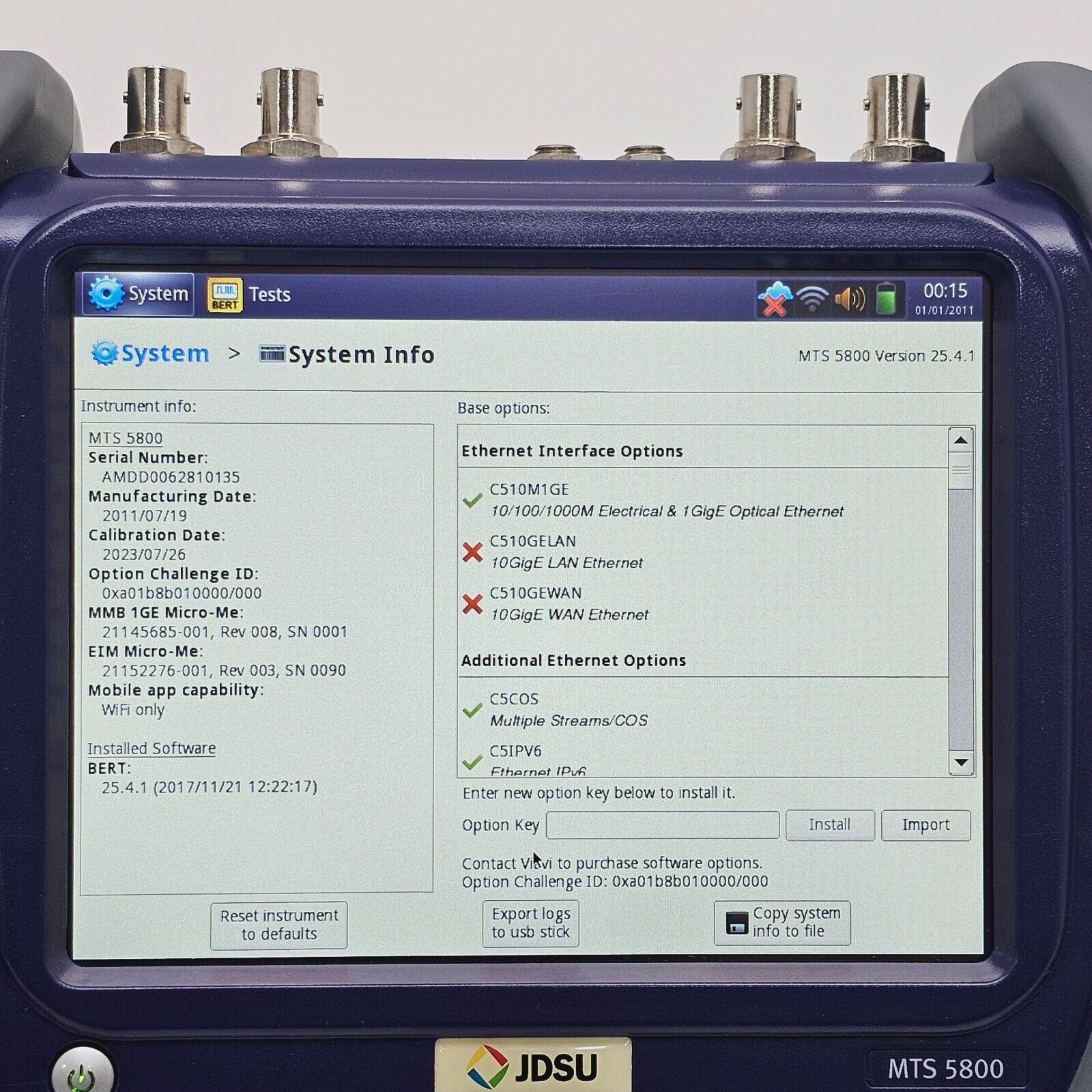

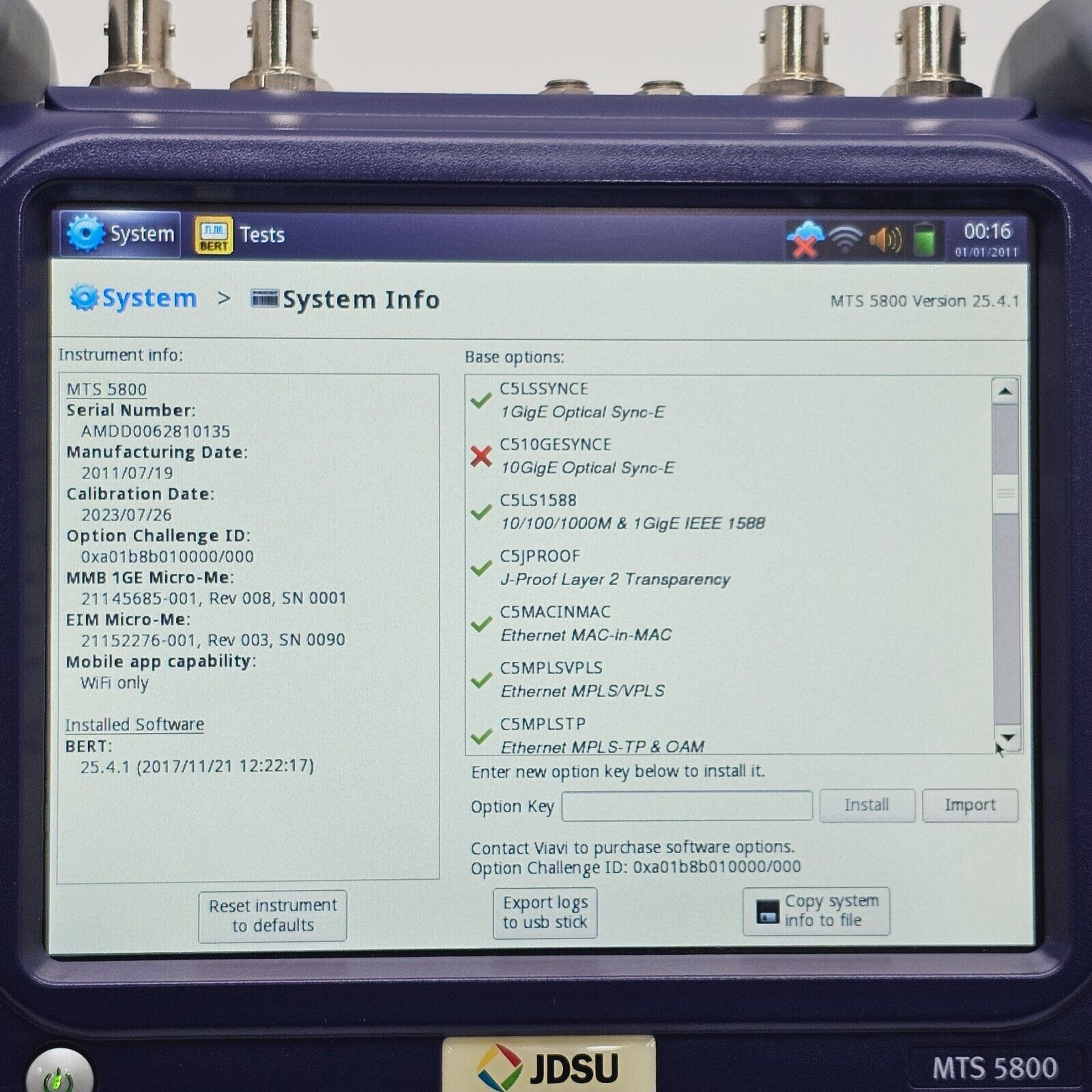

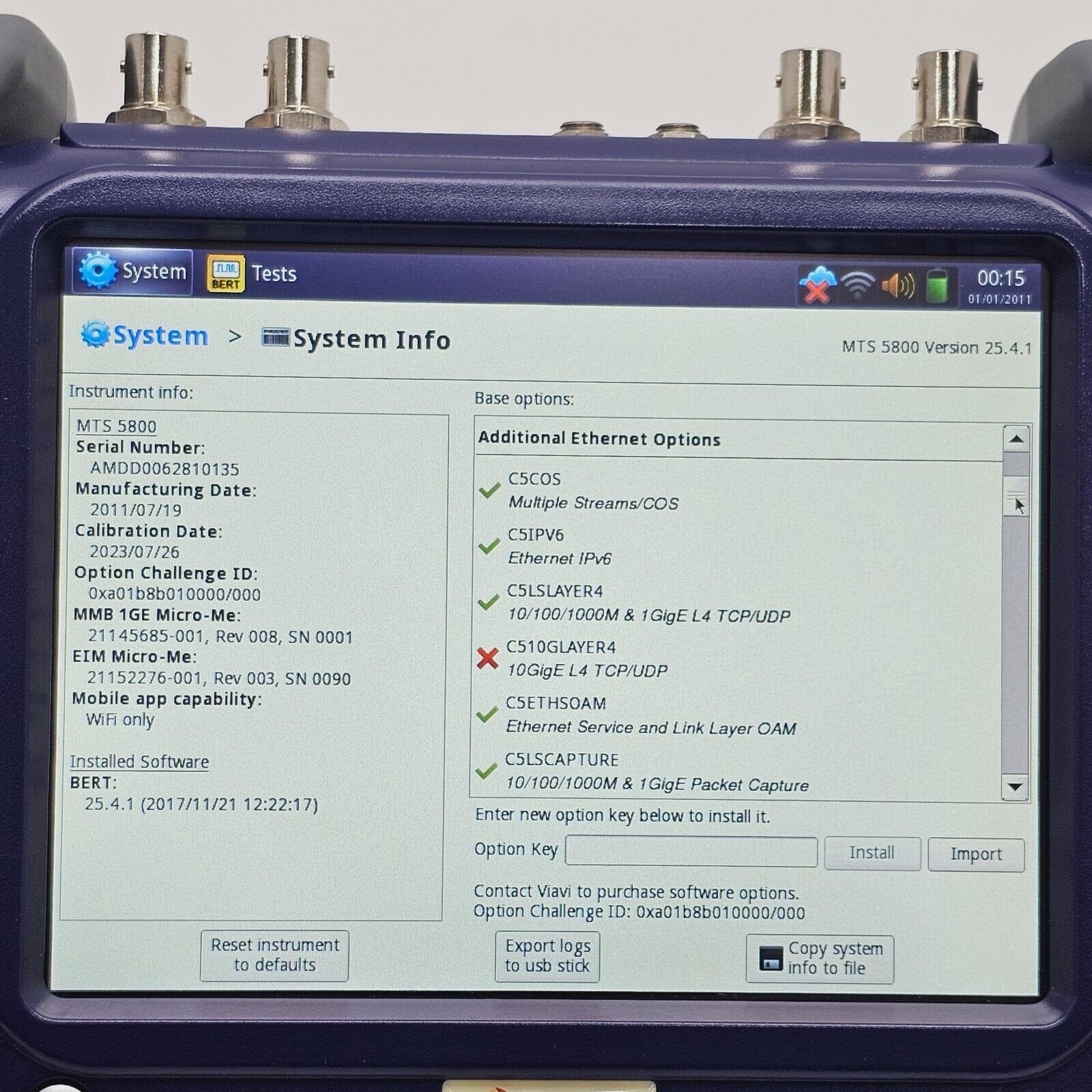

This Viavi (JDSU) T-BERD/MTS 5800 mainframe with 5801P module is supplied in excellent condition, loaded with multiple software options, and has been calibrated by Viavi until June 2026. Fourteen transceivers and an MP80 optical power meter are included, making this a highly capable, field-ready test system.

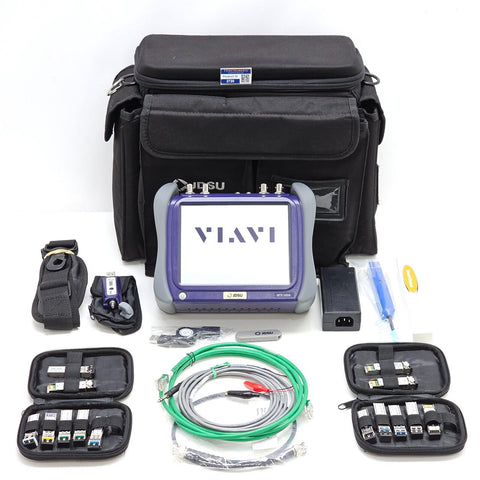

Included in the sale:

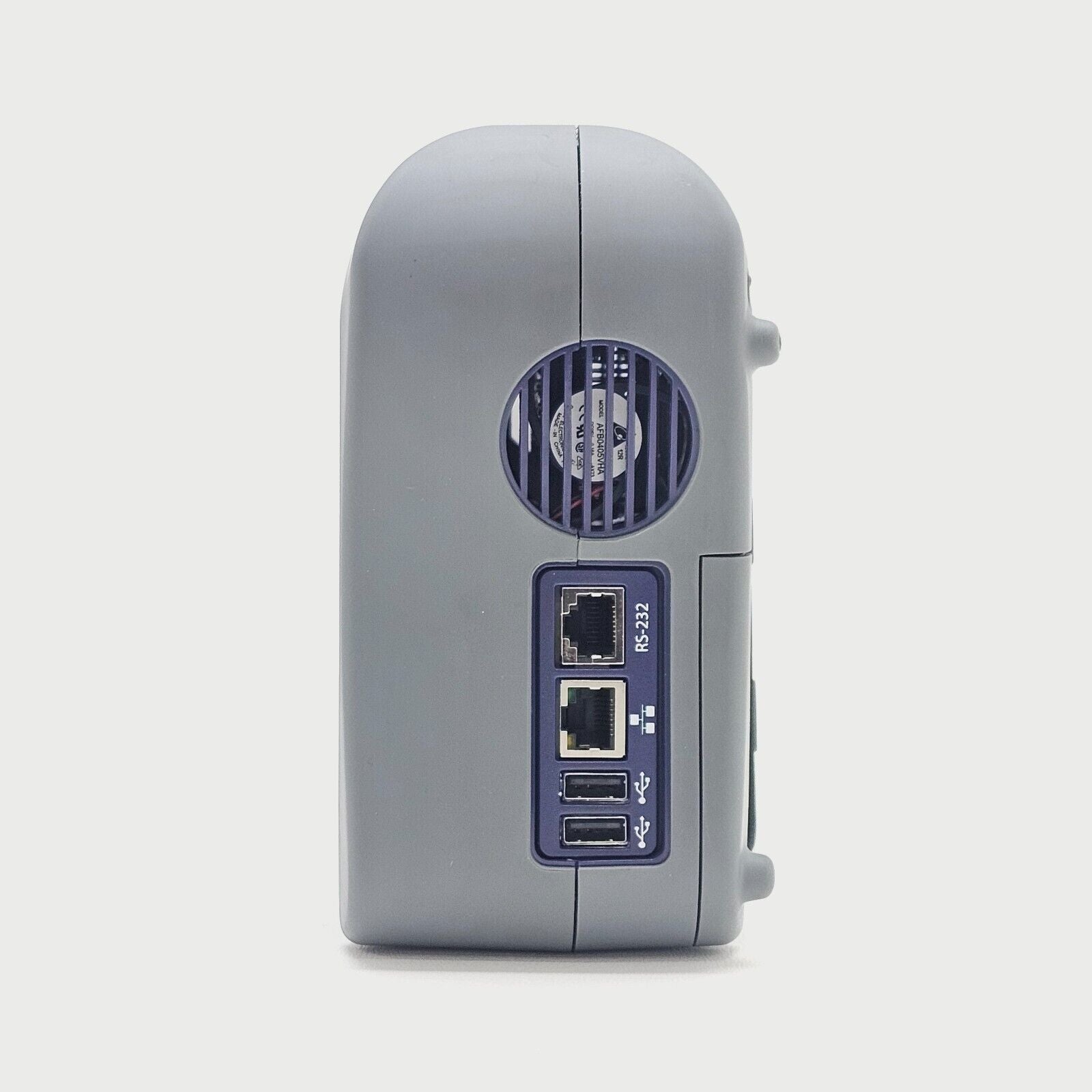

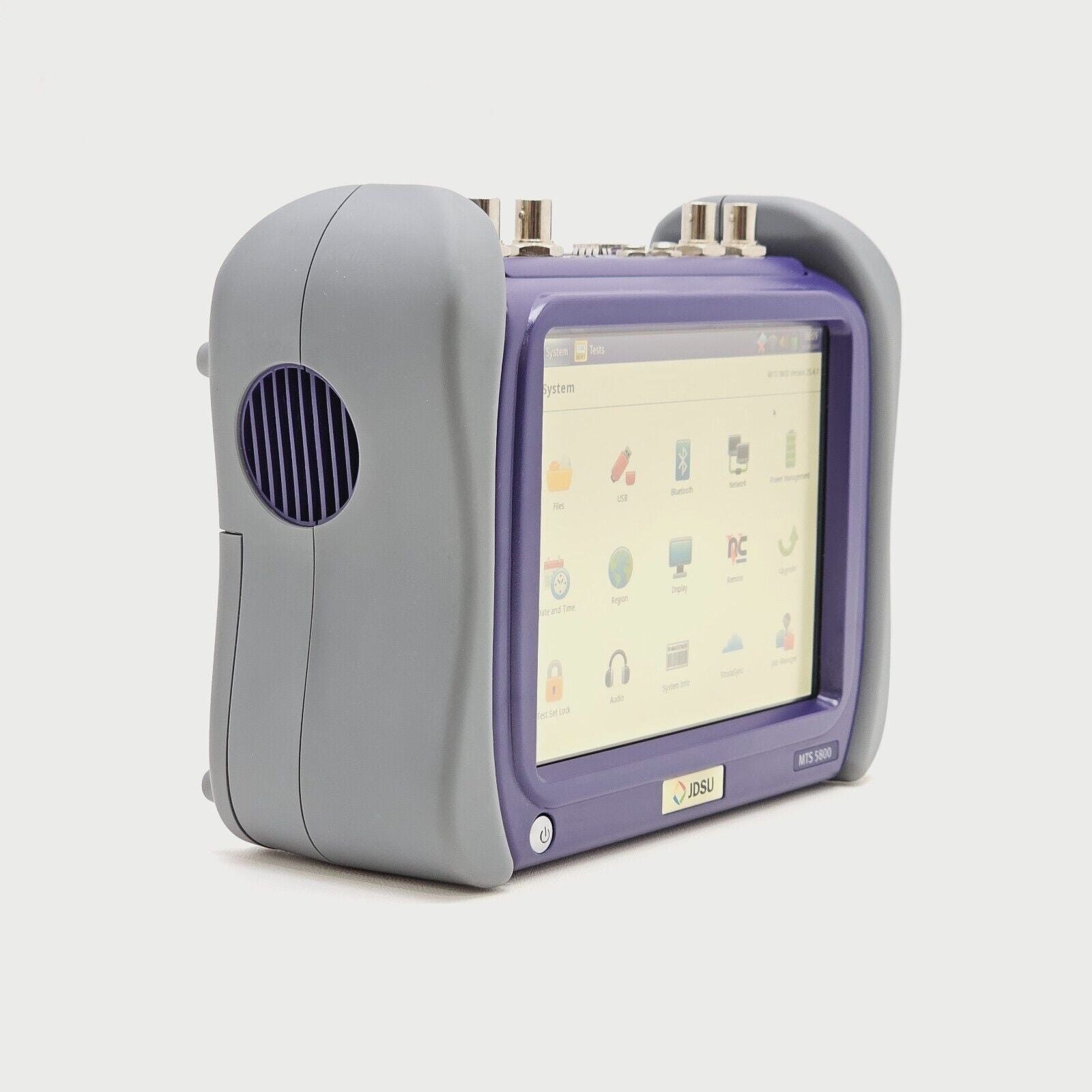

• MTS 5800 Mainframe
• 5801P Module
• Power Adapter

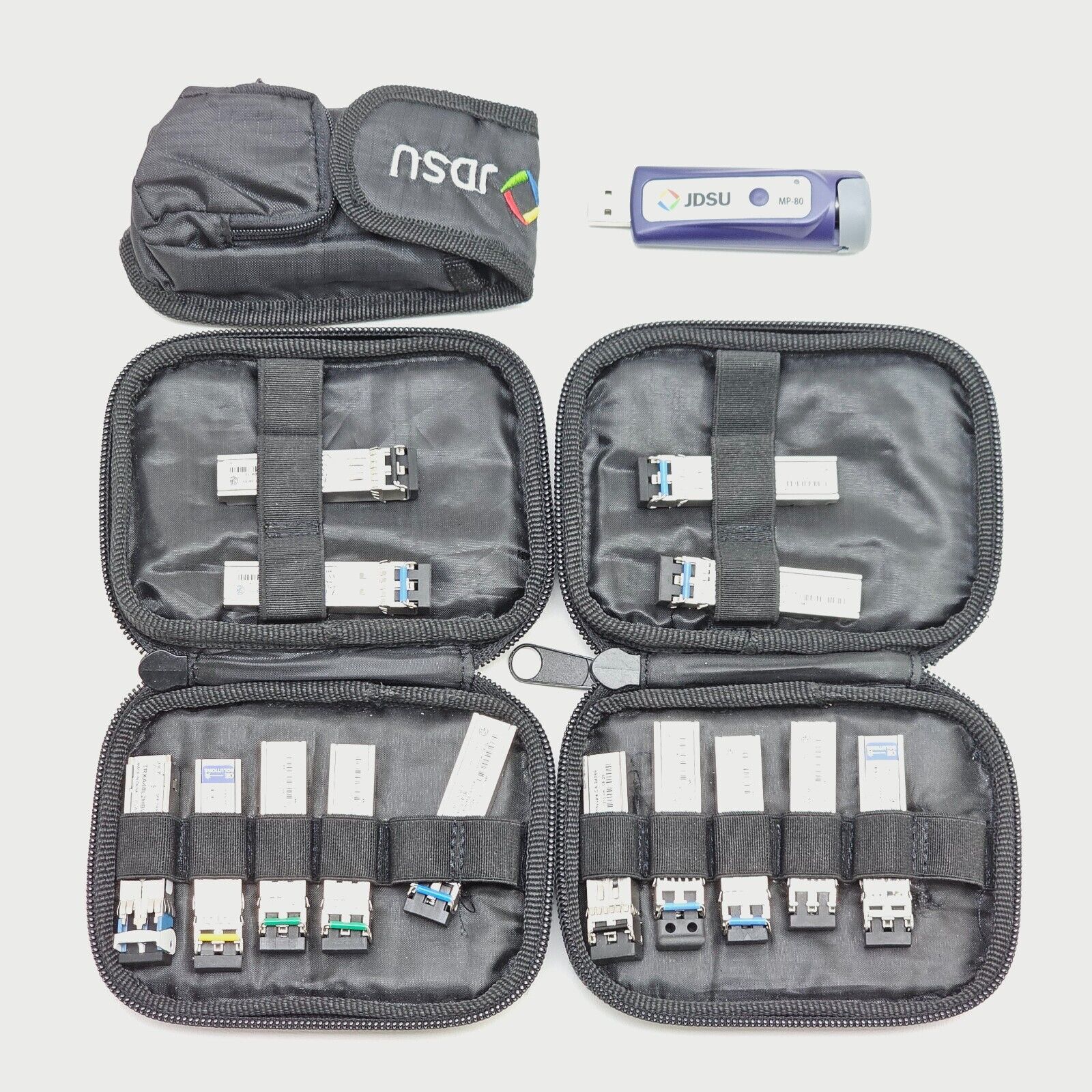

• 14 transceivers
• Carry case
• Stylus
• Cleaner
• MP80 power meter

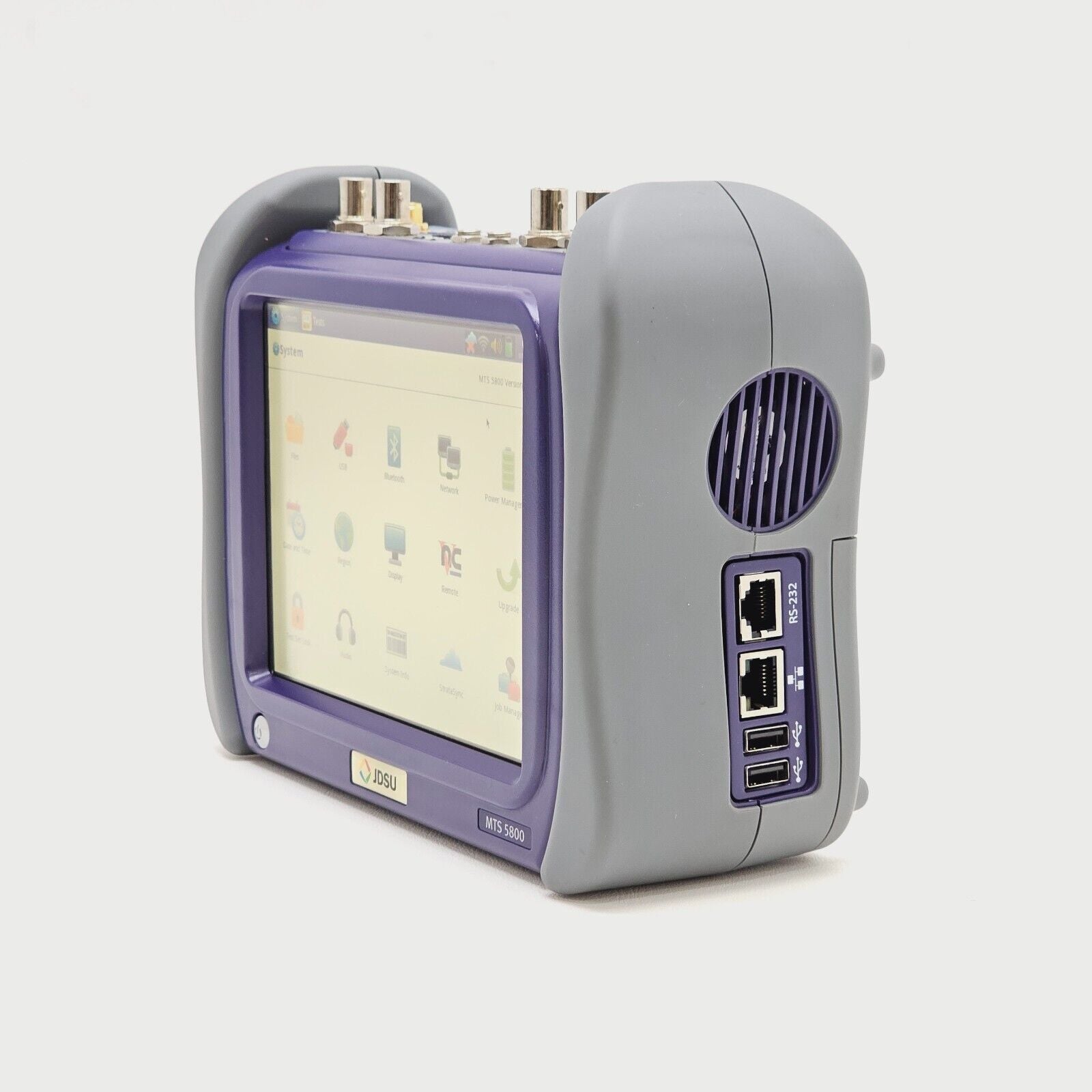

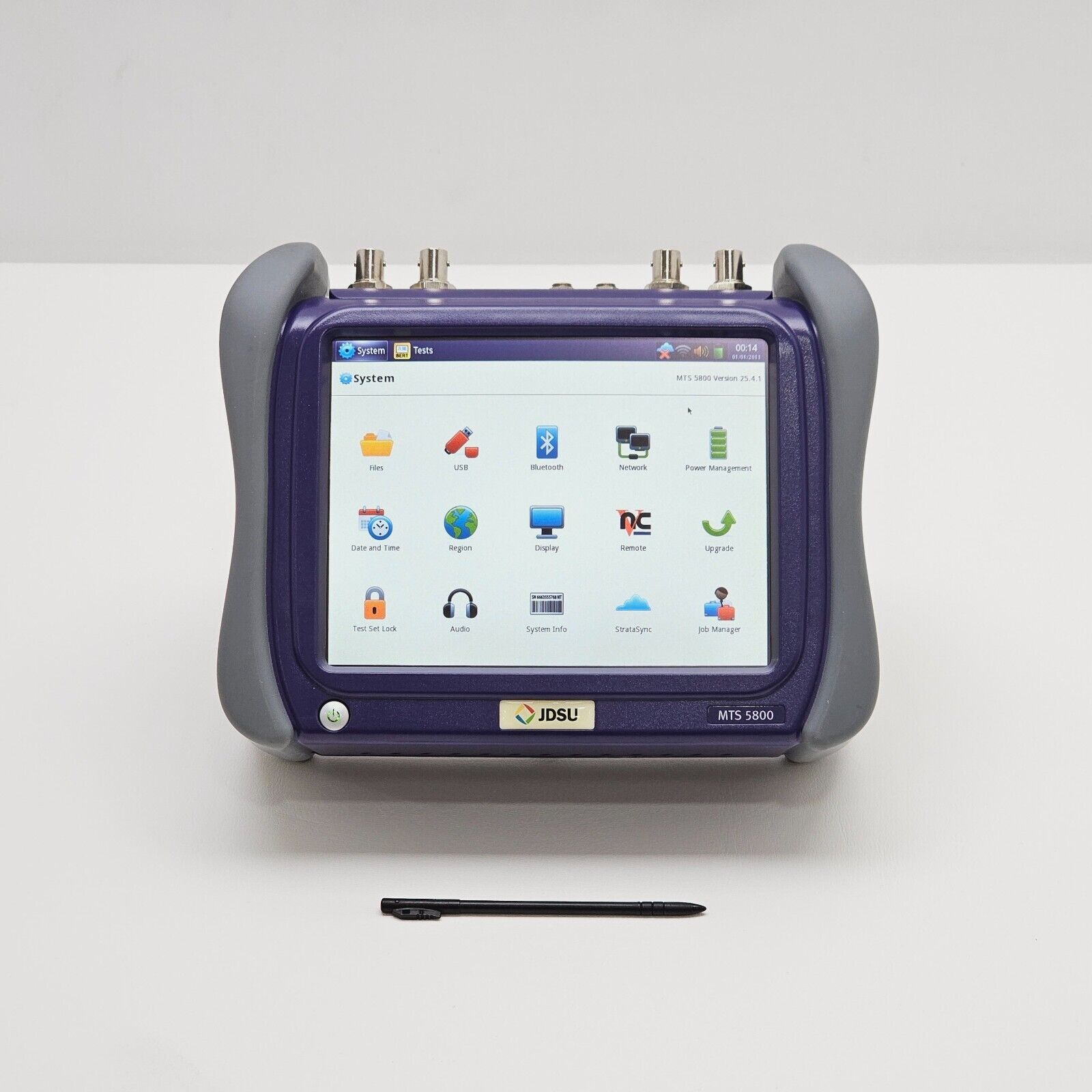

The Viavi T-BERD/MTS-5800 (also known as the JDSU MTS 5800 in Europe) is a professional all-in-one handheld network and fibre test platform designed for field technicians and network engineers involved in network installation, turn-up, troubleshooting, and maintenance.

The 5801P is the single-port V1 module with PDH capability, providing access to a broad range of interface types from one ultra-portable instrument.

Key Features:
- Industry's smallest dual-port handheld instrument for multi-technology testing
- Supports Ethernet, SONET/SDH, OTN, PDH, Fibre Channel, and CPRI/OBSAI
- Advanced Ethernet testing: TrueSpeed per RFC 6349, RFC 2544, ITU-T Y.1564 SAMComplete, J-Profiler, Wirespeed capture/decode, and automated J-Mentor
- Integrated WiFi and Bluetooth for remote connectivity and result offload
- Compatible with VIAVI 4100-Series OTDR modules, Smart Link Mapper, P5000i fibre microscope, and MP-Series optical power meters
- Supports IEEE 802.3ah, 802.1ag, ITU-T Y.1731 OAM
- VLAN, Q-in-Q, MAC-in-MAC, MPLS, MPLS-TP, and VPLS tunnelling
- Timing and synchronisation testing: PTP/IEEE 1588v2, SyncE, Wander, One Way Delay
- CPRI/OBSAI testing from 614 Mbps to 12.2 Gbps

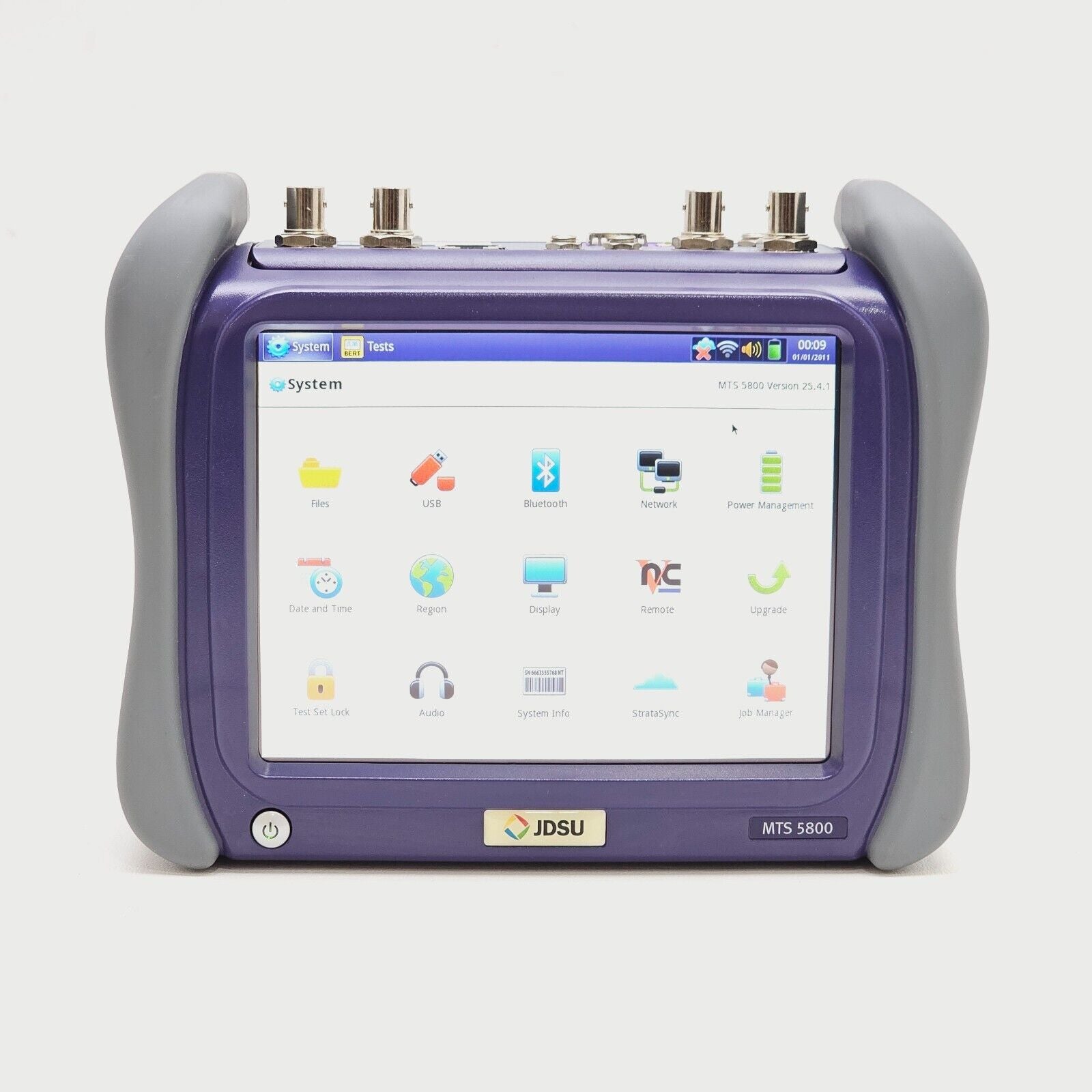

- Streamlined touchscreen UI with simple pass/fail green/red results
- Extended battery life (Li-ion, 7.4V, 10400 mAh)
- Rapid boot from power-on to test start

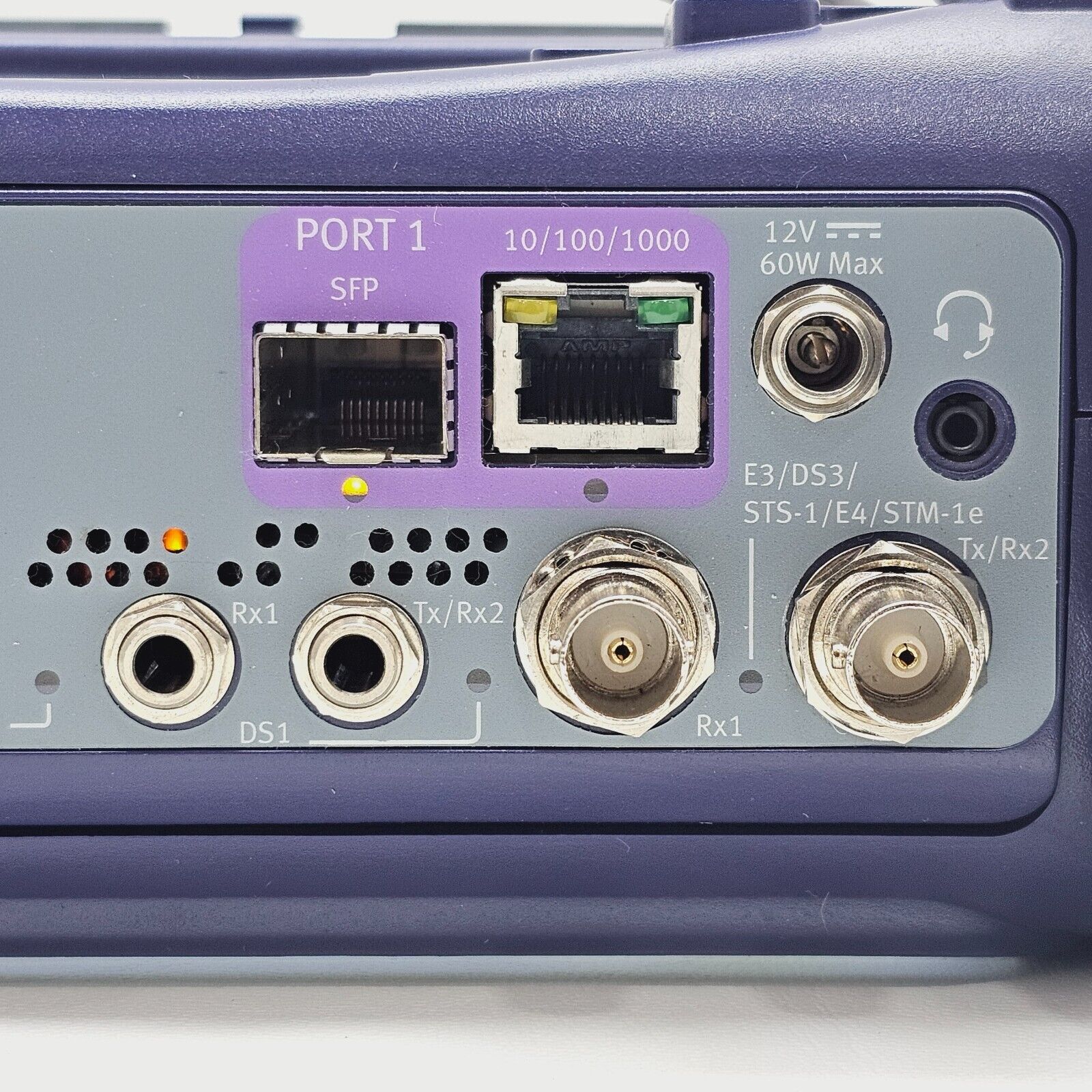

Ethernet Test Interfaces / Bit Rates:
10/100/1000M Electrical: RJ-45, Dual Port Capable
100M Ethernet Optical: SFP, Dual Port Capable
GigE Optical: SFP, Dual Port Capable
10GigE WAN Phy (9.9G): SFP+, Dual Port Capable
10GigE LAN Phy (10.3G): SFP+, Dual Port Capable

SDH/SONET Interfaces (option-dependent):
OC-3/STM-1, OC-12/STM-4, OC-48/STM-16, OC-192/STM-64

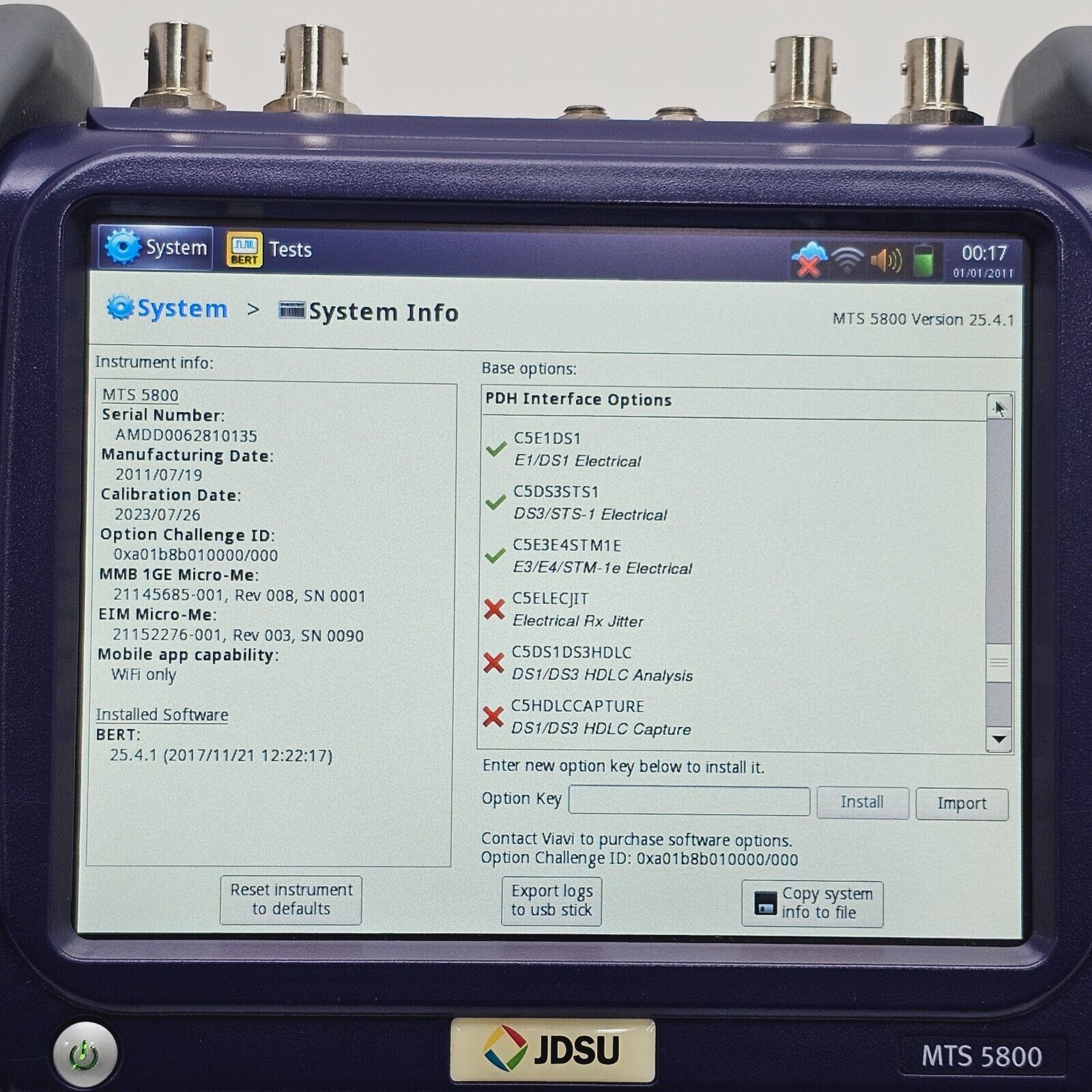

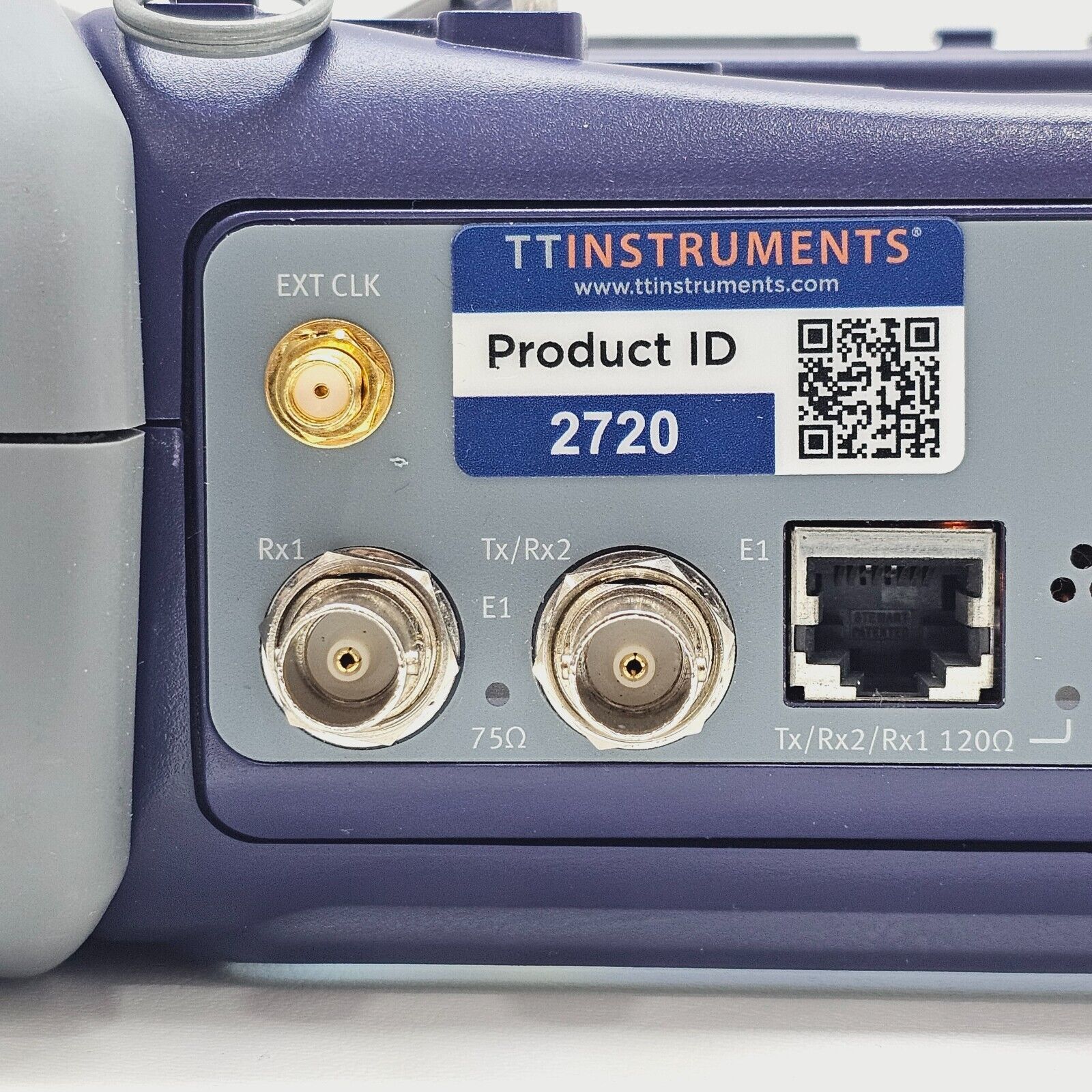

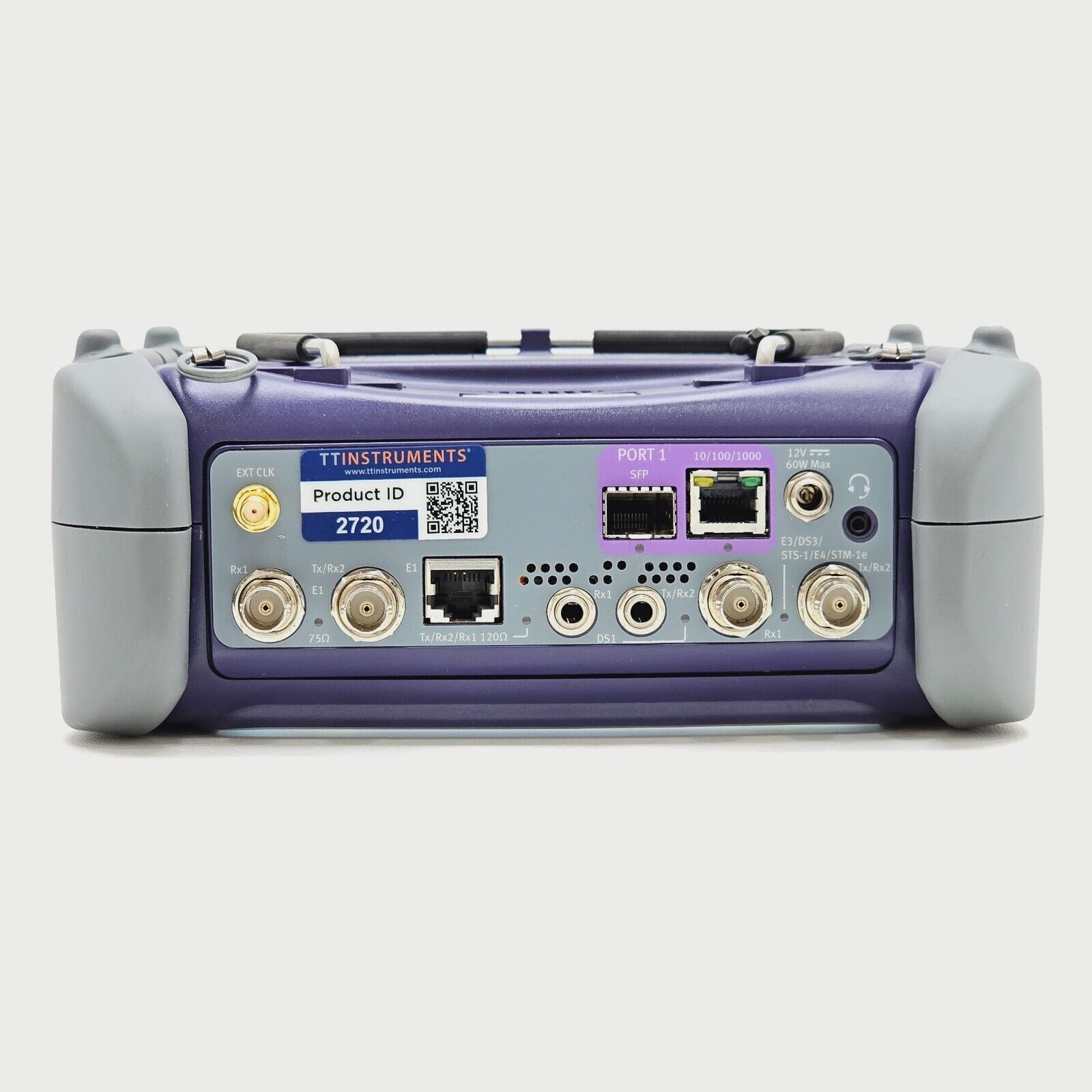

PDH Interfaces (5801P, option-dependent):
E1/DS1 Electrical
DS3/STS-1 Electrical
E3/E4/STM-1e Electrical

OTN Interfaces (option-dependent):
OTU1, OTU2, OTU1e, OTU2e

Fibre Channel (option-dependent):
1/2/4/8/10/16G FC

General Modes of Operation:
Terminate, Monitor, Thru (Intrusive), Loopback, Half Duplex, Full Duplex

Timing:
Recovered from Rx, Internal (Stratum 3), Recovered from External (BITs/SETs), Freq Offset Tx/Rx

Note: The T-BERD 5800 is branded as the MTS-5800 in Europe and is interchangeably referred to as the T-BERD 5800, MTS 5800, MTS-5800, MTS5800, and Media Test Set 5800.

VIAVI T-BERD/MTS-5800 All-in-One Handheld Network and Fibre Testing — Product Brochure (PDF): Download PDF

VIAVI T-BERD/MTS-5800 Technical Specifications Data Sheet (PDF): Download PDF

VIAVI T-BERD/MTS-5800 Technical Specifications — Laser Components Mirror (PDF): Download PDF

VIAVI T-BERD/MTS-5800 Getting Started Guide — covering MTS 5800, 5800-100G and MAP-2100 (PDF): Download PDF

VIAVI T-BERD/MTS-5800 Ethernet Layer 2 Traffic Generation Quick Reference Card (PDF): Download PDF

VIAVI T-BERD/MTS-5800 Ethernet Layer 3 Traffic Generation Quick Reference Card (PDF): Download PDF
