Condition: Refurbished

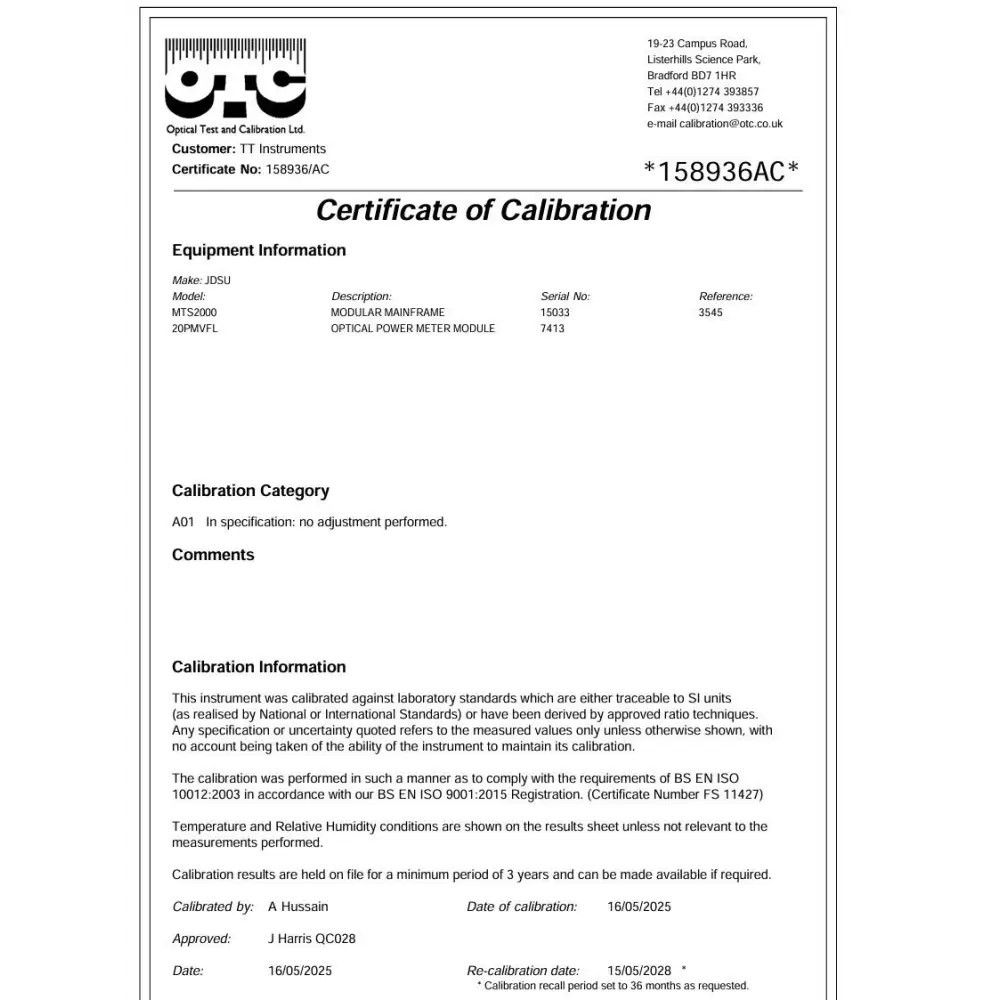

Calibrated May 2025 — all parameters passed with no adjustments needed. This Viavi JDSU MTS 2000 mainframe paired with the 4146 Quad OTDR module delivers full single-mode and multimode fibre testing capability across 850, 1300, 1310, and 1550 nm wavelengths via an SC-PC connector interface.

Included in the sale:

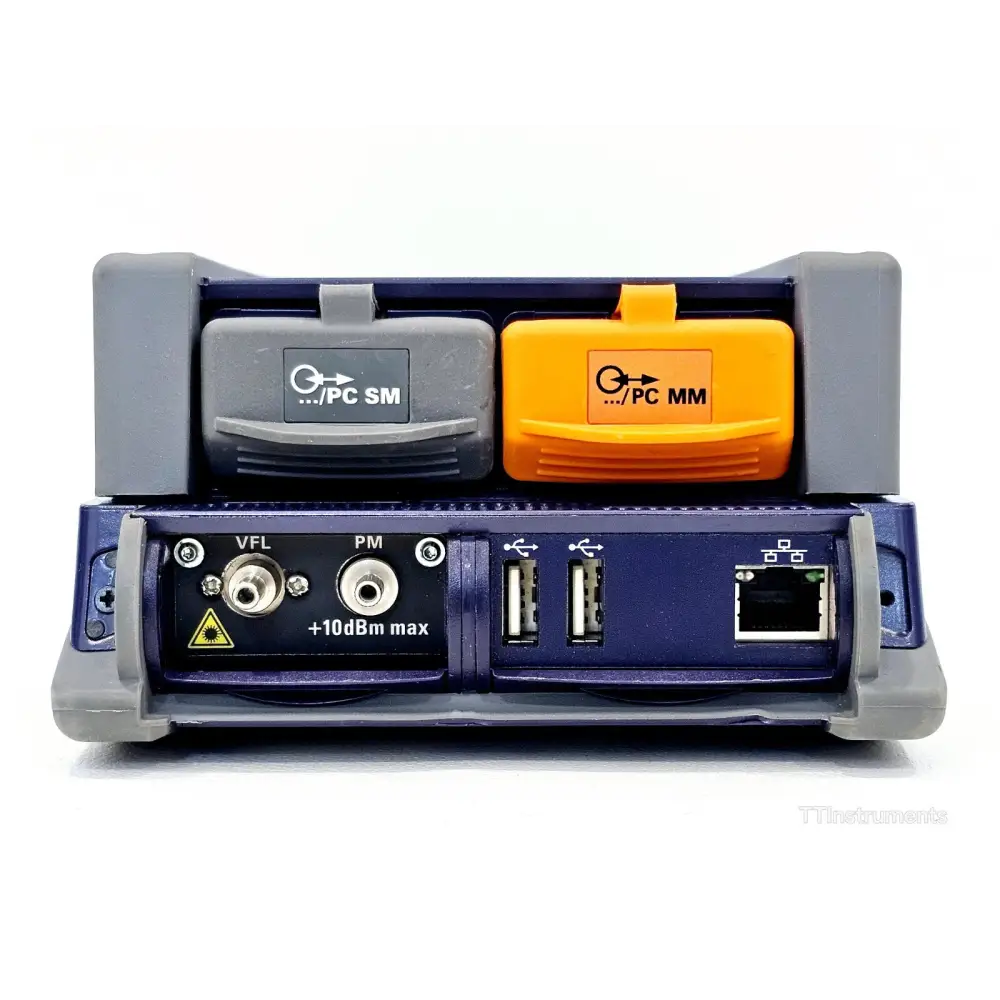

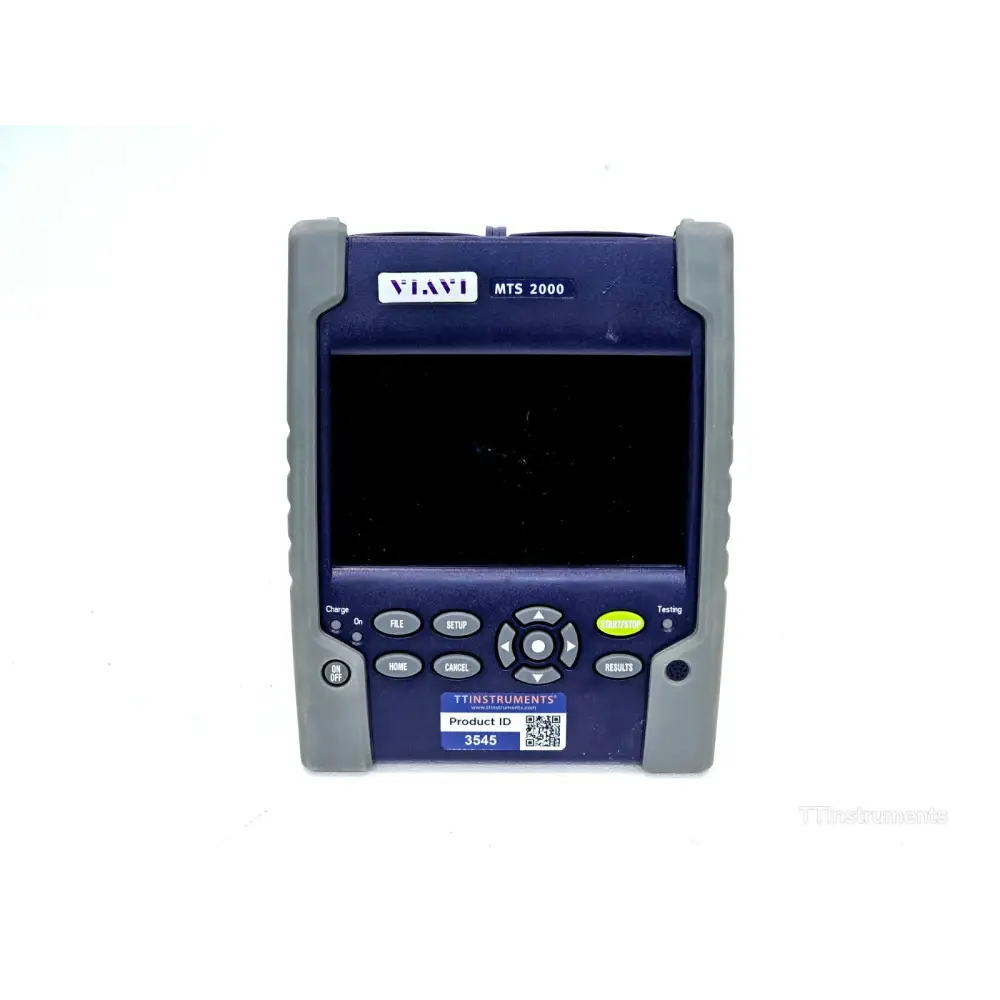

• Viavi JDSU MTS 2000 mainframe (built-in power meter, visual fault locator, touchscreen)
• Viavi 4146 Single-mode and multimode OTDR module (1310/1550 nm: 37/35 dB; 850/1300 nm: 26/24 dB; SC-PC connector)
• AC power adapter
• Protective case and carry case
• Stylus

Viavi Solutions (formerly JDSU) MTS 2000 Platform with 4146 Quad OTDR Module

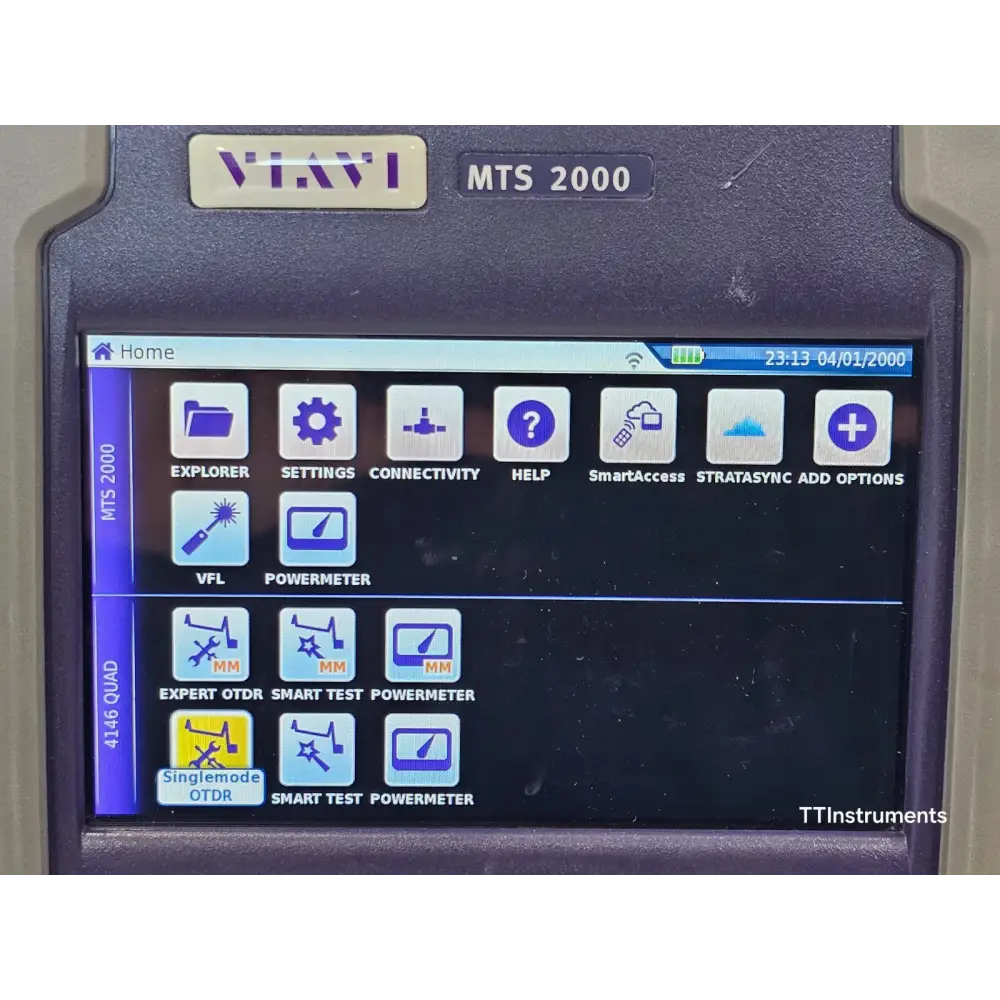

The Viavi T-BERD/MTS-2000 is a handheld, modular test platform designed for the construction, turn-up, and maintenance of fibre optic networks. Its one-slot modular design allows technicians to configure the platform with the exact capabilities required in the field, and application modules are interoperable with the T-BERD/MTS-4000 V2. The mainframe features a colour touchscreen, built-in power meter, visual fault locator (VFL), 1G Ethernet port, and three USB ports for rapid data transfer and remote access.

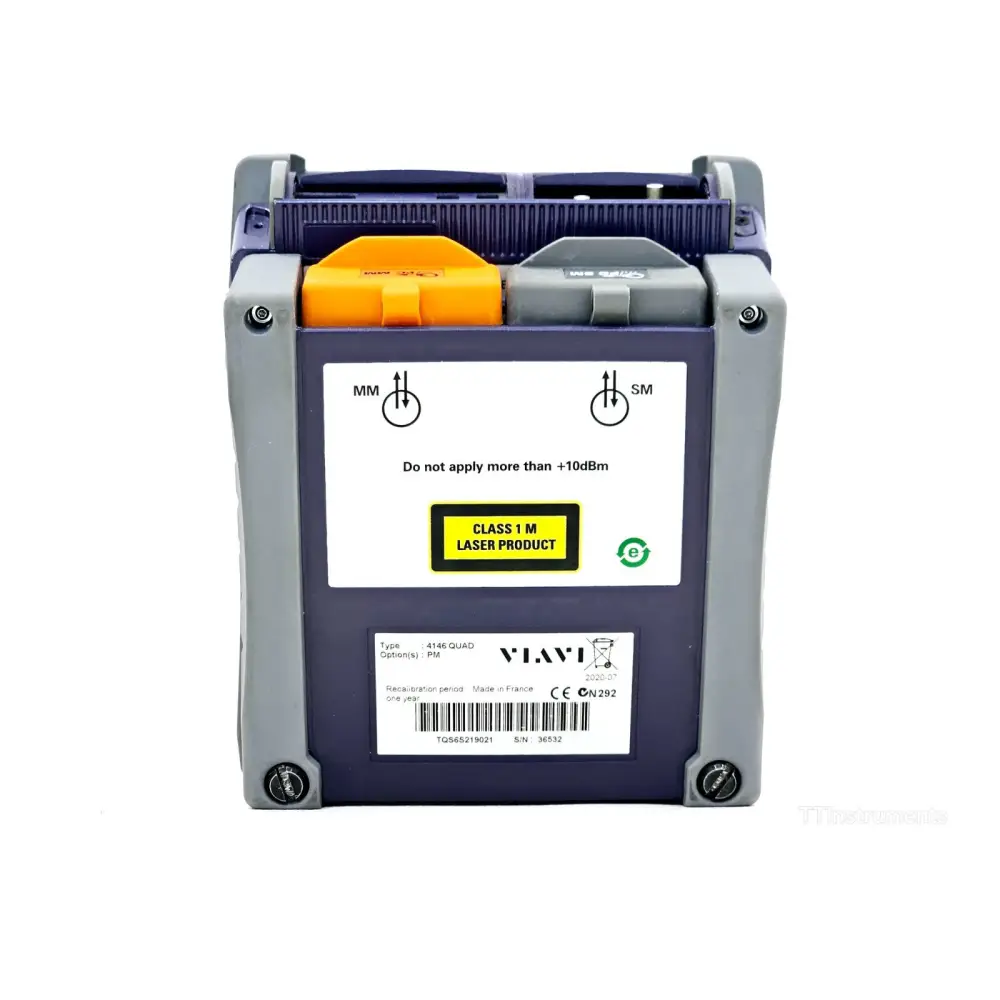

The 4146 Quad OTDR module combines singlemode (1310/1550 nm) and multimode (850/1300 nm) testing in a single compact module, making it the ideal tool for installers, contractors, wireless service providers, and any technician working across both fibre types daily. It is suited to premises, enterprise, access, metro, and wireless fronthaul/backhaul network environments.

Key Features:
Up to 37 dB single-mode and 26 dB multimode dynamic range
Quad wavelengths: 850, 1300, 1310, and 1550 nm
Integrated continuous wave (CW) light source and optical power meter
TIA/IEC pass/fail thresholds
Propagation delay measurement in multimode (TIA-568-C)
Optimised for 10 Mb to 40 GE testing
Certifies Tier 2 premises networks
IEC 61280-4-1-compliant (requires external modal controller)
Compatible with SLM, FTTA-SLM, and FTTH-SLM intelligent optical application software
Fast acquisition time and 0.8 m event dead zone

Technical Specifications (4146 Quad OTDR Module):
Weight: 0.4 kg (0.88 lb)
Dimensions (W x H x D): 128 x 134 x 40 mm (5 x 5.28 x 1.58 in)

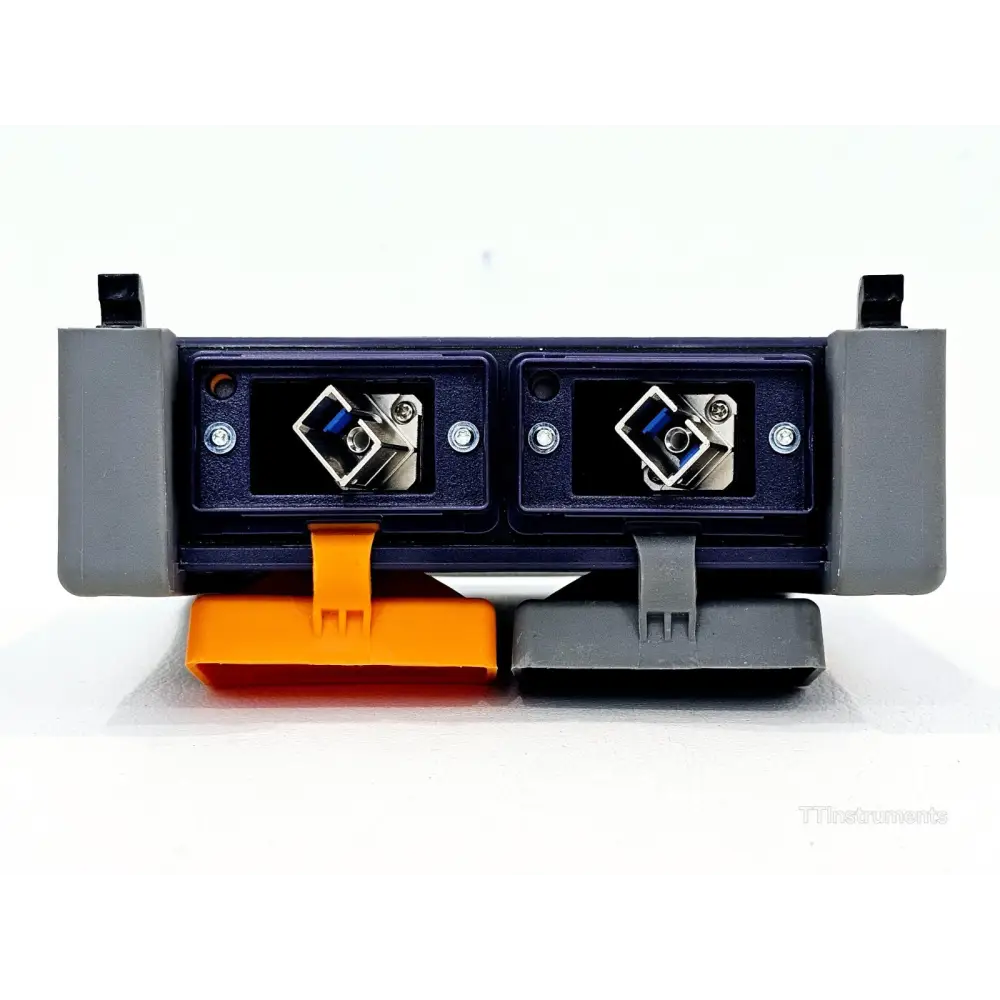

Optical connectors: Interchangeable — FC, SC, DIN, LC, ST
Laser safety class (21 CFR): Class 1
Distance units: Kilometres, feet, and miles
Group index range: 1.300000 to 1.700000 in 0.00001 steps
Number of data points: Up to 128,000
Distance measurement: Automatic or dual cursor

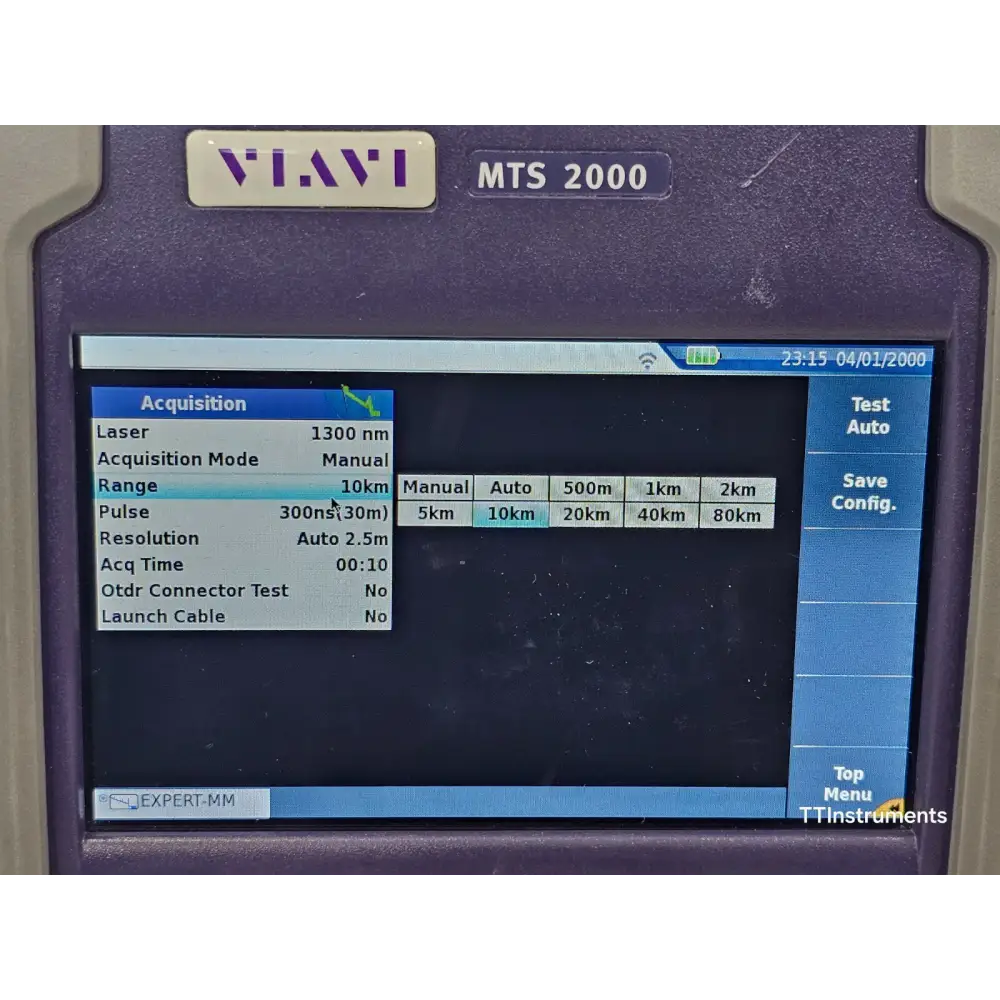

Display range: 0.5 m to 260 km
Cursor resolution: 1 cm
Sampling resolution: 4 cm
Measurement accuracy: ±1 m ± sampling resolution ± 1×10⁻⁵ × distance
Event dead zone: 0.8–0.9 m
Attenuation dead zone: 4 m

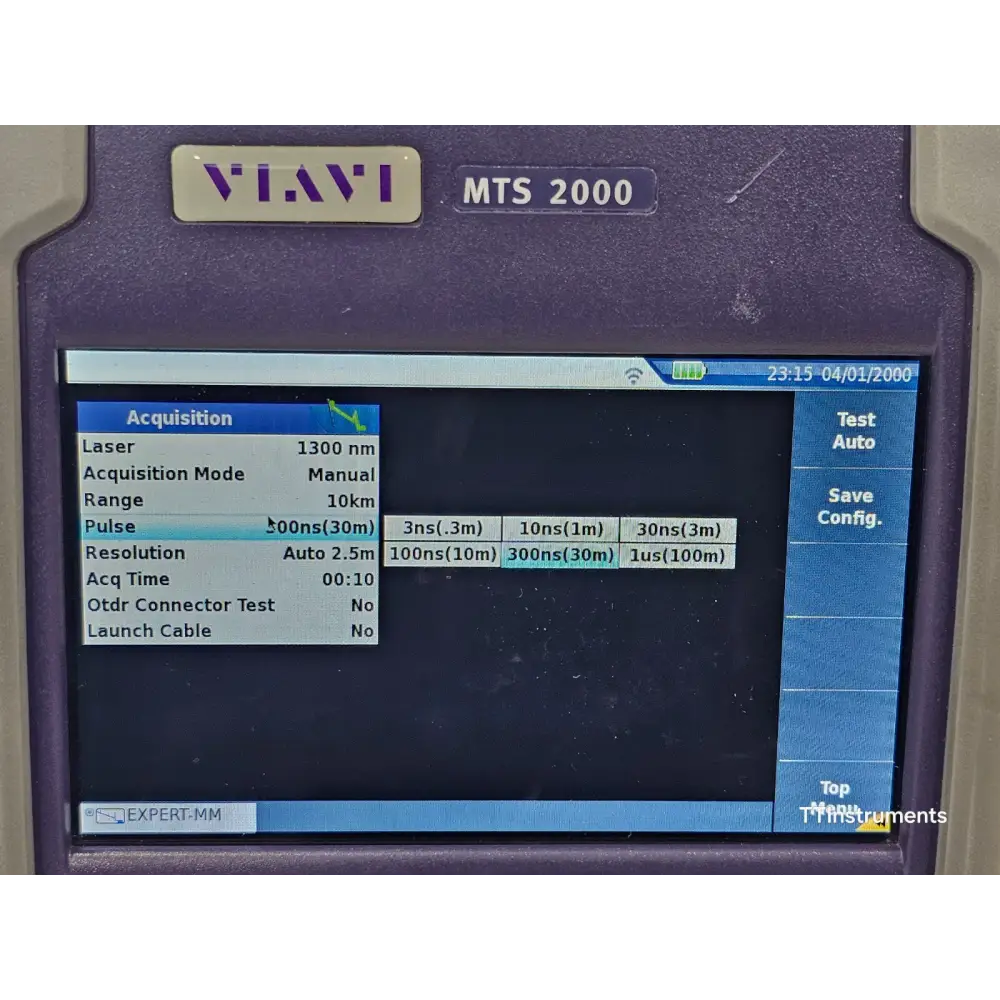

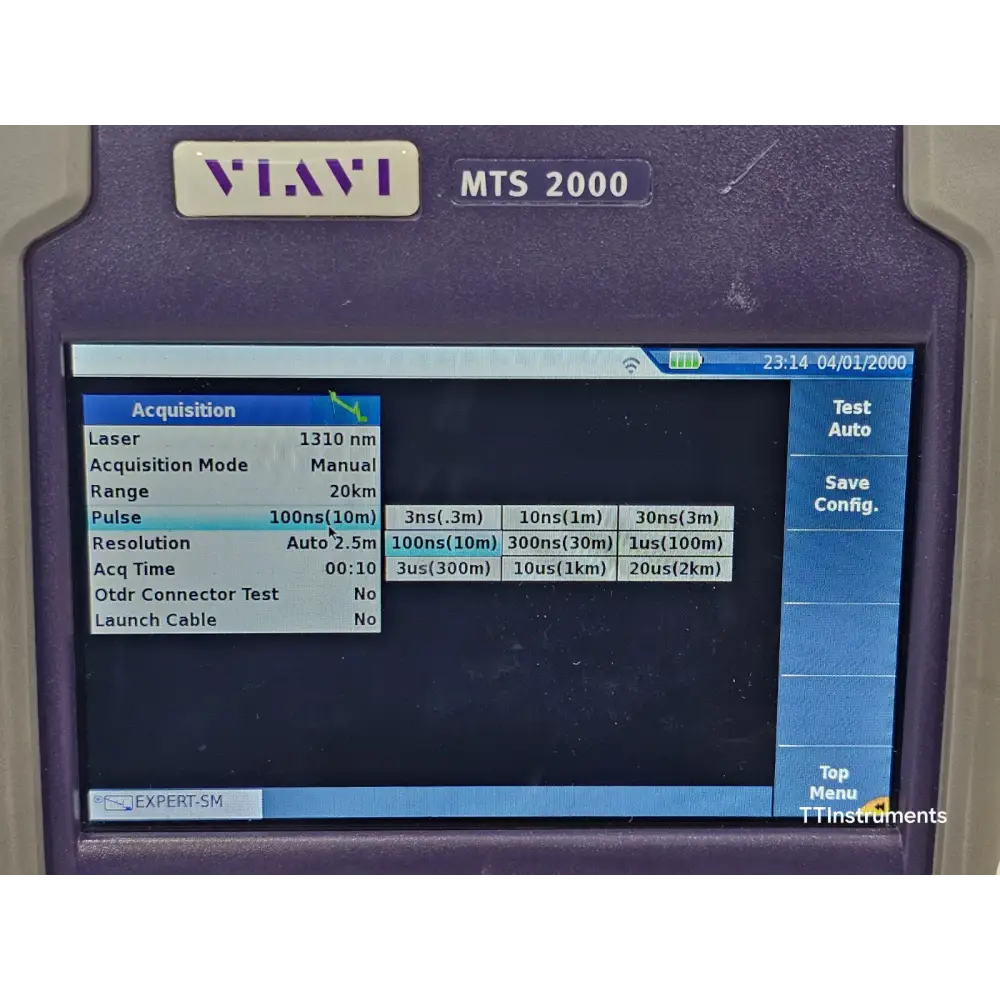

Pulse width range: 3 ns to 20 µs
RMS dynamic range: 26/24 dB (MM at 850/1300 nm); 37/35 dB (SM at 1310/1550 nm)
Attenuation measurement: Automatic, manual, 2-point, 5-point, LSA
Attenuation display range: 1.25 dB to 55 dB
Attenuation display resolution: 0.001 dB
Attenuation linearity: ±0.03 dB/dB
Attenuation threshold: 0.01 to 5.99 dB in 0.01 dB steps
Reflectance accuracy: ±2 dB
Reflectance display resolution: 0.01 dB
Reflectance threshold range: −11 to −99 dB in 1 dB steps

Viavi 4100-Series Quad OTDR Module Datasheet (official Viavi Solutions PDF): Download PDF

Viavi T-BERD/MTS-2000 Handheld Modular Test Set Datasheet (official Viavi Solutions PDF): Download PDF

JDSU 4146 Quad OTDR Module Specification Sheet (third-party hosted PDF): Download PDF

JDSU T-BERD 2000 with 4146 Quad OTDR Specification Sheet (third-party hosted PDF): Download PDF

Viavi T-BERD/MTS-2000 V2 User Manual (official Viavi Solutions PDF): Download PDF

Viavi T-BERD/MTS-2000 and 4100-Series OTDR Modules Datasheet (TRS Rentelco hosted PDF): Download PDF
