Condition: Seller refurbished

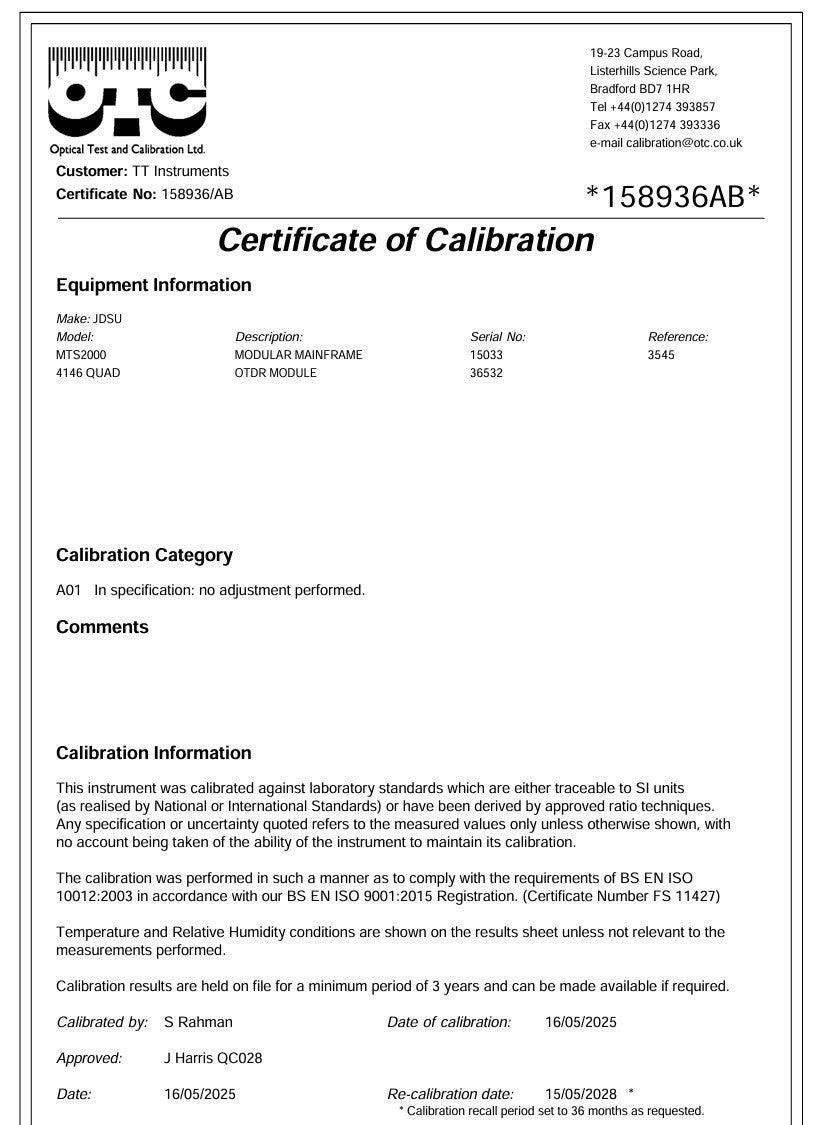

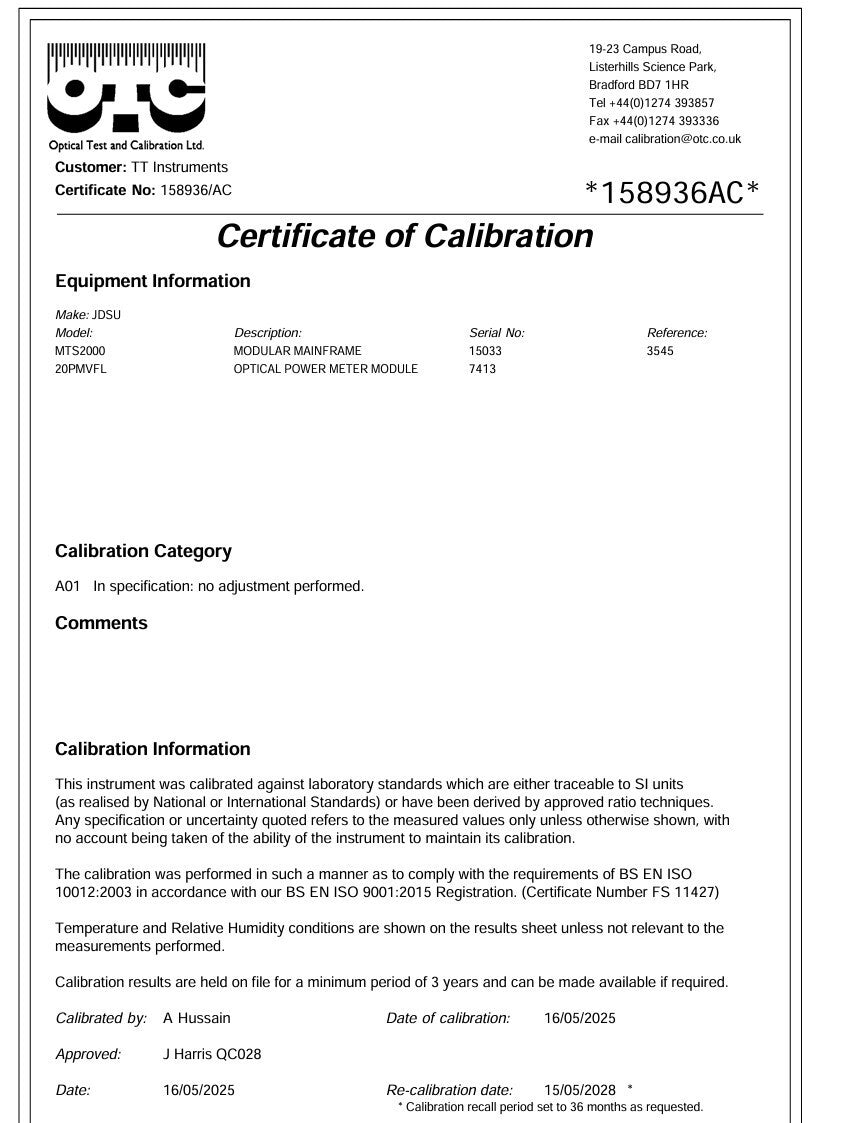

Calibrated May 2025, all parameters passed, no adjustments needed.

Included in the sale:

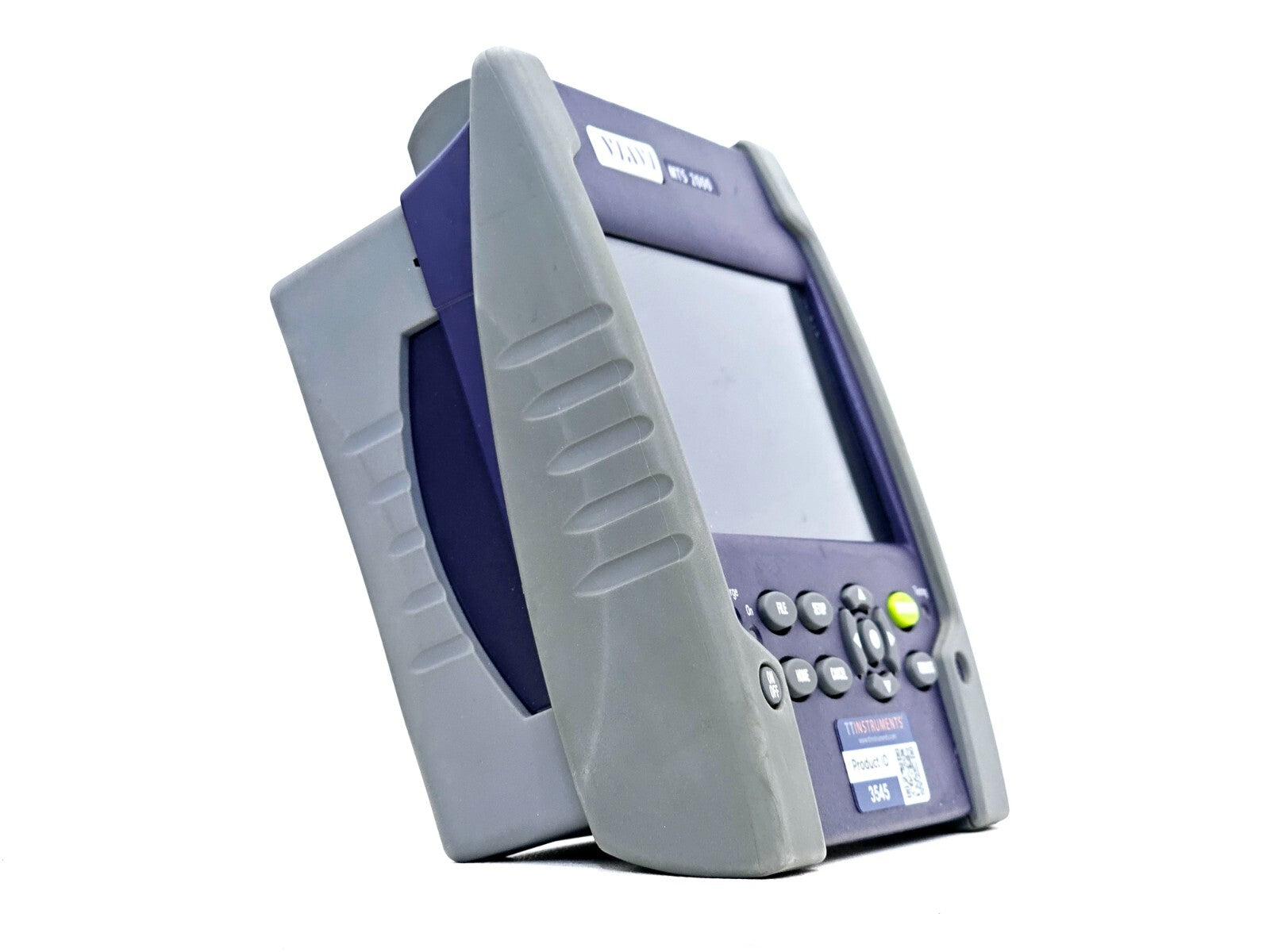

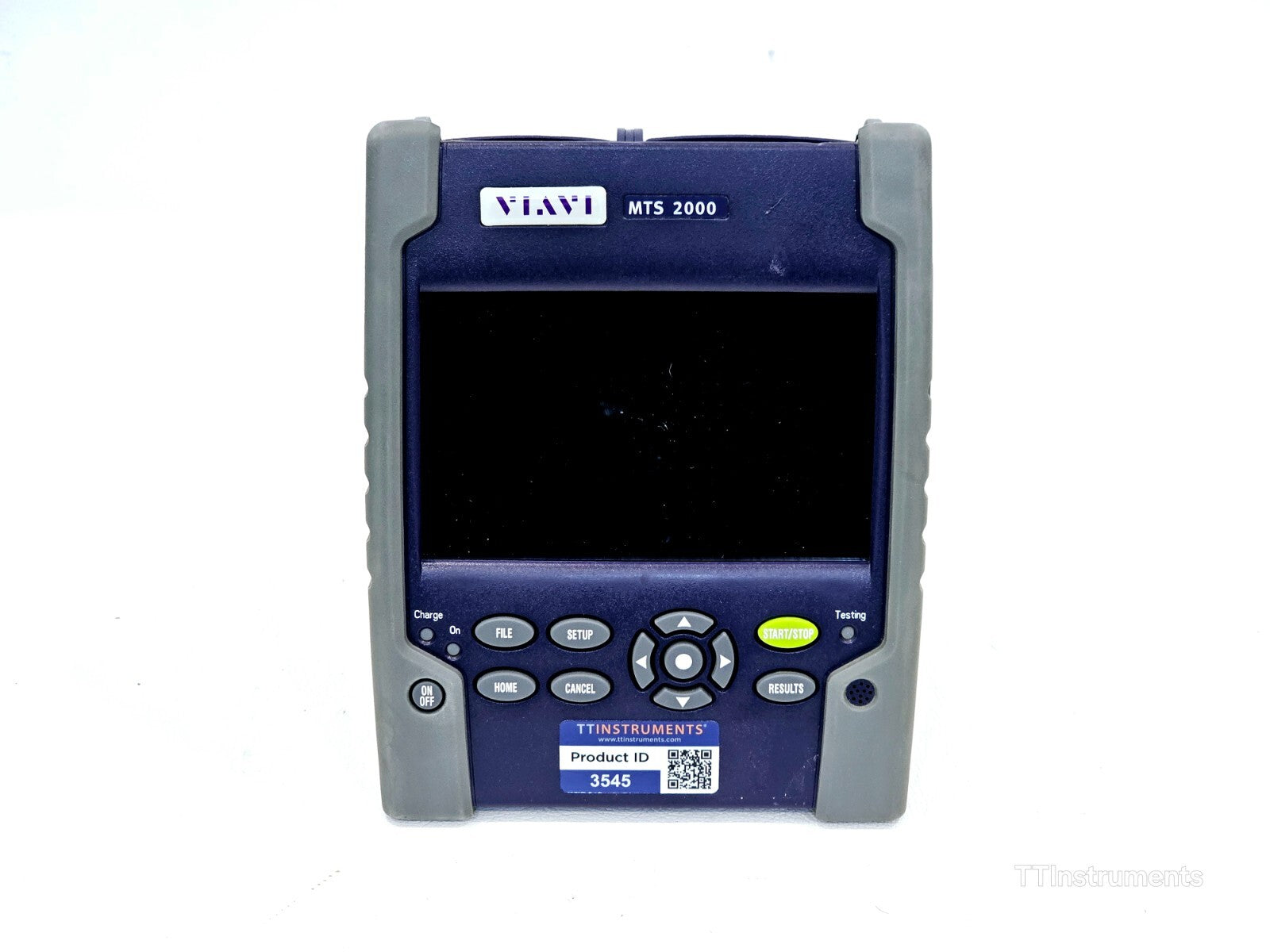

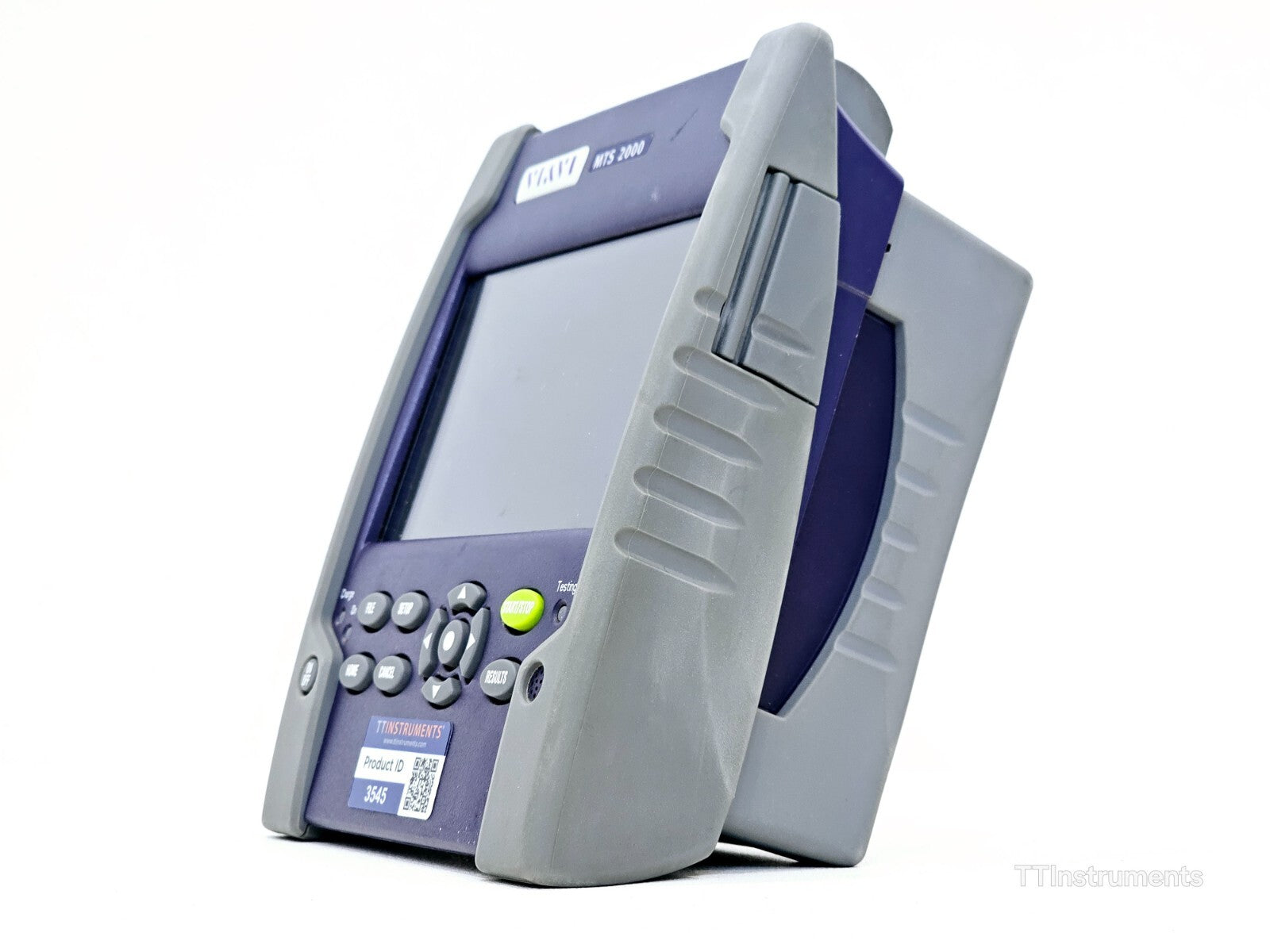

·        Viavi JDSU MTS 2000 mainframe

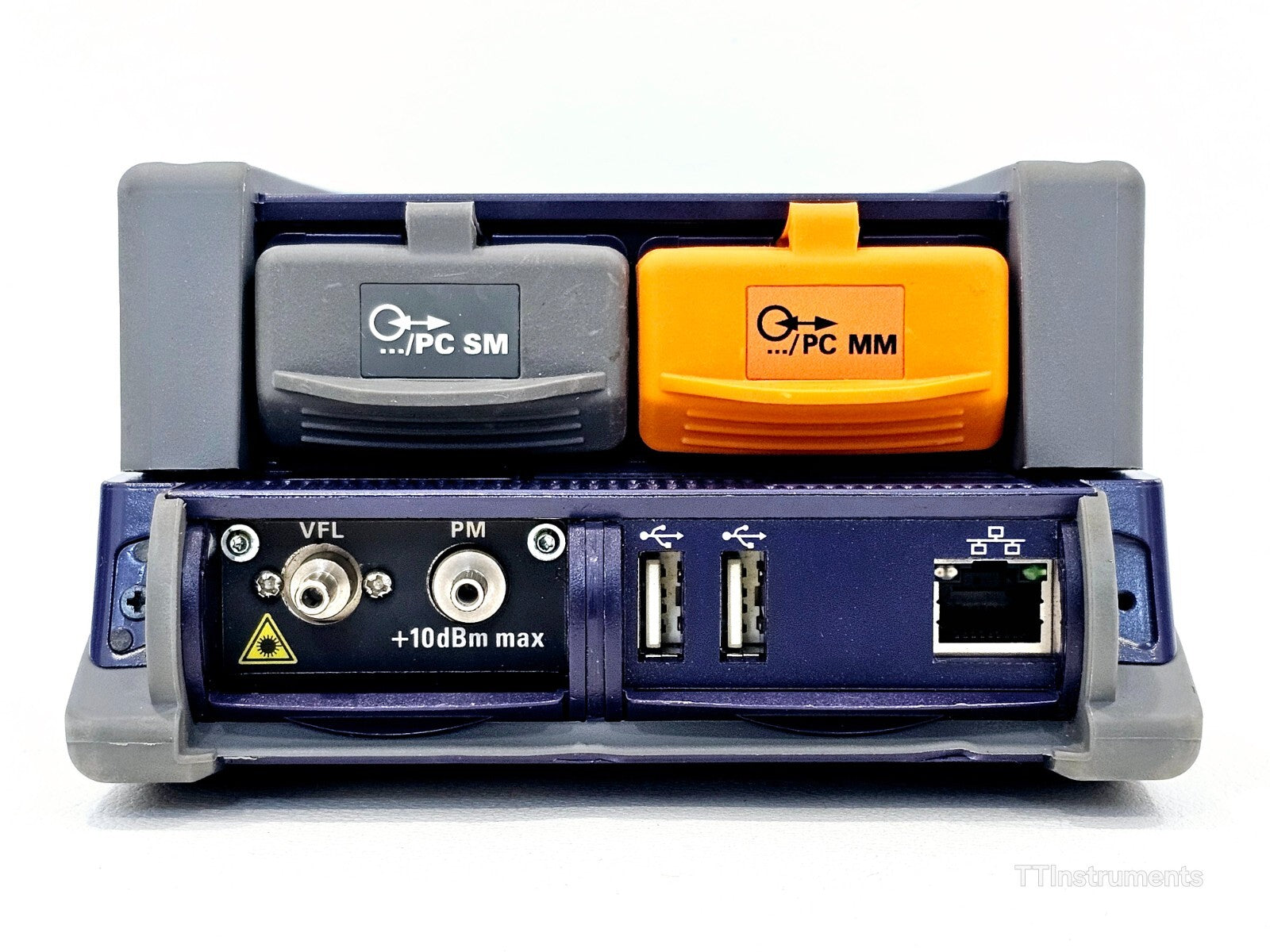

o   Built-in power meter and visual fault locator

o   Touchscreen

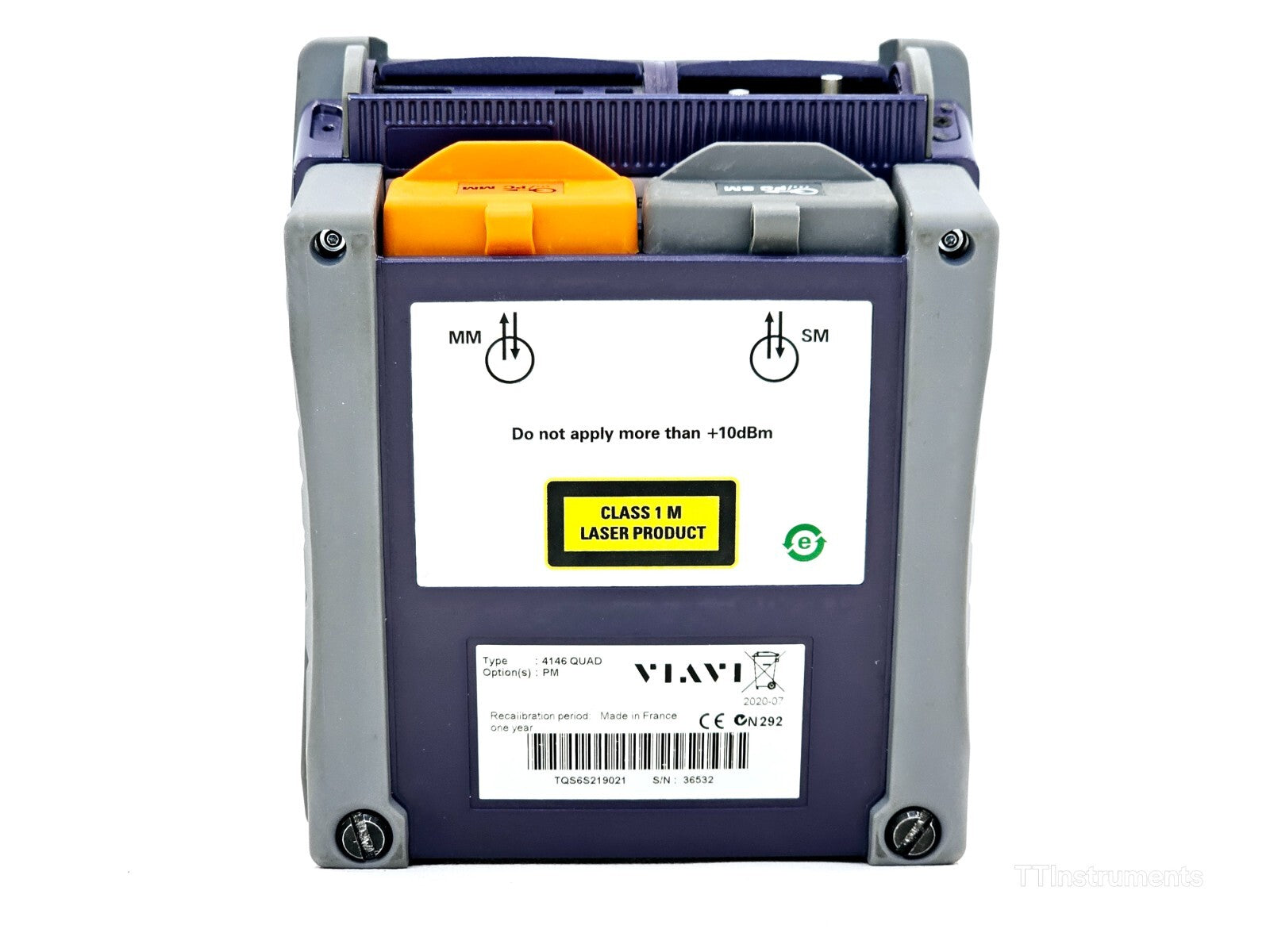

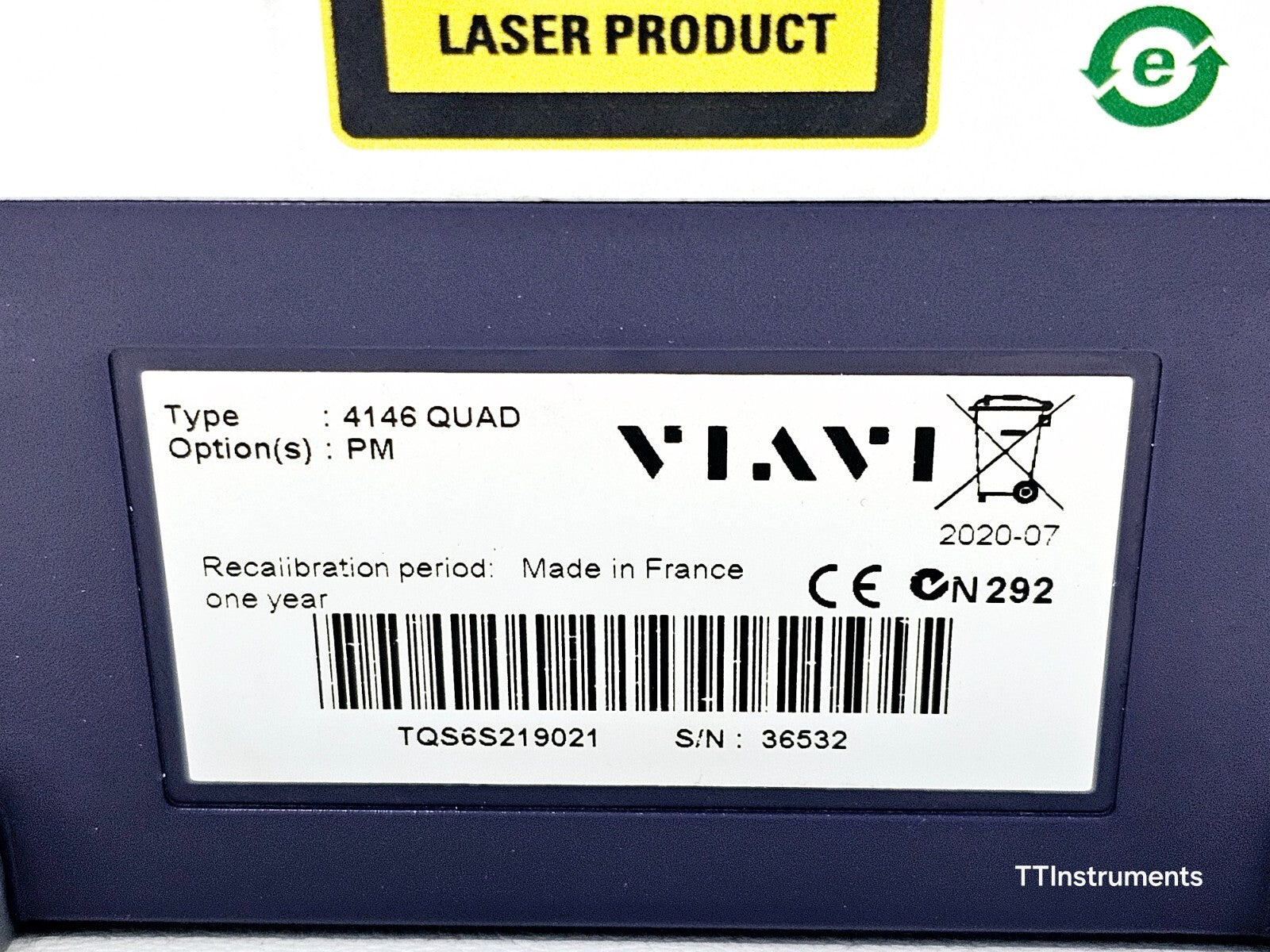

·        Viavi 4146 Single-mode and multi-mode OTDR Module

o   Source: 1310 / 1550 nm : 37 / 35 dB 850 / 1300 nm : 26 / 24 dB

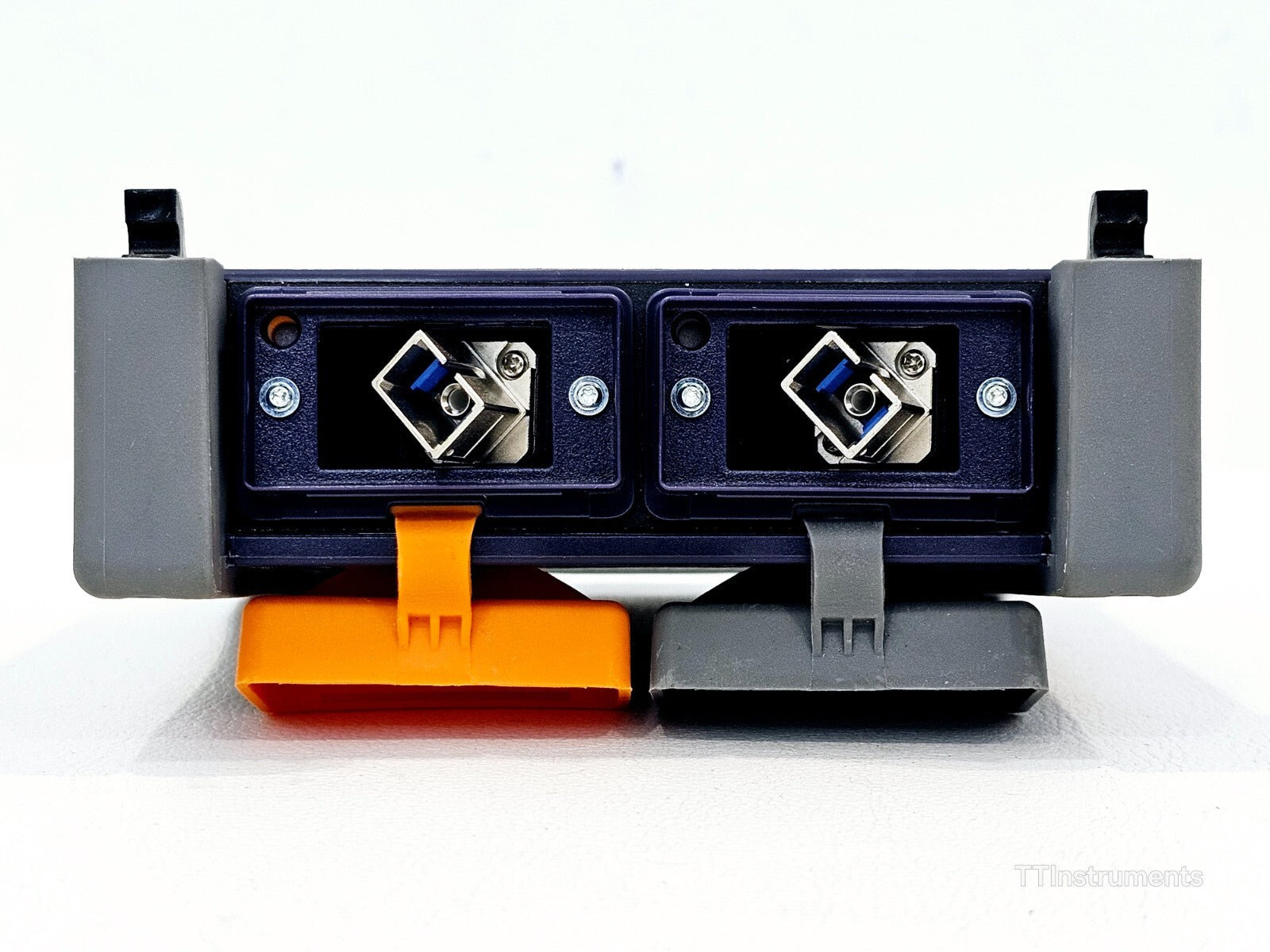

o   Connector: SC-PC

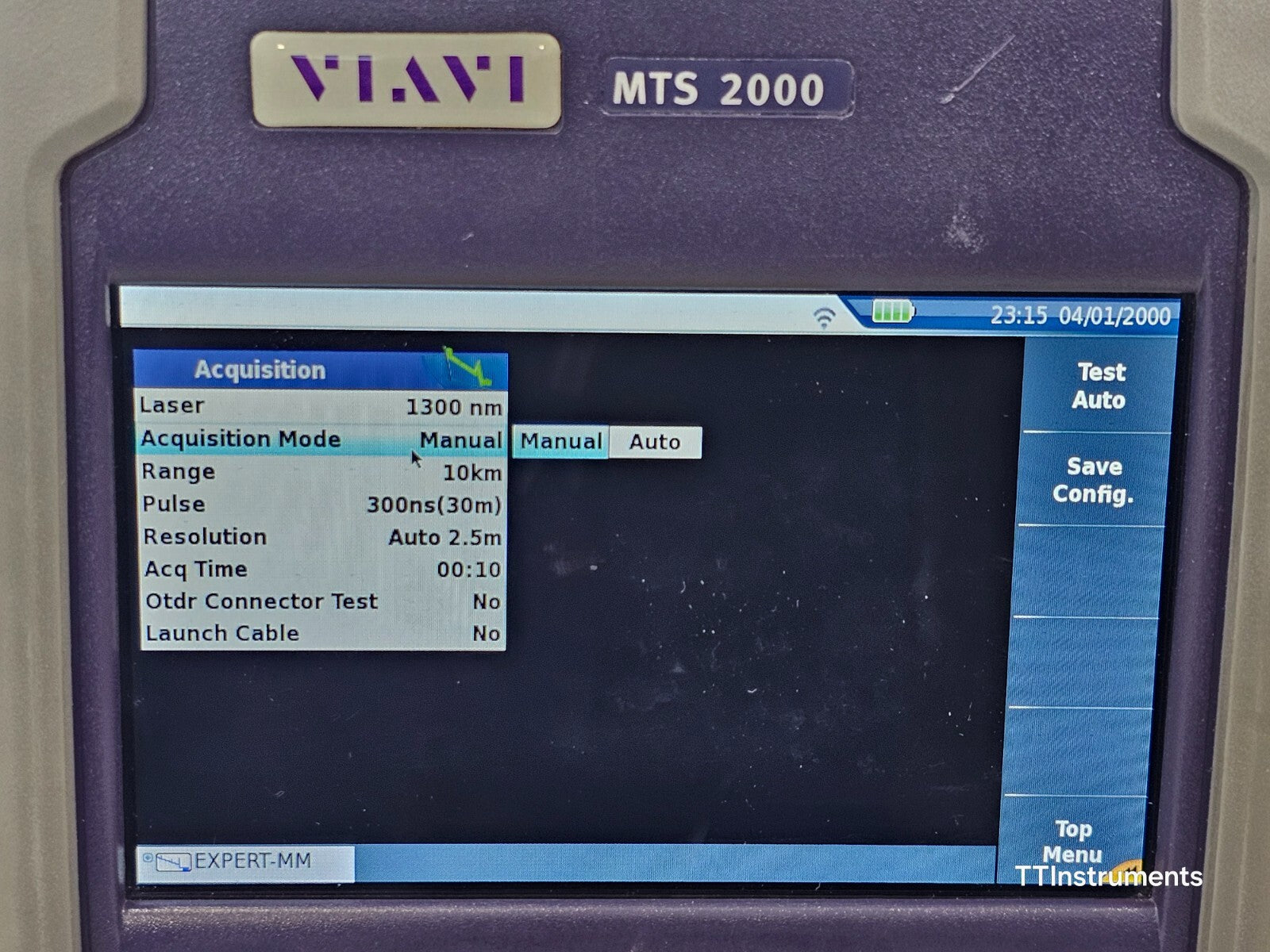

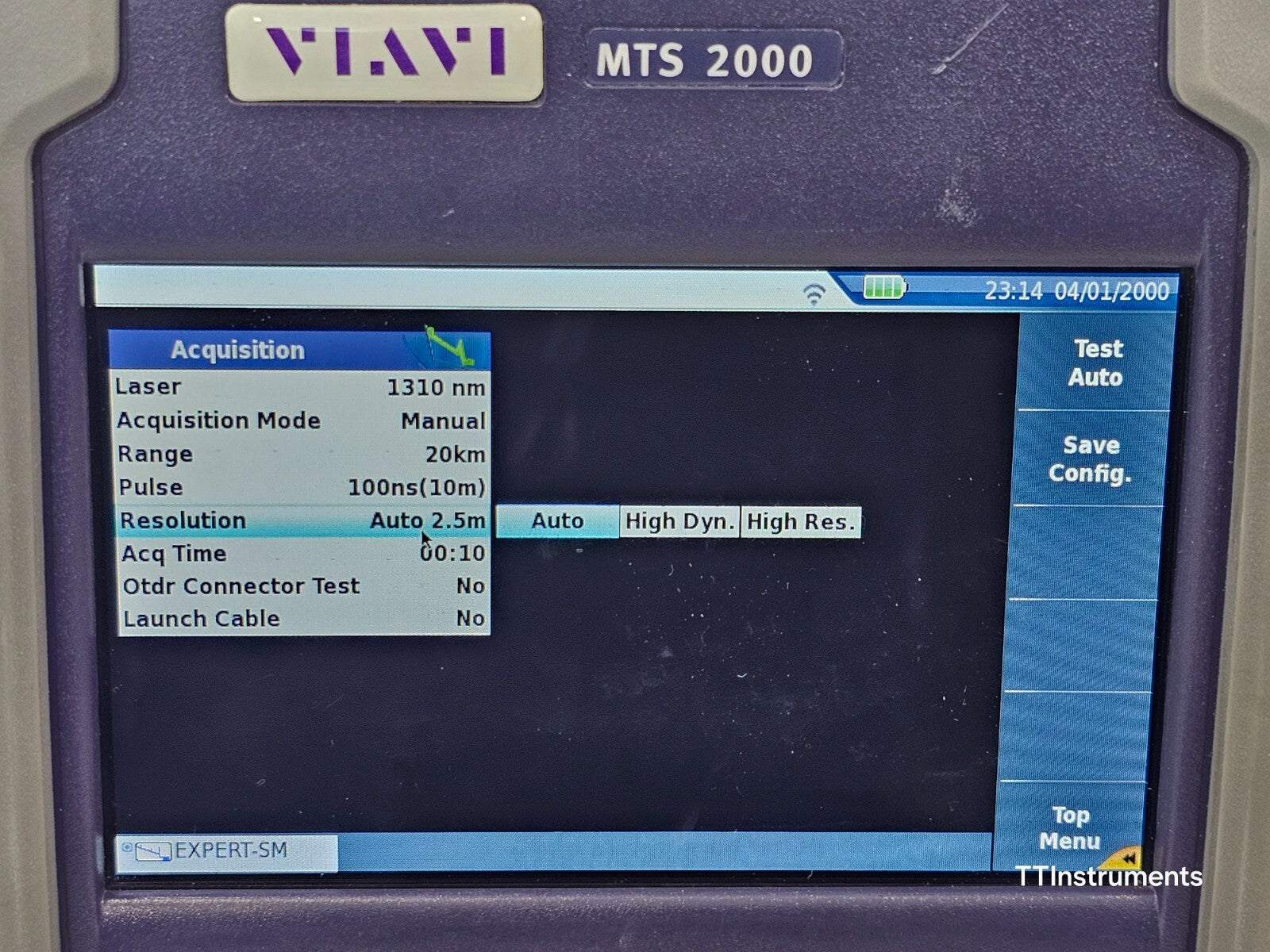

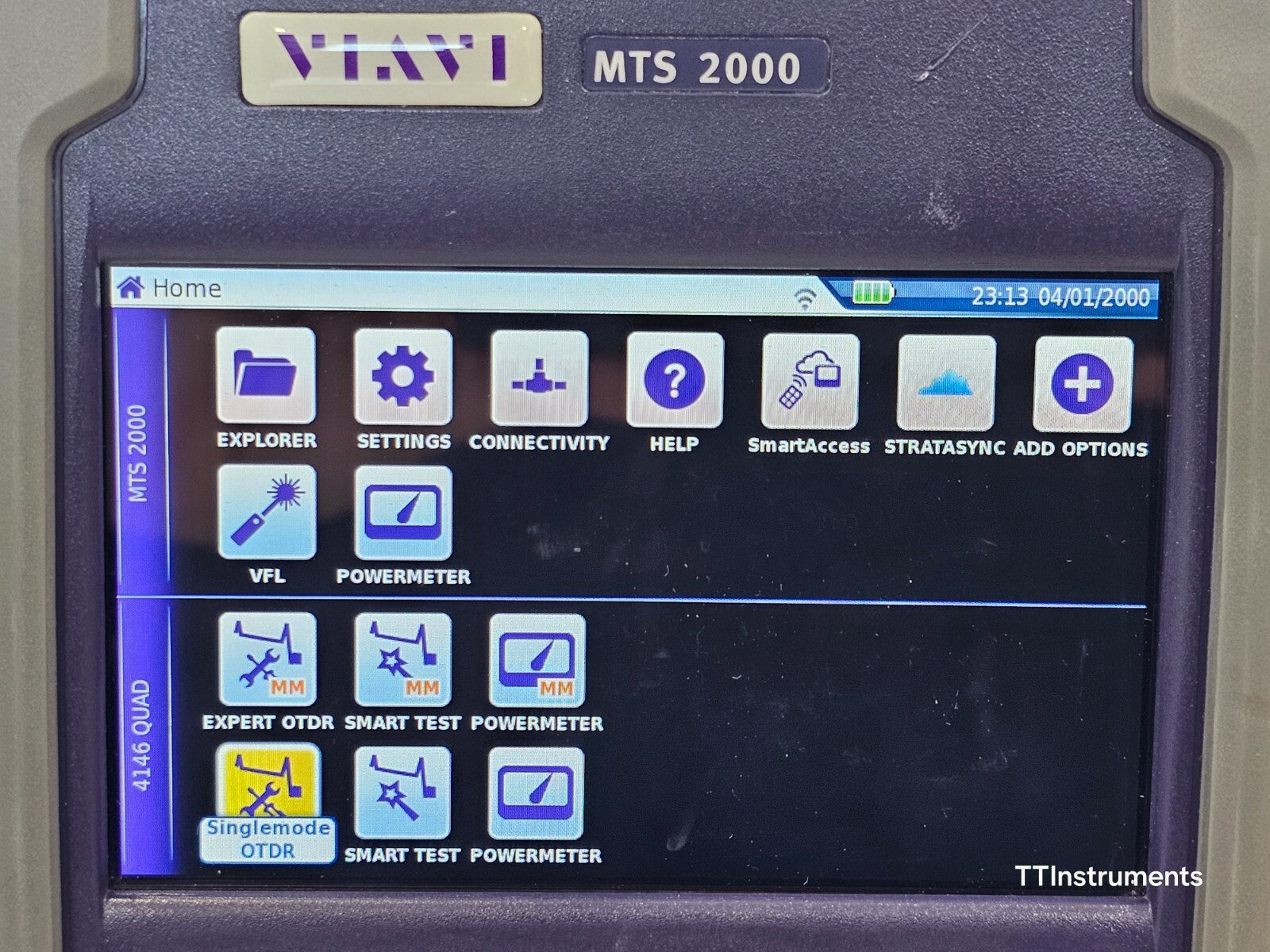

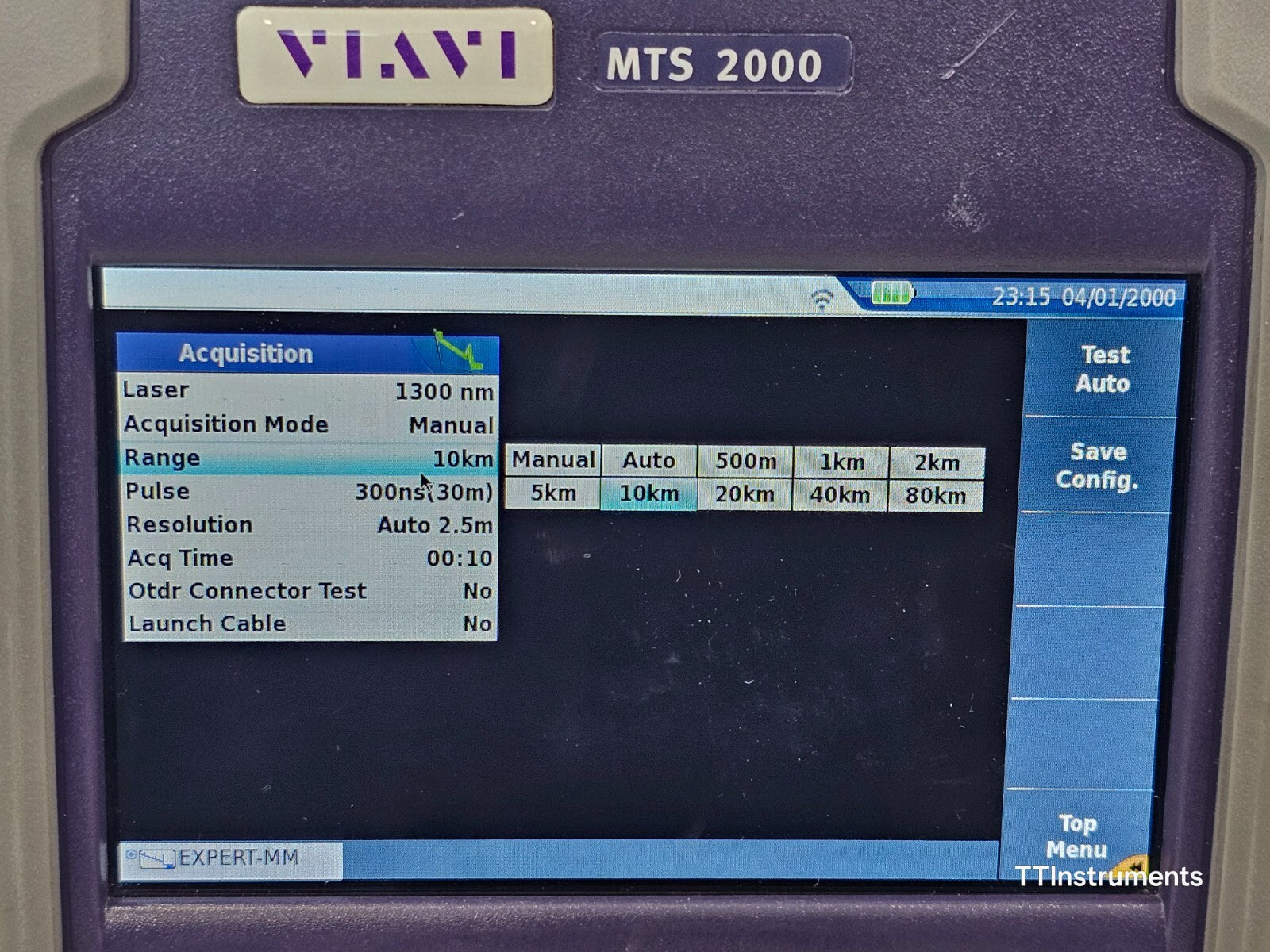

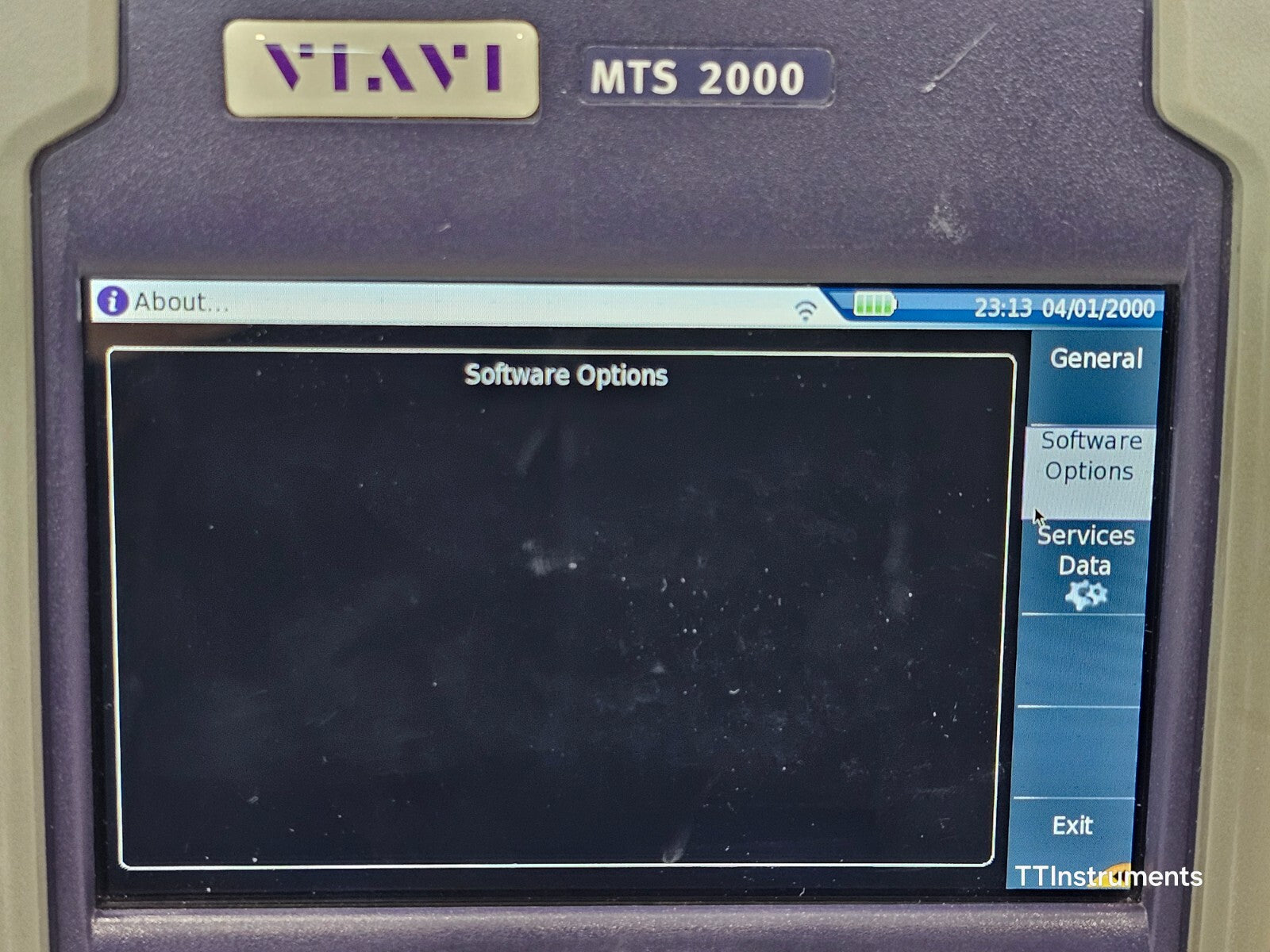

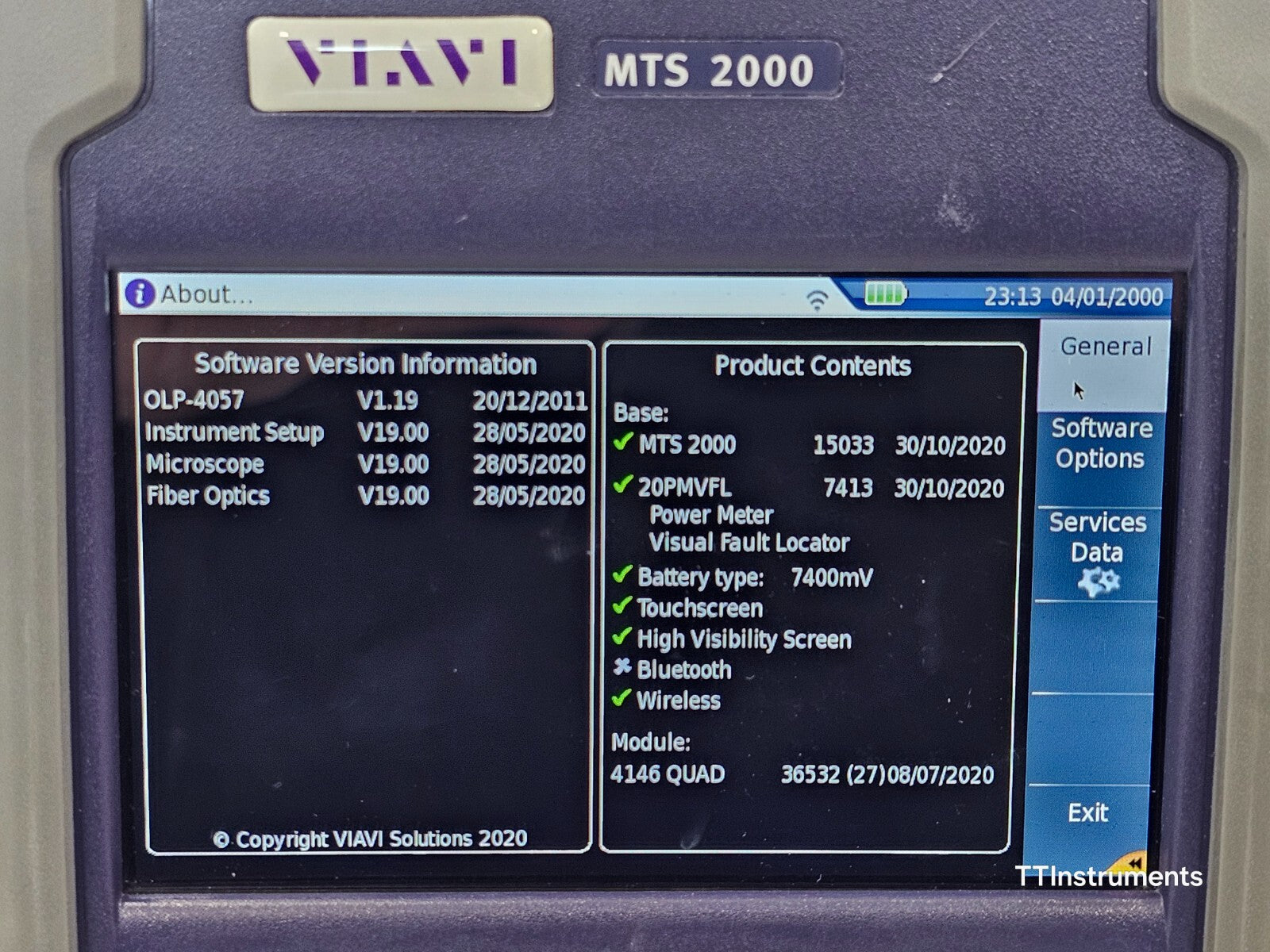

o   Software Options: Refer to images

·        AC power adapter

·        Protective case and carry case

·        Stylus

JDSU 4146 Quad OTDR Module

The JDSU 4146 Quad OTDR Module from Viavi Solutions is a powerful and versatile optical test tool ideal for fiber installers, contractors, wireless providers, and enterprise network technicians. With both single-mode and multimode capabilities, it’s perfect for use in premises, metro, access, and wireless fronthaul/backhaul environments.

Key Features

• Supports quad wavelengths: 850, 1300, 1310, and 1550 nm

• High dynamic range: up to 37 dB (single-mode), 26 dB (multimode)

• Integrated CW light source and optical power meter

• Rapid acquisition with sharp resolution and 0.8 m event dead zone

• TIA/IEC pass/fail thresholds and propagation delay measurement

• Optimized for 10 Mb to 40 Gb Ethernet testing

• IEC 61280-4-1-compliant (requires external modal controller)

• Certifies Tier 2 premises networks

• Compatible with SLM, FTTA-SLM, and FTTH-SLM software applications

Technical Specifications

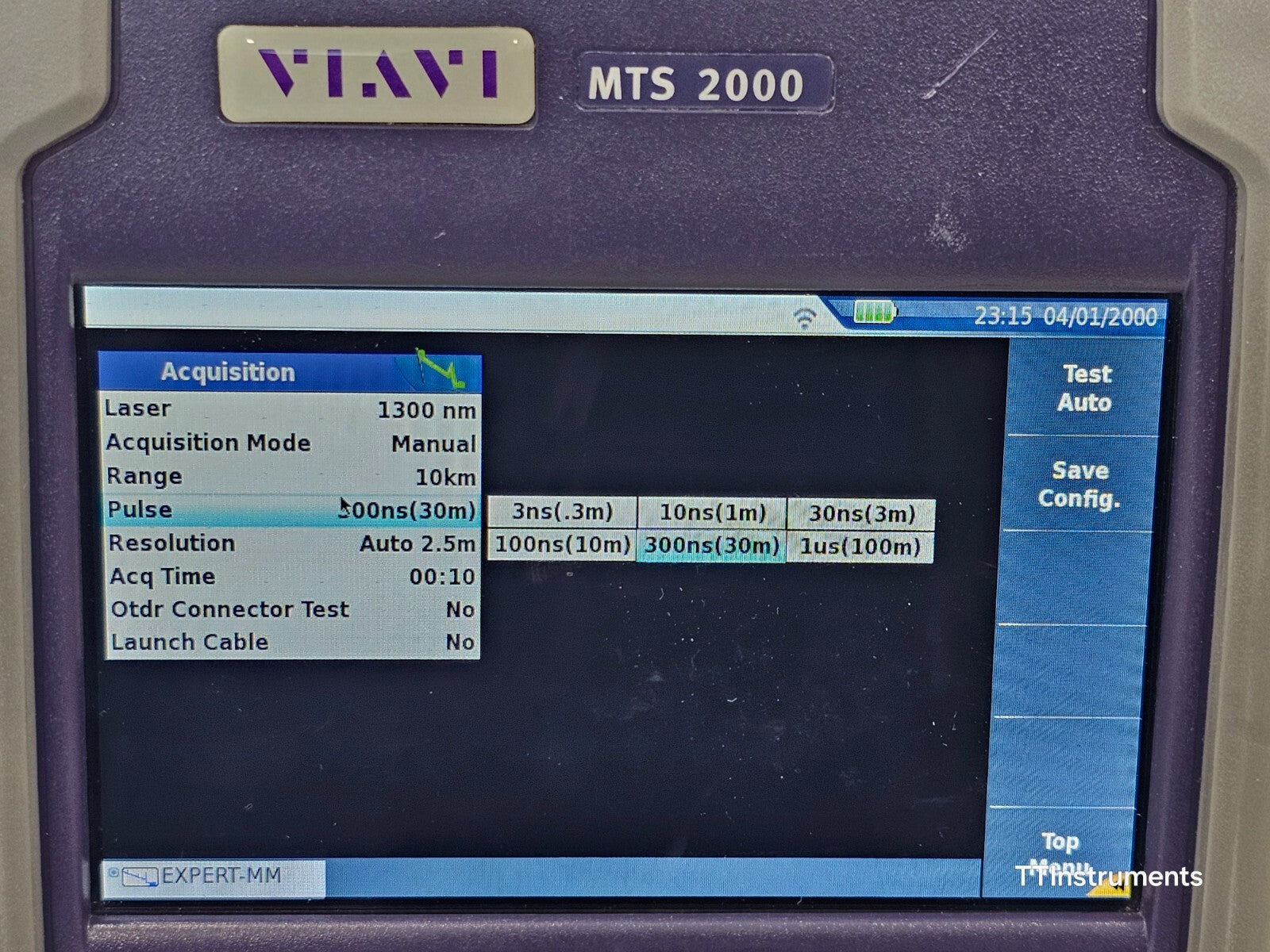

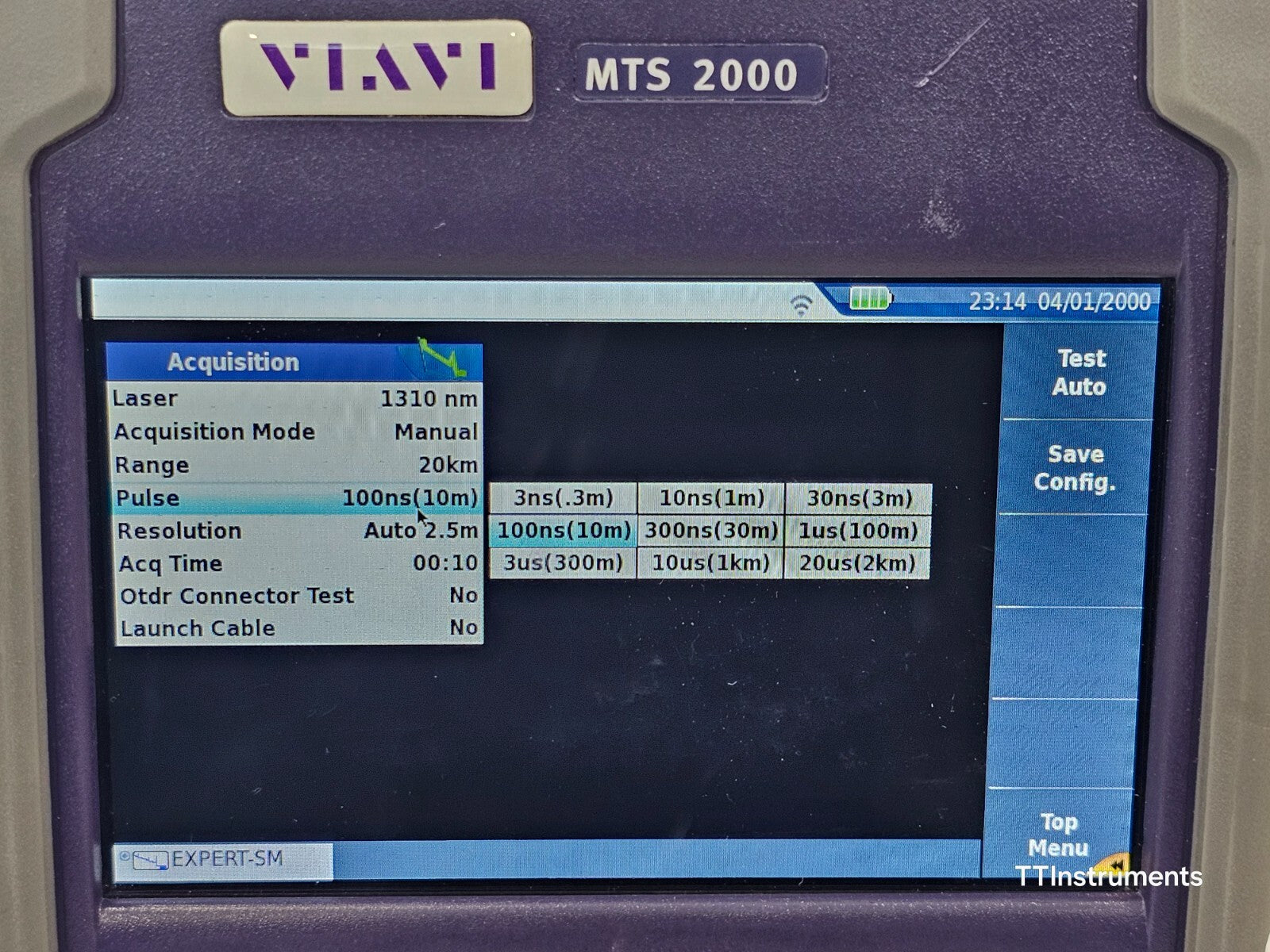

• Pulse width range: 3 ns to 20 µs

• RMS dynamic range: 26/24 dB (MM), 37/35 dB (SM)

• Event dead zone: 0.8–0.9 m

• Attenuation dead zone: 4 m

• Up to 128,000 data points

• Sampling resolution: 4 cm

• Measurement accuracy: ±1 m ± sampling resolution ±1×10⁻⁵ × distance

• Attenuation measurement: auto/manual, 2-pt, 5-pt, LSA

• Reflectance accuracy: ±2 dB

• Display and cursor resolution: 0.001 dB

• Reflectance threshold range: −11 to −99 dB

Device Specifications

• Weight: 0.4 kg (0.88 lb)

• Dimensions: 128 × 134 × 40 mm (5 × 5.28 × 1.58 in)

• Interchangeable optical connectors: FC, SC, DIN, LC, ST

• Distance units: kilometers, feet, miles

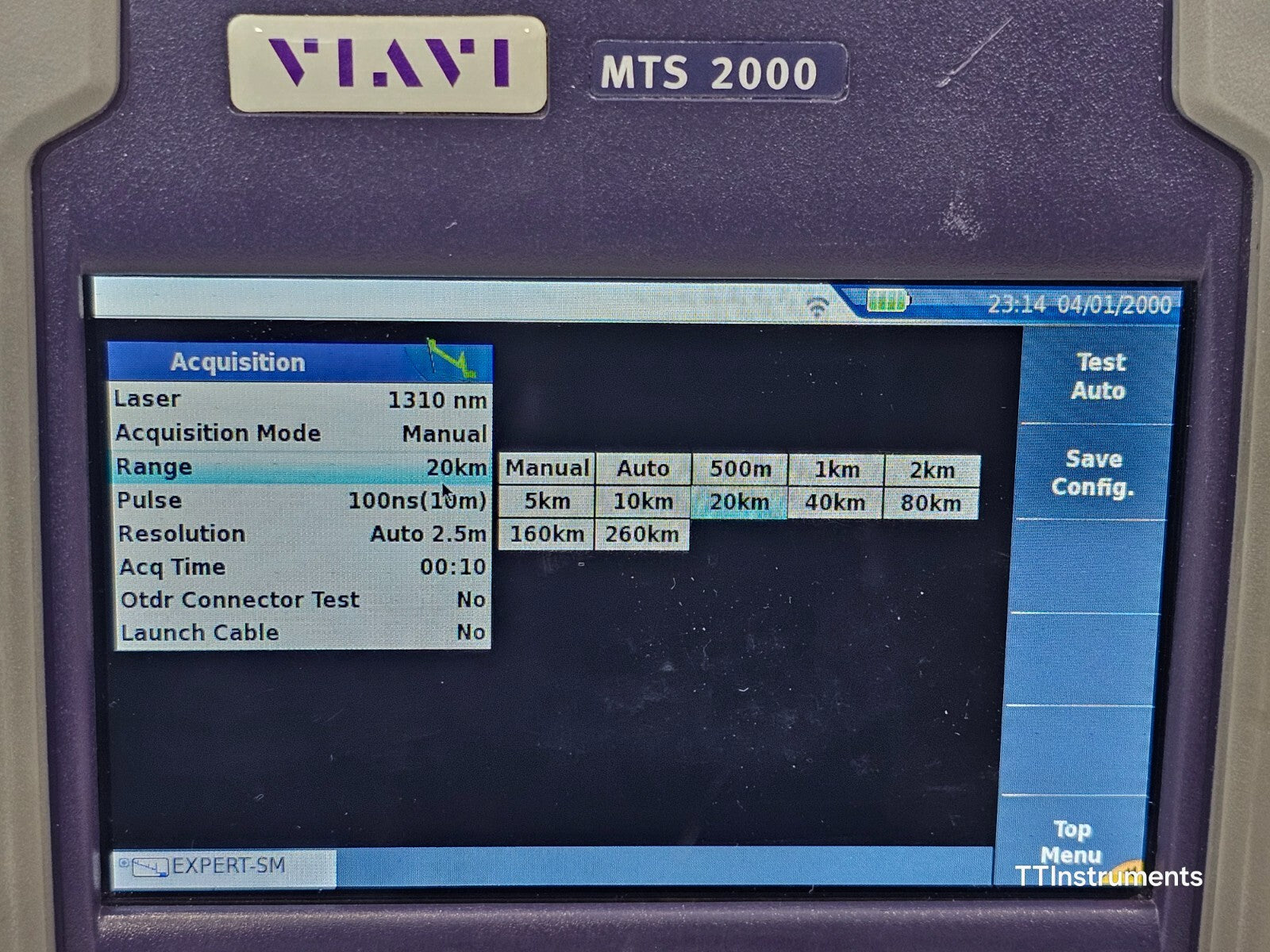

• Display range: 0.5 m to 260 km
