The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

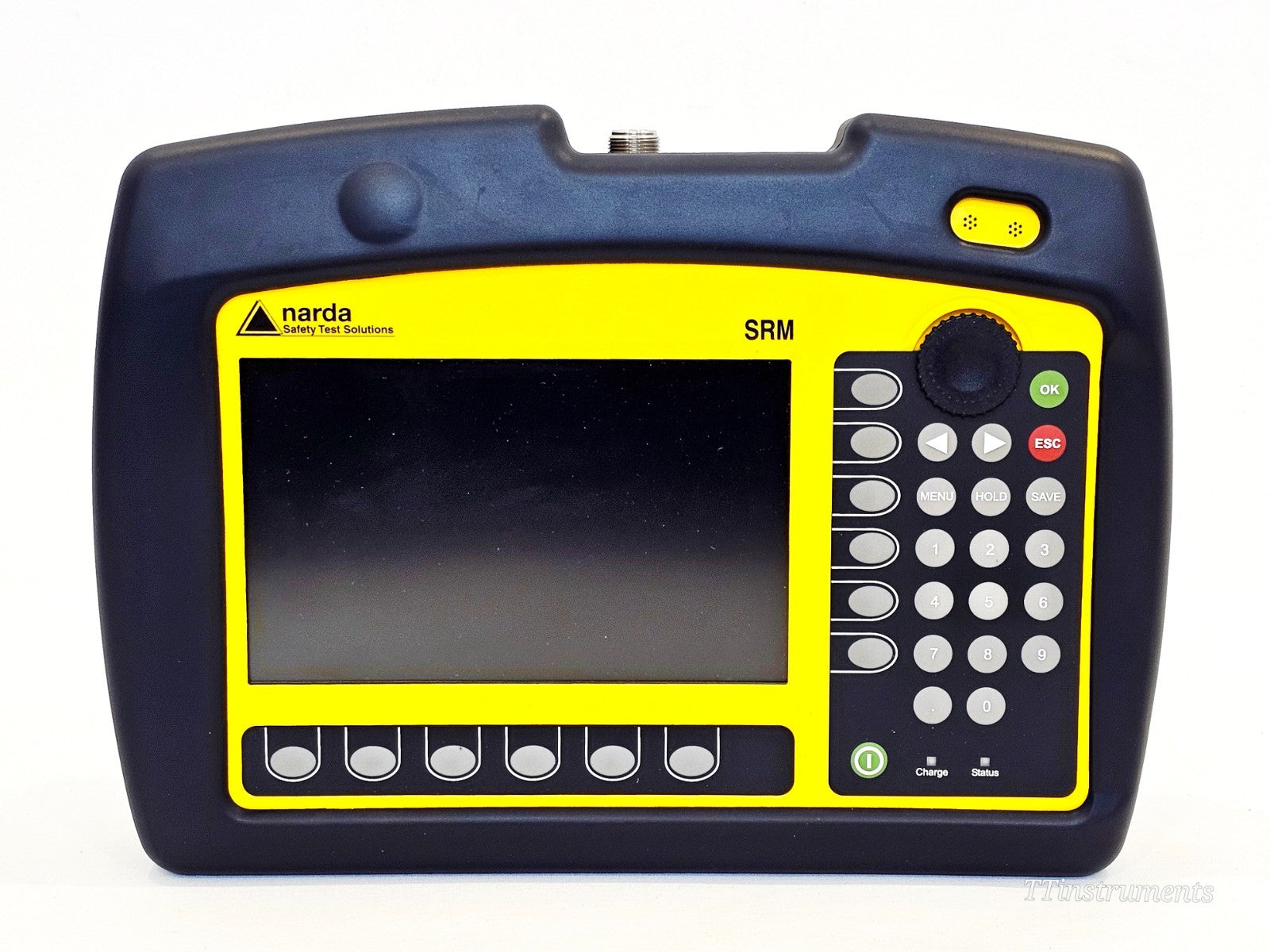

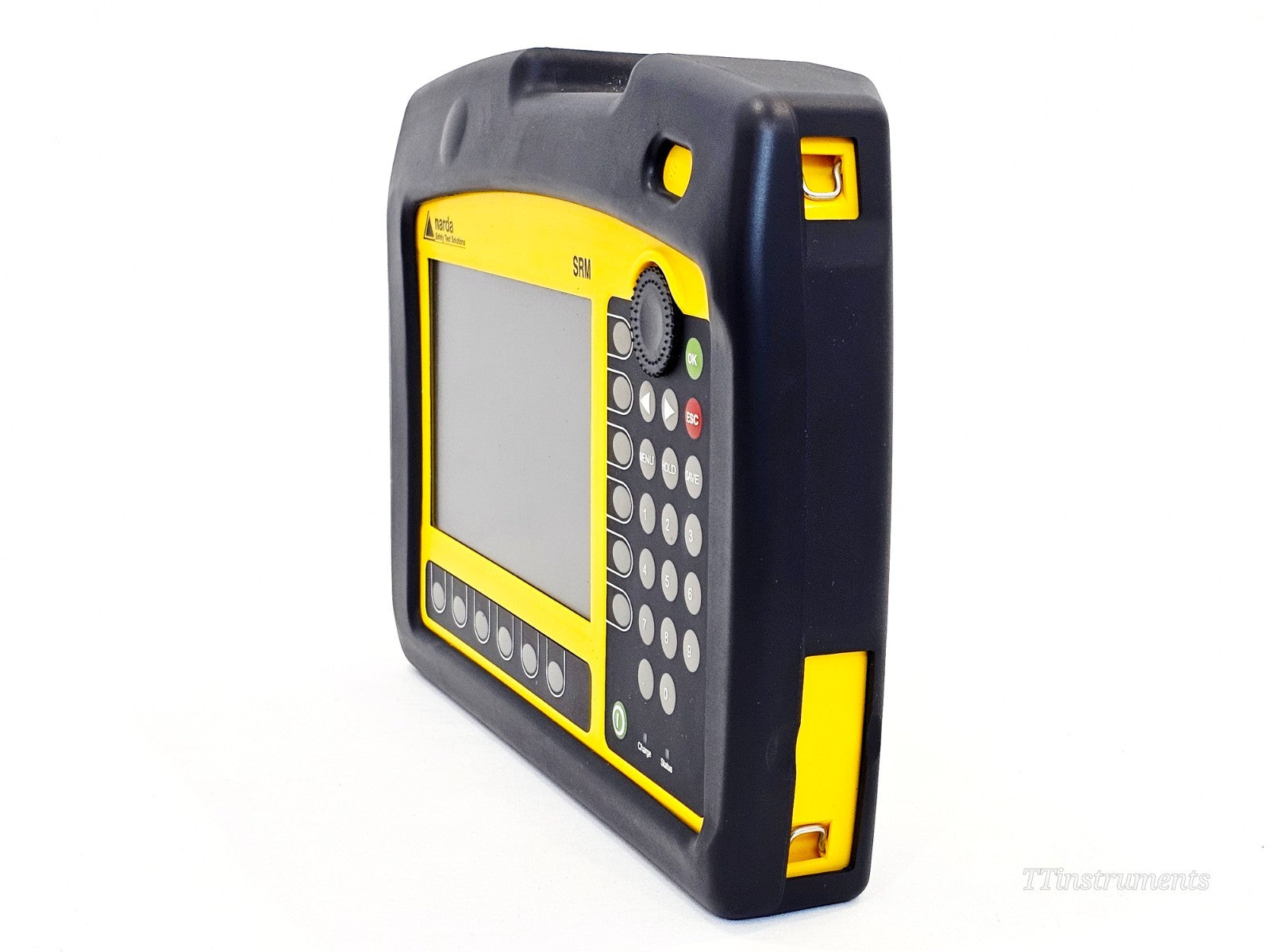

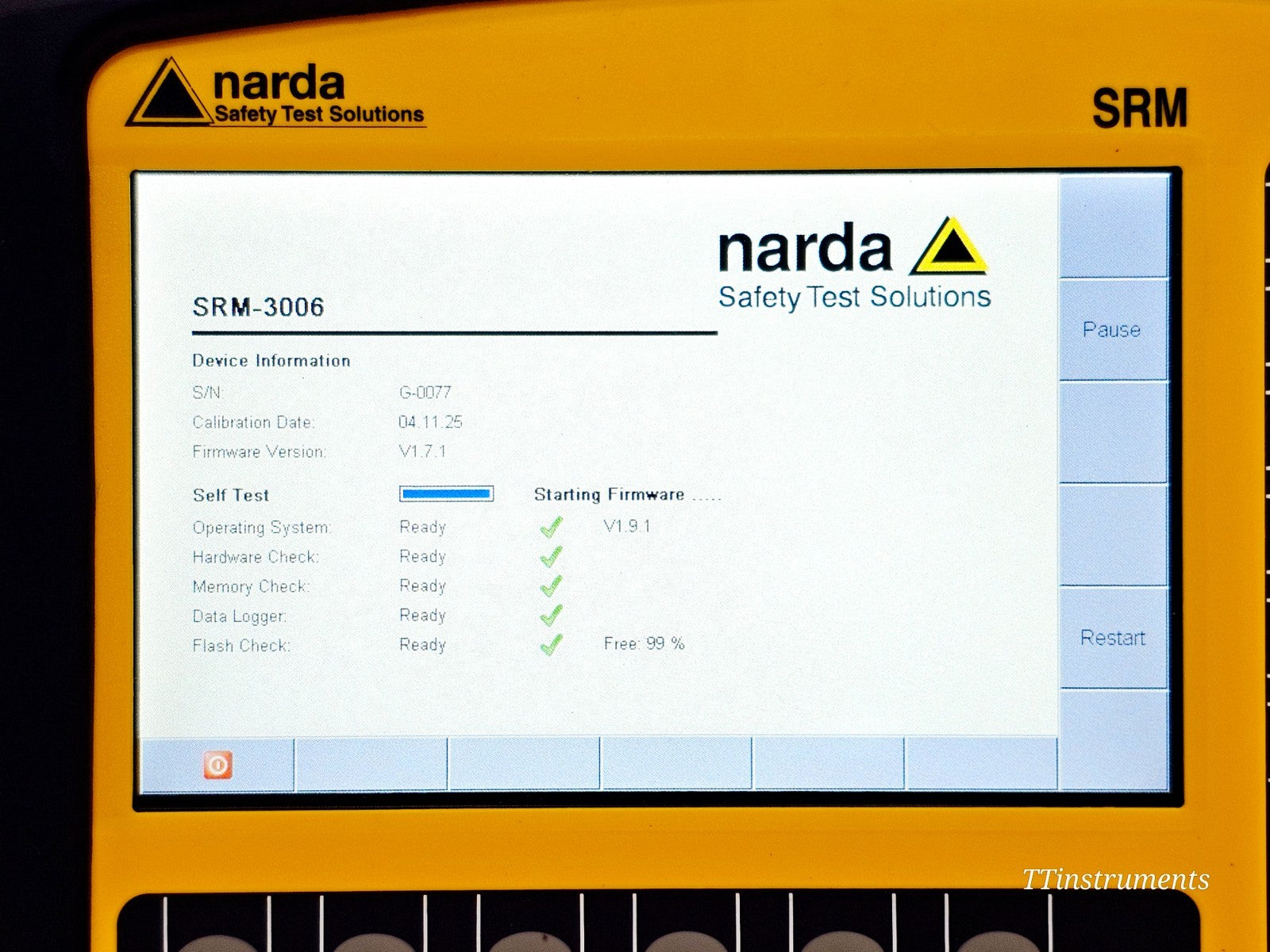

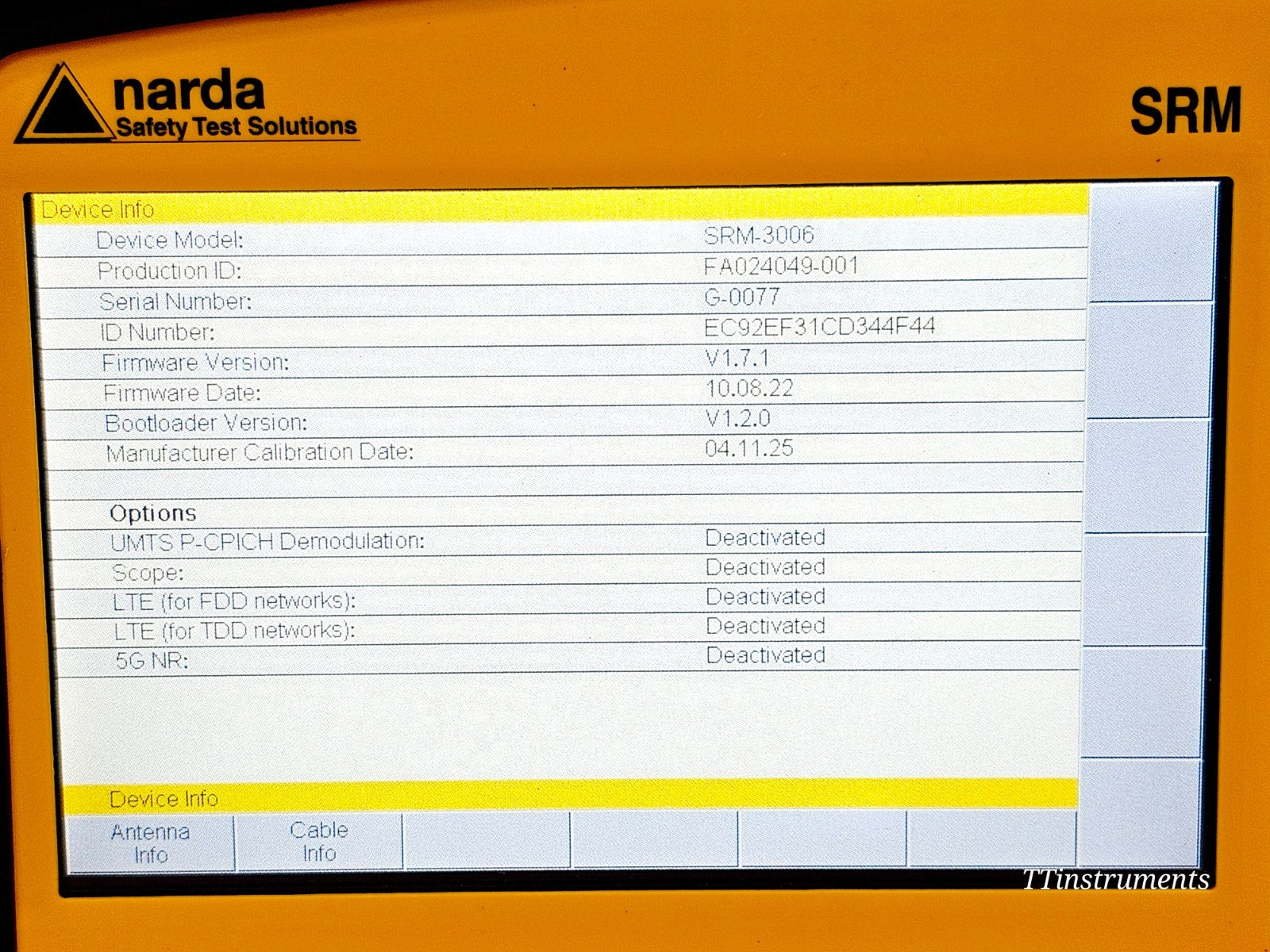

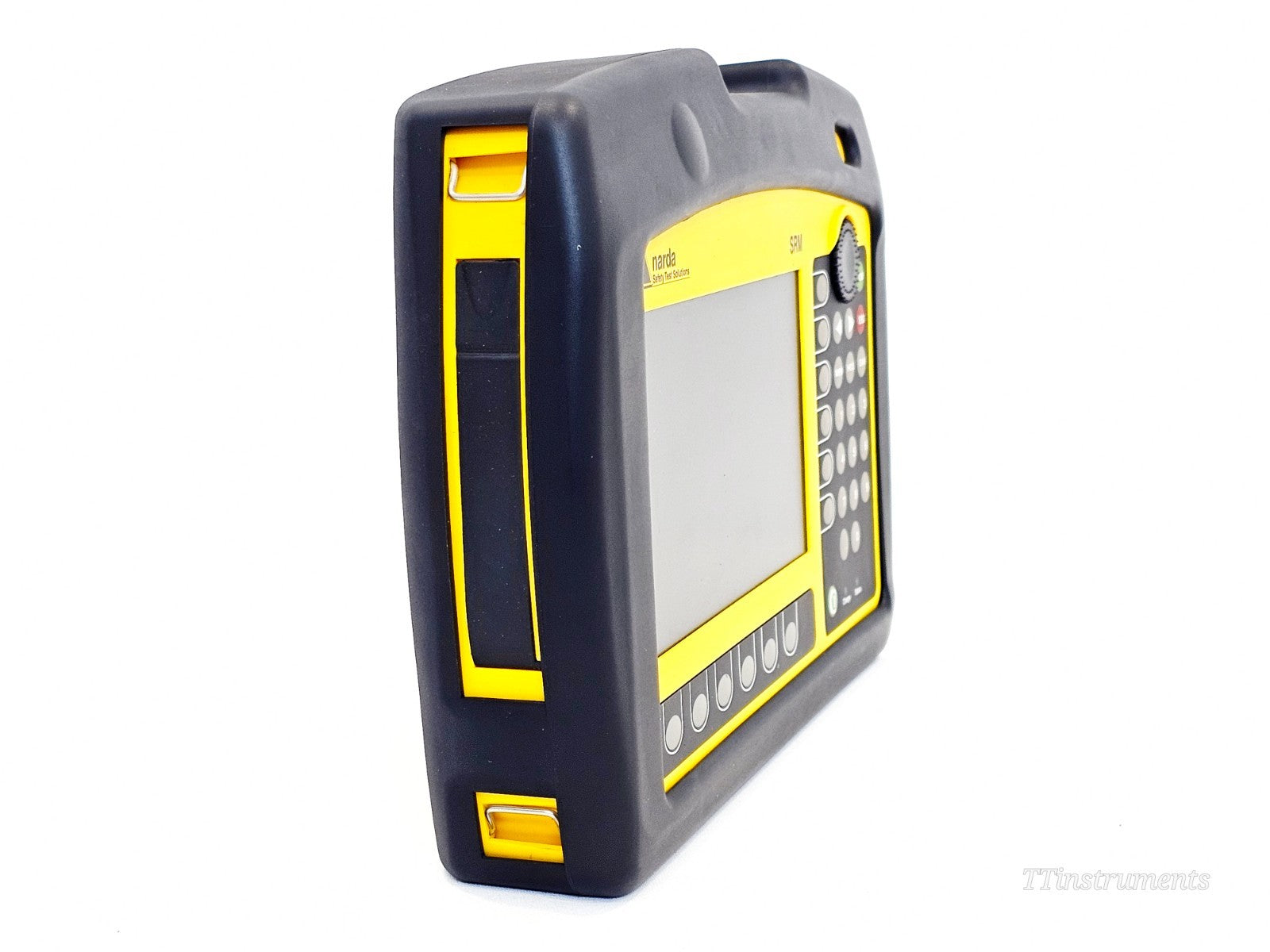

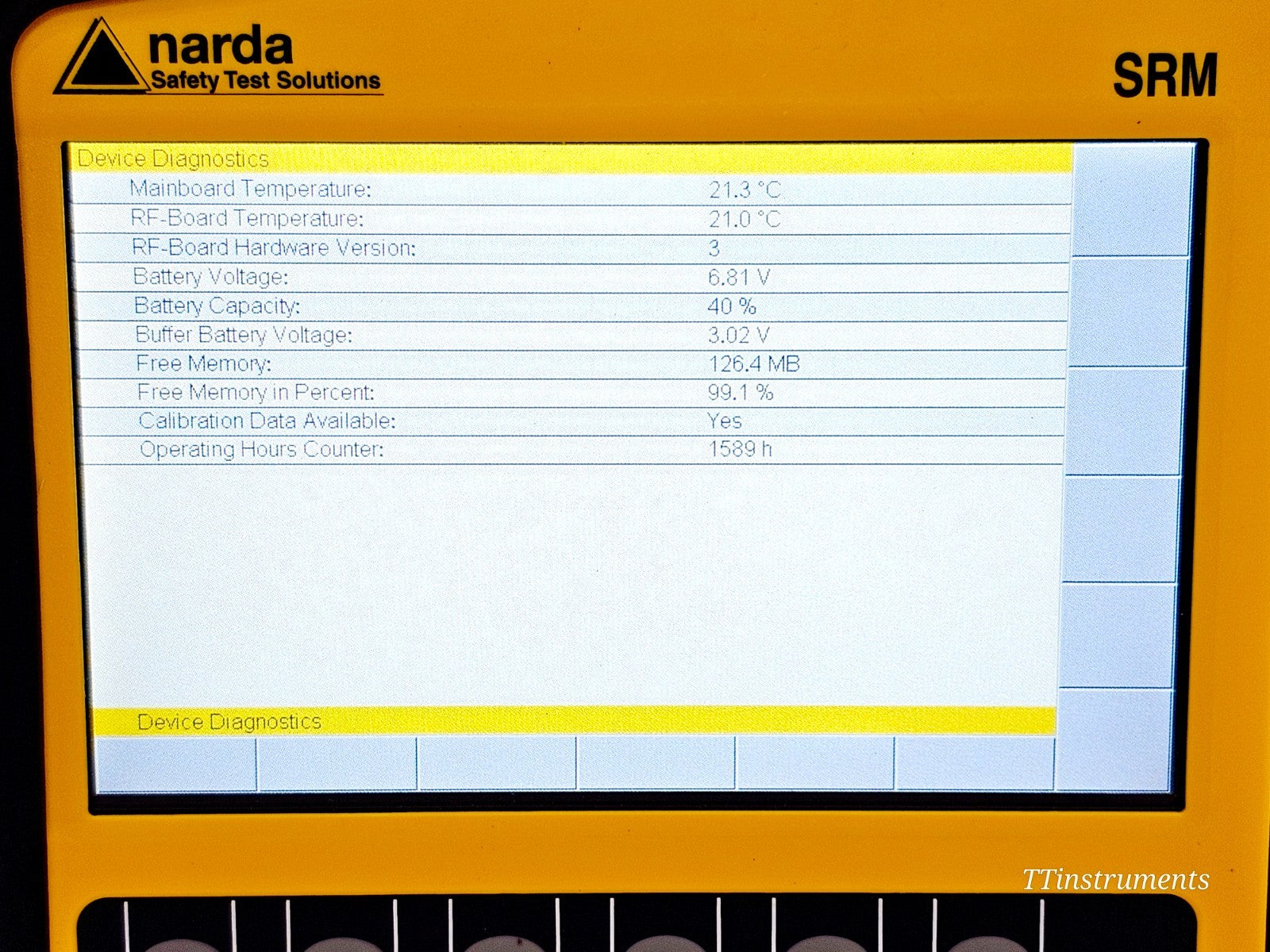

This Narda SRM-3006 Selective Radiation Meter is in used, cosmetically very good condition. It was calibrated by Narda in November 2025 and has not been used since. The unit has been fully tested and confirmed working, with all on-board self-test diagnostics passing (Operating System, Hardware Check, Memory Check, Data Logger, and Flash Check all report Ready).

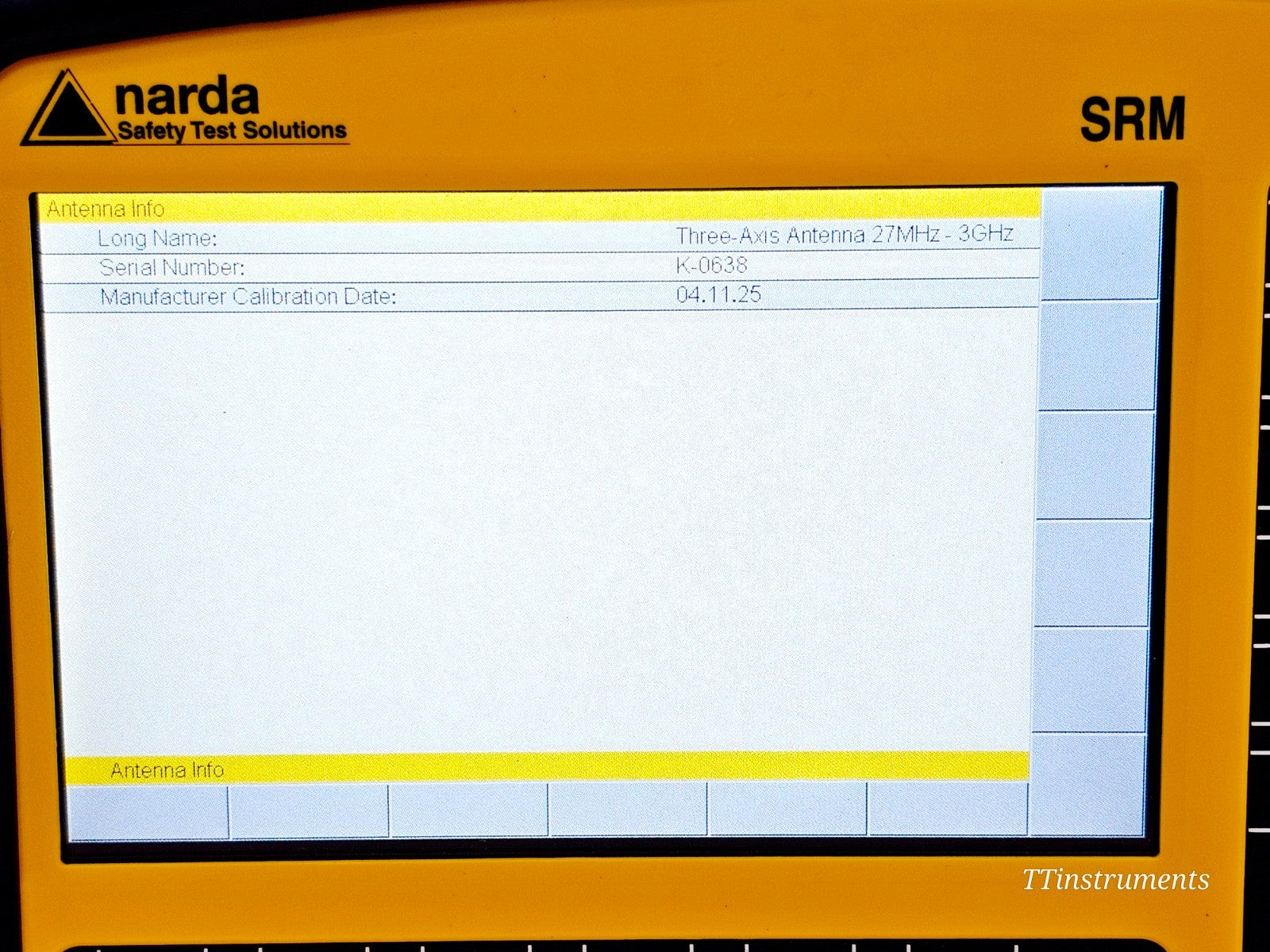

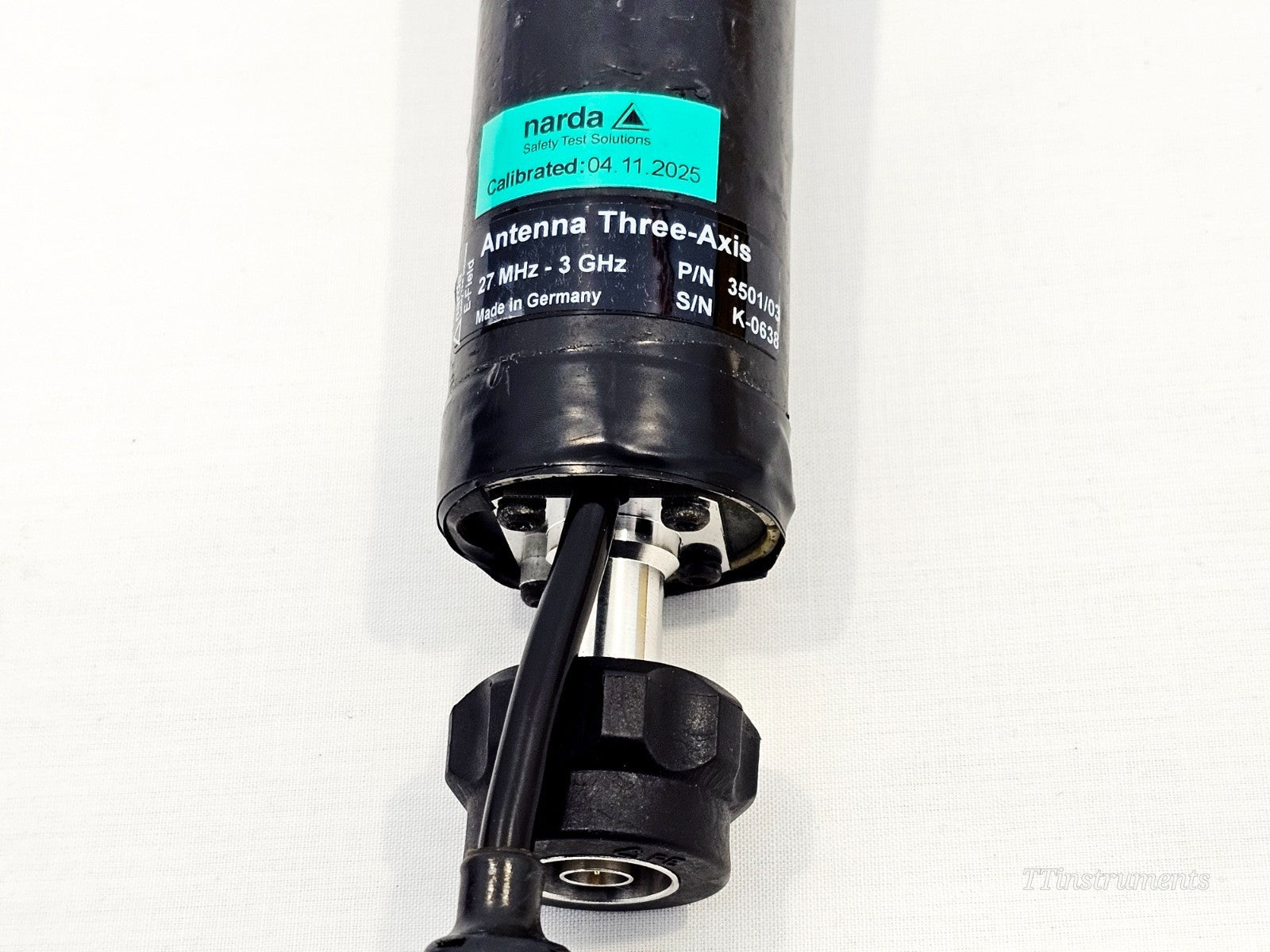

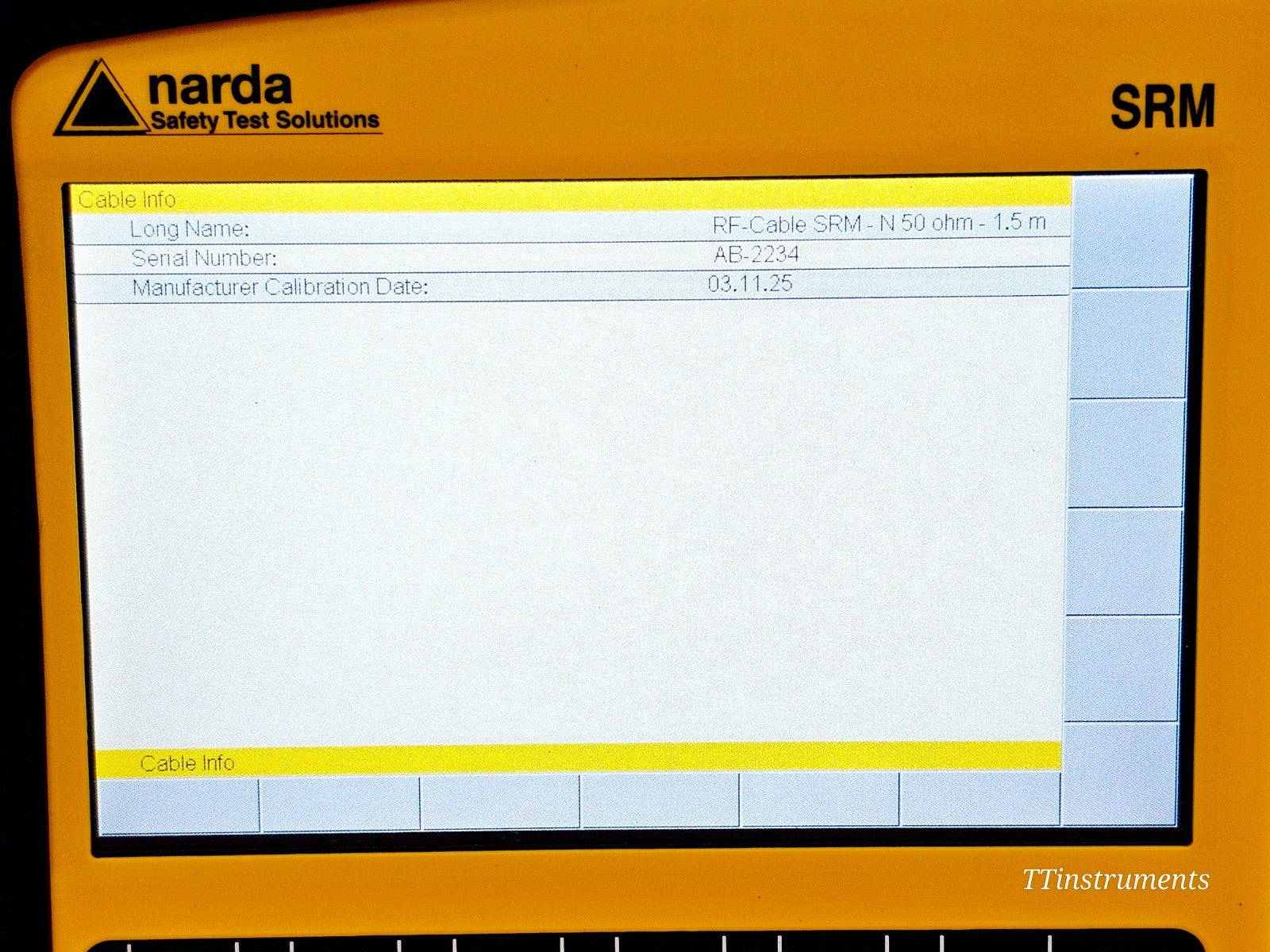

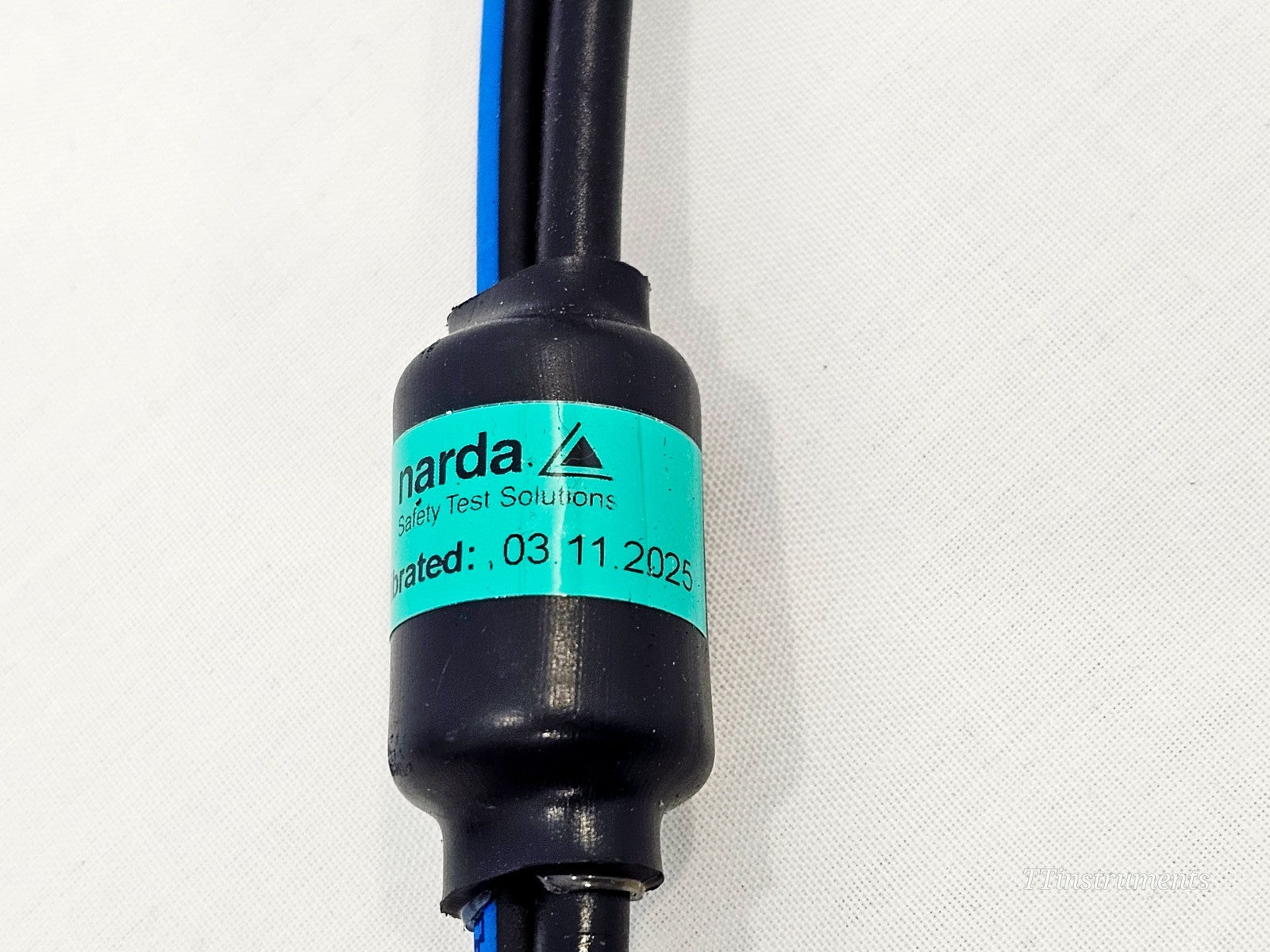

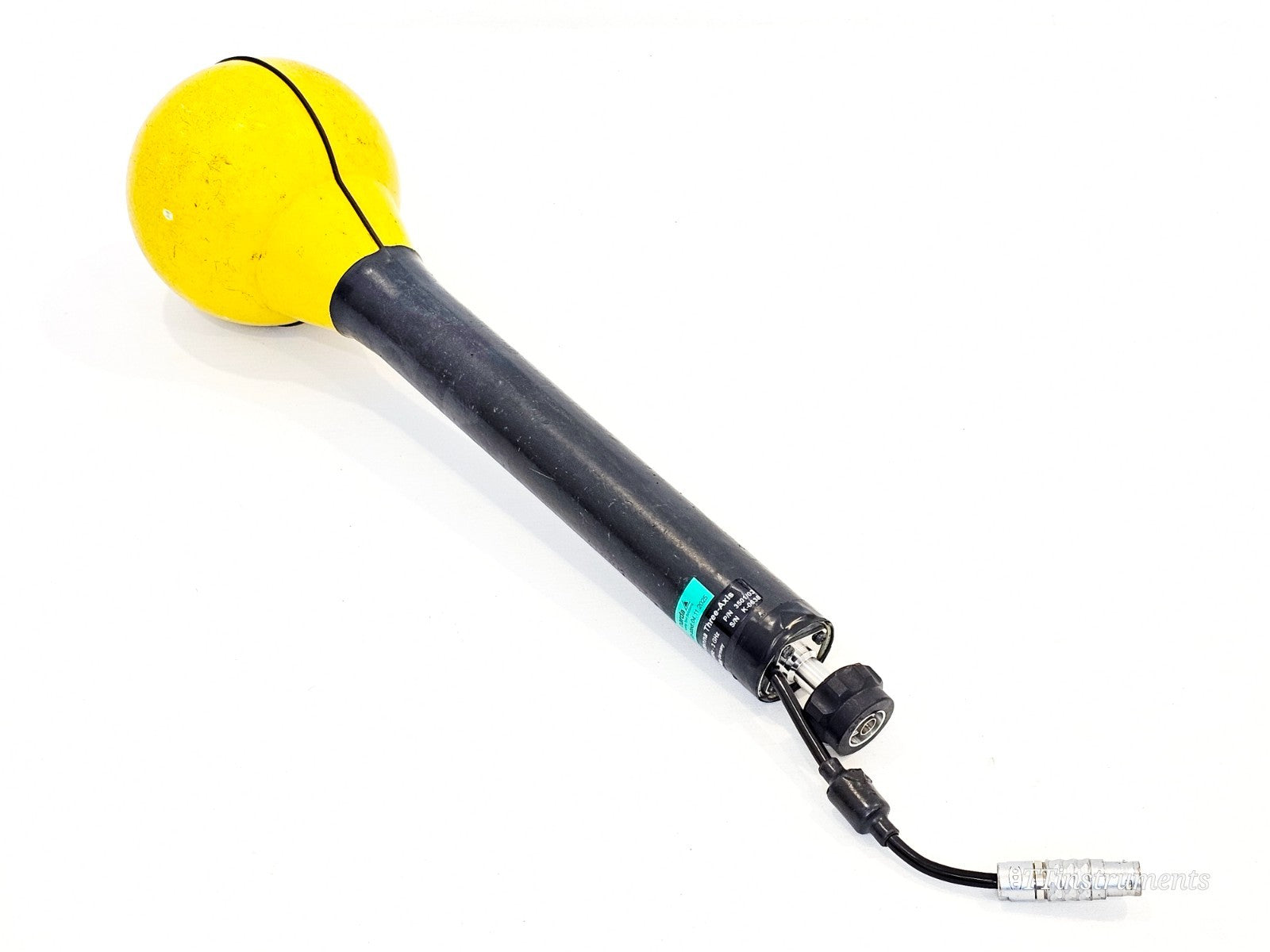

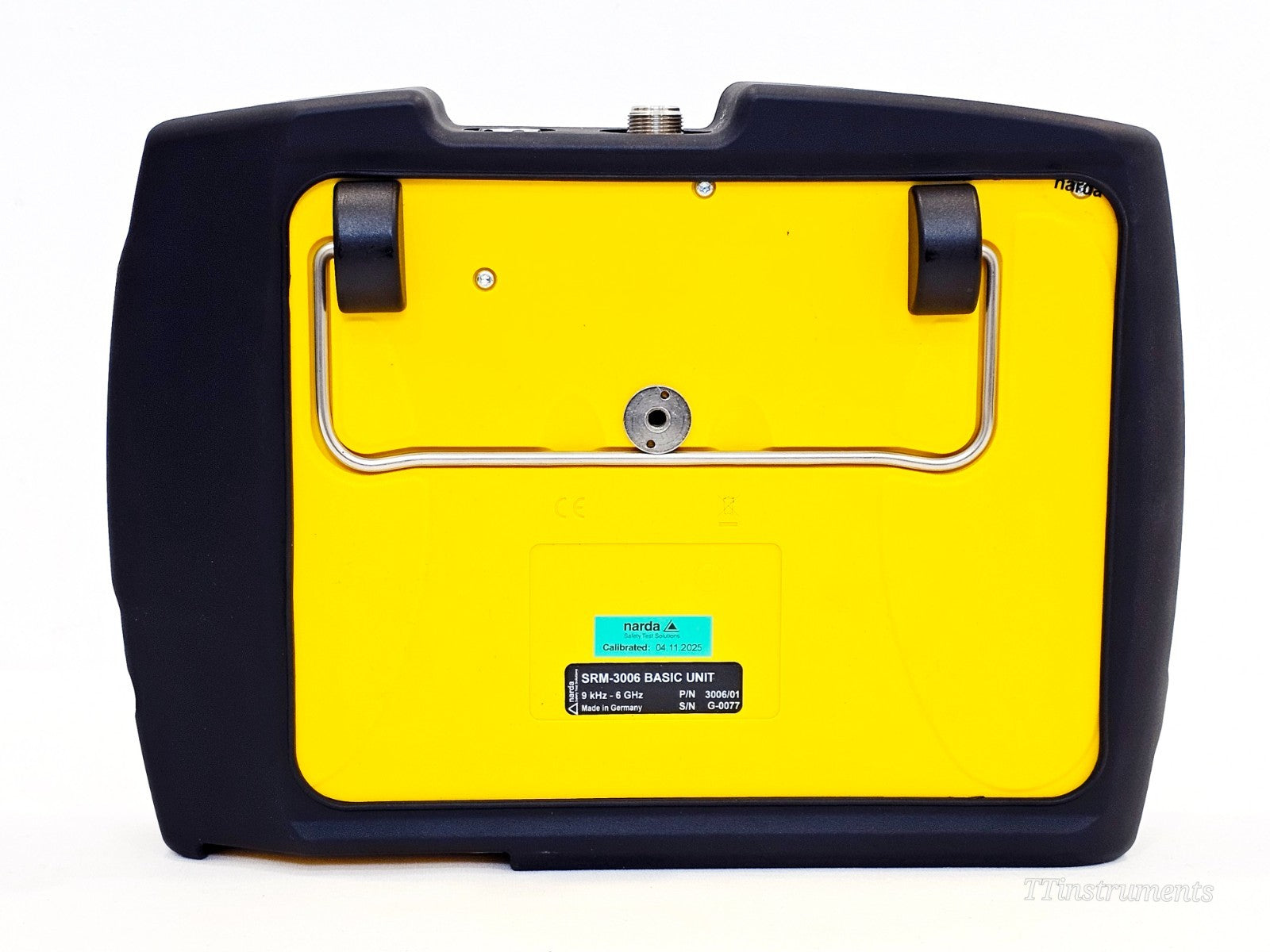

The mainframe (P/N 3006/01) and the included Narda Three-Axis E-Field Antenna 3501/03 (27 MHz – 3 GHz) both carry Narda factory calibration dated 04 November 2025. The RF cable (3602/01) is factory calibrated 03 November 2025. The unit has logged 1,589 operating hours.

No optional software licences are active on this unit. The following options are installed as Deactivated and would require purchase from Narda to unlock: UMTS P-CPICH Demodulation, Scope, LTE (FDD networks), LTE (TDD networks), and 5G NR. The standard operating modes — Safety Evaluation, Spectrum Analysis, and Level Recorder — are fully functional without any additional licences.

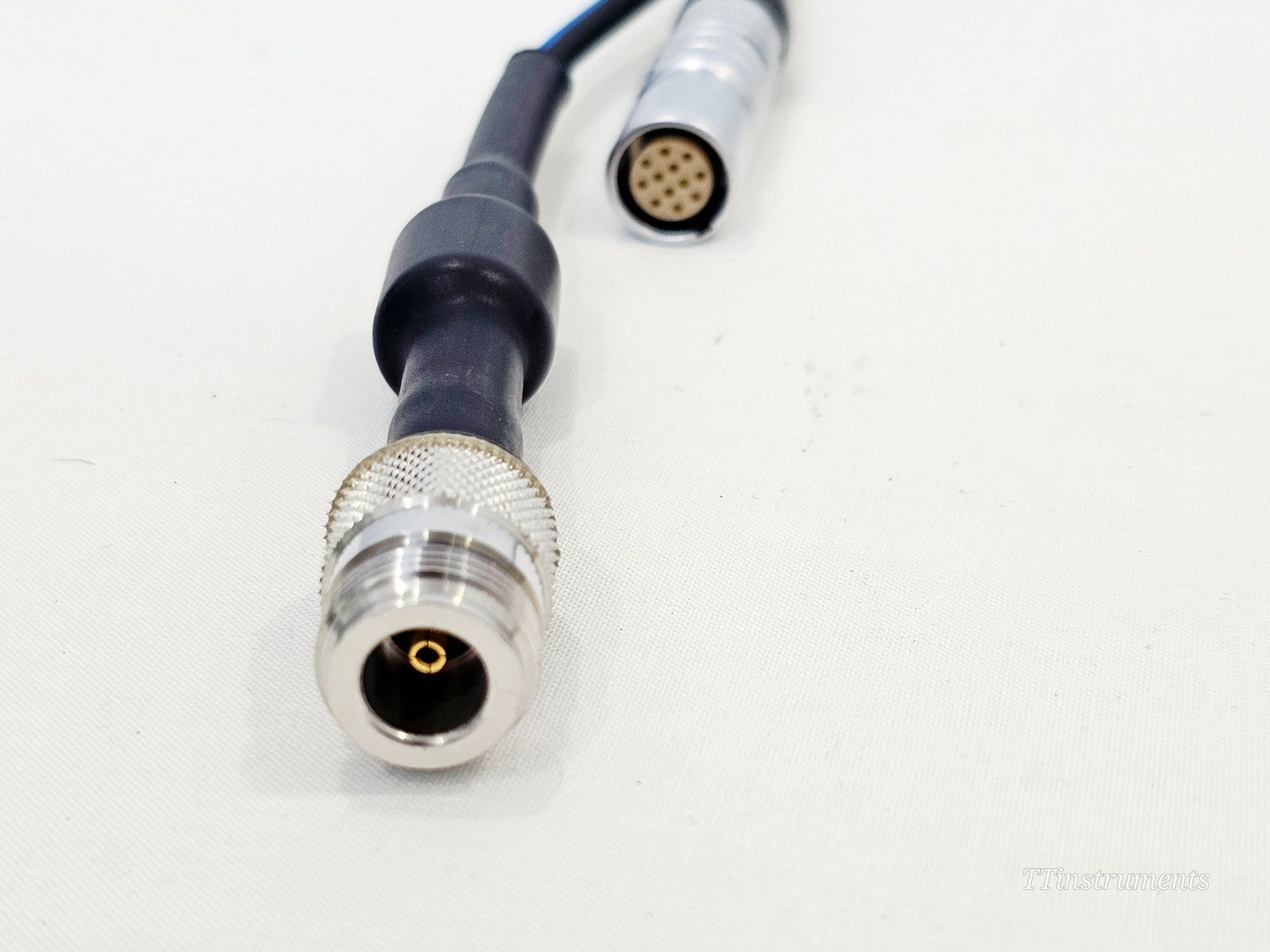

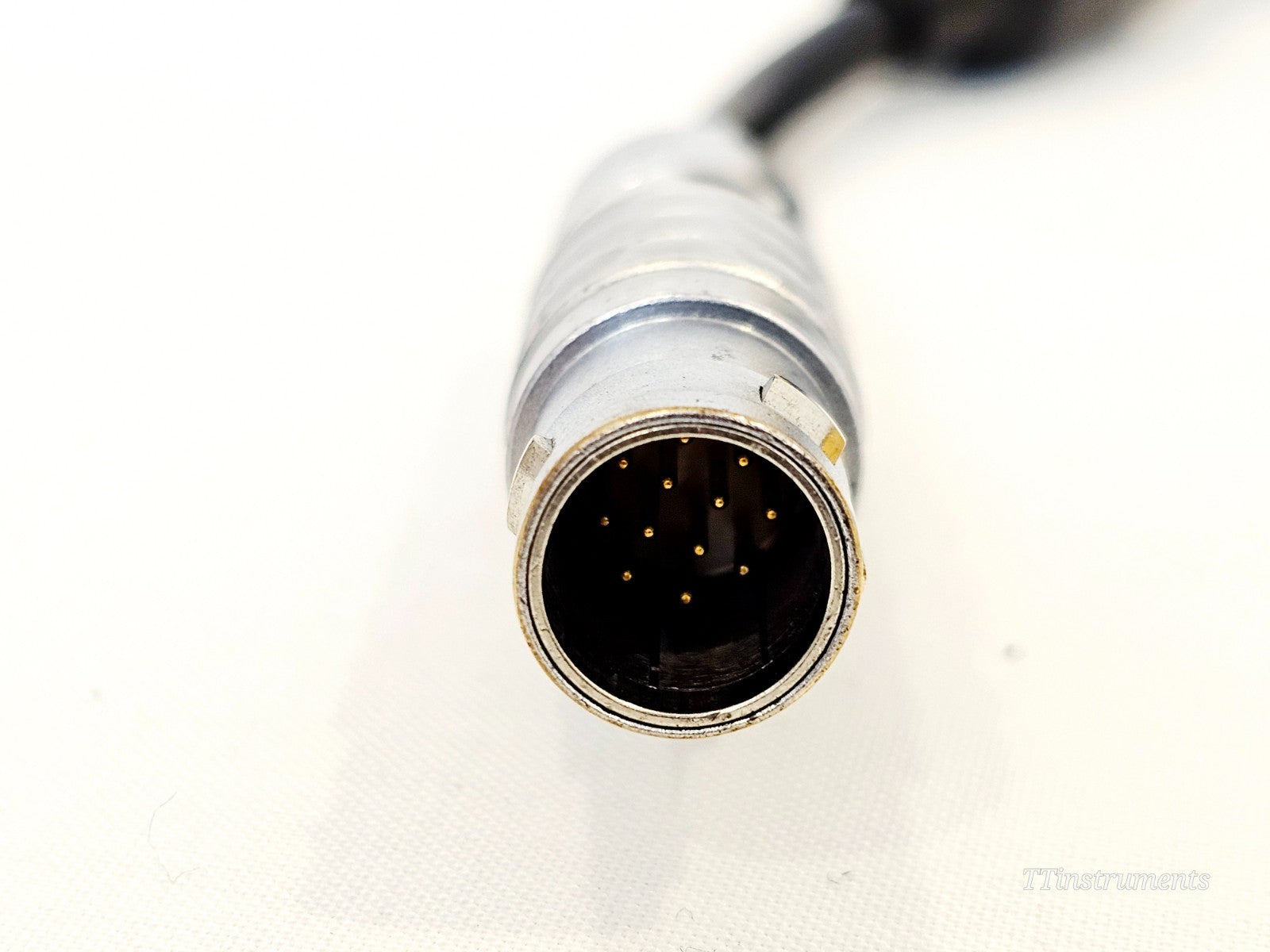

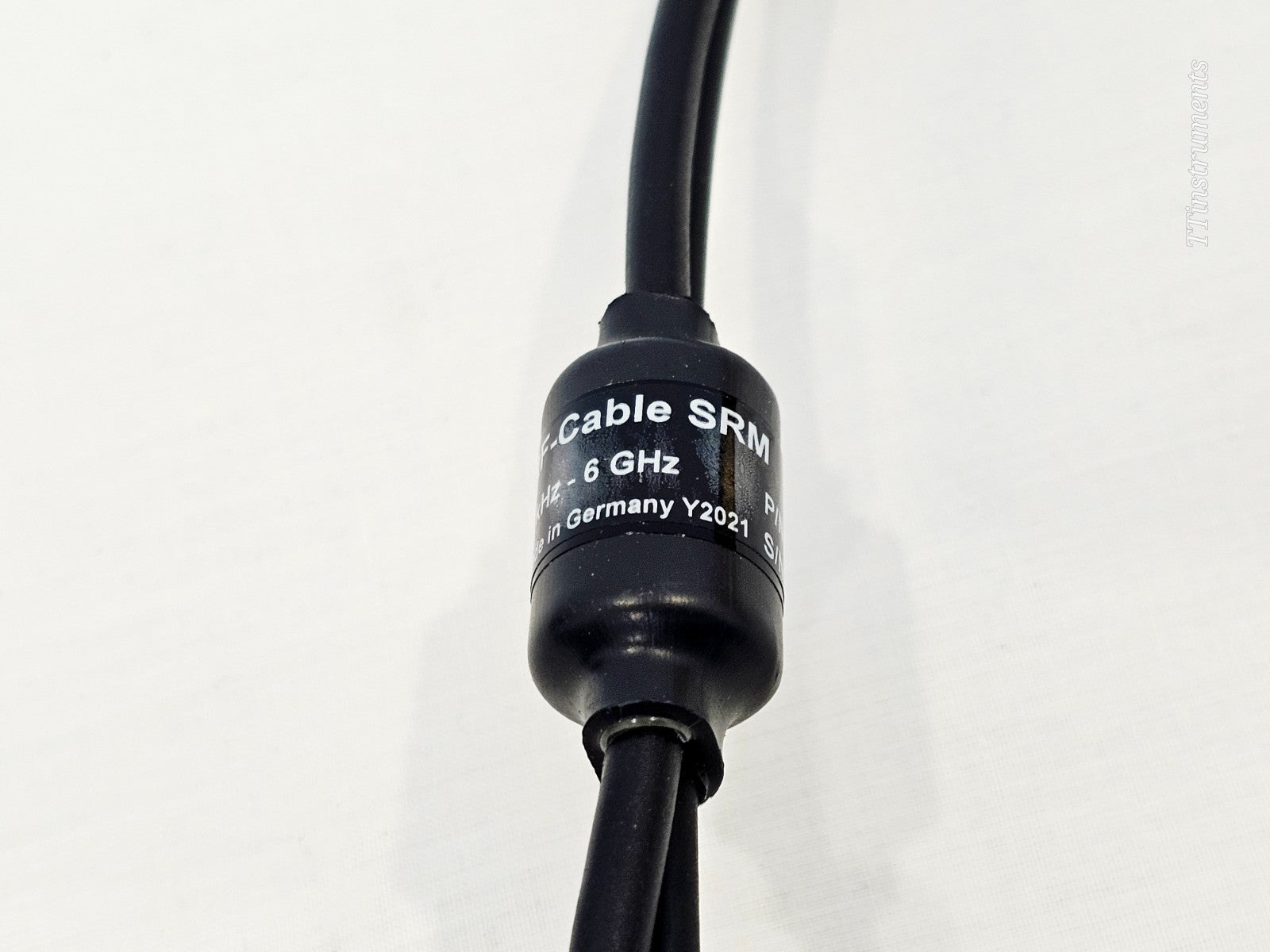

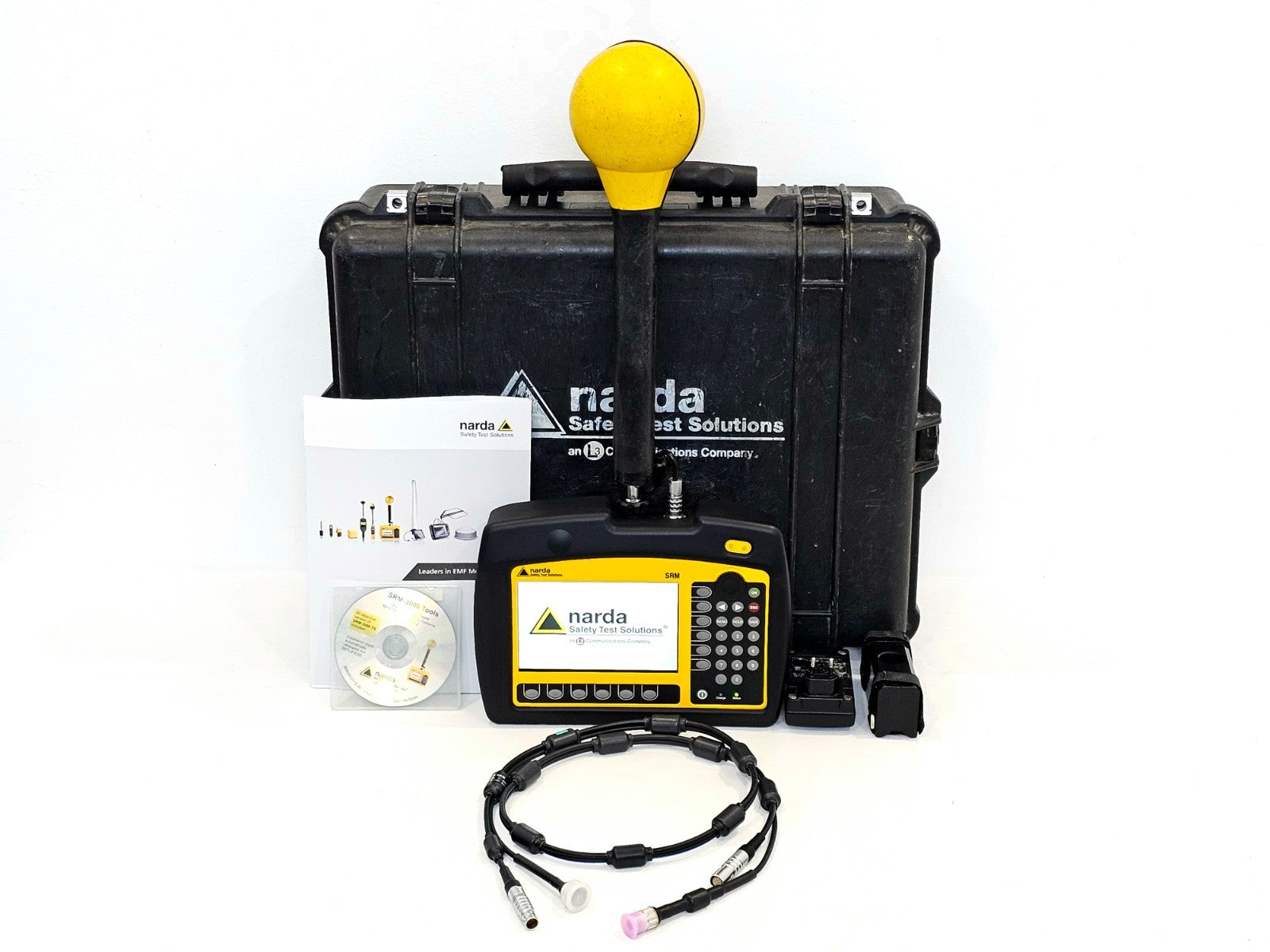

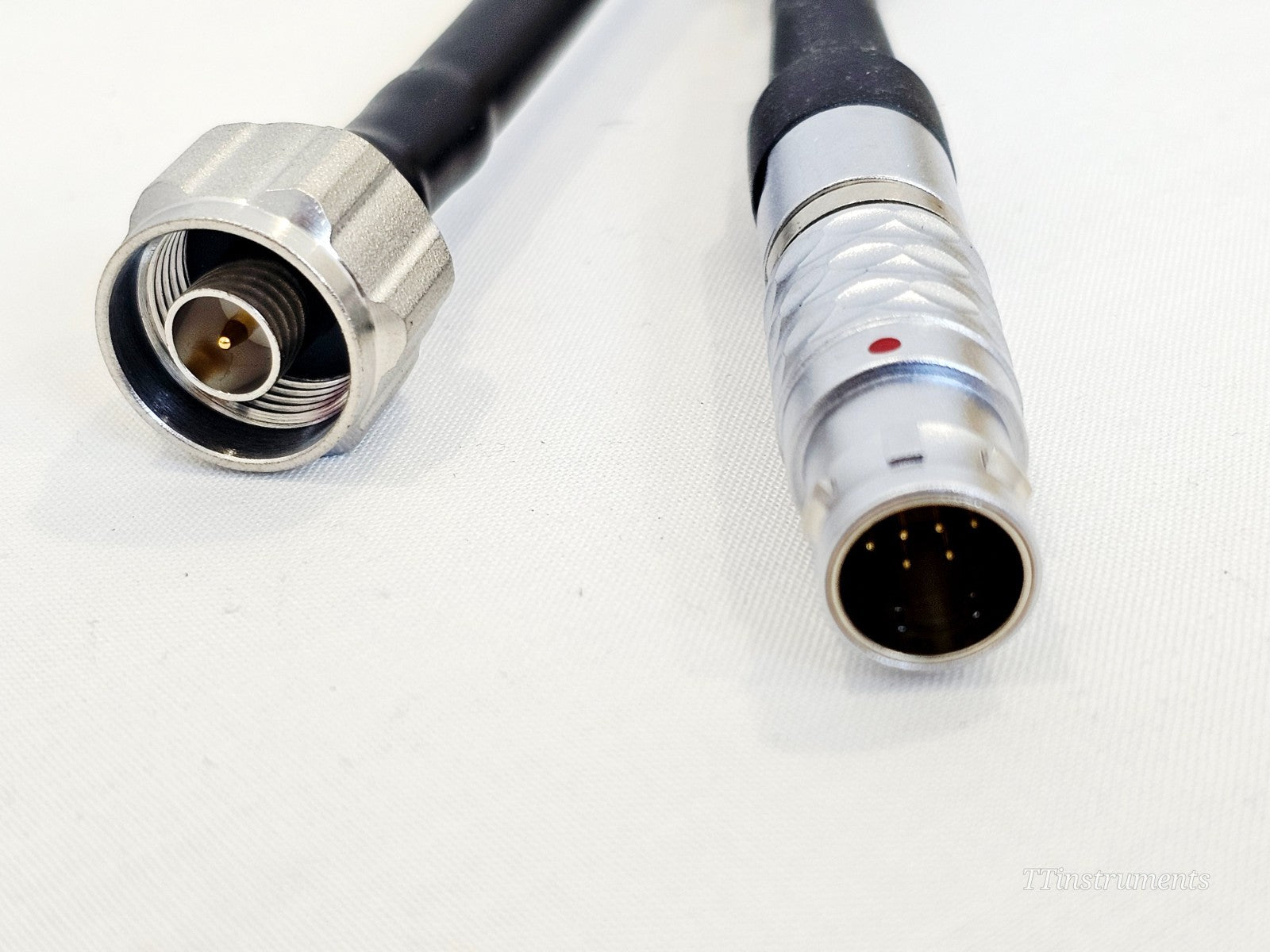

The sale includes: Narda SRM-3006 Basic Unit (P/N 3006/01), Narda Three-Axis E-Field Antenna 27 MHz – 3 GHz (P/N 3501/03), Narda RF Cable SRM – N 50 ohm – 1.5 m (P/N 3602/01), SRM-3006 Tools / Software CD, Narda product brochure / quick reference booklet, hard carry case (Narda branded), and battery cradle / charger dock.

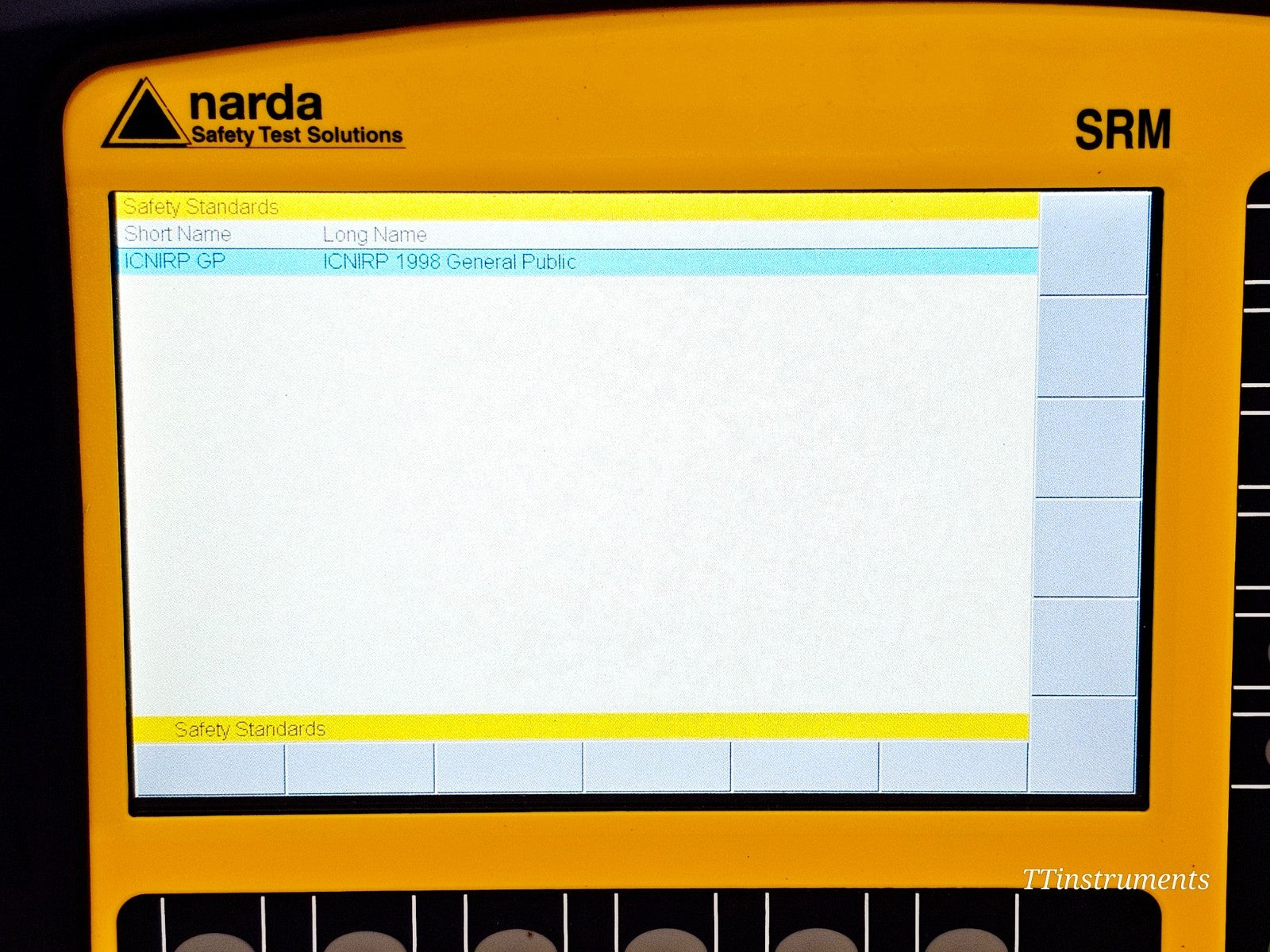

The Narda SRM-3006 is a frequency-selective, hand-held field strength measuring system designed for rapid and reliable EMF safety assessments from 9 kHz to 6 GHz. It has become established as the standard instrument for compliance measurements, providing automatic evaluations against international human safety standards — including ICNIRP, FCC, and the EU EMF Directive (2013/35/EU) — directly in the instrument, with a specified overall measurement uncertainty that makes error-prone manual calculations unnecessary.

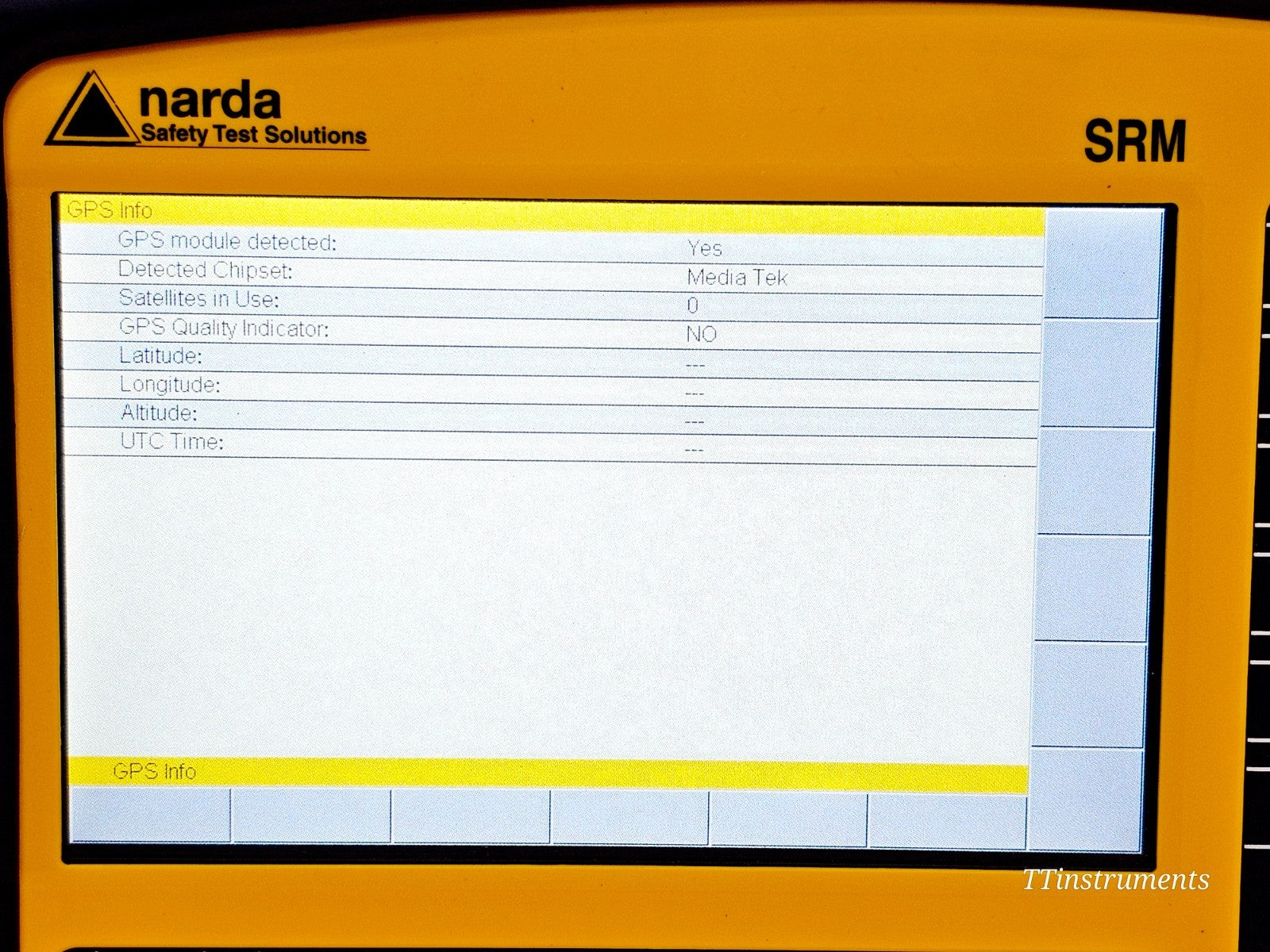

The SRM-3006 works with a range of Narda isotropic (three-axis) and single-axis antennas for electric and magnetic field measurements. The calibration factors for each antenna are stored in the antenna EEPROM and applied automatically when connected to the basic unit. The system is irradiation proof up to 200 V/m, robust, splash-proof, and field-ready with replaceable batteries, an integrated GPS receiver, and a built-in voice recorder.

Key features include:
- Frequency-selective measurement of individual emitters and automatic totalling

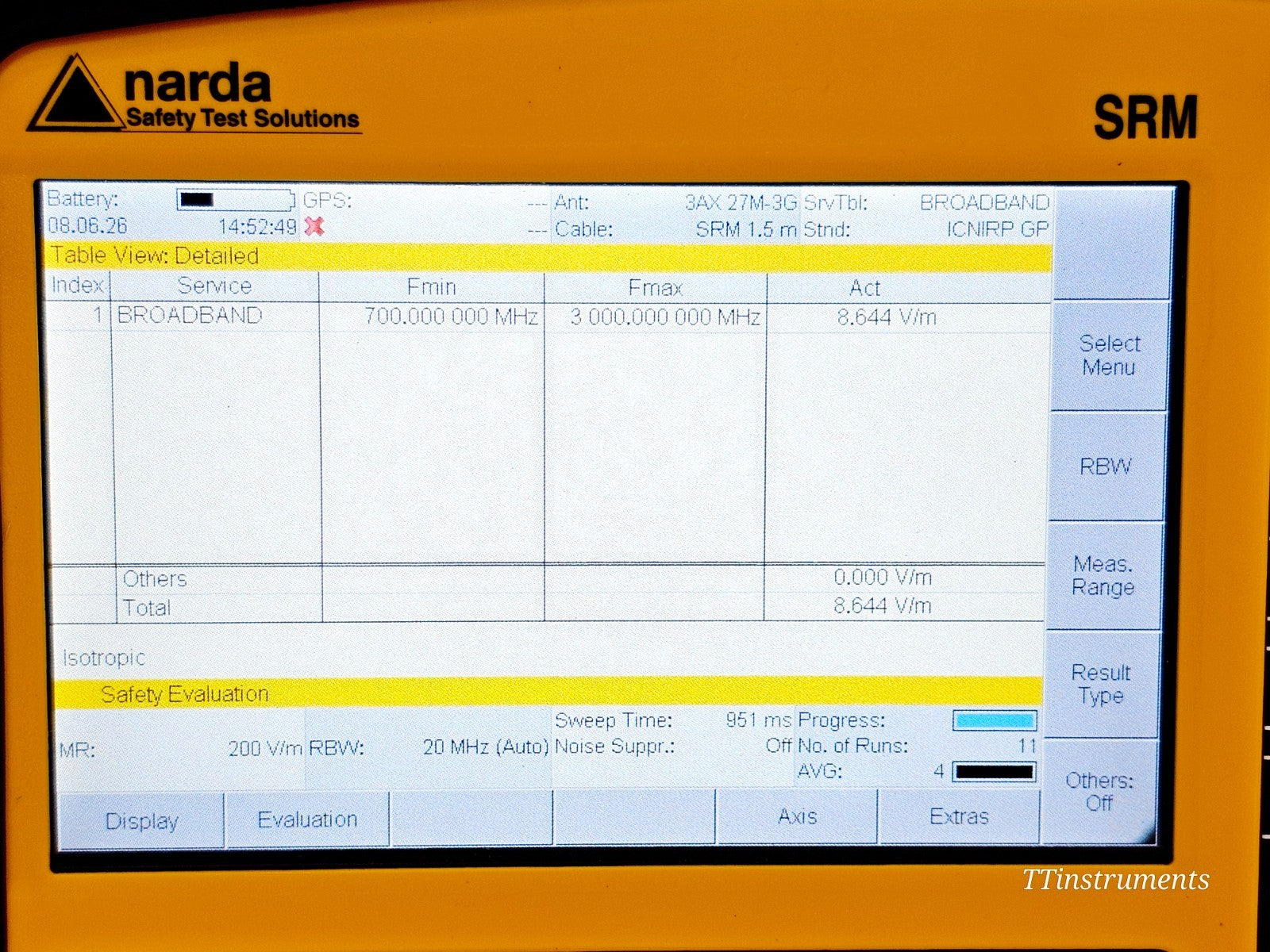

- Safety Evaluation, Spectrum Analysis, Level Recorder, and (optional) Scope operating modes
- Highest physically possible measurement dynamic range
- Fine tuning of measurement range in 1 dB steps
- Resolution bandwidths (RBW) up to 32 MHz for modern mobile technologies
- Results displayed as physical units (V/m, A/m, W/cm²) or as % of limit value
- Programmable measurement routines and on-site report generation
- Optional licences for UMTS P-CPICH, LTE-FDD, LTE-TDD, Scope, and 5G NR demodulation

Frequency range: 9 kHz to 6 GHz
Antenna (3501/03) frequency range: 27 MHz to 3 GHz
Measurement dynamic range (3501/03): 0.2 mV/m to 200 V/m
RF immunity: up to 200 V/m
Resolution bandwidth: up to 32 MHz
Display: 7-inch TFT-LCD colour, 800 × 480 pixels
Dimensions (basic unit): 213 × 297 × 77 mm
Weight (with antenna): 3,300 g
Operating temperature: -10 °C to +50 °C
Battery operating time: approx. 3 hours
Recommended calibration interval: 24 months
Country of manufacture: Germany

Narda SRM-3006 datasheet: Download PDF
