Condition: Used - Calibrated by NARDA

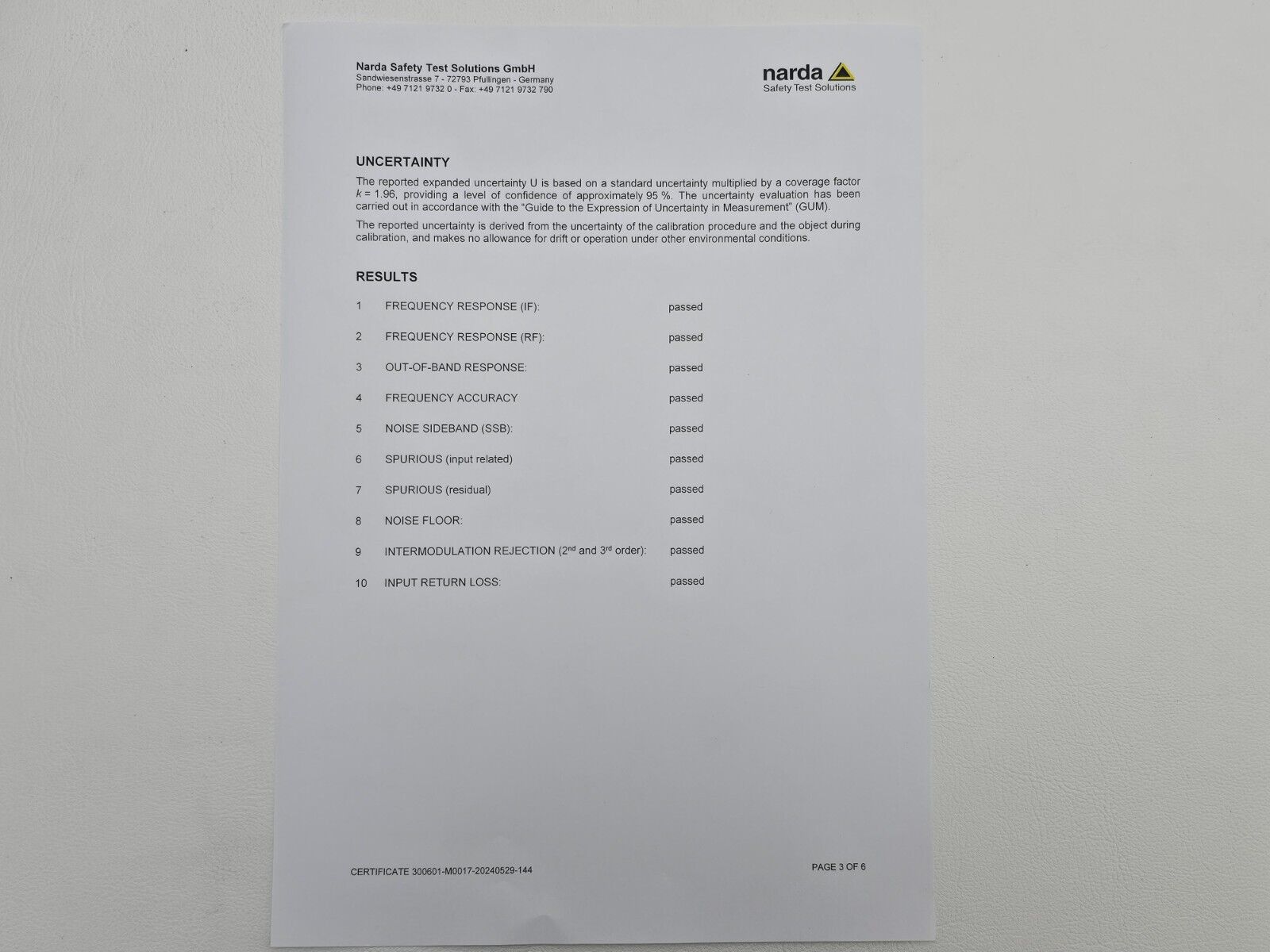

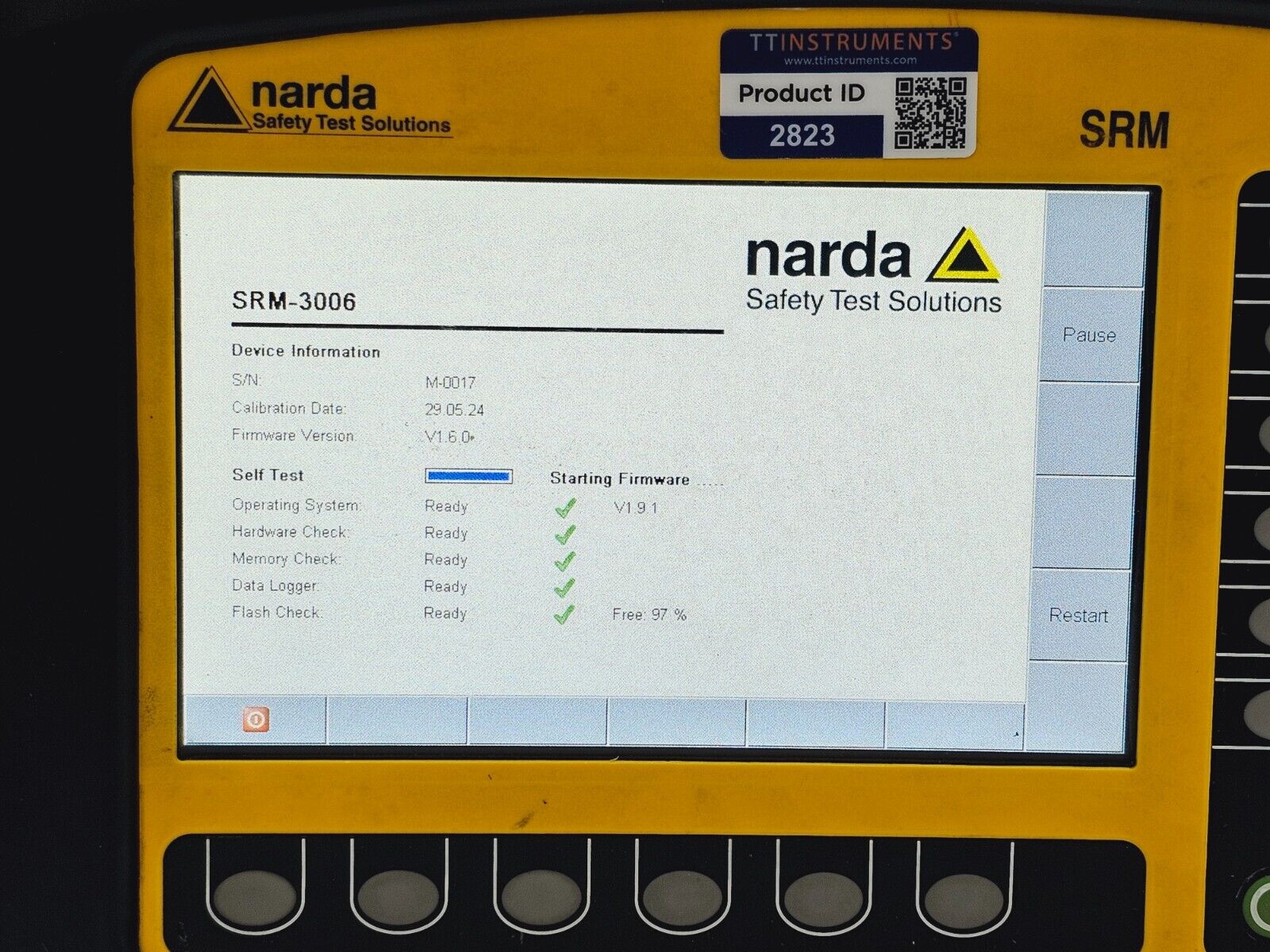

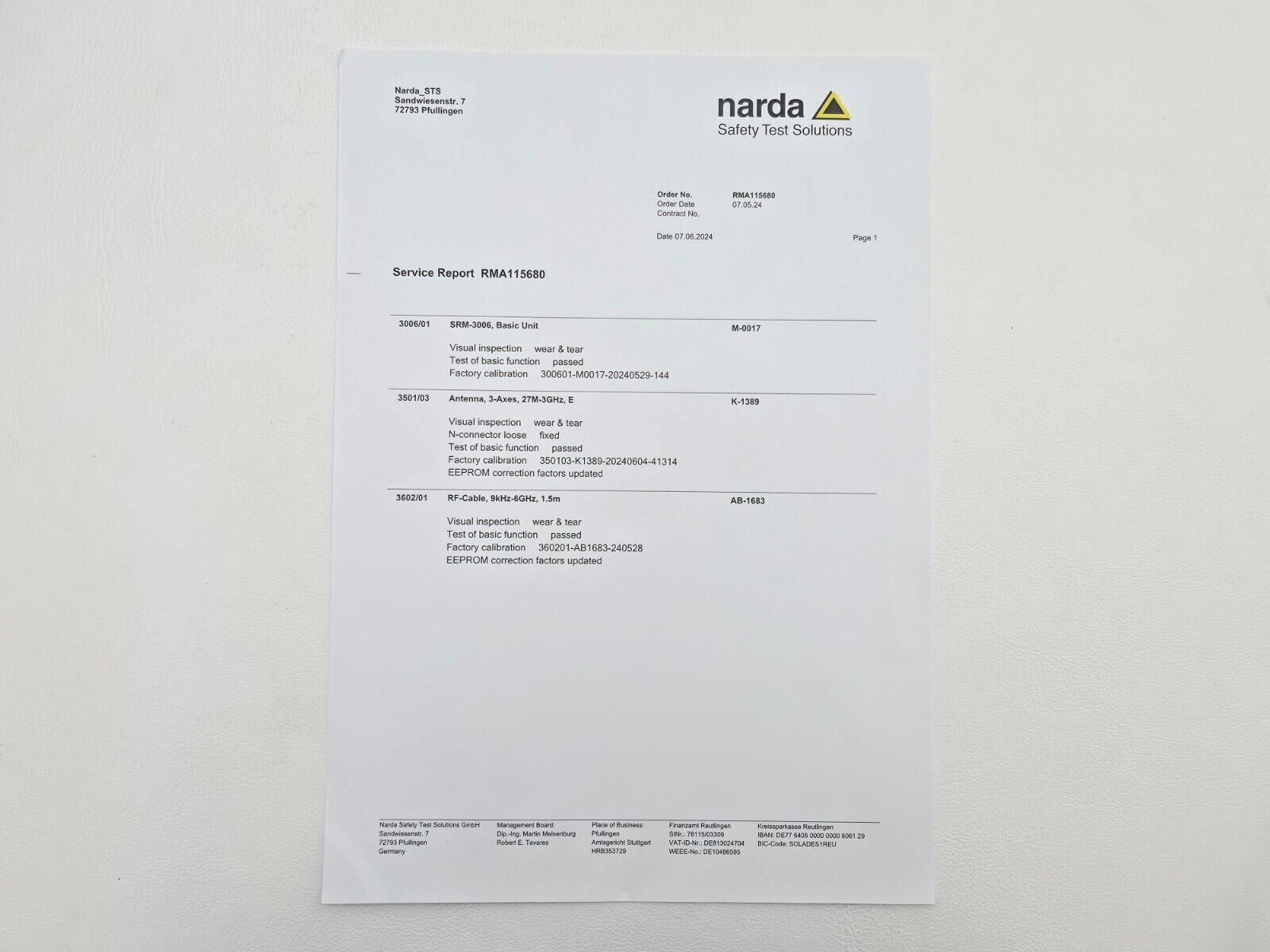

Calibrated by Narda 29/05/24 (cost of  £1,700 GBP), supplied as pictured, refer to images for cosmetic condition and options installed, the description below has further details.

Included in the sale:

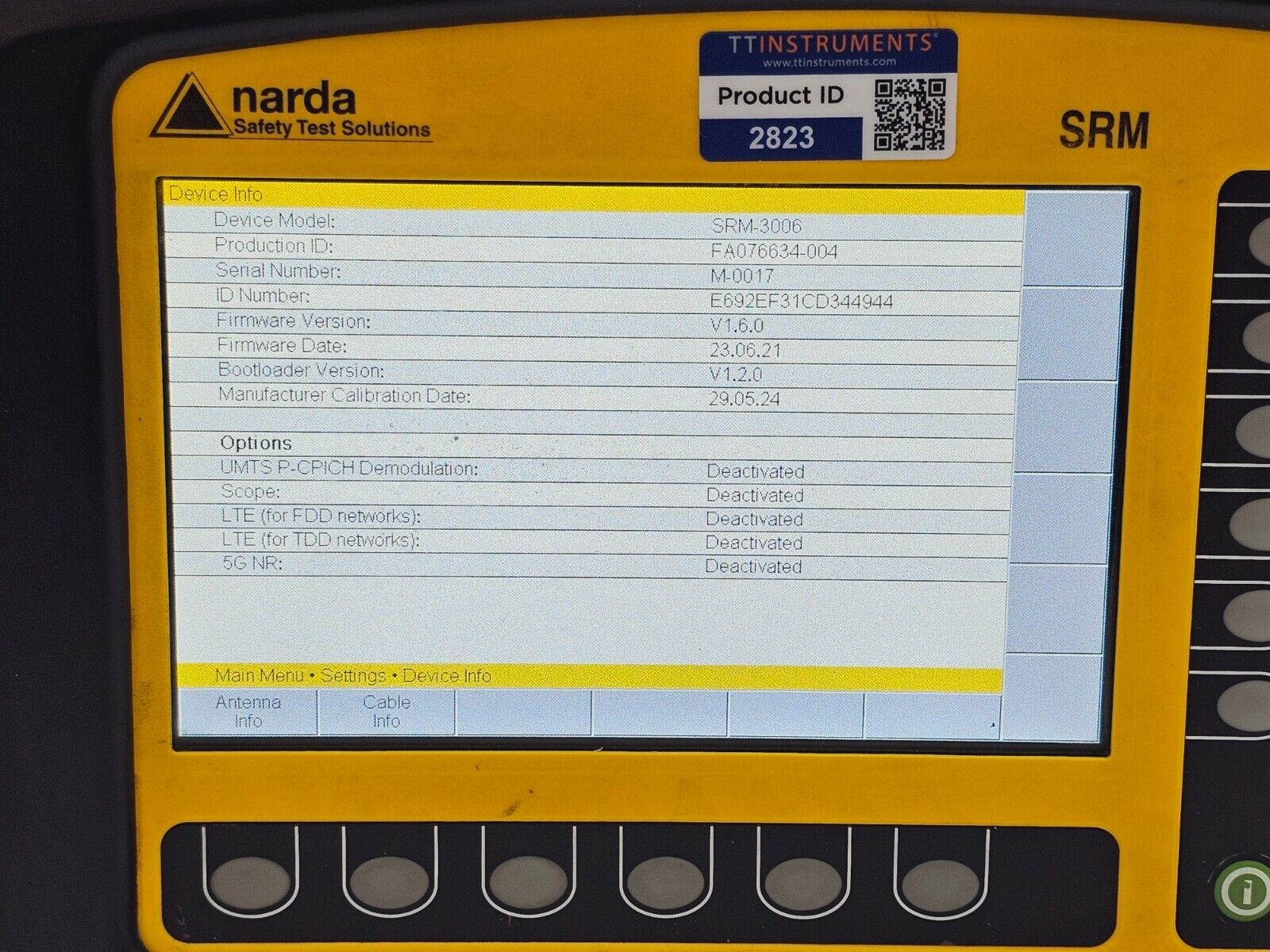

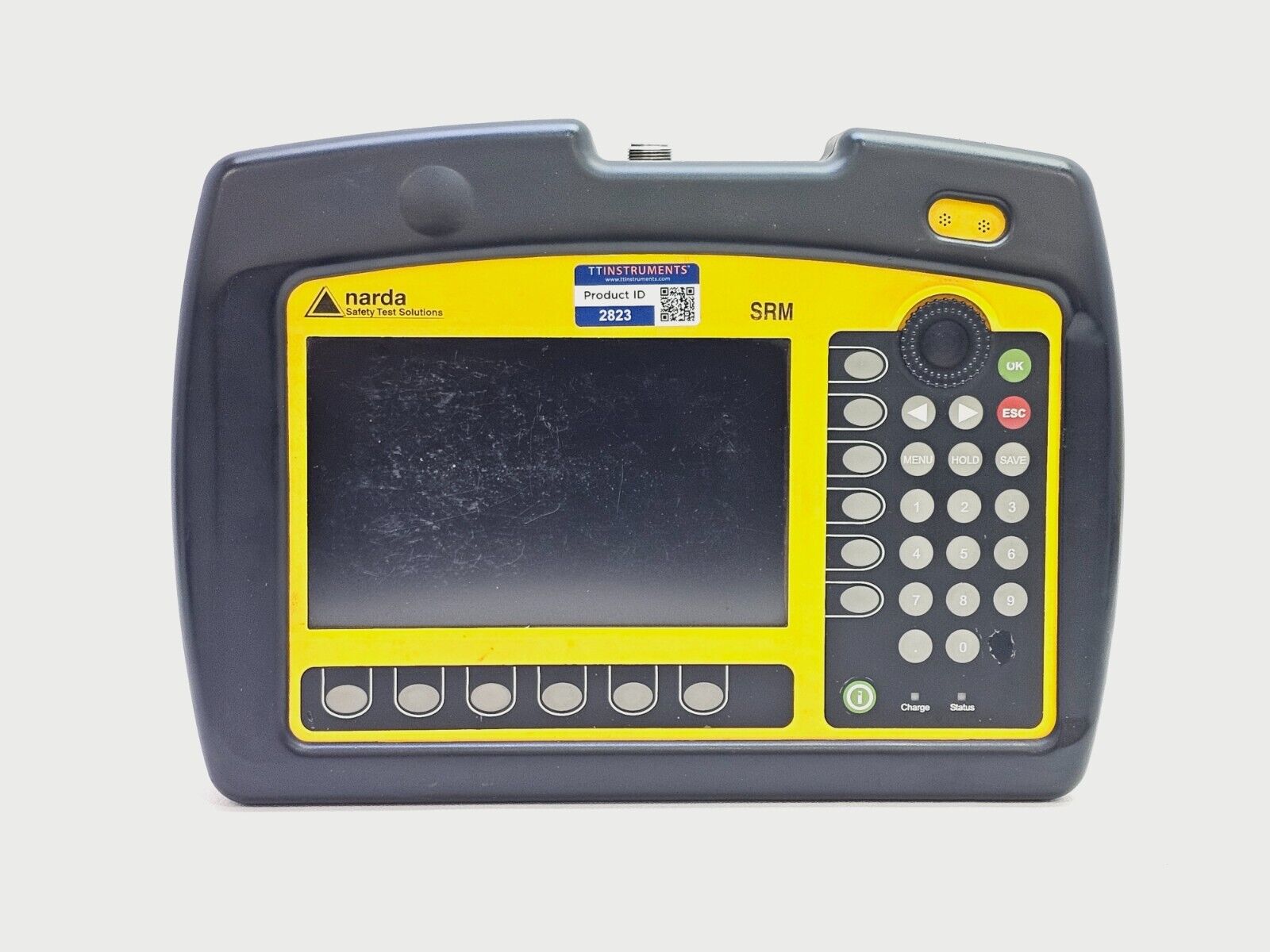

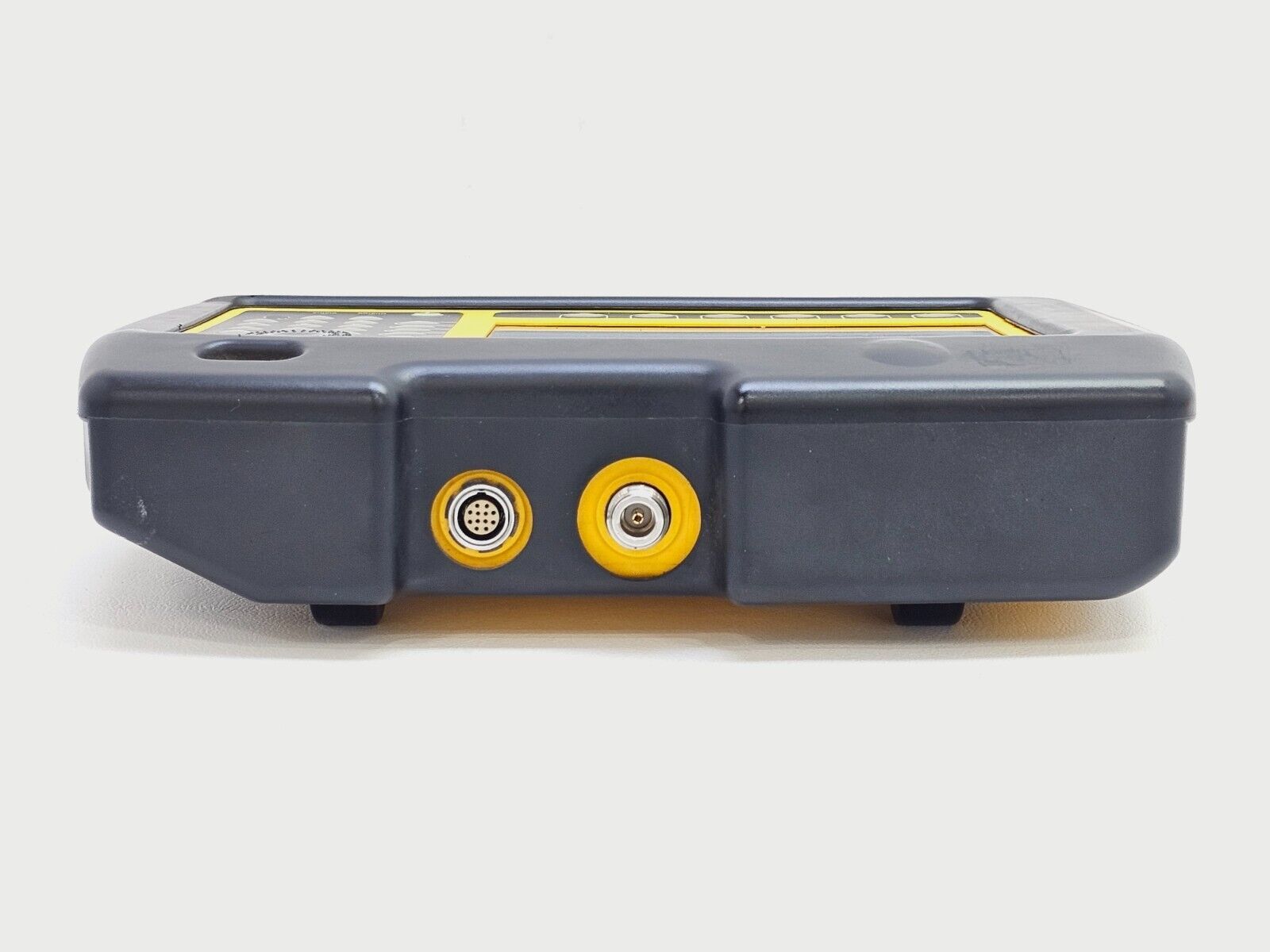

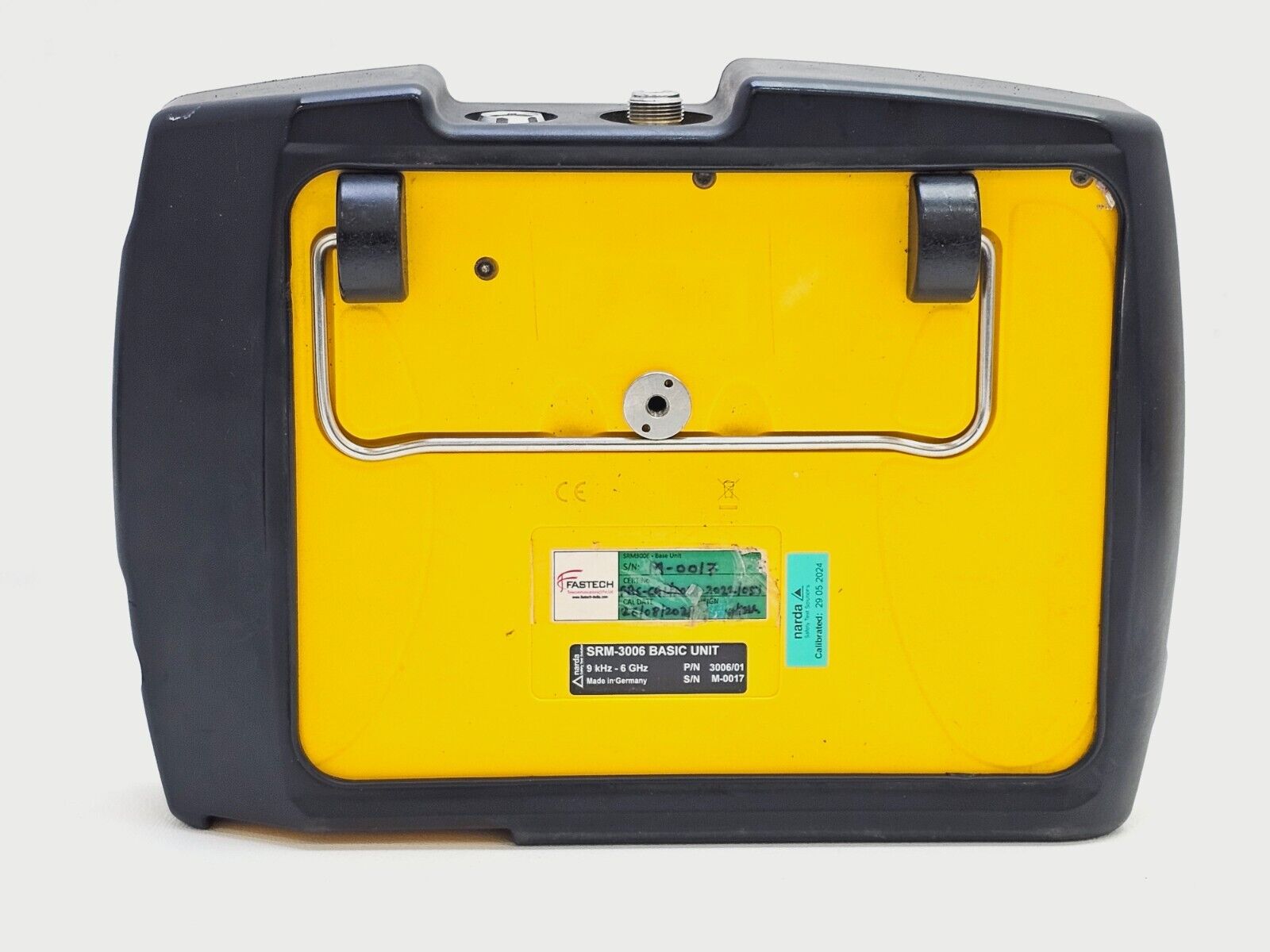

SRM-3006 Platform 3006/01

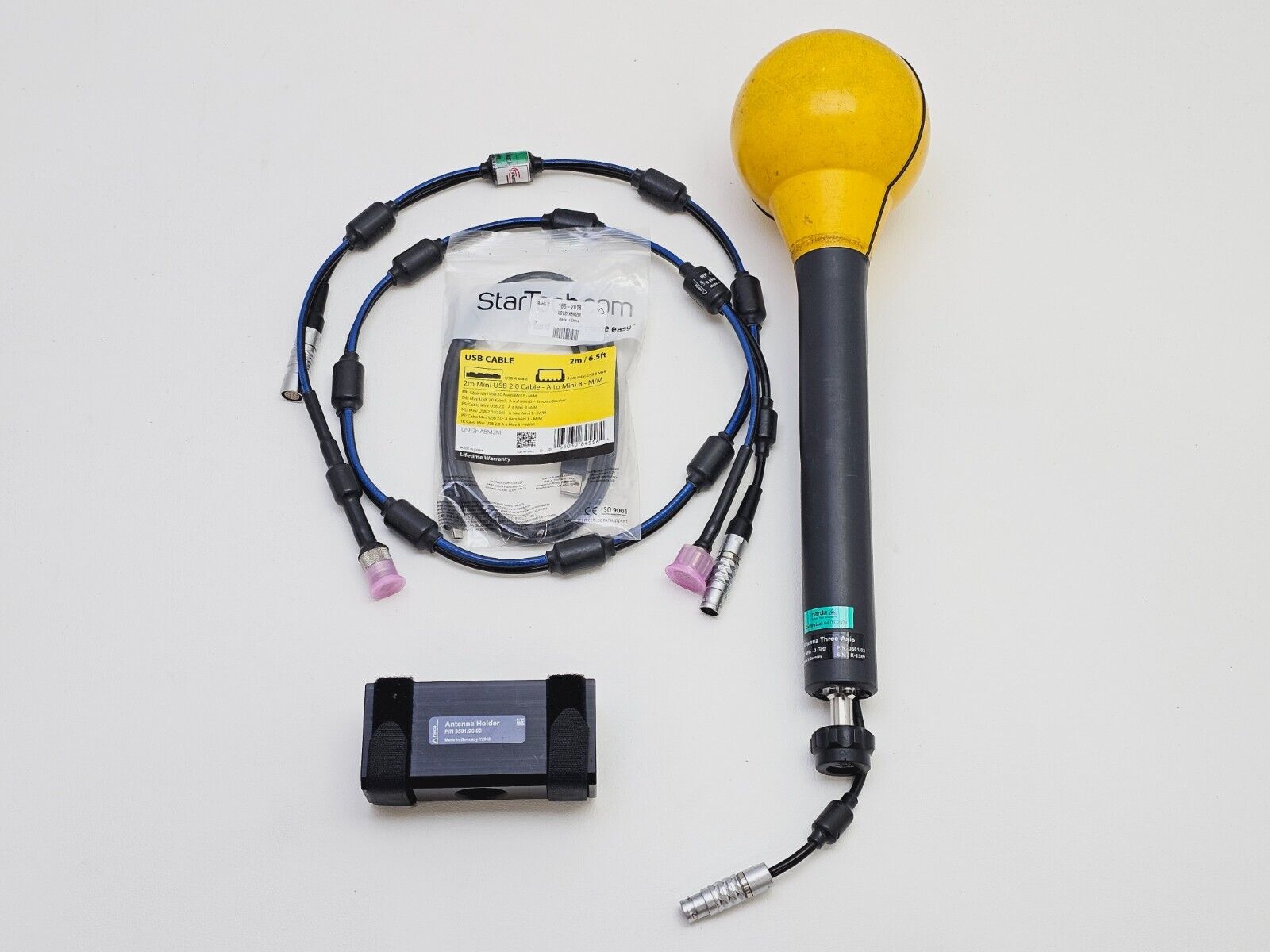

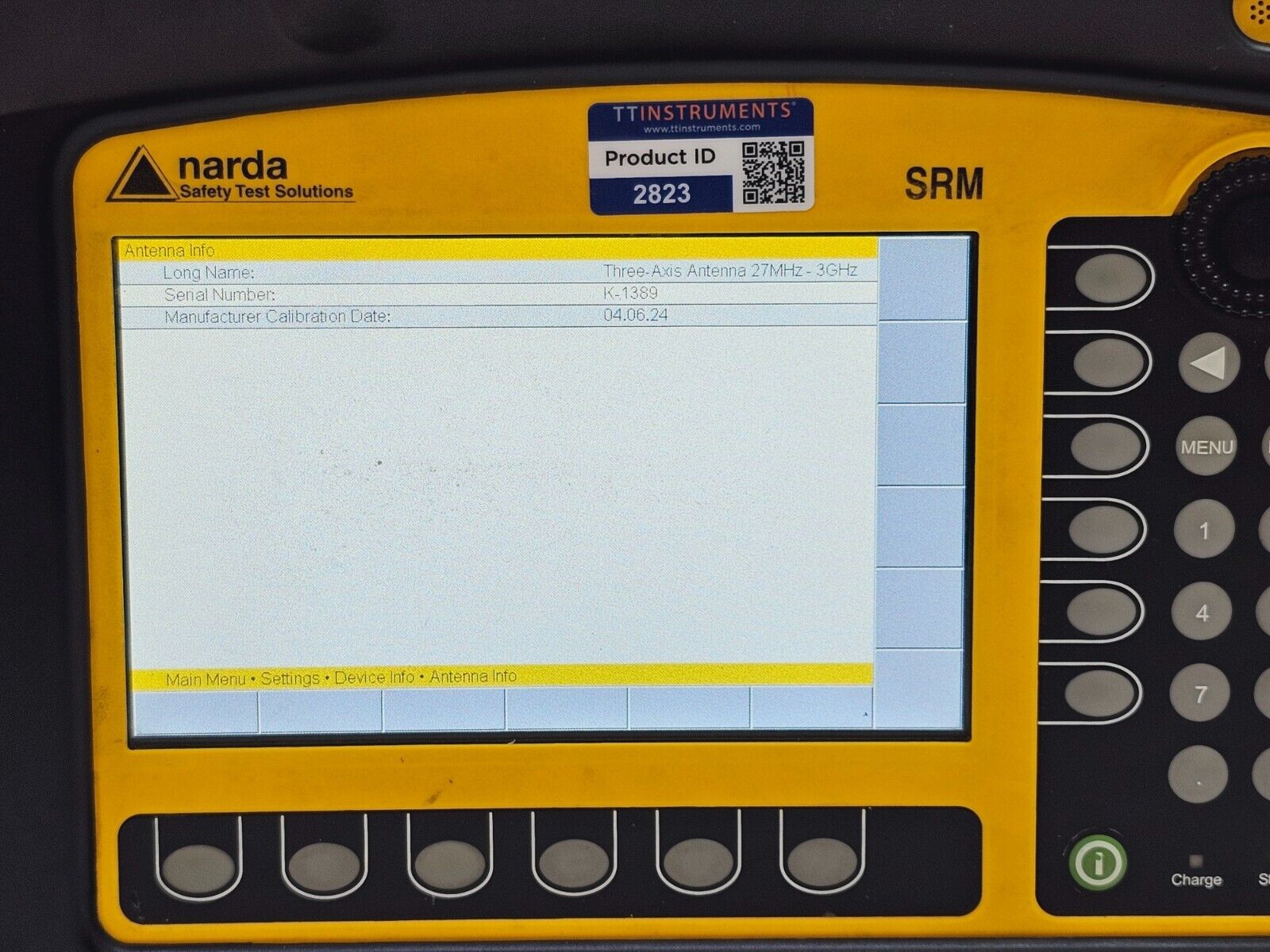

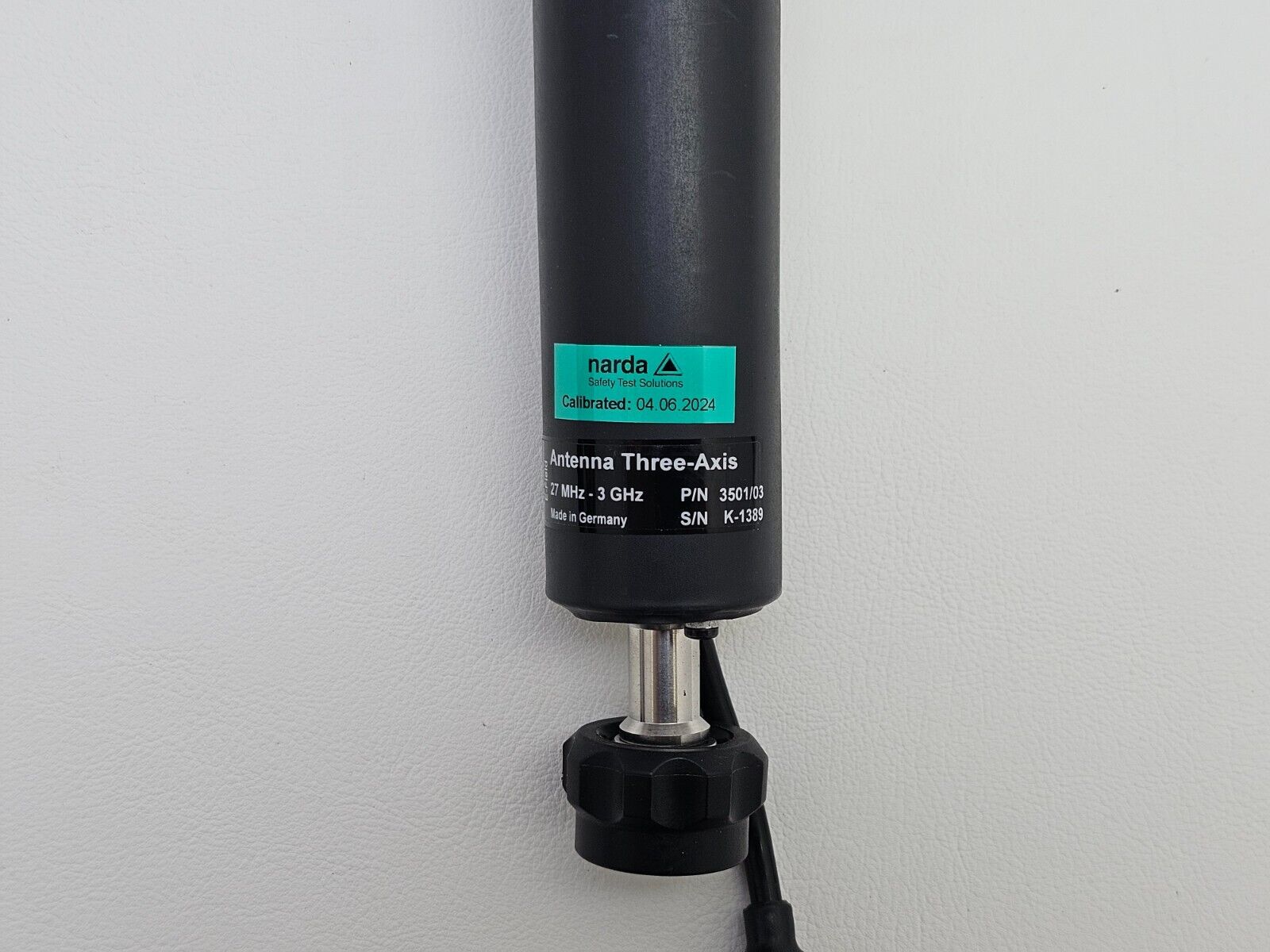

E-Field Antenna Three-Axis 27 MHz - 3 GHz Probe 3501/03 - 27MHz to 3GHz @ 0.2mV/m to 200V/m

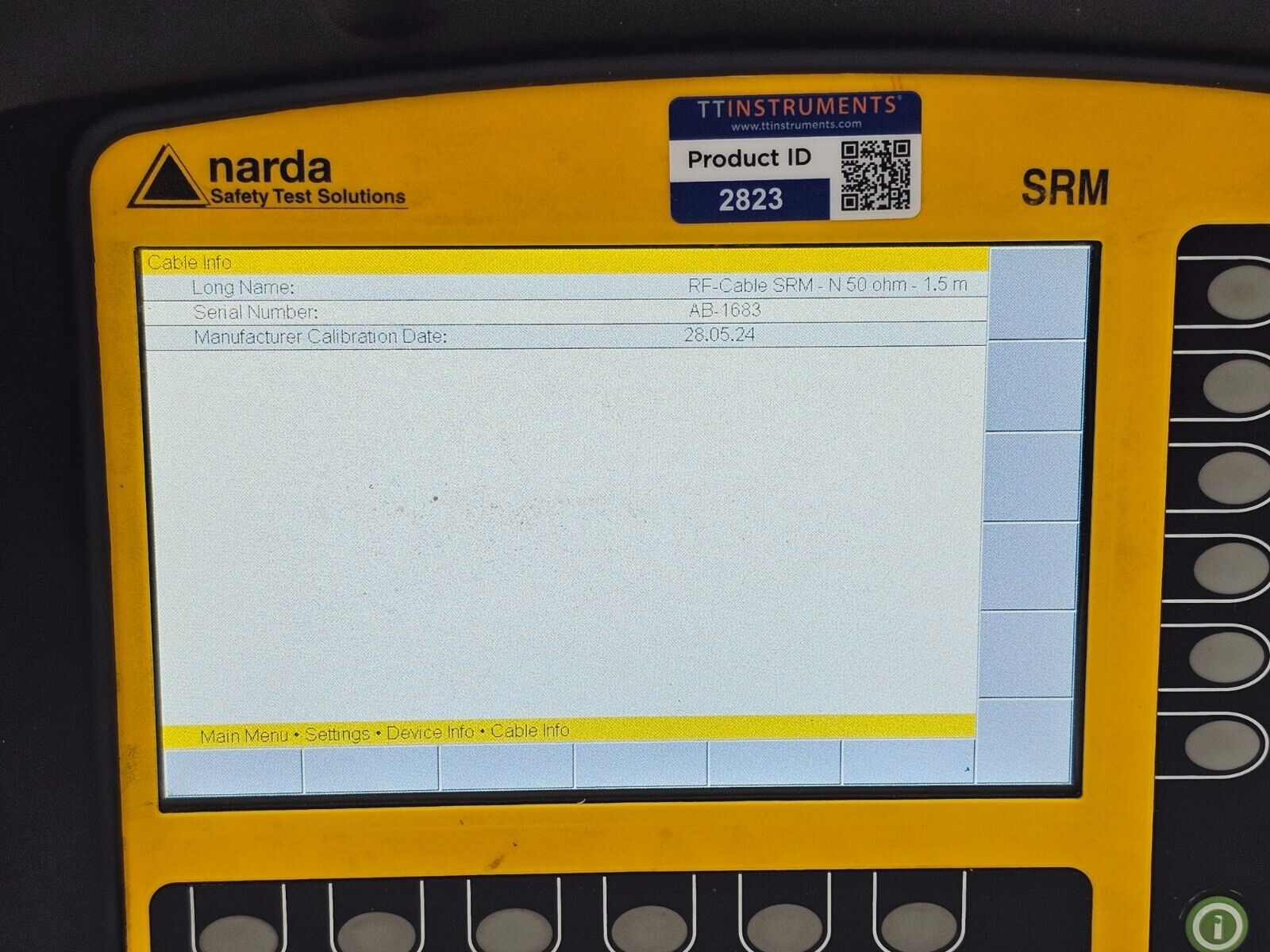

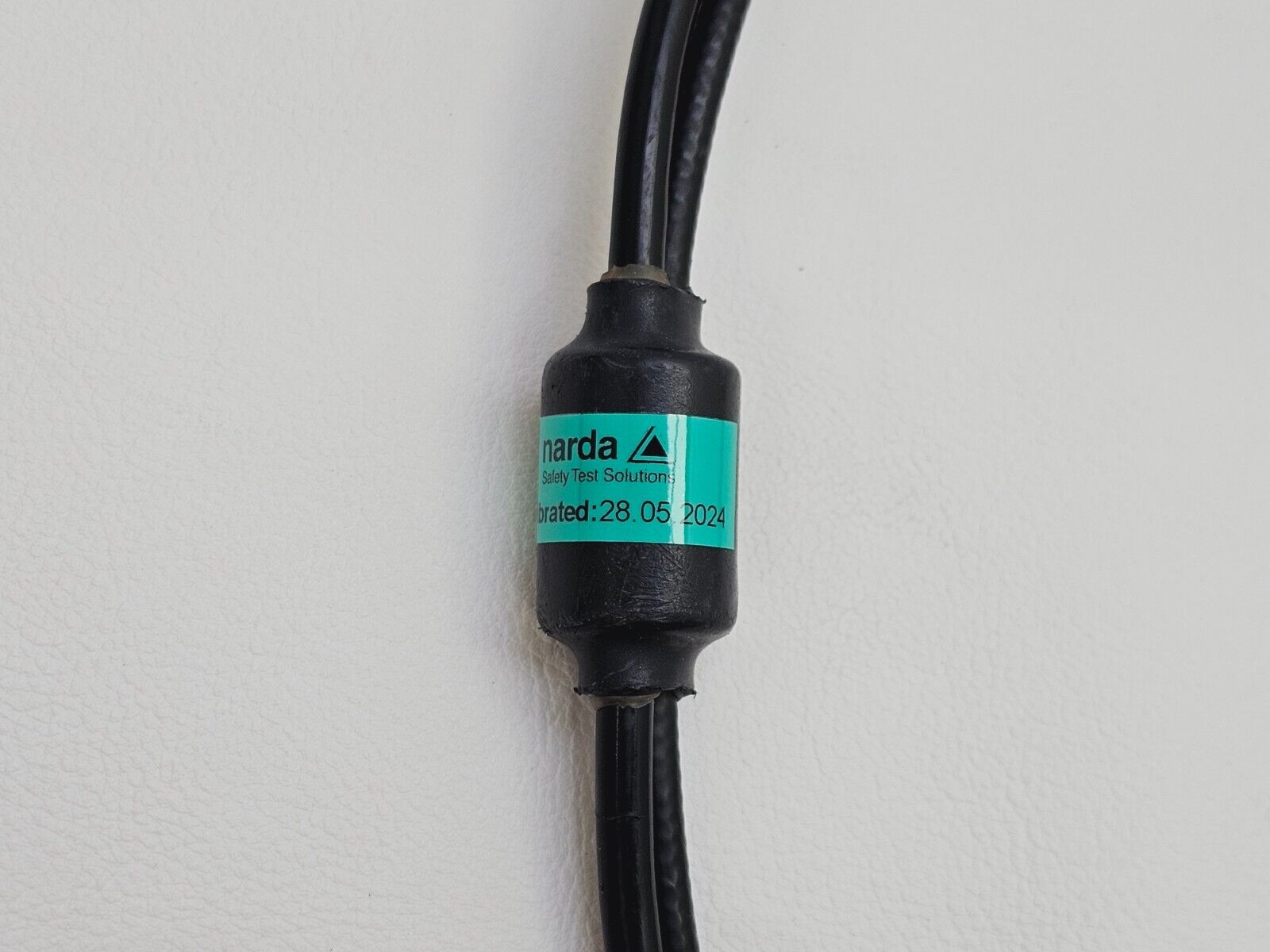

RF-Cable 9kHz-6GHz, 1.5m 3602/01

Carry Case

Power Adapter 12VDC,100V-240VAC

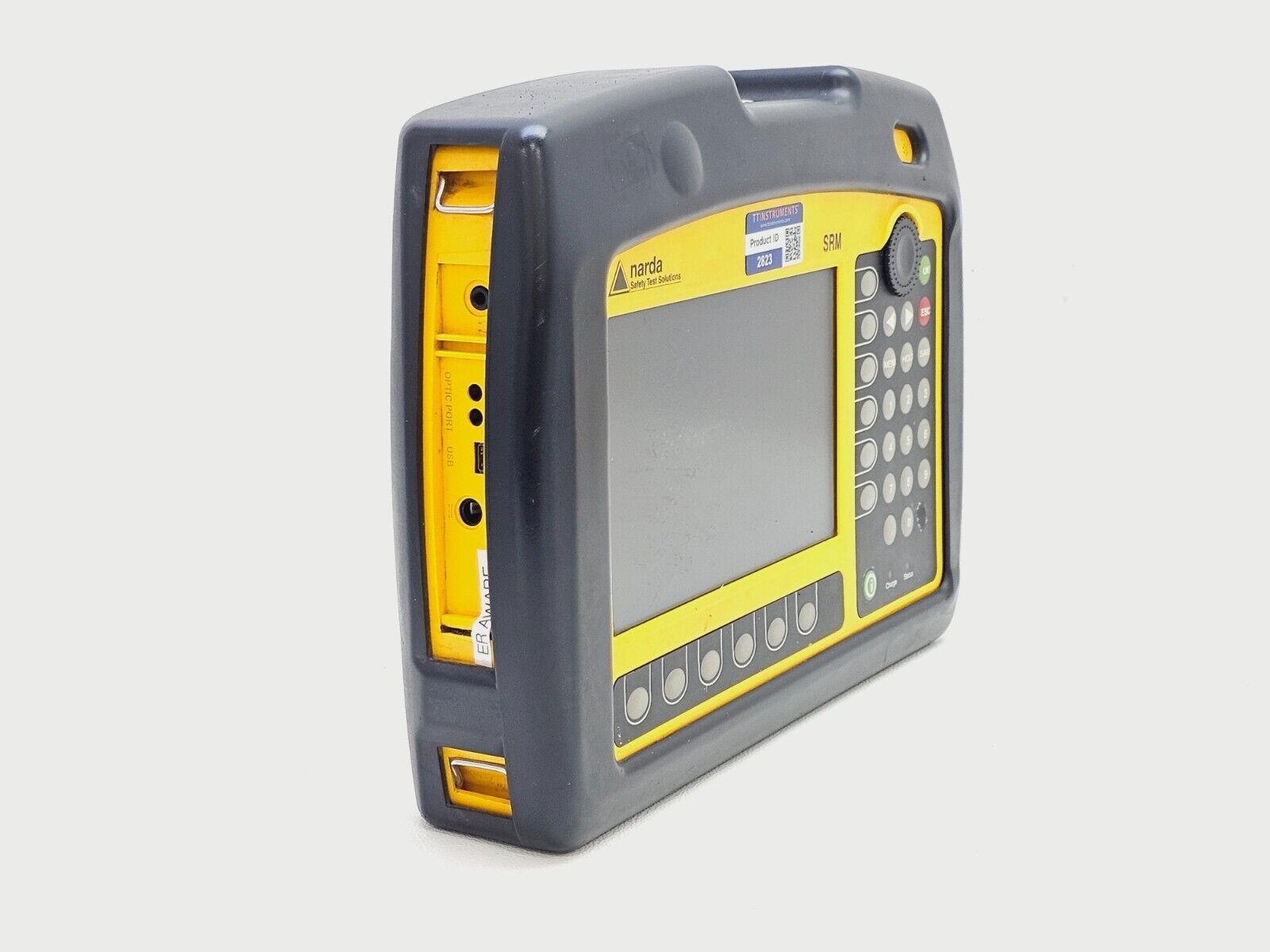

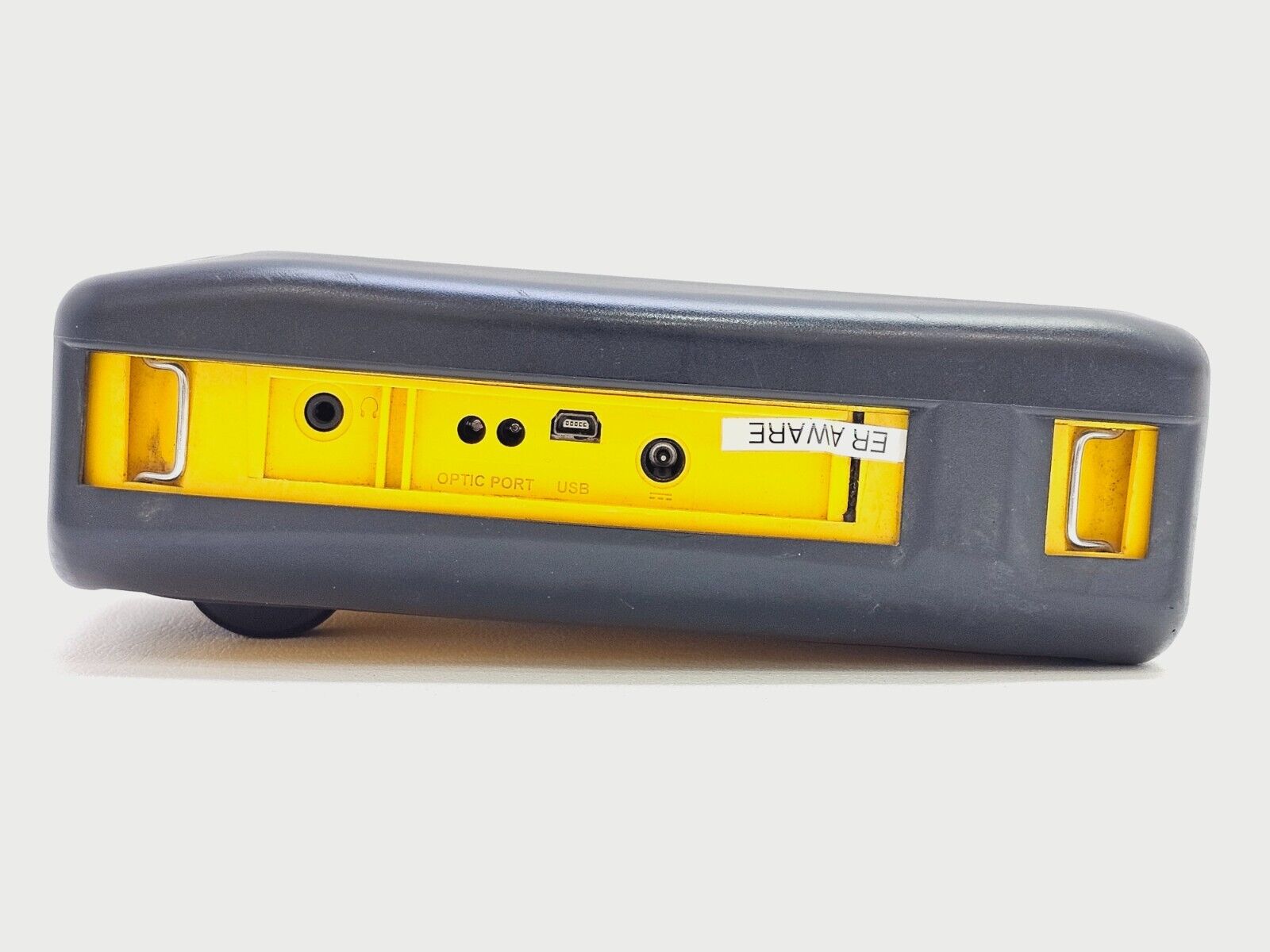

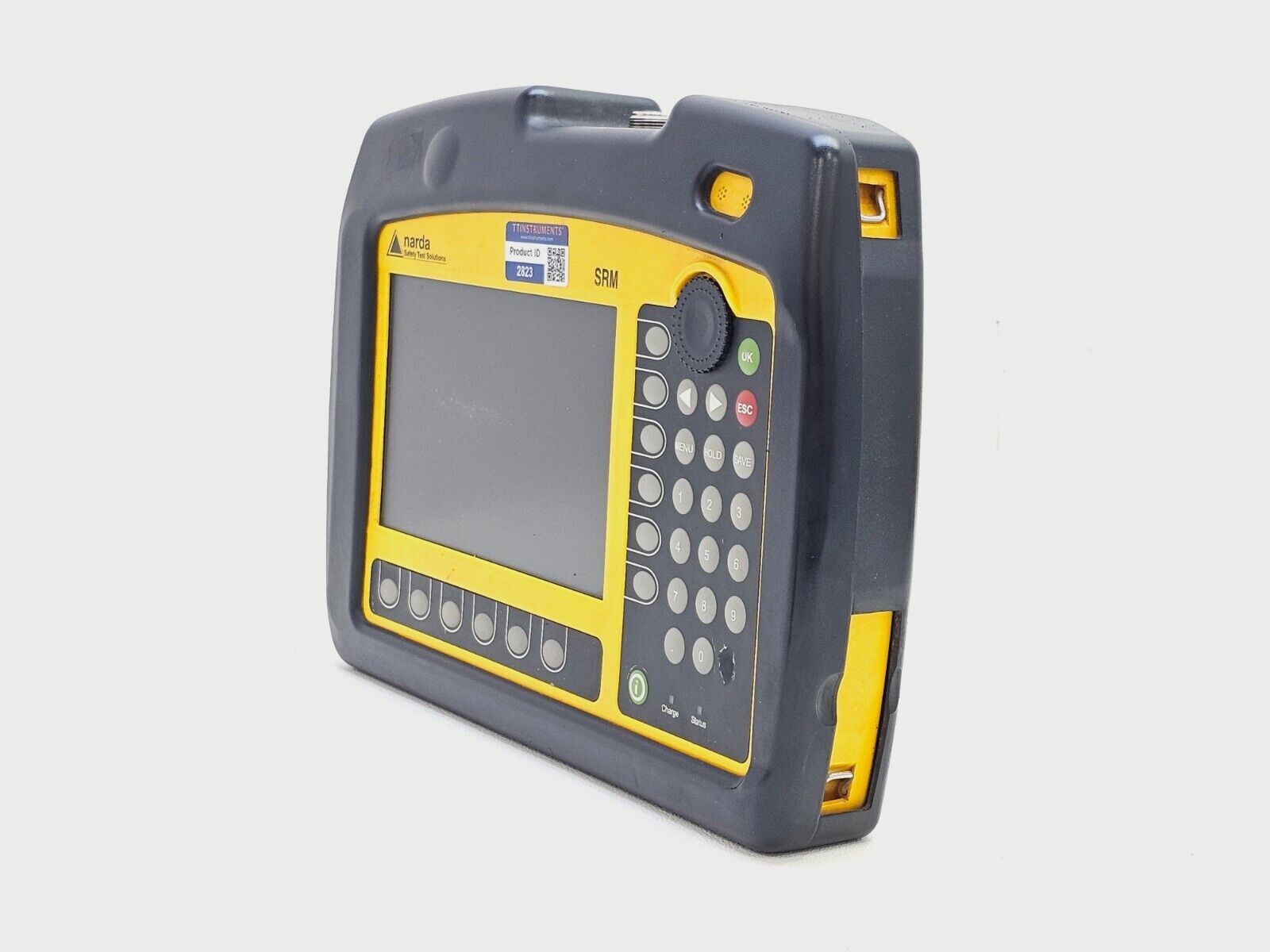

The Narda SRM-3006 Selective Radtion Meter is a frequency selective hand held field strength measuring system, including selection of two probe heads for rapid and reliable safety assessments.

SRM-3006 has become established as the standard instrument for these tasks. It provides the user with automatic evaluations taking various human safety standards into account directly in the instrument, together with a specified overall measurement uncertainty, making error-prone and complicated calculations unnecessary.

The SRM 3006 measurements conform to ICNIRP and national standards, including the EMF Directive (2013/35/EU) with results displayed directly in terms of the permitted limit value

Full frequency content of measurments up to 6GHz

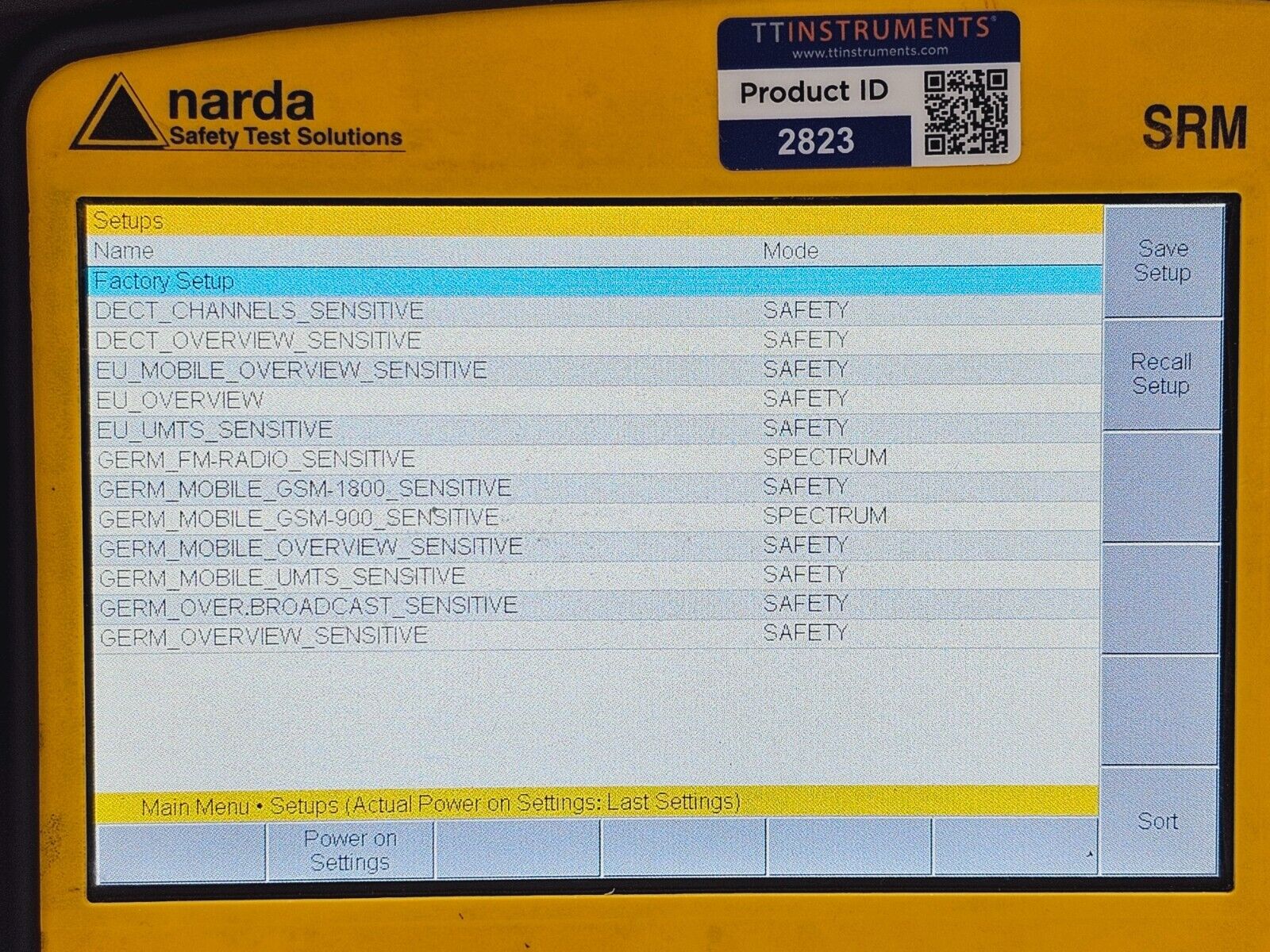

Fast, reliable results using predefined measurement routines, setups, and automatic settings

Scope mode for short term analysis of pulsed signals and long term recording of variable exposure levels

Editable tables for automatic correlation of results with telecommunications services (e.g. broadcasting, GSM, WiMAX)

Individual preparation of field campaigns with subsequent evaluation and handling of large quantities of measurement data

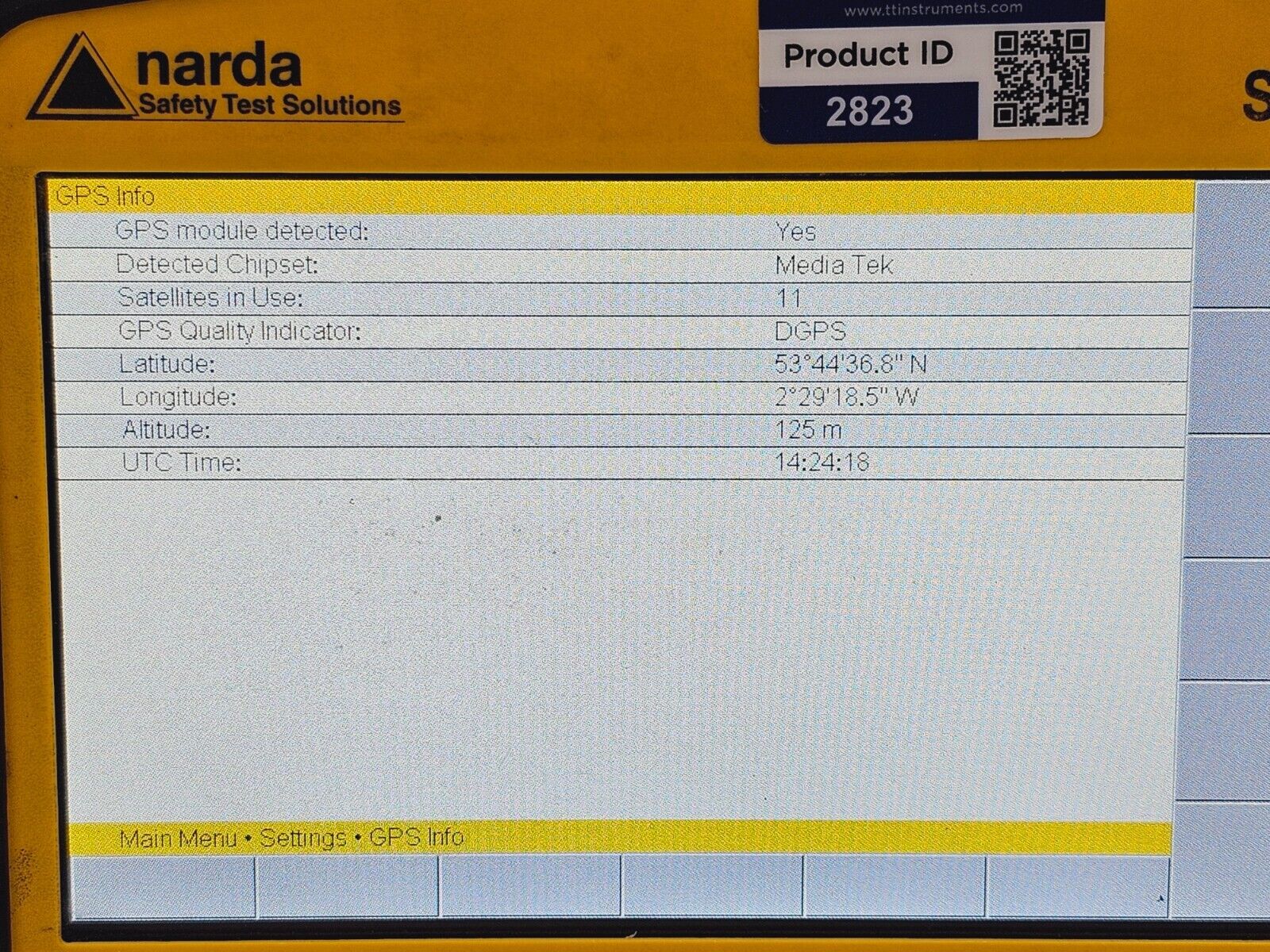

Suitable for outdoor use: Radiation protected, robust, splash-proof, ergonomically designed; uses exchangeable rechargeable batteries; equipped with integrated GPS and voice recorder

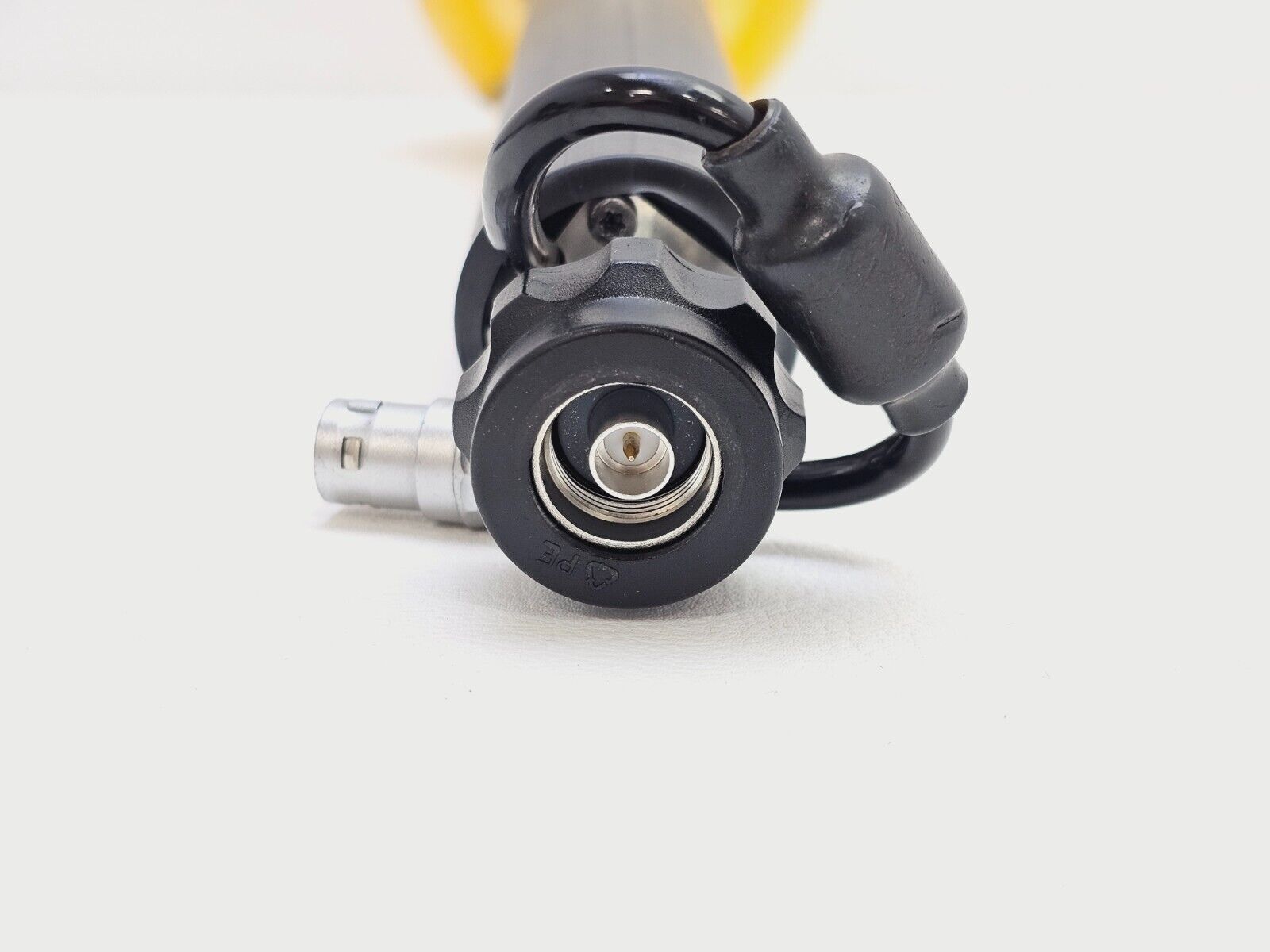

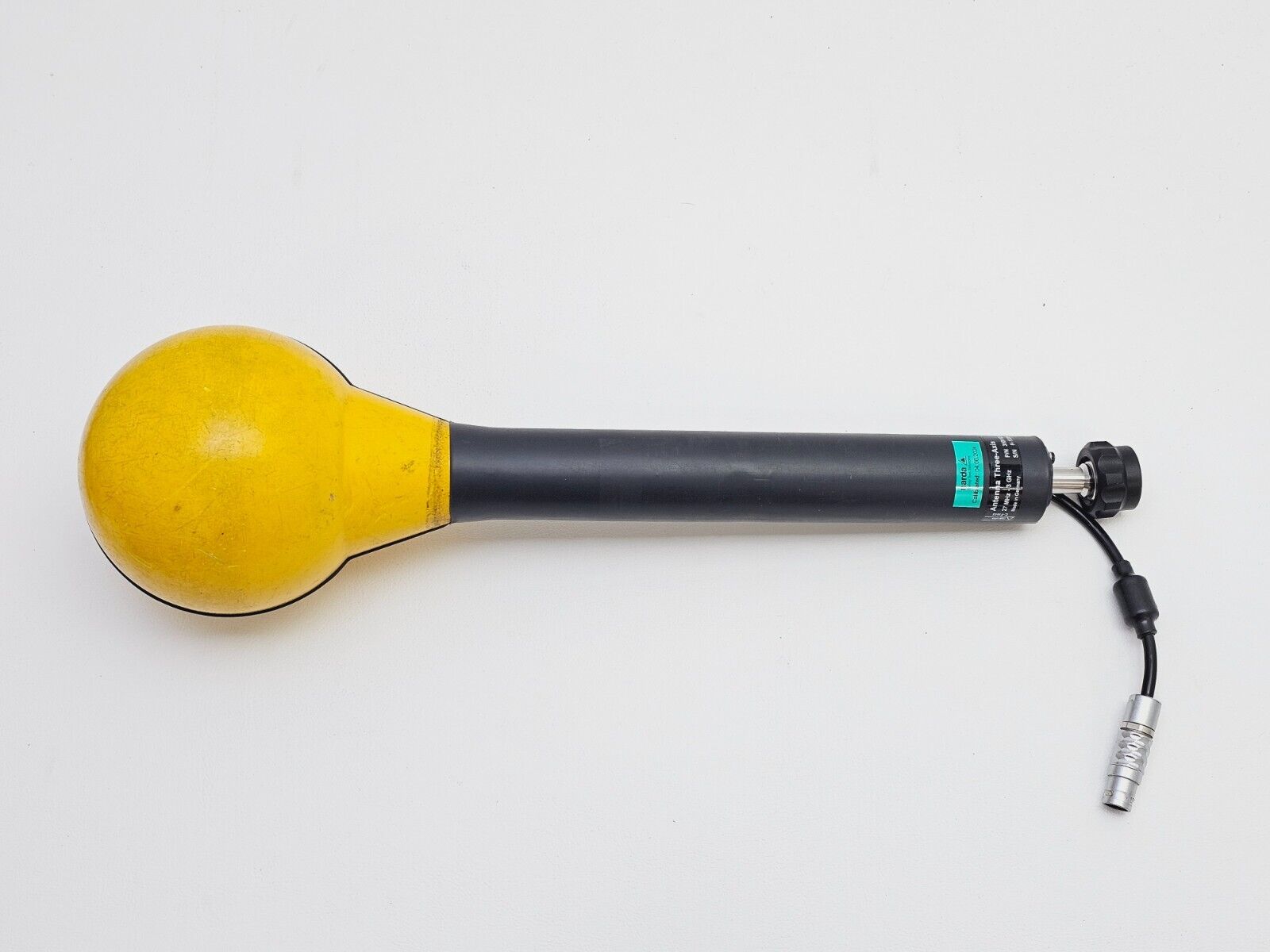

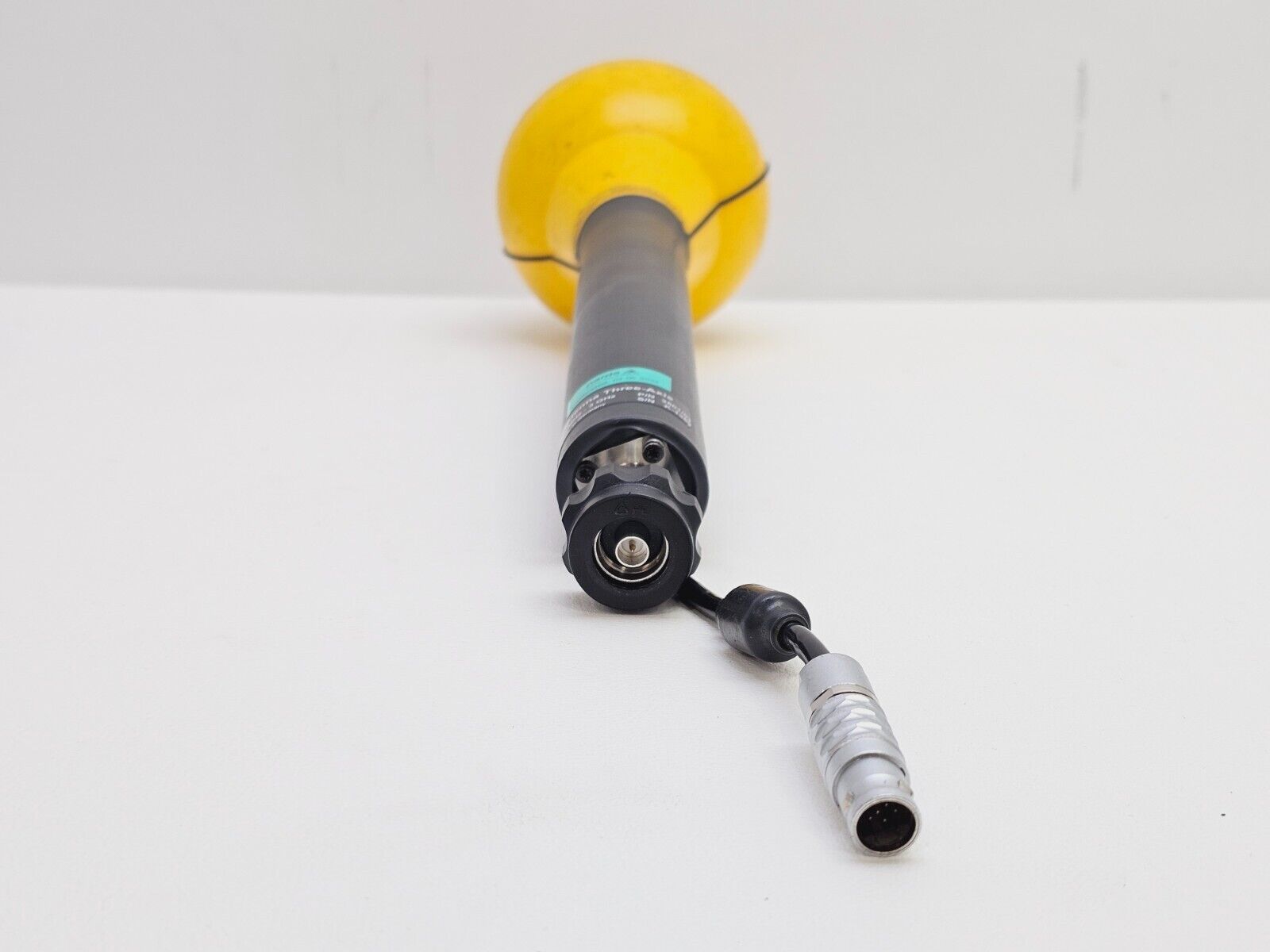

Narda 3501/03 3-Axis E-Field Antenna for SRM-3006 | 27 MHz - 3 GHz

Weight
450 g

Length including shaft
460 mm

Frequency range
27 MHz to 3 GHz

Measurement dynamic range
0.2 mV/m to 200 V/m

Measures electric fieldIsotropic characteristicStored calibration factors, applied automaticallyParticularly suitable for rapid isotropic measurements e.g. in the mobile communications range

Datasheet
