Condition: Refurbished

Seller refurbished and calibrated Keysight N4694A ECal module, tested and fully functional. Cosmetic imperfections are present but do not affect performance. Calibrated until February 2026.

Included in the sale:
• Keysight N4694A 1.85 mm 2-port Electronic Calibration (ECal) module (Option 00F)

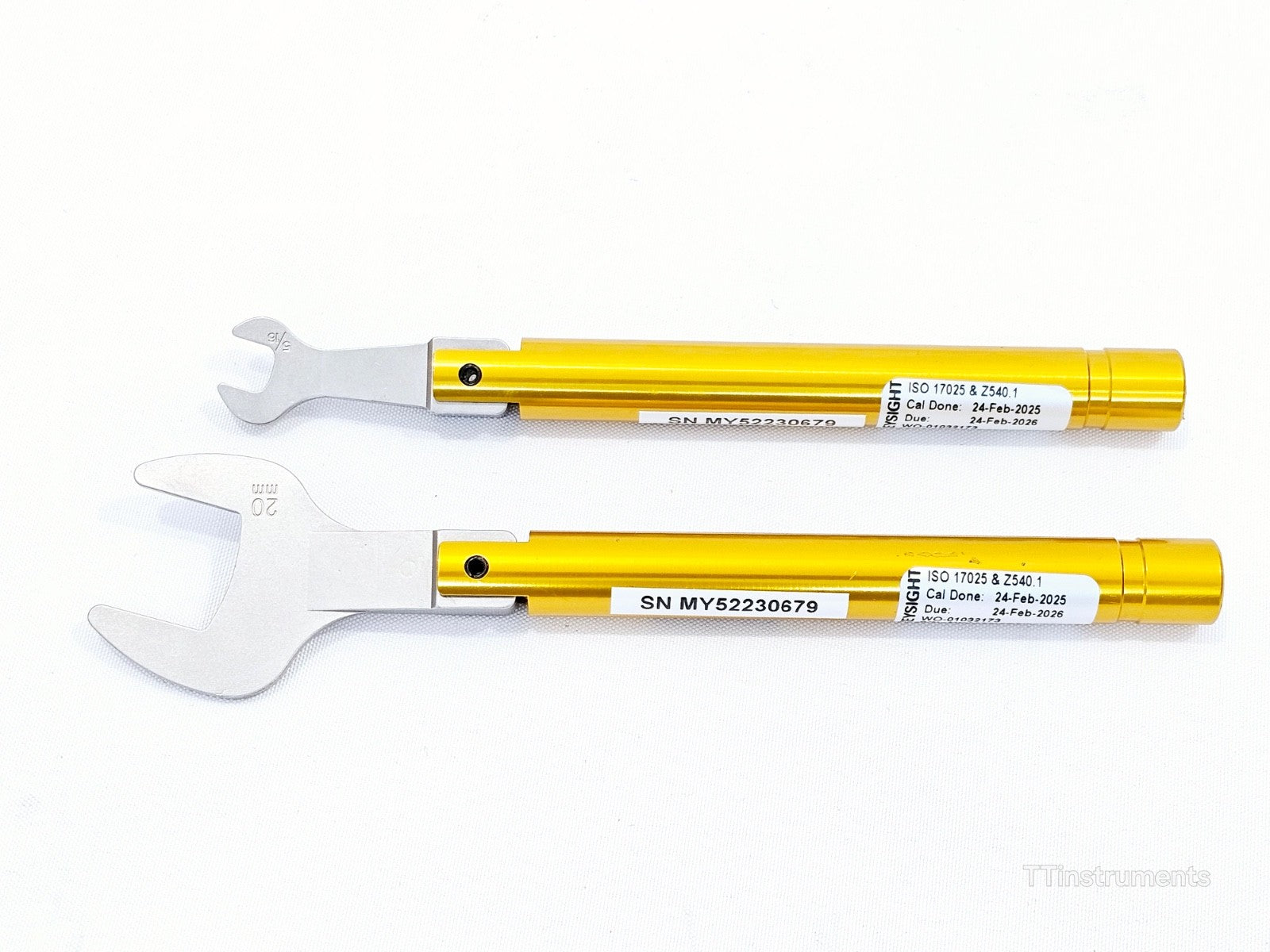

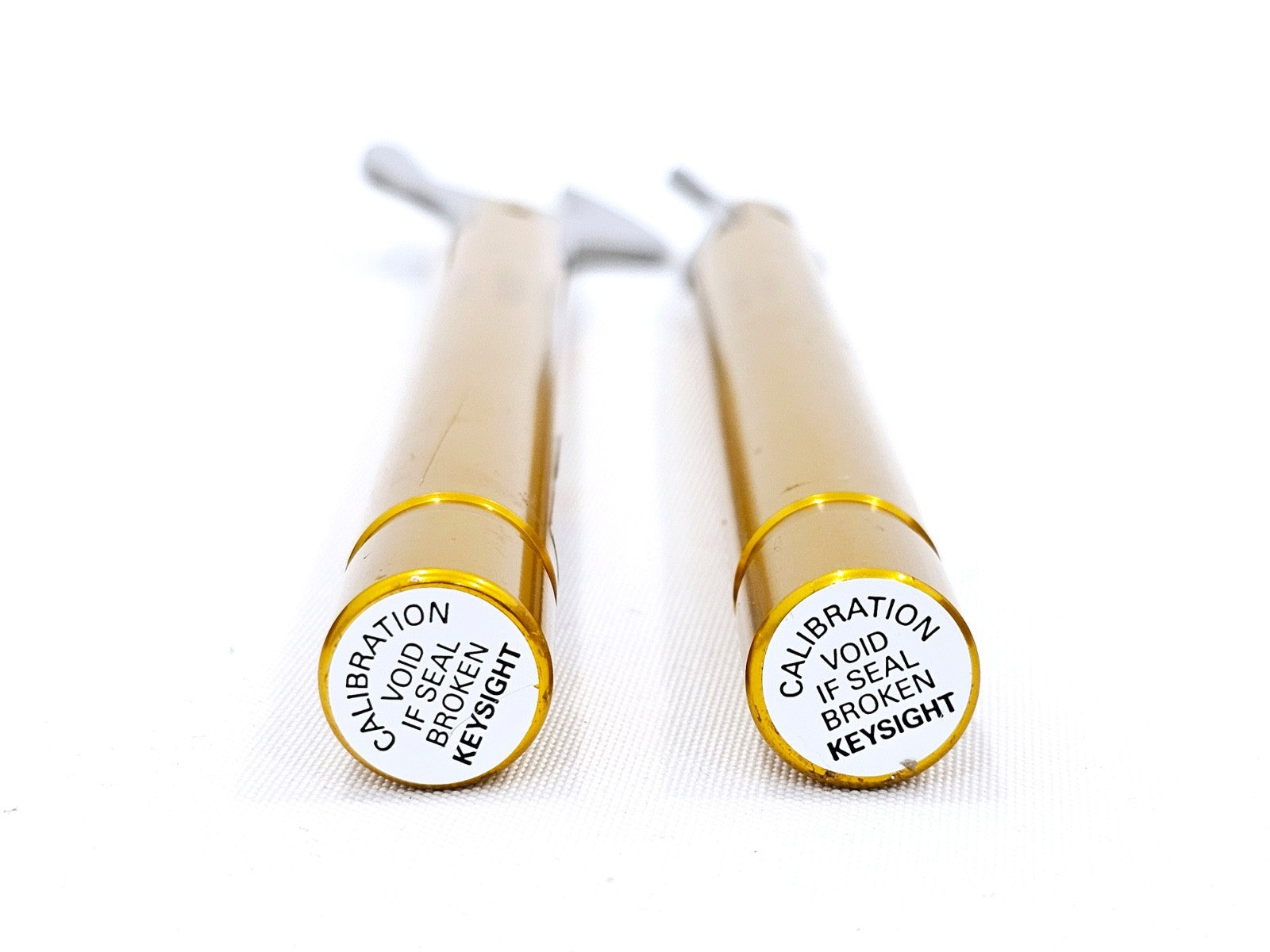

• Two Keysight torque wrenches (sealed)

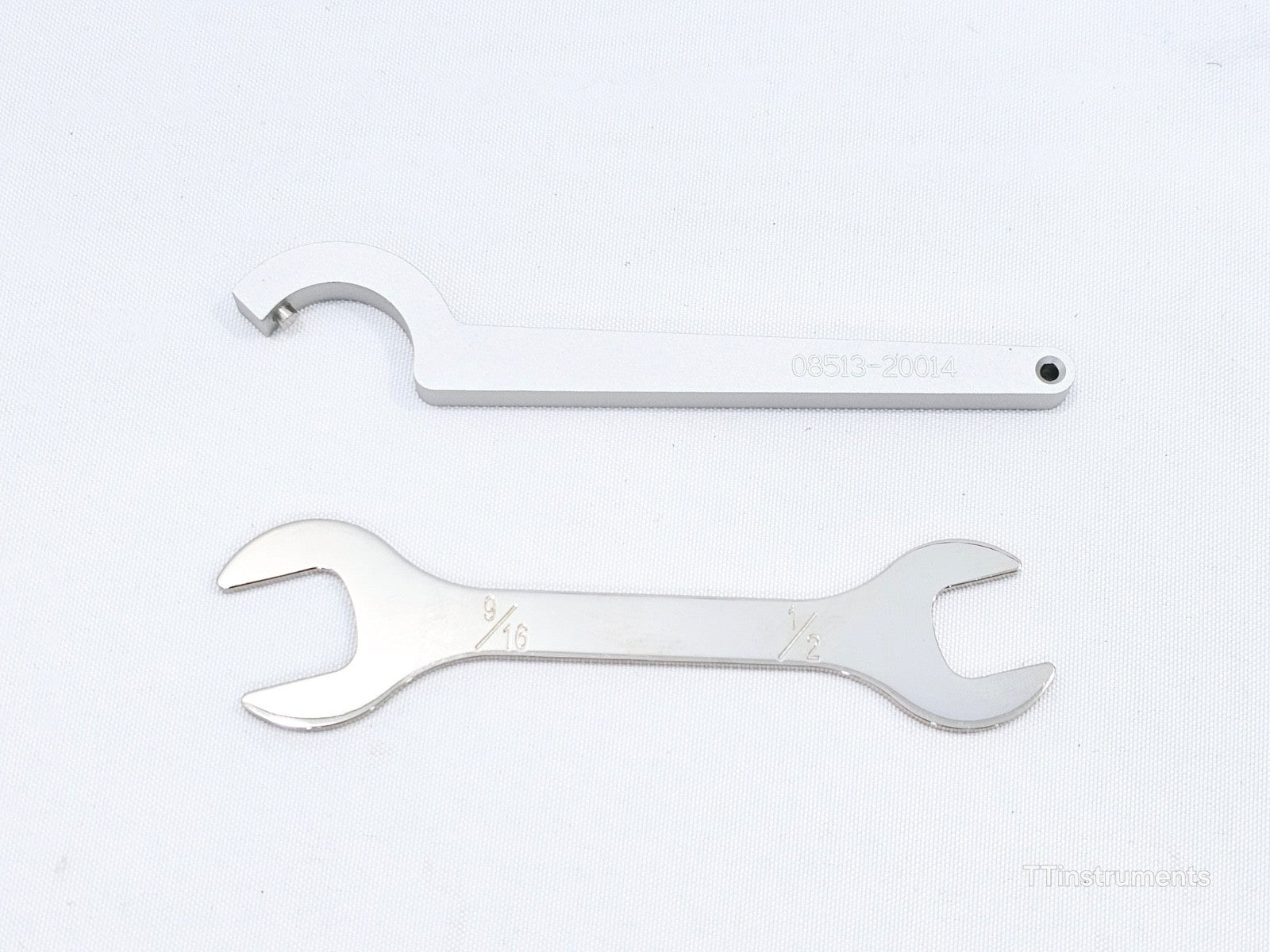

• Hook spanner (08513-20014)
• Open-ended 9/16 in & 1/2 in spanner
• White cable

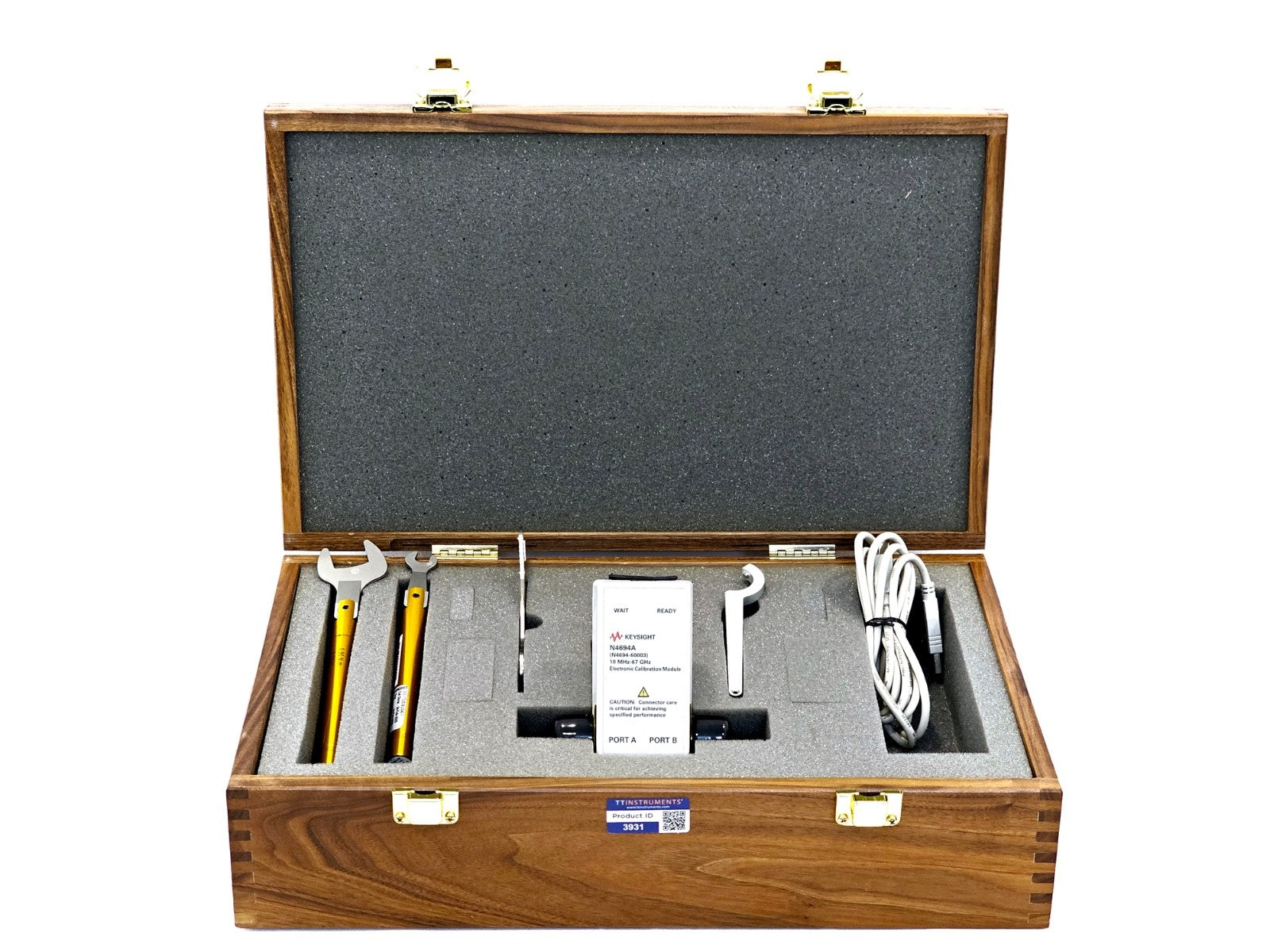

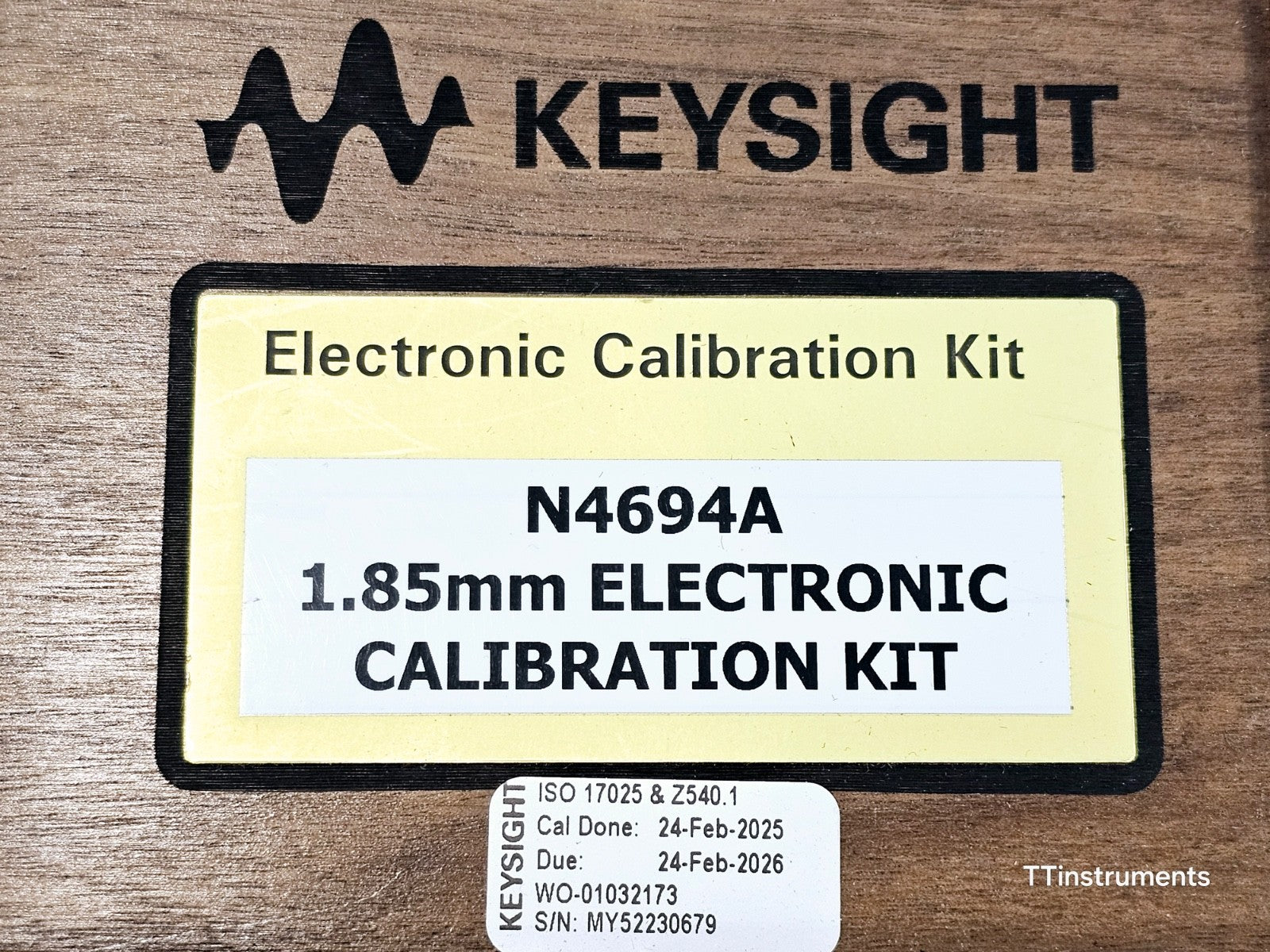

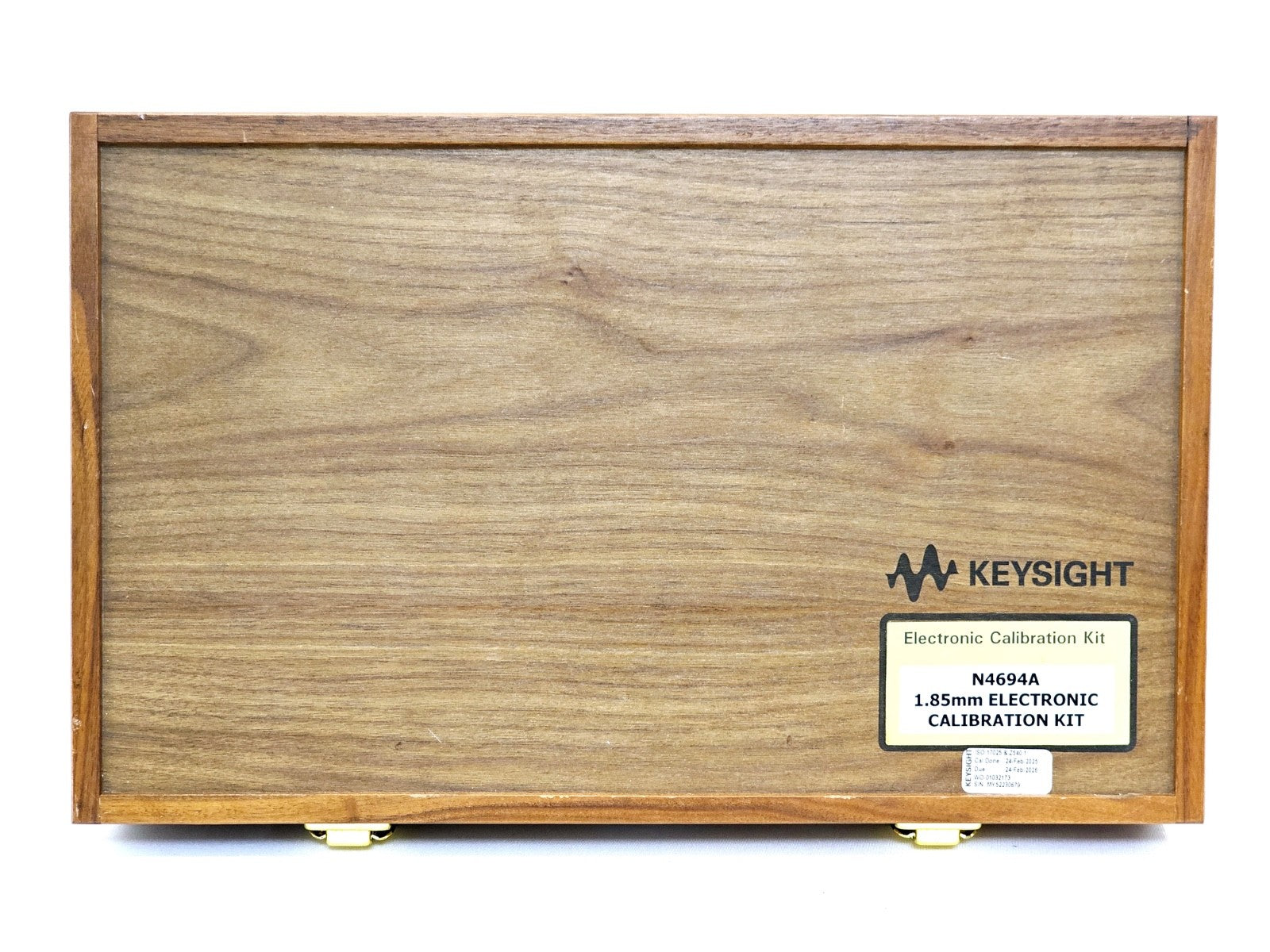

• Wooden storage/carry case with foam insert

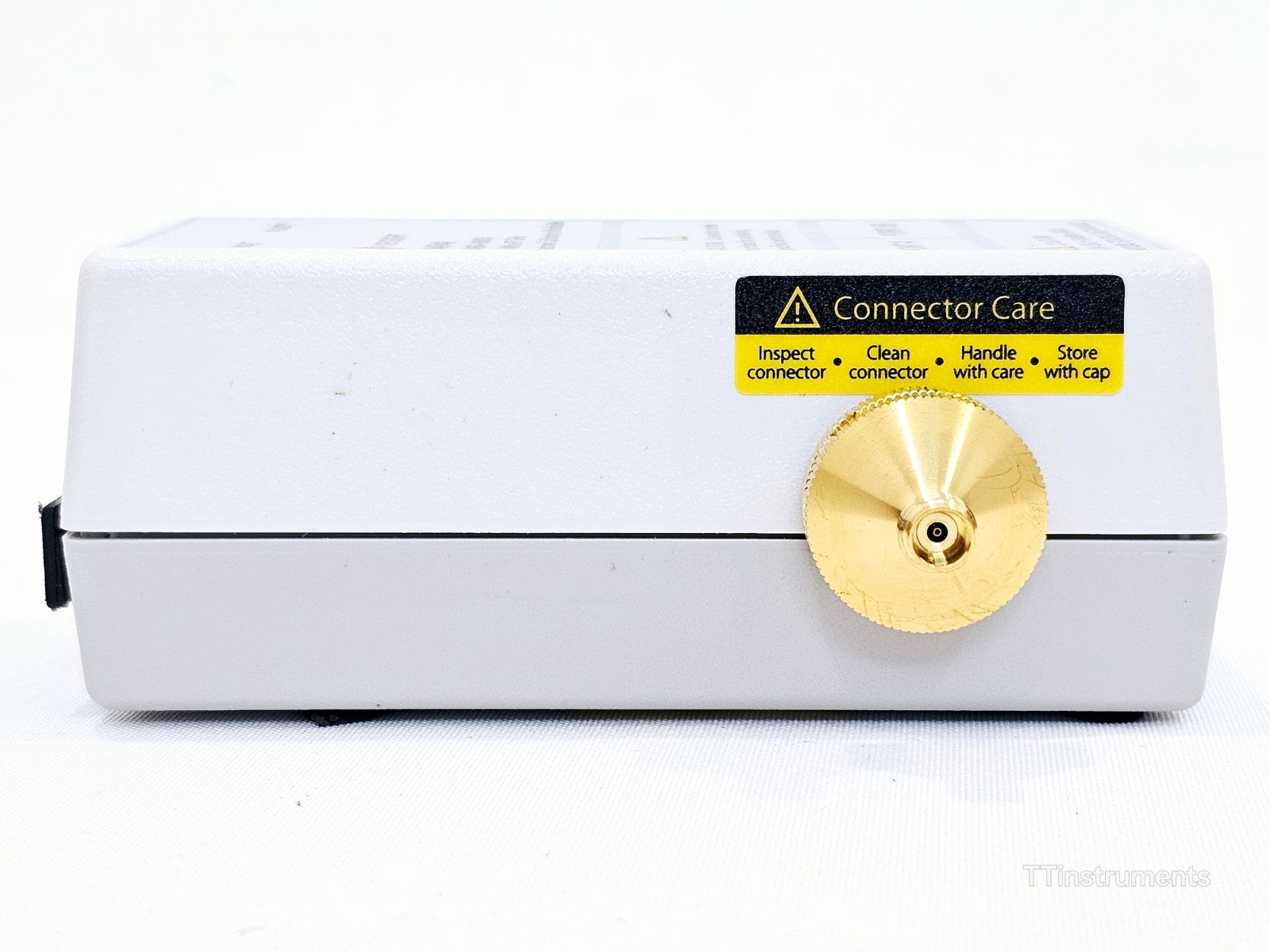

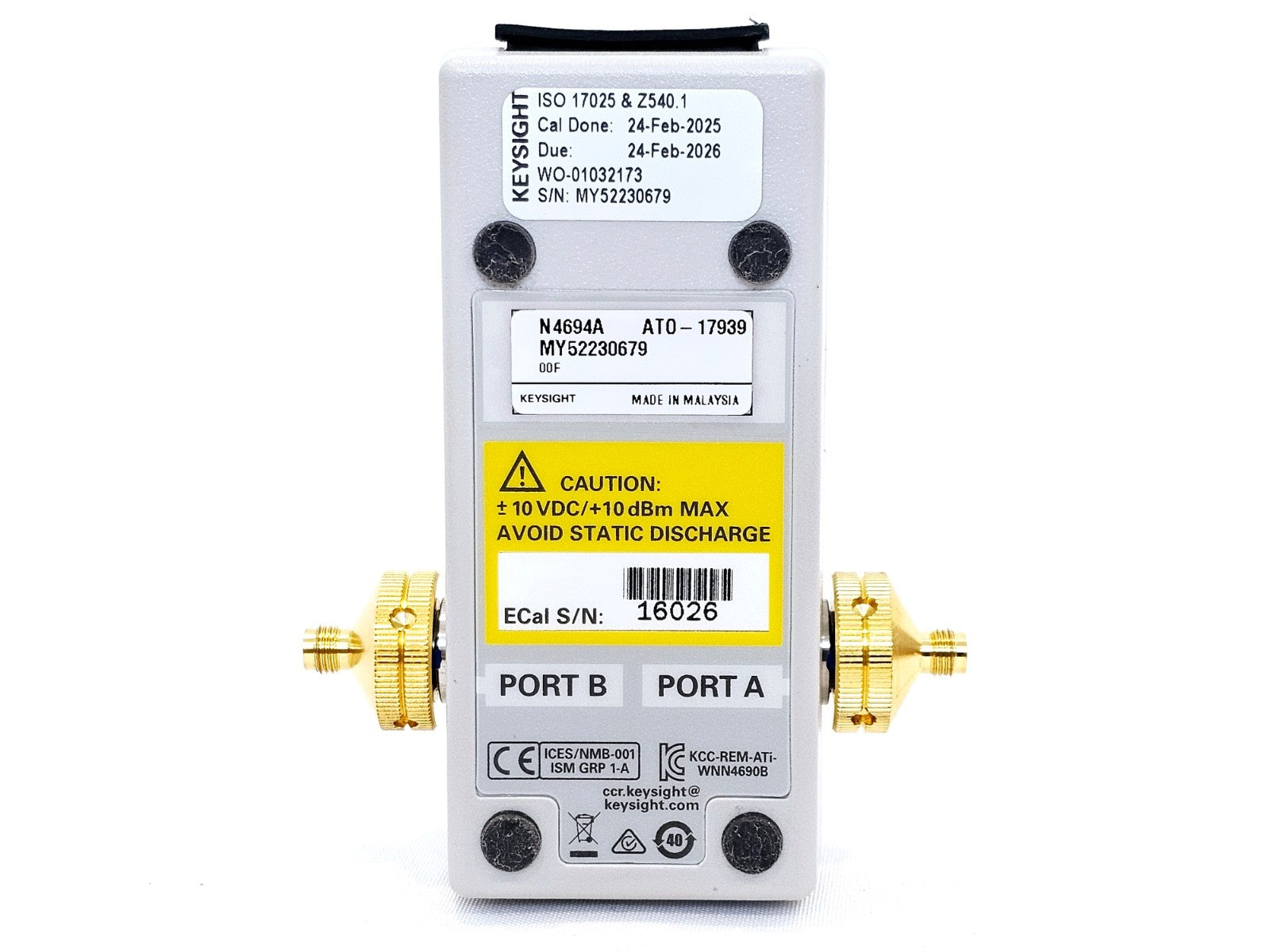

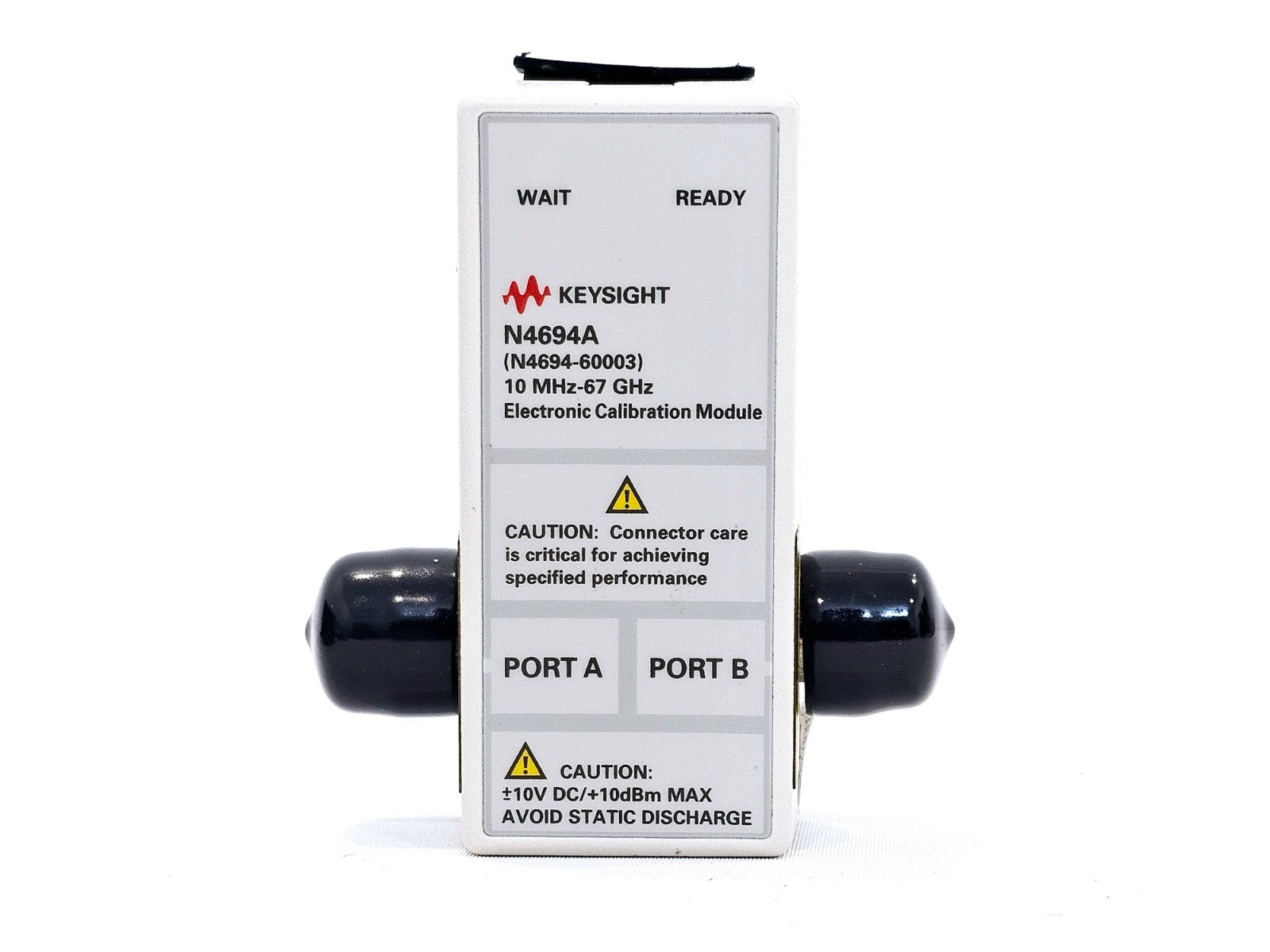

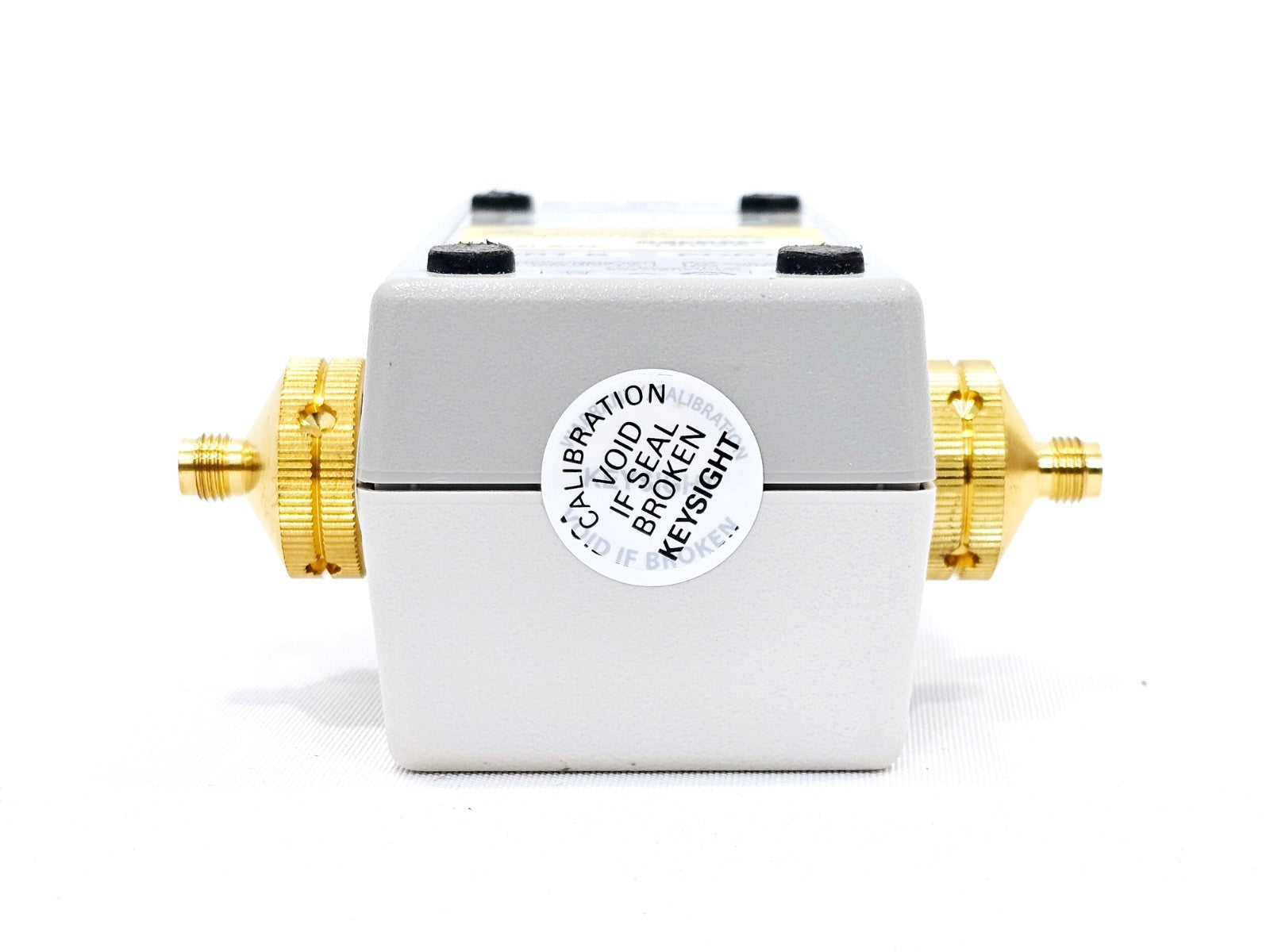

The Keysight N4694A is a 2-port 1.85 mm Electronic Calibration (ECal) module designed for use with Keysight PNA-series vector network analyzers (VNAs). ECal technology provides a single-connection calibration process using fully traceable electronic impedance standards, significantly reducing operator error, minimising connector wear, and improving calibration speed and repeatability compared to traditional mechanical calibration kits.

Each N4694A module stores its fully characterised S-parameter data internally, ensuring consistent and accurate calibration results independent of the host VNA. Option 00F designates the standard 2-port configuration for this module.

Frequency Range: 10 MHz to 67 GHz

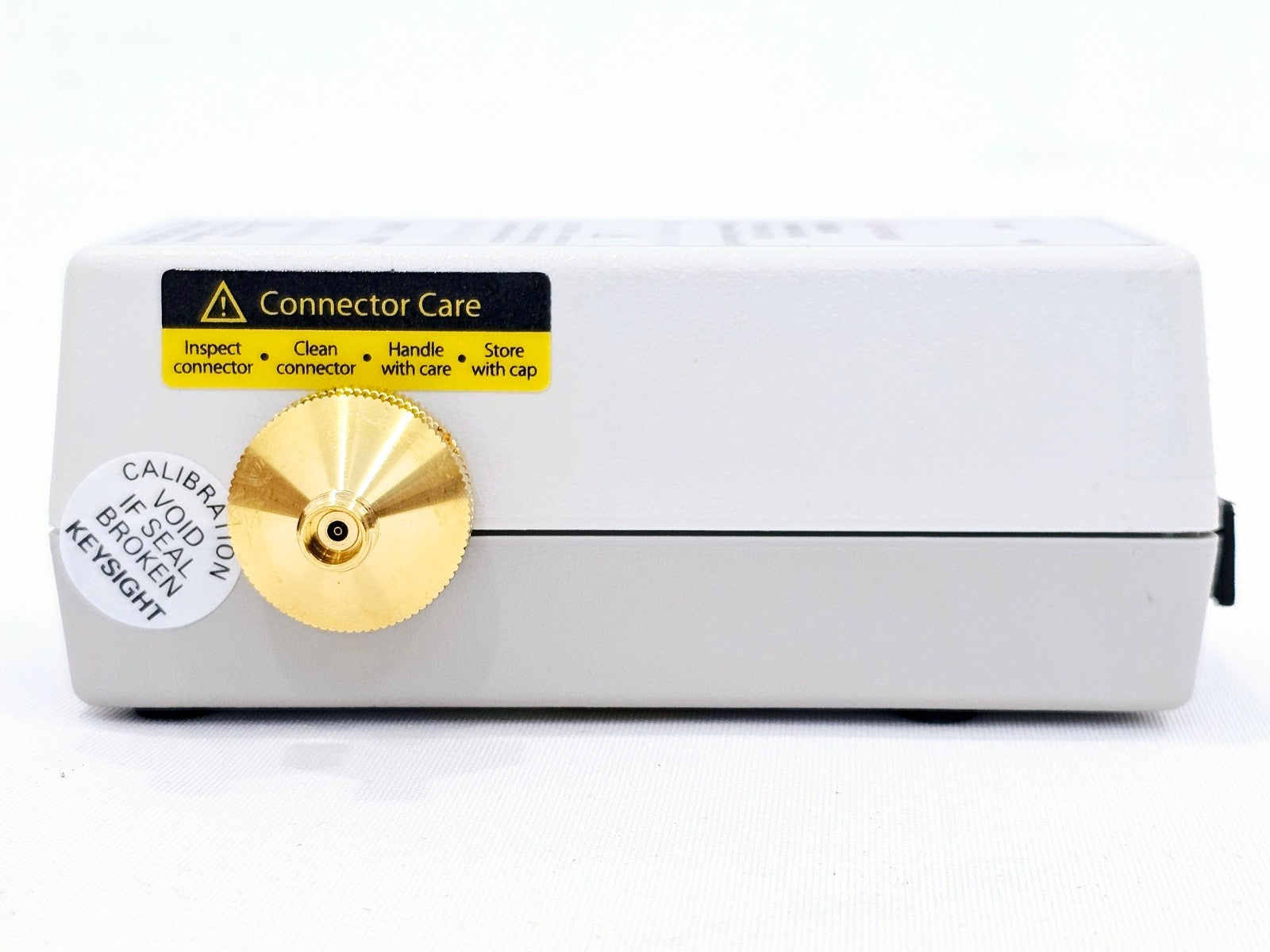

Connector Type: 1.85 mm (male)
Number of Ports: 2
Calibration Type: Electronic Calibration (ECal)
Compatibility: Keysight PNA-series VNAs
Impedance Standards: Fully traceable electronic
Data Storage: Internal S-parameter characterisation data
Option: 00F (2-port)

The N4694A is well suited to millimetre-wave and high-frequency RF applications requiring accurate, repeatable, and efficient VNA calibration up to 67 GHz.

Keysight N4690 Series ECal Modules Data Sheet: Download PDF

Keysight N4690 Series ECal Modules User's Guide: Download PDF
