Condition: Refurbished

This Keysight 87104D SP4T coaxial switch covers DC to 40 GHz and is supplied with a Keysight ISO 17025 & Z540.1 calibration certificate (Cal Done: 16-Oct-2024, Due: 16-Oct-2025, S/N: MY55400952, WO-00928342). Cosmetic imperfections are present but do not affect performance.

Included in this sale:
• Keysight 87104D SP4T coaxial switch (S/N: MY55400952)
• Keysight ISO 17025 & Z540.1 calibration label (Cal Done: 16-Oct-2024)

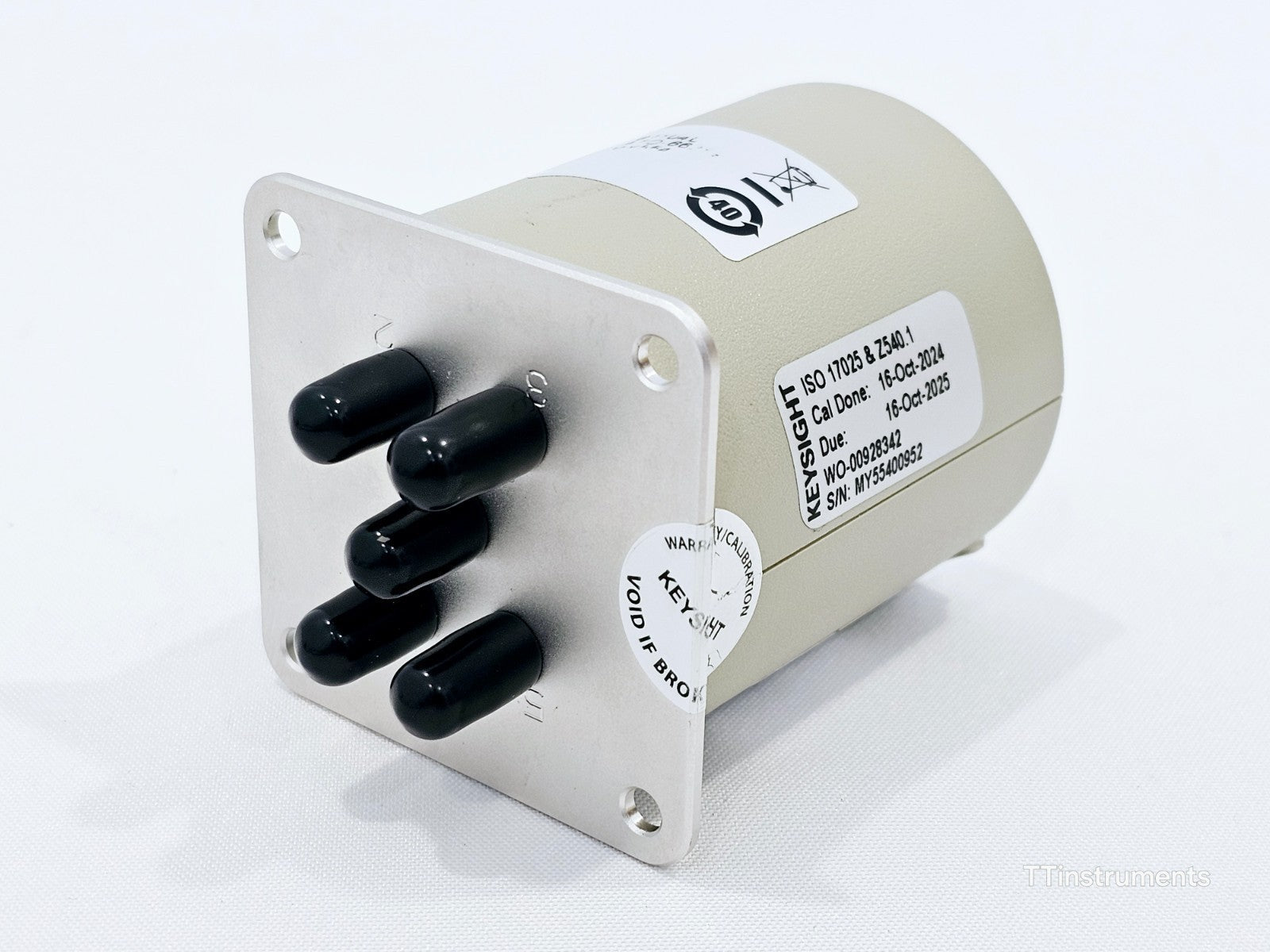

• 5× black protective port caps (fitted to the four throw ports and visibly loose)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

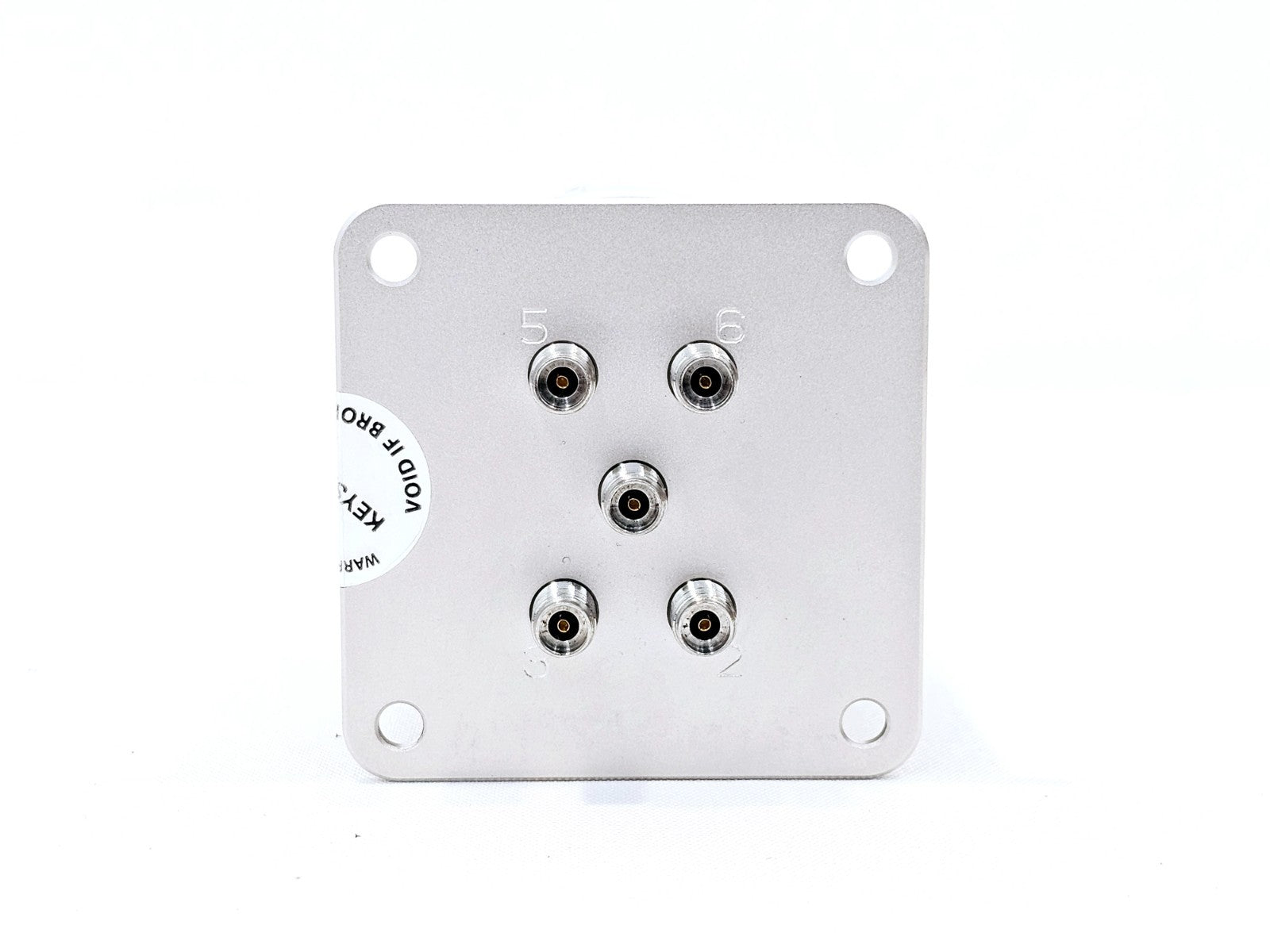

Keysight 87104D — Multiport Electromechanical Coaxial Switch, DC to 40 GHz, SP4T

The Keysight 87104D is a high-performance, terminated SP4T electromechanical coaxial switch designed to improve signal accuracy in RF and microwave signal routing and testing applications. It delivers unmatched isolation and insertion loss repeatability, making it ideal for automated test equipment (ATE), signal monitoring, satellite and antenna switching, manufacturing test, and multi-port device characterisation alongside vector network analysers.

The 0.03 dB insertion loss repeatability reduces random measurement path errors and improves overall measurement uncertainty. The 5-million cycle switch life, combined with magnetic latching and opto-electronic current interrupt capability, eliminates DC contact failures common in conventional electromechanical switches, reducing calibration cycles and lowering cost of ownership.

With port-to-port isolation typically greater than 65 dB at 40 GHz, the 87104D eliminates the need for tree-matrix configurations, reduces part count, minimises insertion loss, and ensures equal-length signal paths for consistent phase performance.

Key Features:
• SP4T configuration, terminated
• Electronic position indicator
• Current interrupt capability
• Magnetic latching
• 2¼ inch square flange with standard industry mounting footprint

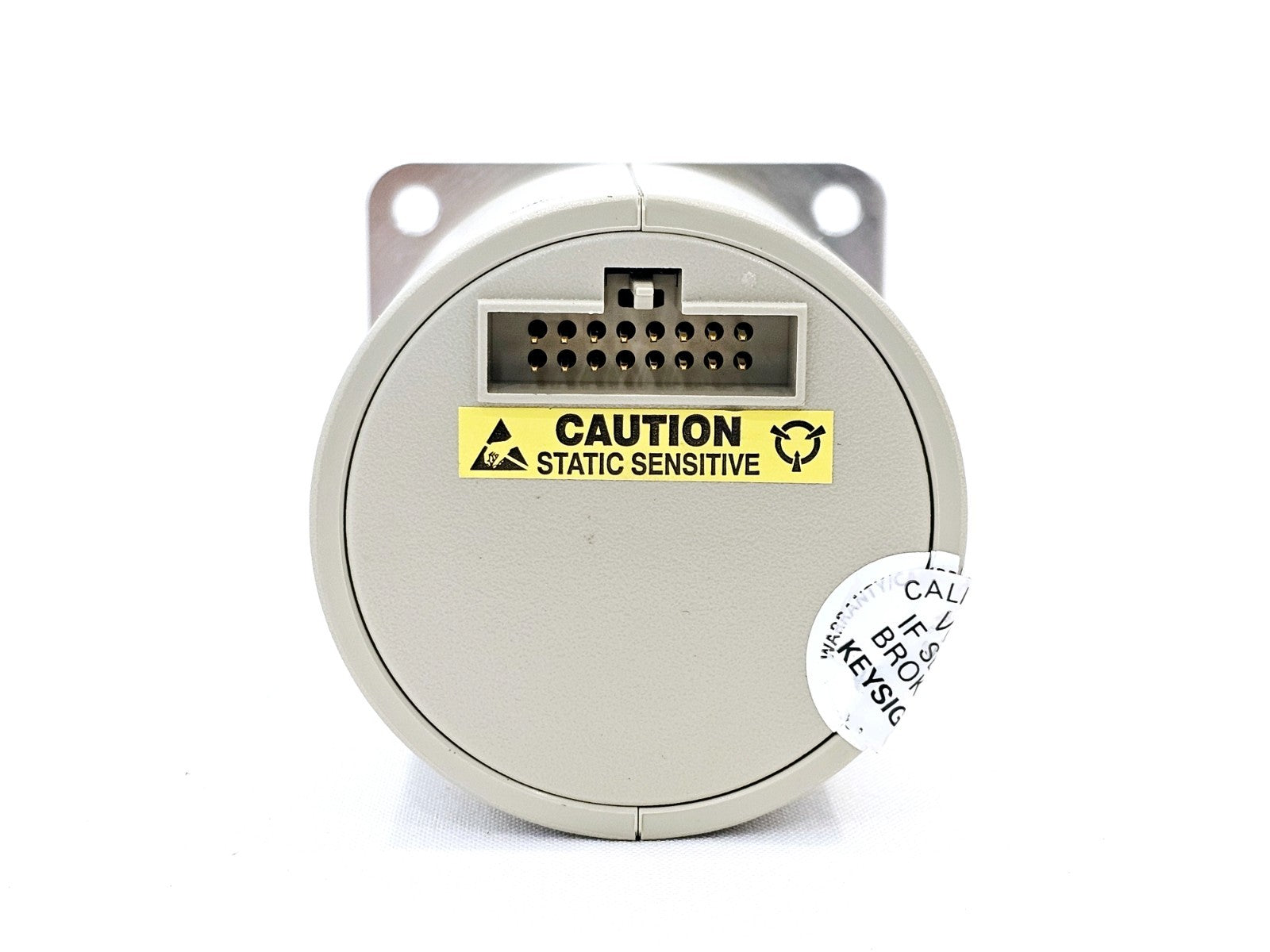

• 16-pin ribbon drive cable connector (Option 100 provides solder terminals)

Specifications:
Frequency Range: DC to 40 GHz
Configuration: SP4T (Single-Pole Four-Throw), terminated
Insertion Loss: 0.7 dB typical
Insertion Loss Repeatability: 0.03 dB
Isolation (Port-to-Port): ≥ 65 dB at 40 GHz (typical)
SWR: 1.95
Continuous RF Input Power: 1 W max
Connector Type: 2.92 mm (f)
Impedance: 50 Ω
Switch Life: 5 million cycles
Drive Voltage: 24 VDC
Operating Temperature: -55°C to +85°C
Mounting: 2¼ inch square flange
Body Dimensions: 2½ inch long × 2¼ inch diameter
Control Interface: 16-pin ribbon cable (standard); solder terminals (Option 100)
Default Options: 024 and 161
RoHS Compliant: Yes

Keysight 87104/6D Multiport Electromechanical Coaxial Switches — Technical Overview (5989-7217): Download PDF
