Condition: Refurbished

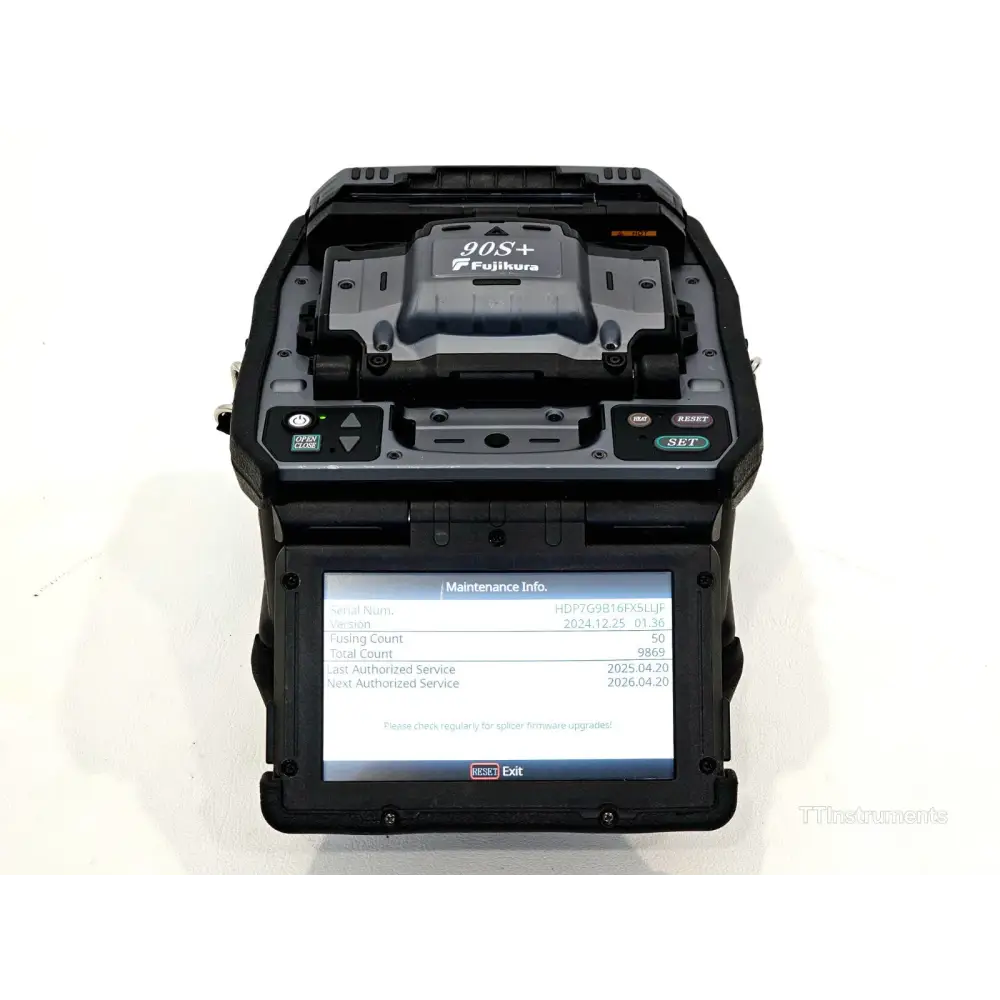

This Fujikura 90S+ core alignment fusion splicer has been cleaned and serviced by an approved service centre in April 2025, with new electrodes fitted. ARC count stands at 9869. The battery (BTR-15) is included and holds its charge. This is an EU licensed model, bundled with the Fujikura CT-50 high-precision cleaver.

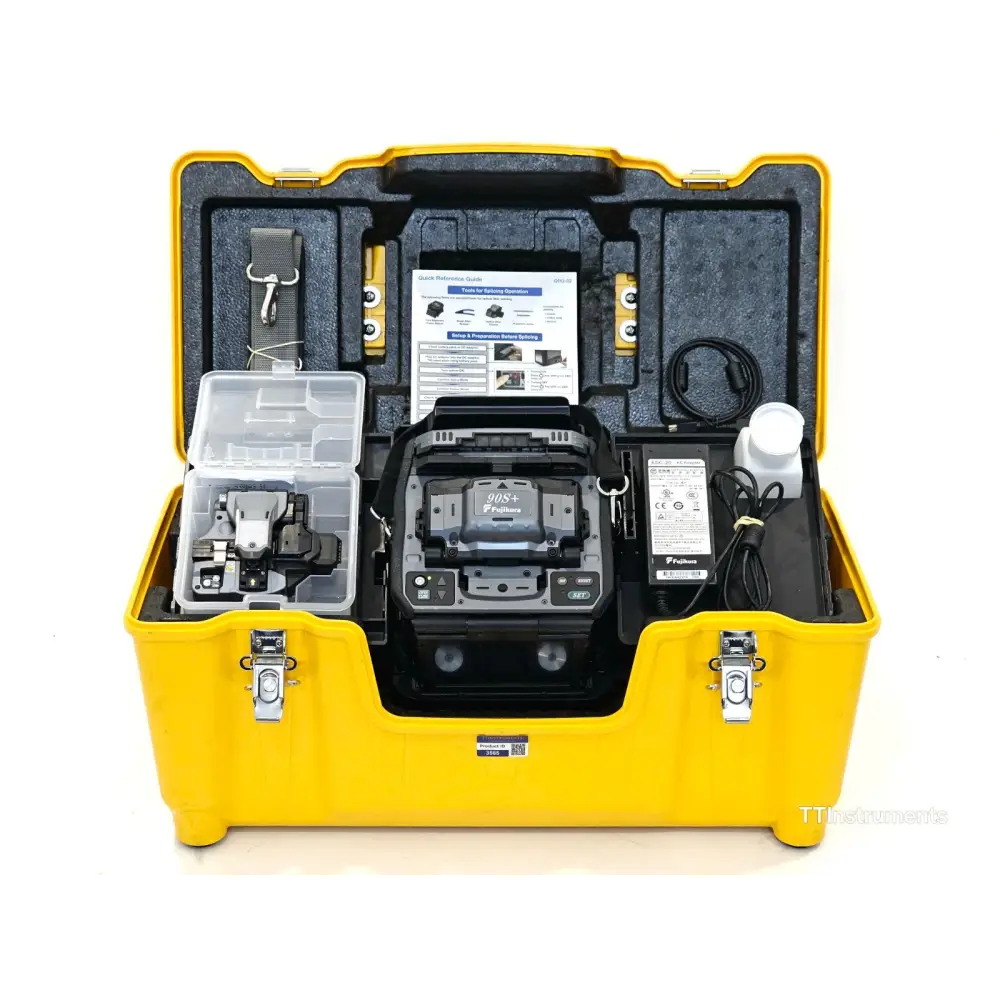

Included in the sale:
• Fujikura 90S+ SM/MM Core Alignment Fibre Fusion Splicer (ARC count 9869) with new electrodes
• Fujikura CT-50 High Precision Fibre Cleaver with AD50 guide plate, case, and new blade
• AC Adapter/Charger
• Battery Pack (BTR-15)
• Hard Carrying Case
• Alcohol Pot
• Work Tray

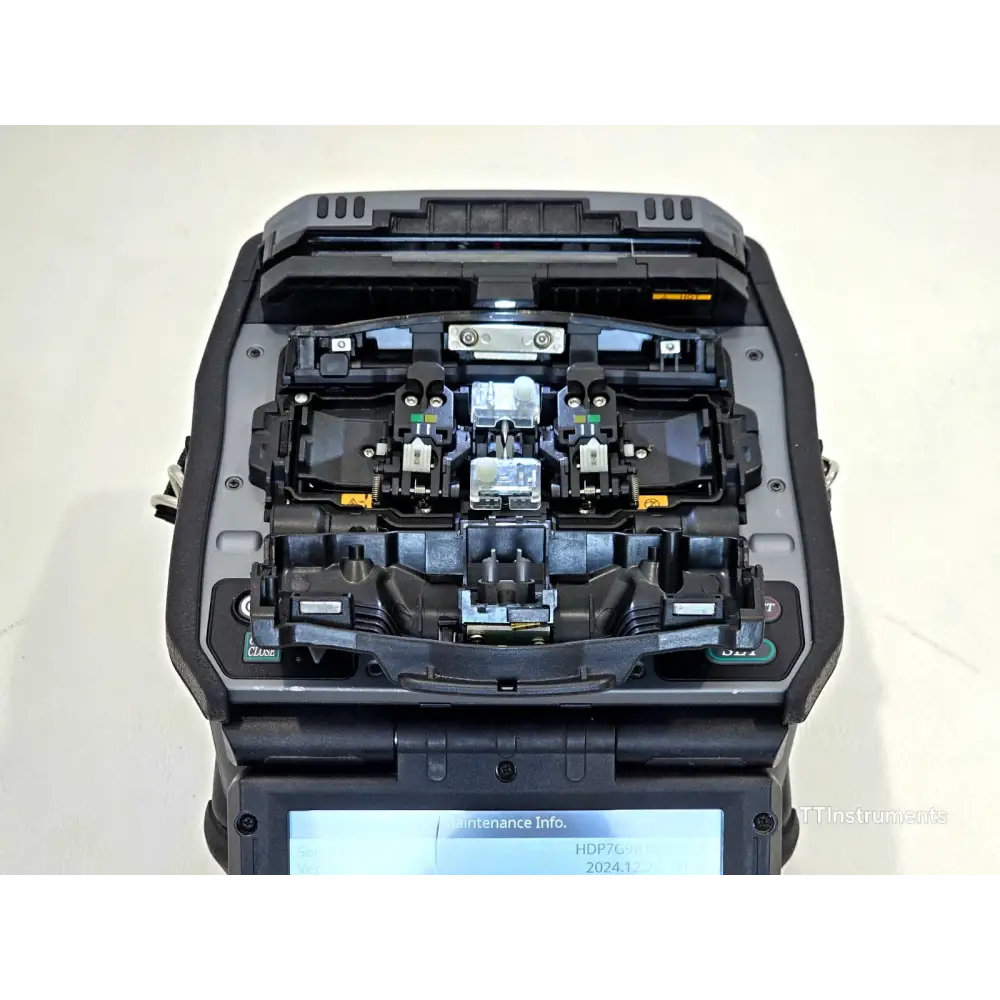

The Fujikura 90S+ is a single-fibre core alignment fusion splicer designed to set a new standard in speed, precision, and automated operation. It features Active Fusion Control Technology (AFCT), which analyses the cleave end-face condition and performs optimal fusion control to minimise splice loss, and Active Blade Management Technology (ABMT), which communicates wirelessly with the CT-50 cleaver to automatically rotate the blade when wear is detected. Fully automated wind protectors, sheath clamps, fibre retention clamps, and a redesigned internal structure allow the entire splicing process to complete without the operator needing to touch the machine once started. The universal sheath clamp handles both loose-tube and tight-buffer fibre without requiring additional accessories. The 90S+ is suited to a wide range of field applications including FTTx drop cables, long-haul terrestrial and submarine LEAF fibres, bend-insensitive fibres, and splice-on connectors, as well as production environments requiring high output and low loss.

Fibre Alignment Method: Active core alignment
Spliceable Fibre Count: Single fibre
Fibre Type: Single-mode and multi-mode optical fibre
Cladding Diameter: 80μm – 150μm
Sheath Clamp Coating: 3000μm maximum coating diameter
Sheath Clamp Cleave Length: 5mm – 16mm
ITU-T G.652 Splice Loss: Avg. 0.02dB
ITU-T G.651 Splice Loss: Avg. 0.01dB
ITU-T G.653 Splice Loss: Avg. 0.04dB
ITU-T G.655 Splice Loss: Avg. 0.04dB
ITU-T G.657 Splice Loss: Avg. 0.02dB
SM Fast Mode Splice Time: Avg. 7 to 9 seconds
Protection Sleeve Type: Heat-shrinkable sleeve
Sleeve Length: Max. 66mm
Sleeve Diameter: Max. 6mm before shrinking
60mm Slim Mode Heat Time: Avg. 9 to 10 seconds
60mm Mode Heat Time: Avg. 13 to 15 seconds
Fibre Tensile Test Force: Approx. 2.0N
Electrode Life: Approx. 5000 splices
Width: Approx. 170mm (without projection)
Depth: Approx. 173mm (without projection)
Height: Approx. 150mm (without projection)
Weight: Approx. 2.8kg (including battery)
Operating Temperature: -10 to 50°C
Storage Temperature: -40 to 80°C
Operating Humidity: 0 to 95% RH (non-condensing)
Operating Altitude: Max. 5000m
AC Adaptor Input: AC100 to 240V, 50/60Hz, Max. 1.5A
Battery Type: Rechargeable Lithium Ion
Battery Output: Approx. DC14.4V, 6,380mAh
Battery Capacity: Approx. 300 splice and heat cycles
Battery Recharge Temperature Range: 0 to 40°C
Battery Storage Temperature: -20 to 30°C
Battery Life: Approx. 500 recharge cycles
LCD Display: 4.9 inch TFT colour touch screen
Display Magnification: Approx. 200x – 320x
V-Groove Illumination: LED lamp
PC Interface: USB 2.0 Mini B connector
External LED Lamp Interface: USB 2.0 A connector, Approx. DC5V, 500mA
Wireless Connectivity: Bluetooth 4.1 LE
Splice Mode Data Storage: 100 splice modes
Heat Mode Data Storage: 30 heat modes
Splice Result Data Storage: 20,000 splices
Splice Image Data Storage: 100 images
Tripod Screw Hole: 1/4-20UNC

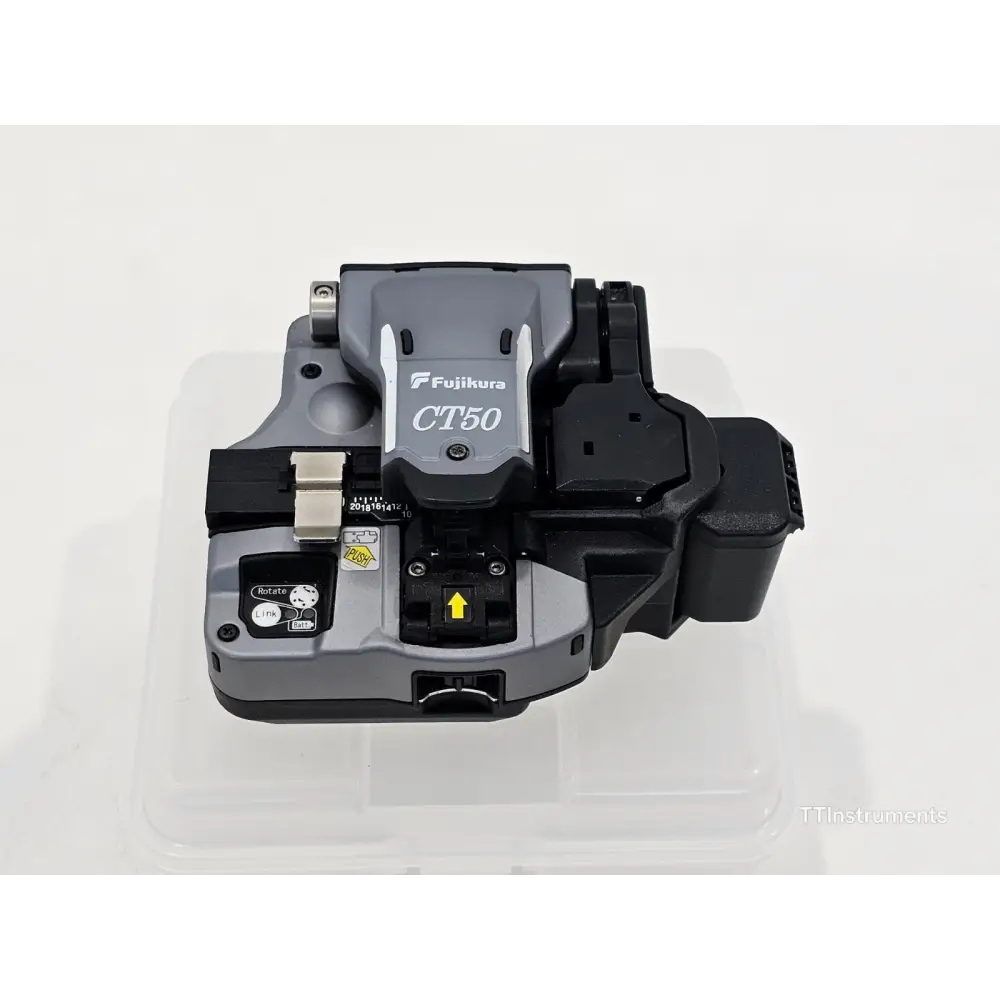

Fujikura CT-50 Cleaver (included):
Applicable Fibre: Silica optical fibre (single and up to 12-fibre ribbon)
Cleave Length (with AD-50): 5mm – 20mm
Cleave Angle: Typically <0.5°
Blade Life: Approx. 60,000 single-fibre cleaves (16 positions x 3 heights)
Wireless Connectivity: Bluetooth (auto blade rotation via splicer communication)
Drop Resistance: 76cm (30 inches) all directions
Dimensions (W x D x H): Approx. 120mm x 95mm x 58mm
Weight: Approx. 305g

Fujikura 90S+ Core Alignment Fusion Splicer — Official Datasheet (Europe): Download PDF

Fujikura 90S+ Fusion Splicer — Full Instruction Manual (Rev1): Download PDF

Fujikura 90S Quick Reference Guide (QRG-02): Download PDF

Fujikura CT-50 Fibre Cleaver — Product Datasheet (Simbol): Download PDF

Fujikura CT-50 Fibre Cleaver — Product Datasheet (Briticom): Download PDF

Fujikura 90S+ Fusion Splicer Specification Sheet (AFL/Fiber Instrument Sales): Download PDF
