Condition: Refurbished

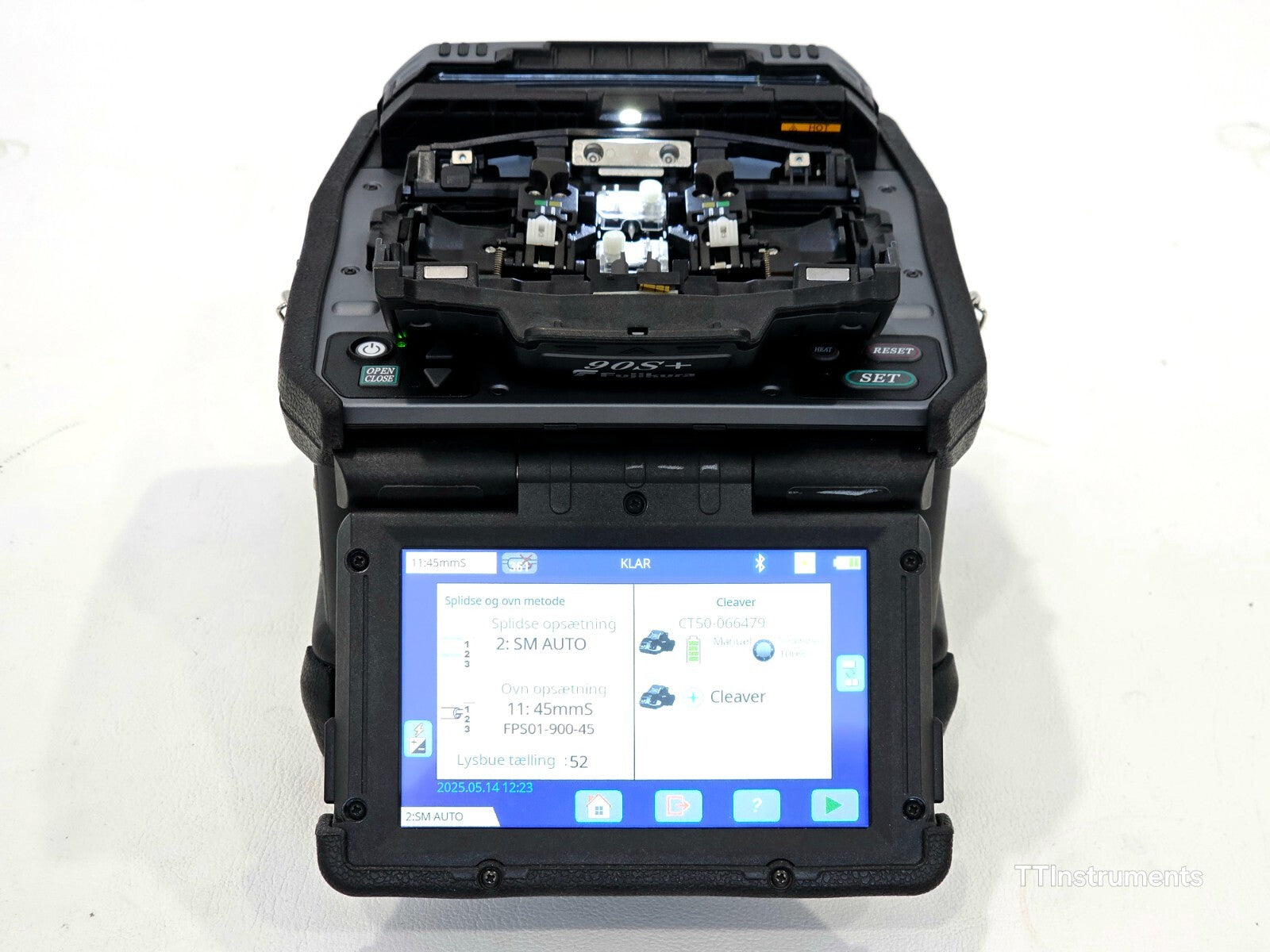

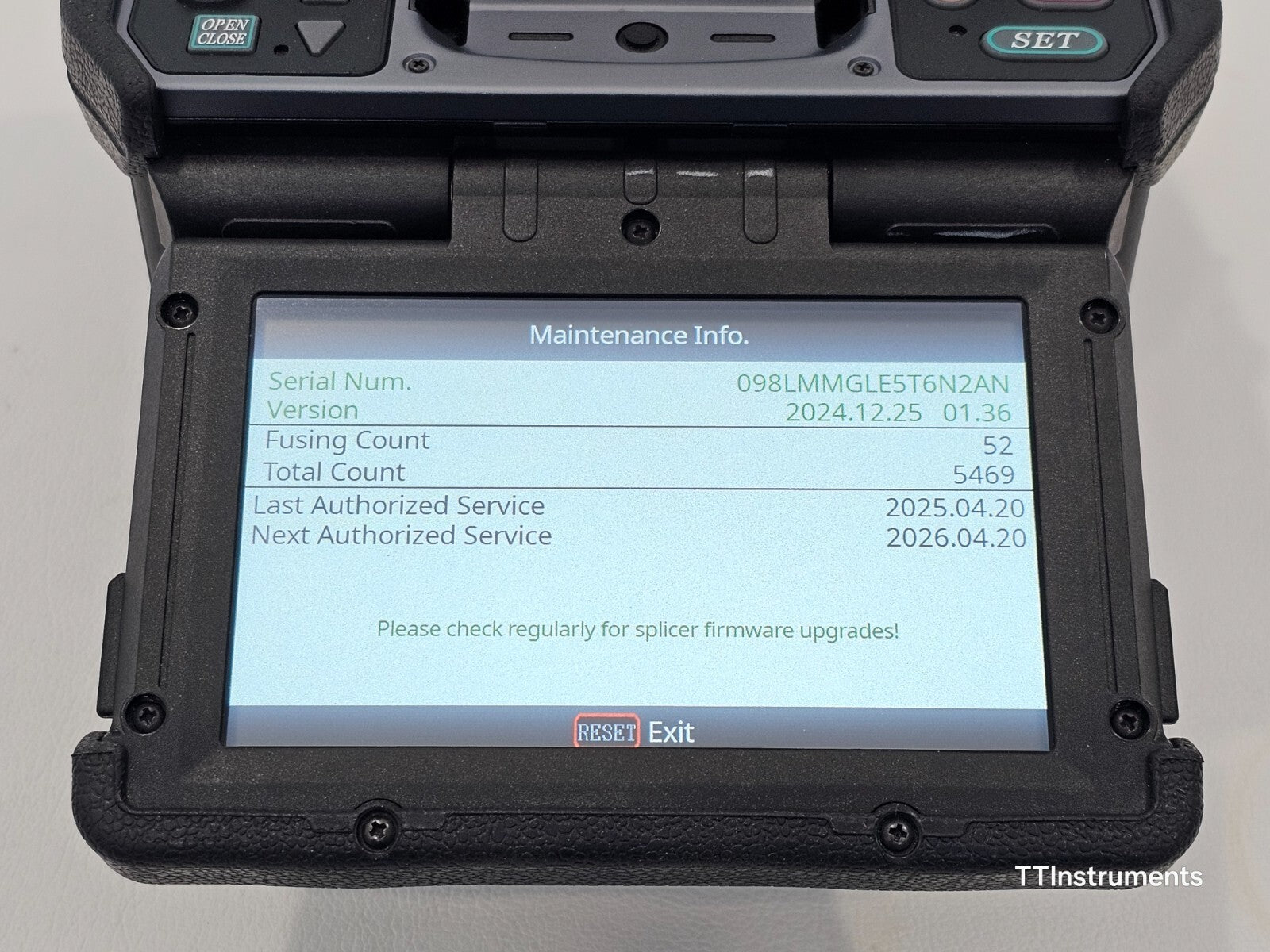

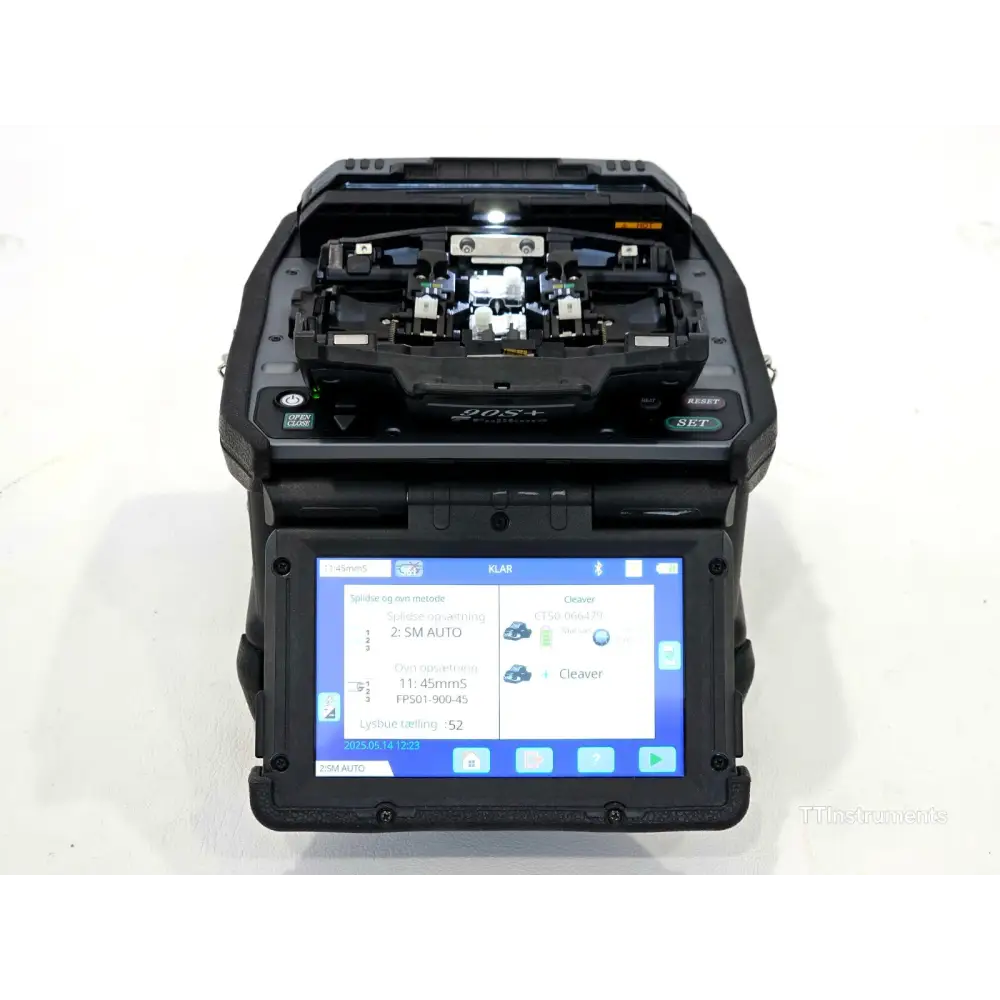

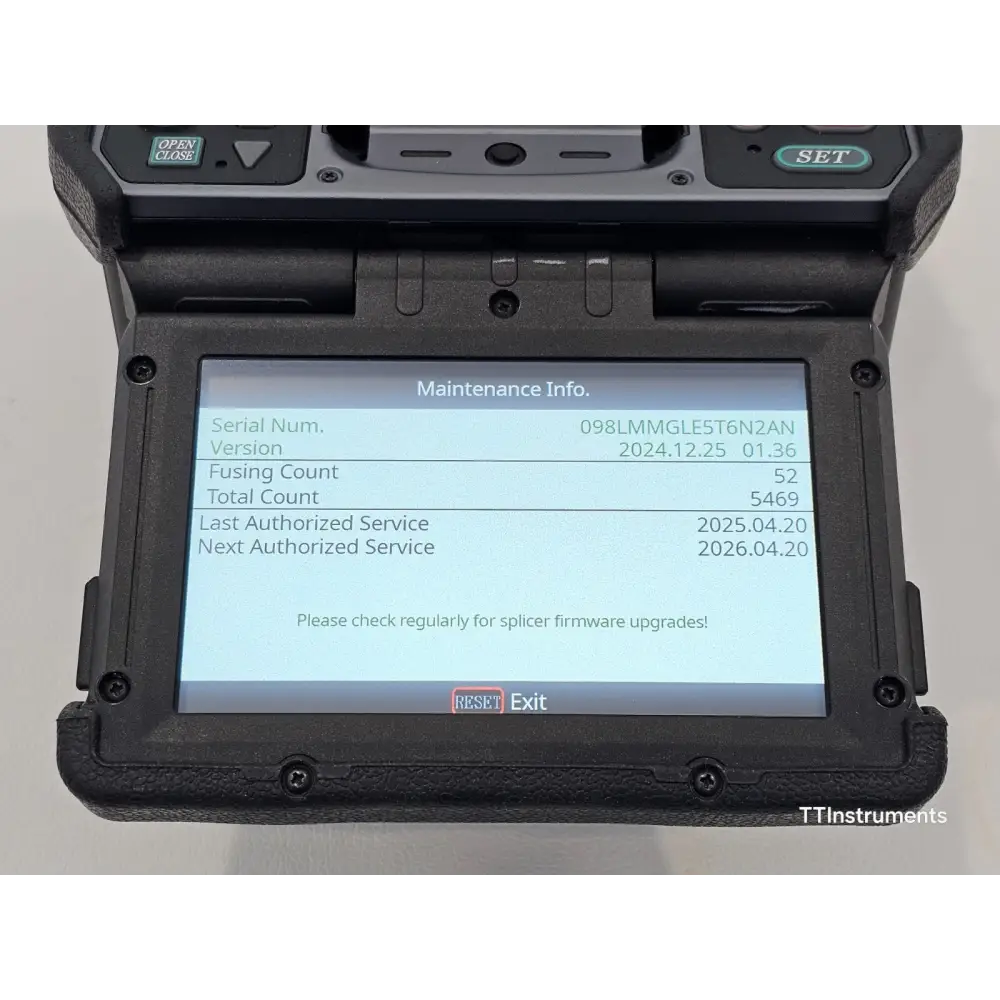

This Fujikura 90S+ SM/MM core alignment fusion splicer carries ARC count 5469 and has been professionally cleaned and serviced by an approved service centre in April 2025. The battery (BTR-15) is included and holds charge. This is an EU licensed model, supplied with a new set of electrodes. The Fujikura CT-50 high-precision fibre cleaver is included, fitted with the AD50 guide plate, a new blade, and its own case.

Included in the sale:
• Fujikura 90S+ SM/MM Core Alignment Fusion Splicer (ARC count 5469)
• New electrodes
• Fujikura CT-50 High Precision Fibre Cleaver with AD50 guide plate
• CT-50 cleaver case
• New cleaver blade
• AC Adapter/Charger
• Battery Pack (BTR-15)

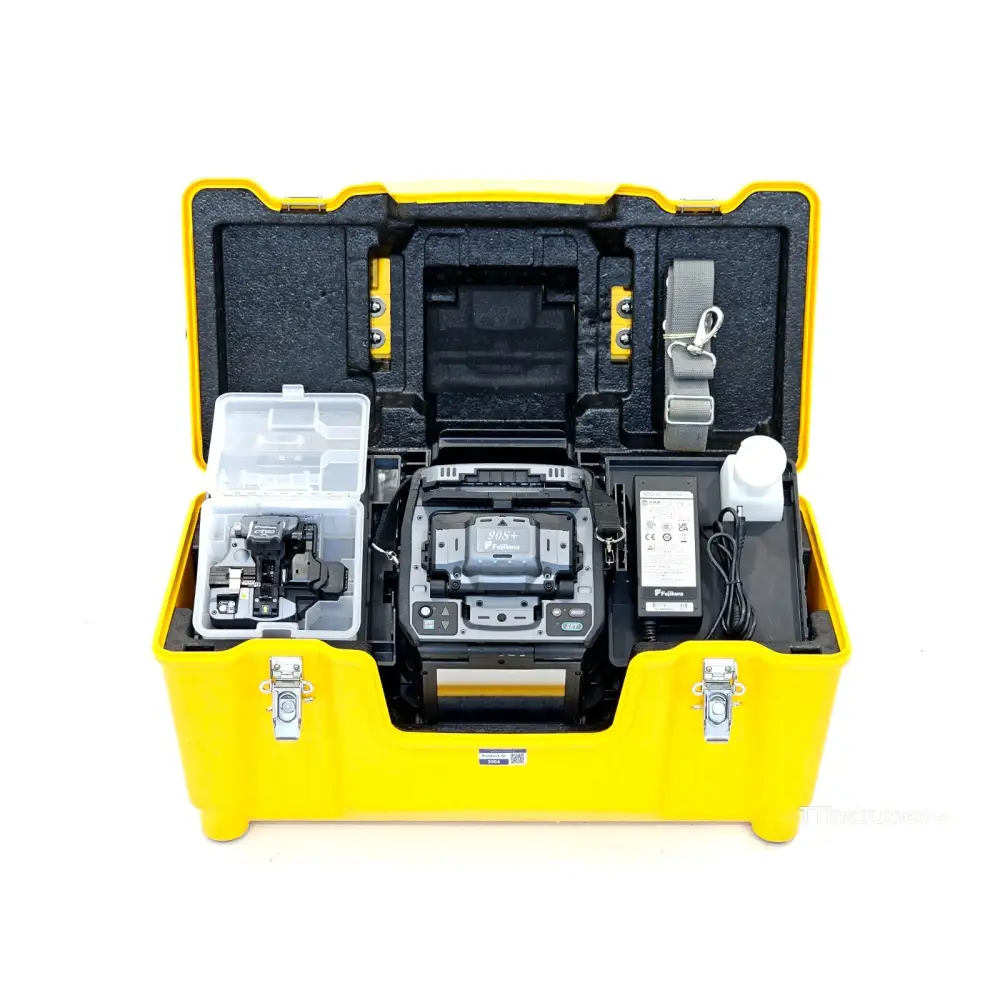

• Hard Carrying Case
• Alcohol Pot
• Work Tray

The Fujikura 90S+ is a single-fibre core alignment fusion splicer setting a new standard in the market for fusion splicing. Designed for field and production use, it is packed with market-first automated features that make the splicing process faster, simpler, and more reliable than ever before.

Active Fusion Control Technology (AFCT) analyses the condition of the cleave end face in real time to perform optimal fusion control and minimise splice loss — even when working with fibres that have a poor cleave angle. Active Blade Management Technology (ABMT) communicates wirelessly with the CT-50 cleaver to monitor blade condition and automatically rotate the blade when wear is detected, reducing maintenance overhead and improving consistency.

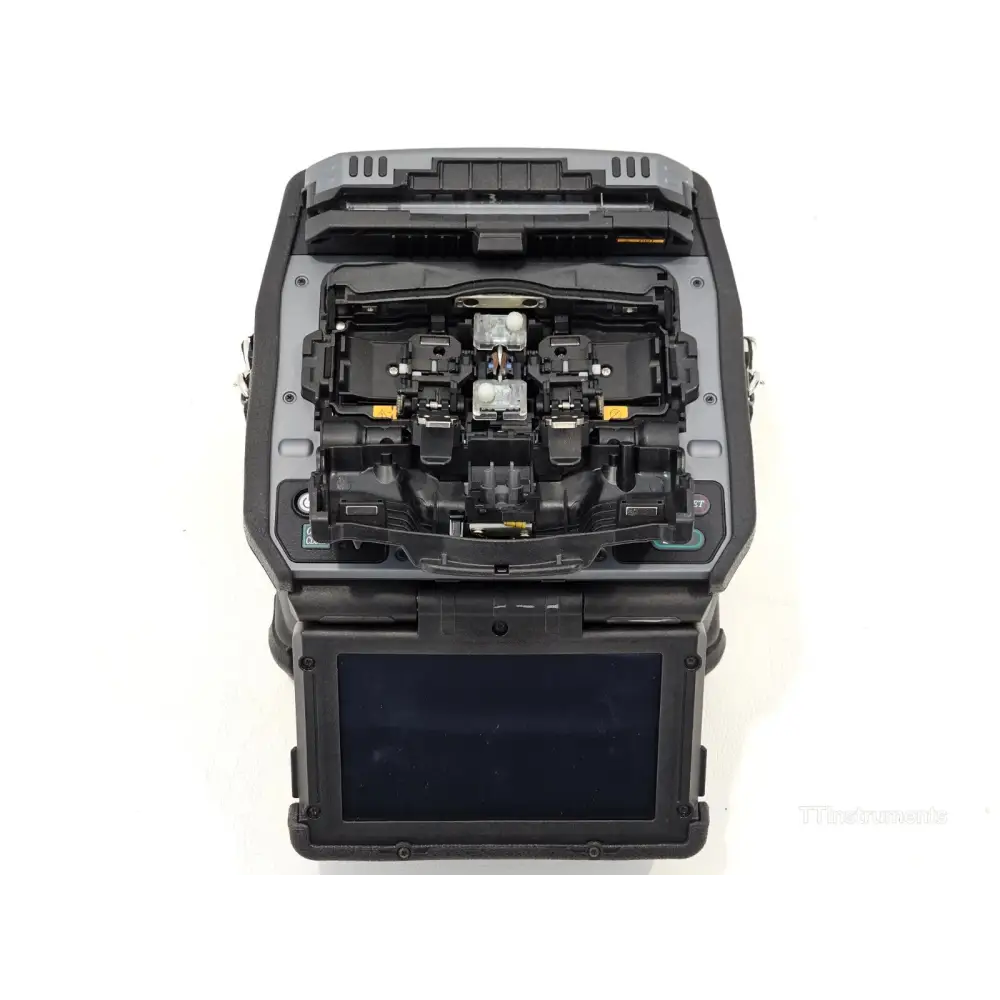

The 90S+ delivers a significant reduction in overall splice process time compared to the previous 70S+ model, achieved through faster automated wind protectors, an automated heater, new fibre retention clamps, and improved universal sheath clamps. The redesigned internal structure matches the protection sleeve to the fusion splice point, enabling the entire splicing cycle to complete without the operator needing to touch the machine after initiating the process.

Key Features:
- Active core alignment with advanced image processing for consistent low-loss splices
- Active Fusion Control Technology (AFCT) for optimal arc control
- Active Blade Management Technology (ABMT) with Bluetooth 4.1 LE cleaver communication
- 4.9" TFT colour touchscreen with approx. 200x–320x display magnification
- Universal sheath clamp handles both loose and tight buffer fibres
- Automated wind protector, sheath clamps, and splice operation
- Fibre type identification
- Tool-free electrode replacement
- Smart Lock anti-theft function via Splice+ smartphone app
- USB 2.0 data interface and external LED lamp port

Technical Specifications:
Fibre Alignment Method: Active core alignment
Spliceable Fibre Count: Single fibre
Fibre Type: Single-mode and multi-mode optical fibre
Cladding Diameter: 80μm – 150μm
Sheath Clamp Coating: 3000μm maximum coating diameter
Sheath Clamp Cleave Length: 5mm – 16mm
ITU-T G.652 Splice Loss: Avg. 0.02dB
ITU-T G.651 Splice Loss: Avg. 0.01dB
ITU-T G.653 Splice Loss: Avg. 0.04dB
ITU-T G.655 Splice Loss: Avg. 0.04dB
ITU-T G.657 Splice Loss: Avg. 0.02dB
SM Fast Mode Splice Time: Avg. 7 to 9 seconds
Protection Sleeve Type: Heat-shrinkable sleeve
Sleeve Length: Max. 66mm
Sleeve Diameter: Max. 6mm before shrinking
60mm Slim Mode Heat Time: Avg. 9 to 10 seconds
60mm Mode Heat Time: Avg. 13 to 15 seconds
Fibre Tensile Test Force: Approx. 2.0N
Electrode Life: Approx. 5000 splices
LCD Display: 4.9 inch TFT colour touch screen
Display Magnification: Approx. 200x – 320x
Wireless Connectivity: Bluetooth 4.1 LE
PC Interface: USB 2.0 Mini B connector
Splice Mode Data Storage: 100 splice modes
Heat Mode Data Storage: 30 heat modes
Splice Result Data Storage: 20,000 splices
Splice Image Data Storage: 100 images
Battery Type: Rechargeable Lithium Ion
Battery Output: Approx. DC14.4V, 6,380mAh
Battery Capacity: Approx. 300 splice and heat cycles
Battery Life: Approx. 500 recharge cycles
Width: Approx. 170mm (without projection)
Depth: Approx. 173mm (without projection)
Height: Approx. 150mm (without projection)
Weight: Approx. 2.8kg (including battery)
Operating Temperature: -10 to 50°C
Storage Temperature: -40 to 80°C
Operating Humidity: 0 to 95% RH non-condensing
Operating Altitude: Max. 5000m
AC Adaptor Input: AC100 to 240V, 50/60Hz, Max. 1.5A
Tripod Screw Hole: 1/4-20UNC

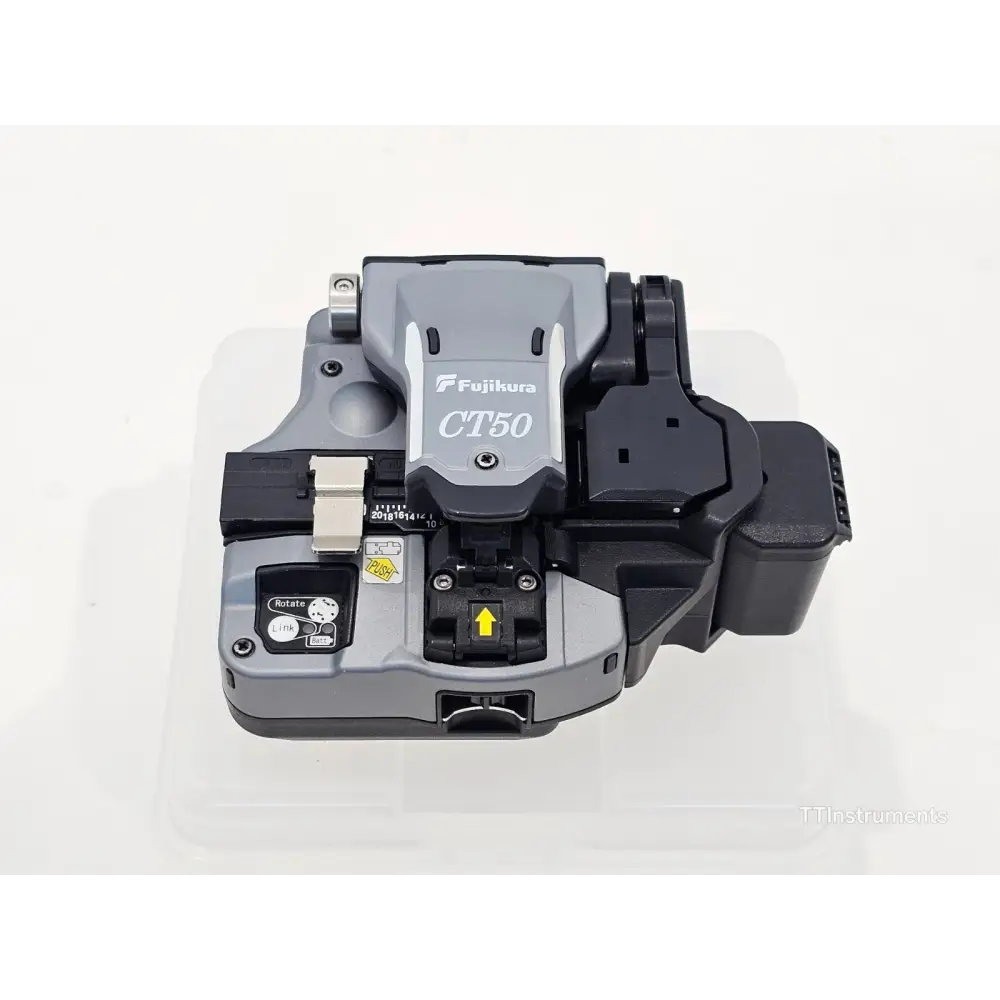

Fujikura CT-50 Fibre Cleaver (included):
Applicable Fibres: Single fibre and ribbon fibre up to 12 fibres
Cleave Length (AD-50): 5mm – 20mm
Cleave Angle: Typically <0.5°
Blade Life: Approx. 60,000 single-fibre cleaves (16 positions x 3 heights)
Bluetooth: Yes — automatic blade rotation via wireless communication with 90S+
Dimensions: Approx. 120mm x 95mm x 58mm
Weight: Approx. 305g (including battery and AD-10-M24)

Fujikura 90S+ Core Alignment Fusion Splicer — Official Datasheet (Fujikura Europe): Download PDF

Fujikura 90S+ Fusion Splicer — Instruction Manual (hosted by Inlec UK): Download PDF

Fujikura 90S Quick Reference Guide (QRG-02): Download PDF

Fujikura CT-50 Fibre Cleaver — Product Specification Sheet (AFL/Simbol): Download PDF

Fujikura 90S+ Fusion Splicer — Product Specification Sheet (AFL/FIS): Download PDF
