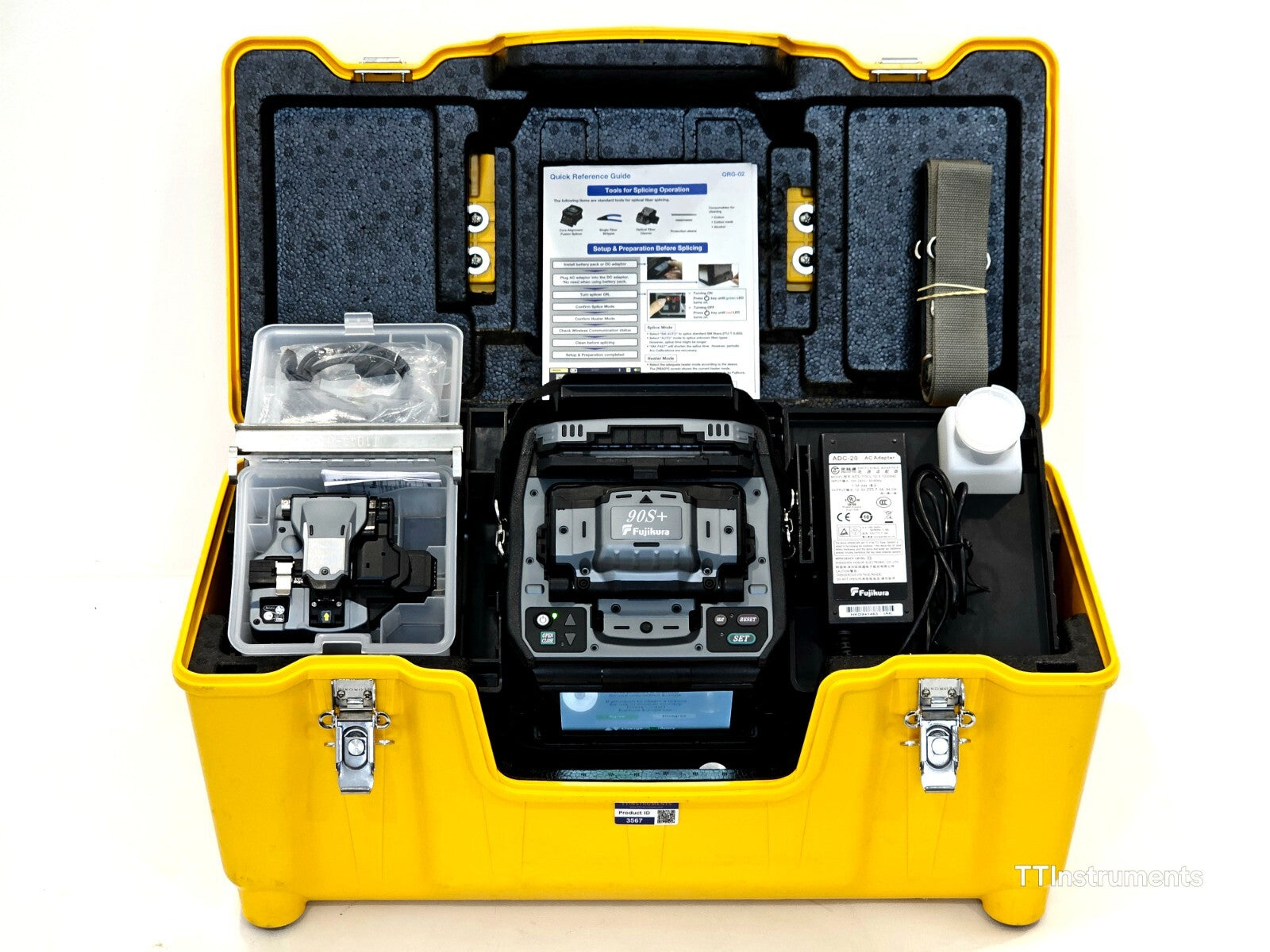

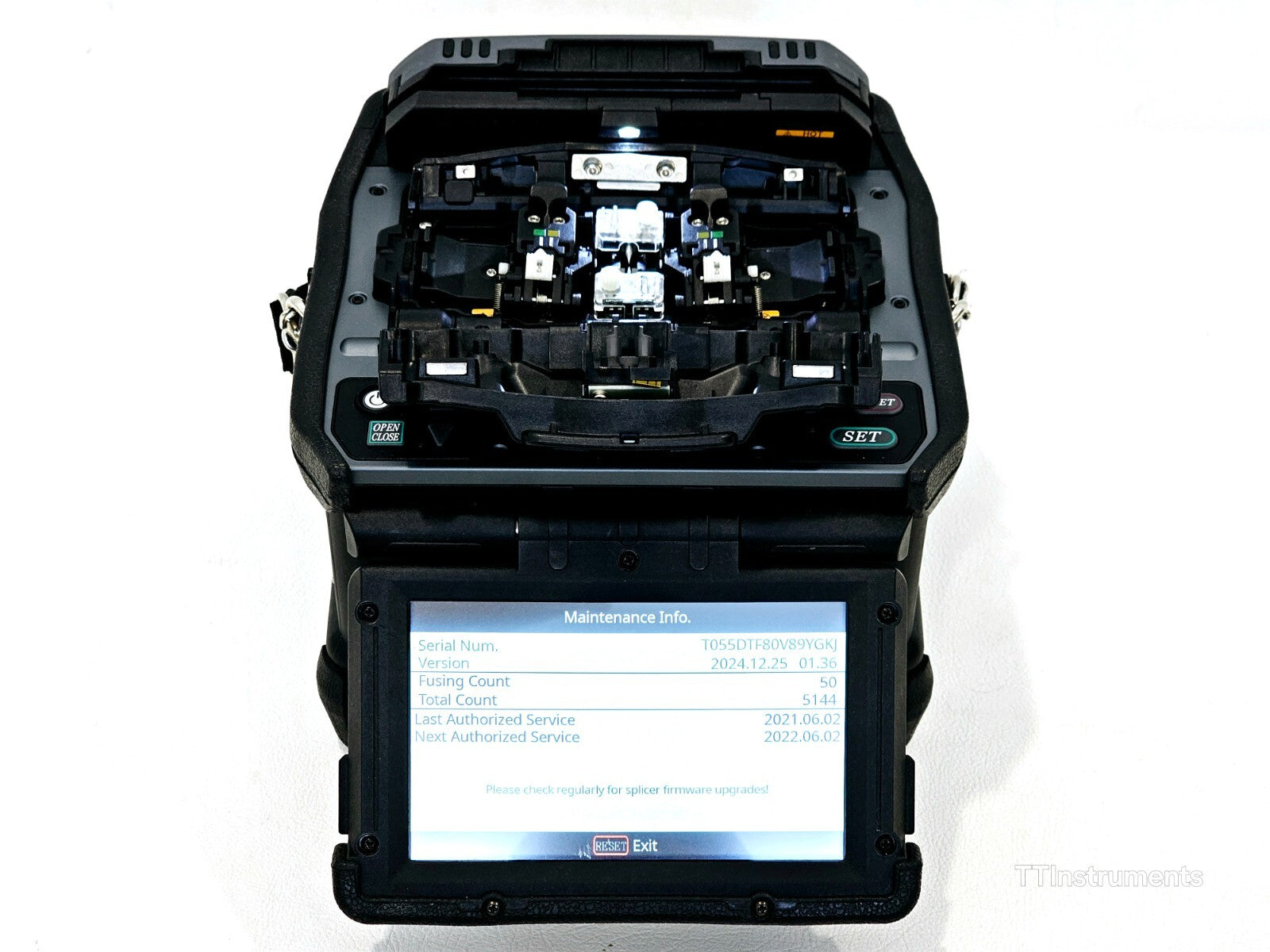

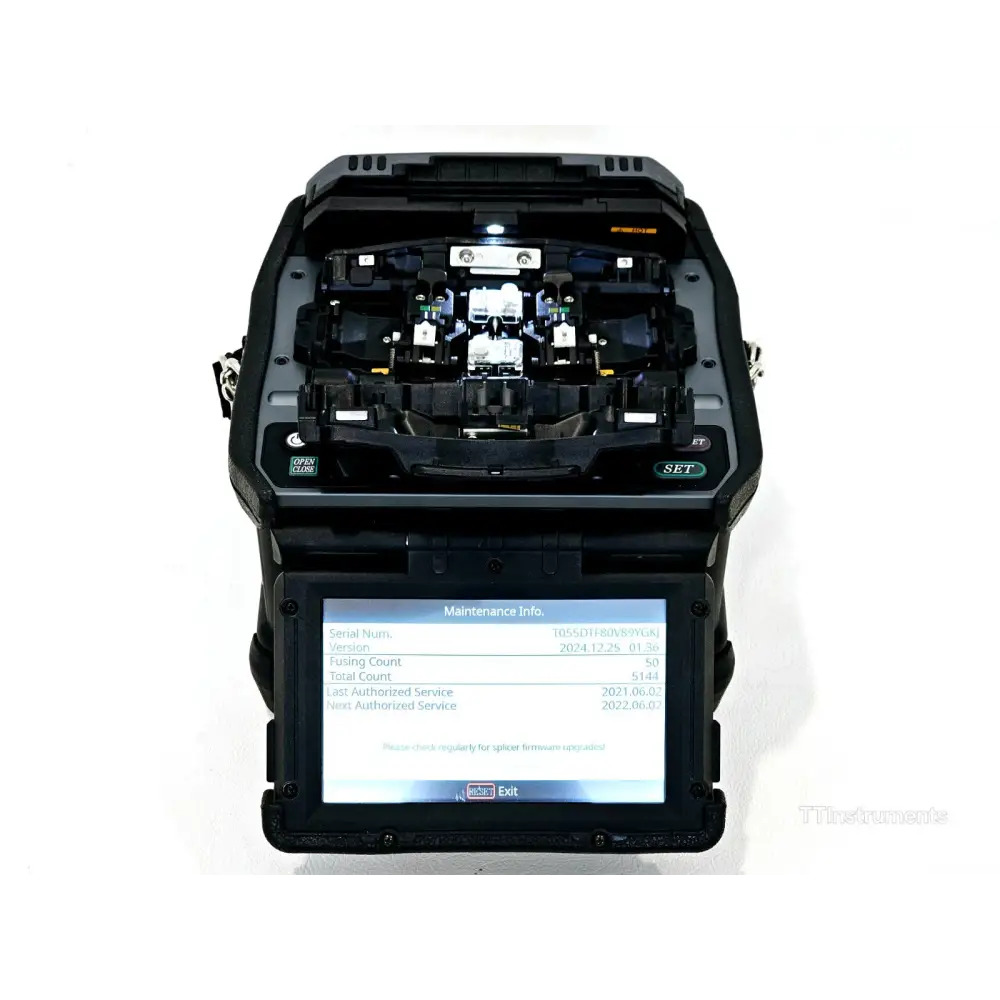

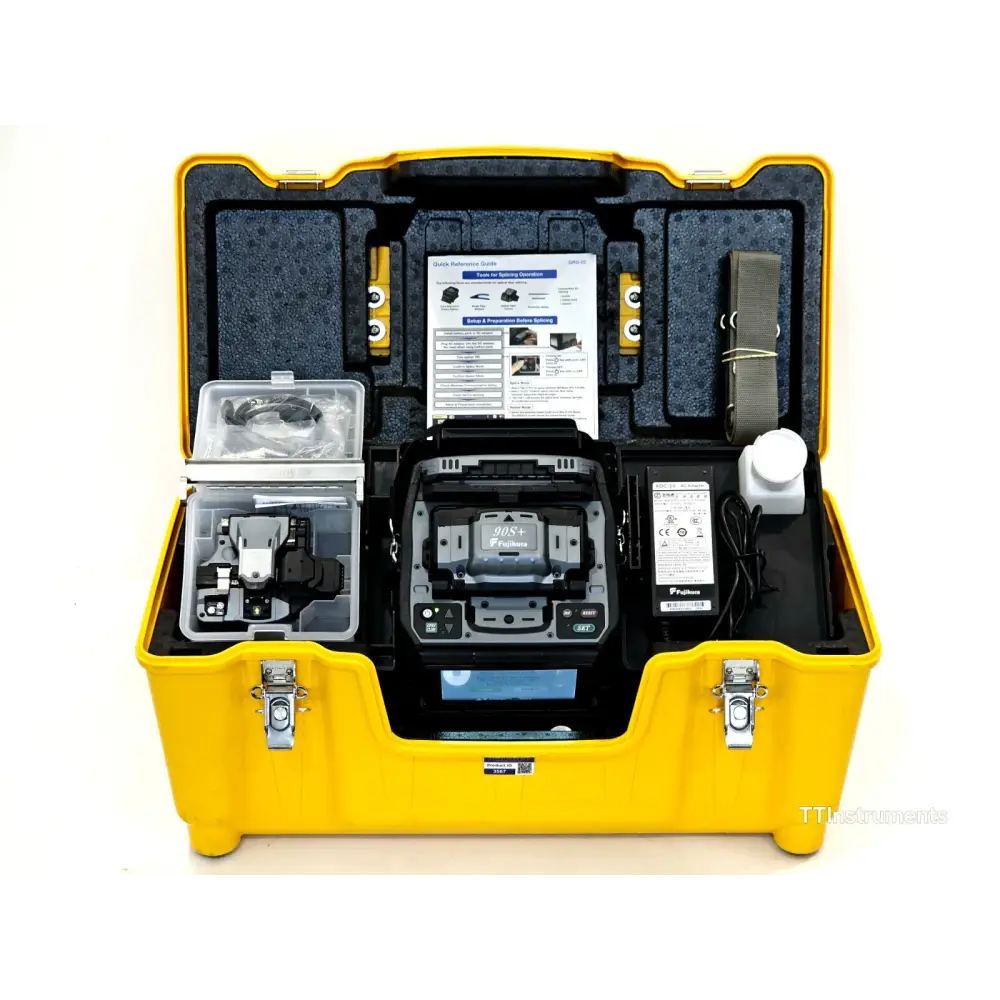

The Fujikura 90S+ is a single-fibre core alignment fusion splicer that sets a new standard in the market for fusion splicing. Bristling with new and enhanced features, the 90S+ is designed to help users work faster with higher precision. Market-first fully automated features make the splicing process faster and simpler. Active Fusion Control Technology (AFCT) analyses the condition of the cleave end face to perform optimal fusion control and minimise splice loss. Active Blade Management Technology (ABMT) communicates wirelessly with the CT-50 cleaver to manage blade rotation automatically, improving efficiency and reducing costs. The 90S+ delivers a significant reduction in overall splice process time compared to the previous 70S+ model, achieved through improvements to the automated wind protectors, automated heater, new fibre retention clamps, improved universal sheath clamps, and a redesigned internal structure. The universal sheath clamp handles both loose and tight buffer fibres without the need for additional clamps. The 90S+ is suitable for a wide range of field applications including FTTx drops, MDF/IDF splicing, long-haul terrestrial and submarine LEAF fibres, bend-insensitive fibres in drop cables, and splice-on connectors, as well as certain production environments requiring high output and low splice loss.

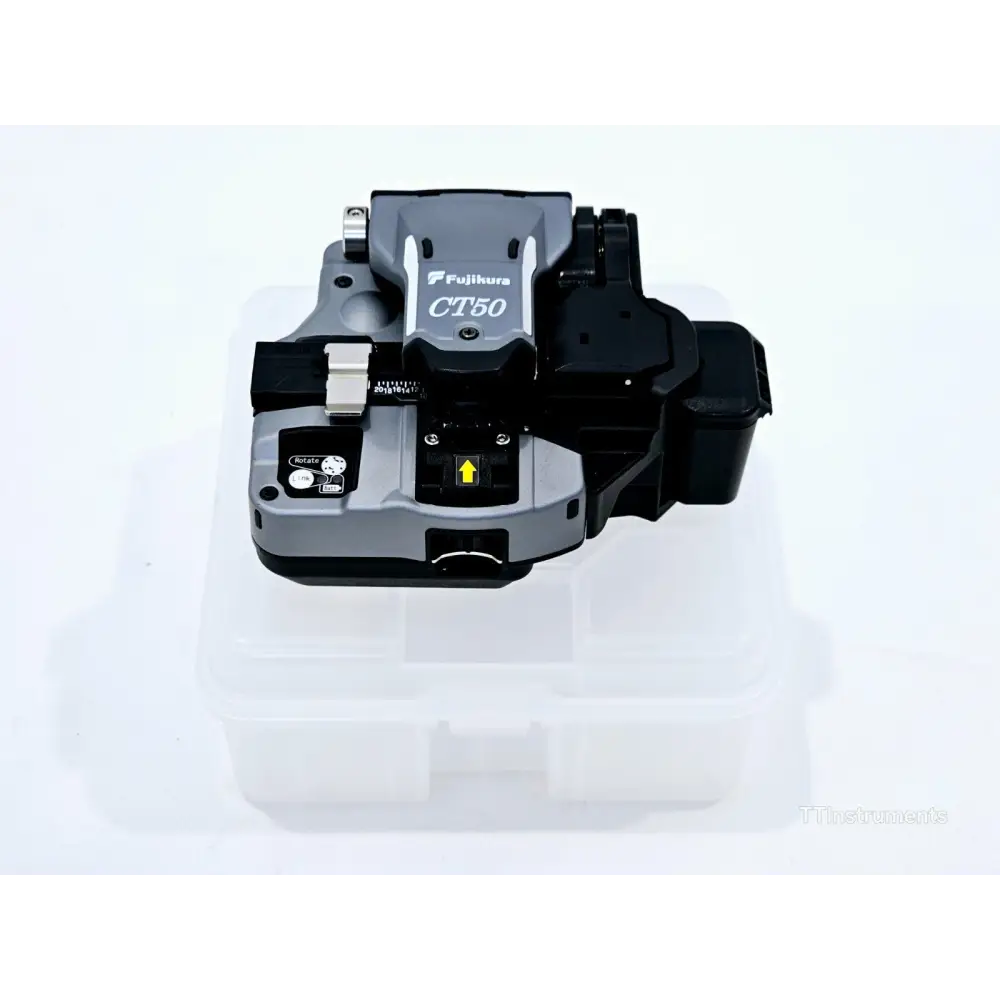

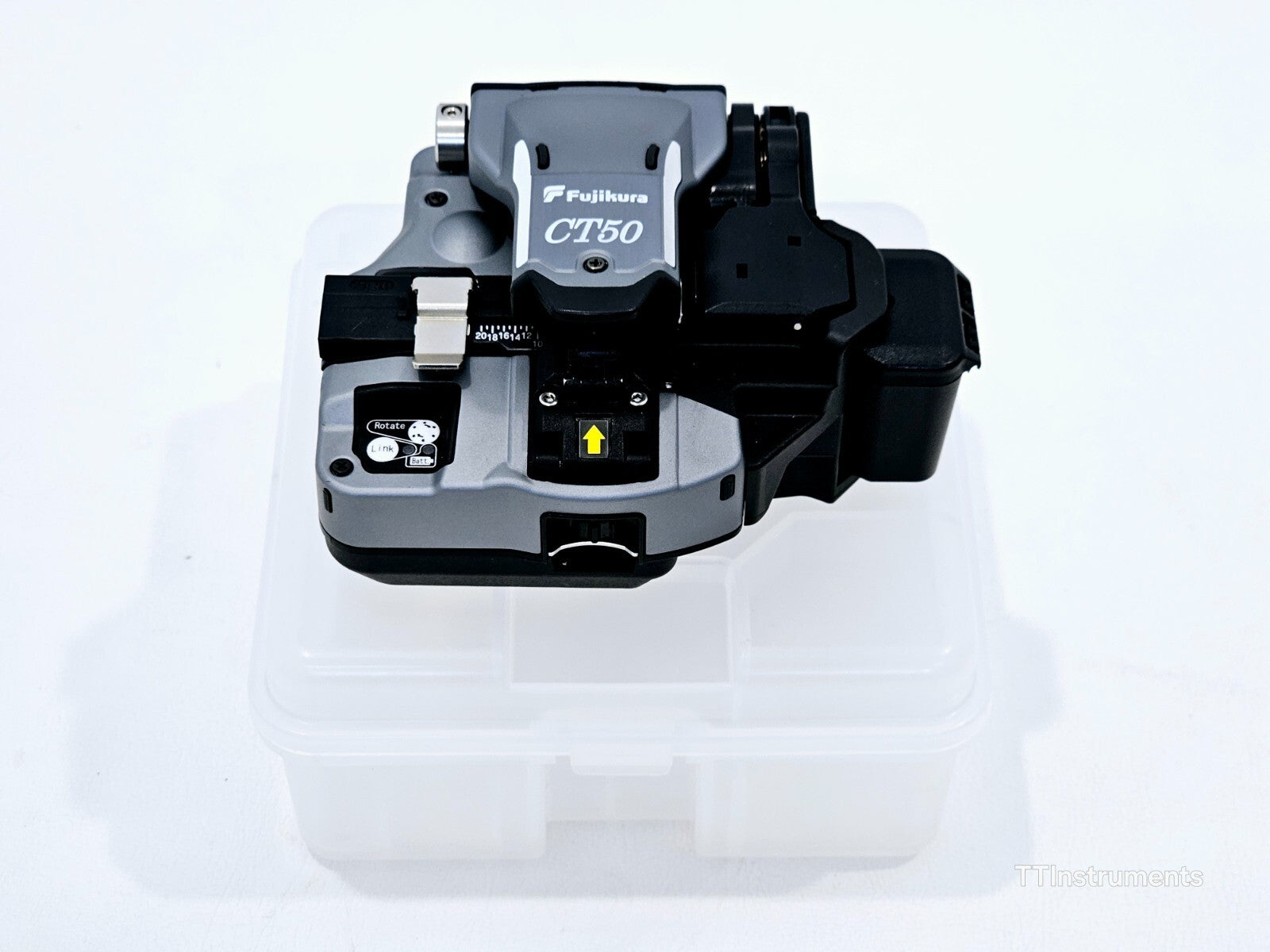

The Fujikura CT-50 is a high-precision fibre cleaver featuring automated blade rotation via Bluetooth, a 60,000-fibre blade life (16 positions x 3 heights), single-action operation with integrated scrap collection, and enhanced drop-impact resistance. It is compatible with single fibres and ribbon fibres up to 12 fibres.
Fujikura 90S+ Specifications:
Fibre Alignment Method: Active core alignment
Spliceable Fibre Count: Single fibre
Fibre Type: Single-mode and multimode optical fibre
Cladding Diameter: 80μm – 150μm
Sheath Clamp Coating: 3000μm maximum coating diameter
Sheath Clamp Cleave Length: 5mm – 16mm
ITU-T G.652 Splice Loss: Avg. 0.02dB
ITU-T G.651 Splice Loss: Avg. 0.01dB
ITU-T G.653 Splice Loss: Avg. 0.04dB
ITU-T G.655 Splice Loss: Avg. 0.04dB
ITU-T G.657 Splice Loss: Avg. 0.02dB
SM Fast Mode Splice Time: Avg. 7 to 9 seconds
Protection Sleeve Type: Heat-shrinkable sleeve
Sleeve Length: Max. 66mm
Sleeve Diameter: Max. 6mm before shrinking
60mm Slim Mode Heat Time: Avg. 9 to 10 seconds
60mm Mode Heat Time: Avg. 13 to 15 seconds
Fibre Tensile Test Force: Approx. 2.0N
Electrode Life: Approx. 5000 splices
Width: Approx. 170mm (without projection)
Depth: Approx. 173mm (without projection)
Height: Approx. 150mm (without projection)
Weight: Approx. 2.8kg including battery
Operating Temperature: -10 to 50°C
Storage Temperature: -40 to 80°C
Operating Humidity: 0 to 95% RH non-condensing
Operating Altitude: Max. 5000m
AC Adaptor Input: AC100 to 240V, 50/60Hz, Max. 1.5A
Battery Type: Rechargeable Lithium Ion
Battery Output: Approx. DC14.4V, 6,380mAh
Battery Capacity: Approx. 300 splice and heat cycles
Battery Recharge Temperature Range: 0 to 40°C
Battery Storage Temperature: -20 to 30°C
Battery Life: Approx. 500 recharge cycles
LCD Display: 4.9-inch TFT colour touch screen
Display Magnification: Approx. 200x – 320x
V-Groove Illumination: LED lamp
PC Interface: USB 2.0 Mini B connector
External LED Lamp Interface: USB 2.0 A connector, Approx. DC5V, 500mA
Wireless Connectivity: Bluetooth 4.1 LE
Splice Mode Data Storage: 100 splice modes
Heat Mode Data Storage: 30 heat modes
Splice Result Data Storage: 20,000 splices
Splice Image Data Storage: 100 images
Tripod Screw Hole: 1/4-20UNC
Fujikura CT-50 Cleaver Key Specifications:
Applicable Fibres: Single fibre and ribbon up to 12 fibres
Cleave Length (AD-50): 5 to 20mm
Cleave Angle: Typically less than 0.5°
Blade Life: Approx. 60,000 fibre cleaves
Wireless Connectivity: Bluetooth (automatic blade rotation)
Dimensions (W x D x H): Approx. 120mm x 95mm x 58mm
Weight: Approx. 305g
