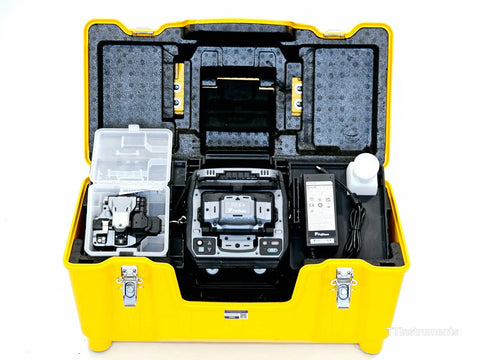

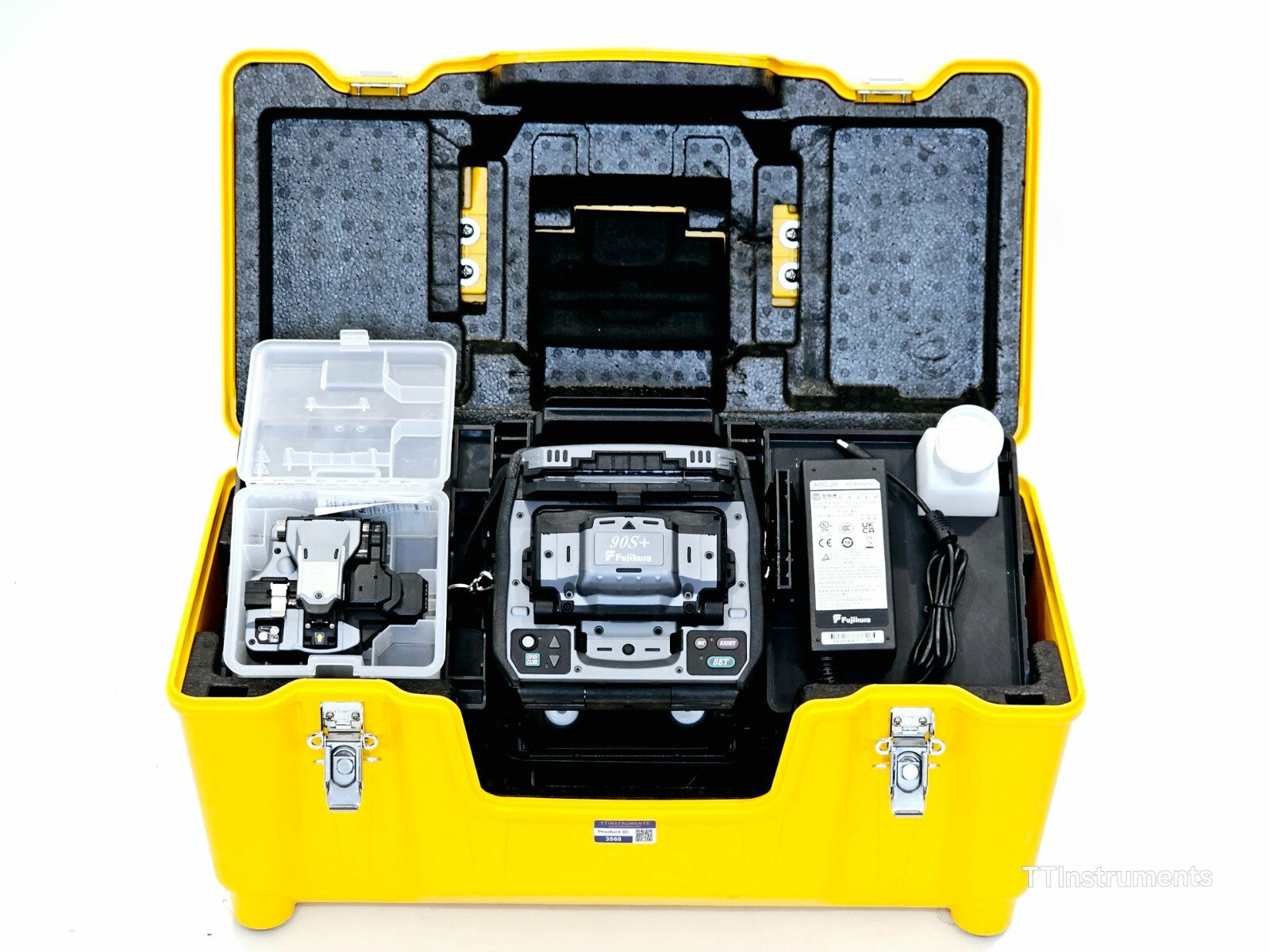

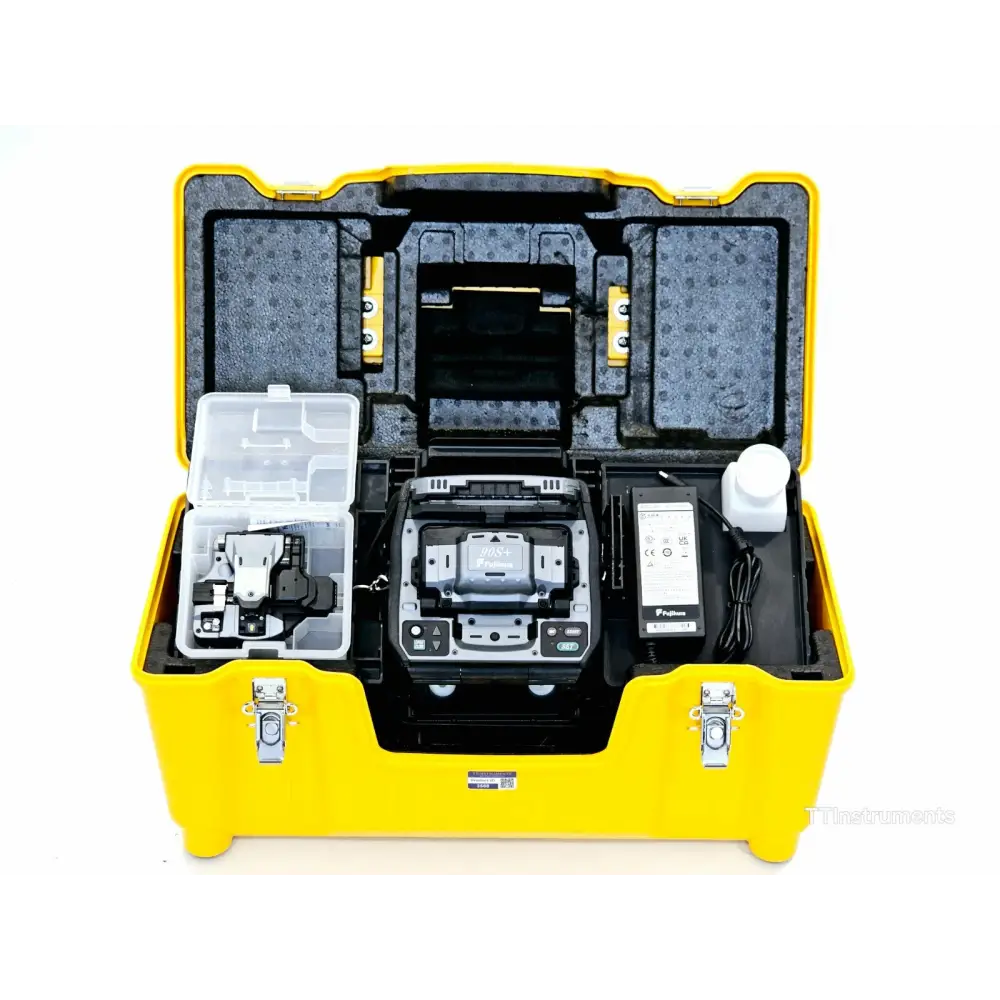

The Fujikura 90S+ is a single-fibre core alignment fusion splicer setting a new benchmark in the fusion splicing market. Designed to make the splicing process faster, simpler, and more automated than any previous model, the 90S+ incorporates market-first fully automated features including automatic wind protectors, automatic heater, fibre retention clamps, and universal sheath clamps capable of handling both loose and tight buffer fibres without changeover.
Active Fusion Control Technology (AFCT) analyses the cleave end-face condition in real time and applies optimal arc power to minimise splice loss even on fibres with poor cleave angles. Active Blade Management Technology (ABMT) communicates wirelessly with the Fujikura CT-50 cleaver to track blade wear and trigger automatic blade rotation, maximising cleaver efficiency and reducing costs. A redesigned internal structure aligns the protection sleeve precisely to the fusion splice point, enabling the entire splicing process to complete without any user intervention after fibre loading.
The 90S+ offers a significant reduction in overall splice cycle time compared to the previous 70S+ model, achieved through faster automated wind protector response and a more efficient heater mechanism. The 4.9-inch TFT colour touchscreen with adjustable angle provides clear fibre imagery at up to 320x magnification, and Bluetooth 4.1 LE enables wireless integration with the CT-50 cleaver and the Splice+ smartphone application. Up to 20,000 splice results can be stored onboard.
FUJIKURA 90S+ SPECIFICATIONS
Fibre Alignment Method: Active core alignment
Spliceable Fibre Count: Single fibre
Fibre Type: Single-mode and multi-mode optical fibre
Cladding Diameter: 80 μm – 150 μm
Sheath Clamp Coating: 3000 μm maximum coating diameter
Sheath Clamp Cleave Length: 5 mm – 16 mm
ITU-T G.652 Splice Loss: Avg. 0.02 dB
ITU-T G.651 Splice Loss: Avg. 0.01 dB
ITU-T G.653 Splice Loss: Avg. 0.04 dB
ITU-T G.655 Splice Loss: Avg. 0.04 dB
ITU-T G.657 Splice Loss: Avg. 0.02 dB
SM Fast Mode Splice Time: Avg. 7 to 9 seconds
Protection Sleeve Type: Heat-shrinkable sleeve
Sleeve Length: Max. 66 mm
Sleeve Diameter: Max. 6 mm before shrinking
60 mm Slim Mode Heat Time: Avg. 9 to 10 seconds
60 mm Mode Heat Time: Avg. 13 to 15 seconds
Fibre Tensile Test Force: Approx. 2.0 N
Electrode Life: Approx. 5000 splices
Width: Approx. 170 mm (without projection)
Depth: Approx. 173 mm (without projection)
Height: Approx. 150 mm (without projection)
Weight: Approx. 2.8 kg (including battery)
Operating Temperature: -10 to 50 °C
Storage Temperature: -40 to 80 °C
Operating Humidity: 0 to 95% RH (non-condensing)
Operating Altitude: Max. 5000 m
AC Adaptor Input: AC 100–240 V, 50/60 Hz, Max. 1.5 A
Battery Type: Rechargeable Lithium-Ion
Battery Output: Approx. DC 14.4 V, 6380 mAh
Battery Capacity: Approx. 300 splice and heat cycles
Battery Recharge Temperature Range: 0 to 40 °C
Battery Storage Temperature: -20 to 30 °C
Battery Life: Approx. 500 recharge cycles

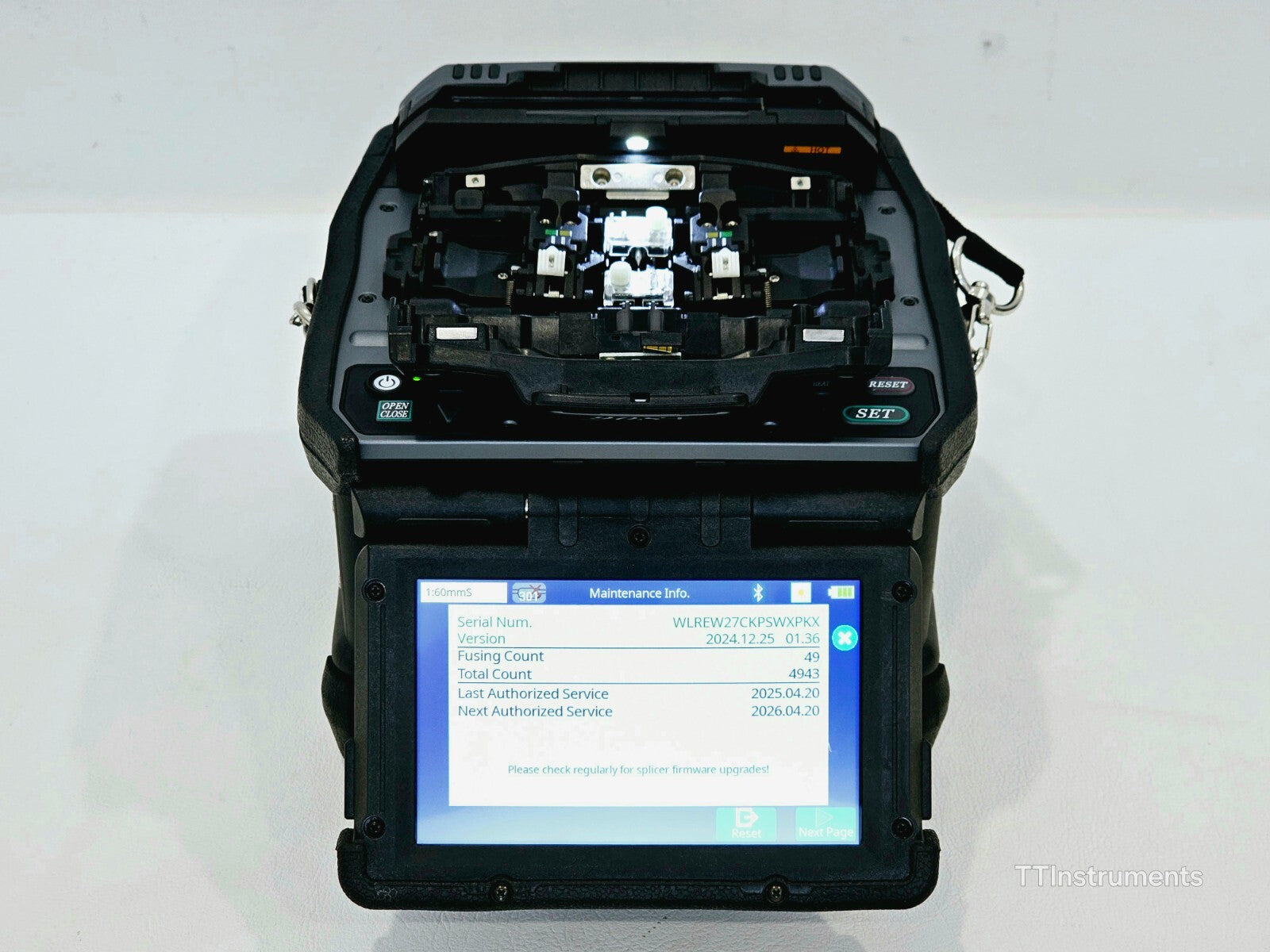

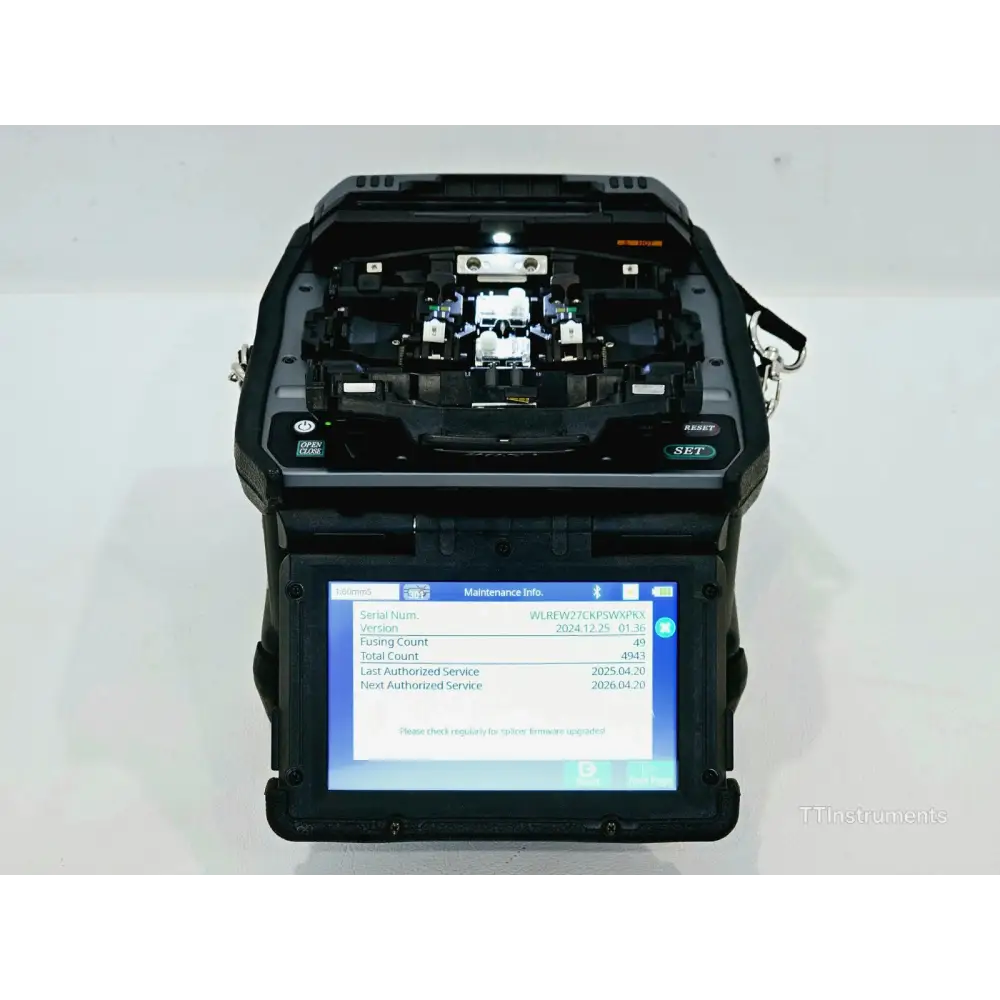

LCD Display: 4.9-inch TFT colour touch screen
Display Magnification: Approx. 200x – 320x
V-Groove Illumination: LED lamp
PC Interface: USB 2.0 Mini B connector
External LED Lamp Interface: USB 2.0 Type-A connector, Approx. DC 5 V, 500 mA
Wireless Connectivity: Bluetooth 4.1 LE
Splice Mode Data Storage: 100 splice modes
Heat Mode Data Storage: 30 heat modes
Splice Result Data Storage: 20,000 splices
Splice Image Data Storage: 100 images
Tripod Screw Hole: 1/4-20 UNC

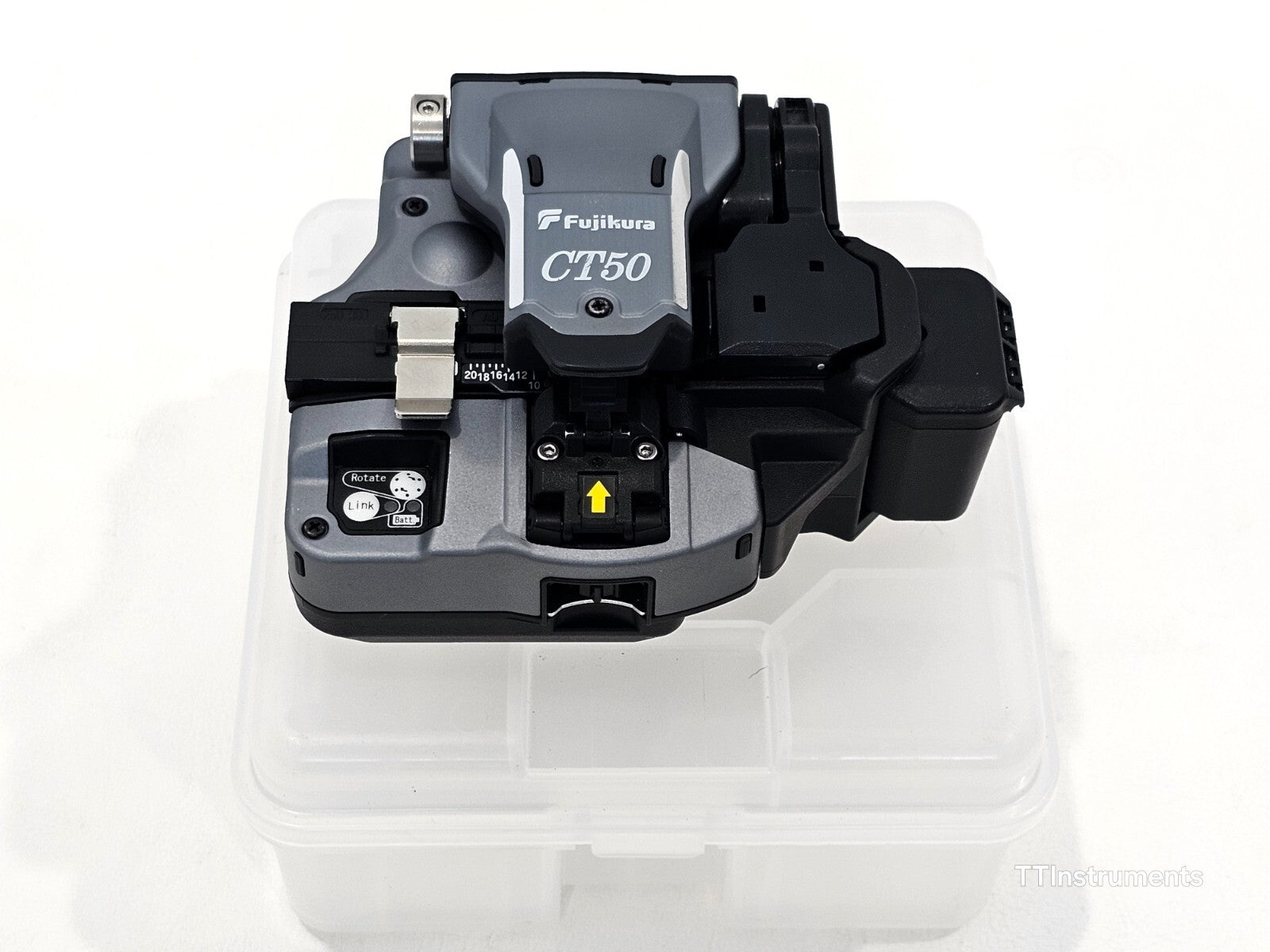

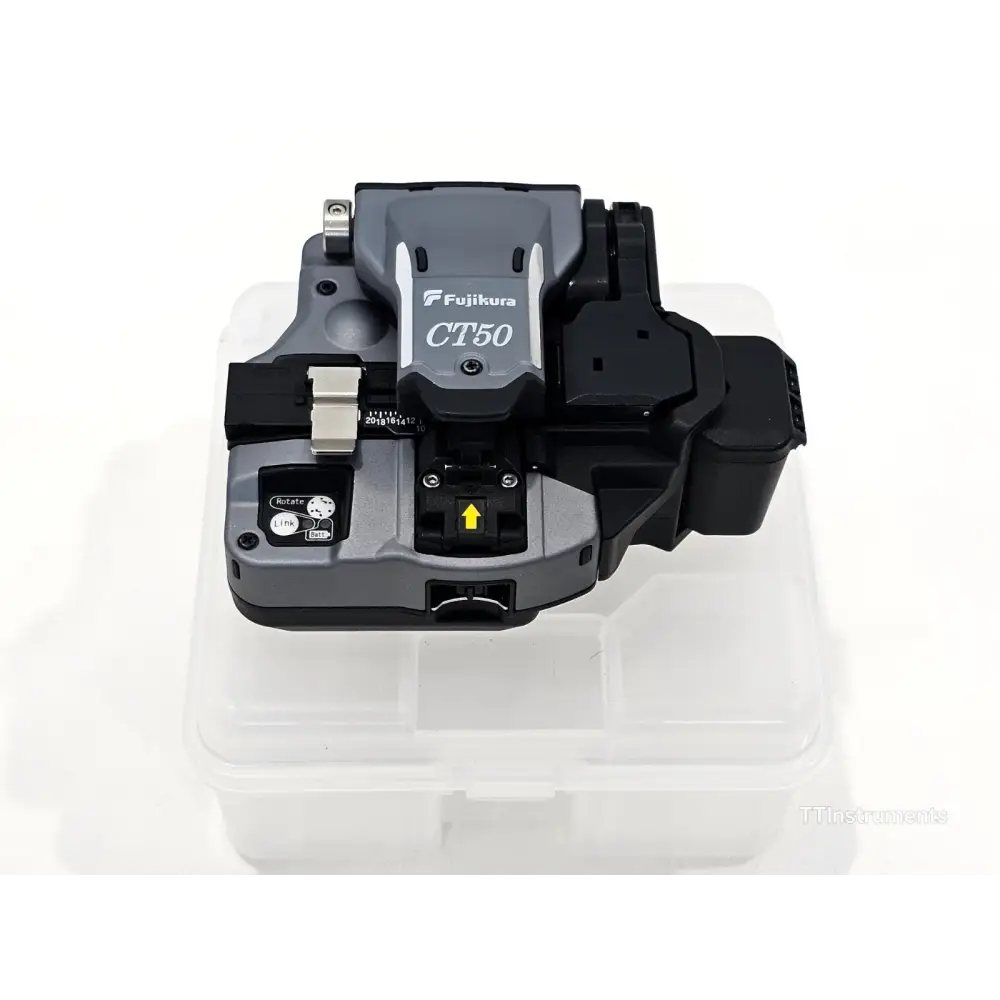

FUJIKURA CT-50 CLEAVER SPECIFICATIONS
Applicable Fibre: Single fibre and ribbon up to 12 fibres
Cladding Diameter: Approx. 125 μm
Cleave Length (AD-50): 5 mm – 20 mm
Cleave Angle: Typically <0.5°
Blade Life: Approx. 60,000 single-fibre cleaves (16 positions × 3 heights)
Wireless Connectivity: Bluetooth 4.1 LE
Power Supply: AAA (LR03) × 2
Dimensions (W × D × H): 120 mm × 95 mm × 58 mm
Weight: Approx. 300 g
Drop Resistance: Withstands drops up to 30 inches
