Condition: Refurbished

This Fujikura 90S+ has an ARC count of 3882 and has been professionally cleaned and serviced by an approved service centre in April 2025. New electrodes are fitted. The battery (BTR-15) is included and holds its charge. This is an EU licensed model.

Included in the sale:

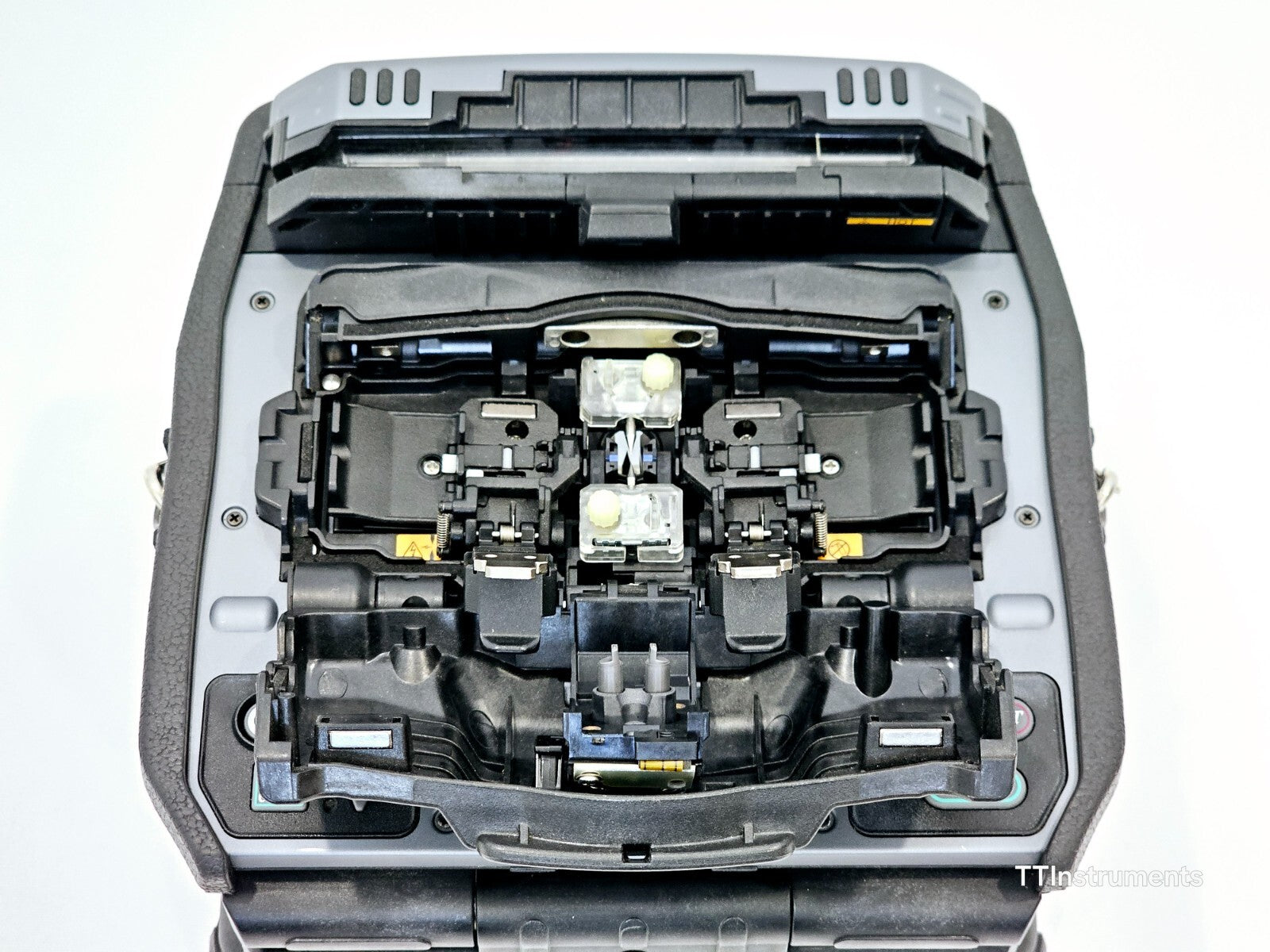

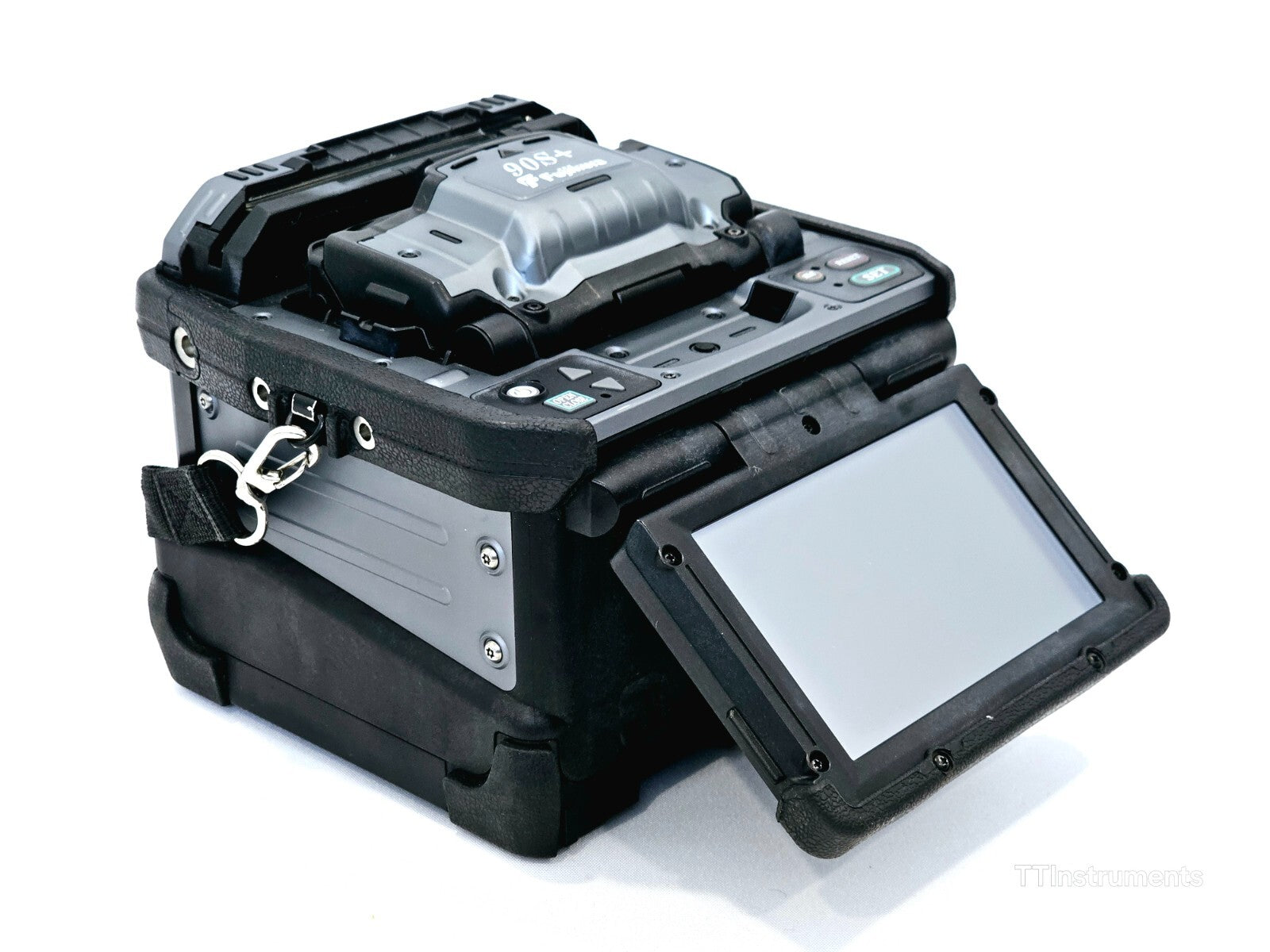

• Fujikura 90S+ SM/MM Core Alignment Fibre Fusion Splicer (ARC count 3882)
• New electrodes fitted

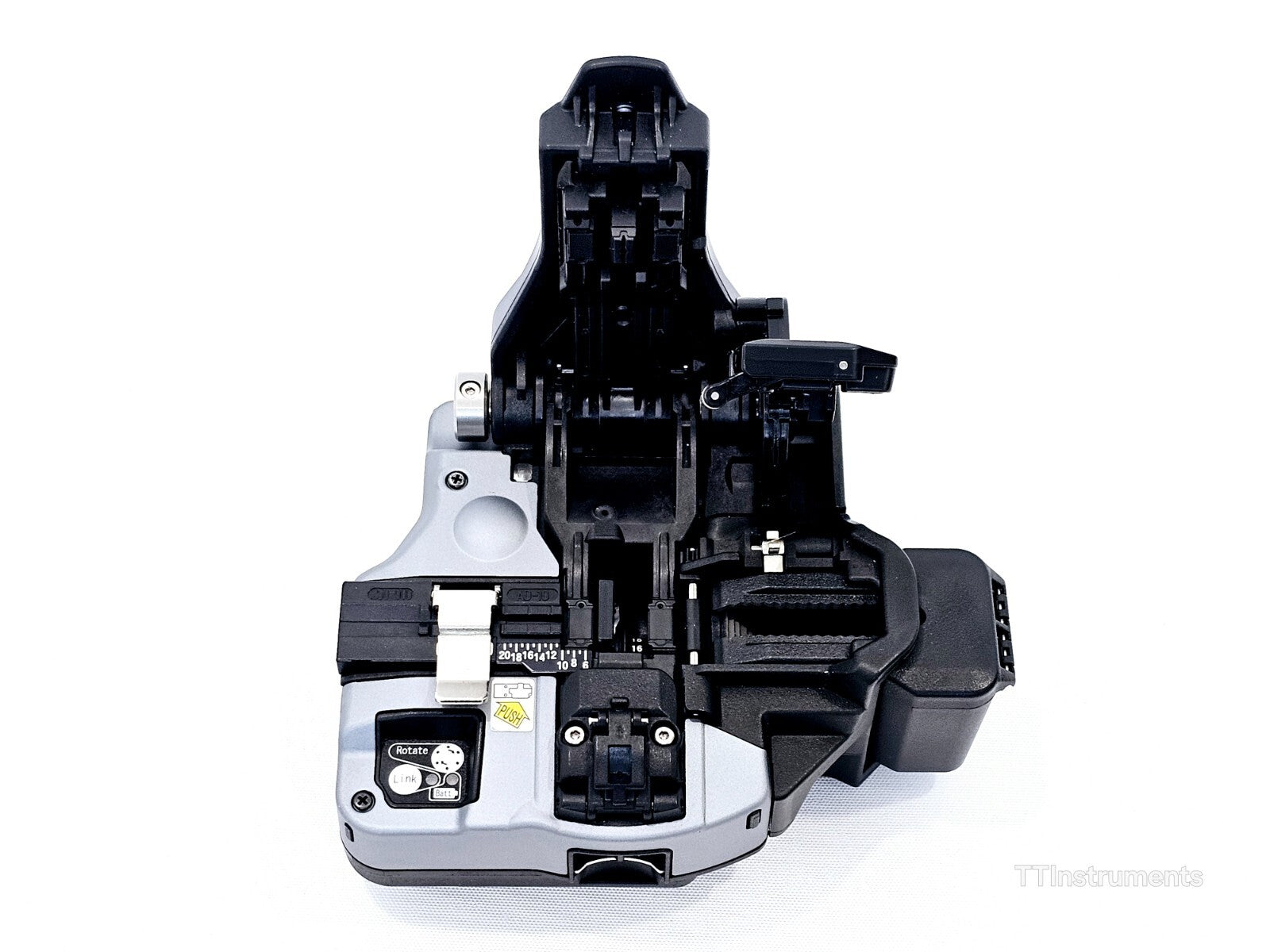

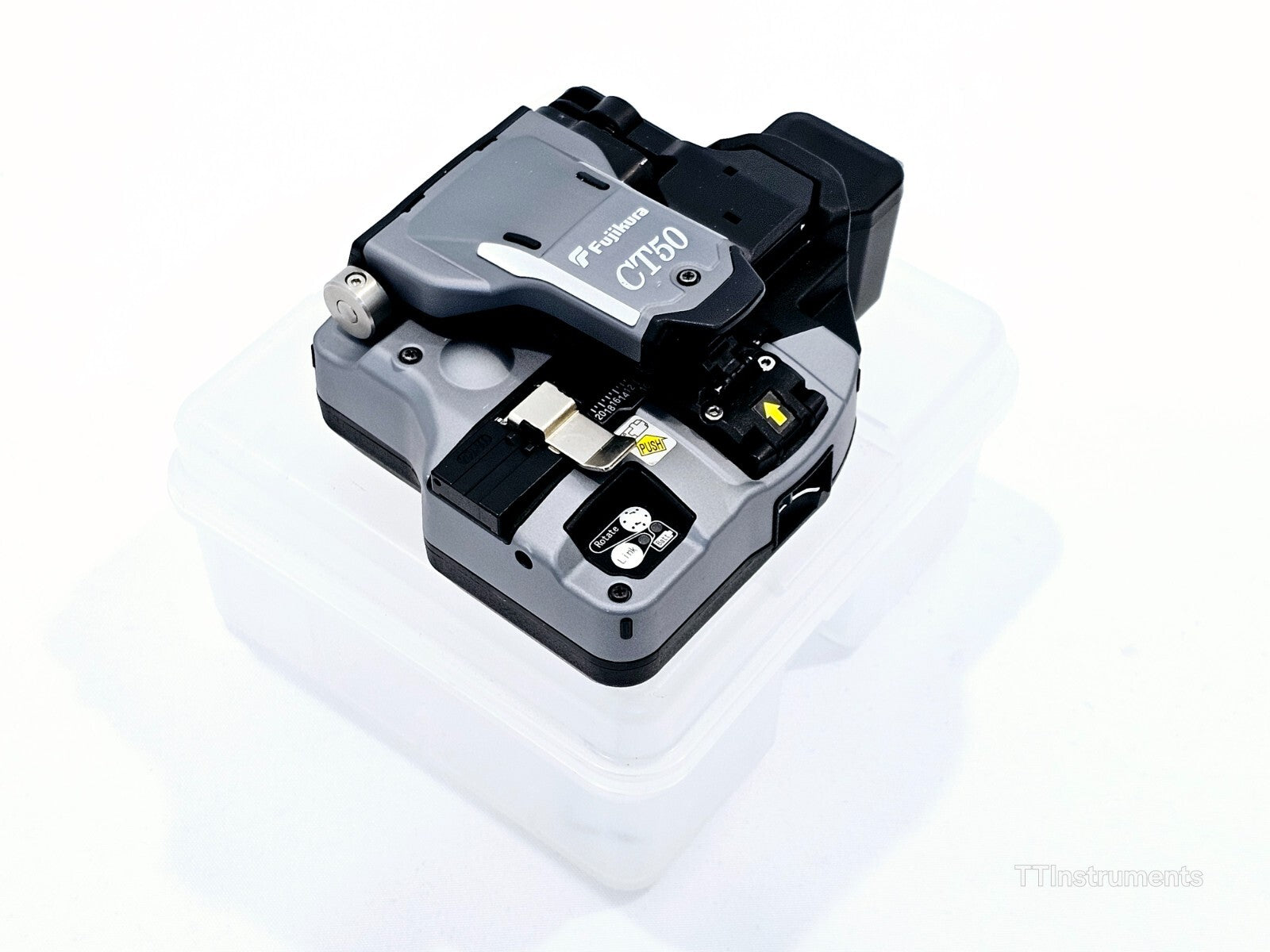

• Fujikura CT-50 High Precision Fibre Cleaver with AD50 guide plate, case, and new blade
• AC Adapter/Charger
• Battery Pack (BTR-15)
• Hard Carrying Case
• Alcohol Pot
• Work Tray

The Fujikura 90S+ is a single-fibre core alignment fusion splicer that sets a new standard in fusion splicing performance and automation. Featuring market-first fully automated functions, it is designed to help field technicians work faster and with greater precision. Active Fusion Control Technology (AFCT) analyses the cleave end-face in real time to determine optimal arc power and minimise splice loss. Active Blade Management Technology (ABMT) communicates wirelessly with the CT-50 cleaver to automatically rotate the blade when wear is detected, reducing maintenance downtime and increasing productivity. Automated wind protectors, sheath clamps, and the splice-to-heat transfer process mean the entire splicing cycle can complete without the operator needing to touch the splicer. The universal sheath clamp handles both loose tube and tight buffer fibres without modification. Compared to the predecessor 70S+ model, overall splice process time is significantly reduced.

Fibre Alignment Method: Active core alignment
Spliceable Fibre Count: Single fibre
Fibre Type: Single-mode and multimode optical fibre
Cladding Diameter: 80μm – 150μm
Sheath Clamp Coating: 3000μm maximum coating diameter
Sheath Clamp Cleave Length: 5mm – 16mm
ITU-T G.652 Splice Loss: Avg. 0.02dB
ITU-T G.651 Splice Loss: Avg. 0.01dB
ITU-T G.653 Splice Loss: Avg. 0.04dB
ITU-T G.655 Splice Loss: Avg. 0.04dB
ITU-T G.657 Splice Loss: Avg. 0.02dB
SM Fast Mode Splice Time: Avg. 7 to 9 seconds
Protection Sleeve Type: Heat-shrinkable sleeve
Sleeve Length: Max. 66mm
Sleeve Diameter: Max. 6mm before shrinking
60mm Slim Mode Heat Time: Avg. 9 to 10 seconds
60mm Mode Heat Time: Avg. 13 to 15 seconds
Fibre Tensile Test Force: Approx. 2.0N
Electrode Life: Approx. 5000 splices
Width: Approx. 170mm (without projection)
Depth: Approx. 173mm (without projection)
Height: Approx. 150mm (without projection)
Weight: Approx. 2.8kg including battery
Operating Temperature: -10 to +50°C
Storage Temperature: -40 to +80°C
Operating Humidity: 0 to 95% RH non-condensing
Operating Altitude: Max. 5000m
AC Adaptor Input: AC100–240V, 50/60Hz, Max. 1.5A
Battery Type: Rechargeable Lithium-Ion
Battery Output: Approx. DC14.4V, 6,380mAh
Battery Capacity: Approx. 300 splice and heat cycles
Battery Recharge Temperature Range: 0 to 40°C
Battery Storage Temperature: -20 to +30°C
Battery Life: Approx. 500 recharge cycles
LCD Display: 4.9 inch TFT colour touch screen
Display Magnification: Approx. 200× – 320×
V-Groove Illumination: LED lamp
PC Interface: USB 2.0 Mini B connector
External LED Lamp Interface: USB 2.0 Type A connector, approx. DC5V 500mA
Wireless Connectivity: Bluetooth 4.1 LE
Splice Mode Data Storage: 100 splice modes
Heat Mode Data Storage: 30 heat modes
Splice Result Data Storage: 20,000 splices
Splice Image Data Storage: 100 images
Tripod Screw Hole: 1/4-20UNC

Fujikura 90S+ Core Alignment Fusion Splicer — Official Datasheet (Fujikura Europe): Download PDF

Fujikura 90S+ Fusion Splicer — Instruction Manual (hosted by Inlec UK): Download PDF

Fujikura 90S Quick Reference Guide (QRG-02): Download PDF

Fujikura CT-50 Fibre Cleaver — Product Specification Sheet (AFL/Simbol): Download PDF

Fujikura CT-50 Fibre Cleaver — Specification Sheet (Fiber Instrument Sales): Download PDF

Fujikura 90S+ Fusion Splicer Kit — Product Specification Sheet (AFL/Fiber Instrument Sales): Download PDF
