Condition: Seller refurbished

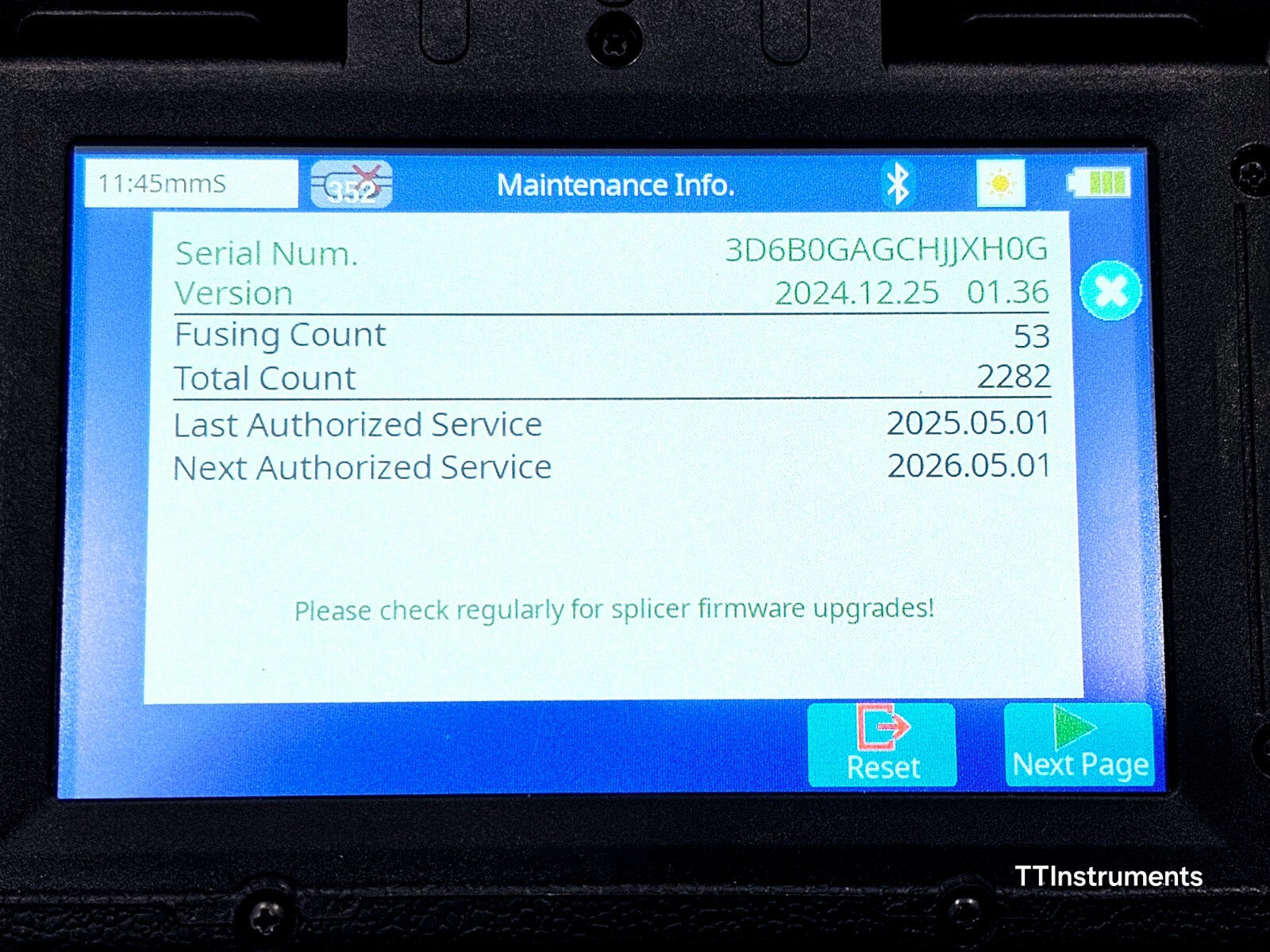

This Fujikura 90S+ core alignment fusion splicer has an ARC count of 2282 and has been cleaned and serviced by an approved service centre in April 2025. New electrodes are fitted, the BTR-15 battery is included and holds its charge. This is an EU licensed model.

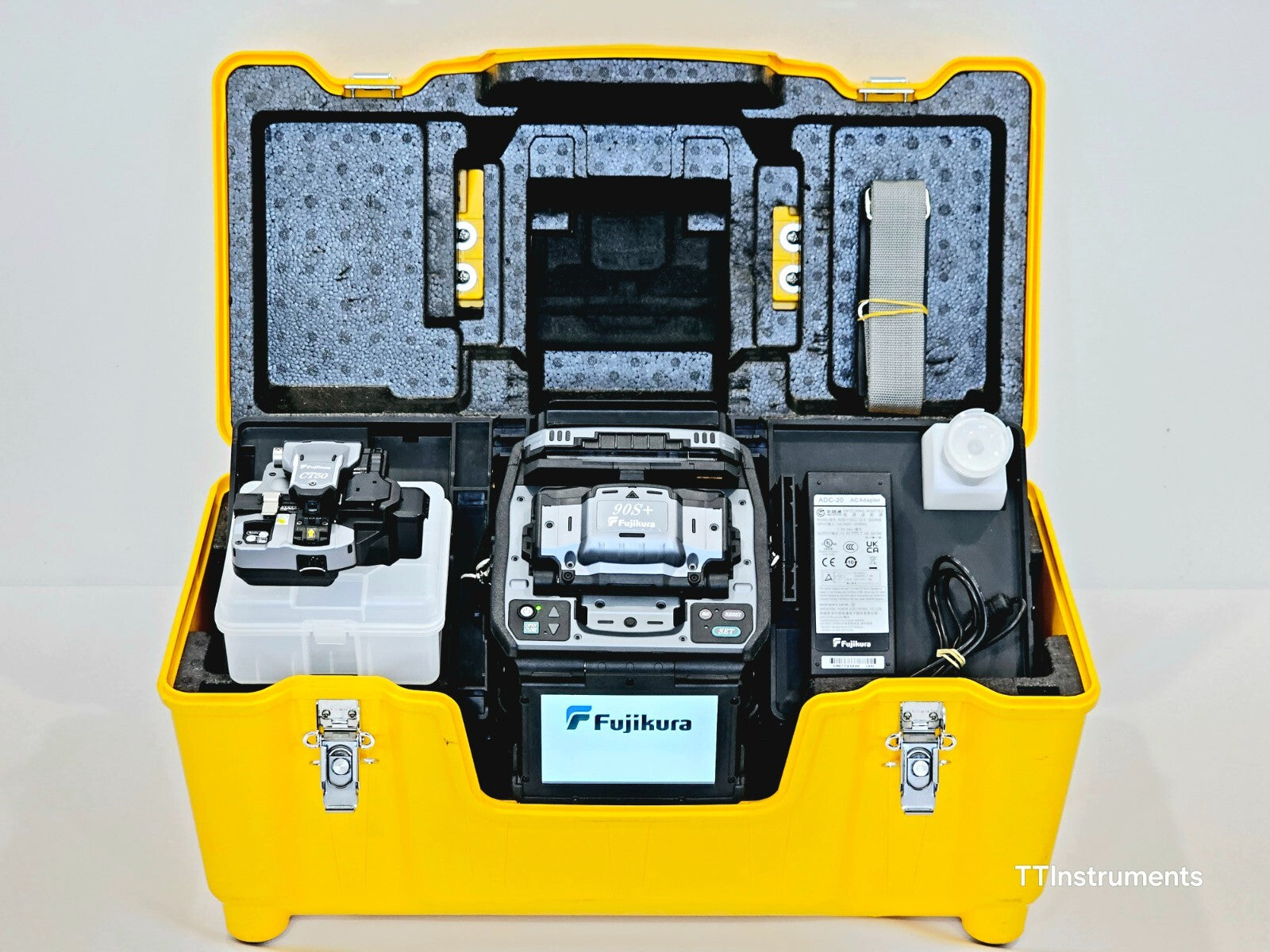

Included in the sale:
• Fujikura 90S+ SM/MM Core Alignment Fibre Fusion Splicer (ARC count 2282) with new electrodes
• Fujikura CT-50 High Precision Fibre Cleaver with AD50 guide plate, case, and new blade
• AC Adapter/Charger
• Battery Pack (BTR-15)
• Hard Carrying Case
• Alcohol Pot
• Work Tray

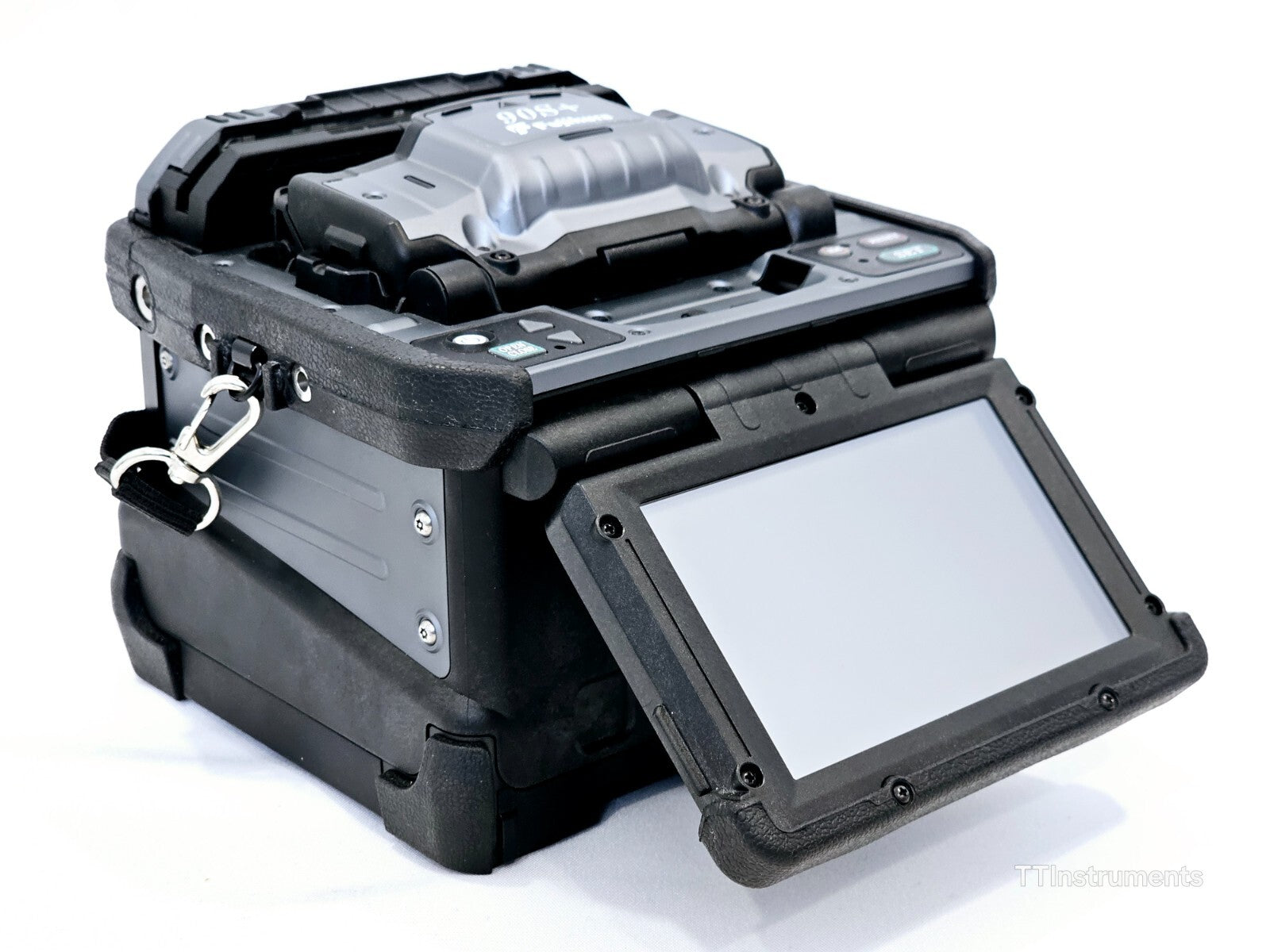

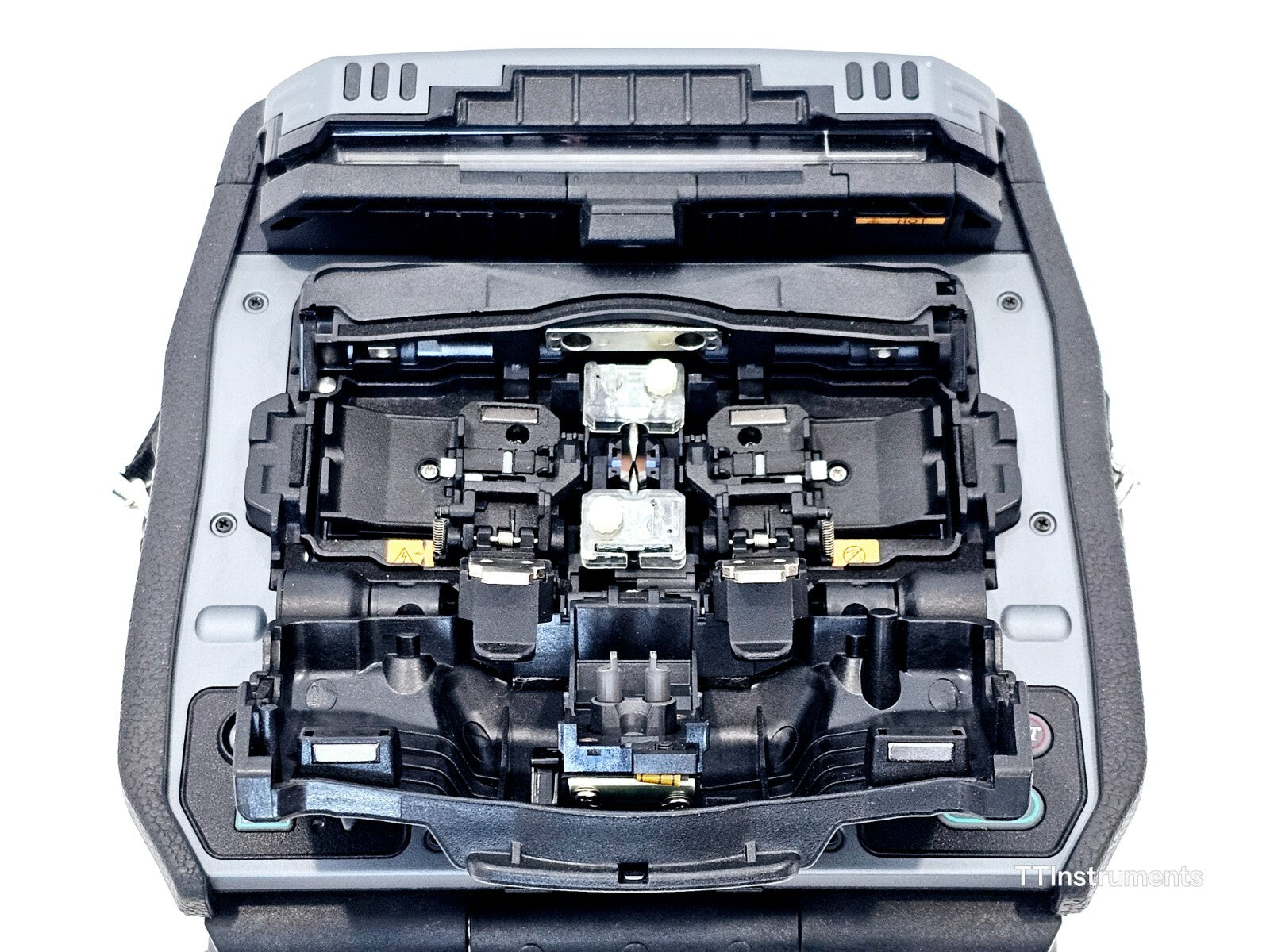

The Fujikura 90S+ is a single-fibre core alignment fusion splicer that sets a new standard in the fusion splicing market. Designed to help technicians work faster and with higher precision, the 90S+ features a suite of market-first fully automated technologies that streamline the entire splicing process. Active Fusion Control Technology (AFCT) analyses the cleave end-face condition to perform optimal fusion control and minimise splice loss, even when dealing with fibres that have a poor cleave angle. Active Blade Management Technology (ABMT) communicates wirelessly with the CT-50 cleaver to track blade wear and automatically rotate the blade when required, improving cleaver efficiency and reducing maintenance costs. The 90S+ achieves a significant reduction in overall splice process time versus the previous 70S+ model, thanks to faster automated wind protectors, an automated heater, new fibre retention clamps, and improved universal sheath clamps. A redesigned internal structure aligns the protection sleeve precisely to the fusion splice point, enabling hands-free operation once the process has started. The universal sheath clamp accommodates both loose and tight buffer fibres without the need for additional clamps. The 4.9-inch TFT colour touch screen with approximately 200x–320x magnification provides clear fibre imagery, and Bluetooth 4.1 LE enables wireless connectivity to compatible devices and the Splice+ smartphone application.

Fibre Alignment Method: Active core alignment
Spliceable Fibre Count: Single fibre
Fibre Type: Single-mode and multi-mode optical fibre
Cladding Diameter: 80 µm – 150 µm
Sheath Clamp Coating: 3000 µm maximum coating diameter
Sheath Clamp Cleave Length: 5 mm – 16 mm
ITU-T G.652 Splice Loss: Avg. 0.02 dB
ITU-T G.651 Splice Loss: Avg. 0.01 dB
ITU-T G.653 Splice Loss: Avg. 0.04 dB
ITU-T G.655 Splice Loss: Avg. 0.04 dB
ITU-T G.657 Splice Loss: Avg. 0.02 dB
SM Fast Mode Splice Time: Avg. 7 to 9 seconds
Protection Sleeve Type: Heat-shrinkable sleeve
Sleeve Length: Max. 66 mm
Sleeve Diameter: Max. 6 mm before shrinking
60 mm Slim Mode Heat Time: Avg. 9 to 10 seconds
60 mm Mode Heat Time: Avg. 13 to 15 seconds
Fibre Tensile Test Force: Approx. 2.0 N
Electrode Life: Approx. 5000 splices
Width: Approx. 170 mm (without projection)
Depth: Approx. 173 mm (without projection)
Height: Approx. 150 mm (without projection)
Weight: Approx. 2.8 kg (including battery)
Operating Temperature: -10 to 50 °C
Storage Temperature: -40 to 80 °C
Operating Humidity: 0 to 95% RH non-condensing
Operating Altitude: Max. 5000 m
AC Adaptor Input: AC 100 to 240 V, 50/60 Hz, Max. 1.5 A
Battery Type: Rechargeable Lithium-Ion
Battery Output: Approx. DC 14.4 V, 6380 mAh
Battery Capacity: Approx. 300 splice and heat cycles
Battery Recharge Temperature Range: 0 to 40 °C
Battery Storage Temperature: -20 to 30 °C
Battery Life: Approx. 500 recharge cycles
LCD Display: 4.9-inch TFT colour touch screen
Display Magnification: Approx. 200x – 320x
V-Groove Illumination: LED lamp
PC Interface: USB 2.0 Mini B connector
External LED Lamp Interface: USB 2.0 A connector, Approx. DC 5 V, 500 mA
Wireless Connectivity: Bluetooth 4.1 LE
Splice Mode Data Storage: 100 splice modes
Heat Mode Data Storage: 30 heat modes
Splice Result Data Storage: 20,000 splices
Splice Image Data Storage: 100 images
Tripod Screw Hole: 1/4-20 UNC

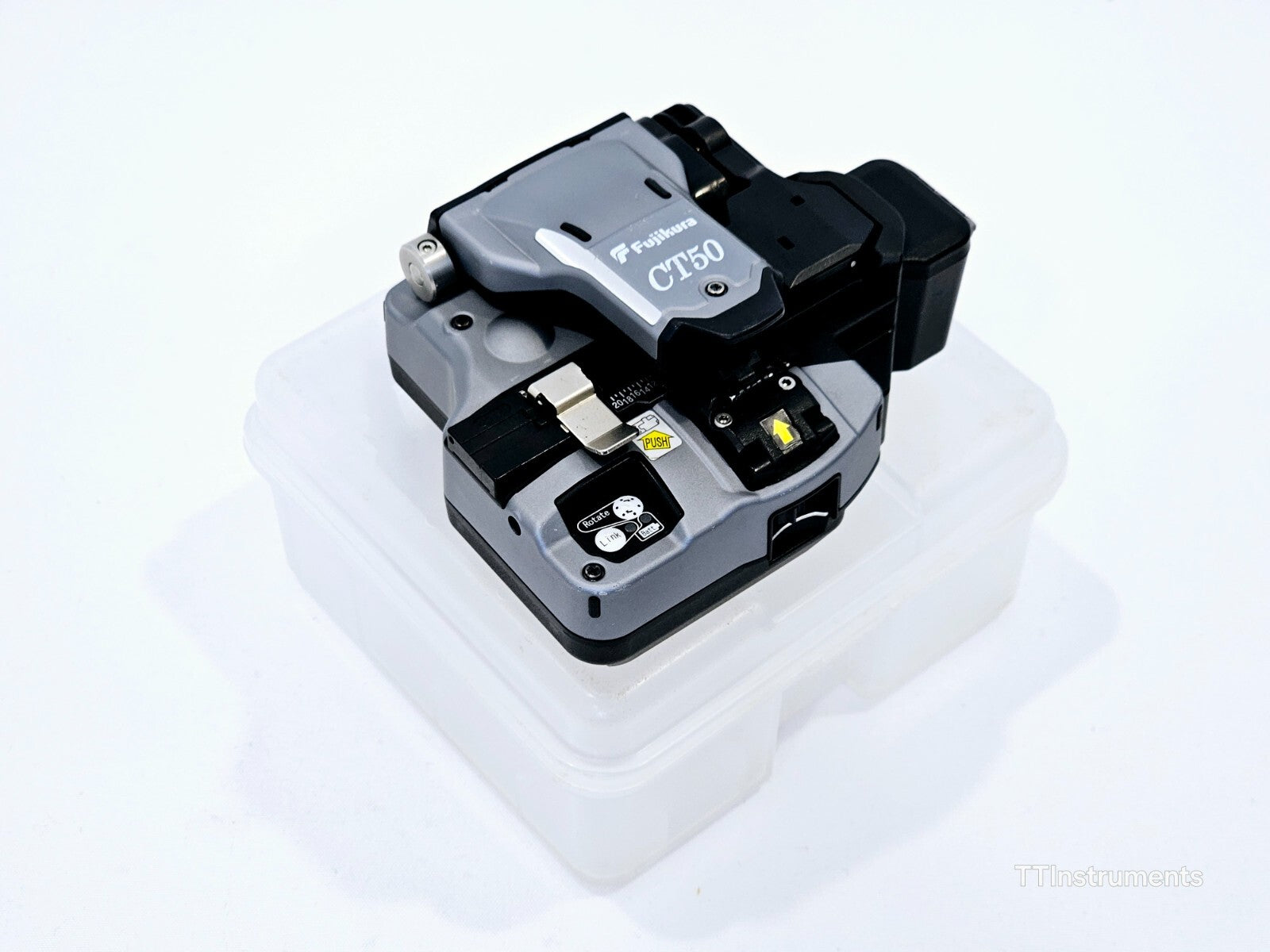

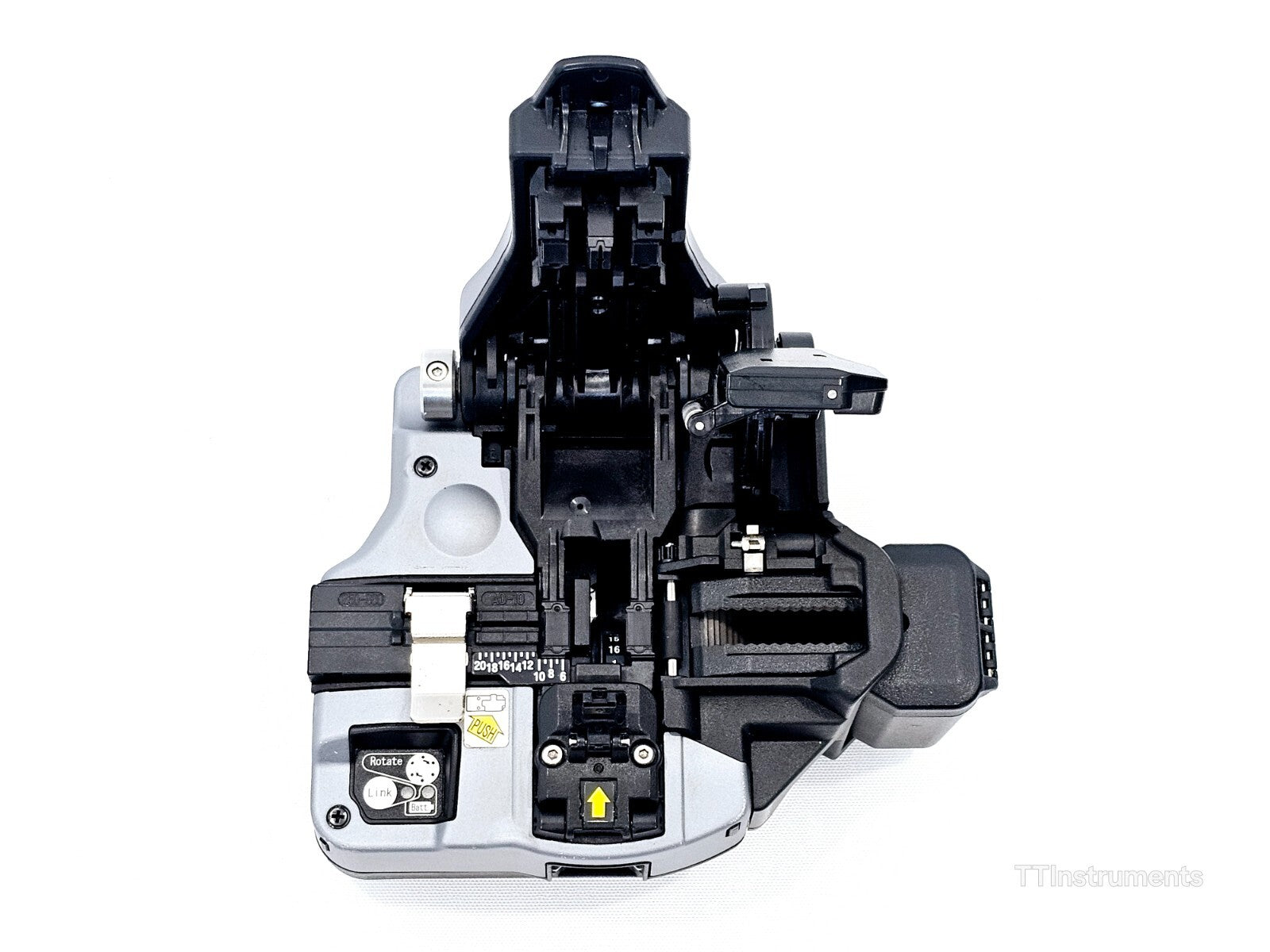

Fujikura CT-50 Fibre Cleaver (included):
Applicable Fibre: Silica optical fibre, single and ribbon (up to 12 fibres)
Single Fibre Cleave Length: 5–20 mm (with AD-50 adapter plate)
Ribbon Fibre Cleave Length: Approx. 10 mm (with fibre holders)
Cleave Angle Capability: Typically <0.5°
Blade Lifetime: Approx. 60,000 single-fibre cleaves (16 positions x 3 heights)
Bluetooth: Automatic wireless blade rotation linked to splicer
Shock Resistance: Drop tested to 76 cm (30 inches) in all directions
Dimensions (W x D x H): Approx. 120 mm x 95 mm x 58 mm
Weight: Approx. 305 g

Fujikura 90S+ Core Alignment Fusion Splicer Official Data Sheet (Fujikura Europe): Download PDF

Fujikura 90S+ Fusion Splicer Product Specification Sheet (AFL/Fiber Instrument Sales): Download PDF

Fujikura 90S+ Fusion Splicer Full Instruction Manual (Inlec UK): Download PDF

Fujikura 90S Quick Reference Guide PDF: Download PDF

Fujikura CT-50 Fibre Cleaver Specification Sheet (Simbol): Download PDF

Fujikura CT-50 Fibre Cleaver Specification Sheet (AFL/Fiber Instrument Sales): Download PDF

Fujikura 90S+ Fusion Splicer Product Specification Sheet (MSP-ICT): Download PDF
