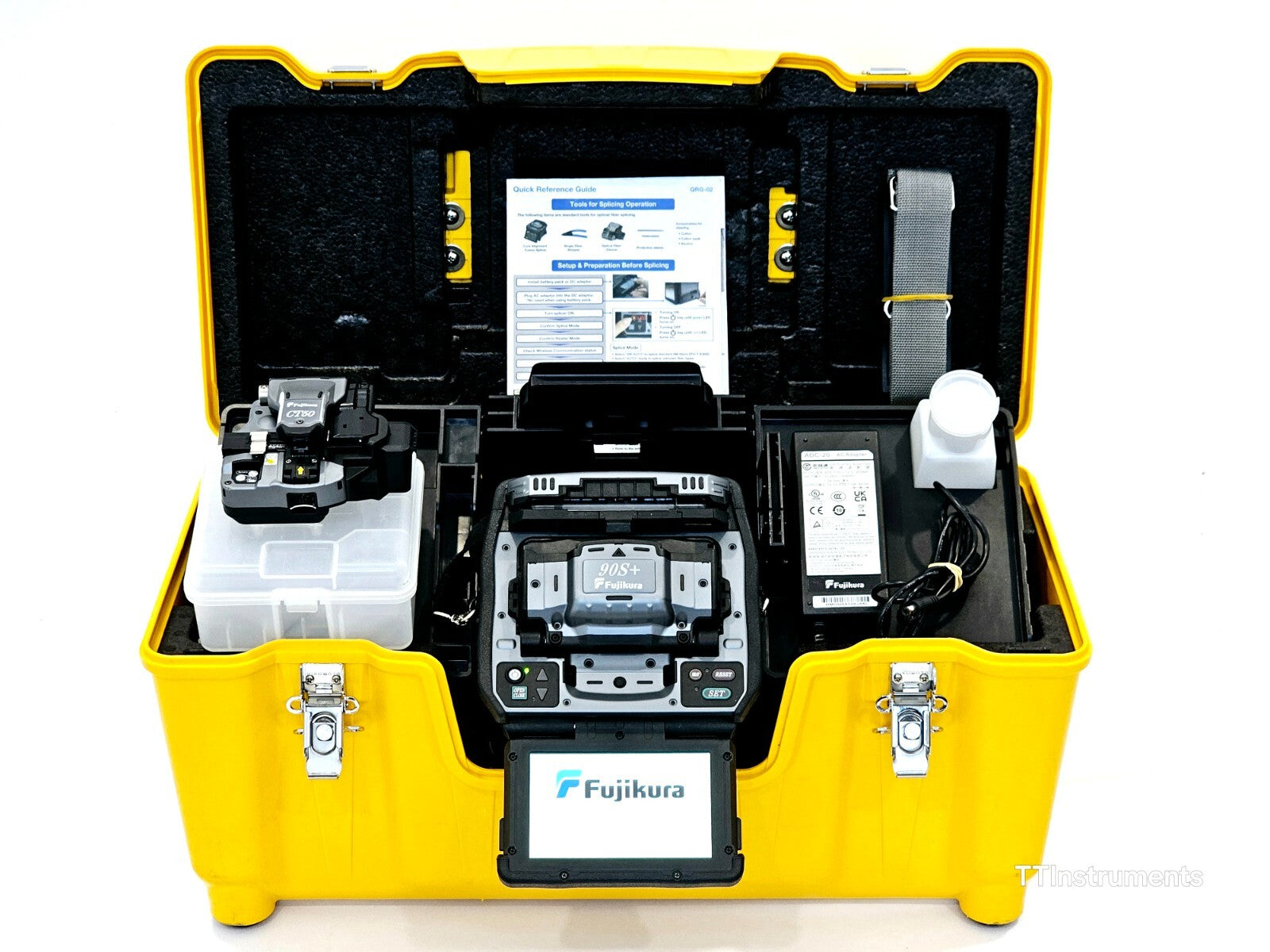

The Fujikura 90S+ is a single-fibre core alignment fusion splicer that sets a new standard in the fusion splicing market. Packed with market-first fully automated features, it is designed to help field technicians work faster and with greater precision. Active Fusion Control Technology (AFCT) analyses the cleave end face in real time to determine the optimal arc power and minimise splice loss, while Active Blade Management Technology (ABMT) wirelessly communicates with the CT-50 cleaver to automatically rotate the blade when wear is detected, maximising blade life and reducing downtime.

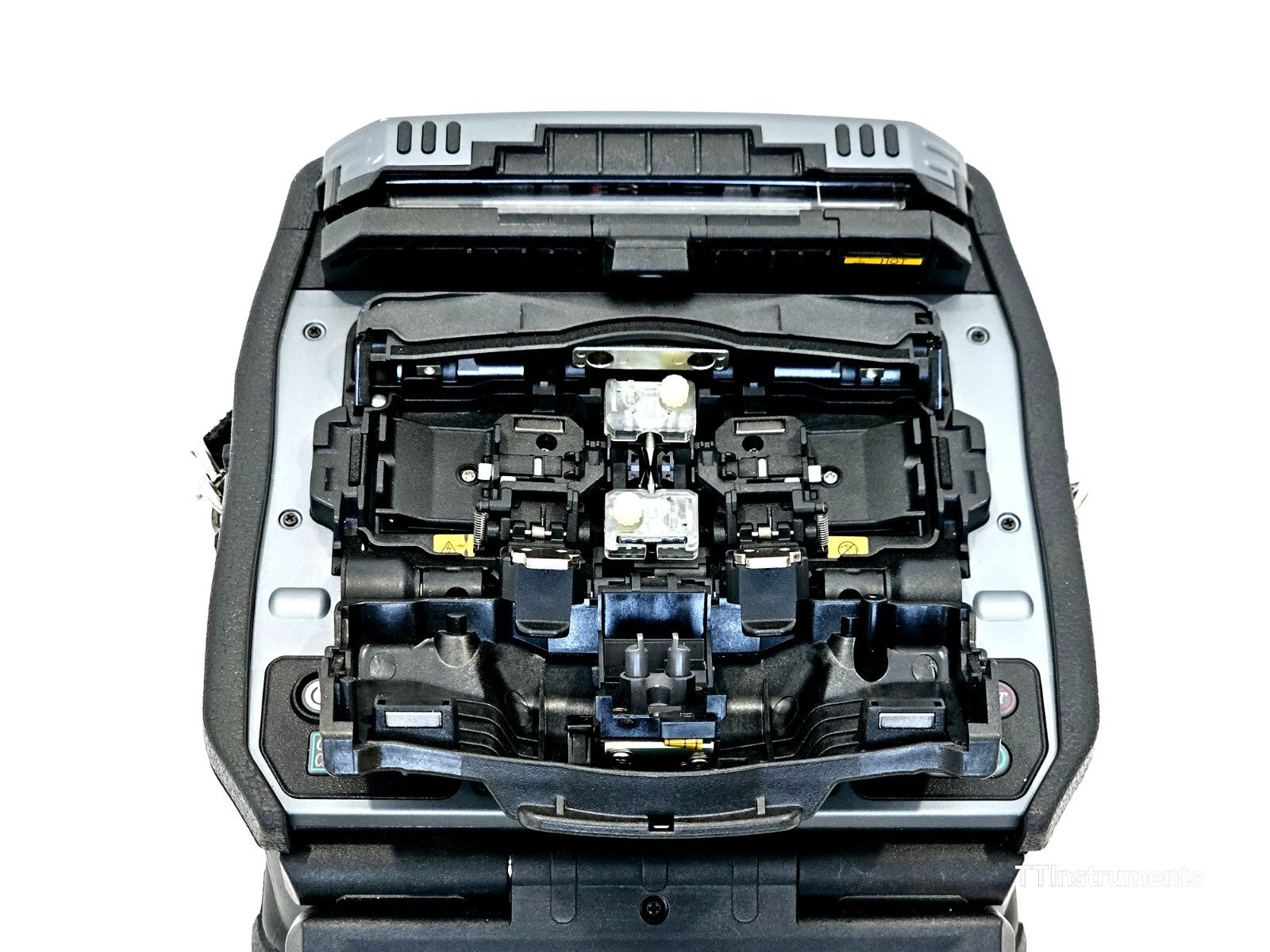

The 90S+ delivers a significant reduction in overall splice process time compared to the previous 70S+ model, achieved through faster automated wind protectors and heater response, new fibre retention clamps, and an improved universal sheath clamp that handles both loose and tight buffer fibres without the need for additional accessories. A redesigned internal structure matches the protection sleeve to the fusion splice point, enabling the entire splicing process to be completed without the operator needing to touch the splicer once started.
The 90S+ is suitable for a wide range of applications including distribution fibre repair, long-haul network installation, field termination with splice-on connectors, access network installation, OSP cable installation, and optical module work.
Fibre Alignment Method: Active core alignment
Spliceable Fibre Count: Single fibre
Fibre Type: Single-mode and multi-mode optical fibre
Cladding Diameter: 80μm – 150μm
Sheath Clamp Coating: 3000μm maximum coating diameter
Sheath Clamp Cleave Length: 5mm – 16mm
ITU-T G.652 Splice Loss: Avg. 0.02dB
ITU-T G.651 Splice Loss: Avg. 0.01dB
ITU-T G.653 Splice Loss: Avg. 0.04dB
ITU-T G.655 Splice Loss: Avg. 0.04dB
ITU-T G.657 Splice Loss: Avg. 0.02dB
SM Fast Mode Splice Time: Avg. 7 to 9 seconds
Protection Sleeve Type: Heat-shrinkable sleeve
Sleeve Length: Max. 66mm
Sleeve Diameter: Max. 6mm before shrinking
60mm Slim Mode Heat Time: Avg. 9 to 10 seconds
60mm Mode Heat Time: Avg. 13 to 15 seconds
Fibre Tensile Test Force: Approx. 2.0N
Electrode Life: Approx. 5000 splices
Width: Approx. 170mm (without projection)
Depth: Approx. 173mm (without projection)
Height: Approx. 150mm (without projection)
Weight: Approx. 2.8kg including battery
Operating Temperature: -10 to 50°C
Storage Temperature: -40 to 80°C
Operating Humidity: 0 to 95% RH non-condensing
Operating Altitude: Max. 5000m
AC Adaptor Input: AC100 to 240V, 50/60Hz, Max. 1.5A
Battery Type: Rechargeable Lithium Ion
Battery Output: Approx. DC14.4V, 6,380mAh
Battery Capacity: Approx. 300 splice and heat cycles
Battery Recharge Temperature Range: 0 to 40°C
Battery Storage Temperature: -20 to 30°C
Battery Life: Approx. 500 recharge cycles

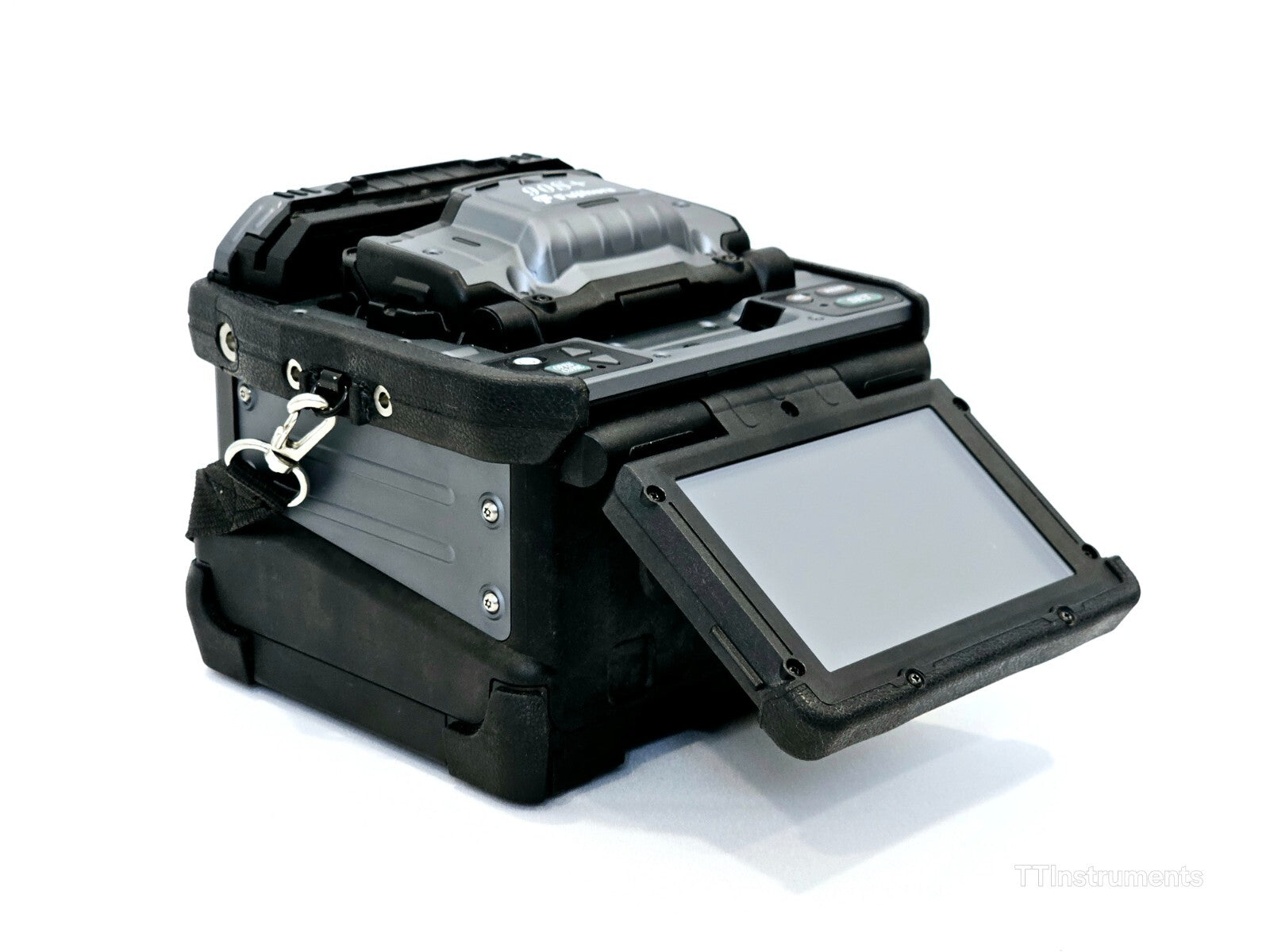

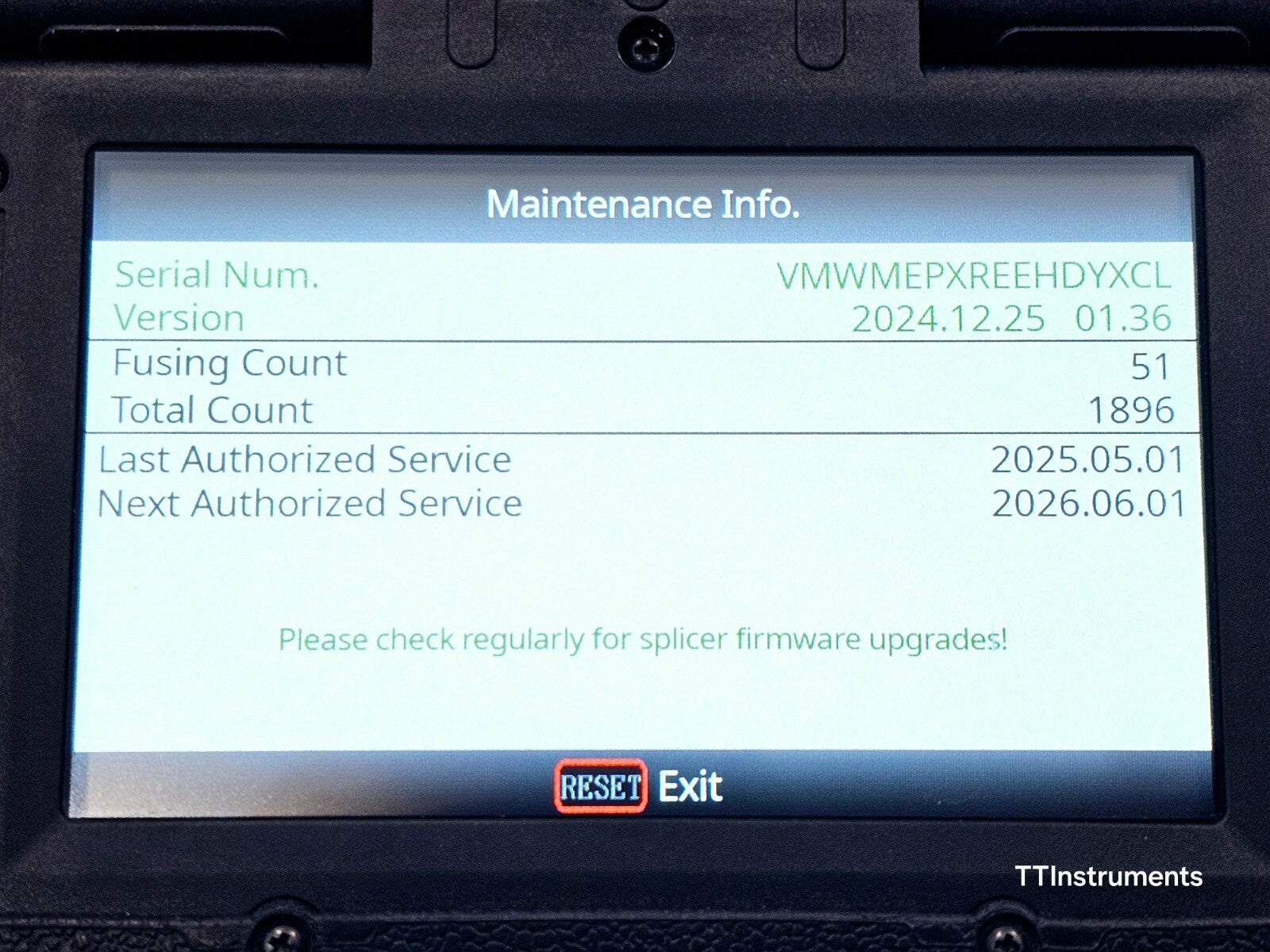

LCD Display: 4.9 inch TFT colour touch screen
Display Magnification: Approx. 200x – 320x
V-Groove Illumination: LED lamp
PC Interface: USB 2.0 Mini B connector
External LED Lamp Interface: USB 2.0 A connector, Approx. DC5V 500mA
Wireless Connectivity: Bluetooth 4.1 LE
Splice Mode Data Storage: 100 splice modes
Heat Mode Data Storage: 30 heat modes
Splice Result Data Storage: 20,000 splices
Splice Image Data Storage: 100 images
Tripod Screw Hole: 1/4-20UNC

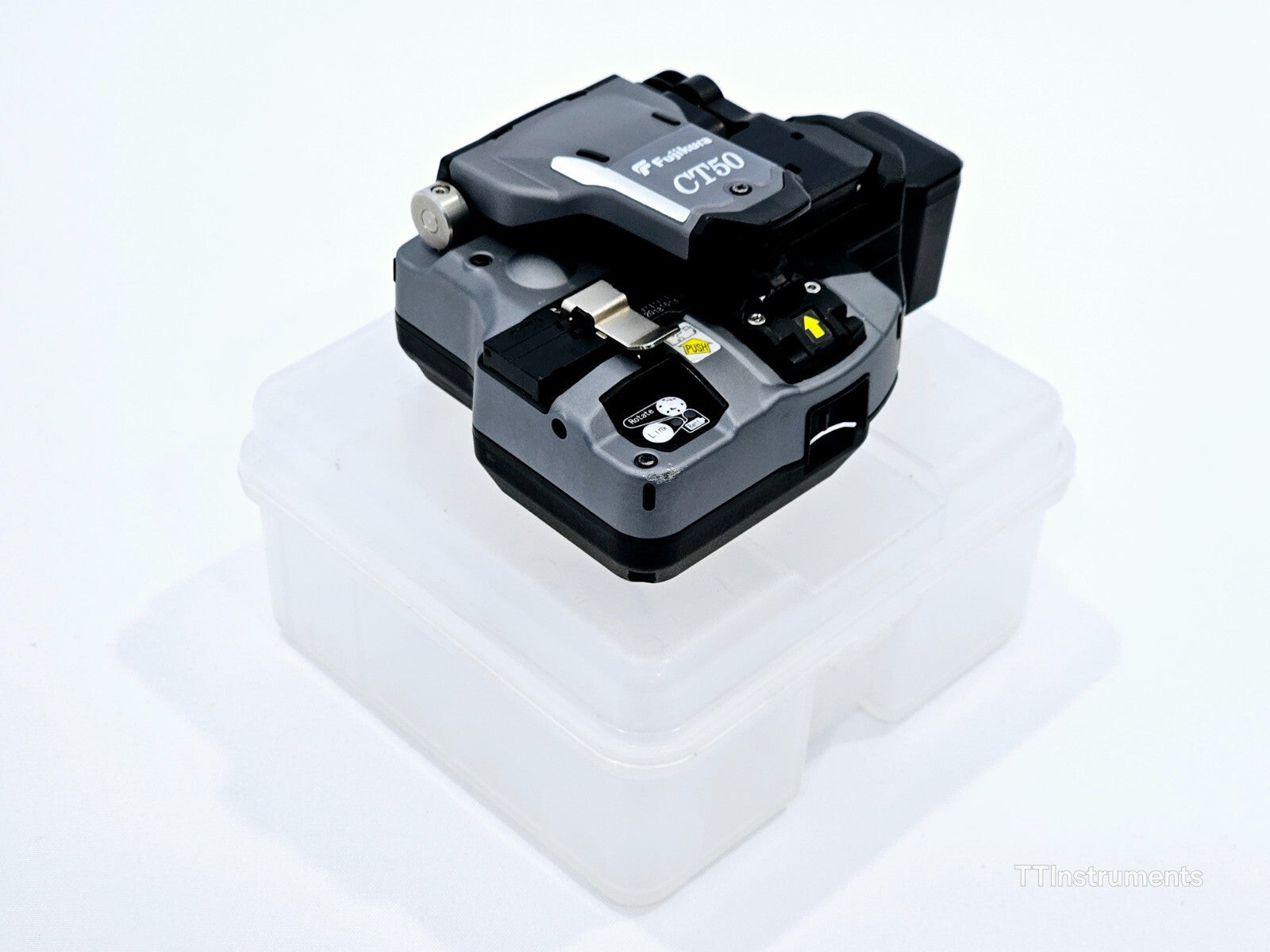

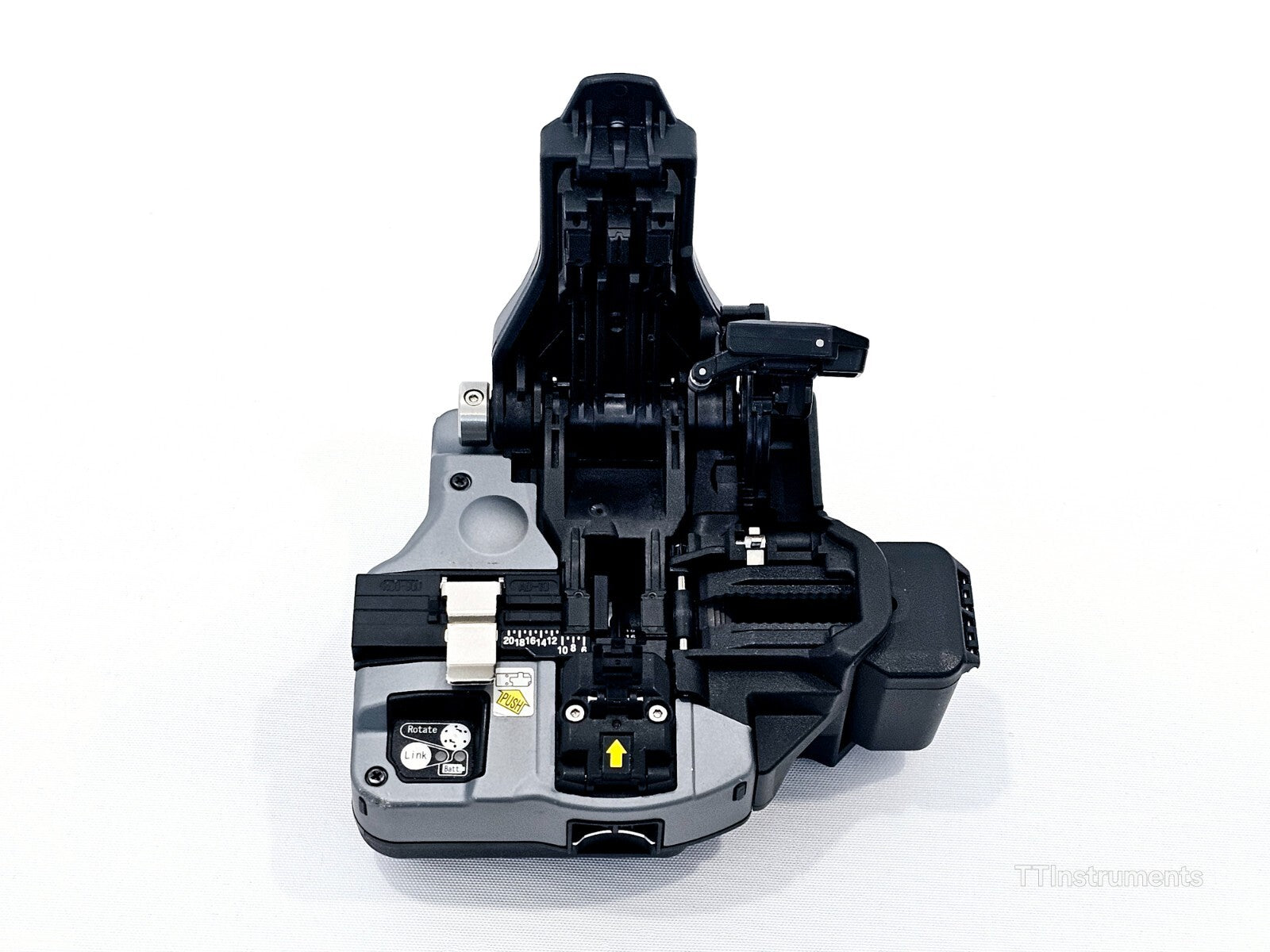

Fujikura CT-50 High Precision Fibre Cleaver:
The CT-50 is a high-precision optical fibre cleaver with Bluetooth connectivity for seamless integration with the 90S+ via Active Blade Management Technology. It features motorised automatic blade rotation, single-action cleave-and-collect operation, and a 16-position blade with 3 height settings yielding up to 60,000 single-fibre cleaves. The lid opens 100 degrees for easy fibre placement and it is ruggedised to withstand drops of up to 76cm (30 inches).
Applicable Fibre: Single fibre and ribbon up to 12 fibres
Cleave Length (AD-50): 5mm – 20mm
Cleave Angle: Typically <0.5°
Blade Lifetime: Approx. 60,000 single-fibre cleaves
Dimensions (W x D x H): 120mm x 95mm x 58mm
Weight: Approx. 305g
