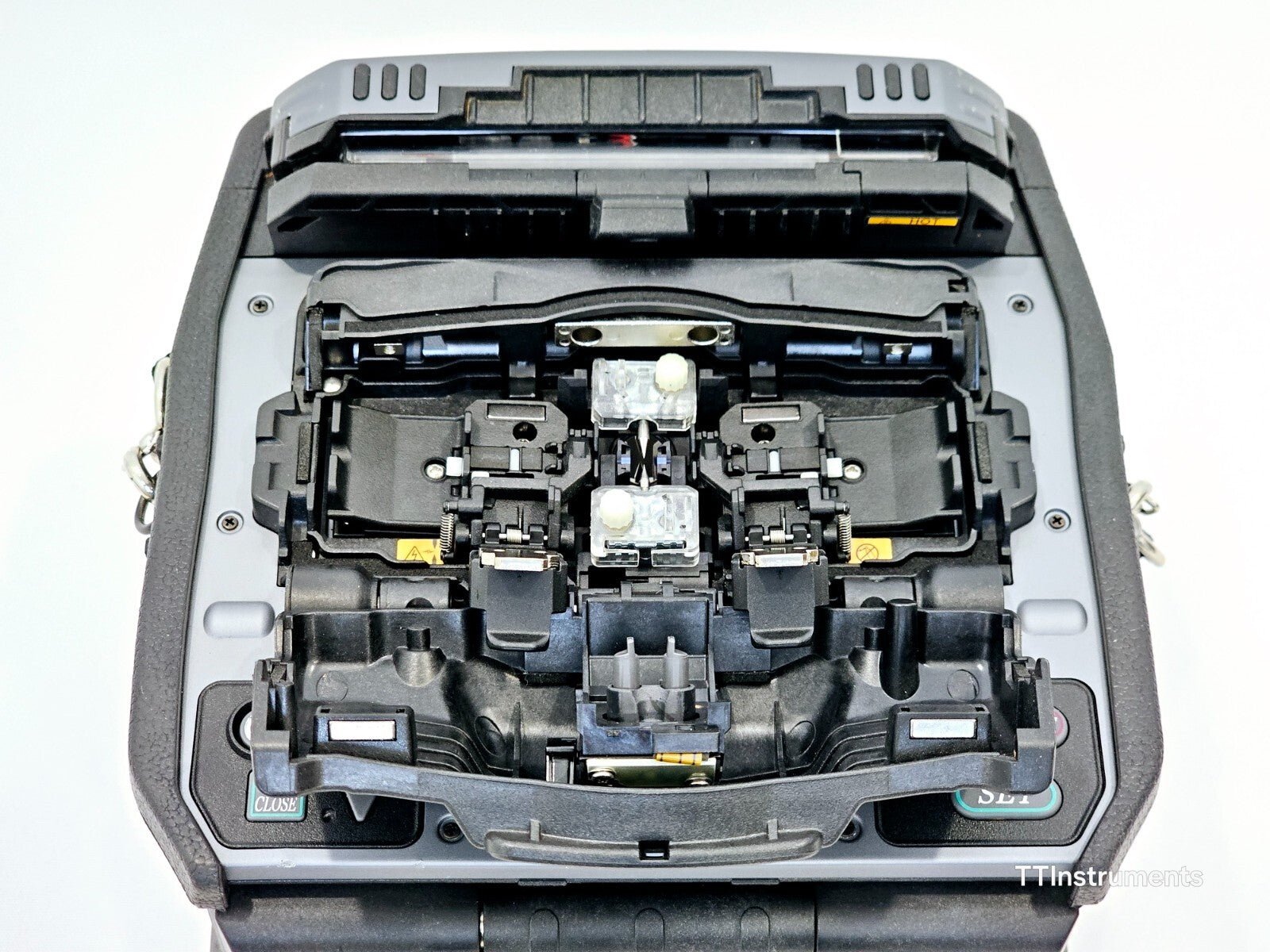

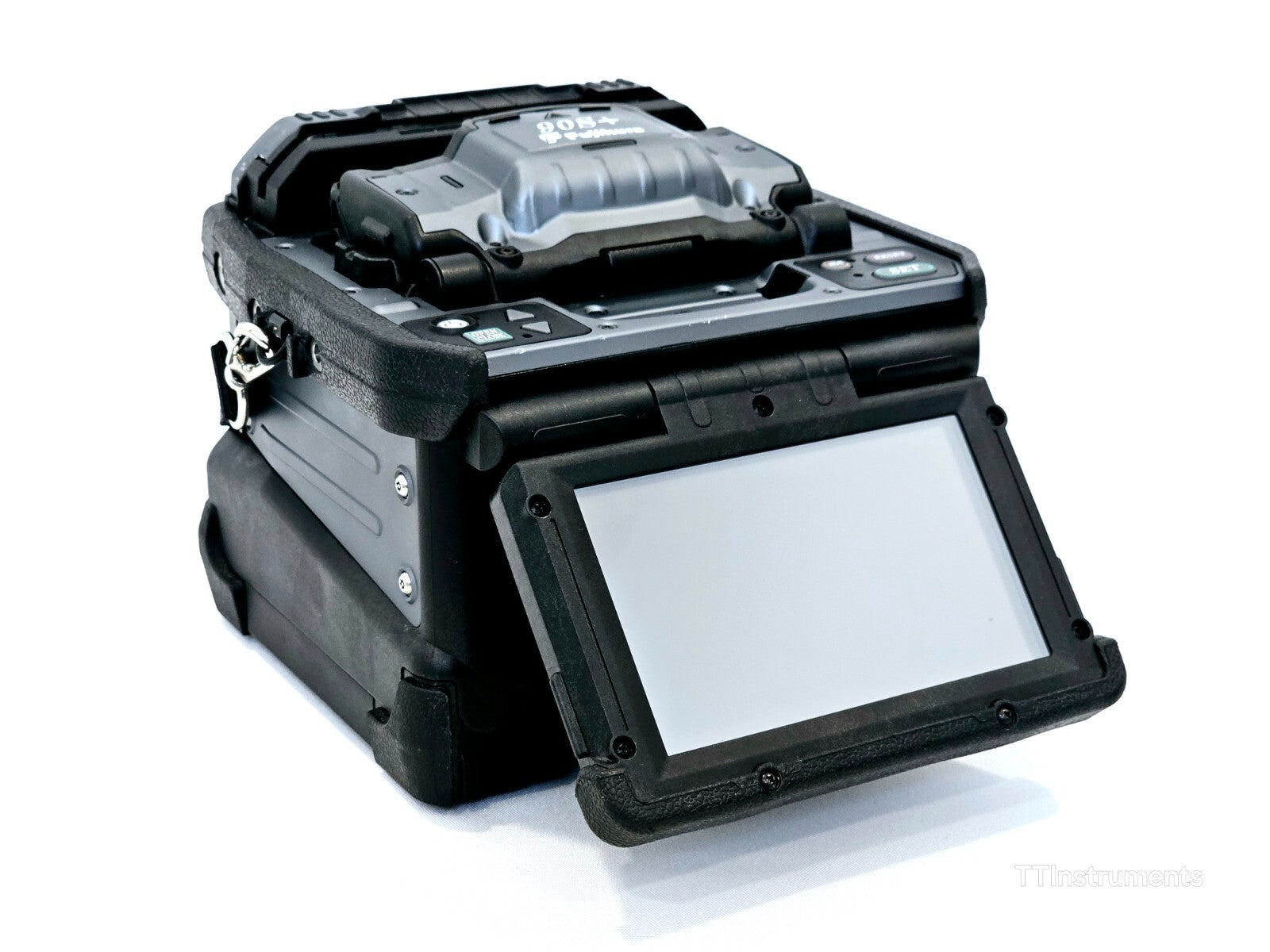

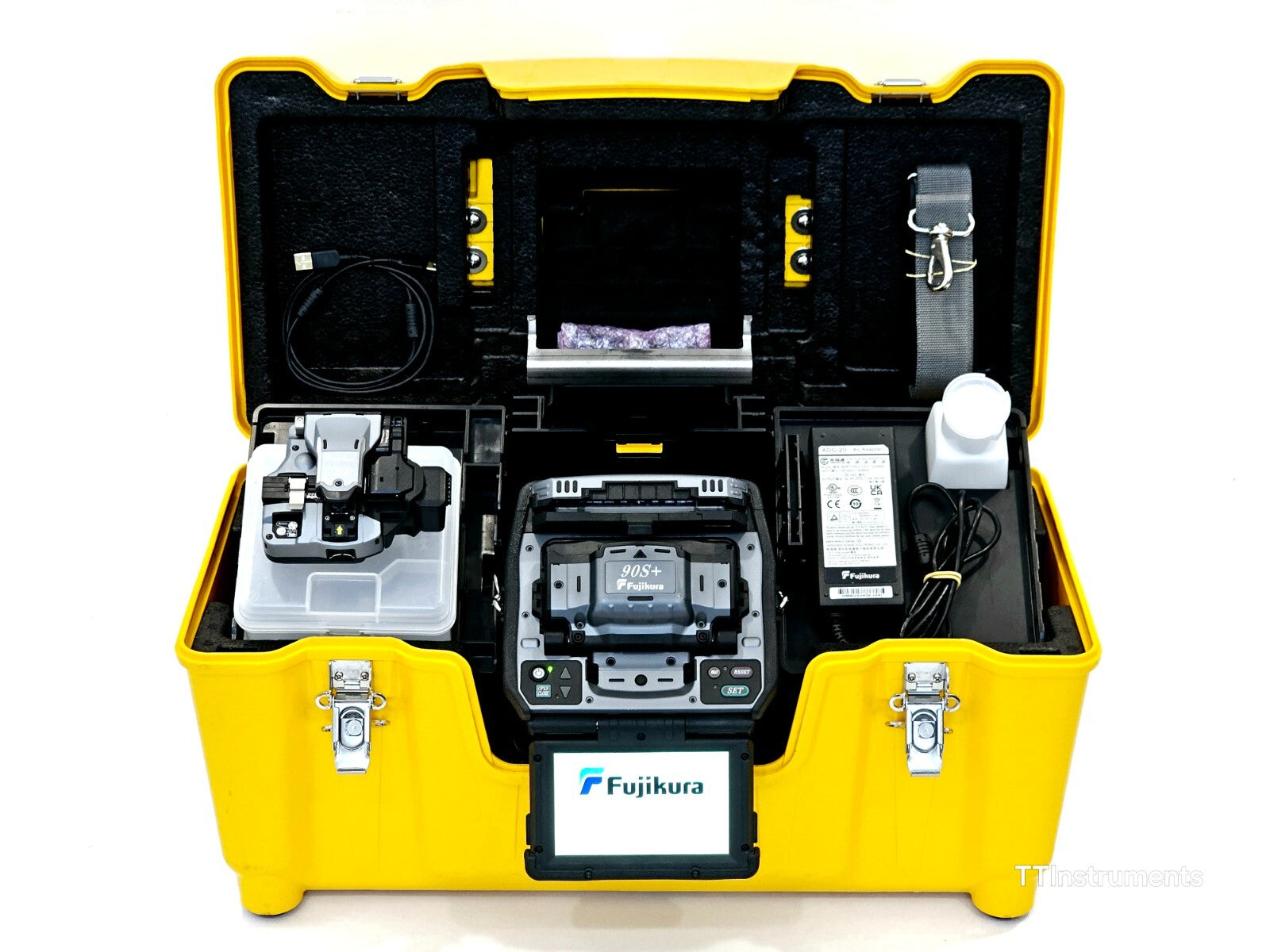

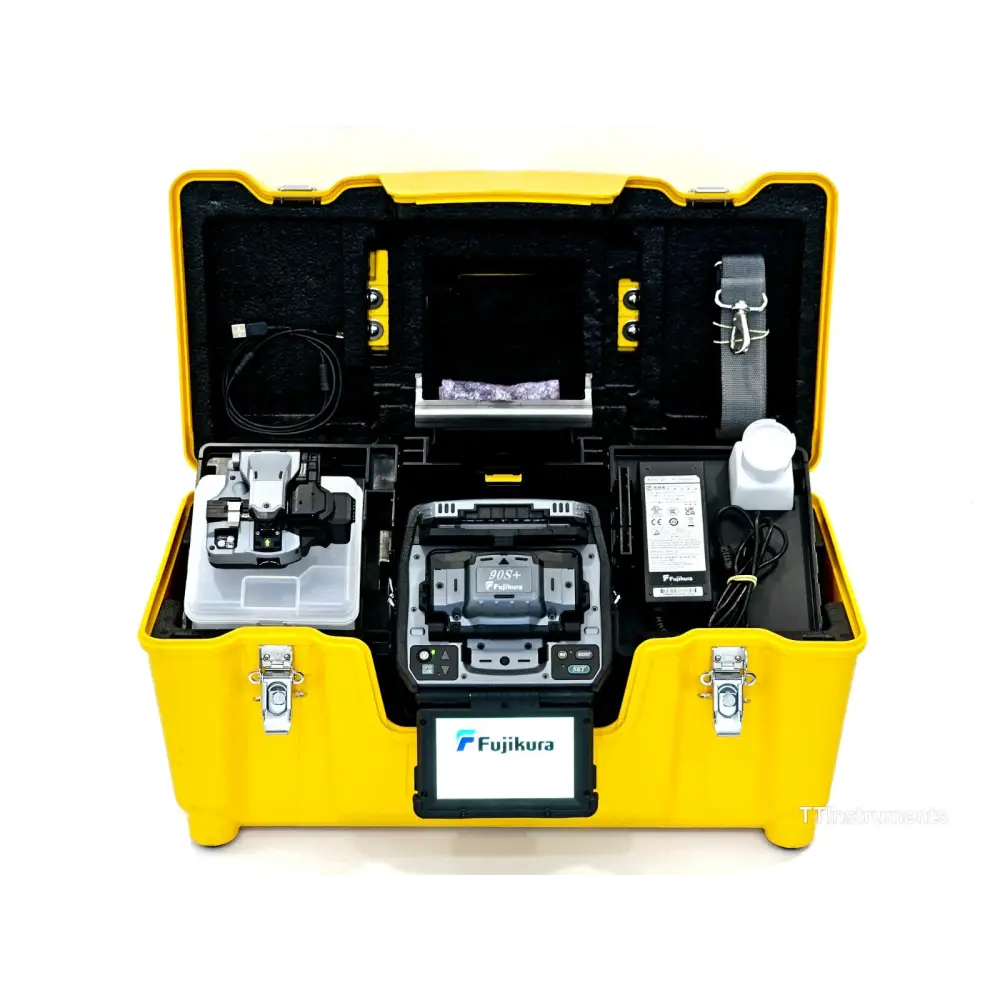

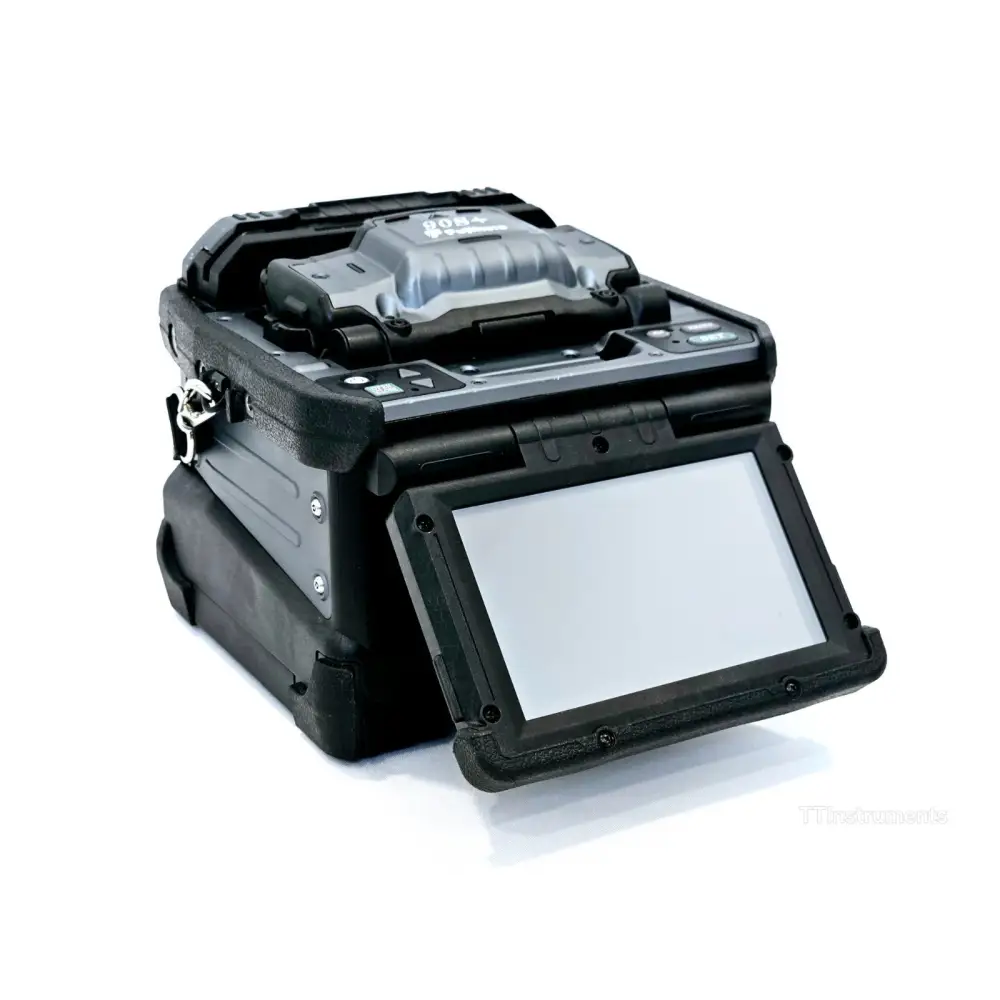

The Fujikura 90S+ is a single-fibre core alignment fusion splicer that sets a new standard in the fusion splicing market. Bristling with new and enhanced features developed to help users work faster with higher precision, the 90S+ incorporates market-first fully automated functionality that makes the splicing process faster and simpler than ever before.
Active Fusion Control Technology (AFCT) analyses the condition of the cleave end face in real time to perform optimal fusion control and minimise splice loss — even for fibres with a poor cleave angle. Active Blade Management Technology (ABMT) communicates wirelessly with the CT-50 cleaver to monitor blade condition and trigger automatic blade rotation when wear is detected, improving the efficiency of the cleaver and reducing costs.

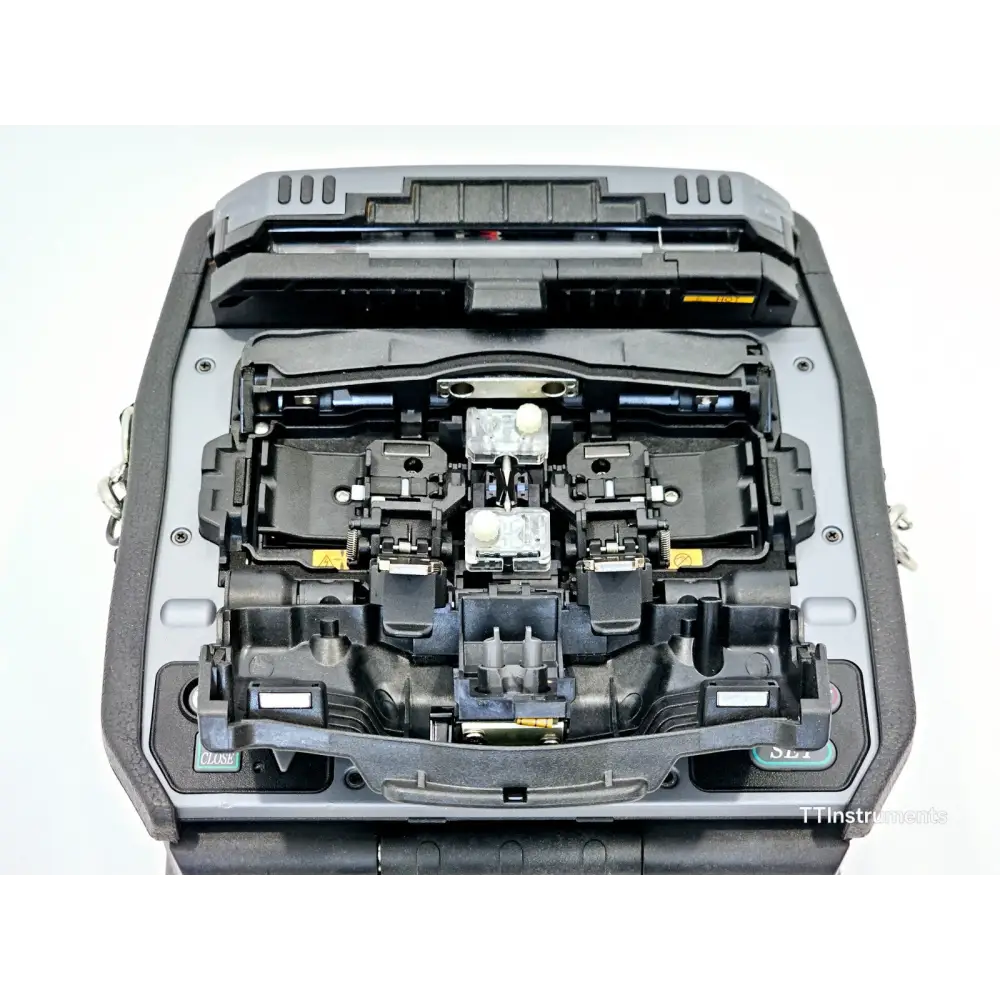

Compared to the previous 70S+ model, the 90S+ delivers a significant reduction in overall splice process time, achieved through improvements to the reaction time of the automated wind protectors and automated heater, new fibre retention clamps, improved universal sheath clamps, and a redesigned internal structure that matches the protection sleeve to the fusion splice point — enabling hands-free splicing once the process has started.

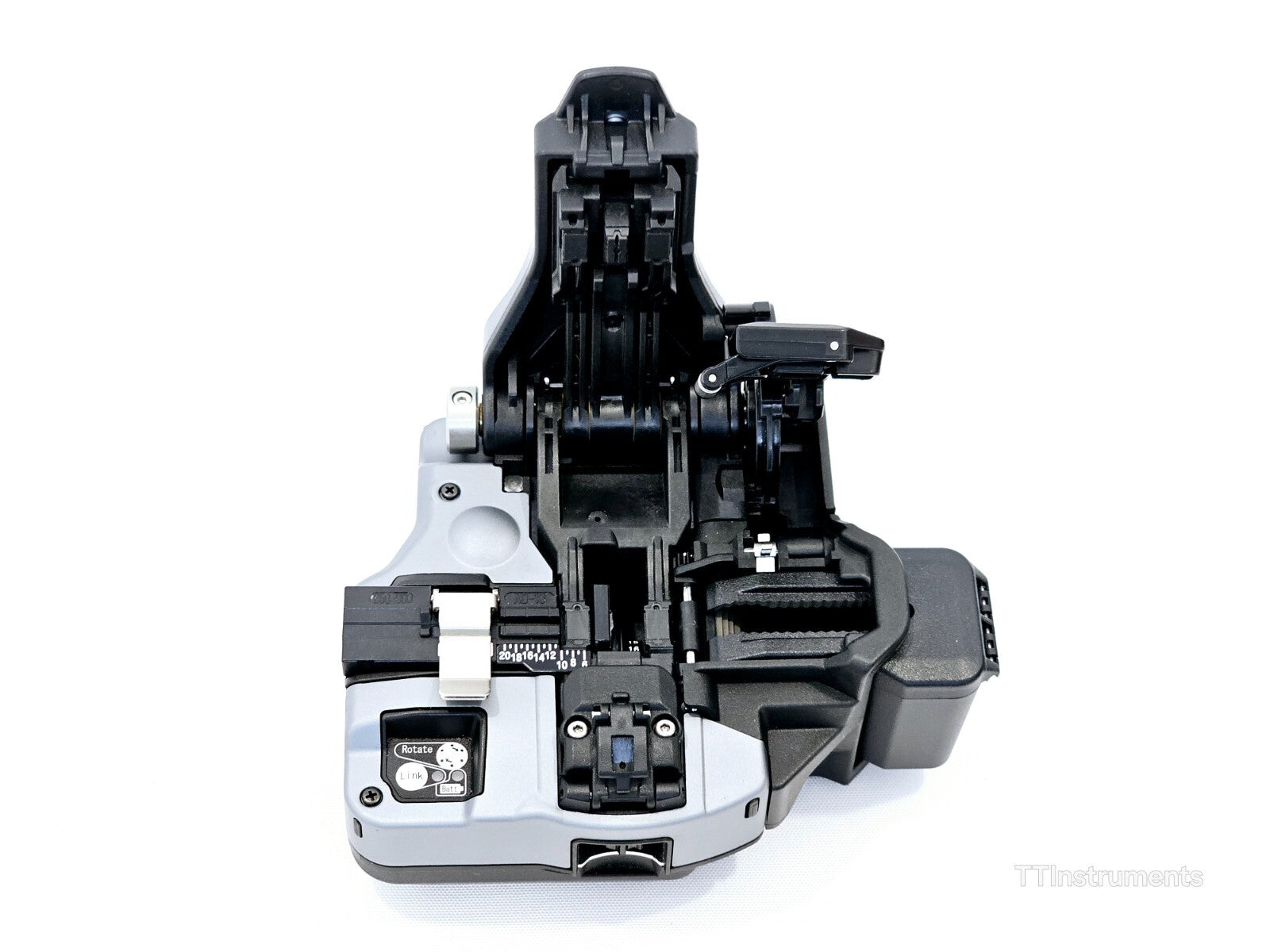

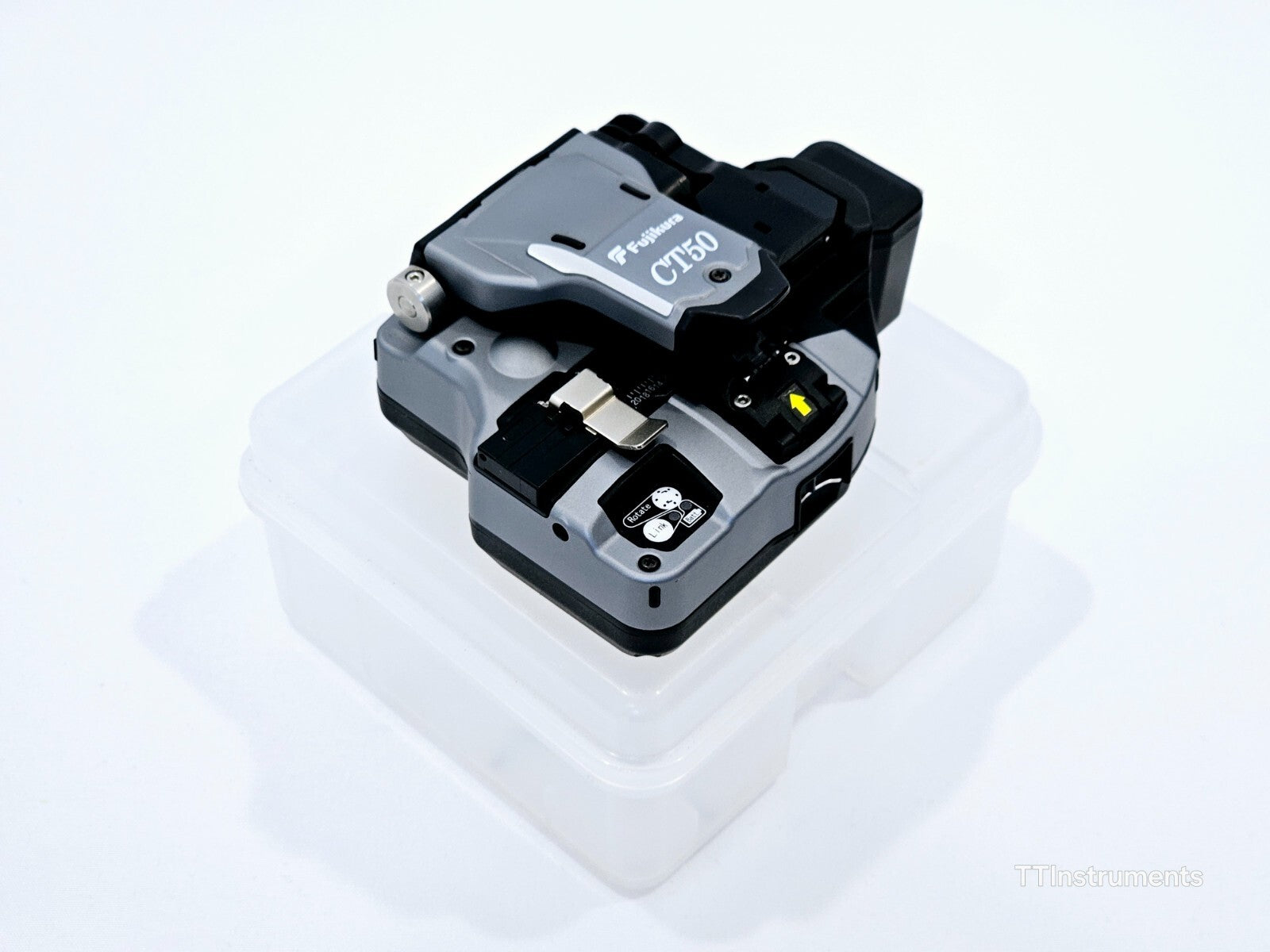

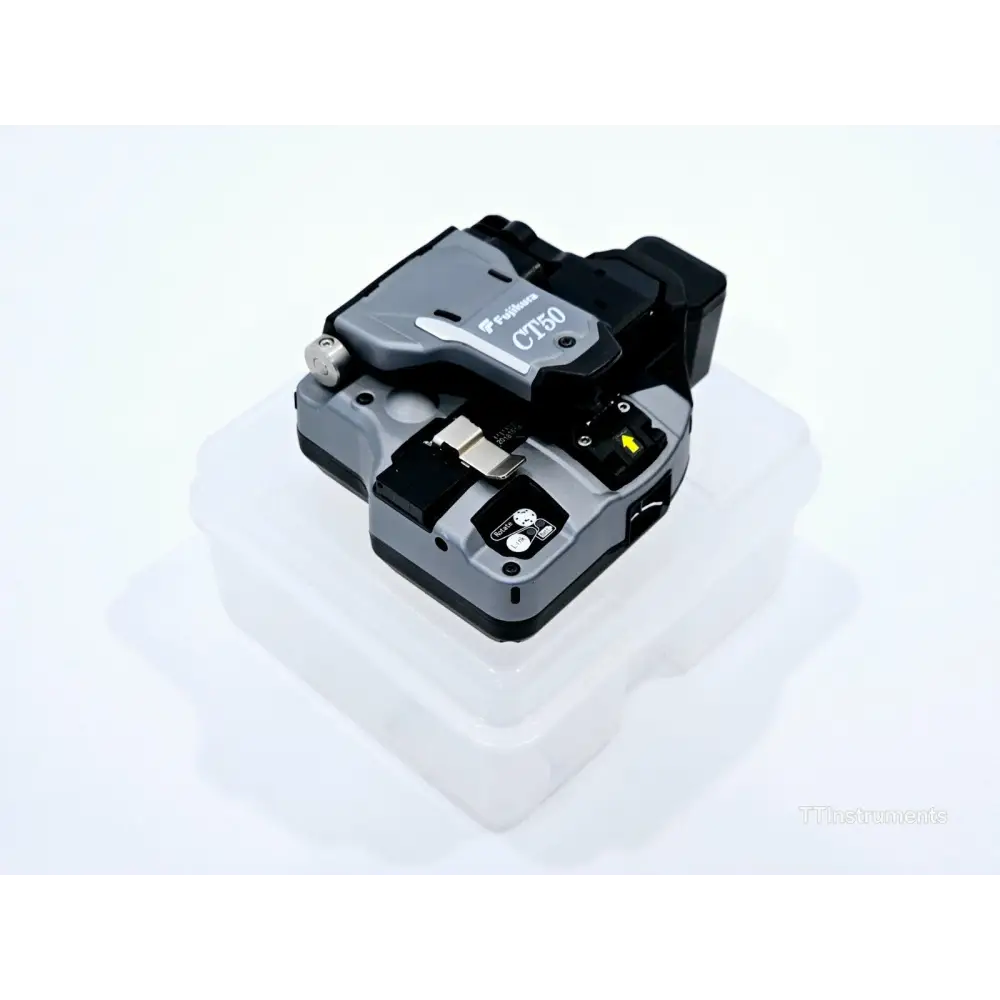

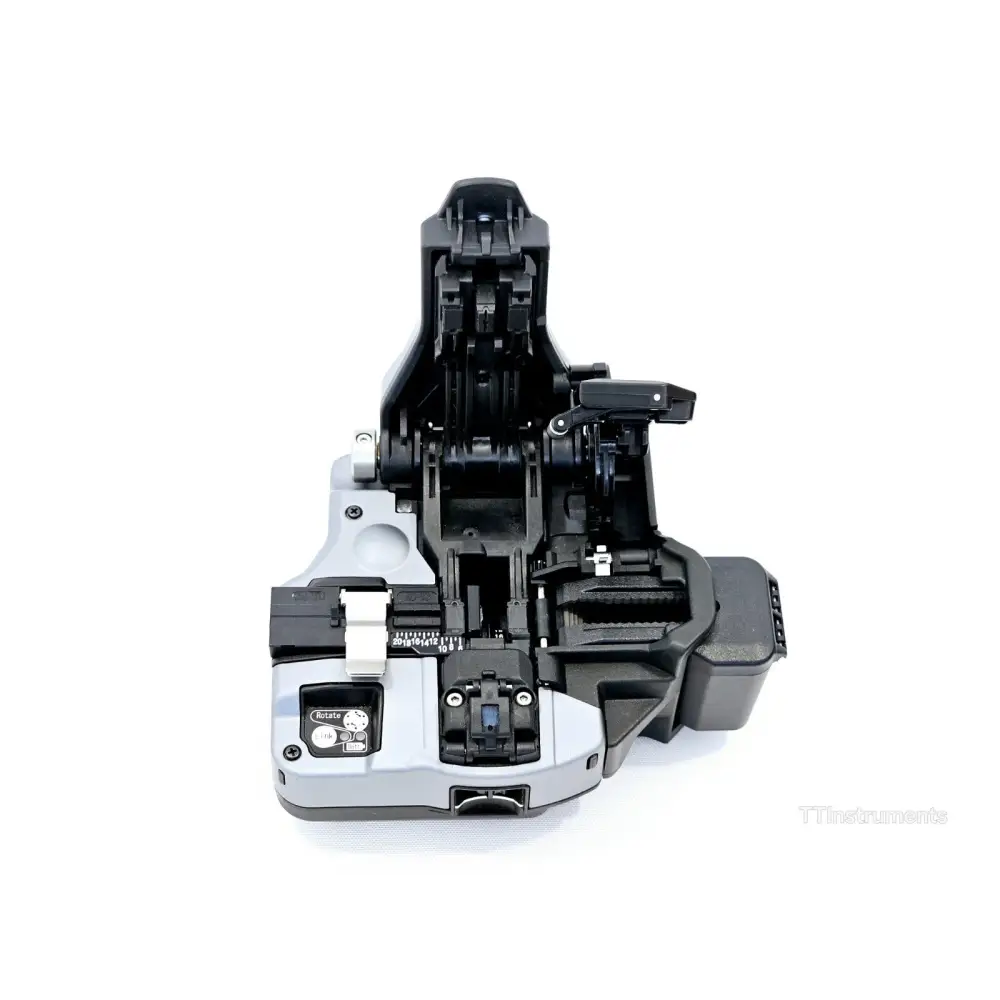

The CT-50 fibre cleaver features motorised Bluetooth blade rotation, a 16-position blade yielding up to 60,000 single-fibre cleaves, drop-resistance up to 76 cm, and single-action operation with integrated fibre off-cut collection.
Fujikura 90S+ Specifications:
Fibre Alignment Method: Active core alignment
Spliceable Fibre Count: Single fibre
Fibre Type: Single mode and multimode optical fibre
Cladding Diameter: 80 μm – 150 μm
Sheath Clamp Coating: 3000 μm maximum coating diameter
Sheath Clamp Cleave Length: 5 mm – 16 mm
ITU-T G.652 Splice Loss: Avg. 0.02 dB
ITU-T G.651 Splice Loss: Avg. 0.01 dB
ITU-T G.653 Splice Loss: Avg. 0.04 dB
ITU-T G.655 Splice Loss: Avg. 0.04 dB
ITU-T G.657 Splice Loss: Avg. 0.02 dB
SM Fast Mode Splice Time: Avg. 7 to 9 seconds
Protection Sleeve Type: Heat-shrinkable sleeve
Sleeve Length: Max. 66 mm
Sleeve Diameter: Max. 6 mm before shrinking
60 mm Slim Mode Heat Time: Avg. 9 to 10 seconds
60 mm Mode Heat Time: Avg. 13 to 15 seconds
Fibre Tensile Test Force: Approx. 2.0 N
Electrode Life: Approx. 5000 splices
Width: Approx. 170 mm (without projection)
Depth: Approx. 173 mm (without projection)
Height: Approx. 150 mm (without projection)
Weight: Approx. 2.8 kg including battery
Operating Temperature: -10 to 50 °C
Storage Temperature: -40 to 80 °C
Operating Humidity: 0 to 95% RH non-condensing
Operating Altitude: Max. 5000 m
AC Adaptor Input: AC 100 to 240 V, 50/60 Hz, Max. 1.5 A
Battery Type: Rechargeable Lithium Ion
Battery Output: Approx. DC 14.4 V, 6,380 mAh
Battery Capacity: Approx. 300 splice and heat cycles
Battery Recharge Temperature Range: 0 to 40 °C
Battery Storage Temperature: -20 to 30 °C
Battery Life: Approx. 500 recharge cycles

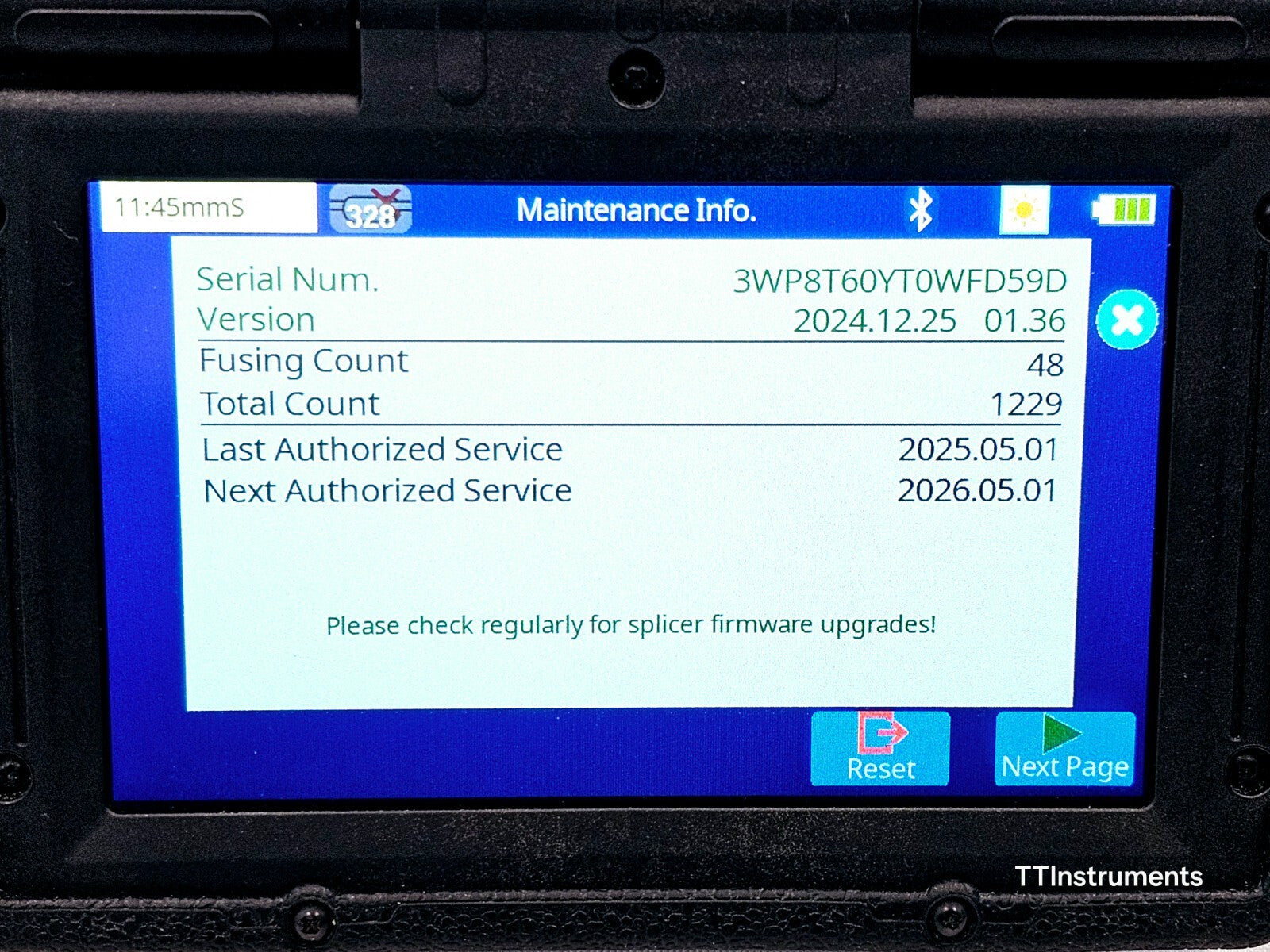

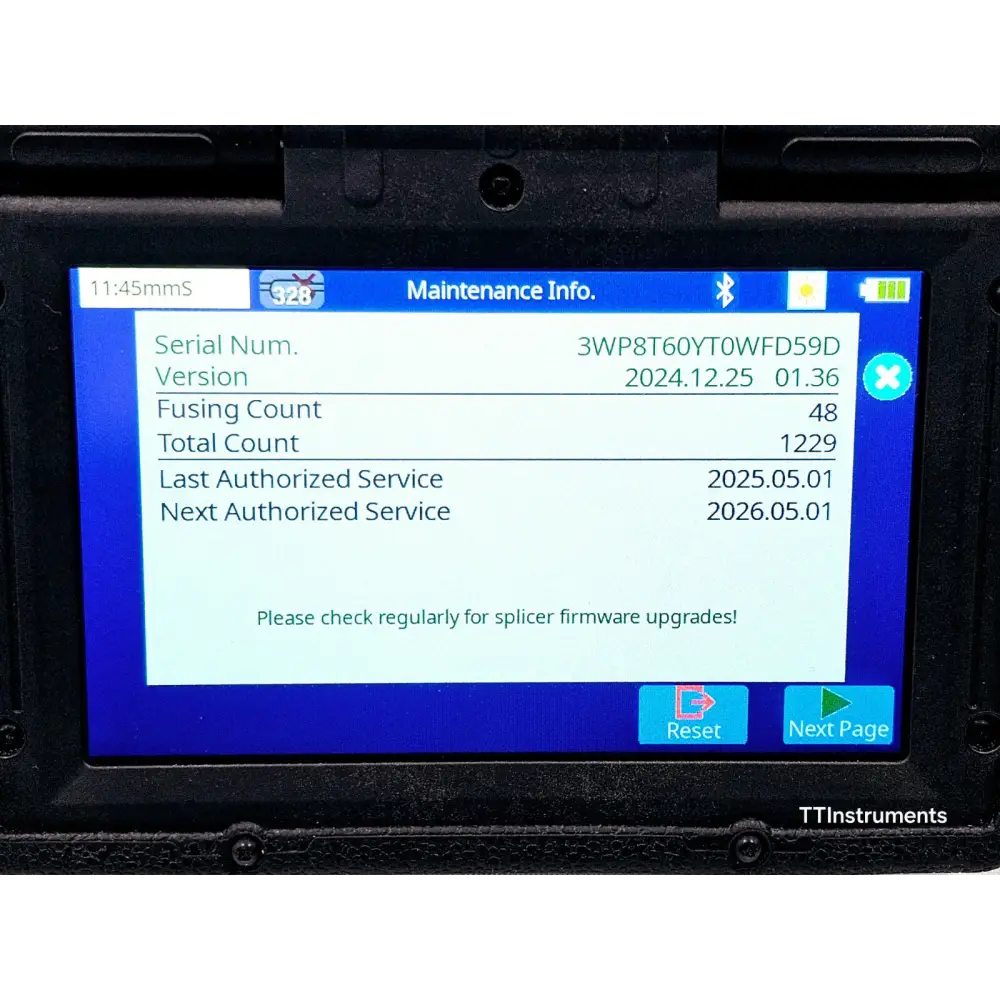

LCD Display: 4.9 inch TFT colour touch screen
Display Magnification: Approx. 200x – 320x
V-Groove Illumination: LED lamp
PC Interface: USB 2.0 Mini B connector
External LED Lamp Interface: USB 2.0 A connector, Approx. DC 5 V, 500 mA
Wireless Connectivity: Bluetooth 4.1 LE
Splice Mode Data Storage: 100 splice modes
Heat Mode Data Storage: 30 heat modes
Splice Result Data Storage: 20,000 splices
Splice Image Data Storage: 100 images
Tripod Screw Hole: 1/4-20 UNC
Fujikura CT-50 Cleaver Key Specifications:
Applicable Fibres: Single fibre and up to 12-fibre ribbon
Single Fibre Cleave Length: 5 mm – 20 mm (with AD-50 guide plate)
Cleave Angle: Typically less than 0.5°
Blade Life: 60,000 single-fibre cleaves (3 heights × 16 positions)
Dimensions (W × D × H): 120 mm × 95 mm × 58 mm
Weight: 300 g
Drop Resistance: 76 cm (30 inches) all directions
Wireless Connectivity: Bluetooth (automatic blade rotation via splicer communication)
