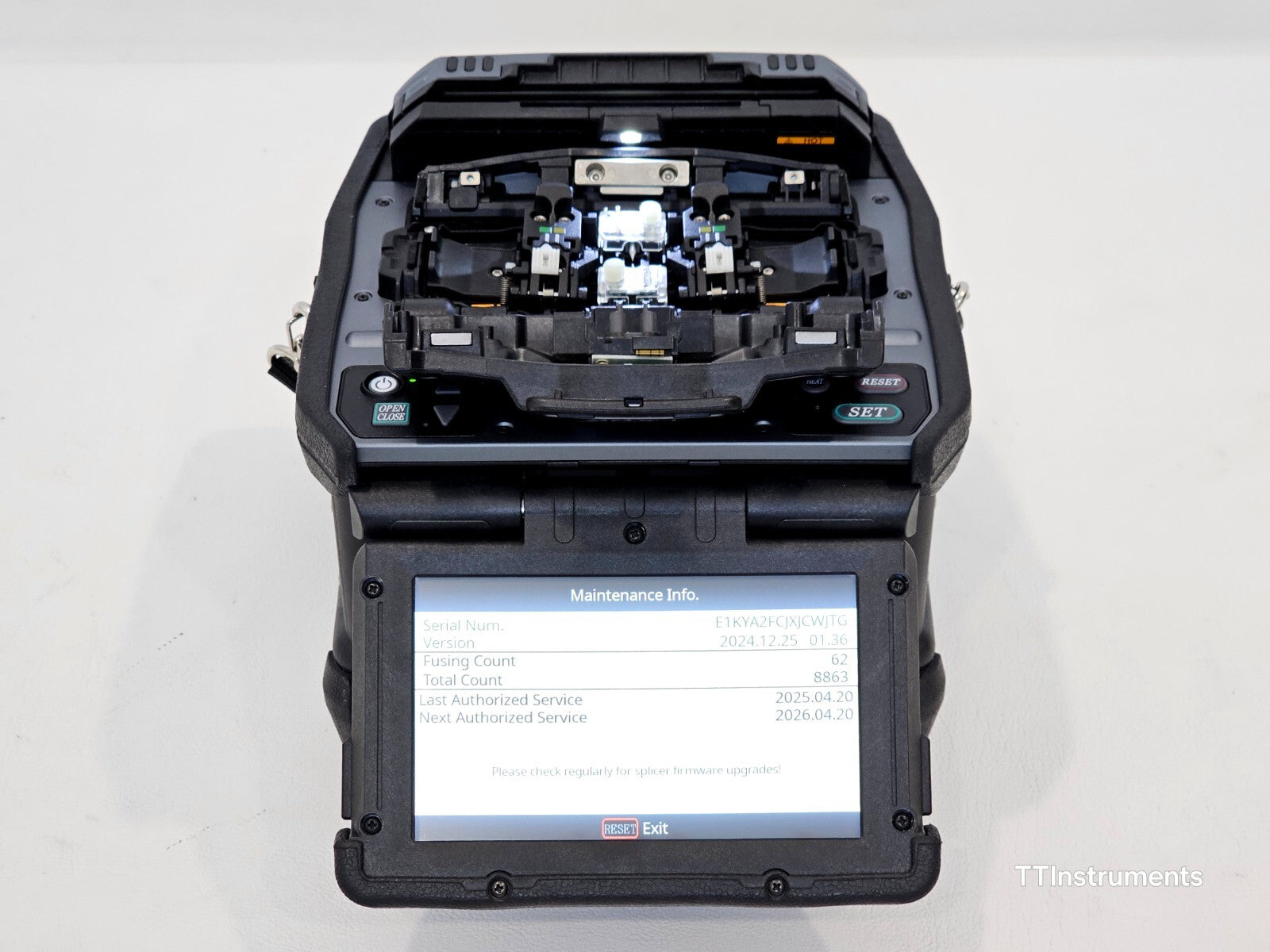

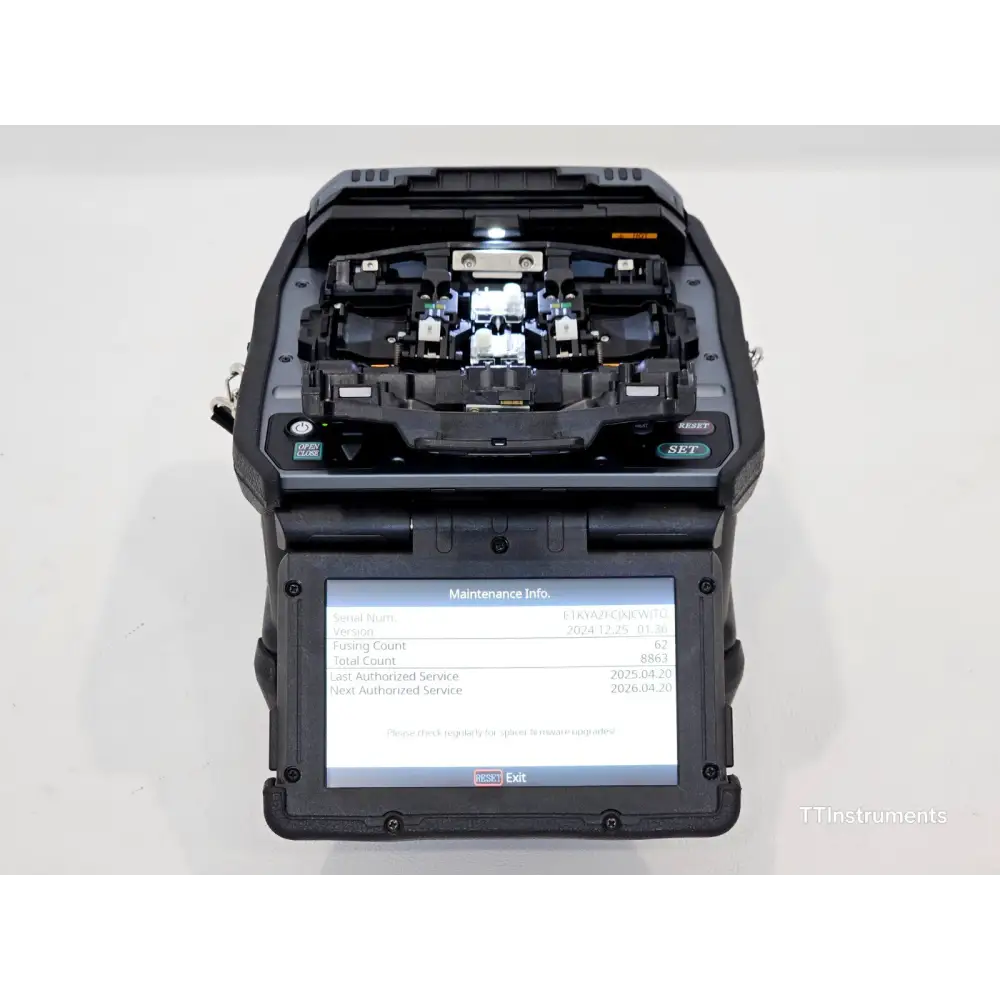

ARC Count 8863.

Note the pictures are of actual product. See description below of what is included. (cleaver NOT included)

This item has been cleaned and serviced by an approved service center in April 2025.

Battery is included and holds its charge.

This is an EU licensed model.

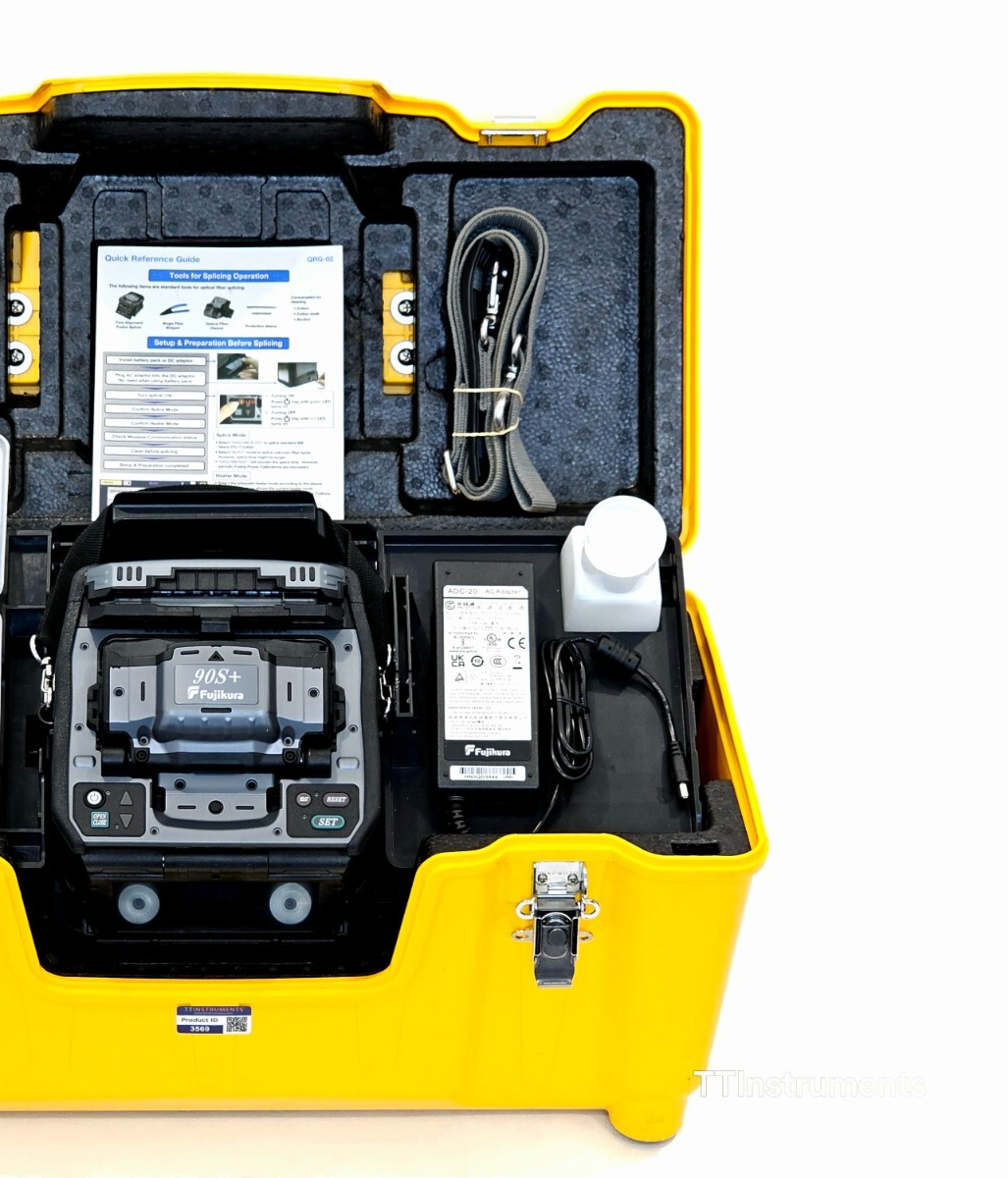

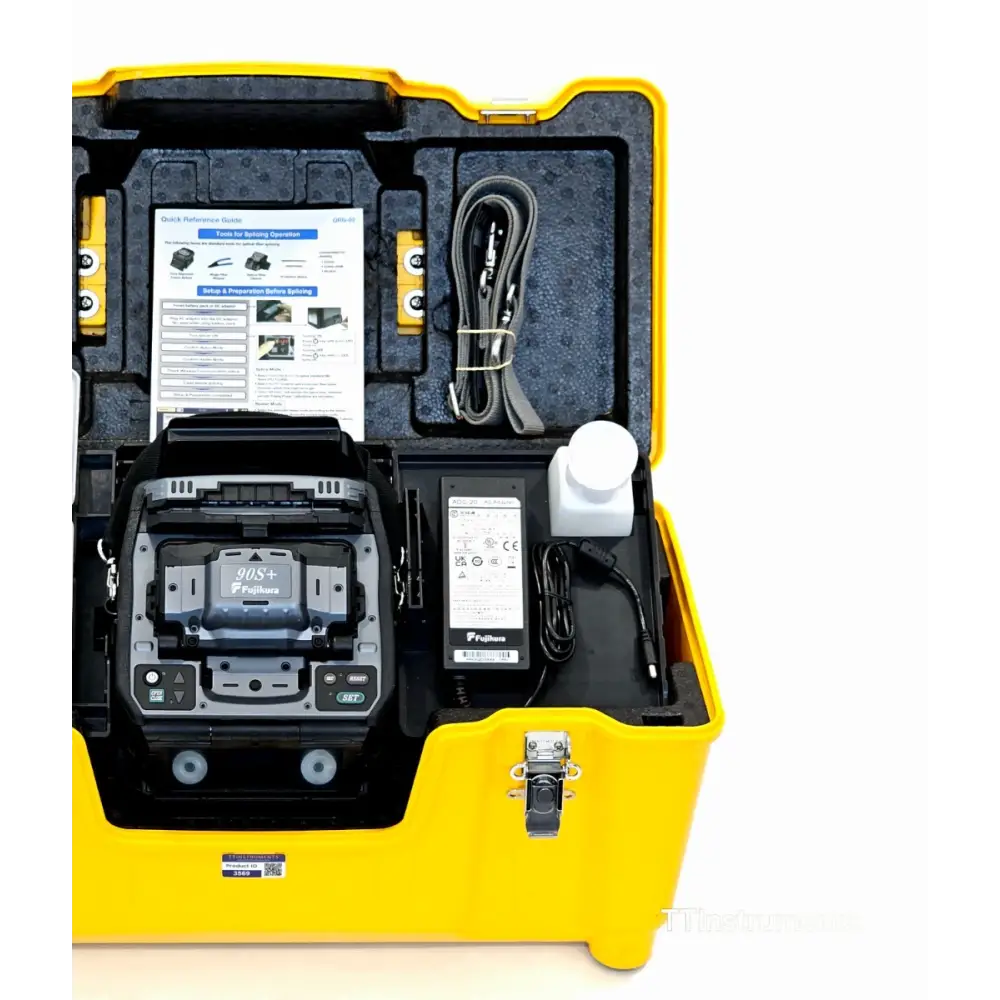

Included in the sale:

• Fujikura 90S+ SM MM Core Alignment Fiber Fusion Splicer (ARC count 8863) With New Electrodes
• AC Adapter/Charger
• Battery Pack (BTR-15)
• Hard Carrying Case
• Alcohol Pot
• Work Tray

Fujikura 90S+ Core Alignment Fusion Splicer

The 90S+ is a single fibre core alignment fusion splicer setting a new standard in the market. Designed for speed, precision, and automation, it simplifies splicing with minimal user interaction.

Overview

The 90S+ is packed with advanced features, including Active Blade Management Technology (ABMT) to improve cleaving efficiency and reduce operational costs. Active Fusion Control Technology (AFCT) assesses the cleave condition for optimal splicing and minimal splice loss.

Enhanced automation—such as automated wind protectors, heater, and fibre retention clamps—means a faster splice process compared to previous models like the 70S+. Once the process begins, no user interaction is required, increasing efficiency and consistency.

Specifications

Fibre Alignment Method: Active core alignment

Spliceable Fibre Count: Single fibre

Fibre Type: Single mode and multimode

Cladding Diameter: 80μm – 150μm

Sheath Clamp Coating: Up to 3000μm coating diameter

Sheath Clamp Cleave Length: 5mm – 16mm

Average Splice Loss

ITU-T G.652 — 0.02dB

ITU-T G.651 — 0.01dB

ITU-T G.653 — 0.04dB

ITU-T G.655 — 0.04dB

ITU-T G.657 — 0.02dB

Splice Time (Fast Mode): 7 – 9 seconds

Sleeve Type: Heat-shrinkable

Sleeve Length: Max. 66mm

Sleeve Diameter: Max. 6mm before shrinking

Heat Time (60mm Slim Mode): 9 – 10 seconds

Heat Time (60mm Mode): 13 – 15 seconds

Tensile Test Force: Approx. 2.0N

Electrode Life: Approx. 5000 splices

Physical Dimensions

Width: Approx. 170mm

Depth: Approx. 173mm

Height: Approx. 150mm

Weight: Approx. 2.8kg (including battery)

Environmental Conditions

Operating Temperature: -10 to 50°C

Storage Temperature: -40 to 80°C

Humidity: 0 to 95% RH (non-condensing)

Altitude: Max. 5000m

Power & Battery

AC Input: 100 – 240V, 50/60Hz, Max. 1.5A

Battery Type: Rechargeable Lithium Ion

Battery Output: DC14.4V, 6,380mAh

Capacity: Approx. 300 splice and heat cycles

Battery Life: Approx. 500 recharge cycles

Recharge Temp Range: 0 to 40°C

Storage Temp Range: -20 to 30°C

Display & Interface

LCD: 4.9" TFT colour touchscreen

Magnification: 200x – 320x

V-Groove Illumination: LED lamp

PC Interface: USB 2.0 Mini B

External LED Port: USB 2.0 A, DC5V/500mA

Wireless: Bluetooth 4.1 LE

Data Storage

Splice Modes: 100

Heat Modes: 30

Splice Results: 20,000

Splice Images: 100

Tripod Mount: 1/4-20 UNC screw hole
