ARC Count 9104.

Note the pictures are of actual product. See description below of what is included.

This item has been cleaned and serviced by an approved service center in May 2025.

Battery is included and holds its charge.

This is an EU licensed model.

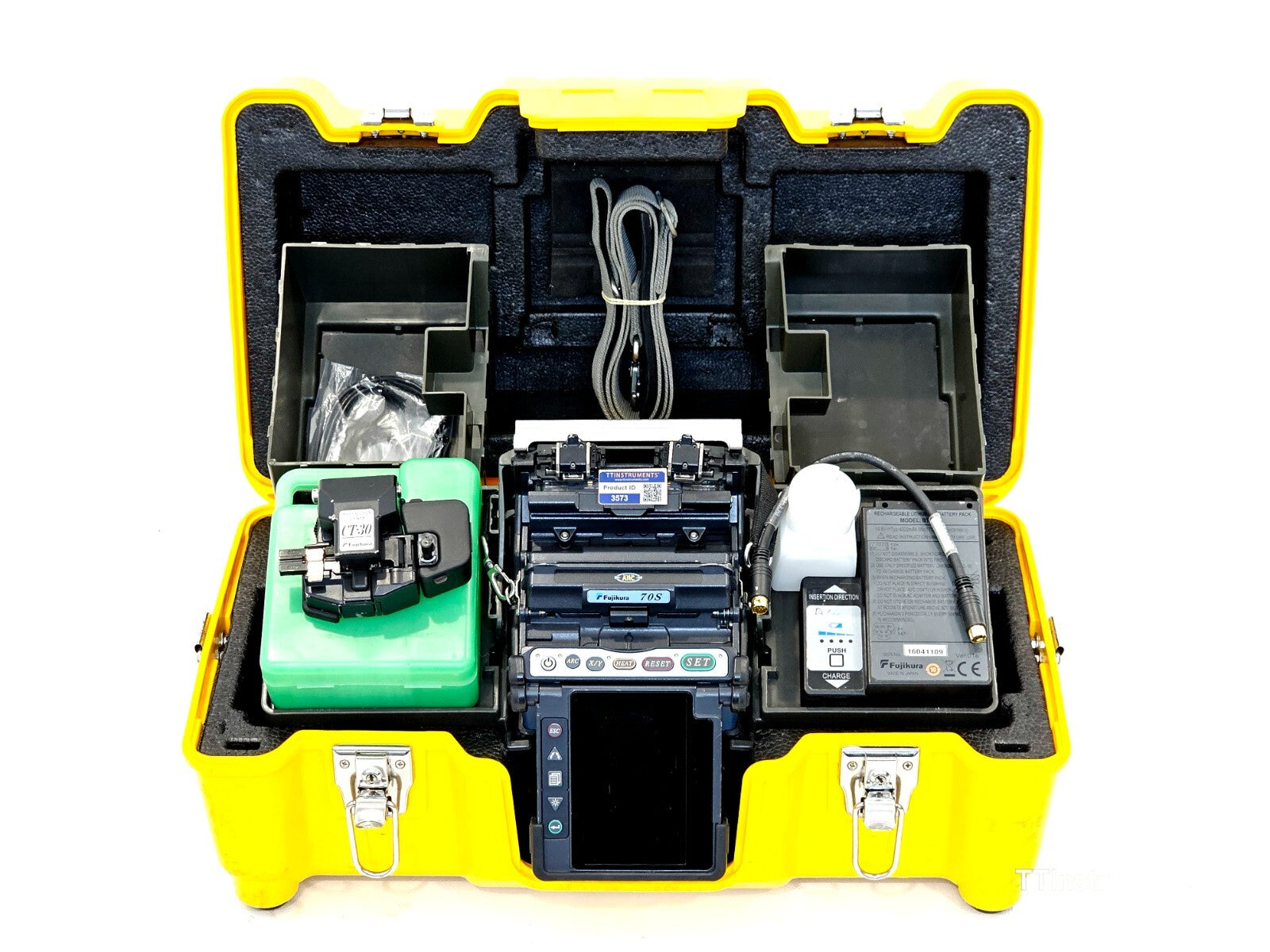

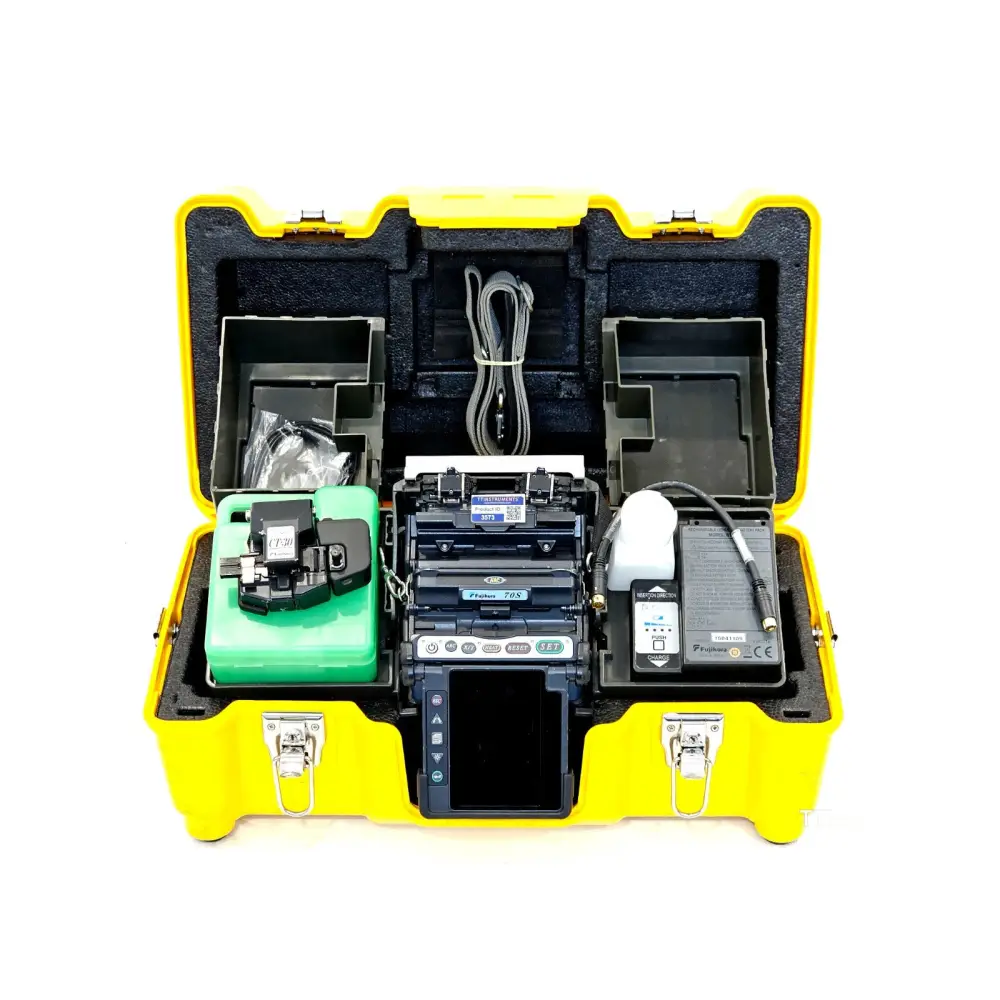

Included in the sale:

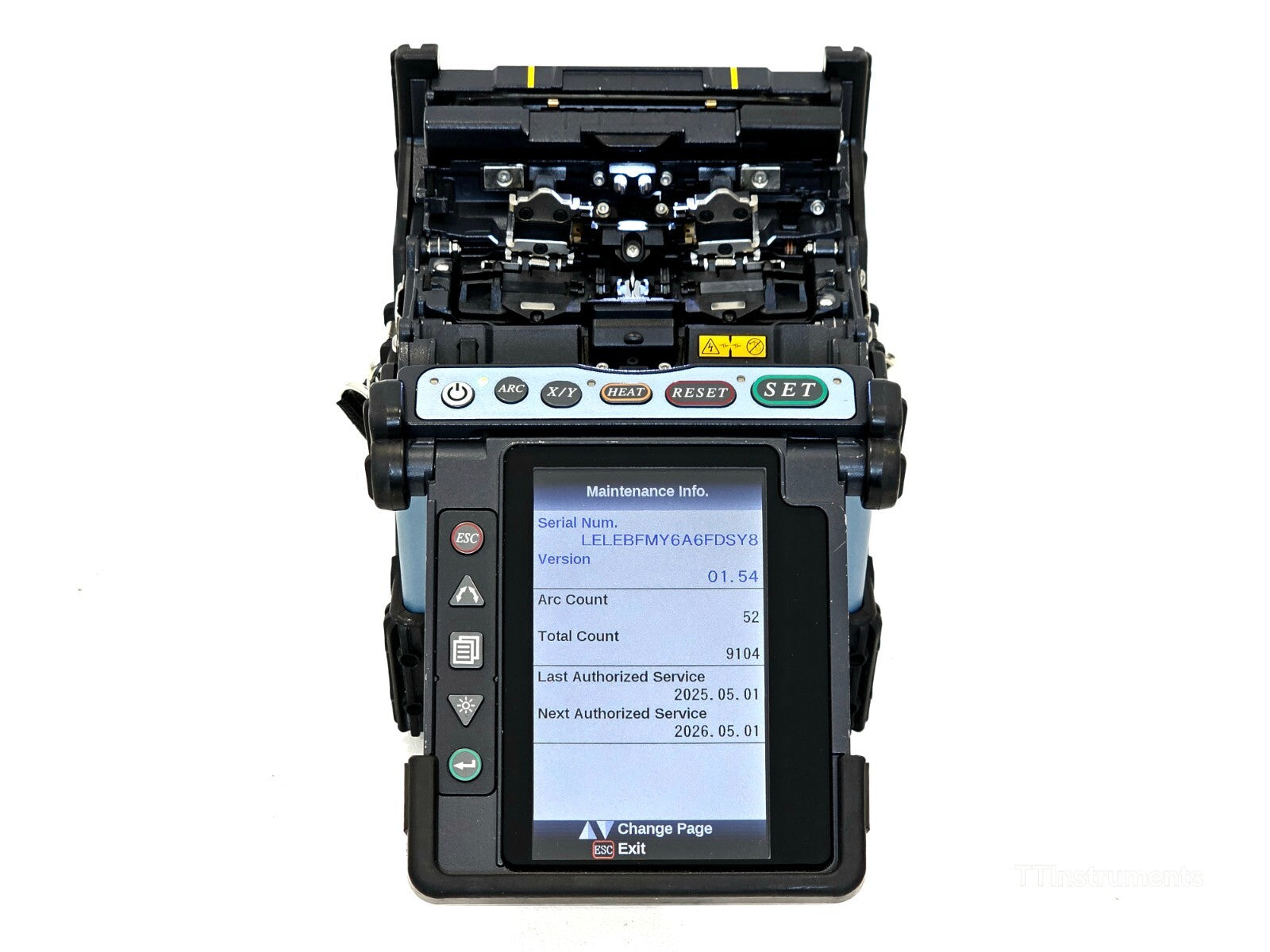

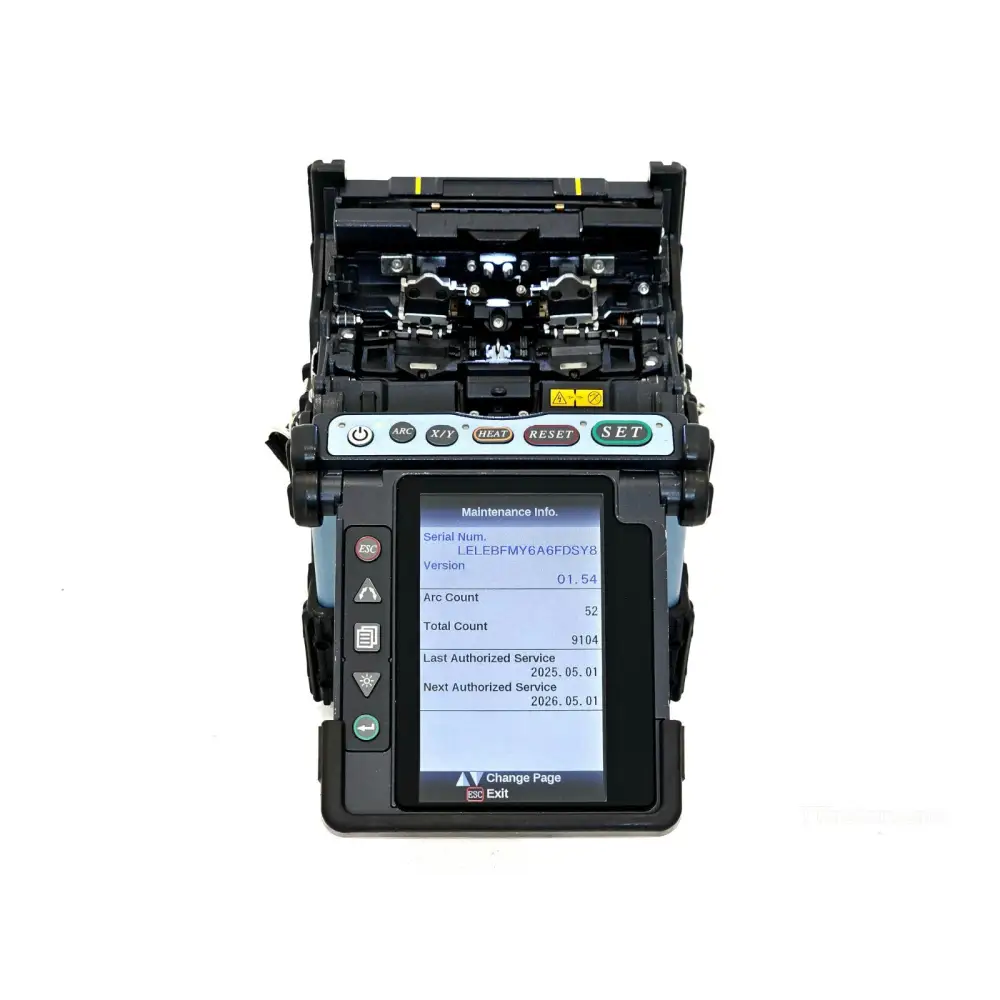

• Fujikura 70S SM MM Core Alignment Fiber Fusion Splicer (ARC count 9104) With New Electrodes

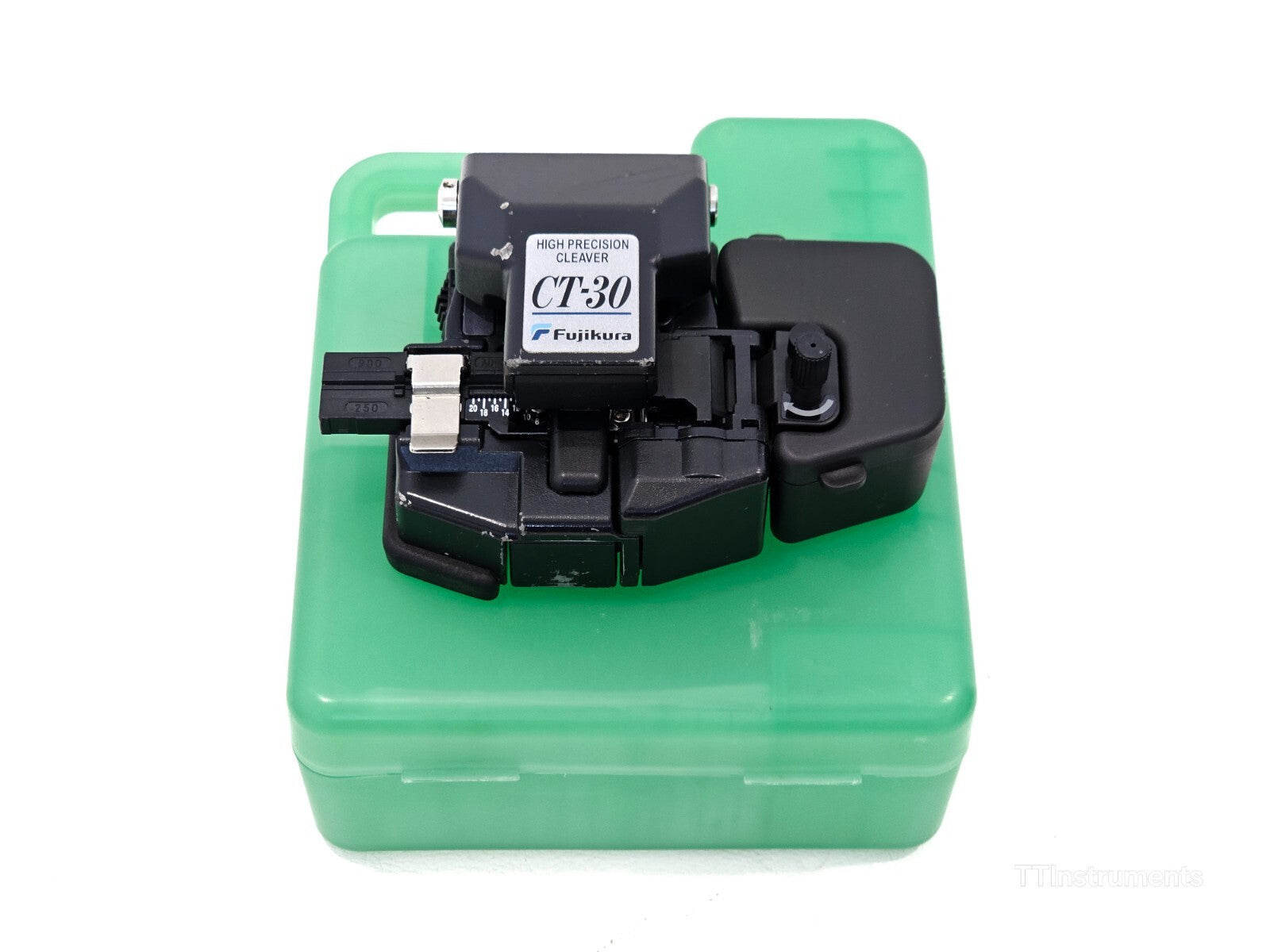

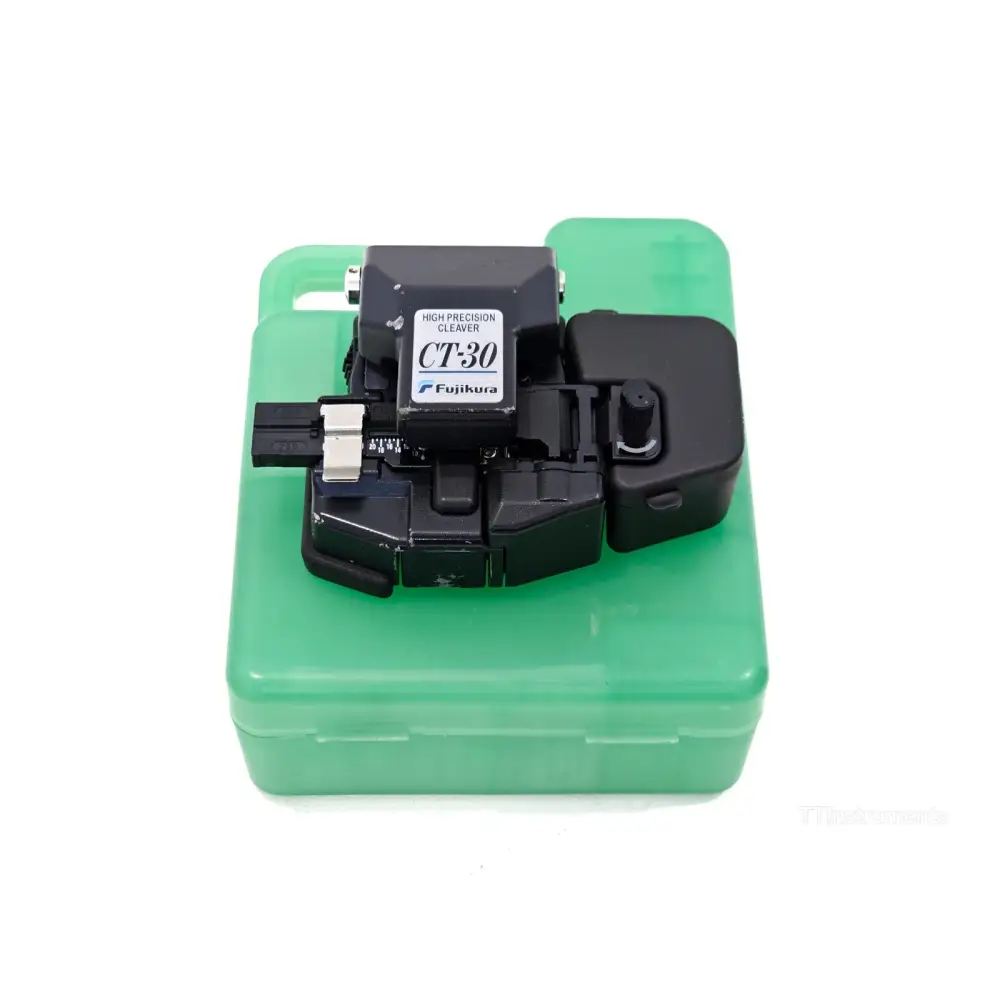

• Fujikura CT-30 High Precision Fiber Cleaver with AD30A guide plate + Case and New Blade
• AC Adapter/Charger
• Battery Pack (BTR-09)
• Hard Carrying Case
• Alcohol Pot
• Work Tray

Fujikura 70S Fusion Splicer

The Fujikura 70S is the world’s fastest and most robust core alignment fusion splicer. Incorporating proven ruggedized features pioneered by Fujikura, the 70S adds automated and enhanced user controls to increase splicing efficiency.

A user-programmable automated wind protector expedites the splicing process by automatically closing to initiate the splice and opening upon completion. Auto-open sheath clamps release the fiber after the tensile test, and a clamshell-design tube heater provides heat on both sides of the splice sleeve, reducing shrink time to 14 seconds. Total splice process time is approximately 21 seconds.

The 70S also features a mirror-less optical system, a severe-impact resistant monitor, and a battery capable of 200 splice/shrink cycles. Its transit case doubles as a built-in or mobile workstation for added convenience.

Specifications

Applicable Fibres

Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655)

Cladding / Sheath Diameter

80–150 μm / 100–3000 μm

Cleave Length

5 mm to 16 mm (with sheath clamp)

Splice Modes / Heating Modes

100 splice modes / 30 heating modes

Typical Splice Loss

SM: 0.02 dB

MM: 0.01 dB

DSF: 0.04 dB

NZDSF: 0.04 dB

Splice Loss Measurement

Cut-back method per ITU-T and IEC standards

Attenuation Splice Function

0.1 dB to 15 dB (adjustable in 0.1 dB steps)

Splice Time / Tube Heating Time

7 sec (SM), 14 sec with FP-03 (60 mm sleeve)

Splice Result Storage

Last 2000 splices

Viewing System

2-axis CMOS camera, 4.73″ colour LCD

Magnification

X or Y: 320×

Both X and Y: 200×

Tension Test

1.96 to 2.25 N

Applicable Sleeves

60 mm, 40 mm, Fujikura micro sleeves

Battery Capacity

~200 splice/heating cycles per charge (BTR-09, room temp, 2 min cycles)

Electrode Life

3000 splices

Dimensions / Weight

146 (W) × 159 (D) × 150 (H) mm / 2.7 kg (with battery)

Operating Altitude

0 to 5000 m

Wind Resistance

Up to 15 m/s

Operating Temperature

-10 °C to +50 °C

Humidity

0 to 95% RH (non-condensing)

Shock Resistance

76 cm drop on all surfaces

Dust Resistance

IP5X (exposure to 0.1–500 μm alumina silicate)

Rain Resistance

IPX2 (10 mm/hr for 10 min)

Note

Tested by Fujikura Labs. Resistance does not guarantee damage immunity.

Software

PC software upgrade and data management

Terminals

USB 2.0 (Mini-B), 6-pin Mini-DIN (for HJS-02 / HJS-03 power supplies)
