Condition: Refurbished

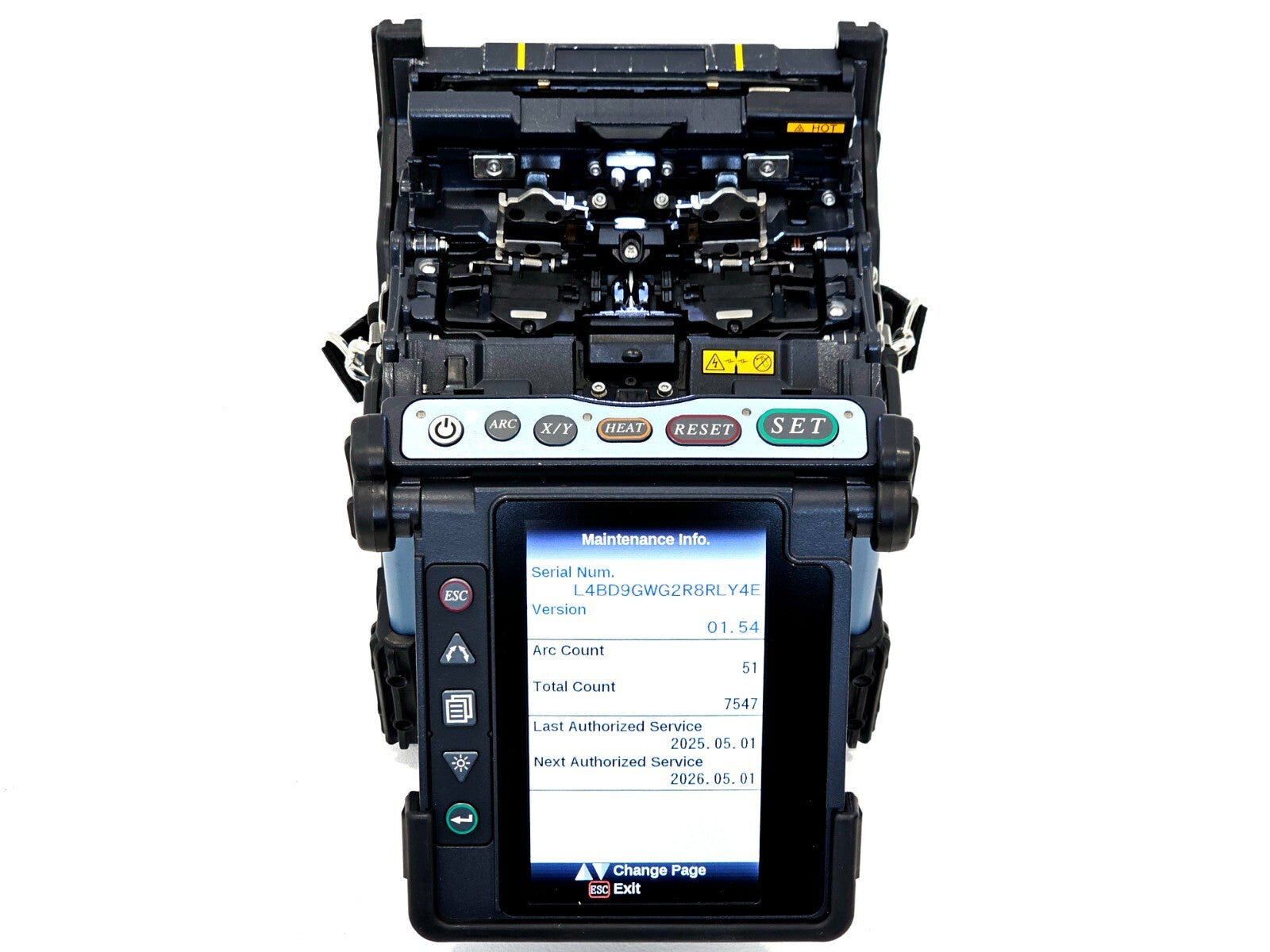

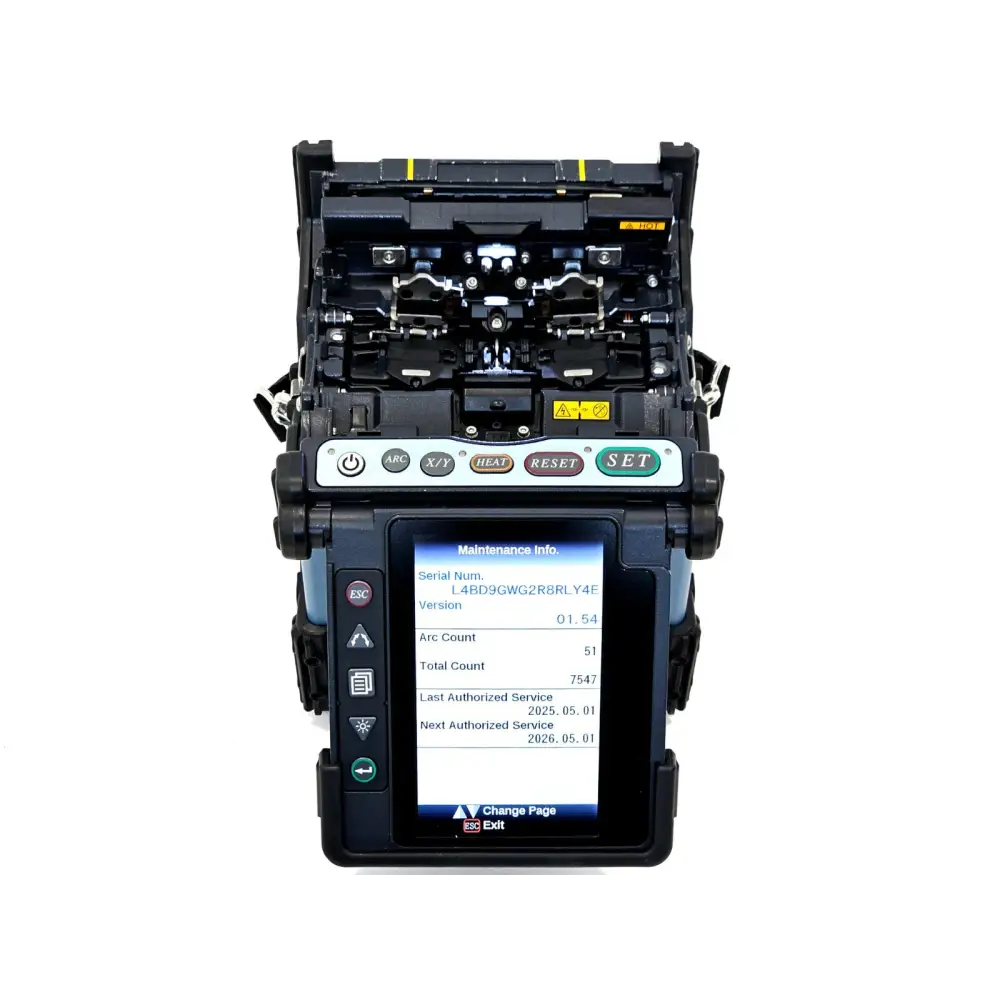

This Fujikura FSM-70S has an ARC count of 7547 and has been professionally cleaned and serviced by an approved service centre in May 2025. The battery (BTR-09) is included and holds its charge. This is an EU licensed model with fresh electrodes fitted.

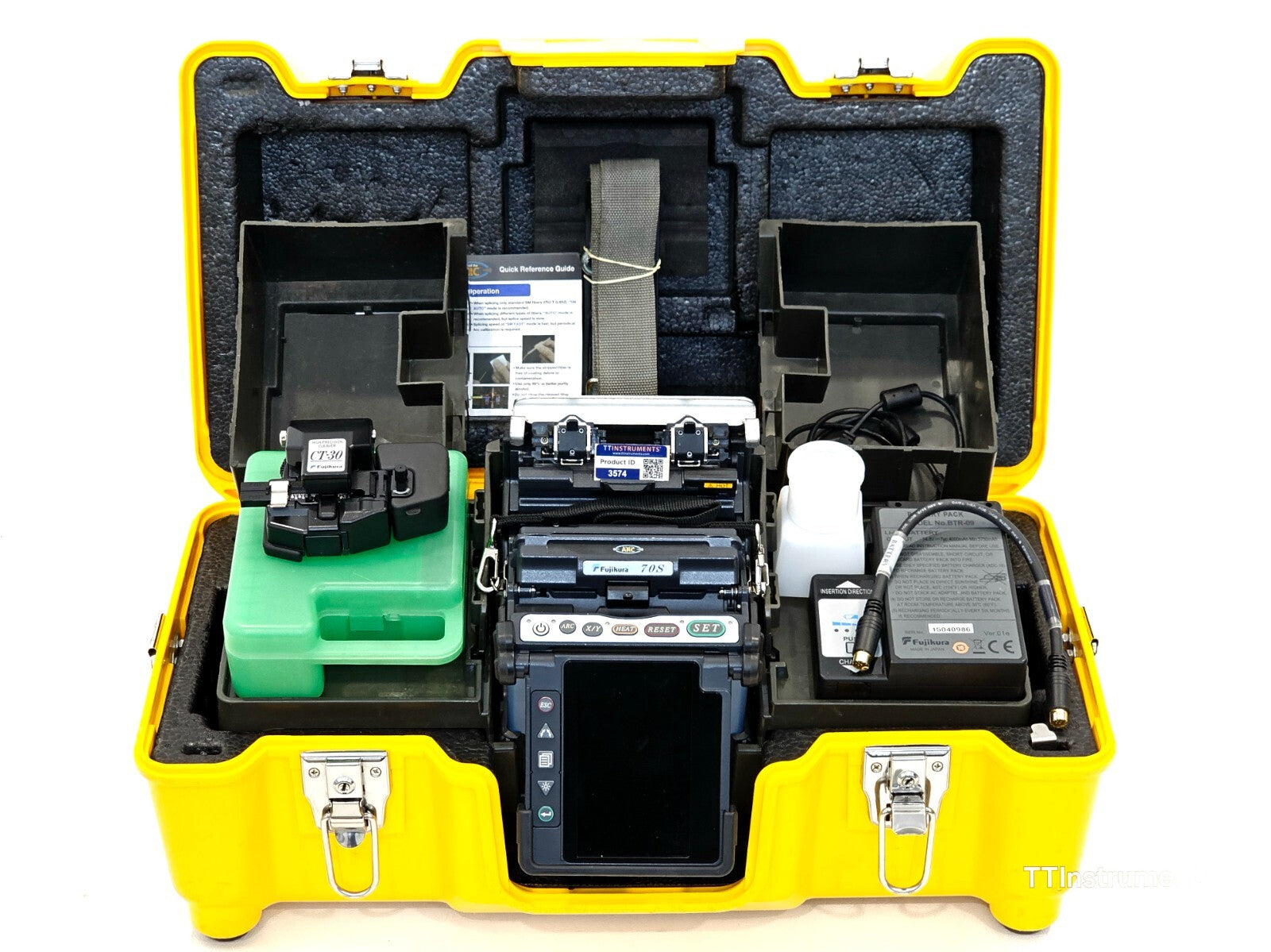

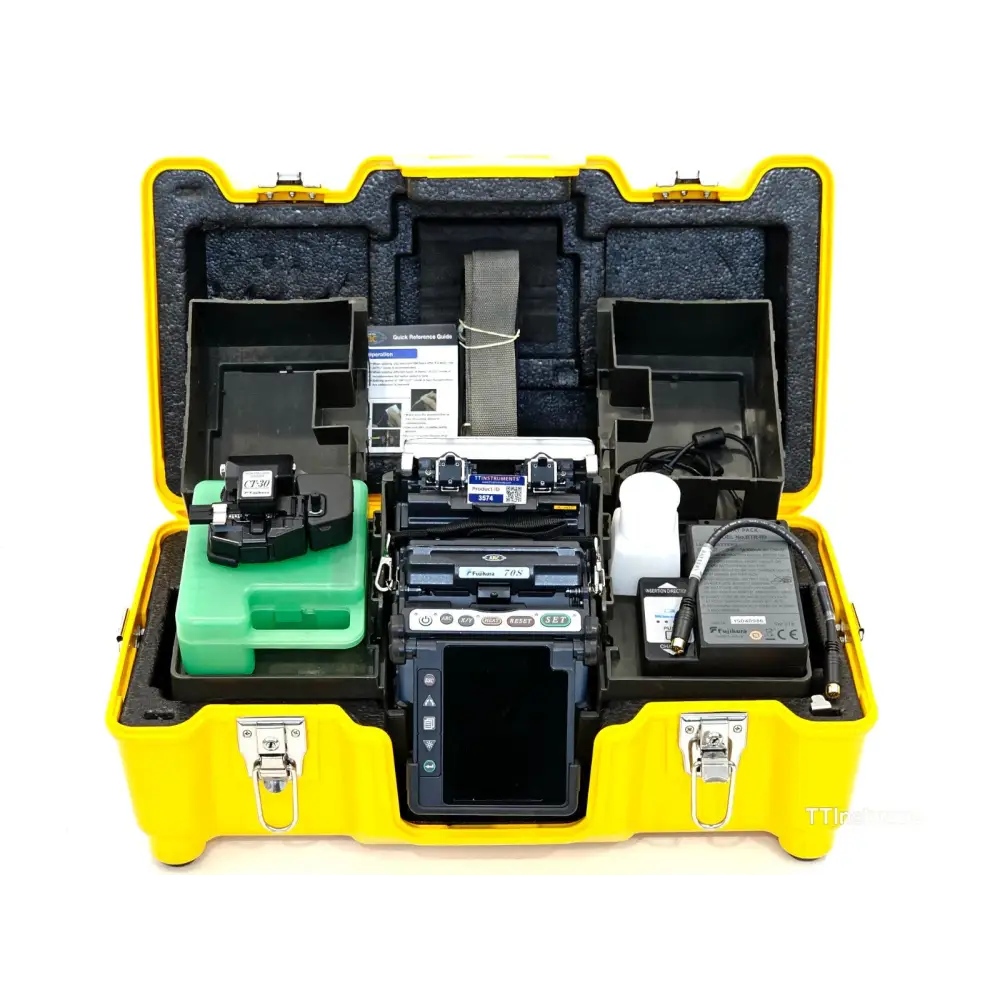

Included in the sale:
• Fujikura FSM-70S SM/MM Core Alignment Fibre Fusion Splicer (ARC count 7547) with new electrodes

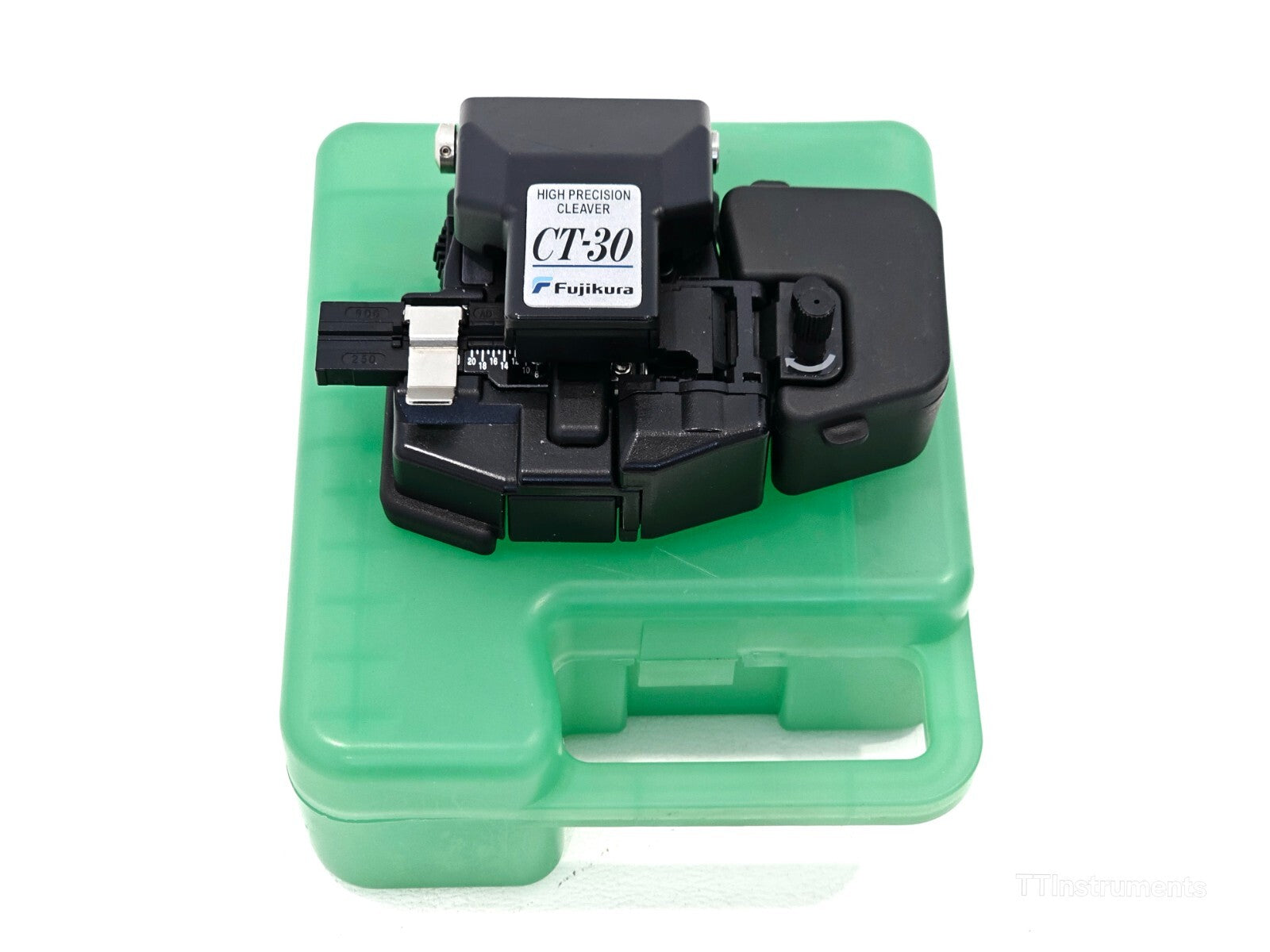

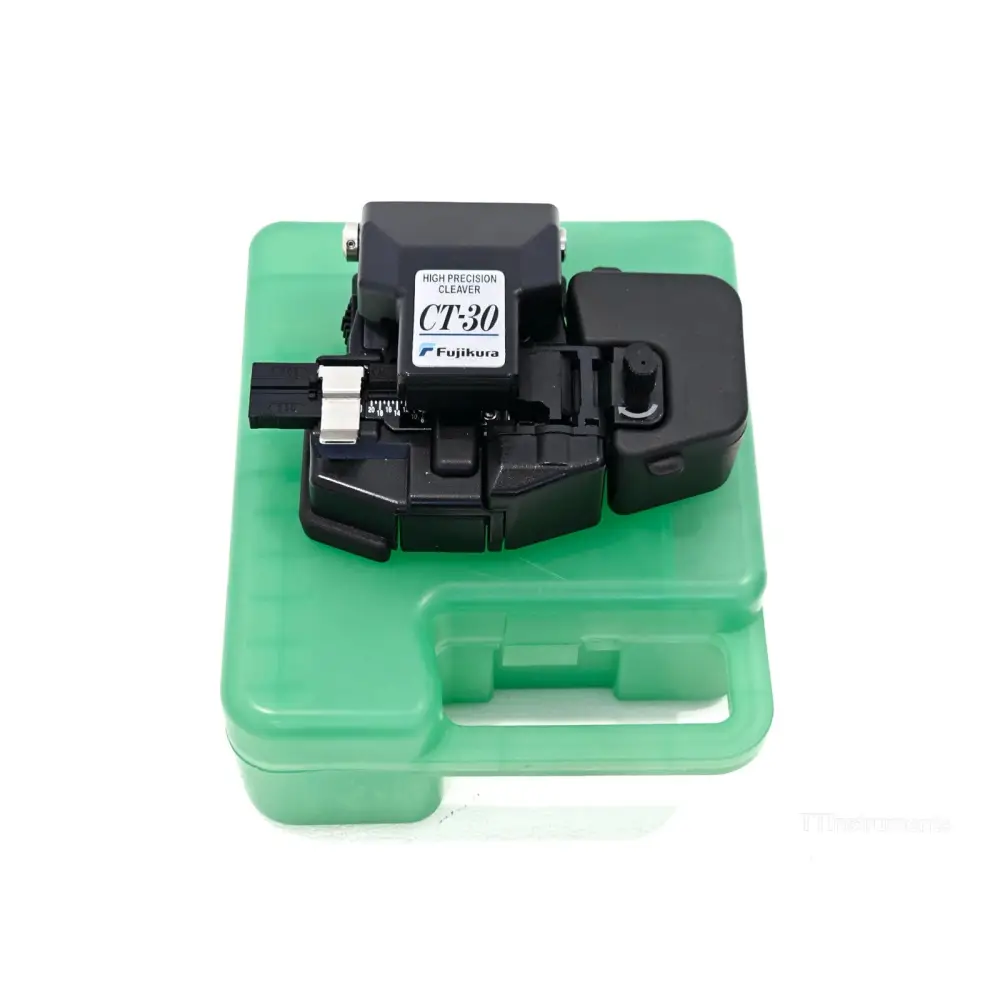

• Fujikura CT-30 High Precision Fibre Cleaver with AD30A guide plate, case, and new blade
• AC Adapter/Charger
• Battery Pack (BTR-09)
• Hard Carrying Case
• Alcohol Pot
• Work Tray

The Fujikura FSM-70S is a single-fibre core alignment fusion splicer designed for telecommunications fibre splicing applications. It incorporates automated features to increase splicing efficiency and reduce manual operations, completing a full splice-and-shrink cycle in approximately 21 seconds. A user-programmable automated wind protector closes automatically to initiate the splice and opens upon completion. Fully programmable auto-open sheath clamps prepare the fibre for removal after the tensile test. The clamshell-design tube heater applies heat to both sides of the splice protection sleeve for a 14-second shrink time. Ruggedness is enhanced by a mirrorless optical system and a severe-impact-resistant monitor. The multi-functional transit case doubles as a built-in or mobile workstation.

Applicable Fibres: SMF (G.652/G.657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Cladding / Sheath Diameter: 80–150 μm / 100–3000 μm
Cleave Length: 5 mm to 16 mm (with sheath clamp)
Splice Modes / Heating Modes: 100 splice modes / 30 heating modes
Typical Splice Loss: SM: 0.02 dB, MM: 0.01 dB, DSF: 0.04 dB, NZDSF: 0.04 dB
Splice Loss Measurement: Cut-back method per ITU-T and IEC standards
Attenuation Splice Function: 0.1 dB to 15 dB (adjustable in 0.1 dB steps)
Splice Time: 7 sec (SM FAST mode)
Tube Heating Time: 14 sec with FP-03 (60 mm sleeve)
Splice Result Storage: Last 2000 splices
Viewing System: 2-axis CMOS camera, 4.73-inch colour LCD
Magnification: X or Y axis: 320× / Both X and Y: 200×
Tension Test: 1.96 to 2.25 N
Applicable Sleeves: 60 mm, 40 mm, Fujikura micro sleeves
Battery Capacity: Approx. 200 splice/heating cycles per charge (BTR-09, room temp)
Electrode Life: 3000 splices
Power Supply: Auto voltage selection 100–240 V AC or 10–15 V DC (ADC-18); 14.8 V DC (BTR-09)
Terminals: USB 2.0 Mini-B; 6-pin Mini-DIN (for HJS-02/HJS-03)
Dimensions: 146 (W) × 159 (D) × 150 (H) mm
Weight: 2.7 kg (with BTR-09 battery)
Operating Temperature: -10 °C to +50 °C
Operating Altitude: 0 to 5000 m
Wind Resistance: Up to 15 m/s
Humidity: 0 to 95% RH (non-condensing)
Shock Resistance: 76 cm drop on all surfaces
Dust Resistance: IP5X
Rain Resistance: IPX2 (10 mm/hr for 10 min)
Software: PC software upgrade and data management

Fujikura FSM-70S Fusion Splicer Datasheet (ISRE): Download PDF

Fujikura FSM-70S Product Brochure (ASIT): Download PDF

Fujikura FSM-70S Help Guide / Quick Reference (English): Download PDF

Fujikura CT-30 High Precision Fibre Cleaver Specification Sheet: Download PDF

Fujikura CT-30 Series Instruction Manual (User Manual PDF): Download PDF
