Condition: Refurbished

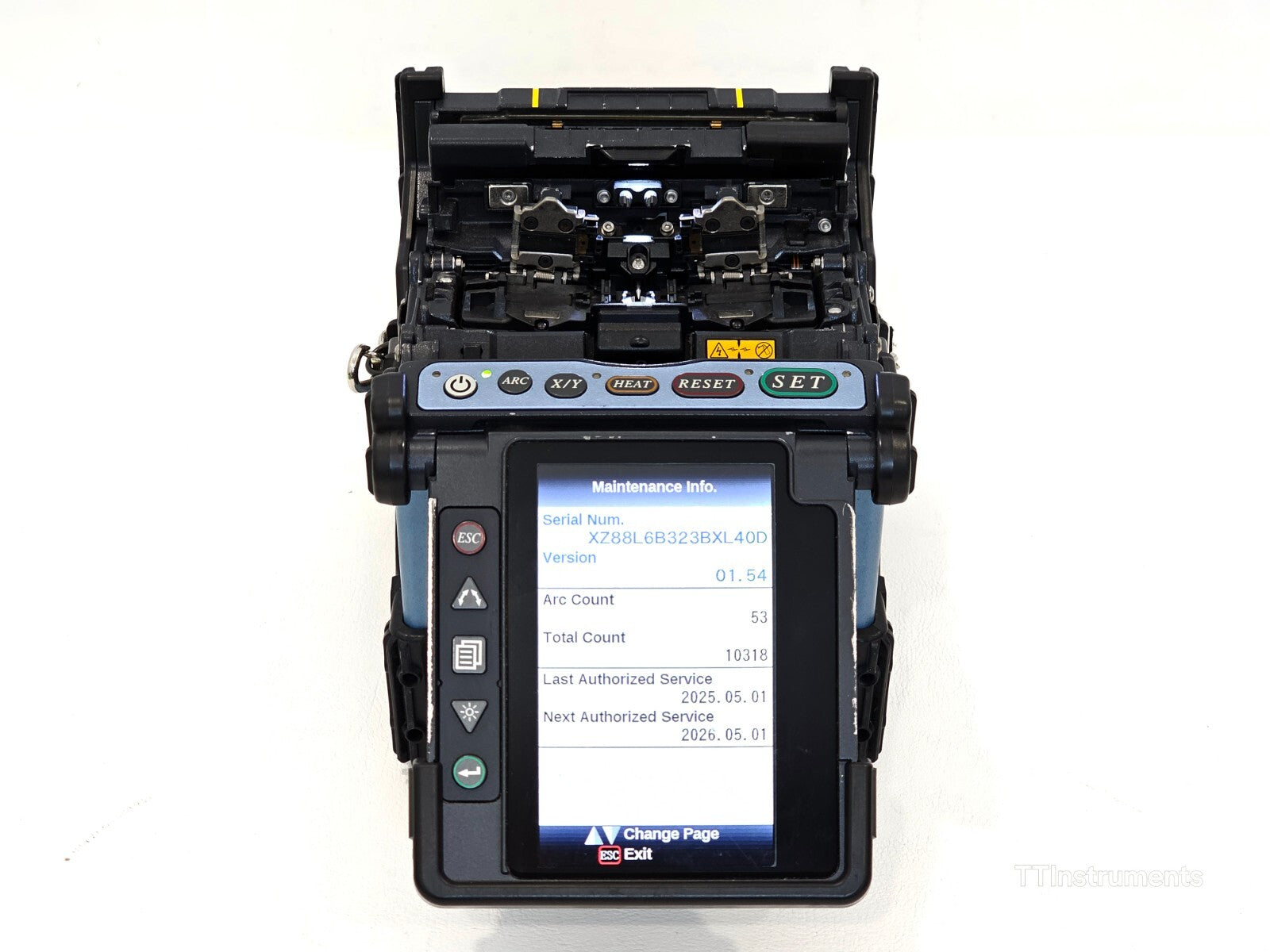

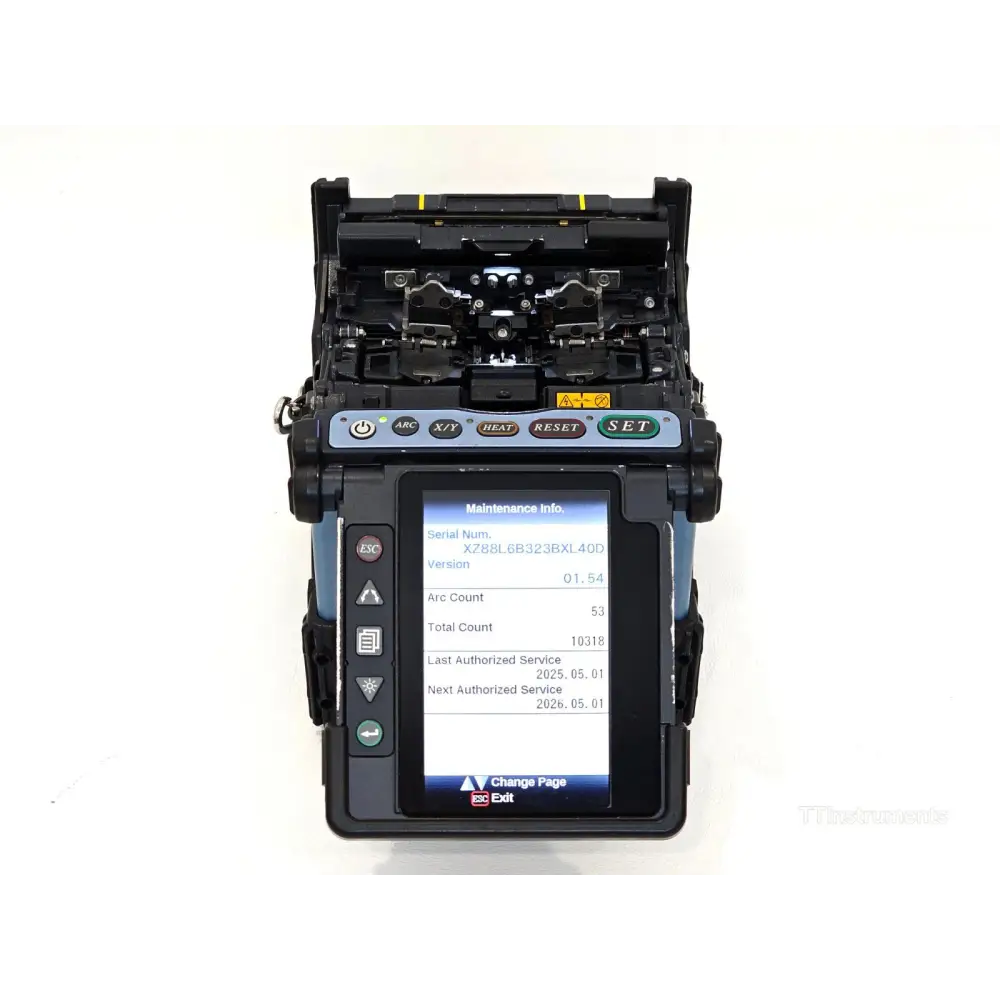

This Fujikura 70S SM/MM Core Alignment Fusion Splicer carries an ARC count of 10,318 and has been professionally cleaned and serviced by an approved service centre in May 2025. The battery (BTR-09) is included and holds its charge. This is an EU licensed model fitted with new electrodes.

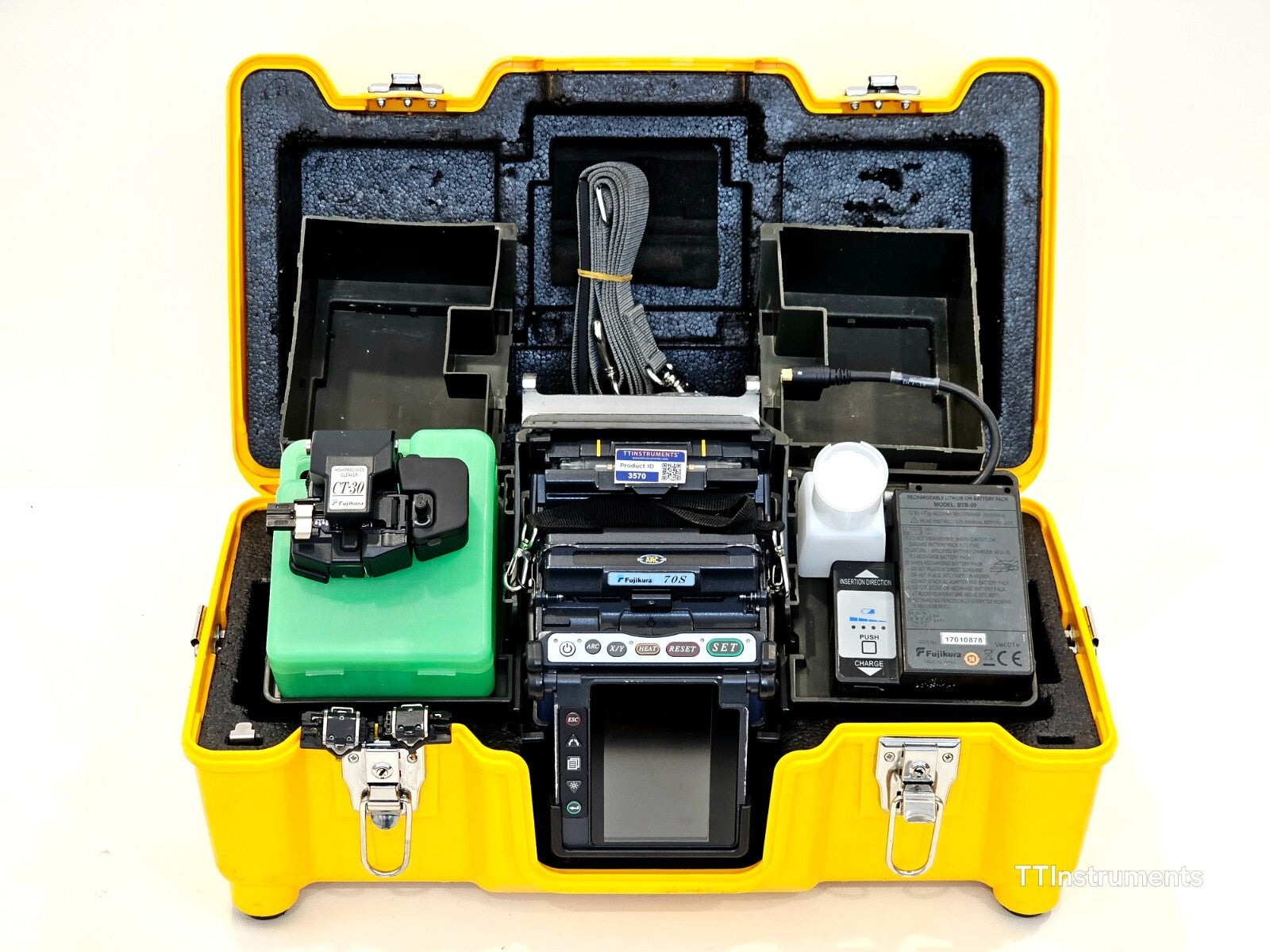

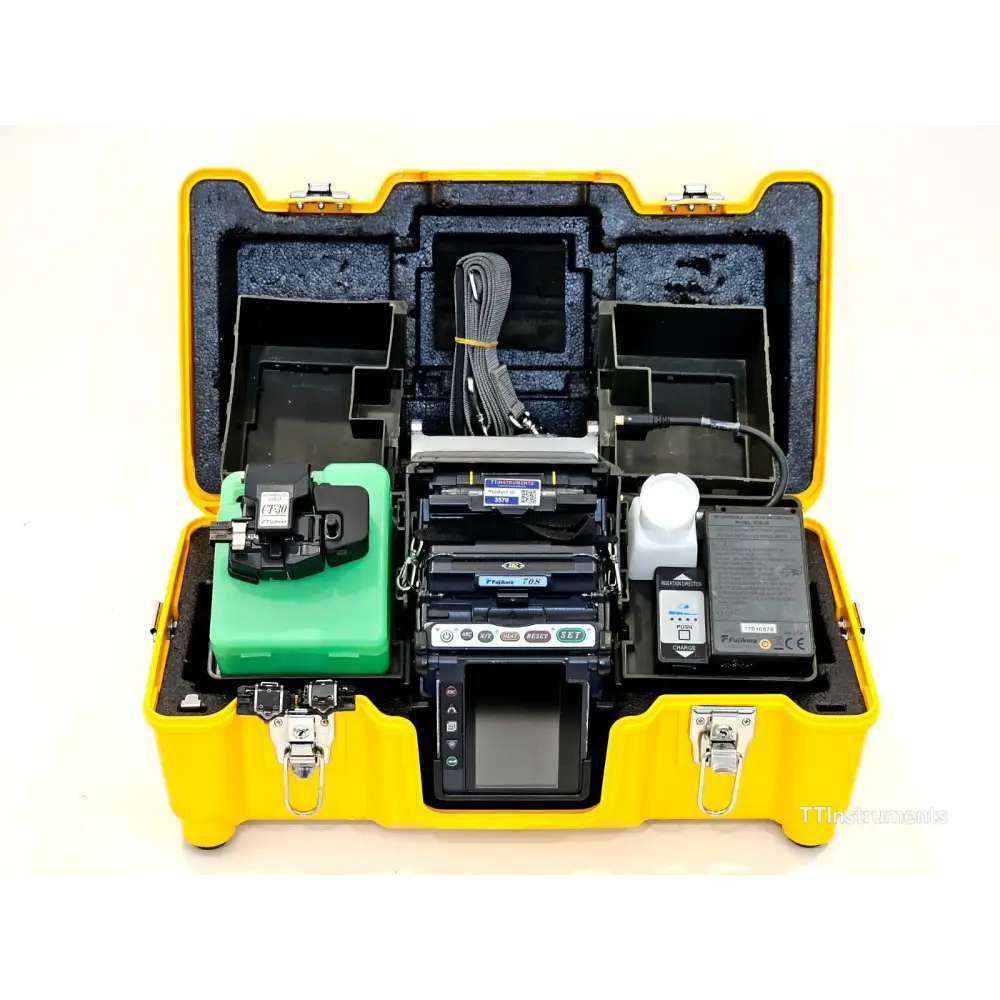

Included in the sale:
• Fujikura 70S SM/MM Core Alignment Fibre Fusion Splicer (ARC count 10,318) with new electrodes
• Fujikura CT-30 High Precision Fibre Cleaver with AD30A guide plate, case, and new blade
• AC Adapter/Charger
• Battery Pack (BTR-09)
• Hard Carrying Case
• Alcohol Pot
• Work Tray

The Fujikura 70S (FSM-70S) is a core-to-core alignment single-fibre fusion splicer designed for splicing silica-based optical fibres used in telecommunications, PON, and FTTx networks. Incorporating Fujikura's proven ruggedised construction, the 70S delivers automated features that reduce manual steps and maximise splicing efficiency. A user-programmable automated wind protector closes automatically to initiate splicing and opens upon completion. Fully programmable auto-open sheath clamps prepare the fibre for removal after the tensile test. The clamshell-design tube heater heats both sides of the splice protection sleeve simultaneously, achieving a 14-second shrink time and a total splice process time of approximately 21 seconds. A mirrorless optical system and severe-impact-resistant monitor enhance long-term durability. The BTR-09 Li-ion battery supports approximately 200 splice/heating cycles per charge. The transit case doubles as an integrated mobile workstation.

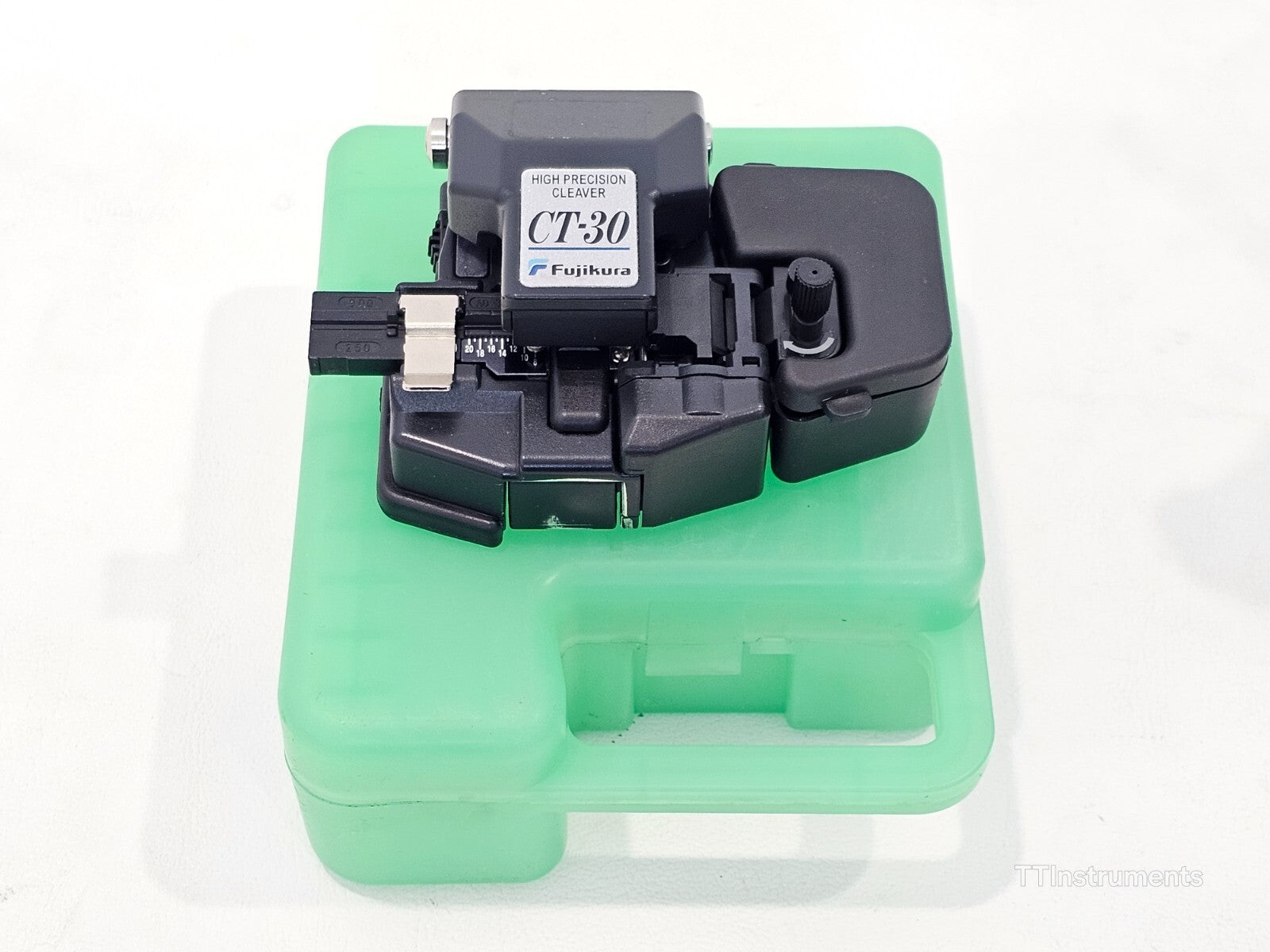

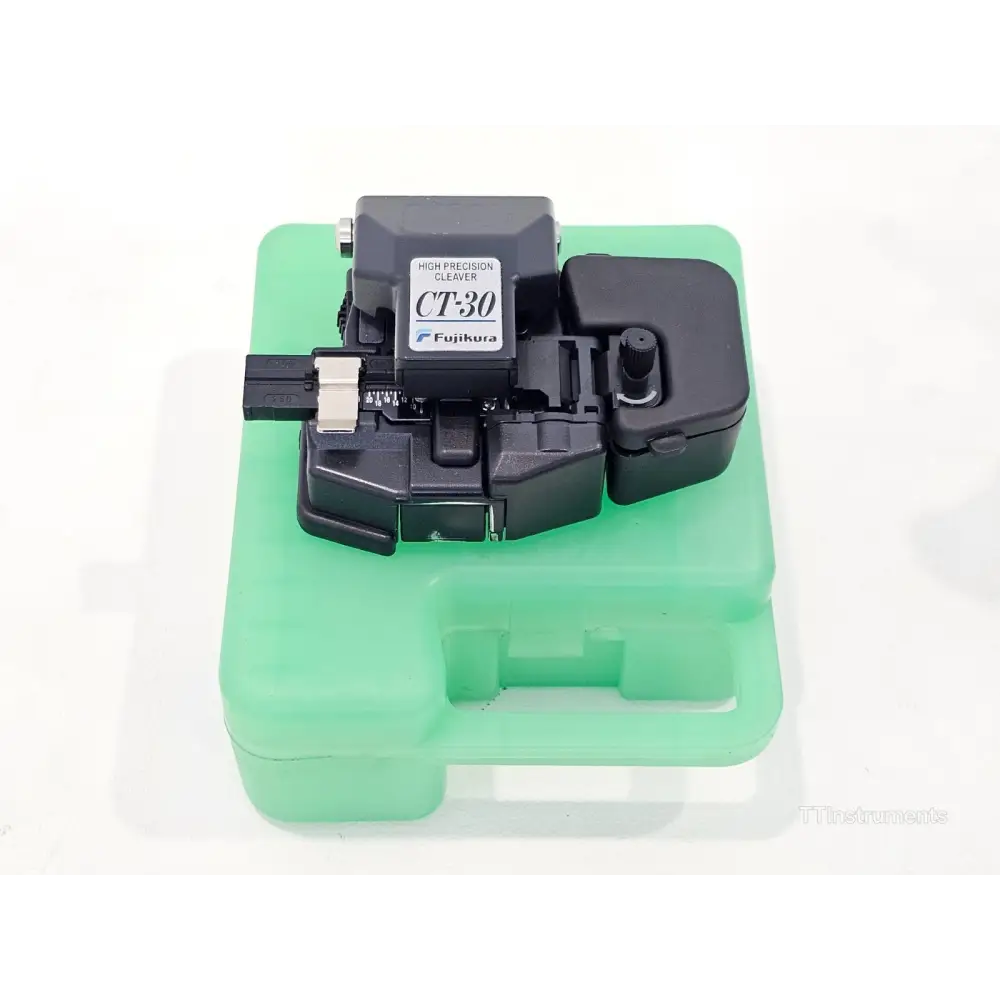

The CT-30 High Precision Fibre Cleaver is a compact, lightweight cleaver suitable for single-fibre and up to 12-fibre ribbon cleaving. Its 16-position circular blade (3 height adjustments) yields up to 48,000 single-fibre cleaves before replacement, with a typical cleave angle of less than 0.5°. A built-in scrap collector automatically stores fibre shards for safe disposal.

Fujikura 70S Key Specifications:
Applicable Fibres: SMF (G.652/G.657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Cladding / Sheath Diameter: 80–150 μm / 100–3000 μm
Cleave Length: 5 mm to 16 mm (with sheath clamp)
Splice Modes / Heating Modes: 100 splice modes / 30 heating modes
Typical Splice Loss: SM 0.02 dB, MM 0.01 dB, DSF 0.04 dB, NZDSF 0.04 dB
Splice Time: 7 seconds (SM)
Tube Heating Time: 14 seconds with FP-03 sleeve (60 mm)
Splice Result Storage: Last 2000 splices
Viewing System: 2-axis CMOS camera, 4.73″ colour LCD
Magnification: X or Y 320× / Both X and Y 200×
Tension Test: 1.96 to 2.25 N
Applicable Sleeves: 60 mm, 40 mm, Fujikura micro sleeves
Battery Capacity: ~200 splice/heating cycles per charge (BTR-09, room temperature, 2-minute cycles)
Electrode Life: 3000 splices
Power Supply: Auto voltage selection 100–240 V AC or 10–15 V DC (ADC-18), 14.8 V DC (BTR-09)
Terminals: USB 2.0 Mini-B; 6-pin Mini-DIN (HJS-02/HJS-03)
Dimensions: 146 (W) × 159 (D) × 150 (H) mm
Weight: 2.7 kg (with BTR-09 battery)
Operating Temperature: -10 °C to +50 °C
Humidity: 0 to 95% RH (non-condensing)
Operating Altitude: 0 to 5000 m
Wind Resistance: Up to 15 m/s
Shock Resistance: 76 cm drop on all surfaces
Dust Resistance: IP5X
Rain Resistance: IPX2 (10 mm/hr for 10 min)

Fujikura CT-30 Cleaver Key Specifications:
Blade Life: 48,000 single-fibre cleaves (16 positions × 3 heights) / 4,000 ribbon cleaves
Typical Cleave Angle: <0.5°
Applicable Fibres: Single fibres 250 μm to 900 μm coating, 125 μm cladding
Cleave Length (900 μm fibre): 10 mm to 20 mm
Cleave Length (250 μm fibre): 6 mm to 20 mm
Fibre Handling System: AD-30A Adapter Plate
Dimensions: 69 (W) × 82 (D) × 41 (H) mm

Fujikura 70S Fusion Splicer Technical Datasheet (PDF): Download PDF

Fujikura FSM-70S Datasheet — ISRE (PDF): Download PDF

Fujikura FSM-70S Fusion Splicer Help Guide (PDF): Download PDF

Fujikura CT-30 Series Fibre Cleaver User Manual (PDF): Download PDF

Fujikura CT-30 Cleaver Specifications Sheet (PDF): Download PDF
