Fujikura 70S Core Alignment Fusion Splicer

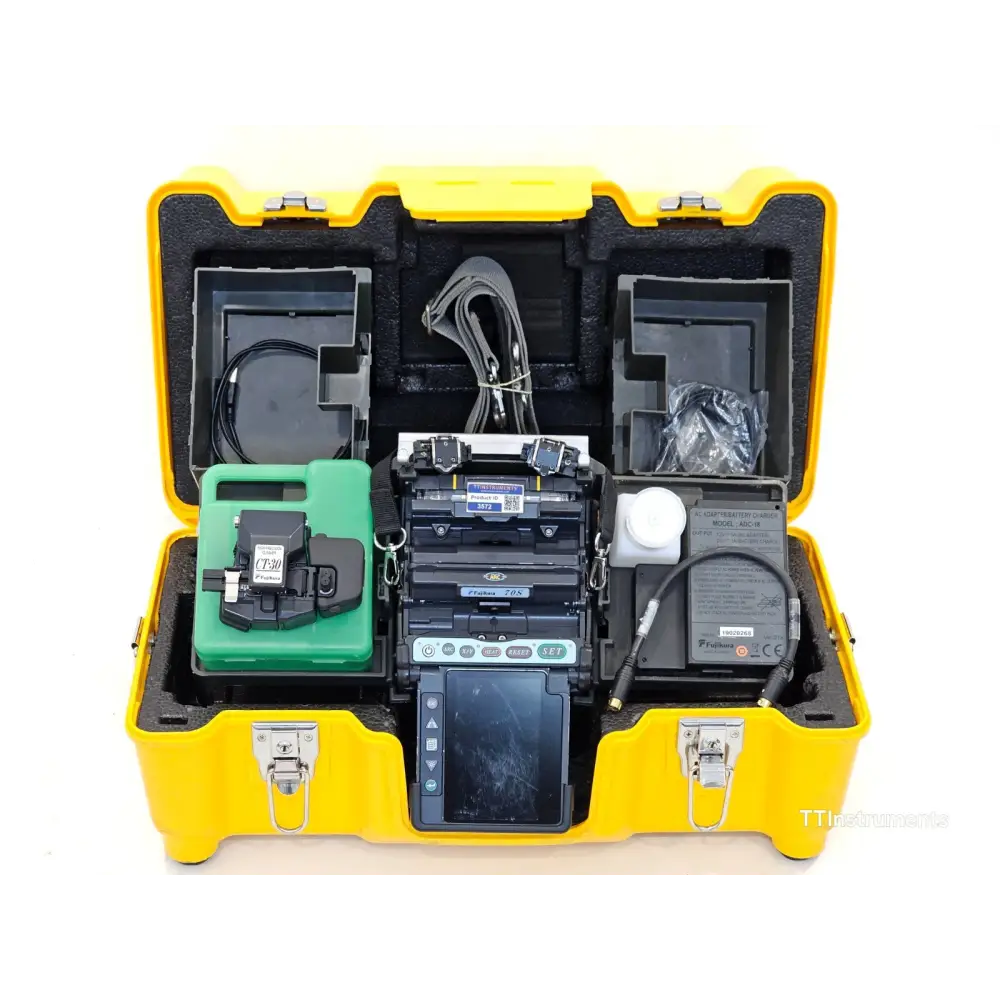

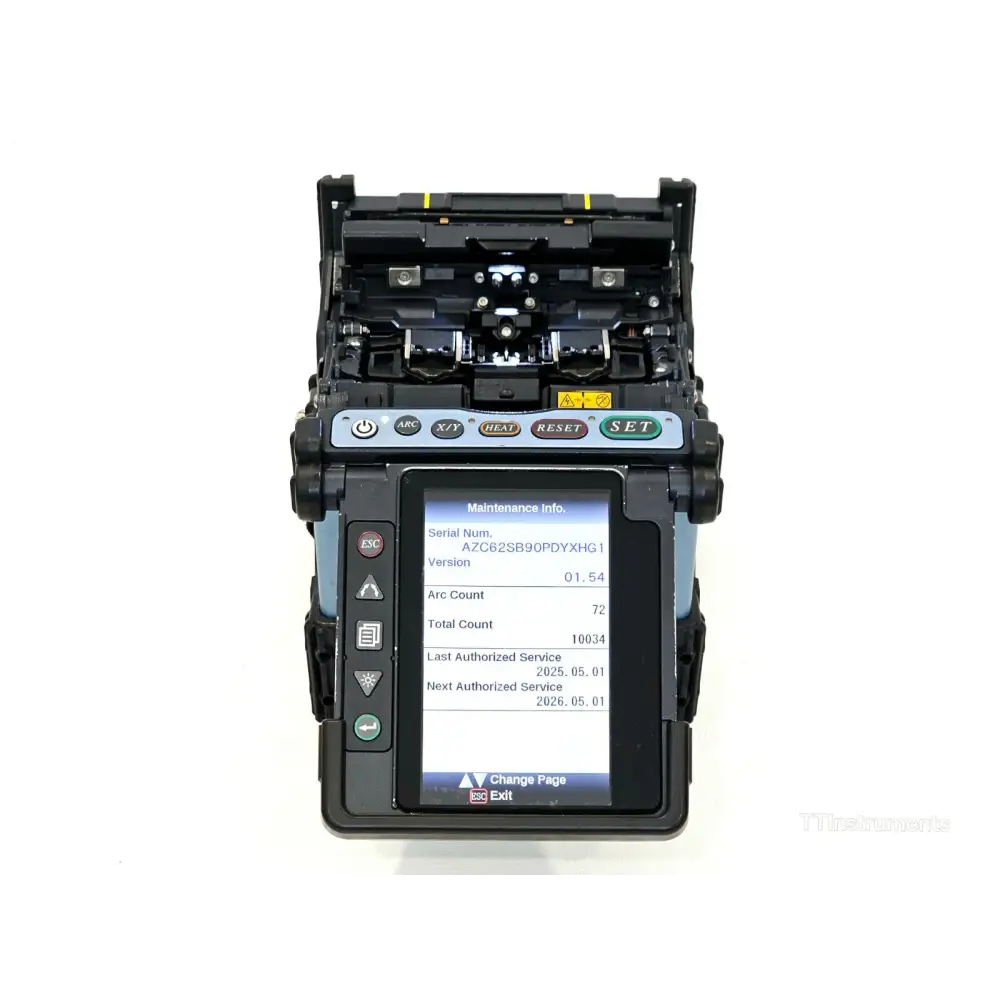

The Fujikura 70S is a single-fibre core alignment fusion splicer designed for high-volume splicing in demanding field and lab environments. Engineered to be more ergonomic, faster, and more durable than the preceding 60S series, it reduces splicing time to just seven seconds. A user-programmable automated wind protector closes automatically to initiate the splice and opens on completion, streamlining the splicing workflow. Fully programmable auto-open sheath clamps prepare the fibre for removal after the tensile test. A clamshell tube heater applies heat to both sides of the splice protection sleeve for a 14-second shrink time, yielding a total cycle time of approximately 21 seconds. The mirror-less optical system and impact-resistant monitor enhance long-term durability. The innovative transit case doubles as a built-in or mobile workstation.
Key Features:
• 7-second splice time (SM); ~21-second total cycle time
• Automated wind protector and programmable sheath clamps
• Clamshell tube heater — 14-second shrink time
• Mirror-less optical system and severe-impact-resistant monitor
• 200 splice/heating cycles per battery charge (BTR-09)
• 100 splice modes and 30 heating modes
• 2-axis CMOS camera with 4.73-inch colour LCD
• Stores last 2000 splice results
• PC connectivity for software upgrade and splice data management
• Transit case doubles as integrated workstation
Specifications:
Applicable Fibres: SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Cladding / Sheath Diameter: 80–150 μm / 100–3000 μm
Cleave Length: 5–16 mm (with sheath clamp)
Splice Modes / Heating Modes: 100 / 30
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Typical Splice Loss (DSF / NZDSF): 0.04 dB
Splice Time: 7 seconds (SM Fast mode)
Tube Heating Time: 14 seconds (FP-03 60 mm sleeve)
Total Cycle Time: ~21 seconds
Splice Result Storage: Last 2000 splices
Viewing System: 2-axis CMOS camera, 4.73-inch colour LCD
Magnification: 320× (X or Y axis); 200× (both axes simultaneously)
Attenuation Splice Function: 0.1–15 dB (adjustable in 0.1 dB steps)
Tension Test: 1.96–2.25 N
Electrode Life: 3000 splices
Applicable Sleeves: 60 mm, 40 mm, Fujikura micro sleeves
Battery Capacity: ~200 splice/heating cycles per charge (BTR-09, room temp)
Power Supply: Auto voltage selection 100–240 V AC; 14.8 V DC (BTR-09)
Terminals: USB Mini-B (PC communication); 6-pin Mini-DIN
Dimensions (W × D × H): 146 × 159 × 150 mm
Weight: 2.7 kg (with BTR-09 battery)
Operating Temperature: -10 °C to +50 °C
Humidity: 0–95% RH (non-condensing)
Operating Altitude: 0–5000 m
Wind Resistance: Up to 15 m/s
Shock Resistance: 76 cm drop test (all surfaces)
Dust Resistance: IP5X
Rain Resistance: IPX2 (10 mm/hr for 10 min)
Fujikura CT-30 High Precision Fibre Cleaver

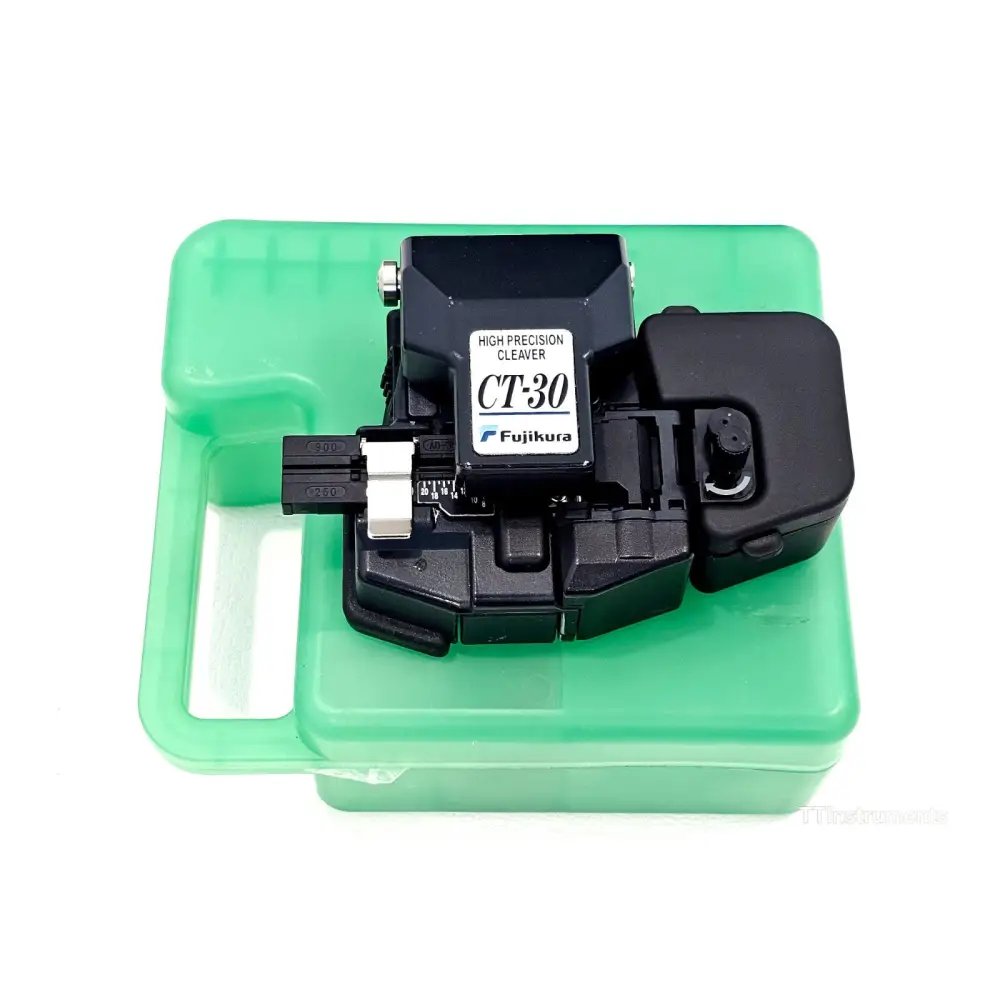

The CT-30 sets the standard for portability, reliability, and ease of use. Available for single-fibre or ribbon splicing (up to 12-fibre ribbons), it is compatible with all Fujikura/AFL fusion splicers. The 16-position blade yields 48,000 single-fibre cleaves (or 4,000 12-fibre ribbon cleaves) per blade, with a built-in scrap collector for safe disposal of fibre shards. The AD-30A adapter plate accommodates single fibres with 250–900 μm coating.
CT-30 Key Specifications:
Blade Life: 48,000 single-fibre cleaves (16 positions × 3 height settings)
Cleave Angle Capability: Typically <0.5°
Applicable Fibre: 125 μm cladding; coating 250–900 μm (single fibre with AD-30A)
Cleave Length (900 μm fibre): 10–20 mm
Cleave Length (250 μm fibre): 6–20 mm
Dimensions (W × D × H): 69 × 82 × 41 mm
