Condition: Refurbished

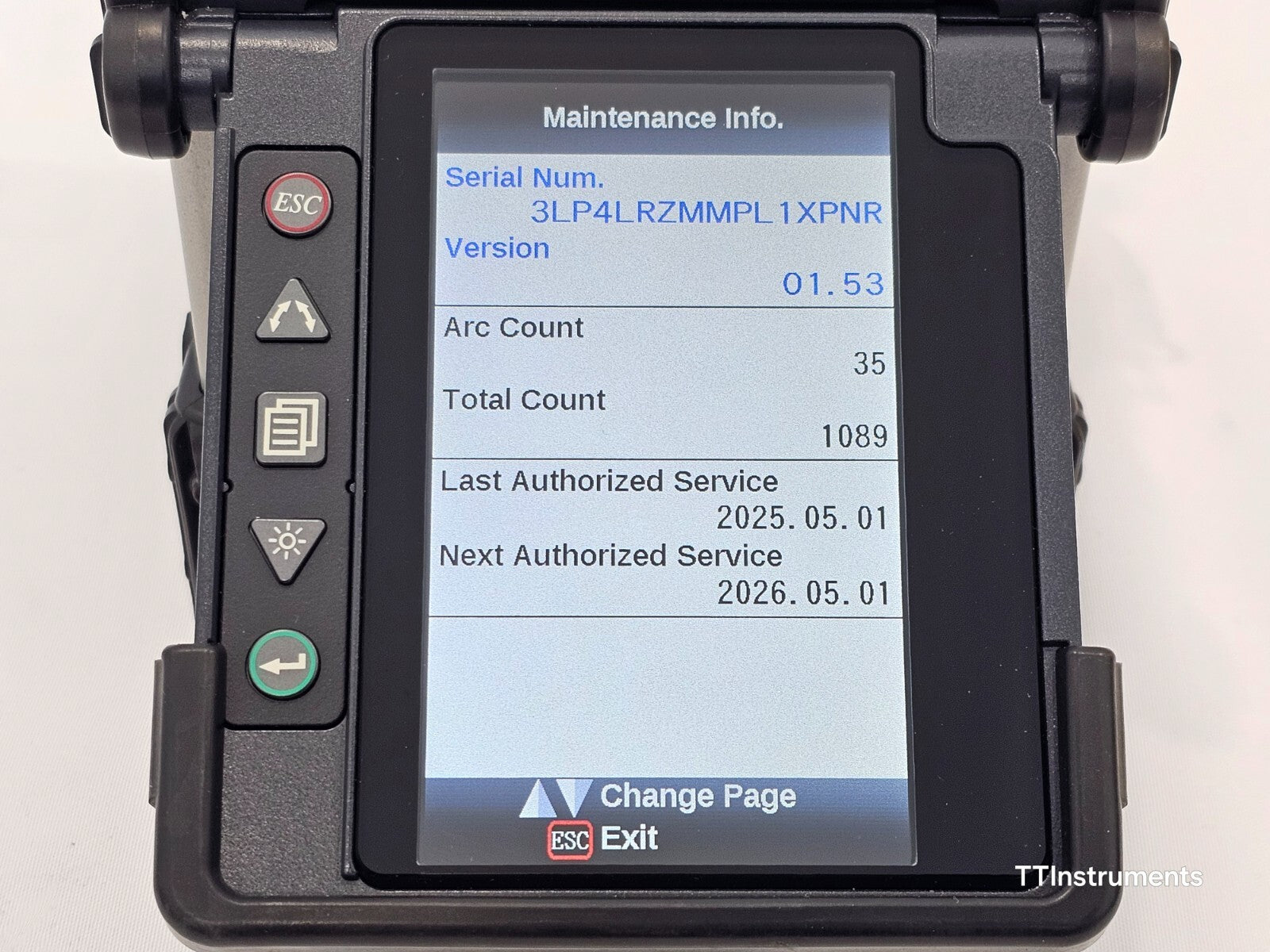

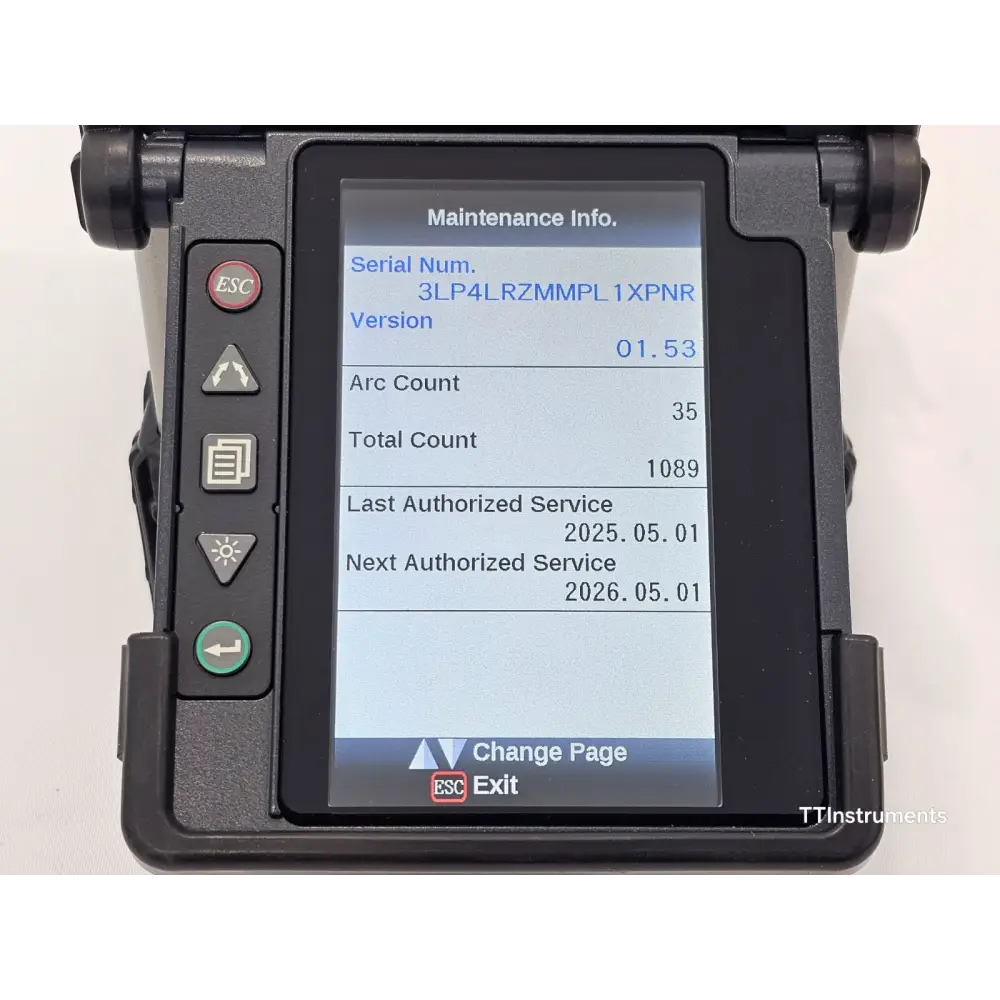

This Fujikura FSM-70R ribbon fusion splicer has been professionally cleaned and serviced by an approved service centre in May 2025. The ARC count stands at 1089, new electrodes are fitted, and the battery is included and holds its charge. This is an EU licensed model.

Included in the sale:
• Fujikura FSM-70R Ribbon Fusion Splicer (ARC count 1089) with new electrodes
• Fujikura CT-30 High Precision Fibre Cleaver
• RS03 Thermal Ribbon Fibre Stripper
• AC Adapter/Charger
• Battery Pack
• Hard Carrying Case
• Work Tray

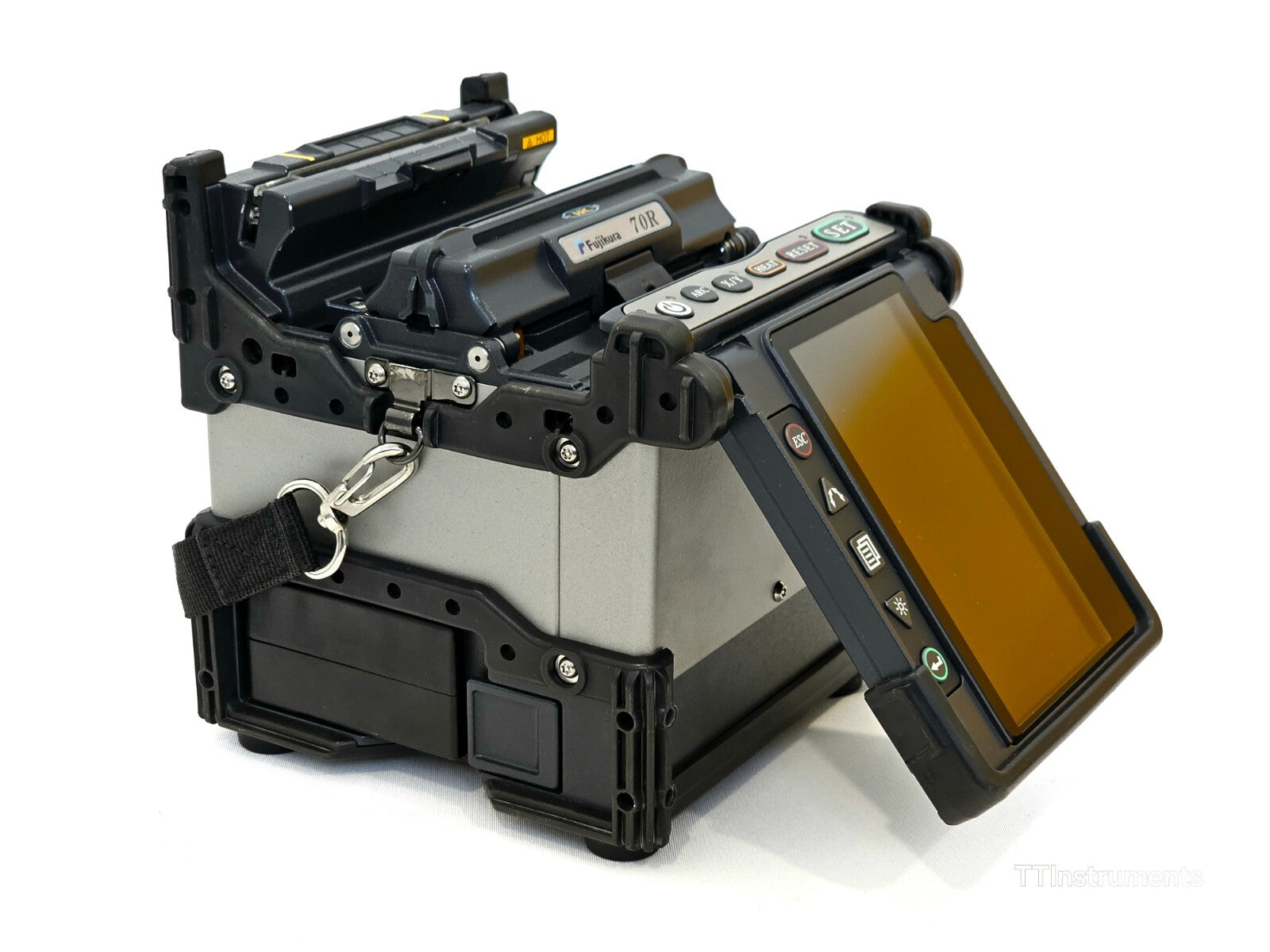

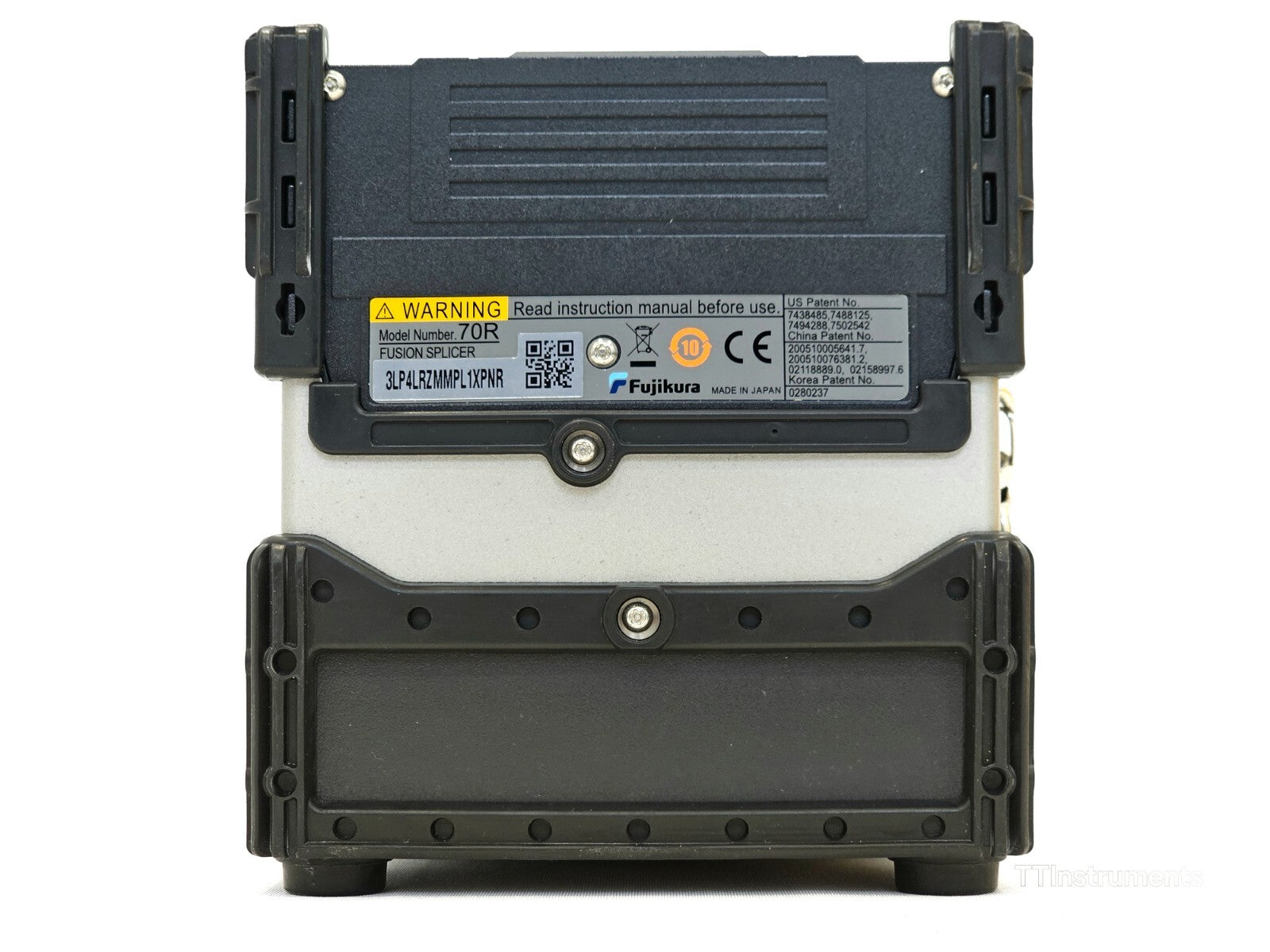

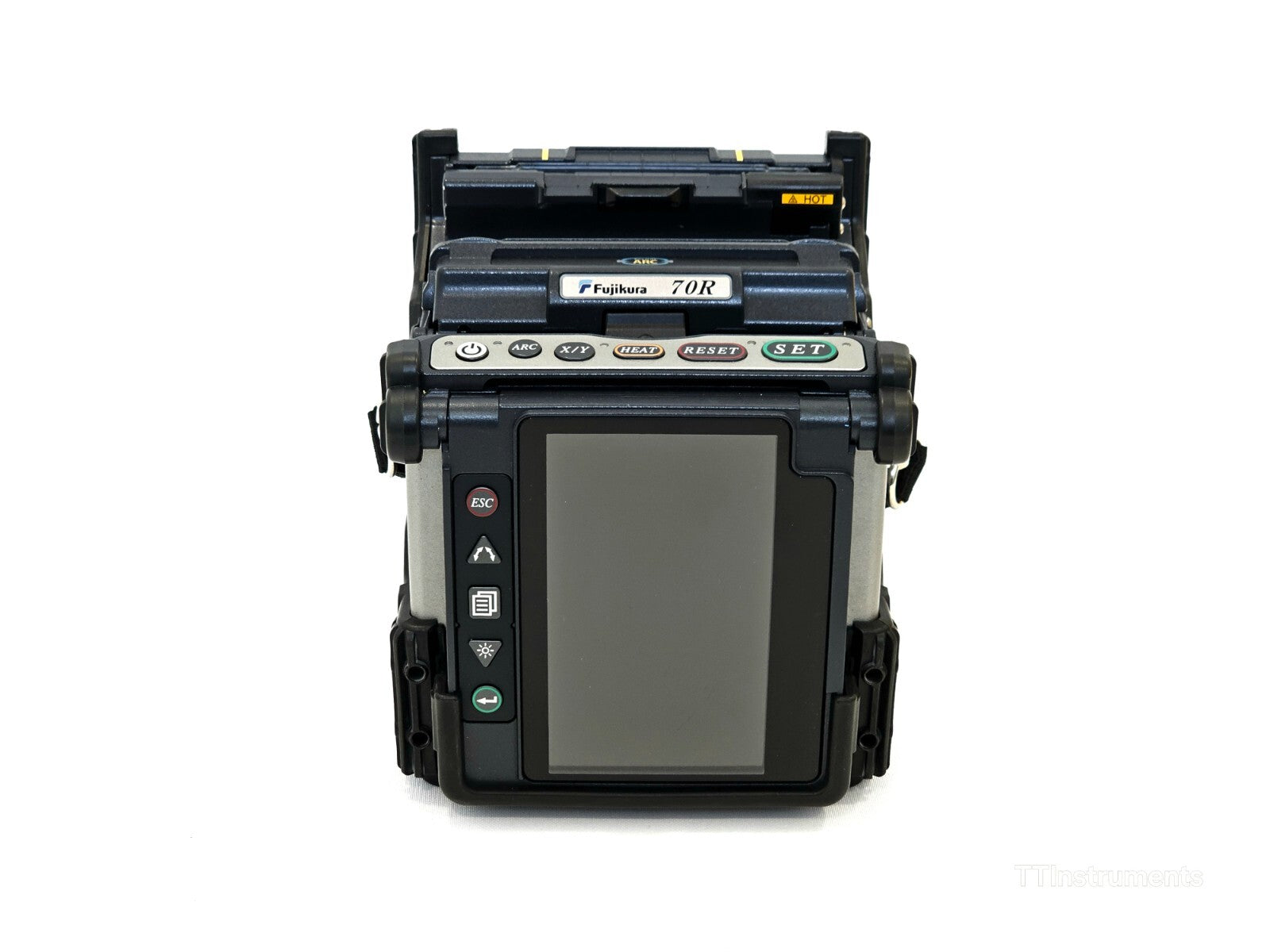

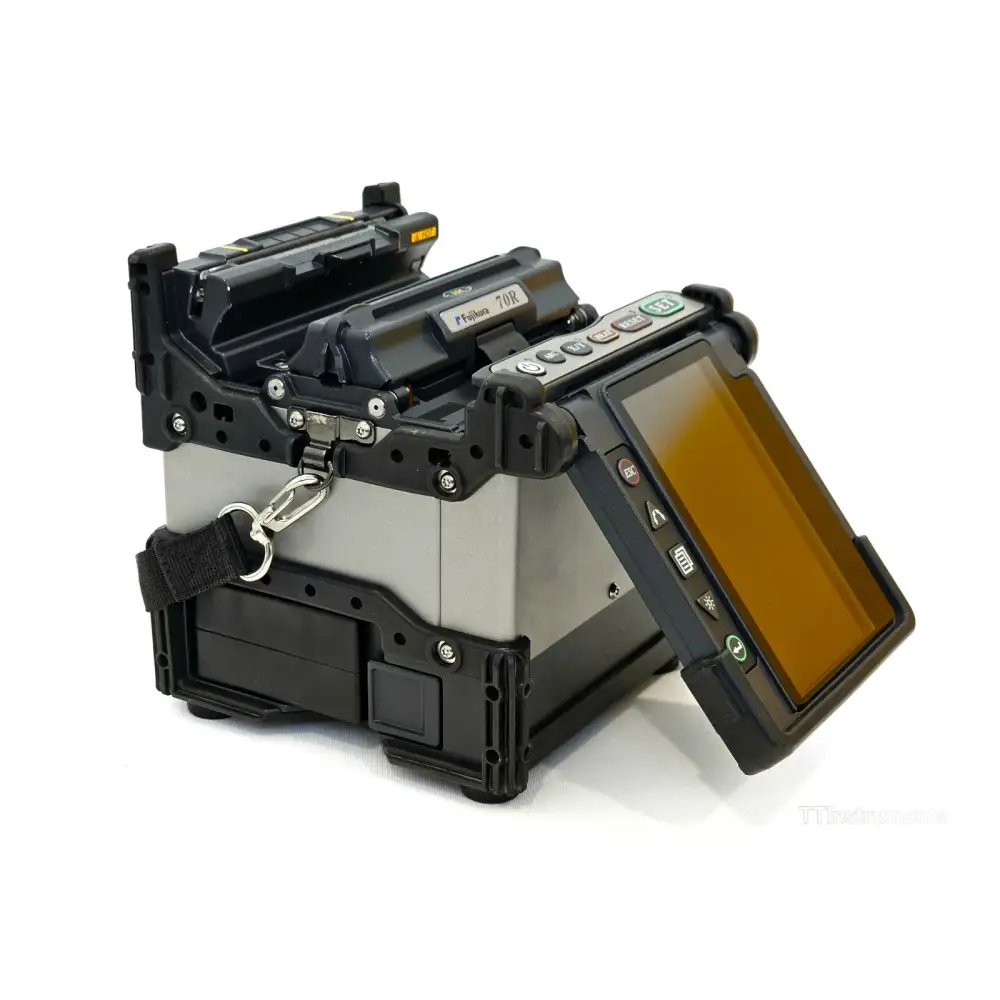

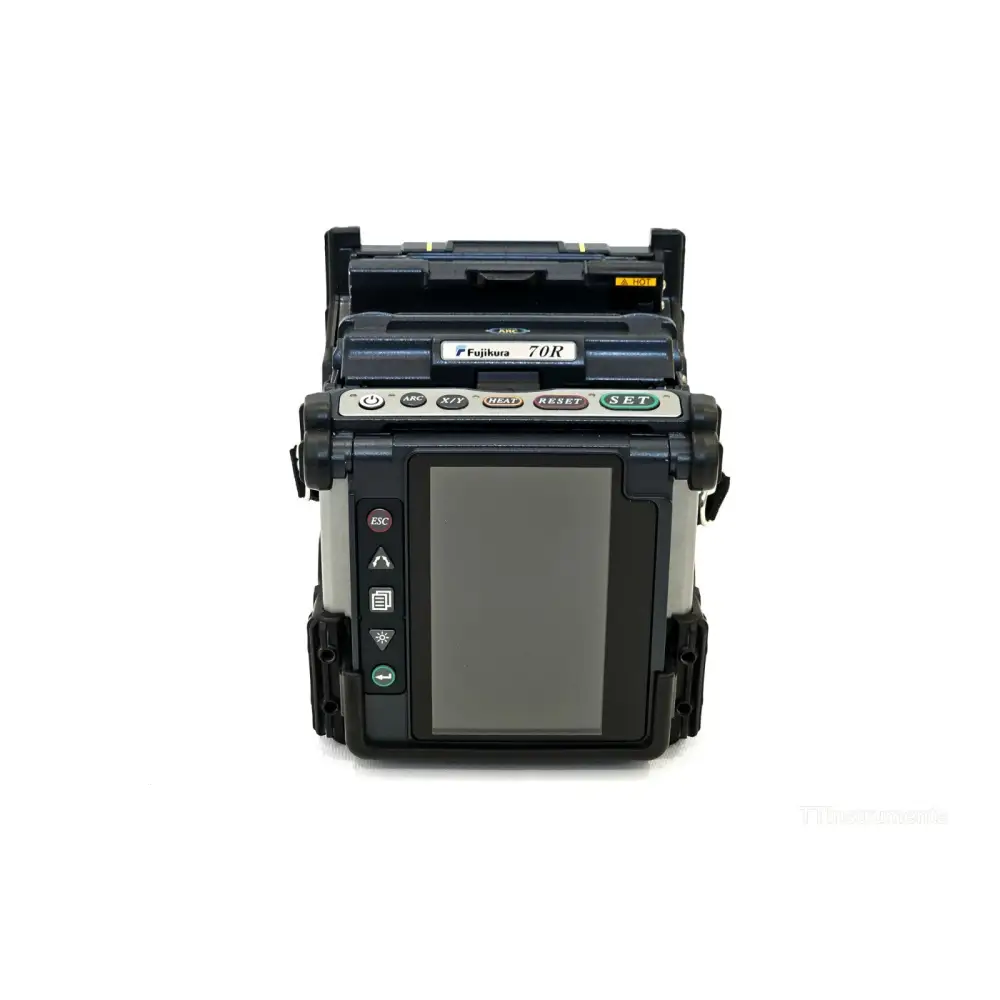

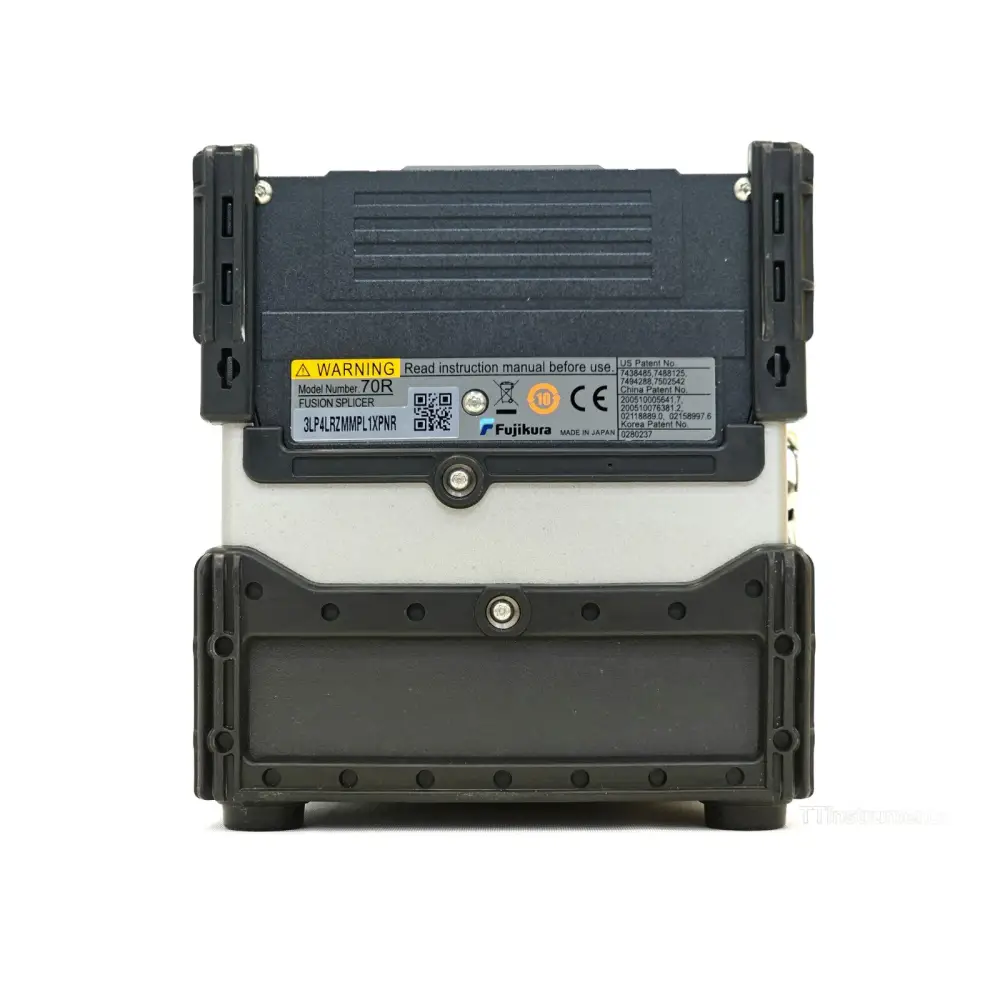

The Fujikura FSM-70R (model designation FSM-70R) is a rugged, high-performance ribbon arc fusion splicer designed for single-fibre and ribbon optical fibre applications up to 12 fibres. It incorporates a precision fixed V-groove splicing platform together with automated user-control features to maximise splicing efficiency in telecom, FTTx, and data centre environments.

A user-programmable automated wind protector automatically closes to initiate the splice process and opens upon completion, reducing the manual steps required. The auto-start clamshell tube heater applies heat simultaneously to both sides of the splice protection sleeve, delivering a 40-second shrink time for 12-fibre ribbon and a total splice cycle of approximately 55 seconds. Ruggedness and durability are enhanced by a mirror-less optical system and severe-impact-resistant monitor.

FSM-70R Specifications:
Model: FSM-70R Fusion Splicer
Applicable Fibers: Single-mode (G.652 & G.657), Multimode (G.651), DS (G.653), NZDS (G.655)
Fiber Count: Single, 2, 4, 5, 6, 8, 10, 12
Cladding Diameter: 125 µm
Coating Diameter (Ribbon): 0.25 mm to 0.4 mm
Coating Diameter (Single): 250 µm and 900 µm
Fiber Cleave Length: 10 mm
Typical Average Splice Loss (SM): 0.05 dB
Typical Average Splice Loss (MM): 0.02 dB
Typical Average Splice Loss (DS): 0.08 dB
Typical Average Splice Loss (NZDS): 0.08 dB
Splicing Time: Typical 15 seconds (standard single-mode fiber)
Heating Time: Typical 40 seconds (FP-5 sleeve, 12-fibre ribbon)
Arc Calibration: Automatic real-time (AUTO mode); manual arc calibration also available
Splicing Modes: 100 preset and user-programmable modes
Splice Loss Estimate: Based on dual camera cladding alignment data
Monitor: 4.7-inch TFT colour LCD with anti-reflective coating
Camera System: Dual cameras with X, Y, or simultaneous X+Y axis display
Battery: Li-ion, approx. 110 splices/shrinks per full charge
Power Input: Auto voltage selection 100–240 V AC or 10–15 V DC (ADC-18); 14.8 V DC (BTR-09 battery)
Connectivity: USB 2.0 (USB-B type) for PC communication; Mini-DIN (6-pin) for HJS-02/03
Ruggedness: Shock, dust, and moisture resistant; mirror-less optical system

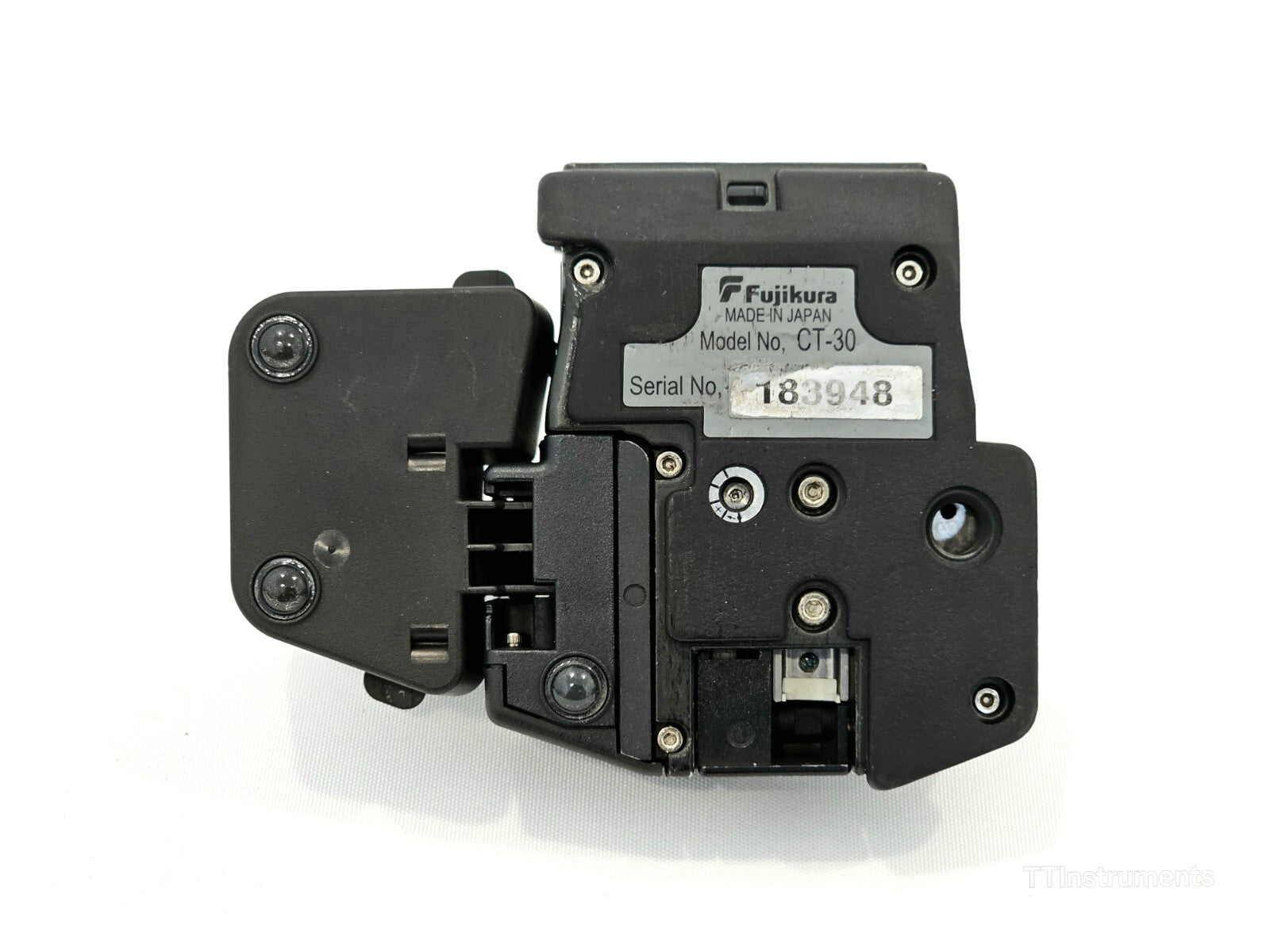

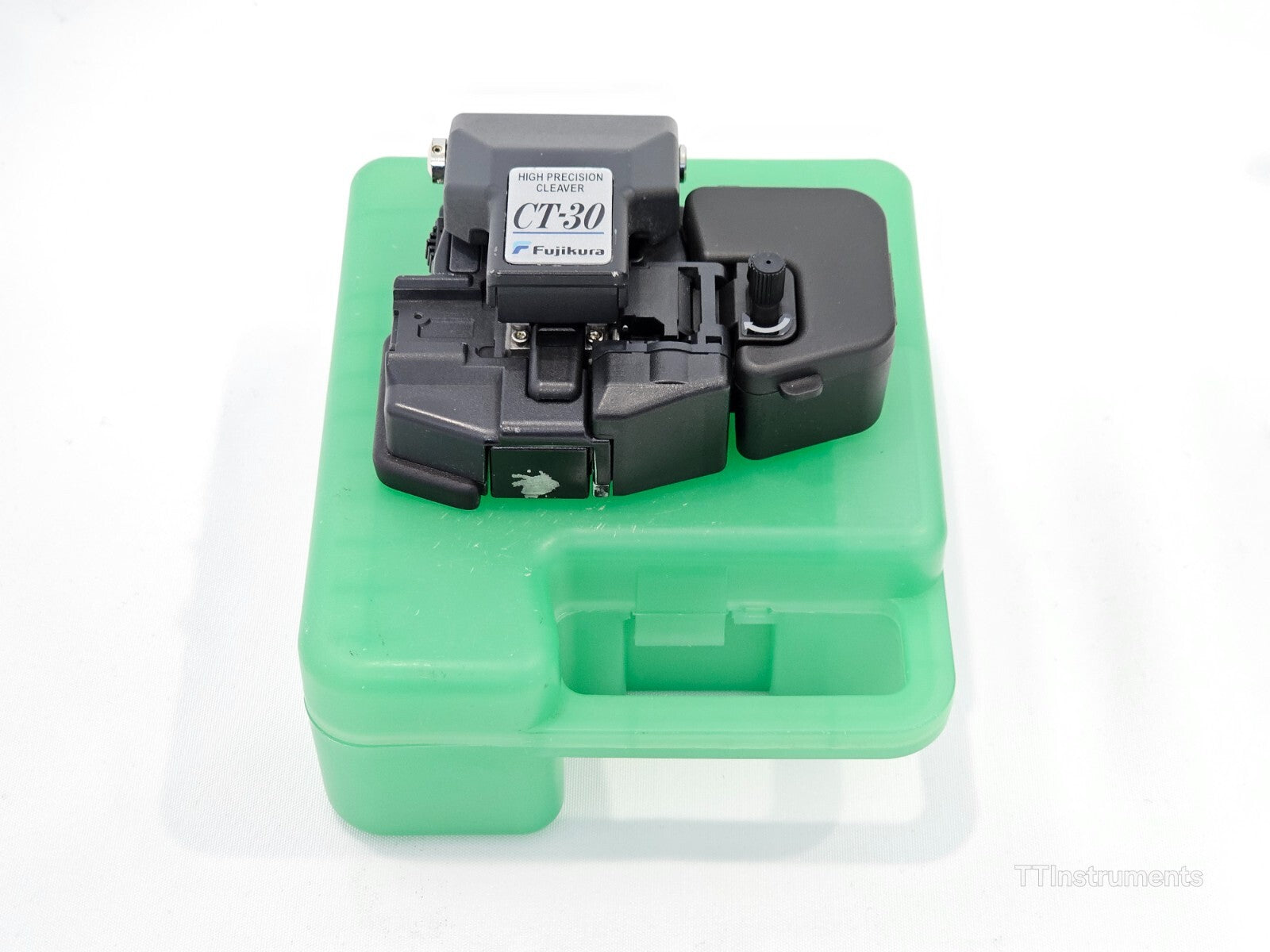

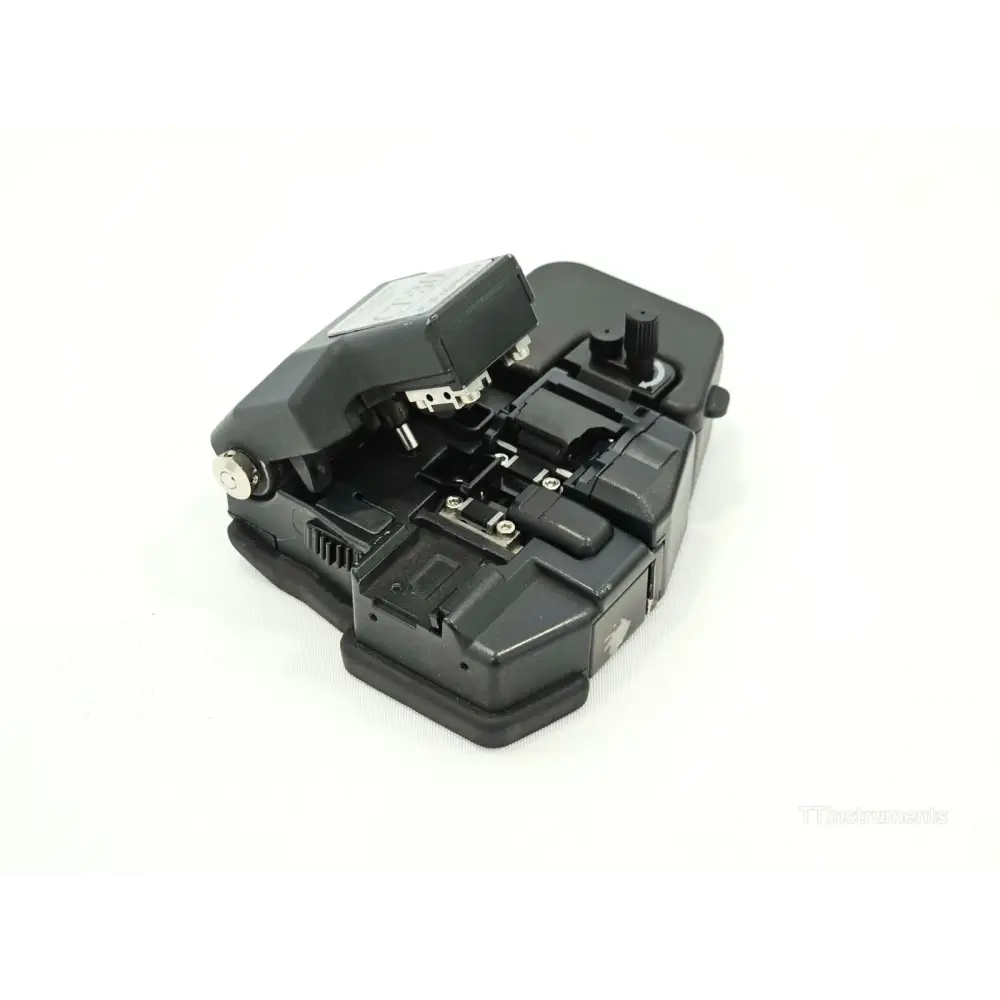

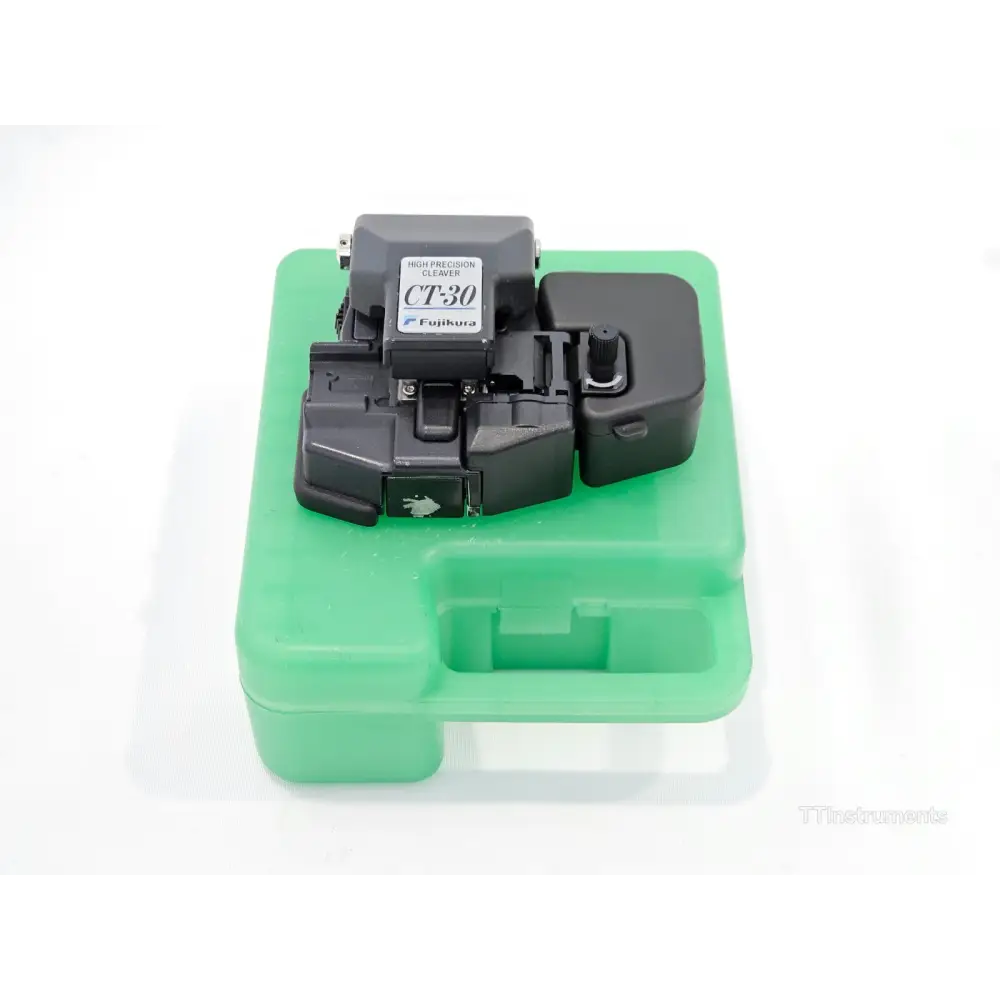

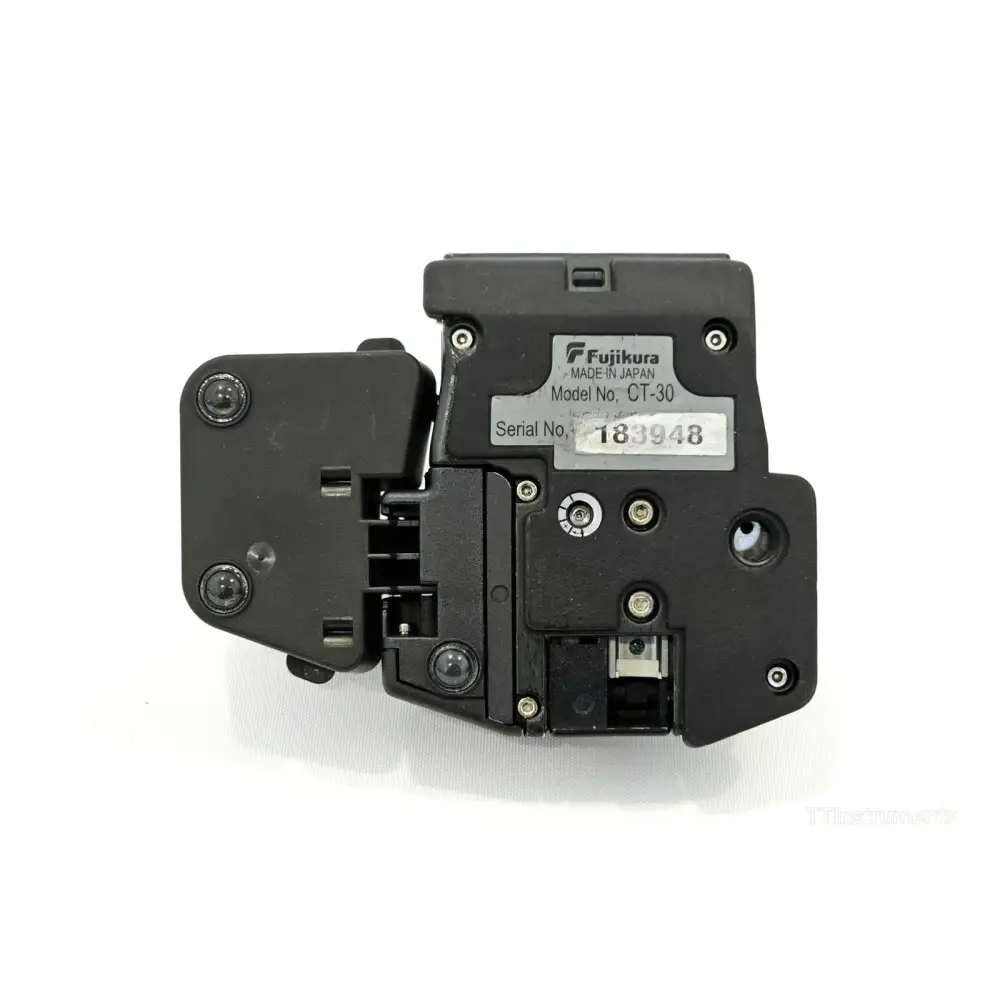

CT-30 Fibre Cleaver (included accessory):
The Fujikura CT-30 is a high-precision fibre cleaver compatible with single-fibre and ribbon fibre up to 12 fibres. Its 16-position circular blade with three height levels delivers up to 48,000 single-fibre cleaves or 4,000 12-fibre ribbon cleaves before replacement. Typical cleave angle: <0.5°. Compatible with all AFL Fujikura fusion splicers.

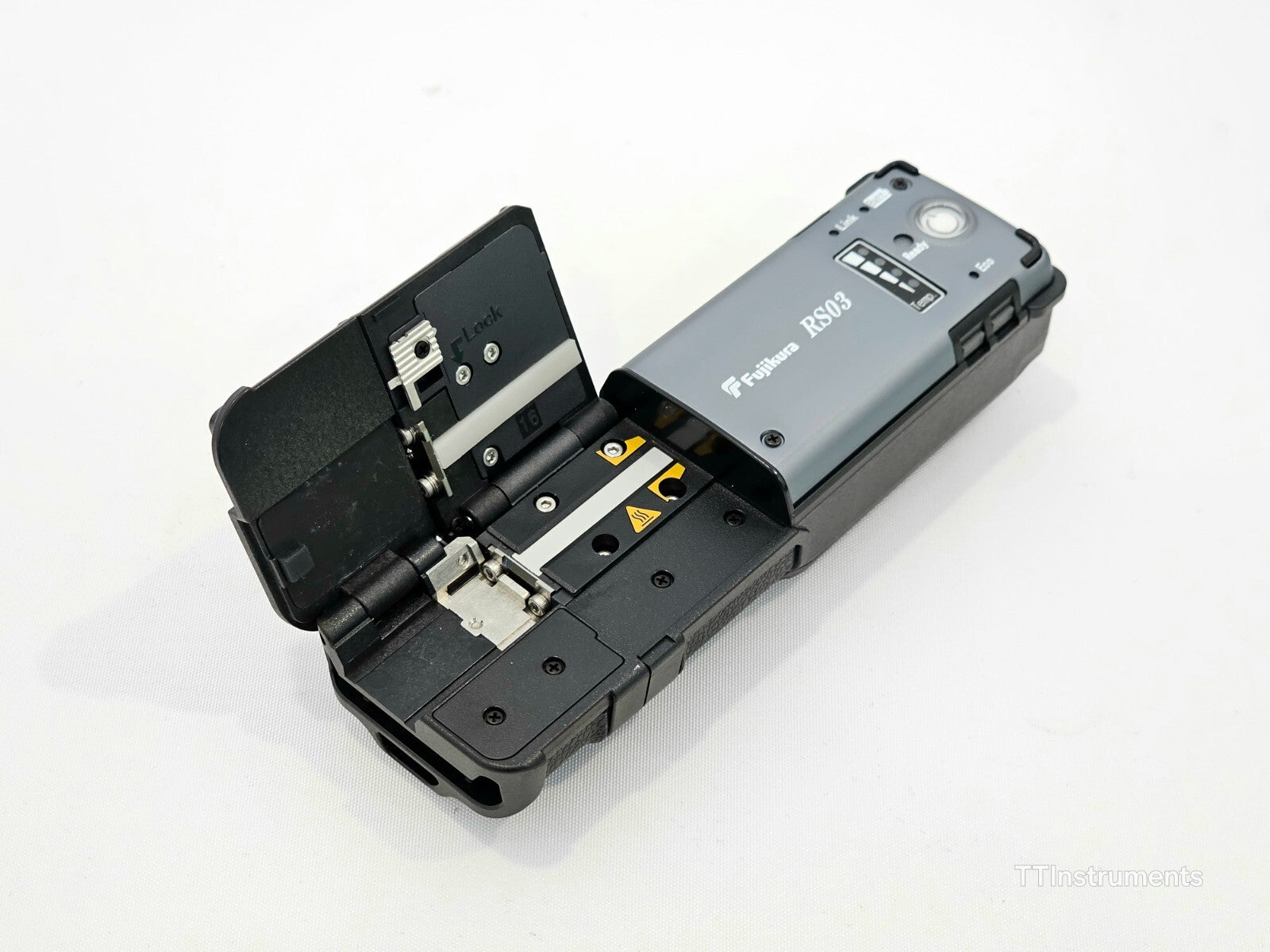

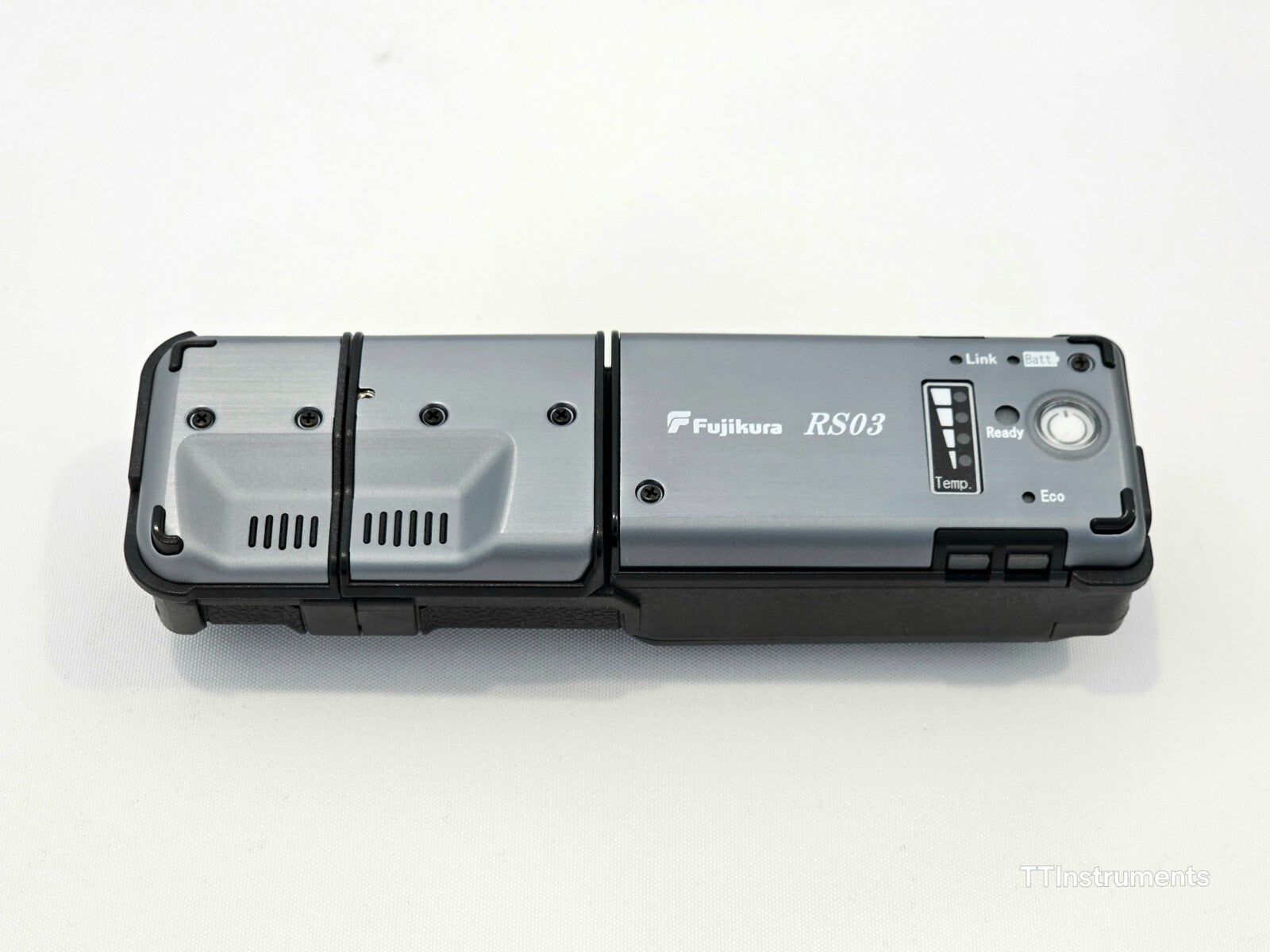

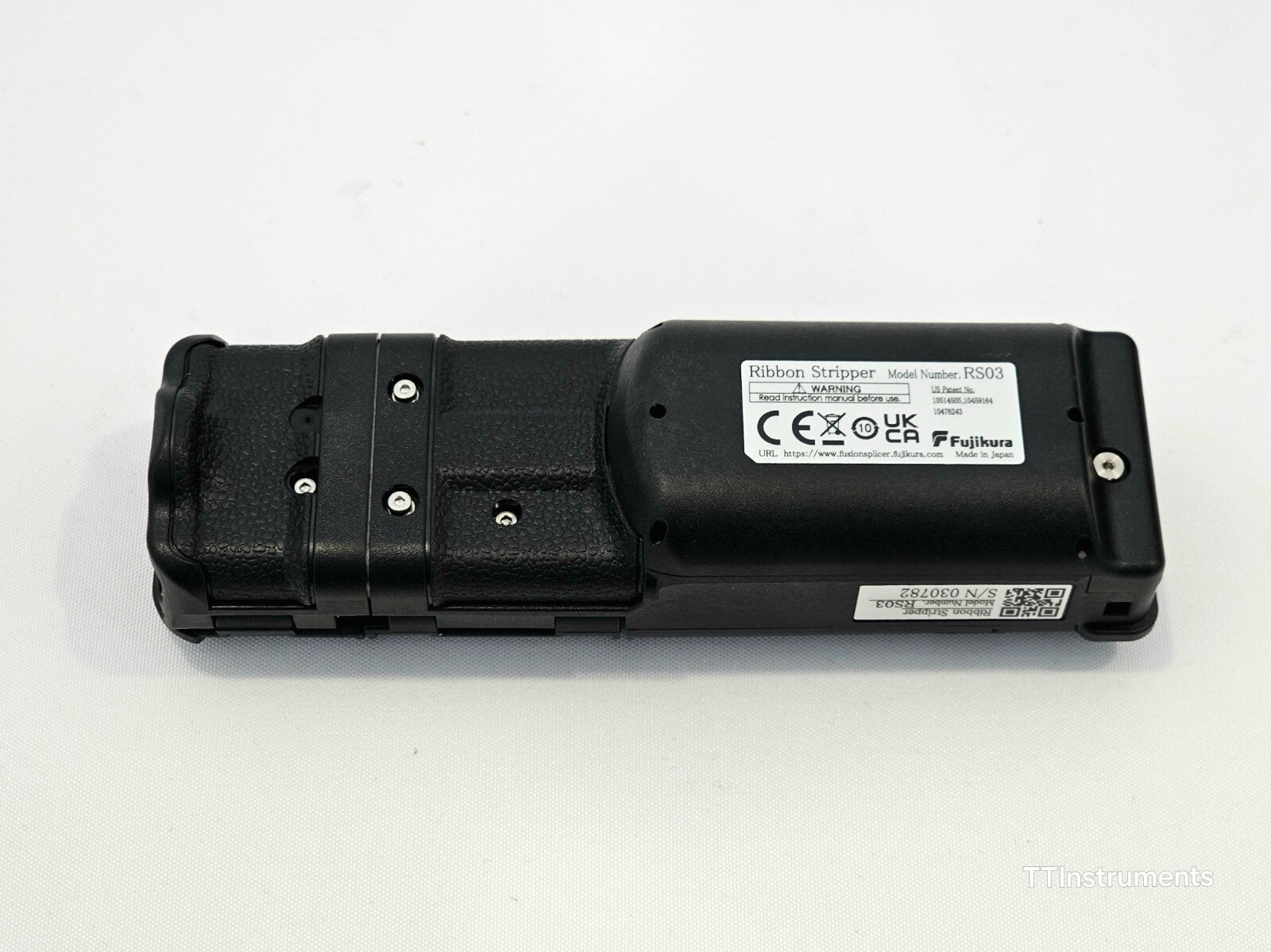

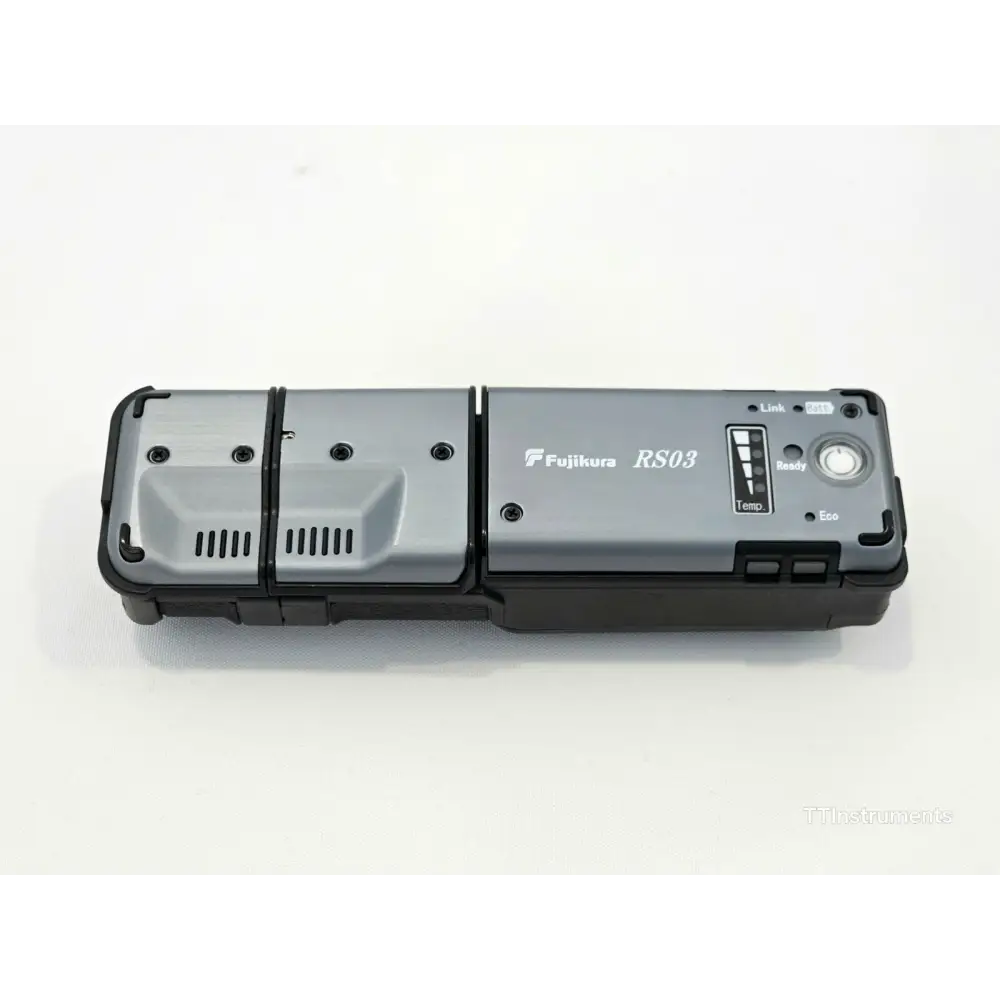

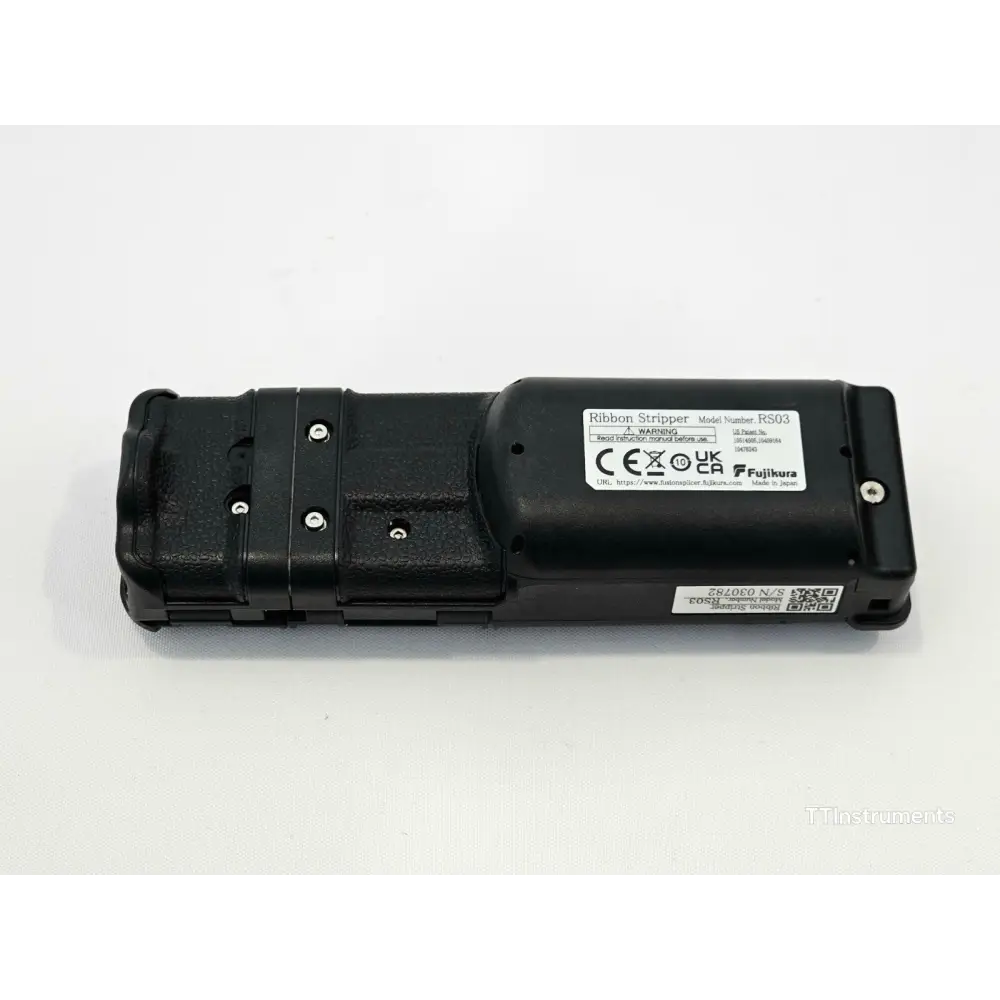

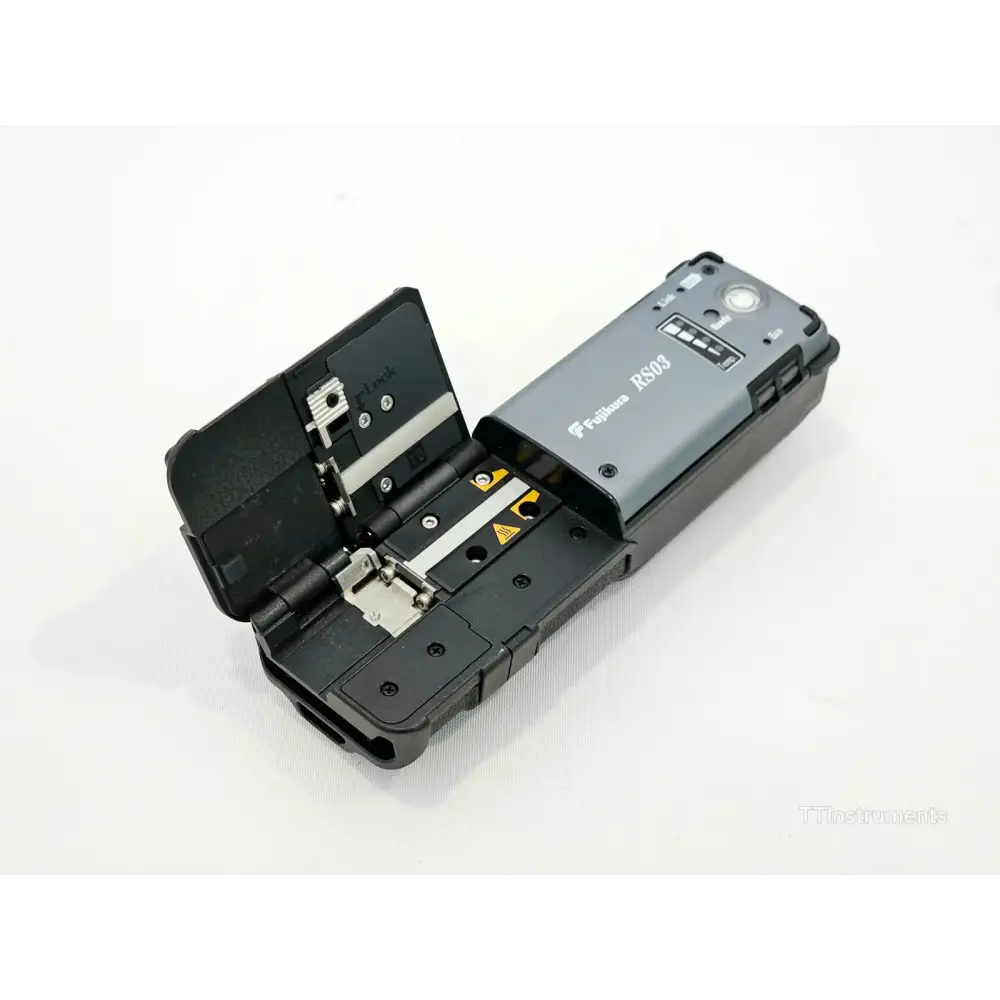

RS03 Thermal Ribbon Fibre Stripper (included accessory):
The Fujikura RS03 is a battery-powered thermal stripper designed for single and multi-fibre ribbon stripping. Compatible with 200 µm to 400 µm coated fibres without blade replacement. Features a 3-second heating time, Bluetooth connectivity for smartphone parameter control, audible beep and LED ready signal, and a high-capacity Li-ion battery rated for approximately 600 stripping cycles.

Fujikura FSM-70R Fusion Splicer Official Datasheet (PDF): Download PDF

Fujikura FSM-70R Fusion Splicer Specification Sheet — Fiber Instrument Sales (PDF): Download PDF

Fujikura FSM-70R Specification Sheet — AAA Testers (PDF): Download PDF

Fujikura CT-30 Series Fibre Cleaver Specification Sheet — AAA Testers (PDF): Download PDF

Fujikura CT-30 Series Fibre Cleaver User Manual (PDF): Download PDF

Fujikura 70R+/19R+ Quick Reference Guide — ManualsLib: Download PDF
