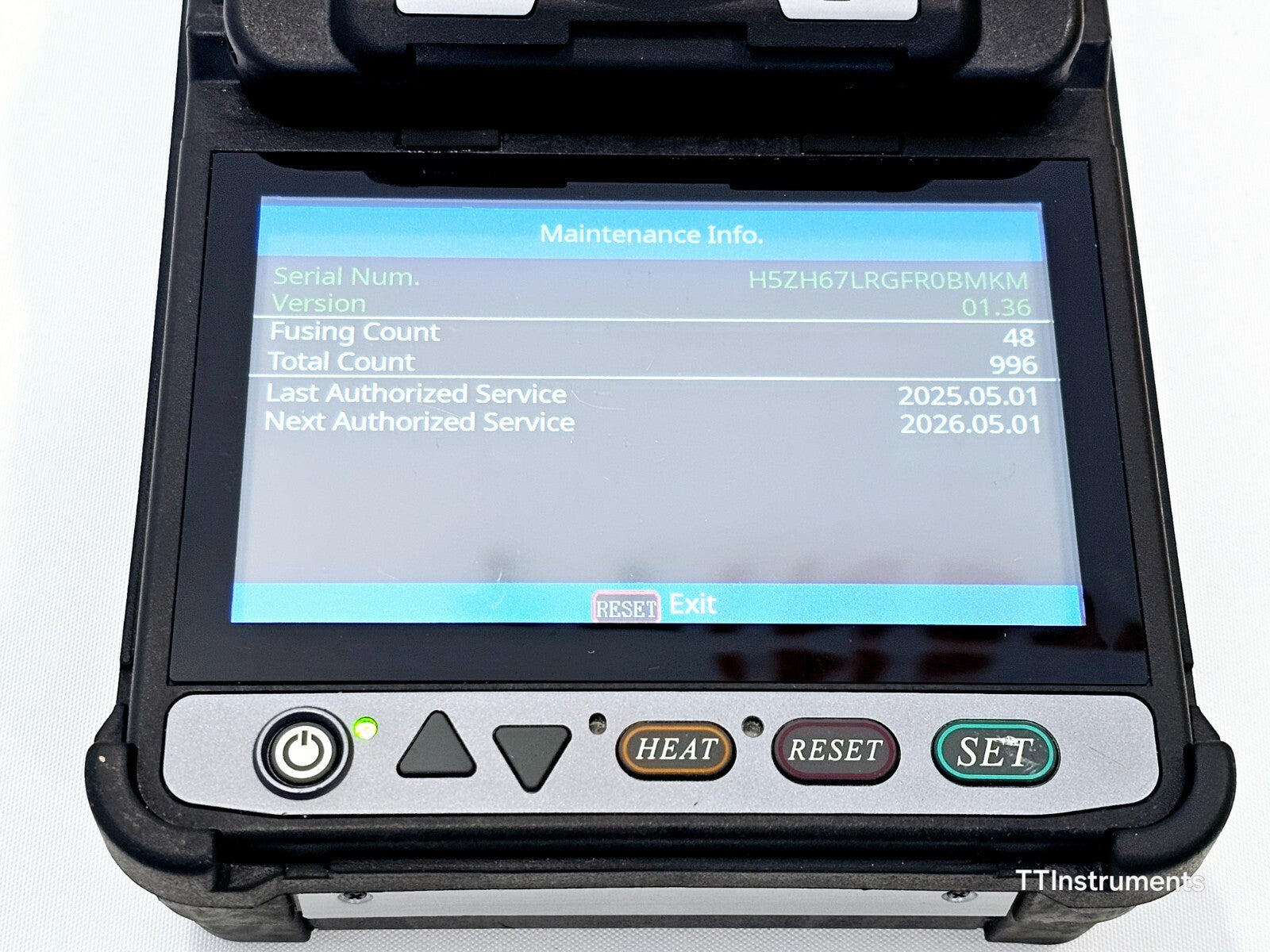

ARC Count 991 or 996.

Pictures are representative as multiple units in stock, all with under 996 ARC.

This item has been cleaned and serviced by an approved service center in May 2025.

Battery is included and holds its charge.

This is an EU licensed model.

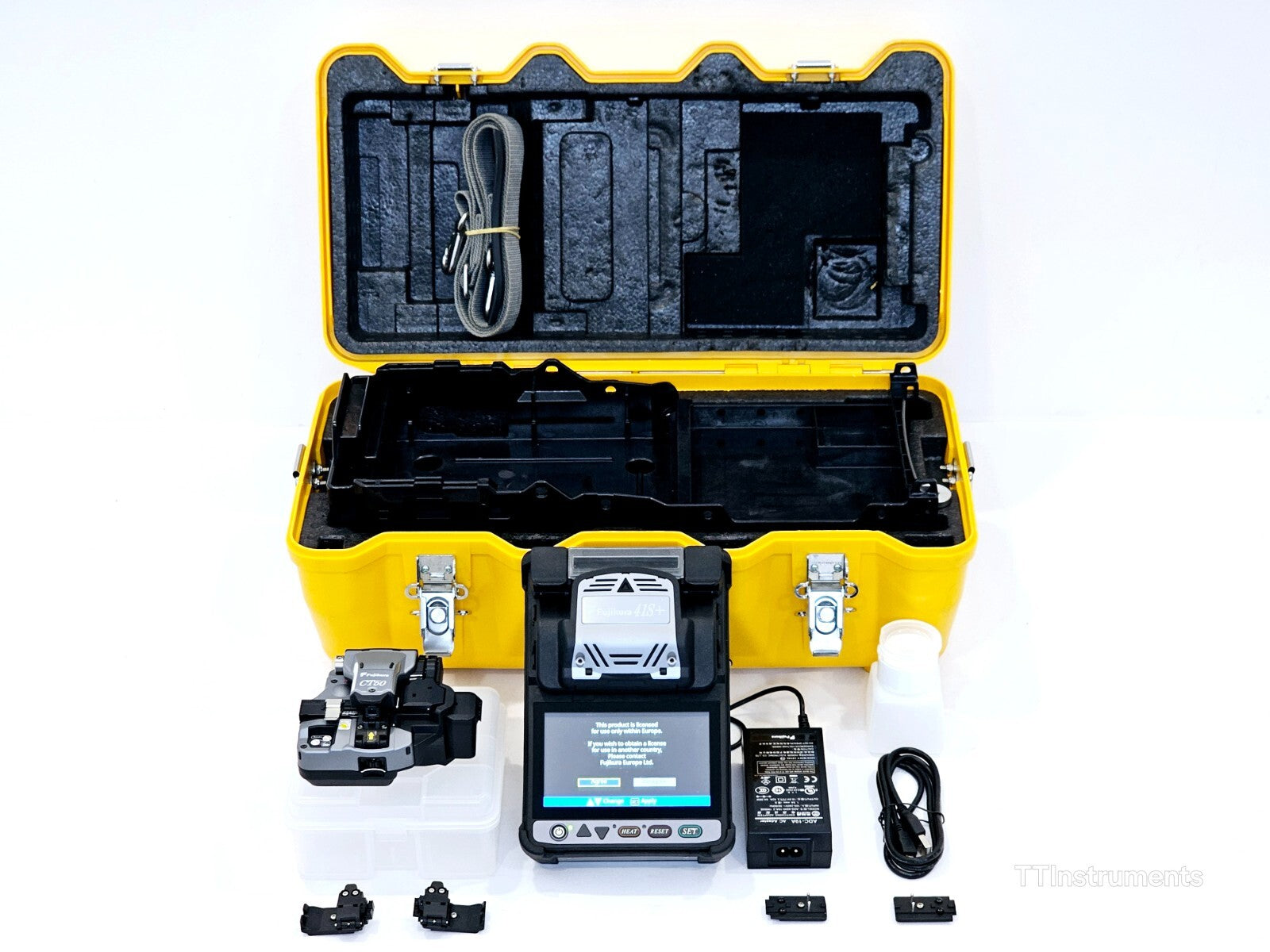

Included in the sale:

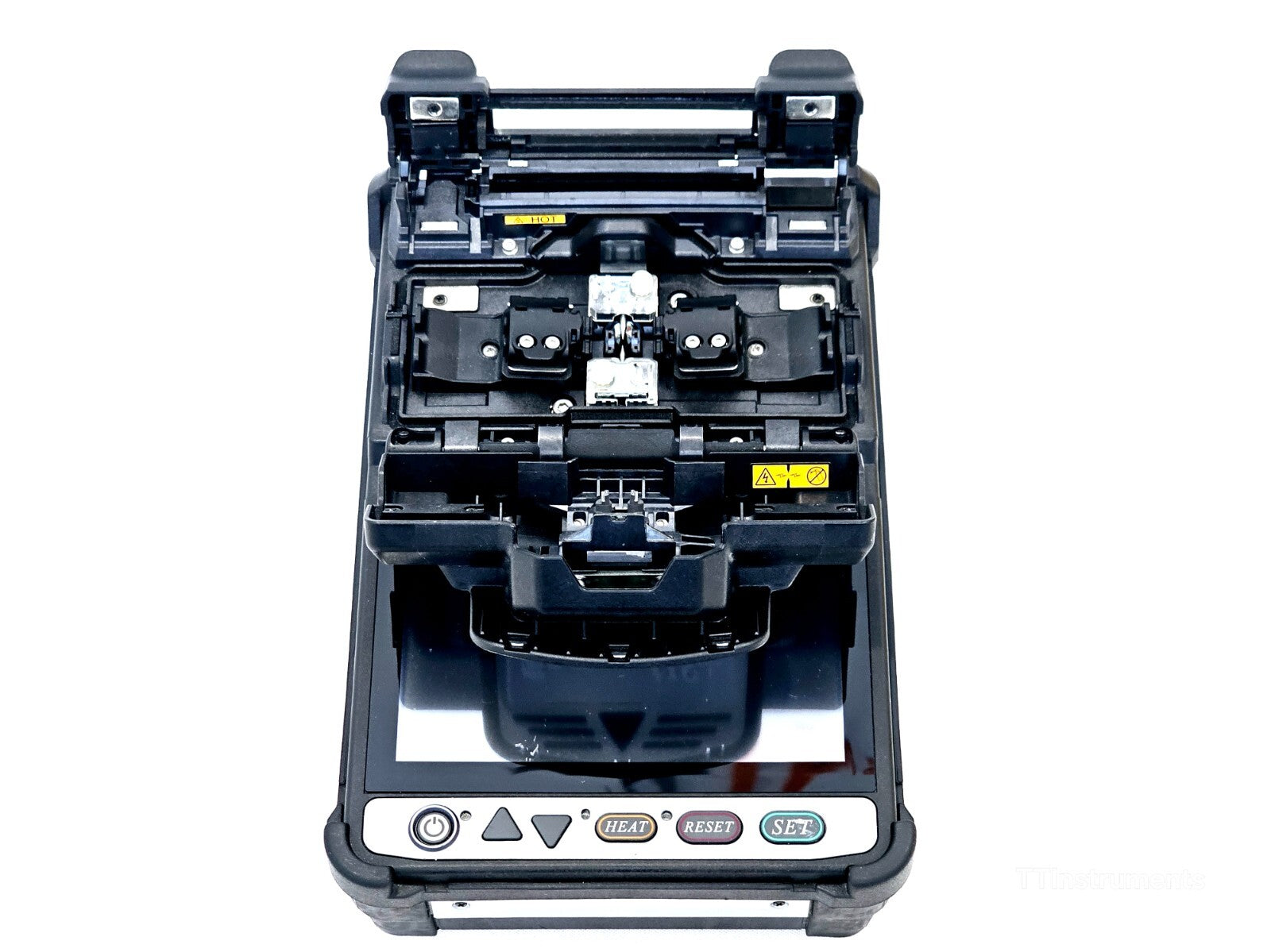

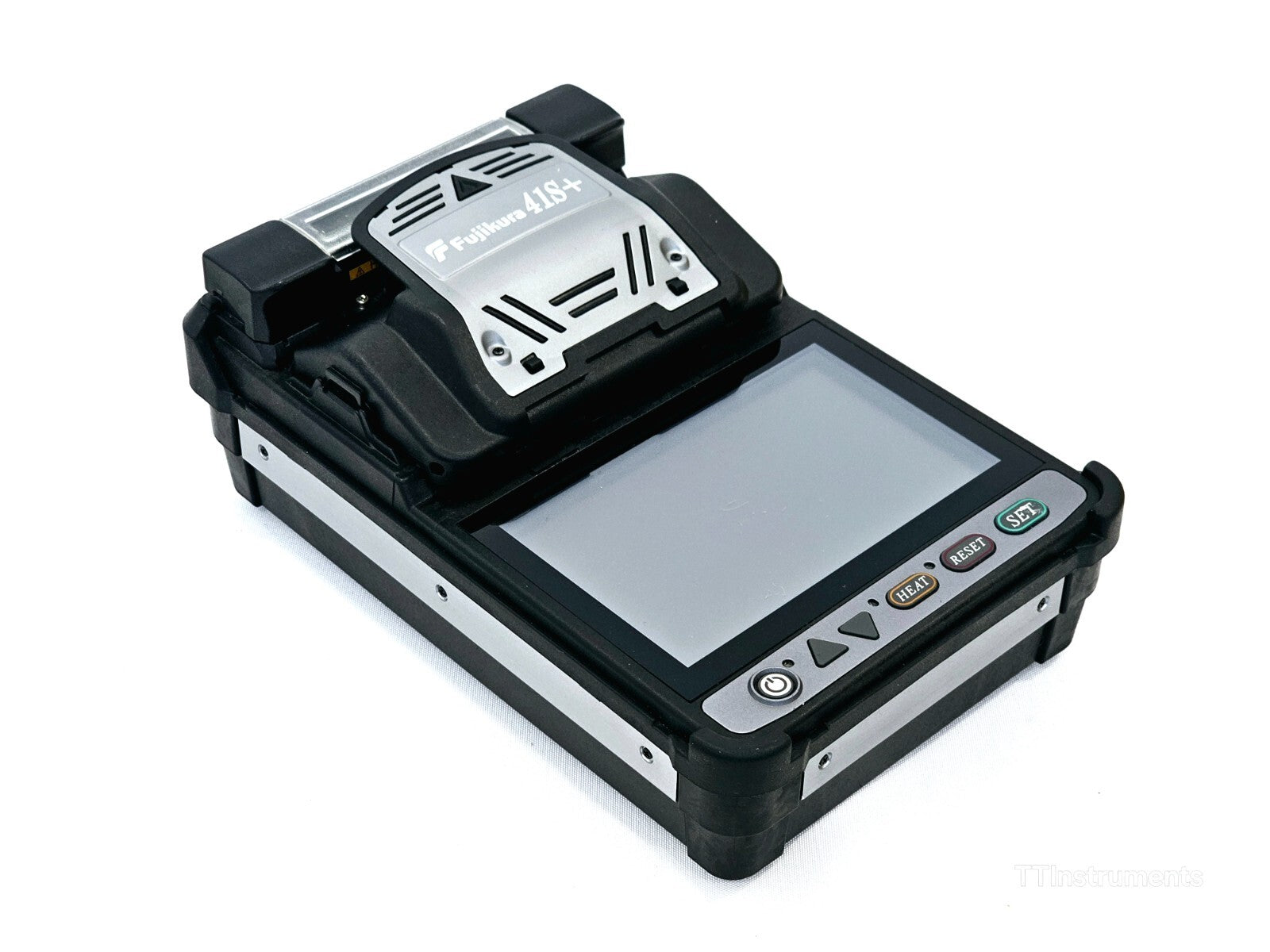

• Fujikura 41S+ SM MM Active Cladding Fusion Splicer with clamps (ARC count 996 or under) and new electrodes

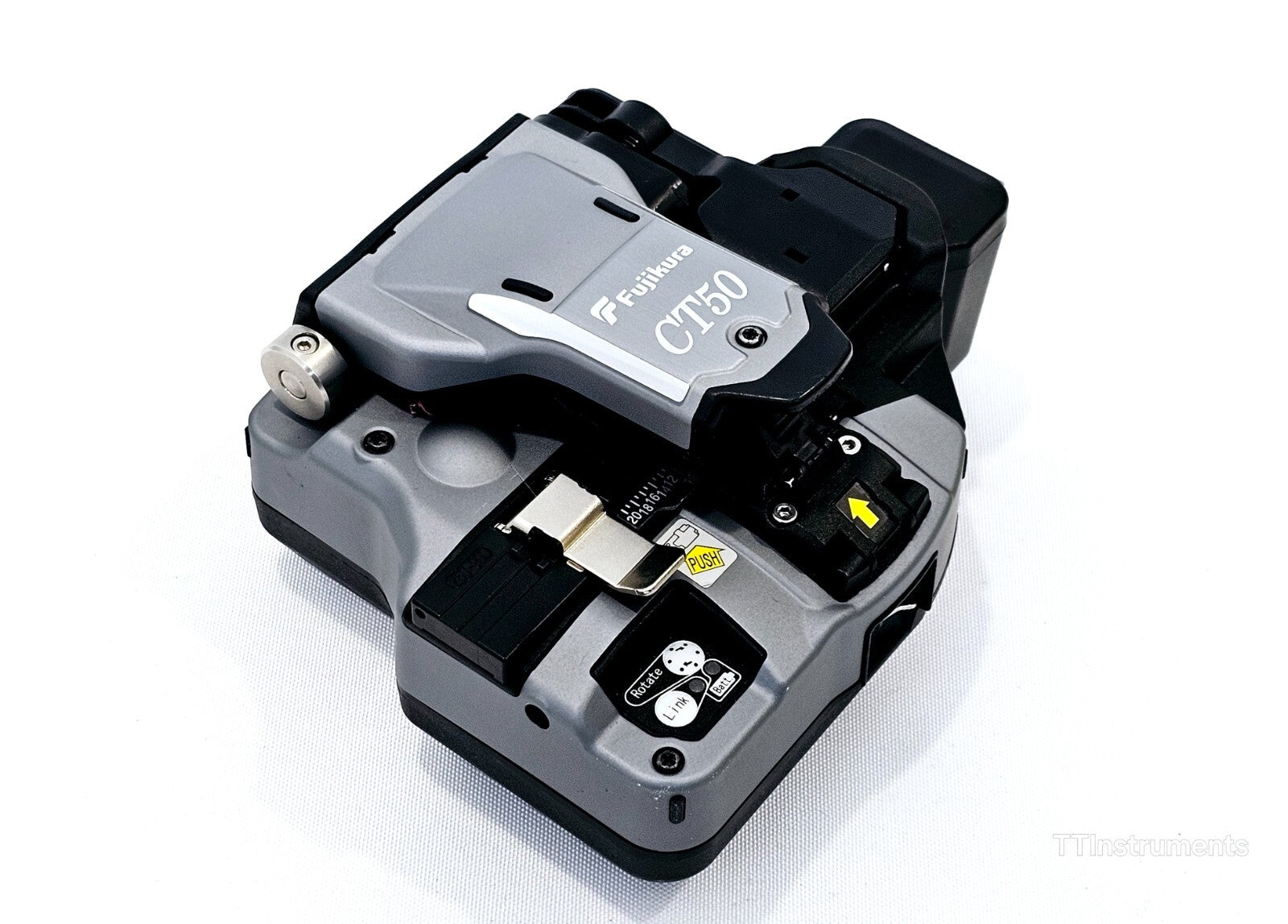

• Fujikura CT-50 High Precision Fiber Cleaver with AD50 guide plate + case and new blade
• AC Adapter/Charger (ADC-19A)
• Battery Pack
• Hard Carrying Case
• Alcohol Pot
• Work Tray

Designed for FTTx application, the 41S+ is our new active cladding alignment single fibre V-groove splicer, which takes a step beyond its predecessor with the inclusion of Active Fusion Control Technology and Active Blade Management Technology. These two proprietary Fujikura technologies allow customers to achieve more consistent and stable low-loss splicing, reducing the need for rework and re-splicing.

The 41S+ retains all the unique, class-leading features from the current high-performance flagship line-up of Fujikura splicers, including quick splice and heat times, fully ruggedized features, and user customizable settings. The 41S+ offers installers the convenience of a 5-inch colour touch-panel display and menu system but also maintains the traditional easy-to-use button navigation system. Convenience is further bolstered by the improved V-groove illumination and the benefit of easy splice protector positioning. The machine reassures users of reliable splice results using CORE loss estimation using Warm Image Splicing Technology.

Thanks to integrated Bluetooth connectivity, the 41S+ wirelessly connects to the CT50 fibre cleaver and enables a range of pioneering features that will improve the overall installation time, cost and efficiency for operators. The 41S+ also has the unique capability to estimate splice loss with greater accuracy, using its Core Loss Estimation Function.

The issue of poor fibre cleaving due to worn, incorrectly adjusted or damaged cleaver blades is conveniently dealt with. When the 41S+ detects a high cleave angle or bad end shape, it sends a blade position change instruction to the cleaver. The CT50 cleaver then rotates the cleaver blade automatically to the next position, restoring optimum cleaving performance.

By utilising the low radio power of Bluetooth technology, other equipment nearby will not be interfered with. Operators can benefit from the "always on" technology due to the low power consumption of the Bluetooth, which means that batteries can last for several months. In addition to cleave performance, the smart splicer can also wirelessly monitor the battery and power usage of the CT50 cleaver.

As the latest addition to the Fujikura splicing family, the 41S+ is flexible, smart and efficient and is therefore capable of making a huge difference to efficiency of users. The easy-to-handle and operate qualities of this splicer means quick and simple splicing, with performance never being compromised.

FIBRE ALIGNMENT METHOD Active clad alignment

SPLICEABLE FIBRE COUNT Single fibre

FIBRE TYPE Single mode and multimode optical fibre

CLADDING DIAMETER Approx. 125μm

SHEATH CLAMP COATING 3000μm maximum coating diameter

SHEATH CLAMP CLEAVE LENGTH 5mm - 16mm

ITU-T G.652 SPLICE LOSS Avg. 0.03dB

ITU-T G.651 SPLICE LOSS Avg. 0.01dB

ITU-T G.653 SPLICE LOSS Avg. 0.05dB

ITU-T G.655 SPLICE LOSS Avg. 0.05dB

ITU-T G.657 SPLICE LOSS Avg. 0.03dB

SM FAST MODE SPLICE TIME Avg. 6 to 7 seconds

PROTECTION SLEEVE TYPE Heat-shrinkable sleeve

SLEEVE LENGTH Max. 66mm

SLEEVE DIAMETER Max. 6mm before shrinking

60MM MODE HEAT TIME Avg. 25 to 27 seconds

FIBRE TENSILE TEST FORCE Approx 2.0N

ELECTRODE LIFE Approx. 5000 splices

WIDTH Approx. 131mm without projection

DEPTH Approx. 201mm without projection

HEIGHT Approx. 79mm without projection

WEIGHT Approx. 1.3kg including battery

OPERATING TEMPERATURE -10 to 50 °C

STORAGE TEMPERATURE -40 to 80 °C

OPERATING HUMIDITY 0 to 95% RH non-condensing

OPERATING ALTITUDE Max. 5000m

AC ADAPTOR INPUT AC100 to 240V, 50/60Hz, Max. 1.5A

BATTERY TYPE Rechargeable Lithium Ion

BATTERY OUTPUT Approx. DC14.4V, 3,190mAh

BATTERY CAPACITY Approx. 200 splice and heat cycles

BATTERY RECHARGE TEMPERATURE RANGE 0 to 40 °C

BATTERY STORAGE TEMPERATURE -20 to 30 °C

BATTERY LIFE Approx. 500 recharge cycles

LCD DISPLAY 4.9 inch TFT colour touch screen

DISPLAY MAGNIFICATION Approx. 132x - 300x

V-GROOVE ILLUMINATION LED lamp

PC INTERFACE USB 2.0 Mini B connector

EXTERNAL LED LAMP INTERFACE USB 2.0 A connector Approx. DC5V, 500mA

WIRELESS CONNECTIVITY Bluetooth 4.1 LE

SPLICE MODE DATA STORAGE 100 splice modes

HEAT MODE DATA STORAGE 30 heat modes

SPLICE RESULT DATA STORAGE 10000 splices

SPLICE IMAGE DATA STORAGE 100 images

TRIPOD SCREW HOLE 1/4-20UNC

AUTOMATIC FUNCTIONS Fusion control

REFERENCE GUIDE PDF file stored in splicer

SHEATH CLAMP Easy sleeve positioning clamp

ELECTRODE Replaceable without tools
