Condition: Refurbished

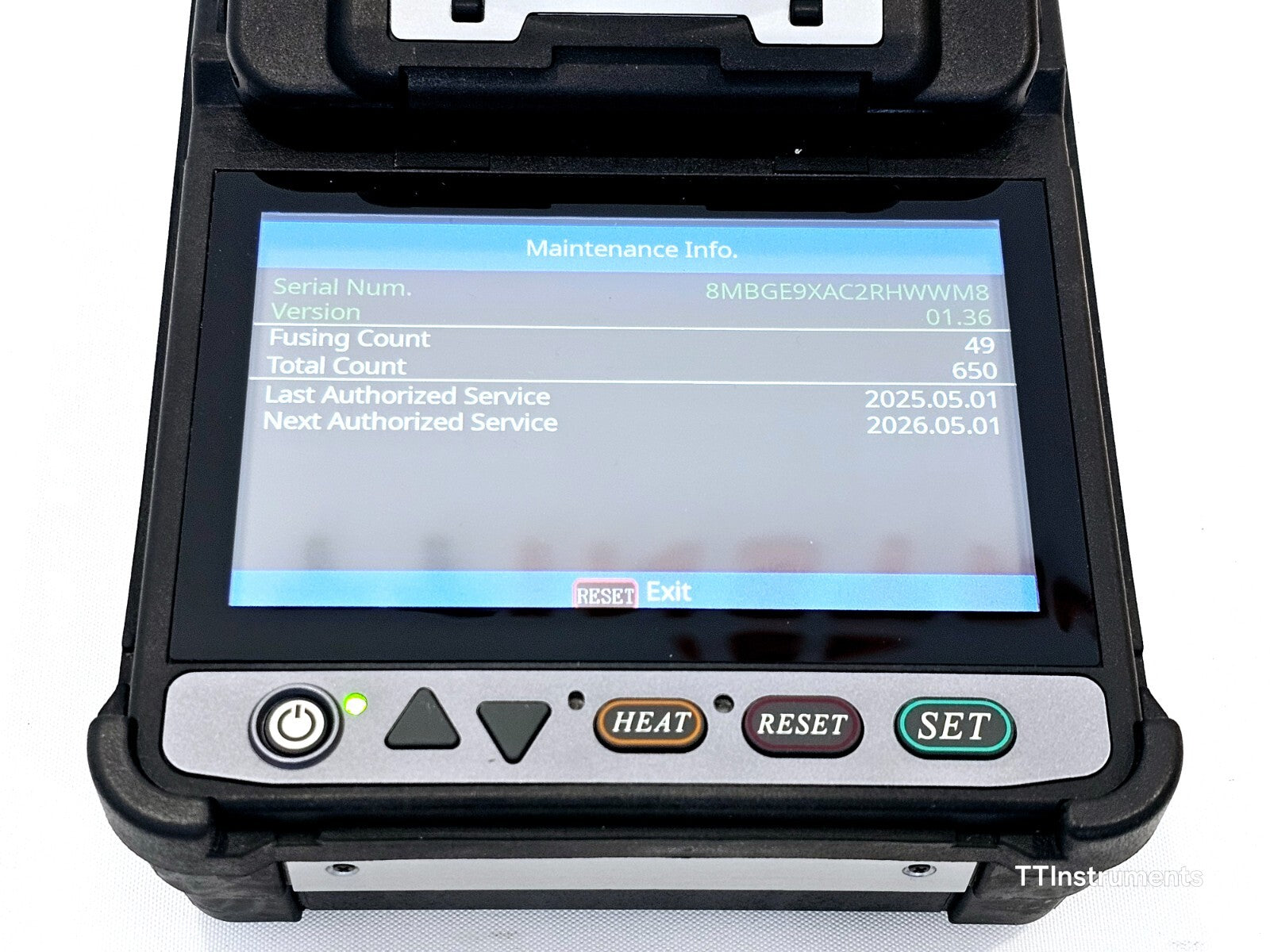

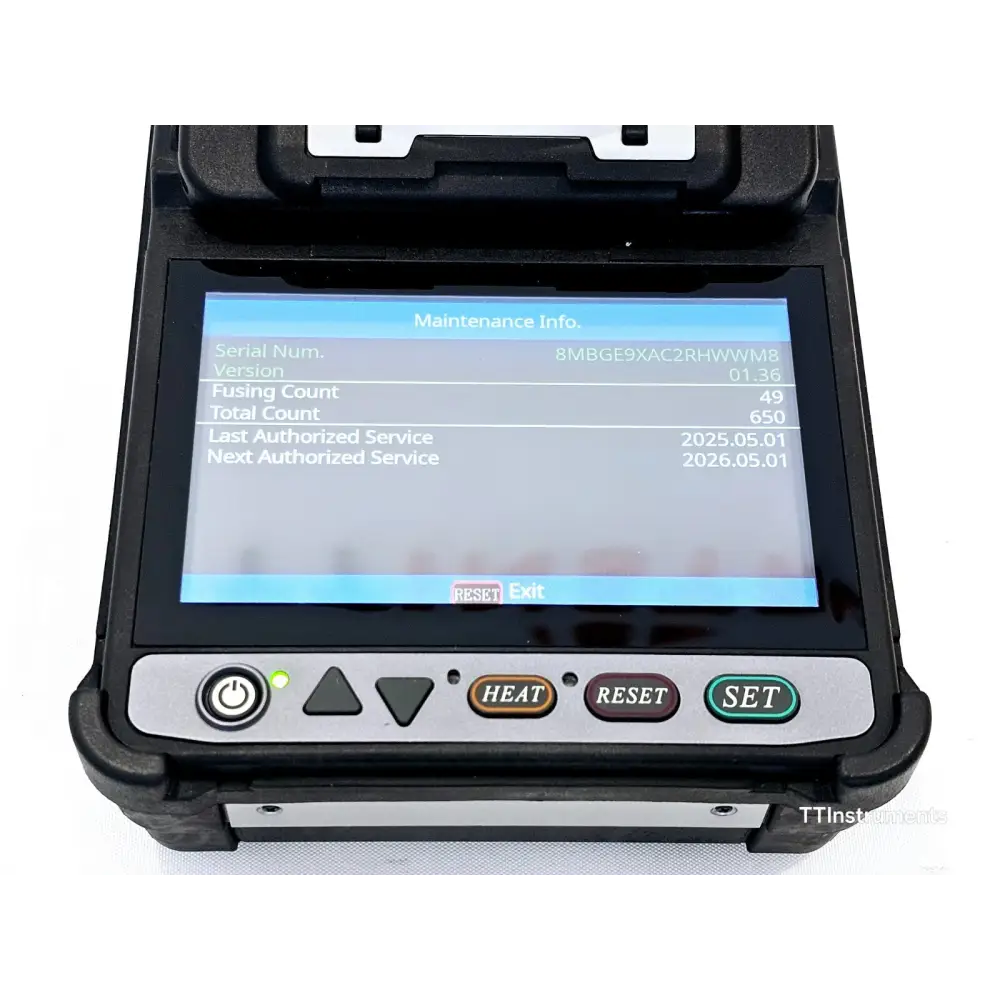

This Fujikura 41S+ active cladding fusion splicer has been cleaned and serviced by an approved service centre in May 2025, with an ARC count of 650. The battery is included and holds its charge. This is an EU licensed model, supplied with new electrodes and a new CT-50 cleaver blade.

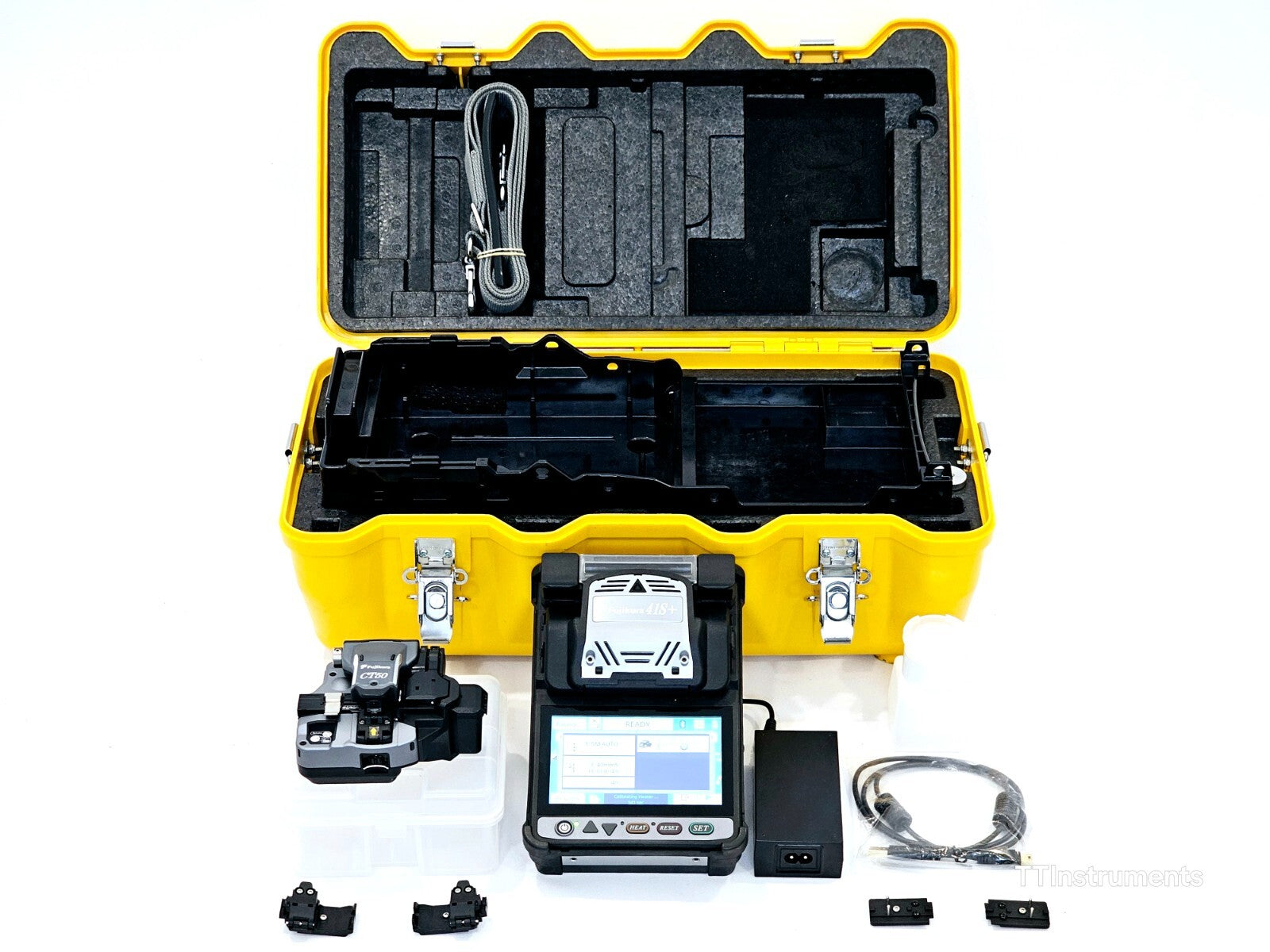

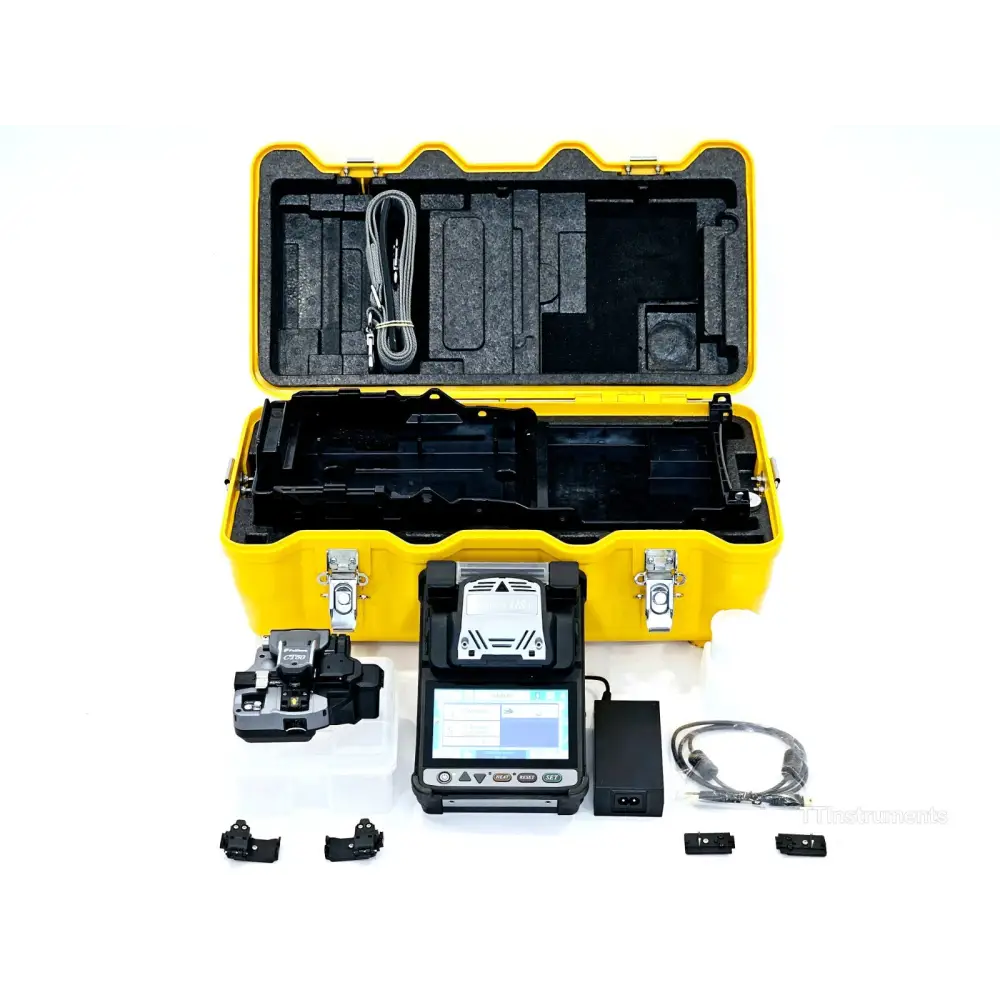

Included in the sale:
• Fujikura 41S+ SM/MM Active Cladding Fusion Splicer with clamps (ARC count 650) and new electrodes
• Fujikura CT-50 High Precision Fibre Cleaver with AD50 guide plate, case, and new blade
• AC Adapter/Charger (ADC-19A)
• Battery Pack
• Hard Carrying Case
• Alcohol Pot
• Work Tray

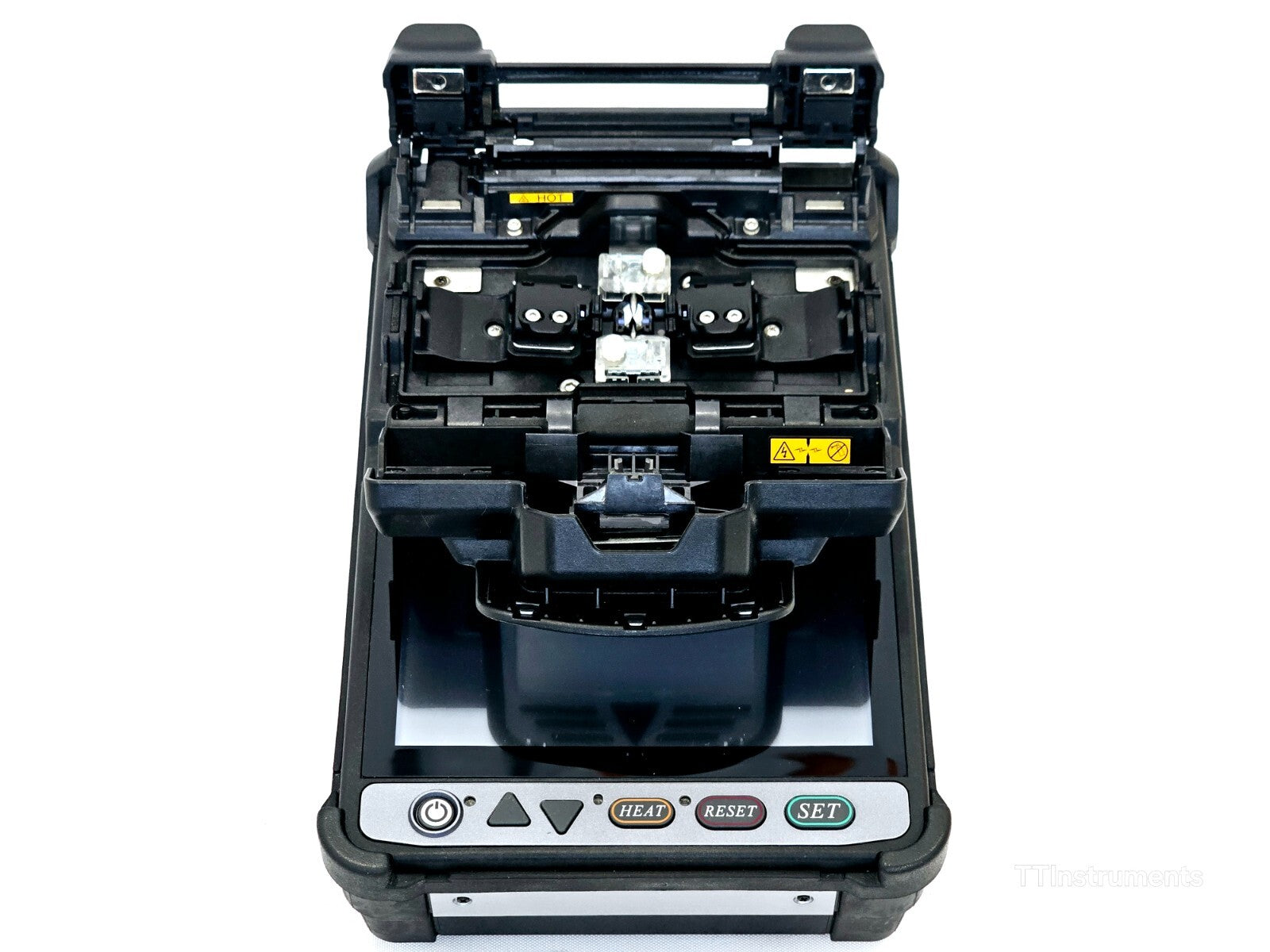

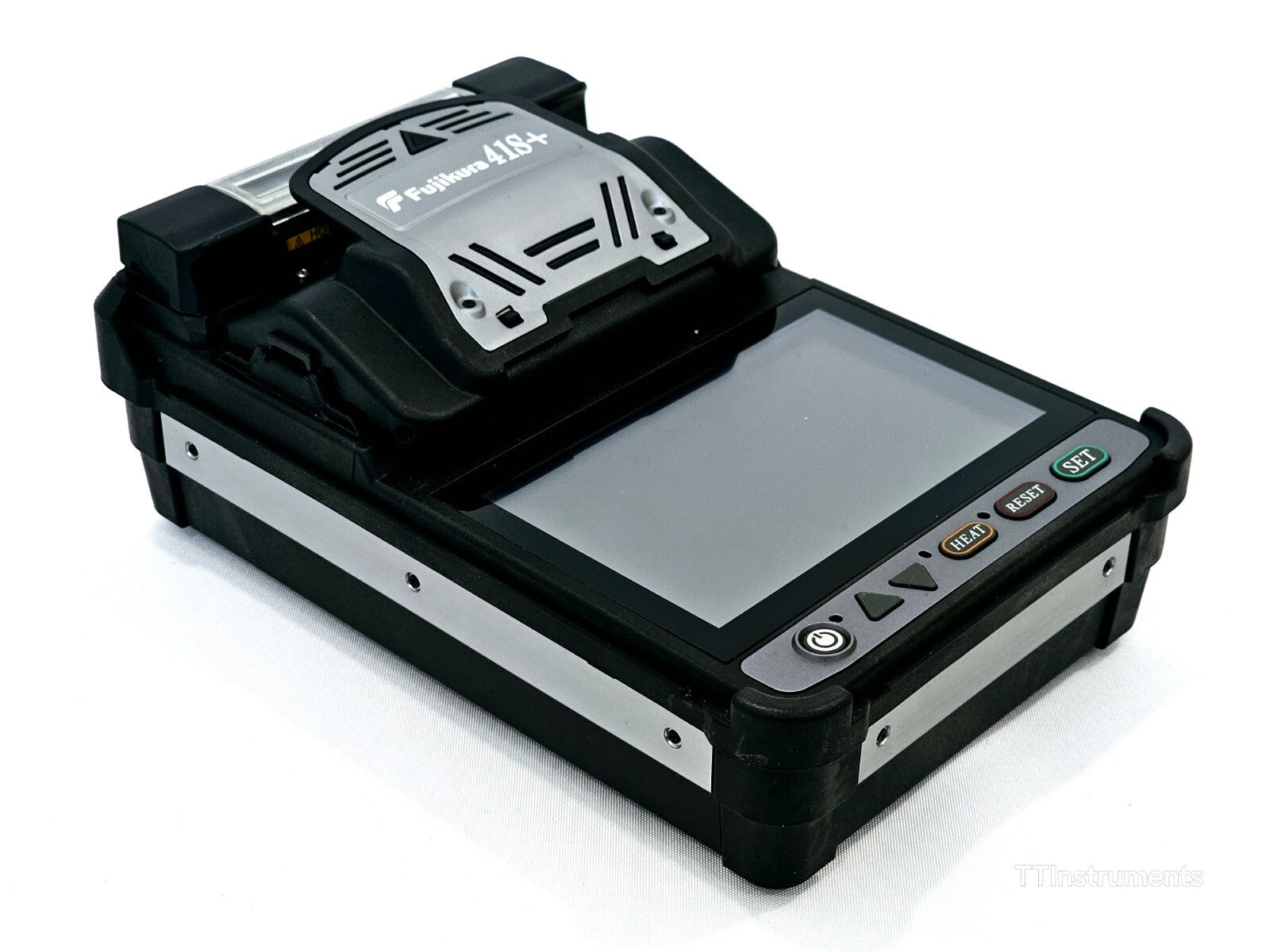

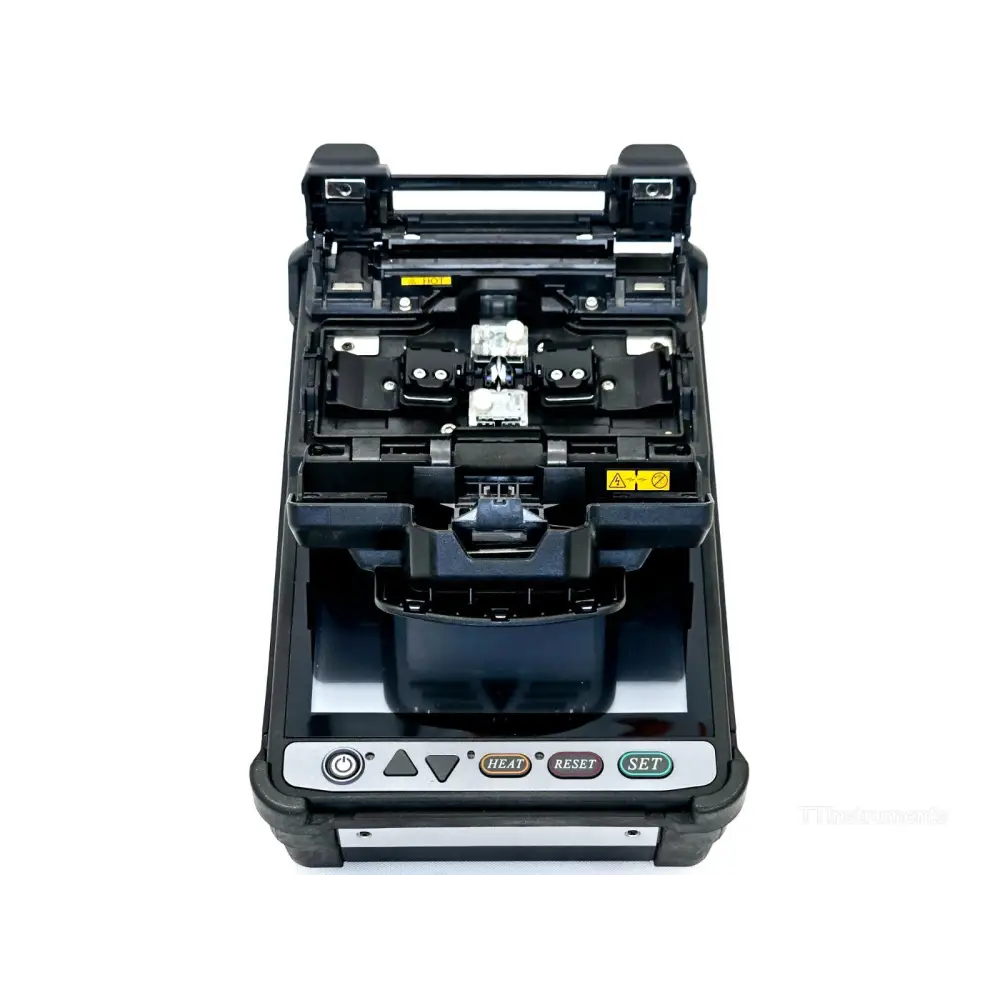

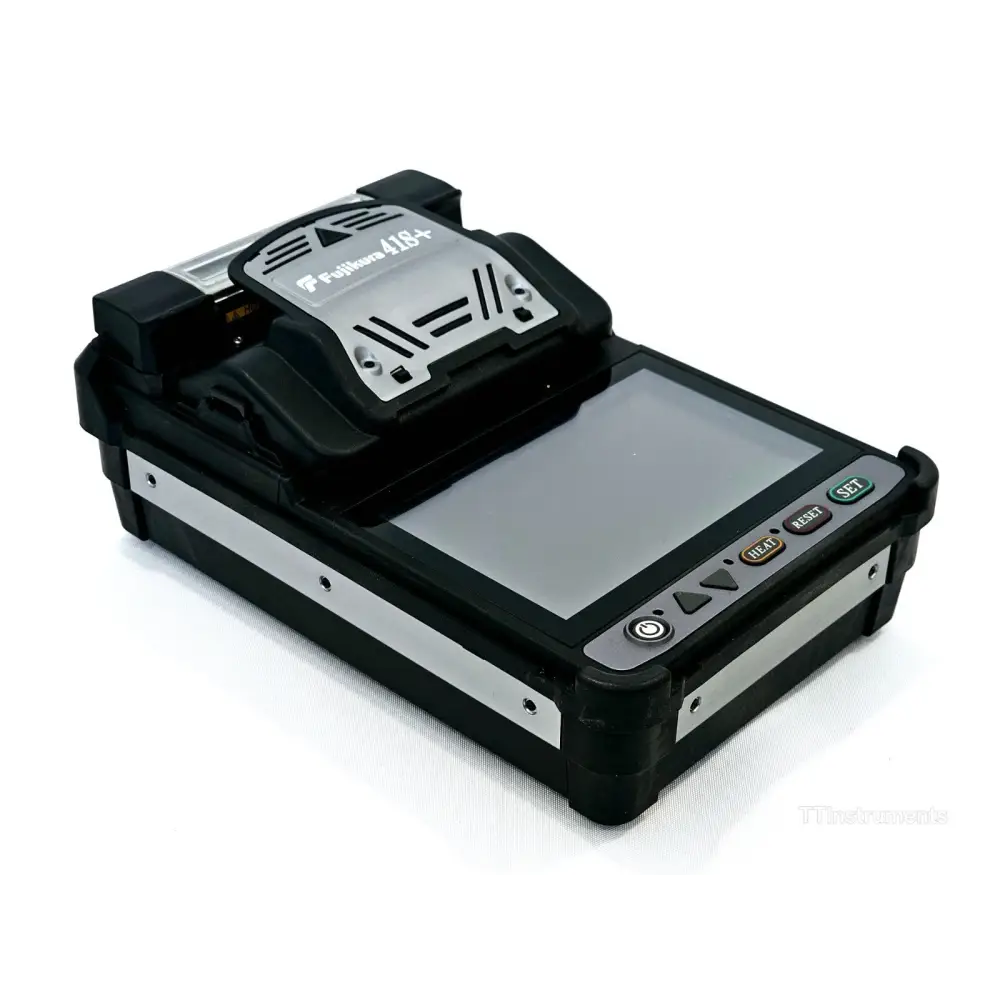

The Fujikura 41S+ is a fully ruggedised, two-camera, active cladding alignment fusion splicer designed for FTTx and broadband fibre installation applications. It features Active Fusion Control (AFC) technology and Active Blade Management (ABM) technology, delivering more consistent, stable, low-loss splicing and reducing the need for rework and re-splicing. Warm Splice Imaging (WSI) enables core loss estimation by observing fibre alignment during the heating process, providing greater accuracy than cladding-only alignment systems. Bluetooth connectivity links the 41S+ to the CT-50 fibre cleaver, enabling automatic blade rotation when worn cleave angles or bad end shapes are detected. The splicer features a 5-inch colour touch-panel display alongside traditional button navigation, improved V-groove illumination, easy splice protector positioning, and fully interchangeable sheath clamps and fibre holders.

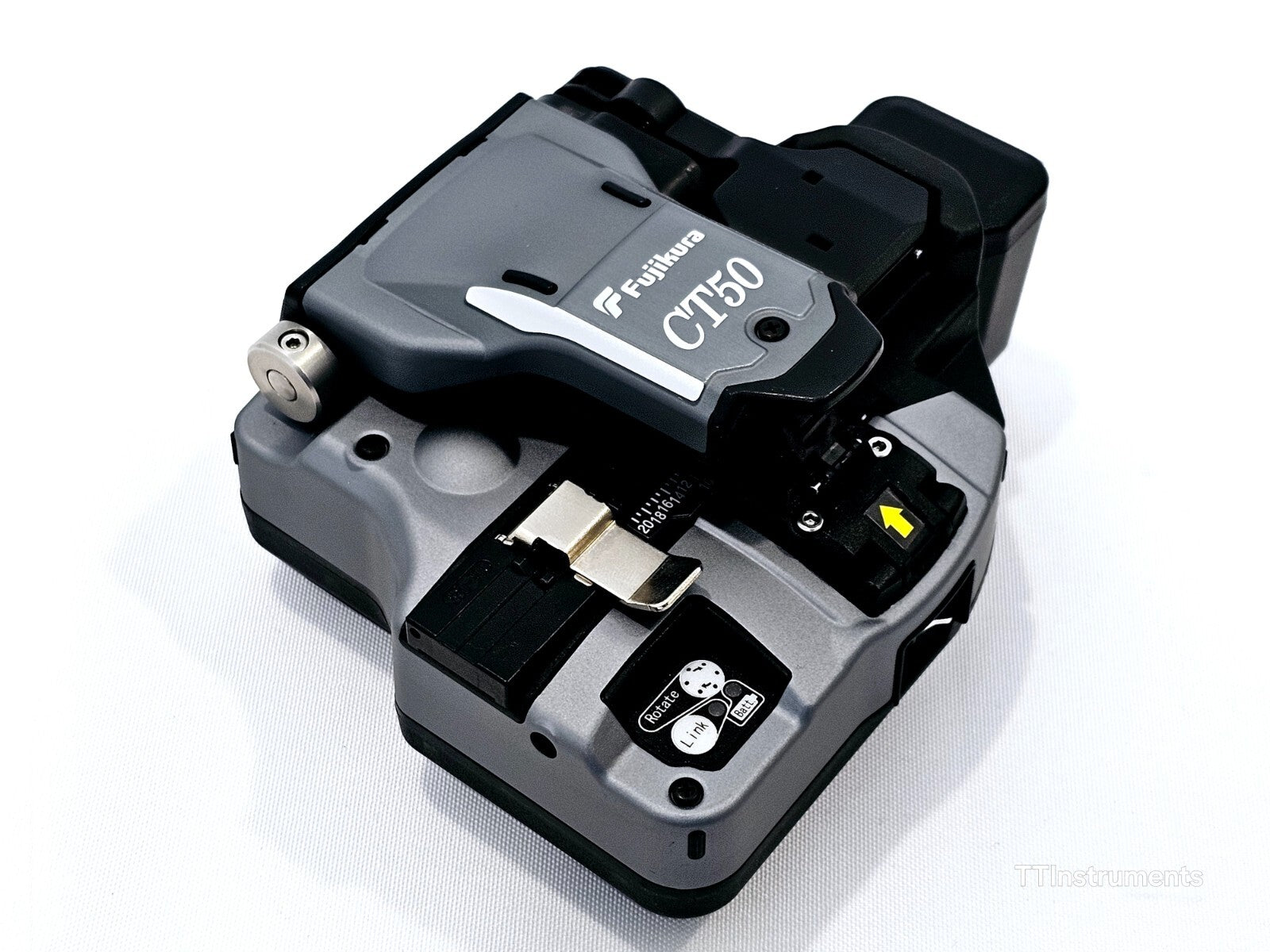

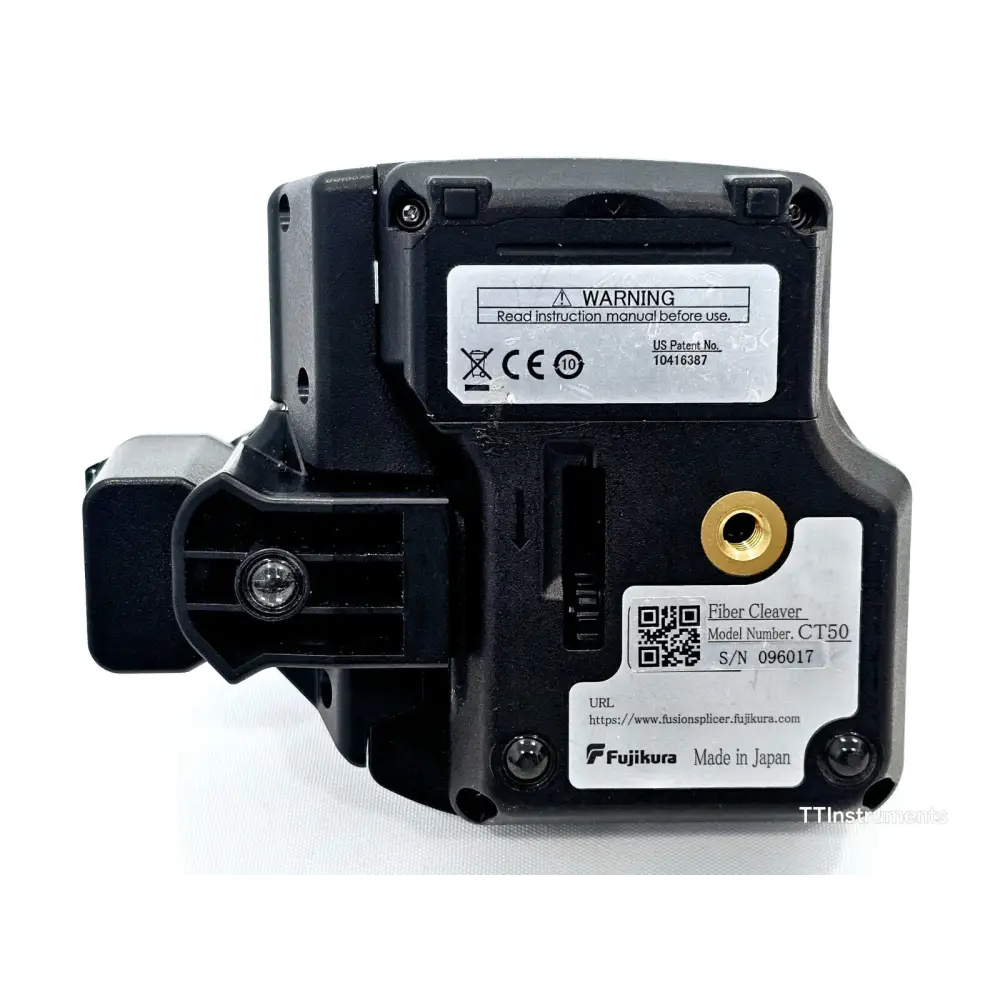

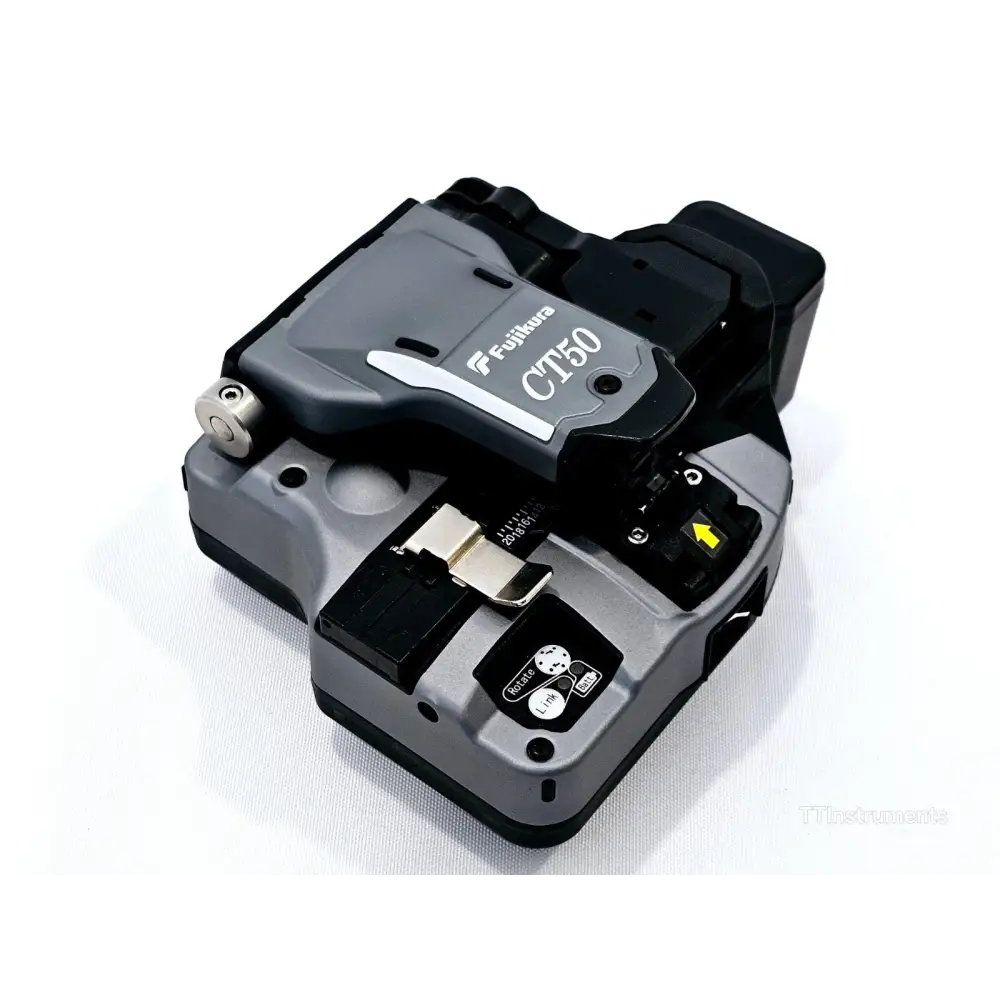

The Fujikura CT-50 is a high-precision, ruggedised fibre cleaver with automated Bluetooth blade rotation. Its 16-position blade supports up to 60,000 single-fibre cleaves or 5,000 12-fibre ribbon cleaves. The cleaver is field-serviceable and withstands drops of up to 76 cm (30 inches) in all directions.

— Fujikura 41S+ Specifications —
Alignment Method: Active cladding alignment (V-groove), dual camera
Applicable Fibre: Single-mode and multimode silica optical fibre
Coating Diameter: Max. 3,000 µm
Splice Loss (ITU-T G.652): Avg. 0.03 dB
Splice Loss (ITU-T G.651): Avg. 0.01 dB
Splice Loss (ITU-T G.653): Avg. 0.05 dB
Splice Loss (ITU-T G.655): Avg. 0.05 dB
Splice Loss (ITU-T G.657): Avg. 0.03 dB
Splice Time (SM FAST mode): Avg. 6 seconds
Splice Time (AUTO mode): Avg. 9 seconds
Shrink Time: Avg. 25 seconds
Heat Sleeve Diameter: Max. 6 mm (before shrinking)
Tension Test Force: Approx. 2.0 N
Electrode Life: Approx. 5,000 splices
Battery Life: Approx. 200 splice and heat cycles
Battery: DC 14.4 V, 3,360 mAh
AC Power Input: AC 100–240 V, 50/60 Hz, Max. 1 A
Weight: Approx. 1.3 kg (including battery)
Max. Operating Altitude: 5,000 m
Connectivity: Bluetooth 4.1 LE
Display: 5-inch colour touchscreen

— Fujikura CT-50 Specifications —
Applicable Fibre: Silica optical fibre, single and ribbon (up to 12 fibre)
Cleave Length (single fibre, AD-50): 5–20 mm
Cleave Length (ribbon fibre): Approx. 10 mm (with FH holders)
Cleave Angle: Typically <0.5°
Blade Life: Approx. 60,000 single-fibre cleaves (5,000 12-fibre ribbon cleaves)
Blade Positions: 16 positions, 3 height settings
Blade Rotation: Automatic via Bluetooth or manual (no tools required)
Shock Resistance: 76 cm (30 inch) drop, all directions
Dimensions (W x D x H): 120 mm x 95 mm x 58 mm
Weight: Approx. 305 g (including battery and AD-10-M24)
Connectivity: Bluetooth (wireless communication with compatible Fujikura splicers)

Fujikura 41S+ Fusion Splicer Specification Sheet (AFL): Download PDF

Fujikura 41S+ Fusion Splicer Datasheet (PSI): Download PDF

Fujikura 41S+ Fusion Splicer Datasheet (Fiberdyne): Download PDF

Fujikura 41S Smart Management Kit Brochure (Fujikura official): Download PDF

Fujikura CT-50 Fibre Cleaver Specification Sheet (Fiber Instrument Sales): Download PDF

Fujikura CT-50 Fibre Cleaver Datasheet (Simbol): Download PDF

Fujikura CT-50 Fibre Cleaver Datasheet (HellermannTyton): Download PDF

Fujikura 41S Instruction Manual (ManualsLib): Download PDF
