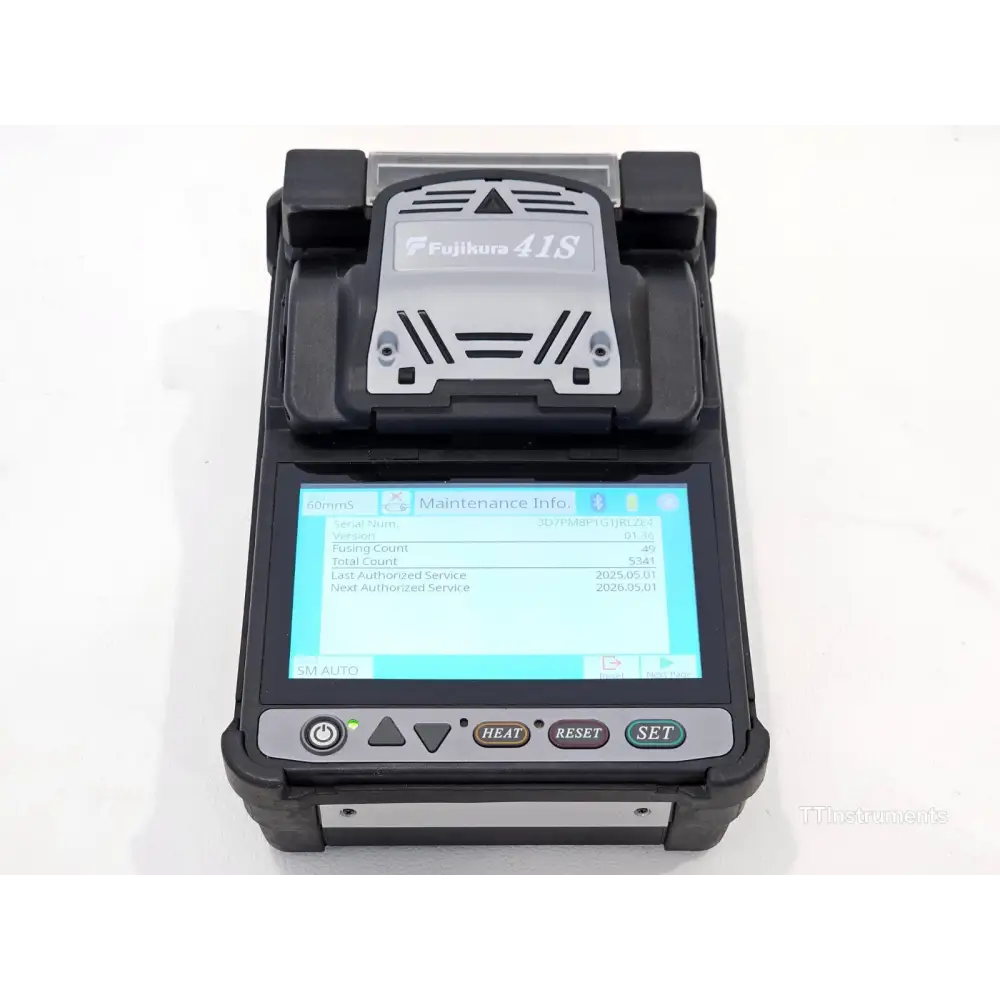

ARC Count 5341.

Note the pictures are of actual product. See description below of what is included.

This item has been cleaned and serviced by an approved service center in May 2025.

Battery is included and holds its charge.

This is an EU licensed model.

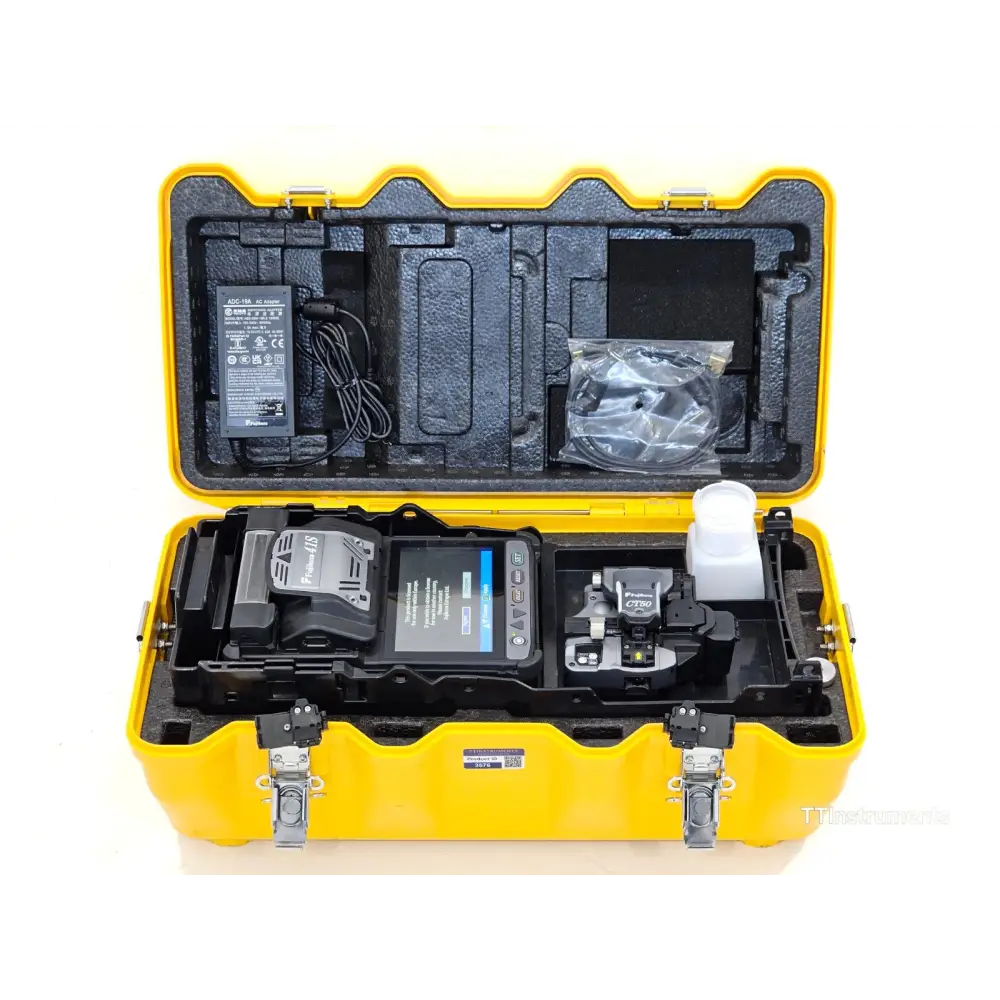

Included in the sale:

• Fujikura 41S SM MM Active Cladding Fusion Splicer (ARC count 5341) With New Electrodes

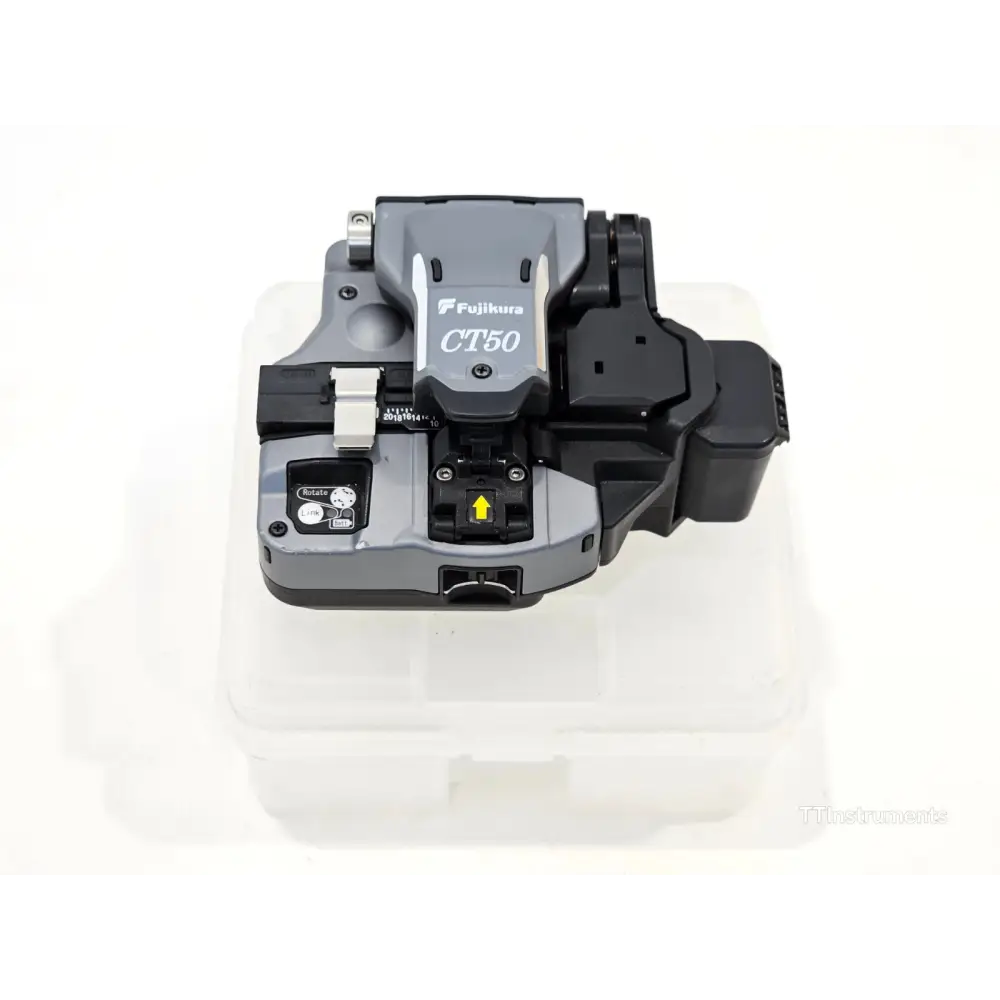

• Fujikura CT-50 High Precision Fiber Cleaver with AD50 guide plate + Case and New Blade
• AC Adapter/Charger (ADC-19A)
• Battery Pack
• Hard Carrying Case
• Alcohol Pot
• Work Tray

Designed for FTTx application, the 41S+ is our new active cladding alignment single fibre V-groove splicer, which takes a step beyond its predecessor with the inclusion of Active Fusion Control Technology and Active Blade Management Technology. These two proprietary Fujikura technologies allow customers to achieve more consistent and stable low-loss splicing, reducing the need for rework and re-splicing.

The 41S+ retains all the unique, class-leading features from the current high-performance flagship line-up of Fujikura splicers, including quick splice and heat times, fully ruggedized features, and user customizable settings. The 41S+ offers installers the convenience of a 5-inch colour touch-panel display and menu system but also maintains the traditional easy-to-use button navigation system. Convenience is further bolstered by the improved V-groove illumination and the benefit of easy splice protector positioning. The machine reassures users of reliable splice results using CORE loss estimation using Warm Image Splicing Technology.

Thanks to integrated Bluetooth connectivity, the 41S+ wirelessly connects to the CT50 fibre cleaver and enables a range of pioneering features that will improve the overall installation time, cost and efficiency for operators. The 41S+ also has the unique capability to estimate splice loss with greater accuracy, using its Core Loss Estimation Function.

The issue of poor fibre cleaving due to worn, incorrectly adjusted or damaged cleaver blades is conveniently dealt with. When the 41S+ detects a high cleave angle or bad end shape, it sends a blade position change instruction to the cleaver. The CT50 cleaver then rotates the cleaver blade automatically to the next position, restoring optimum cleaving performance.

By utilising the low radio power of Bluetooth technology, other equipment nearby will not be interfered with. Operators can benefit from the "always on" technology due to the low power consumption of the Bluetooth, which means that batteries can last for several months. In addition to cleave performance, the smart splicer can also wirelessly monitor the battery and power usage of the CT50 cleaver.

As the latest addition to the Fujikura splicing family, the 41S+ is flexible, smart and efficient and is therefore capable of making a huge difference to efficiency of users. The easy-to-handle and operate qualities of this splicer means quick and simple splicing, with performance never being compromised.

Specifications

• Fibre Alignment Method: Active clad alignment

• Spliceable Fibre Count: Single fibre

• Fibre Type: Single mode and multimode optical fibre

• Cladding Diameter: Approx. 125 μm

• Sheath Clamp Coating: 3000 μm maximum coating diameter

• Sheath Clamp Cleave Length: 15 mm – 16 mm

• ITU-T G.652 Splice Loss: Avg. 0.03 dB

• ITU-T G.651 Splice Loss: Avg. 0.01 dB

• ITU-T G.653 Splice Loss: Avg. 0.05 dB

• ITU-T G.655 Splice Loss: Avg. 0.05 dB

• ITU-T G.657 Splice Loss: Avg. 0.03 dB

• SM Fast Mode Splice Time: Avg. 6 to 7 seconds

• Protection Sleeve Type: Heat-shrinkable sleeve

• Sleeve Length: Max. 66 mm

• Sleeve Diameter: Max. 6 mm before shrinking

• 60mm Mode Heat Time: Avg. 25 to 27 seconds

• Fibre Tensile Test Force: Approx. 2.0 N

• Electrode Life: Approx. 5000 splices

• Width: Approx. 131 mm (without projection)

• Depth: Approx. 201 mm (without projection)

• Height: Approx. 79 mm (without projection)

• Weight: Approx. 1.3 kg (including battery)

• Operating Temperature: -10 to 50 °C

• Storage Temperature: -40 to 80 °C

• Operating Humidity: 0 to 95% RH (non-condensing)

• Operating Altitude: Max. 5000 m

• AC Adaptor Input: AC100 to 240V, 50/60Hz, Max. 1.5A

• Battery Type: Rechargeable Lithium Ion

• Battery Output: Approx. DC14.4V, 3,190 mAh

• Battery Capacity: Approx. 200 splice and heat cycles

• Battery Recharge Temperature Range: 0 to 40 °C

• Battery Storage Temperature: -20 to 30 °C

• Battery Life: Approx. 500 recharge cycles

• LCD Display: 4.9 inch TFT colour touch screen

• Display Magnification: Approx. 132× – 300×

• V-Groove Illumination: LED lamp

• PC Interface: USB 2.0 Mini B connector

• External LED Lamp Interface: USB 2.0 A connector, Approx. DC5V, 500mA

• Wireless Connectivity: Bluetooth 4.1 LE

• Splice Mode Data Storage: 100 splice modes

• Heat Mode Data Storage: 30 heat modes

• Splice Result Data Storage: 10,000 splices

• Splice Image Data Storage: 100 images

• Tripod Screw Hole: 1/4-20 UNC

• Automatic Functions: Fusion control

• Reference Guide: PDF file stored in splicer

• Sheath Clamp: Easy sleeve positioning clamp

• Electrode: Replaceable without tools
