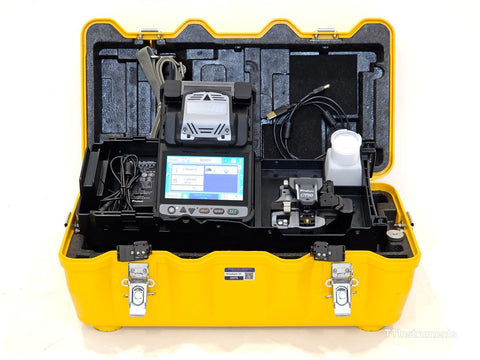

Designed for FTTx application, the 41S+ is our new active cladding alignment single fibre V-groove splicer, which takes a step beyond its predecessor with the inclusion of Active Fusion Control Technology and Active Blade Management Technology. These two proprietary Fujikura technologies allow customers to achieve more consistent and stable low-loss splicing, reducing the need for rework and re-splicing.

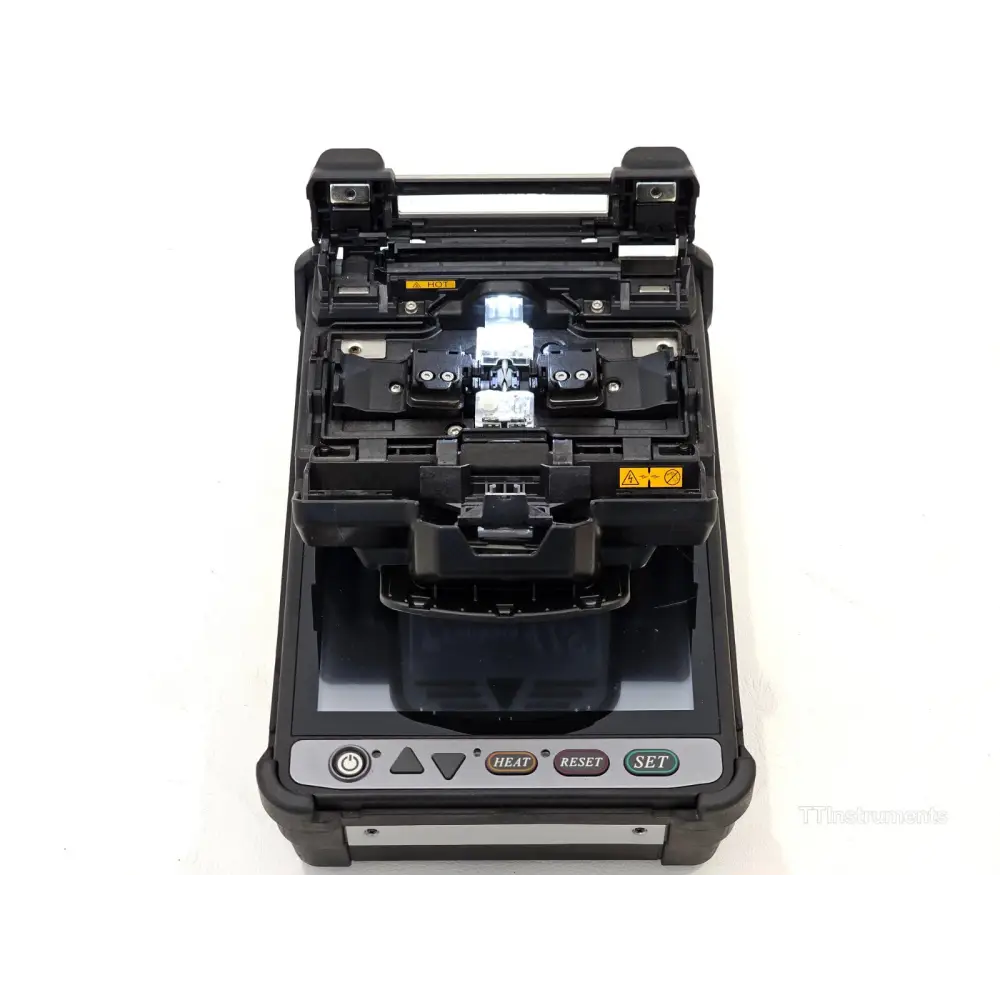

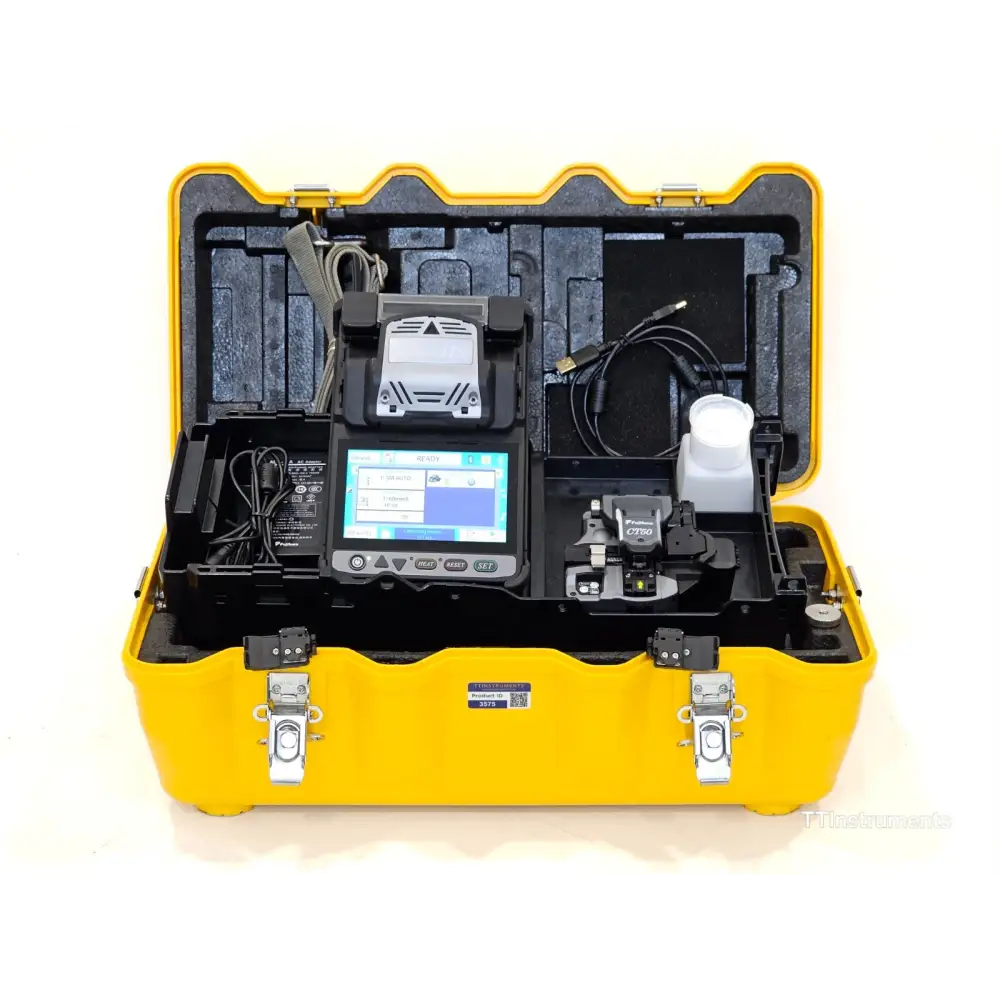

The 41S+ retains all the unique, class-leading features from the current high-performance flagship line-up of Fujikura splicers, including quick splice and heat times, fully ruggedized features, and user customizable settings. The 41S+ offers installers the convenience of a 5-inch colour touch-panel display and menu system but also maintains the traditional easy-to-use button navigation system. Convenience is further bolstered by the improved V-groove illumination and the benefit of easy splice protector positioning. The machine reassures users of reliable splice results using CORE loss estimation using Warm Image Splicing Technology.
Thanks to integrated Bluetooth connectivity, the 41S+ wirelessly connects to the CT50 fibre cleaver and enables a range of pioneering features that will improve the overall installation time, cost and efficiency for operators. The 41S+ also has the unique capability to estimate splice loss with greater accuracy, using its Core Loss Estimation Function.

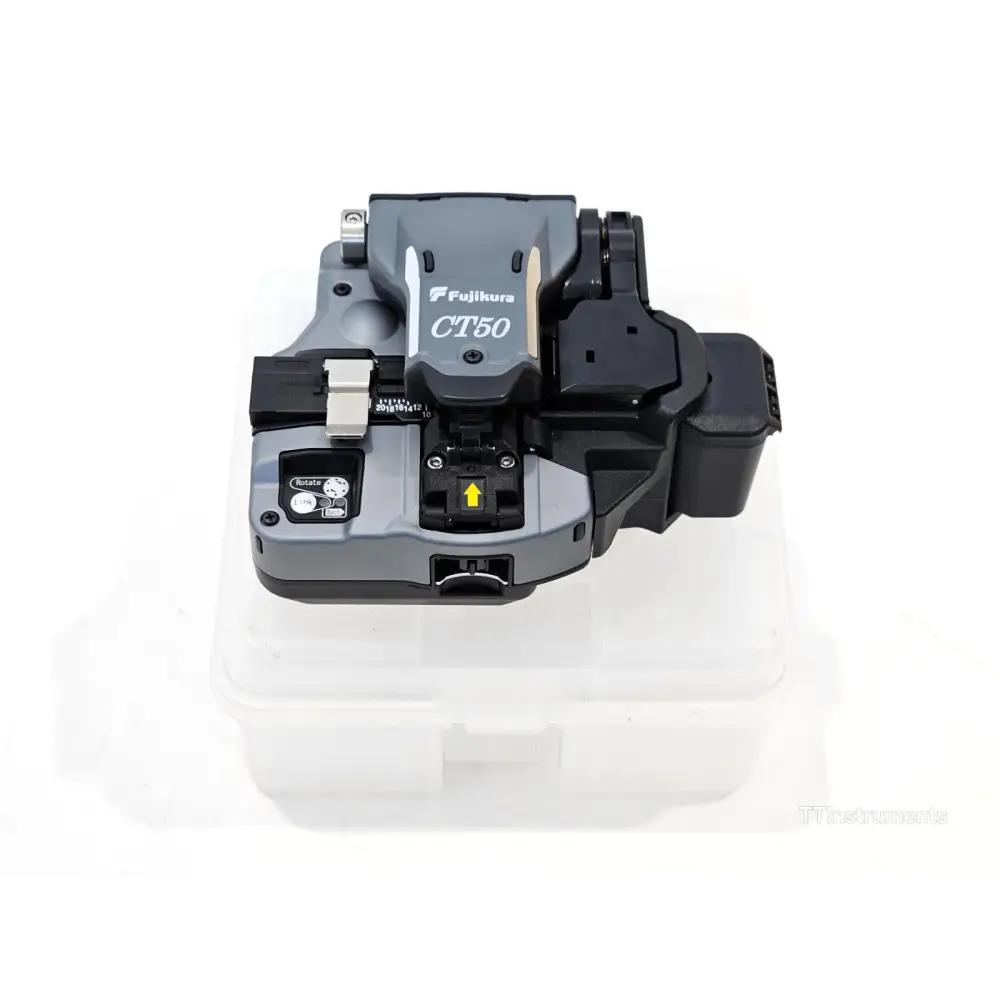

The issue of poor fibre cleaving due to worn, incorrectly adjusted or damaged cleaver blades is conveniently dealt with. When the 41S+ detects a high cleave angle or bad end shape, it sends a blade position change instruction to the cleaver. The CT50 cleaver then rotates the cleaver blade automatically to the next position, restoring optimum cleaving performance.
By utilising the low radio power of Bluetooth technology, other equipment nearby will not be interfered with. Operators can benefit from the "always on" technology due to the low power consumption of the Bluetooth, which means that batteries can last for several months. In addition to cleave performance, the smart splicer can also wirelessly monitor the battery and power usage of the CT50 cleaver.
As the latest addition to the Fujikura splicing family, the 41S+ is flexible, smart and efficient and is therefore capable of making a huge difference to efficiency of users. The easy-to-handle and operate qualities of this splicer means quick and simple splicing, with performance never being compromised.
Specifications
MODEL: 41S
APPLICABLE FIBERS: Single-mode (G.652 & G.657), Multimode (G.651), DSF (G.653), NZDS (G.655)
CLADDING DIAMETER: 125 μm
COATING DIAMETER: 250 μm up to 3 mm
FIBER CLEAVE LENGTH: 5 mm to 16 mm
TYPICAL AVERAGE SPLICE LOSS: 0.03 dB (SM), 0.01 dB (MM), 0.05 dB (DS), 0.05 dB (NZDS)
SPLICING TIME: Typical 6 sec with SM
ARC CALIBRATION METHOD: Automatic, real-time, previous splice-based in AUTO mode, manual calibration available
SPLICING MODES: Total 100 splice modes
SPLICE LOSS ESTIMATE: Cladding or core alignment based on user-selected method
STORAGE OF SPLICE RESULT: 10,000 splice results

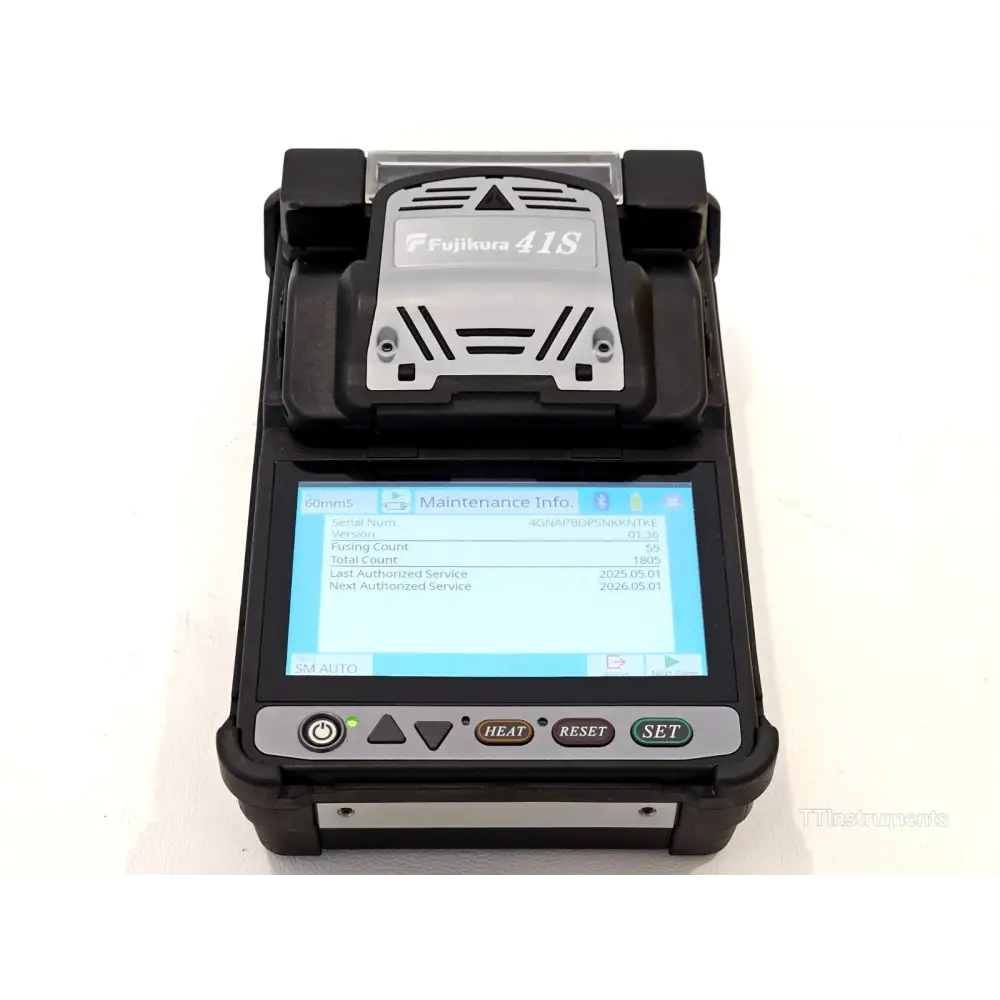

FIBER DISPLAY: 5 inch TFT colour LCD; X or Y view or both simultaneously
MAGNIFICATION: 200X (single-camera), 132X (dual-camera)
VIEWING METHOD: 2-axis CMOS camera
OPERATING CONDITION: Altitude 0–5,000 m; Temperature -10° to +50° C; Humidity 0–95% RH (non-dew)
MECHANICAL PROOF TEST: 1.96 N
TUBE HEATER: 30 heating modes
TUBE HEATING TIME: Typical 25 sec with FP-60 (60 mm sleeve)
PROTECTION SLEEVE LENGTH: 60 mm, 40 mm, micro
SPLICE/HEAT CYCLES WITH BATTERY: Typical 200 cycles with BTR-11
ELECTRODE LIFE: 5,000 splices
POWER SUPPLY: Auto-select 100 V–240 V AC adapter, 14.8 V DC with battery
TERMINALS: USB 2.0
WIND PROTECTION: Max wind velocity 15 m/s (34 mph)
DIMENSIONS: 131 × 201 × 79 mm
WEIGHT: 1,300 g (2.85 lbs) with battery
