Condition: Refurbished

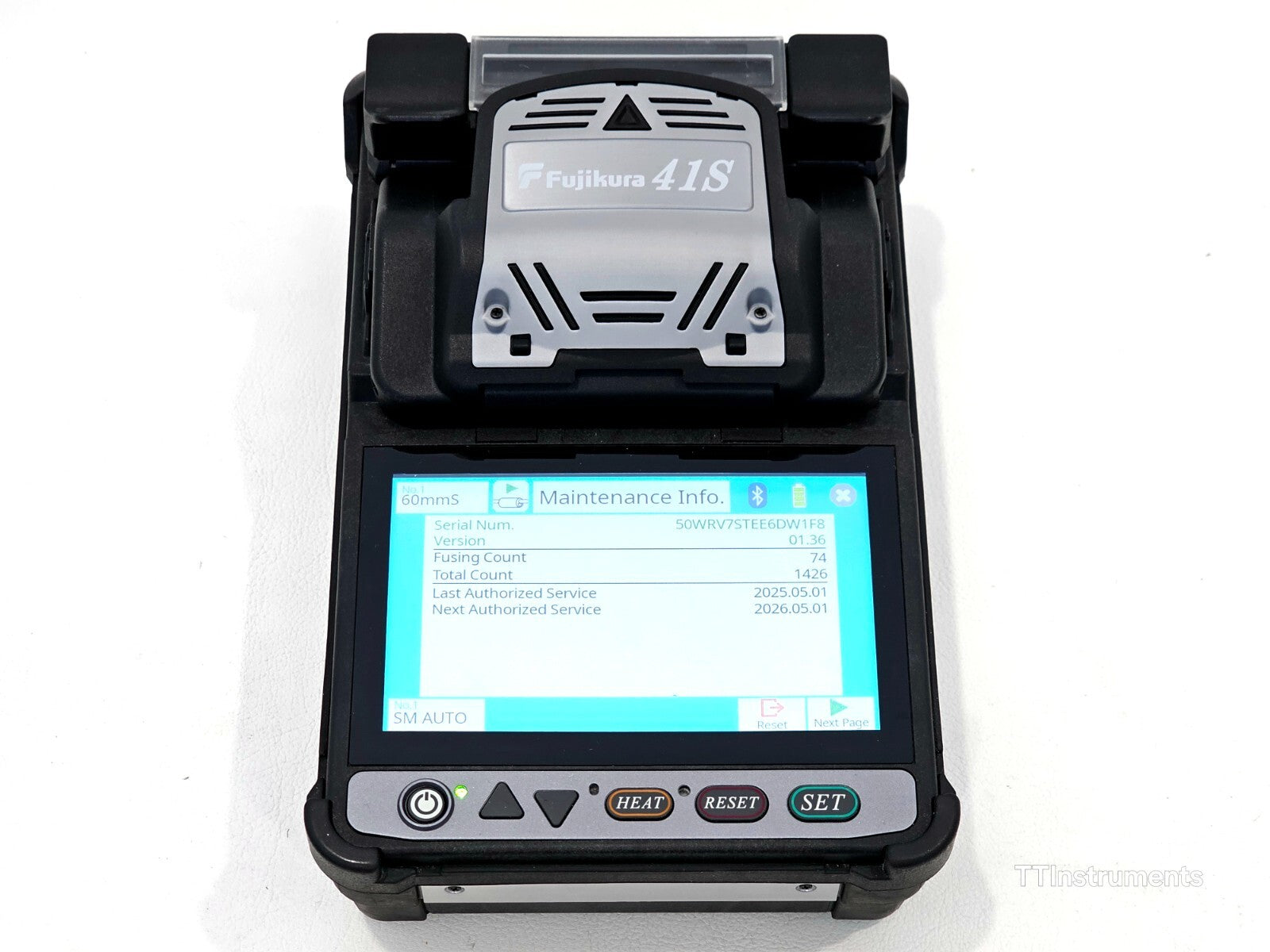

This Fujikura 41S Active Cladding Fusion Splicer carries an ARC count of 1,426 and has been professionally cleaned and serviced by an approved service centre in May 2025. The battery is included and holds its charge. This is an EU licensed model.

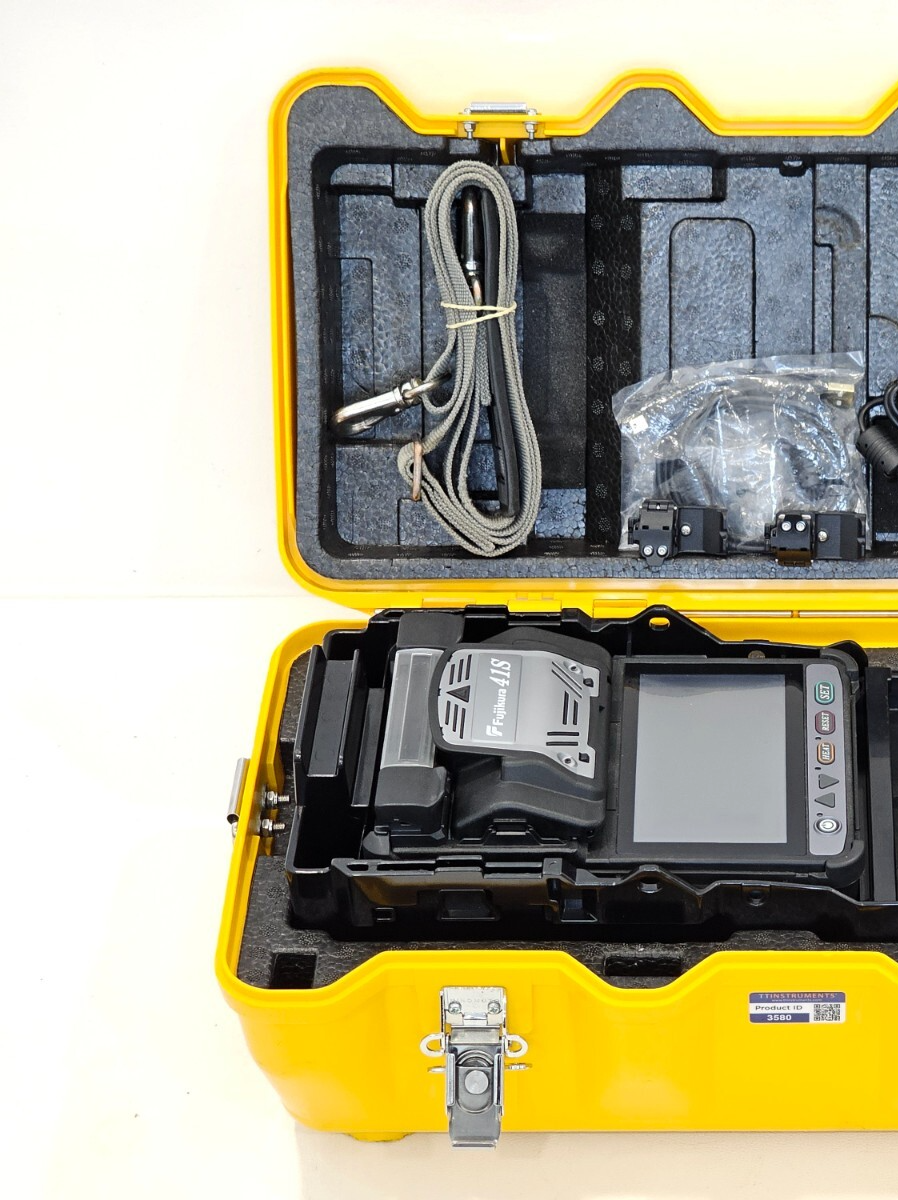

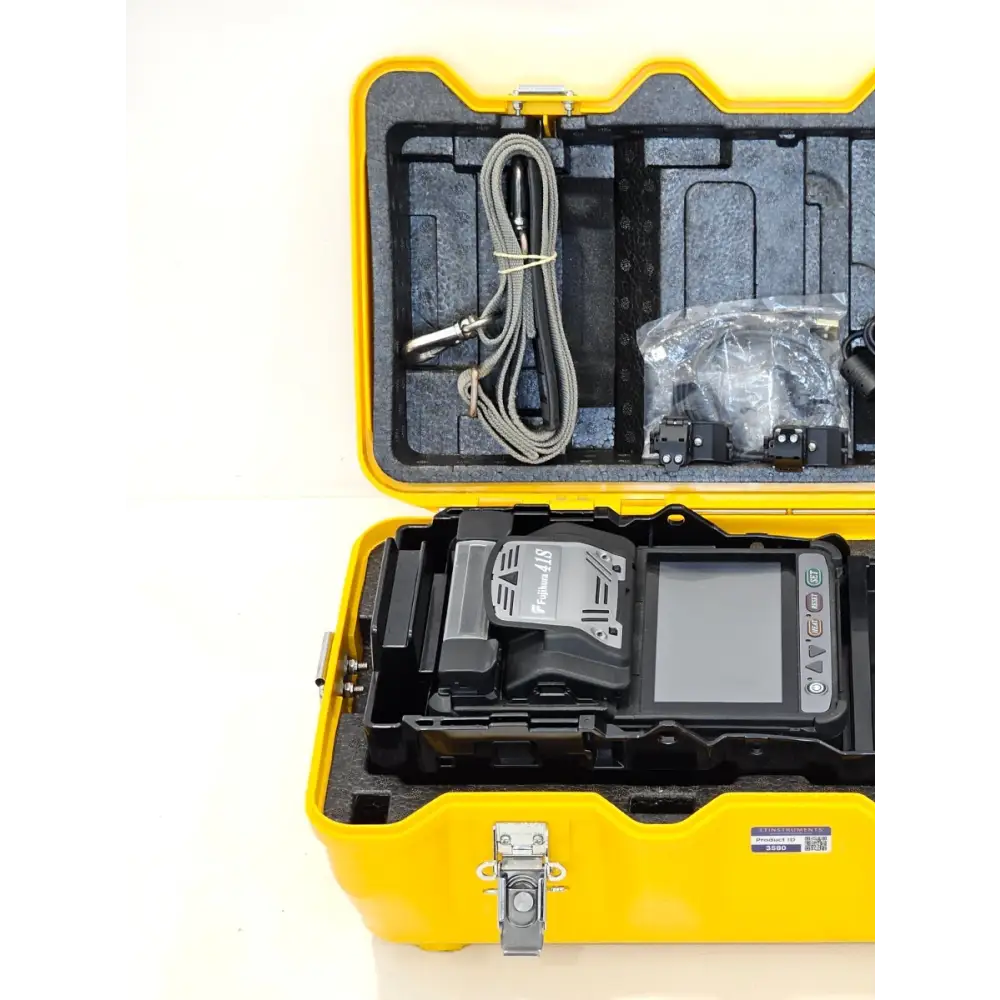

Included in the sale:
• Fujikura 41S SM/MM Active Cladding Fusion Splicer with clamps (ARC count 1,426) and new electrodes
• AC Adapter/Charger (ADC-19A)
• Battery Pack
• Hard Carrying Case
• Alcohol Pot
• Work Tray

Note: No cleaver is included.

The Fujikura 41S is a fully ruggedized, two-camera, active cladding alignment fusion splicer designed for single-mode (SM) and multimode (MM) fibre applications. Core sensing loss estimation technology provides highly accurate splice loss assessment via Warm Splice Imaging (WSI), which determines core alignment accuracy by evaluating the splice during the heating process — delivering results with greater accuracy than cladding-only alignment methods. Bluetooth connectivity with the CT50 cleaver enables Active Blade Management (ABM) for automated blade rotation tracking. The dual-camera, active V-groove alignment system provides consistent performance in challenging field conditions. A large 5-inch sunlight-readable touchscreen monitor provides intuitive navigation, and software updates are available via the internet.

Alignement Method: Active V-groove cladding alignment with two cameras
Loss Estimation: Warm Splice Imaging (WSI) core-sensing technology
Compatible Fibre Types: SM (ITU-T G.652, G.653, G.655, G.657), MM (ITU-T G.651)
Splice Loss — G.652 (SM): Avg. 0.03 dB
Splice Loss — G.651 (MM): Avg. 0.01 dB
Splice Loss — G.653: Avg. 0.05 dB
Splice Loss — G.655: Avg. 0.05 dB
Splice Loss — G.657: Avg. 0.03 dB
Splice Time (SM FAST mode): Avg. 6 seconds
Splice Time (AUTO mode): Avg. 9 seconds
Tube Heating Time: 16–24 seconds (typical)
Heater Sleeve Diameter: Max. 6 mm (before shrinking)
Tensile Test Force: Approx. 2.0 N
Electrode Life: Approx. 5,000 splices
Battery Life: Approx. 200 splice and heat cycles per charge
Battery Voltage: DC 14.4 V, 3,360 mAh
AC Power Input: AC 100–240 V, 50/60 Hz, Max. 1 A

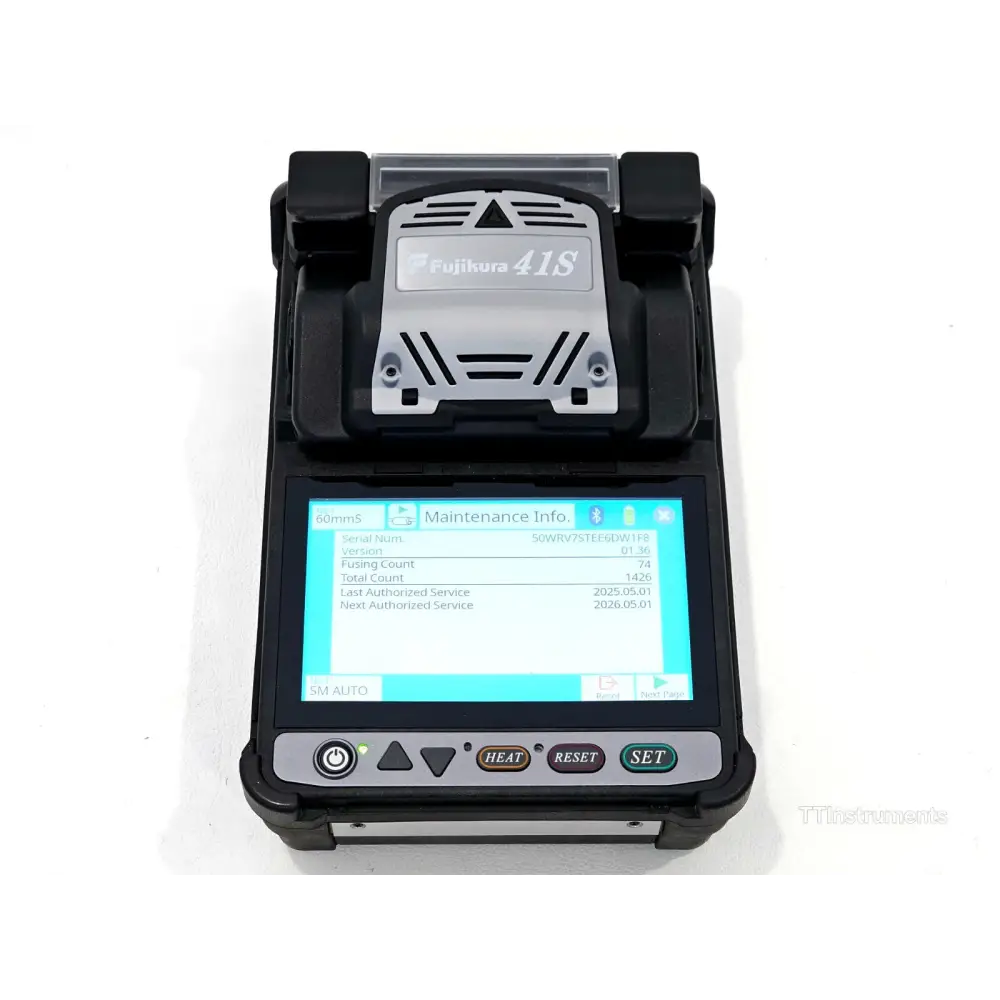

Display: 5-inch touchscreen monitor (sunlight readable)
Weight: Approx. 1.3 kg (including battery)
Maximum Operating Altitude: 5,000 m
Maximum Wind Resistance: 15 m/s
Connectivity: Bluetooth 4.1 LE
Software Updates: Via internet
Protection: Fully ruggedized for shock, moisture, and dust resistance

Fujikura 41S Fusion Splicer Official Datasheet (AFL/Fujikura): Download PDF

Fujikura 41S Fusion Splicer Product Datasheet (Fiberdyne Labs): Download PDF

Fujikura 41S Smart Management Kit Brochure (Fujikura official): Download PDF

Fujikura 41S Instruction Manual (Photonext/Politecnico di Torino hosted PDF): Download PDF

Fujikura 41S Fusion Splicer Specification Sheet (Accusrc hosted PDF): Download PDF
