Condition: Refurbished

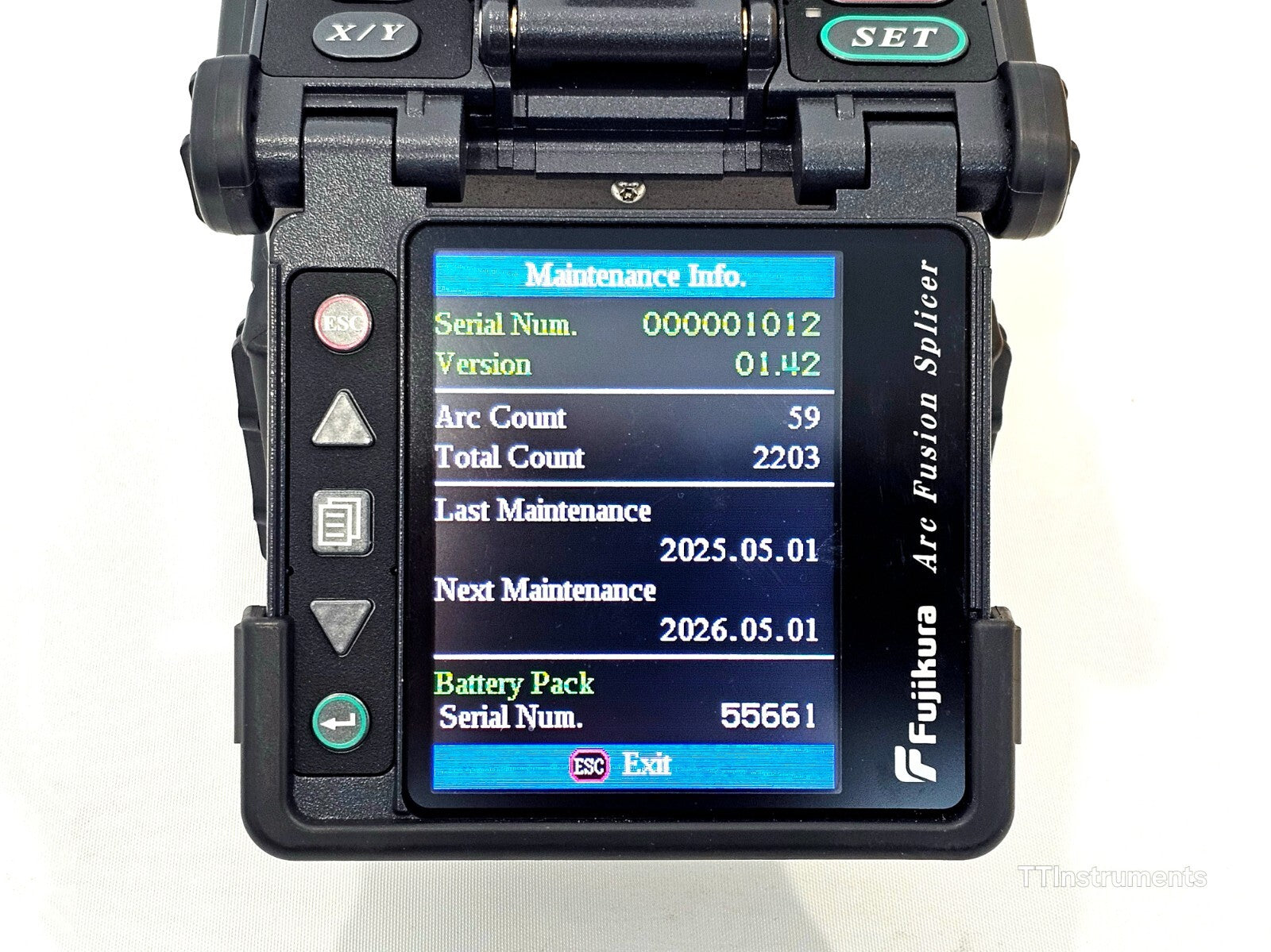

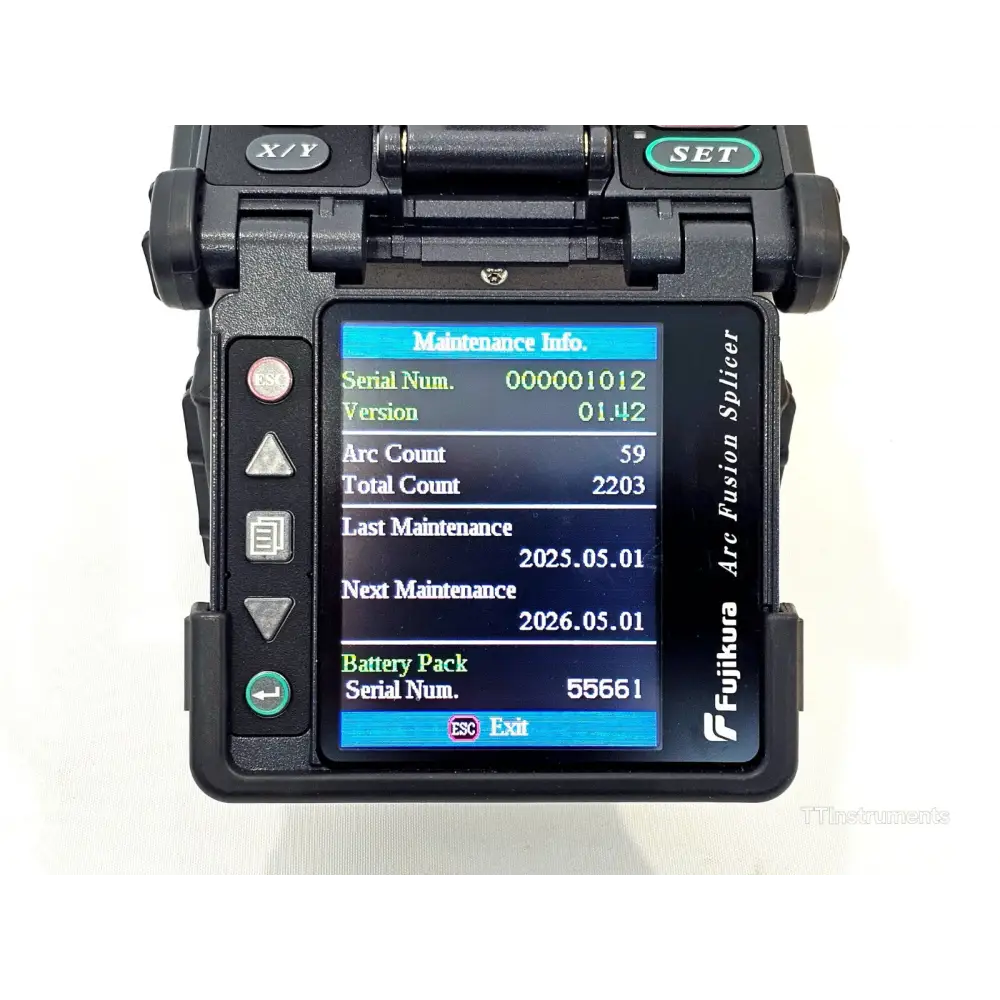

This Fujikura FSM-18R ribbon fusion splicer has been professionally cleaned and serviced by an approved service centre in May 2025. ARC count stands at 2203 and new electrodes have been fitted. The unit is an EU licensed model and the battery is included and confirmed to hold its charge. The CT-30 cleaver is supplied with its AD30A guide plate, case, and a new blade installed.

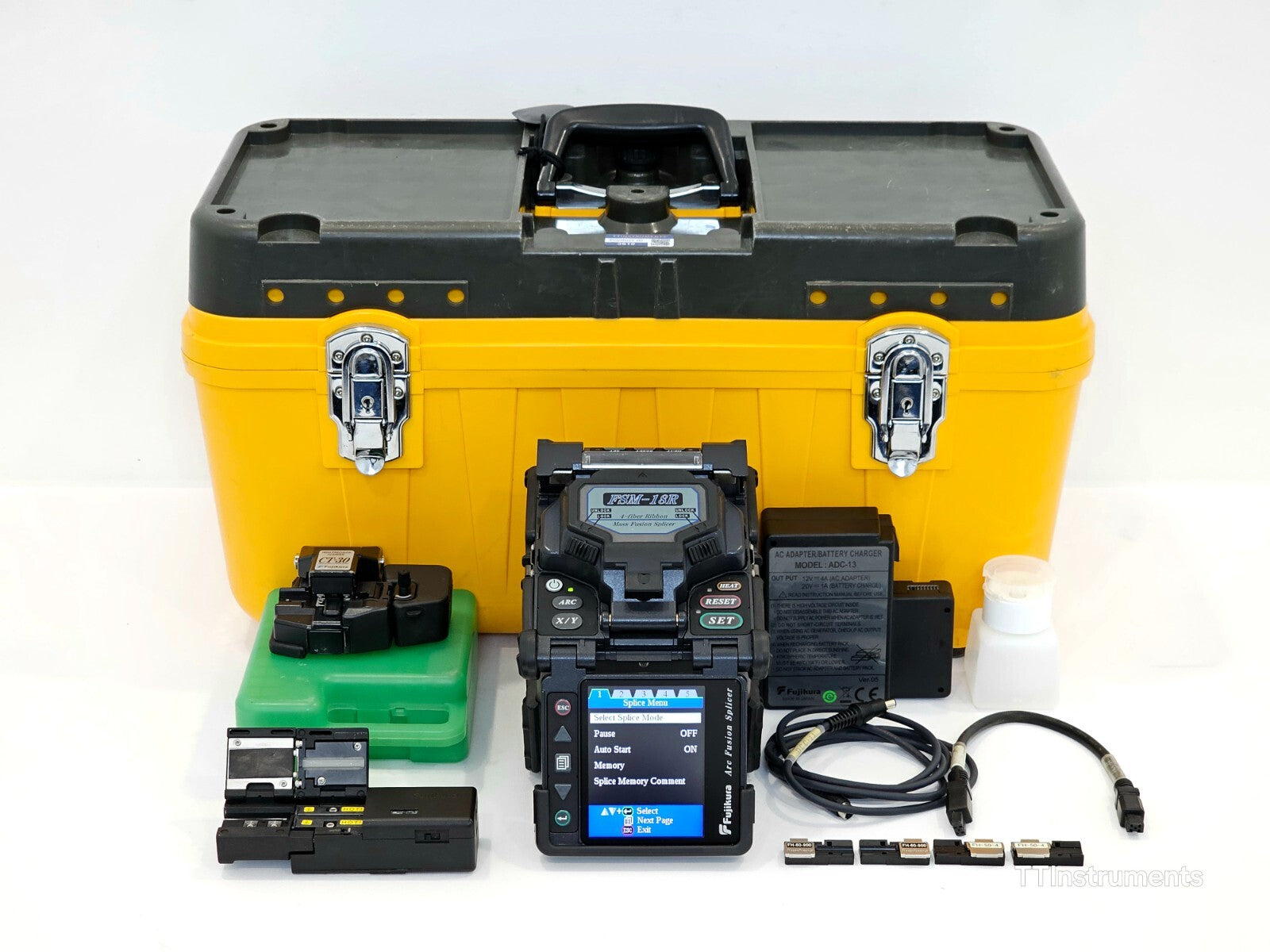

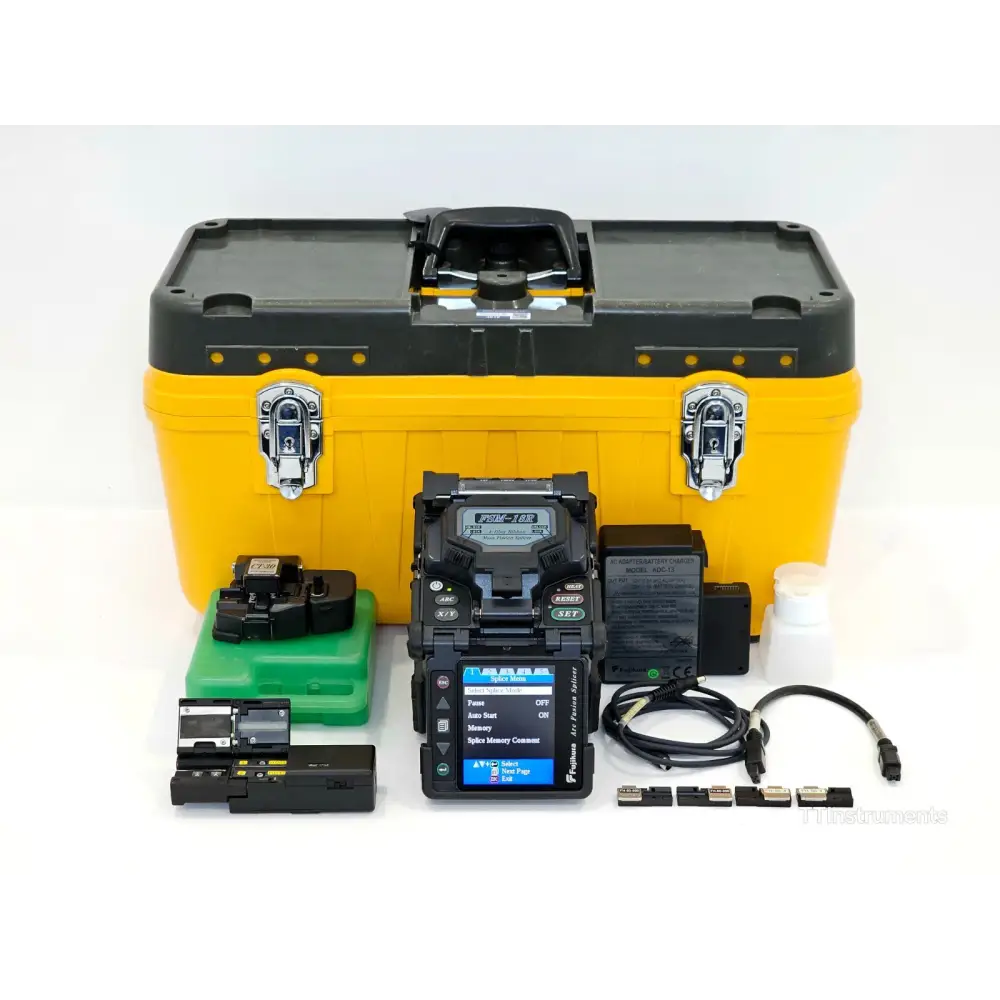

Included in the sale:
• Fujikura FSM-18R Ribbon Fusion Splicer (ARC count 2203) with new electrodes

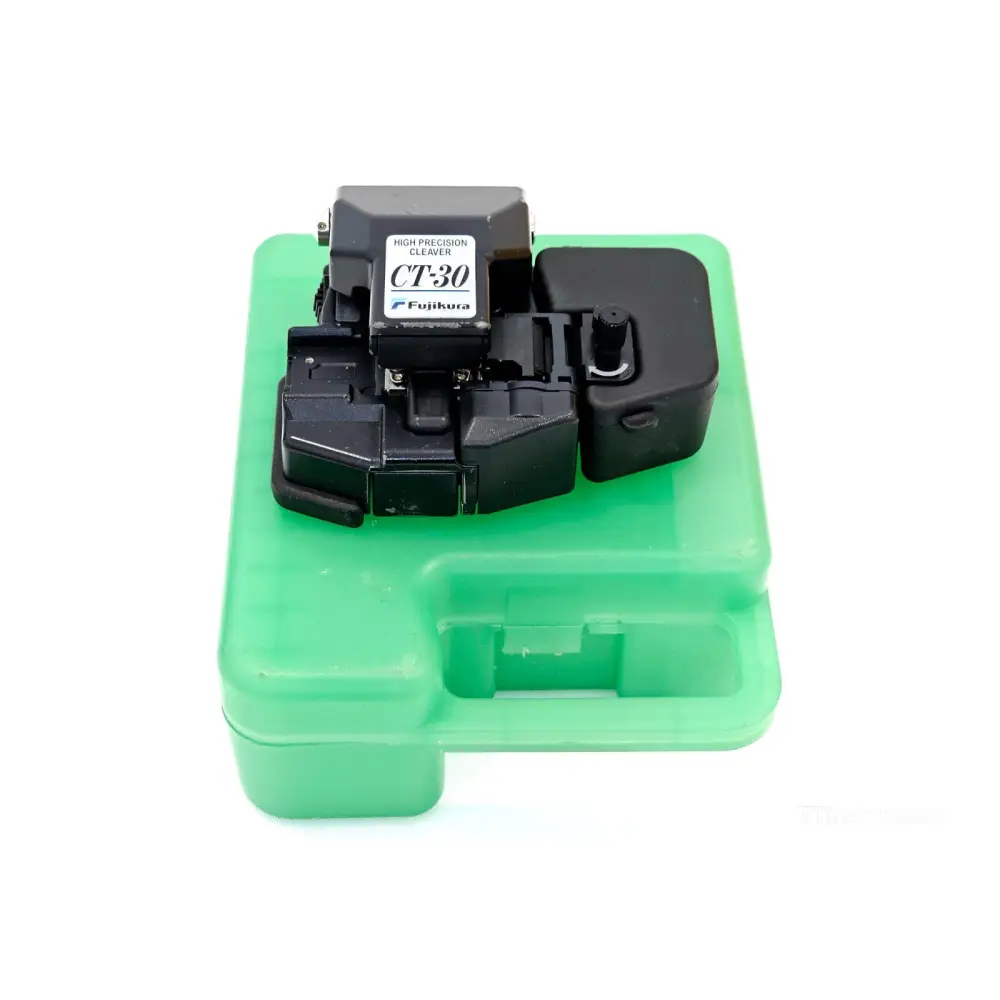

• Fujikura CT-30 High Precision Fibre Cleaver with AD30A guide plate, case, and new blade

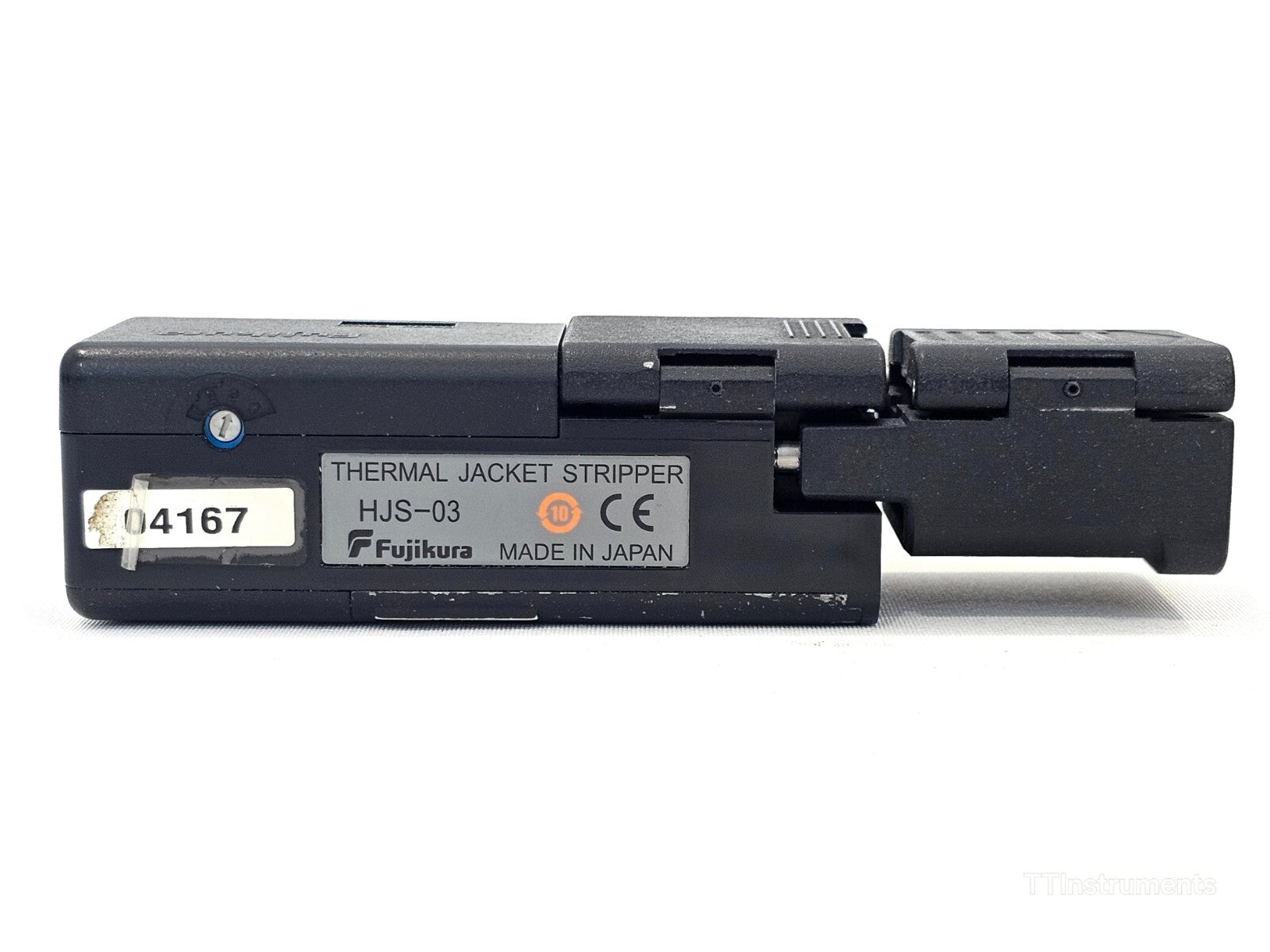

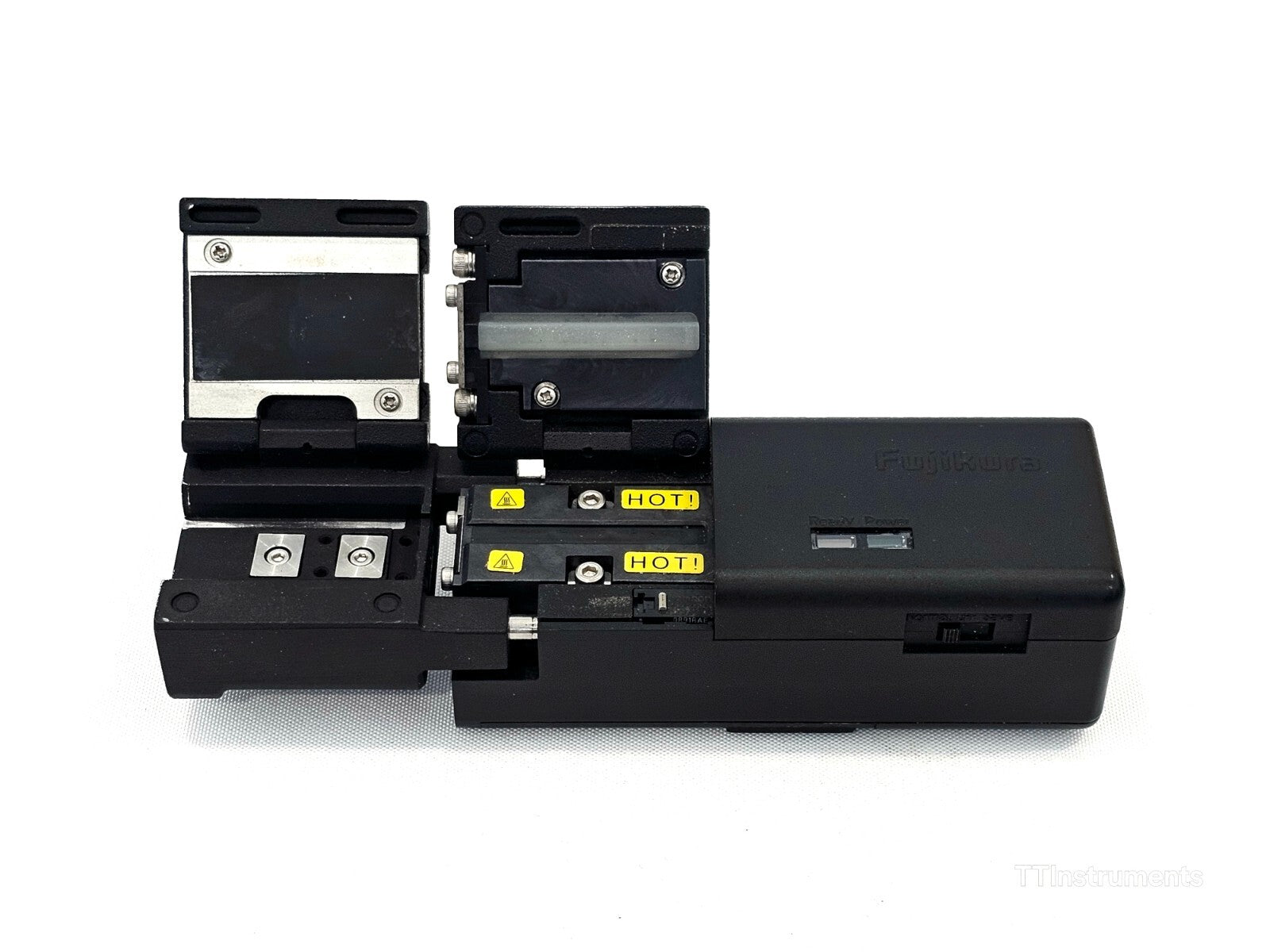

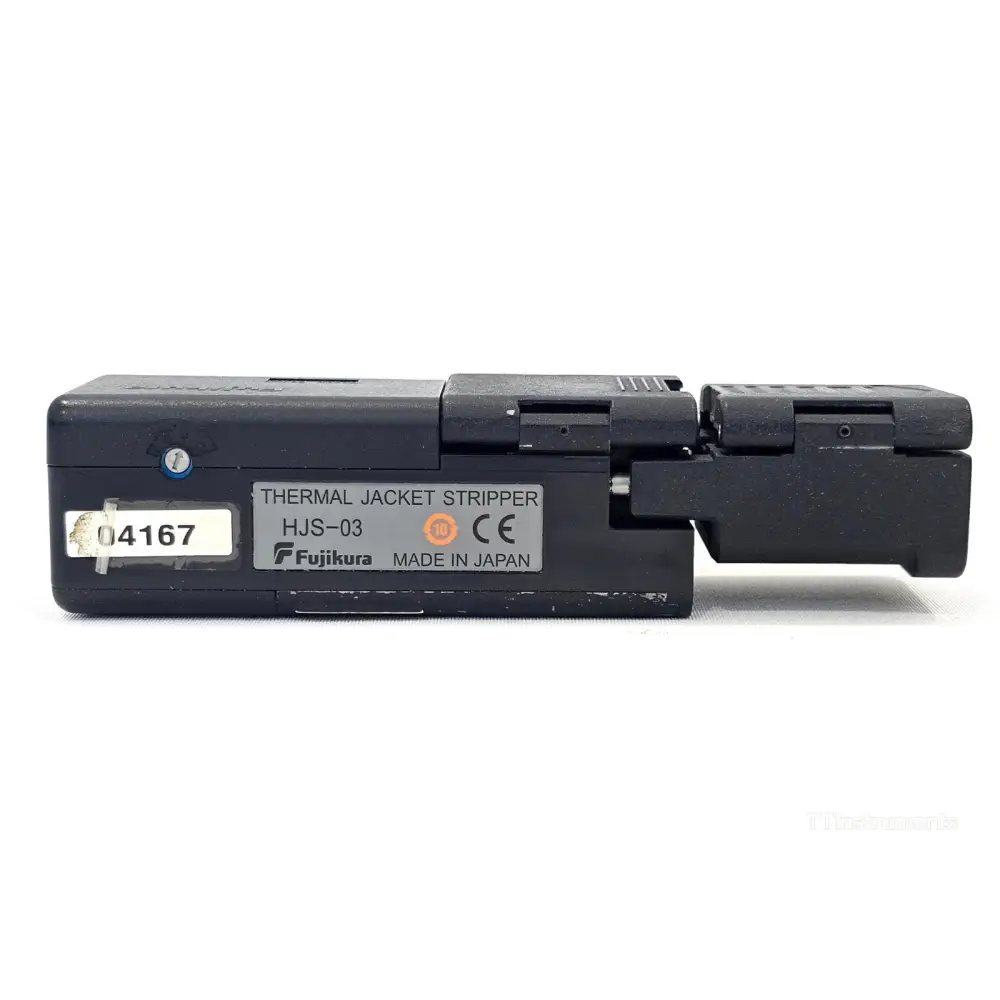

• HJS-03 Stripper
• AC Adapter/Charger
• Battery Pack
• Hard Carrying Case
• Alcohol Pot
• Work Tray

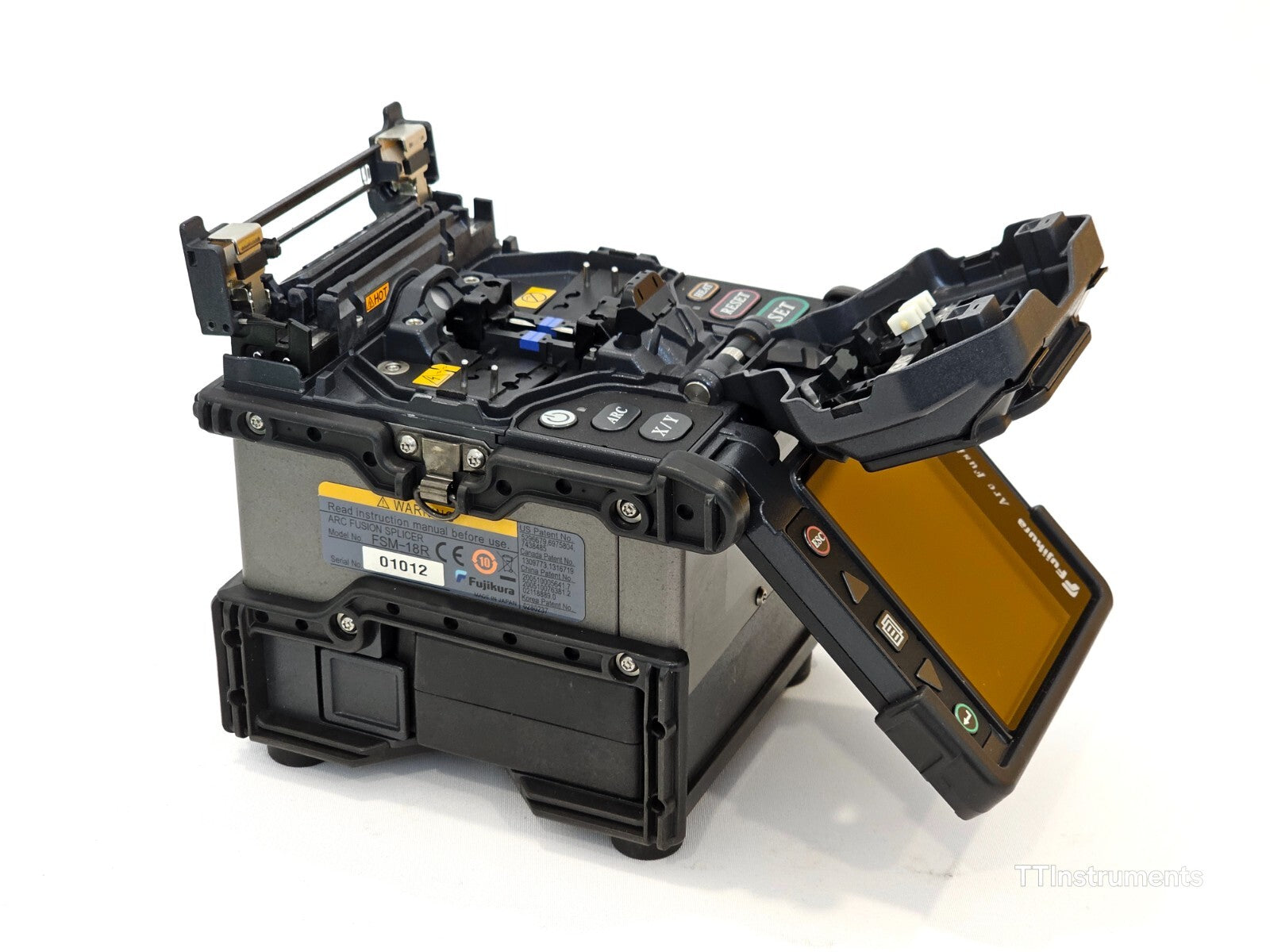

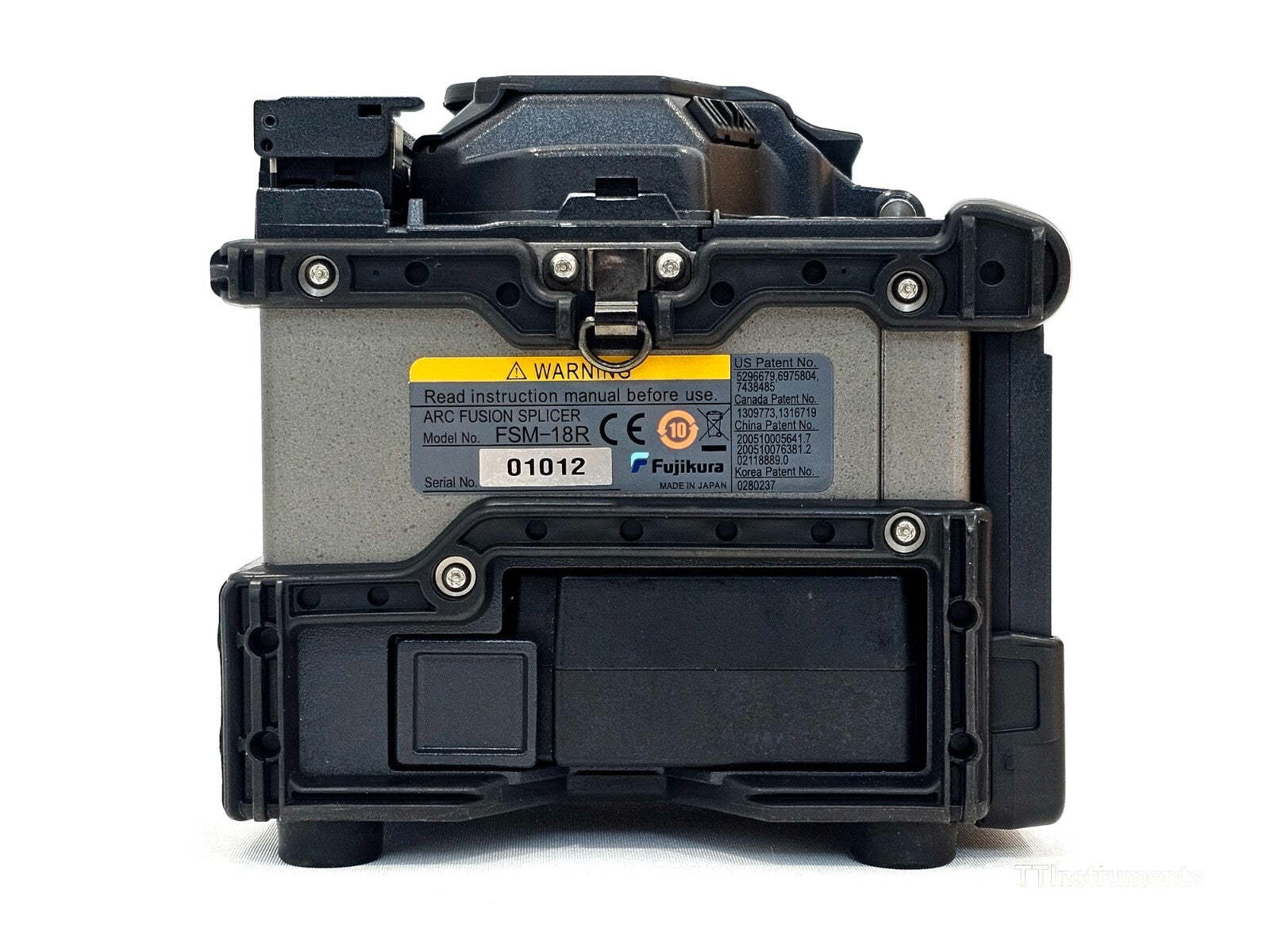

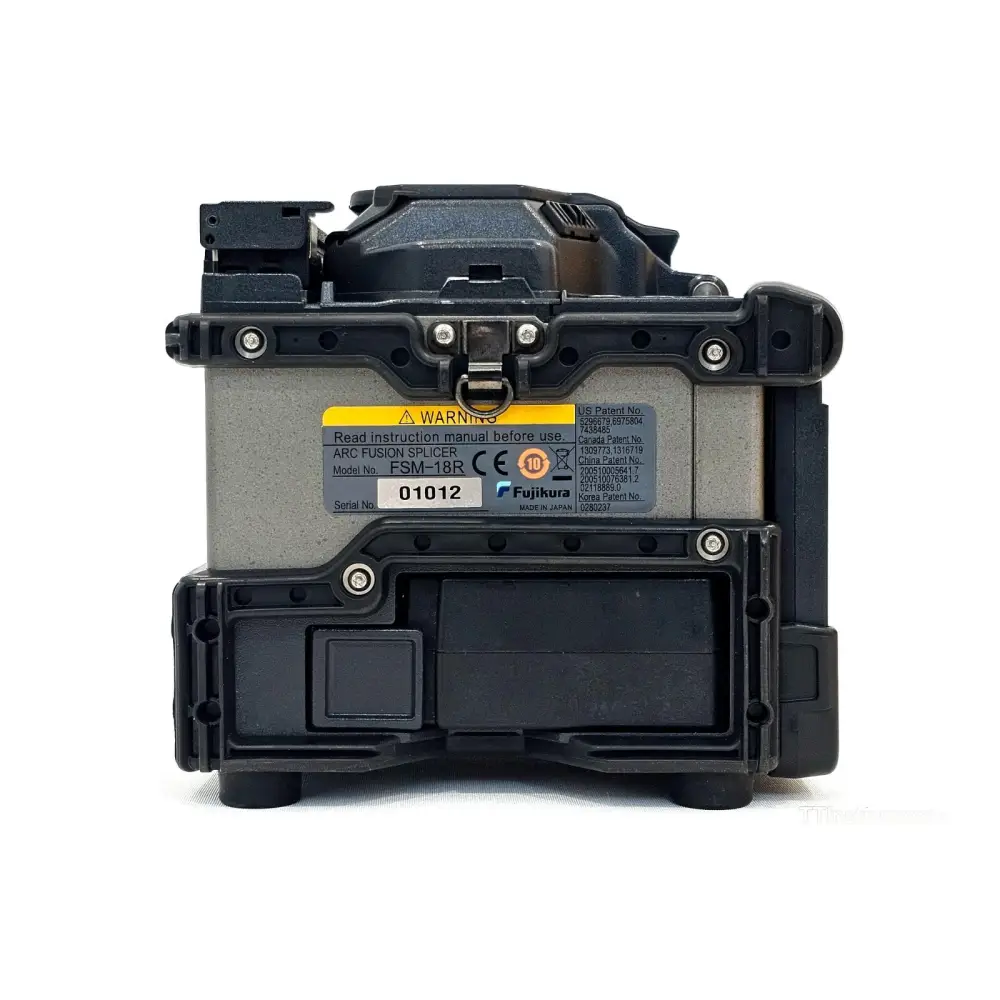

The Fujikura FSM-18R is a 4-fibre ribbon fusion splicer sharing the versatility and robust construction of the Fujikura 12-fibre ribbon splicer series. It is well-suited for FTTx and LAN applications and supports splicing of up to 4-fibre ribbons as well as individual single fibres.

The FSM-18R features a rugged chassis engineered to resist shock, dust, and moisture, and is rated to survive a 30-inch (762 mm) drop test, minimising operational downtime in the field.

Automated functions — including auto-start splicing, auto-start tube heater, automatic ribbon fibre identification, and auto-arc calibration — reduce the number of manual steps required and improve splice consistency. A dual-position monitor with automatic image orientation, simultaneous battery charging during splicer operation, and a large-capacity battery option further improve field productivity.

Included software enables splice data download to a PC for reporting, splicer firmware updates via the internet, and video image download for remote technical support. The FSM-18R is RoHS and WEEE compliant.

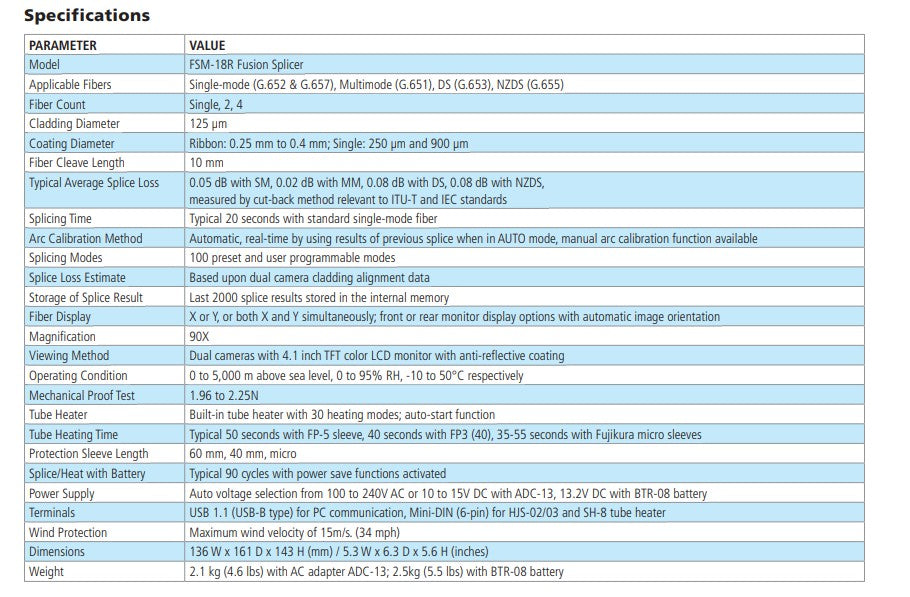

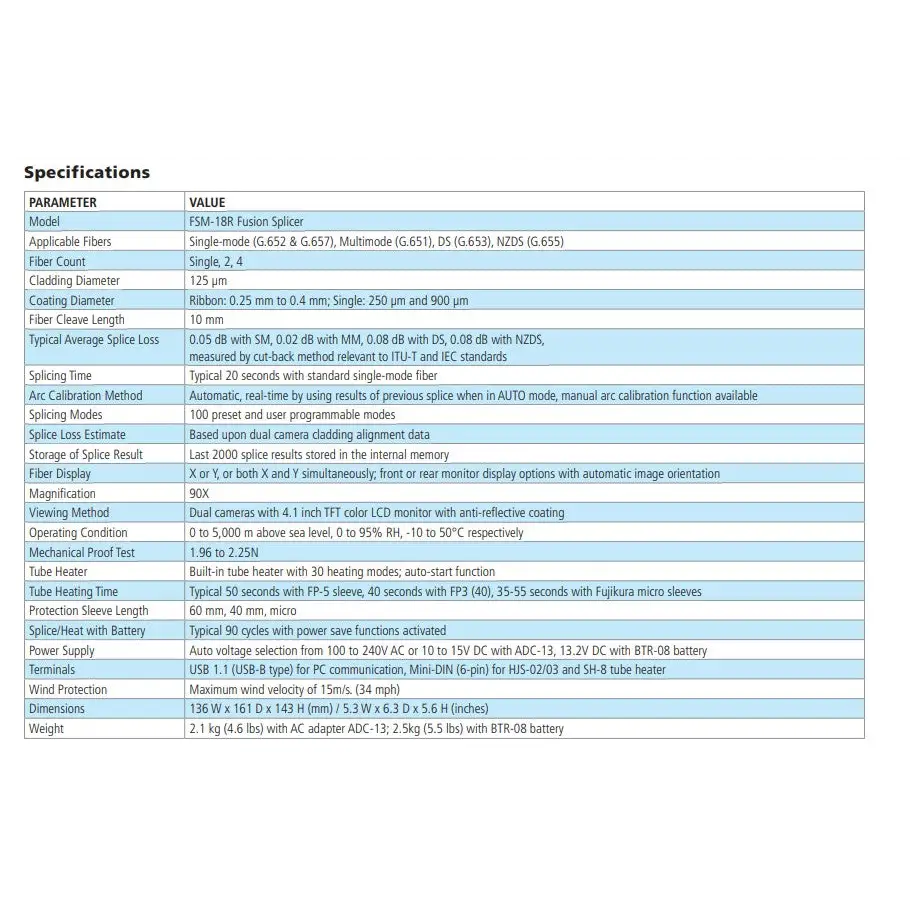

Key Specifications (FSM-18R):
Fibre Compatibility: Single fibre and up to 4-fibre ribbon
Applications: FTTx, LAN, telecom outside plant
Alignment Method: Cladding alignment (fixed V-groove)
Arc Calibration: Automatic, real-time
Ribbon Fibre Identification: Automatic
Tube Heater: Auto-start

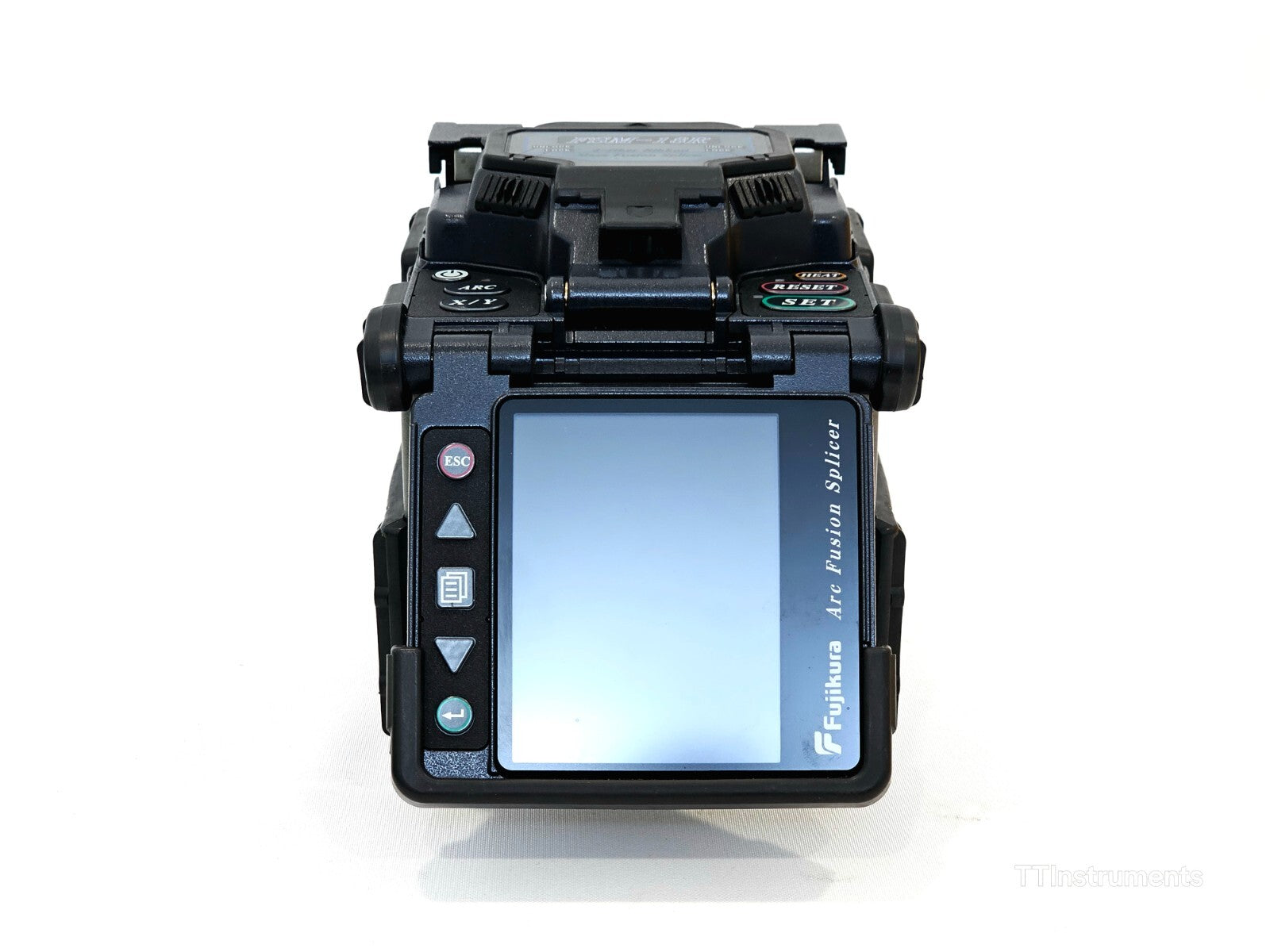

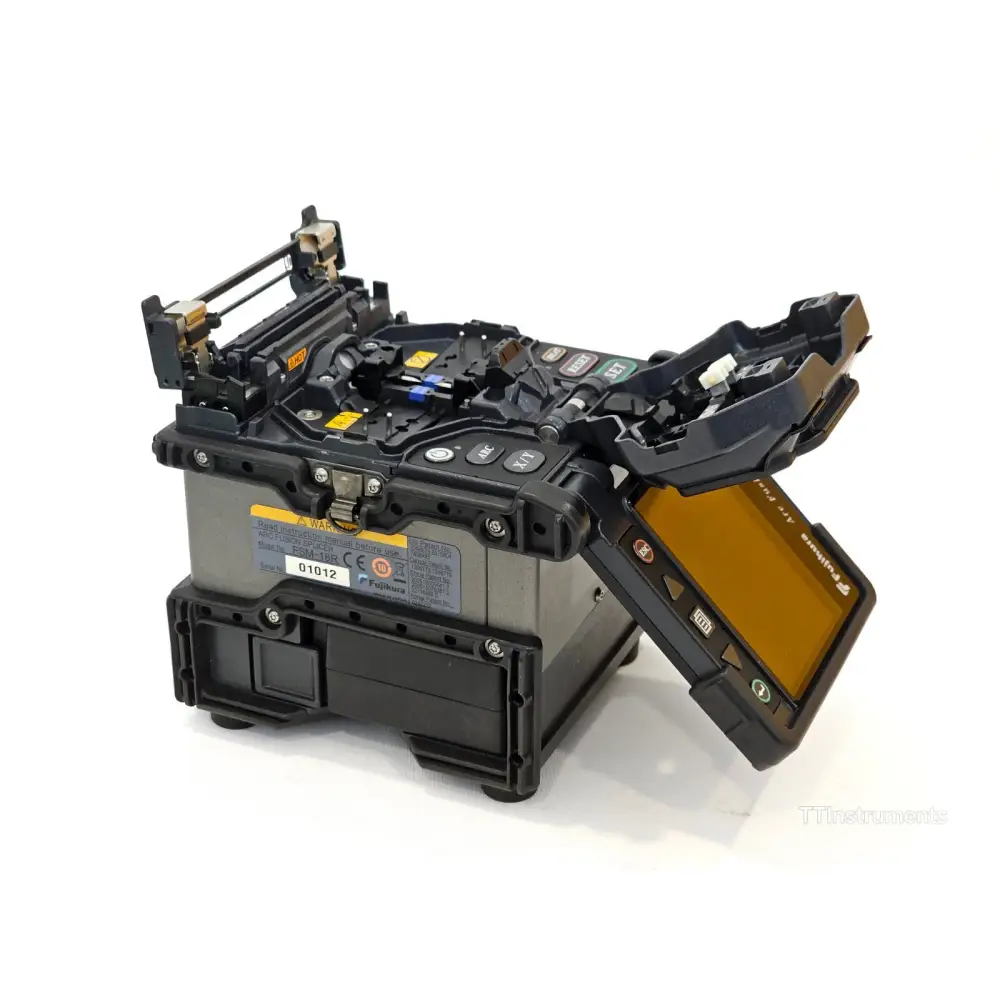

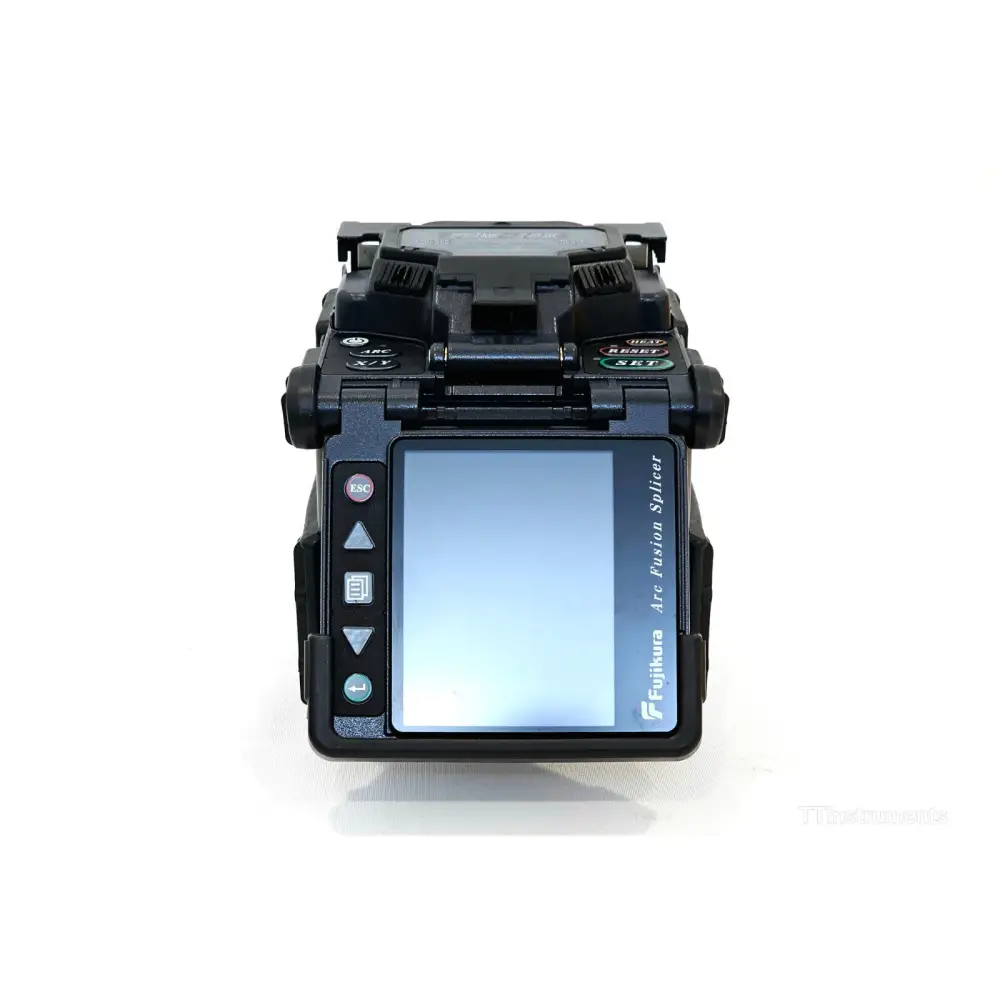

Monitor: Dual-position colour LCD with anti-reflective coating and automatic image orientation
Battery: Up to 90 splice/heat cycles per charge (standard battery)
Simultaneous Charge Operation: Yes
Drop Resistance: 30 inches (762 mm)
Environmental Protection: Shock, dust, and moisture resistant
Compliance: RoHS, WEEE
Data Output: USB; splice data, video, and firmware via PC software

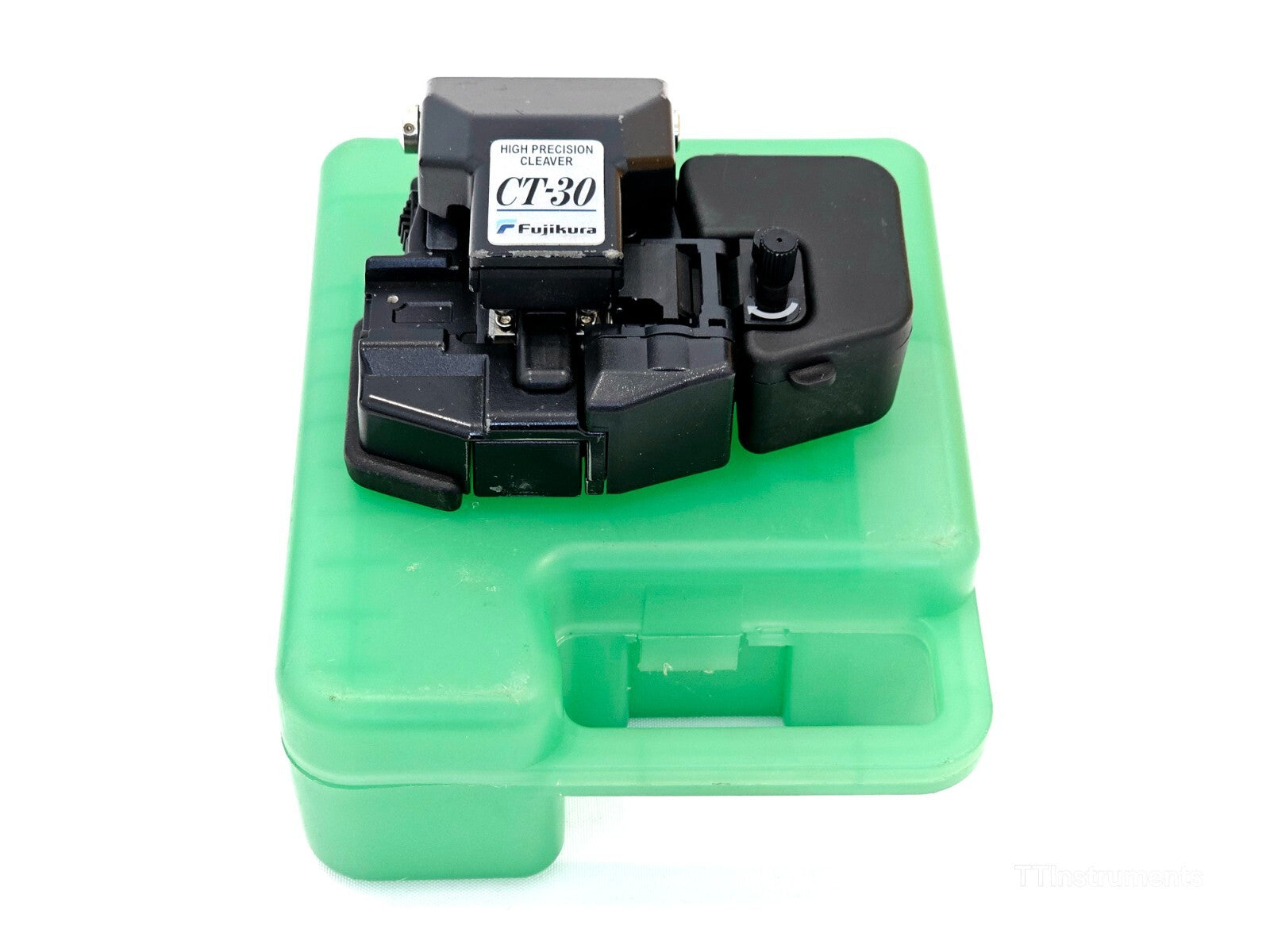

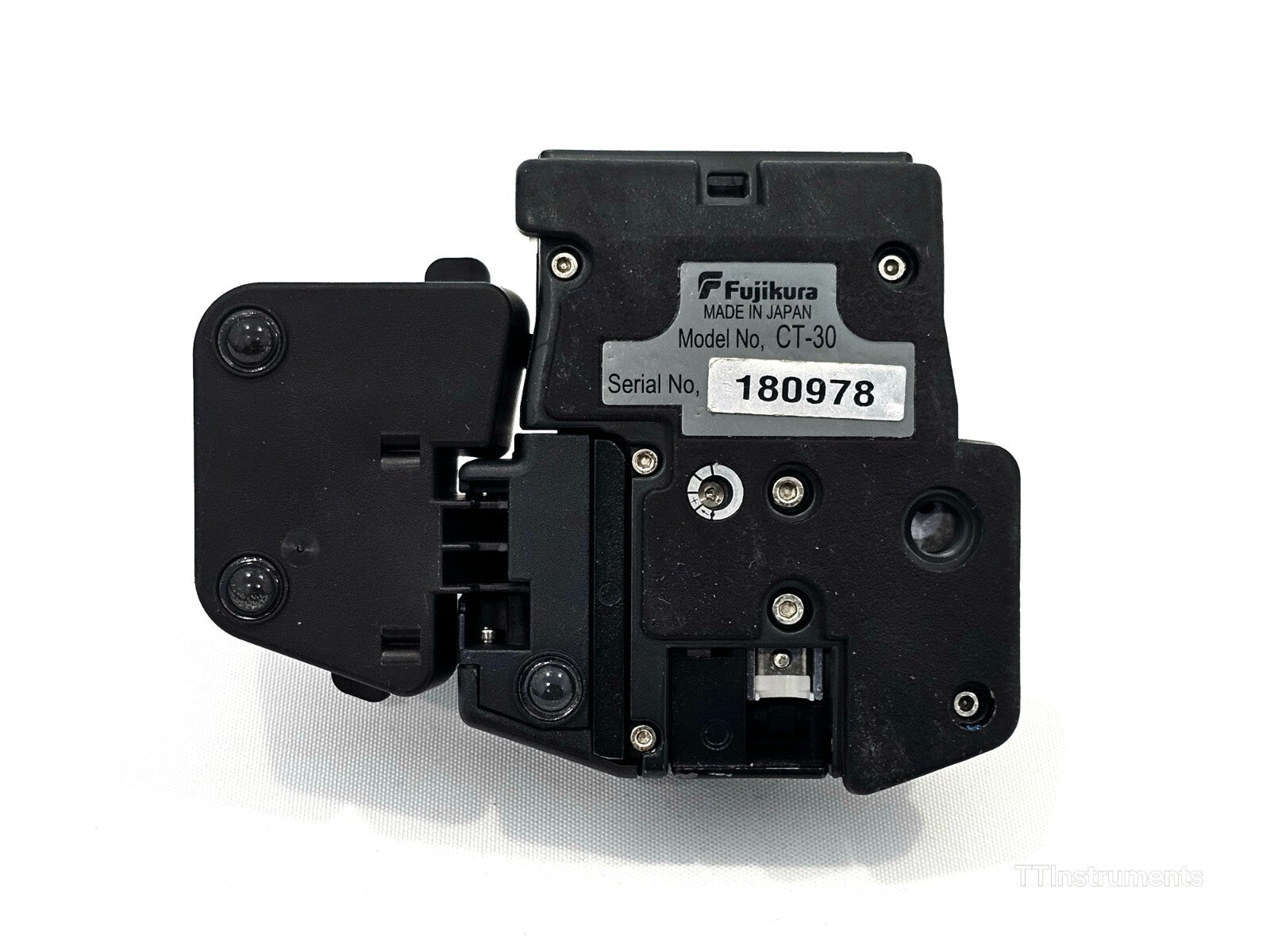

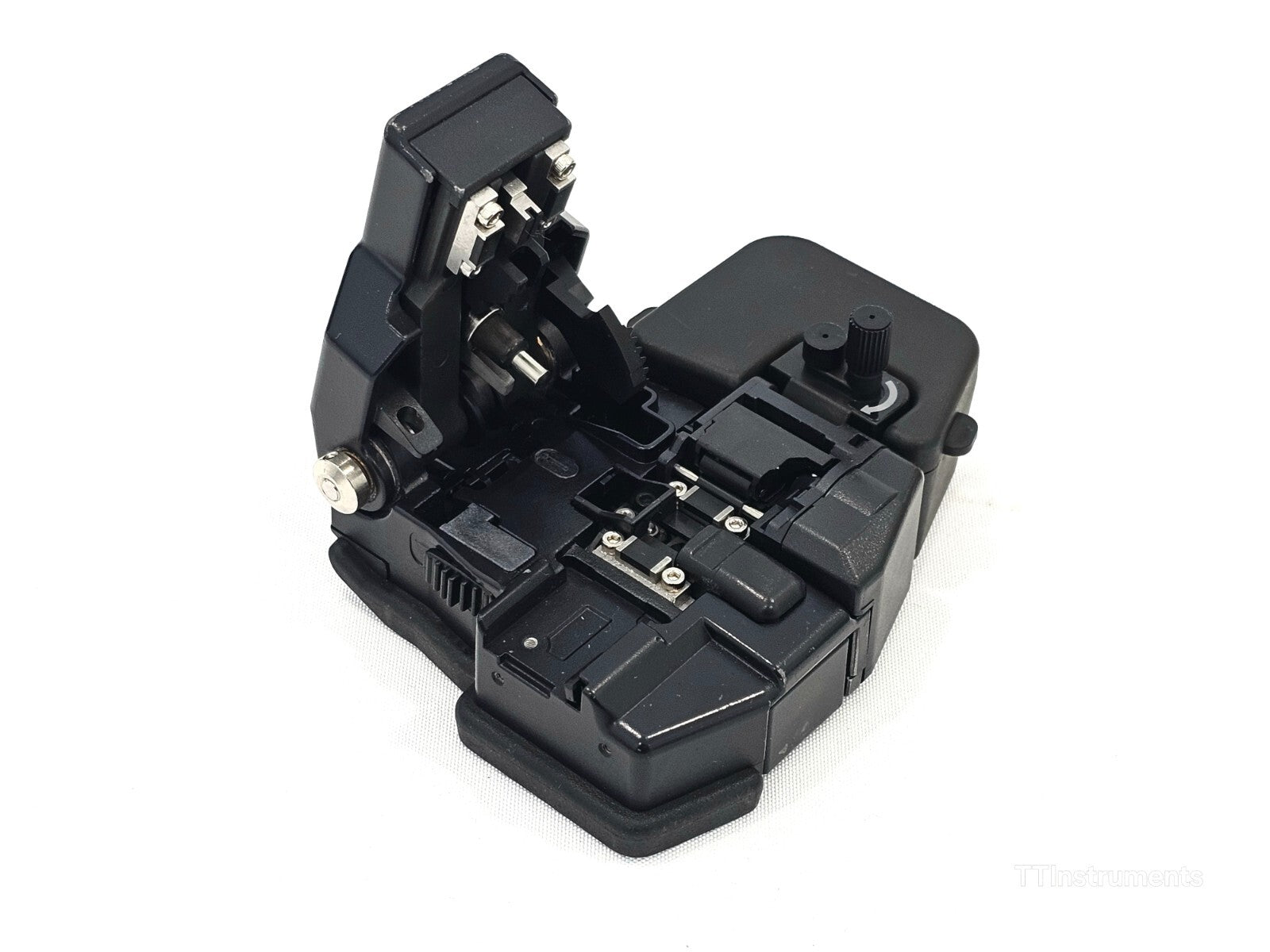

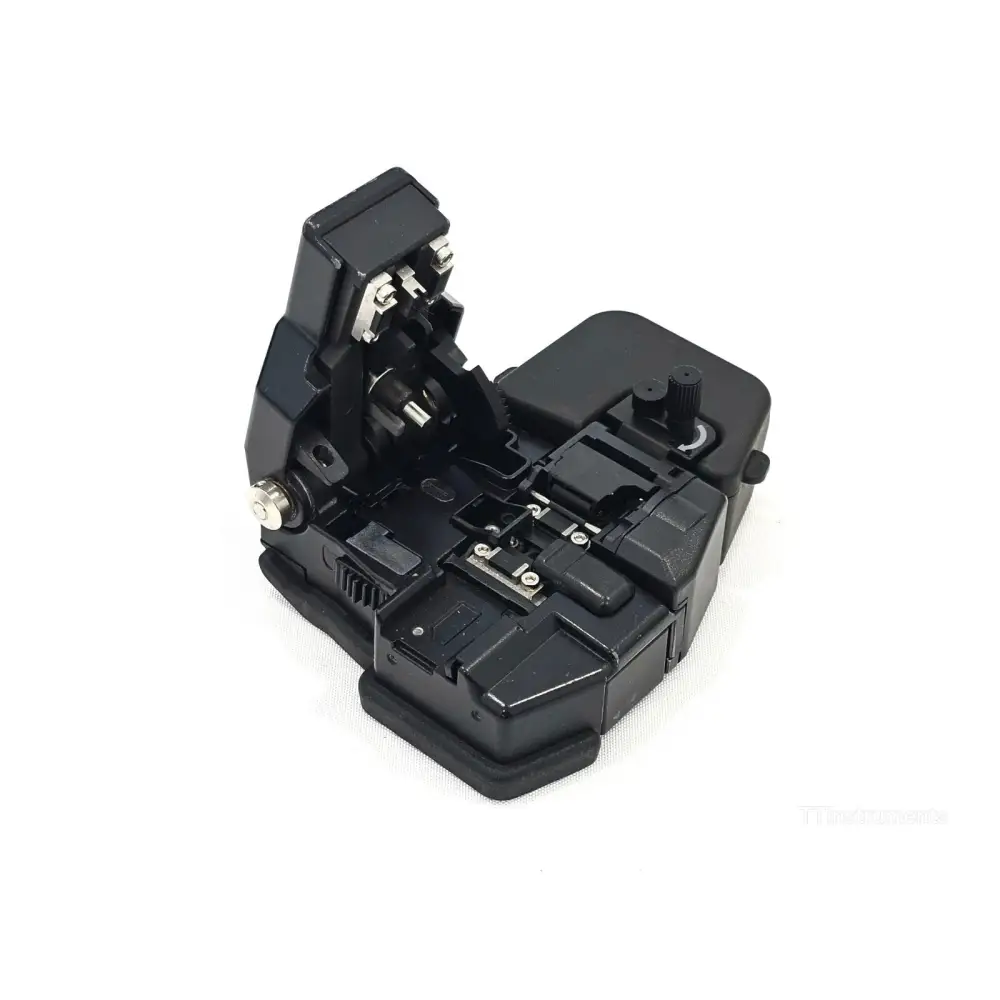

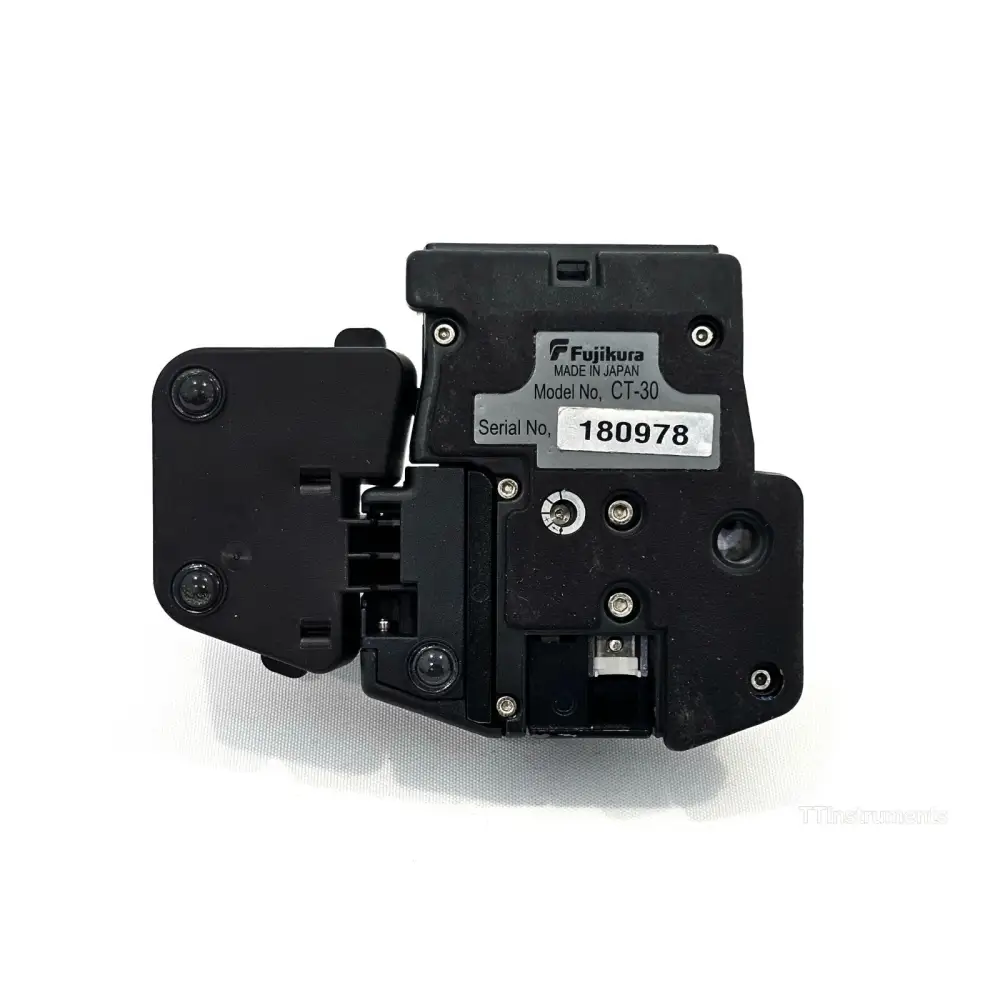

Fujikura CT-30 High Precision Fibre Cleaver (included accessory):
Fibre Compatibility: Single fibre (250 µm to 900 µm coating, 125 µm cladding) and up to 12-fibre ribbon
Blade Life: 48,000 single-fibre cleaves or 4,000 12-fibre ribbon cleaves (16 positions x 3 height levels)
Cleave Angle: Typically <0.5°
Cleave Length (900 µm fibre): 10 mm to 20 mm
Cleave Length (250 µm fibre): 6 mm to 20 mm
Dimensions (W x D x H): 69 mm x 82 mm x 41 mm (without scrap box)
Fibre Handling: AD-30A adapter plate (supplied)
Scrap Collection: Built-in collector

Fujikura FSM-18R Fusion Splicer Specification Sheet (PDF) — via aaatesters.com: Download PDF

Fujikura CT-30 High Precision Fibre Cleaver Specification Sheet (PDF) — via aaatesters.com: Download PDF

Fujikura CT-30 Series User Manual (PDF) — via wyomingelectronicsinc.com: Download PDF

Fujikura CT-30 High Precision Fibre Cleaver Official Datasheet (PDF) — via fujikura.com.cn: Download PDF
