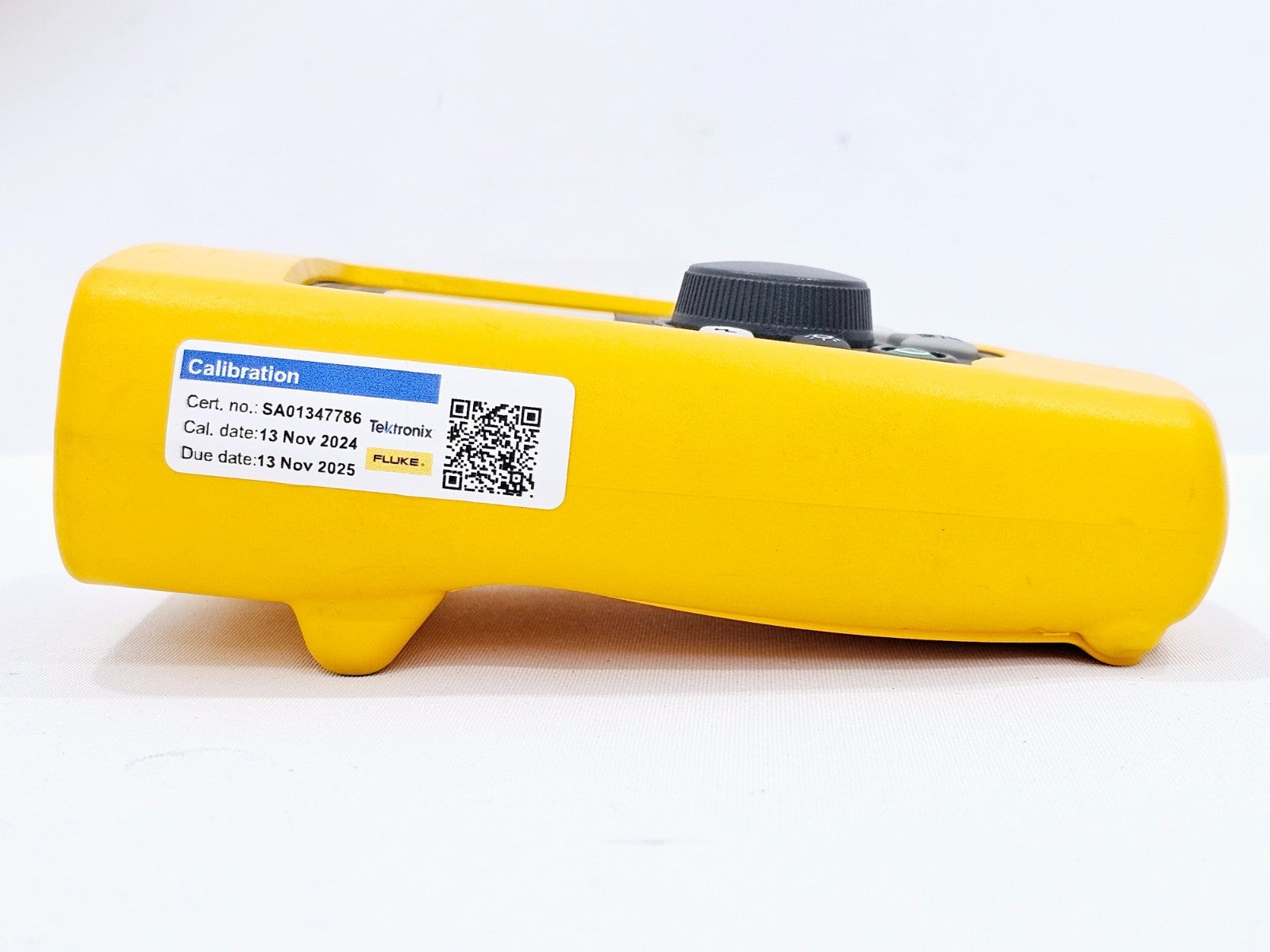

Condition: Seller refurbished — Fully functional. Cosmetic imperfections are present but do not affect performance. Calibration expires November 2025. A capable and field-ready loop valve tester supplied with key accessories.

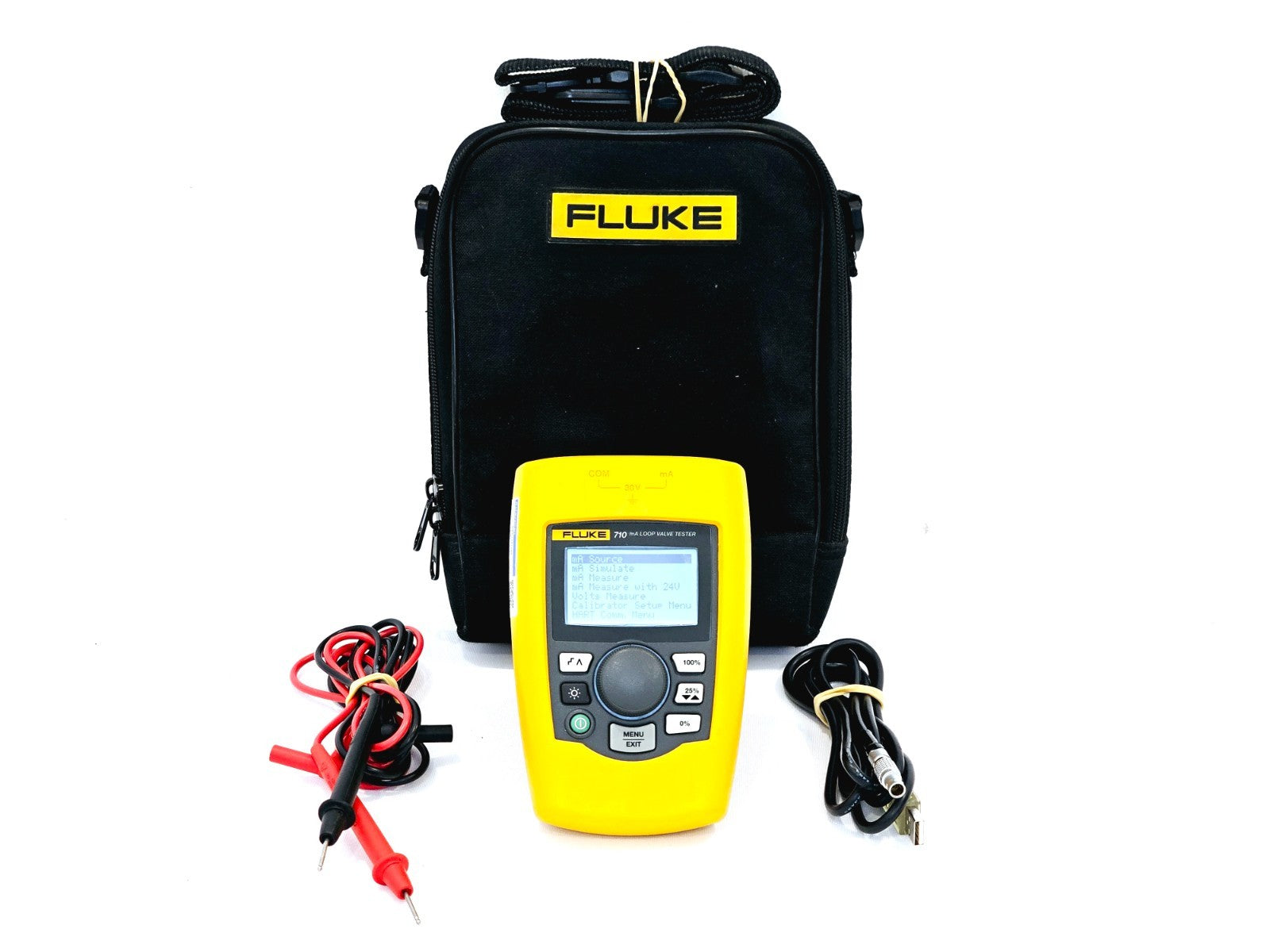

Included in the sale:
• Fluke 710 mA loop valve tester
• USB upload cable
• Test leads
• Fluke carry case

The Fluke 710 mA Loop Valve Tester is a precision handheld calibrator designed to enable process technicians to perform quick, easy tests on HART smart control valves. Combining a full-featured mA loop calibrator with built-in HART communication and dedicated valve test routines, it delivers Good, Marginal, or Bad valve health assessments at the push of a button — helping maintenance teams make faster, more confident decisions in the field.

Built-in valve test functions include pre-configured signature test, speed test, step test, manual test, and bump/partial stroke test. The integrated HART modem allows the instrument to source a 4–20 mA signal while simultaneously reading HART feedback on valve position and pressure, giving a complete picture of valve health. Valve test data is logged to memory and can be uploaded to the included ValveTrack™ software for further analysis and trending.

Key Features:
• Valve test procedures delivering Good, Marginal, or Bad control valve assessment
• Generic HART communication with built-in selectable 250 Ω resistor
• Best-in-class mA accuracy of 0.01% for both measurement and source
• Intuitive user interface with Quick-Set knob for fast setup
• 24 V DC loop power with mA measure mode (−25% to 125%)

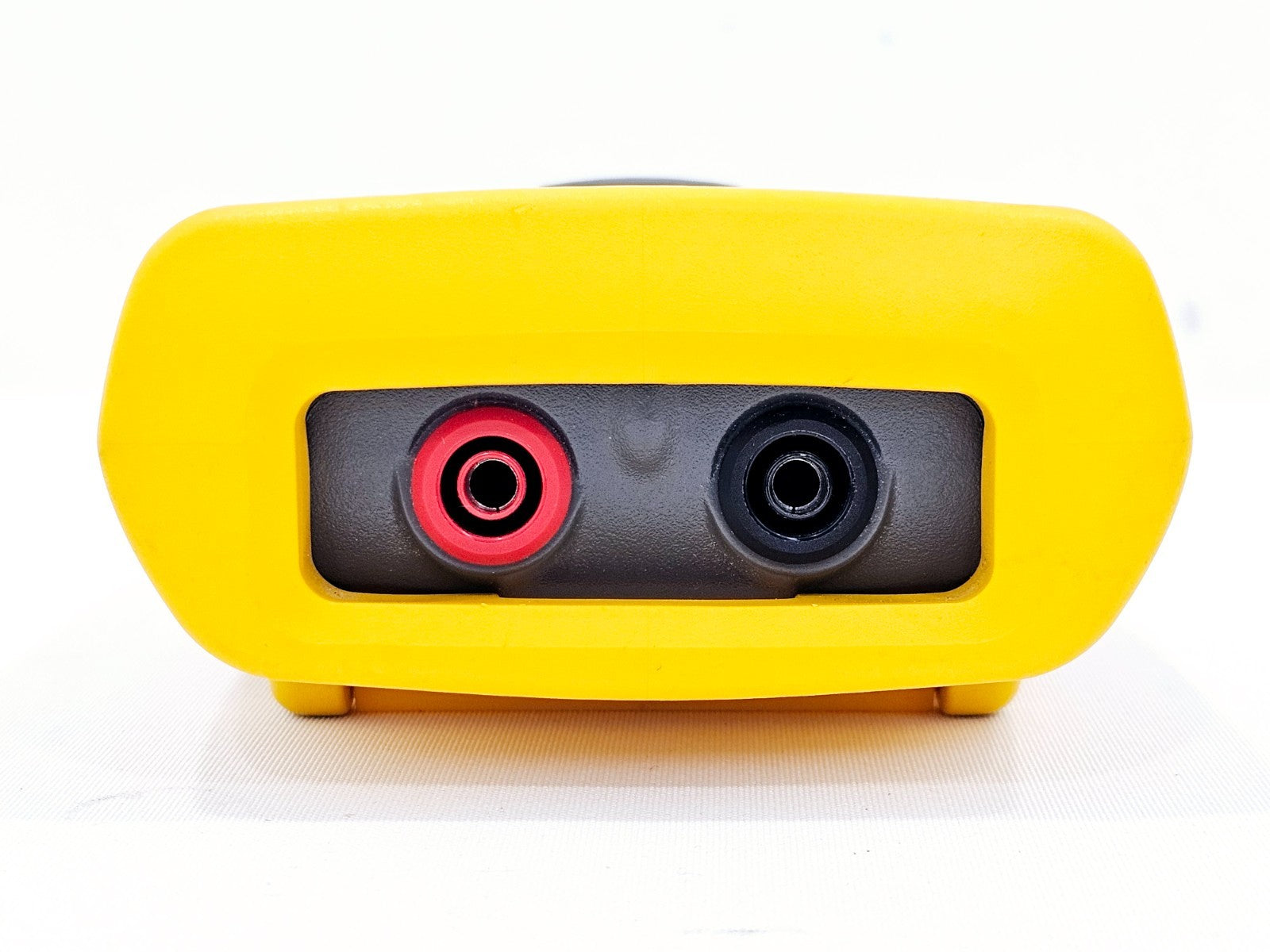

• Simple two-wire connection for all measurements
• Auto shutdown to conserve battery life
• Variable step and ramp time in seconds
• ValveTrack™ software for PC-based data logging and analysis

Specifications:

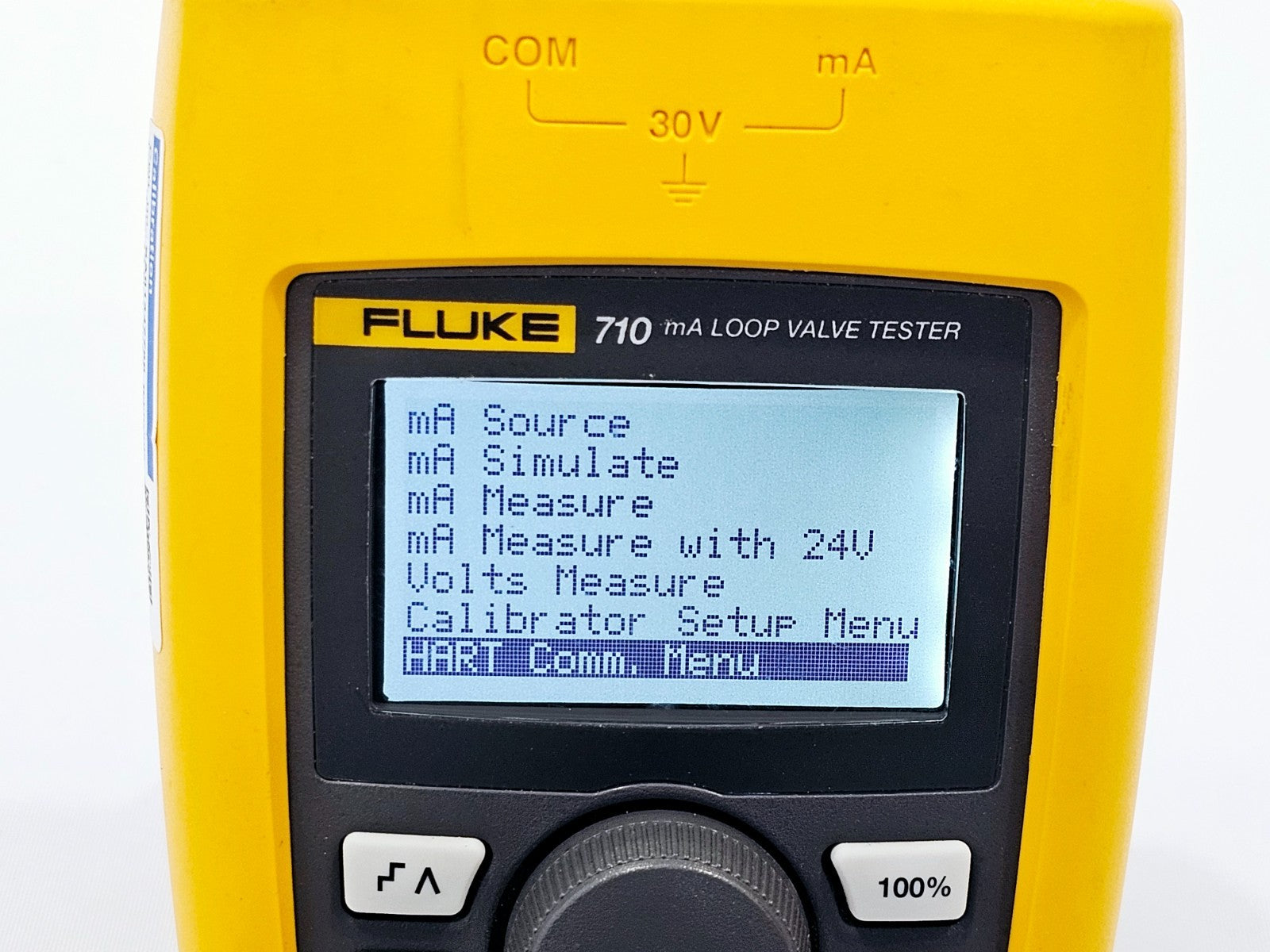

Functions: mA source, mA simulate, mA read, mA read/loop power, and volts read
Ranges (mA): 0 to 24 mA
Ranges (Volts): 0 to 30 V DC
Resolution (mA): 1 µA
Resolution (Voltage): 1 mV
Accuracy: 0.01% ± 2 counts, all ranges (@ 23 °C ± 5 °C)
Operating Temperature: −10 °C to 55 °C (14 °F to 131 °F)
Humidity: 10 to 95% non-condensing
Stability: 20 ppm of F.S./°C from −10 °C to 18 °C and 28 °C to 55 °C
Display: 128 × 64 pixel LCD graphic with backlight
Power: 6 × AAA alkaline batteries
Battery Life: 40 hours continuous use (measure mode)
Loop Compliance Voltage: 24 V DC @ 20 mA
Over-voltage Protection: 240 V AC
Overload Current Protection: 28 mA DC
EMC: EN61326 Annex A (Portable Instruments)
Dimensions (L × W × D): 15 × 9 × 3 cm (6 × 3.6 × 1.3 in)
Weight: 0.3 kg (9.5 oz)
Warranty: Three years

Fluke 710 mA Loop Valve Tester — Official Datasheet (PDF): Download PDF

Fluke 709/709H/710 Precision Loop Calibrator — User Manual (PDF): Download PDF

Fluke 710 mA Loop Valve Tester — Datasheet via Instrumart (PDF): Download PDF

Fluke 710 mA Loop Valve Tester — Datasheet via MyFlukeStore (PDF): Download PDF
