Condition: Refurbished

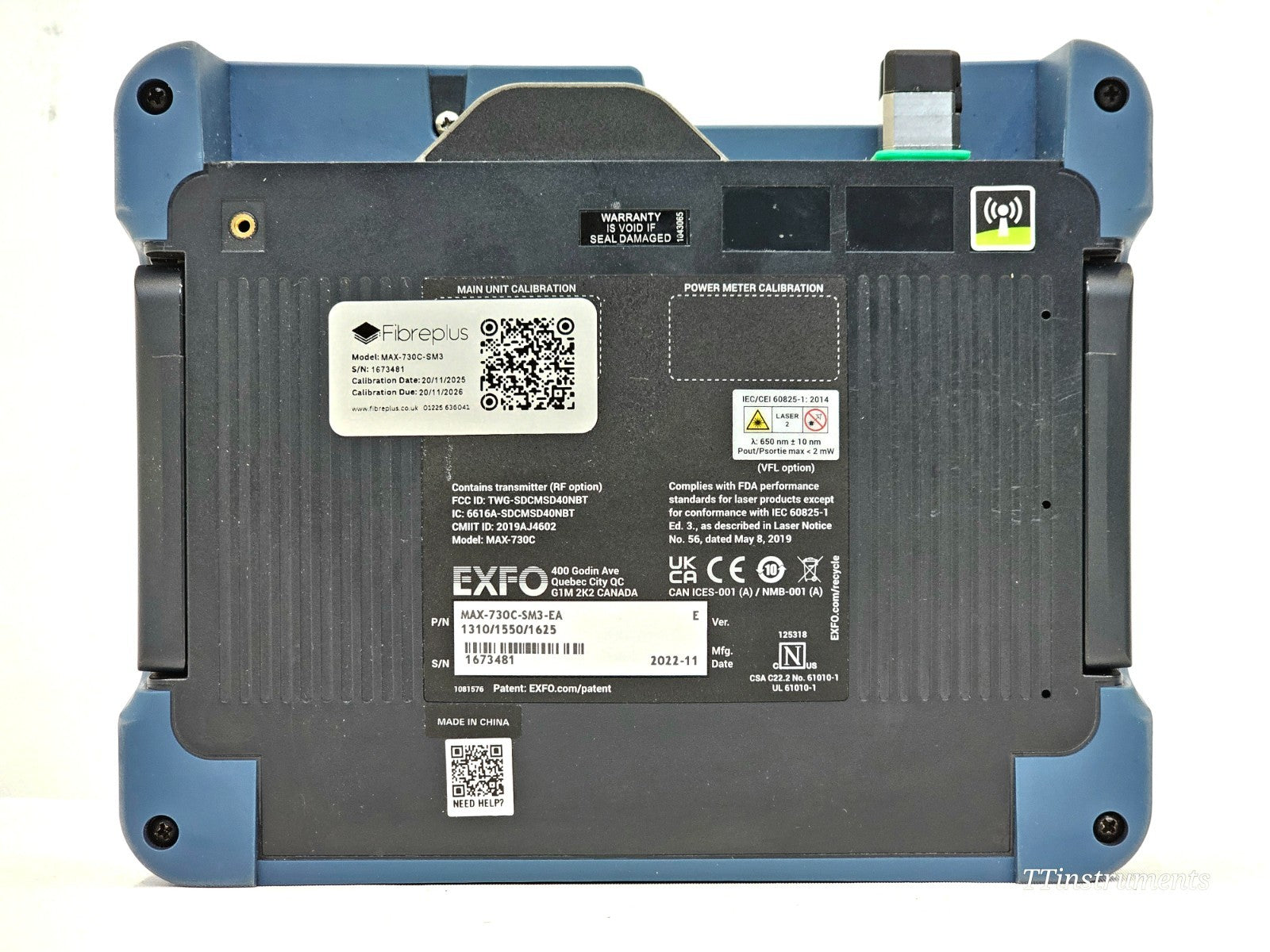

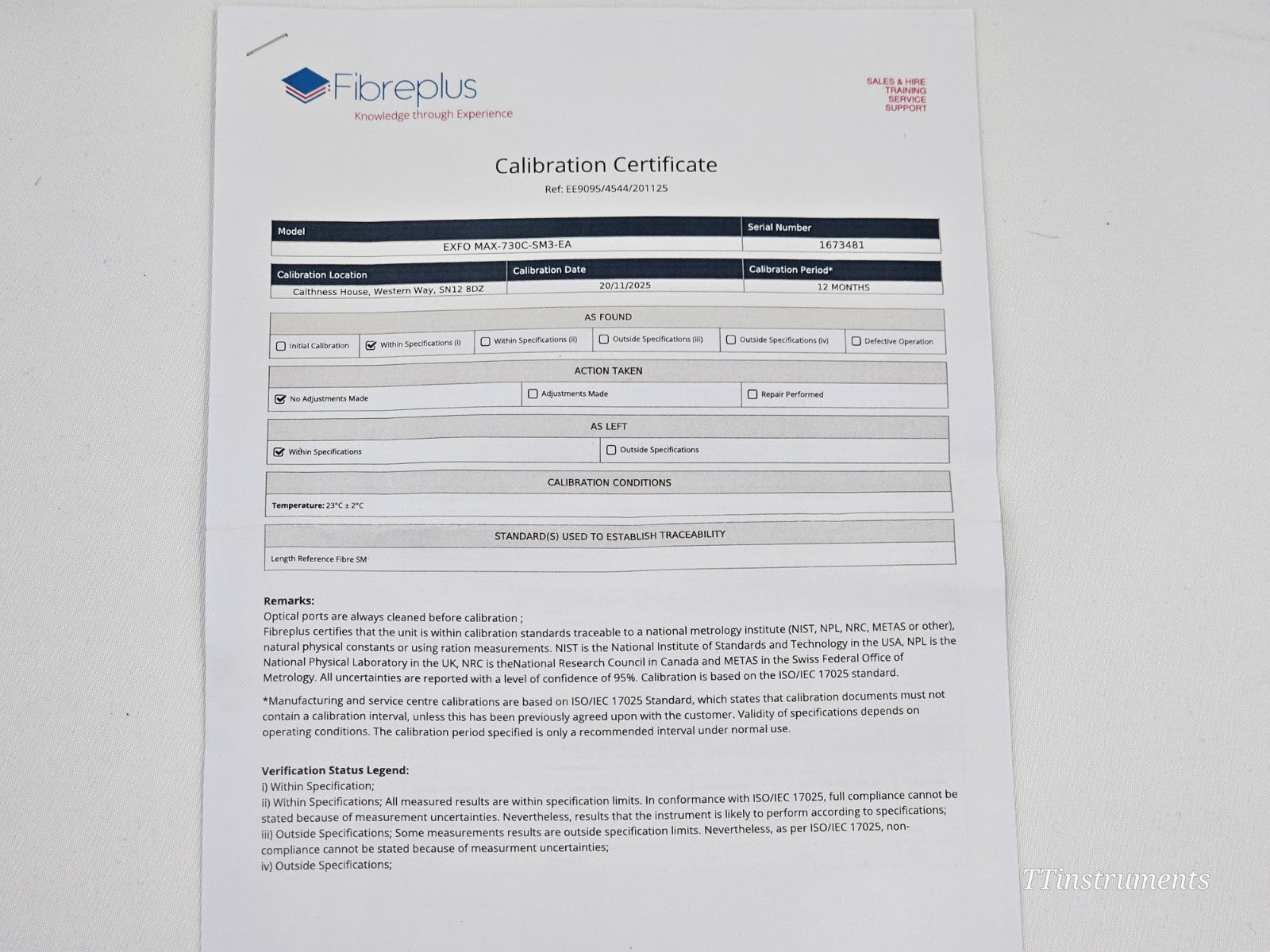

The EXFO MAX-730C-SM3 MaxTester OTDR is presented in good working condition and has been calibrated in November 2025. Software includes iOLM and OTDR applications. The SM3 configuration covers all three singlemode wavelengths: 1310 nm, 1550 nm, and 1625 nm (out-of-band live testing).

What's included:

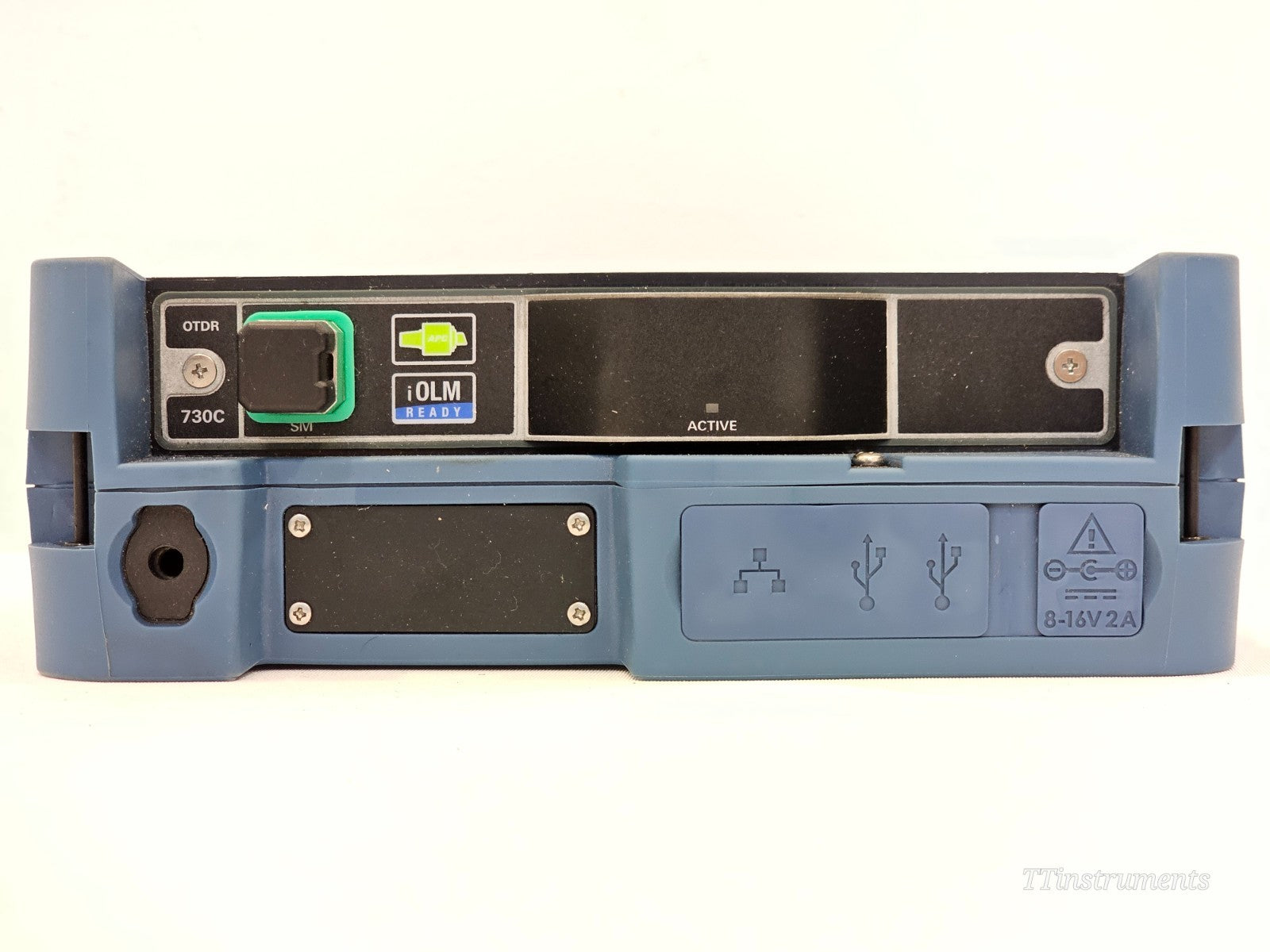

• EXFO MAX-730C-SM3 MaxTester OTDR unit

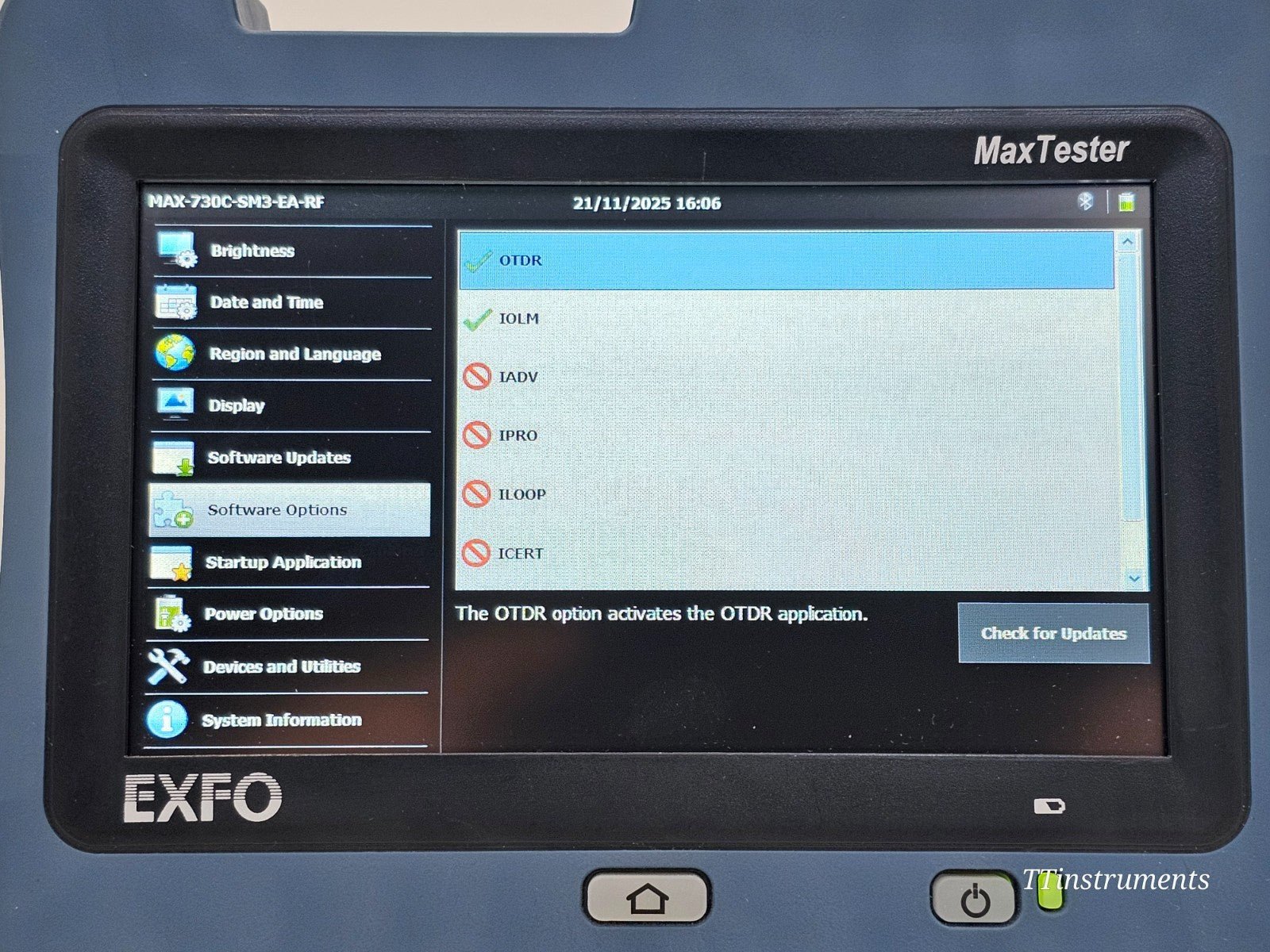

• iOLM software (licensed and active)
• OTDR software (licensed and active)

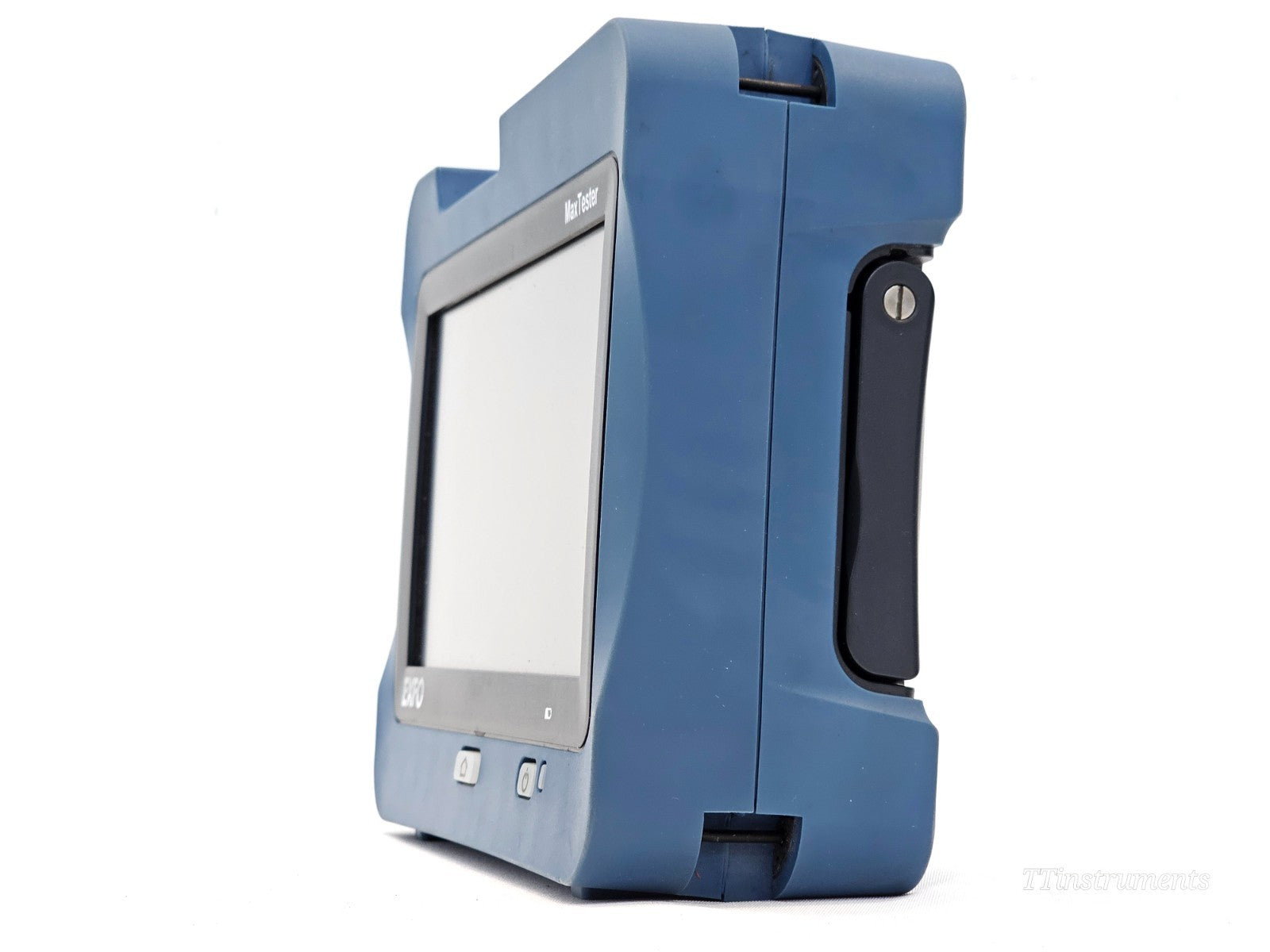

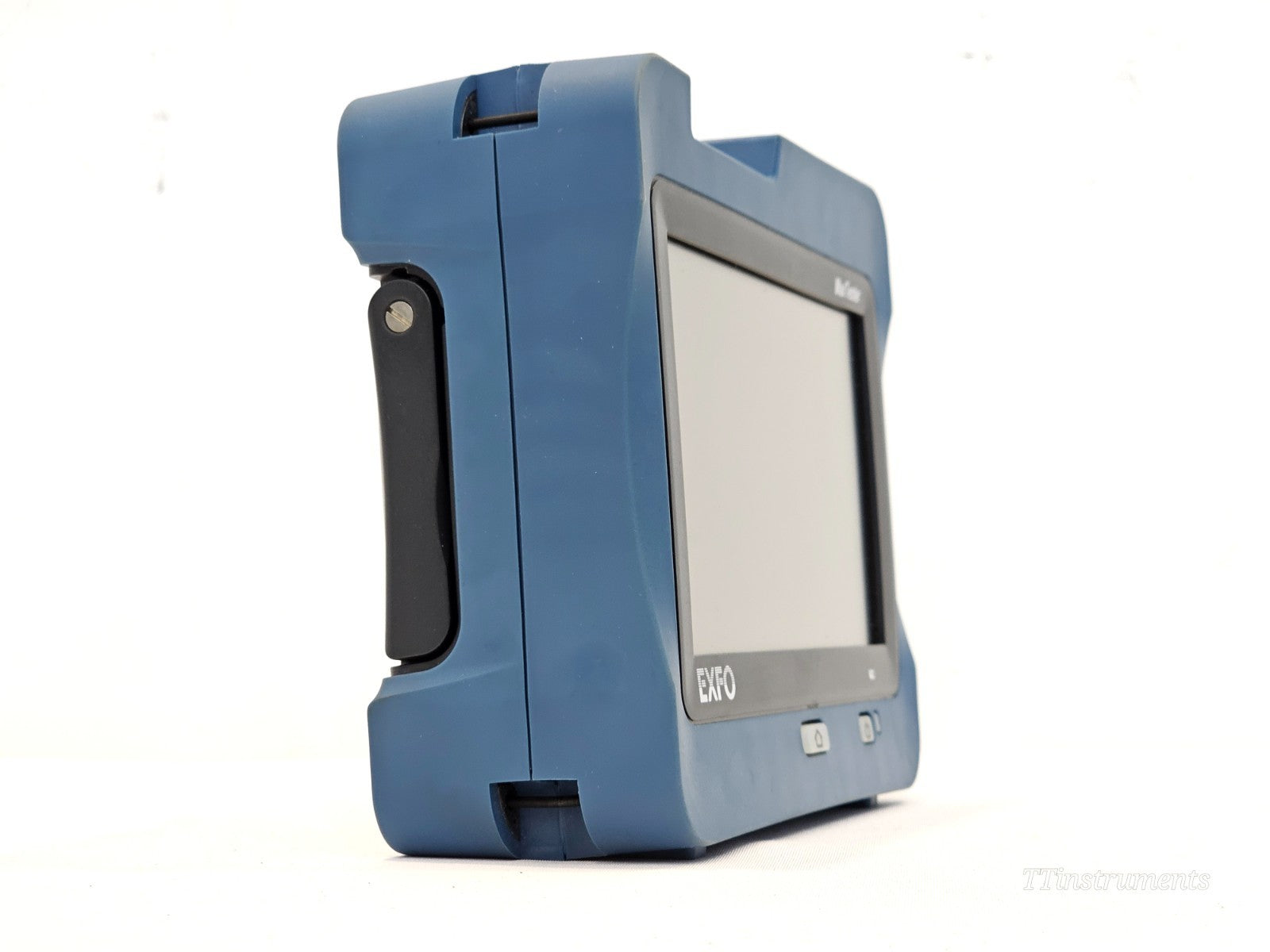

The EXFO MaxTester 730C (MAX-730C) is a fully featured, entry-level, dedicated OTDR with a tablet-inspired design, optimised for FTTx/PON and metro network testing. It is part of the MaxTester 700C Series — the first tablet-inspired OTDR line designed to be handy, lightweight, and rugged enough for any outside plant environment.

The MAX-730C-SM3 variant supports singlemode testing at 1310 nm, 1550 nm, and 1625 nm, with the 1625 nm port providing out-of-band, live fibre troubleshooting without disrupting active network clients. The instrument is optimised to test through optical splitters up to 1x128, enabling complete end-to-end FTTH characterisation.

The iOLM (intelligent Optical Link Mapper) is an OTDR-based application that eliminates the need to manually configure parameters or interpret multiple complex traces. Its advanced algorithms dynamically define testing parameters and correlate multi-pulse widths across multiple wavelengths to locate and identify faults at the push of a single button.

Key Features:
• 7-inch outdoor-enhanced touchscreen — the largest display in the handheld OTDR industry

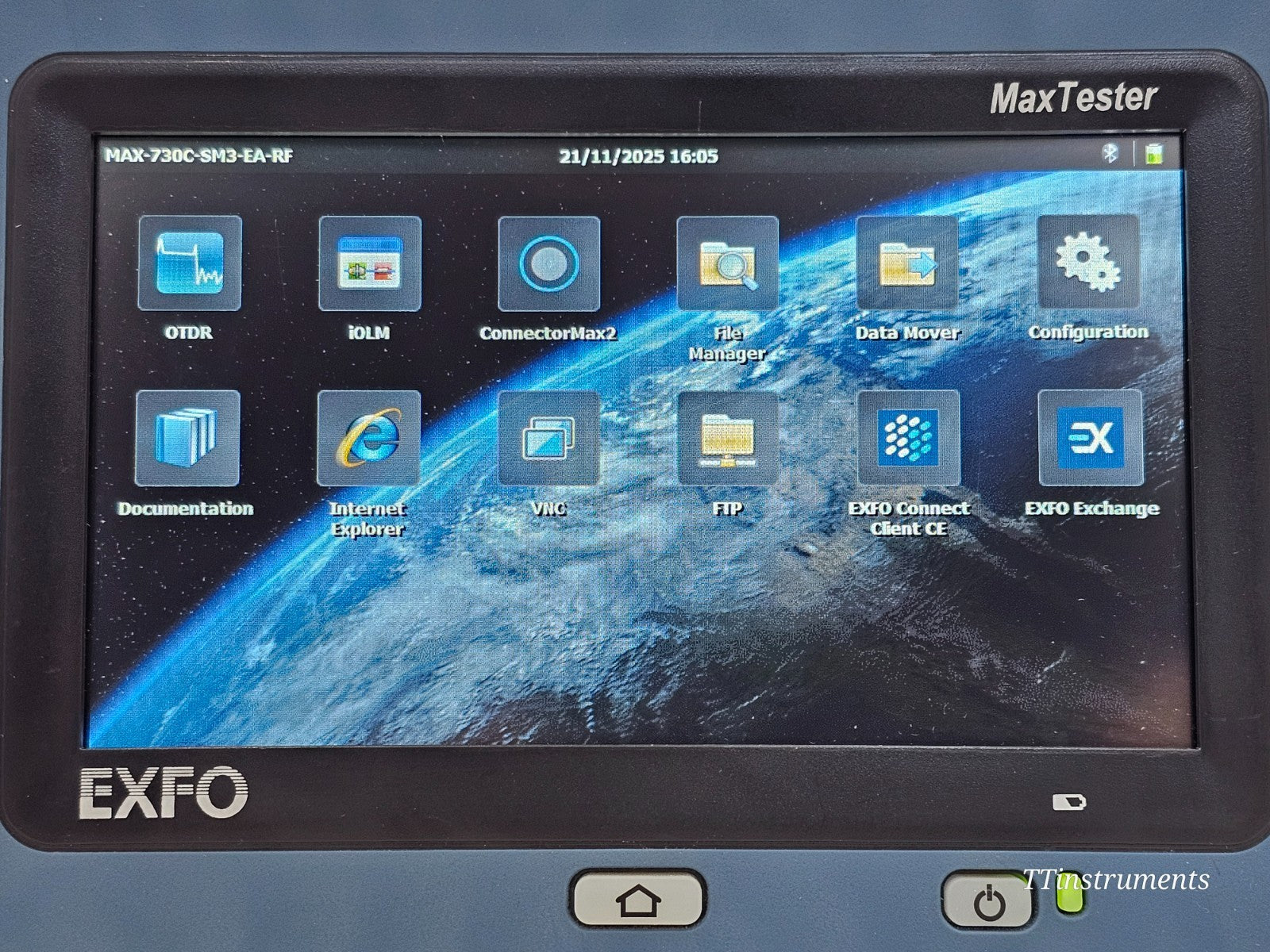

• Intuitive Windows-like GUI with icon-based functions and instant boot-up
• Automatic macrobend finder
• Icon-based linear view mapping for simplified trace reading
• Wi-Fi and Bluetooth connectivity for file sharing and remote control via VNC
• Plug-and-play hardware options (VFL, power meter, USB tools)
• 2 GB internal storage (approx. 20,000 trace files)
• USB 2.0 (x2) and RJ45 10/100 Mbps interfaces

Technical Specifications (MAX-730C-SM3):
Wavelengths: 1310 nm / 1550 nm / 1625 nm (singlemode)
Dynamic Range: 39 / 38 / 39 dB
Event Dead Zone (EDZ): 0.5 m
Attenuation Dead Zone (ADZ): 2.5 m
Distance Range: 0.1 km – 400 km
Pulse Width: 3 ns – 20,000 ns
Sampling Points: 256,000
Loss Resolution: 0.001 dB
Loss Threshold: 0.01 dB
Distance Linearity: ±0.03 dB
Display: 7-inch colour touchscreen, 800 × 480 TFT
Internal Storage: 2 GB (approx. 20,000 reflectograms)
Battery Life: Up to 12 hours (rechargeable lithium-polymer)
Interfaces: USB 2.0 × 2, RJ45 10/100 Mbps, Wi-Fi, Bluetooth
Power Supply: AC/DC adapter, 100–240 VAC, 50–60 Hz
Dimensions: 166 × 200 × 68 mm (approx.)
Weight: Approx. 800 g
Operating Temperature: –10 °C to +50 °C
Storage Temperature: –40 °C to +70 °C

Applications:
• FTTx/PON testing through splitters (up to 1x128)
• Access network testing (point-to-point, P2P)
• Metro links testing (P2P)
• Live fibre troubleshooting (out-of-band at 1625 nm)

All specifications valid at 23 °C ± 2 °C with FC/APC connector unless otherwise stated. Refer to the official EXFO datasheet for full specification details.

EXFO MaxTester 730C PON/Metro OTDR Official Spec Sheet (v13, EN) — full technical specifications and feature overview: Download PDF

EXFO MaxTester 730C PON/Metro OTDR Spec Sheet (earlier version, EN) — product datasheet from ProFiber: Download PDF

EXFO MaxTester Series OTDR User Guide (English) — full operation manual covering MAX-730C: Download PDF

EXFO MaxTester Series User Guide — comprehensive user manual hosted by Intelek: Download PDF
