Condition: Refurbished

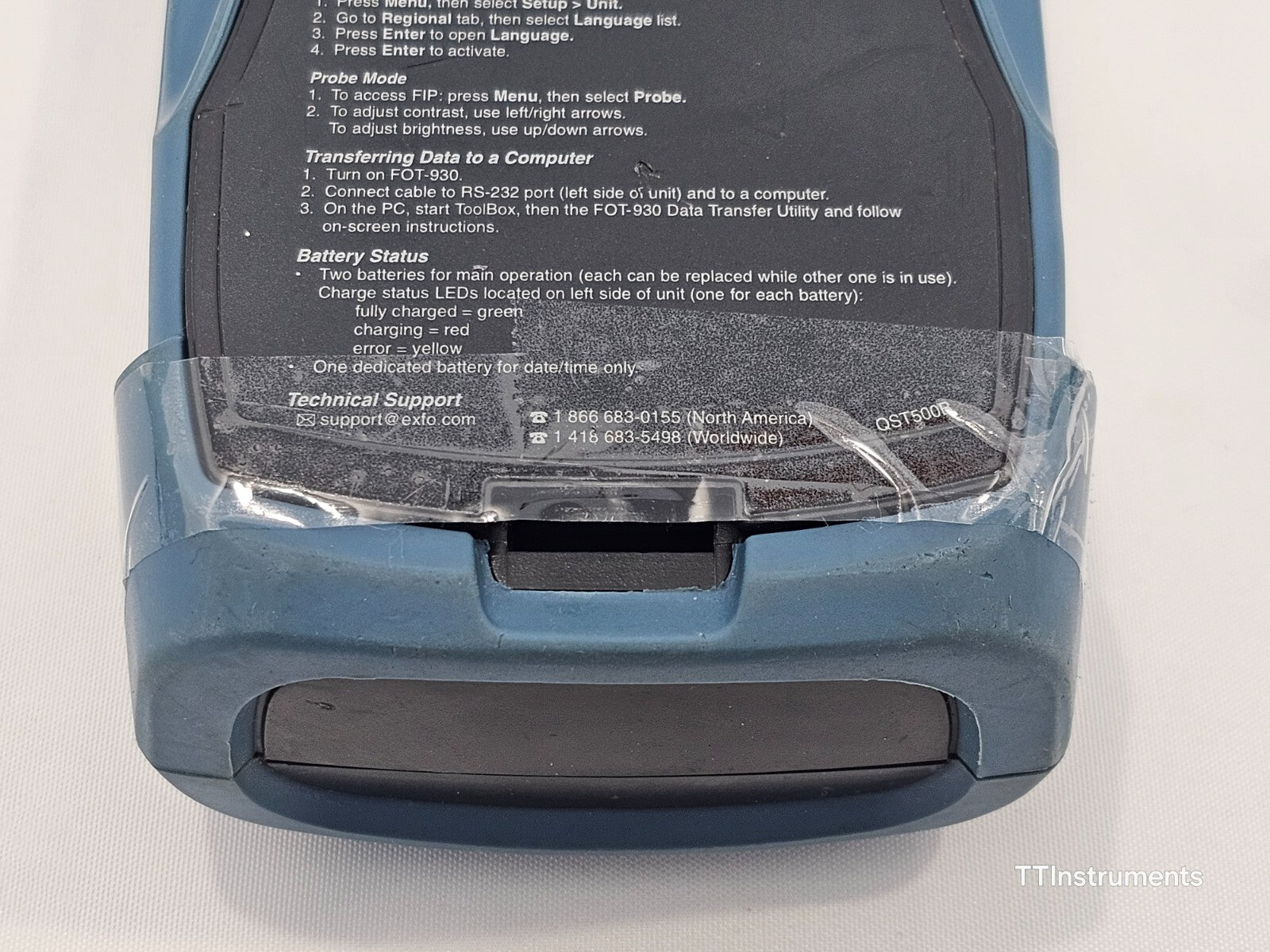

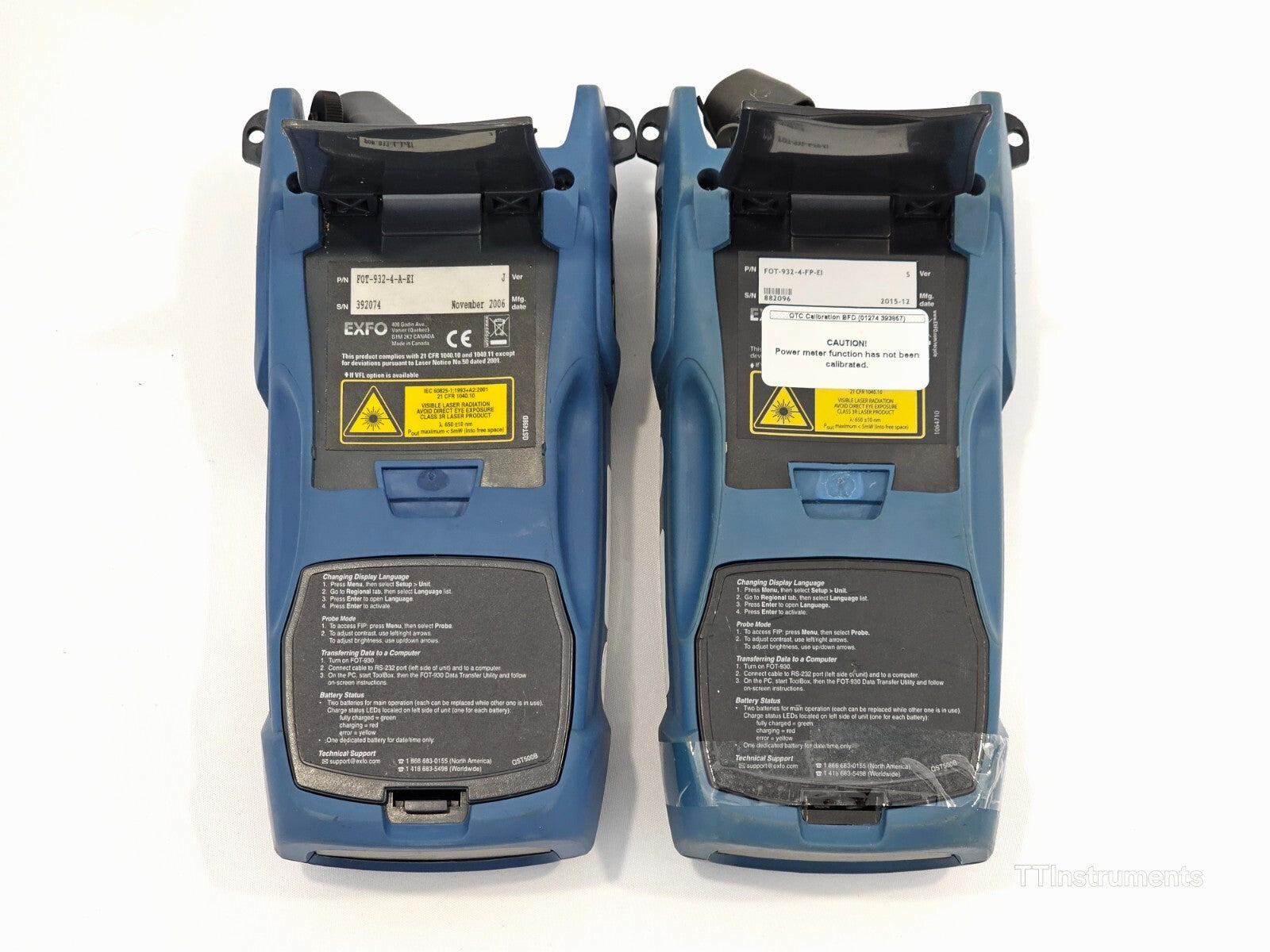

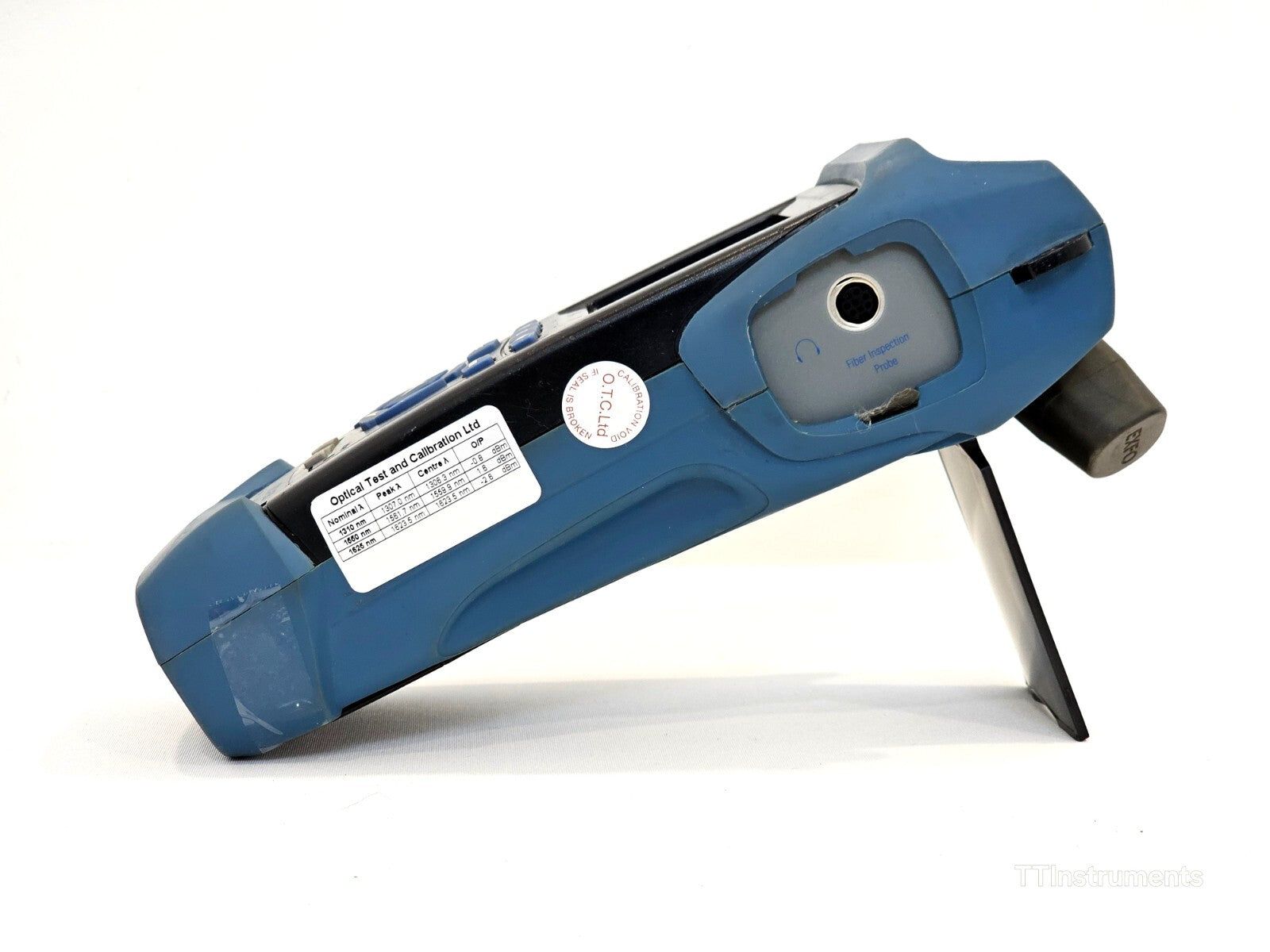

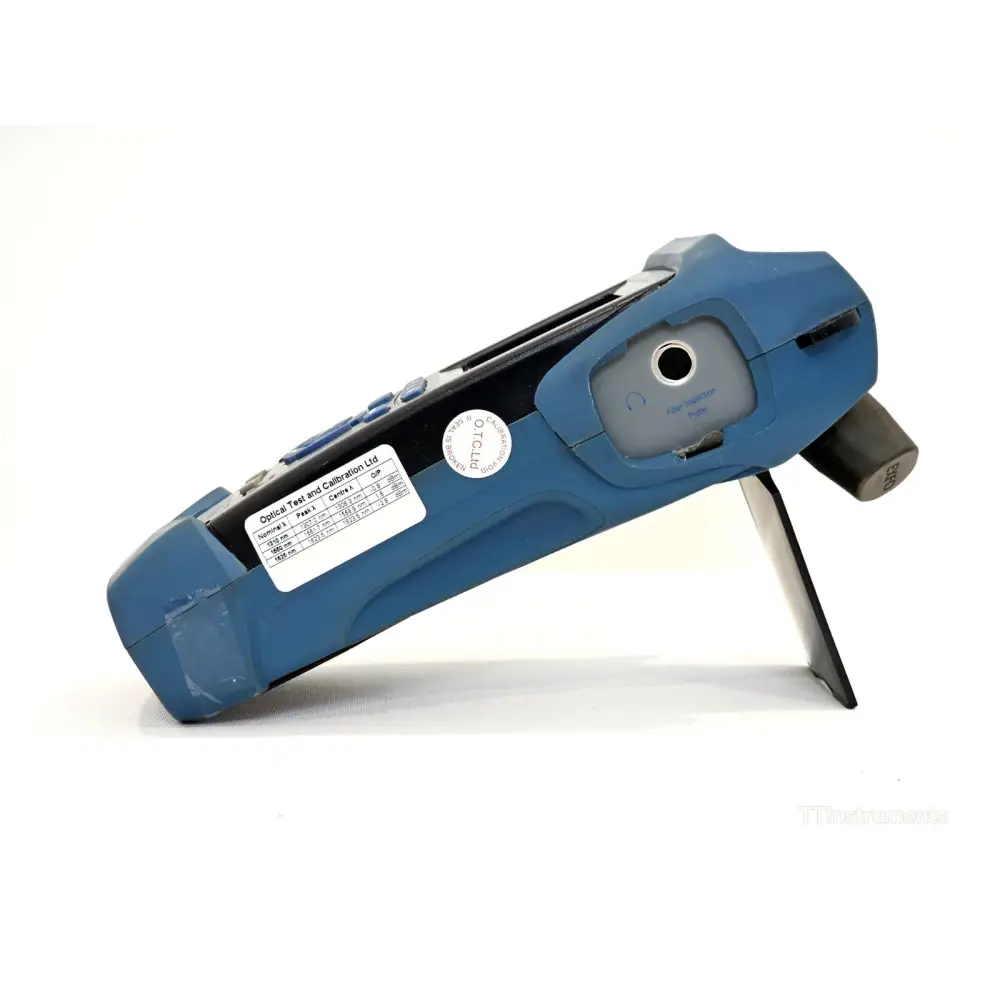

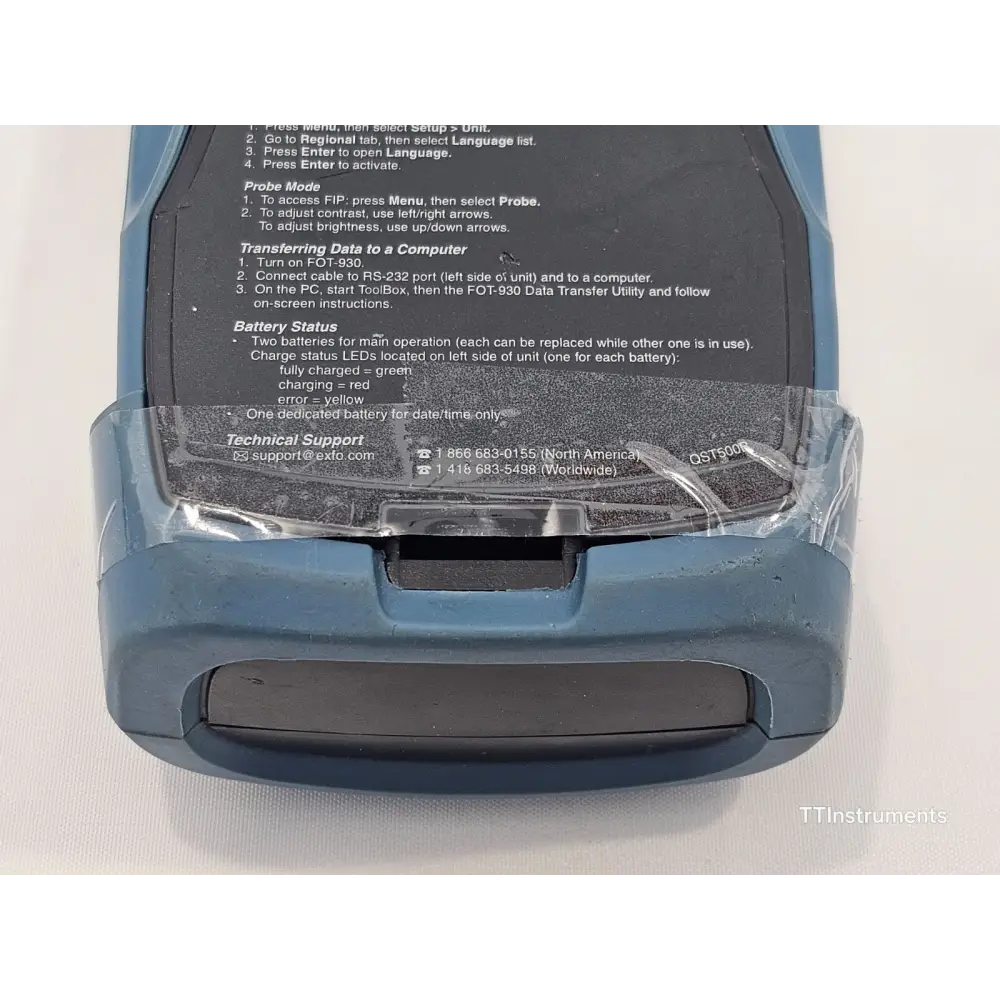

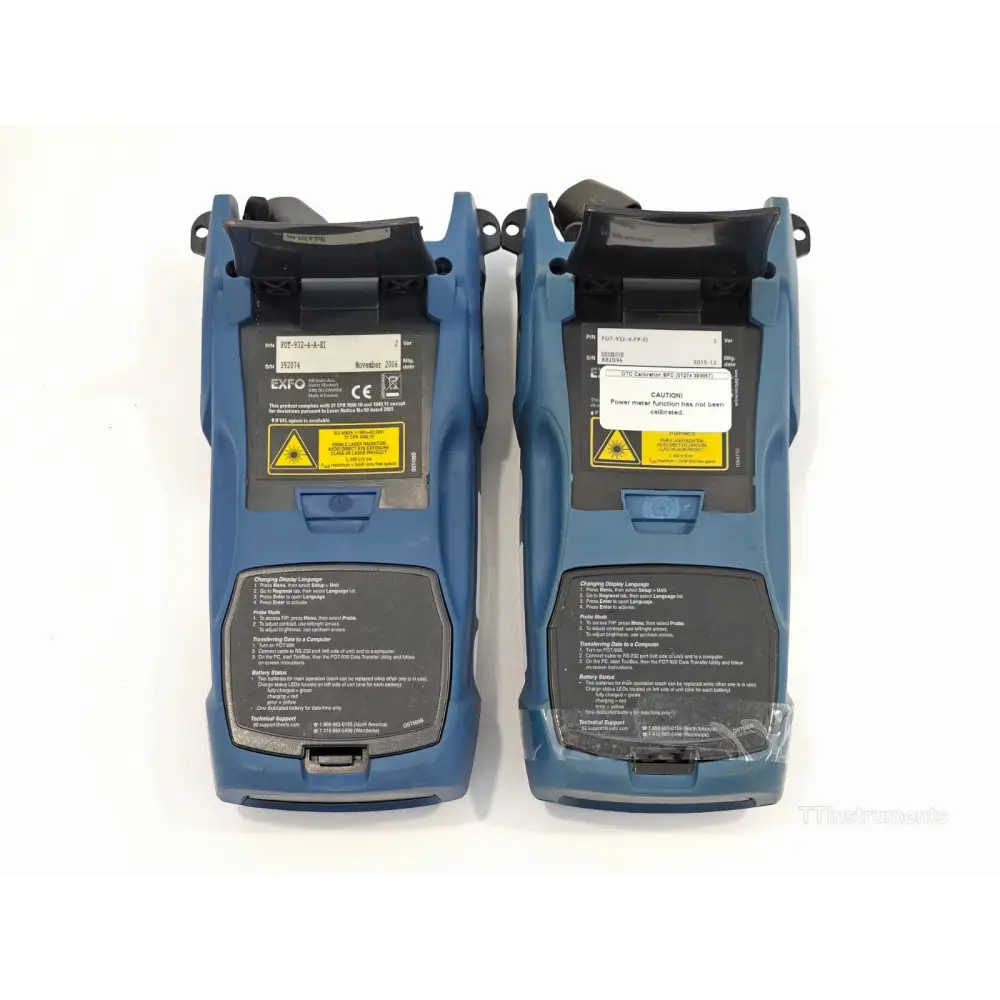

Sold as a matched pair, both calibrated May 2025 at a cost of £1,000. These are the rare FOT-932-4 tri-band variants covering 1310/1550/1625 nm single-mode wavelengths. One unit has a scratched power meter face and failed calibration on the power meter function only — all other tested functions passed. That unit also has a broken battery door secured with tape.

What is included:

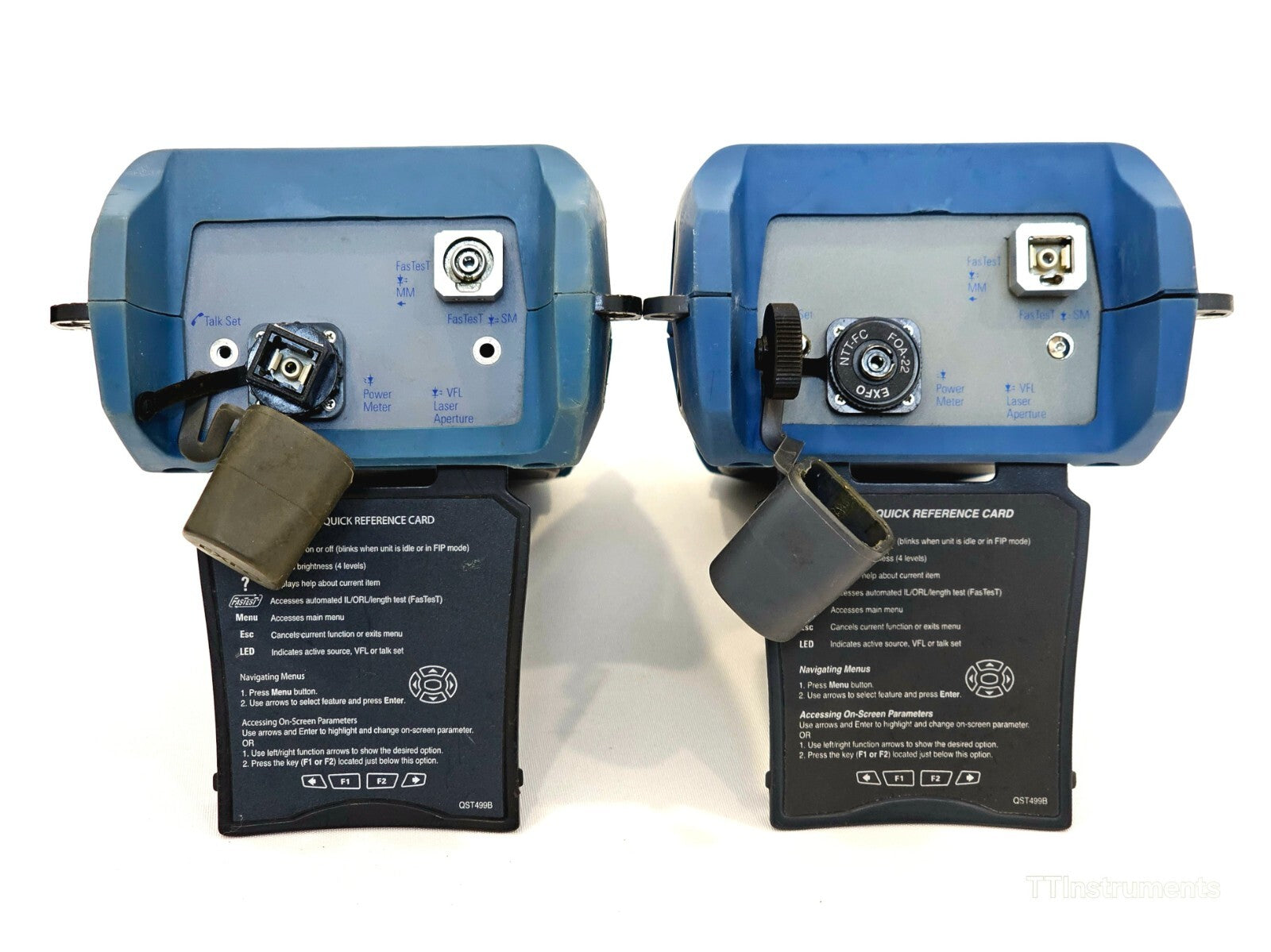

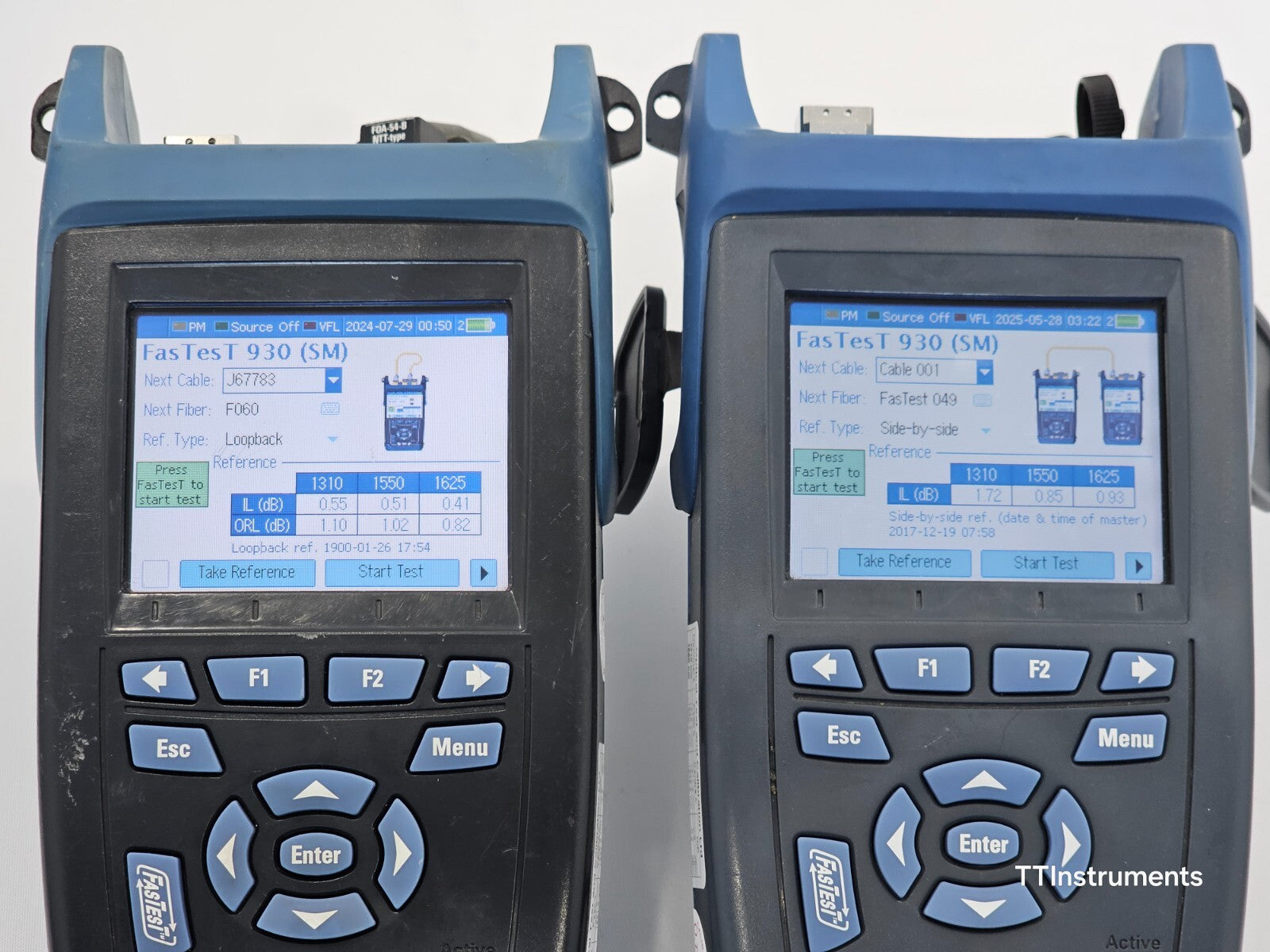

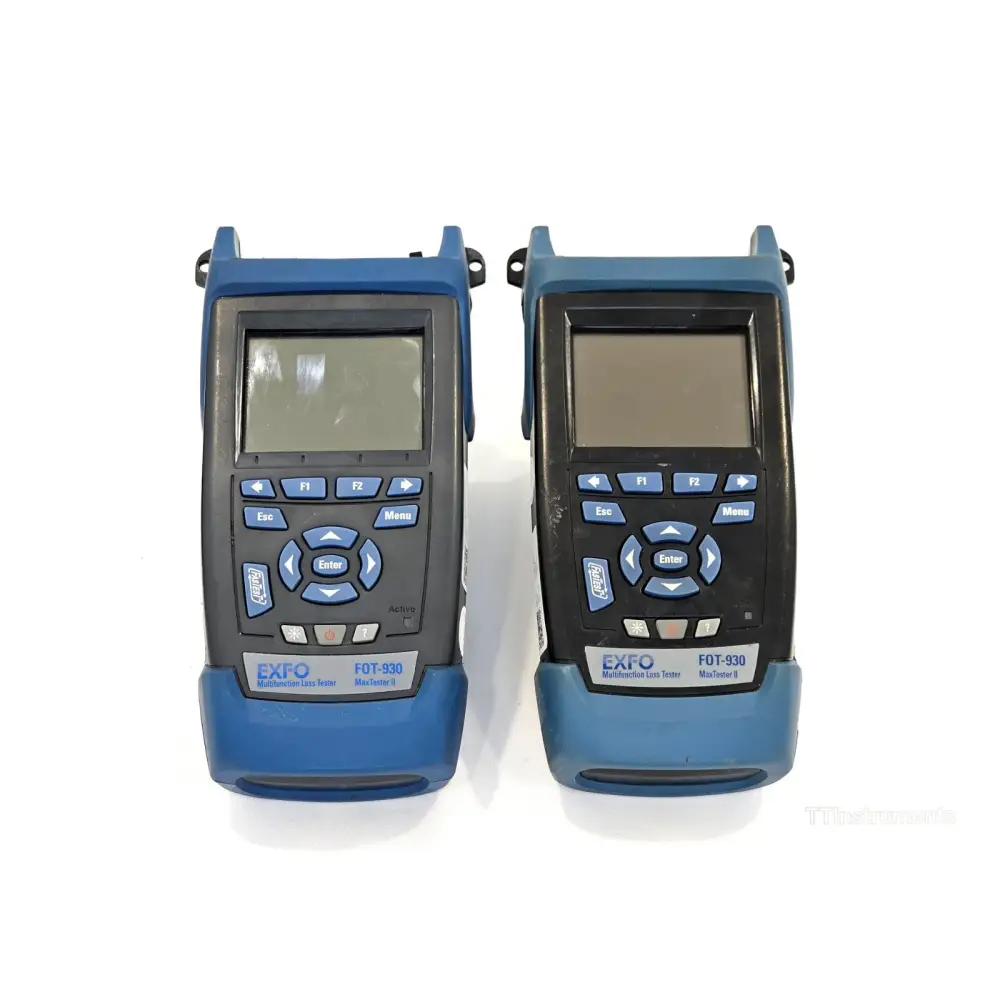

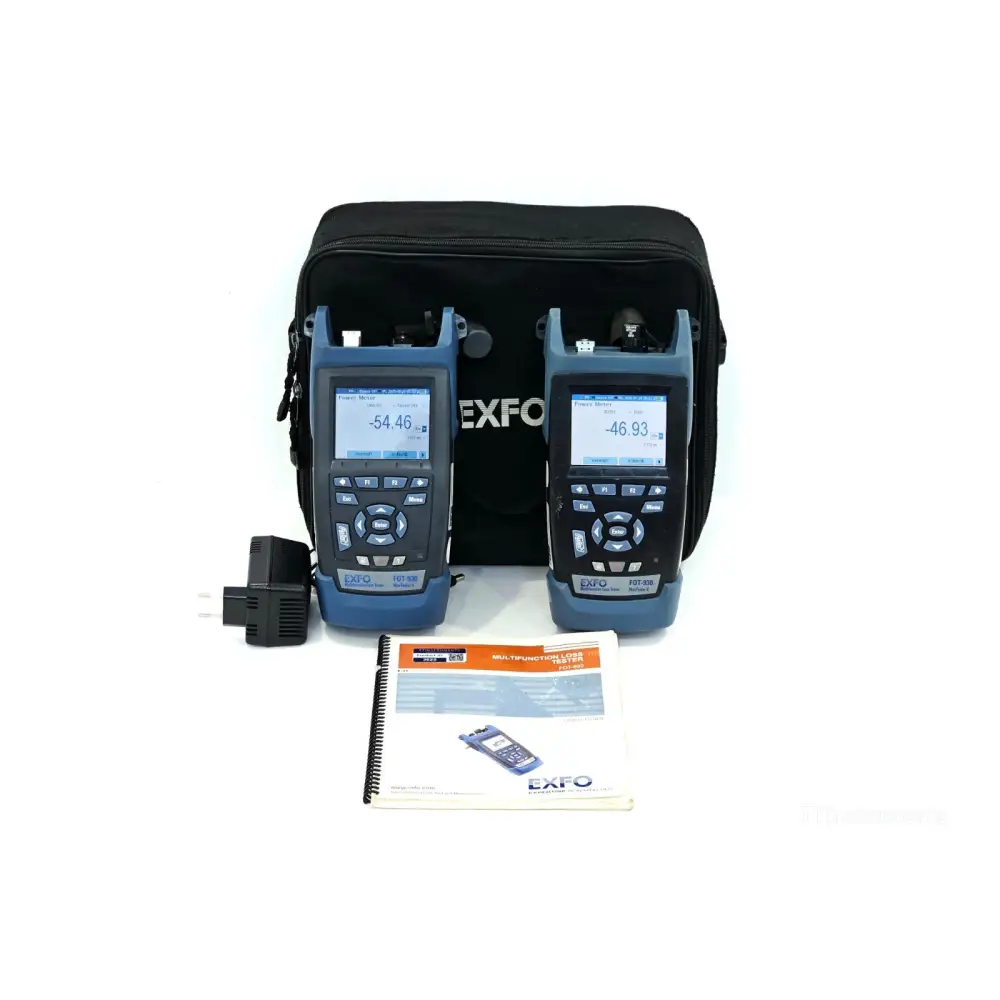

• Two EXFO FOT-930 MaxTester II units (paired set)

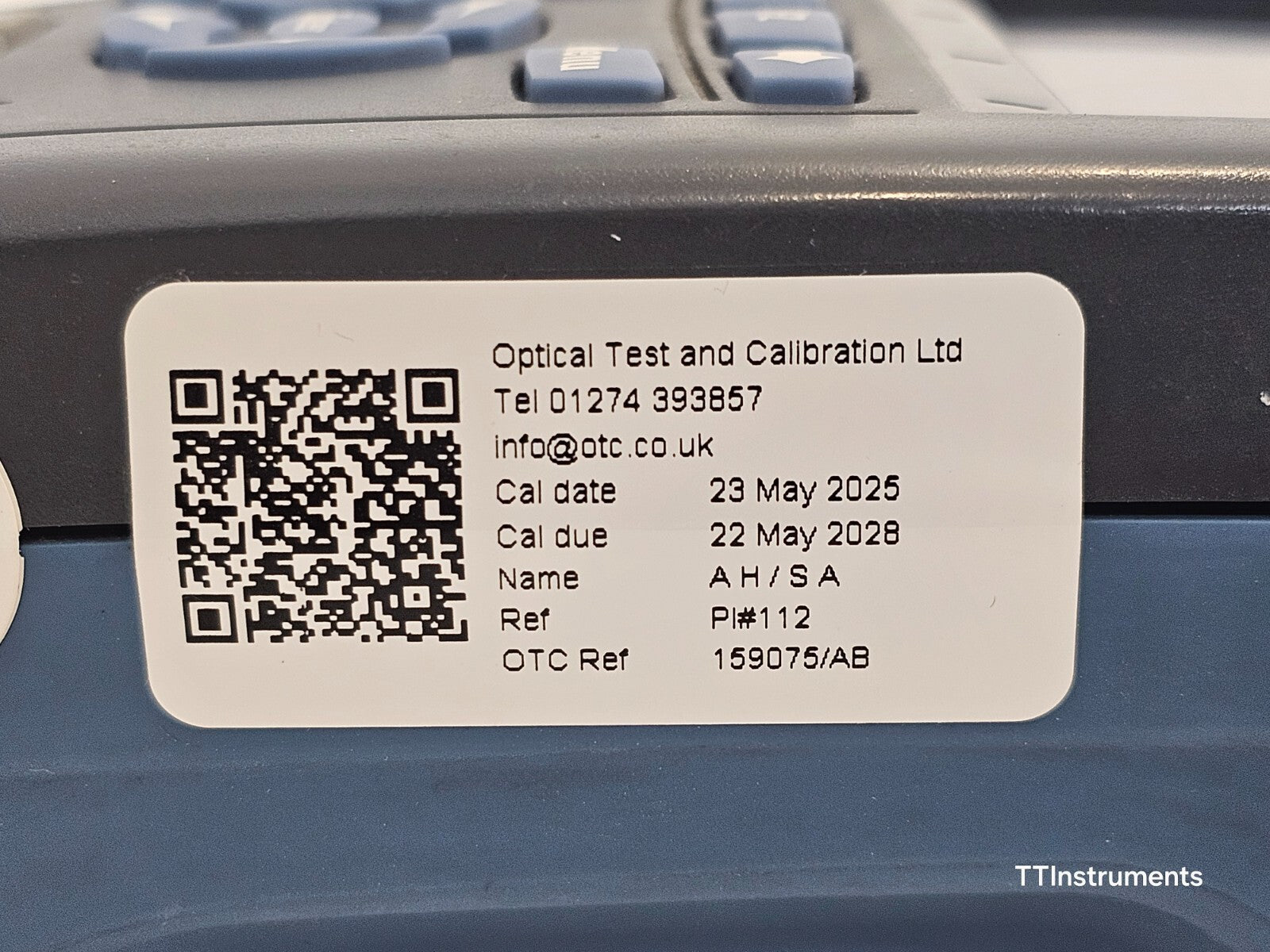

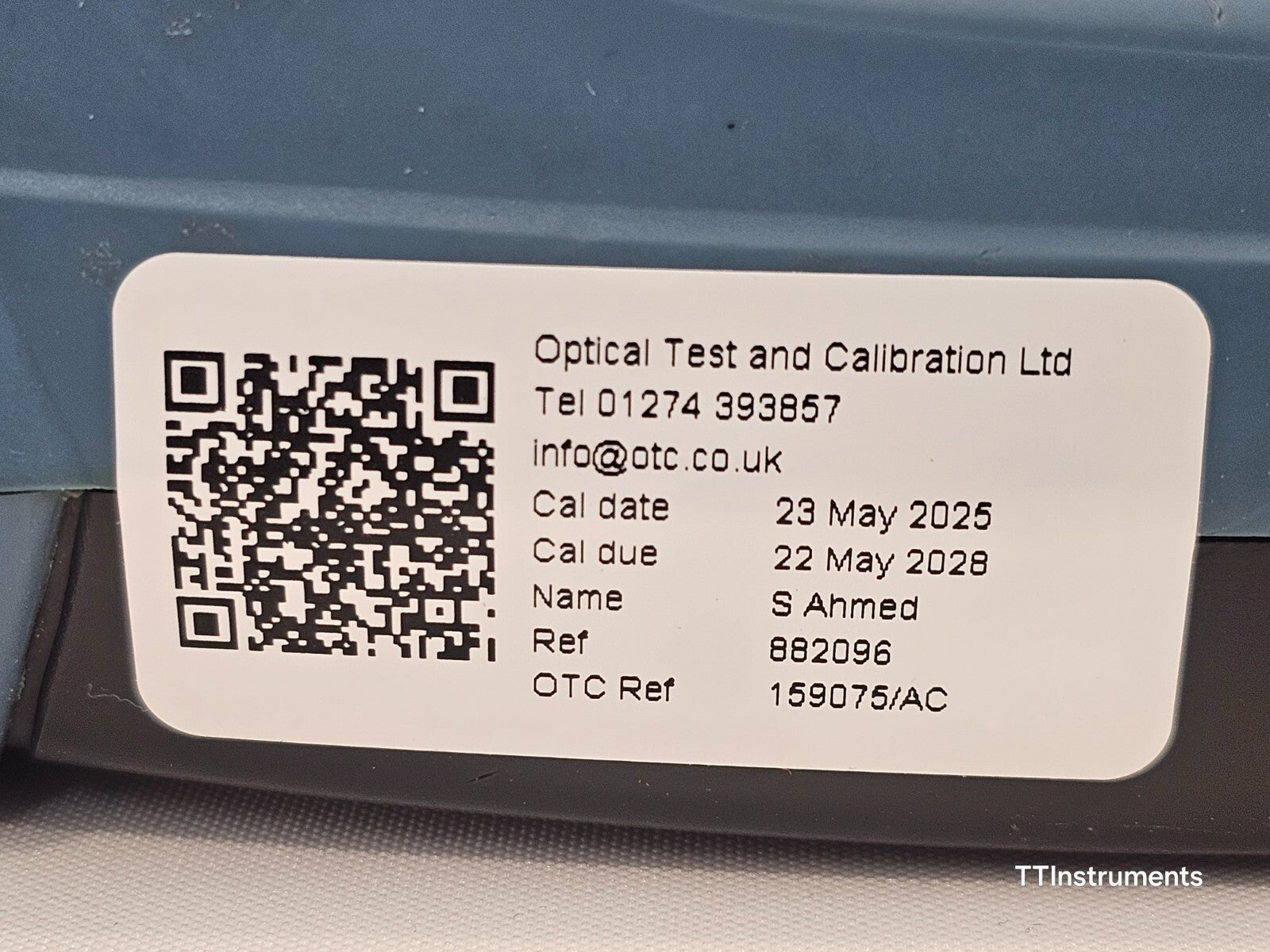

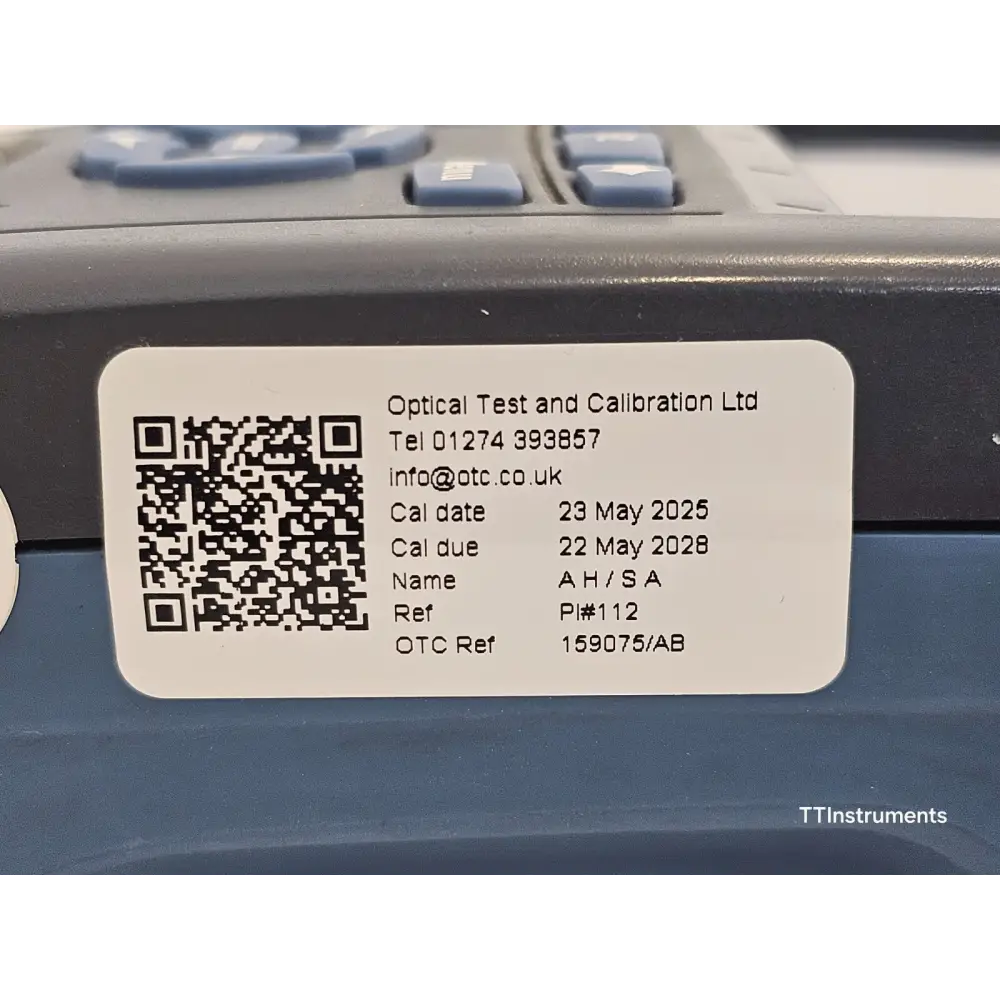

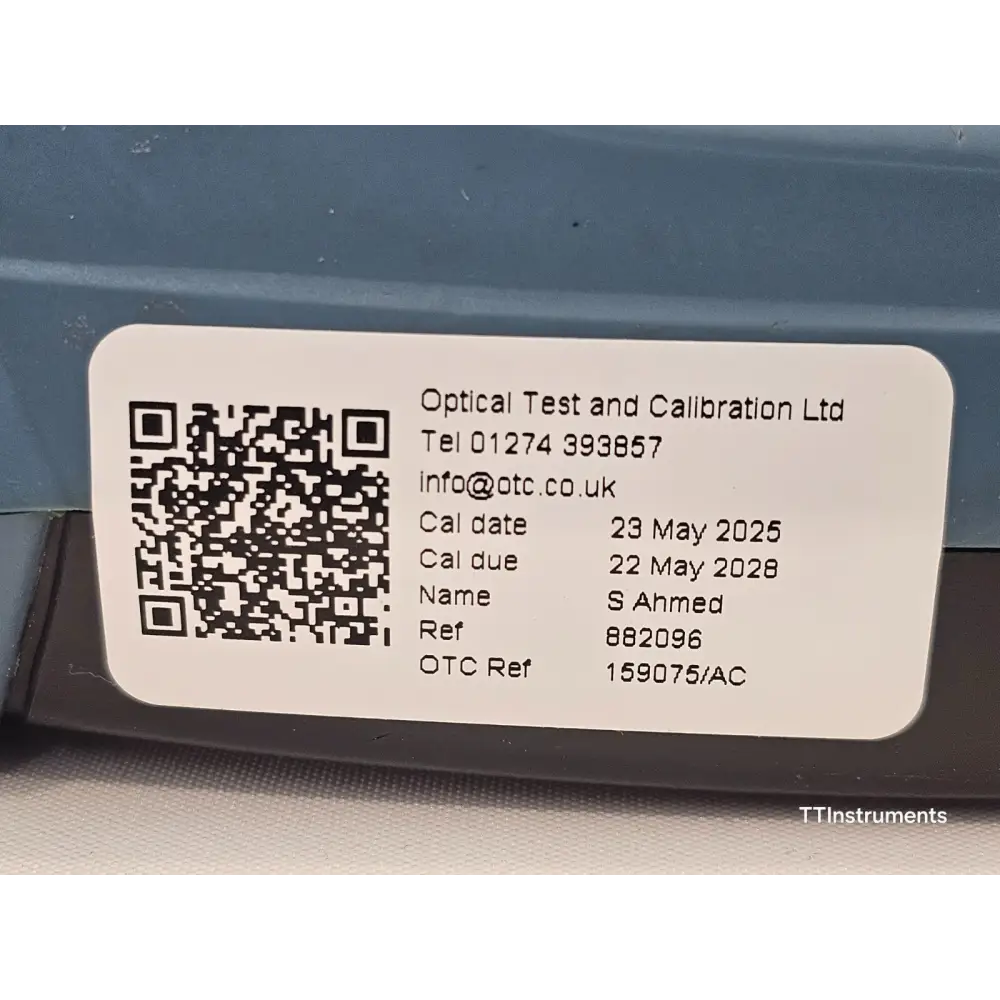

• Calibration dated May 2025 (pair)

The EXFO FOT-930 MaxTester is a multifunction loss tester designed for network service providers, network installers, and CATV operators. It delivers fully automated loss test results in under 10 seconds for up to three wavelengths, along with automatic ORL and fibre-length measurement. Combining up to eight instruments in a single ergonomic handheld package, the FOT-930 reduces the need for multiple tools and shortens technician training time.

The instrument integrates a light source, power meter, optical return loss (ORL) meter, visual fault locator (VFL), full-duplex digital talk set, video fibre inspection probe, and fibre-length meter. A large high-resolution colour display and up to nine hours of battery autonomy make it well suited to demanding field environments.

The FOT-930 supports single-mode testing at two or three wavelengths depending on the installed module. The FOT-932-4 external power meter module adds the 1625 nm wavelength capability for live-fibre and CWDM testing. The instrument is compatible with FTTx (FTTH/FTTP) passive optical networks (PONs) and complies with ITU-T G.983 and G.984 series recommendations and IEEE 802.3ah.

Key Specifications:
Product Name: EXFO FOT-930 MaxTester II Multifunction Loss Tester
Module (tri-band SM): FOT-932-4
Test Wavelengths (SM tri-band): 1310 nm / 1550 nm / 1625 nm
Detector Type (FOT-932): Germanium (Ge)
Measurement Range (FOT-932, dBm): +10 to −70
Measurement Range Extended (dBm): Down to −77
Detector Type (FOT-933): InGaAs
Measurement Range (FOT-933, dBm): +6 to −73 (down to −80)

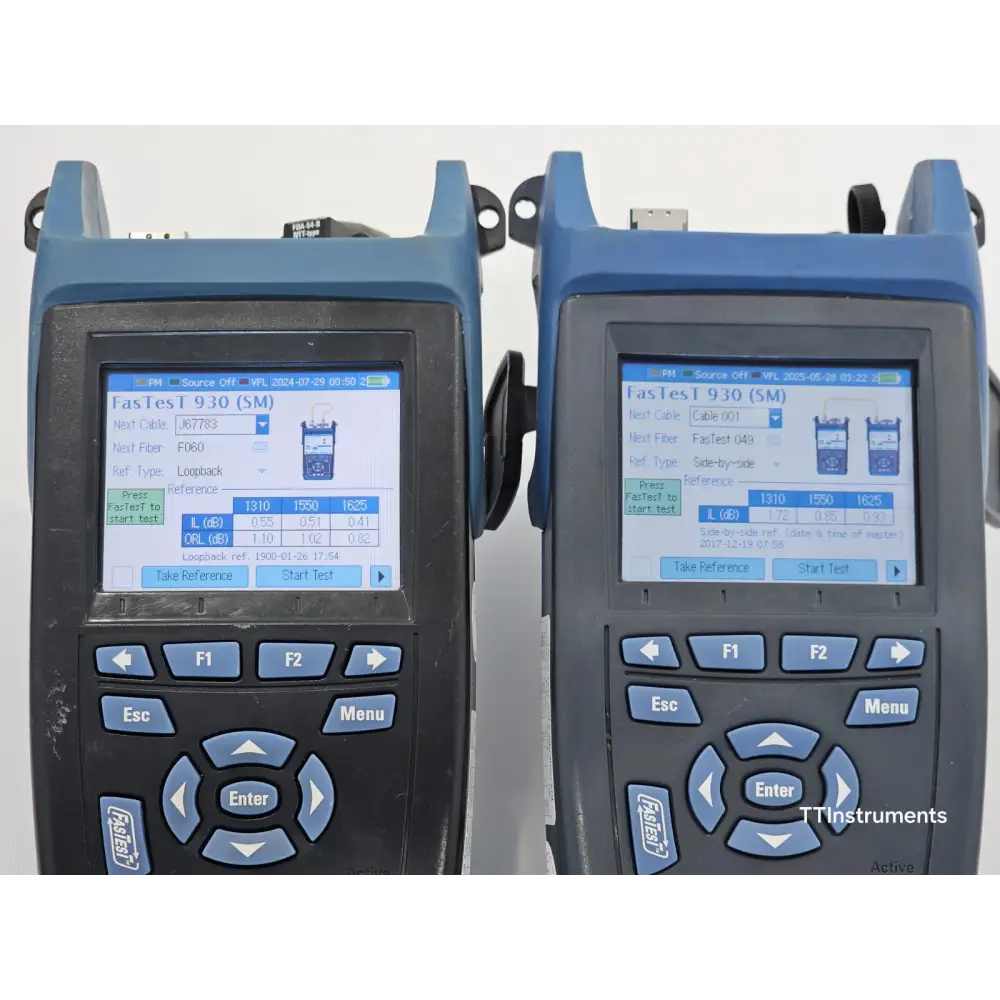

FasTesT Duration: <10 seconds (three wavelengths, loss + ORL)
Test Modes: Manual, FasTesT (automated bidirectional), FTTx mode
ORL Measurement: Yes
Fibre-Length Measurement: Yes
Data Storage: Up to 1,000 test records

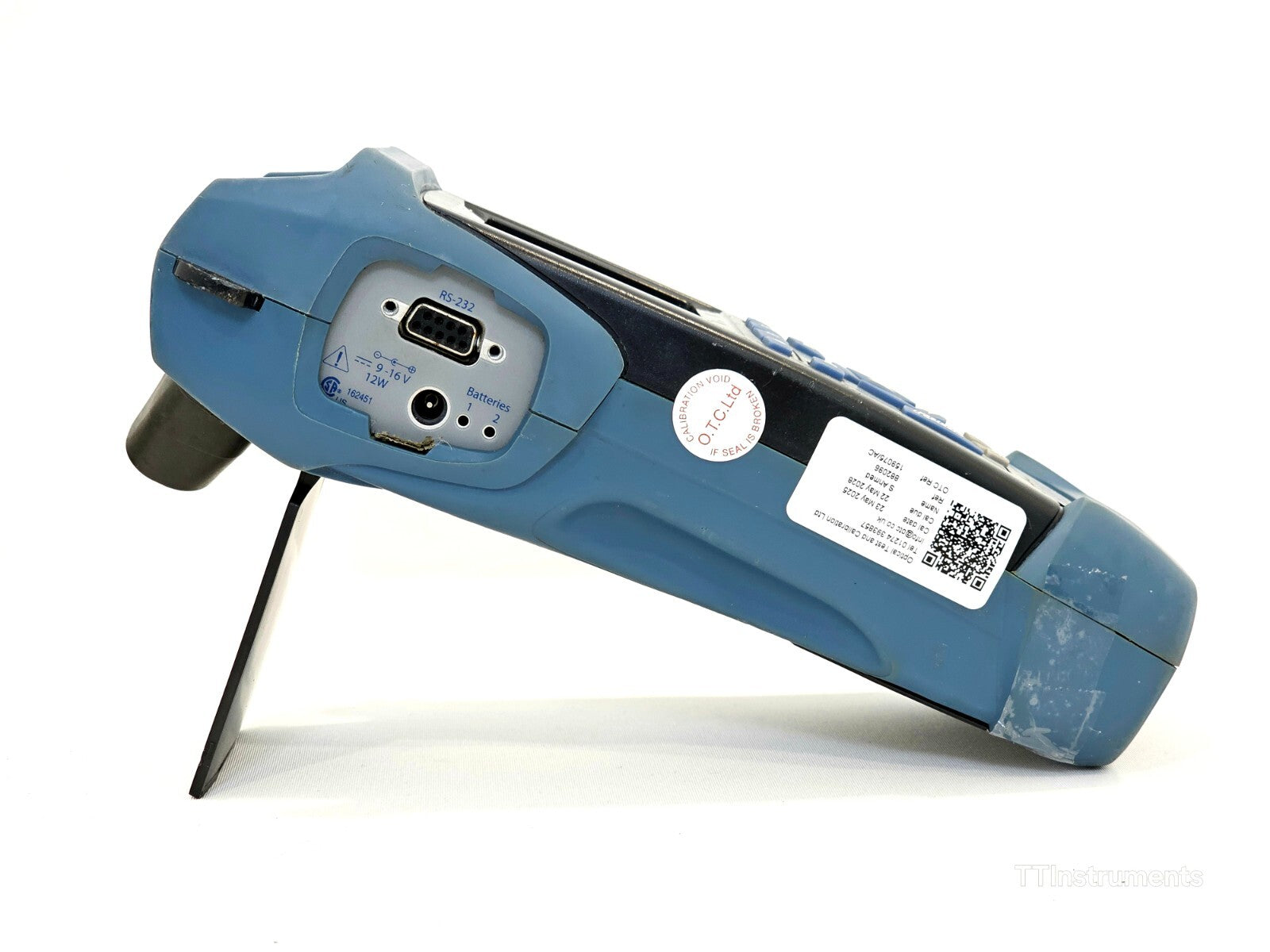

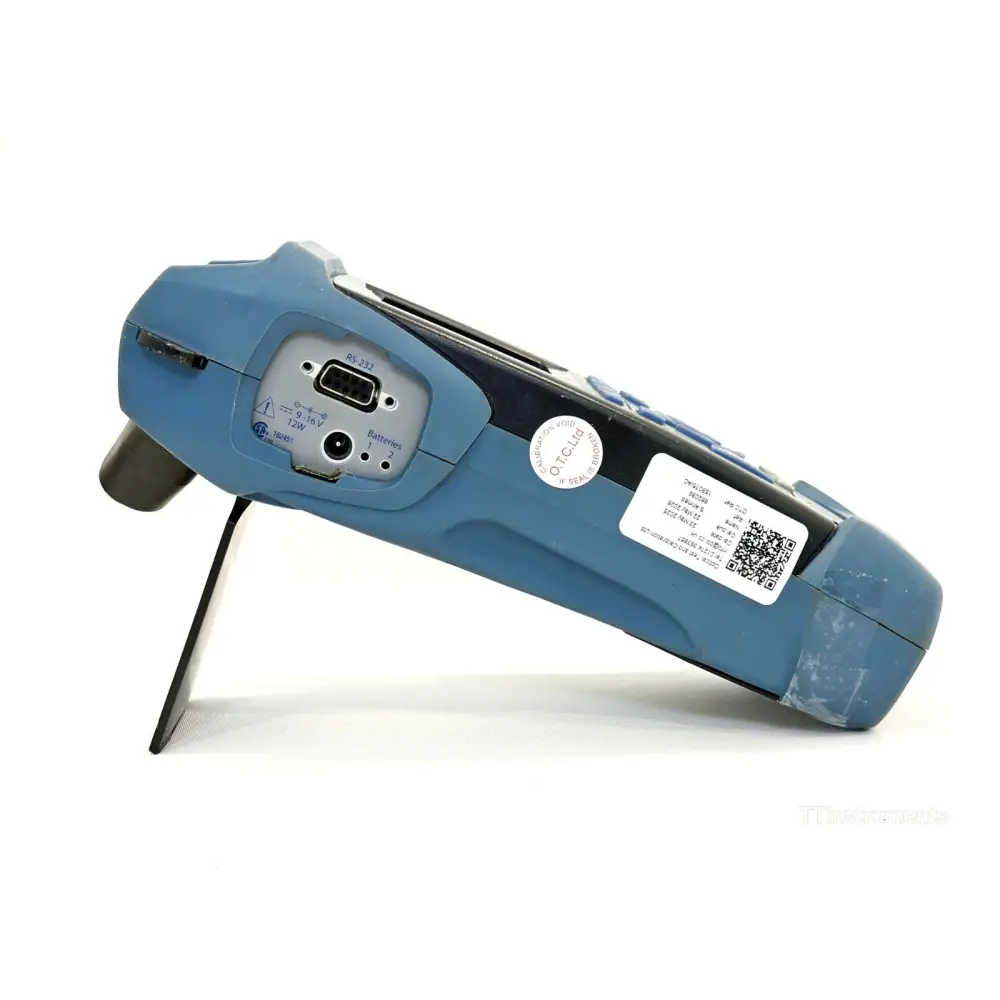

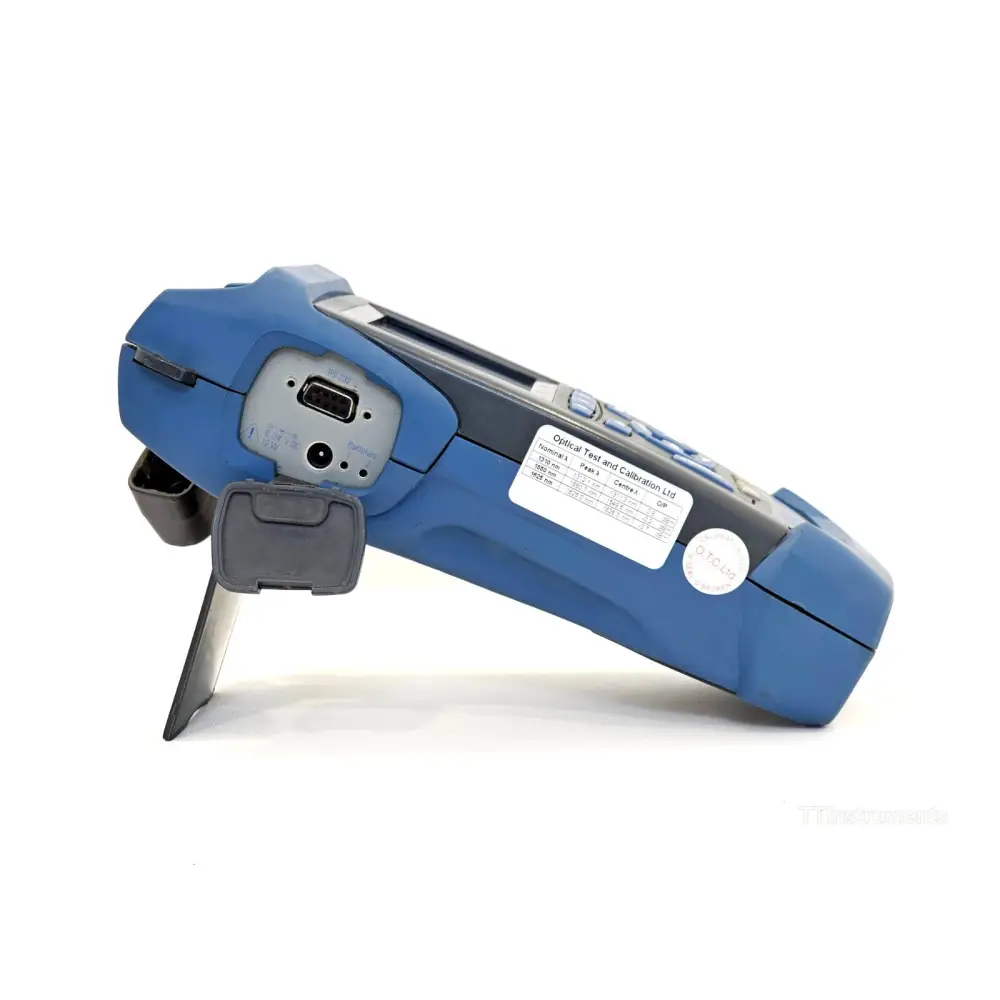

Data Transfer: RS-232 port to PC
Battery Autonomy: Approximately 9 hours
Display: Large high-resolution colour screen
Fibre Types Supported: Single-mode (SM); multimode (MM) with optional second port
Optional Accessories: Video fibre inspection probe, talk set, visual fault locator
Compliance: ISO 9001 (EXFO); ITU-T G.983/G.984; IEEE 802.3ah; EN 61010-1; EN 61326-1; EN 60825-1
Manufacturer: EXFO Inc., 400 Godin Avenue, Quebec City, QC, Canada

EXFO FOT-930 MaxTester Official User Guide (English) — hosted on exfo.com: Download PDF

EXFO FOT-930 MaxTester Specification Sheet v19 (English) — hosted on exfo.com: Download PDF

EXFO FOT-932 Specifications Sheet — hosted on AAATesters.com: Download PDF

EXFO FOT-930 Series Datasheet — hosted on AccuSource Electronics: Download PDF
