Condition: Seller refurbished

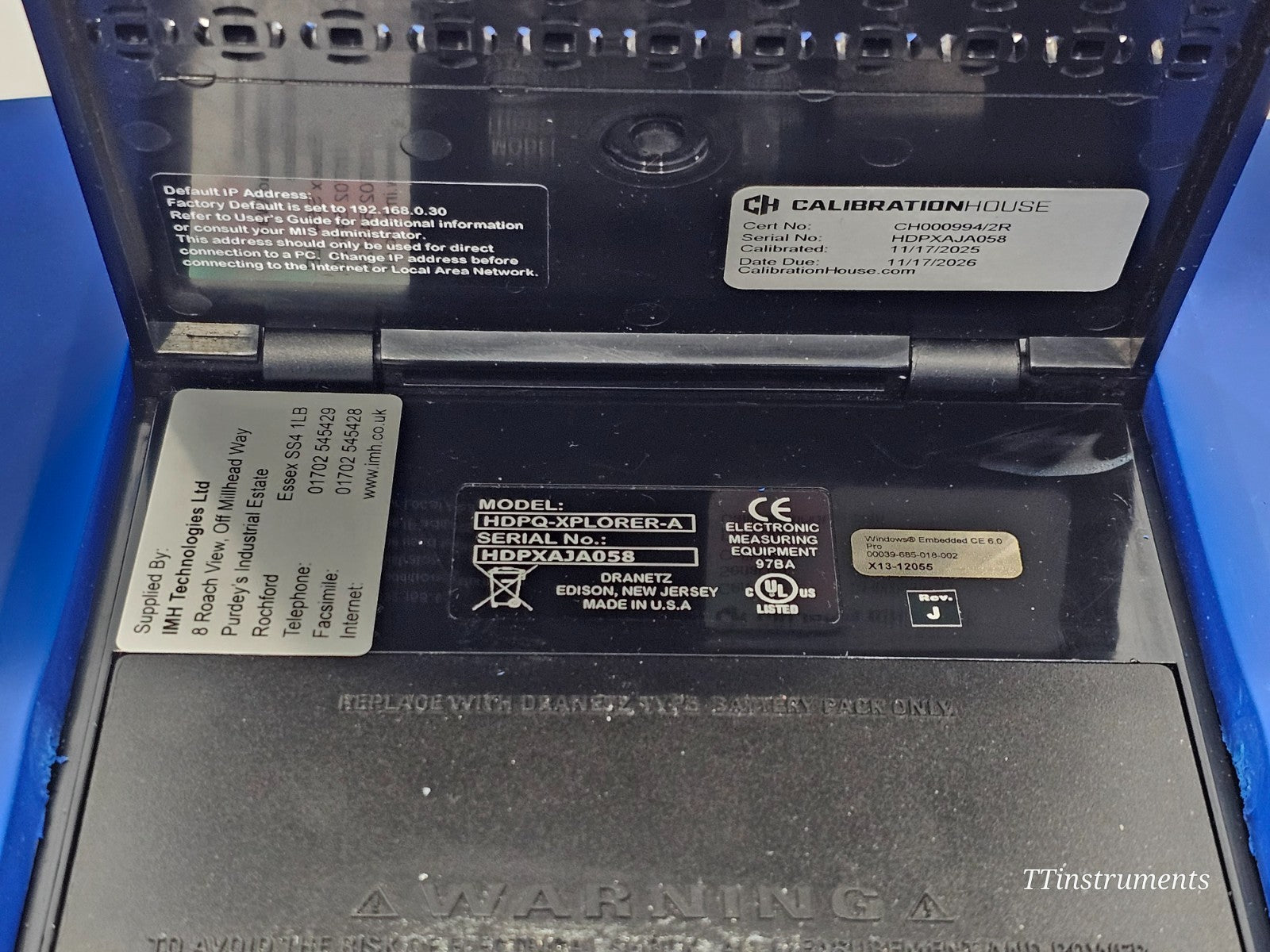

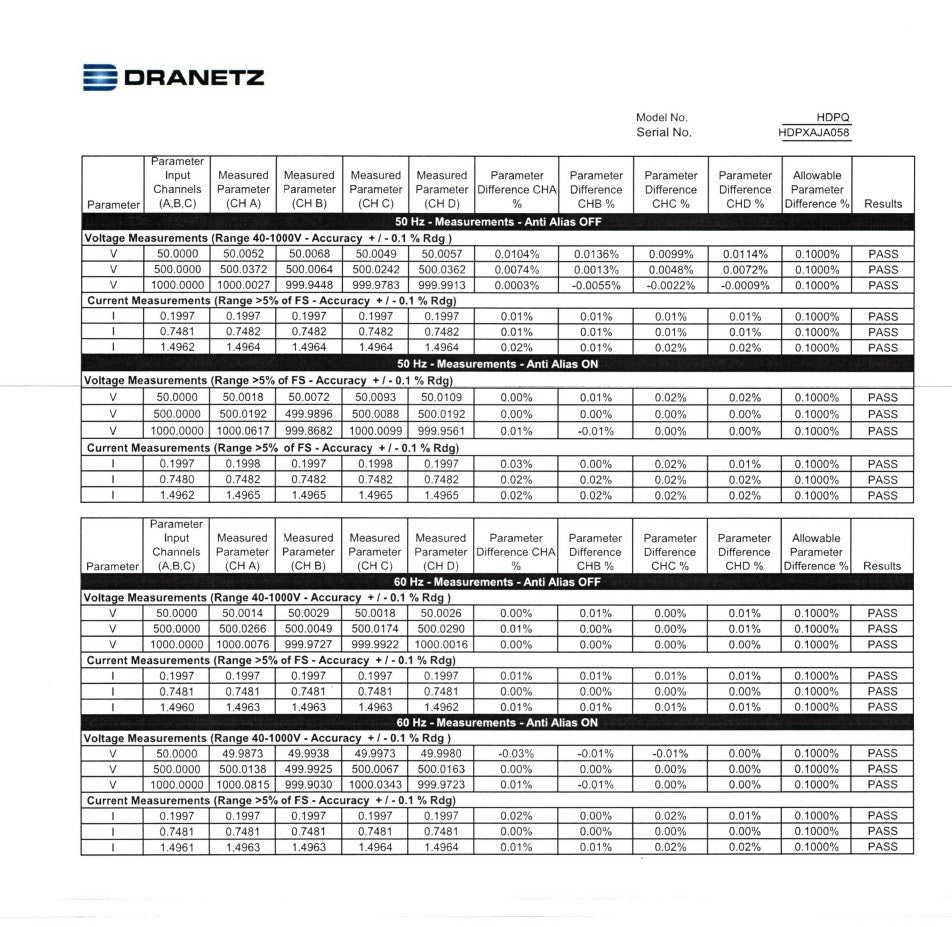

This Dranetz HDPQ Xplorer power quality analyser has been professionally calibrated by Dranetz USA (Dranetz calibration house) in November 2025, ensuring full measurement traceability. It is supplied complete with DRANFLEX 3000XLB flexible current sensors and all pictured accessories.

Included in the sale:
• DRANFLEX 3000XLB flexible current sensor(s)

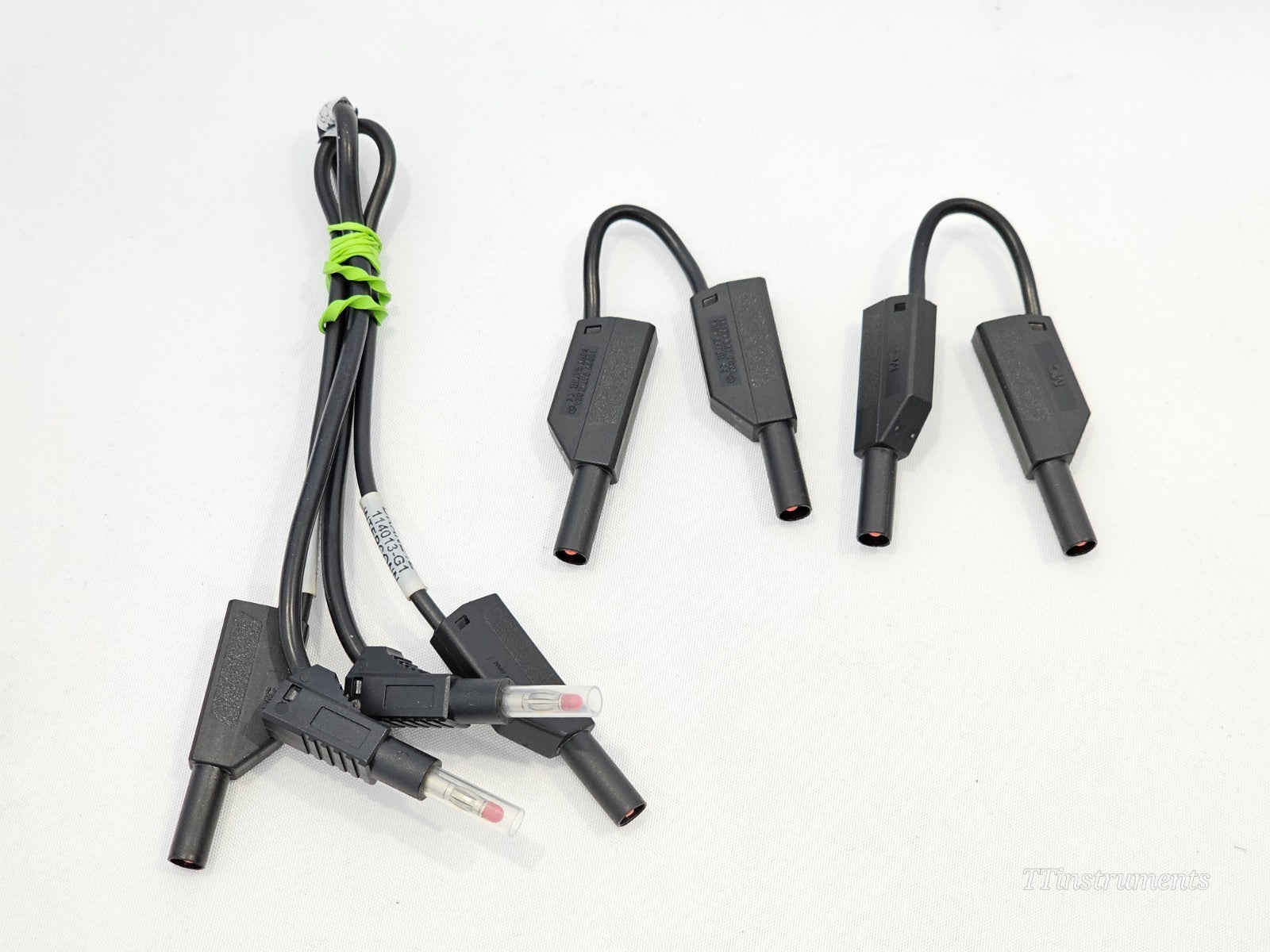

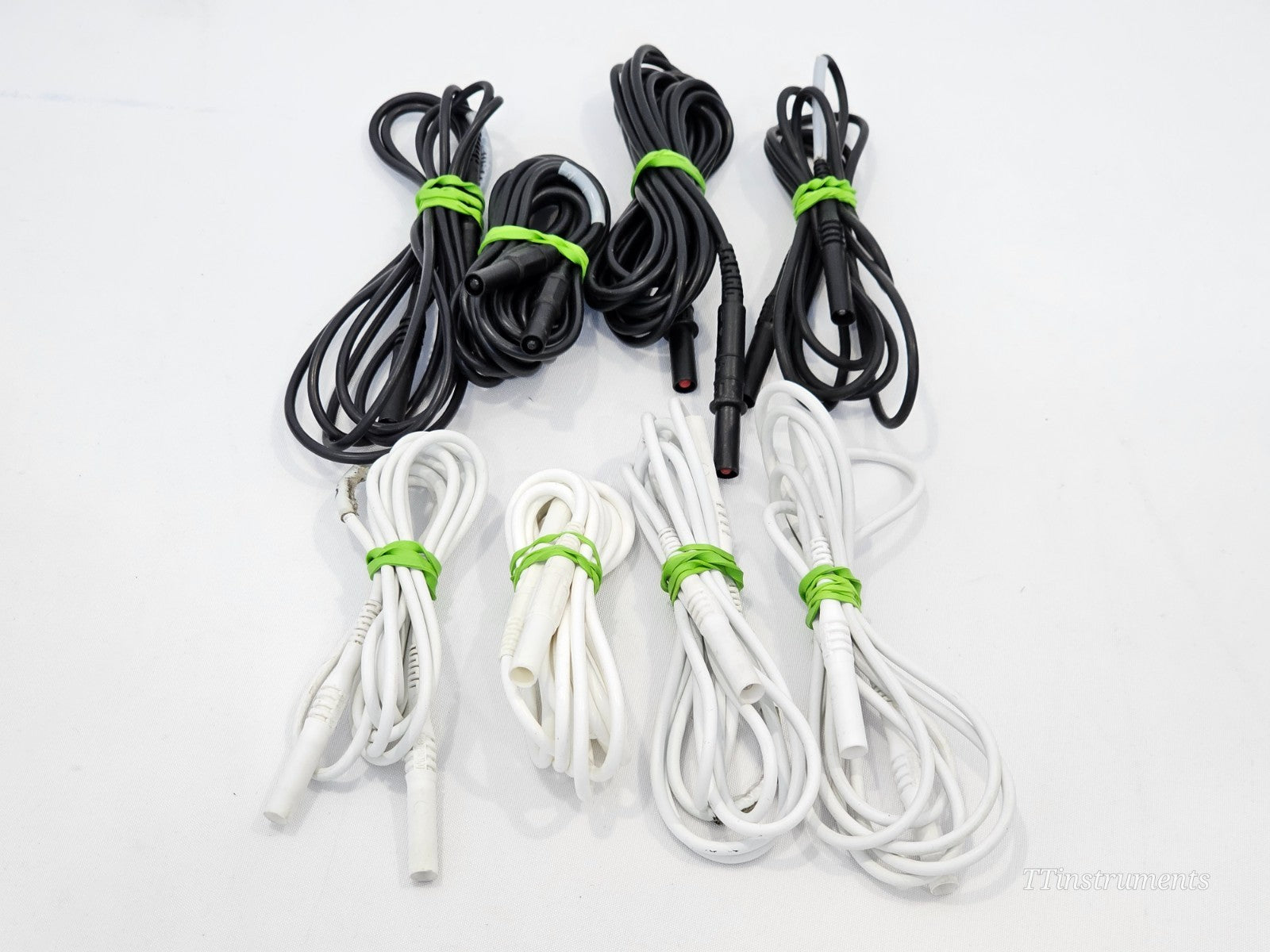

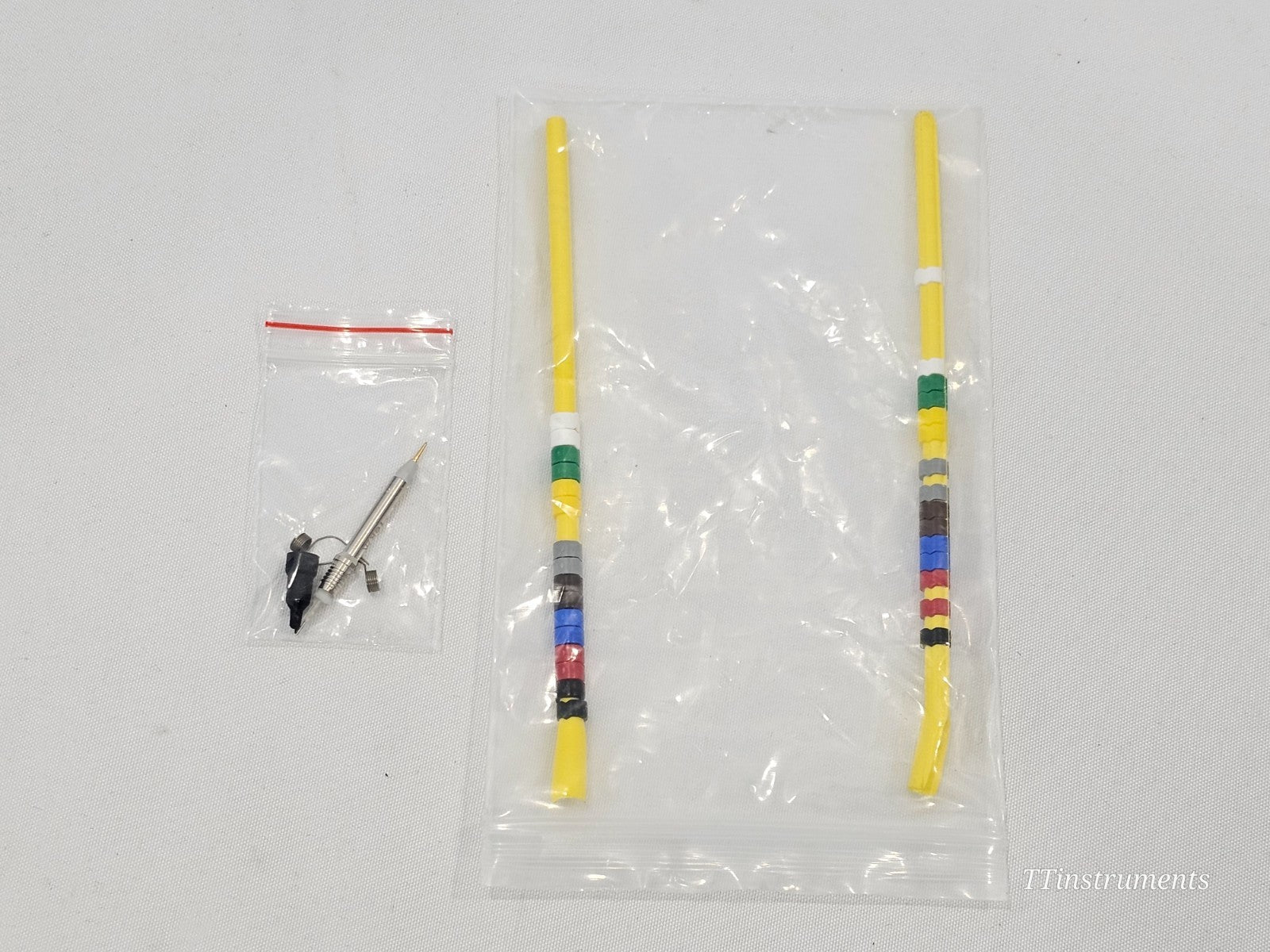

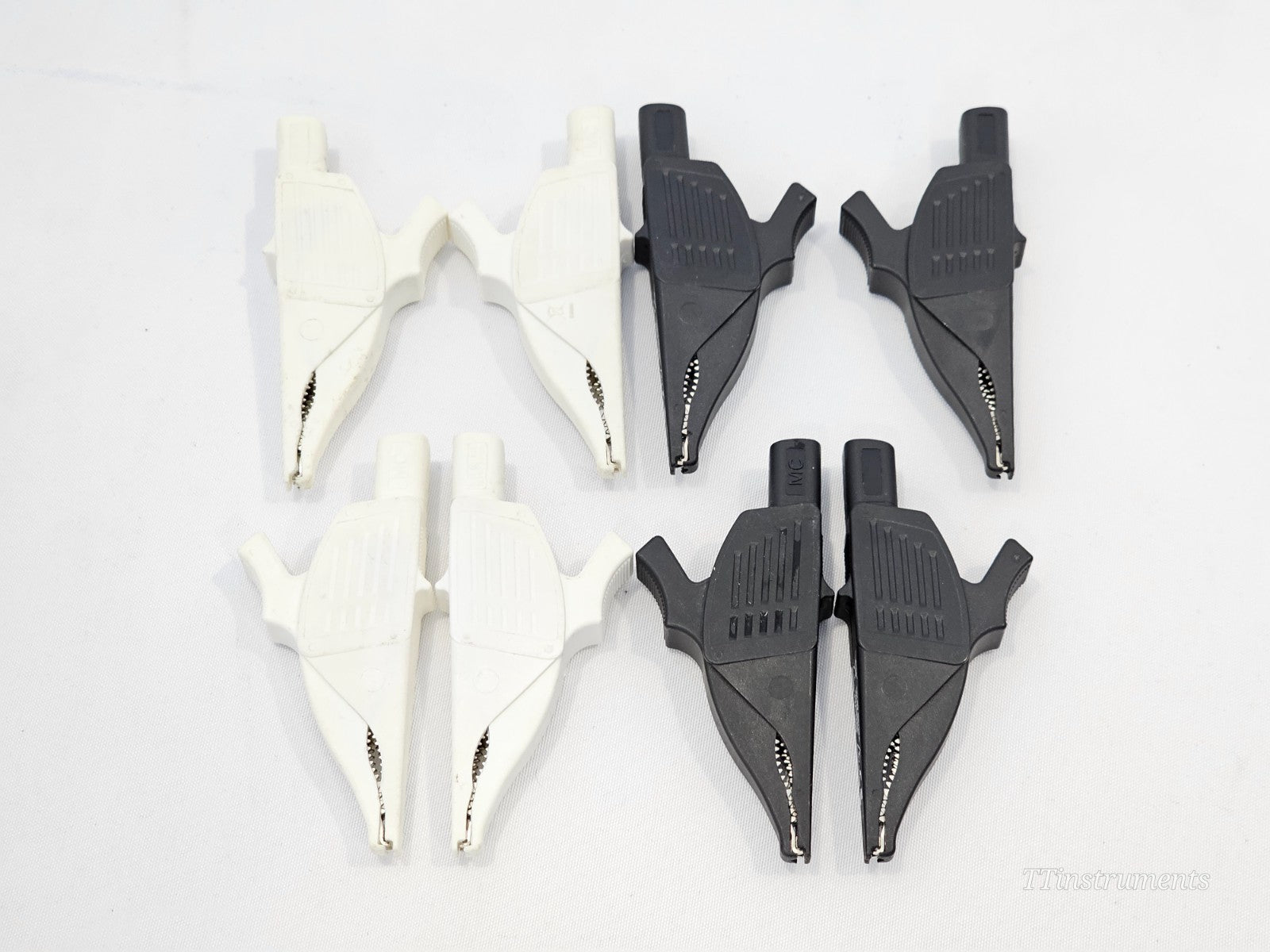

• All pictured accessories

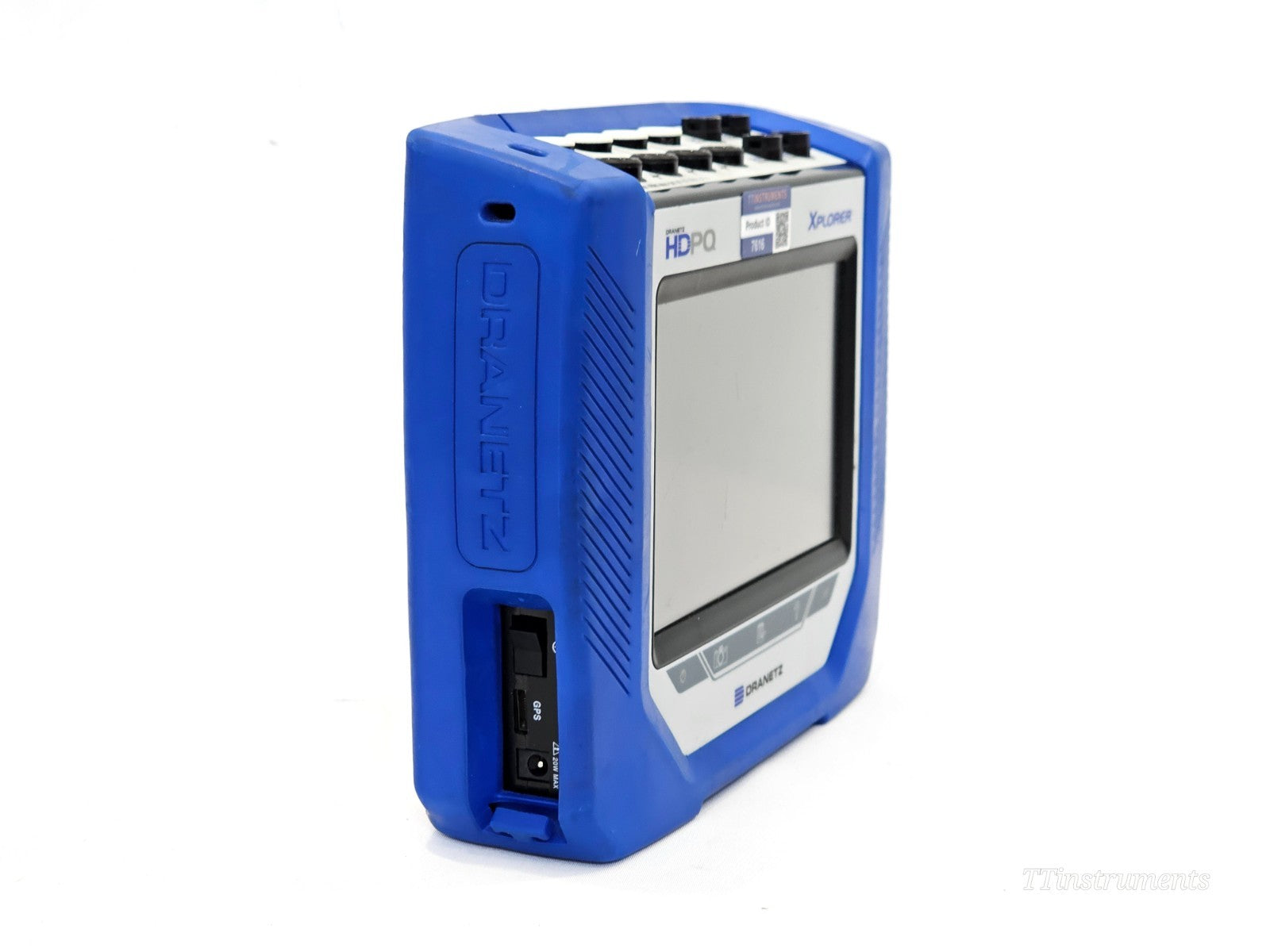

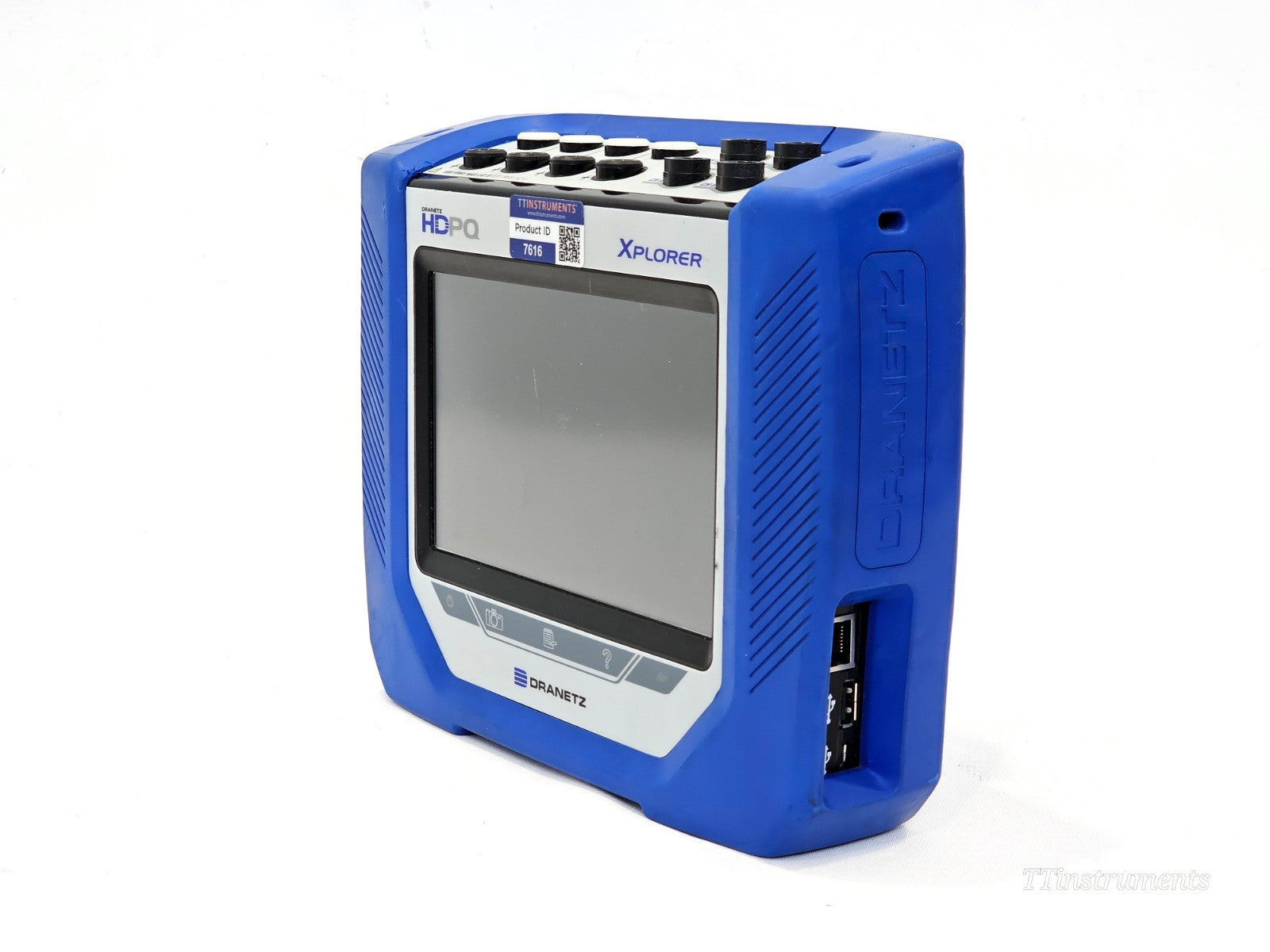

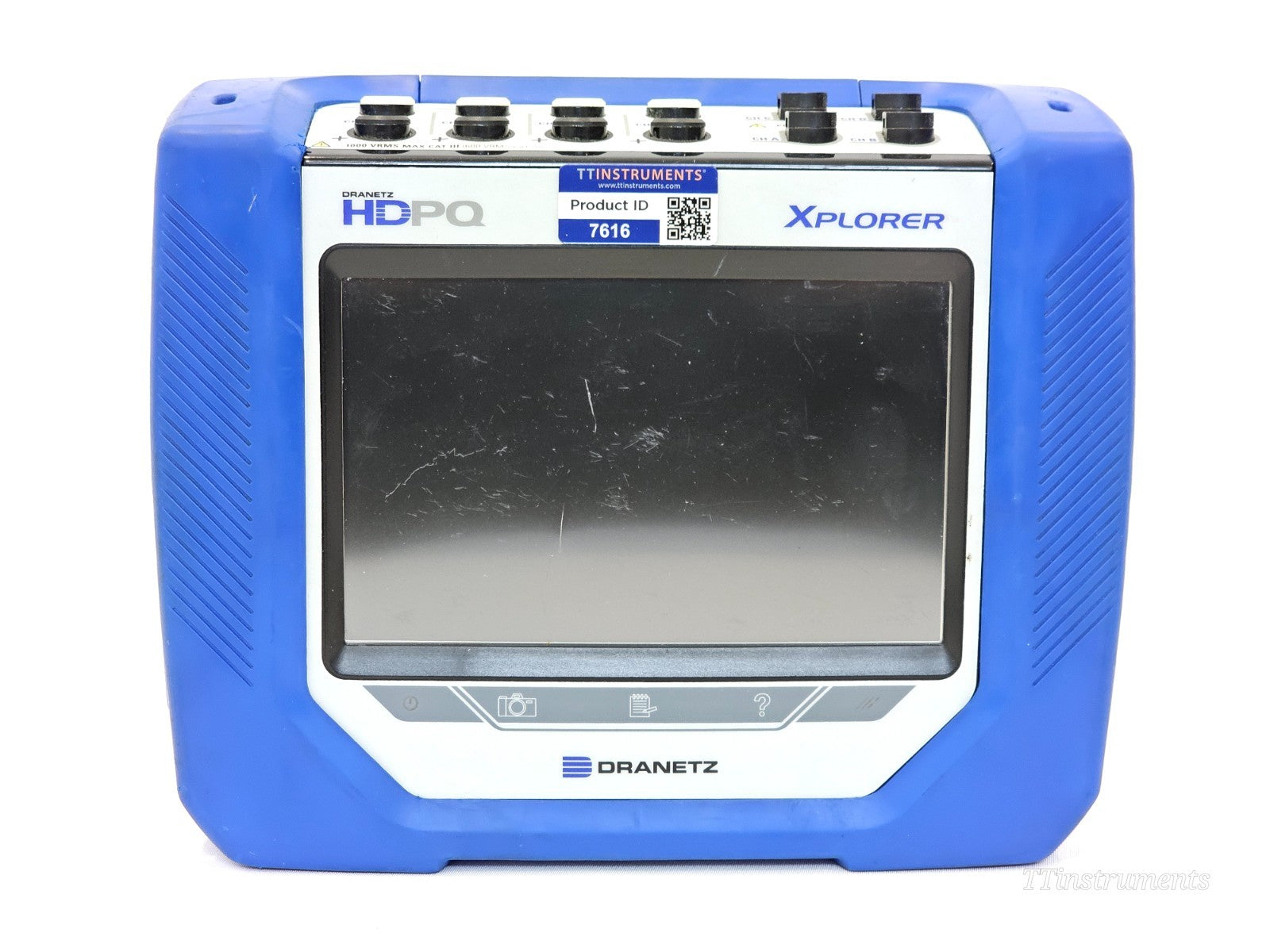

The Dranetz HDPQ Xplorer is the flagship portable instrument in the Dranetz HDPQ family of Power Quality, Demand and Energy analysers. It is a true hand-held portable instrument built around a 7-inch WVGA colour wide-screen LCD touchscreen and represents the highest level of PQ monitoring capability available from Dranetz.

The HDPQ Xplorer includes all features of the HDPQ Visa and Guide instruments, adding high-speed transient capture circuitry capable of recording transients down to 1 microsecond per channel — ensuring no PQ event is ever missed. It simultaneously captures and characterises thousands of parameters using standard and customisable operating modes, covering the full range of power quality phenomena.

Key Features:
• IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014, IEEE 1459, and EN 50160 compliant
• 8 channels: 4 differential voltage + 4 current, all monitored simultaneously
• High-speed digitised transients: 1 µs/channel, 10 to 2000 Vpk
• 512 samples/cycle with 16-bit ADC resolution on all channels
• AnswerModules: Sag/Dip directivity, PF capacitor identification, motor analysis — automatic event categorisation

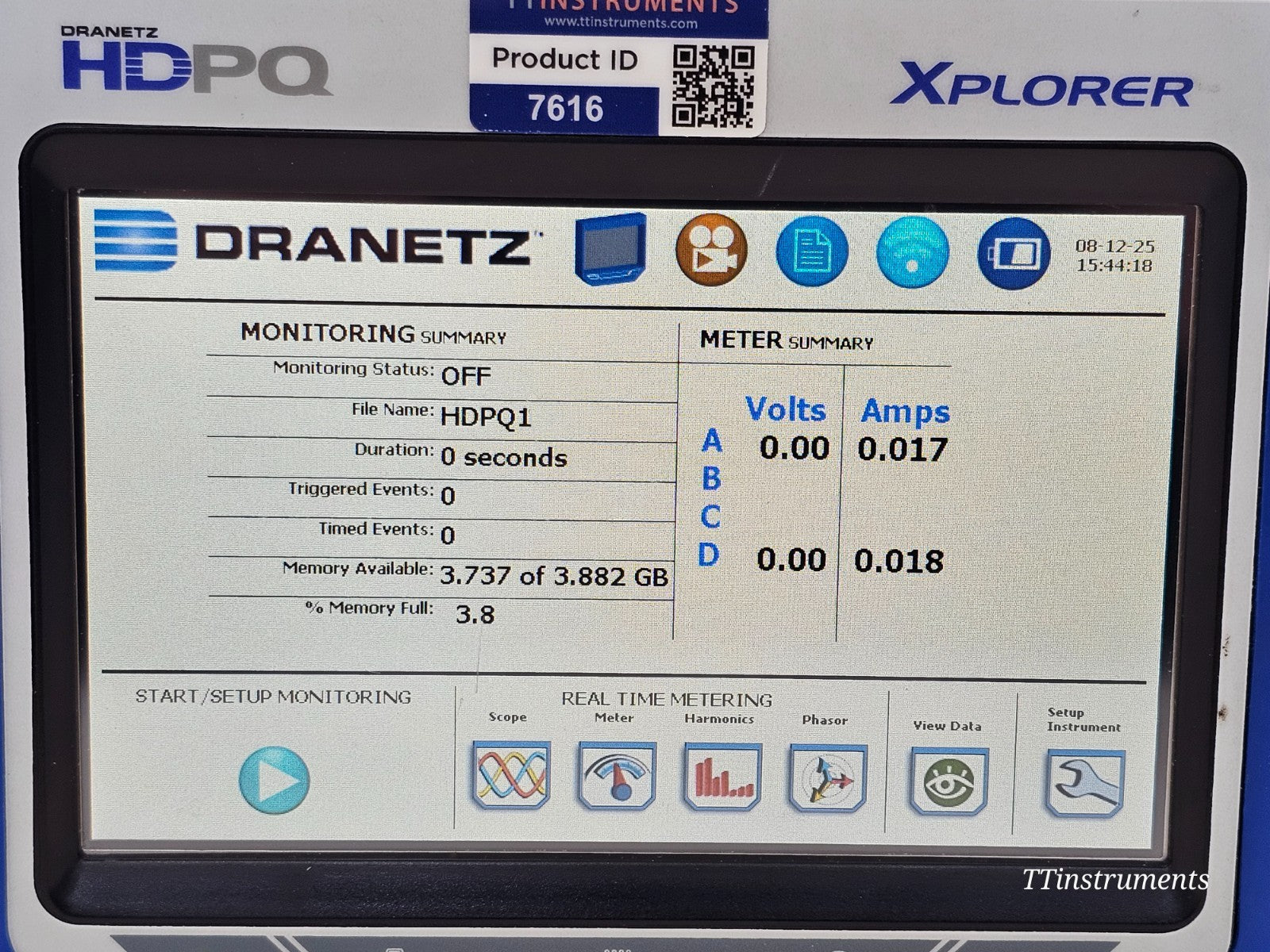

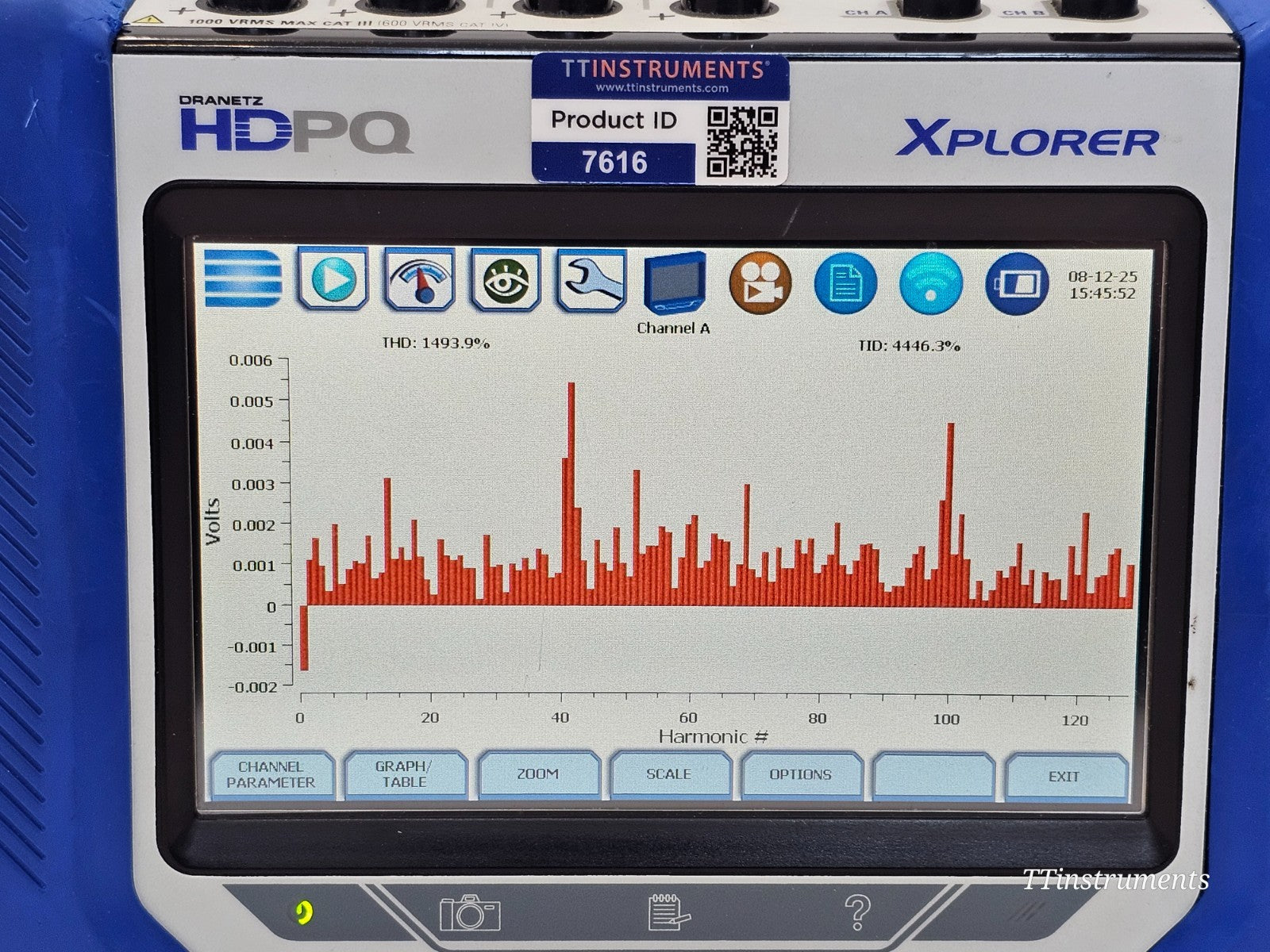

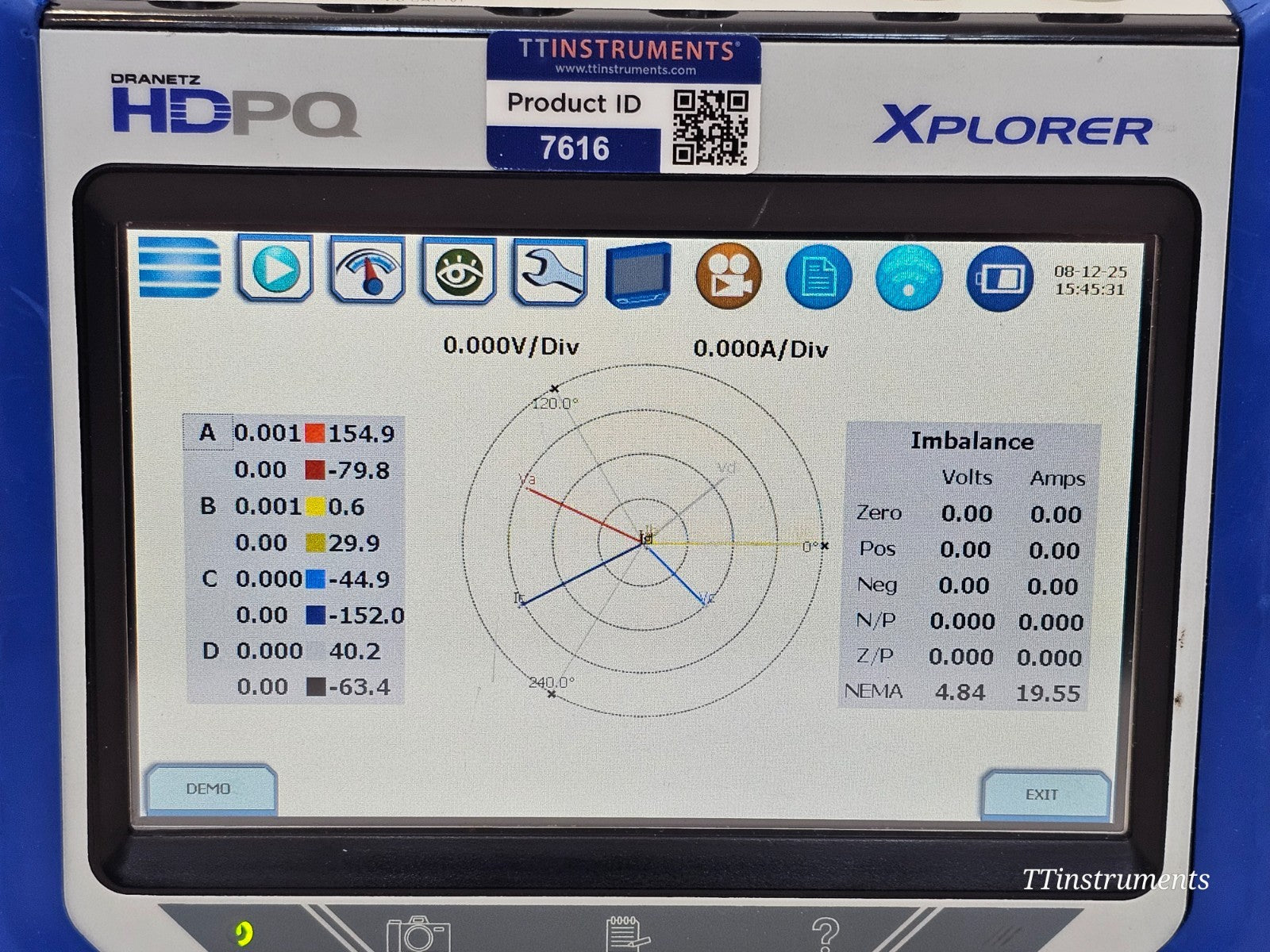

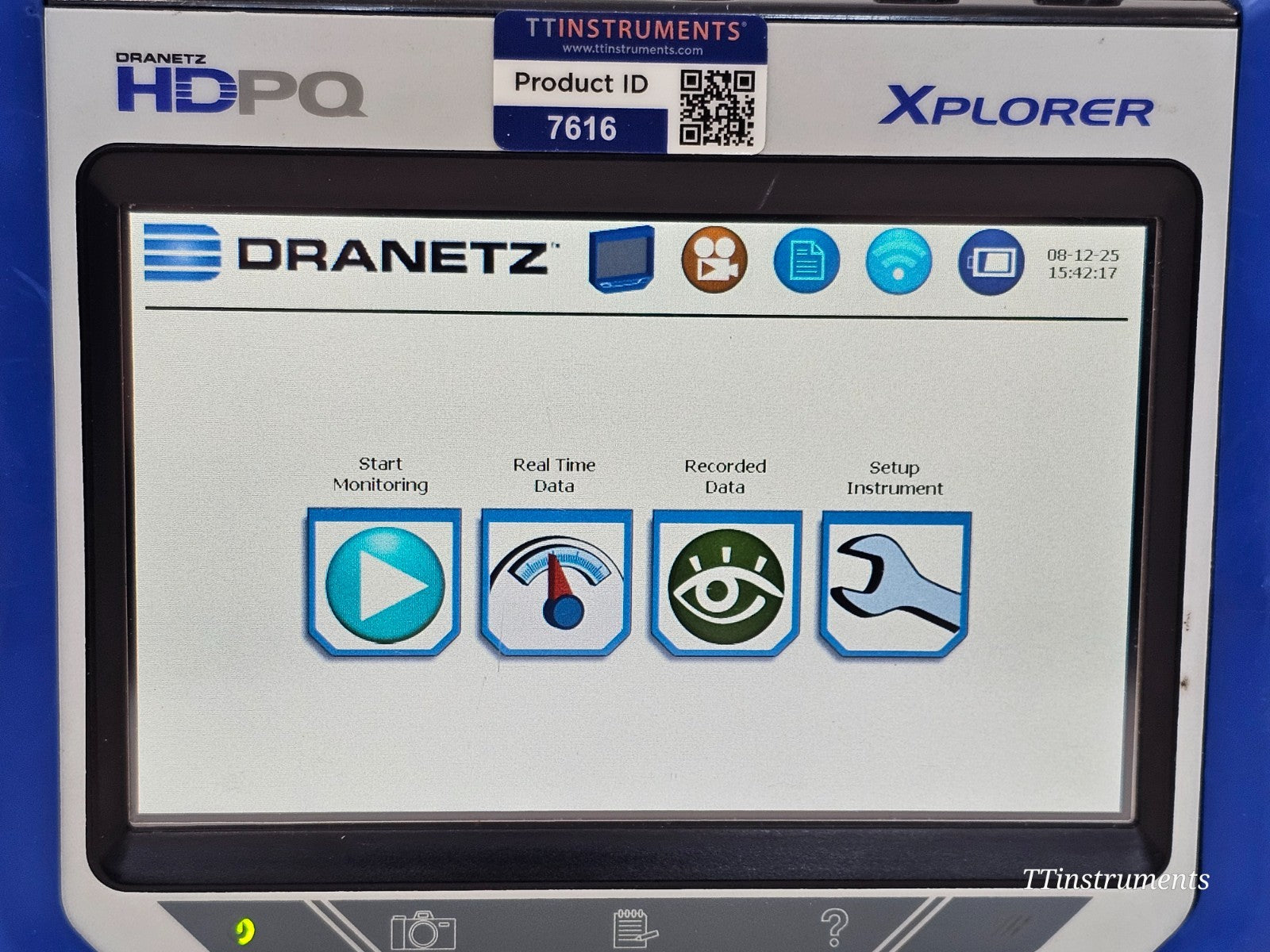

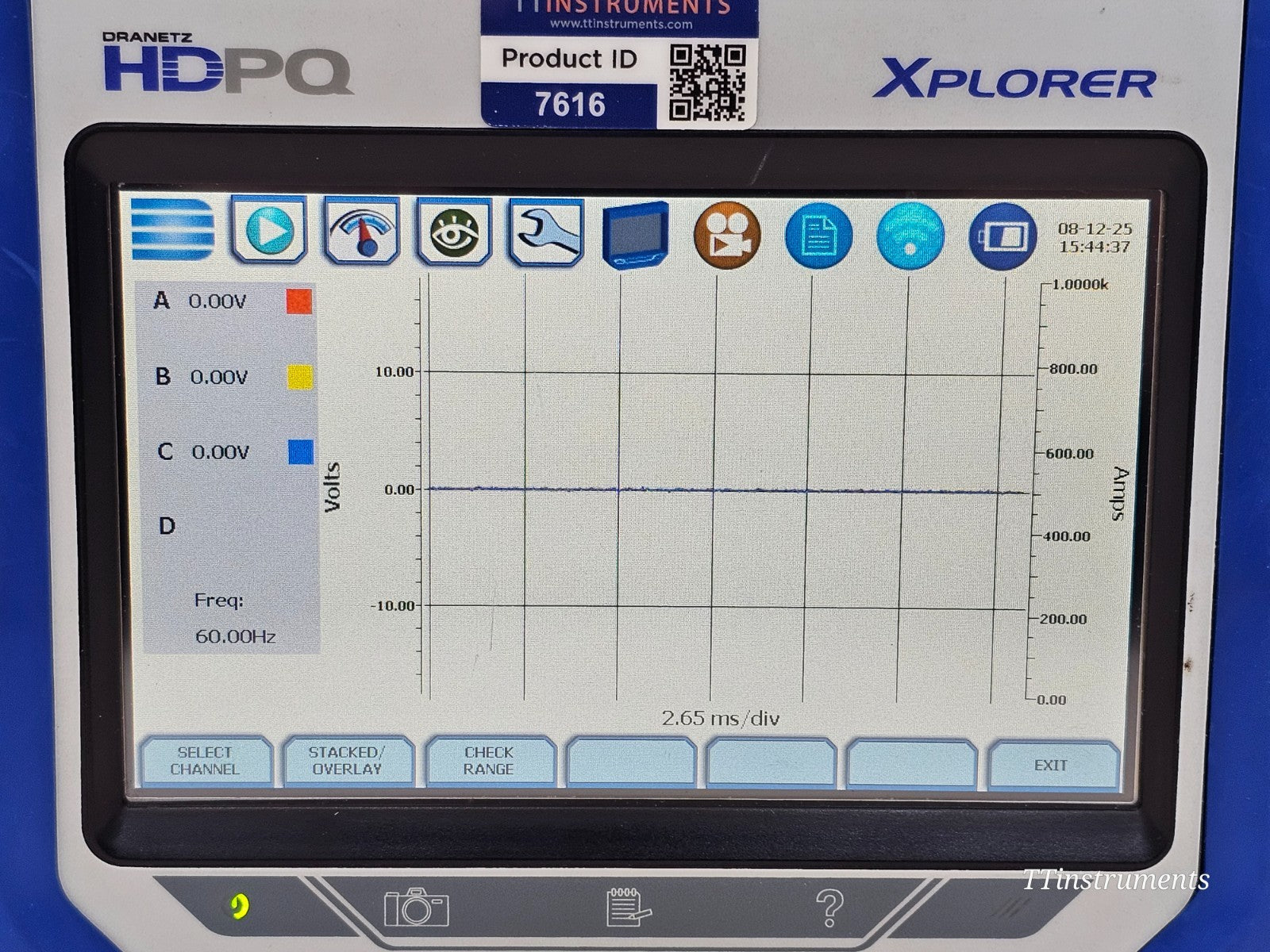

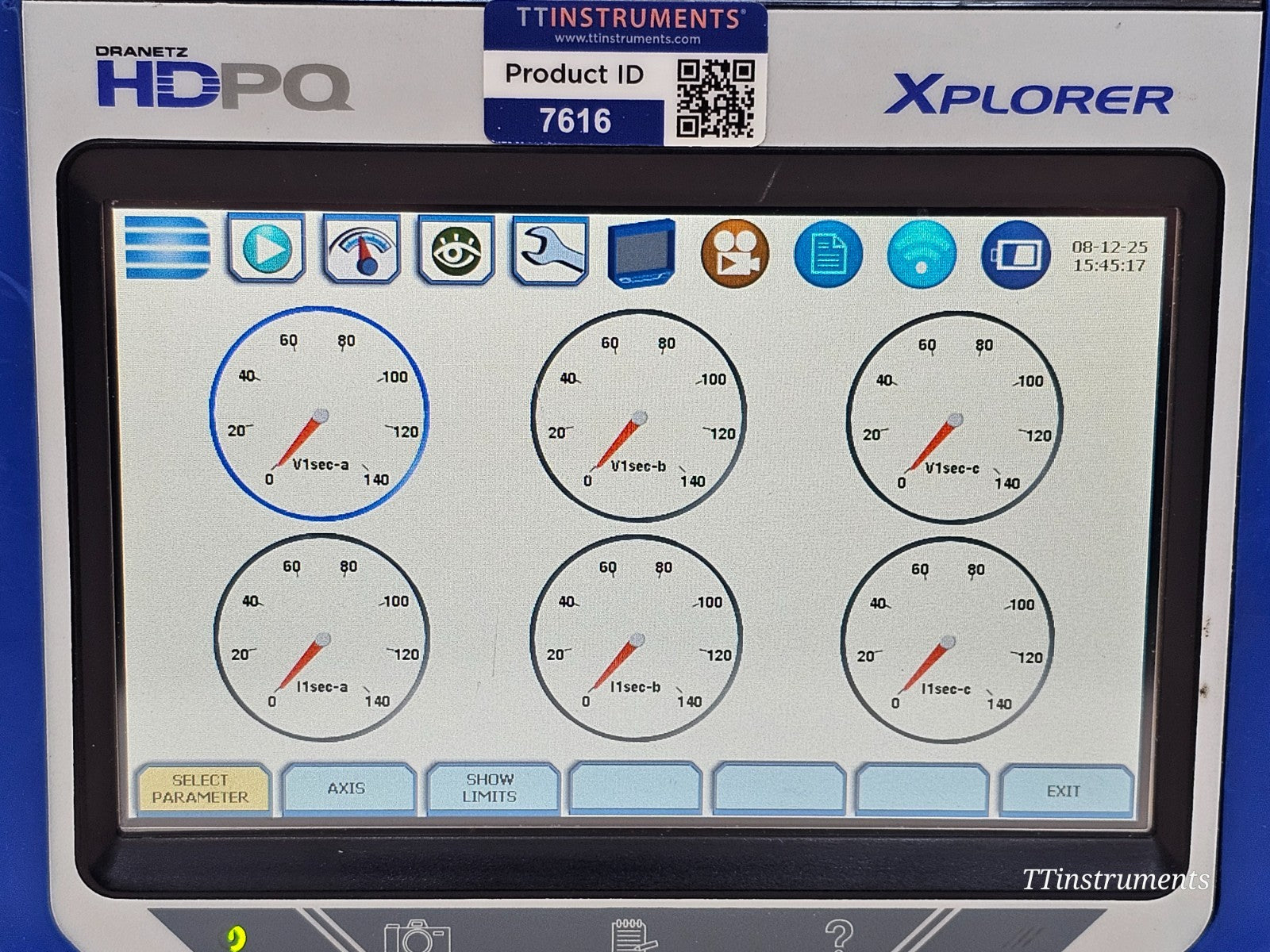

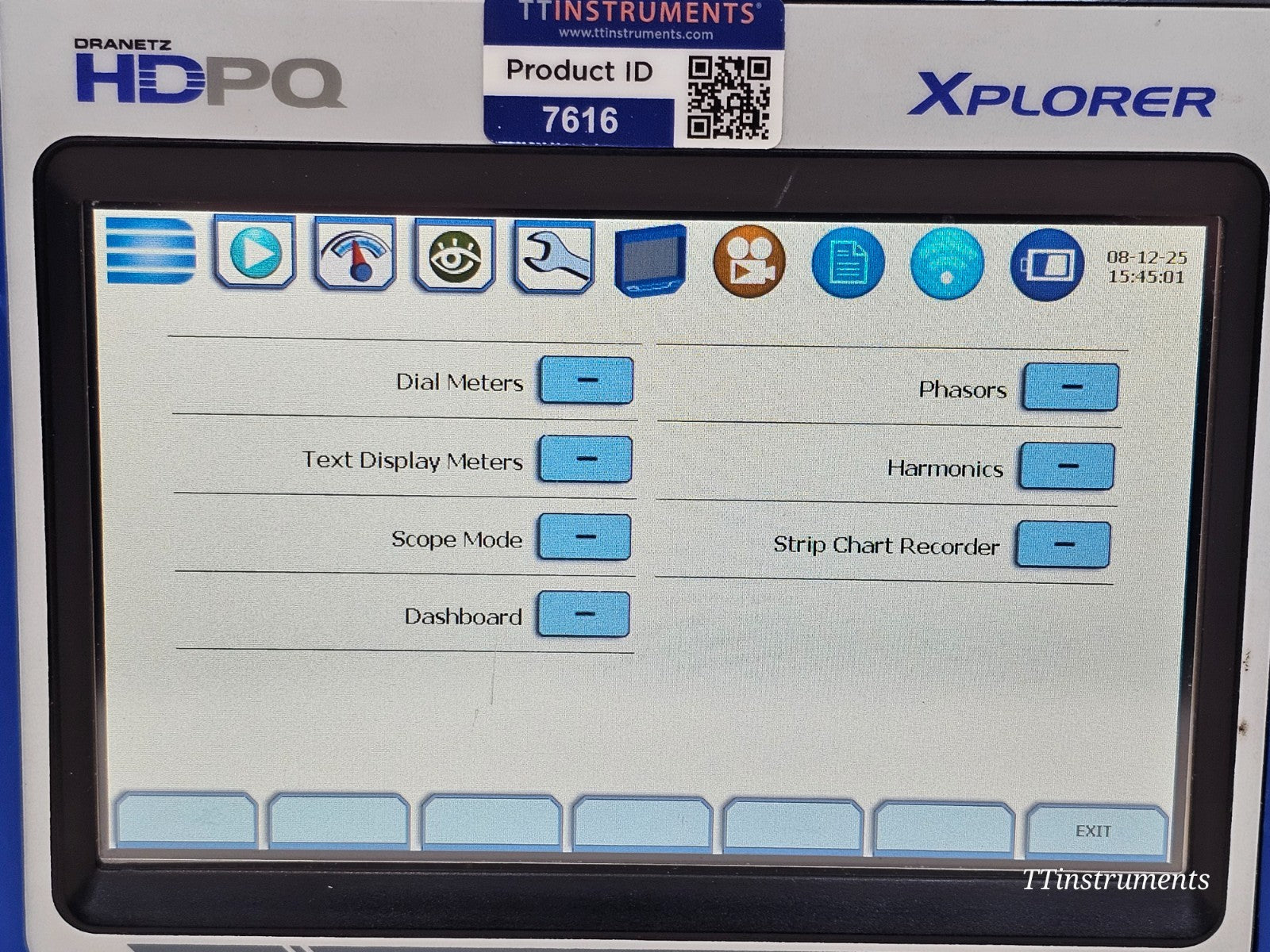

• 7" WVGA colour graphic touchscreen, icon-based interface
• Communications: Ethernet, 802.11 b/g/n Wi-Fi, Bluetooth via USB, USB On-the-Go, VNC remote control
• Compatible with Android and Apple devices for remote monitoring and control
• 4 GB internal flash memory with external USB storage support
• Battery run time: approximately 3 hours on full charge
• Dran-View 7 software compatible for in-depth PQ analysis and reporting
• Quality of Supply (QOS) statistical package for EN 50160 voltage compliance monitoring
• Time synchronisation: GPS, NTP or Real Time Clock (RTC)

Measurement Specifications:

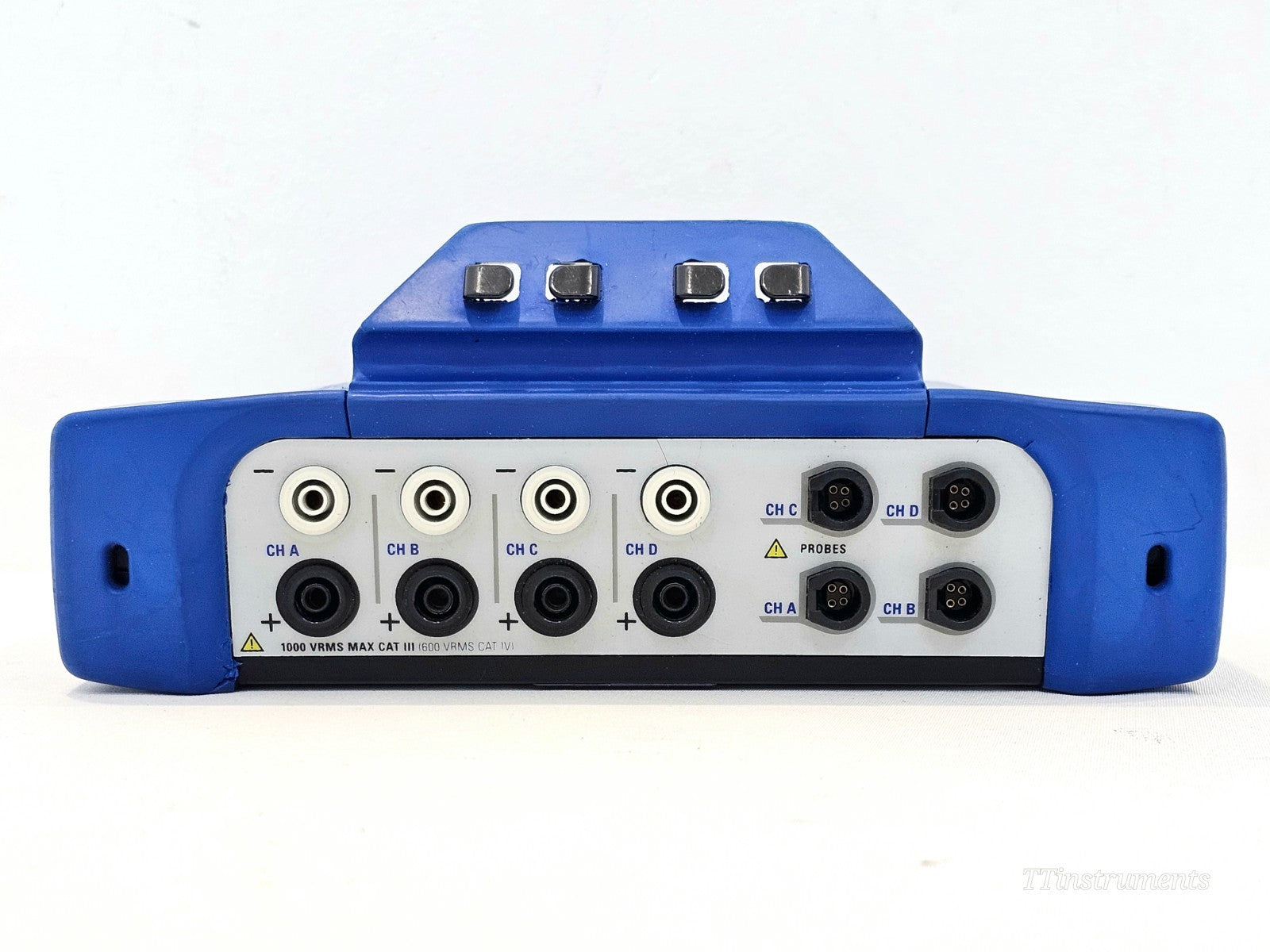

Voltage Channels: 4 differential, 0–1000 Vrms AC/DC, CAT III 1000V / CAT IV 600V
Voltage Accuracy: ±0.1% reading ±0.05% FS
Voltage (IEC 61000-4-30 Class A): 40–1000 Vrms, ±0.1% of Udin
High-Speed Transients (Voltage): 10–2000 Vpk, ±10% reading ±0.5% FS
Current Channels: 4, range probe-dependent, AC/DC, ±0.1% reading ±0.05% FS
Sampling Rate: 512 samples/cycle (1 MHz for high-speed transients), 16-bit resolution
Frequency: 16–25 Hz, 41–69 Hz, ±0.01 Hz
Power/Energy Sampling: 1-second intervals; meets IEC 0.2S requirements
Memory: 4 GB internal flash, 10,000-cycle recording depth
Display: 7" WVGA colour graphic LCD touchscreen, LED backlit
Physical: 2.75" D × 10" W × 8" H; Weight: 2 kg (4.3 lbs)
Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 60°C
Humidity: 0–95% non-condensing
AC Adapter Input: 100–240 V AC, 50/60 Hz

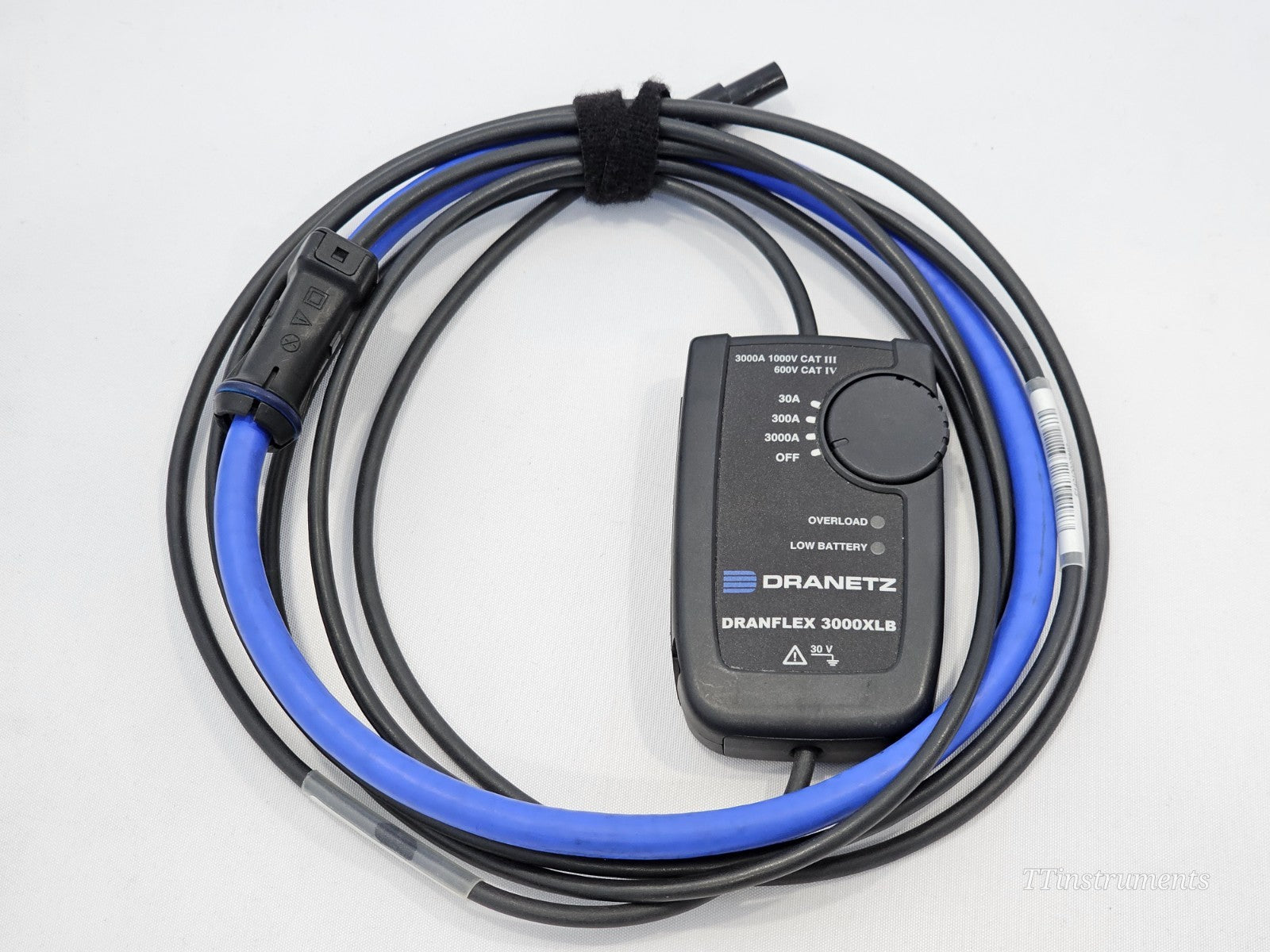

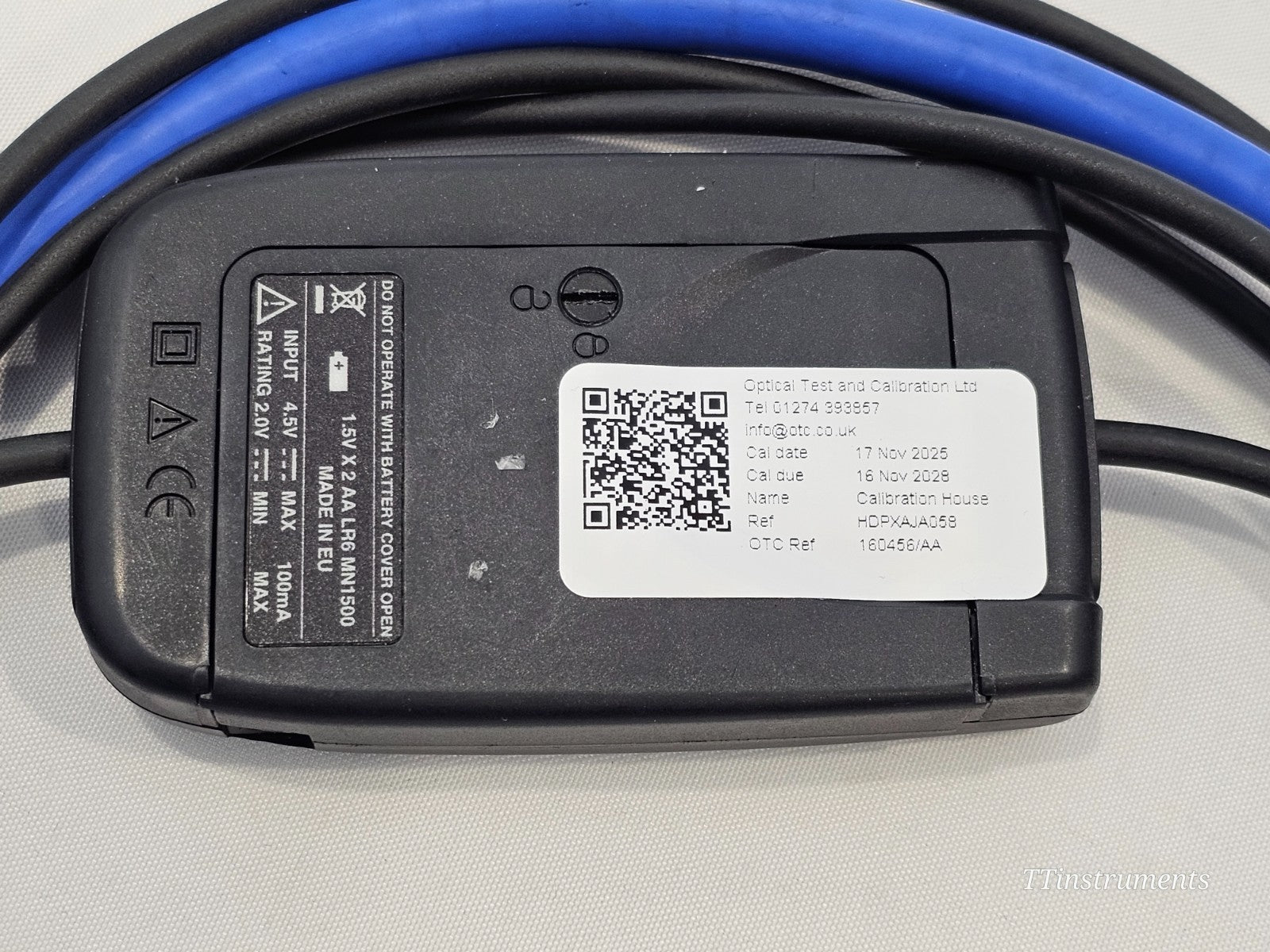

DRANFLEX 3000XLB Current Sensor:
The DRANFLEX 3000XLB is a single-phase flexible Rogowski current sensor with integrated single-channel integrator, designed for use with Dranetz HDPQ and other Dranetz power quality instruments.
Type: Flexible Rogowski probe
Current Ranges: 30 / 300 / 3000 A (3 selectable ranges)
Measurement Range: 0.5 A to 3000 A full scale
Accuracy (50–60 Hz, 10%–100% FS): ±1% reading ±0.1 A (30/300 A range); ±1% reading ±1 A (3000 A range)
Phase Accuracy (45–65 Hz): ±1 degree
Frequency Range: 25 Hz to 75 kHz
Output Signal: 1.5 Vrms
Rated Voltage: 1000 V maximum
Installation Category: CAT III, 1000 Vrms, Pollution Degree 2
Connector: Dranetz Hypertronics type
Available Lengths: 24", 36", 48"
Power: Battery or AC adapter (multiple probes can share one AC adapter)

Dranetz HDPQ Xplorer / Guide / Visa User Guide (Rev E) — official full user manual PDF: Download PDF

Dranetz HDPQ Plus User Guide (Rev E, 2024) — updated user guide covering Xplorer Plus family: Download PDF

Dranetz HDPQ Xplorer / Xplorer-400 / Guide / Visa Data Sheet PDF: Download PDF

Dranetz HDPQ Quick Reference Guide (Rev B) — Xplorer / Xplorer-400 / Guide / Visa: Download PDF

Dranetz HDPQ Plus Quick Reference Guide (Rev C, 2023): Download PDF

Dranetz HDPQ User Guide (2020 edition) — comprehensive operation and specification guide PDF: Download PDF

DRANFLEX 3000XLB / 6000XLB Current Sensors User Instructions — official Dranetz PDF: Download PDF
