Condition: Refurbished

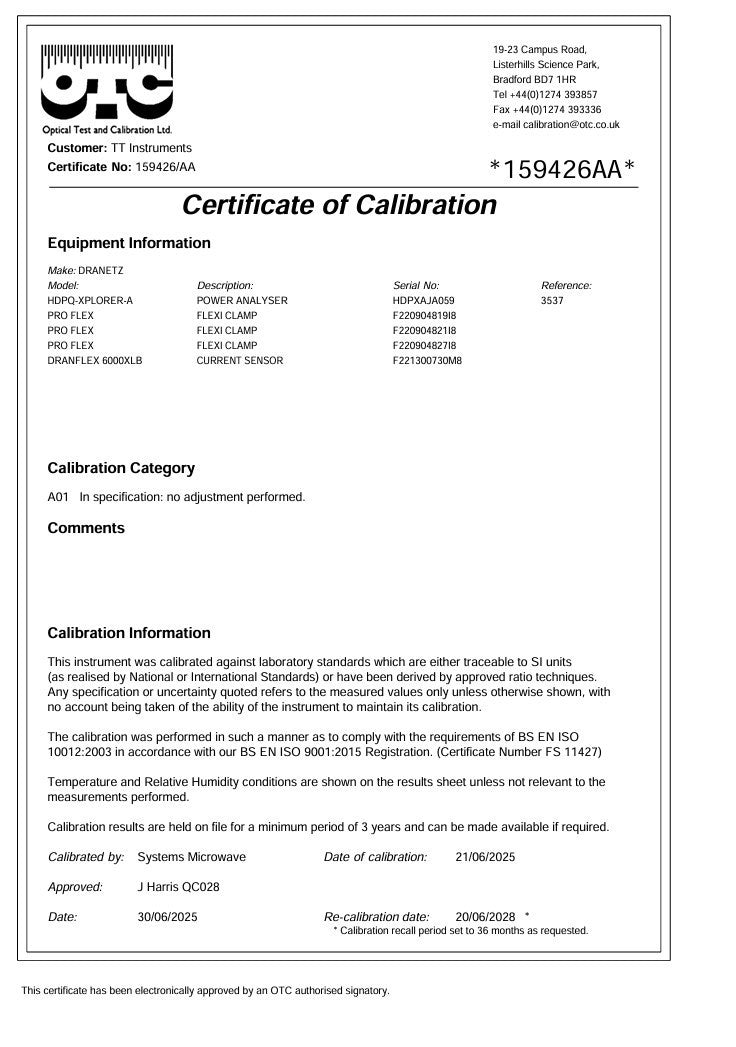

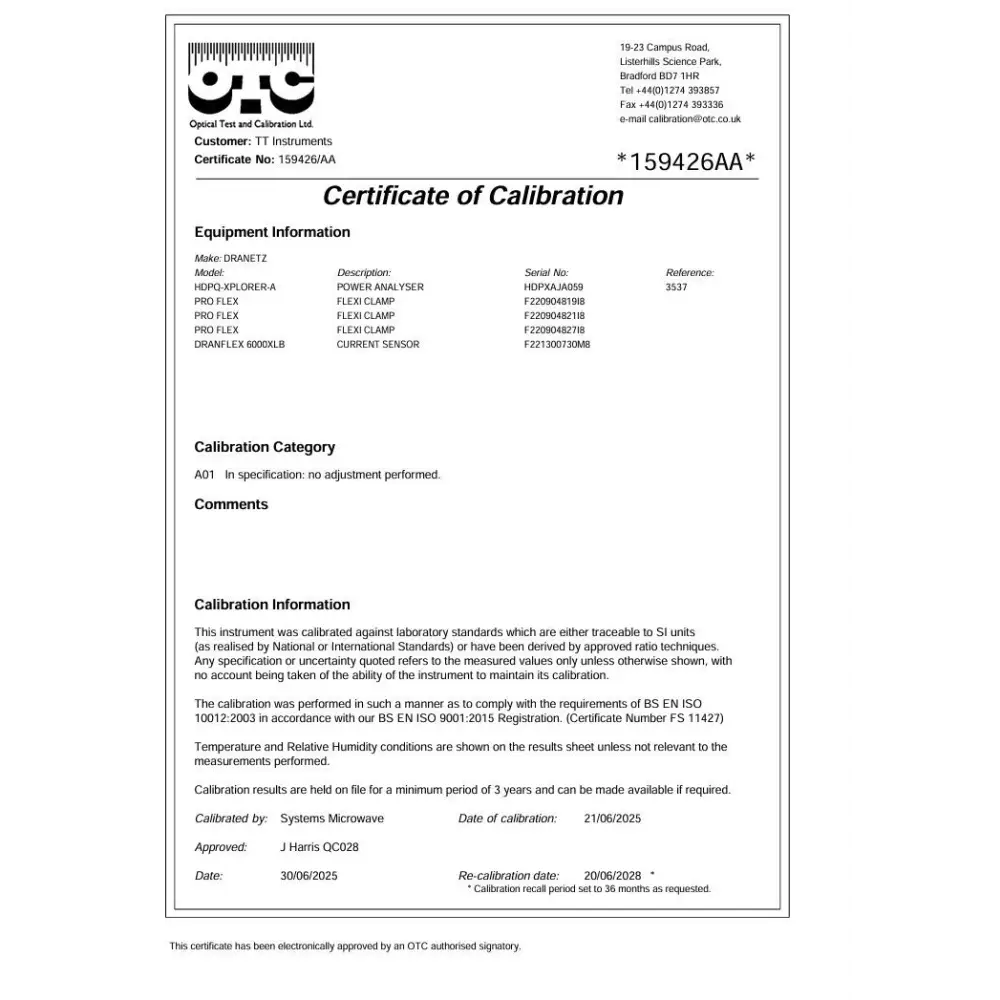

This Dranetz HDPQ Xplorer power quality monitor is in excellent condition and has been professionally calibrated in June 2025. It is supplied complete with DRANFLEX 6000XLB flexible AC current probes, making it a field-ready system for comprehensive power quality surveys.

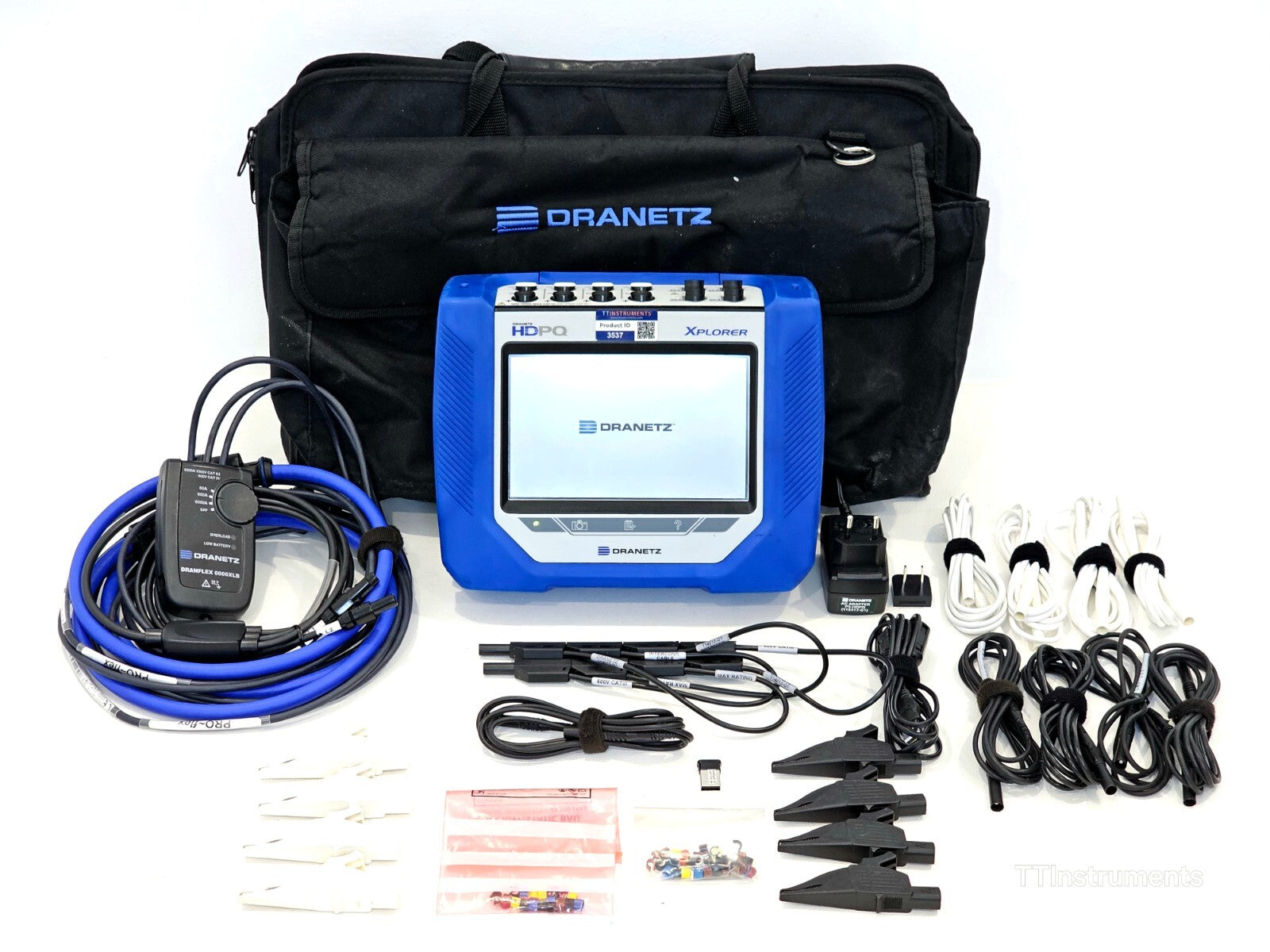

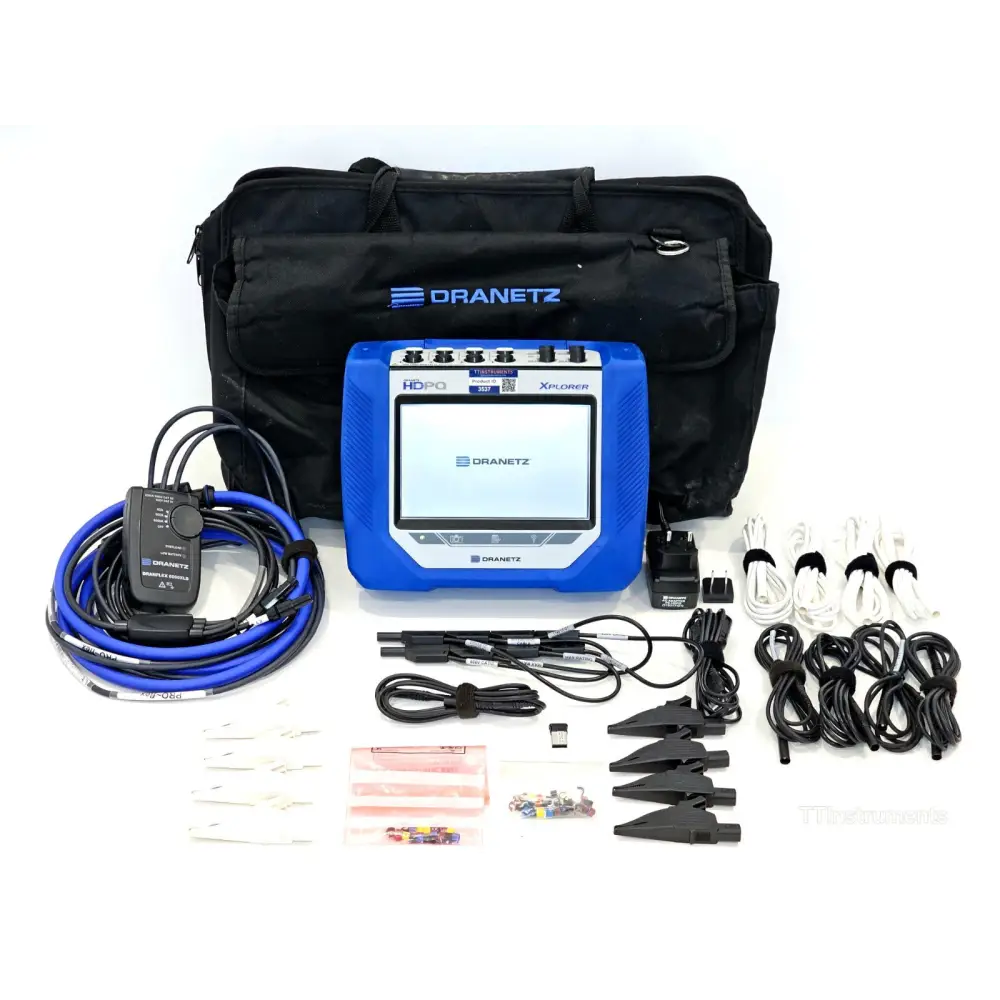

Included with this unit:

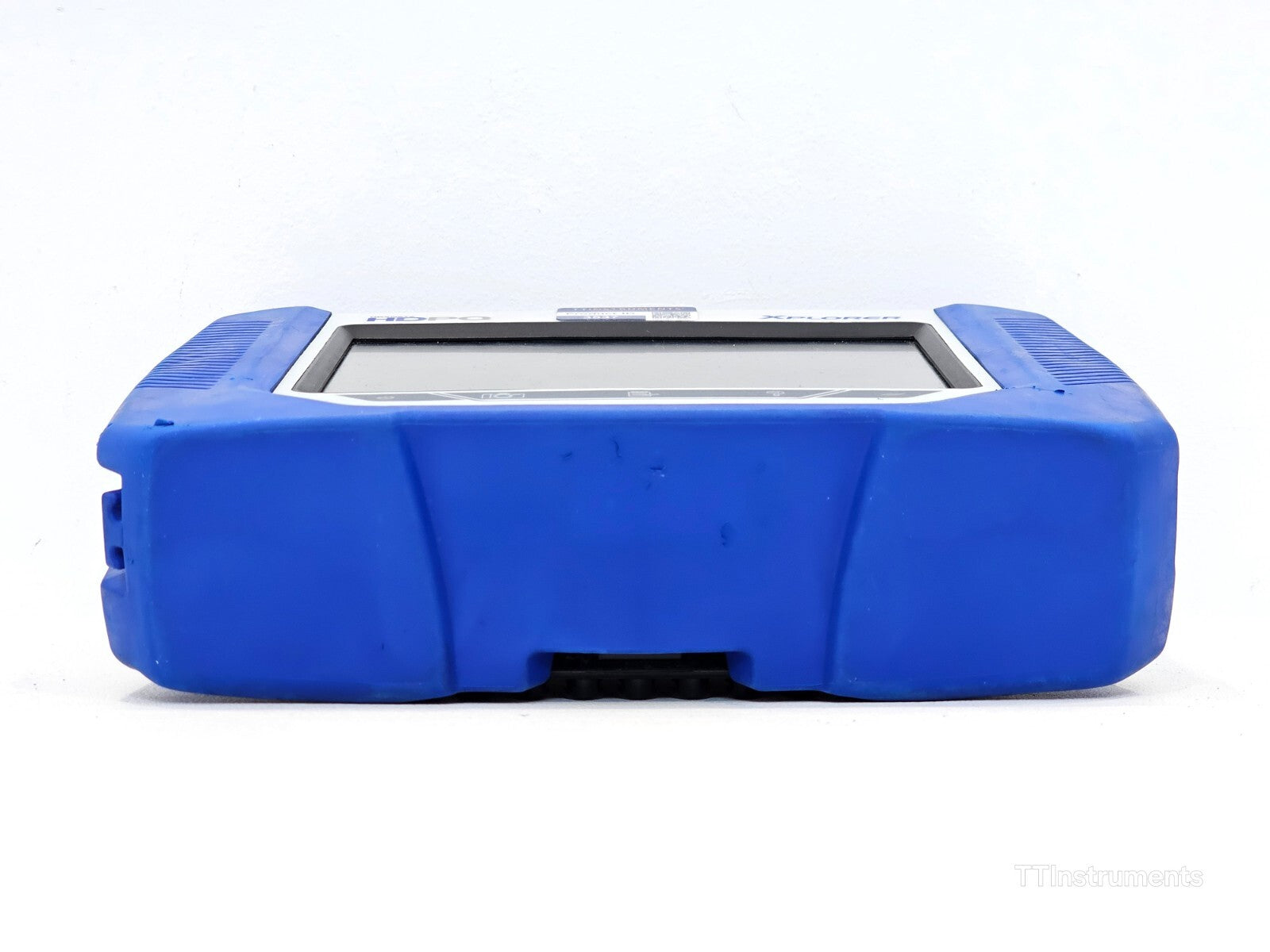

• Dranetz HDPQ Xplorer power quality monitor
• DRANFLEX 6000XLB flexible AC current probe(s)

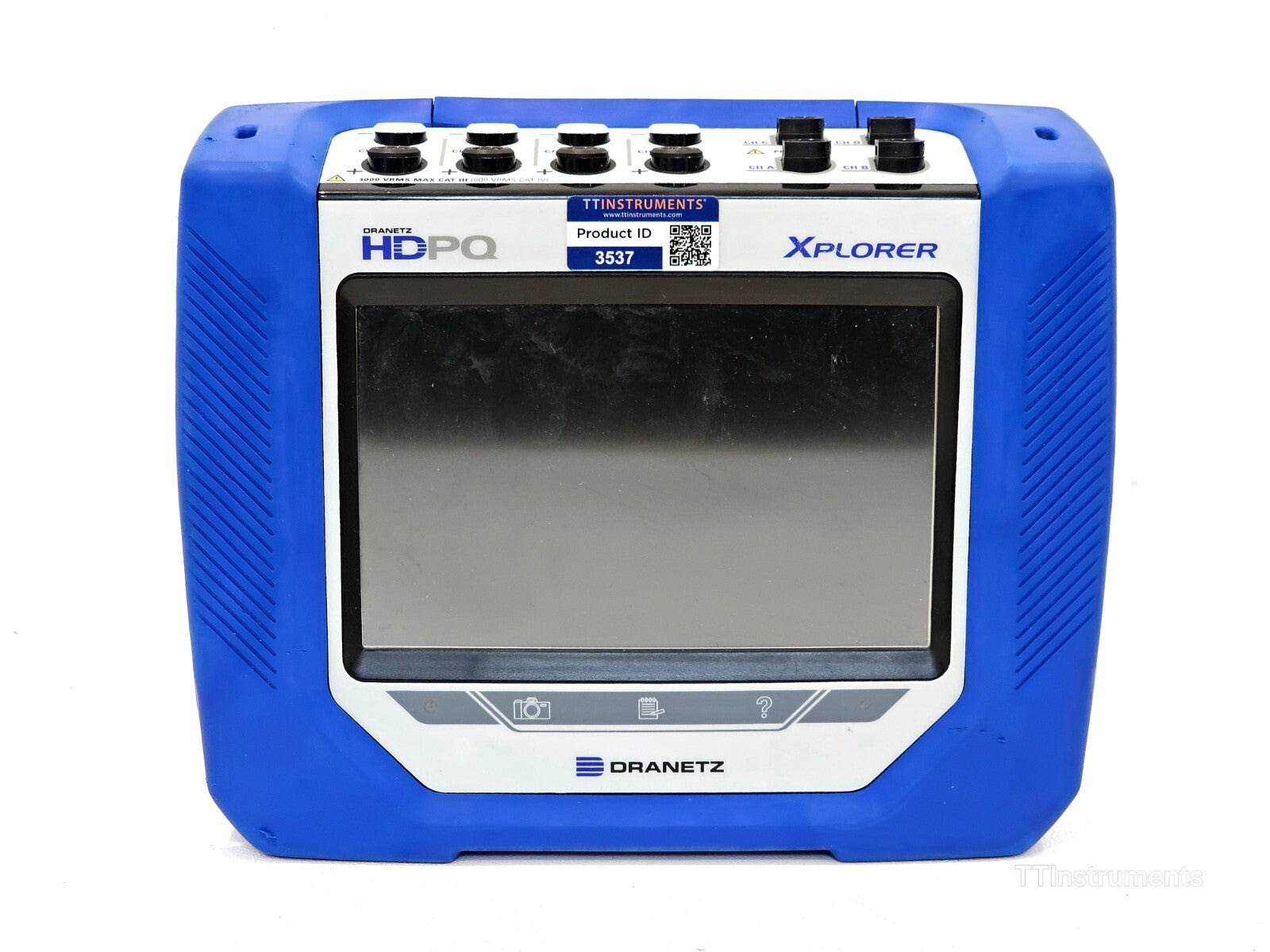

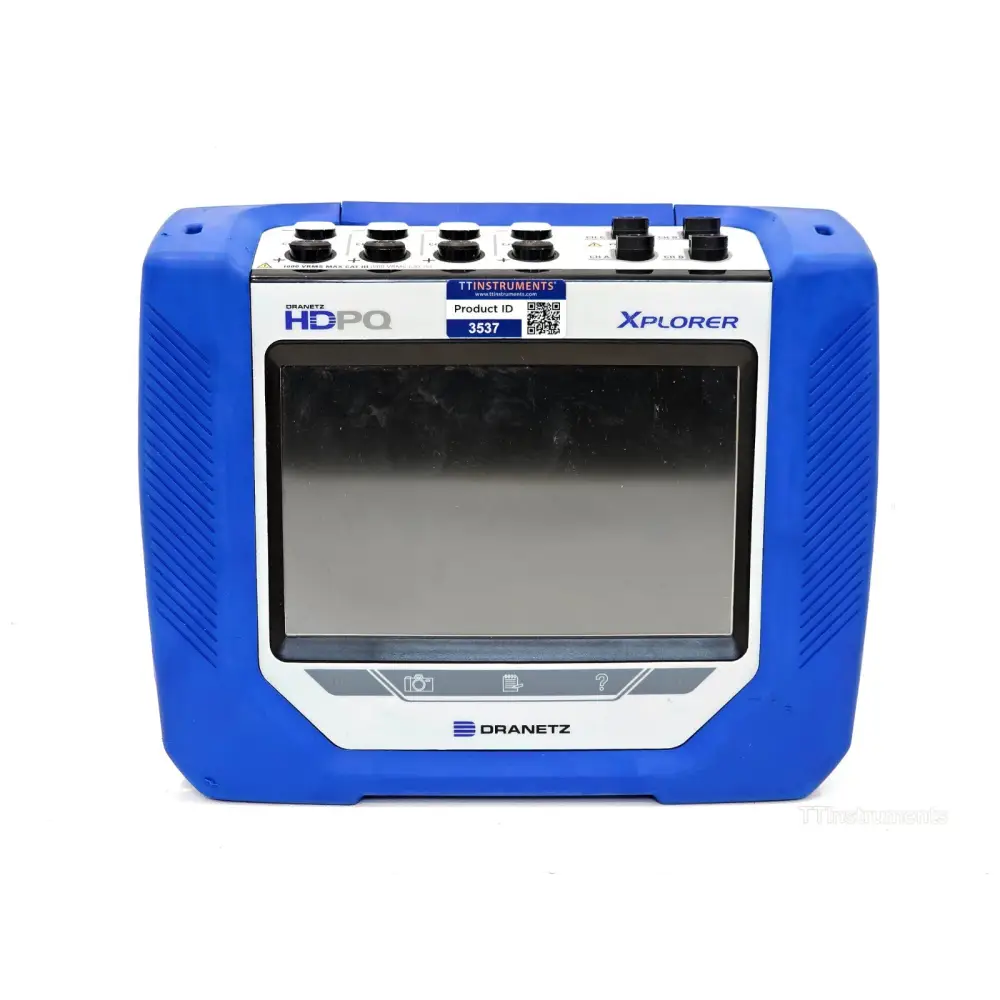

The Dranetz HDPQ Xplorer is the flagship portable instrument in the Dranetz HDPQ family of Power Quality, Demand and Energy analysers. It is a true hand-held portable unit with a built-in 7-inch tablet-like touch LCD display, representing the highest level of PQ monitoring capability in its class.

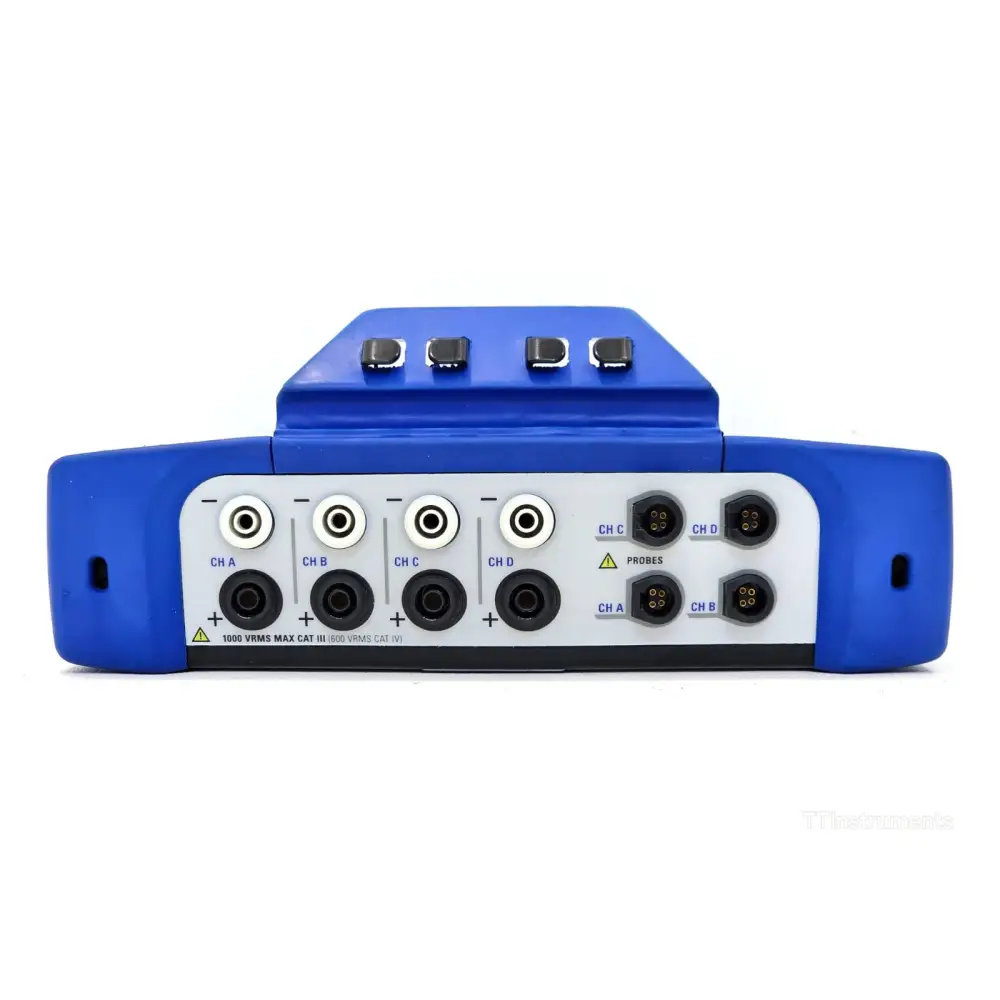

The HDPQ Xplorer features 8-channel simultaneous measurement (4 differential voltage + 4 current) and is distinguished by its 1 microsecond per channel high-speed digitised transient capture — ensuring no power quality event is missed. It goes well beyond the requirements of IEC 61000-4-30 and IEEE 1159, and also complies with IEC 61000-4-7, IEEE 519:2014, IEEE 1459, and EN 50160.

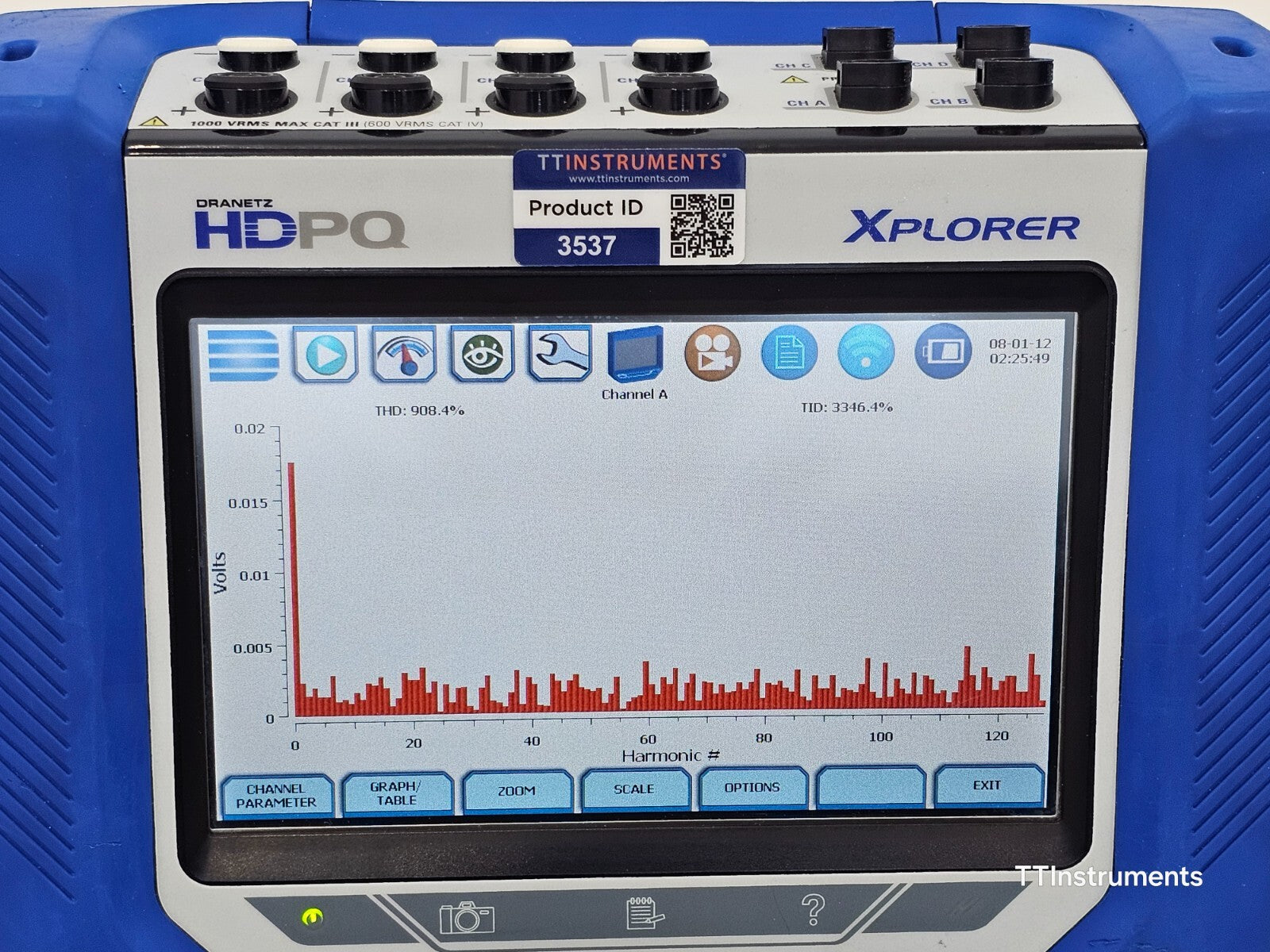

The instrument captures and characterises thousands of parameters using a range of standard and user-defined operating modes, including sags/dips, swells, interruptions, transients, harmonics, flicker, and RVC. Intelligent AnswerModules® provide automatic consultant-like event categorisation for sag directivity, power factor capacitor switching, and motor analysis.

Full remote control is available via Ethernet, Wi-Fi (802.11 b/g/n), Bluetooth, and USB, compatible with Dran-View 7 software or any free VNC client on a smartphone or tablet.

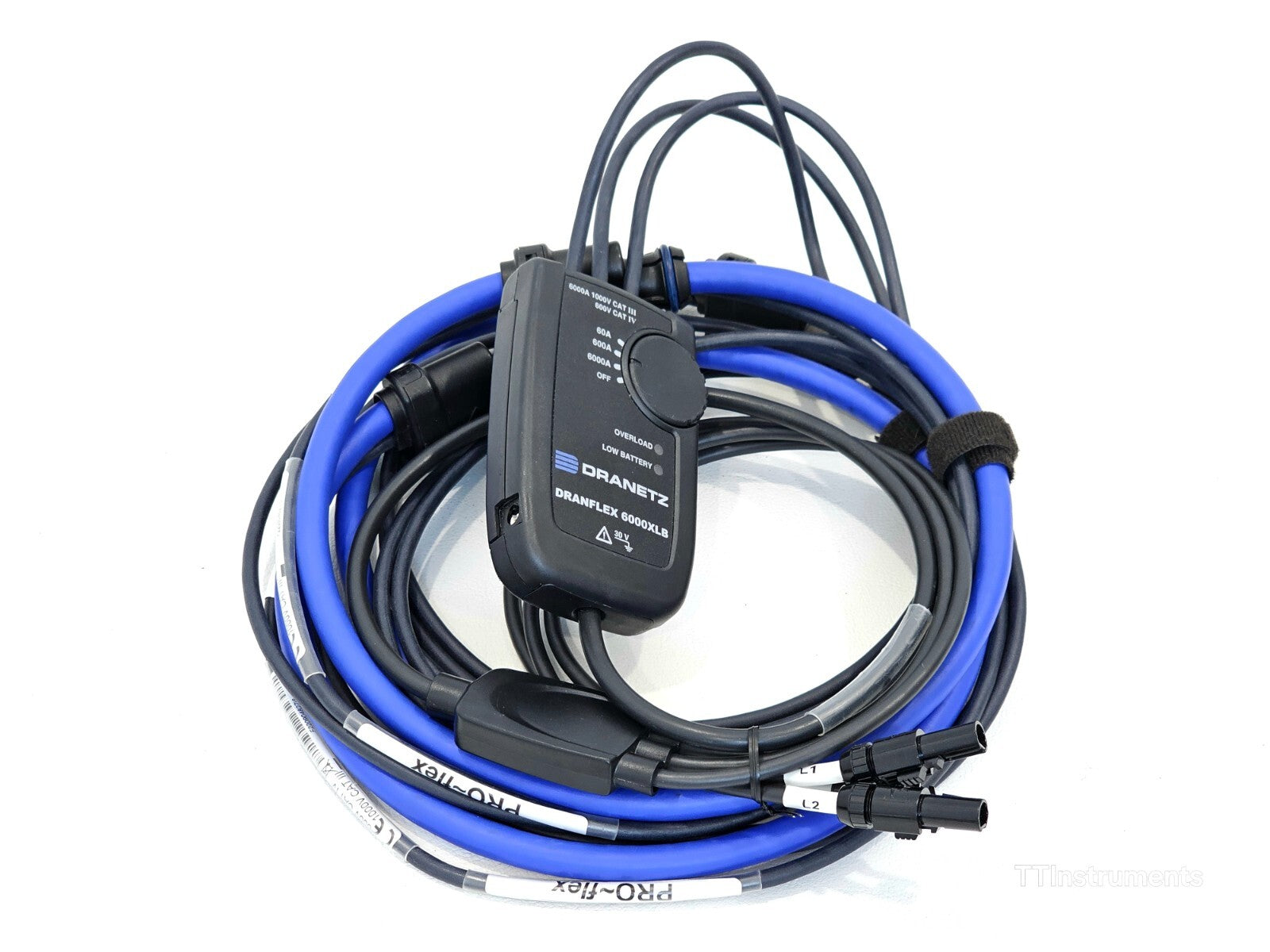

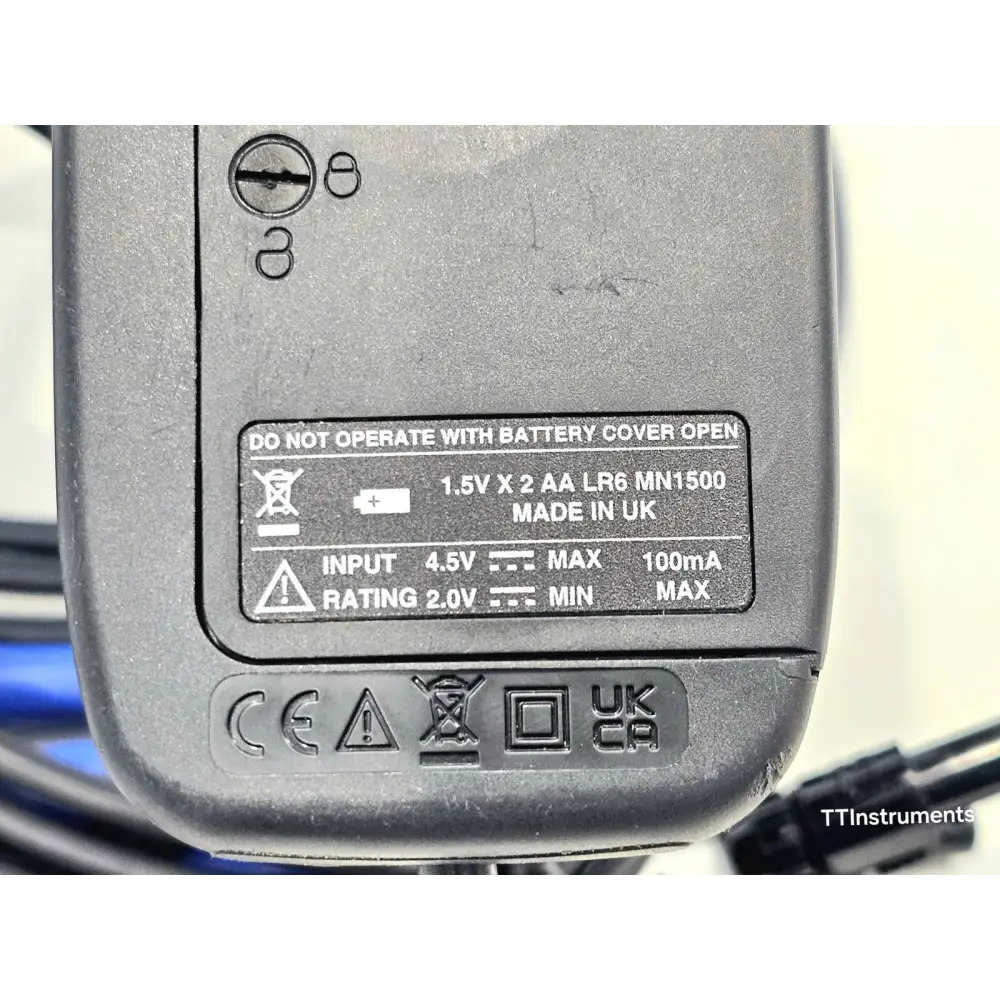

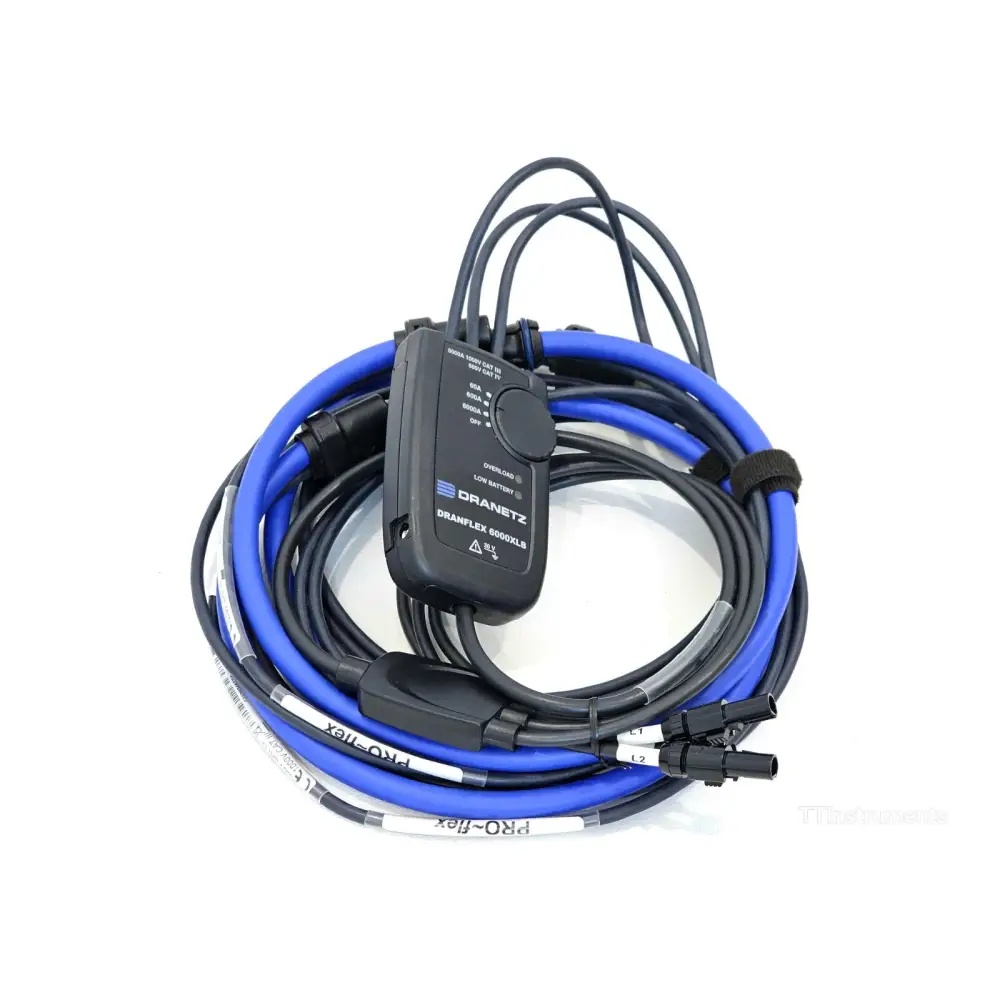

The DRANFLEX 6000XLB is a single-phase flexible Rogowski-type AC current sensor offering three measurement ranges (60/600/6000 A). It features a Hypertronics connector for direct compatibility with Dranetz HDPQ instruments and is rated to 1000 V CAT III.

KEY SPECIFICATIONS — Dranetz HDPQ Xplorer:

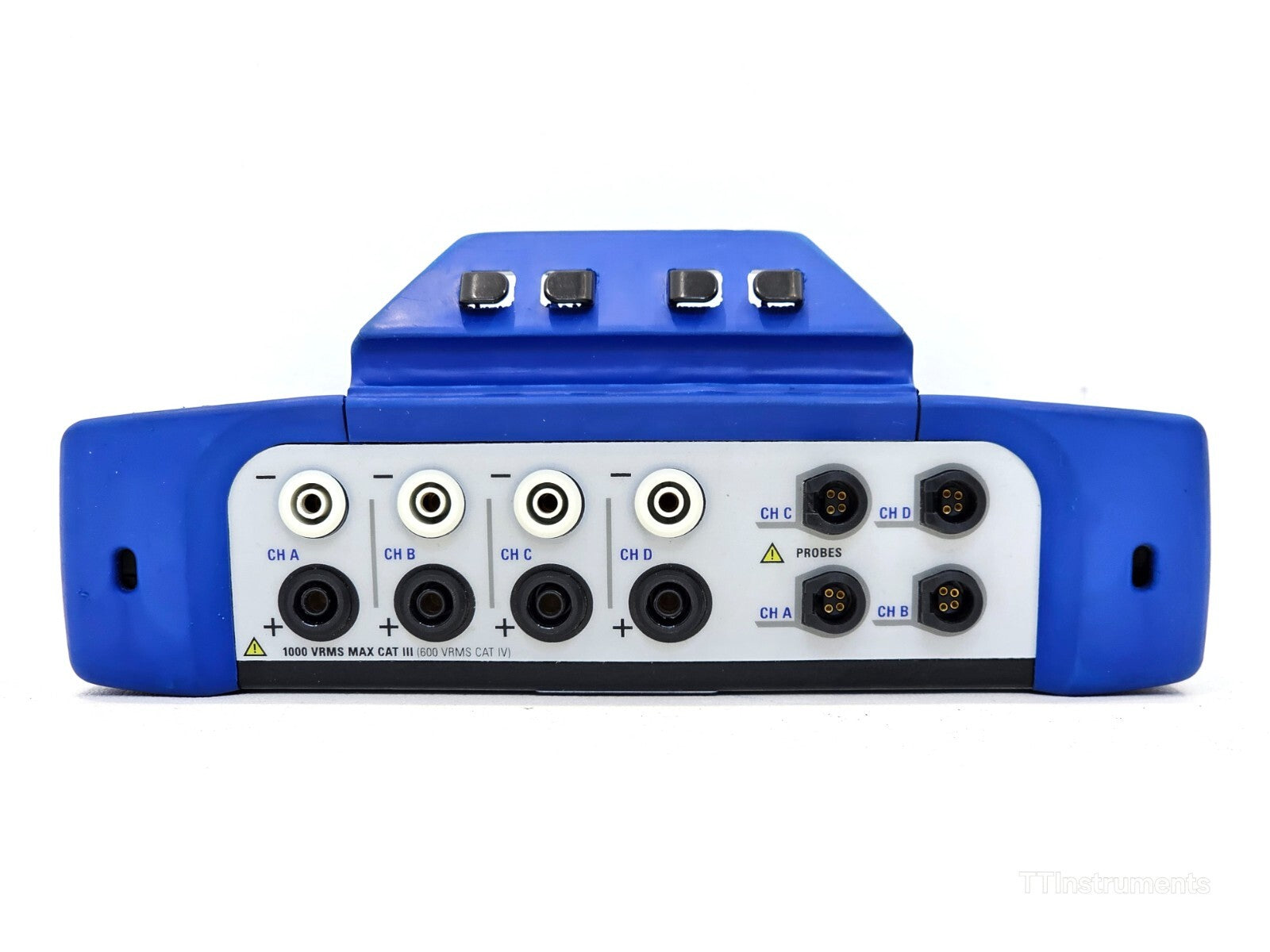

Voltage Inputs: 4 differential AC/DC, 0–1000 Vrms, 16-bit resolution, 512 samples/cycle
Voltage Accuracy: ±0.1% reading ±0.05% FS
High-Speed Transients (Voltage): 10–2000 Vpk, ±10% reading ±0.5% FS, 1 MHz sampling
Current Inputs: 4 channels, 16-bit resolution, 512 samples/cycle, range probe dependent
High-Speed Transients (Current): 1 µs/channel capture
Frequency Range: 16–25 Hz and 41–69 Hz, ±0.01 Hz

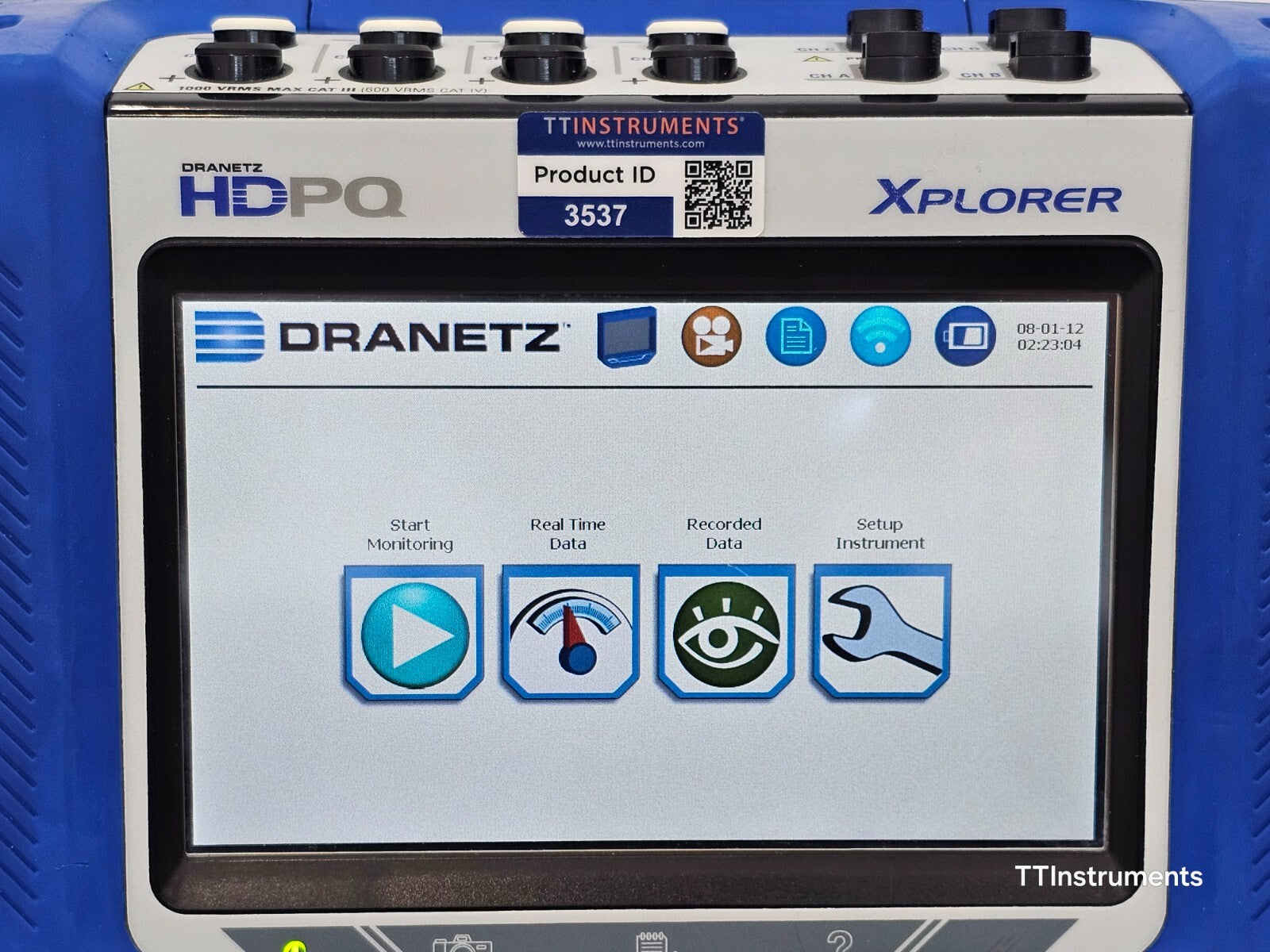

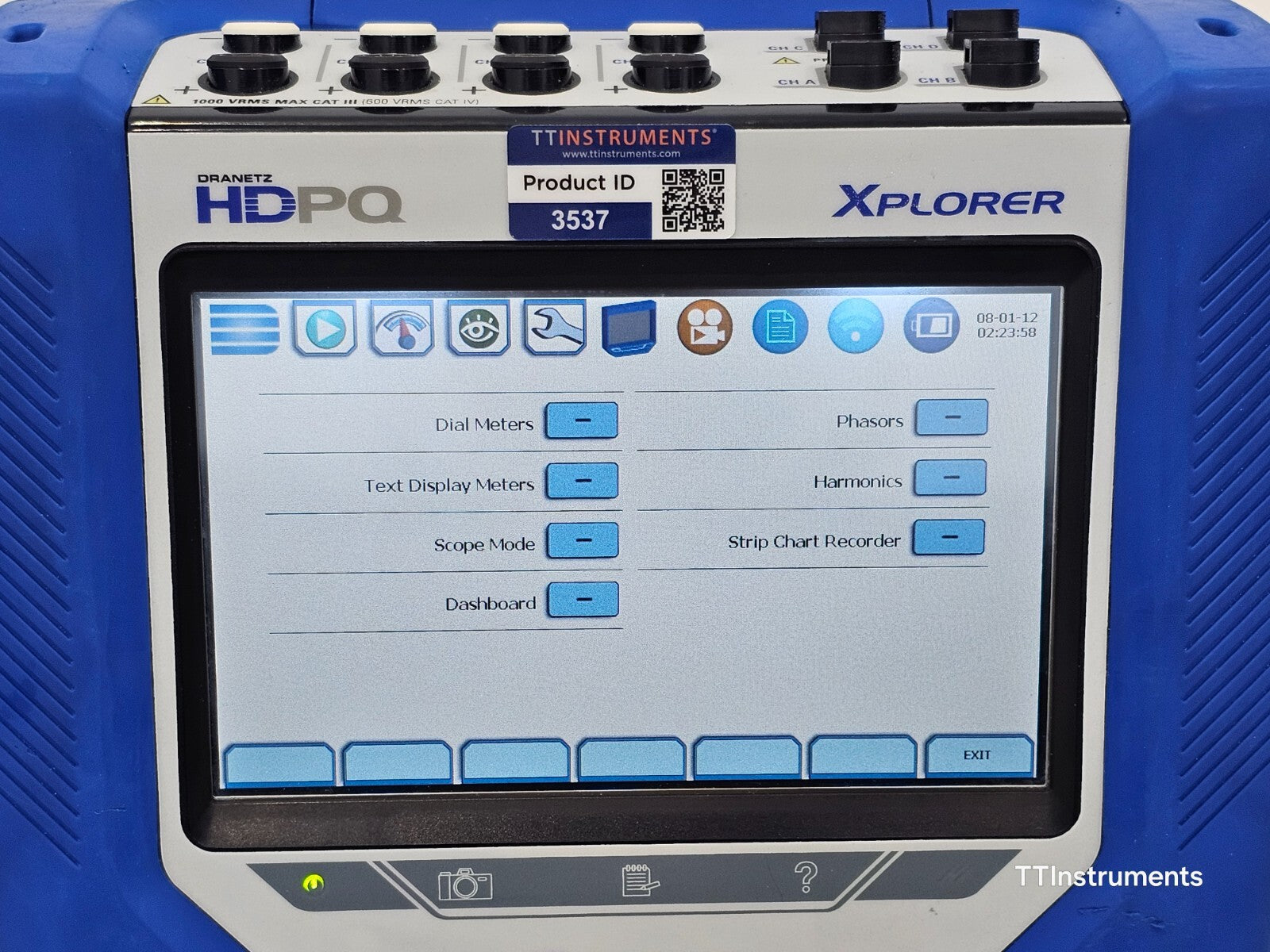

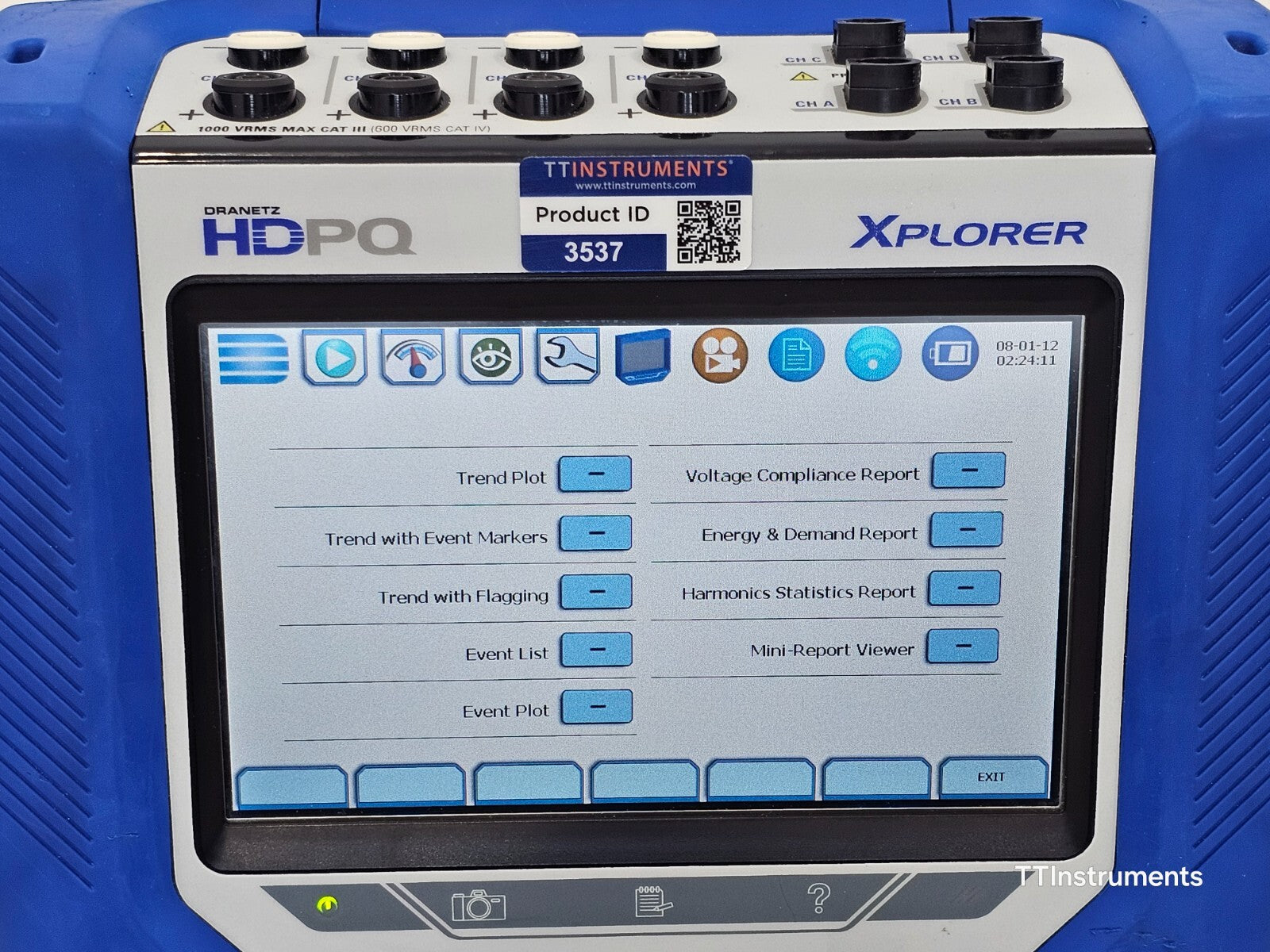

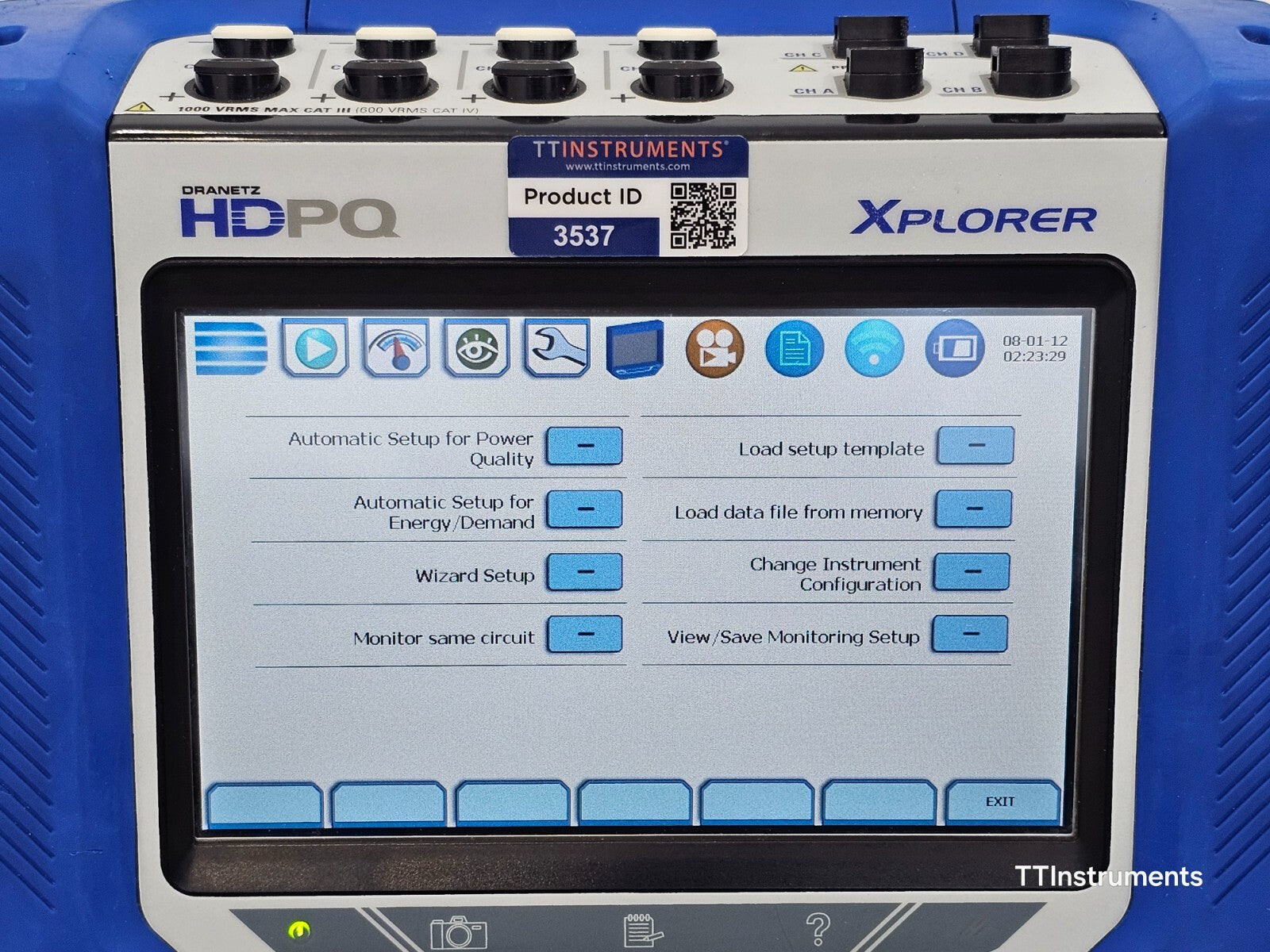

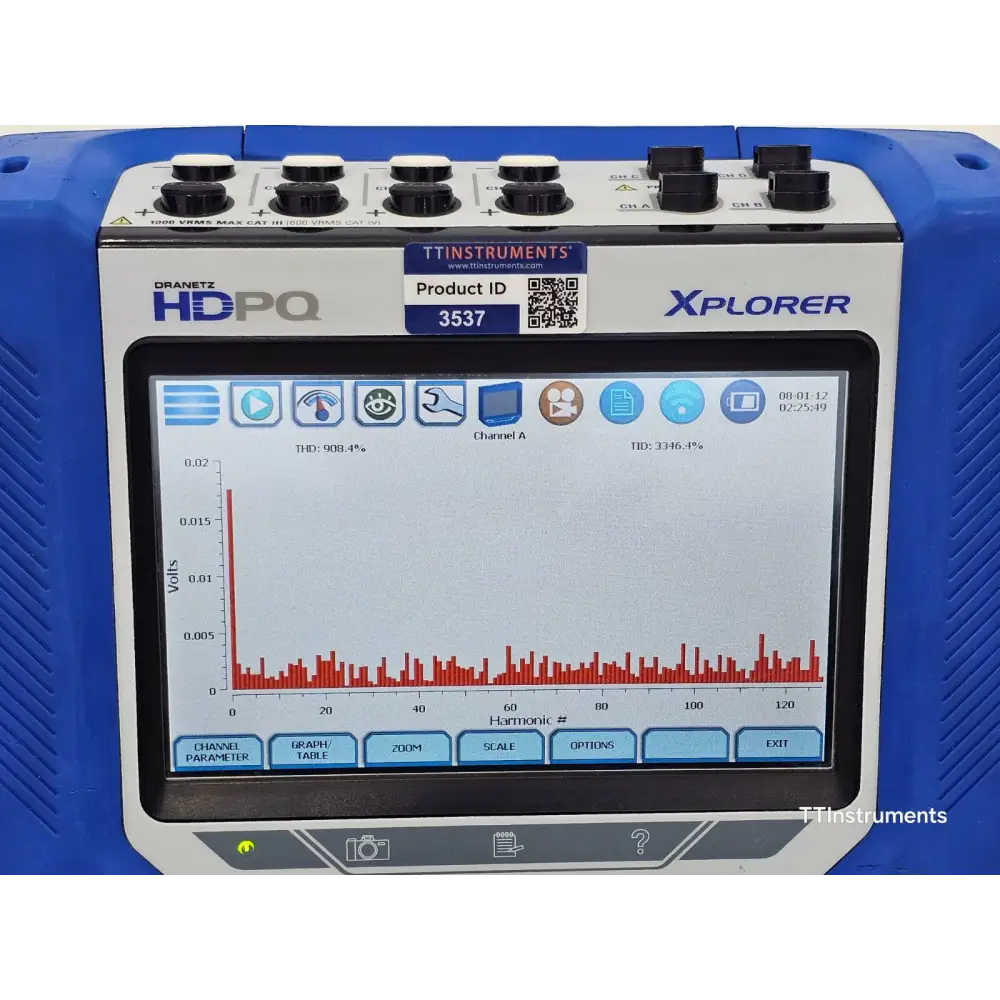

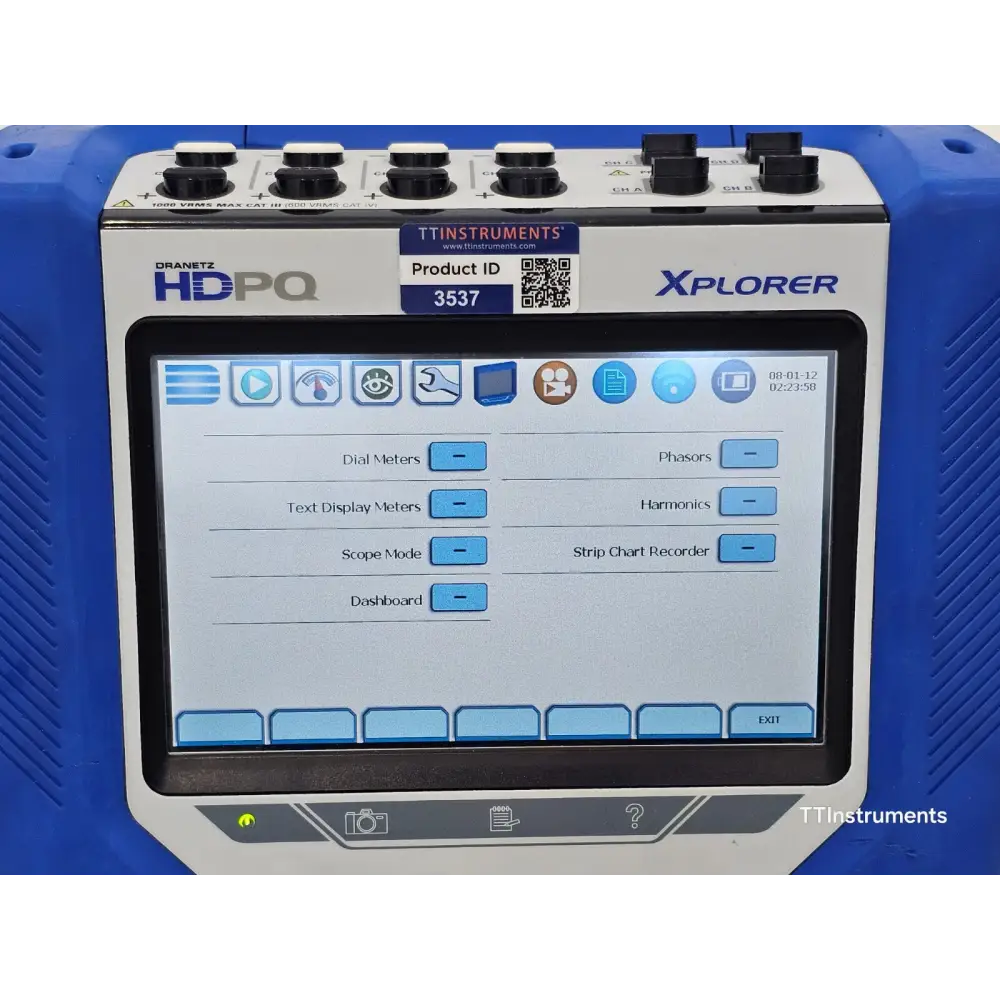

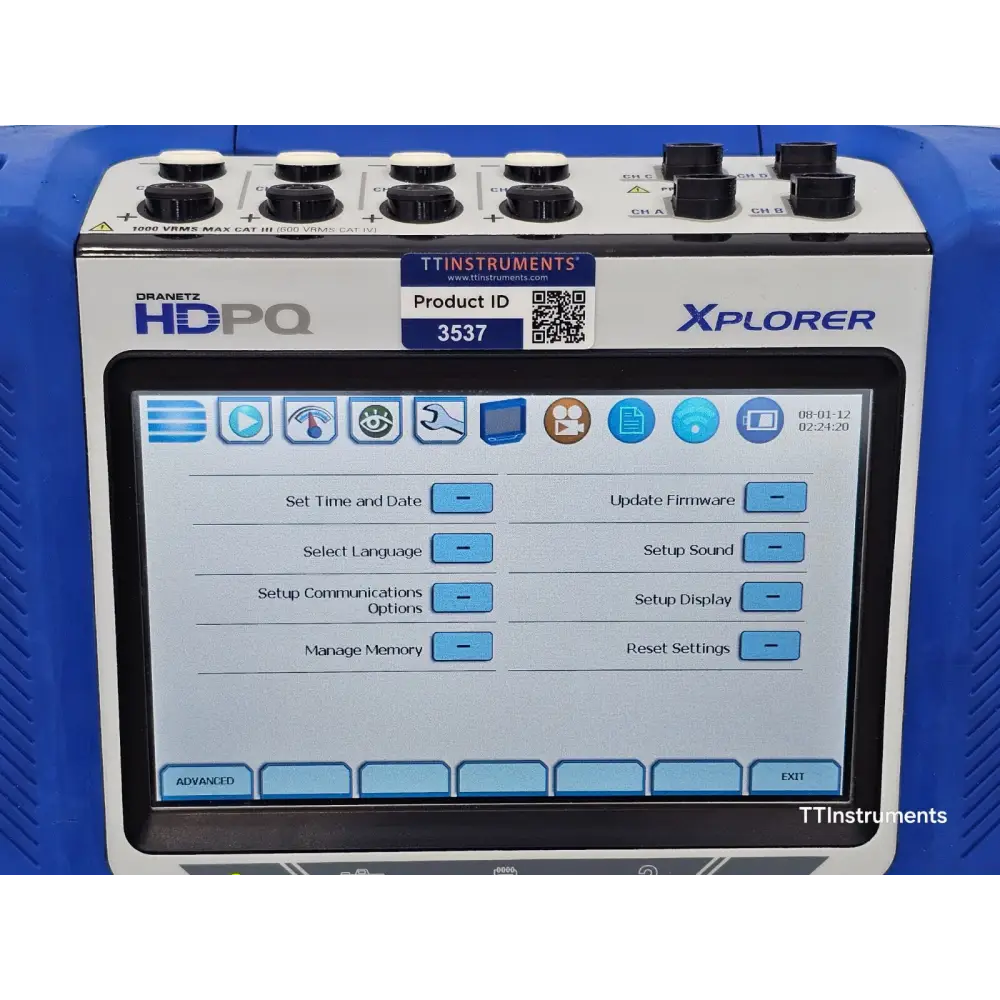

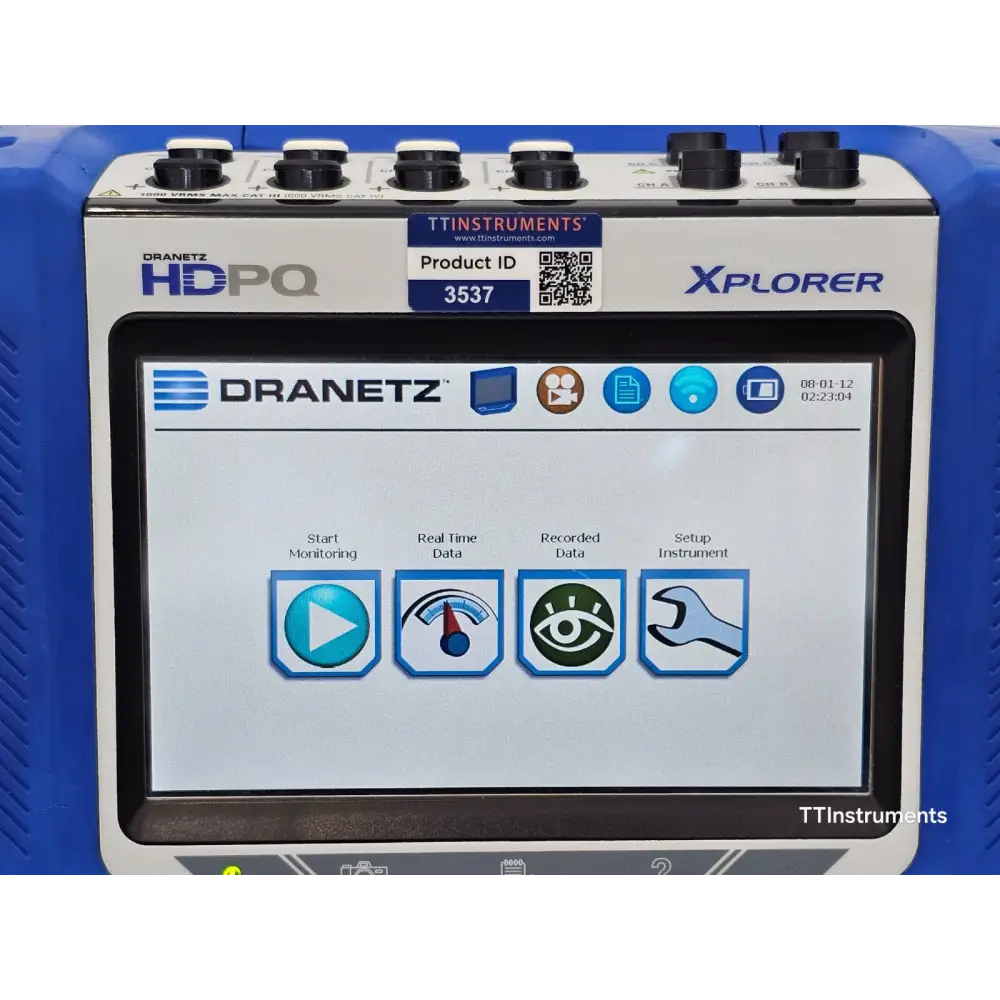

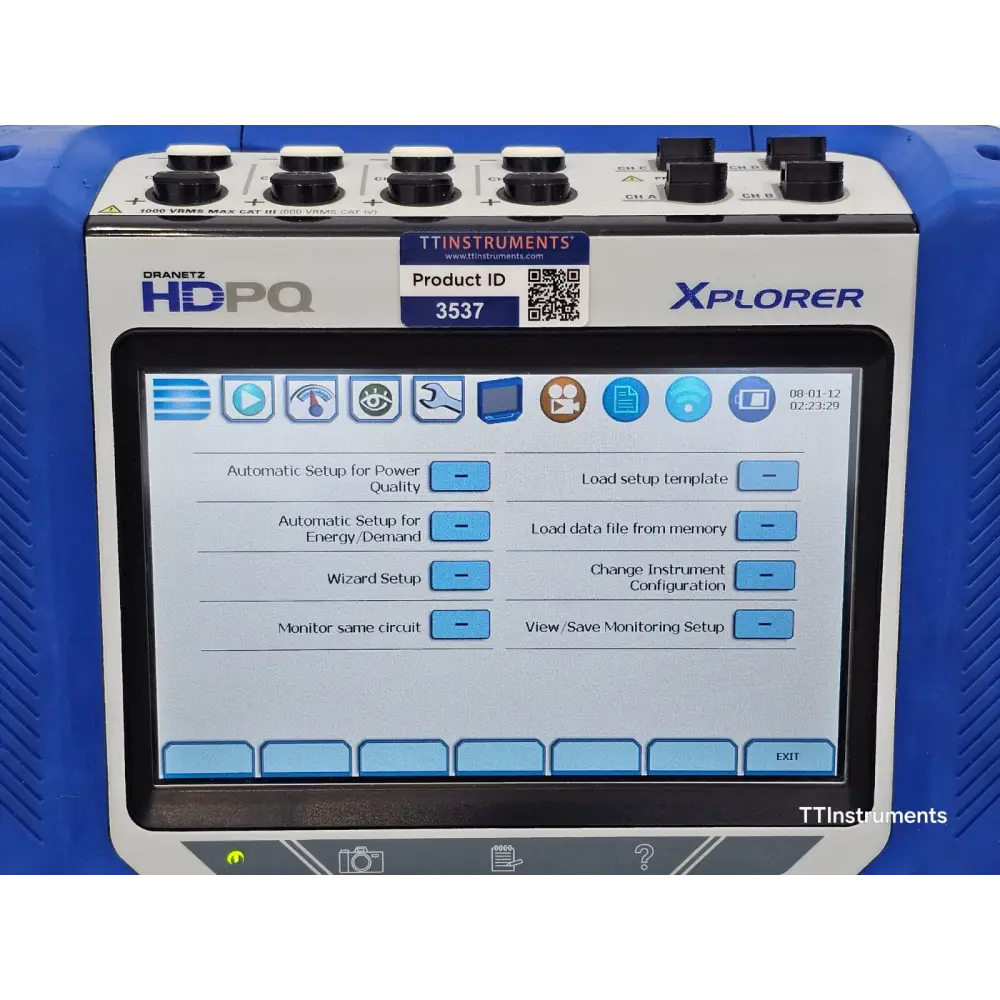

Display: 7-inch WVGA colour graphic, icon-based touch LCD, LED backlit
Memory: 4 GB internal flash
Battery Runtime: Approximately 3 hours on full charge
AC Adapter Input: 100–240 V AC, 50/60 Hz

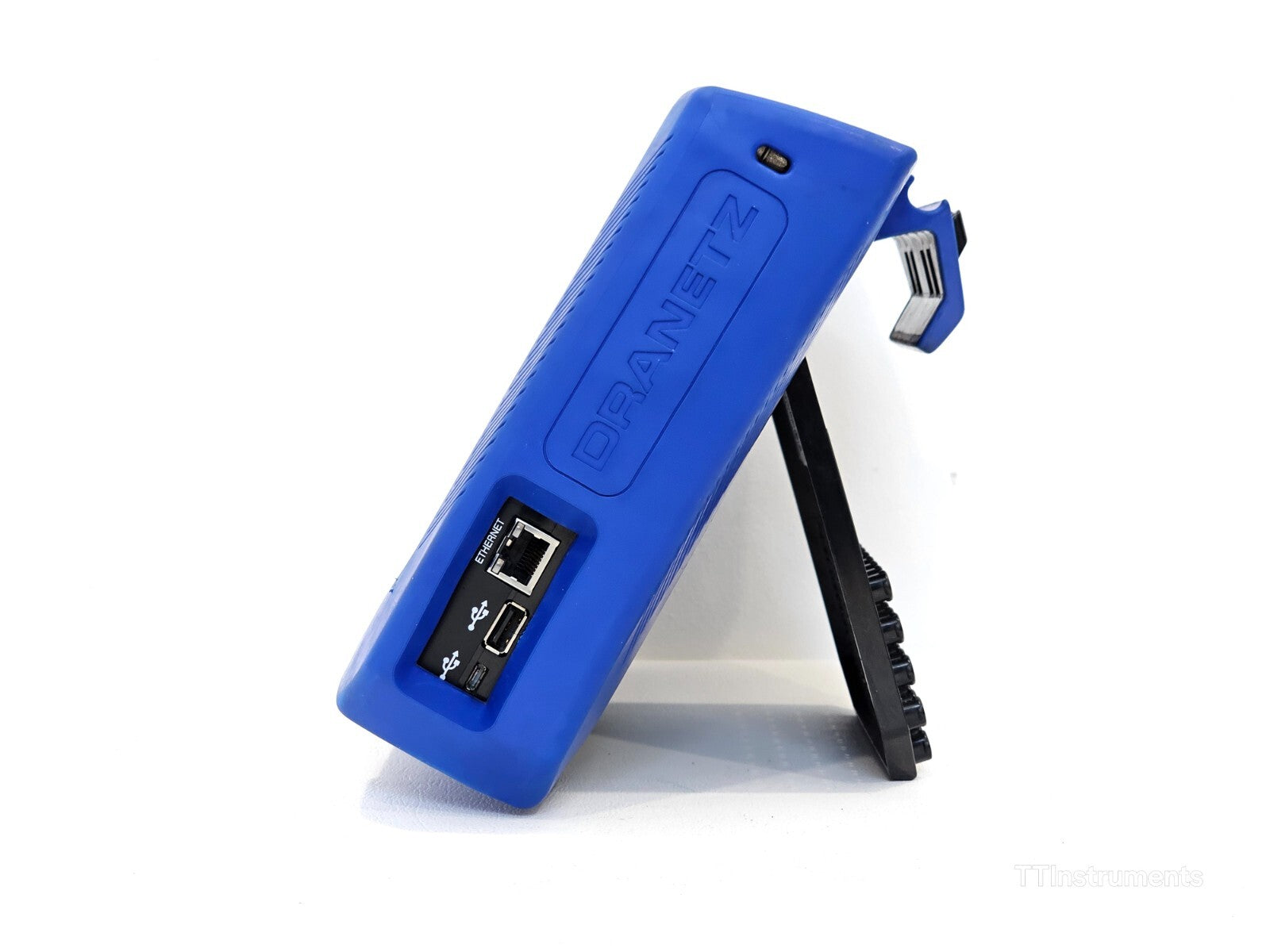

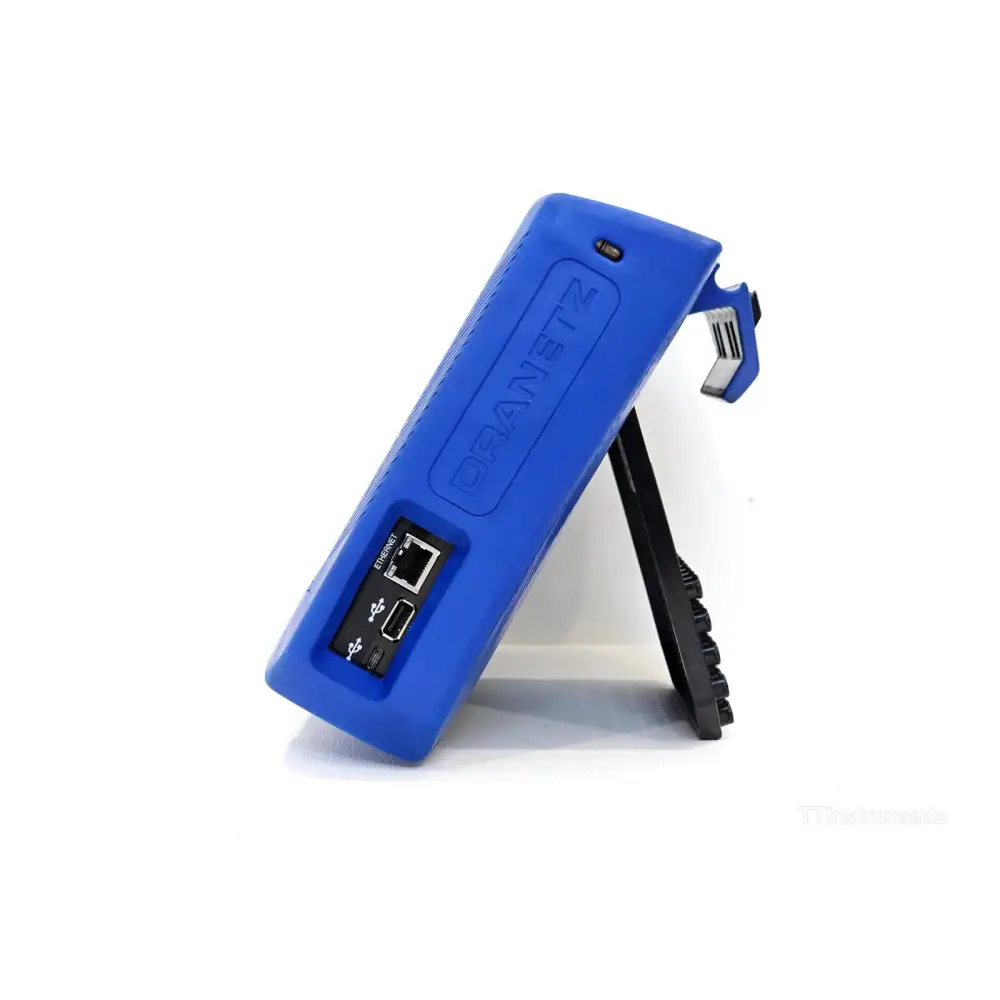

Communications: Ethernet, 802.11 b/g/n Wi-Fi, USB On-The-Go, Bluetooth (via USB adapter), VNC remote control
Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 60°C
Humidity: 0–95% non-condensing
Weight: 2 kg (4.3 lbs)
Clock Accuracy: ±1 sec/day (internal); ±10 ms (NTP); ±1 ms (GPS)
Compliance Standards: IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEC 61000-4-15 Ed.2, IEEE 1159, IEEE 519:2014, IEEE 1459, EN 50160
Enclosure: IP50 ergonomic ABS plastic with protective rubber boot

KEY SPECIFICATIONS — DRANFLEX 6000XLB:
Type: Flexible Rogowski single-phase current sensor
Measurement Ranges: 60 A / 600 A / 6000 A (3 ranges)
Amplitude Accuracy (50/60 Hz): 60/600 A range — 1% of reading ±0.1 A; 6000 A range — 1% of reading ±1 A
Phase Accuracy (45–65 Hz): ±1 degree
Rated Voltage: 1000 V maximum
Output Signal: 1.5 V RMS full scale
Connector: Dranetz Hypertronics type
Installation Category: 1000 V RMS, CAT III, Pollution Degree 2
Available Lengths: 24 inch, 36 inch, 48 inch
Compatibility: Dranetz HDPQ, PowerXplorer, PowerGuide, PowerVisa, Energy Platform, PP4300, Encore 61000, Signature System 5513

Dranetz HDPQ Xplorer / Xplorer-400 / Guide / Visa — Official Data Sheet (PDF): Download PDF

Dranetz HDPQ Plus User Guide — Full instrument user guide (PDF): Download PDF

Dranetz HDPQ Xplorer / Guide / Visa Quick Reference Guide Rev C (PDF): Download PDF

Dranetz HDPQ Xplorer Quick Reference Guide Rev B (PDF): Download PDF

Dranetz HDPQ User Guide (PDF): Download PDF

Dranetz DRANFLEX 3000XLB / 6000XLB Current Sensors User Instructions & Specifications (PDF): Download PDF
