Condition: Refurbished

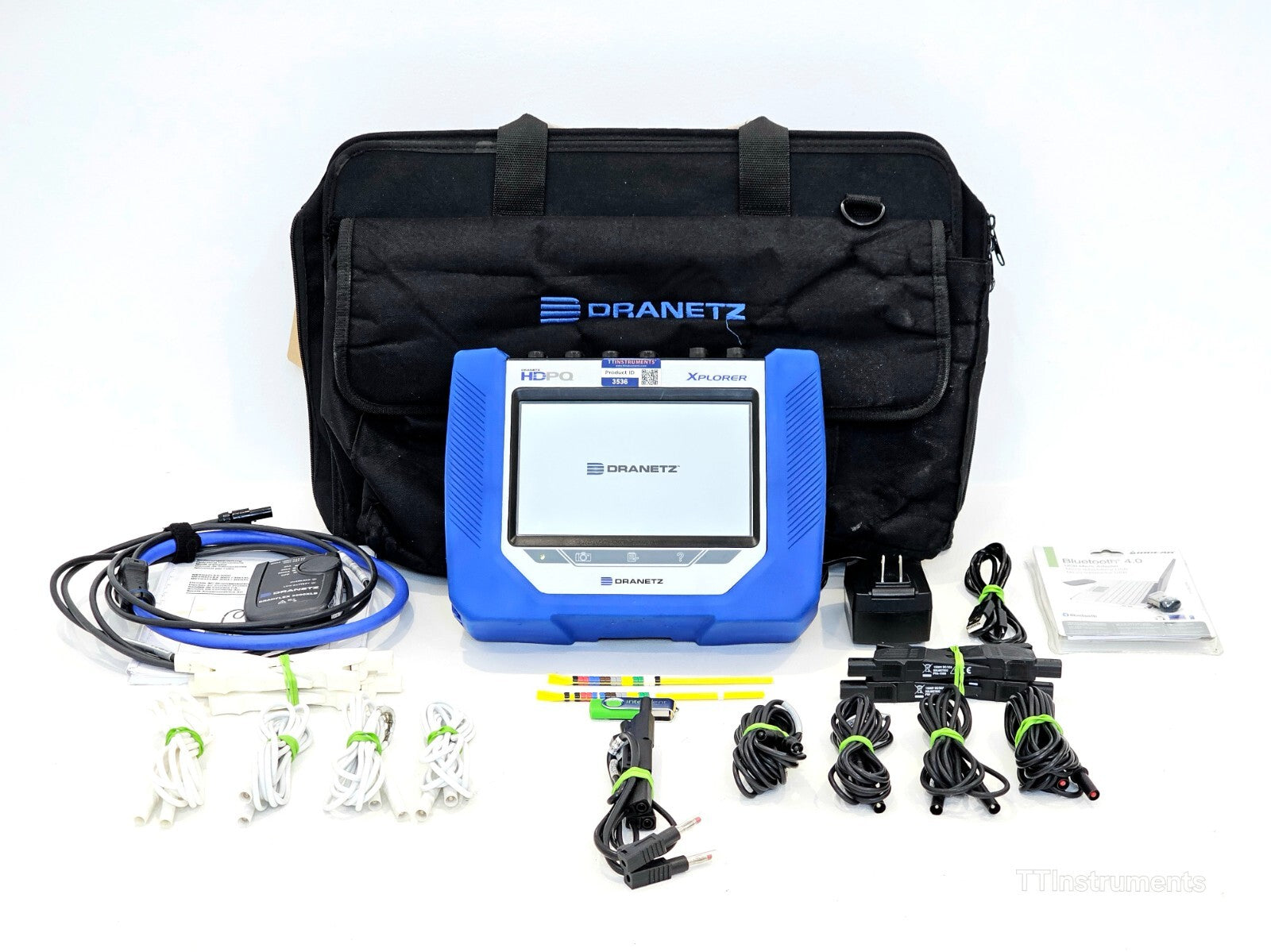

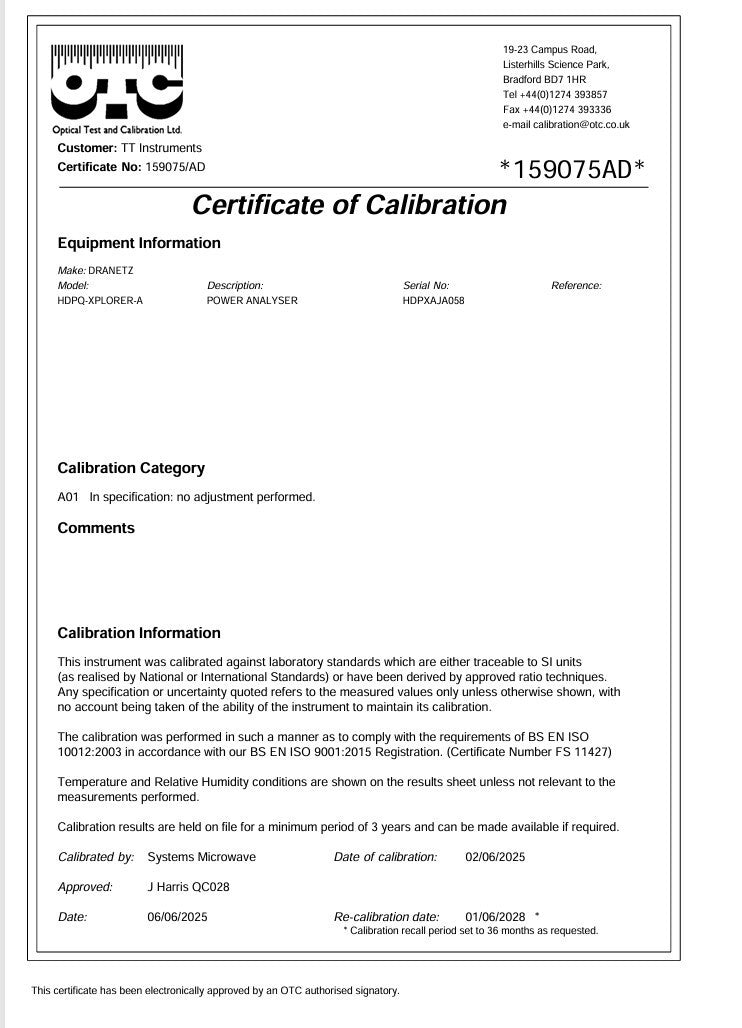

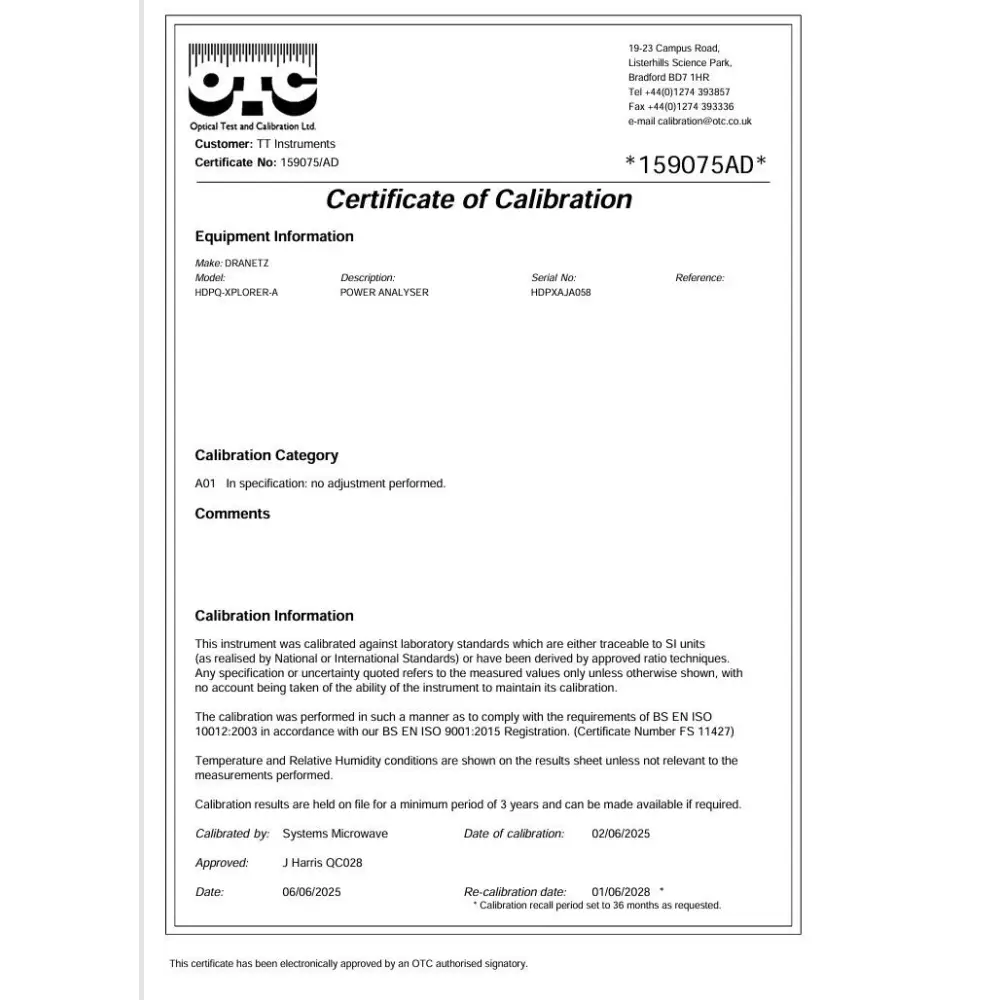

This Dranetz HDPQ Xplorer power quality monitor has been seller refurbished and professionally calibrated in June 2025. It is supplied with pictured accessories, including the DRANFLEX 3000XLB flexible current probe, making it a field-ready solution for comprehensive power quality surveying.

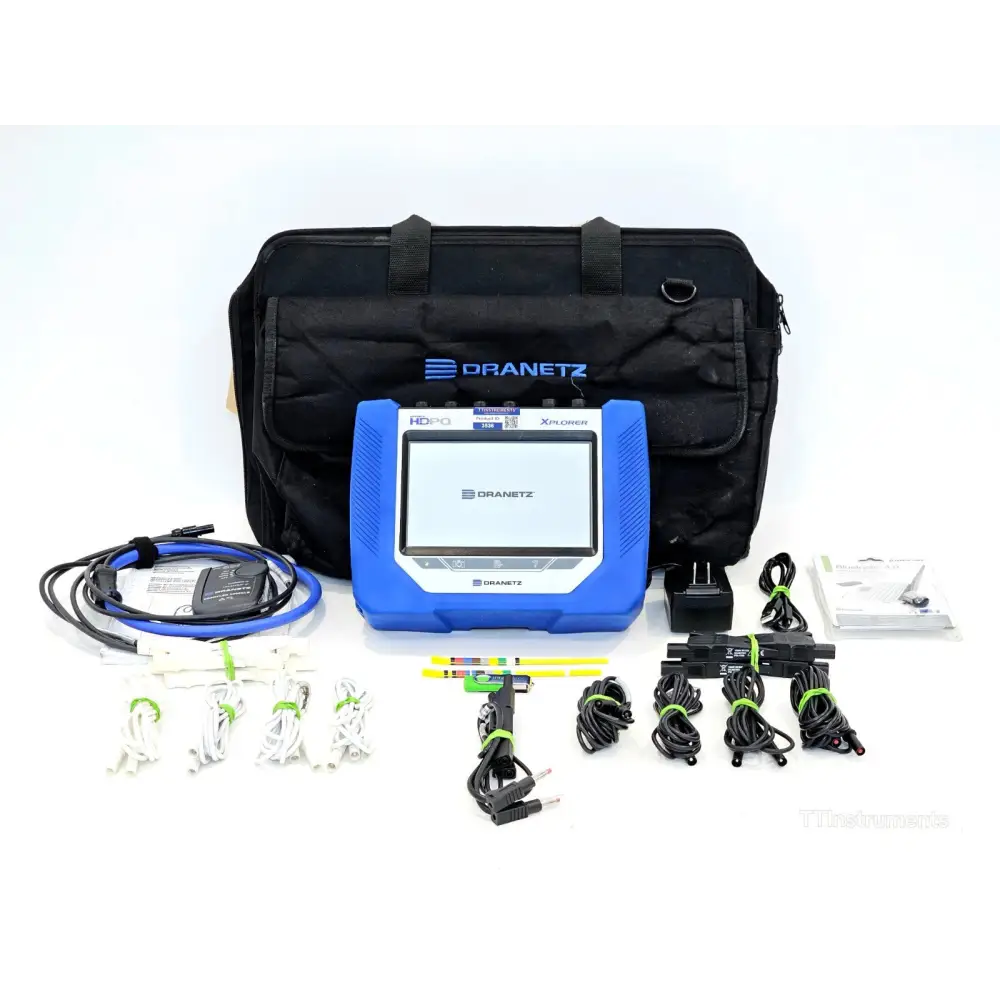

Supplied accessories (as described):
• DRANFLEX 3000XLB flexible current probe

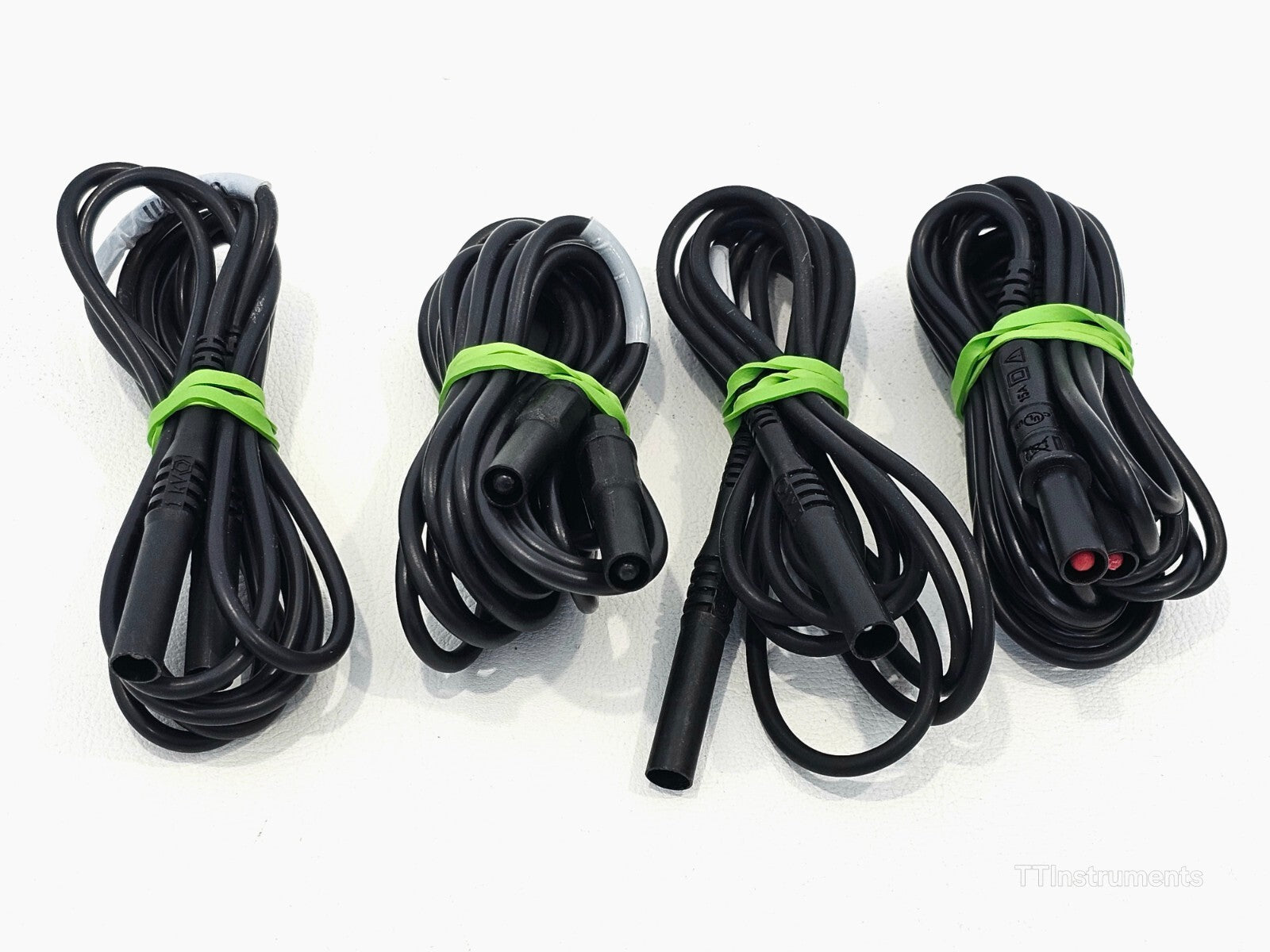

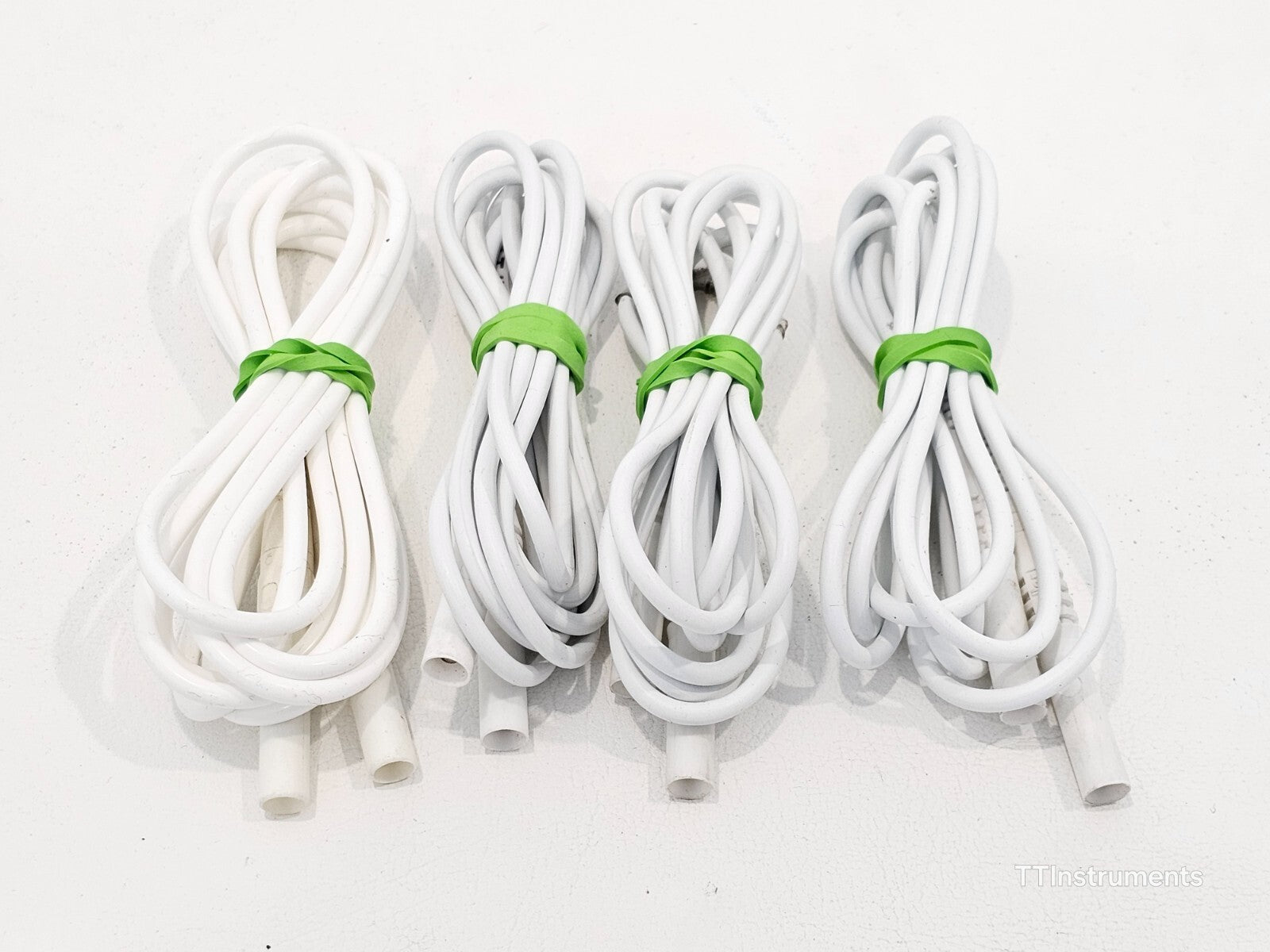

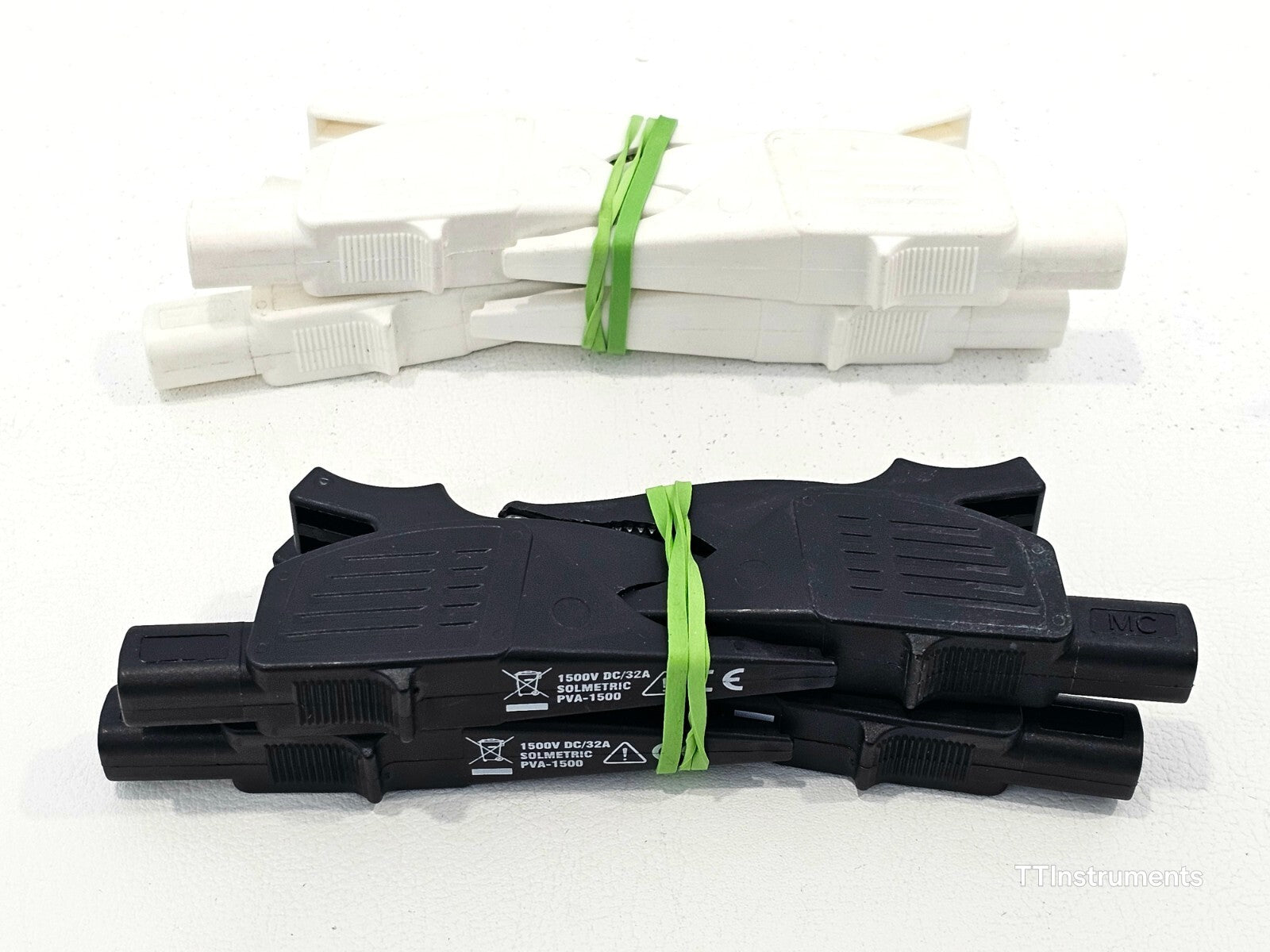

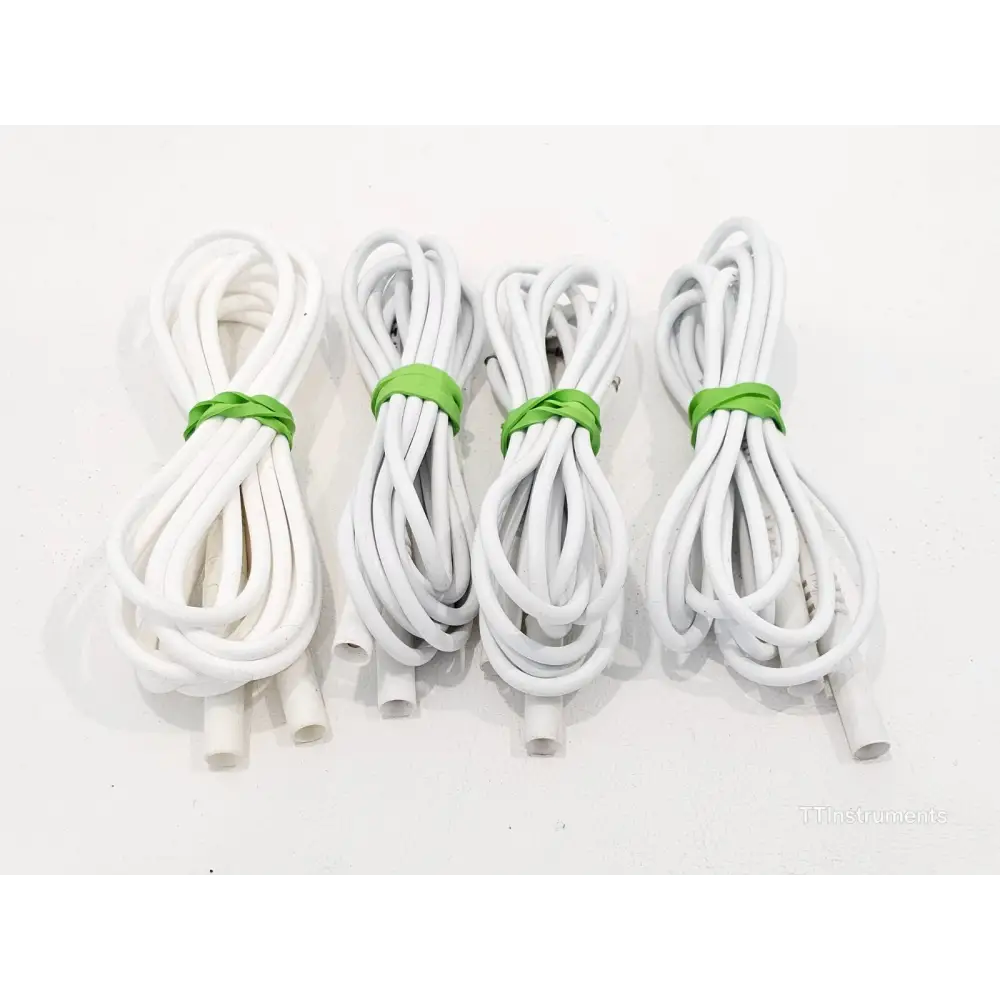

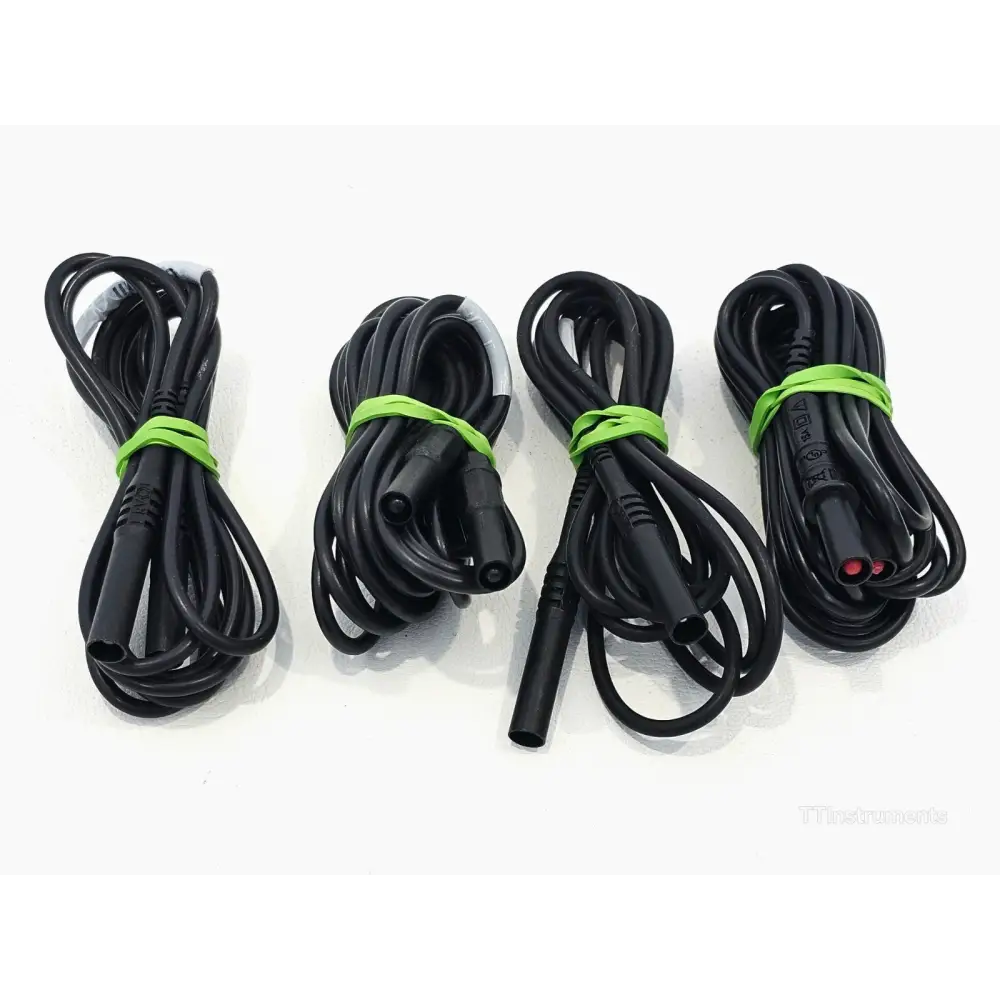

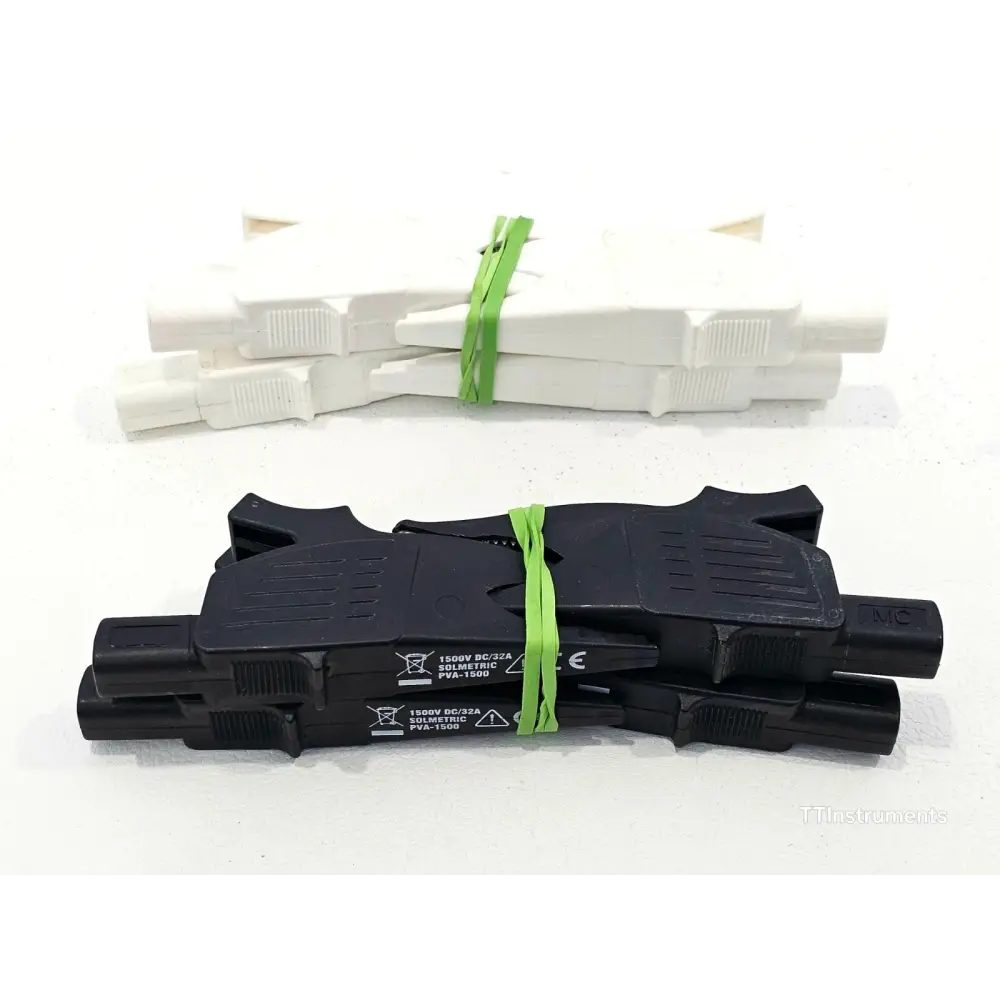

• Pictured accessories as shown

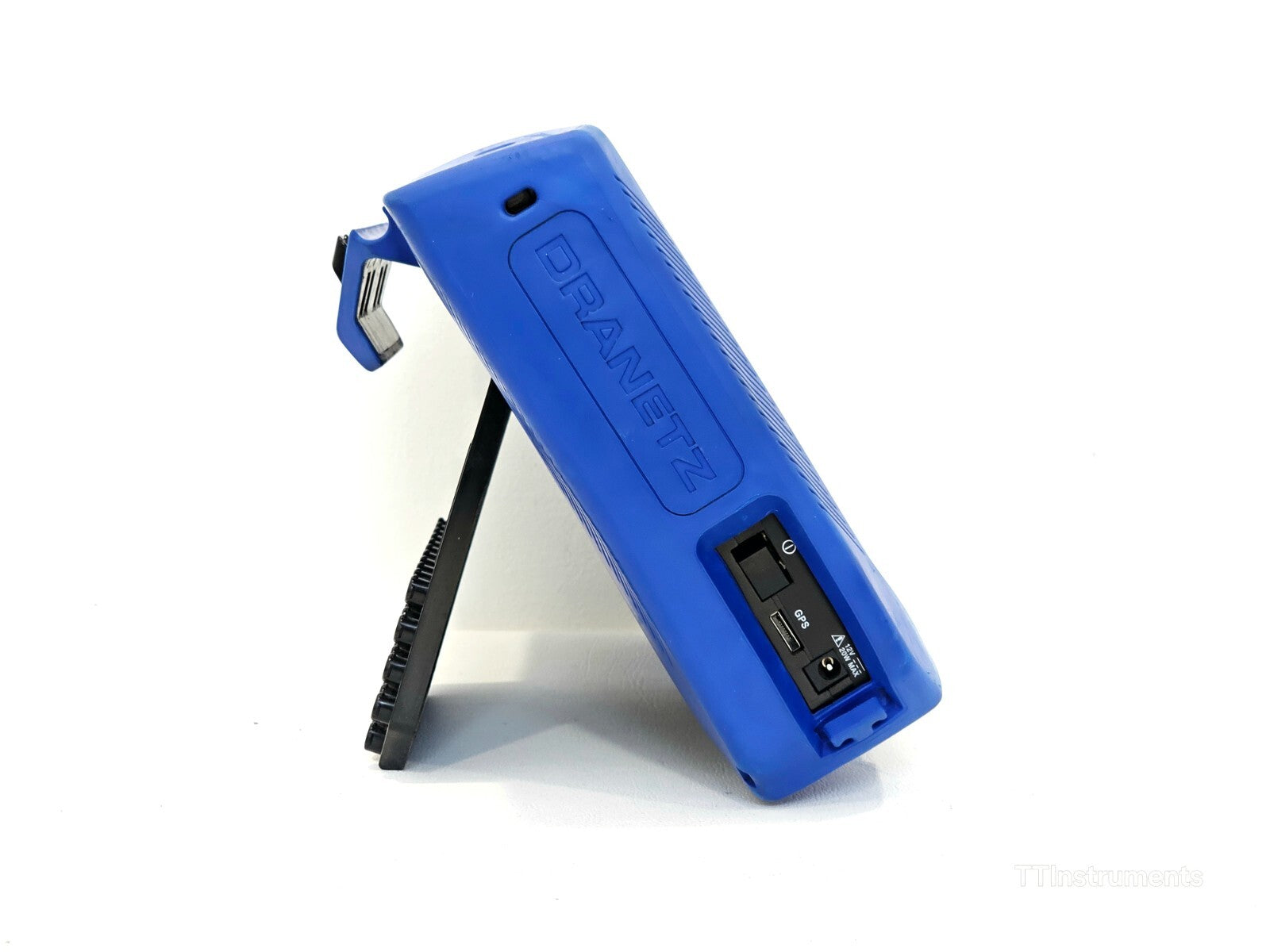

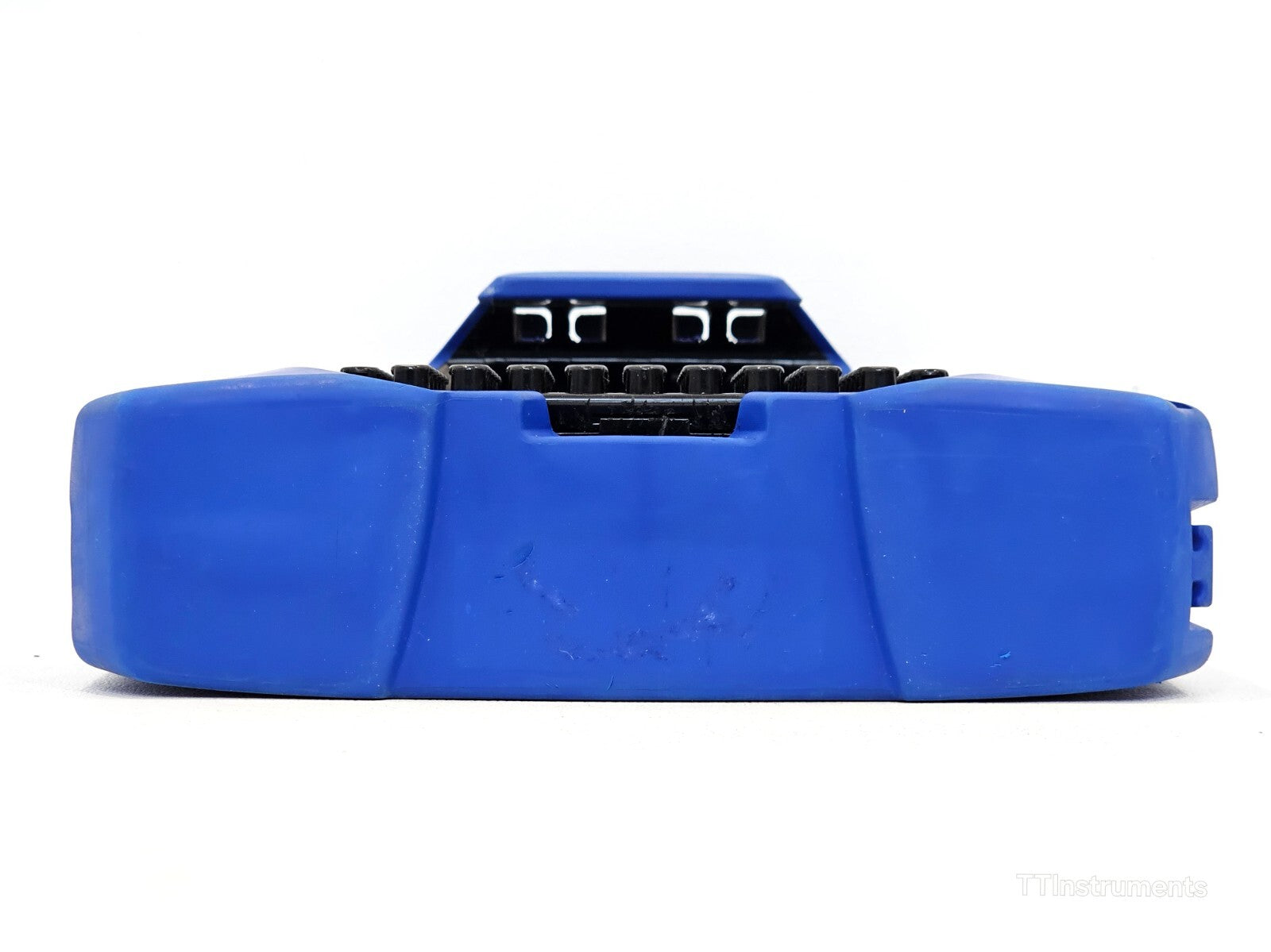

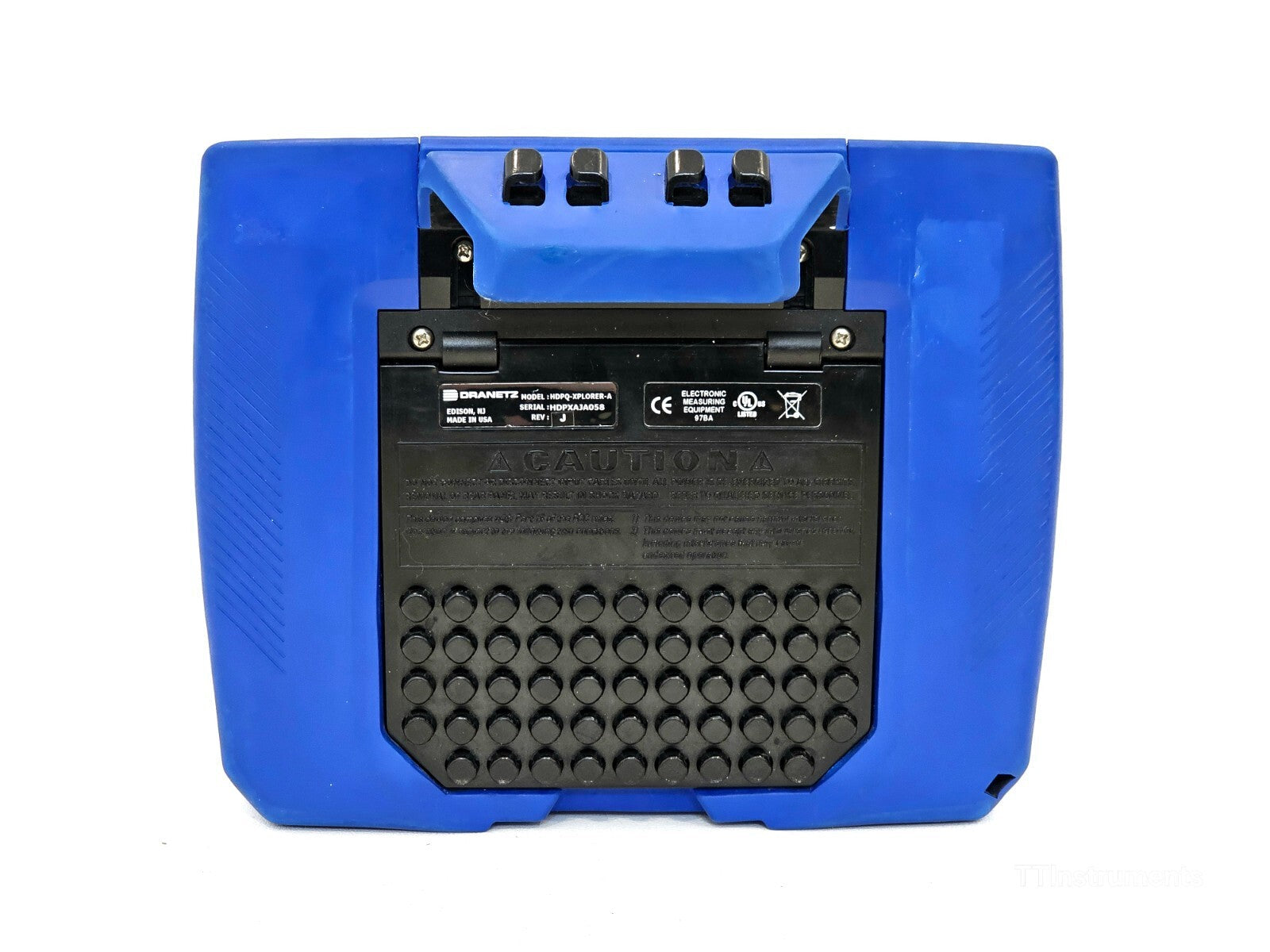

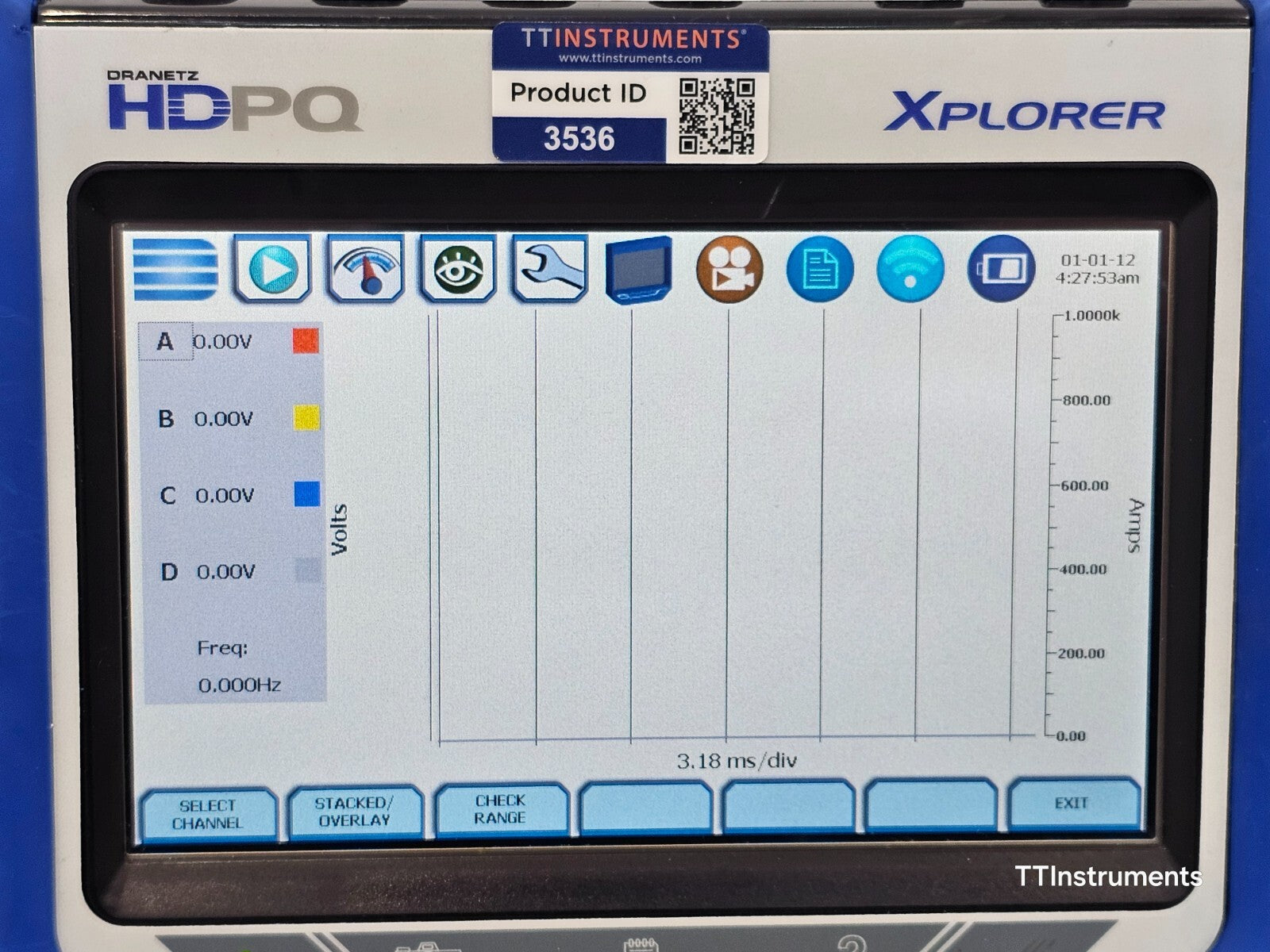

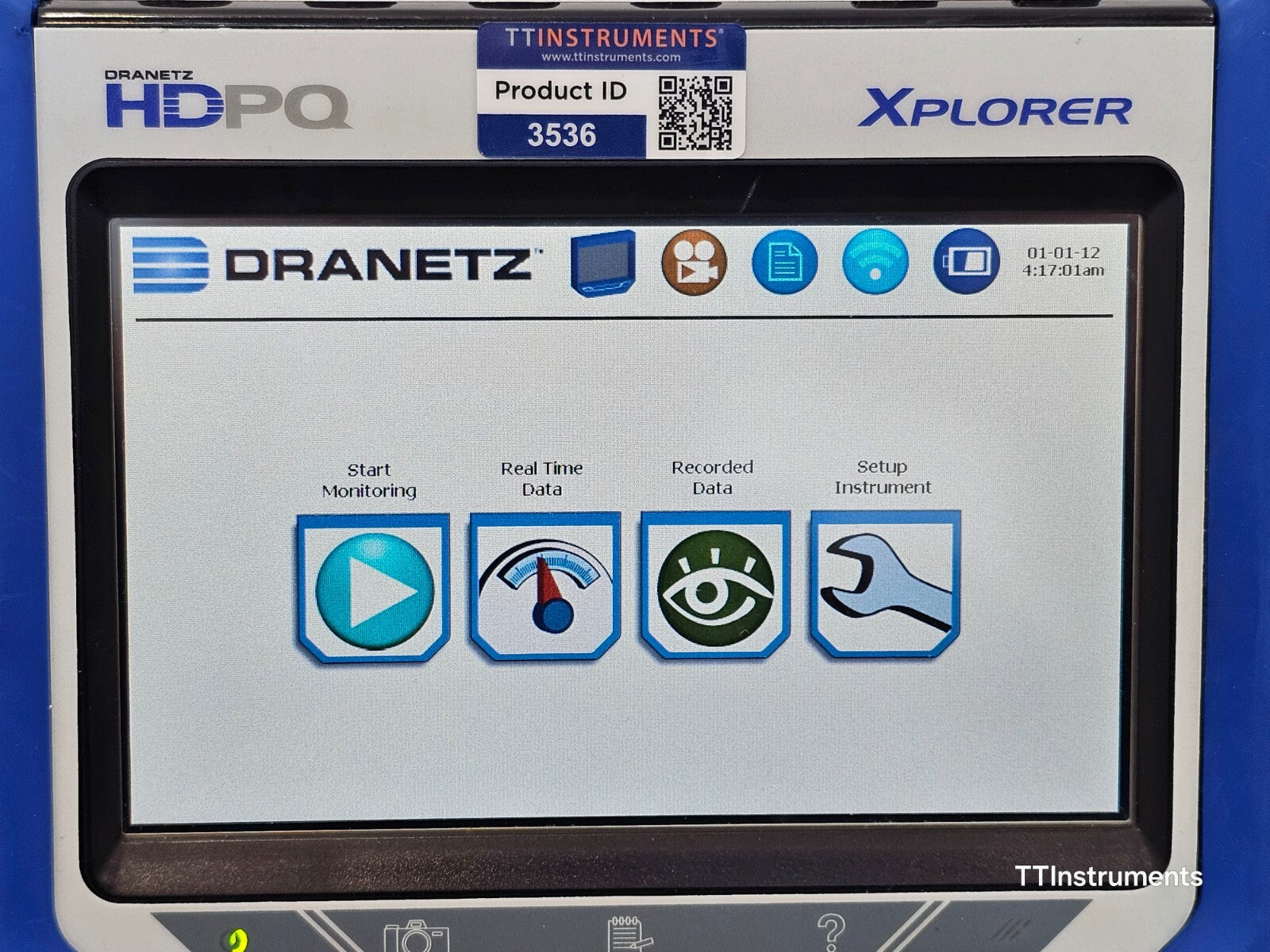

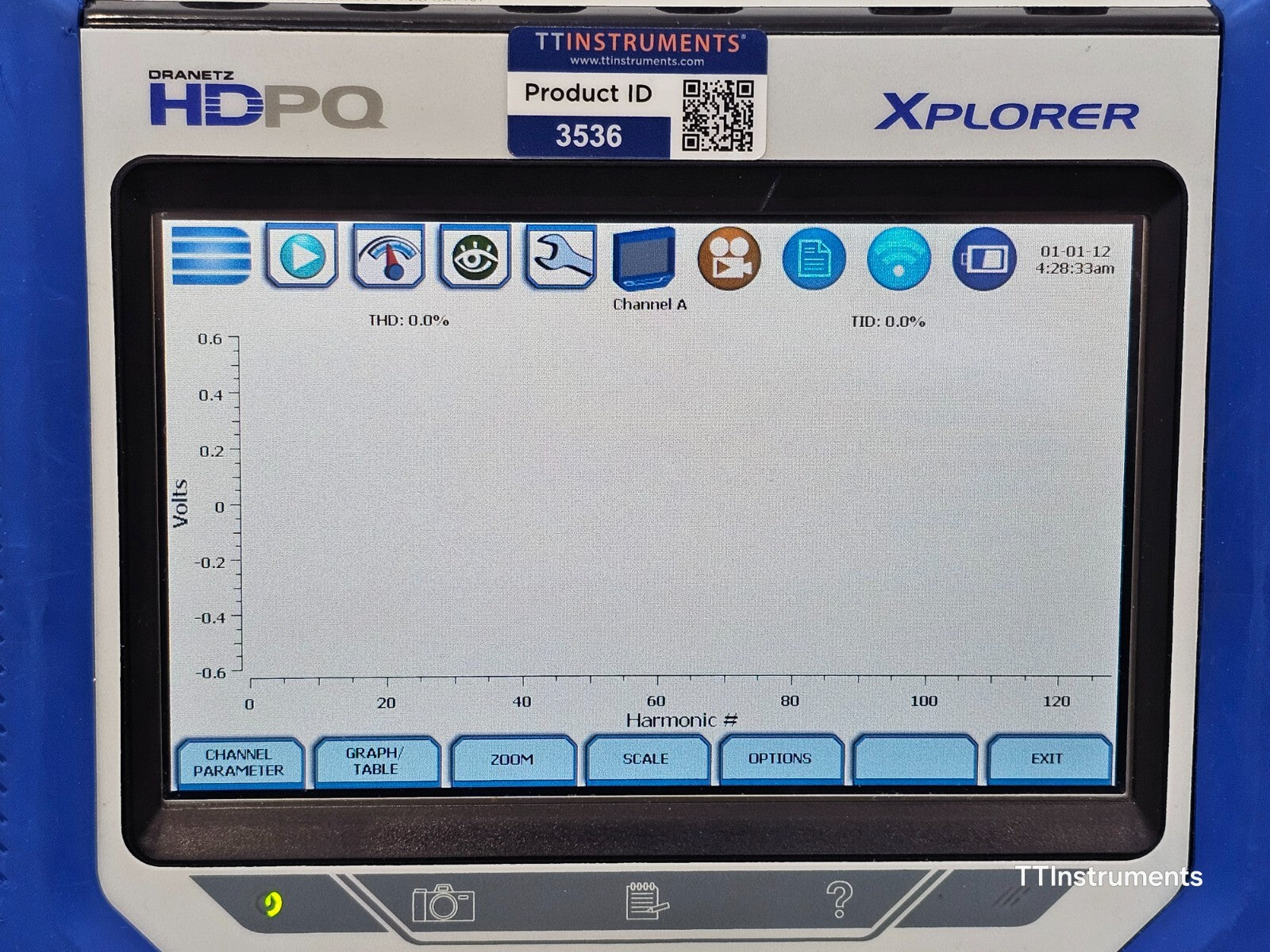

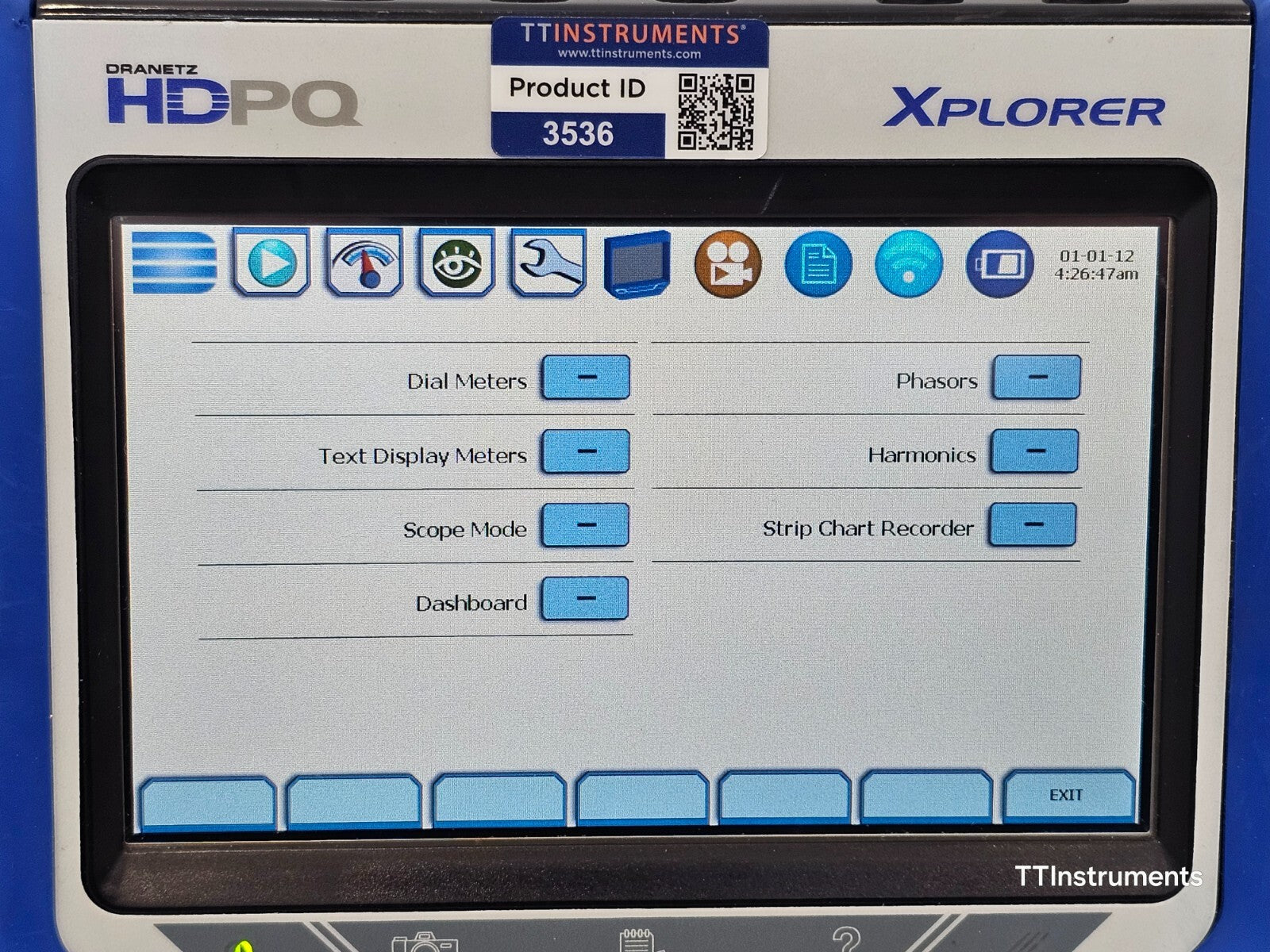

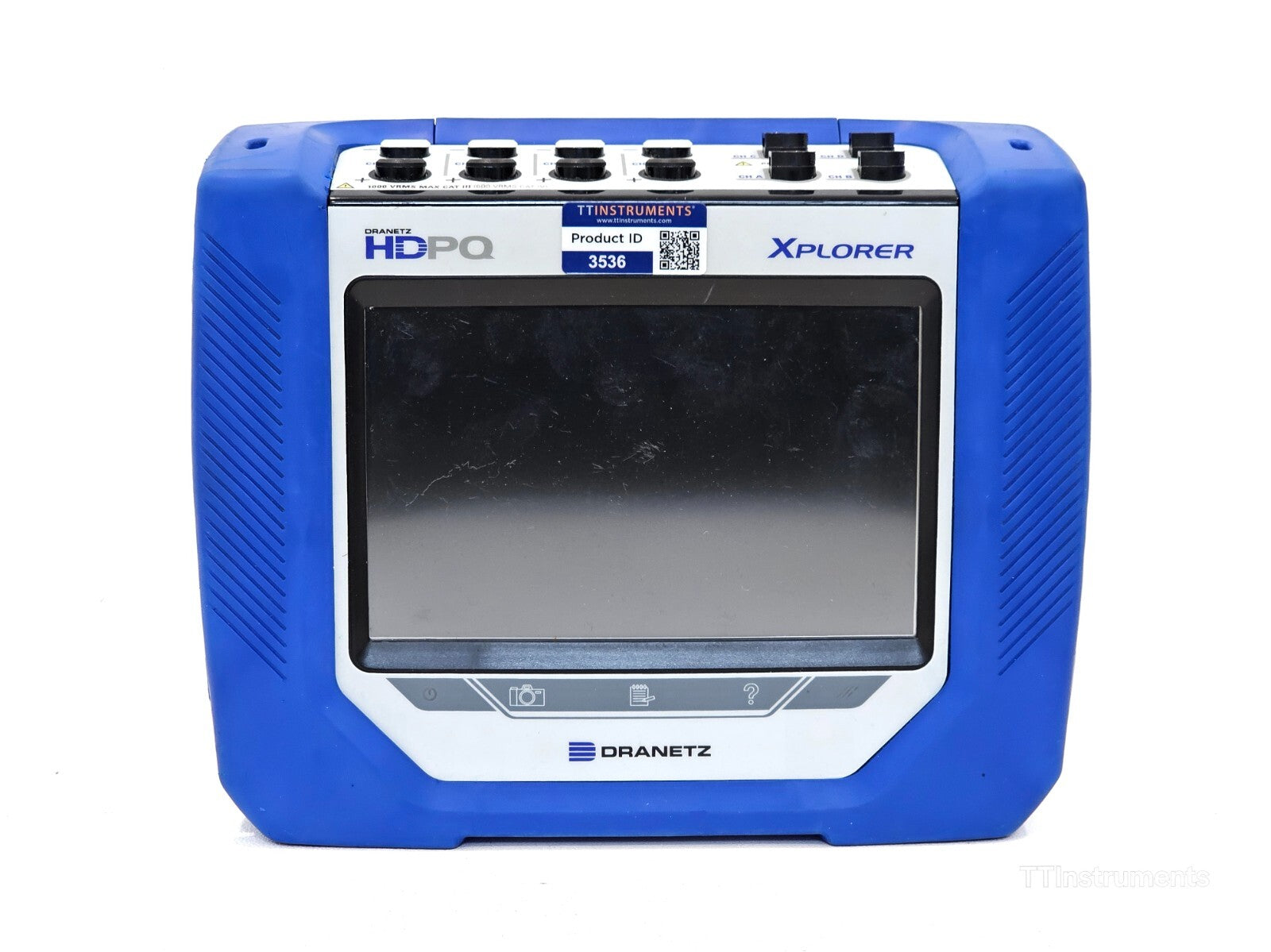

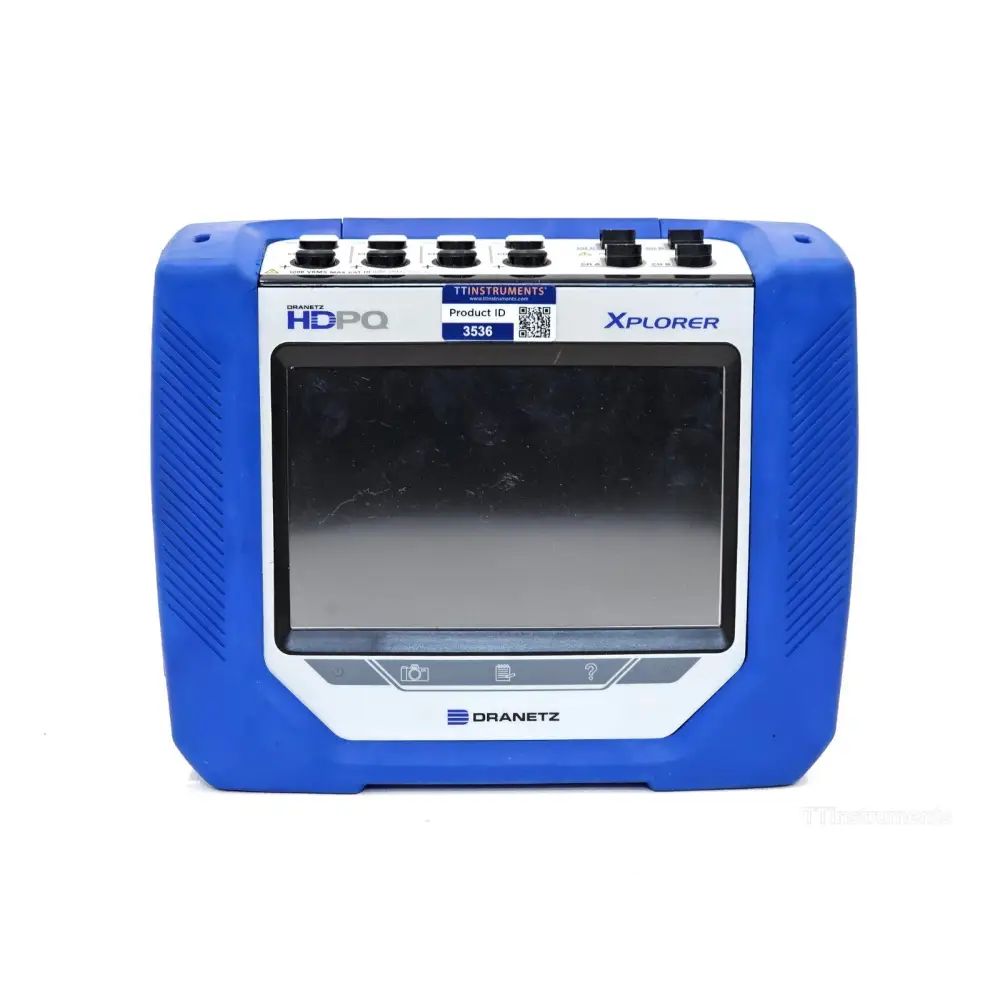

The Dranetz HDPQ Xplorer is a portable, hand-held, eight-channel power quality, demand, and energy monitor — the flagship of the Dranetz HDPQ family. It merges state-of-the-art power monitoring with best-in-class communication capabilities, featuring a built-in 7-inch colour widescreen touch LCD for local setup and data review. The instrument simultaneously captures voltage and current on all channels, enabling comprehensive analysis of single-phase, split-phase, three-phase Wye, and three-phase Delta systems. Its additional high-speed sampling board captures transients down to 1 microsecond per channel — going well beyond the requirements of IEC 61000-4-30 and EN 50160. The intelligent AnswerModules feature delivers consultant-like automatic event categorisation including sag/dip directivity, PF capacitor identification, and motor analysis. Full remote operation is supported via Ethernet, Wi-Fi, Bluetooth, and VNC through Dran-View 7 software or any smartphone or tablet.

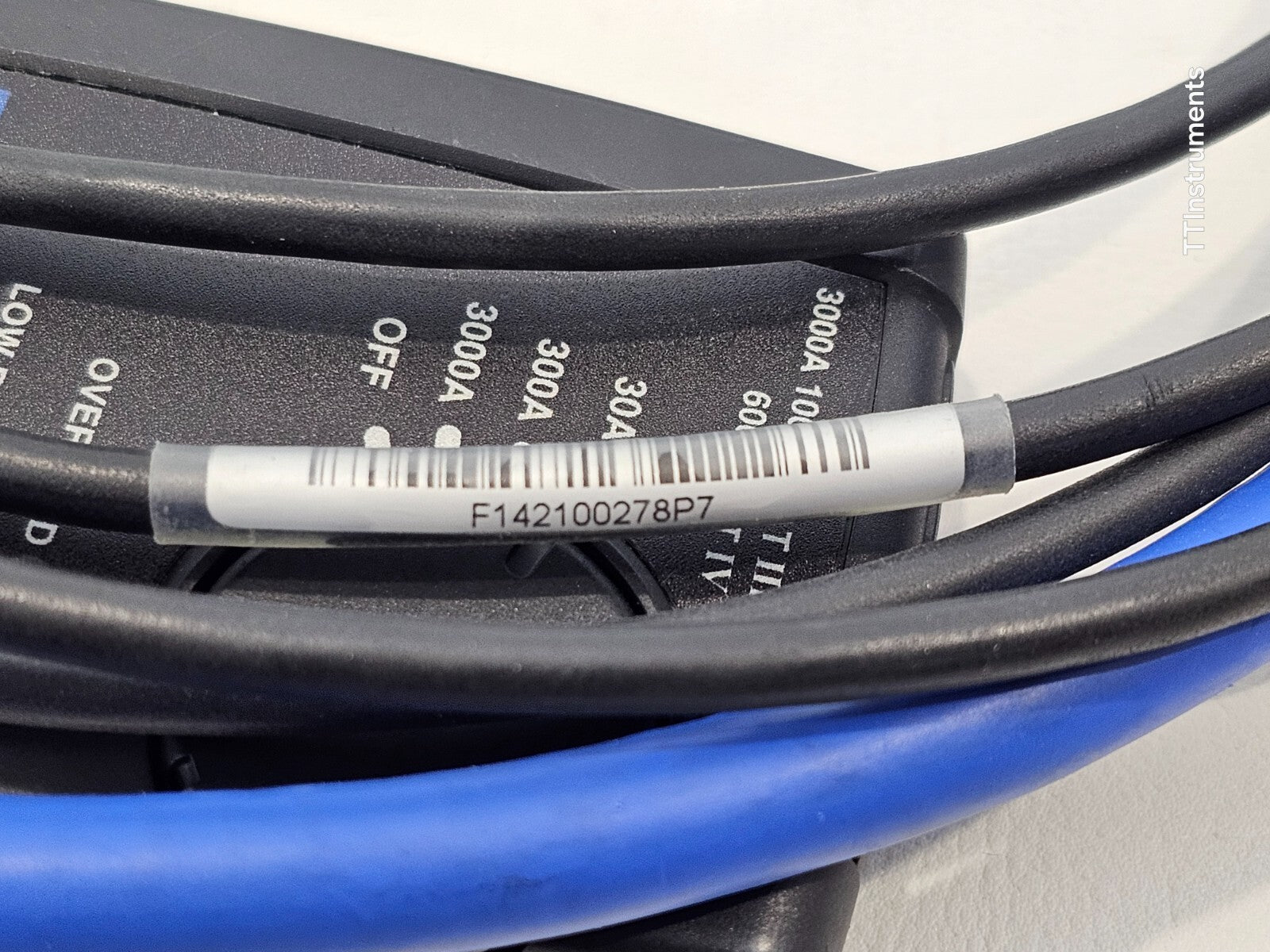

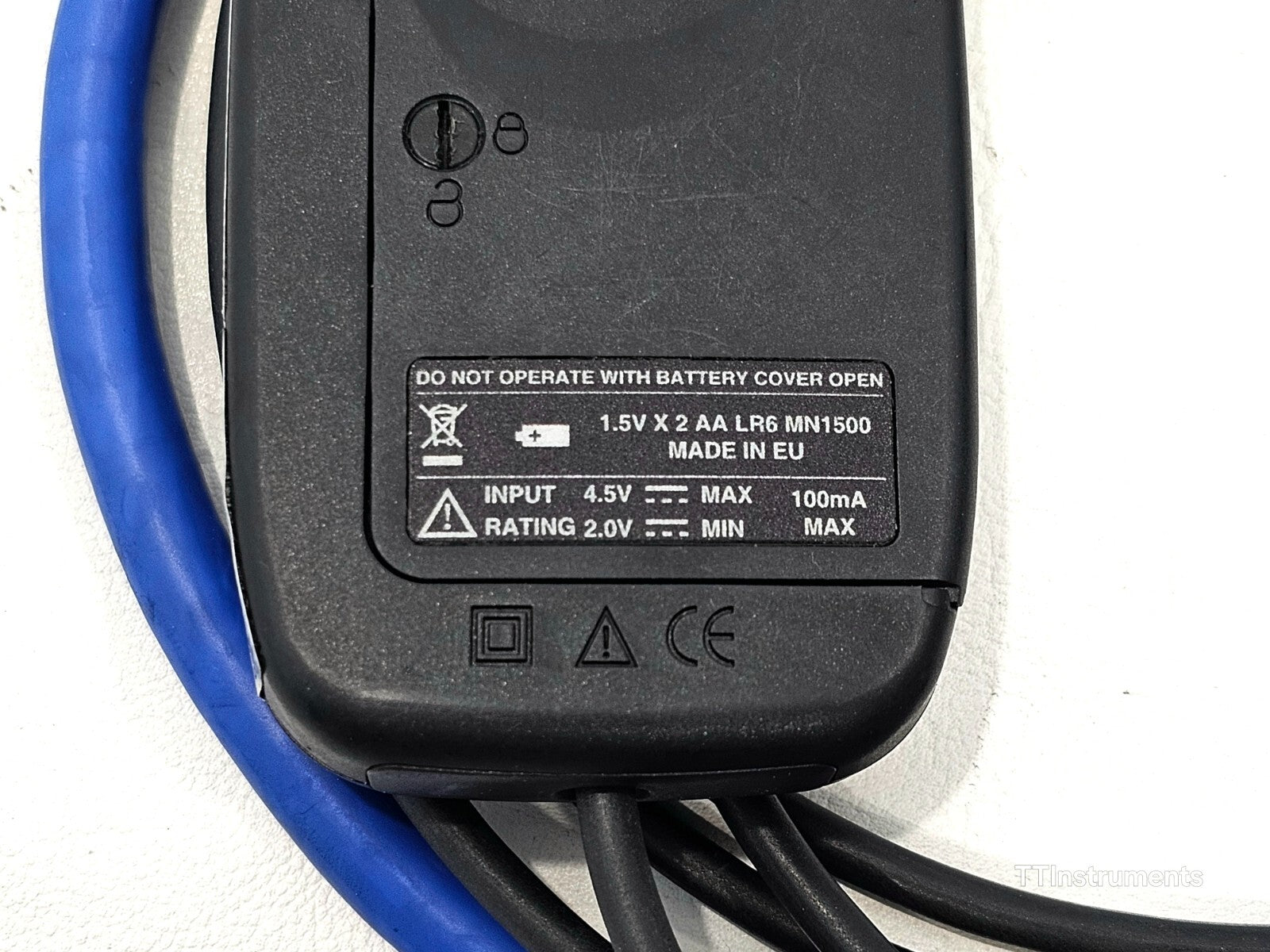

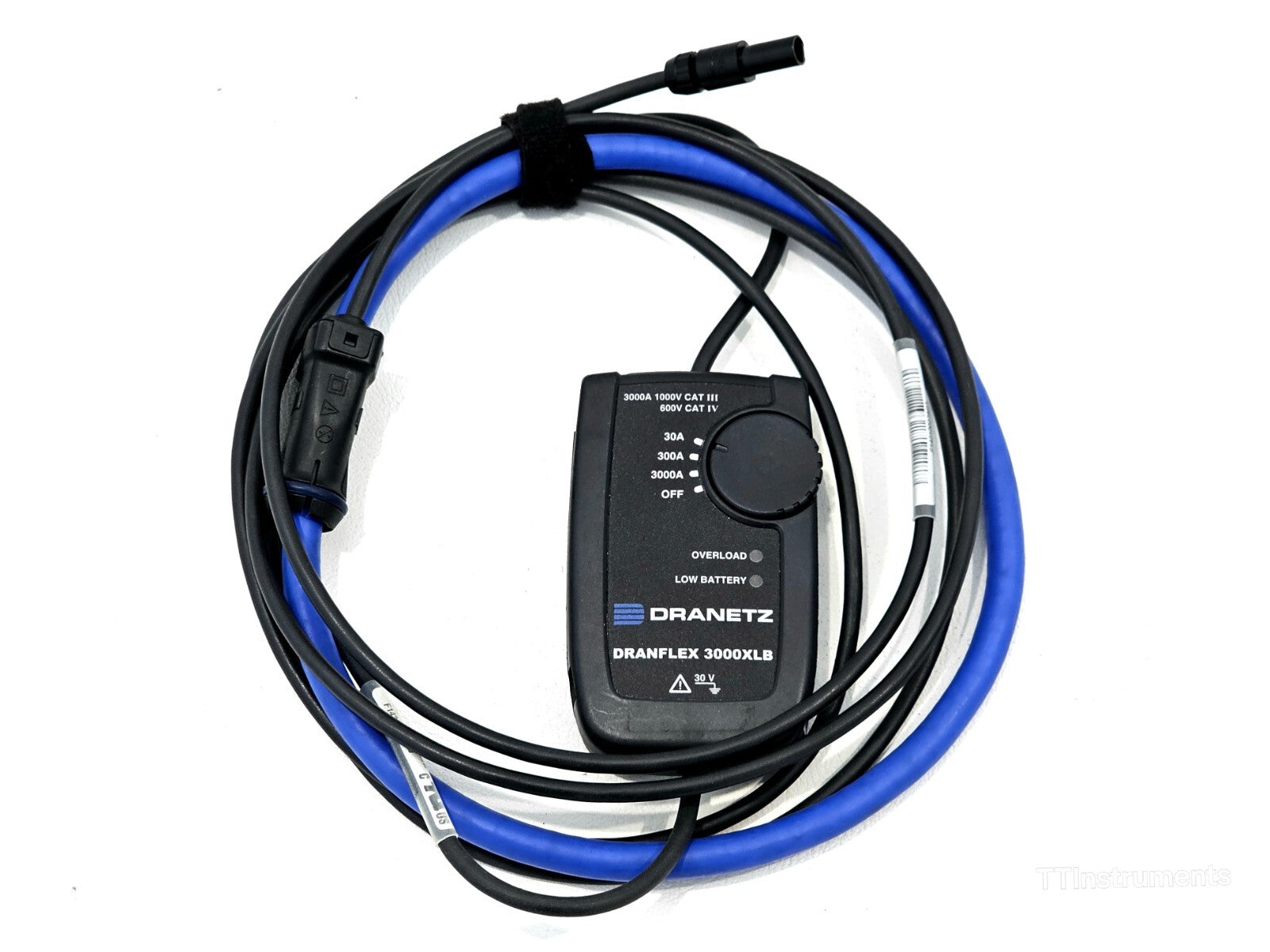

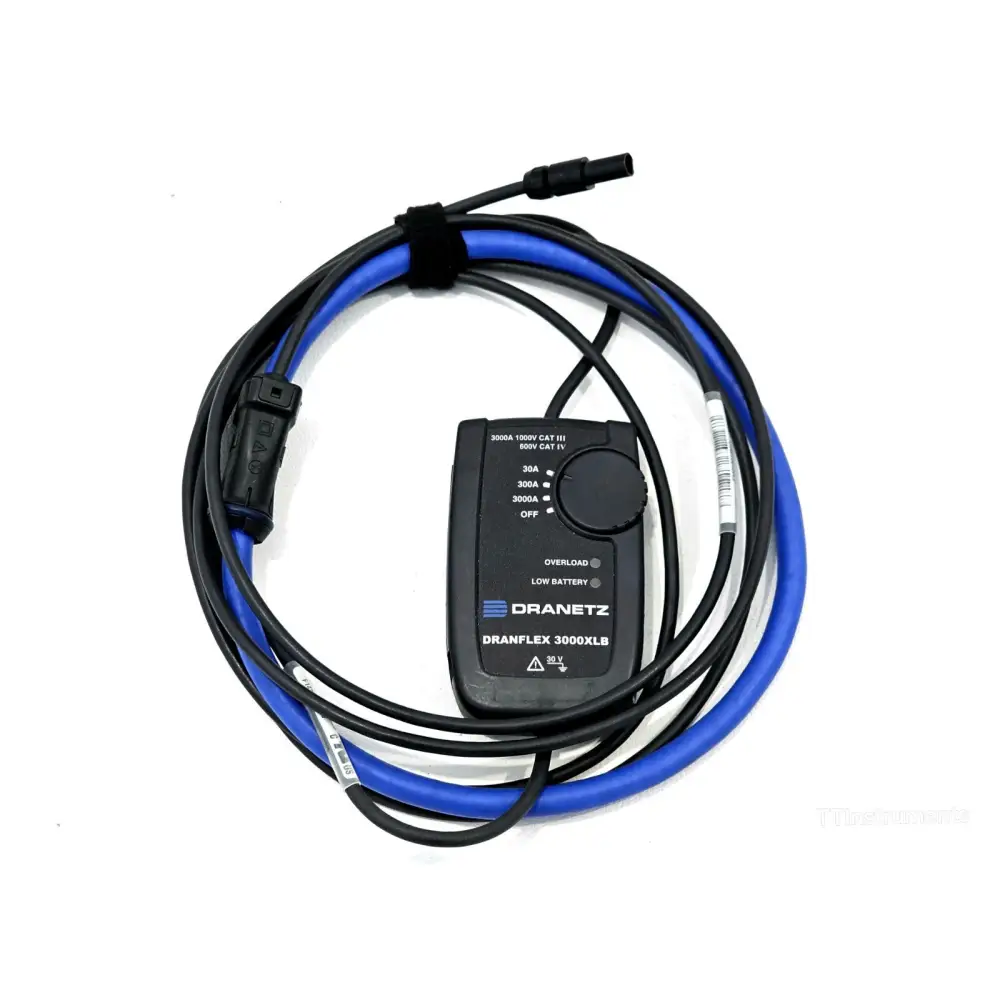

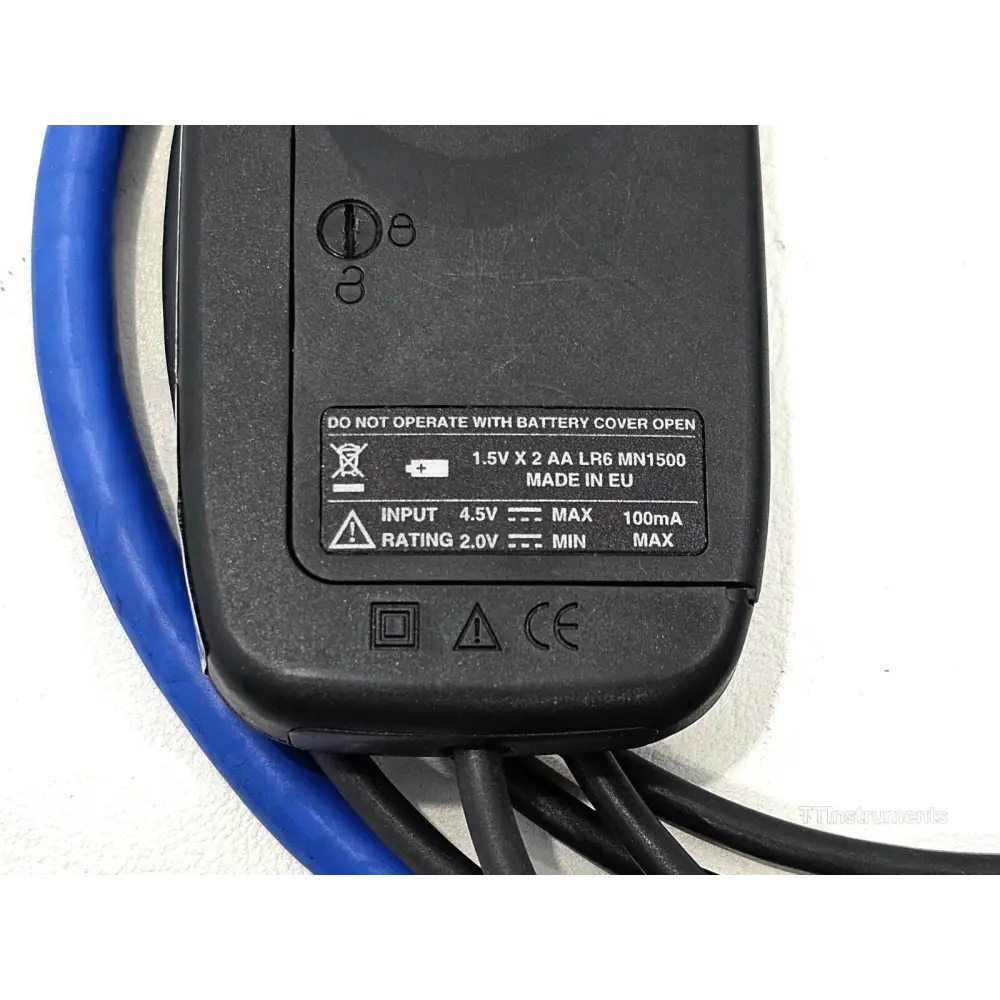

The DRANFLEX 3000XLB is a single-phase flexible Rogowski-type current sensor compatible with the Dranetz HDPQ and other Dranetz portable power quality instruments. It is available in 24", 36", and 48" loop lengths and features three measurement ranges.

Dranetz HDPQ Xplorer — Key Specifications:

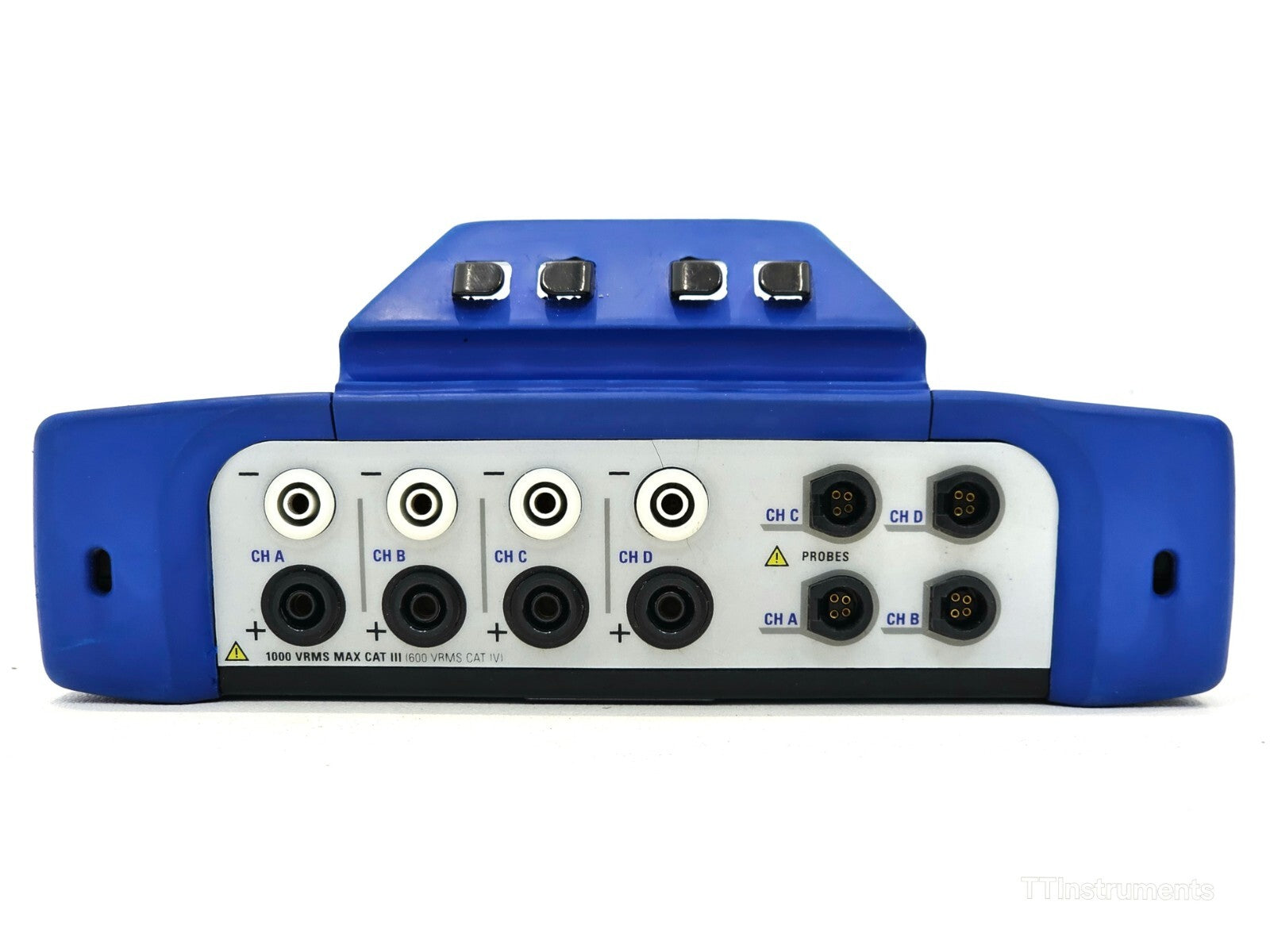

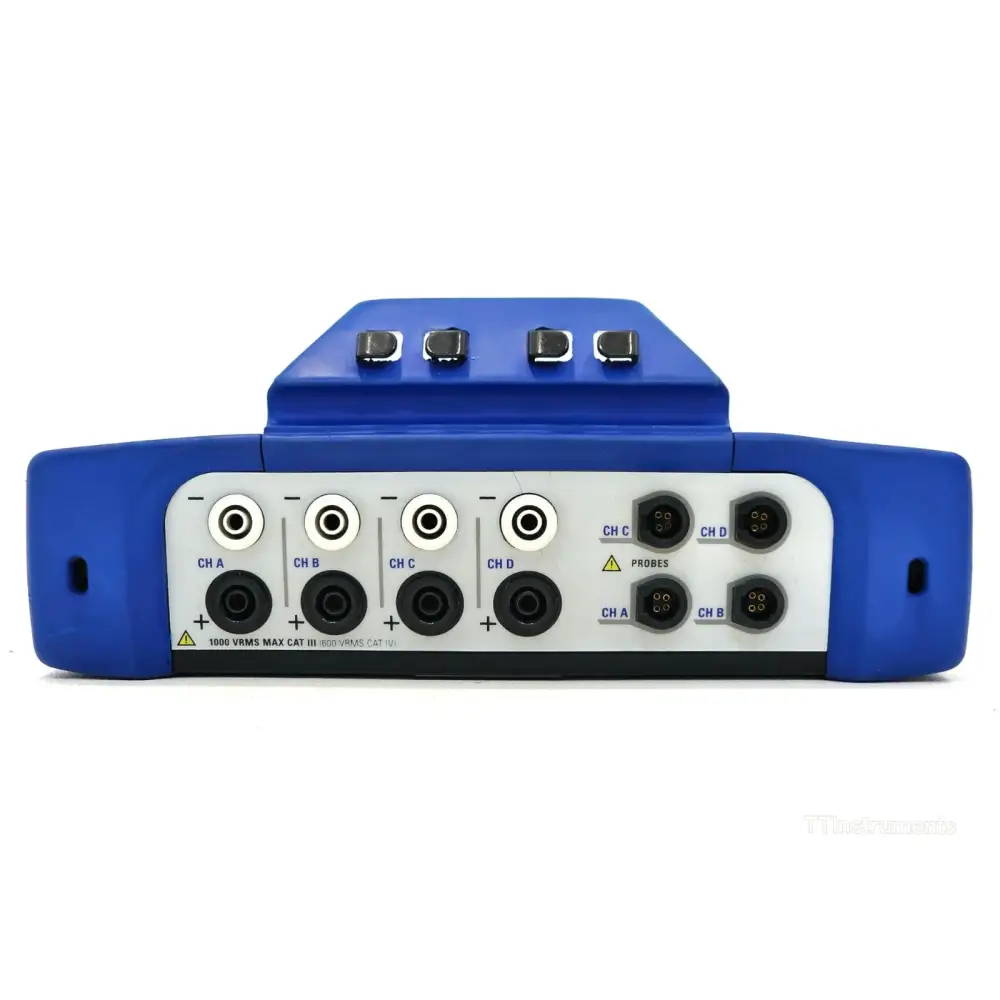

Voltage Channels: 4 differential AC/DC, 1000 V CAT III / 600 V CAT IV
Voltage Range: 0–1000 Vrms AC/DC
Voltage Accuracy: ±0.1% reading ±0.05% FS
Transients (High Speed): 10–2000 Vpk, ±10% of reading, ±0.5% FS; 1 µs resolution per channel
Current Channels: 4 (range probe dependent)
Sampling Rate: 512 samples/cycle, 16-bit resolution; 1 MHz for high-speed transients
Frequency Range: 16–25 Hz, 41–69 Hz (±0.01 Hz)
Compliance Standards: IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014, IEEE 1459, EN 50160

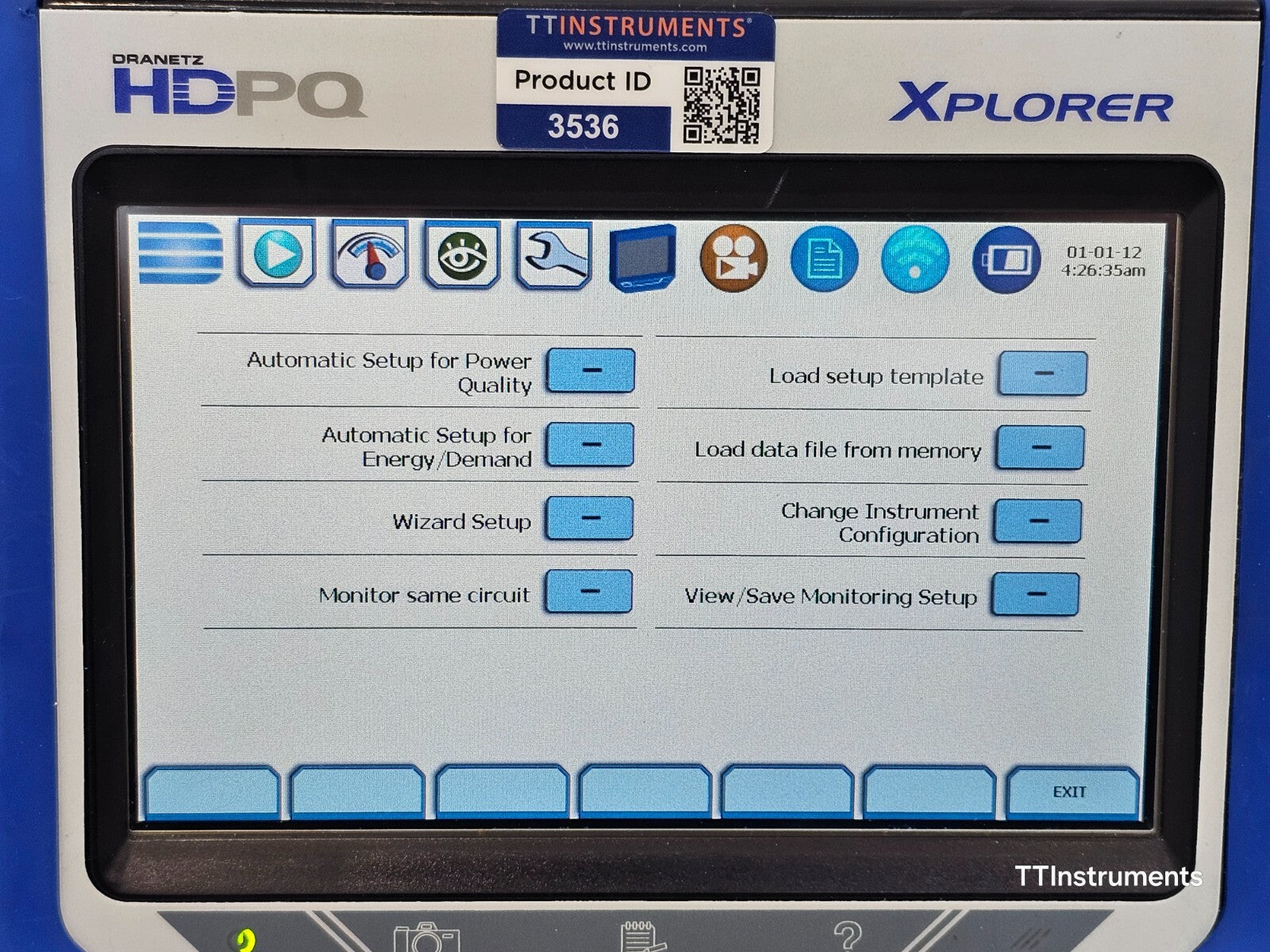

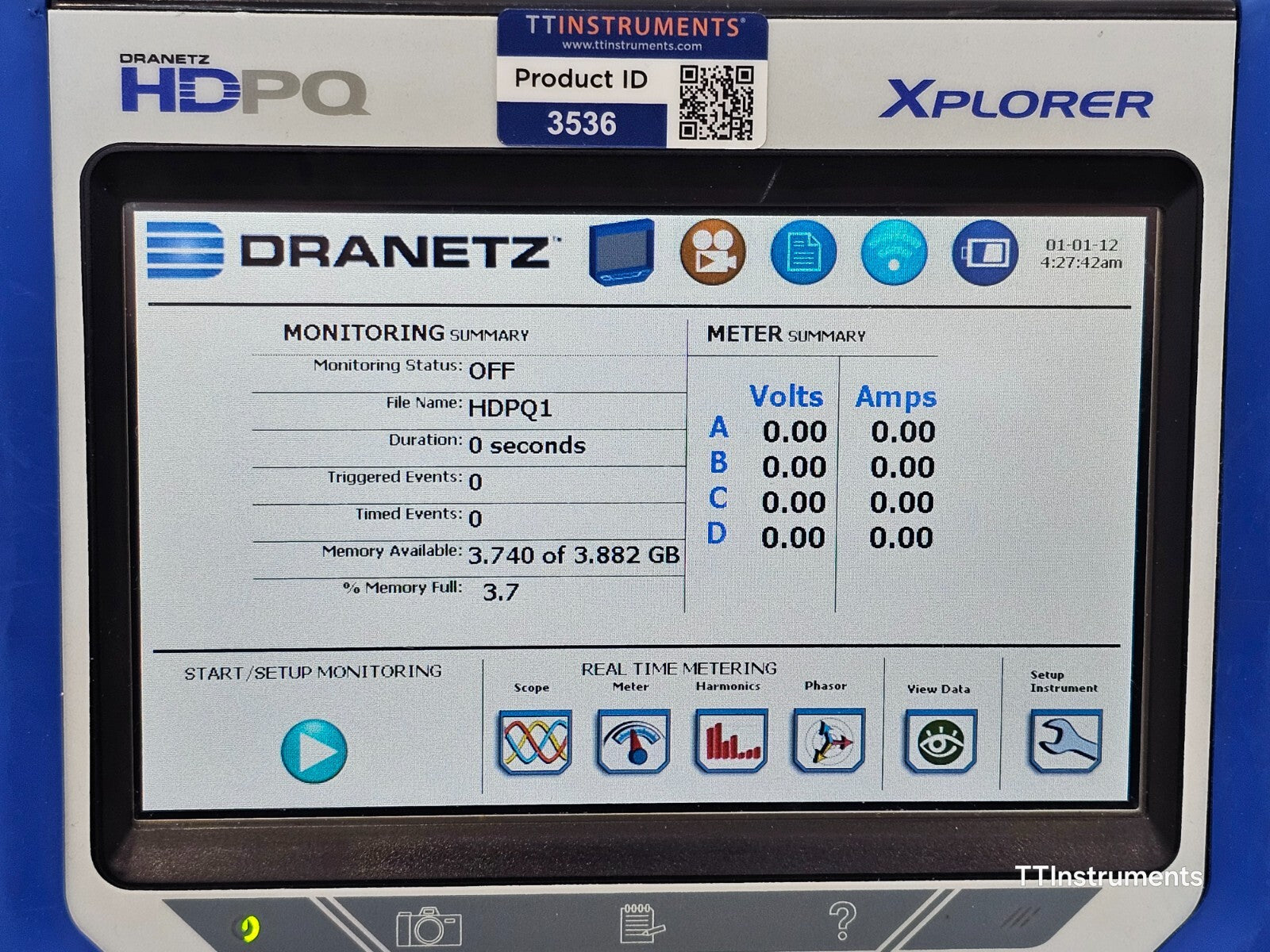

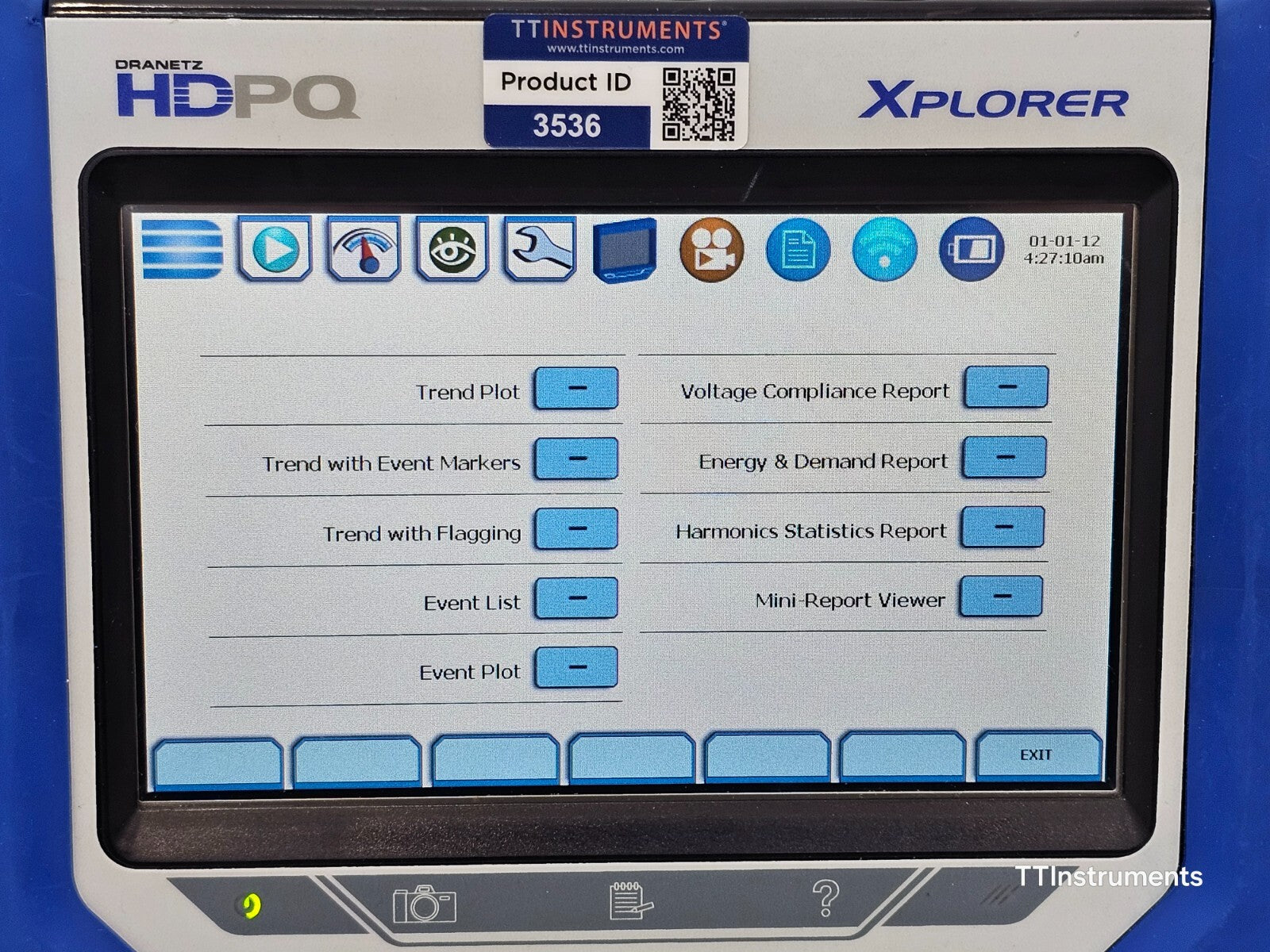

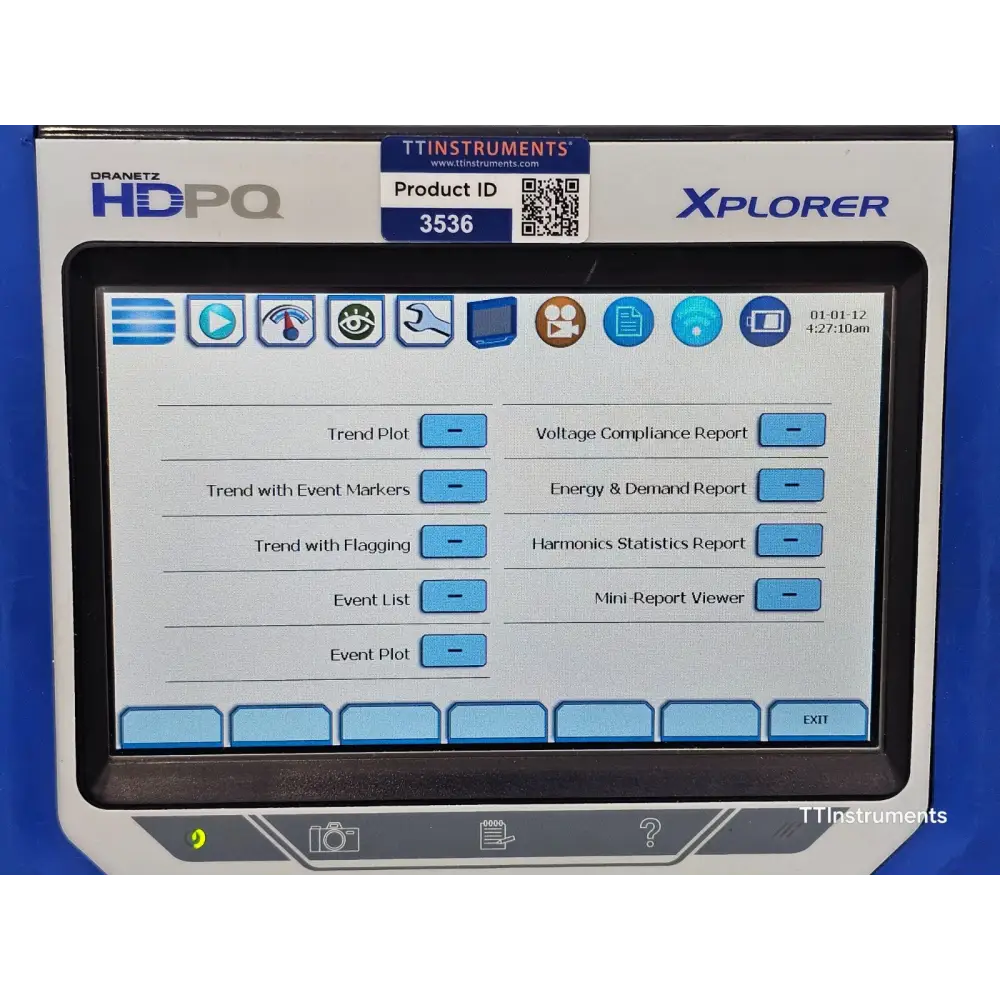

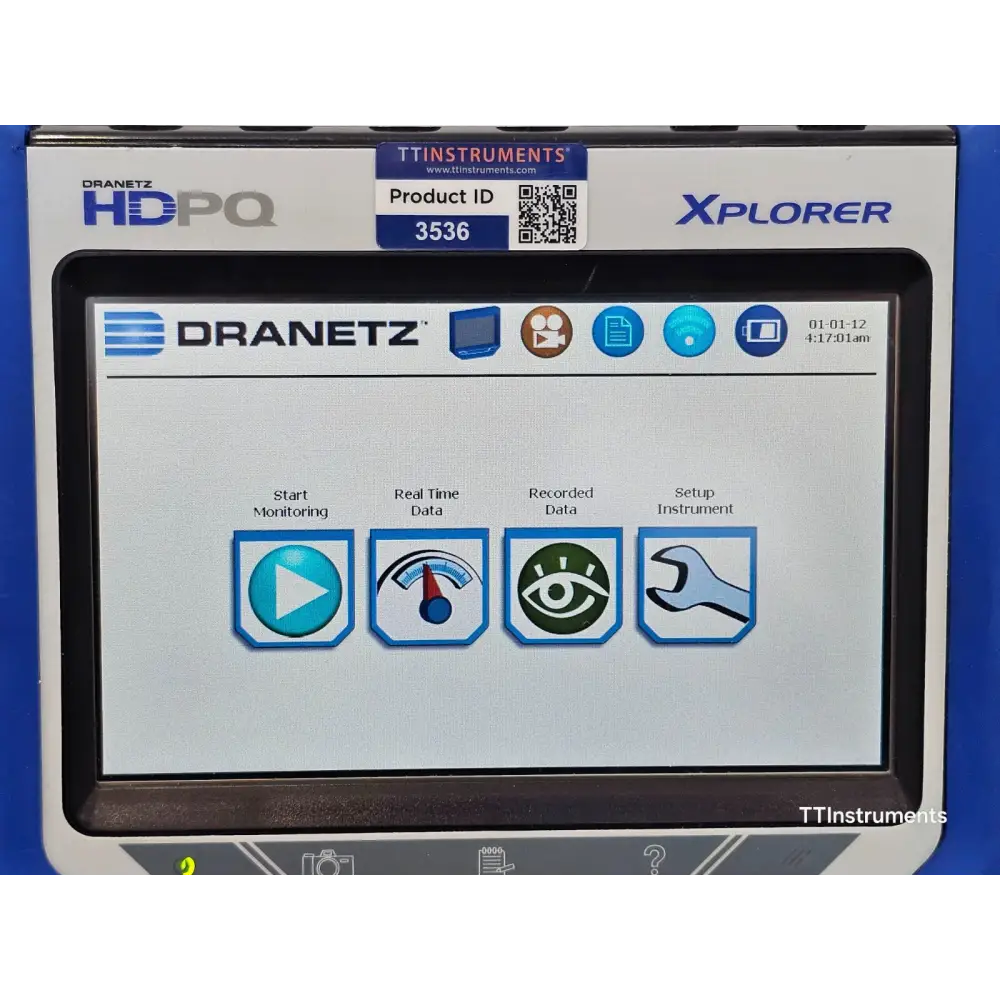

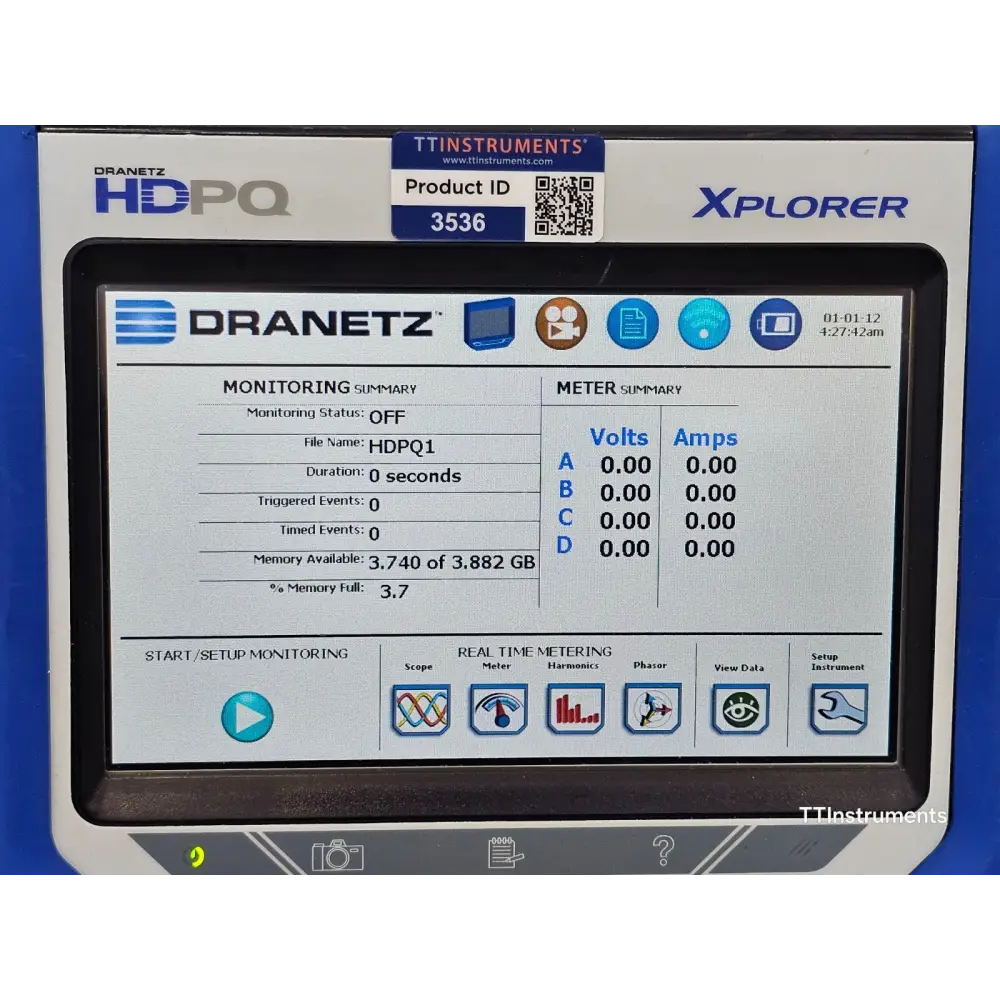

Display: 7" WVGA colour graphic, icon-based touch LCD, LED backlit
Memory: 4 GB internal flash

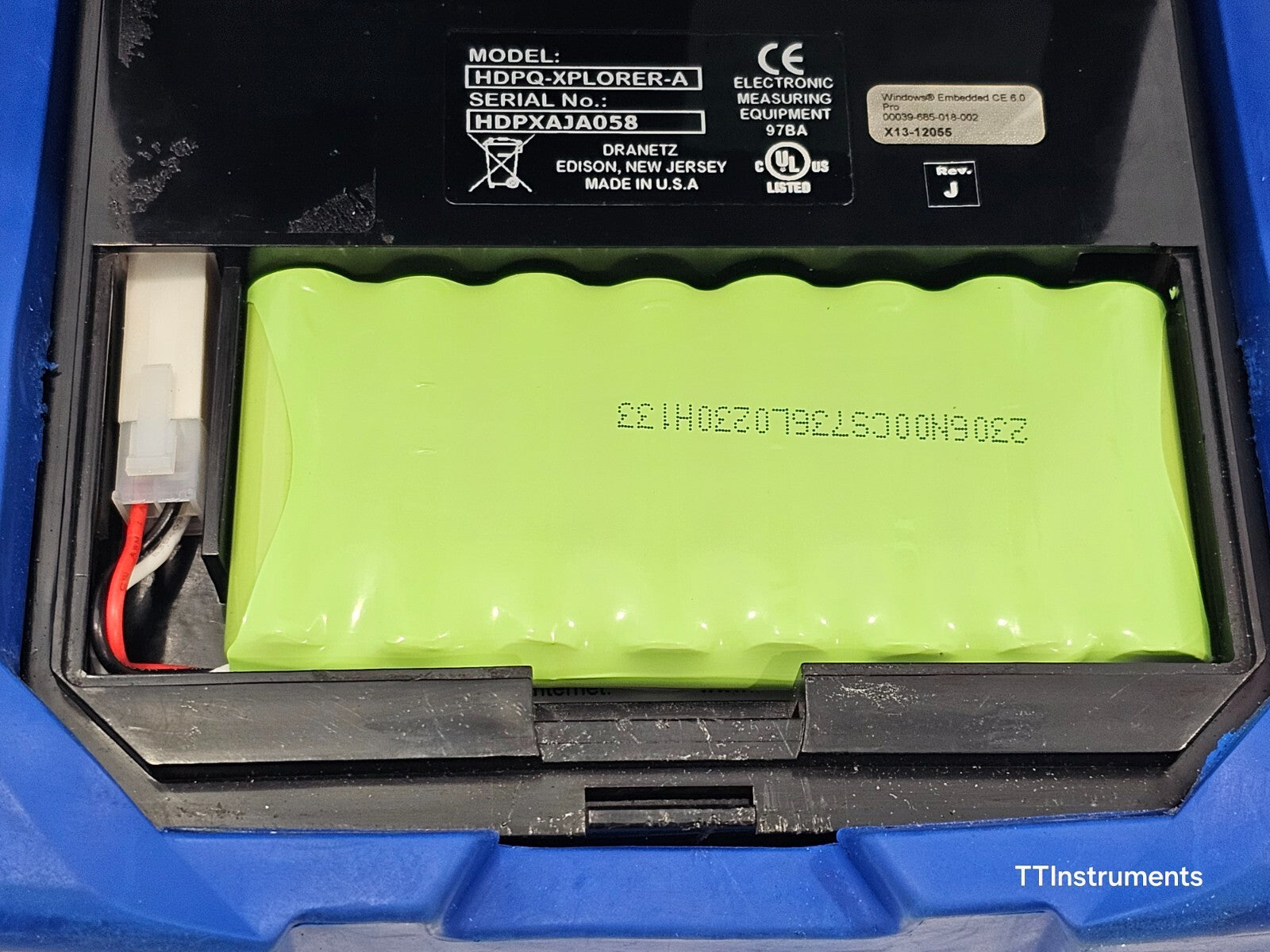

Battery Runtime: Approximately 3 hours on full charge
AC Adapter Input: 100–240 V AC, 50/60 Hz

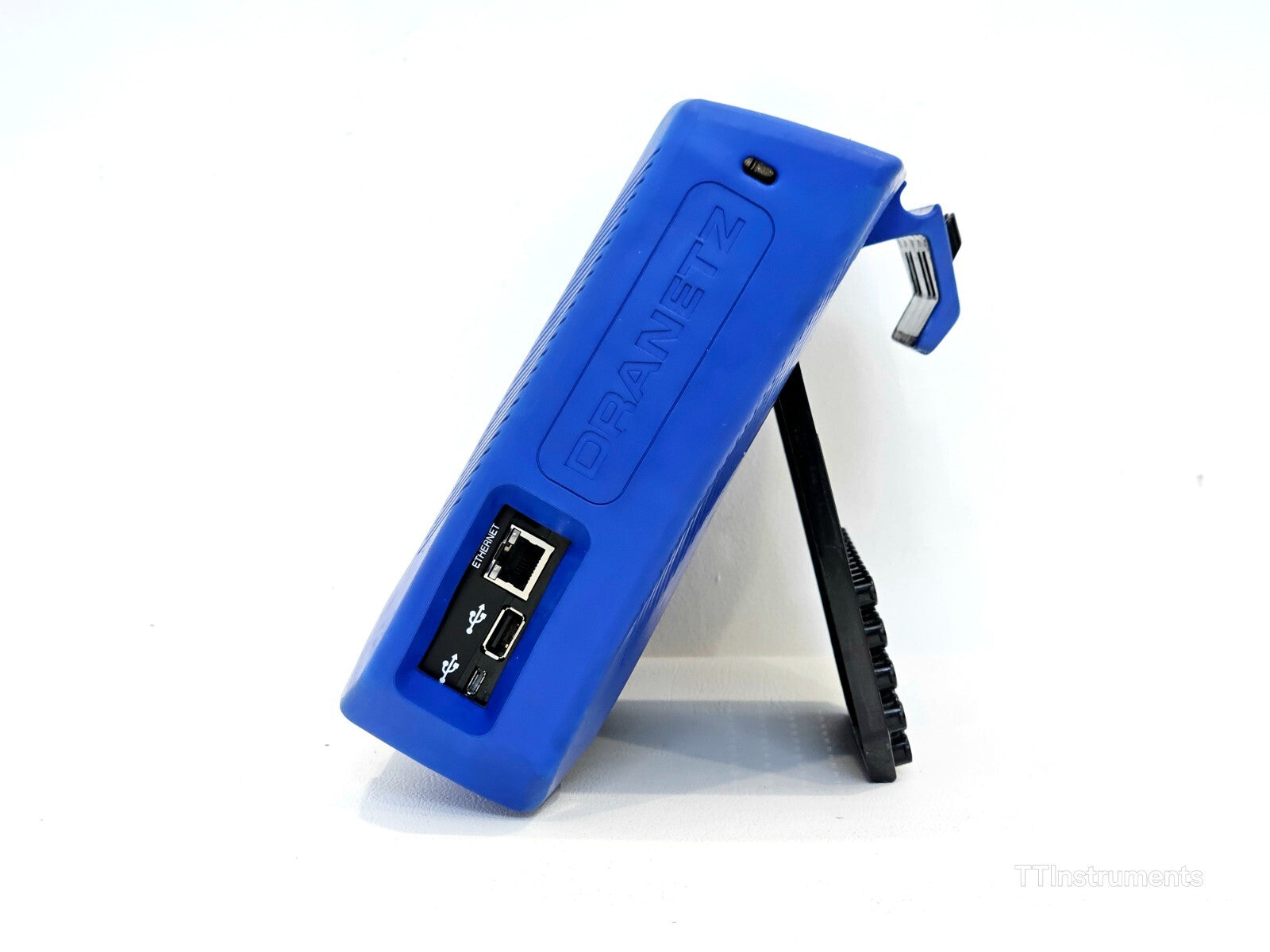

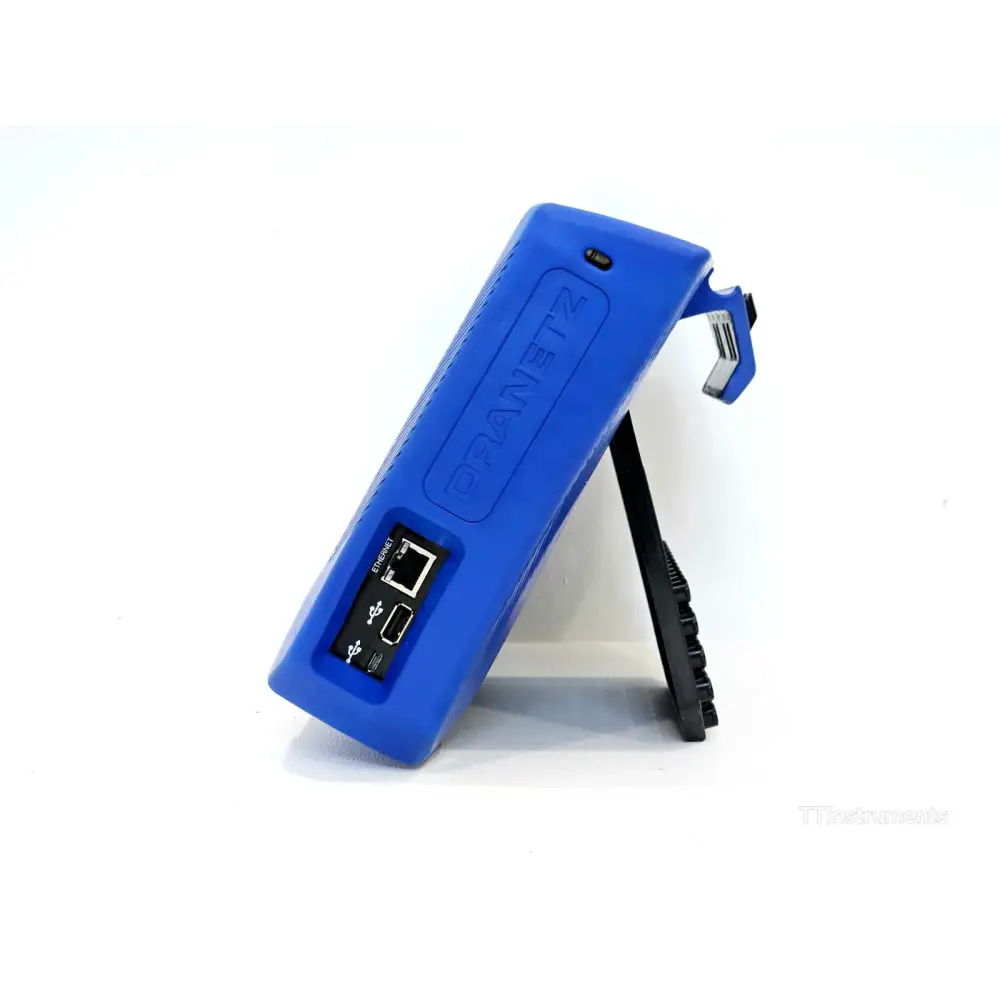

Communications: Ethernet, 802.11 b/g/n Wi-Fi, USB On-the-Go, Bluetooth (via USB adapter), VNC remote control
Weight: 2 kg (4.3 lbs)
Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 60°C
Humidity: 0–95% non-condensing
Clock Accuracy: Internal ±1 sec/day at 25°C; NTP ±10 ms; GPS ±1 ms
Languages: English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional & simplified), Thai, Korean
Power/Energy Parameters: Real Power (W), Apparent Power (VA), Reactive Power (VAR), Power Factor (true & displacement), Demand, Energy (WHr, VAHr, VARHr), Forward & Reverse energy
AnswerModules: Sag/Dip directivity, PF capacitor identification, Motor analysis
Software: Dran-View 7 (PQ analysis, reporting, remote control, rescue kit, post-processing)

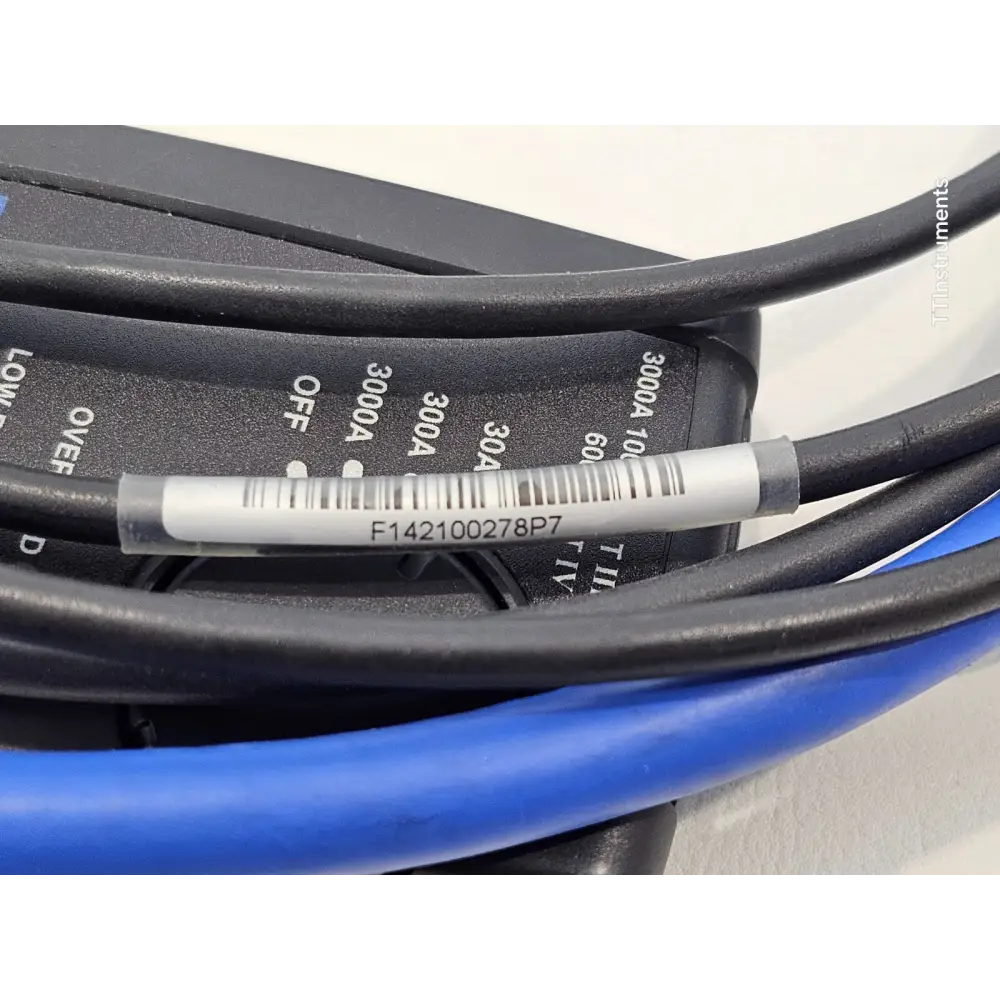

DRANFLEX 3000XLB — Key Specifications:
Type: Single-phase flexible Rogowski current sensor with single-channel integrator
Current Ranges: 30 A / 300 A / 3000 A (three ranges)
Measurement Range: 0.5 A to 3000 A full scale
Accuracy (50–60 Hz, 10–100% FS): 30/300 A range: ±1% reading ±0.1 A; 3000 A range: ±1% reading ±1 A
Phase Accuracy (45–65 Hz): ±1 degree
Frequency Response: 25 Hz to 75 kHz
Output Signal: 1.5 Vrms
Rated Voltage: 1000 V maximum
Installation Category: CAT III, Pollution Degree 2
Connector: Dranetz Hypertronics type
Available Lengths: 24", 36", 48"
Compatibility: Dranetz HDPQ, PowerXplorer, PowerGuide, PowerVisa, Energy Platform, PP4300, and Dranetz permanent power quality instruments

Dranetz HDPQ Xplorer / Guide / Visa User Guide (Rev E) — full operating manual: Download PDF

Dranetz HDPQ Plus User Guide (Rev E, 2024) — covers Xplorer Plus / Guide Plus / Visa Plus: Download PDF

Dranetz HDPQ Plus Quick Reference Guide (Rev C, 2023): Download PDF

Dranetz HDPQ Xplorer / Xplorer-400 / Guide / Visa Quick Reference Guide (Rev B): Download PDF

Dranetz HDPQ Family Data Sheet — Xplorer, Xplorer-400, Guide & Visa: Download PDF

DRANFLEX 3000XLB / 6000XLB Single-Phase Current Sensor User Instructions (Rev 4.5): Download PDF

Dranetz HDPQ Data Acquisition Technical Note — transient capture and IEC 61000-4-30 Class A: Download PDF
