Condition: Used

Tested and fully functional Keysight N2795A 1 GHz active probe. Cosmetic imperfections are present but do not affect performance. Calibrated until December 2026, making it ready for immediate use in the lab.

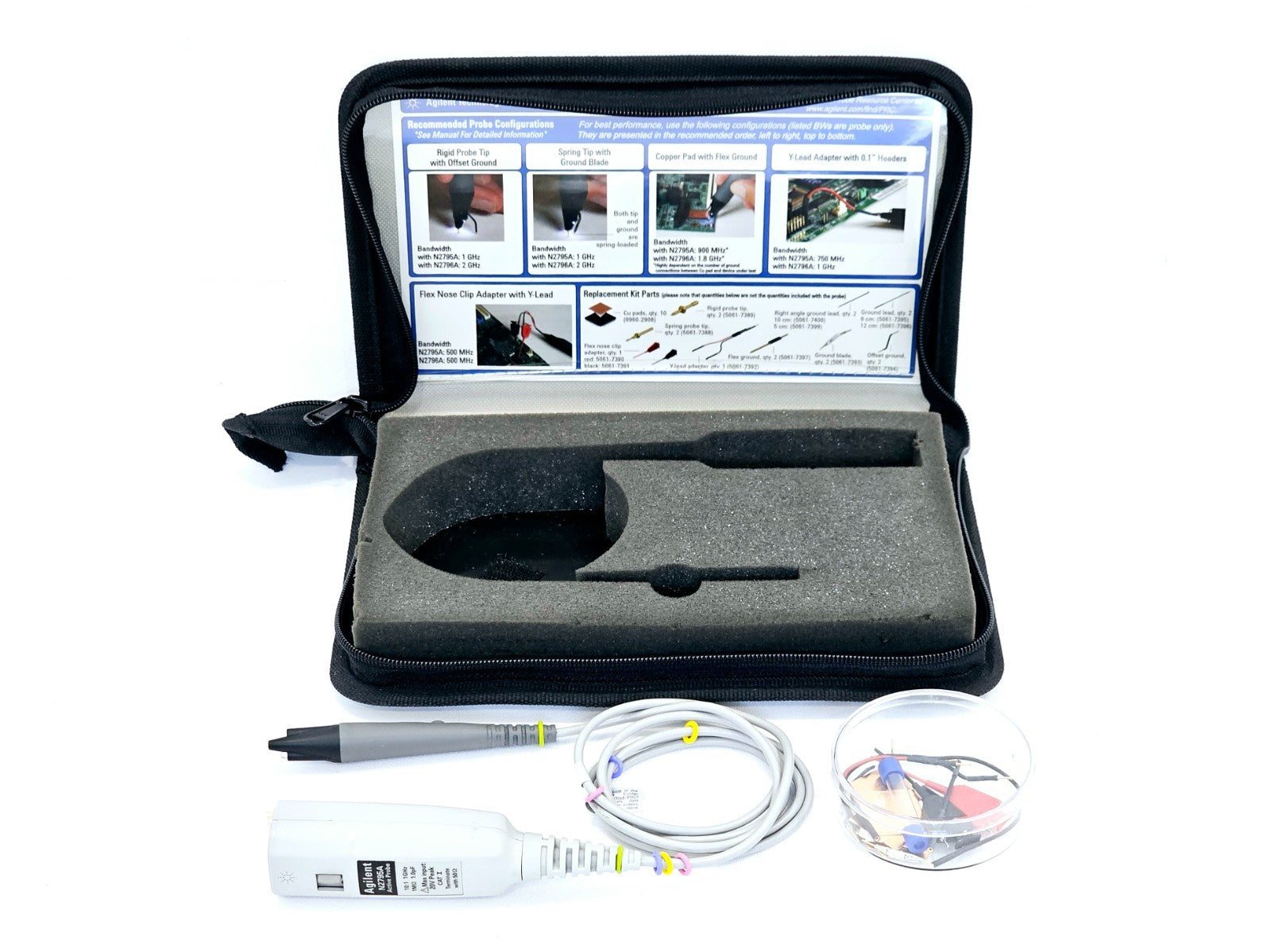

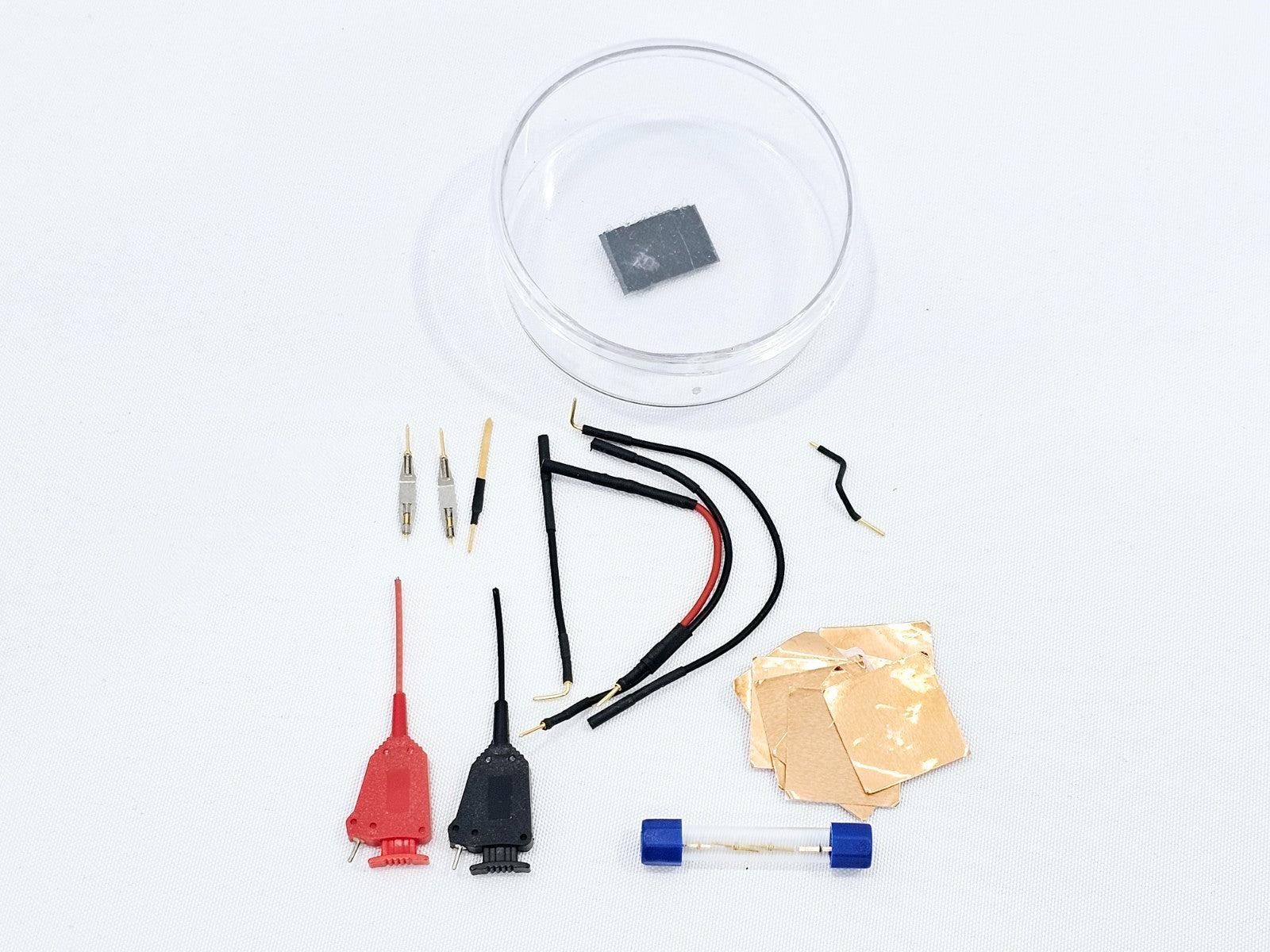

Included in the sale:

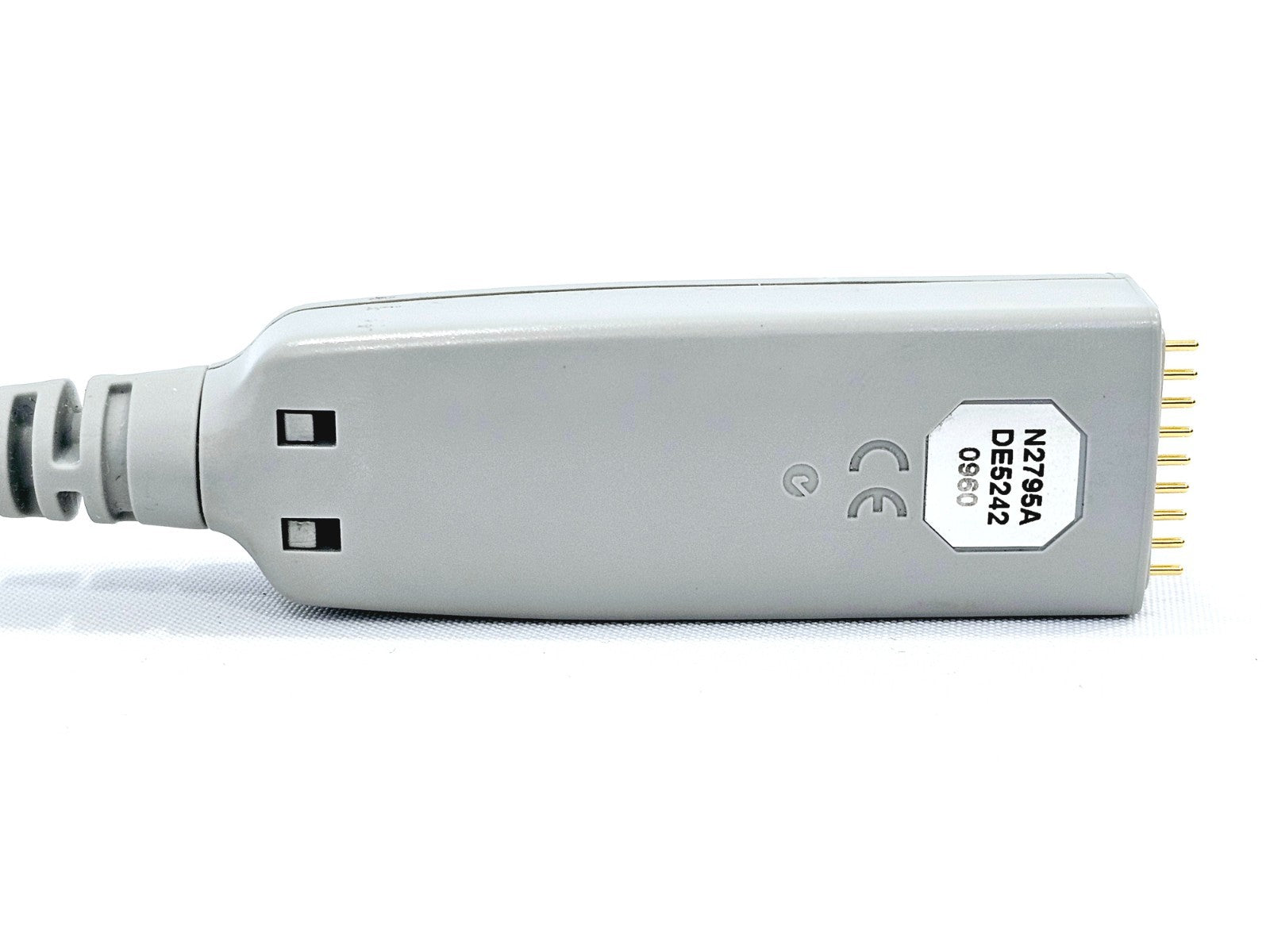

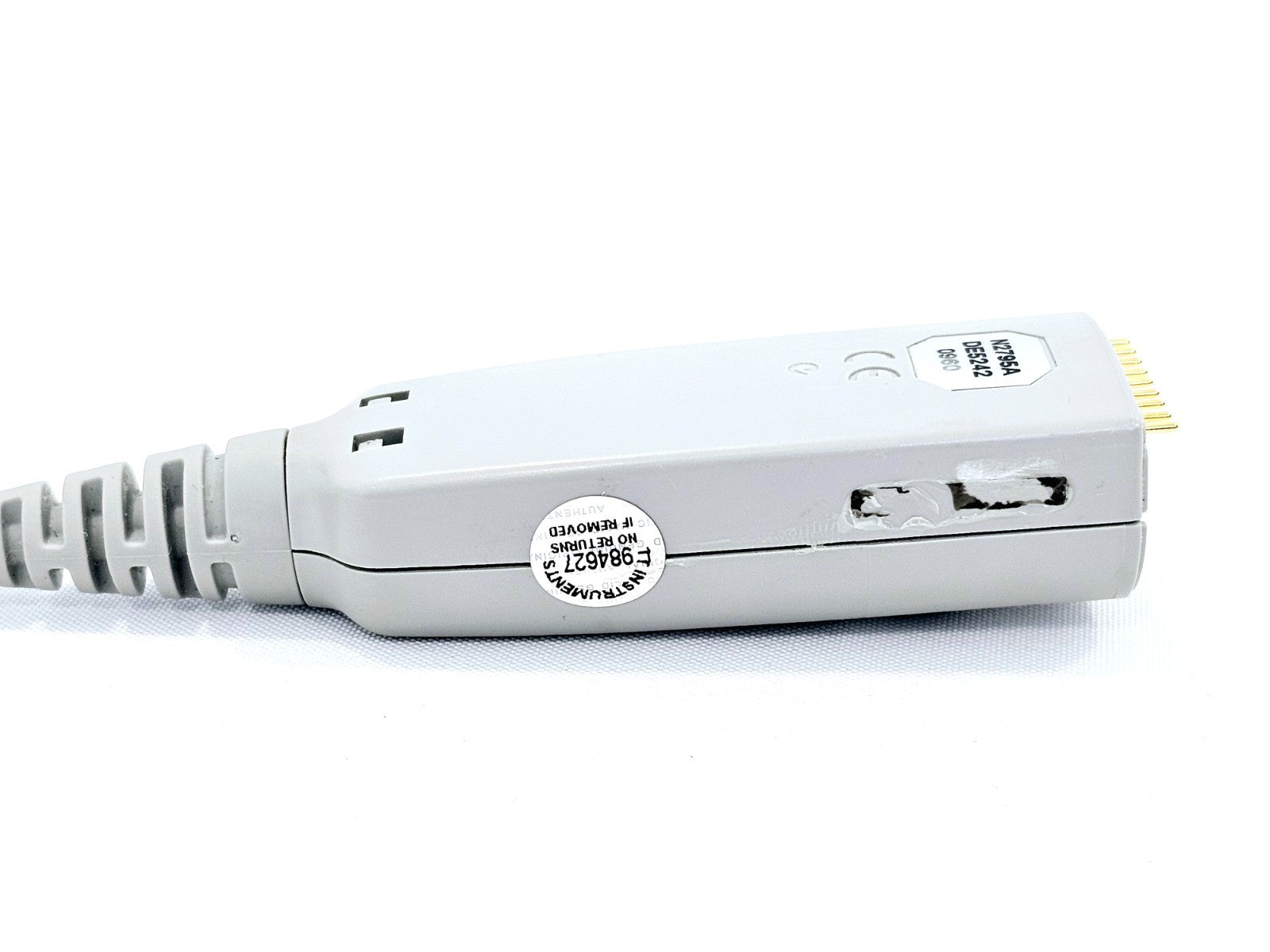

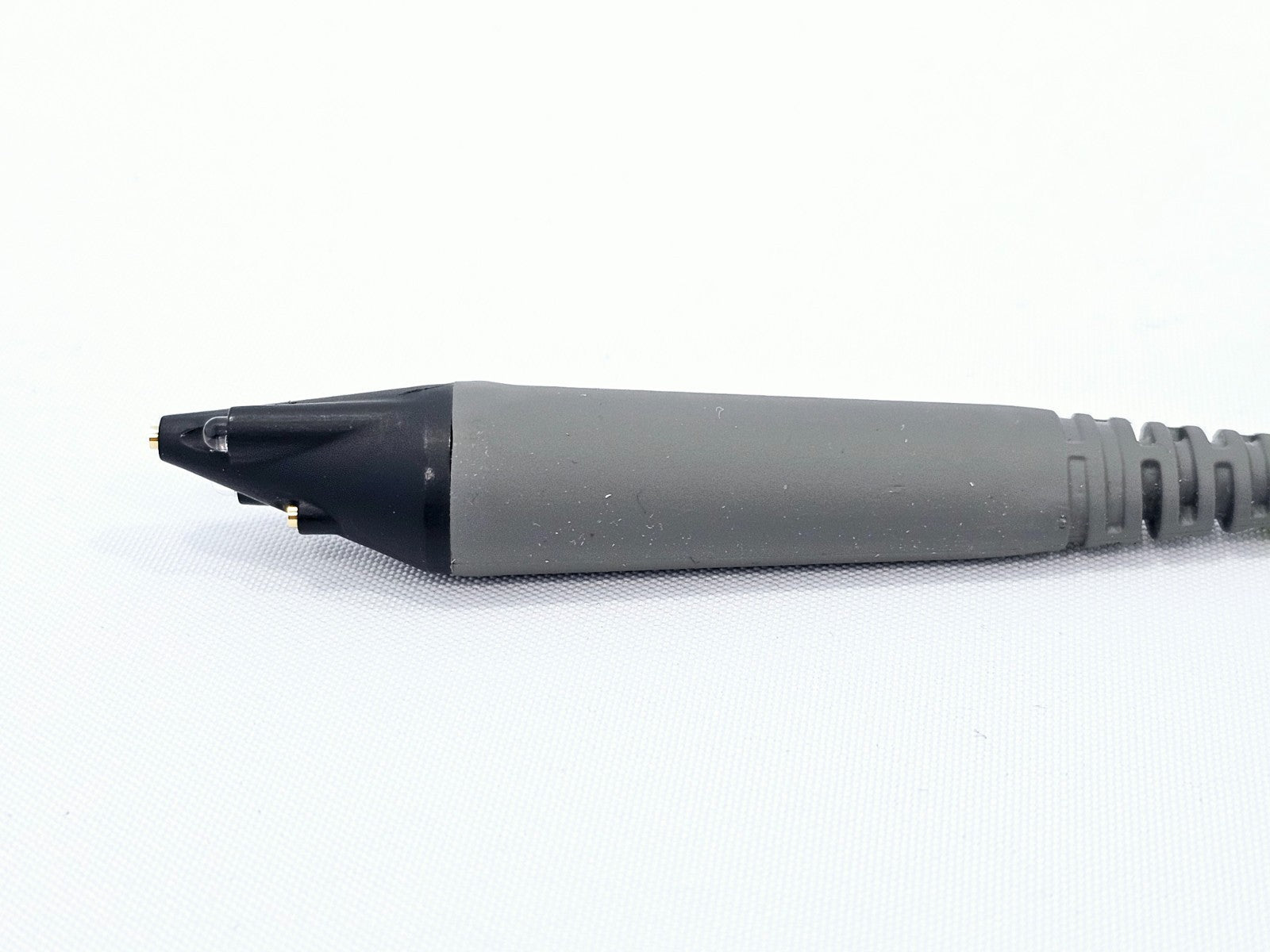

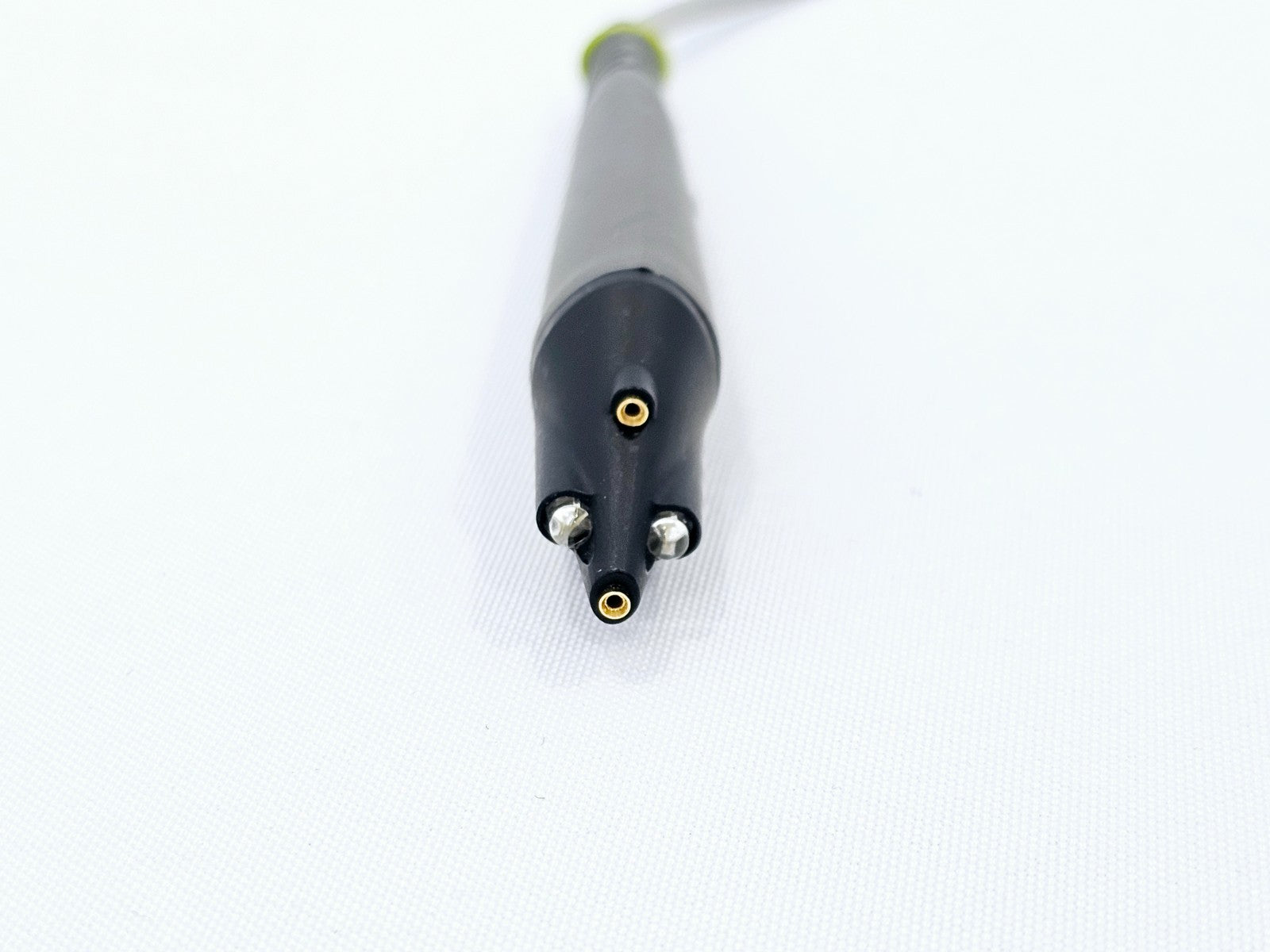

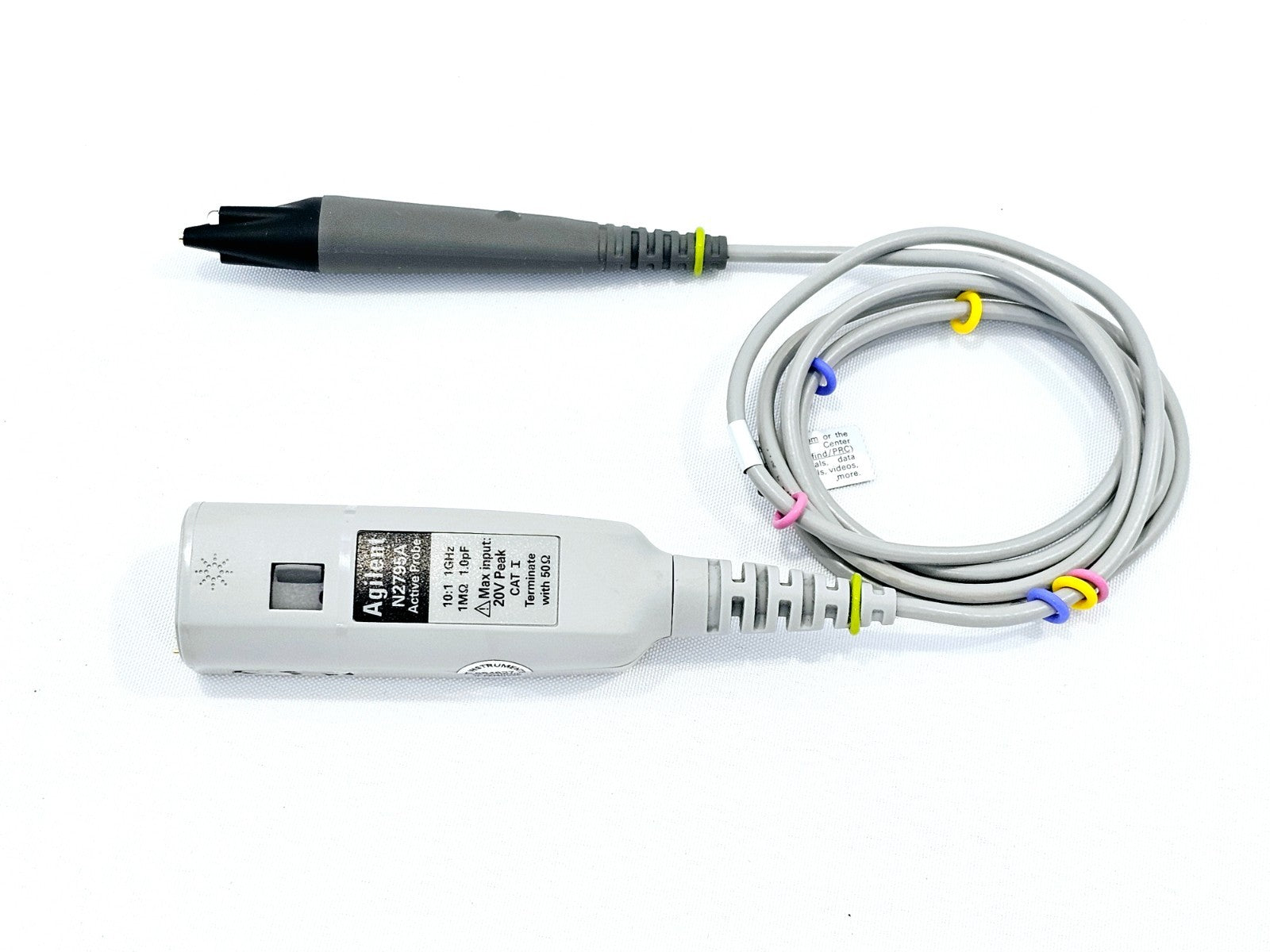

• Agilent Keysight N2795A Active Probe 1 GHz

The Keysight N2795A is a single-ended active probe offering 1 GHz of bandwidth (-3 dB) with the AutoProbe interface, compatible with Keysight InfiniiVision and Infiniium family oscilloscopes. It is designed for general-purpose, high-speed probing in digital system design, component characterisation, and educational research applications. The probe connects directly to the oscilloscope's AutoProbe interface for power — no external supply is required. A built-in white LED headlight illuminates the circuit under test for improved visibility.

Compatible Oscilloscopes: Keysight InfiniiVision 3000/3000T X-, 4000 X-, 5000, 6000 (except 6000 100 MHz), 6000 X-, 7000 and Infiniium 9000, S-Series, and 90000A Series

Key Specifications:
Bandwidth: 1 GHz (-3 dB)
Attenuation Ratio: 10:1
Input Resistance: 1 MΩ
Input Capacitance: 1 pF
Dynamic Range: ±8 V
Offset Range: ±8 V
Measuring Range: ±20 V (dynamic + offset combined)
Output Impedance: 50 Ω

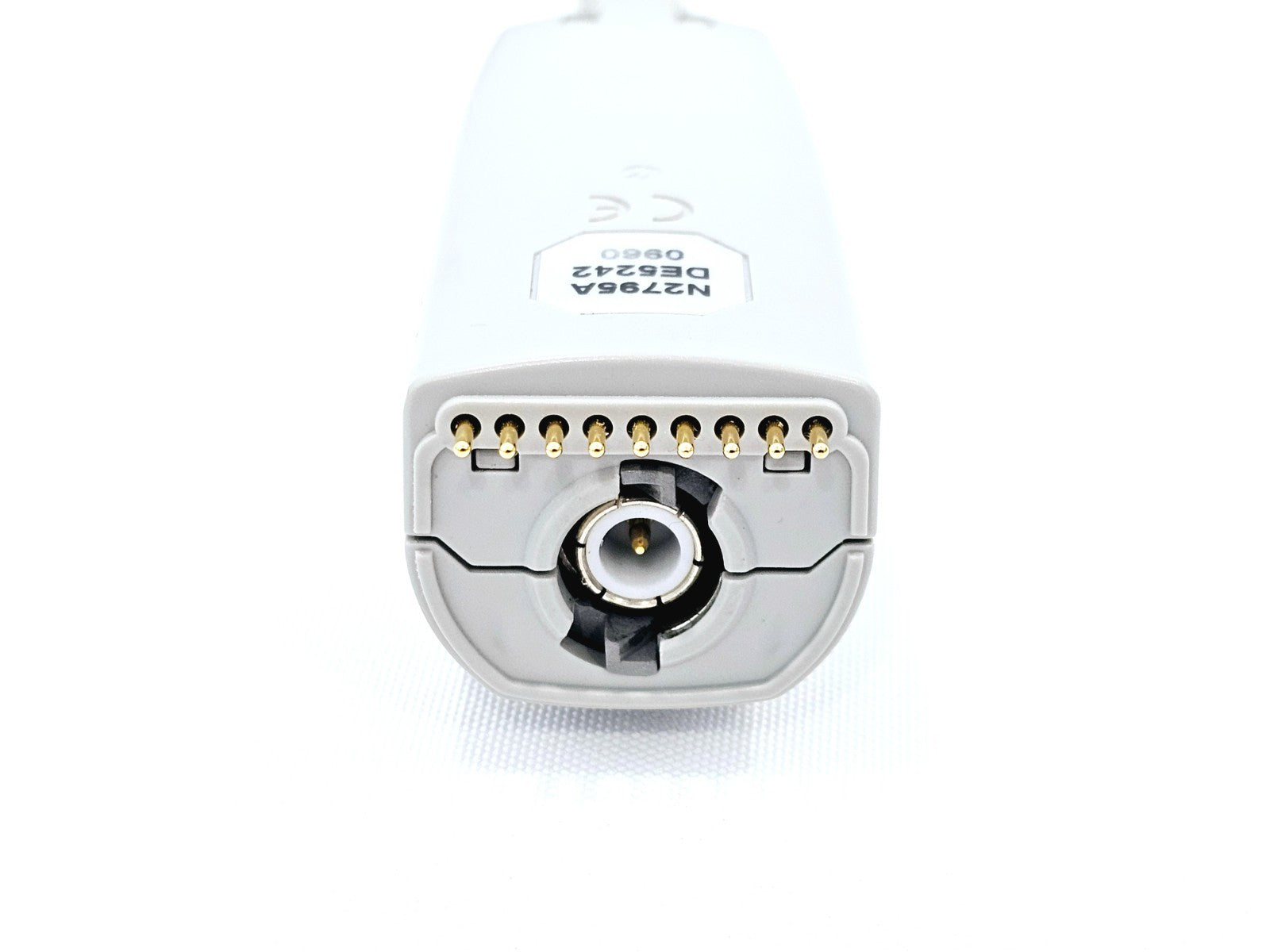

Probe Interface: Keysight AutoProbe (direct connection, no external power supply)
Headlight: White LED
Recommended Calibration Interval: 1 year / 2000 hours
DC Input Resistance Test Limit: 1 MΩ +0%, -2.5%
Bandwidth Test Limit: ≥1 GHz
Typical Applications: Digital system design, component design/characterisation, educational and research probing, high-speed logic signal analysis

Keysight N2795A/96A/97A Single-Ended Active Probes Data Sheet (5990-6480EN): Download PDF

Keysight N2795A/N2796A Single-Ended Active Probes User's Guide (9018-03353): Download PDF

Keysight N2795A/96A/97A Single-Ended Active Probes Data Sheet — Farnell hosted PDF: Download PDF
