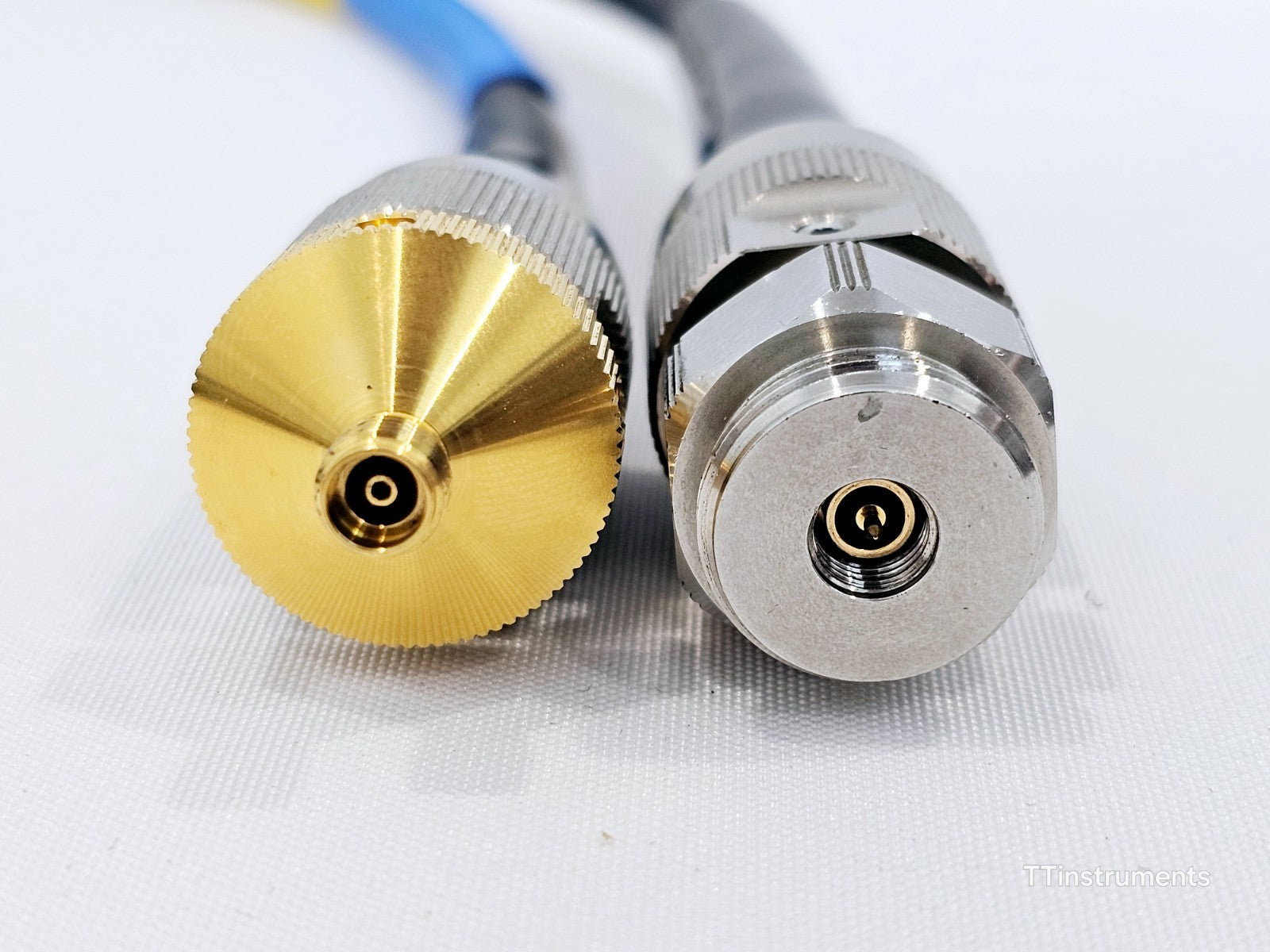

Keysight 85131D 3.5 mm semi-rigid cable set showing PSC ruggedised female test port connector end

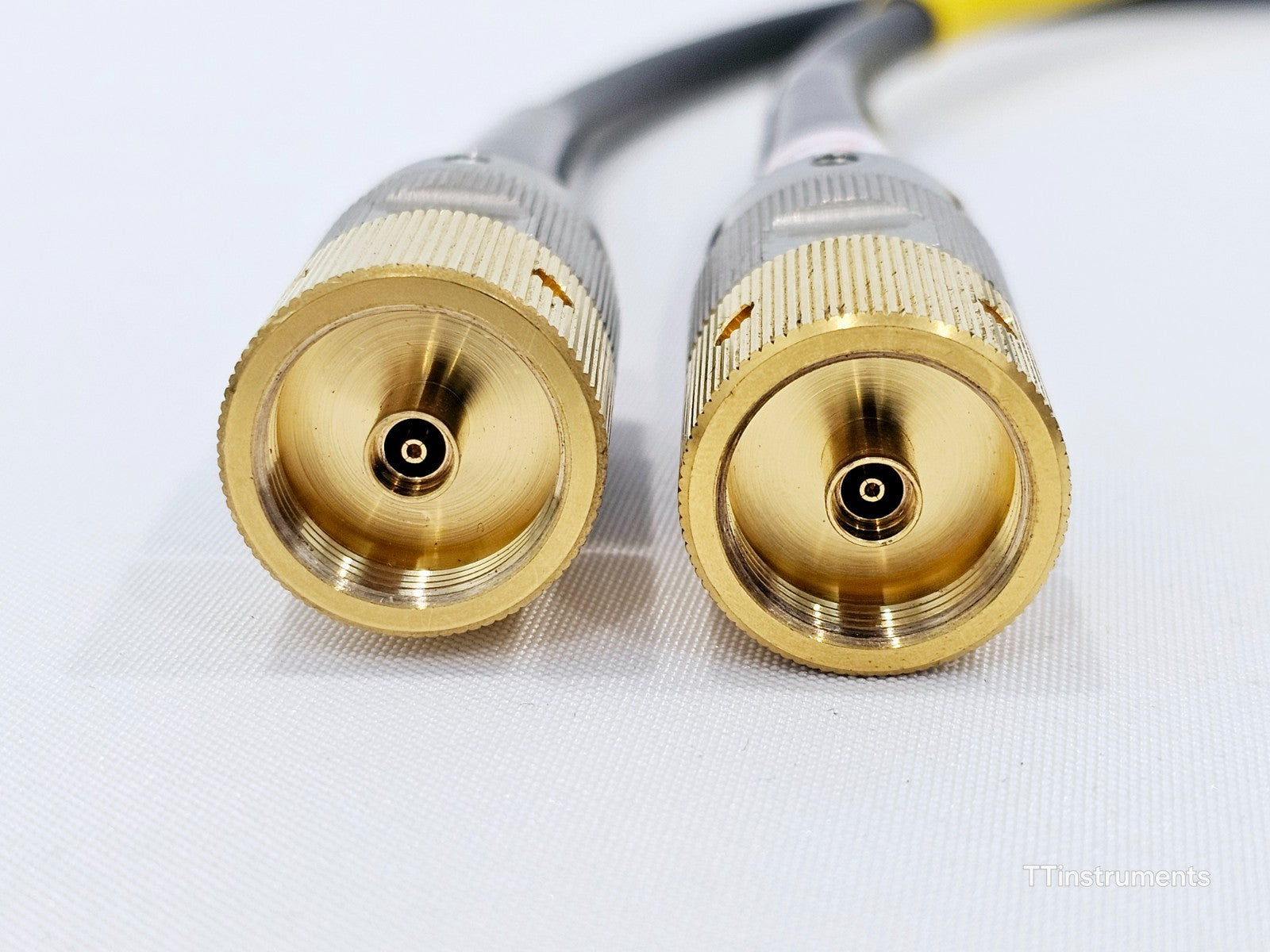

Agilent 85131D semi-rigid RF cable set showing 3.5 mm male device-side connector detail

Keysight 85131D cable set full length view showing 53 cm semi-rigid construction

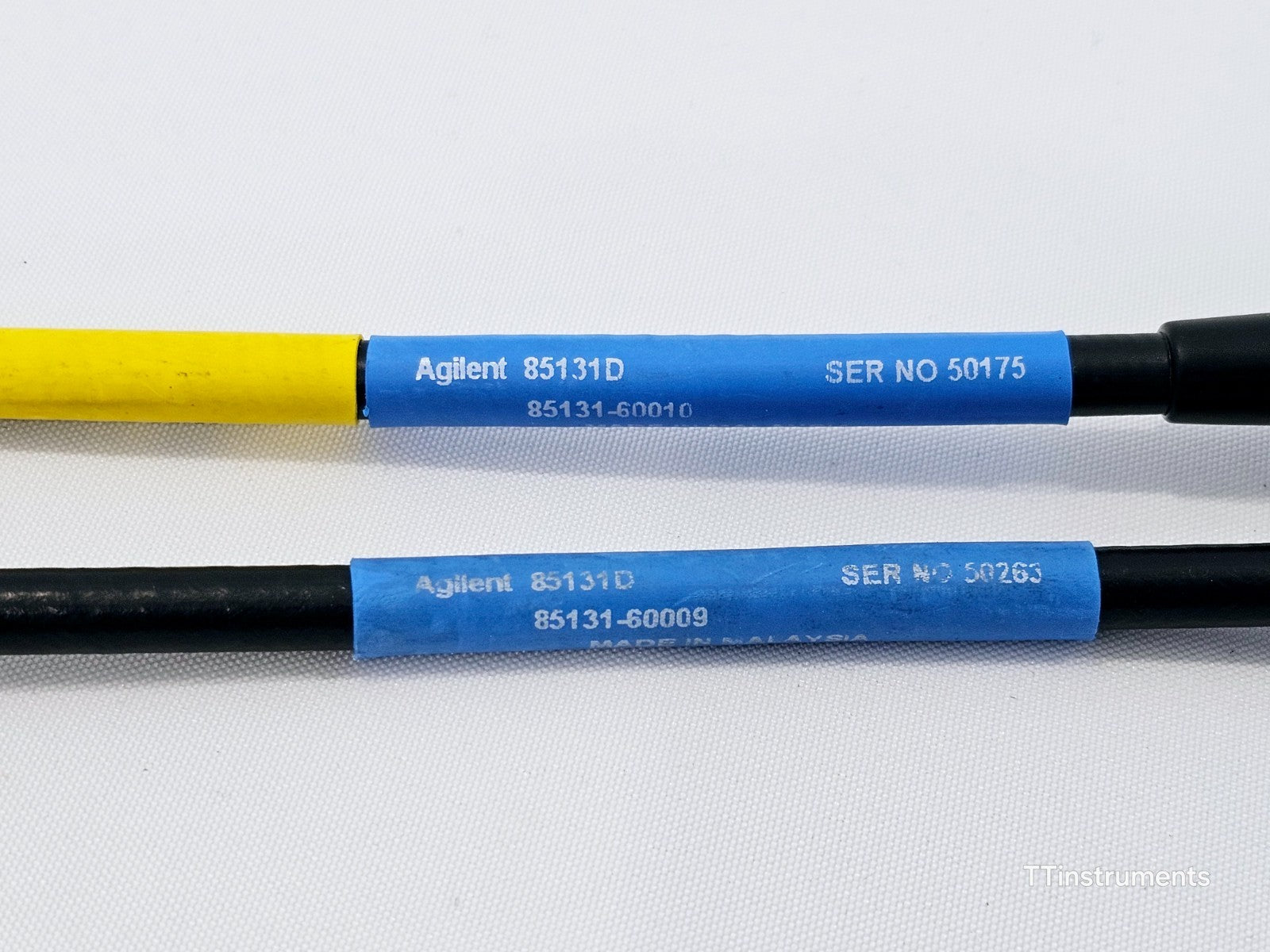

Agilent 85131-60009 and 85131-60010 cable assemblies laid side by side showing both connectors

Keysight Agilent 85131D calibrated test port cable set with calibration label visible

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Calibrated Agilent Keysight 85131D 85131-60009 85131-60010 Test Port Cable.

Name: Calibrated Agilent Keysight 85131D 85131-60009 85131-60010 Test Port Cable.
Brand: Keysight Agilent
SKU: 3779* 6D04 ER88
Price: 335.75 GBP
Availability: OutOfStock

The Keysight Agilent 85131D is a semi-rigid test port cable set designed for use with 3.5 mm network analyzer test ports, covering DC to 26.5 GHz for precision S-parameter measurements.

• DC to 26.5 GHz frequency range with ≥16 dB return loss
• 53 cm (21 in) semi-rigid construction for outstanding phase and amplitude stability
• Ruggedised PSC-3.5 mm female connector engineered specifically for network analyser test port connection

Manufacturer

Keysight Agilent

Model

85131D

Condition

Refurbished

In stock

SKU

3779* 6D04

£335.75

Connectors & Cables
RF & Microwave
RF Components

Make an Offer

Condition: Refurbished

This Keysight Agilent 85131D semi-rigid test port cable set has been seller refurbished and comes with calibration valid to December 2026. The set comprises two cable assemblies (part numbers 85131-60009 and 85131-60010) ready for use with compatible 3.5 mm port network analysers.

Included in the sale:
• Agilent Keysight 85131-60009
• Agilent Keysight 85131-60010

Product Overview

Condition: Refurbished

Included in the sale:
• Agilent Keysight 85131-60009
• Agilent Keysight 85131-60010

Manufacturer's Description

The Keysight (Agilent) 85131D is a Semi-Rigid Cable Set providing a 3.5 mm (Test Port) to 3.5 mm interface, designed to achieve phase stability when a device under test (DUT) is connected between cable ends. The set is composed of two cables: a 3.5 mm female to PSC-3.5 mm female cable, and a 3.5 mm female to 3.5 mm male cable. The ruggedised female (PSC) connector on the test port side is designed specifically for direct connection to compatible Keysight/Agilent 3.5 mm network analyser test ports (such as those on the 8514B, 8515A, and 85110A test sets) and cannot be mated with standard 3.5 mm male connectors. Typical applications include S-parameter measurements, component characterisation, and calibration verification across RF and microwave frequencies up to 26.5 GHz.

Key Specifications:
Connector Type (Test Port): PSC-3.5 mm female (ruggedised)
Connector Type (Device Side): 3.5 mm male / 3.5 mm female
Cable Length: 53 cm (21 in)
Frequency Range: DC to 26.5 GHz
Return Loss: ≥16 dB
Insertion Loss (Test Port Cable): 0.3 × √f + 0.2 dB (f in GHz)
Insertion Loss (Device Cable, max frequency): 1.8 dB
Amplitude Stability: <0.06 dB (with 90° bend, 4 to 3 inch radius)
Phase Stability: 0.16 × f + 0.5 degrees (f in GHz)
Cable Construction: Semi-rigid
Compatible Instruments: Agilent/Keysight 8510, 8720, 8719, 8722 series network analysers and compatible 3.5 mm test sets
Part Numbers Included: 85131-60009, 85131-60010
