Condition: Seller refurbished

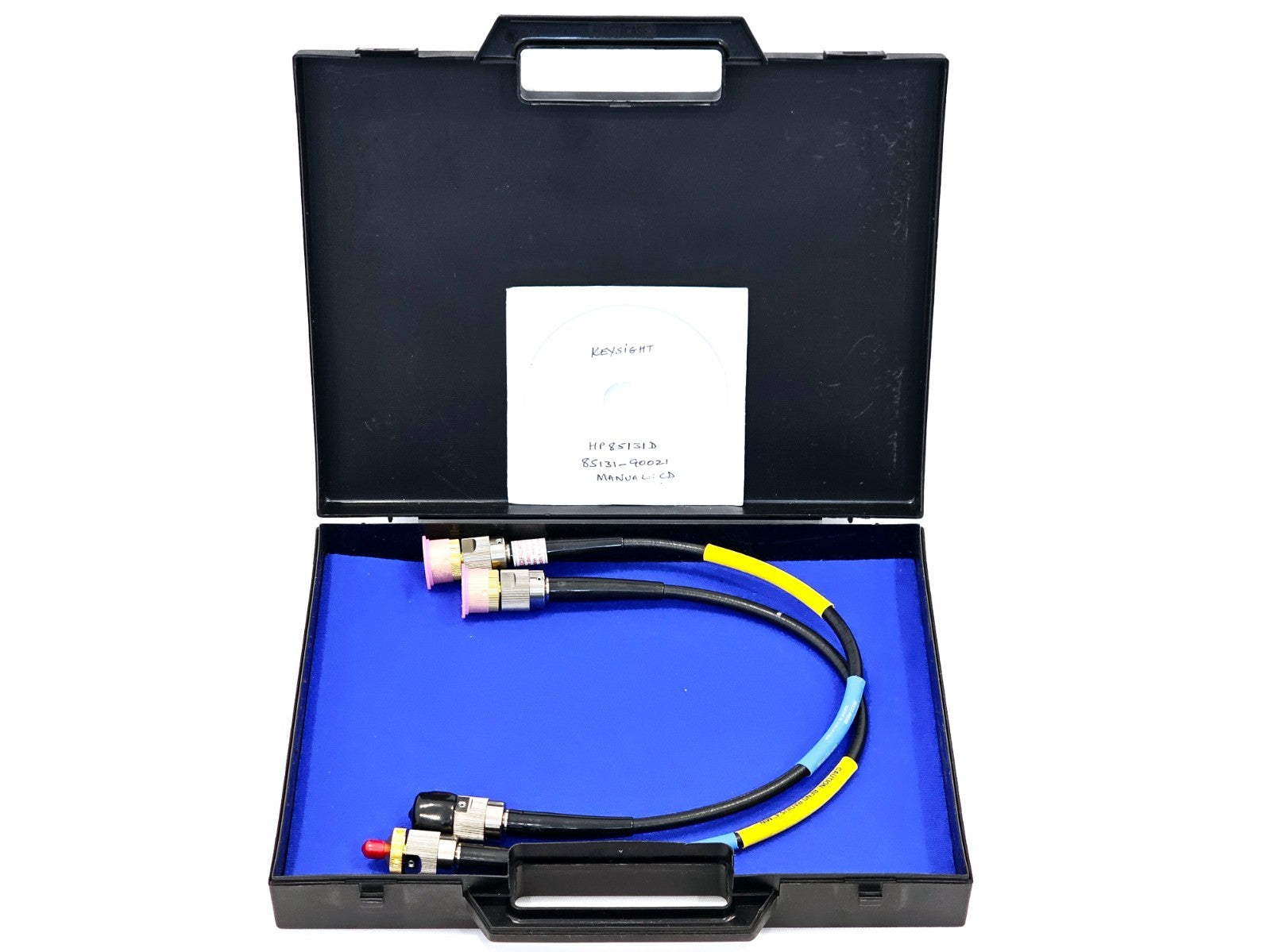

This calibrated Keysight Agilent 85131D semi-rigid cable set has been seller refurbished and is supplied as a matched pair. Both individual cables are included, identified by their respective part numbers.

Included in the sale:

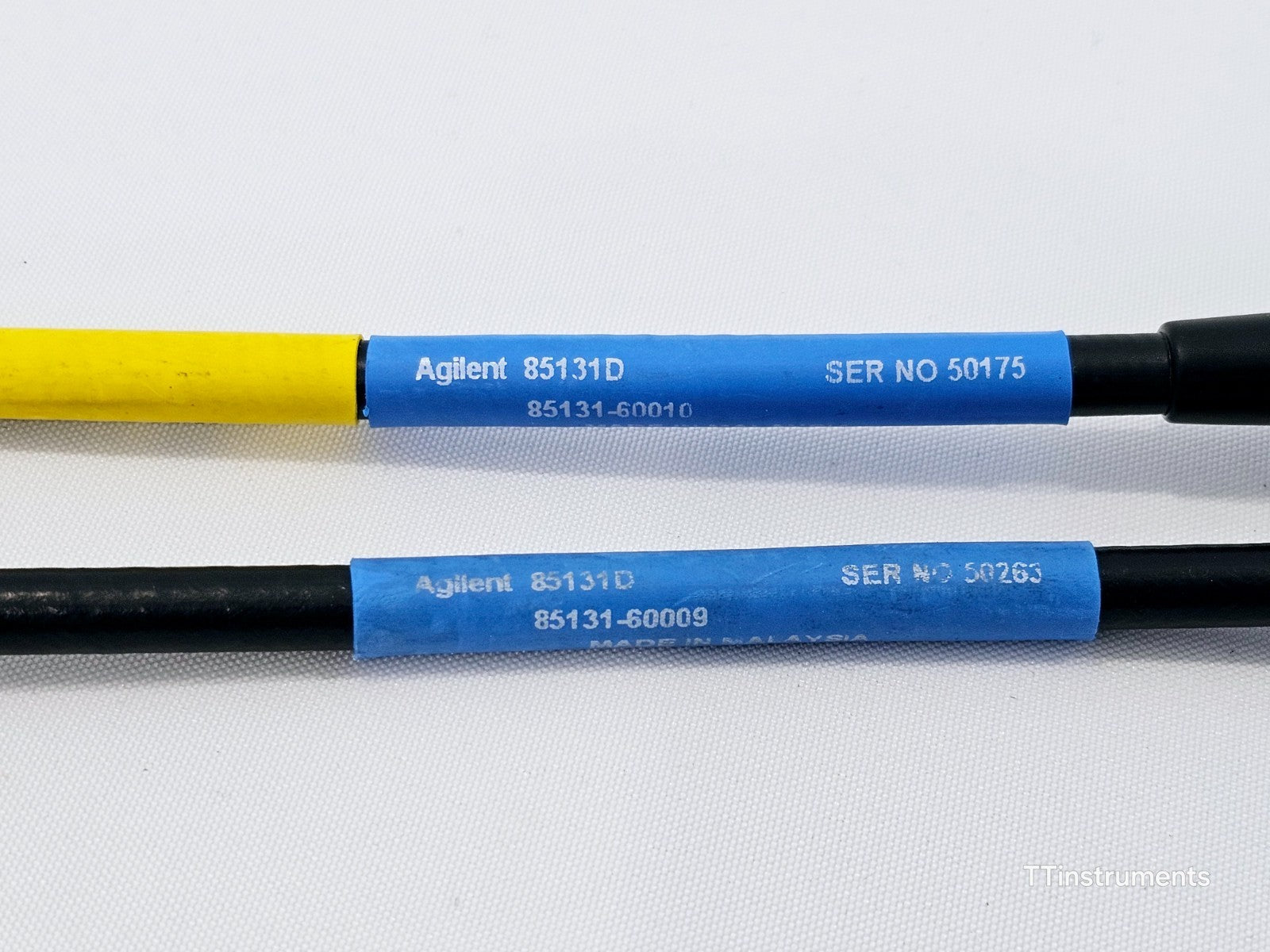

• Agilent Keysight 85131-60009 (3.5 mm female to 3.5 mm male semi-rigid cable, 53 cm)
• Agilent Keysight 85131-60010 (3.5 mm female to PSC-3.5 mm female semi-rigid cable, 53 cm)

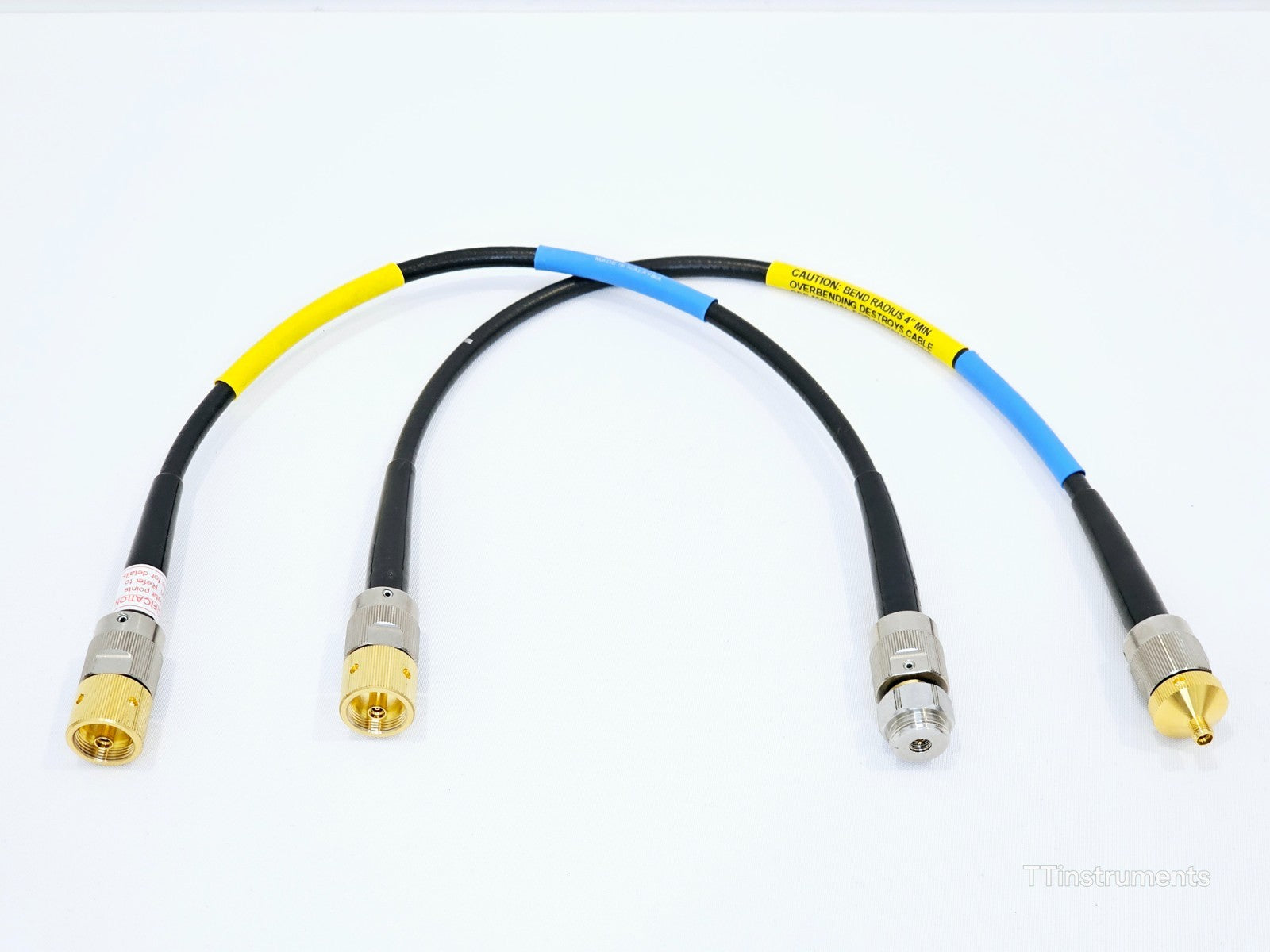

The Keysight (Agilent) 85131D is a semi-rigid cable set designed for use with 3.5 mm test port vector network analyzers (VNAs), including the Agilent/Keysight 8510, 8719, 8720, 8722, PNA, and ENA series instruments. The set consists of two 53 cm (21 in) cables intended for Configuration B use — where a device under test (DUT) is connected between the cable ends, providing maximum flexibility for DUT connection.

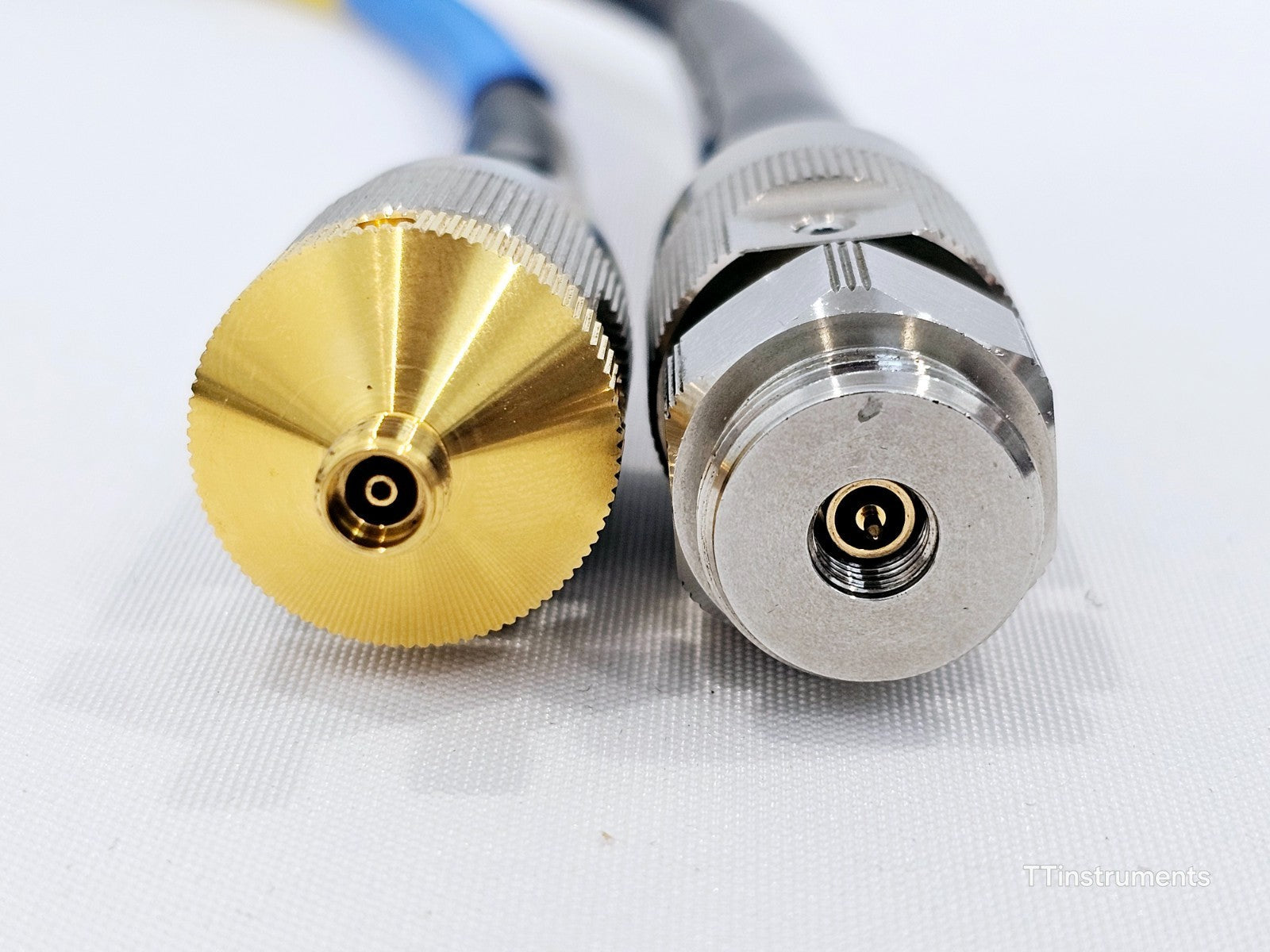

Cable 85131-60009: 3.5 mm female to 3.5 mm male (device-side connector)
Cable 85131-60010: 3.5 mm female to PSC-3.5 mm female (test port-side connector; rugged connector designed specifically for network analyzer test ports — does not mate with a standard male connector)

The 85131D is commonly paired with compatible Agilent/Keysight test sets including the 8514B, 8515A, and 85110A which feature 3.5 mm rugged test port connectors.

Specifications:
Cable Length: 53 cm (21 in) each (supplemental characteristic)

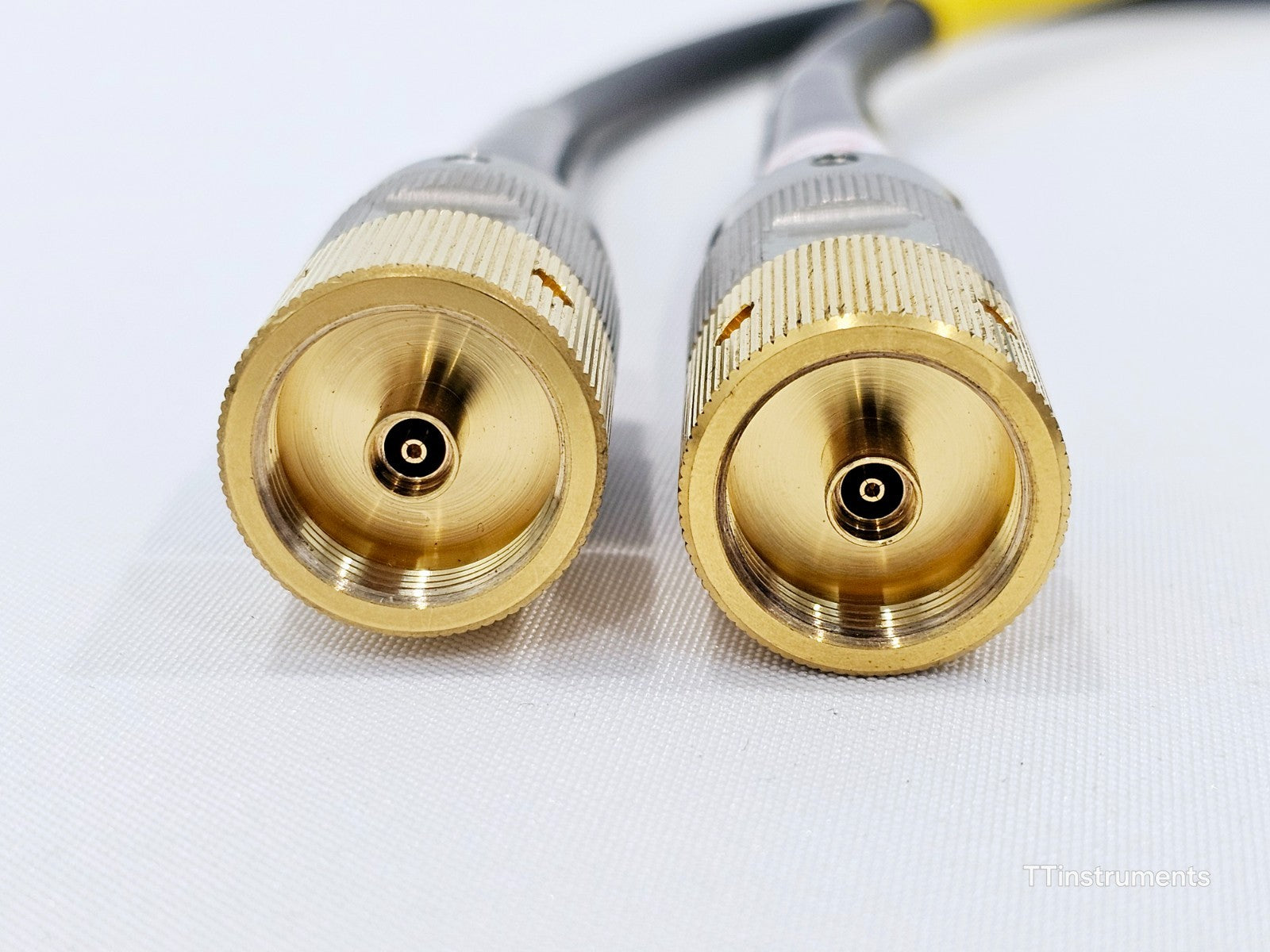

Connectors — Cable 85131-60009: 3.5 mm female to 3.5 mm male
Connectors — Cable 85131-60010: 3.5 mm female to PSC-3.5 mm female
Frequency Range: DC to 26.5 GHz
Return Loss: 16 dB or better
Insertion Loss (test port connector): 0.3 × √f + 0.2 dB (f in GHz)
Insertion Loss (device connector): 1.8 dB at maximum frequency
Amplitude Stability: Less than 0.06 dB (supplemental characteristic)
Phase Stability: 0.16 × √f + 0.5° (f in GHz)
Stability Bend Condition: 90° bend, 4 to 3 inch radius
Impedance: 50 ohm

Keysight PNA Series Configuration Guide — confirms 85131D part numbers 85131-60009 and 85131-60010: Download PDF

Agilent 8510C Network Analyzer Family — includes 85131D cable set usage and compatibility information: Download PDF

Agilent 8720E Family Network Analyzers Configuration Guide — lists 85131D cable specifications and compatible test sets: Download PDF
