Condition: Refurbished

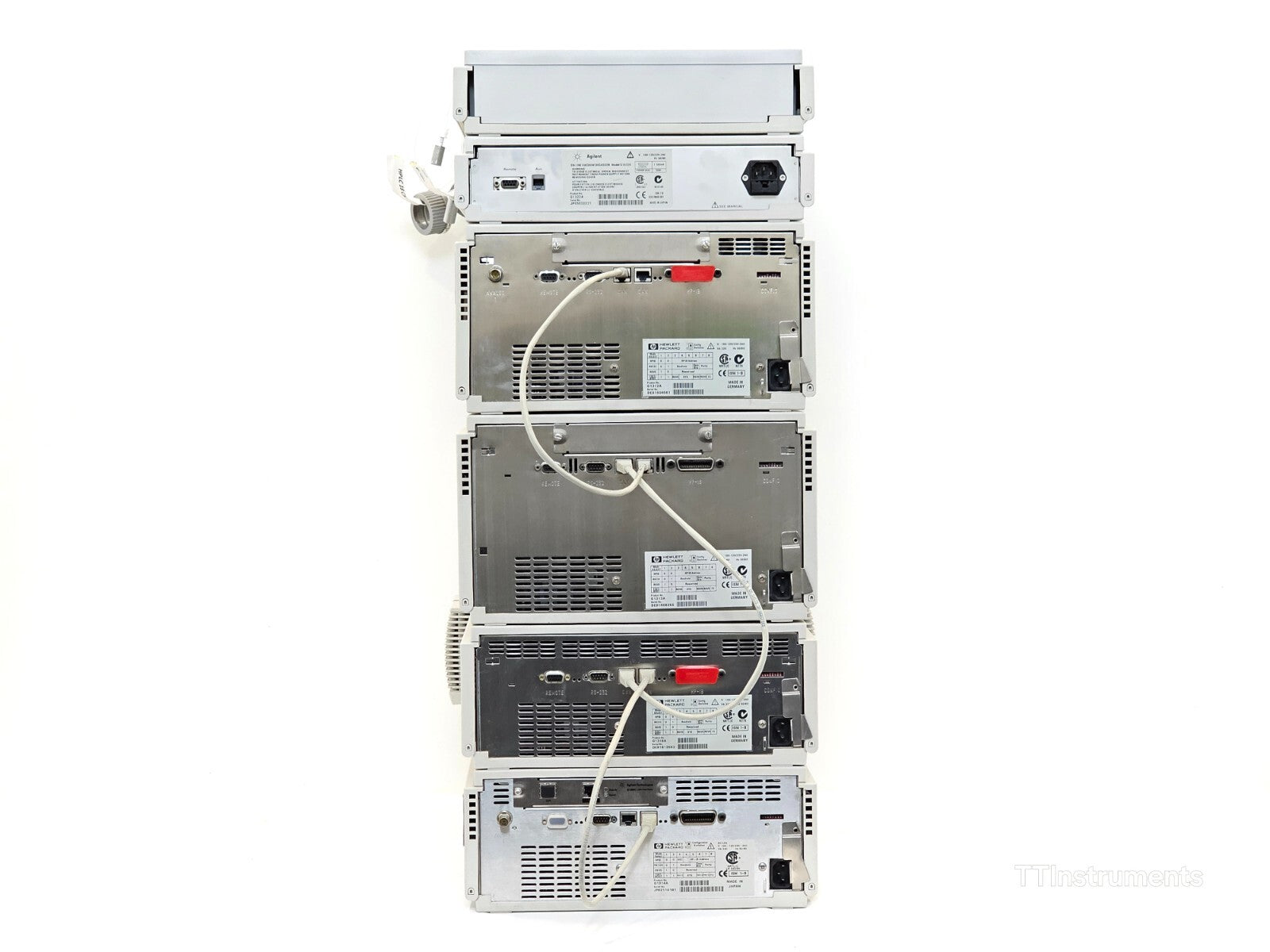

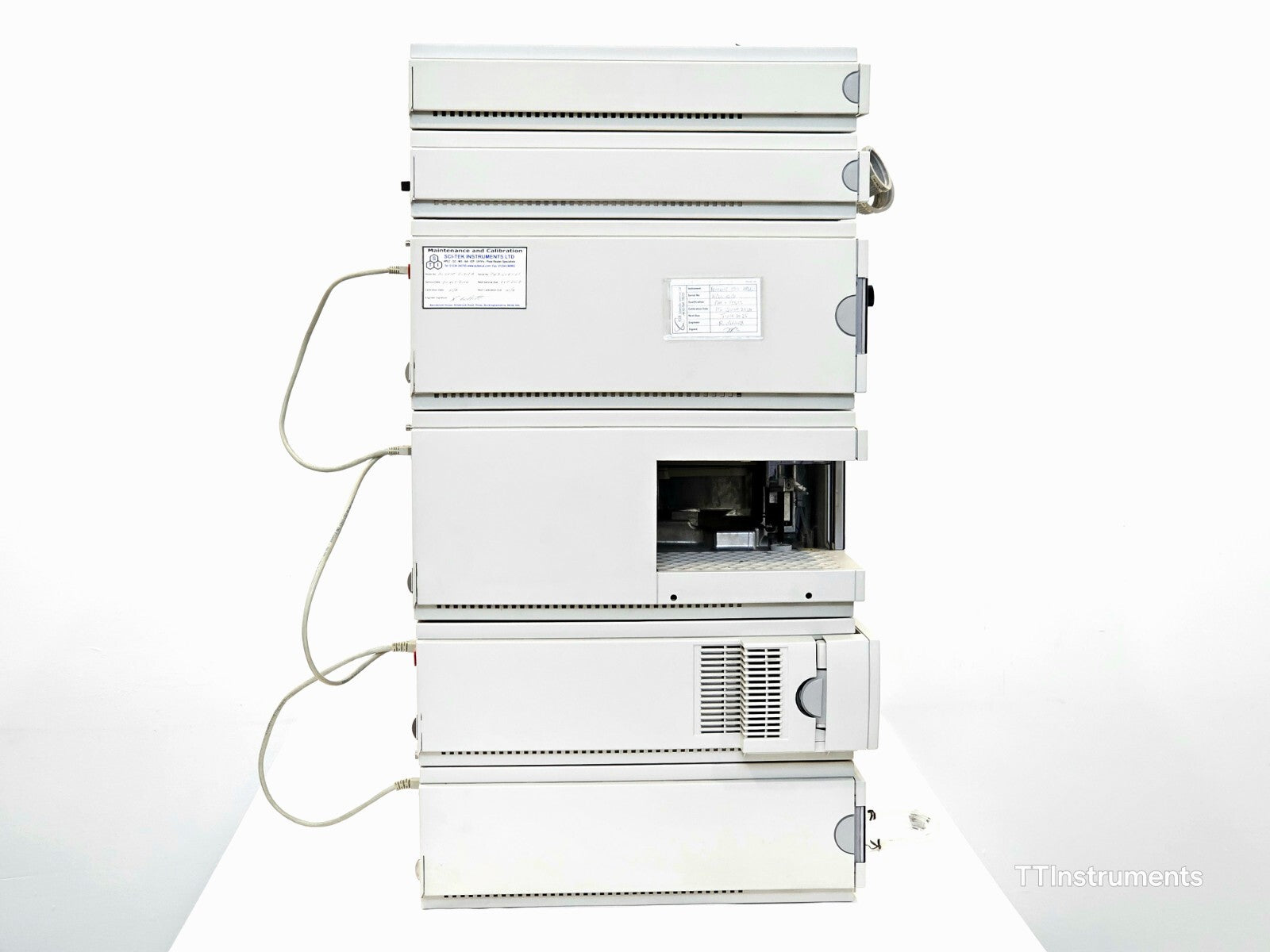

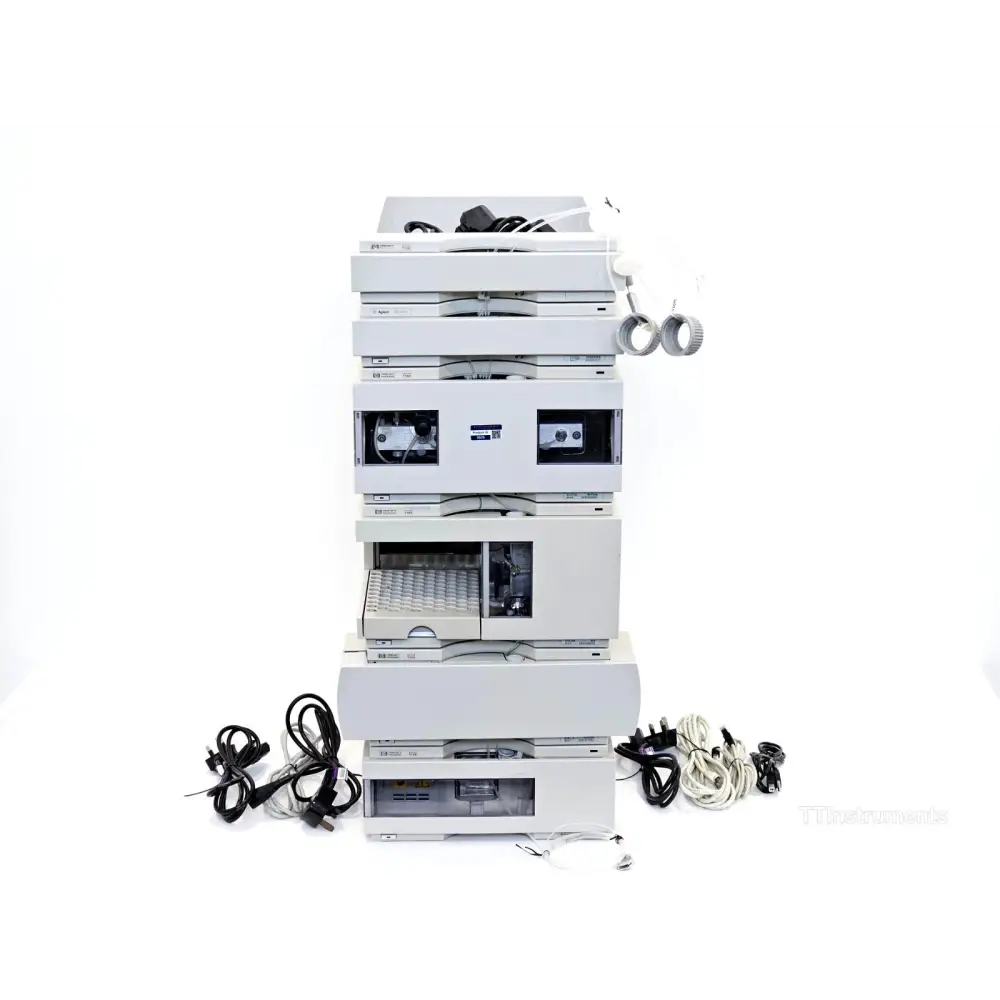

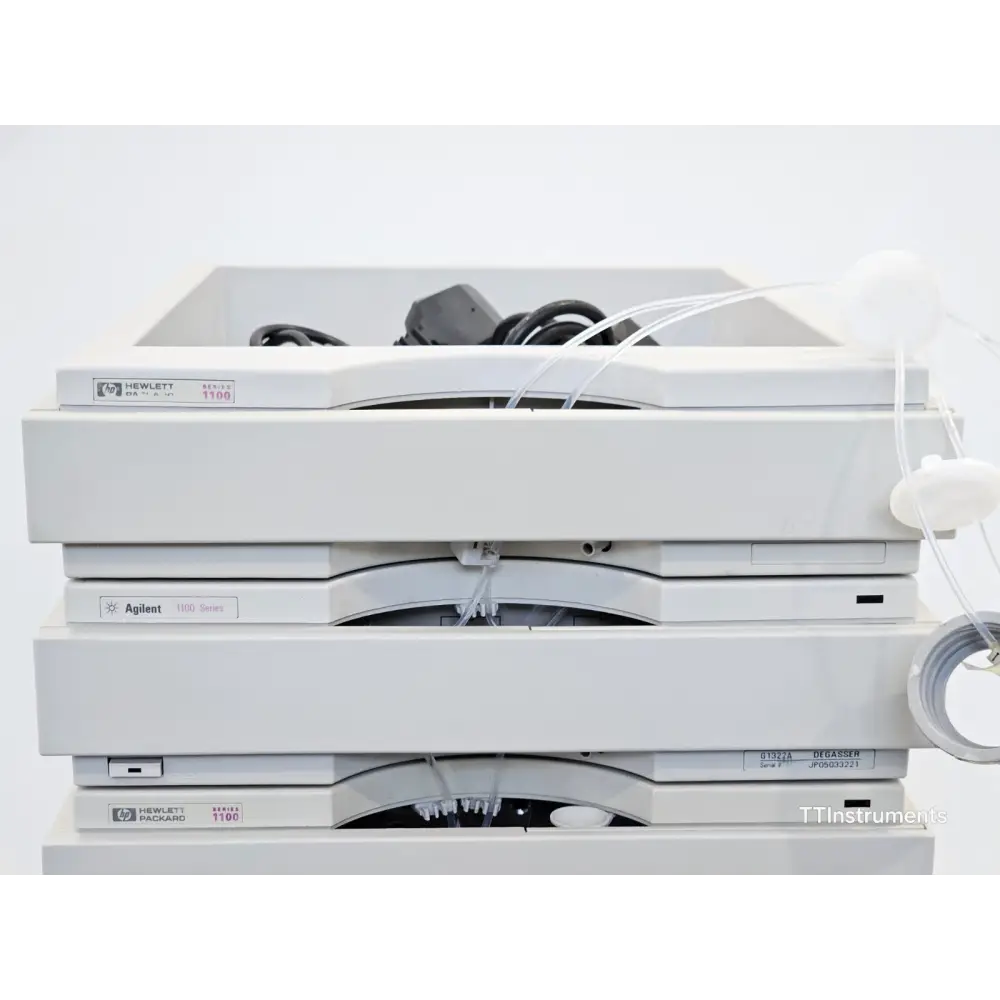

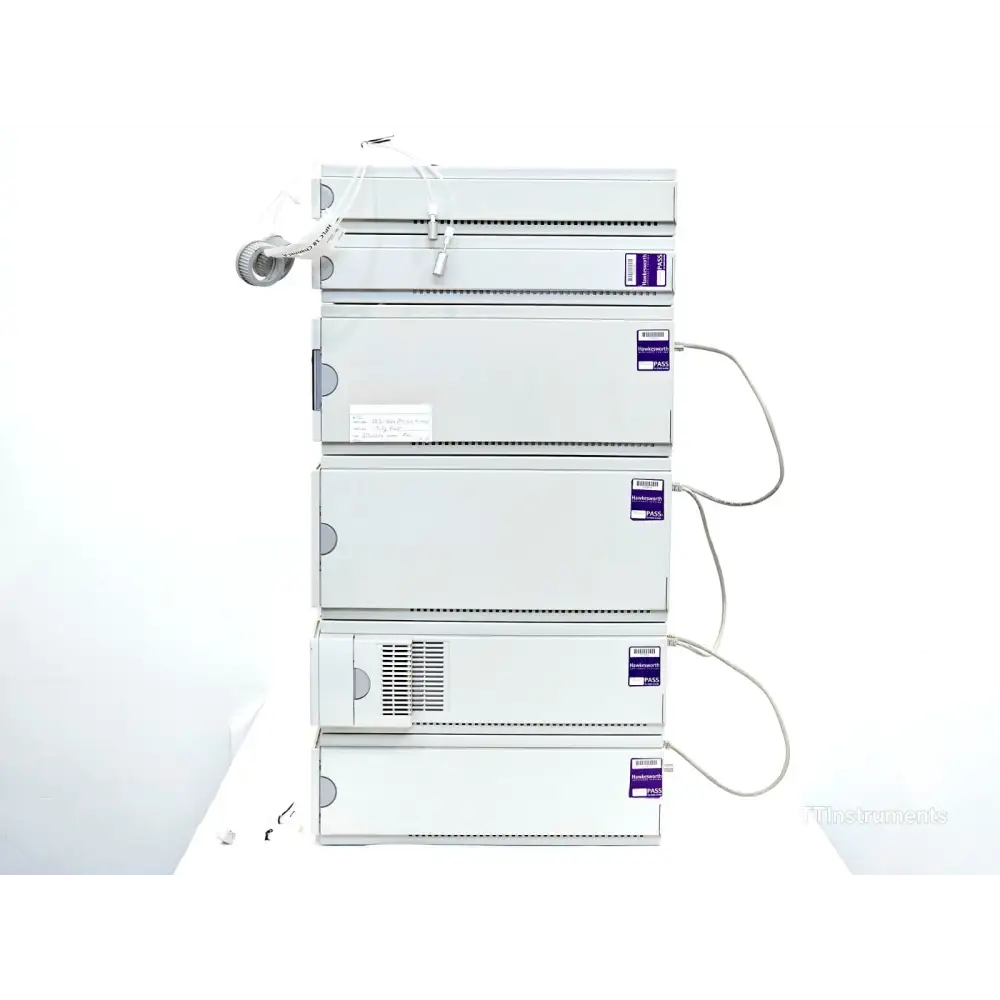

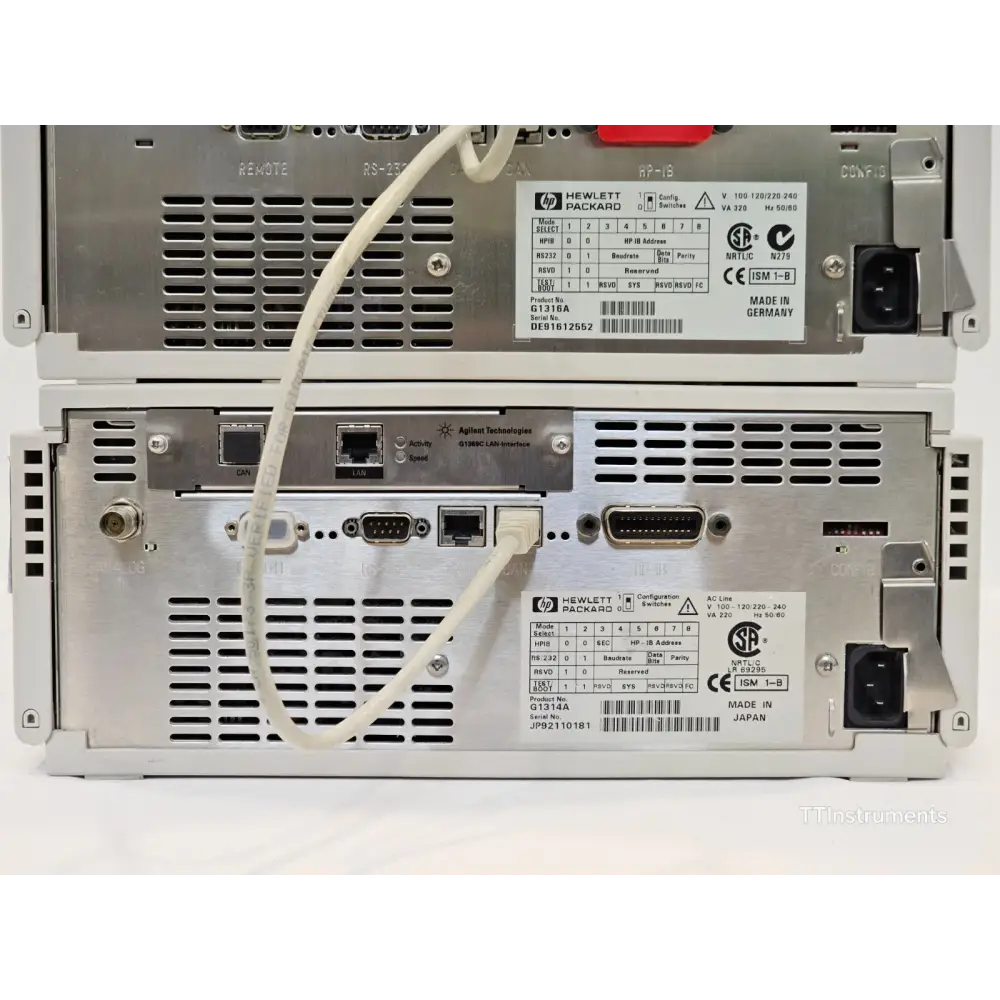

A complete five-module Agilent / Hewlett-Packard 1100 Series HPLC system, calibrated until July 2025. Each module is physically intact with connectors and ports in good condition. Minor cosmetic wear is present on casing edges. The system has not been functionally tested and is sold as-is. No PC, software, or licence keys are included.

Included with the system:
• G1312A Binary Pump

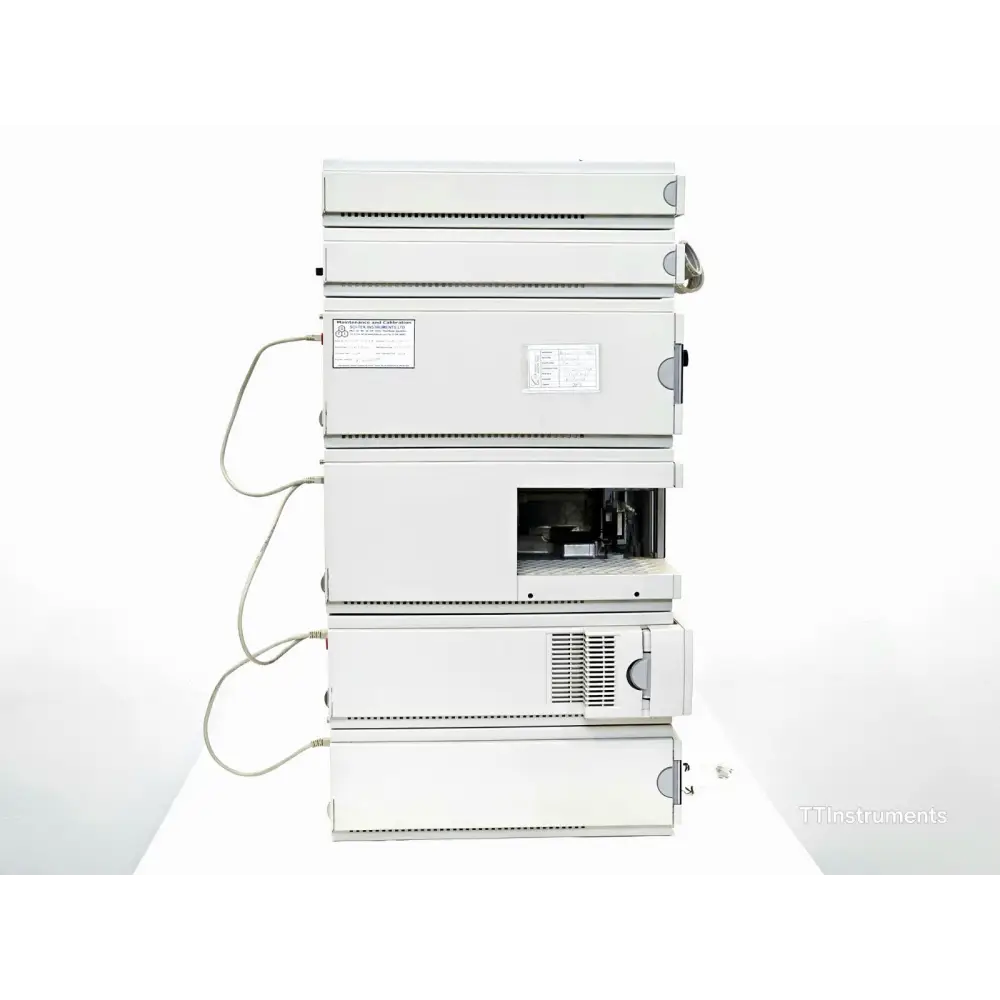

• G1313A Autosampler
• G1314A Variable Wavelength Detector (VWD)
• G1316A Thermostatted Column Compartment
• G1322A Vacuum Degasser
• Power cords
• CAN/LAN cables
• Tubing connections

The Agilent (Hewlett-Packard) 1100 Series is one of the most widely deployed modular HPLC platforms in analytical laboratories worldwide. Introduced in 1995 and building on the legacy of the HP 1050 series, the 1100 Series offers a stackable, all-modules-connected-by-CAN-bus architecture that enables flexible configuration for isocratic, binary gradient, and quaternary gradient separations. The system is designed for pharmaceutical, environmental, food safety, chemical, and clinical research applications.

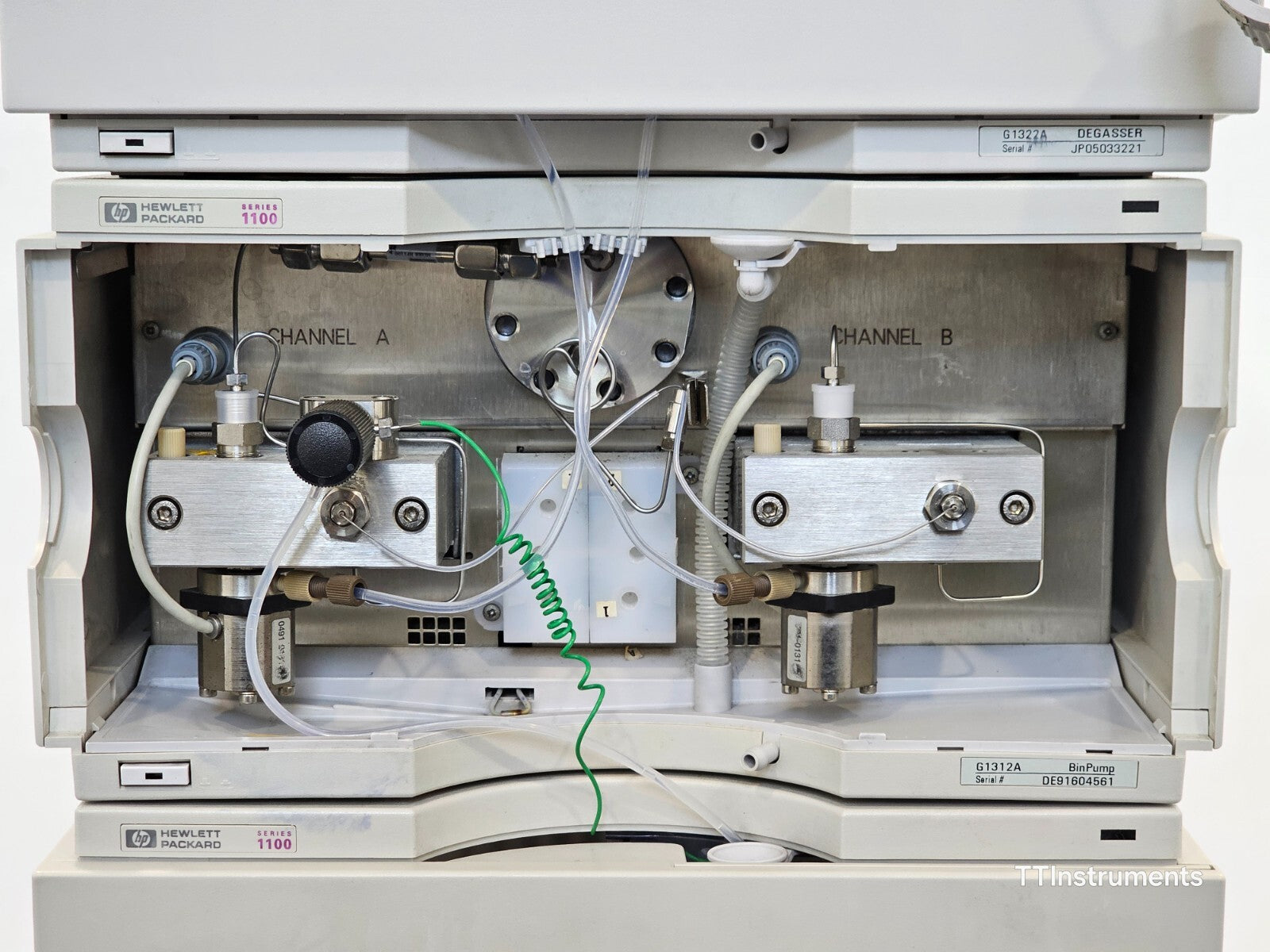

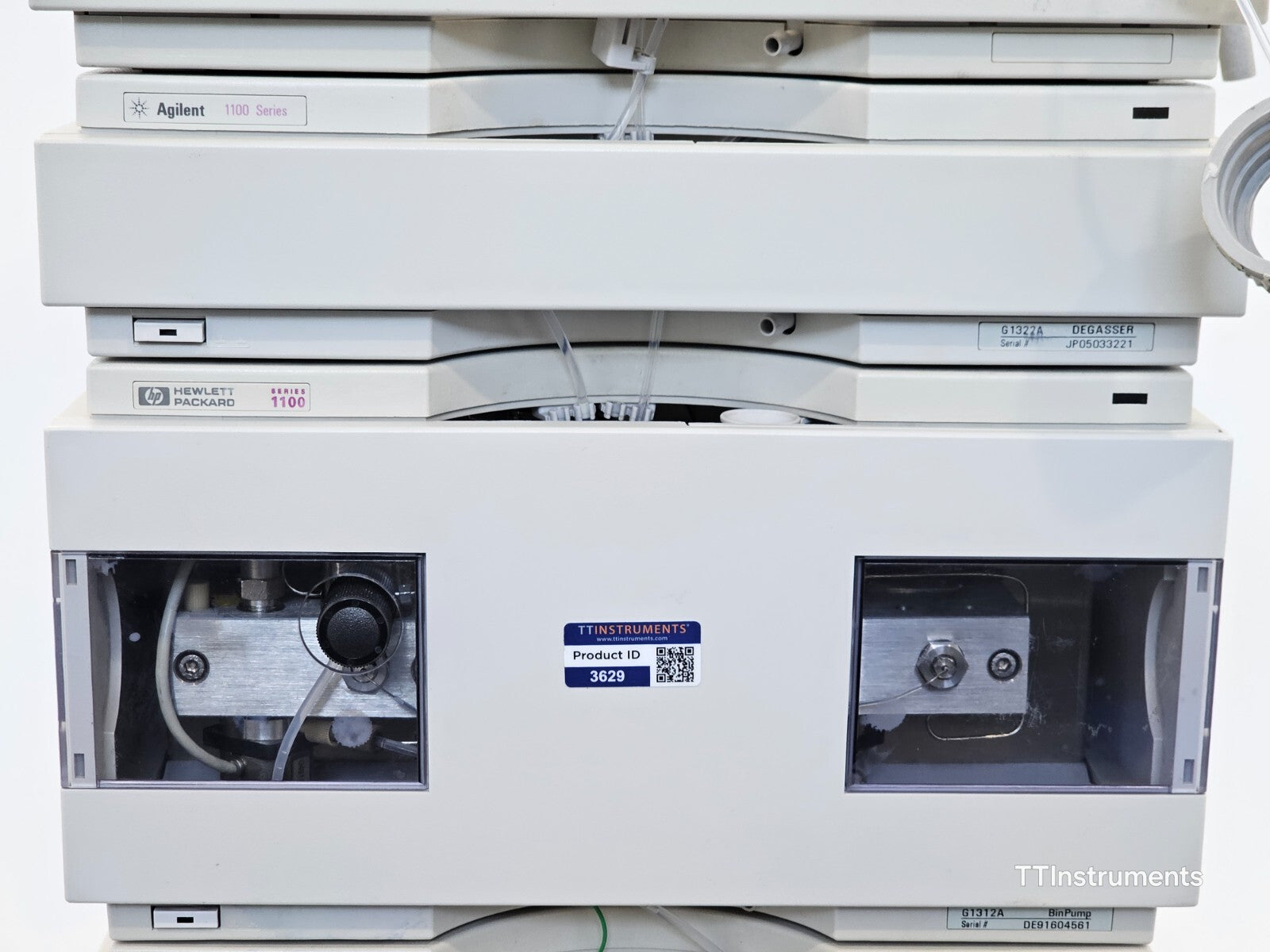

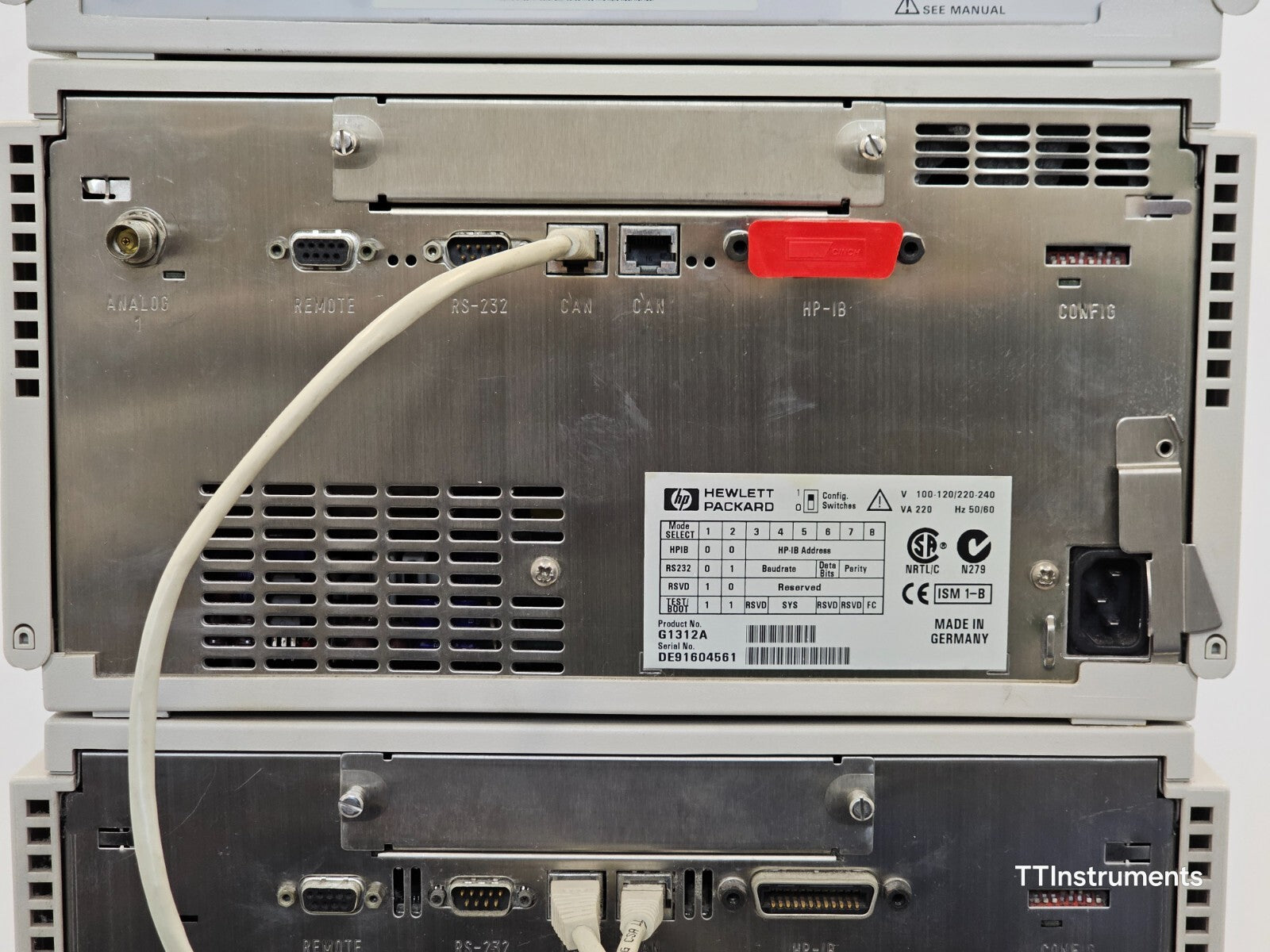

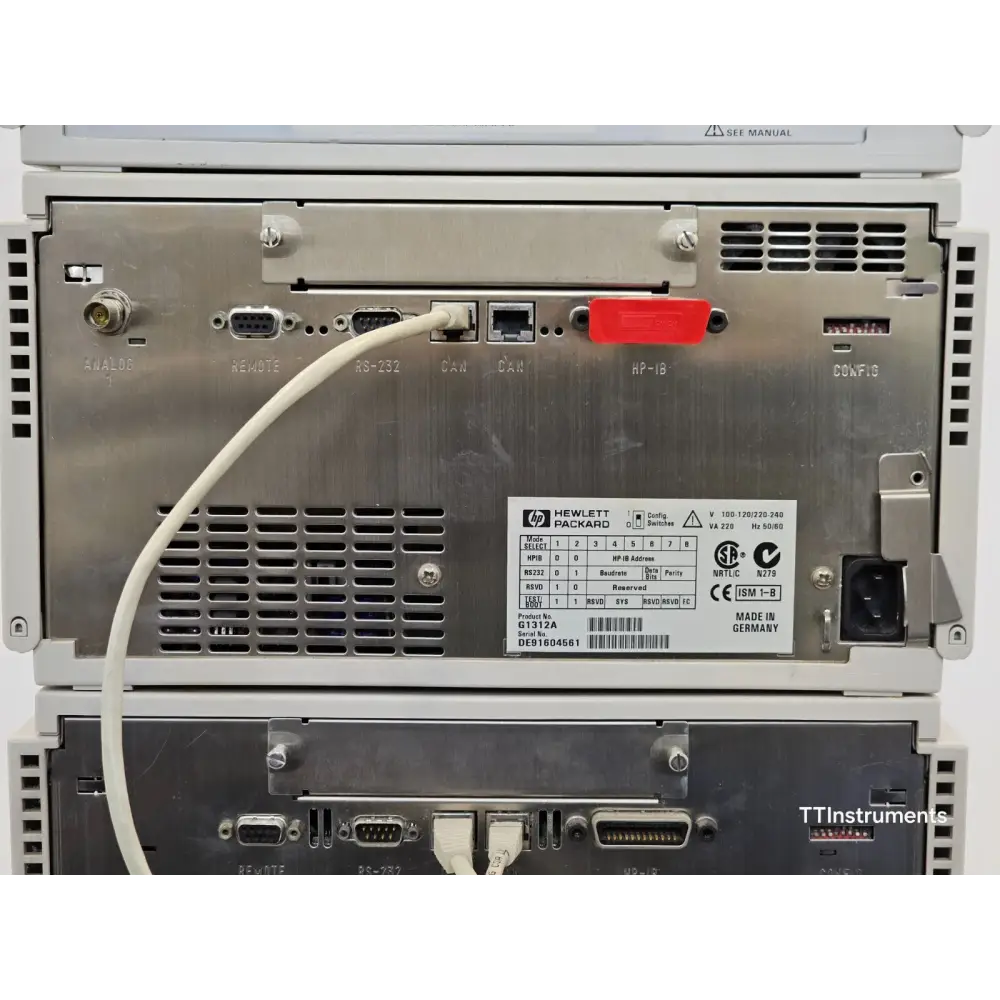

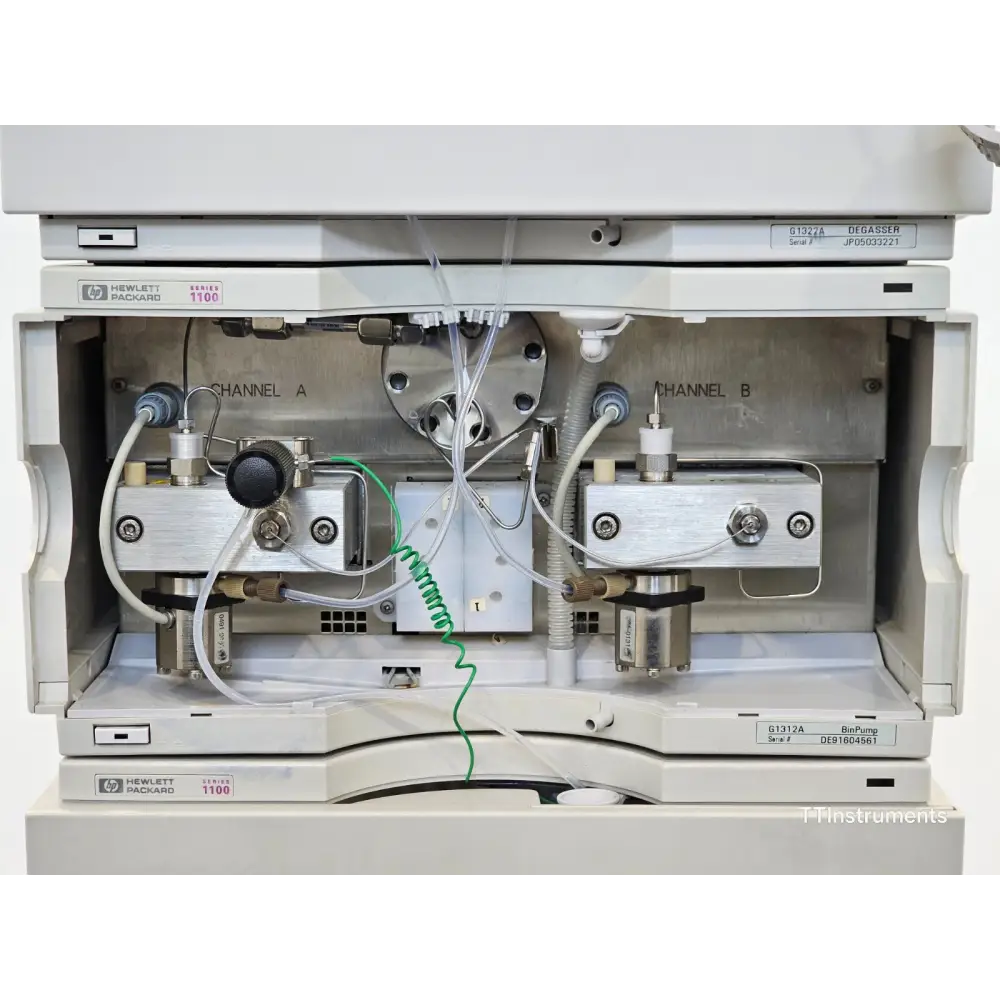

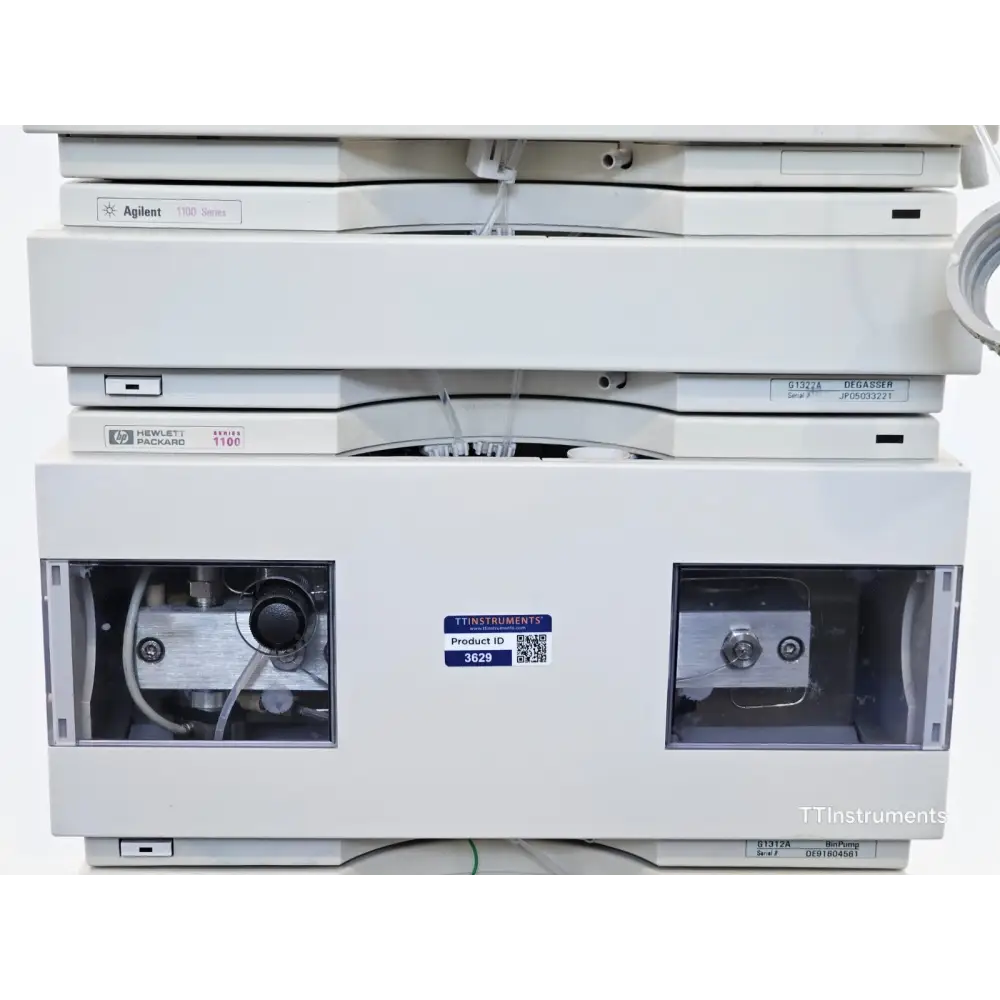

G1312A Binary Pump:
Flow Range: 0.001 to 5 ml/min
Flow Precision: ≤0.07% RSD or ≤0.02 min SD
Flow Accuracy: ±1% or 10 µl/min
Operating Pressure: 0 to 400 bar (0 to 5,880 psi)
Power Consumption: 220 VA
Weight: 15.5 kg
Dimensions (H × W × D): 180 × 345 × 435 mm
Design: Dual-piston with electronically activated inlet valve synchronised to piston stroke; eliminates vapour formation in volatile solvents; pulse-free solvent delivery via variable stroke volume

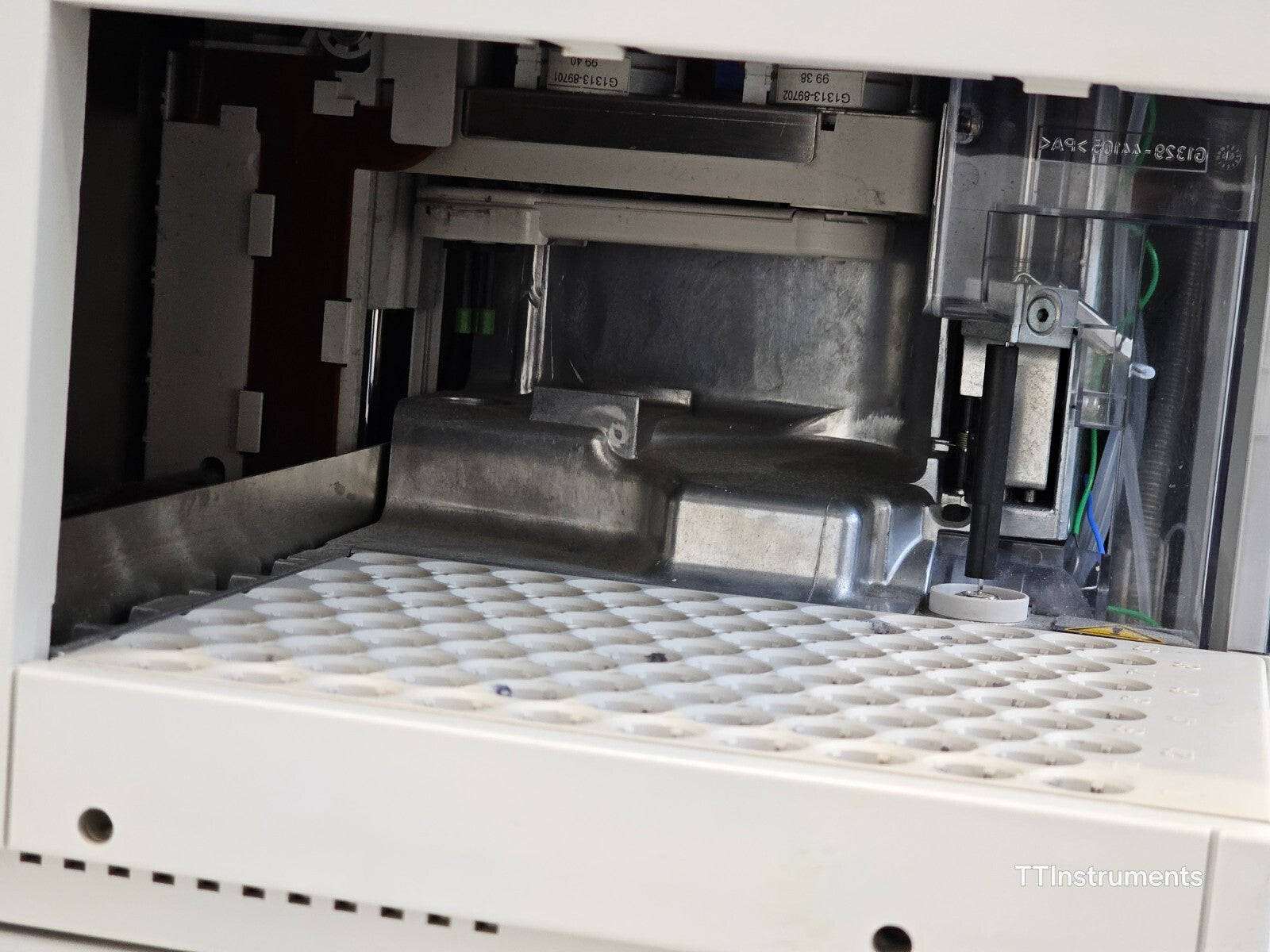

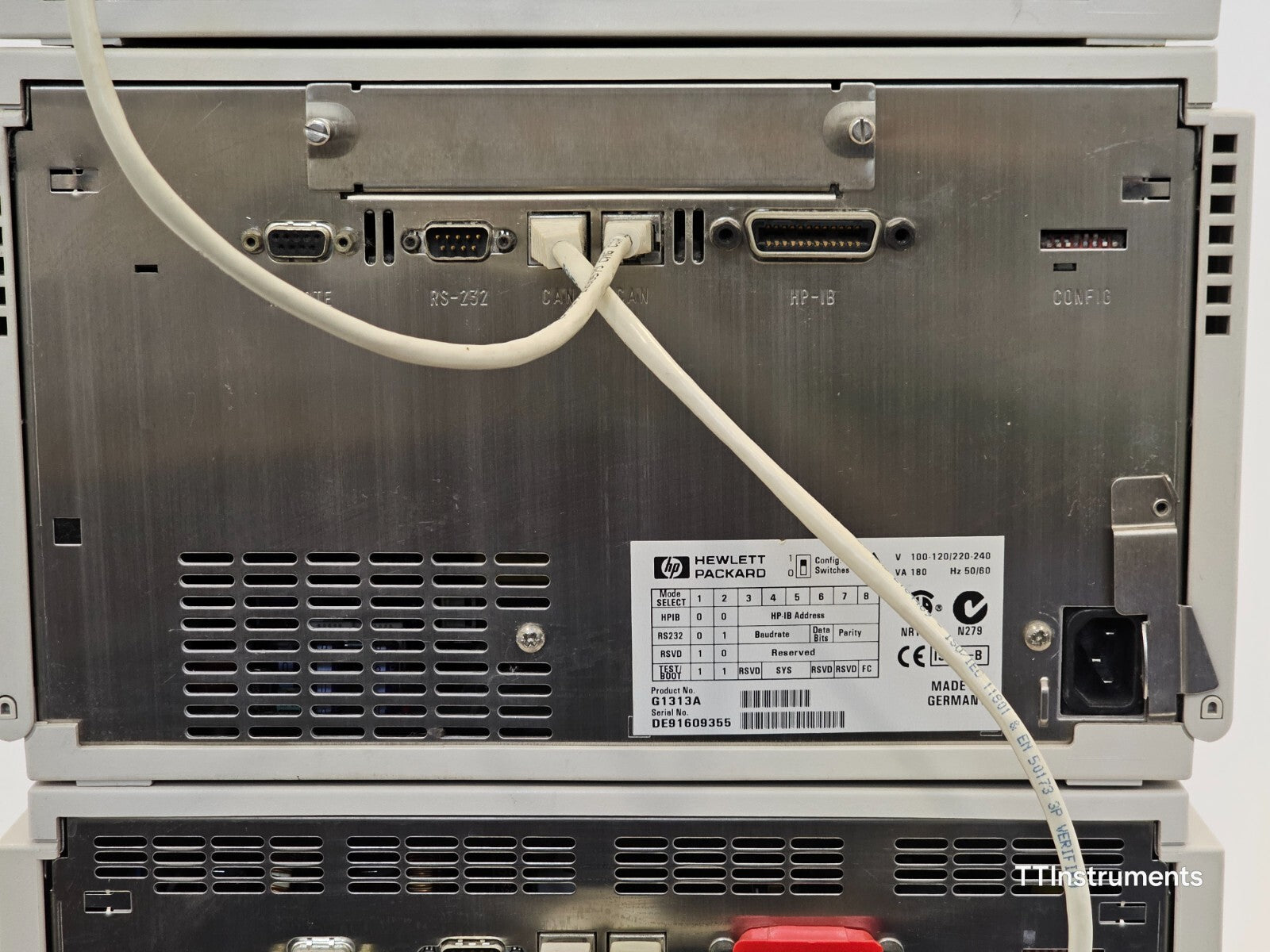

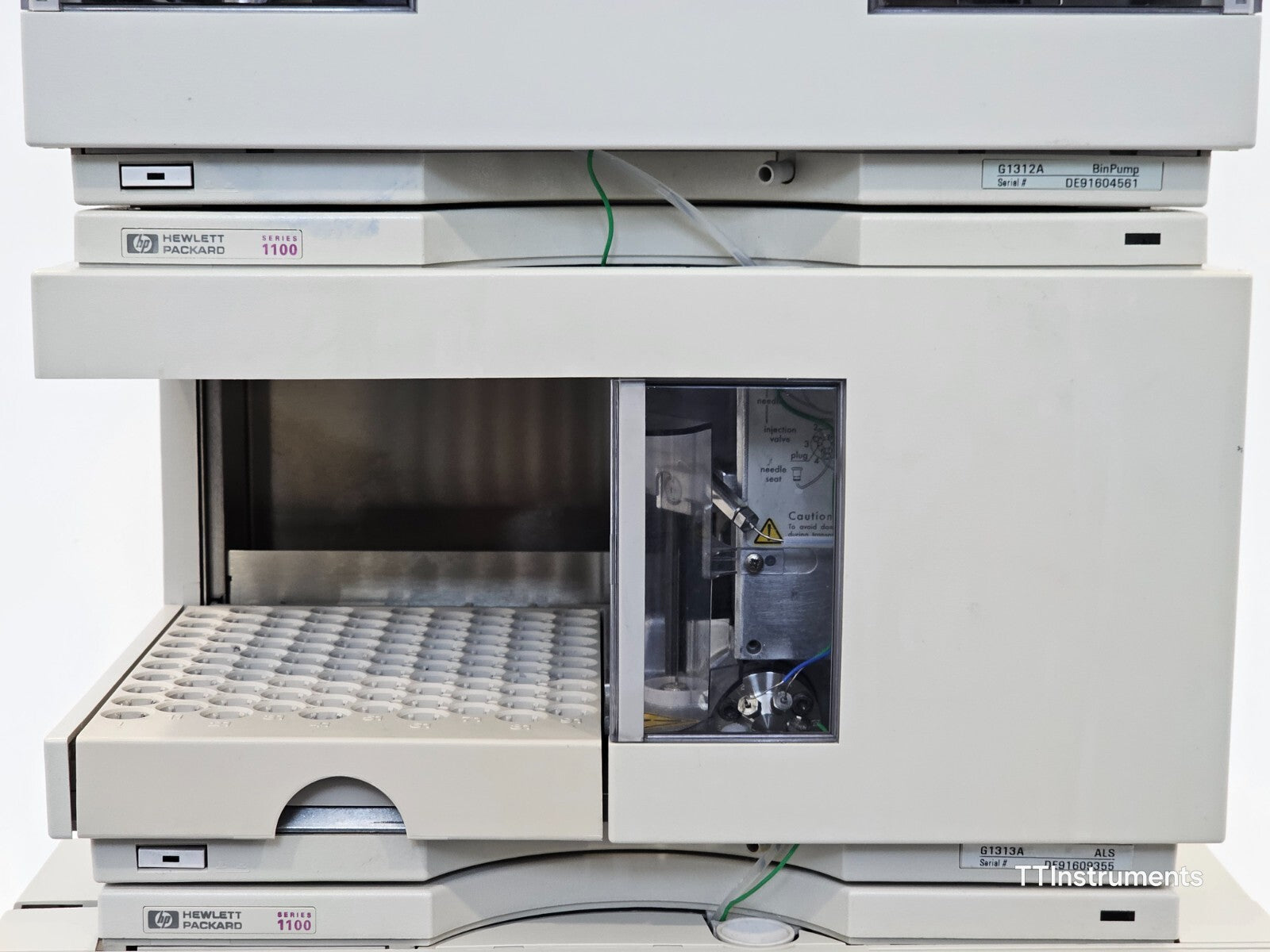

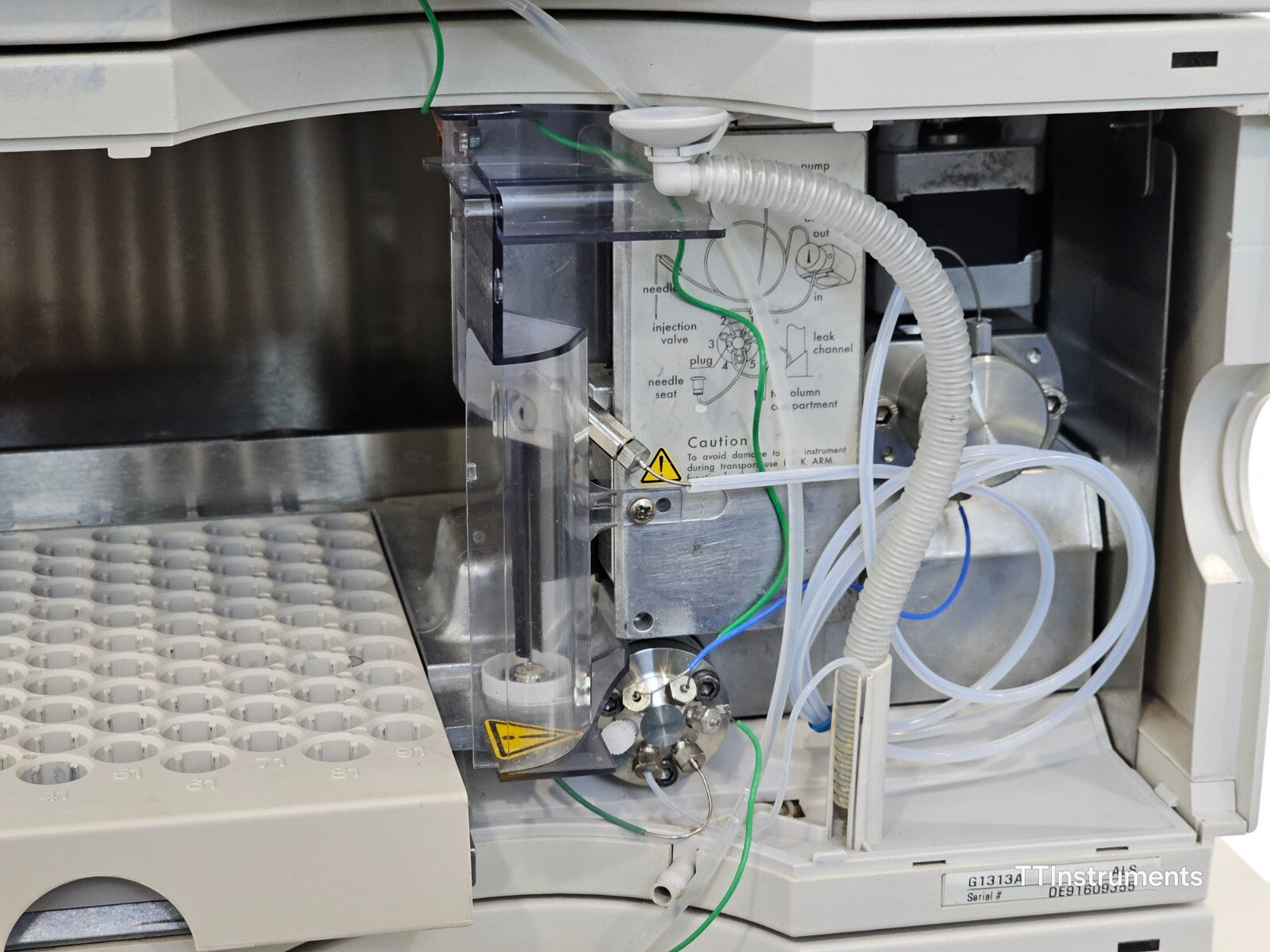

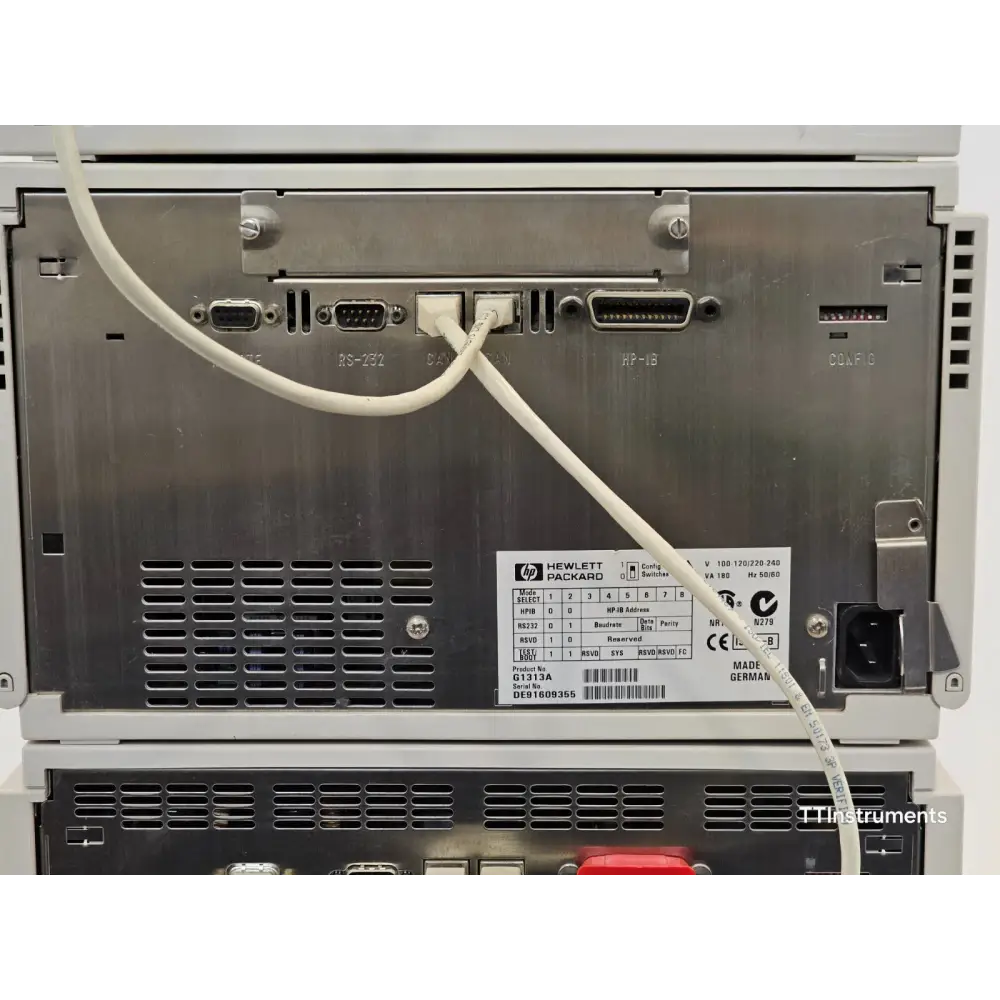

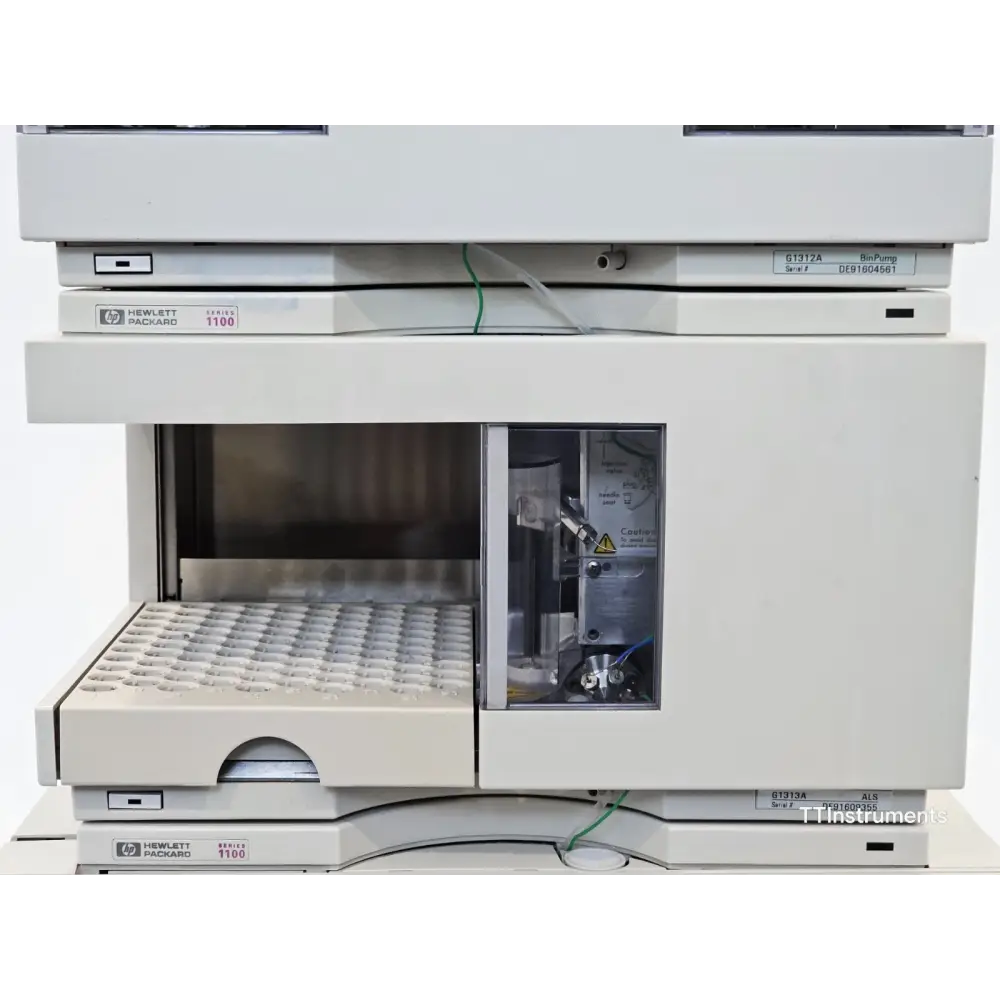

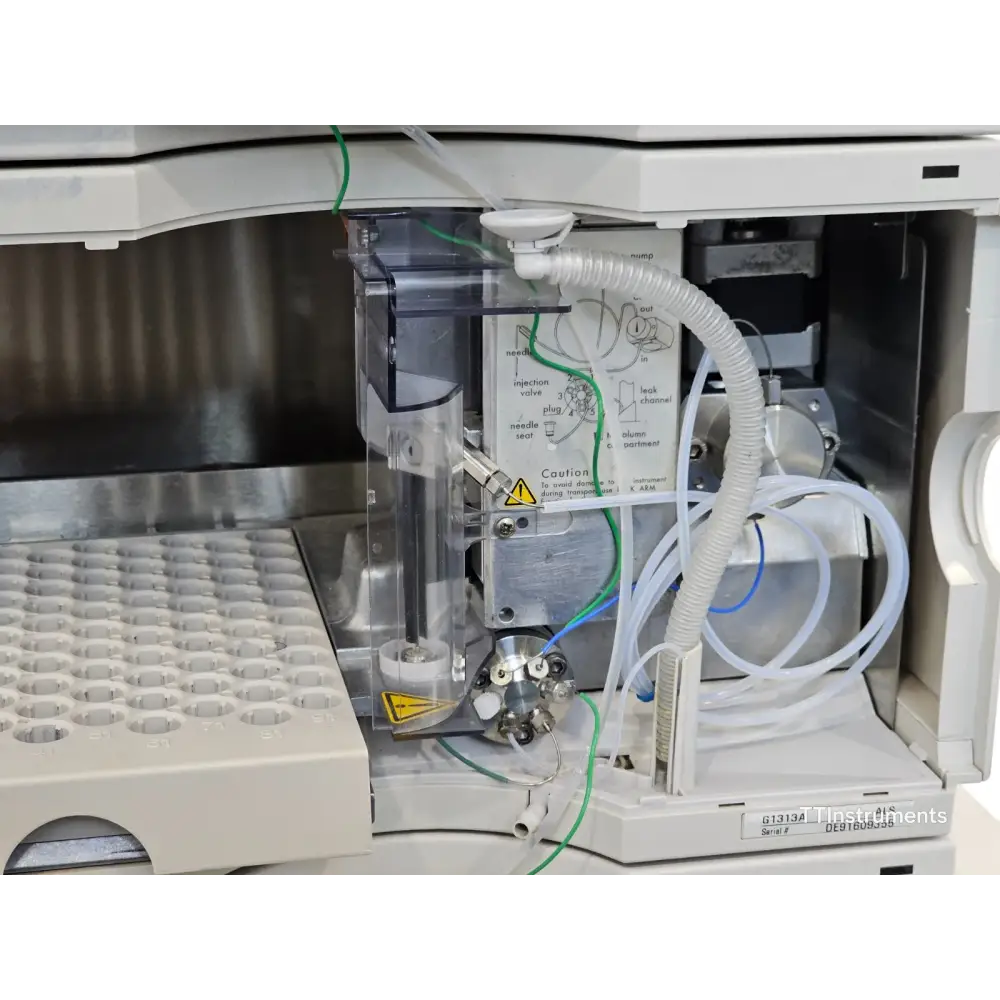

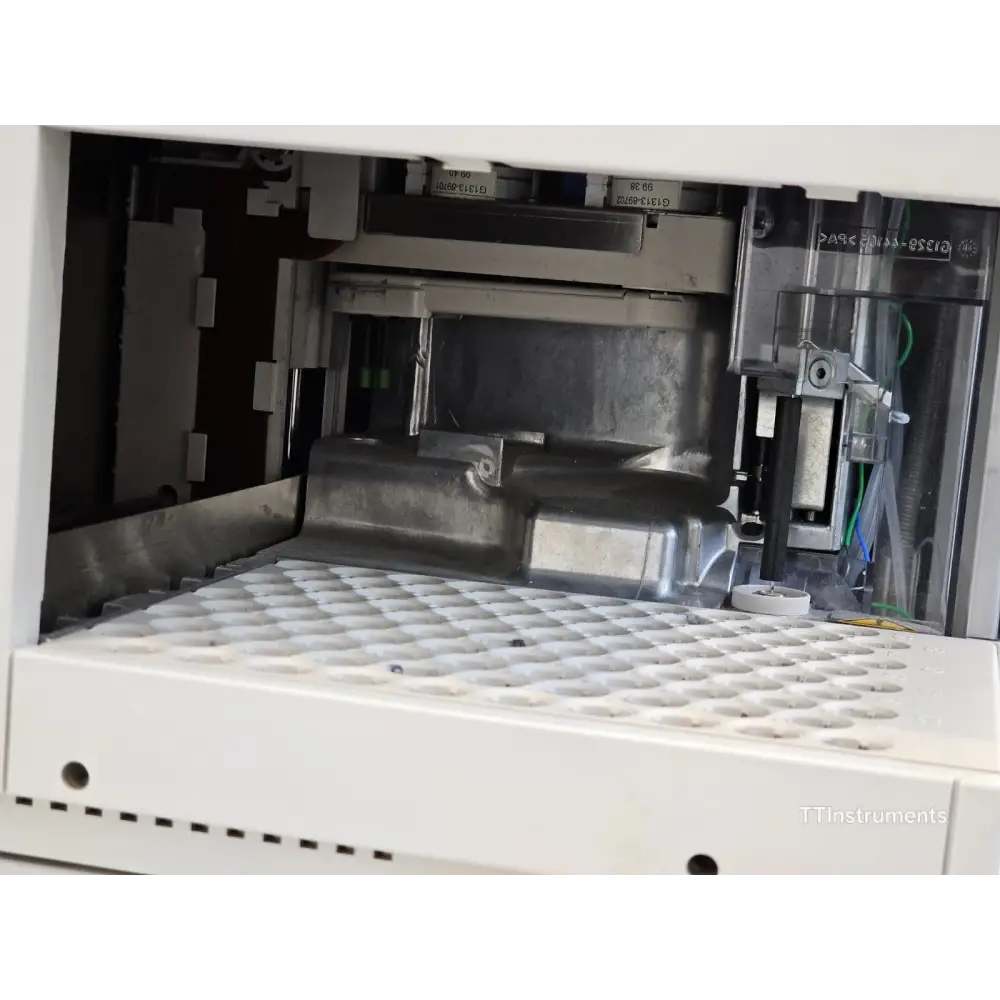

G1313A Standard Autosampler (ALS):
Injection Volume: 0.1 µl to 100 µl (standard); adjustable to 1,500 µl

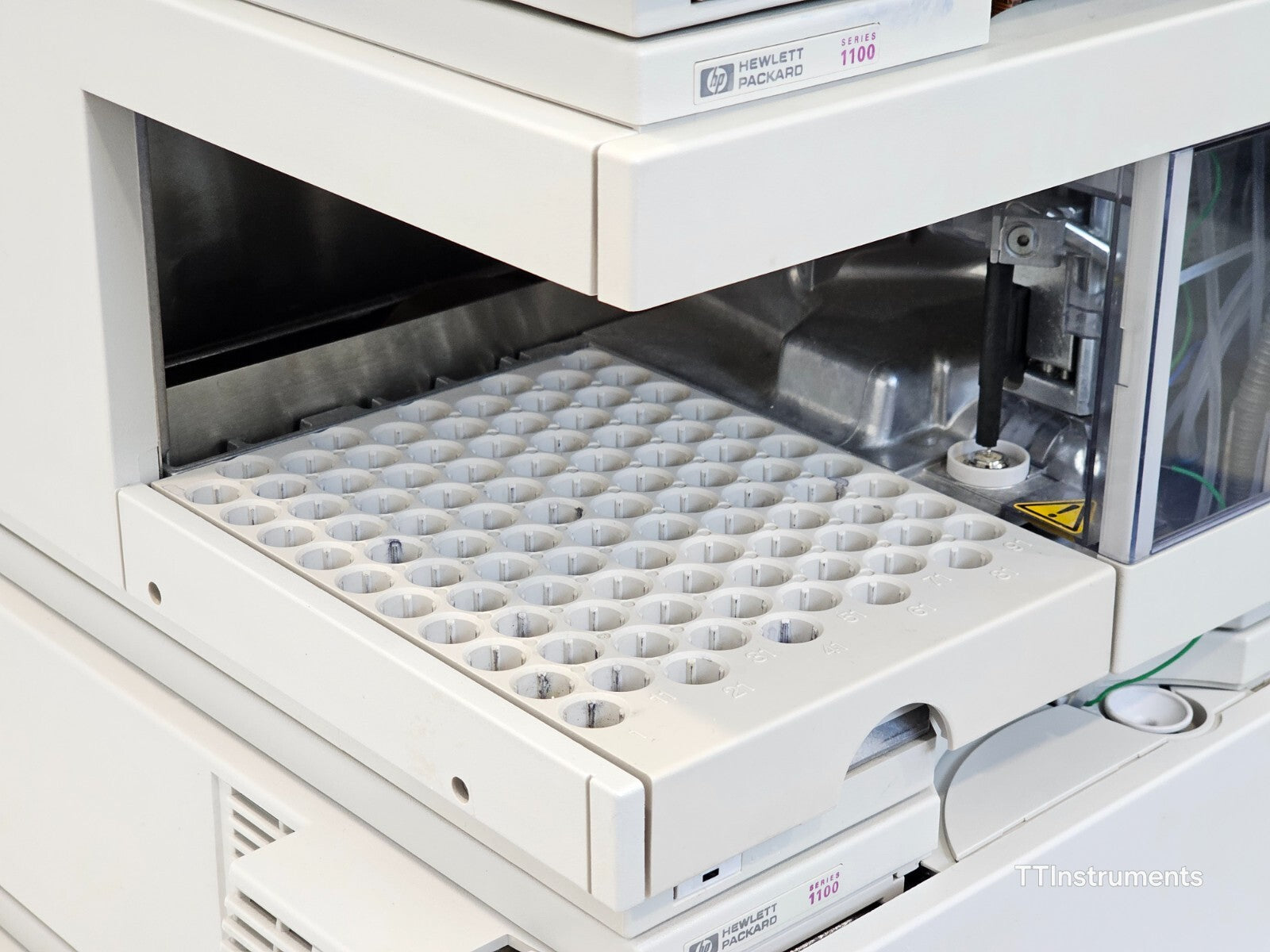

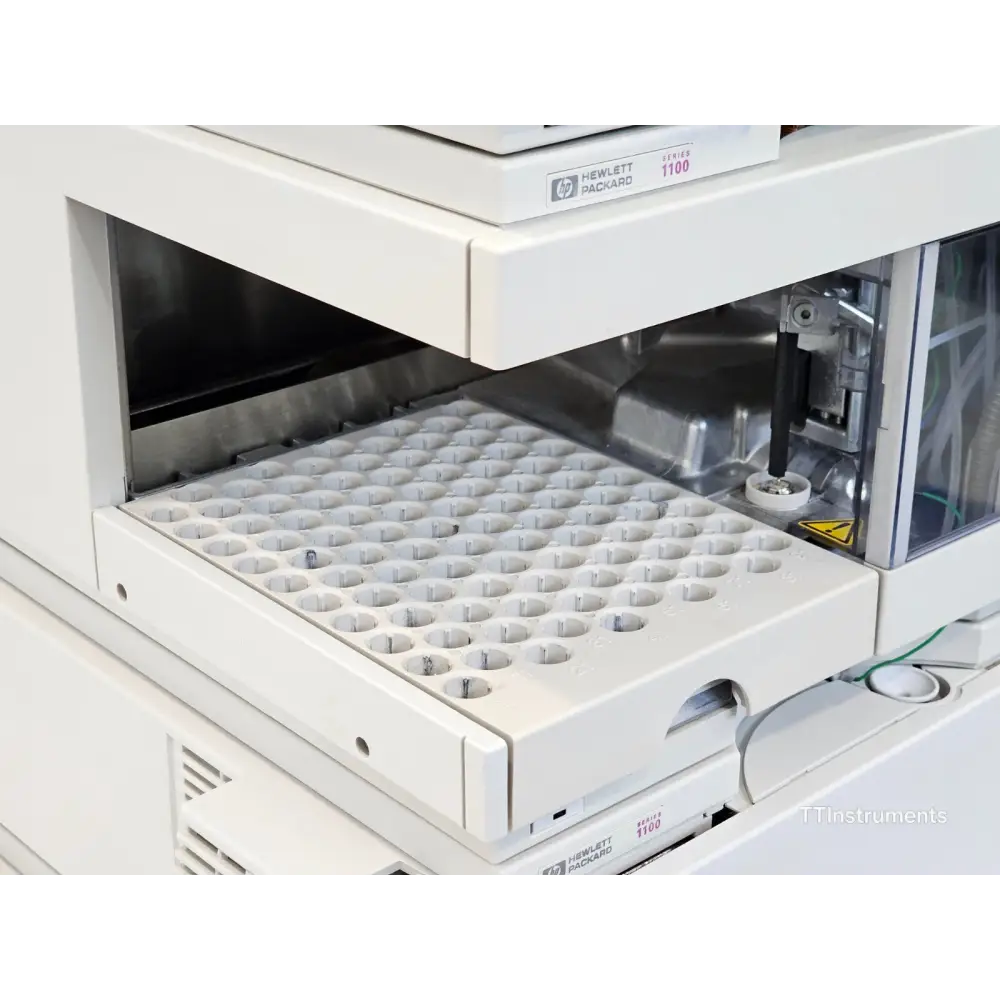

Sample Capacity: Up to 100 × 2 ml vials (full tray)
Power Consumption: 180 VA
Weight: 14.2 kg
Dimensions (H × W × D): 200 × 345 × 435 mm
Features: Overlapping injection capability for increased throughput

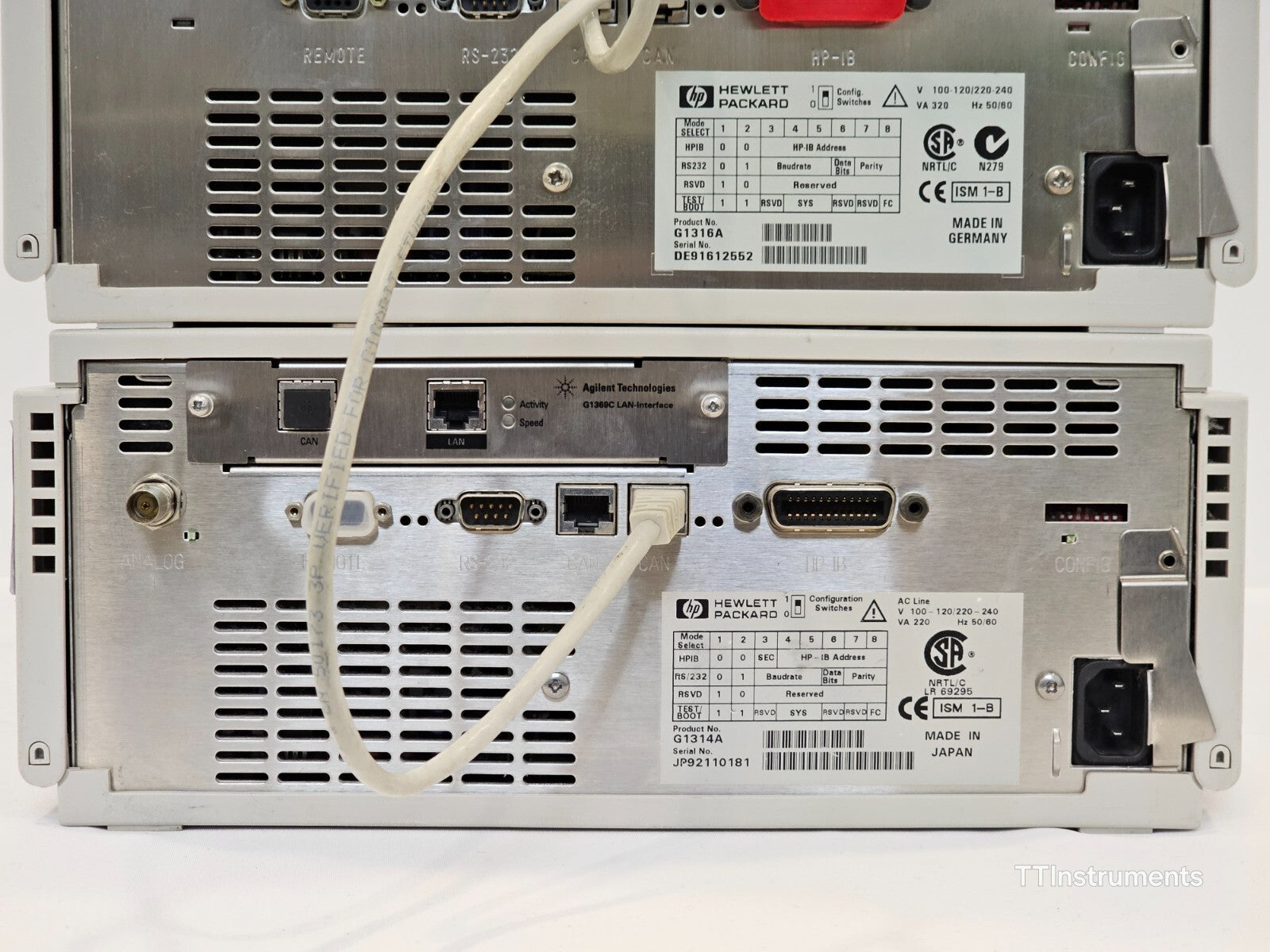

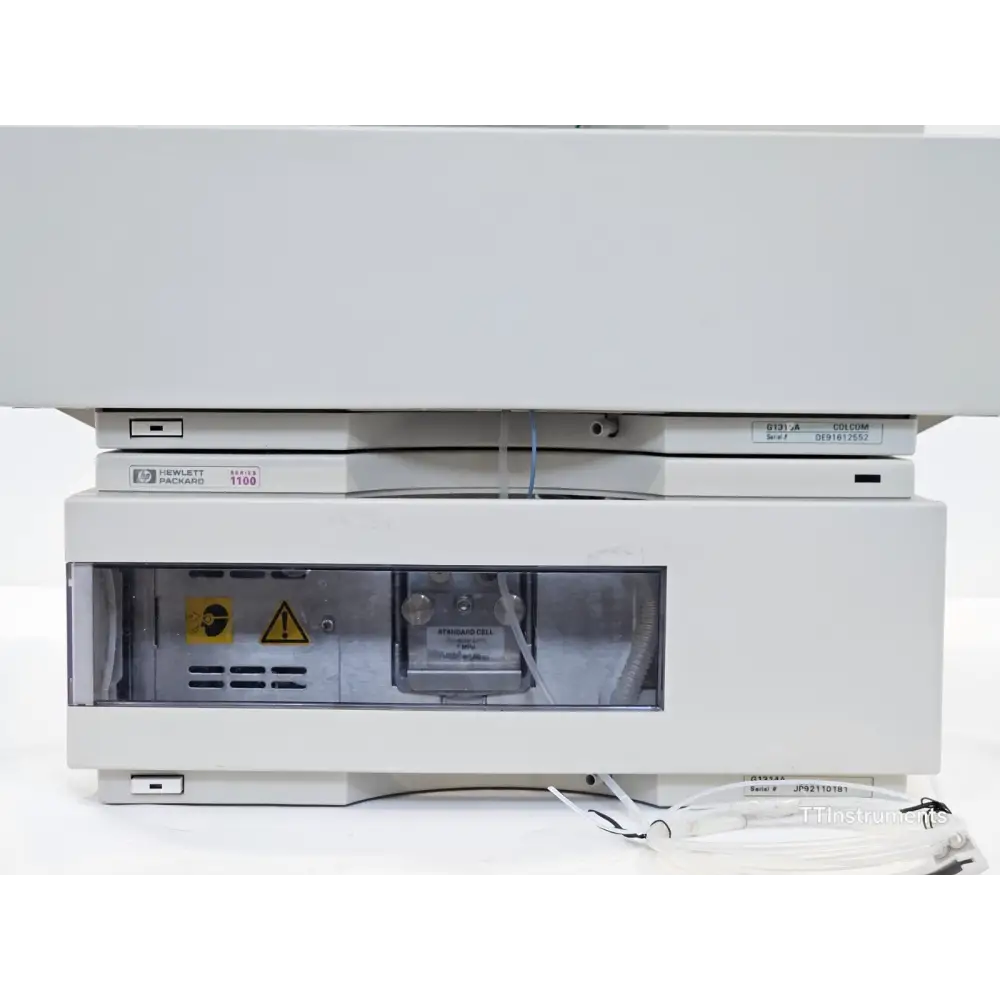

G1314A Variable Wavelength Detector (VWD):
Detection Type: Double-beam photometer
Light Source: Deuterium (D2) lamp
Wavelength Range: 190 to 600 nm
Wavelength Accuracy: ±1 nm
Typical Bandwidth: 6.5 nm
Drift: 3 × 10⁻⁴ AU/hr at 254 nm
Power Consumption: 220 VA
Weight: 11 kg
Dimensions (H × W × D): 140 × 345 × 435 mm
Features: Holmium oxide filter for automated wavelength verification (GLP compliance); Early Maintenance Feedback (EMF) system; CAN, GPIB, RS-232C, and APG Remote interfaces

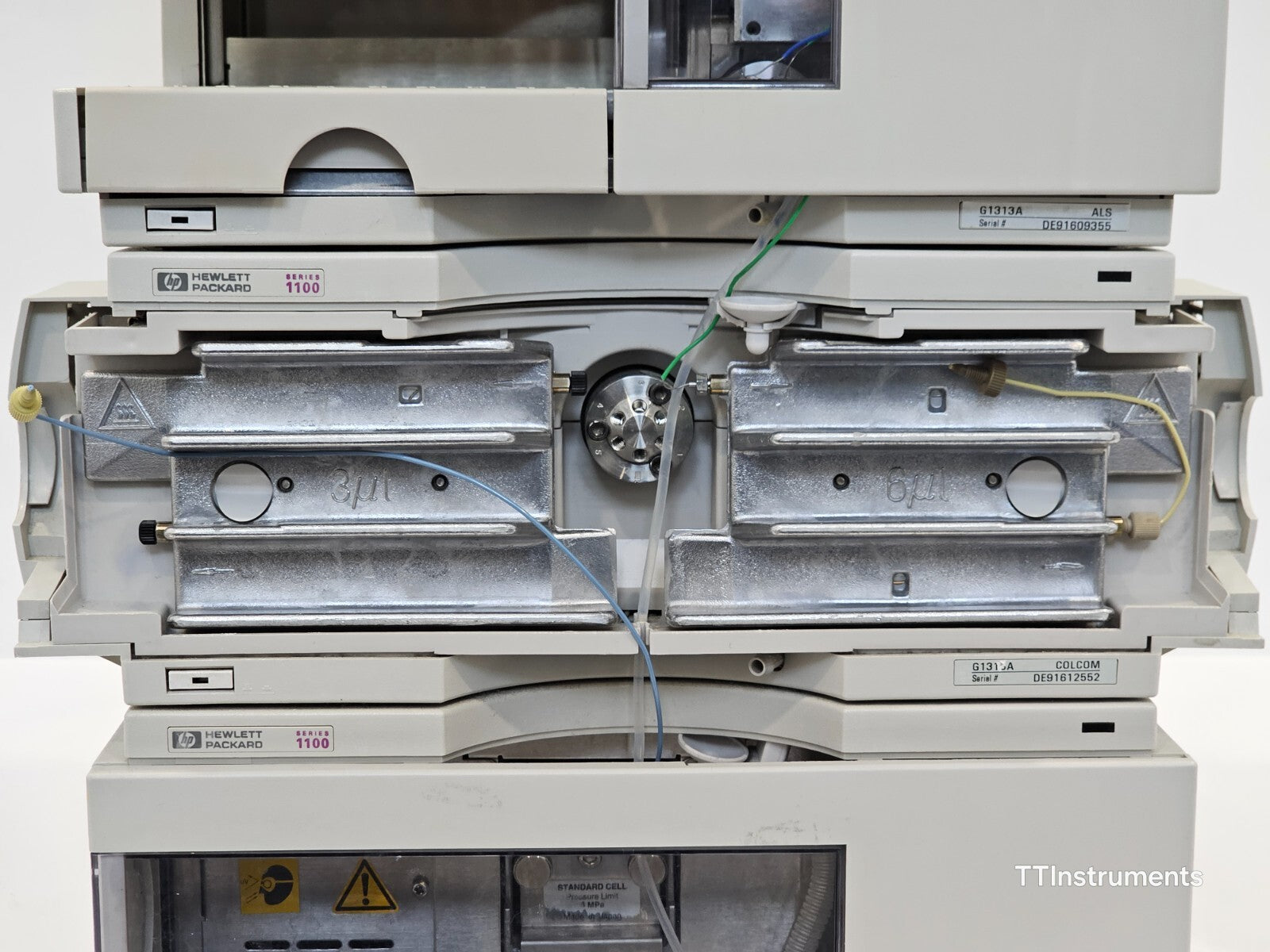

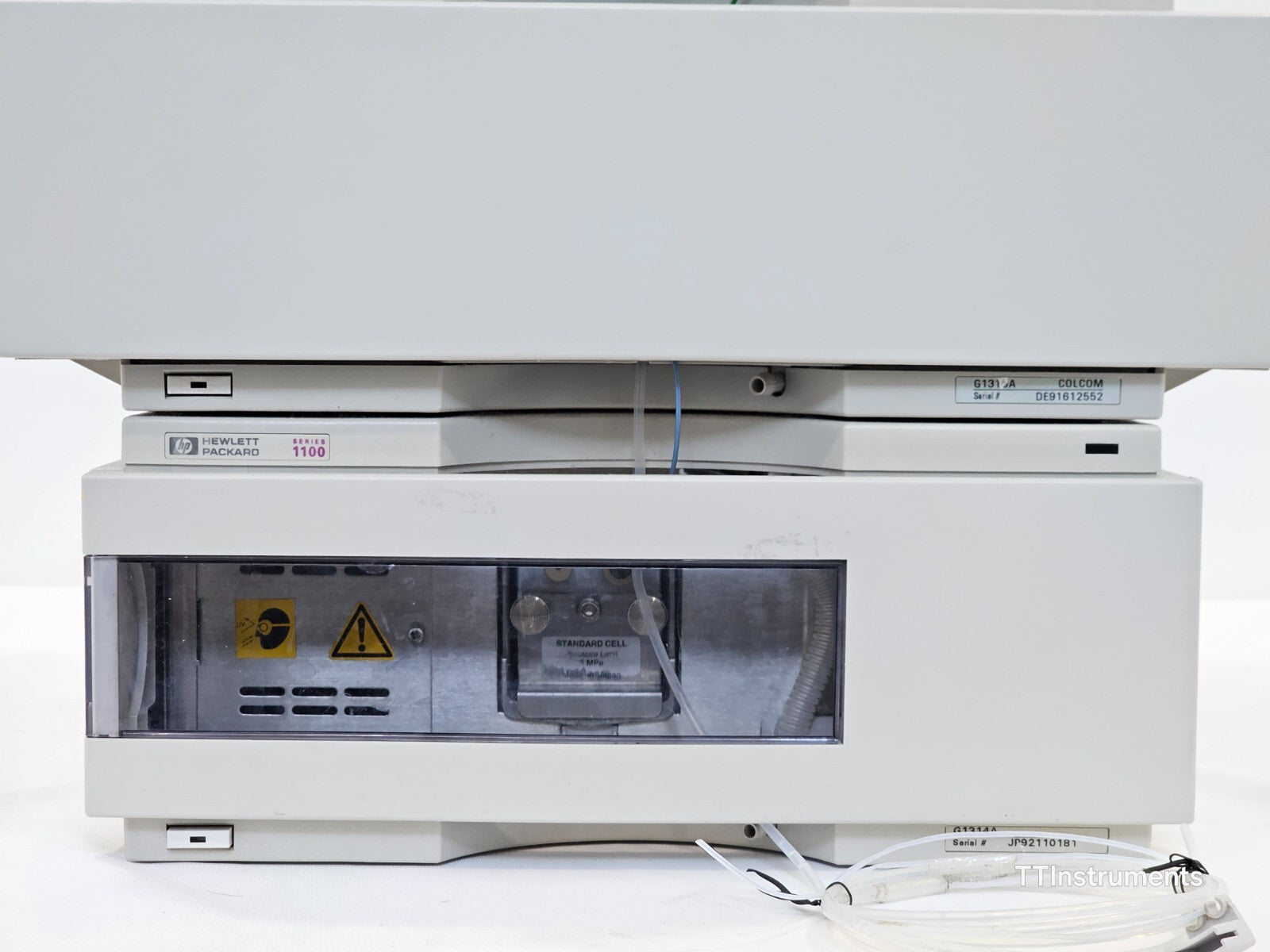

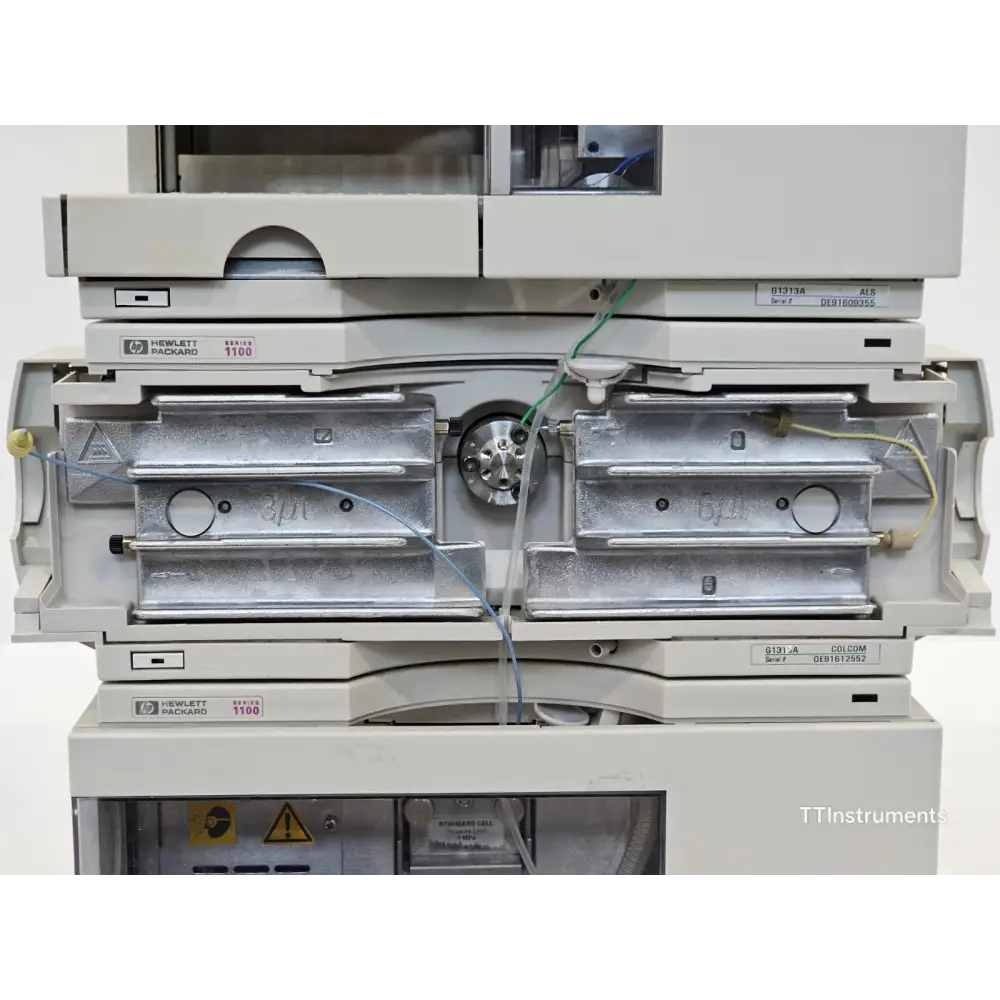

G1316A Thermostatted Column Compartment (TCC):
Temperature Range: 10°C below ambient to 80°C
Temperature Stability: ±0.15°C
Temperature Accuracy: ±0.8°C
Warm-up/Cool-down: Ambient to 40°C in approximately 5 minutes
Column Capacity: Up to three 30 cm columns
Power Consumption: 320 VA
Weight: 10.2 kg
Dimensions (H × W × D): 140 × 410 × 435 mm
Features: Two heat exchangers for solvent pre-heating; automated column identification module; CAN bus connectivity

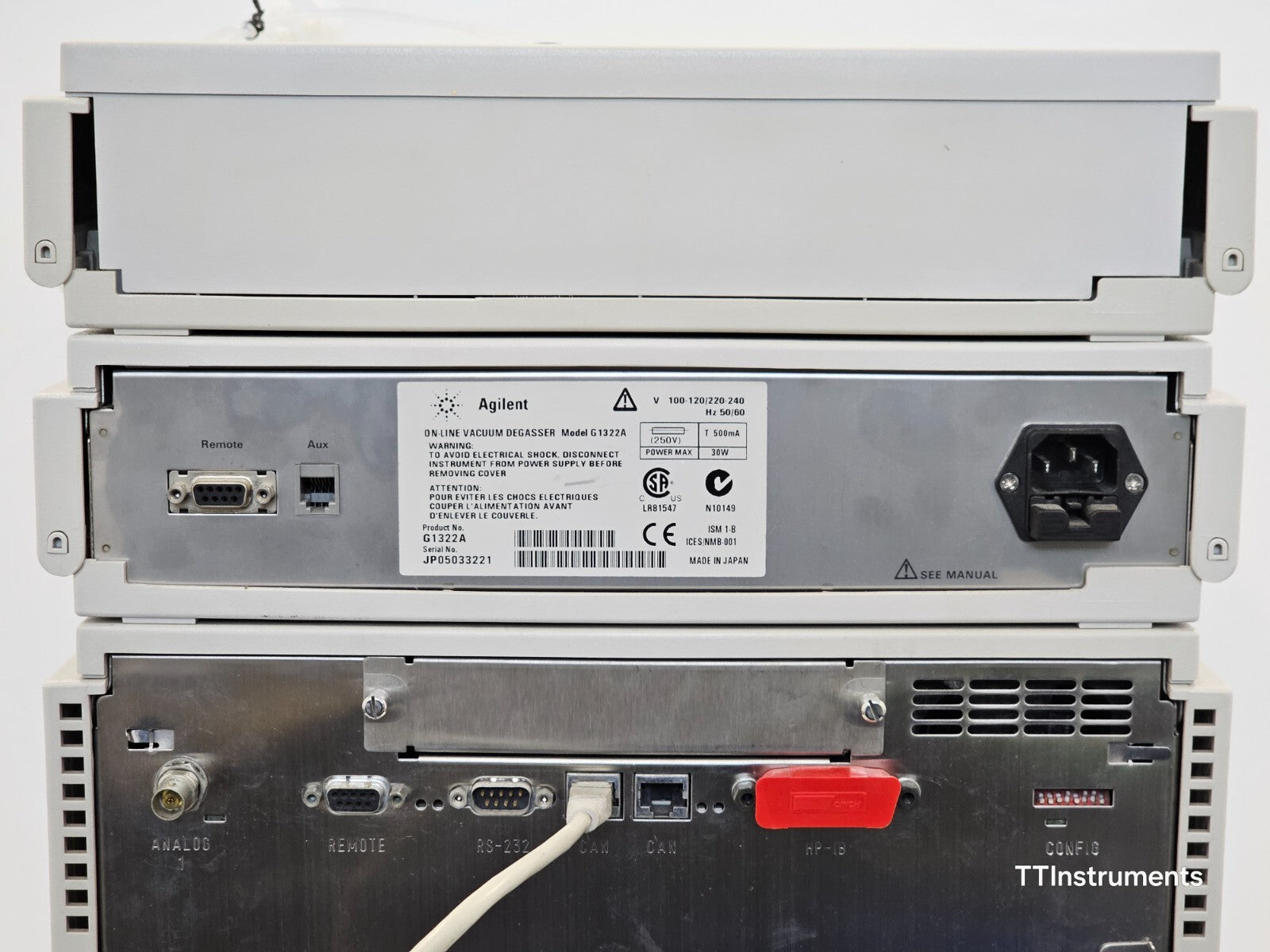

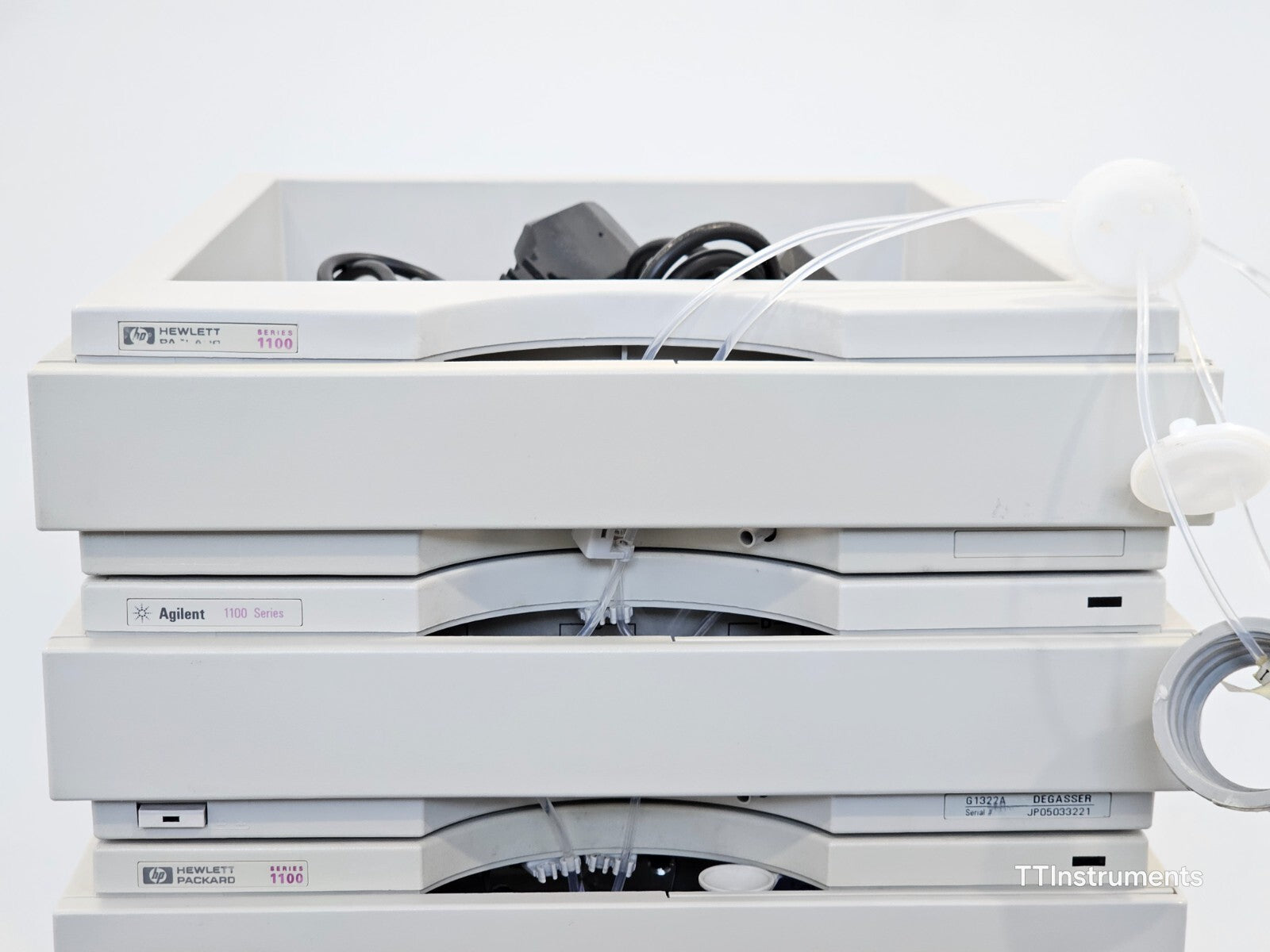

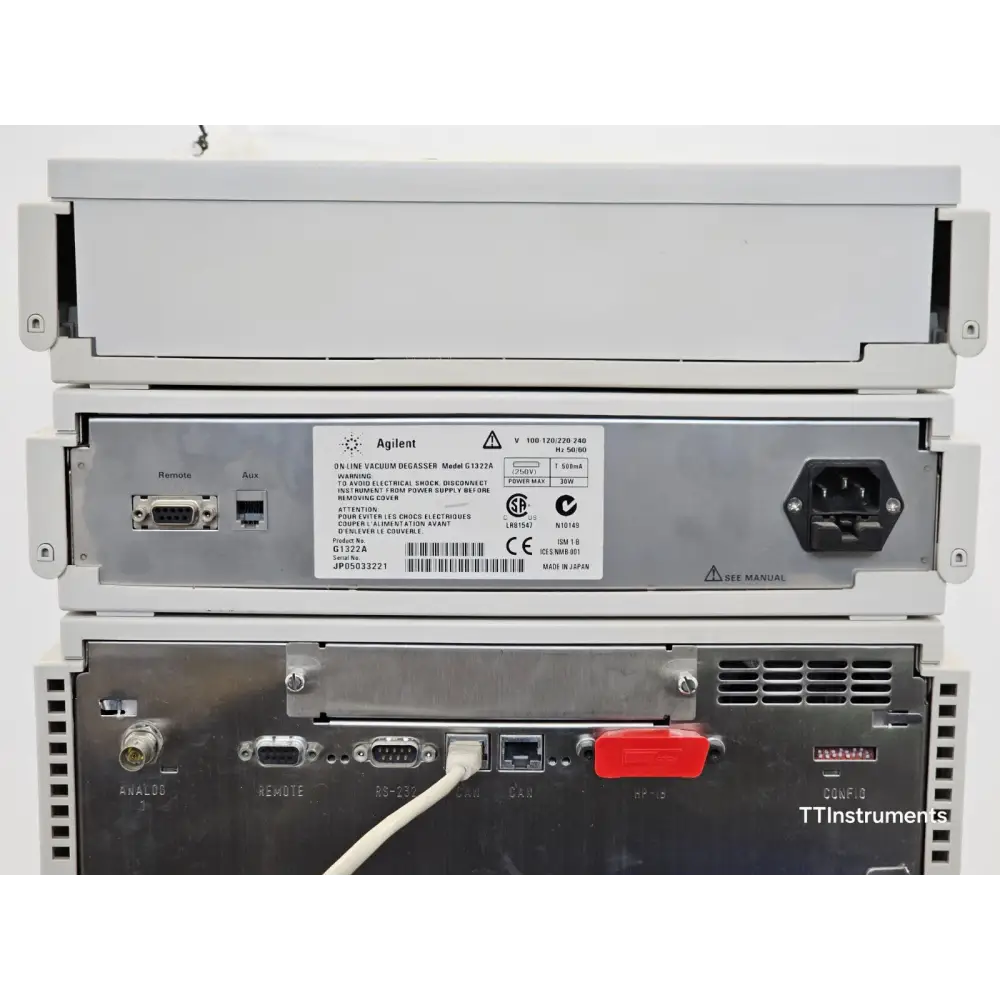

G1322A Vacuum Degasser:
Channels: 4
Internal Volume: 1 ml per channel
Max Flow Rate: 10 ml/min per channel (reduced performance above 5 ml/min)
Power Consumption: 30 VA
Weight: 7.5 kg
Dimensions (H × W × D): 80 × 345 × 435 mm
Features: Microstructured membrane technology; continuous autonomous degassing; no helium sparging required

System-Wide Specifications:
Power Supply: 100–120 VAC / 220–240 VAC, ±10%, wide-ranging (no voltage selector required)
Operating Temperature: 4°C to 55°C (constant)
Humidity: <95%, non-condensing

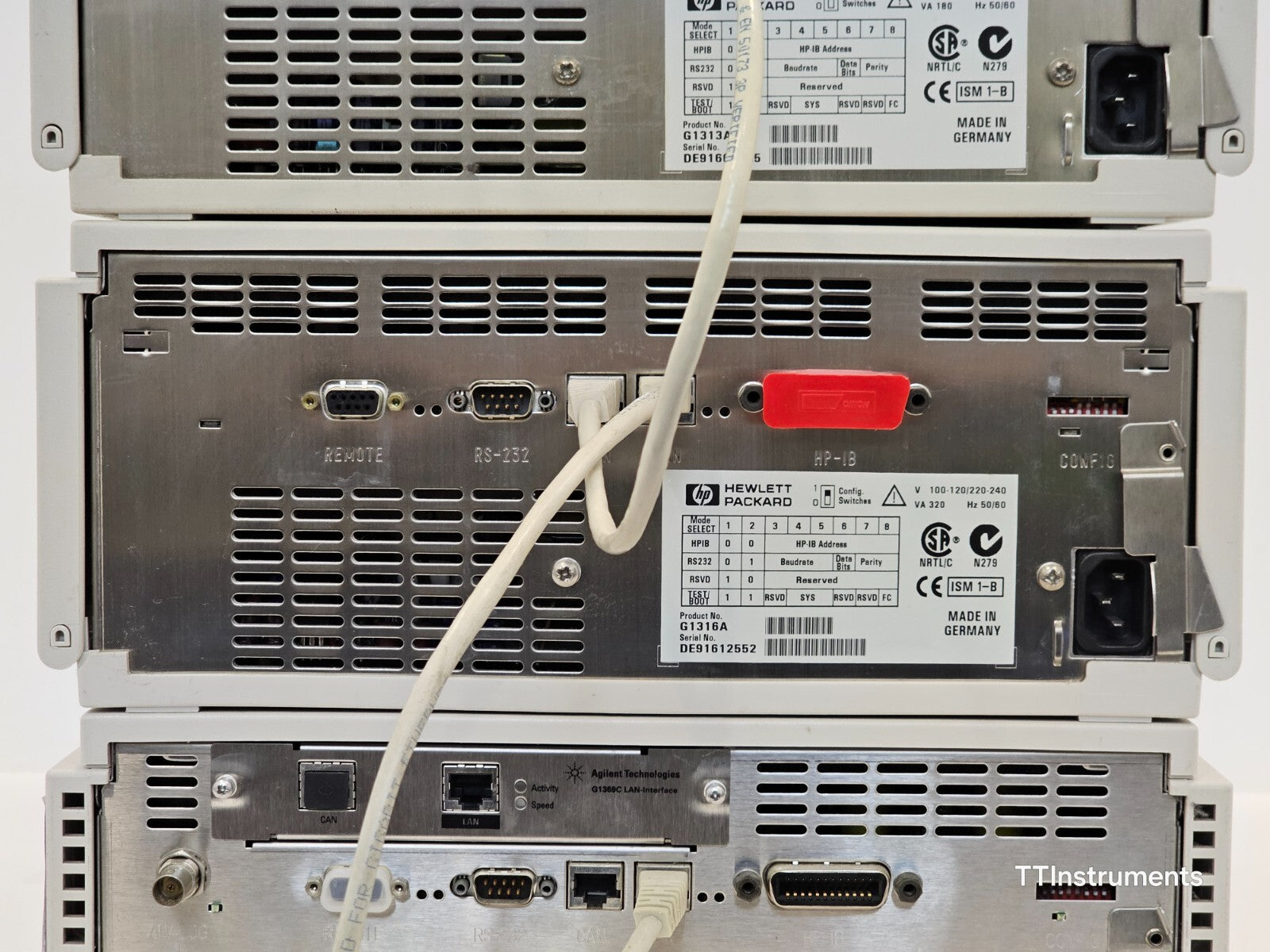

Interface: CAN bus (module-to-module); GPIB, RS-232C, APG Remote per module
Compatible Software: Agilent ChemStation

Key Applications:
Pharmaceutical QC and method development
Environmental monitoring and compliance testing
Food and beverage analysis
Chemical and petrochemical analysis
Academic and contract research laboratories

Agilent 1100 Series Binary Pump (G1312A) Reference Manual (PDF via Marshall Scientific): Download PDF

Agilent 1100 Series Variable Wavelength Detector (G1314A) Reference Manual (PDF via Marshall Scientific): Download PDF

Agilent 1100 Series Standard Autosamplers (G1313A) Reference Manual (PDF via Conquer Scientific): Download PDF

Agilent 1100 Series G1313A Autosampler Reference Manual (PDF via Richmond Scientific): Download PDF

Agilent 1100 Series Binary Pump (G1312A) Reference Manual (PDF via Spectralab Scientific): Download PDF

Agilent 1100 Series LC Site Preparation Specification (PDF via Agilent): Download PDF

Agilent 1100/1200 Series HPLC Troubleshooting and Maintenance Seminar (PDF via Agilent): Download PDF

Maintaining Your Agilent 1100 Series HPLC System — maintenance guide (PDF via SIS Web): Download PDF
