Viavi JDSU MTS 2000 + 4136 FMP2 1310/1550 & 1625 Filtered PON OTDR 46/45/44 dB

Condition: Refurbished — Very Good. Calibrated September 2024.

This is the Viavi MTS 2000 mainframe paired with the 4136 FMP2 single-mode OTDR module, offering tri-wavelength operation at 1310/1550 nm and filtered 1625 nm for live PON testing without disrupting traffic. Dynamic range is 46/45/44 dB across the three wavelengths, with an event dead zone of just 0.65 m and an attenuation dead zone of 2.5 m. Maximum range is 400 km, making it suitable for long-haul, metro, FTTH, and wireless backhaul applications. The unit supports FTTH testing up to 1x256 splitter ratios. The MTS 2000 mainframe features a touch screen, integrated power meter, talk set, and high-visibility screen.

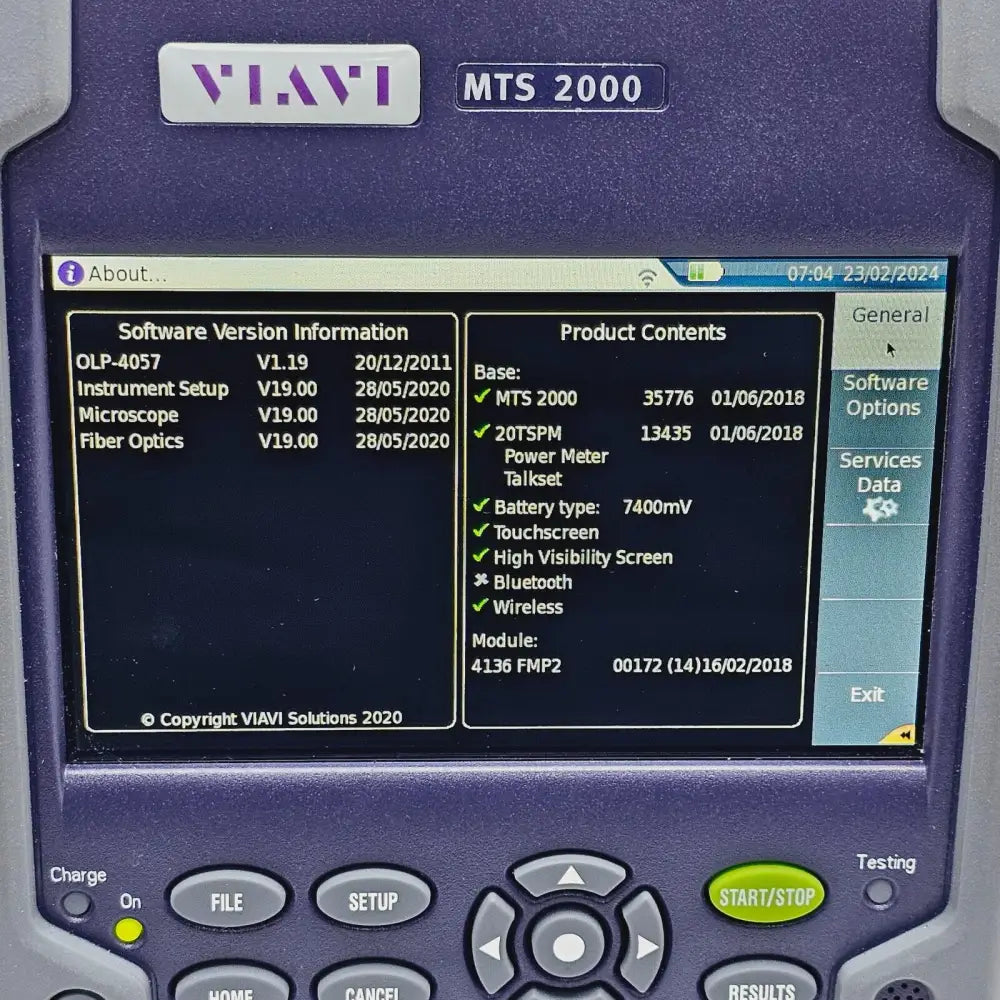

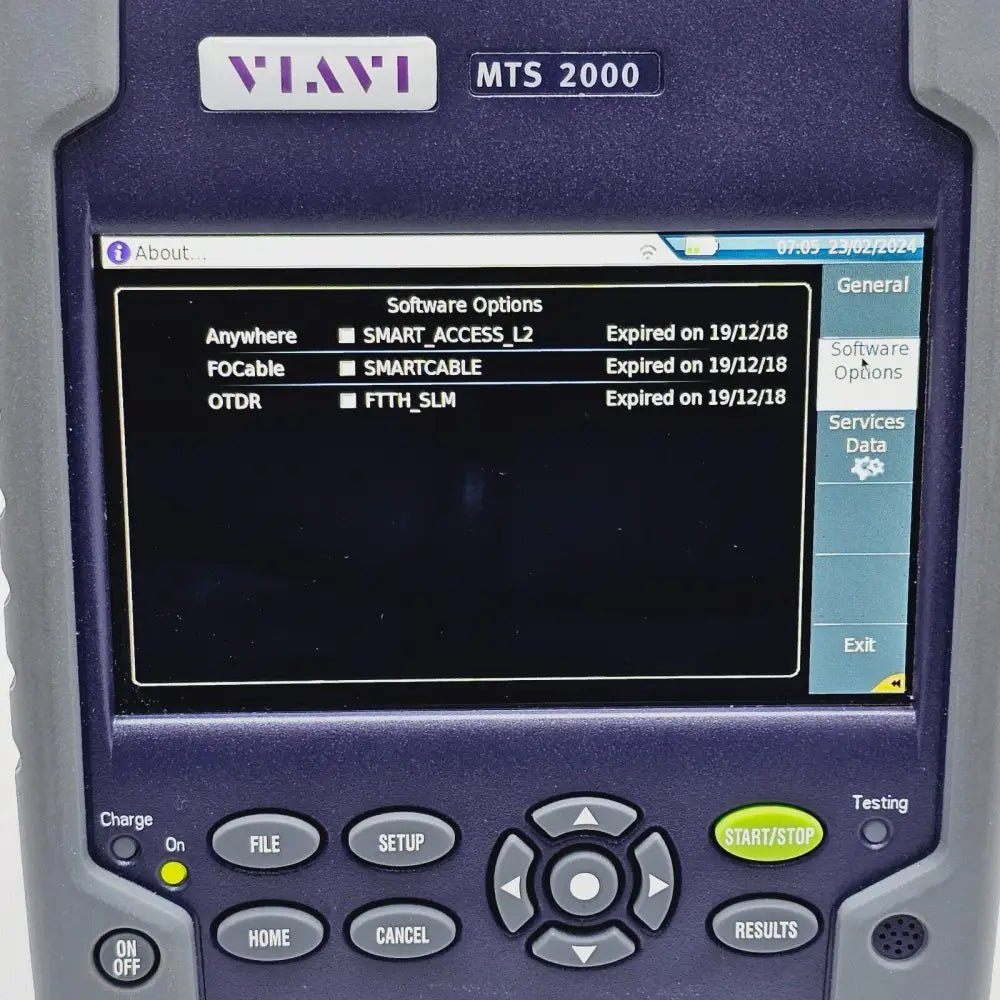

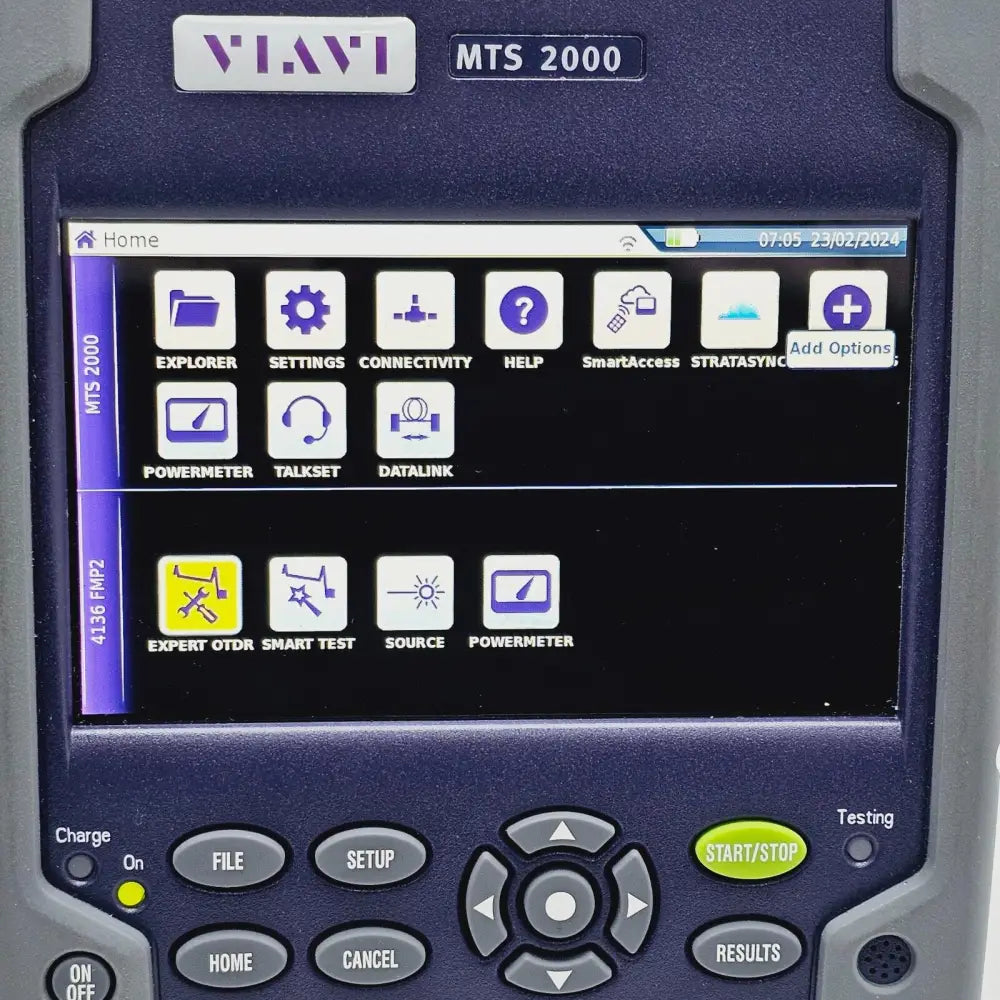

Software options active on this unit:
• EXPERT OTDR
• SMART TEST
• Source
• Power Meter

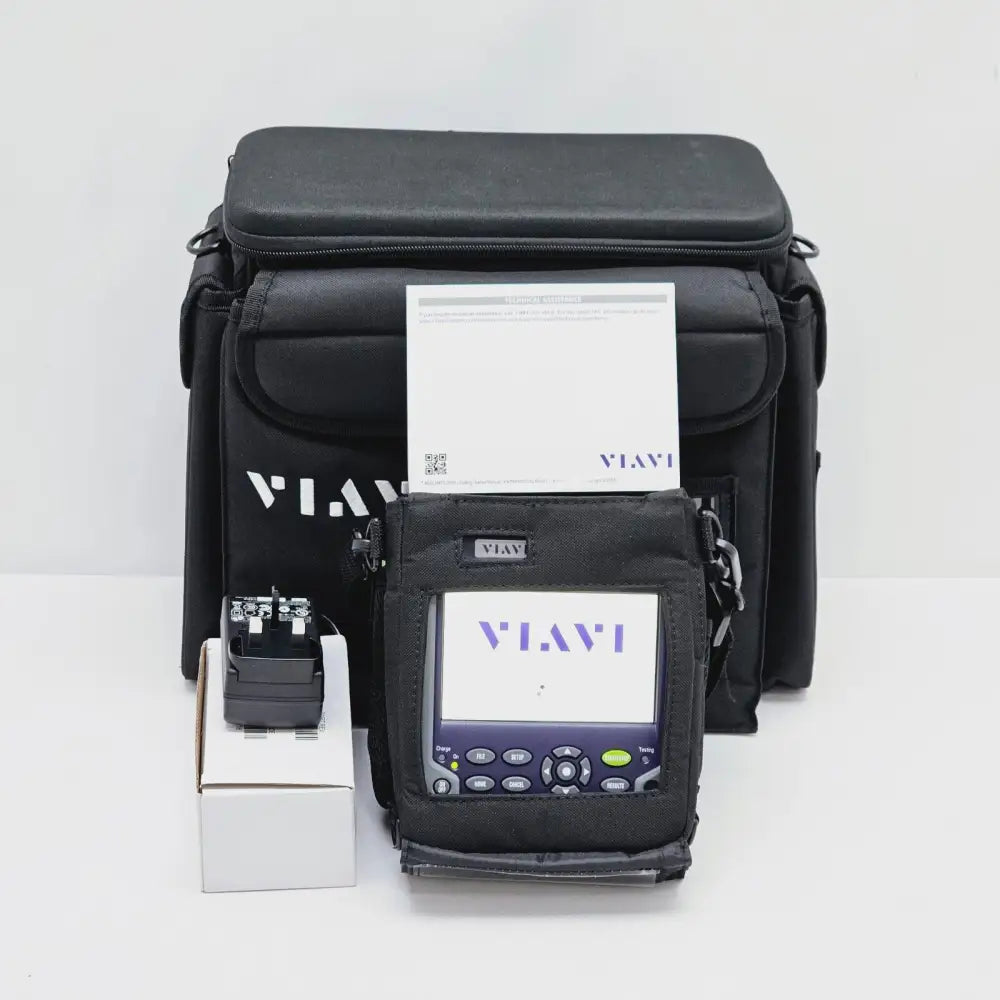

Included in the sale:

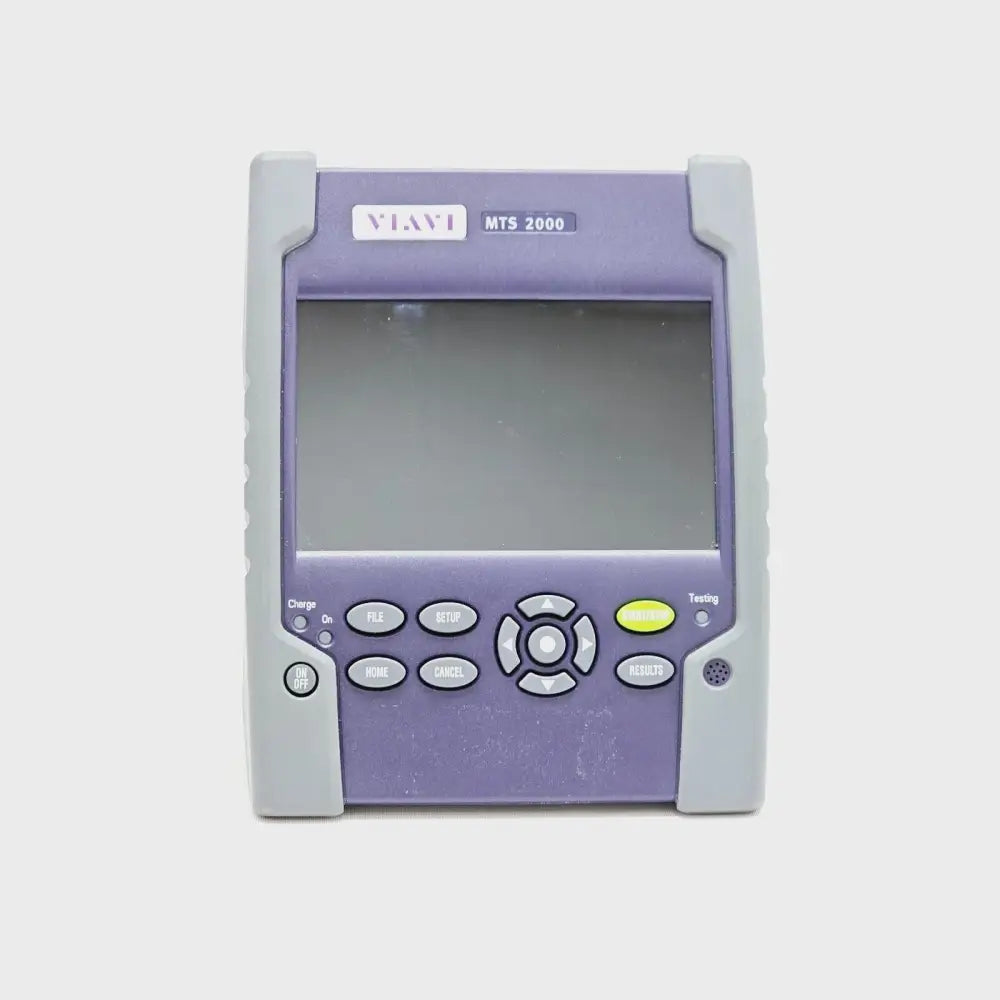

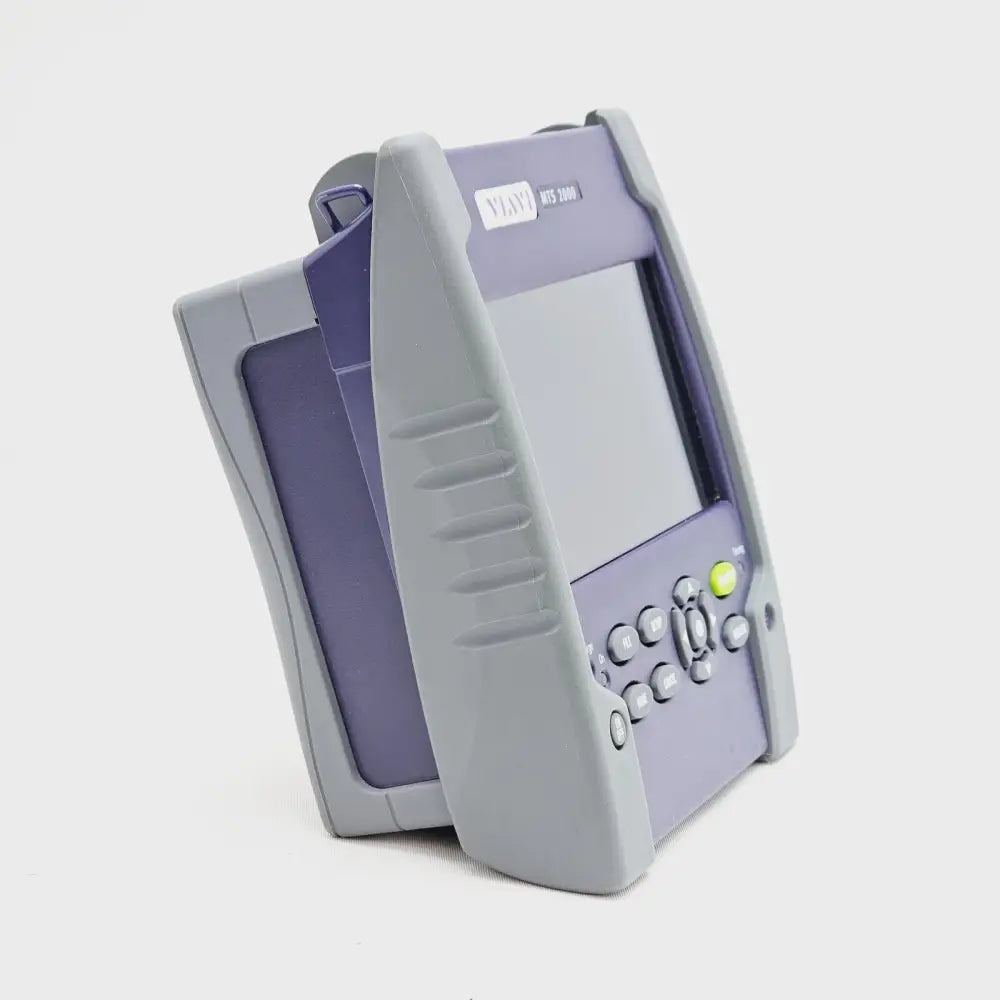

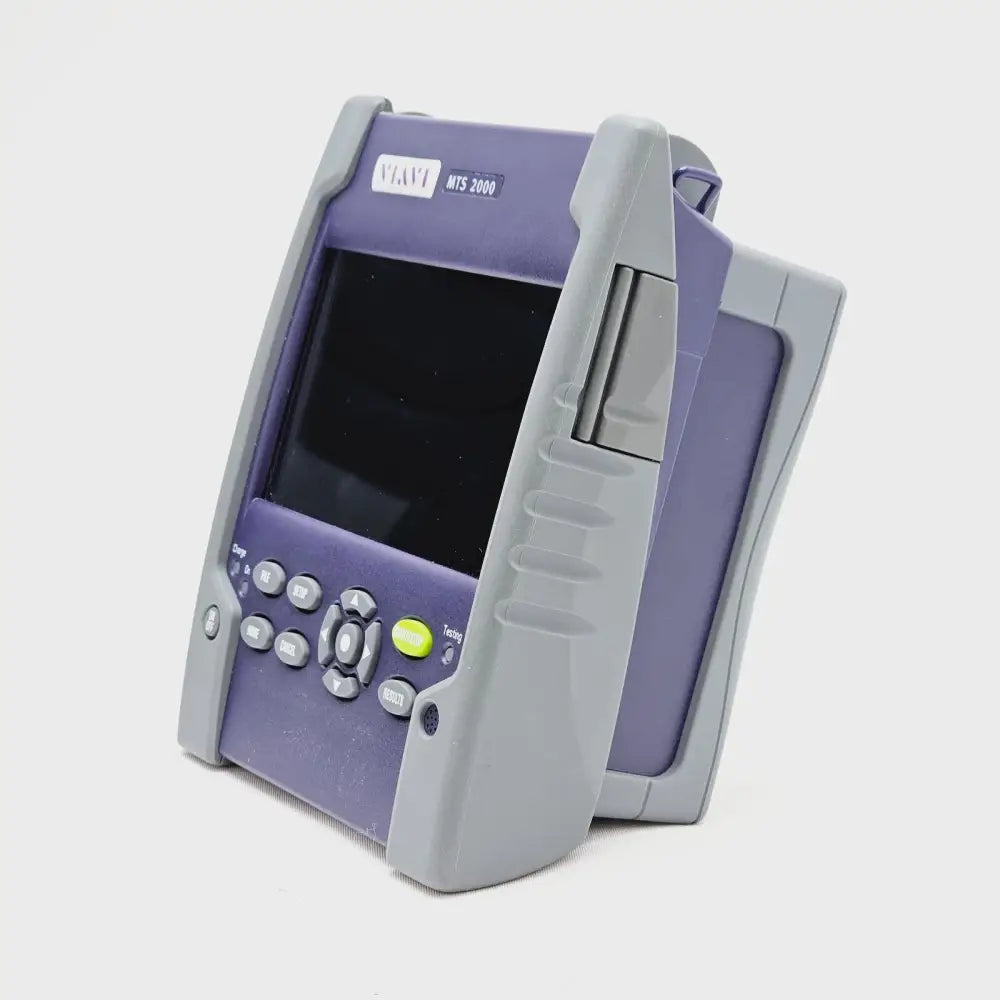

• Viavi MTS 2000 mainframe (Touch Screen, Power Meter, Wireless, High Visibility Screen, Talk Set)

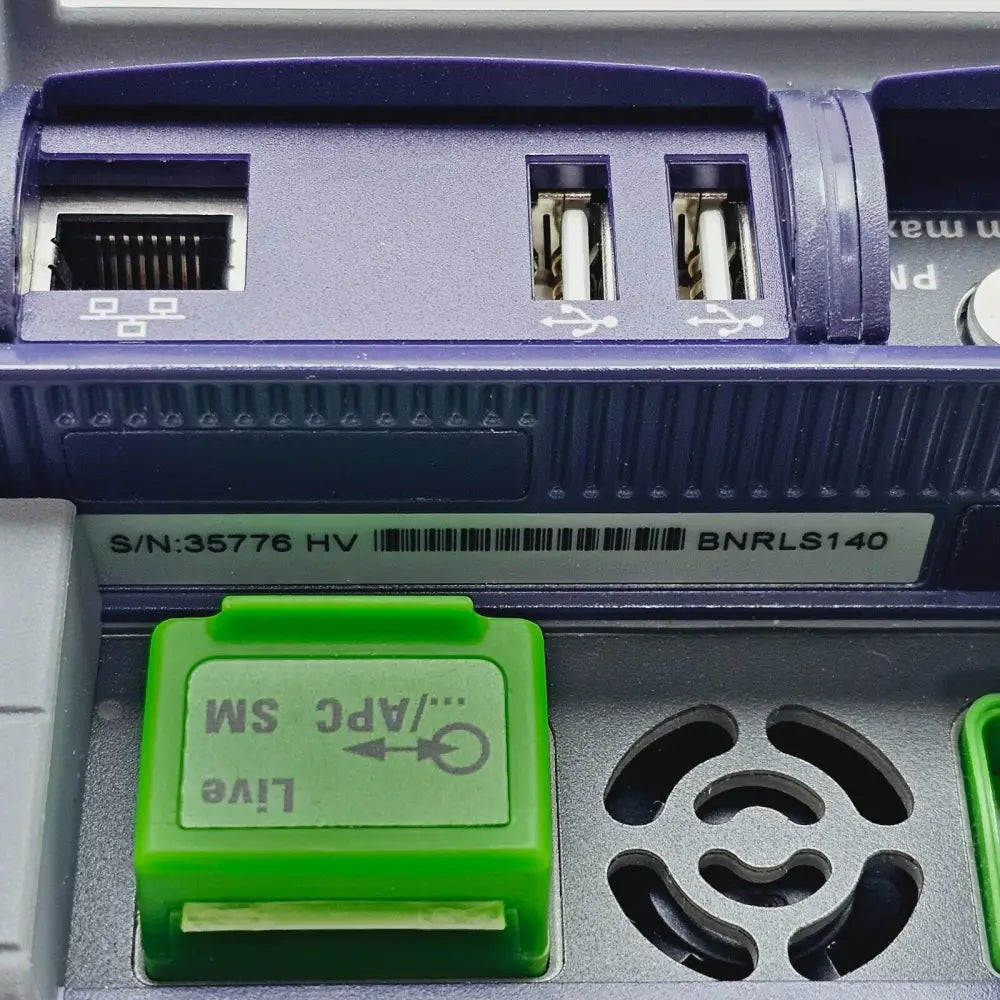

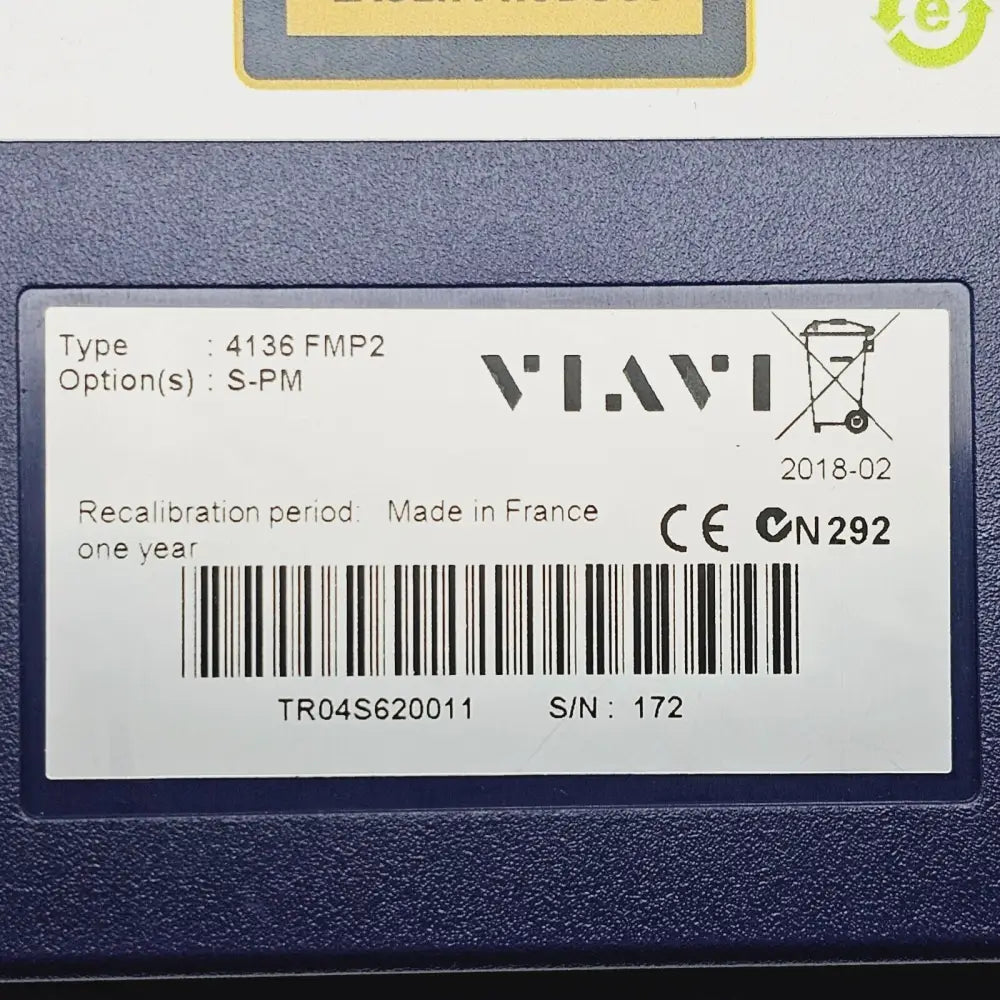

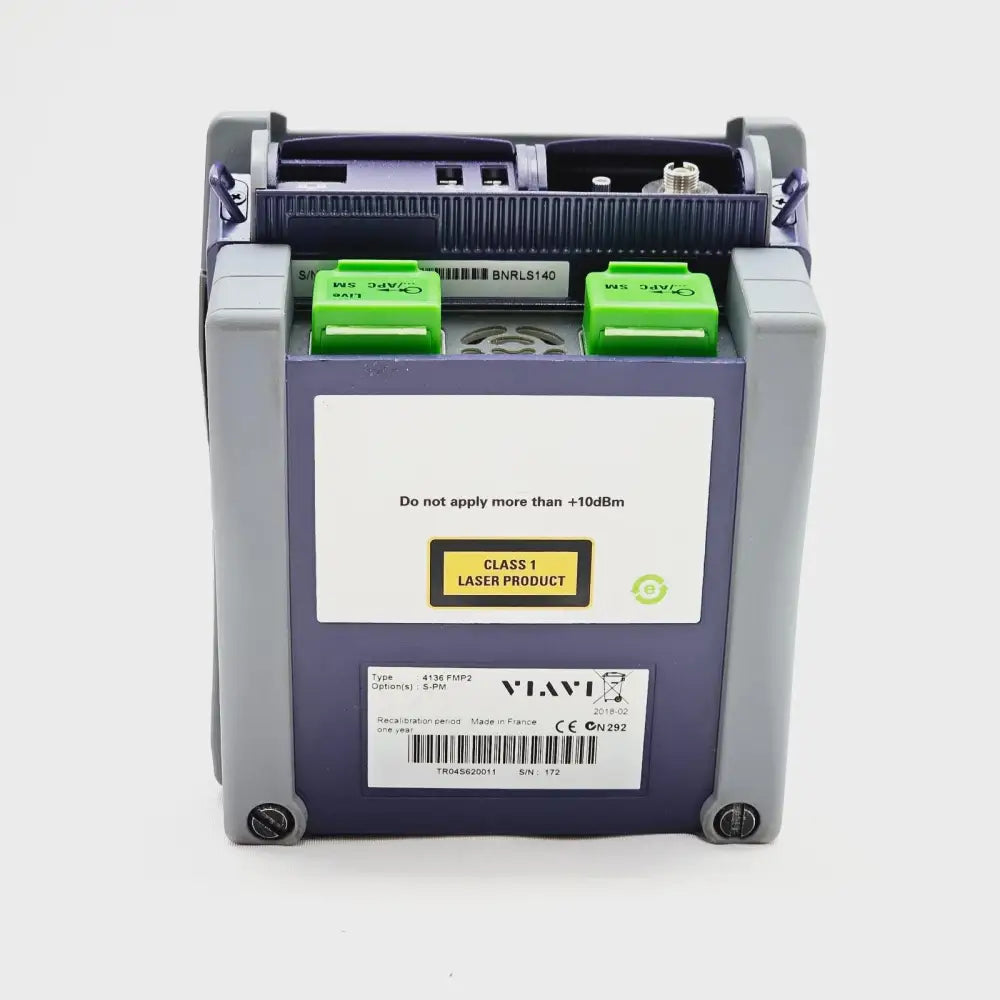

• Viavi 4136 FMP2 SM OTDR module (APC/SC dual port)

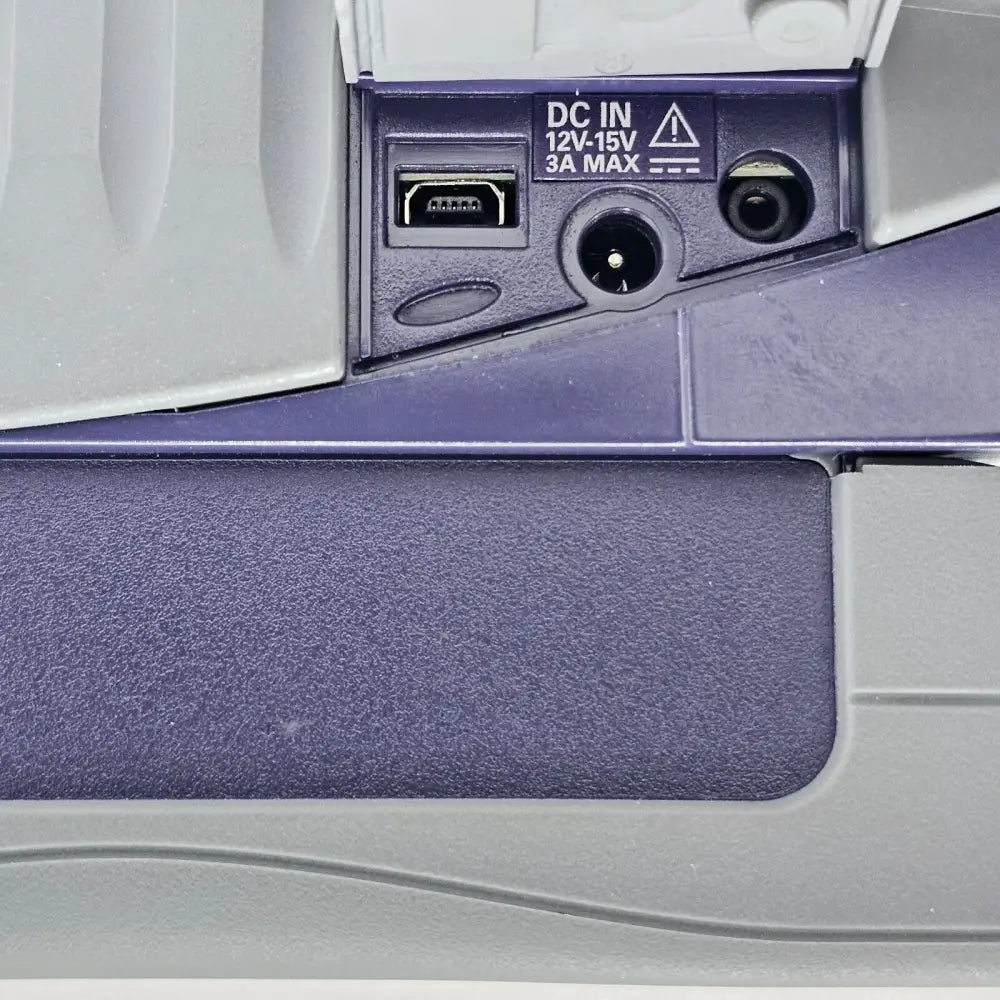

• AC power adapter
• Carry case
• Stylus

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

VIAVI T-BERD/MTS 4100-Series MP2 OTDR Modules — For T-BERD/MTS-2000, -4000 V2, and -5800 Platforms

The VIAVI MP2 OTDR modules provide the optimum performance that fibre installers and service providers need to install, turn-up, and maintain optical network architectures including long-haul, metro, PON/FTTH, and wireless backhaul. The module's optical performance, combined with the complete suite of T-BERD/MTS platform testing features, ensures that comprehensive testing is completed right the first time.

Key Benefits:
• Affordable high-performance OTDR for long-haul and metro high-speed fibre links
• Turns any technician into an instant fibre expert using the Smart Link Mapper (SLM) application
• Instantly detects live traffic when connected to in-service fibre
• Eliminates testing errors caused by incorrect setup with SmartTEST
• Characterises FTTH and Passive Optical LAN (POL) networks with high split counts up to 1x256

Key Features:
• Up to 46 dB dynamic range with up to 256,000 acquisition points
• Dual and tri-wavelength versions supporting 1310/1550/1625 nm or 1650 nm
• Integrated CW light source and optional power meter through the OTDR port
• Compatible with SLM and SmartAcq intelligent optical application software

Standard Testing Features:

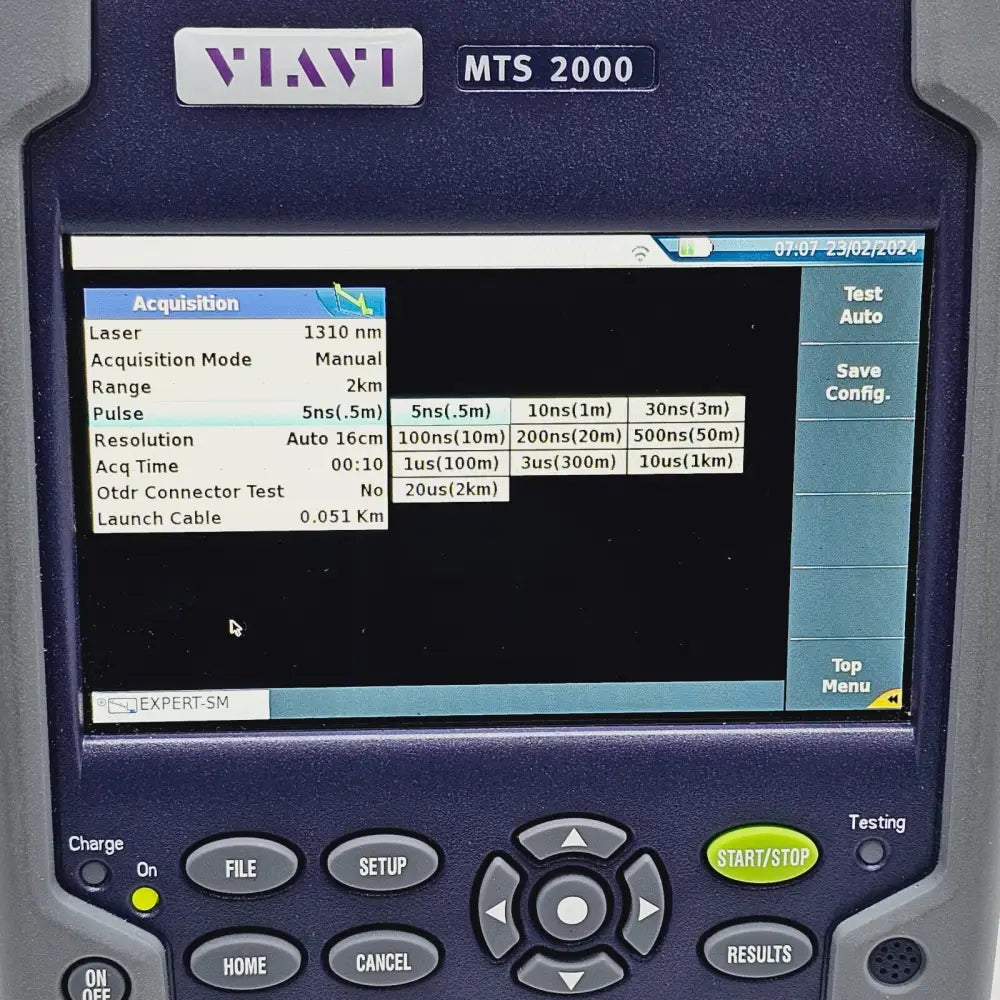

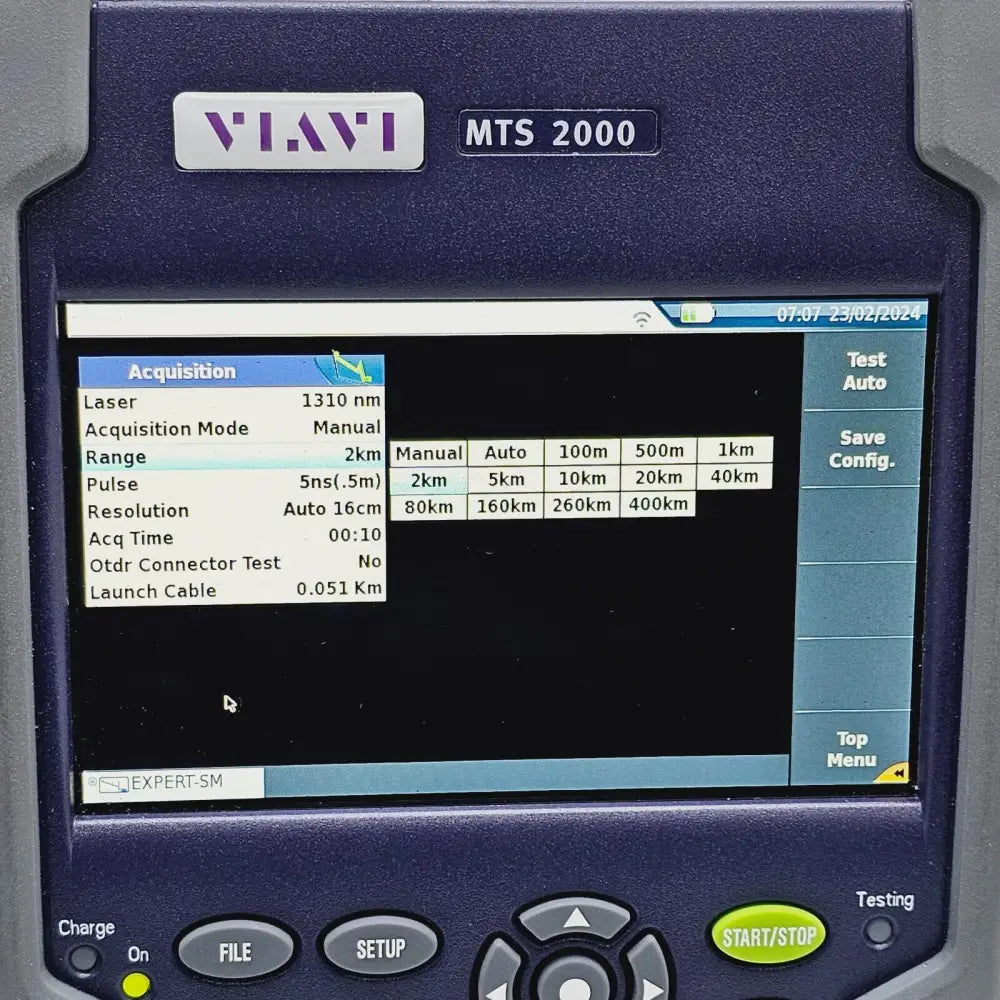

• Auto-setting of acquisition parameters
• Automatic macro-bend detection
• Summary results table with pass/fail analysis per international standards
• Comprehensive event diagnosis
• Bidirectional OTDR analysis
• FastReport onboard report generation

Specifications (4136 FMP2 Module):

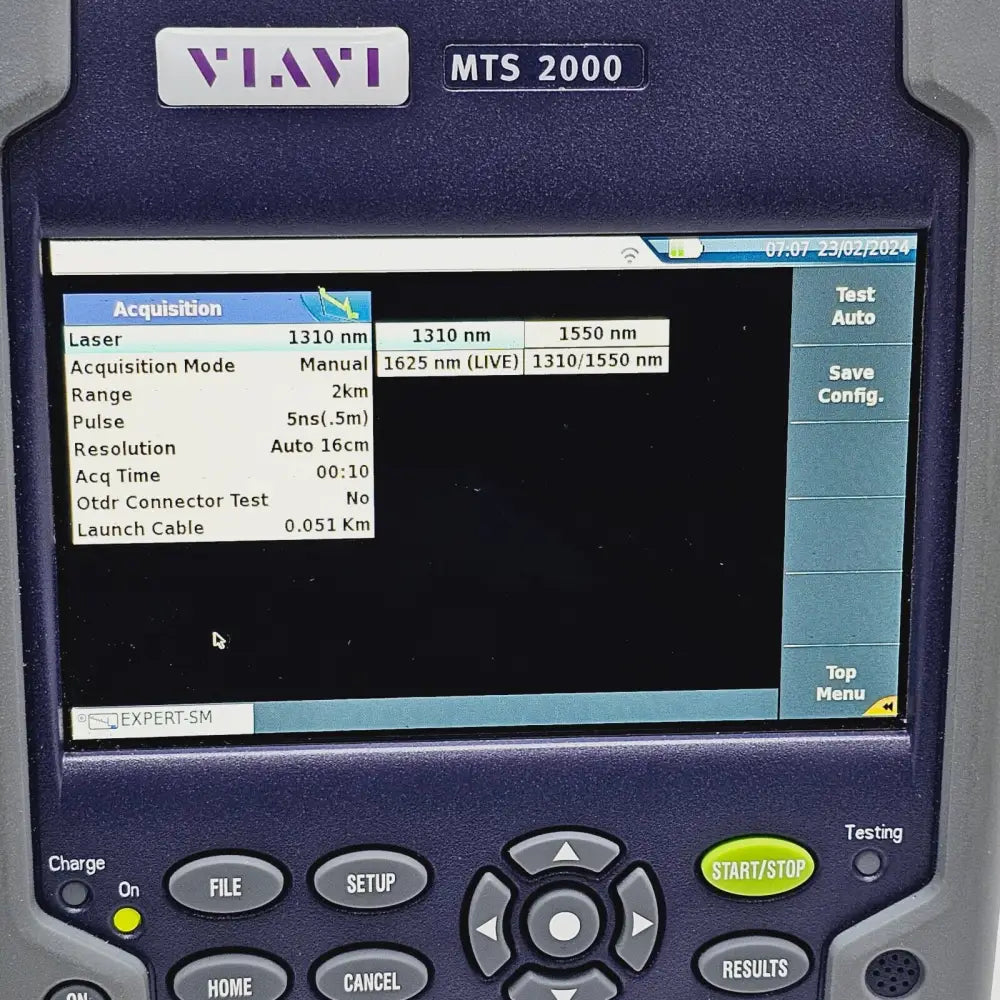

Wavelengths: 1310 nm / 1550 nm / 1625 nm (filtered PON)
Dynamic Range: 46 / 45 / 44 dB
Event Dead Zone: 0.65 m
Attenuation Dead Zone: 2.5 m
Maximum Range: 400 km

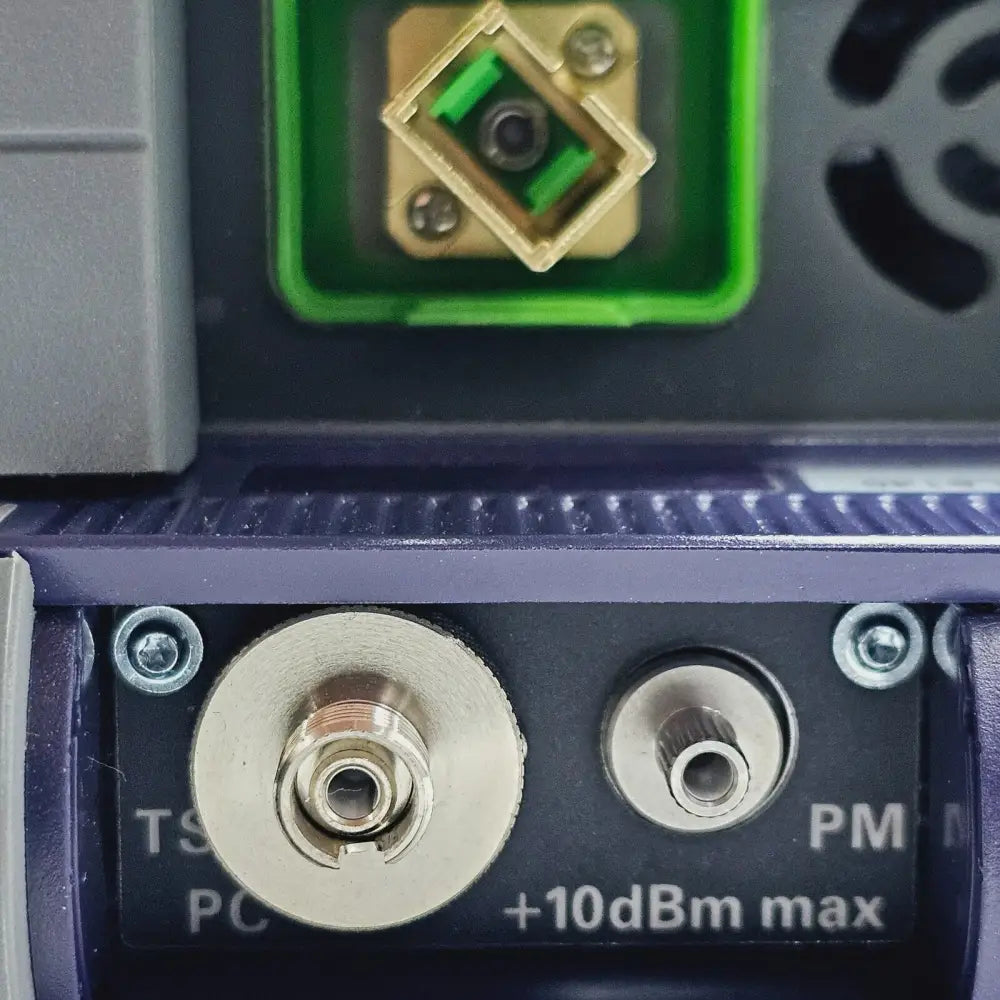

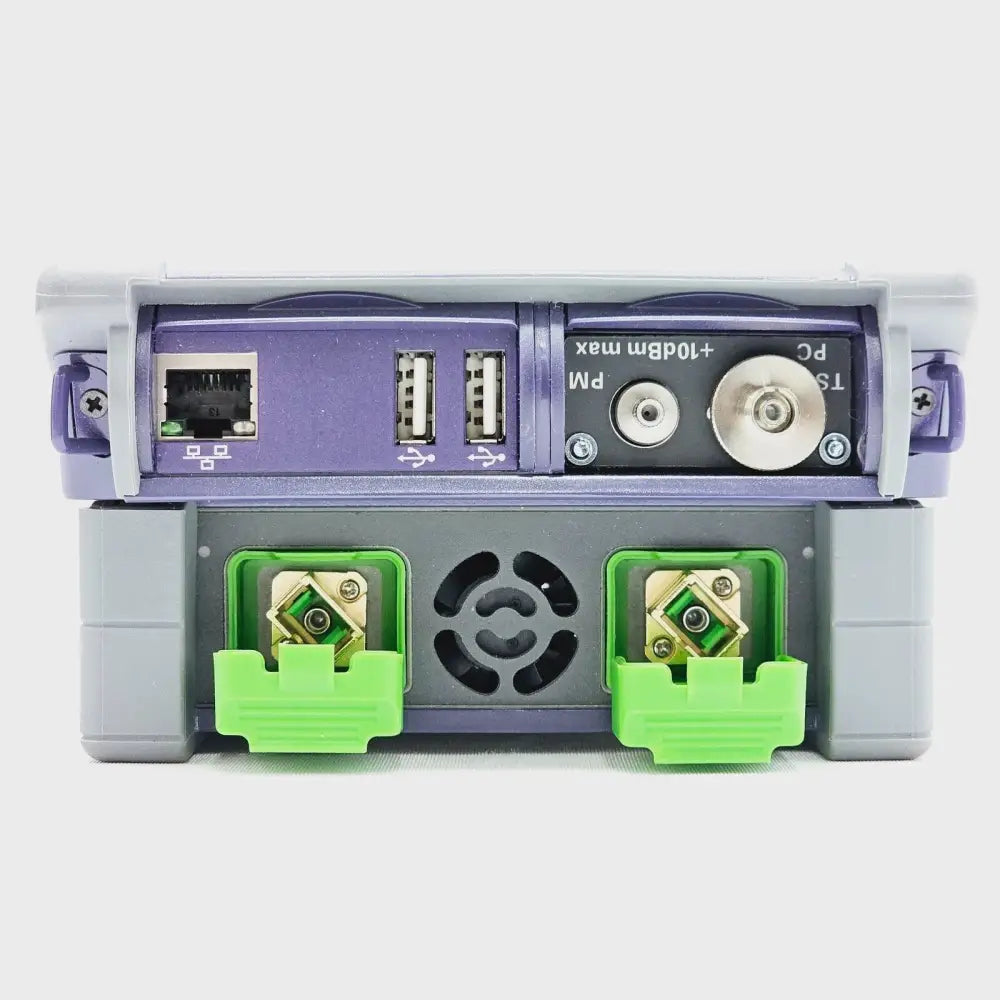

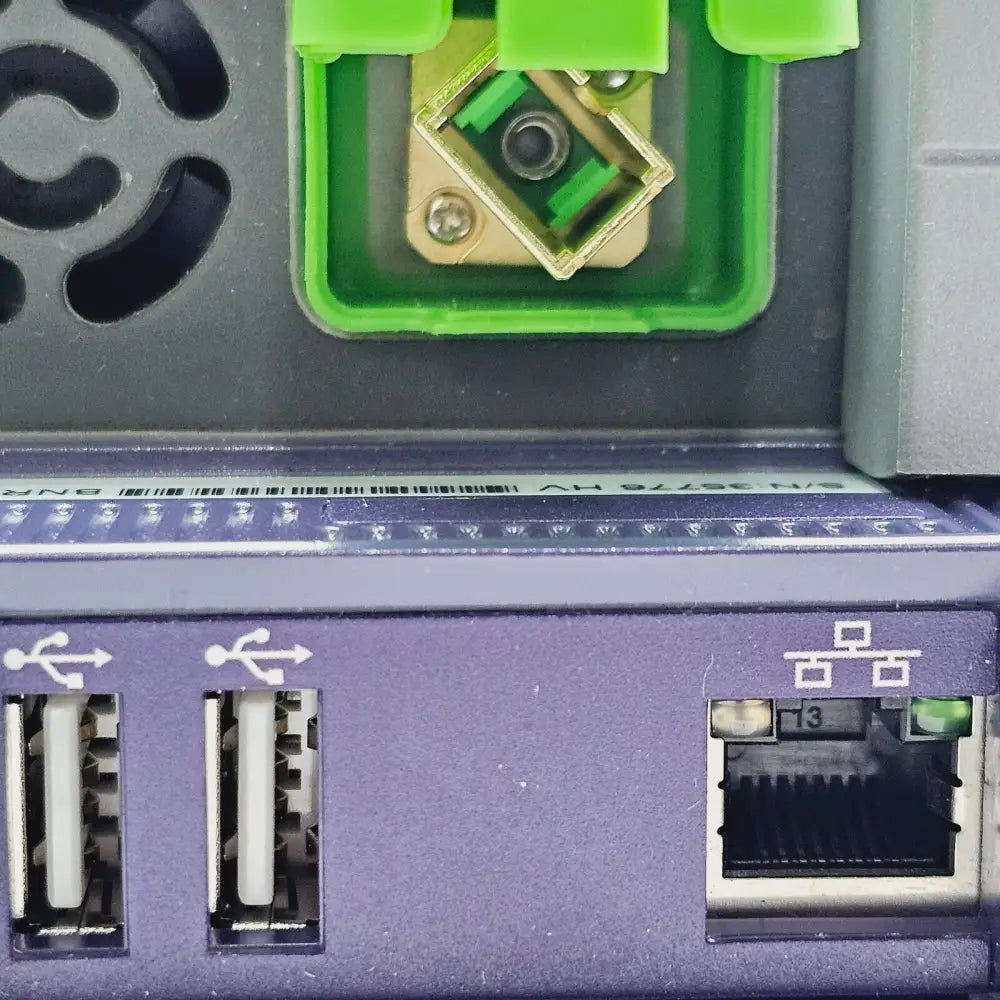

Connector Interface: APC/SC Dual Port
Network Types: Long-haul, Metro, PON/FTTH, Wireless Backhaul
Platform Compatibility: MTS-2000, MTS-4000 V2, MTS-5800

VIAVI MTS-2000 Platform Datasheet: Download PDF

VIAVI 4100 Series MP2 OTDR Module Datasheet: Download PDF
