Condition: Used

A used accessory kit of RF connectors and couplers intended for use with cable and antenna analysers. The kit provides essential inter-series adapter and coupler connectivity for RF field testing applications. Supplied as pictured.

Included items (as described):

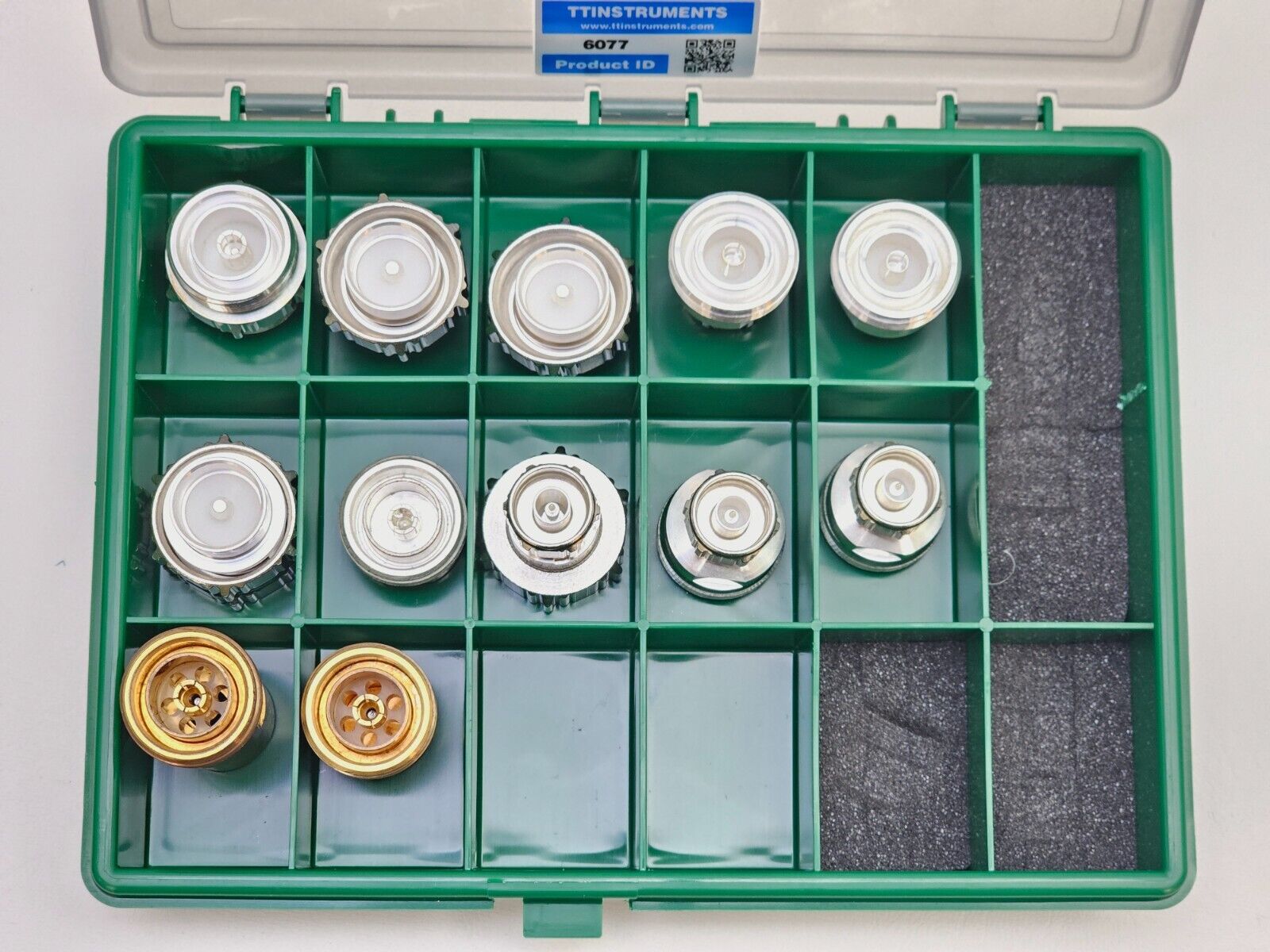

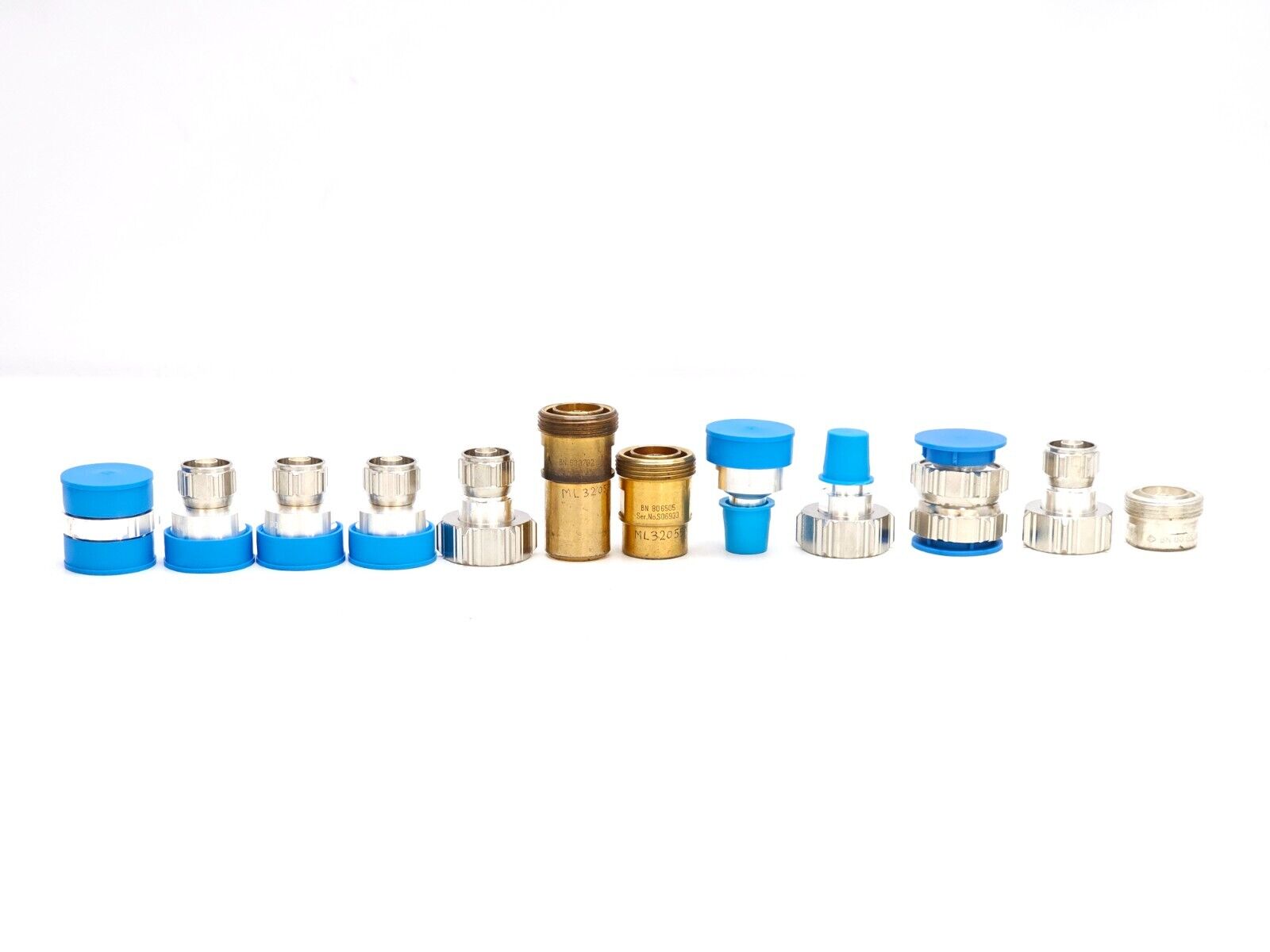

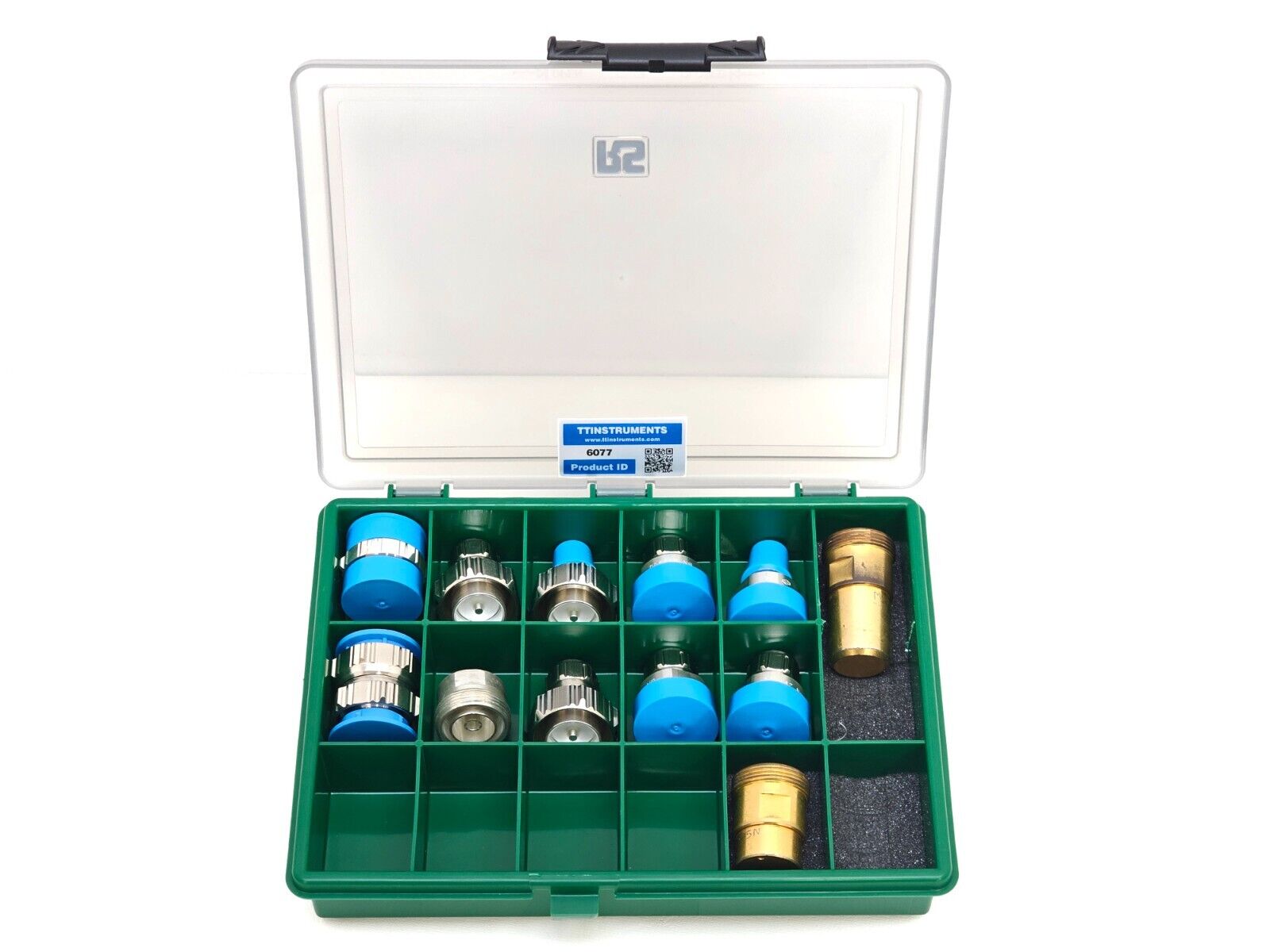

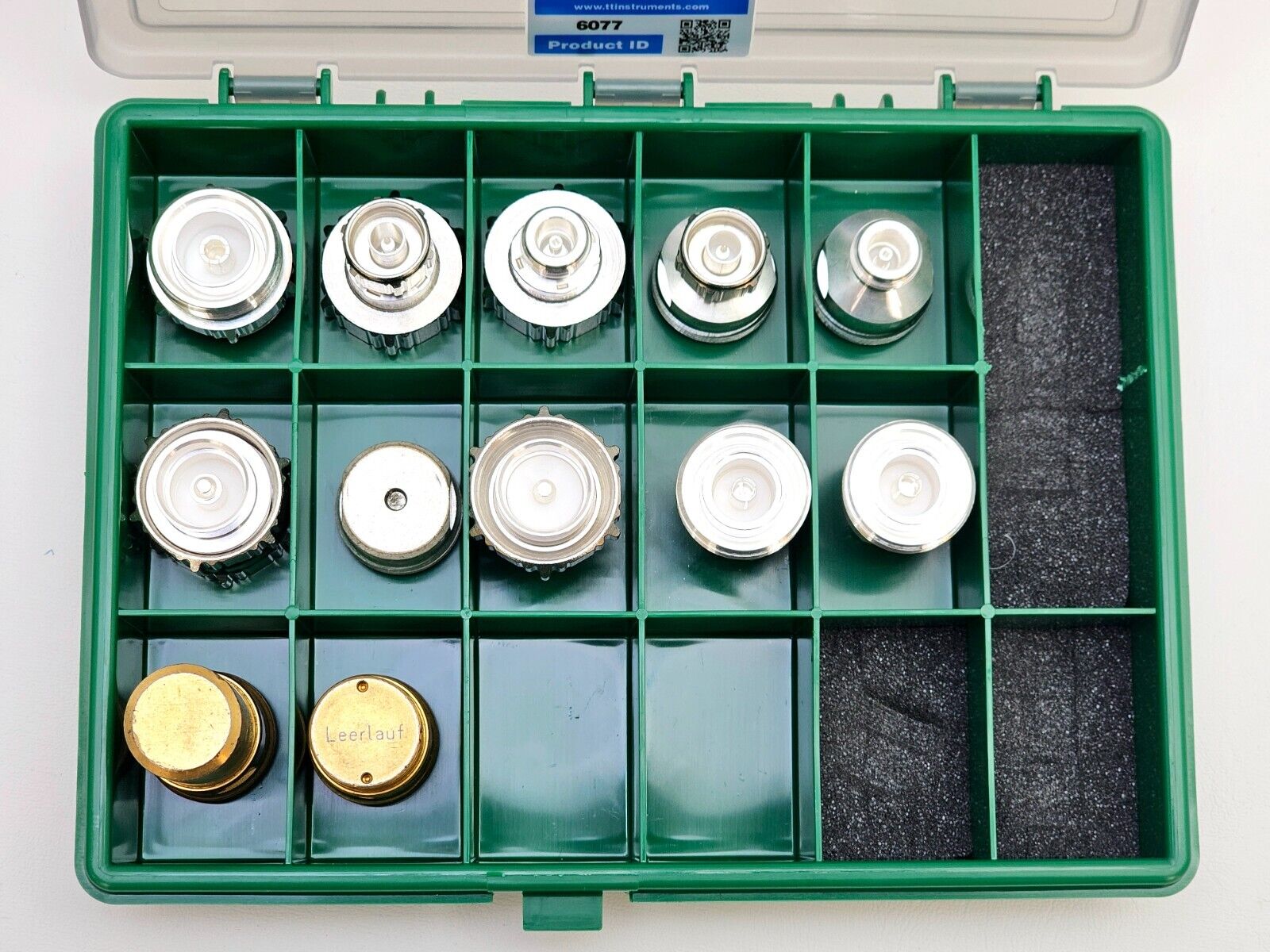

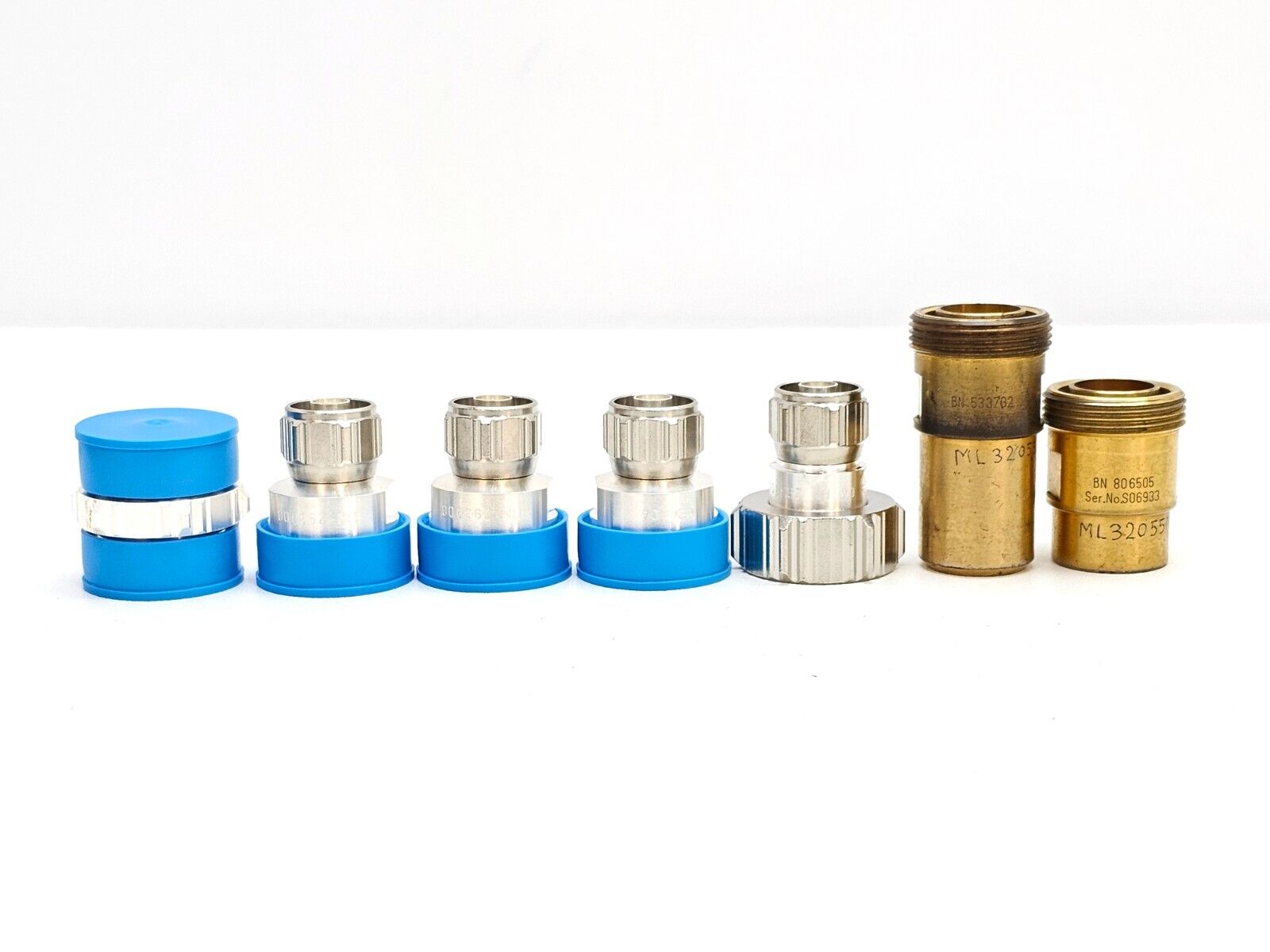

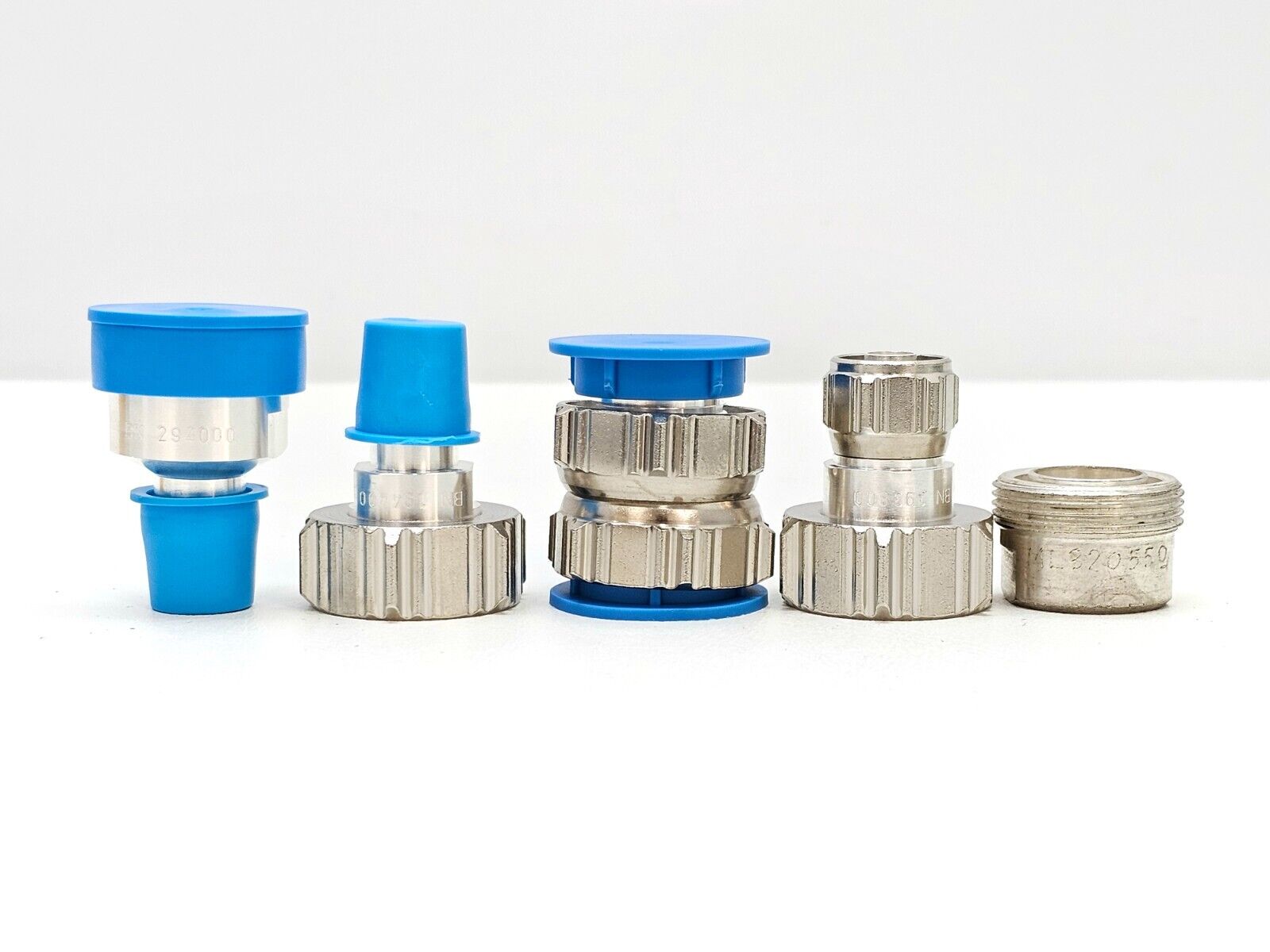

• Assorted RF connectors and couplers as pictured

Cable and antenna analyser accessory kits containing RF connectors and couplers are generic, multi-brand accessories widely used across the RF test and measurement industry. They are designed to extend the versatility of handheld cable and antenna analysers by enabling connections between incompatible coaxial connector types commonly encountered in the field.

Typical connector types covered in such kits include:
• Type N (male and female)
• BNC (male and female)
• TNC (male and female)
• SMA (male and female)
• UHF / PL-259 (male and female)

Couplers within the kit allow between-series and same-series barrel connections, enabling the analyser's output port to mate with virtually any antenna or feedline termination.

Key General Specifications (typical for this category):
Connector Impedance: 50 Ohms
Typical Frequency Range: DC to 18 GHz (connector-type dependent)
Insertion Loss (typical, N-type): 0.15 dB at 10 GHz
Insertion Loss (typical, SMA): 0.06 dB at 6 GHz
Insertion Loss (typical, BNC): 0.2 dB at 3 GHz
Mating Cycles: 500+ (standard RF connector rating)
Body Material: Nickel-plated or gold-plated brass (type dependent)
Contact Material: Beryllium copper (typical)
Applications: Cable and antenna system testing, VSWR measurement, return loss measurement, distance-to-fault (DTF) testing, cable loss measurement, RF field servicing
Compatible Instruments: Handheld cable and antenna analysers, network analysers, spectrum analysers, and other RF test equipment with standard coaxial ports

These kits are used by RF field engineers, telecom installation technicians, network maintenance crews, and test engineers working across cellular, public safety, land mobile radio, broadcast, and wireless infrastructure environments.

Please refer to the manufacturer website for full specifications if the specific brand and part number are required.
