Condition: Used

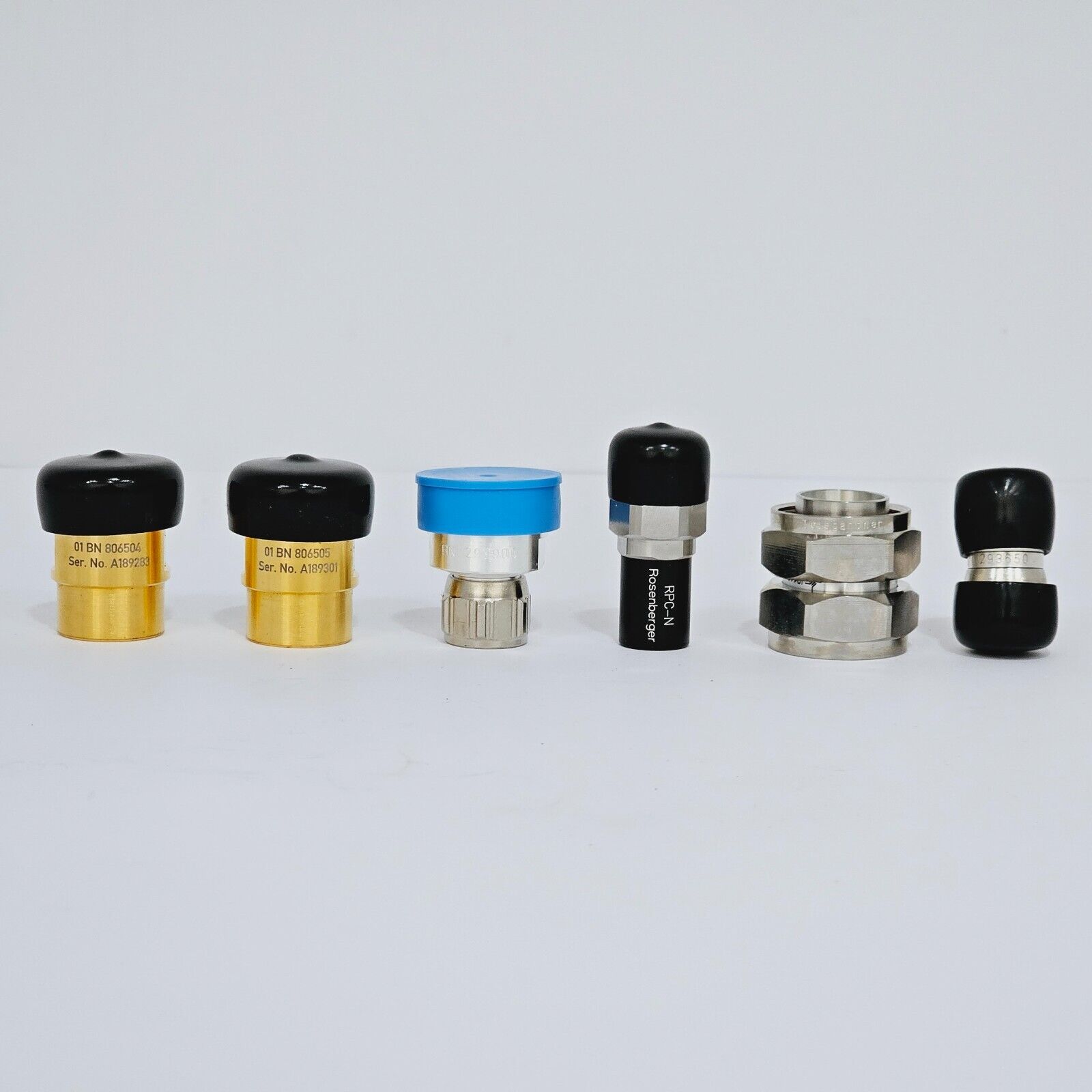

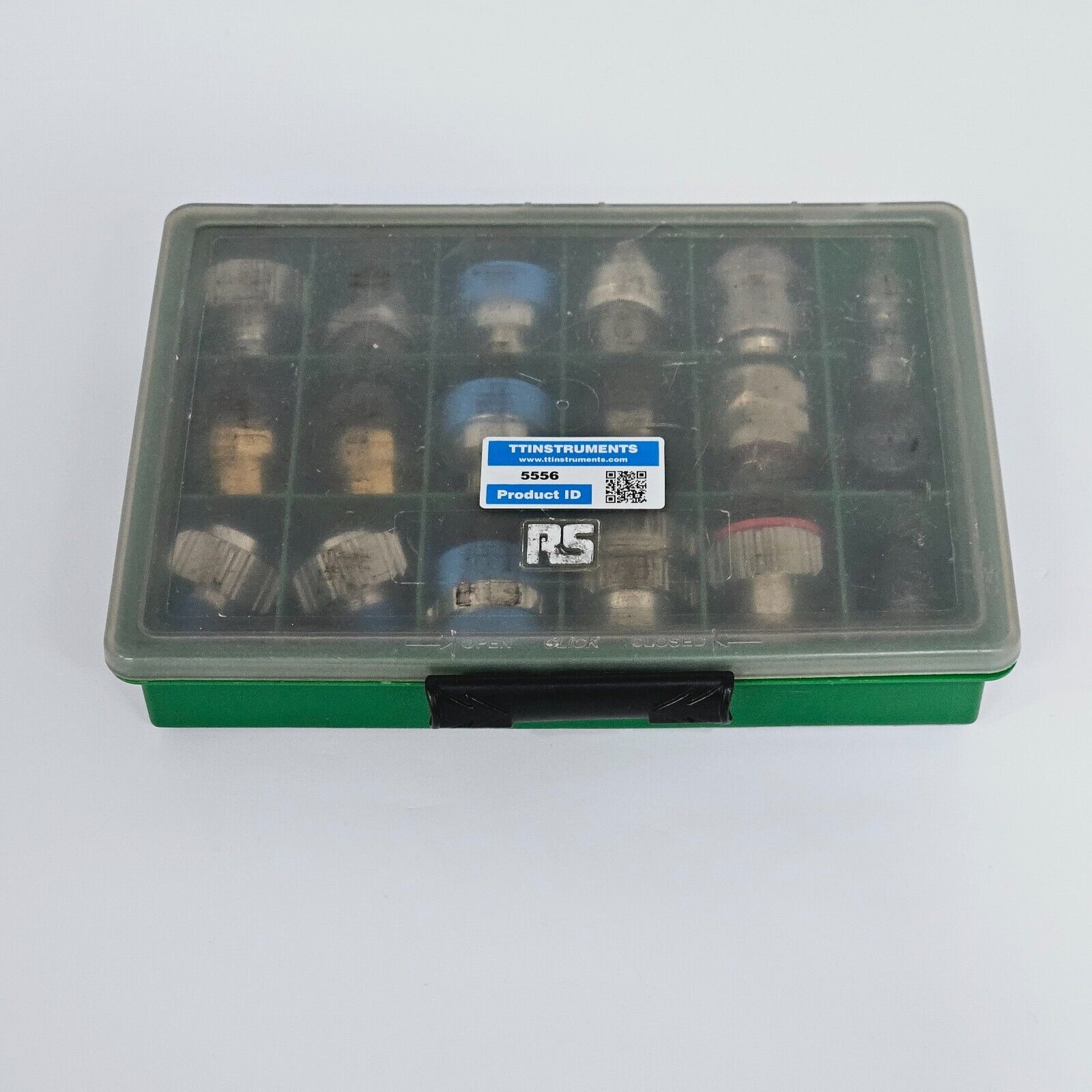

A used accessory kit for cable and antenna analyzers, comprising 7/16 DIN connectors, loads, open/short calibration standards, and RPC-N (Type-N) interface components. Multiple sets are held in stock and cosmetic condition may vary slightly between individual sets.

Typically includes:
• 7/16 DIN connector adapters
• Open calibration standard
• Short calibration standard
• 50-ohm load(s)
• RPC-N (Type-N) connector components

This accessory kit is a generic/unbranded professional RF accessory set designed for use with cable and antenna analyzers. Products of this type are widely used across the telecommunications, cellular infrastructure, and RF engineering industries to support field calibration and connector adaptation on handheld and bench-top cable and antenna test instruments.

The 7/16 DIN connector (also known as the L29 connector) is a 50-ohm threaded RF coaxial connector standardised to IEC 61169-4, widely used in cellular network antenna systems and high-power RF applications due to its superior passive intermodulation (PIM) performance. RPC-N (Type-N) connectors are a common 50-ohm coaxial interface used as the primary test port on most cable and antenna analyzers.

An Open-Short-Load (OSL) calibration kit is used to establish a measurement reference at the test port of a cable or antenna analyzer. By sequentially connecting the open, short, and 50-ohm load standards, the instrument corrects for systematic errors and moves its reference plane to the point of calibration, enabling accurate VSWR, return loss, and distance-to-fault (DTF) measurements.

Adapter sets of this type allow the test port of an N-connector-equipped analyzer to interface with 7/16 DIN-terminated coaxial cables and antenna feedlines, which are the standard connection type on most cellular base station antenna systems.

Typical Kit Contents (generic):

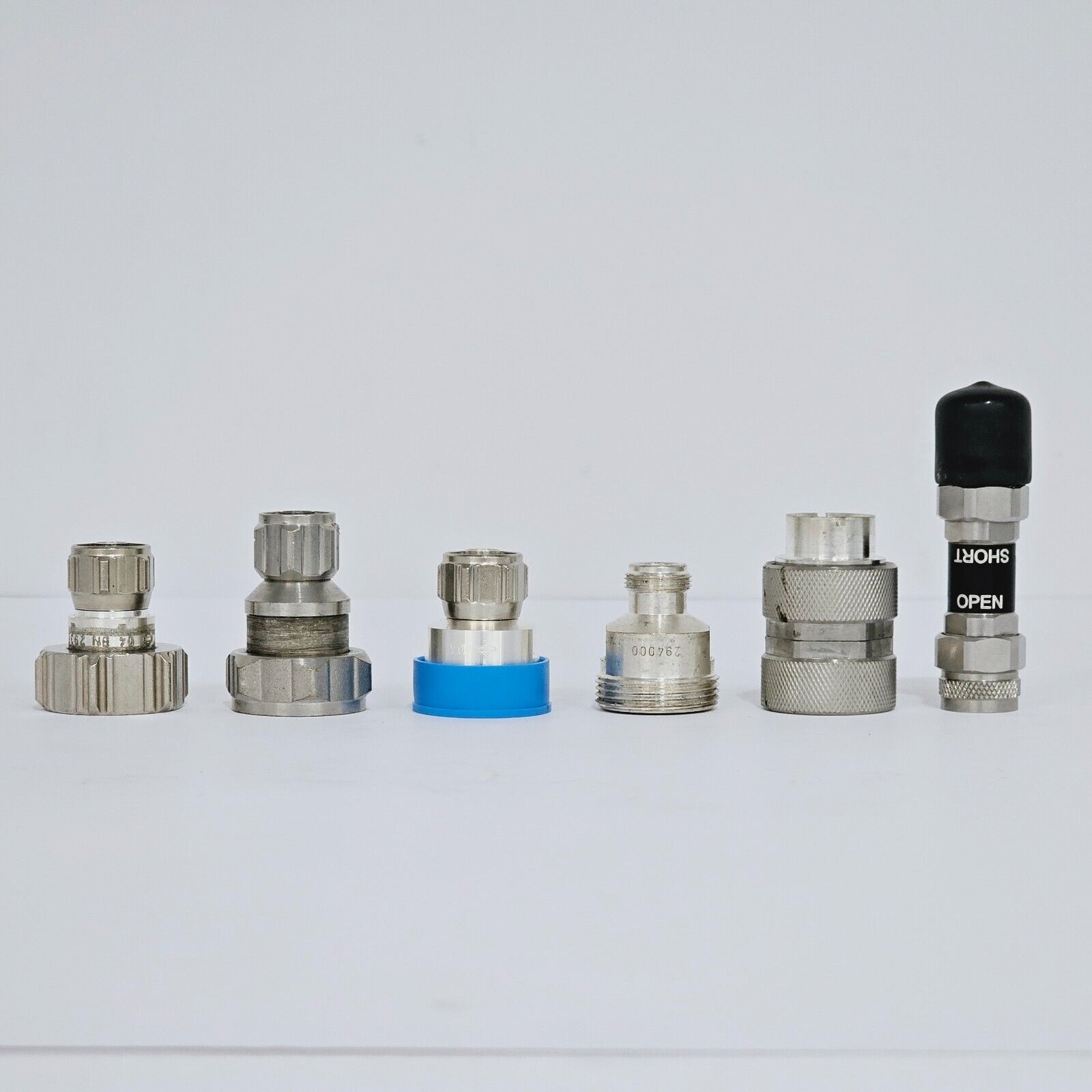

• Open calibration standard
• Short calibration standard
• 50-ohm precision load

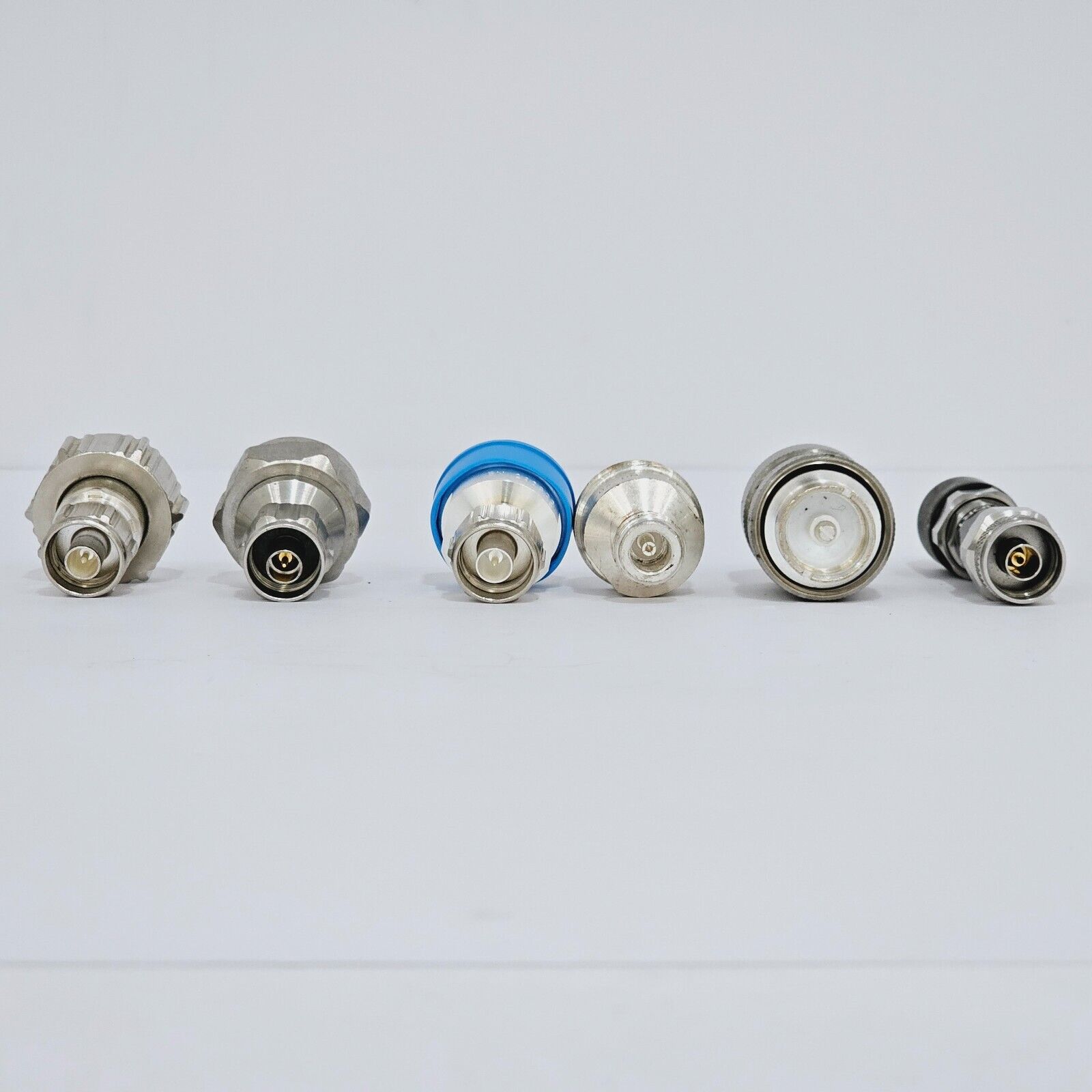

• 7/16 DIN to N-type adapters (male/female combinations)
• 7/16 DIN barrel/elbow adapters

Key Specifications (generic for this connector type):
Connector Type: 7/16 DIN (IEC 61169-4) and Type-N (RPC-N)
Impedance: 50 ohms
Operating Frequency: DC to approximately 4–7.5 GHz (depending on components)
PIM Performance: Low PIM, typically ≤ -155 dBc
VSWR: ≤ 1.10:1 (typical, up to 5,500 MHz)
Dielectric: PTFE
Body Material: Machined brass, silver-plated
Application: OSL field calibration for VSWR, return loss, cable loss, and distance-to-fault (DTF) measurements on cable and antenna analyzers
Compatibility: Compatible with Anritsu SiteMaster, Keysight FieldFox, Bird SiteHawk, VIAVI, and other leading cable and antenna analyzer platforms
