Condition: Used — Tested and fully functional. Cosmetic imperfections are present but do not affect performance.

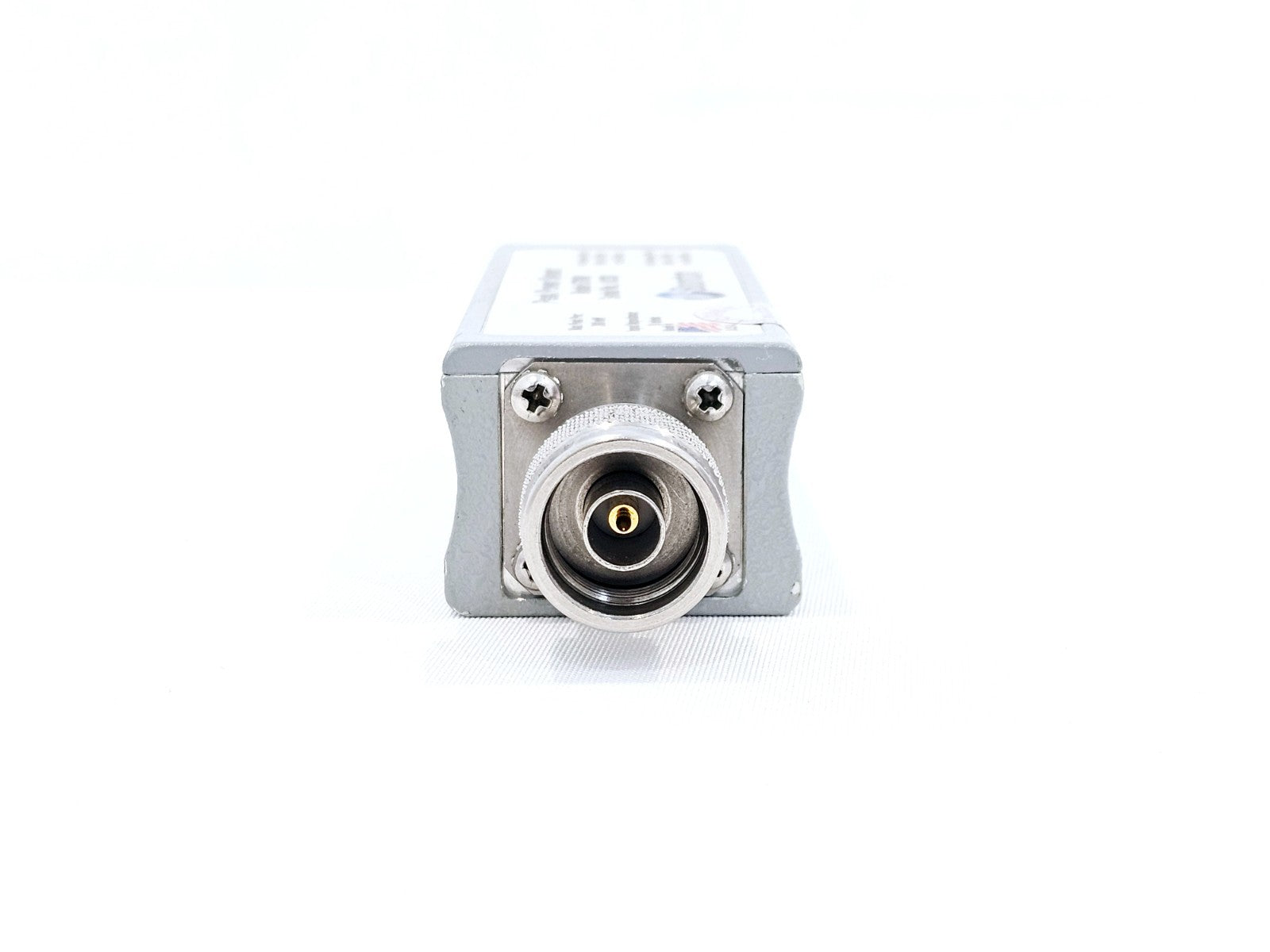

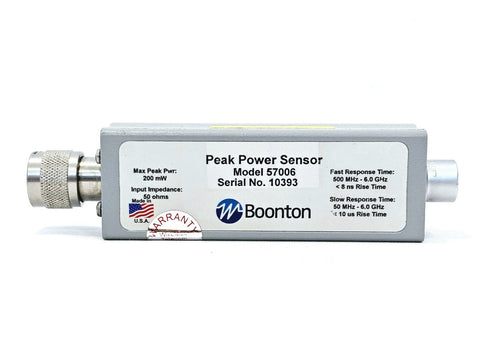

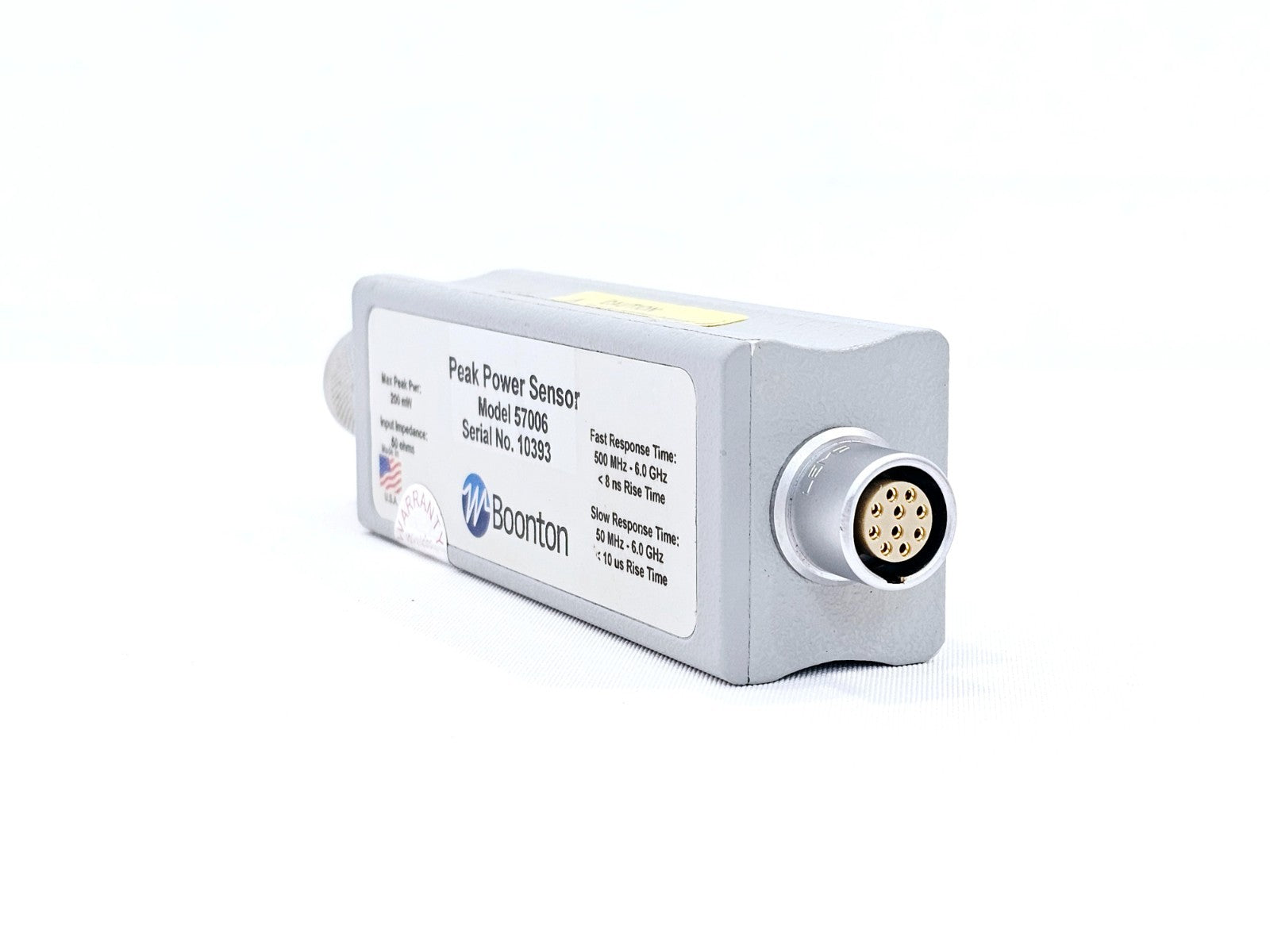

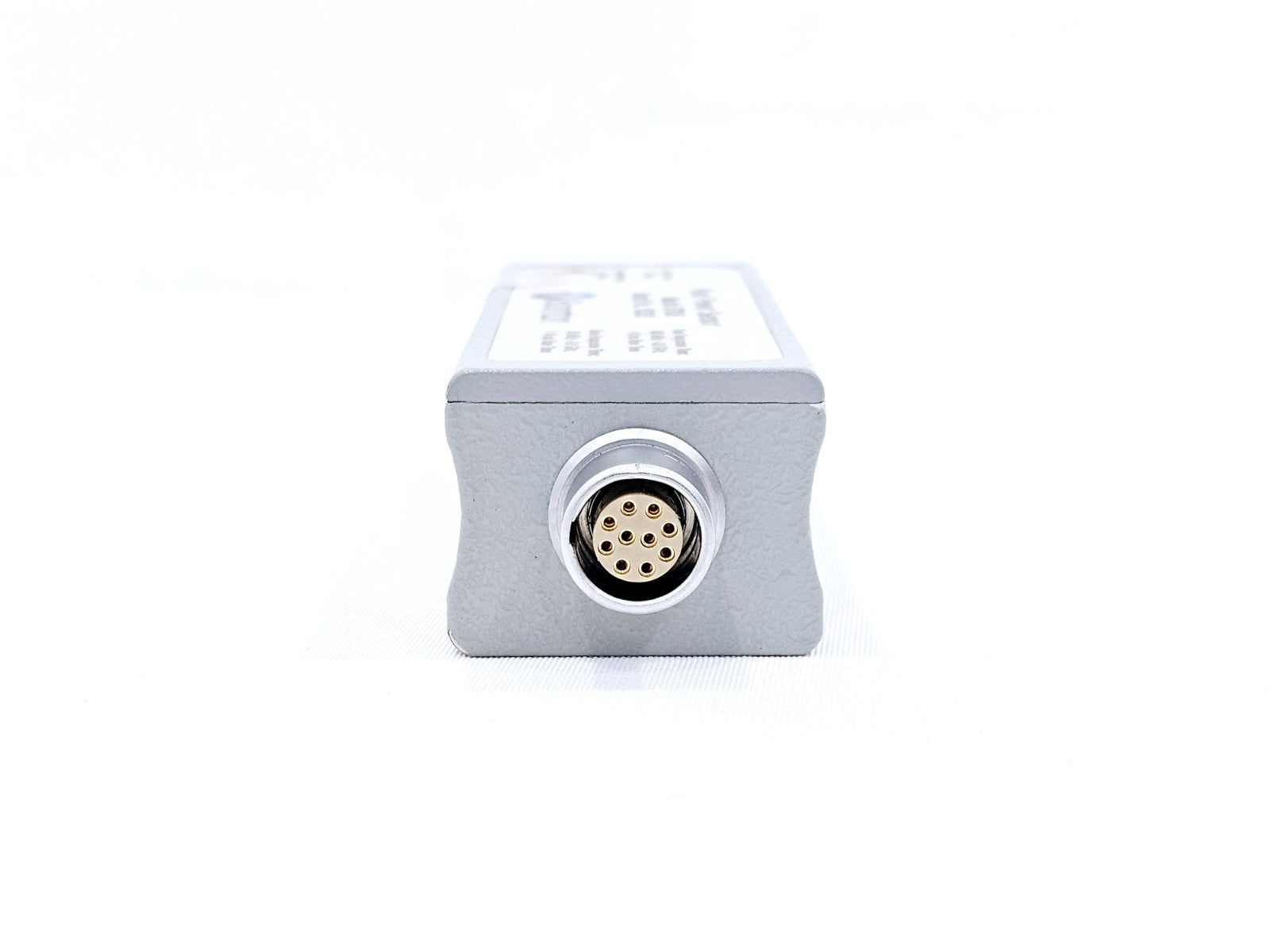

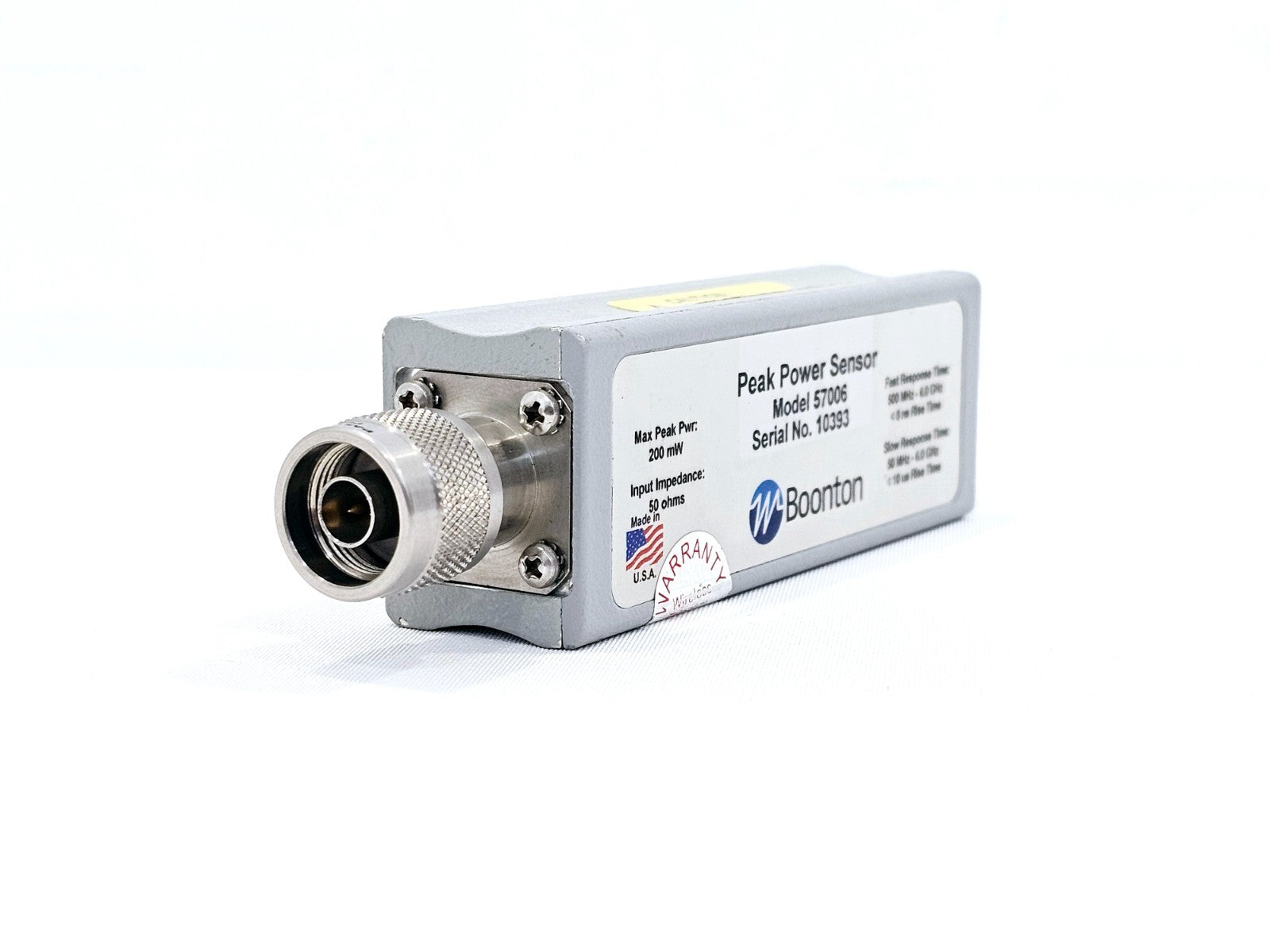

The Boonton 57006 is a wideband peak power sensor offering 500 MHz to 6 GHz frequency coverage and a 70 dB dynamic range. Compatible with Boonton 4500B, 4540, and 4530 series power meters, it is suited to pulse, CW, and statistically modulated signal measurements.

Included in the sale:
• 1x Boonton 57006 Peak Power Sensor

The Boonton 57006 is a wideband peak power sensor designed for fast and accurate RF power measurement from 500 MHz to 6 GHz (with extended low-bandwidth operation from 50 MHz to 6 GHz). It is a dual-diode design capable of measuring the instantaneous power envelope of RF signals with high accuracy, making it suitable for pulse, CW, and complex modulated signals including radar, CDMA, WLAN, WiMAX, and WCDMA/UMTS applications.

Calibration factors, linearity correction data, and temperature compensation coefficients are stored onboard in non-volatile EEPROM memory, enabling automatic correction when connected to a compatible Boonton power meter. The sensor offers excellent SWR performance to minimise mismatch uncertainty and provides NIST-traceable calibration accuracy.

The 57006 is compatible with the Boonton 4500B RF Peak Power Analyzer, 4540 RF Power & Voltage Meter Series, and 4530 RF Power Meter Series.

Key Specifications:
Frequency Range (Rated): 0.5 – 6 GHz
Frequency Range (Extended, Low Bandwidth): 0.05 – 6 GHz
Impedance: 50 ohm

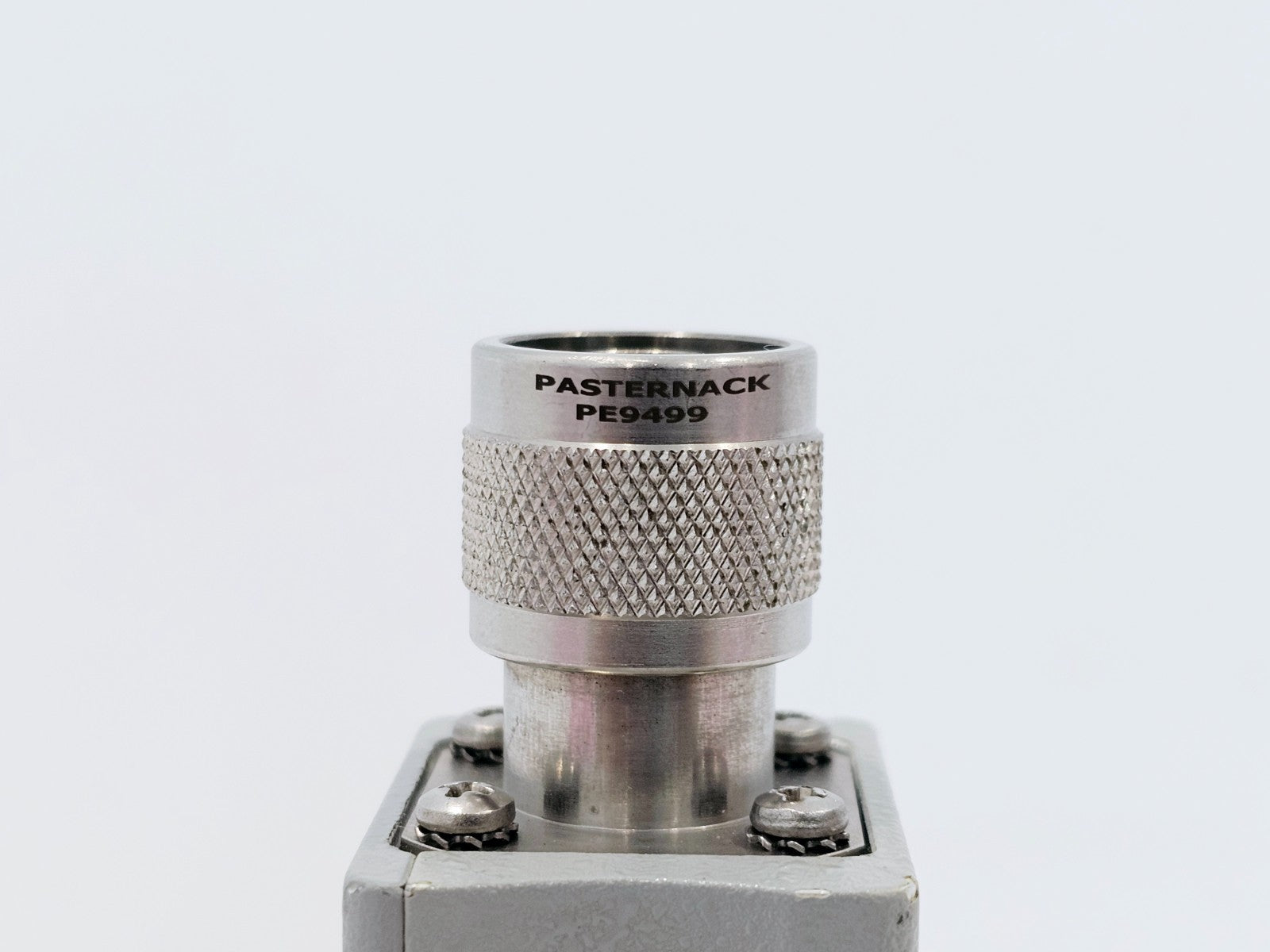

RF Connector: Type N (Male)
Peak Power Dynamic Range: -50 dBm to +20 dBm
CW Power Dynamic Range: -60 dBm to +20 dBm
Internal Trigger Range: -40 dBm to +20 dBm
Fast Rise Time: <7 ns (70 MHz typical bandwidth)
Slow Rise Time: <10 µs (350 kHz bandwidth)
Pulse Overload Rating: 1 W for 1 µs
Continuous Overload Rating: 200 mW
Maximum SWR (0.05 – 2 GHz @ 0 dBm): 1.25
Calibration Storage: Non-volatile EEPROM
Calibration Traceability: NIST

Boonton Wideband Peak Power Sensors Datasheet (includes 57006 specifications): Download PDF

Boonton Power Sensor Manual (covers 57006 and related peak power sensors): Download PDF

Boonton Wideband Peak Power Sensors Official Datasheet (sensor_datasheet_web.pdf): Download PDF
