Condition: Used

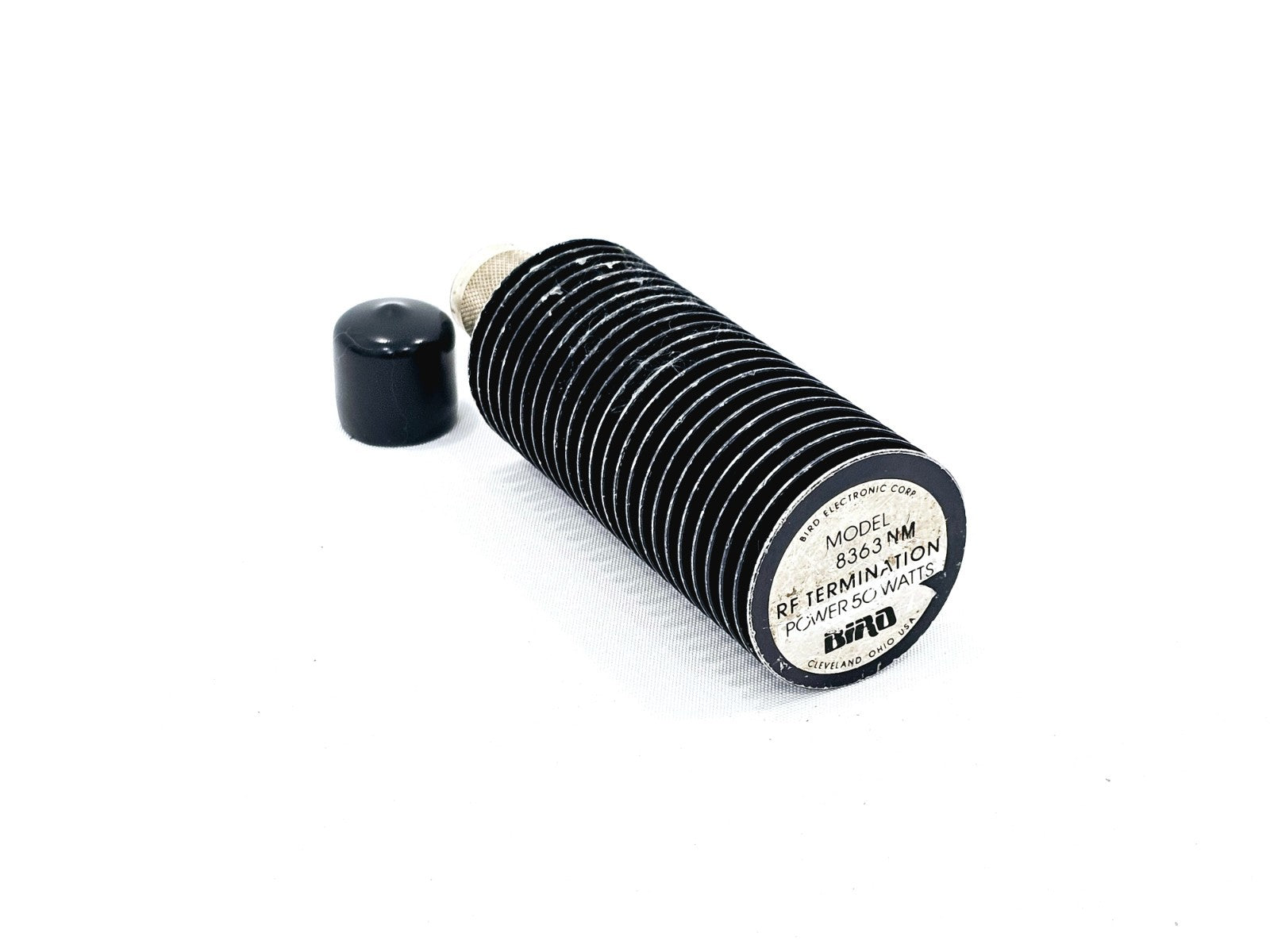

This listing comprises a single Bird 8363 NM 50-watt coaxial RF terminating load. The unit features an N-type male input connector and is rated for DC to 1 GHz operation with a VSWR of 1.1:1, and is usable to 2 GHz.

Included in the sale:
• 1x Bird 8363 NM RF coaxial load

The Bird 8363 NM is a compact, air-cooled, 50-ohm coaxial terminating load resistor designed for use with RF transmitters, signal generators, amplifiers, and test systems. It provides a reliable, low-reflection termination across a wide frequency range, making it suitable for laboratory testing, transmitter tuning, and general RF power absorption applications where a portable, non-radiating load is required.

The 8363 NM is part of Bird Technologies' established range of dry-type (convection-cooled) coaxial load resistors, characterised by their conservative power ratings, rugged construction, and excellent VSWR performance. The N-type male connector variant (NM suffix) interfaces directly with standard N-female bulkhead and instrument connections commonly found in RF test environments.

Specifications:

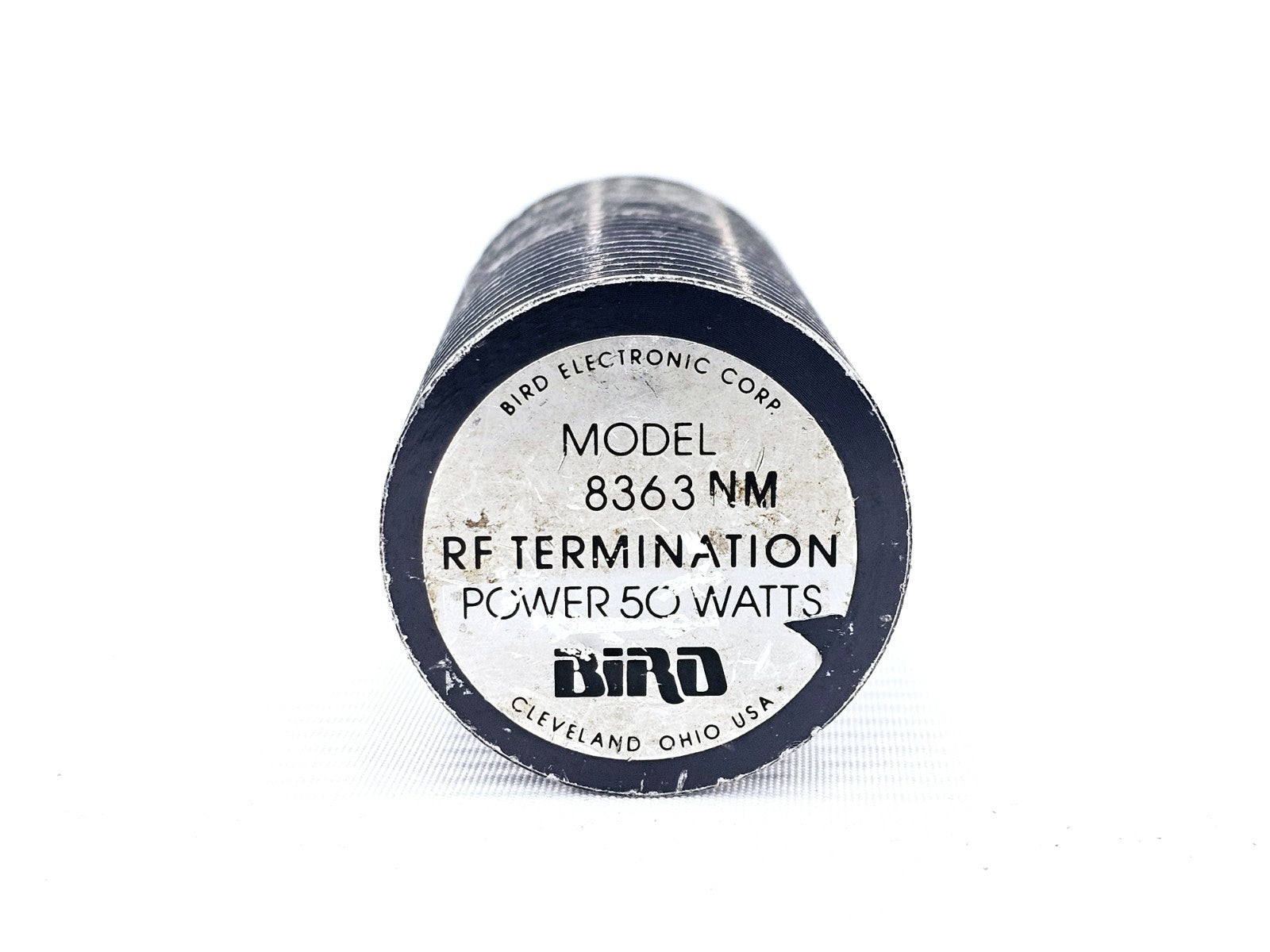

Model: Bird 8363 NM
Impedance: 50 ohms
Power Rating: 50 watts continuous
Frequency Range: DC to 1000 MHz (1 GHz)
Usable Frequency: DC to 2000 MHz (2 GHz)
VSWR: 1.1:1 maximum (DC to 1 GHz)

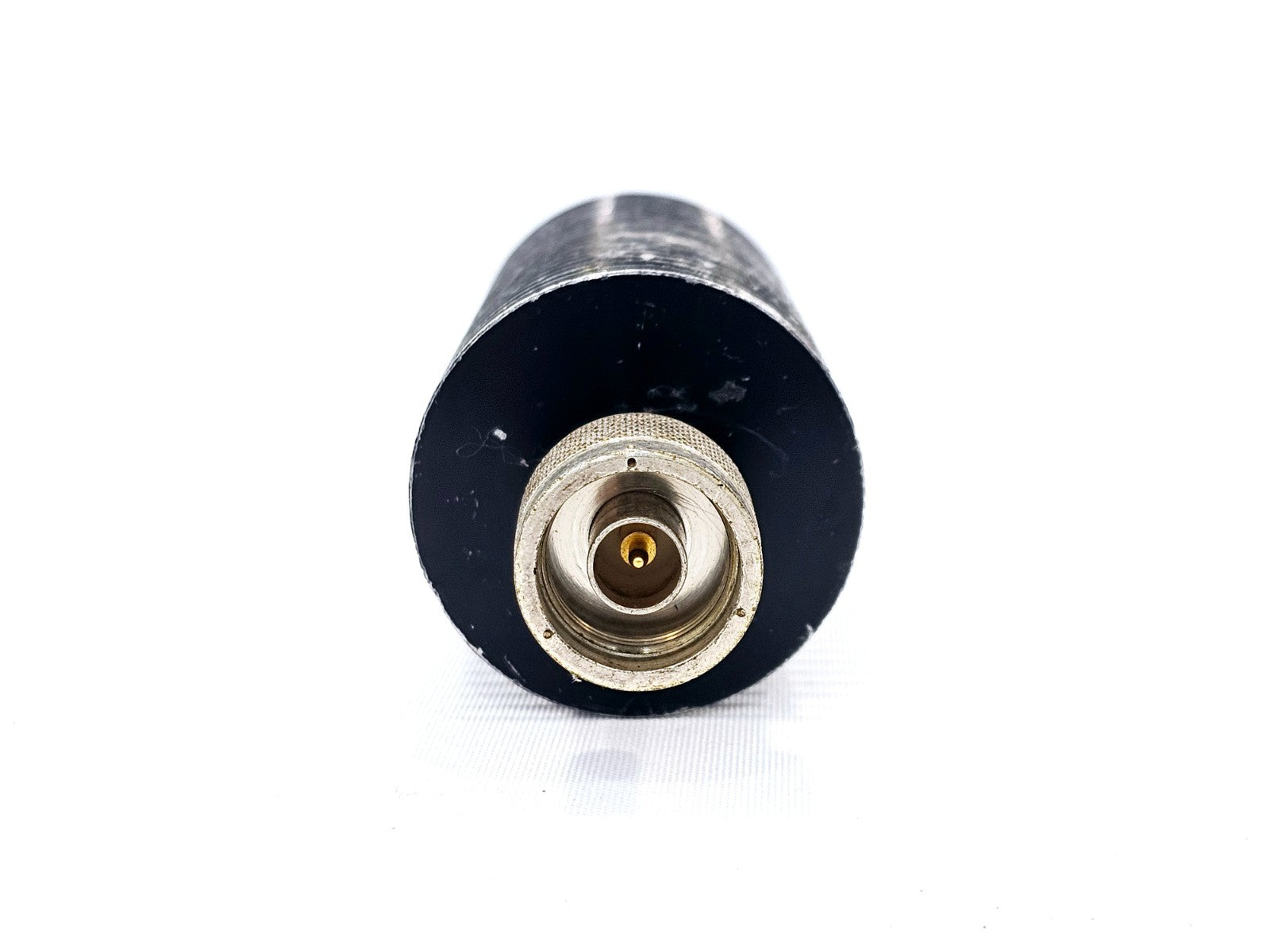

Connector: N-type Male (NM) input

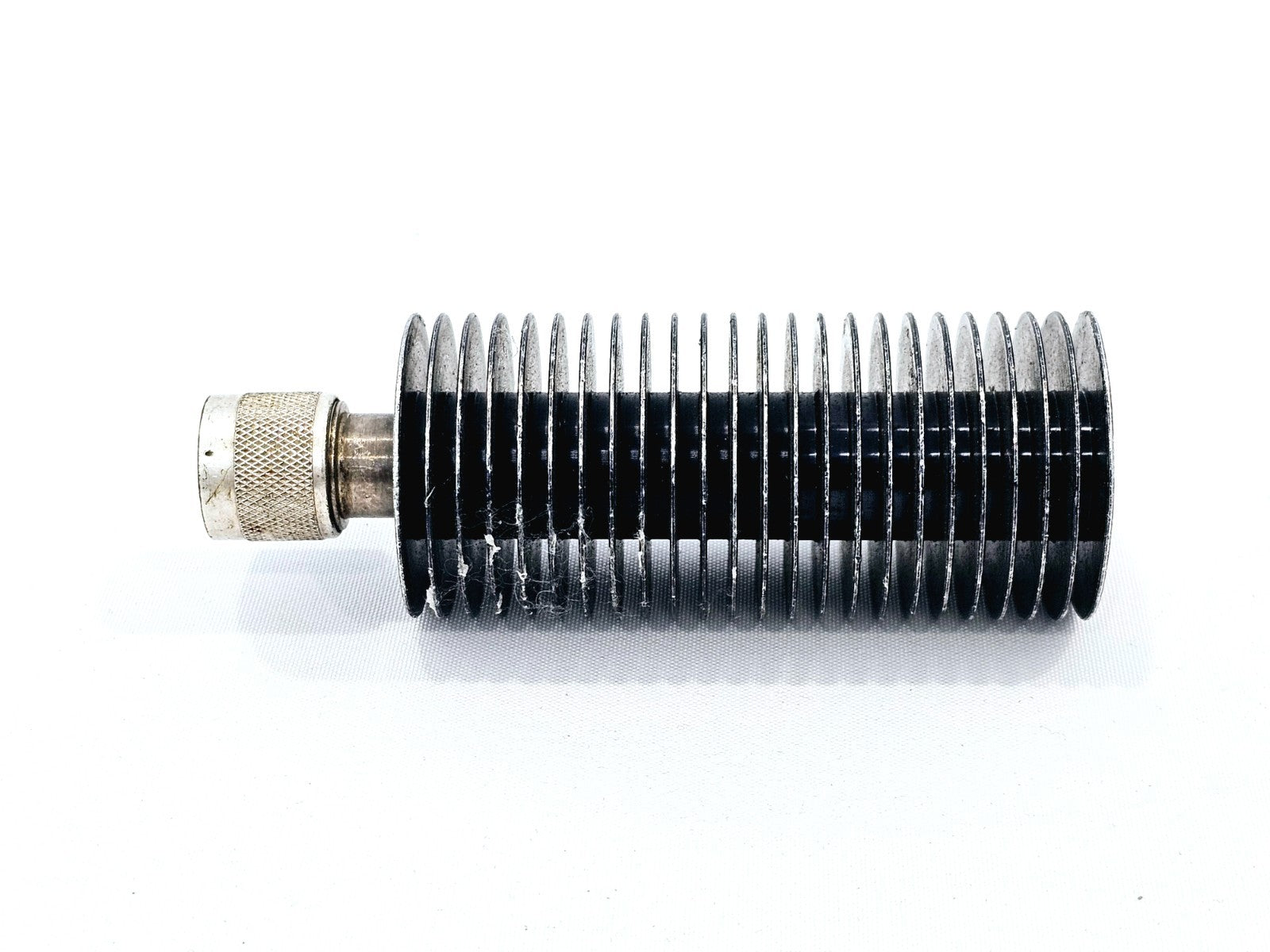

Cooling Method: Convection (air-cooled / dry)
Dimensions: 105 mm (L) x 35 mm diameter
Weight: 112 g
Manufacturer: Bird Technologies (Bird Electronic Corporation), USA
