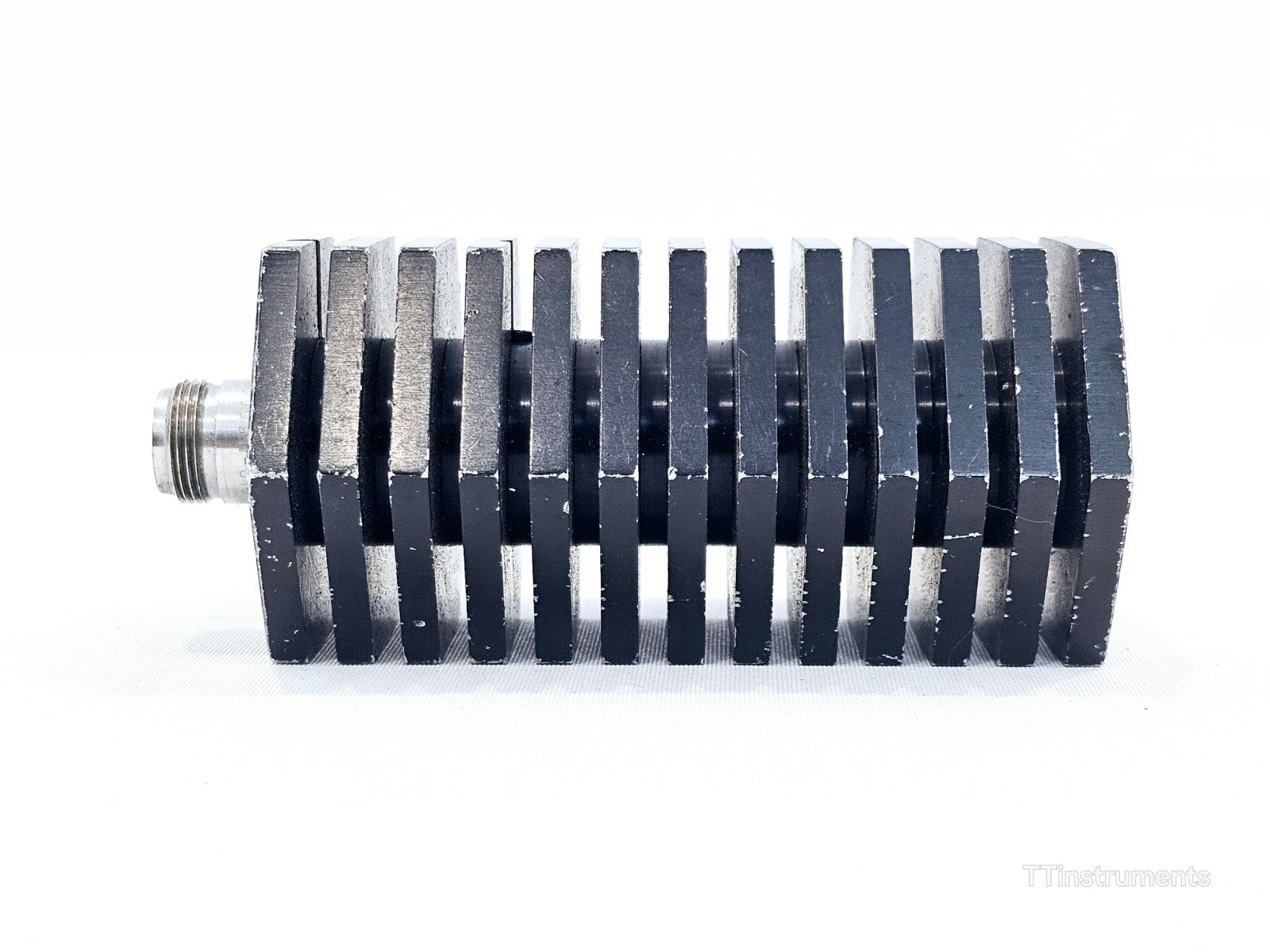

Bird 50-T-FN 50 Ohm 50 Watt RF termination load with N-Type female connector, front view

Bird 50-T-FN convection-cooled dry RF load showing black anodised aluminium body and connector end

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Bird 50-T-FN 50 Ohm 50 Watt RF Termination Load

Name: Bird 50-T-FN 50 Ohm 50 Watt RF Termination Load
Brand: Bird
SKU: 3890 6B03 ER88
Price: 25.5 GBP
Availability: OutOfStock

The Bird 50-T-FN is a convection-cooled, dry 50 Ohm RF termination load rated at 50 W continuous duty, covering DC to 4 GHz with an N-Type female connector — ideal for transmitter protection, load matching, and mid-power RF testing.

• 50 W continuous duty (60 W @ 25°C), DC to 4 GHz frequency range with extremely low VSWR
• Dry convection-cooled design — operable in any orientation, no liquid or forced air required
• Non-magnetic materials and plating allow safe use in high magnetic field environments including MRI

Manufacturer

Bird

Model

50-T-FN

Condition

Used

In stock

SKU

3890 6B03

£25.50

Loads Amplifiers & Attenuators
RF & Microwave
RF Components

Make an Offer

Condition: Used

The Bird 50-T-FN is a convection-cooled dry RF termination load from Bird's renowned 50-T Series, rated at 50 W continuous duty with a 50 Ohm impedance and N-Type female connector. Built for lab, field, and system use, it delivers stable, broad-spectrum termination from DC to 4 GHz.

What is typically included:
• Bird 50-T-FN RF termination load unit

Product Overview

Condition: Used

What is typically included:
• Bird 50-T-FN RF termination load unit

Manufacturer's Description

The Bird 50-T Series is a range of 50 Watt convection-cooled dry RF coaxial termination loads, world renowned for high-quality construction, conservative power ratings, and long-term reliability. The 50-T-FN variant features an N-Type female connector and is suited to transmitter termination, load matching, and mid-power RF testing in laboratory, field, and system environments. Non-magnetic materials and plating allow safe operation in high magnetic field environments such as MRI. The dry design requires no cooling fluid or forced air and may be operated in any position.

Item Name: 50-T Series — 50 Watt Convection-Cooled Dry Termination
Model: 50-T-FN
Connector: N-Type Female (N-F)
Impedance: 50 Ohms (nominal)
Power Rating: 50 W (max) @ 40°C / 60 W (max) @ 25°C
Frequency Range: DC to 4 GHz
VSWR: DC to 1 GHz @ 1.10:1 max; 1 GHz to 4 GHz @ 1.25:1 max
Cooling Method: Convection-cooled (dry)
Operating Position: Any
Ambient Temperature Range: -40°C to +40°C
Finish: Black anodised
Non-magnetic: Yes — safe for use in MRI and high magnetic field environments

Key Features:
• Wide variety of connector options across 50-T Series
• Compact and lightweight — easily transportable for field or bench use
• Conservative power ratings ensure reliable long-term operation
• Precision construction ensures minimal signal reflection across the frequency band
• Rugged reliability suitable for lab, field, and embedded system applications

Resources

Bird 50-T Series Official Datasheet — product specifications, VSWR, and connector options: Download PDF
