Condition: Used

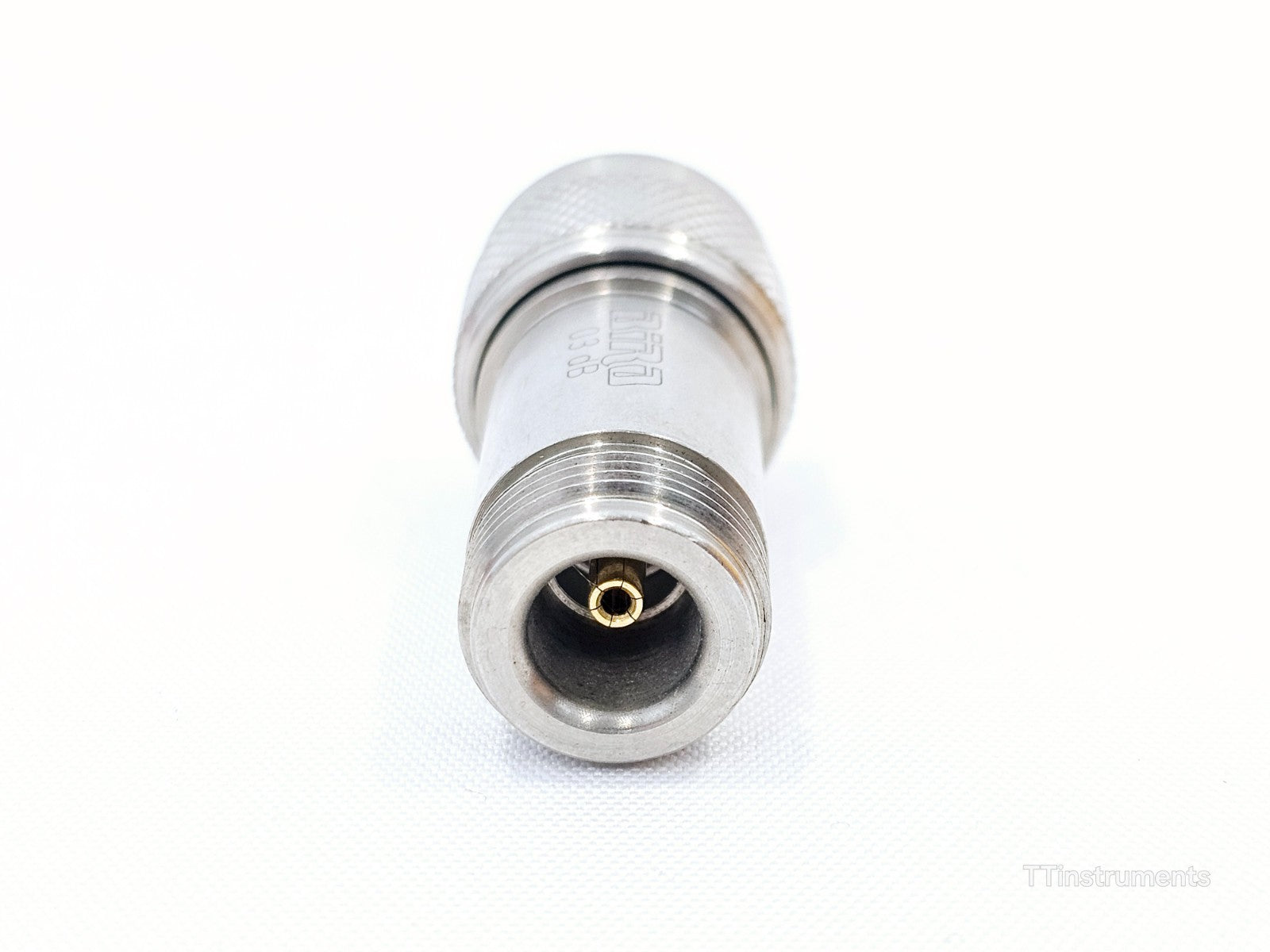

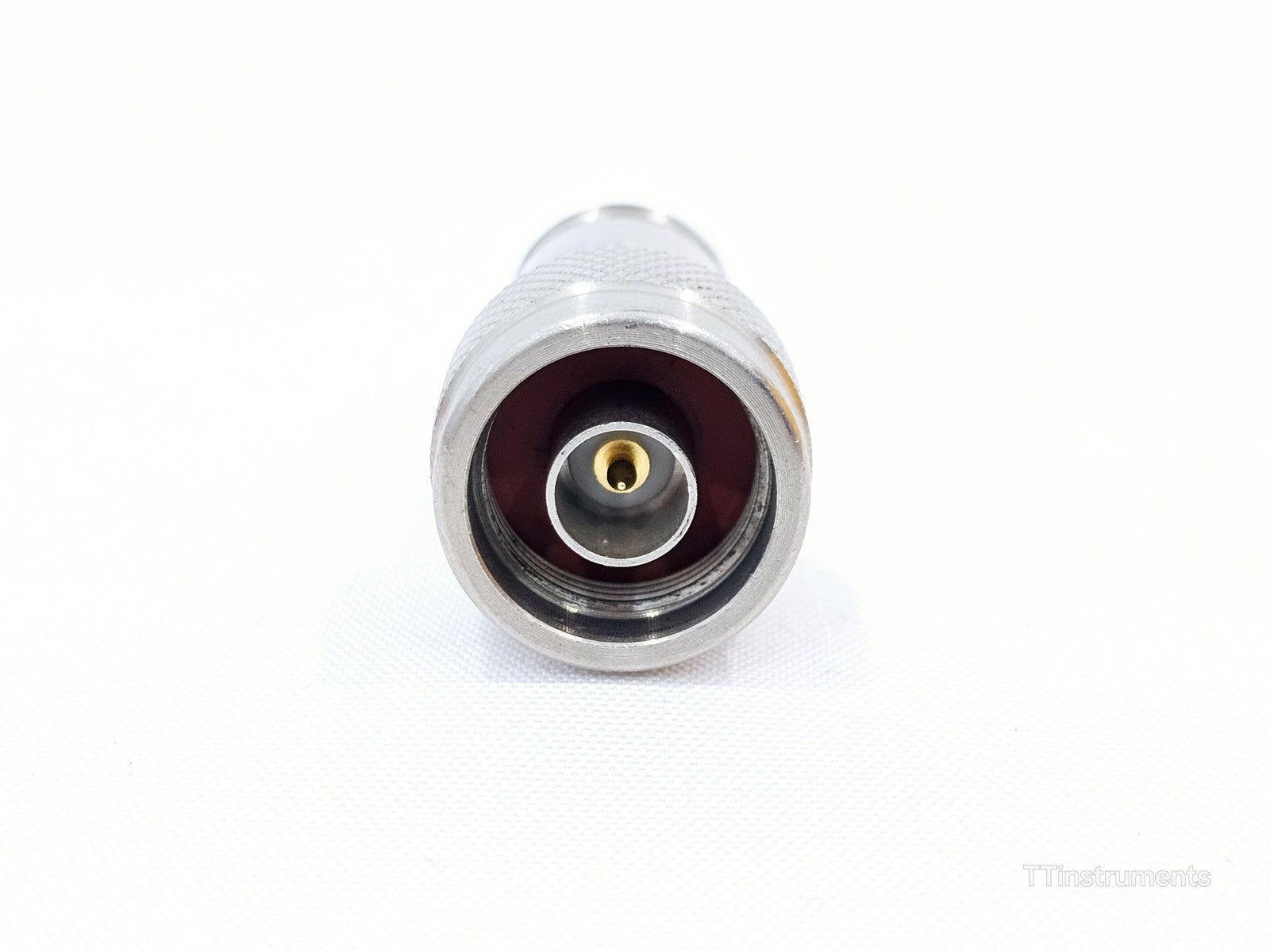

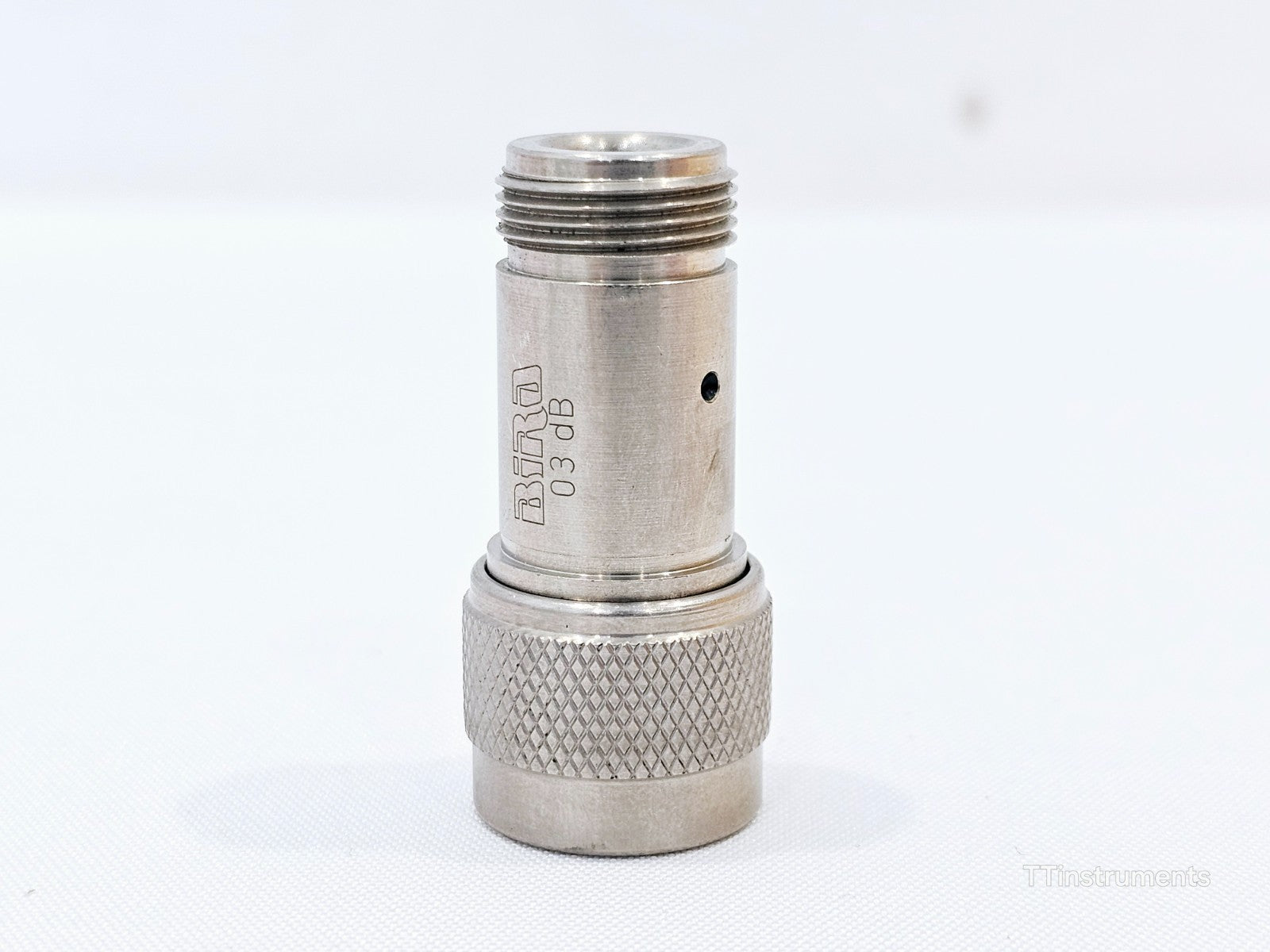

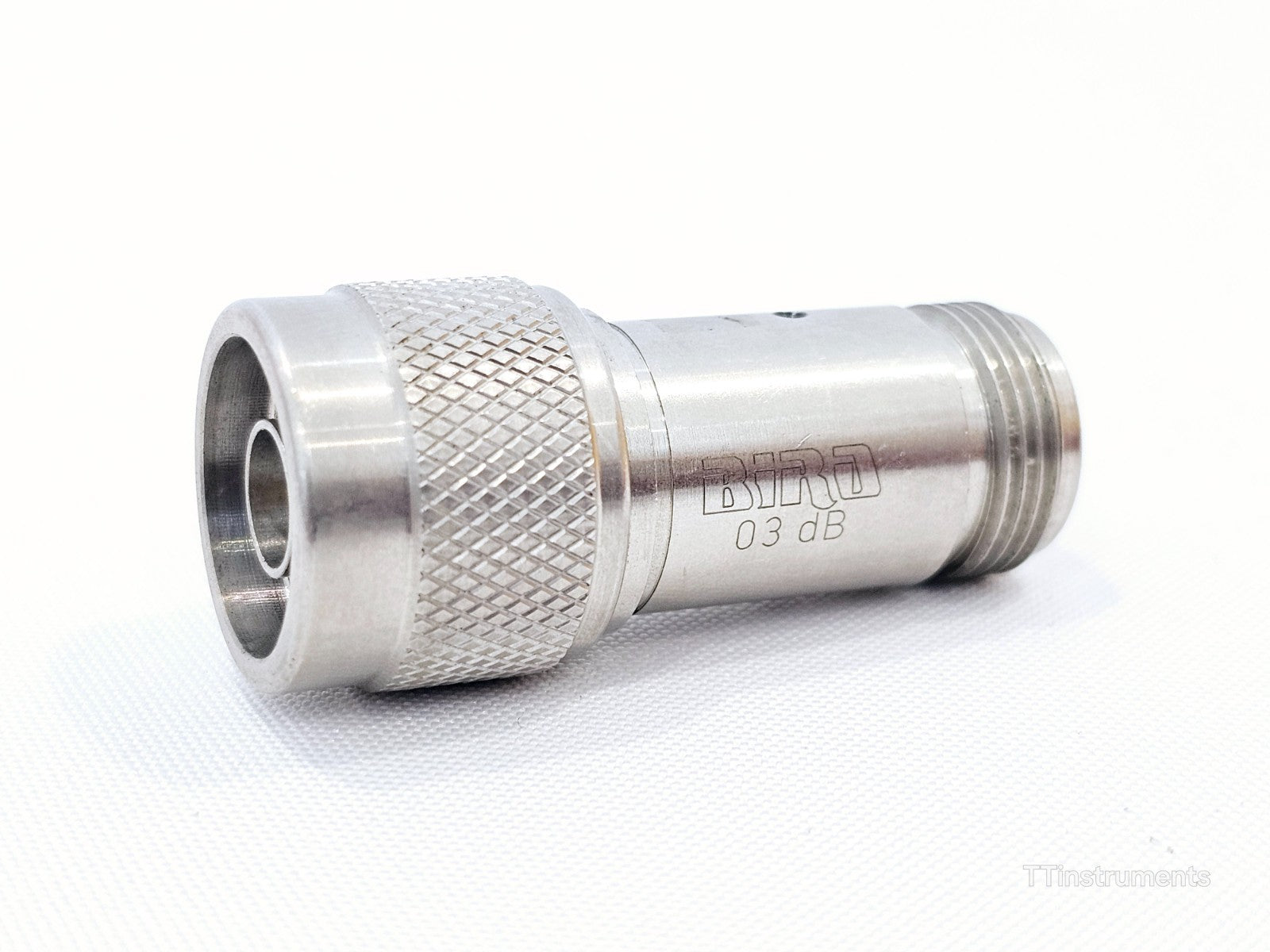

The Bird 2-18A-MFN-03 is a used 3 dB fixed RF attenuator from Bird's world-renowned 2-18A Series. Rated at 2 watts and covering DC to 18 GHz, it features N-type male-to-female connectors in a compact stainless steel body. No accessories or documentation are specified as included with this unit.

The Bird 2-18A Series comprises 2-watt, 18 GHz bi-directional RF coaxial attenuators designed as reliable accessories for reducing power levels, isolating components under test, performing harmonic signal analysis, and serving as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.

The 2-18A-MFN-03 specifically provides 3 dB of nominal attenuation with N-type male-to-female connectors across a broadband frequency range from DC to 18 GHz.

Product Description: 2 Watt 18 GHz Bi-Directional RF Attenuator
Series: 2-18A
Attenuation: 3 dB
Power Rating: 2 W
Connector: N-type Male to N-type Female
Frequency Range: DC to 18 GHz
VSWR: 1.15:1 (DC to 4 GHz) / 1.20:1 (4 to 8 GHz) / 1.25:1 (8 to 12.4 GHz) / 1.35:1 (12.44 to 18 GHz)
Impedance: 50 Ohm
Coolant Method: Dry, Convection Cooled
AC Power Required: None
Operating Position: Any
Operating Temperature: -40 to 40 °C (-40 to 104 °F)
Humidity: 95% non-condensing
PIM: -110 dBc min
Dimensions: 1.8 in x 0.9 in dia (46 mm x 23 mm dia)
Weight: 2.5 oz (71 g)
Finish: Stainless Steel

Key Features:
- Self-cooling design; no cooling plate required
- Frequencies up to 18 GHz
- Fully shielded against production of extraneous radiation
- Requires no AC power
- Rugged stainless steel construction
- Broadband bi-directional operation
- Models available to cover all LTE frequencies

Bird 2-18A Series Attenuator Datasheet — official product datasheet from Bird RF: Download PDF
