Condition: Used

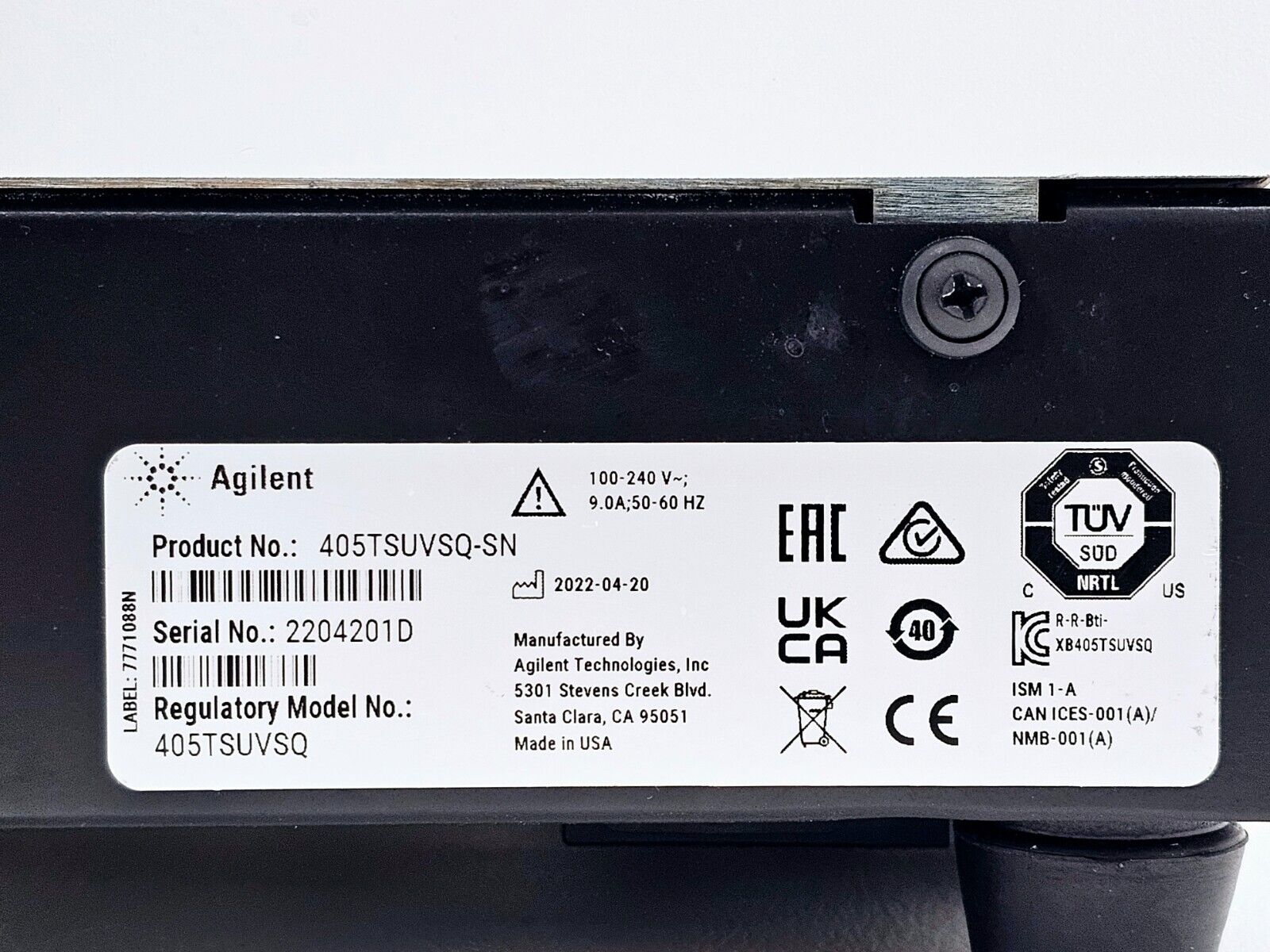

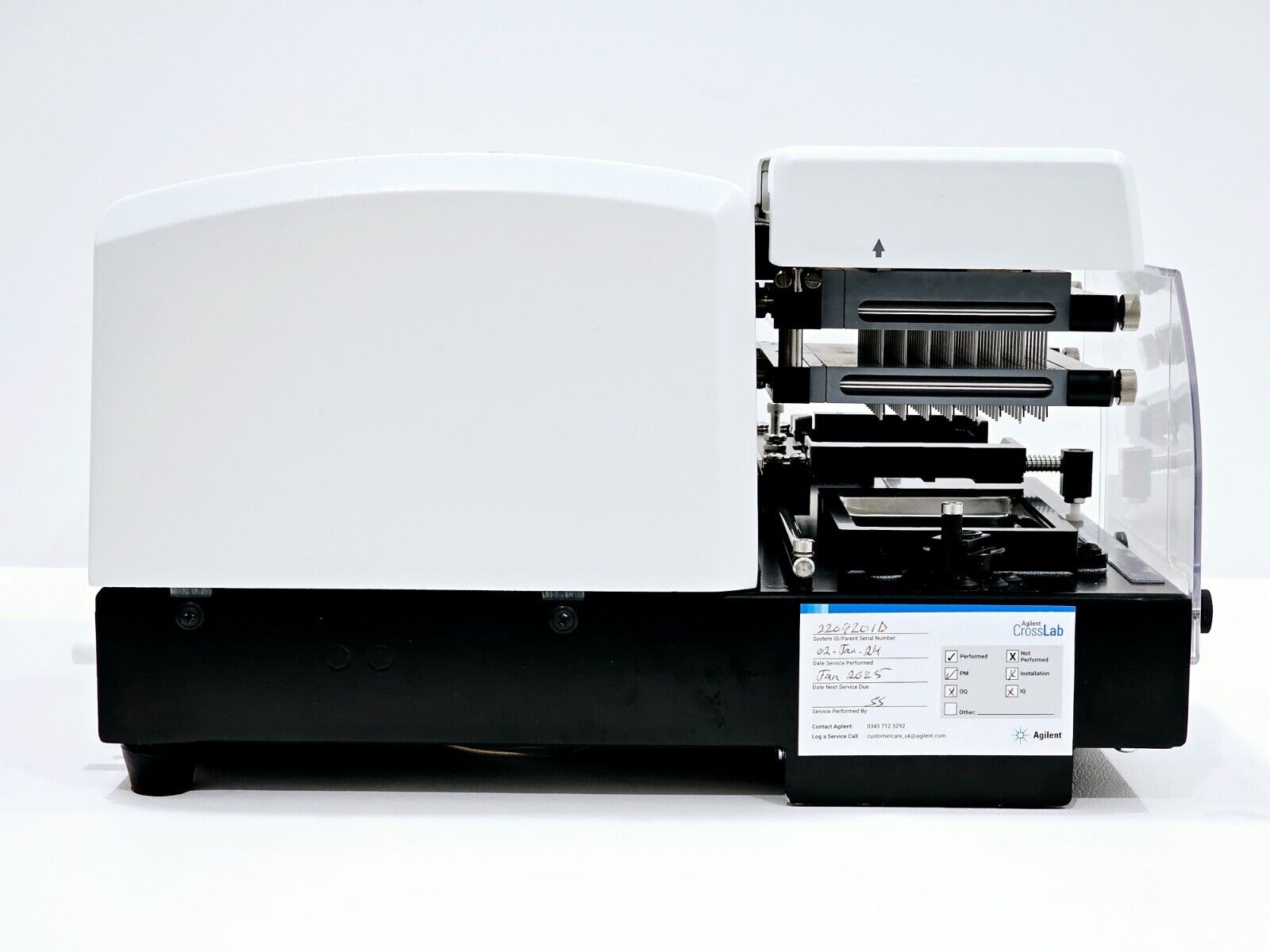

This Agilent BioTek 405 TS microplate washer is the fully-optioned 405TSUVSQ configuration (manufactured 2022), tested and fully functional, and professionally serviced by Agilent in January 2024. It represents the top of the 405 TS range with all major options enabled.

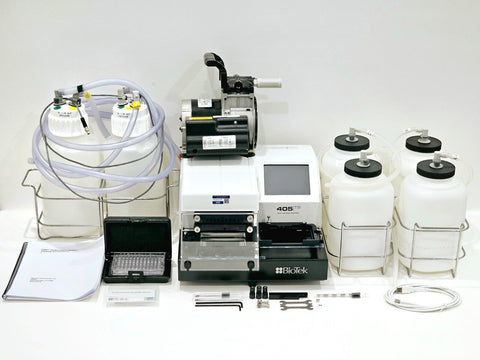

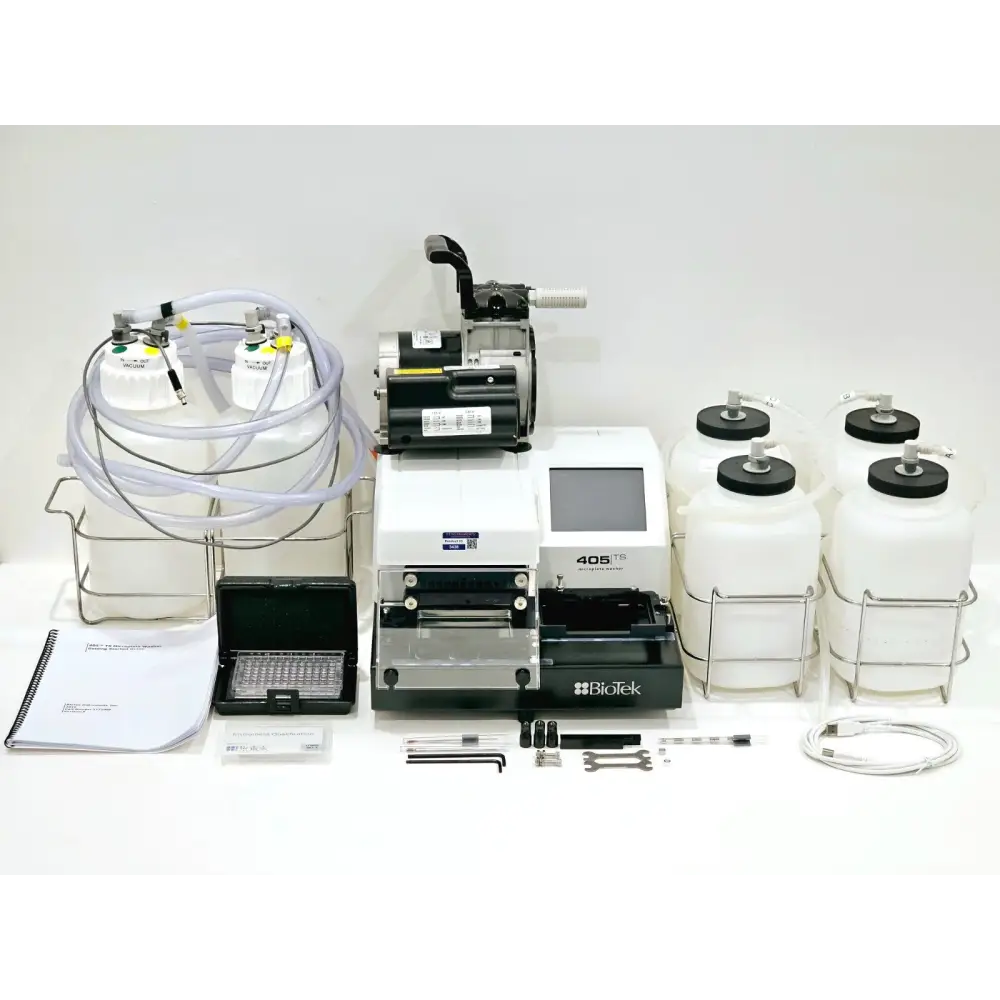

Included with this unit:

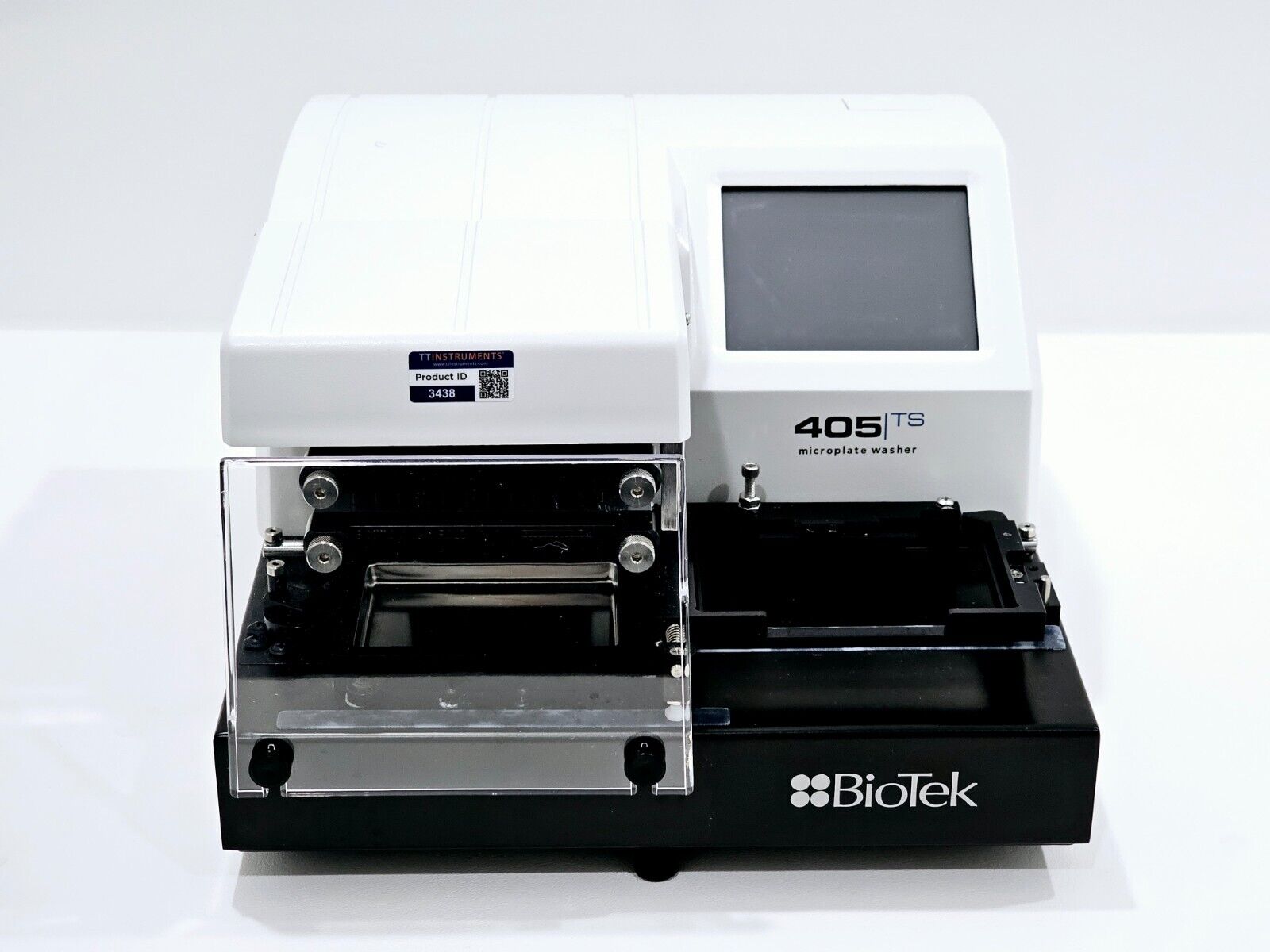

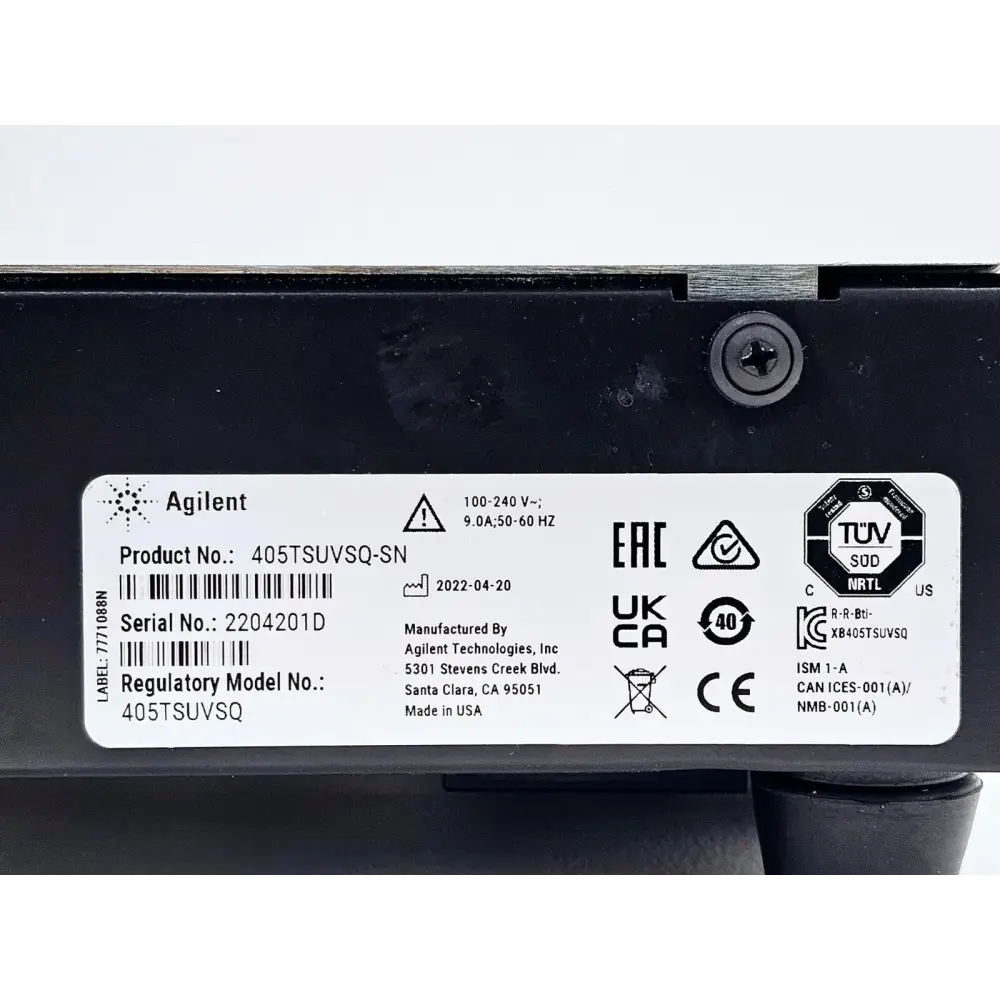

• BioTek 405 TS Microplate Washer (405TSUVSQ) — MFD 2022

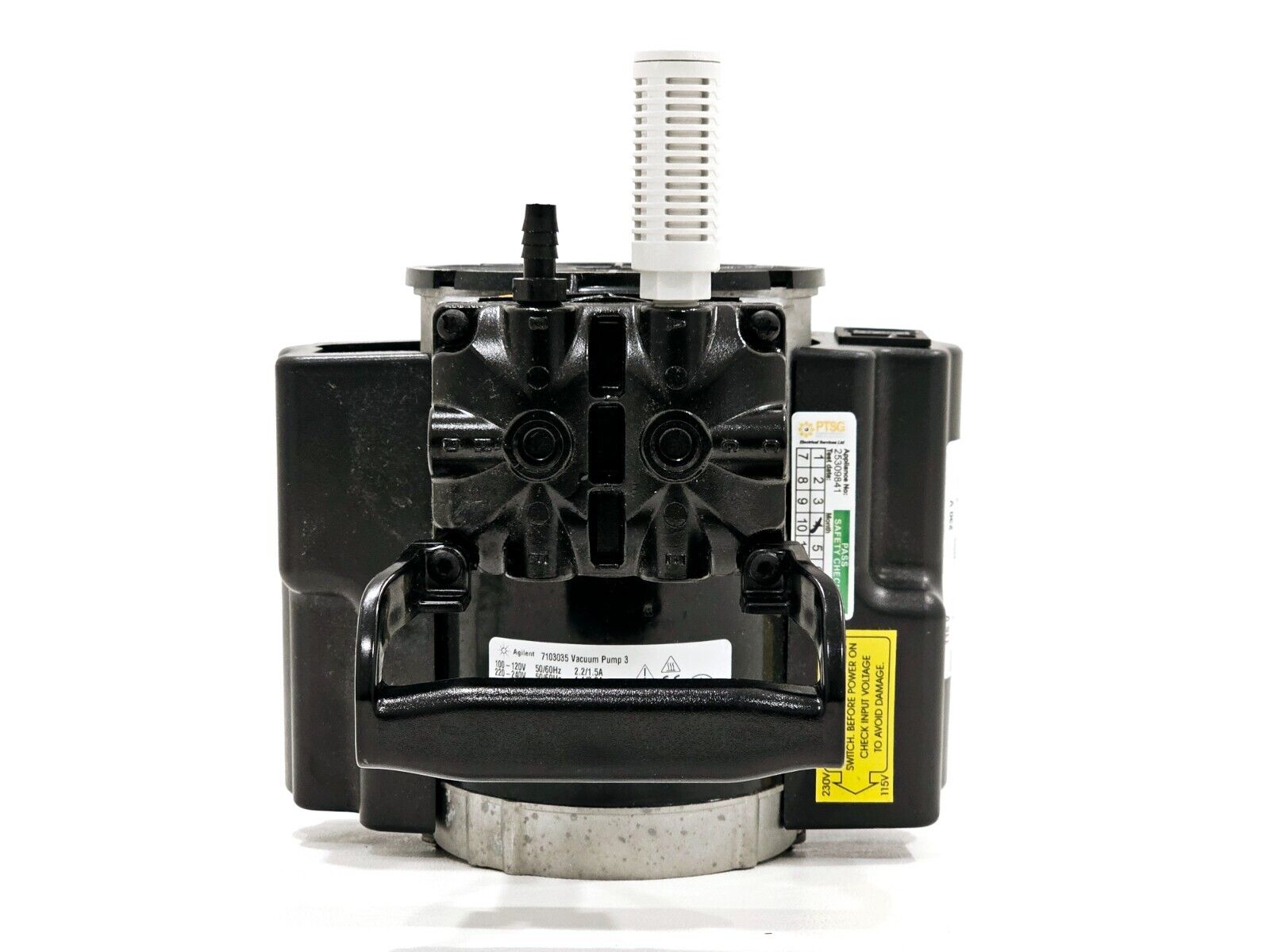

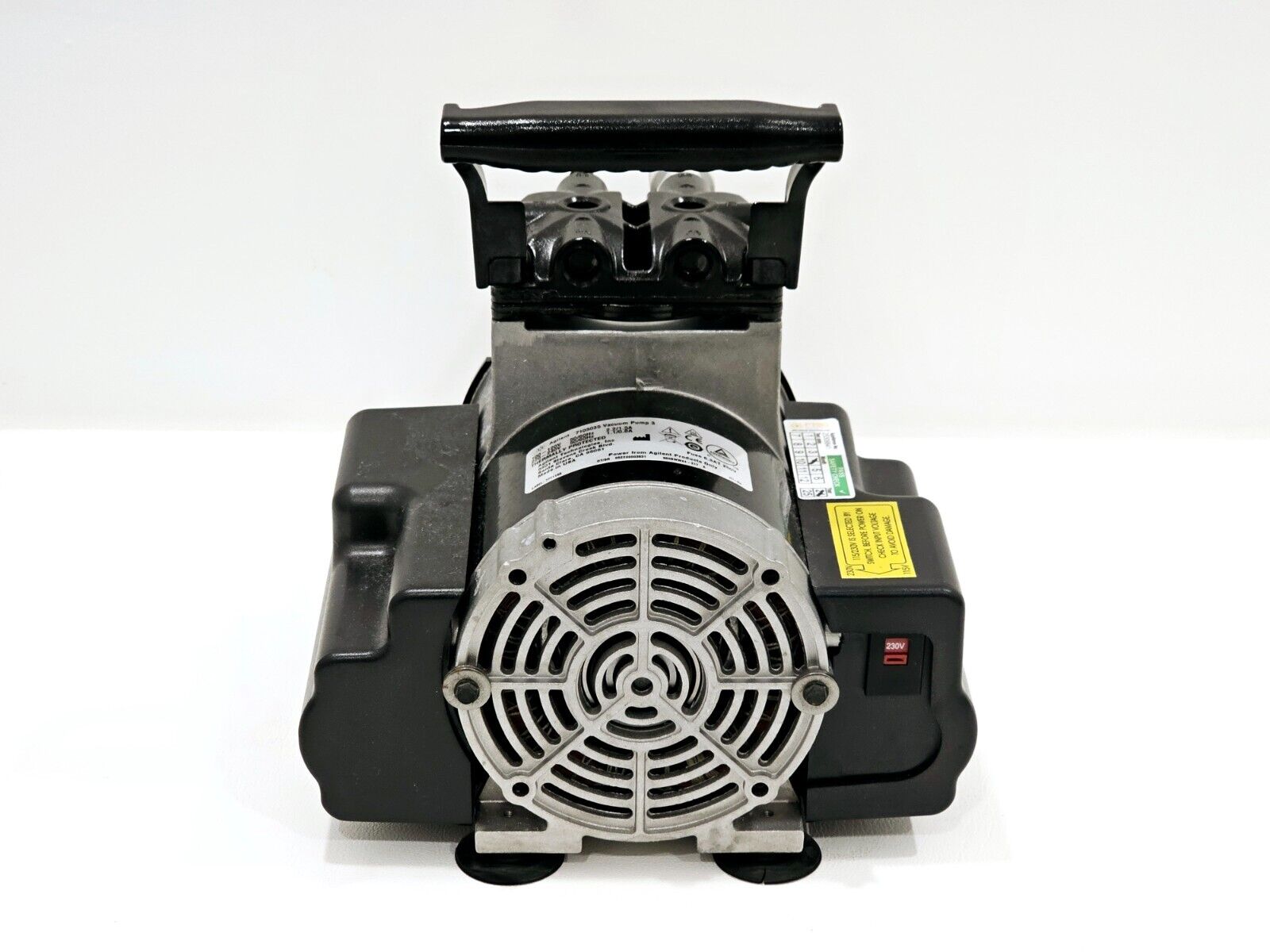

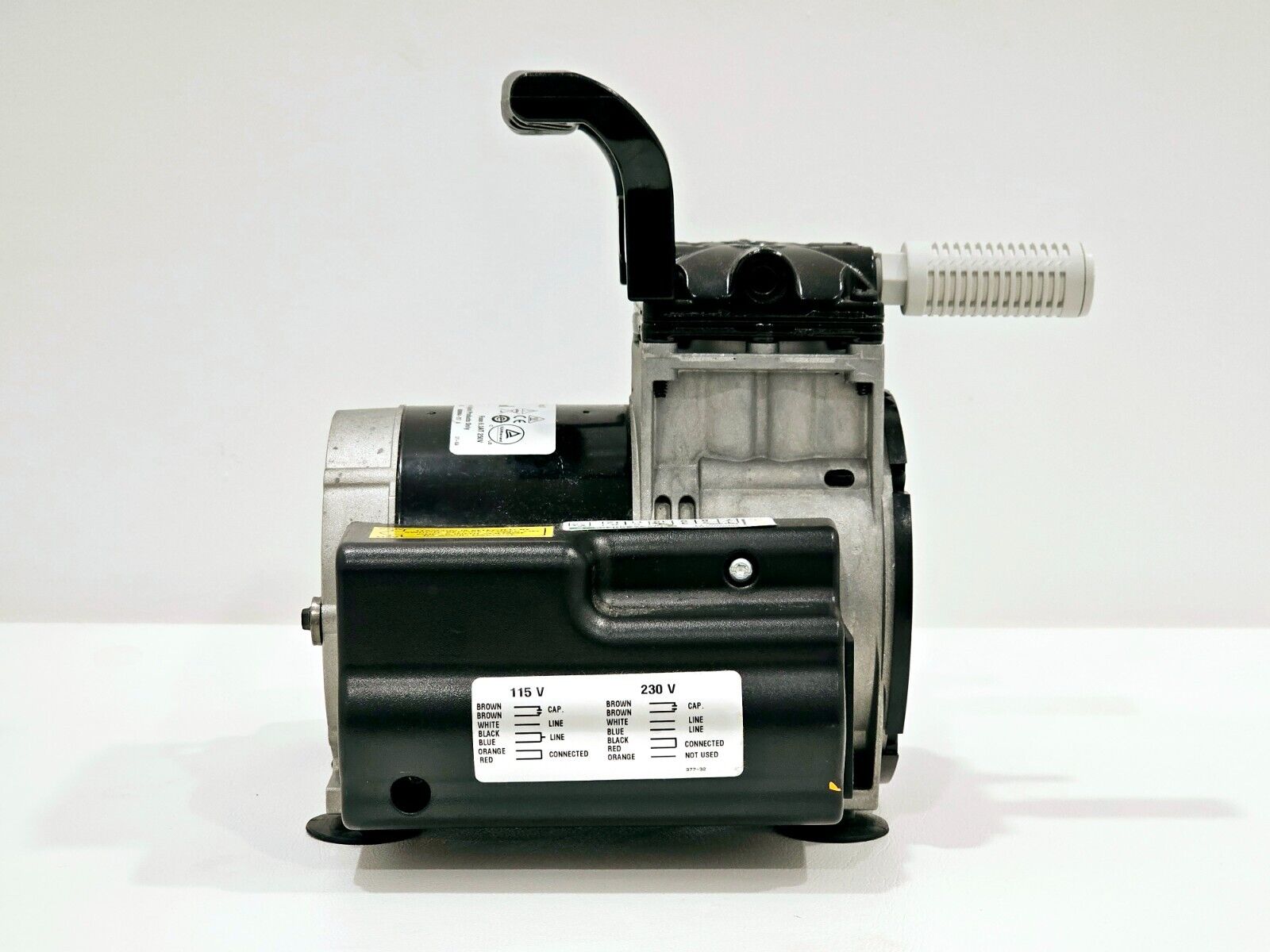

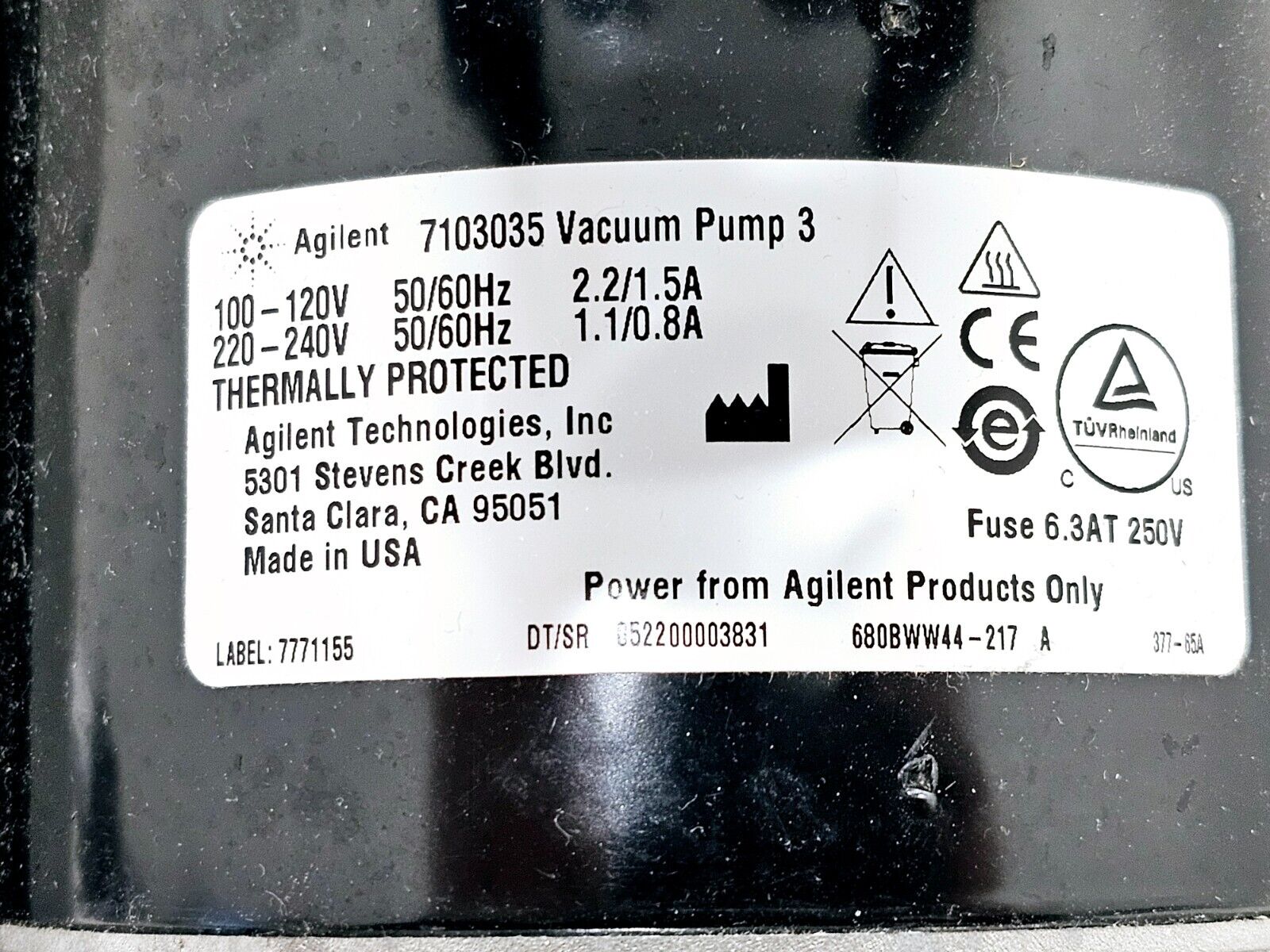

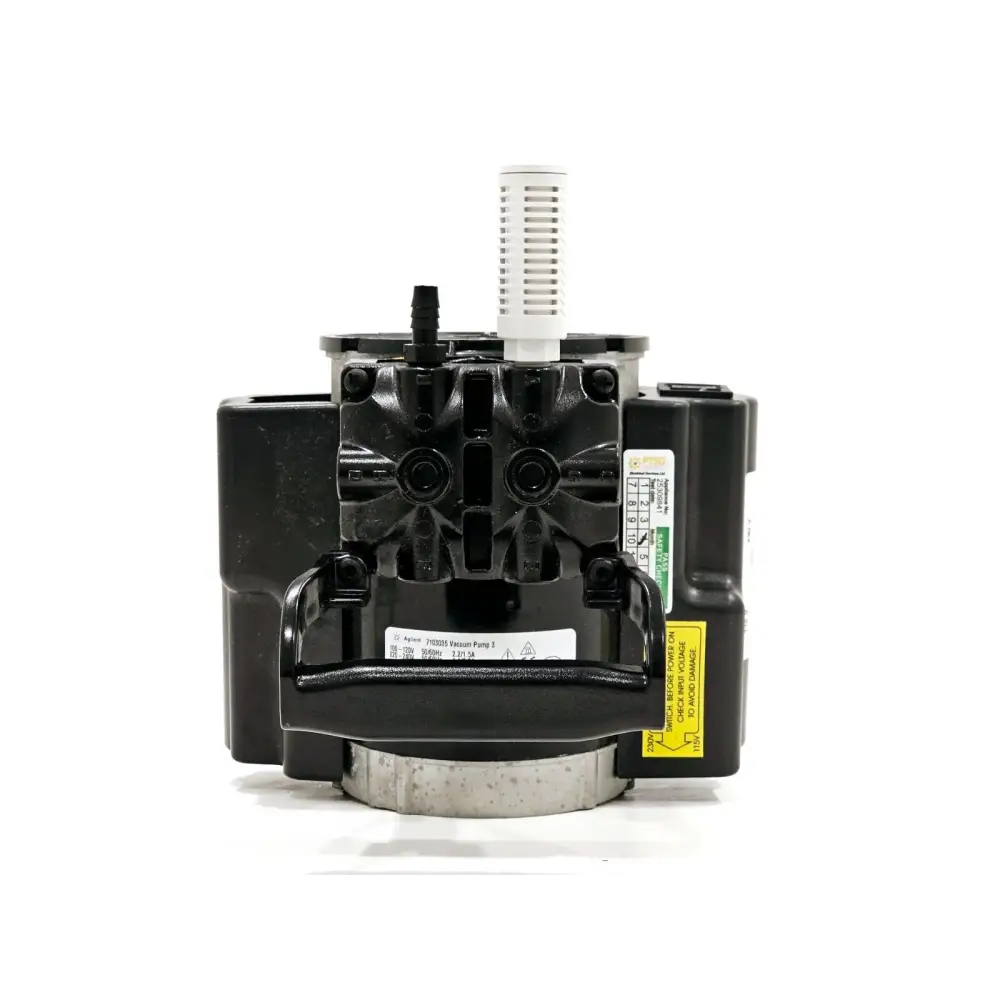

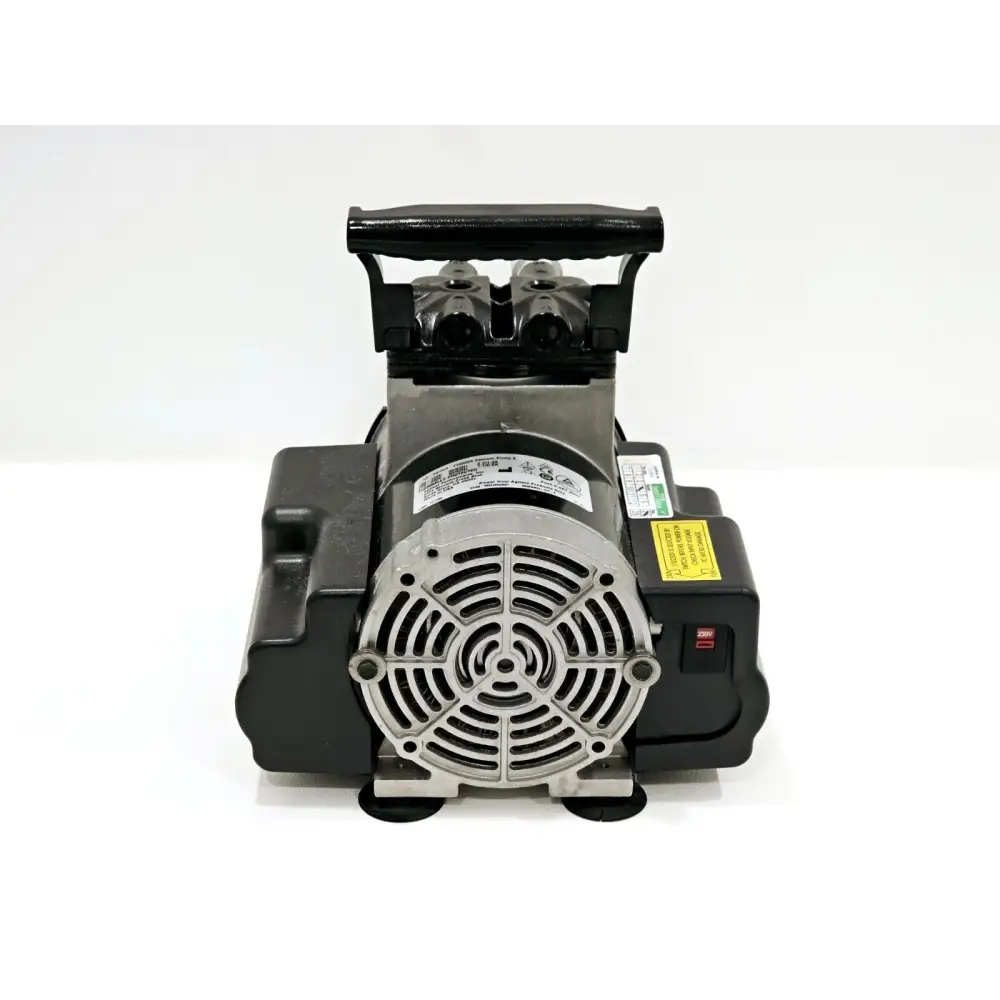

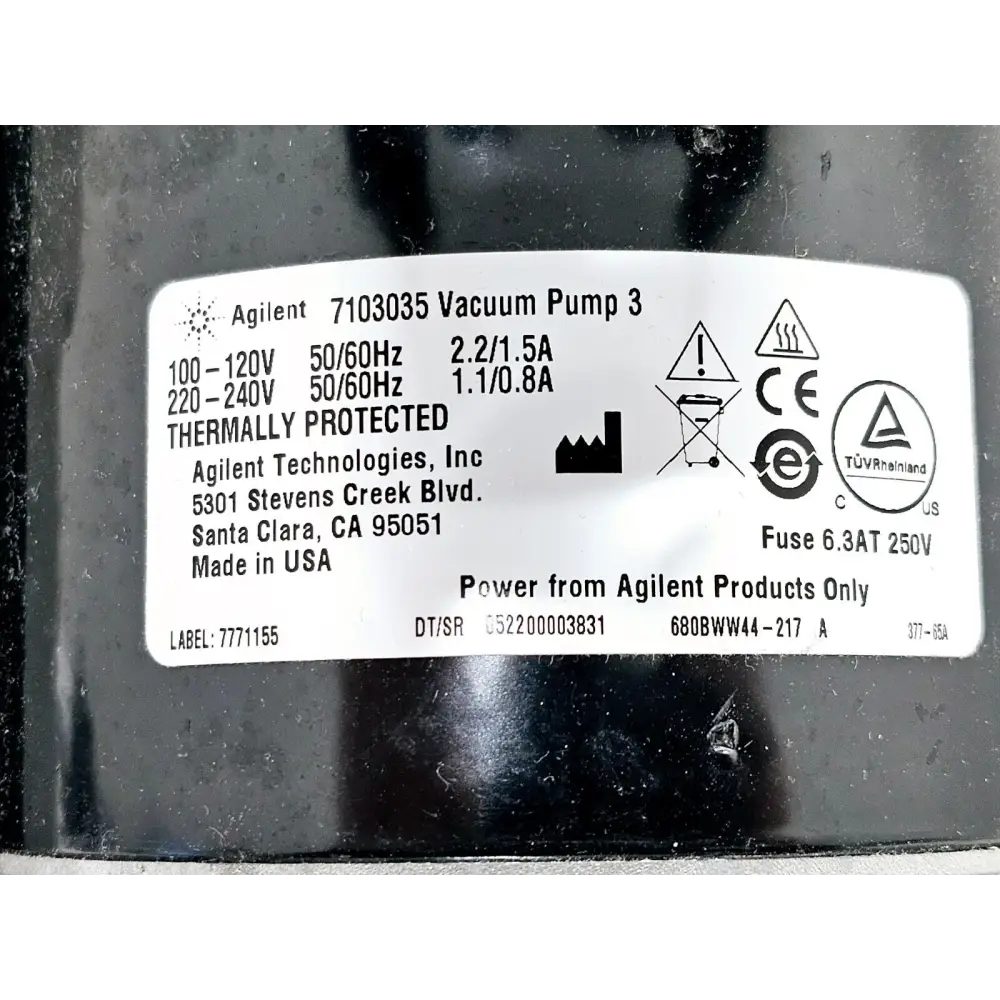

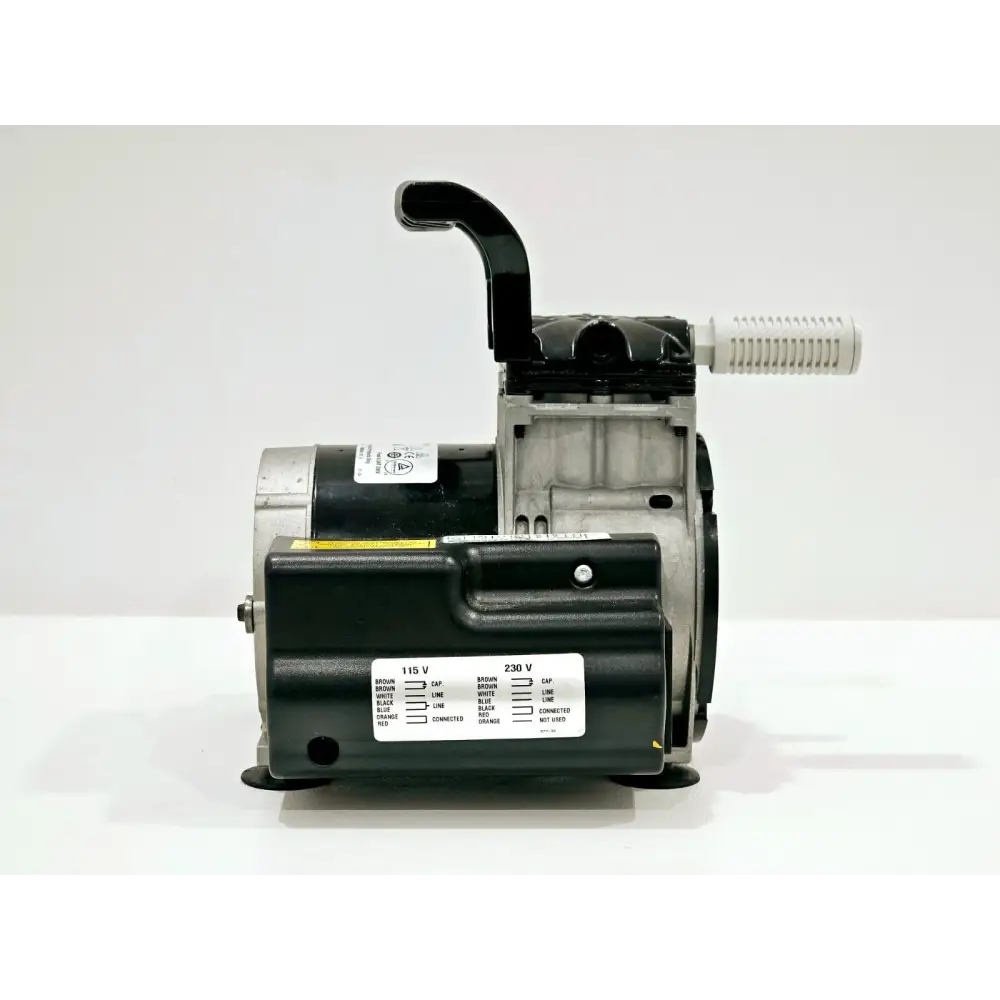

• Agilent Vacuum Pump 3 (part no. 7103035)

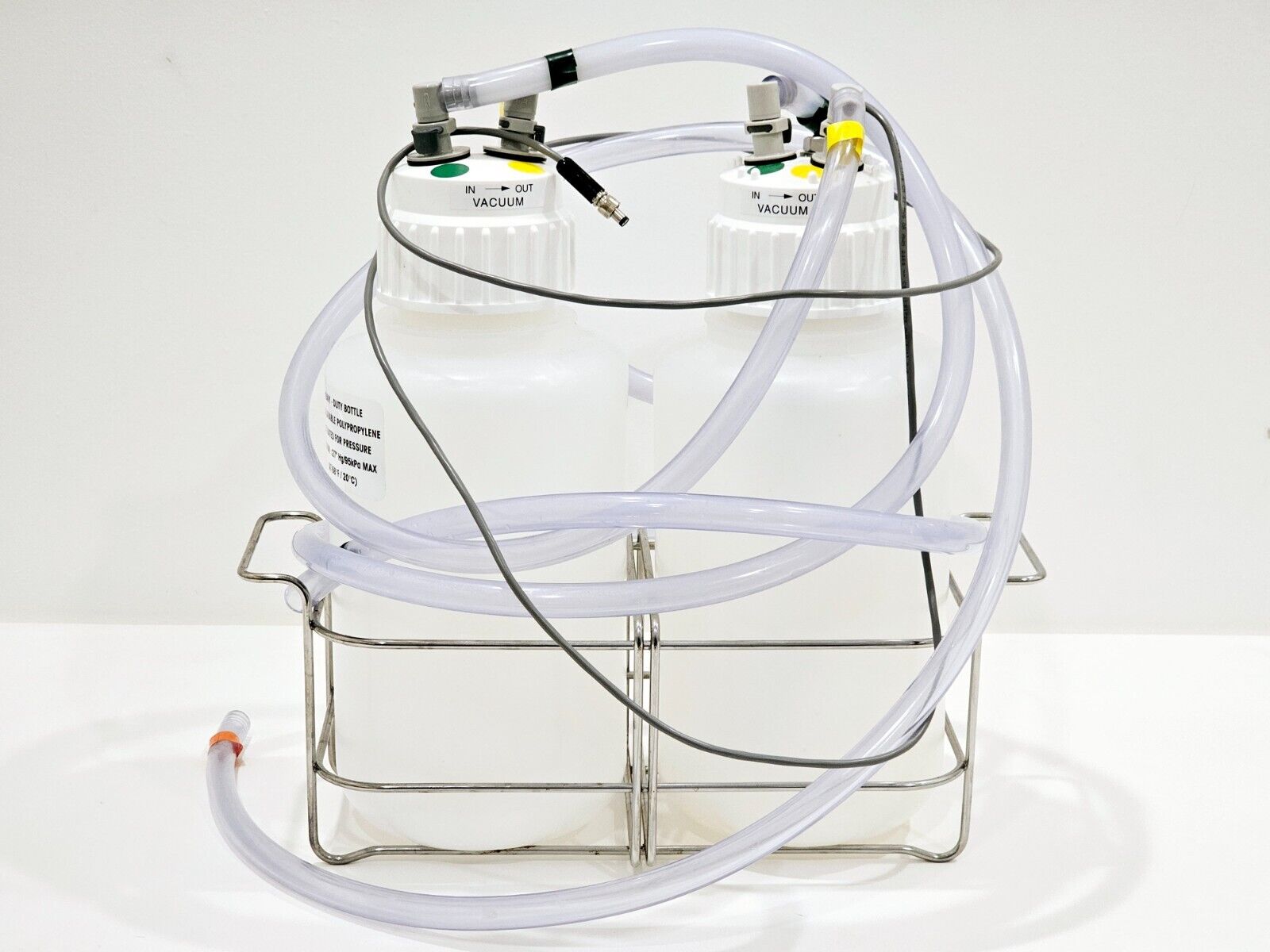

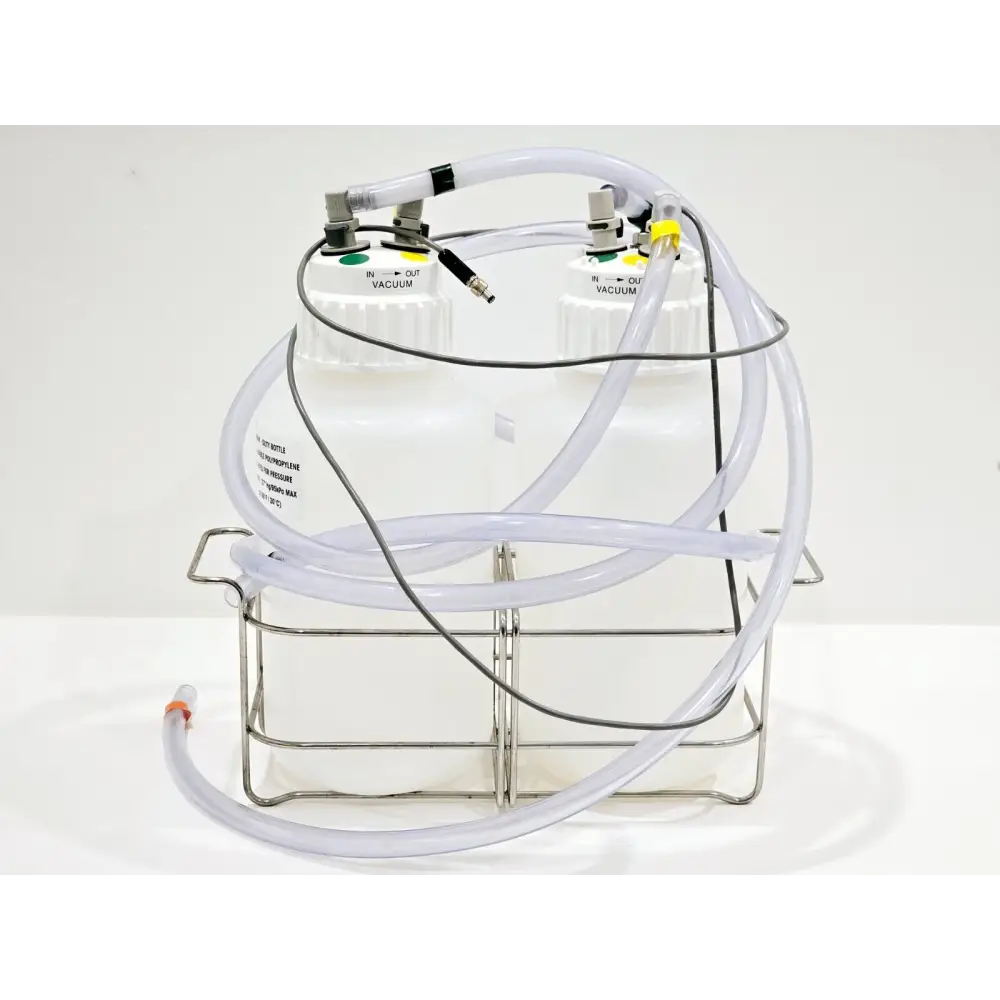

• Waste bottles x2

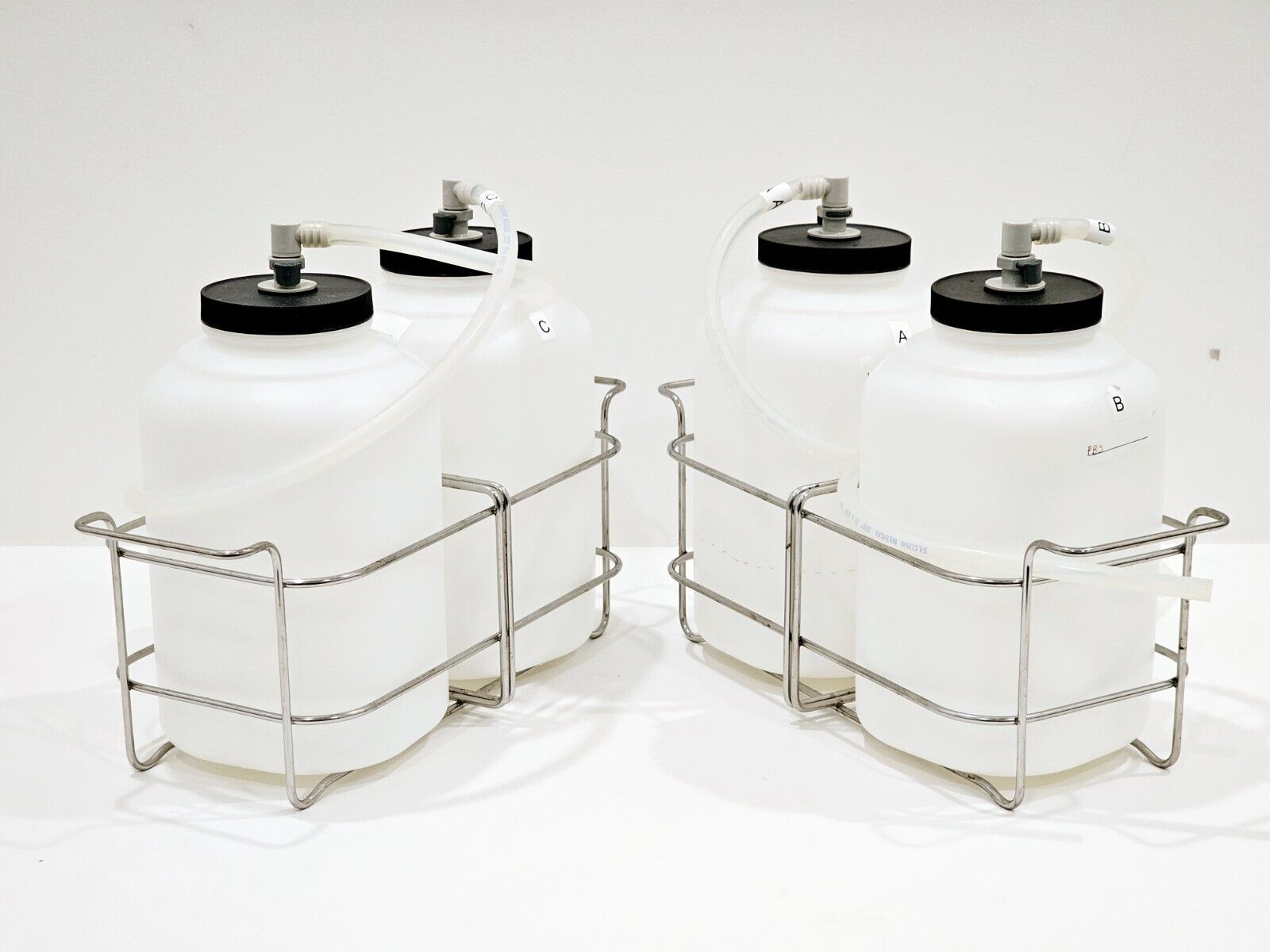

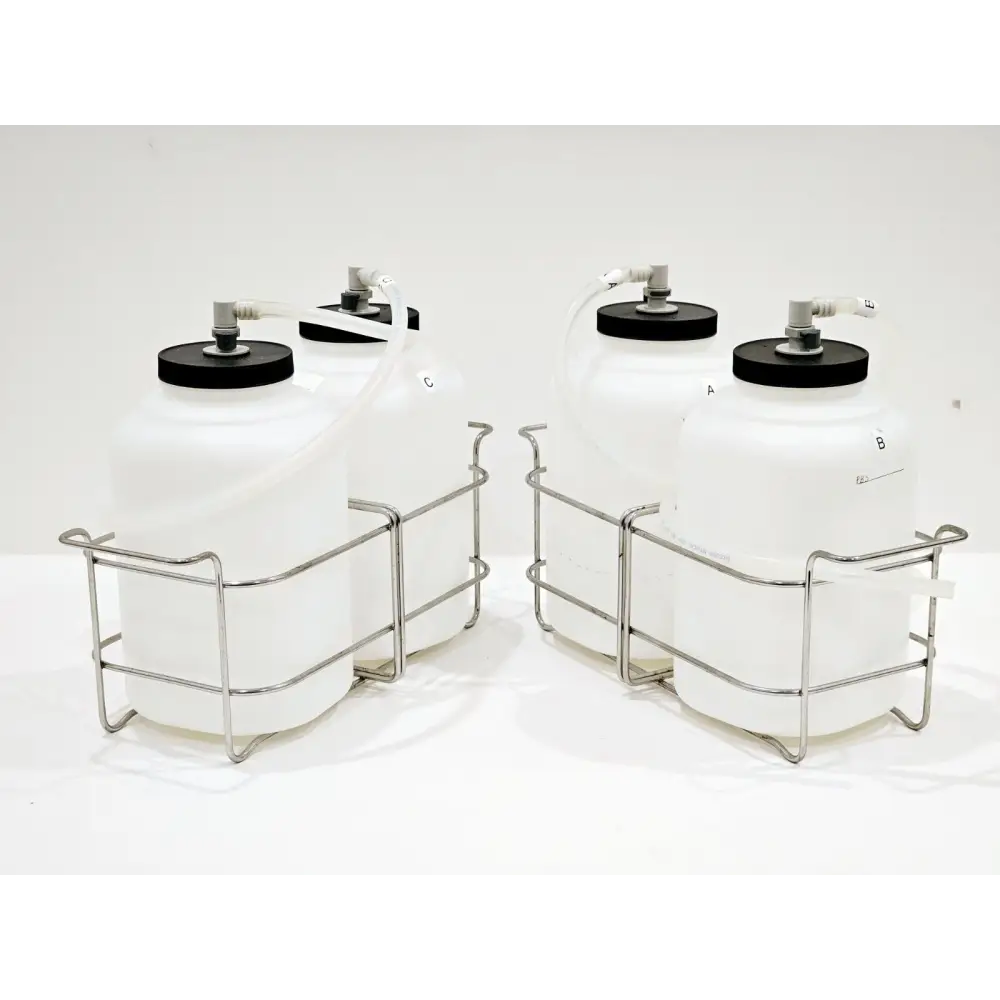

• Wash bottles x4
• Tubing
• Power cable x2

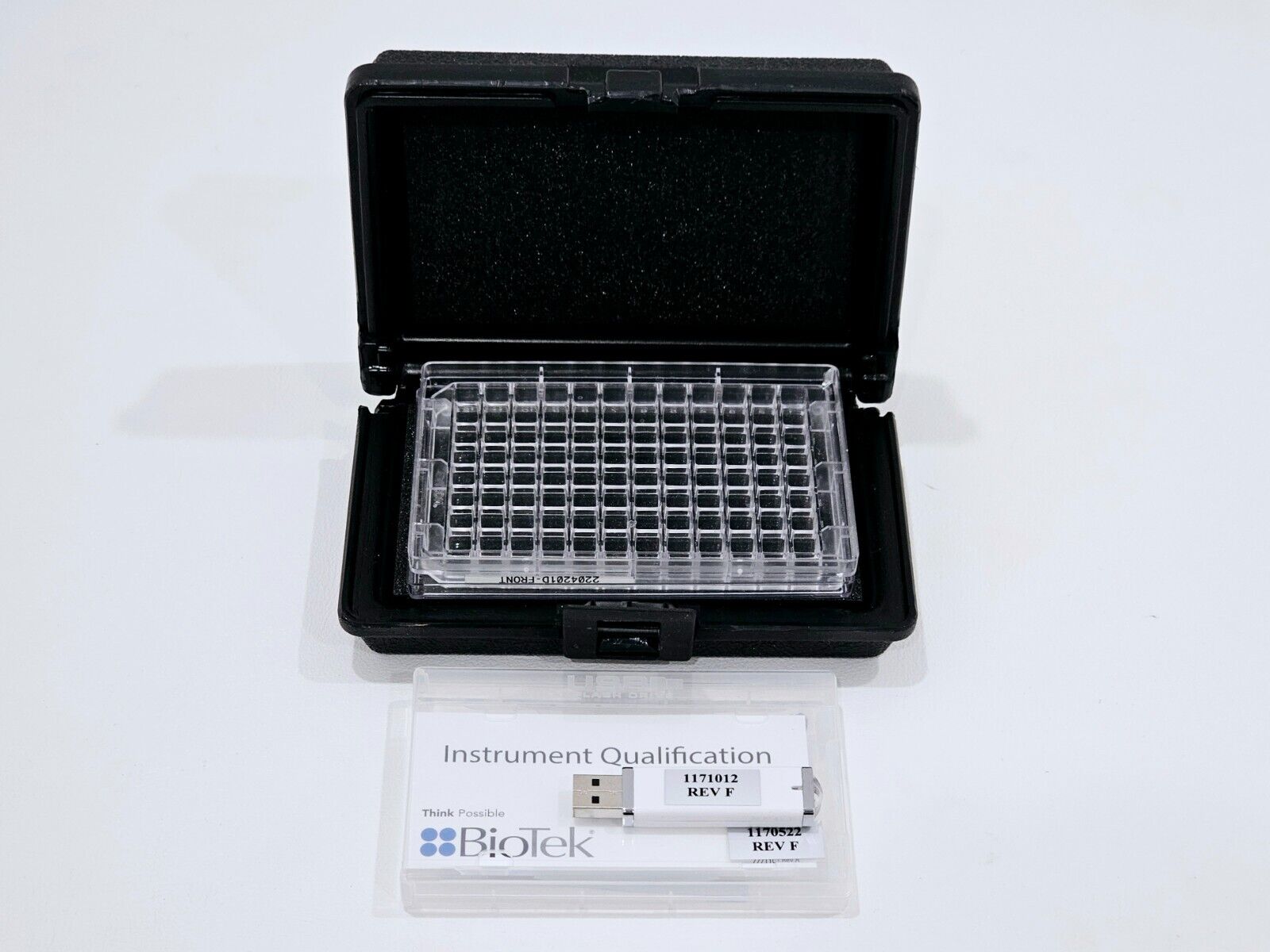

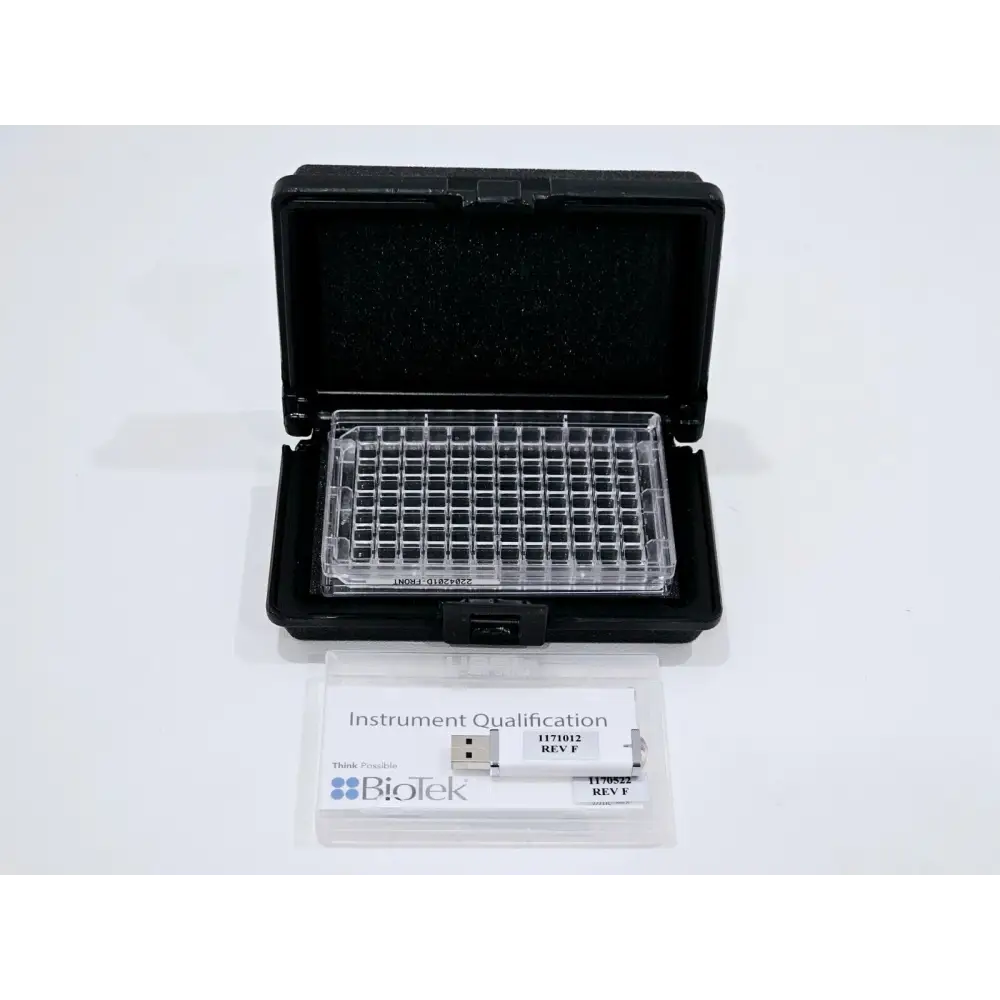

• Test plate (serialised Verify plate)
• USB interface cable
• User manual

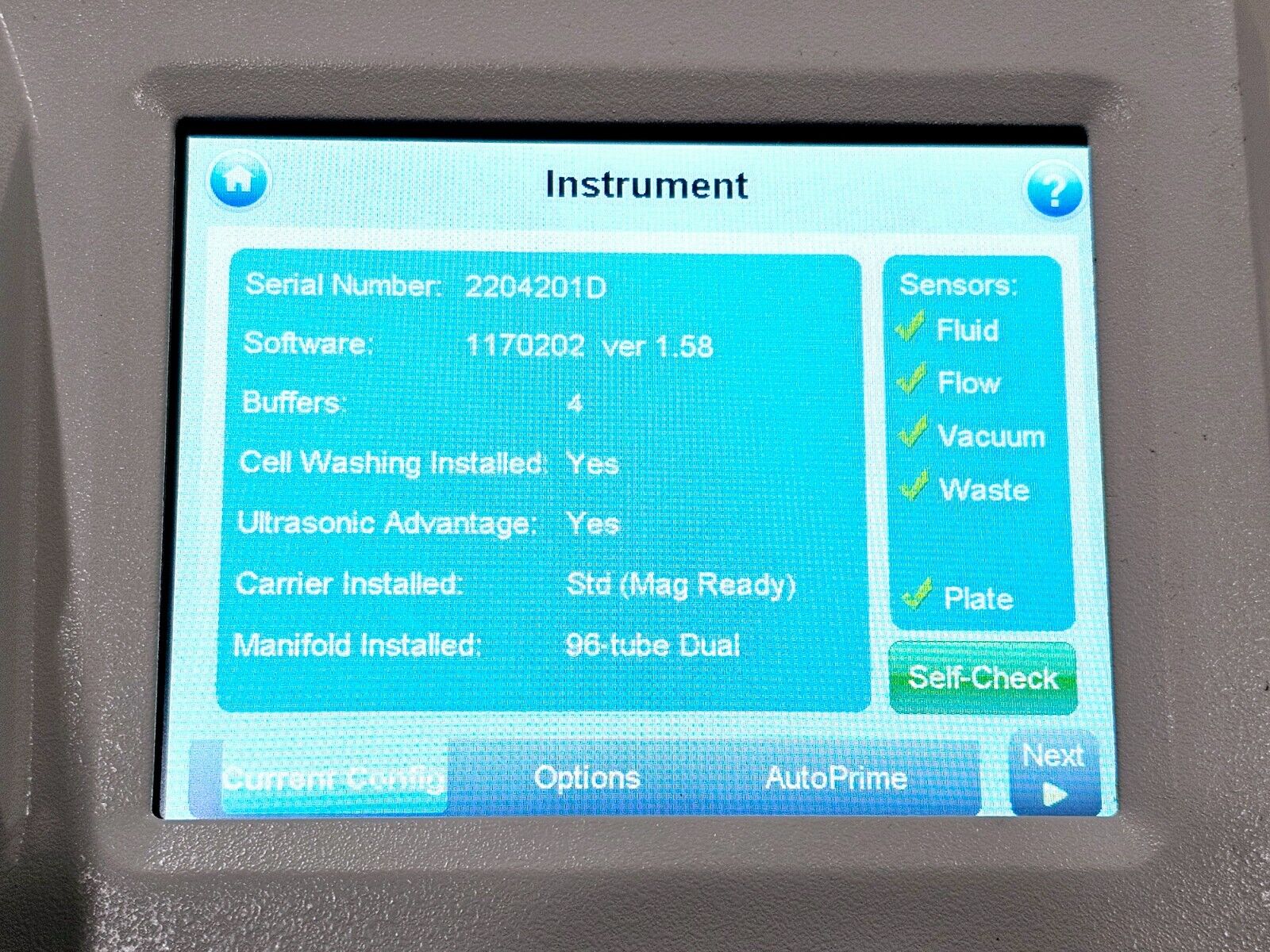

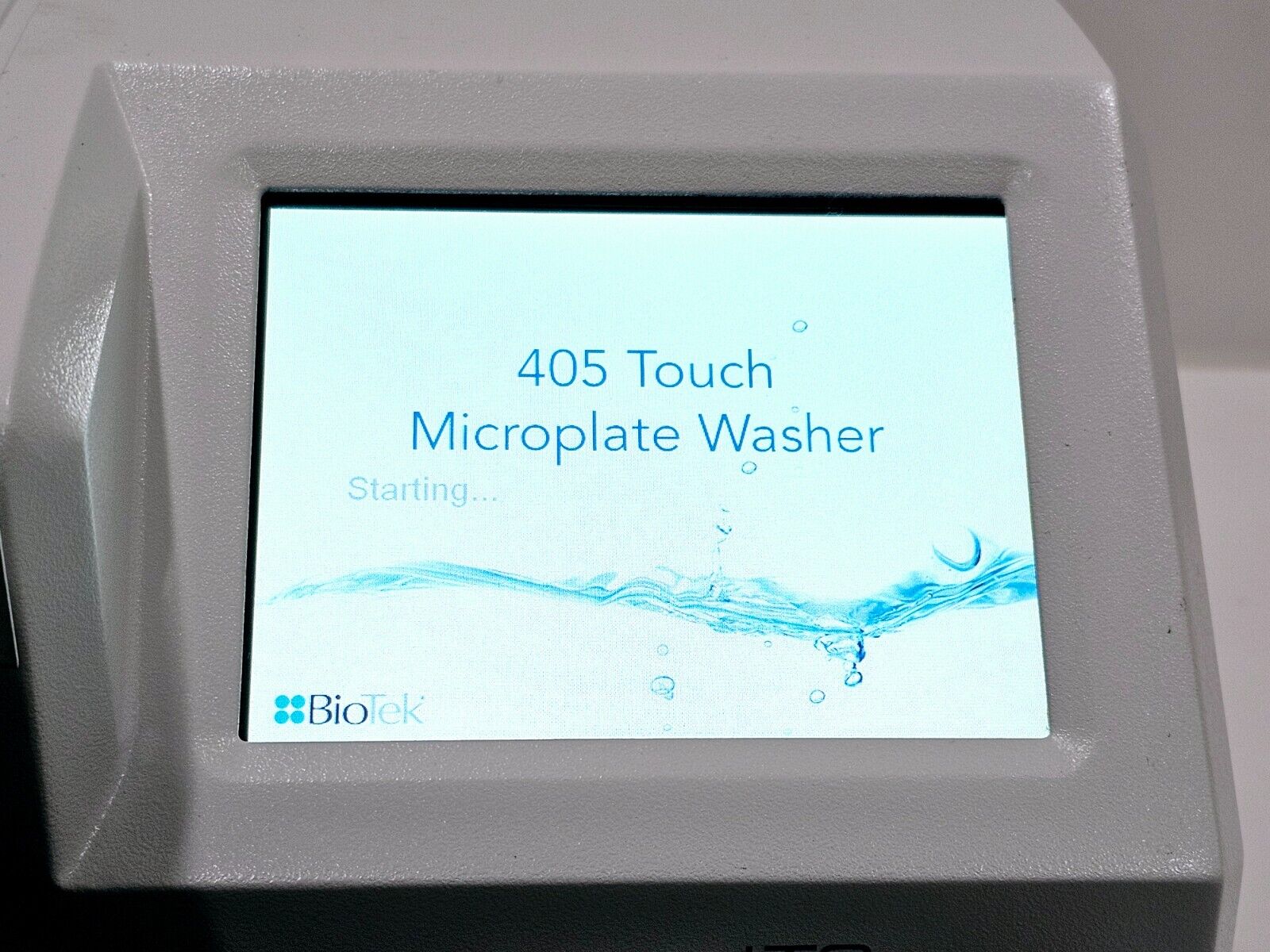

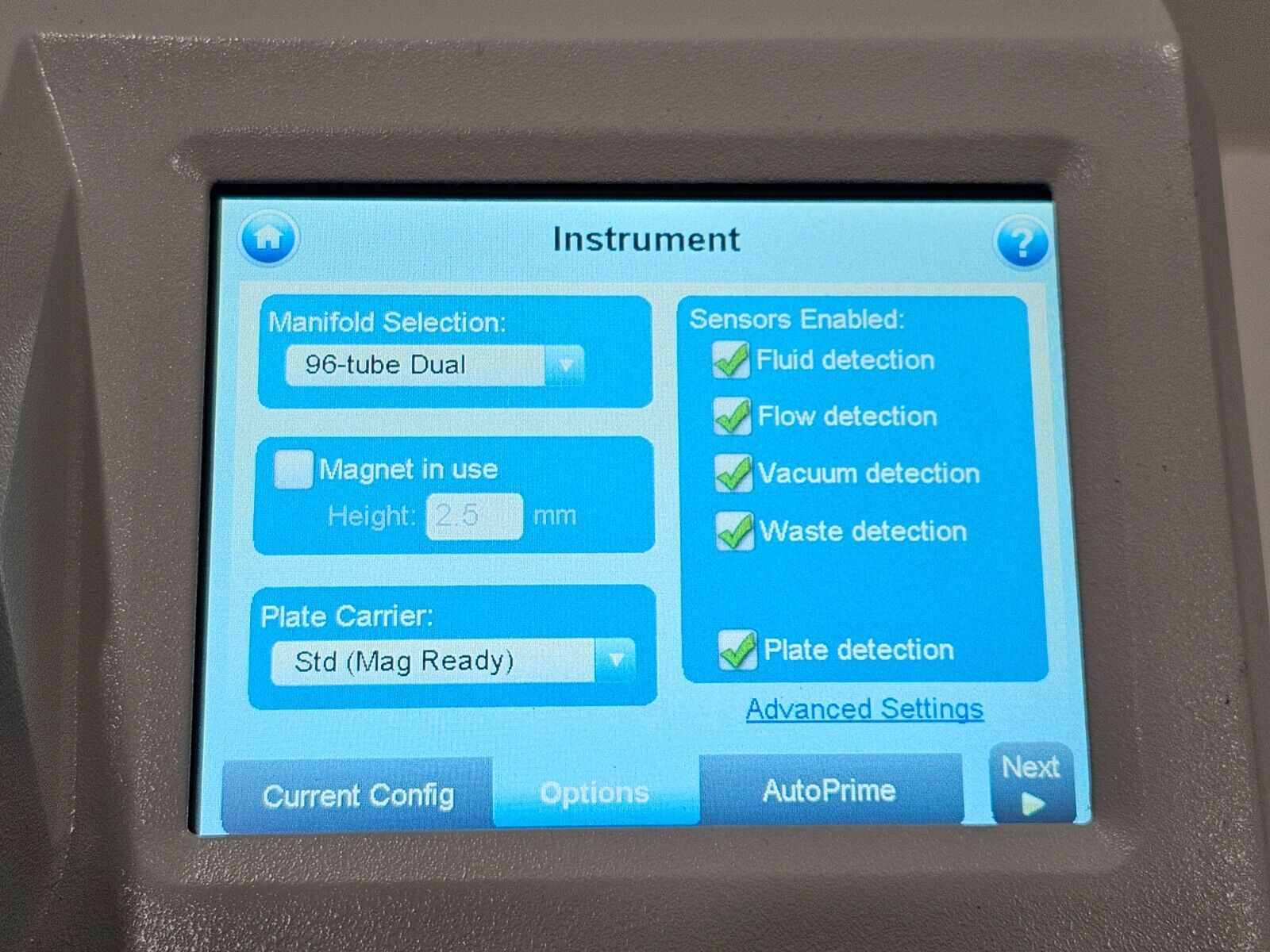

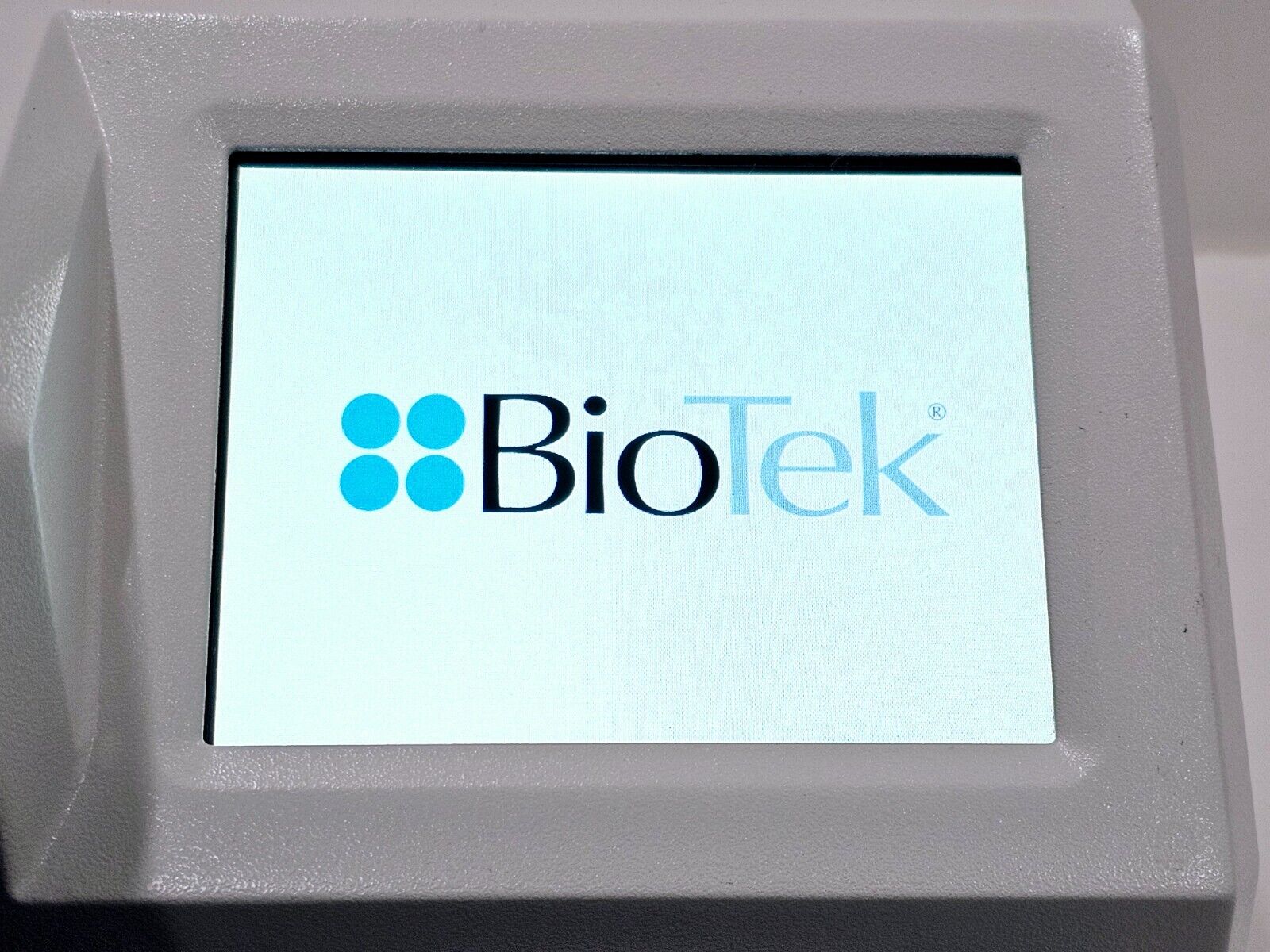

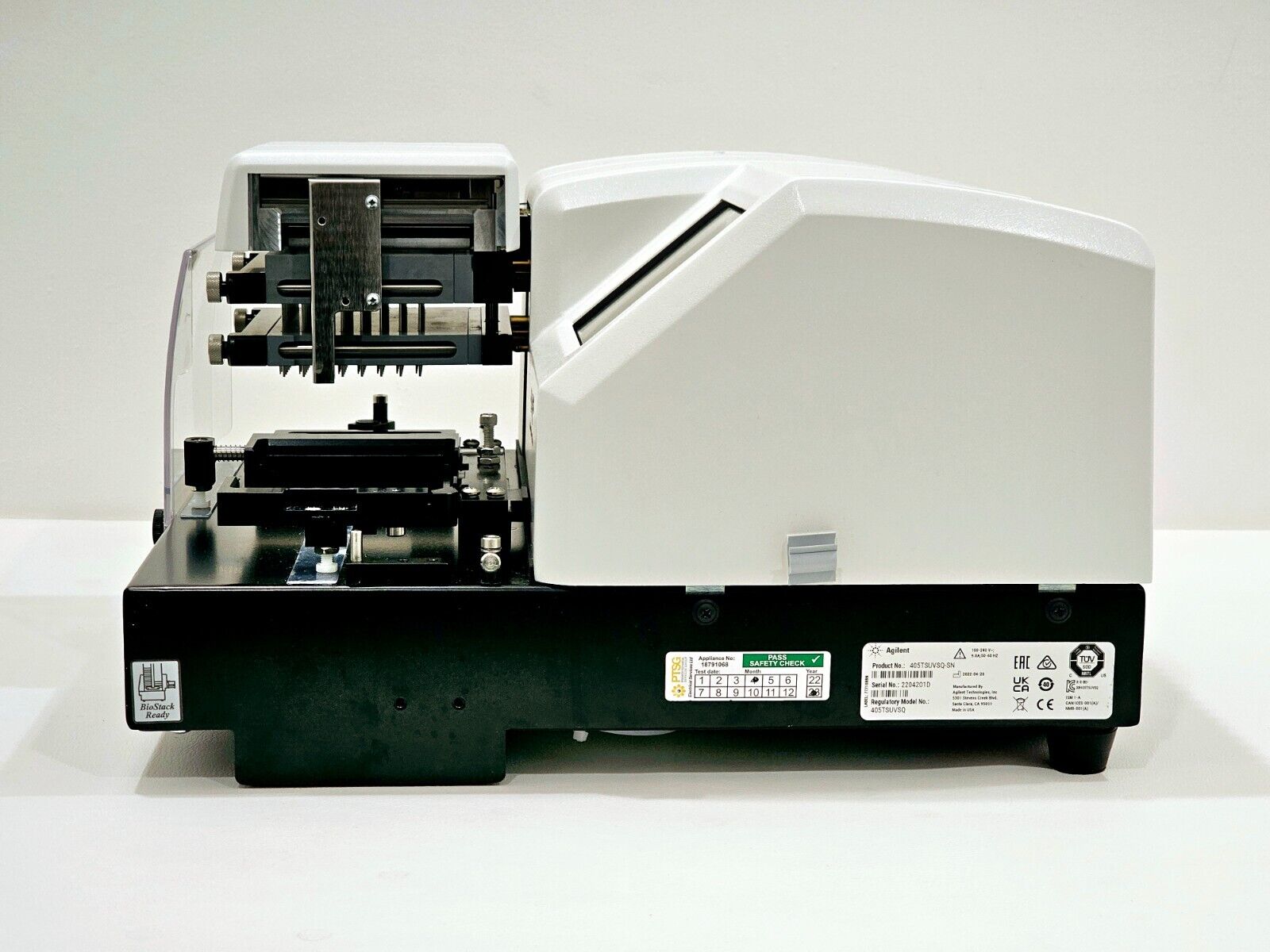

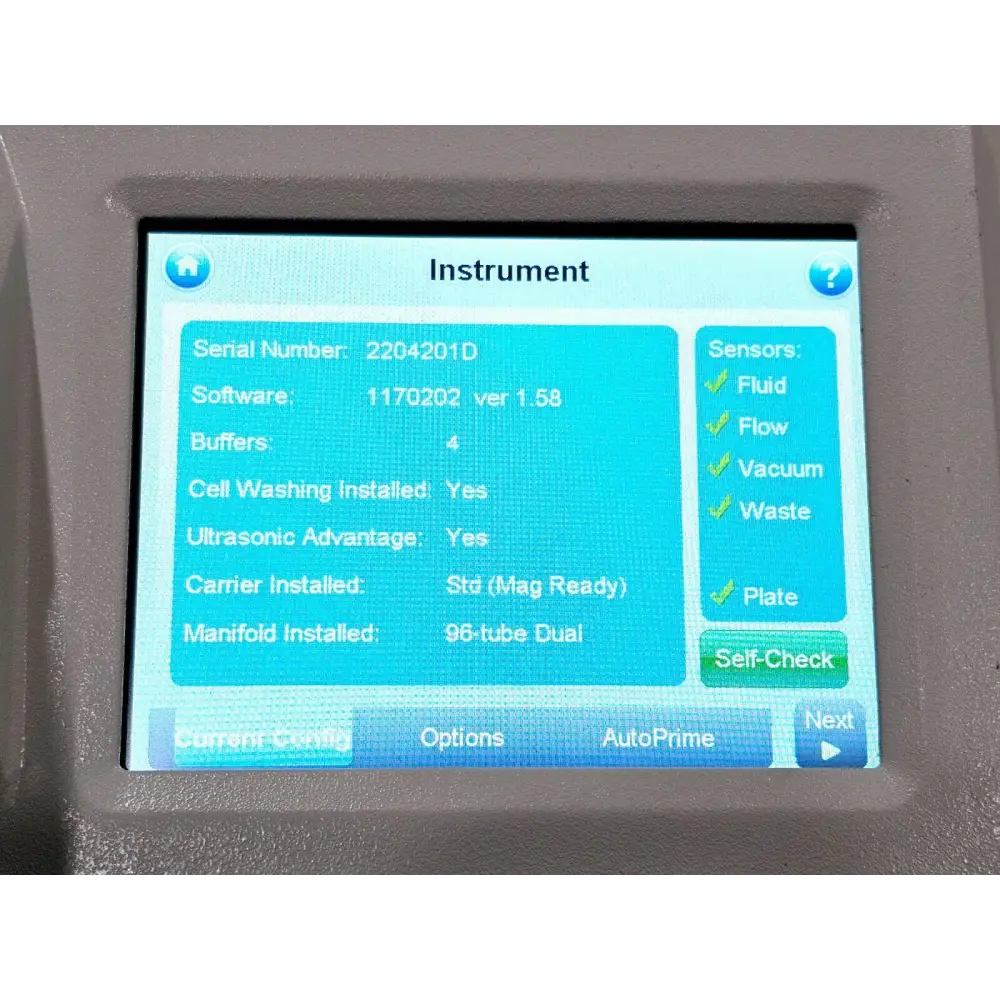

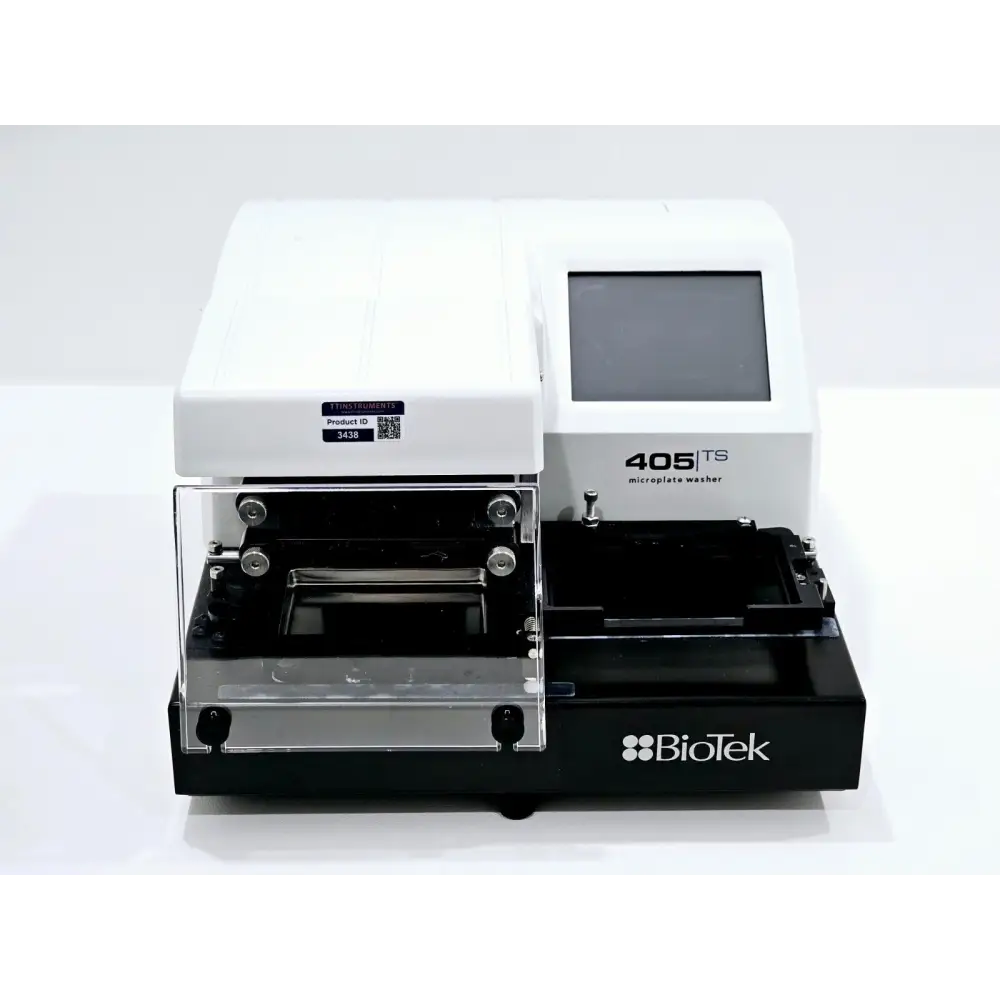

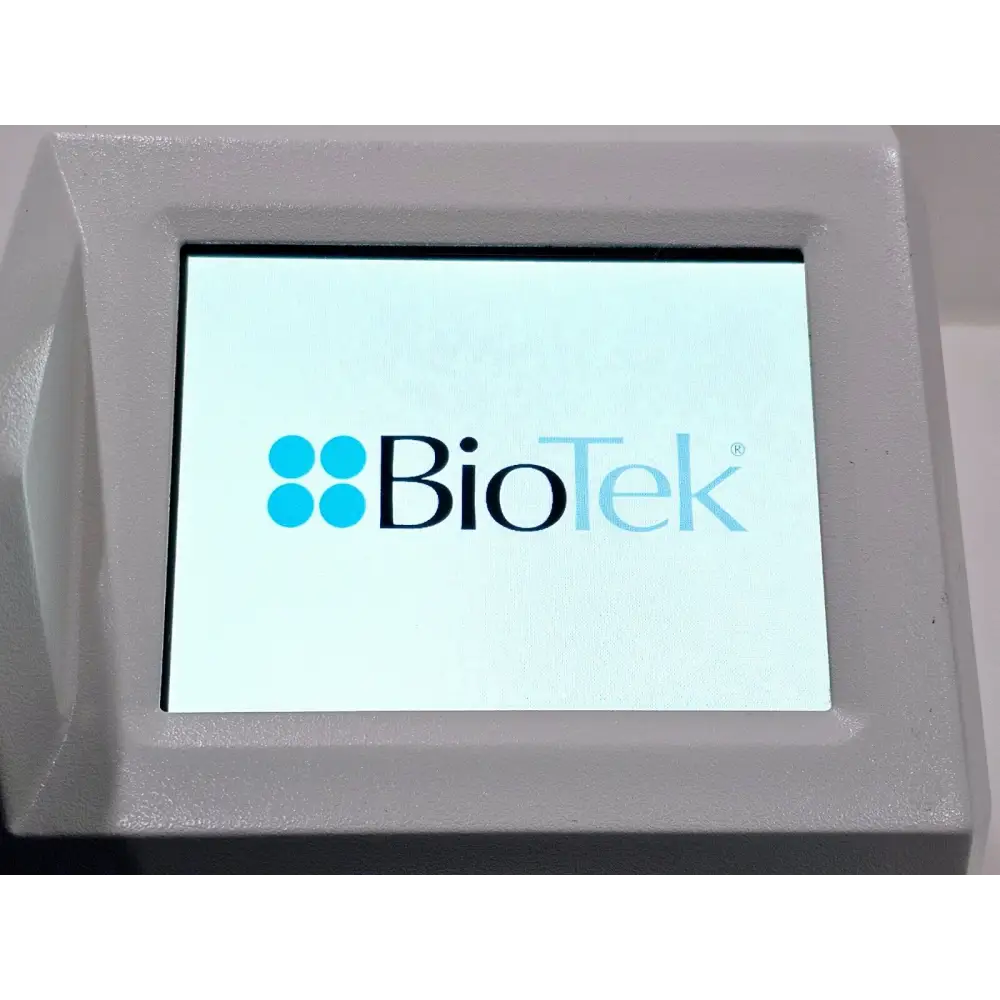

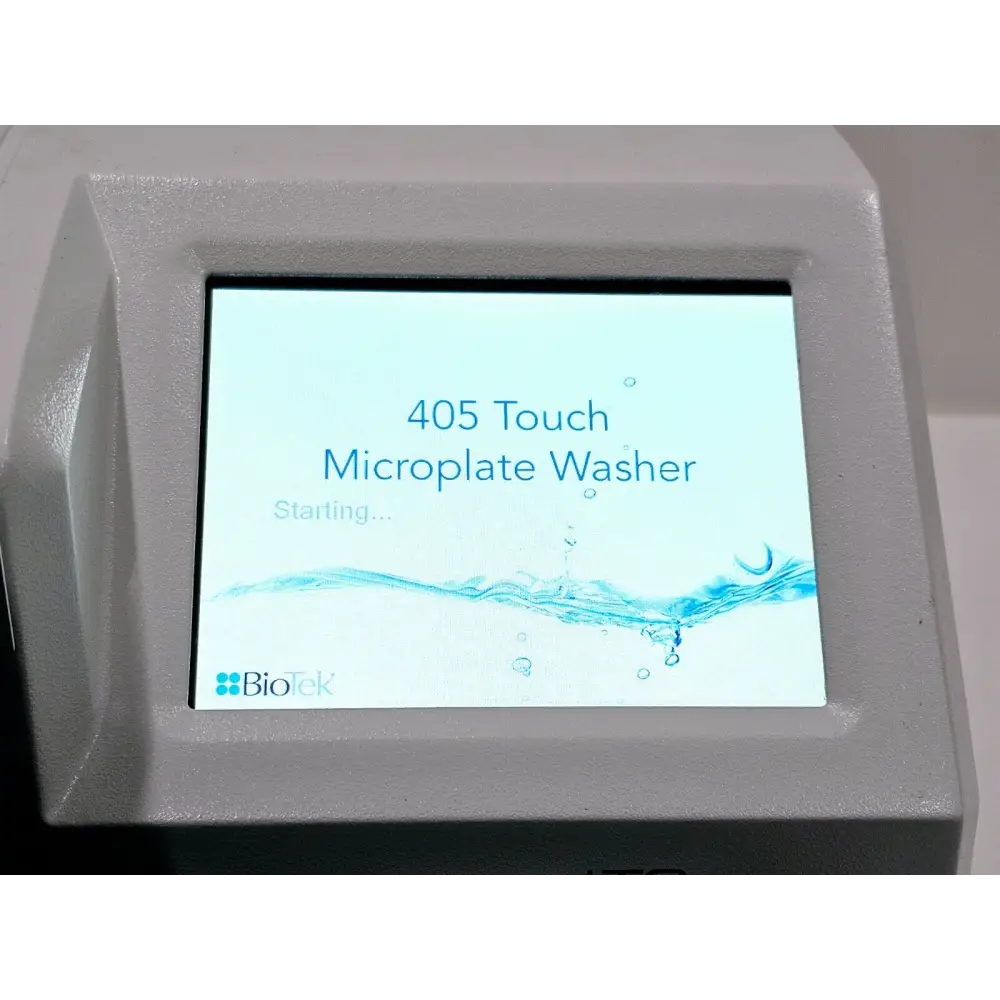

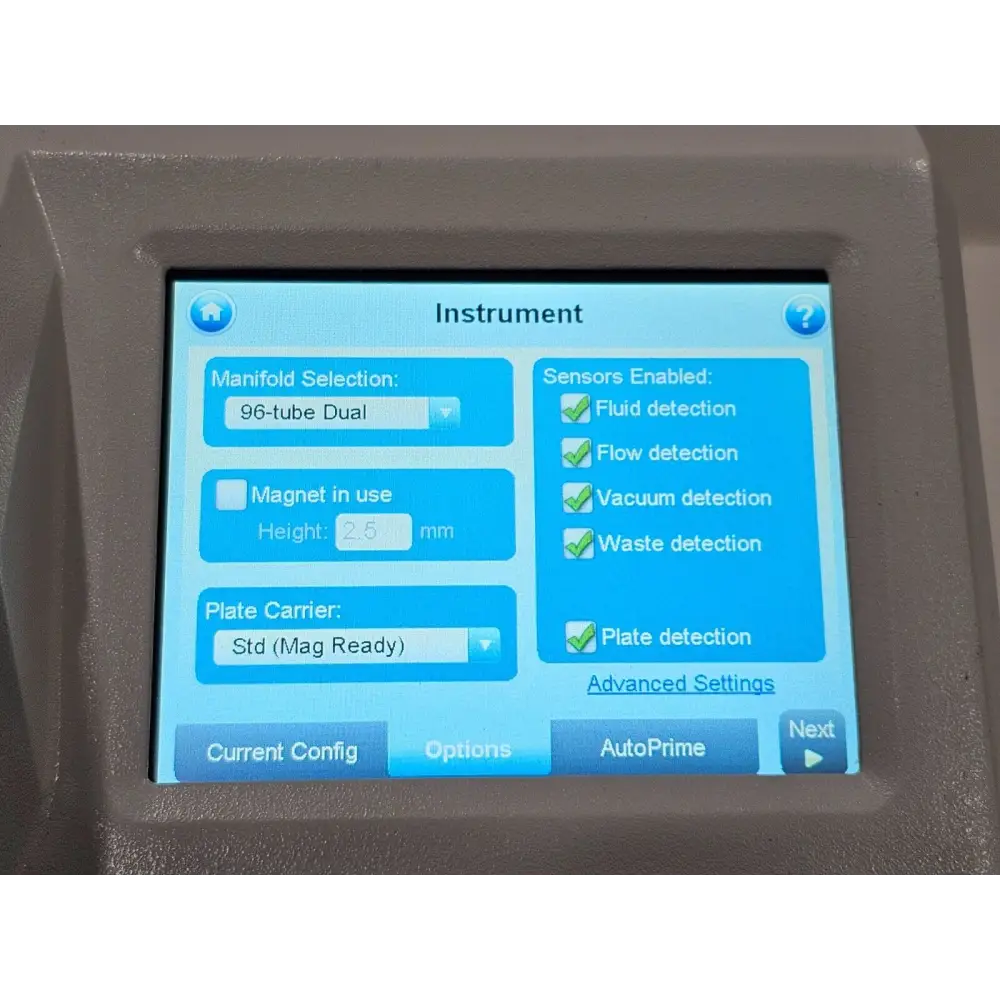

The Agilent BioTek 405 TS is a professional 96/384-well microplate washer widely regarded as the gold standard in microplate washing. It is designed for efficient washing of cell-based assays, microsphere-based assays, bead-based multiplex assays, and ELISA applications. Programming and operation are performed via a high-resolution touchscreen interface with onboard software for creating, editing, and storing wash protocols. The 405TSUVSQ is the fully-configured model, incorporating all available hardware options.

Key Features:
- Patented Verify Technology: Automated pre-wash QC check detects manifold tube blockages and visually reports any failed wells
- Patented Ultrasonic Advantage: Automatically and thoroughly cleans aspirate and dispense manifold tubes without manual intervention

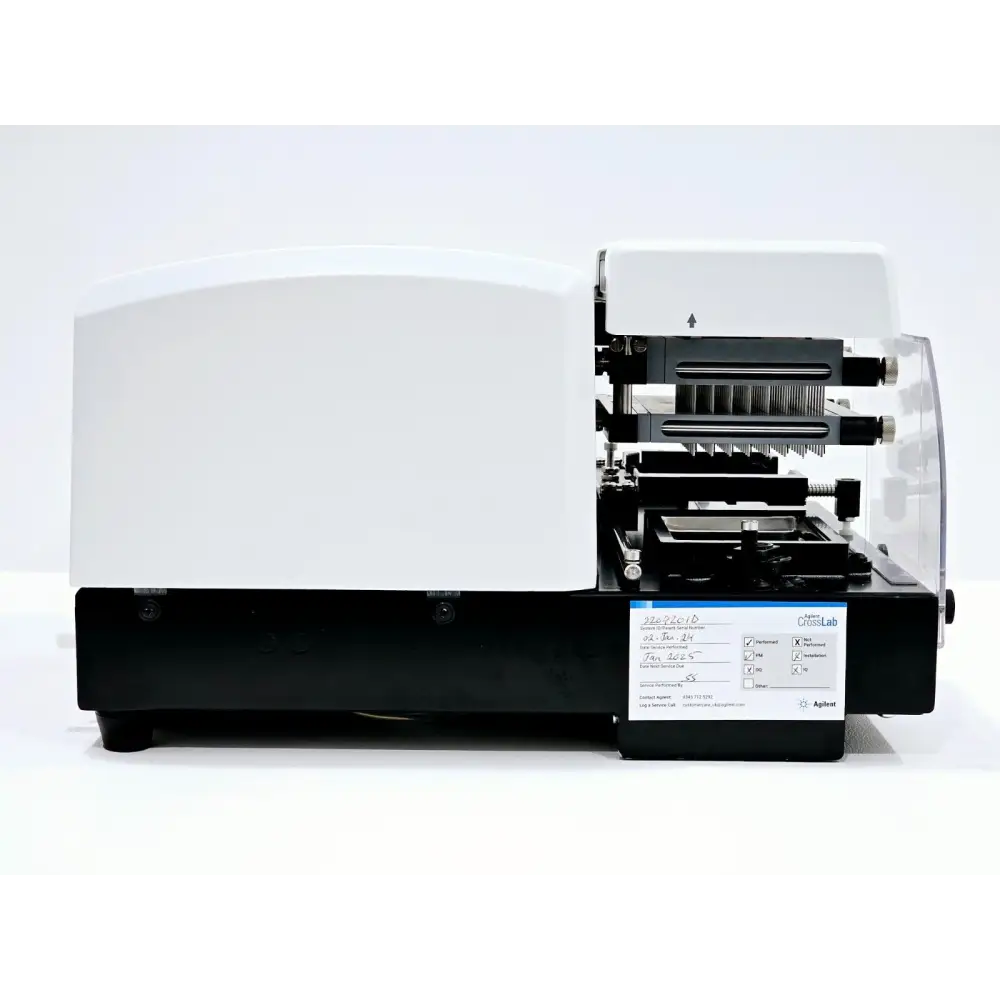

- Dual-Action Manifold: Independent control and positioning of aspirate and dispense sections; angled dispense tubes optimised for loosely adherent cell monolayers

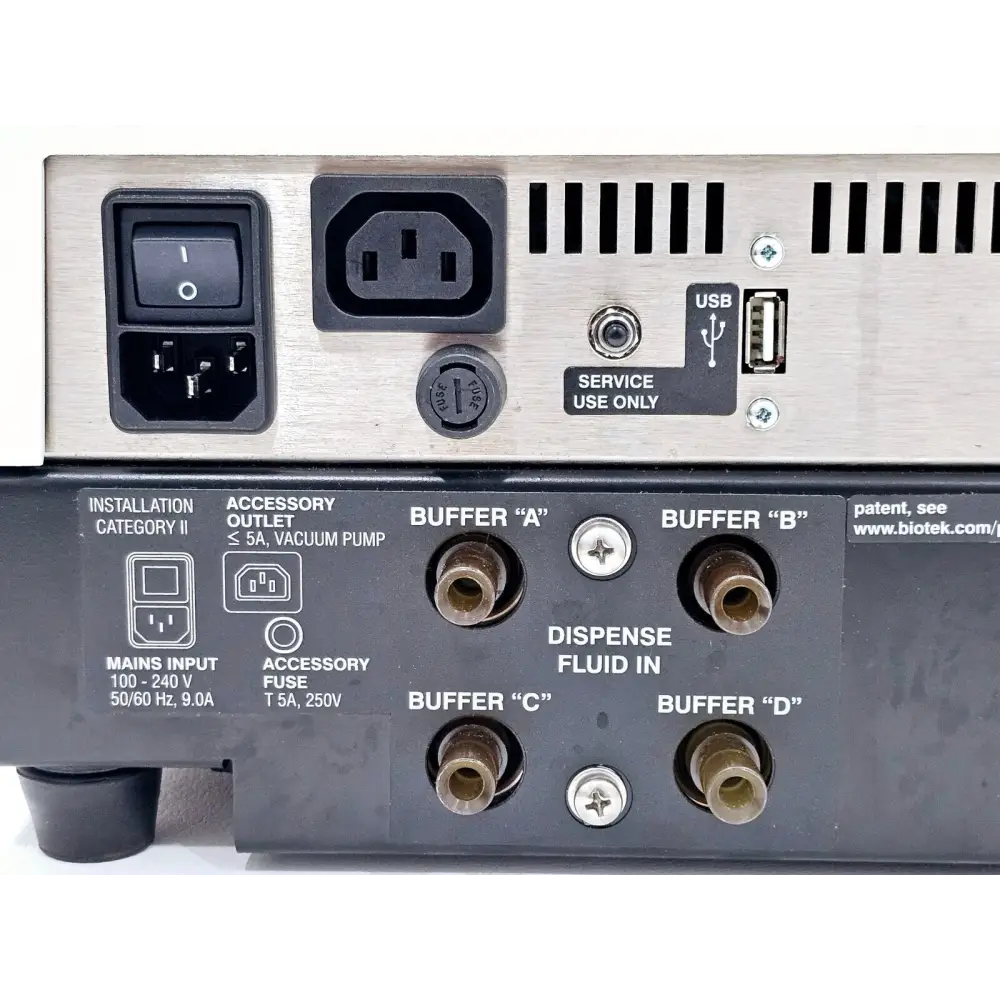

- 4-Buffer Internal Switching: Automated selection between up to four wash buffers
- Programmable Shaking: Slow, medium, fast, or variable settings
- Automation Compatible: Supports Agilent BioTek BioStack microplate stacker, BioSpa 8 automated incubator, and BenchCel microplate handler
- Software: Onboard protocol software; compatible with LHC2 (computer control), LHC2 Secure (21 CFR Part 11 compliance), and LHC SiLA (SiLA-compliant robotic integration)

Technical Specifications:
Microplate Compatibility: 96-well and 384-well plates (low profile and standard height; solid and filter bottom)
Manifold Types: 96-tube Dual-Action manifold (20° angled dispense, 8x12); 192-tube Dual-Action manifold (7° angled dispense)
Volume Range (96-tube manifold): 50–3,000 µL/well
Volume Range (192-tube manifold): 25–3,000 µL/well
Dispense Precision: <3% CV at 300 µL/well (96-well); <4% CV at 80 µL/well (384-well)
Residual Volume: ≤2 µL/well (96- and 384-well)
Wash Speed (96-well): 300 µL/well, 3 cycles in ≤30 seconds
Wash Speed (384-well): 100 µL/well, 3 cycles in ≤80 seconds; 400 µL/well, 1 cycle in ≤20 seconds
Shaking: Programmable up to 60 minutes (slow, medium, fast, or variable)
Soaking: Programmable up to 60 minutes
Ultrasonic Advantage: Yes (active on TSUVSQ configuration)
Verify Technology: Yes (active on TSUVSQ configuration)
Dimensions: 17" D x 14" W x 10" H (43.2 x 35.6 x 25.4 cm)
Weight (with internal buffer switching): 36 lb (16.5 kg)
Power Requirements: 100–240 V AC, 50–60 Hz

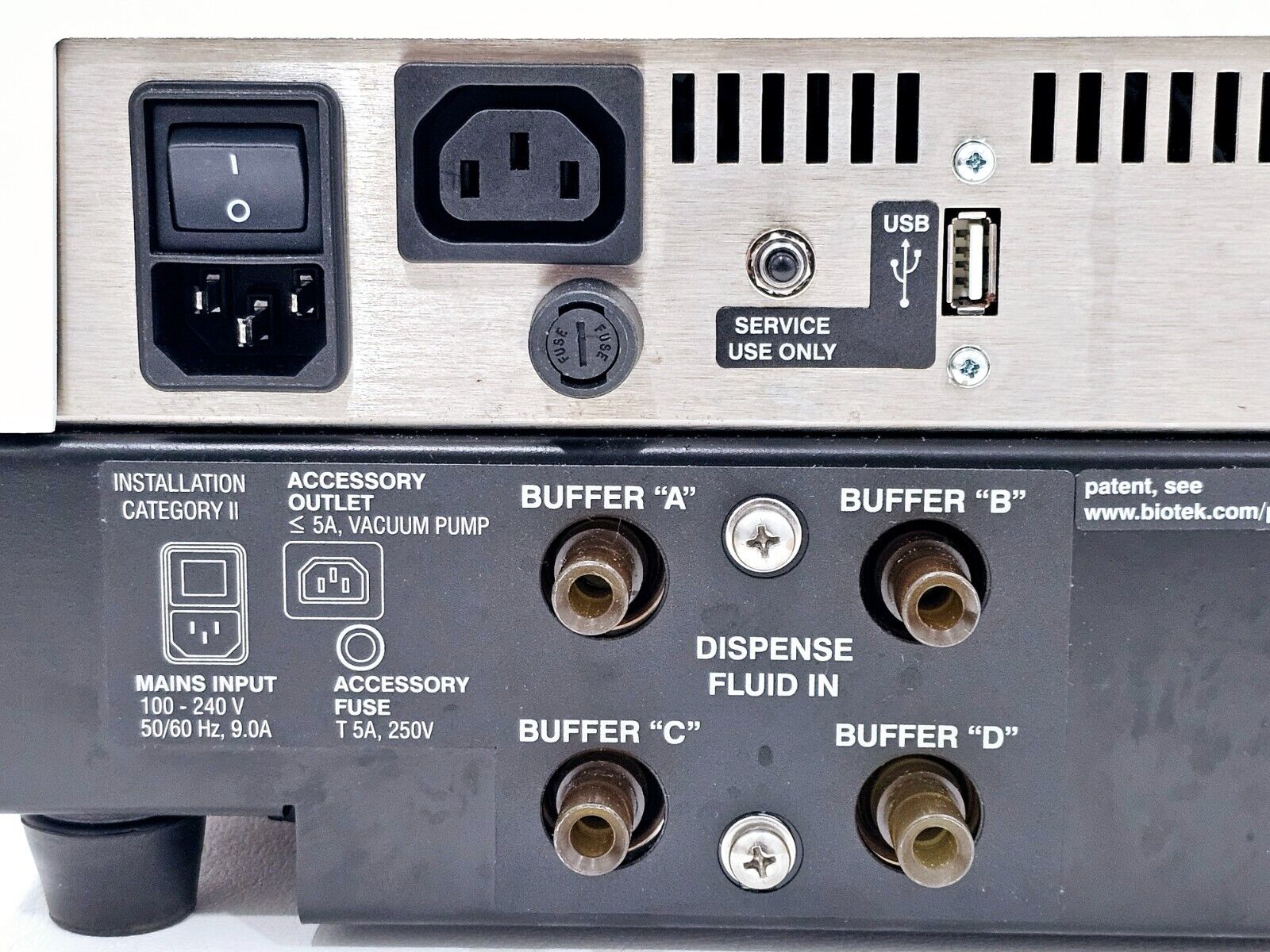

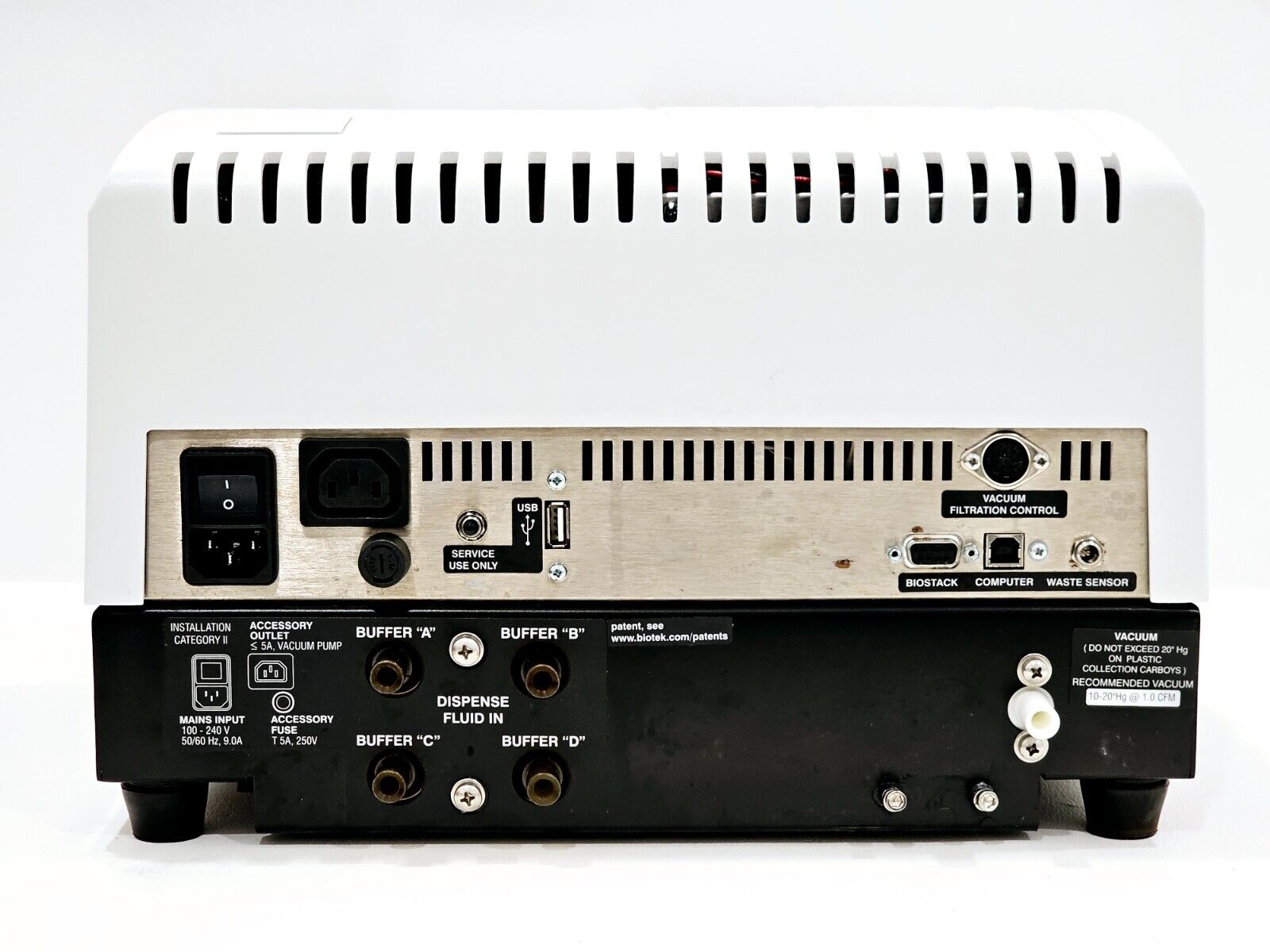

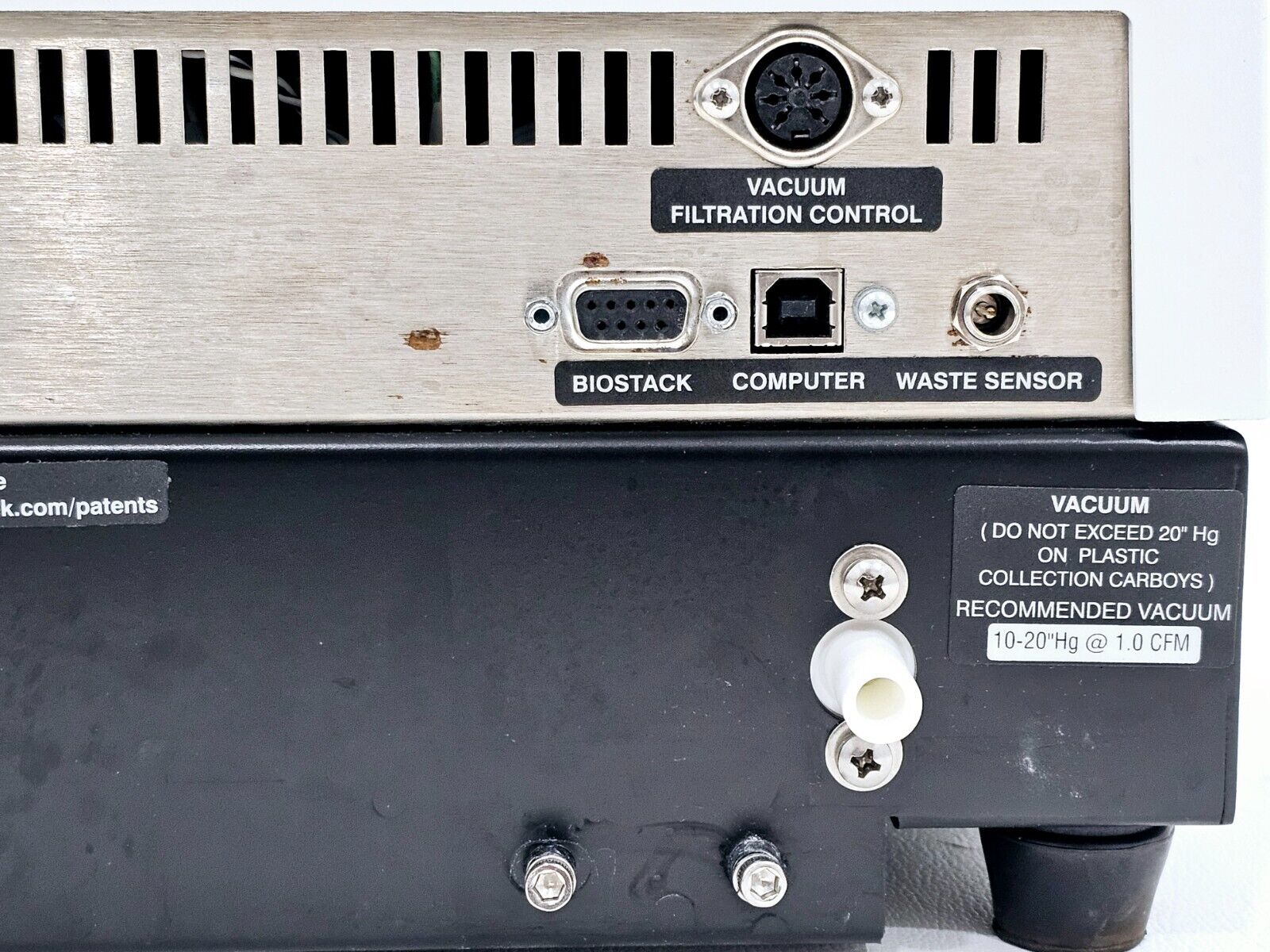

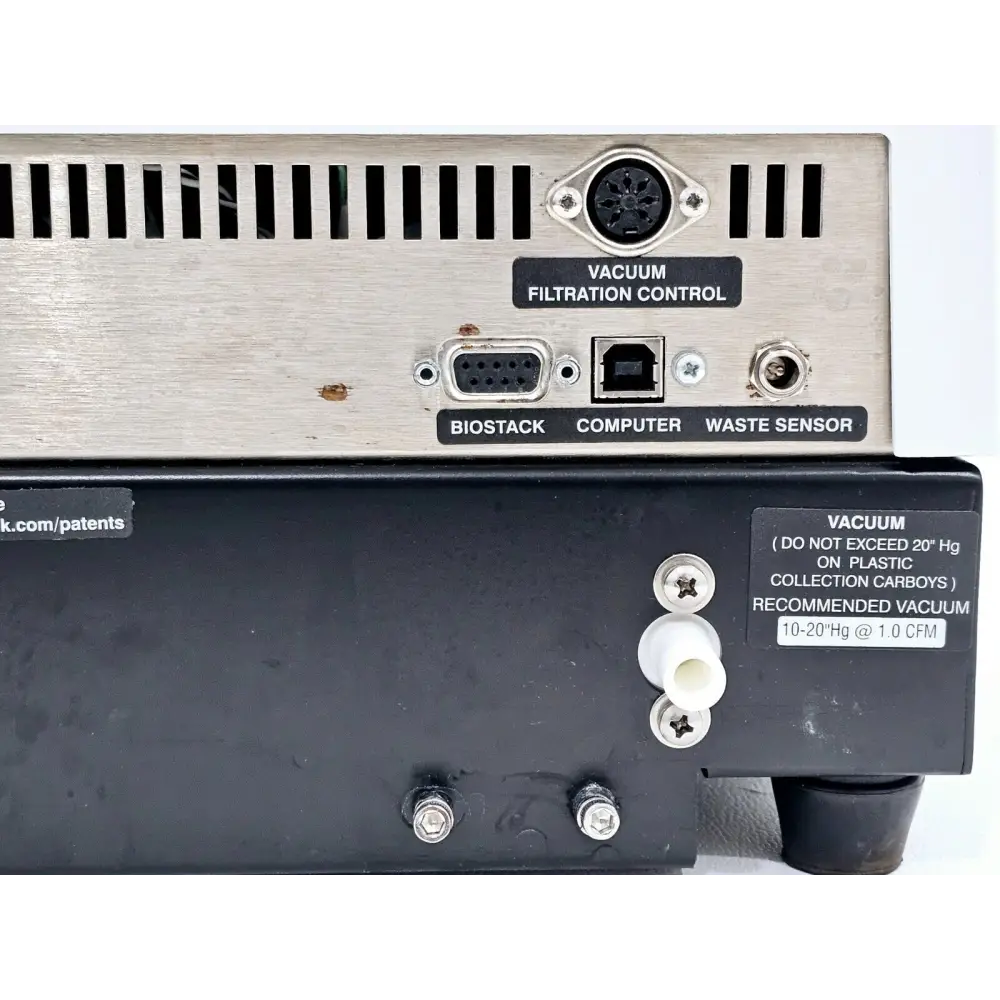

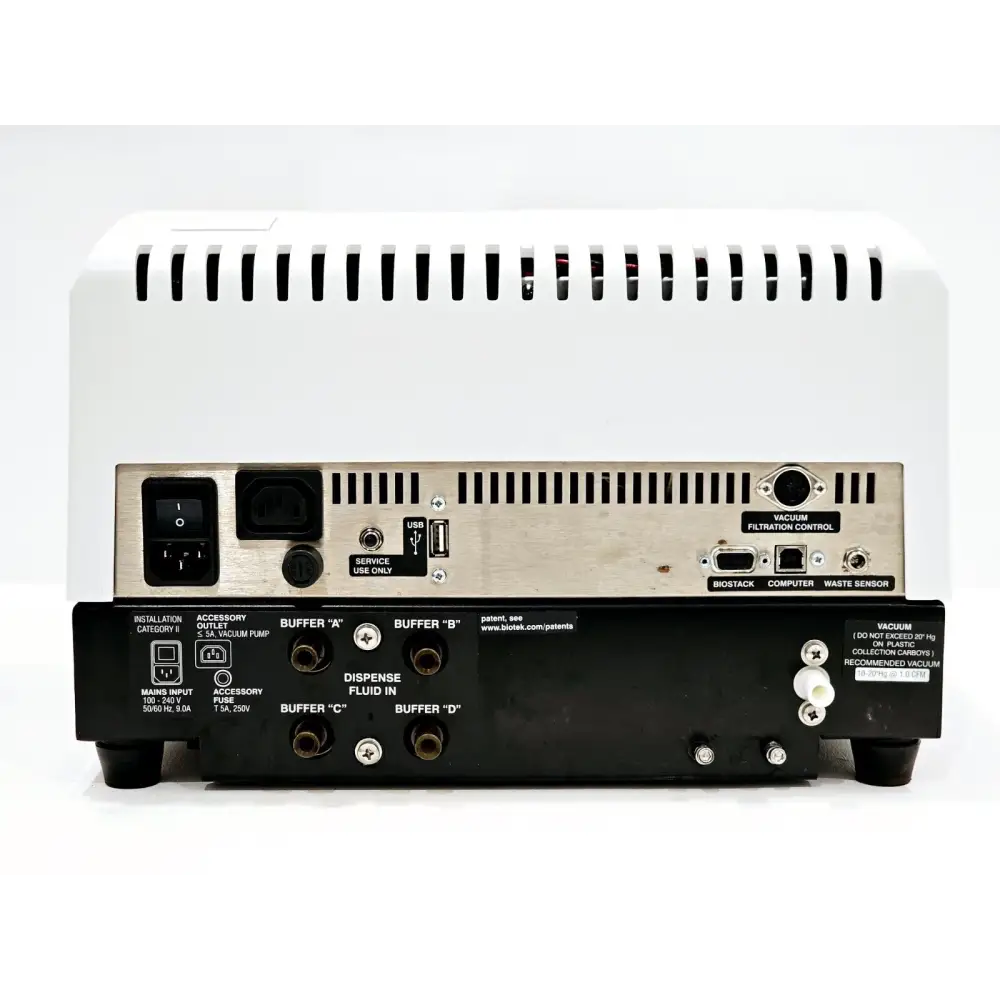

Communication: USB; RS-232 serial port
Certifications: CE

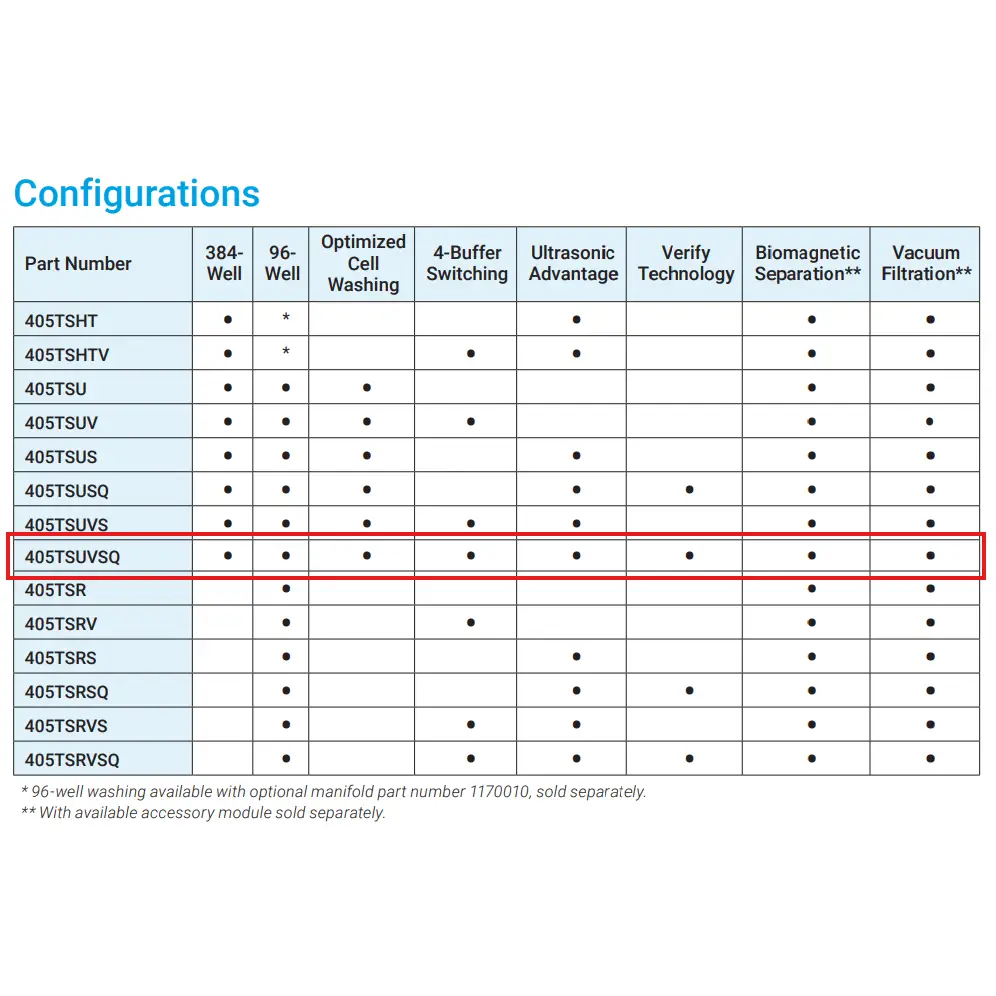

Agilent BioTek 405 TS Washer Data Sheet — official technical specifications and configuration table (PDF): Download PDF

BioTek 405 TS Getting Started Guide — setup, installation, and initial operation instructions (PDF): Download PDF
