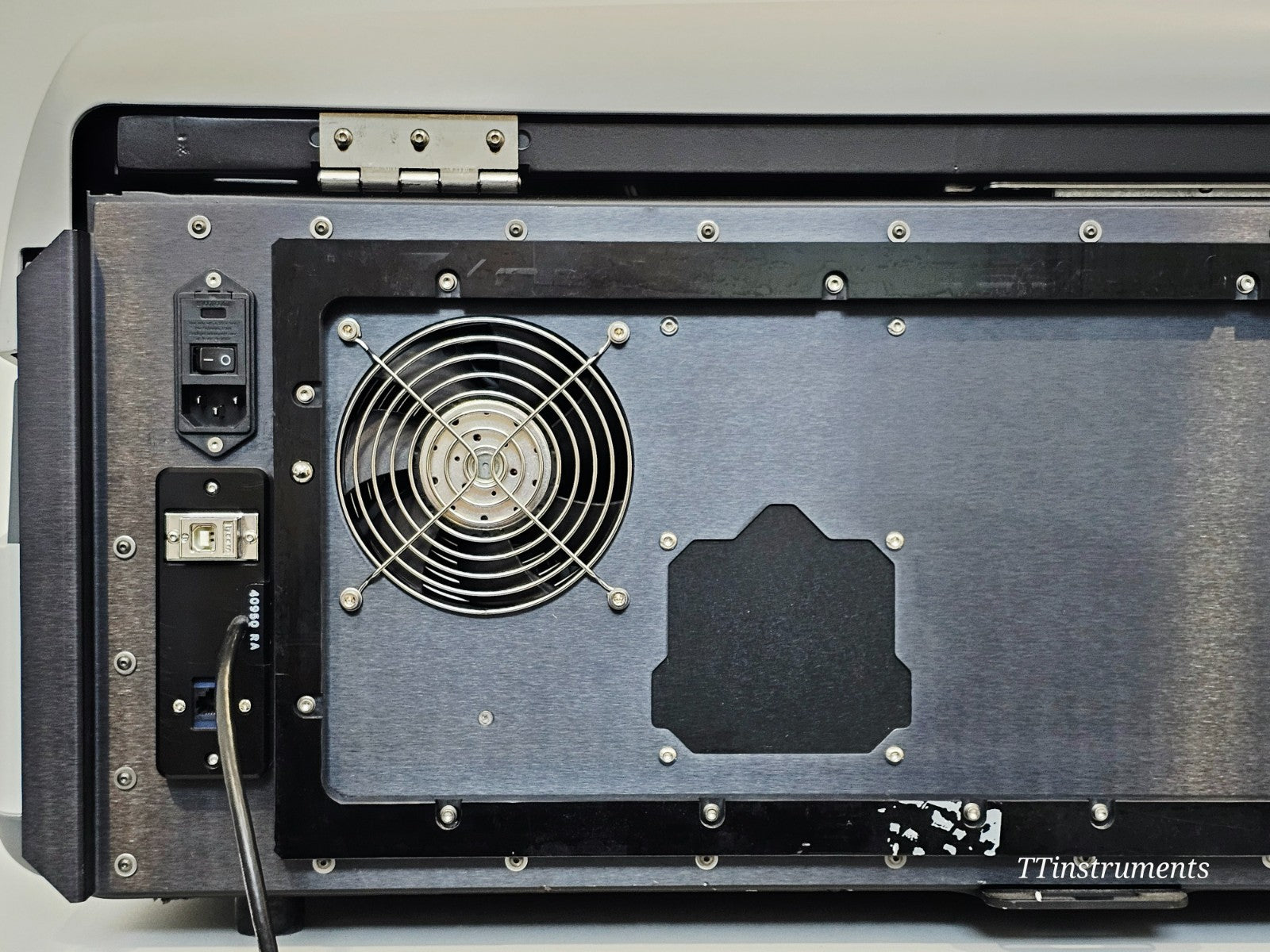

The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

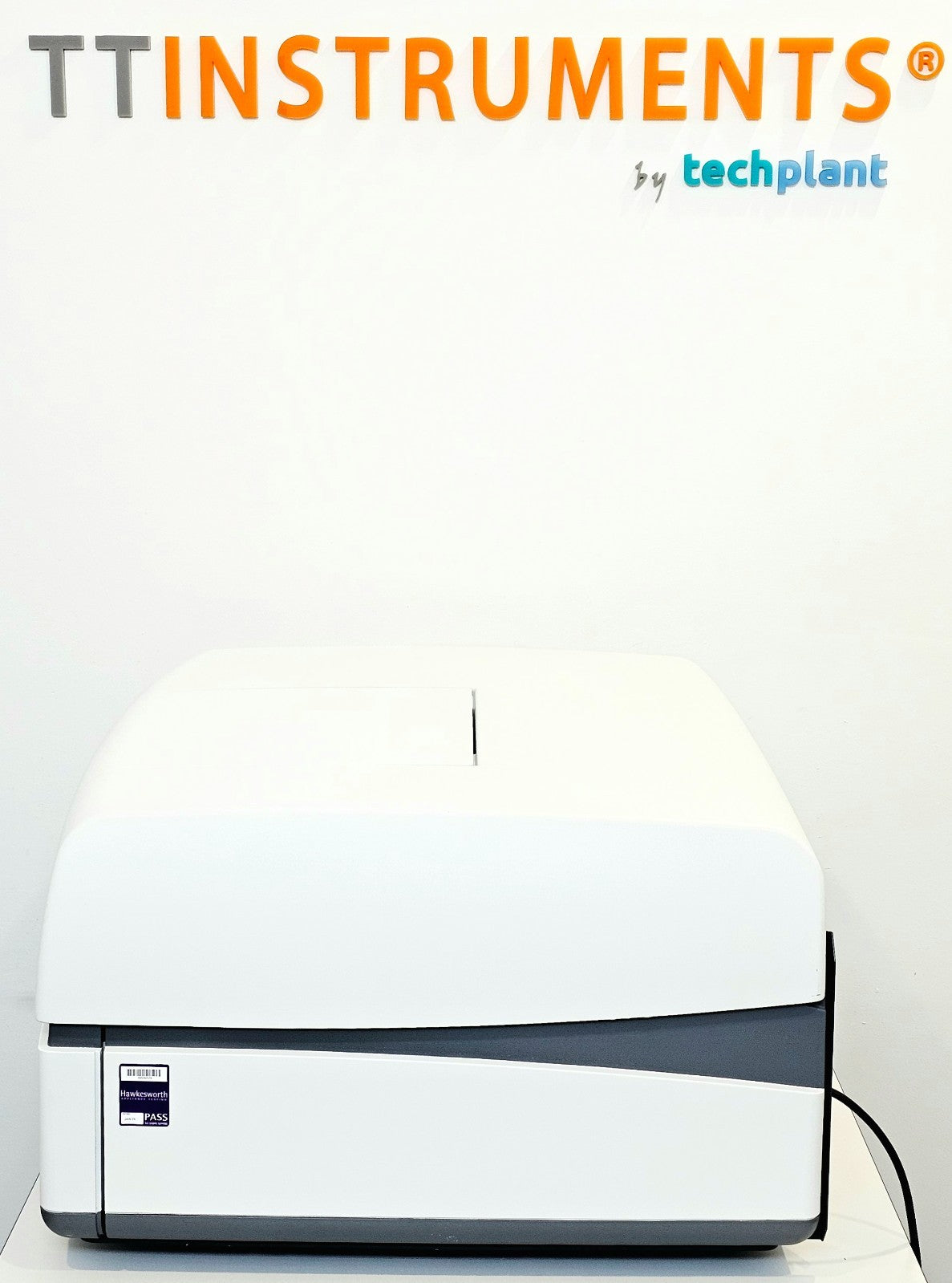

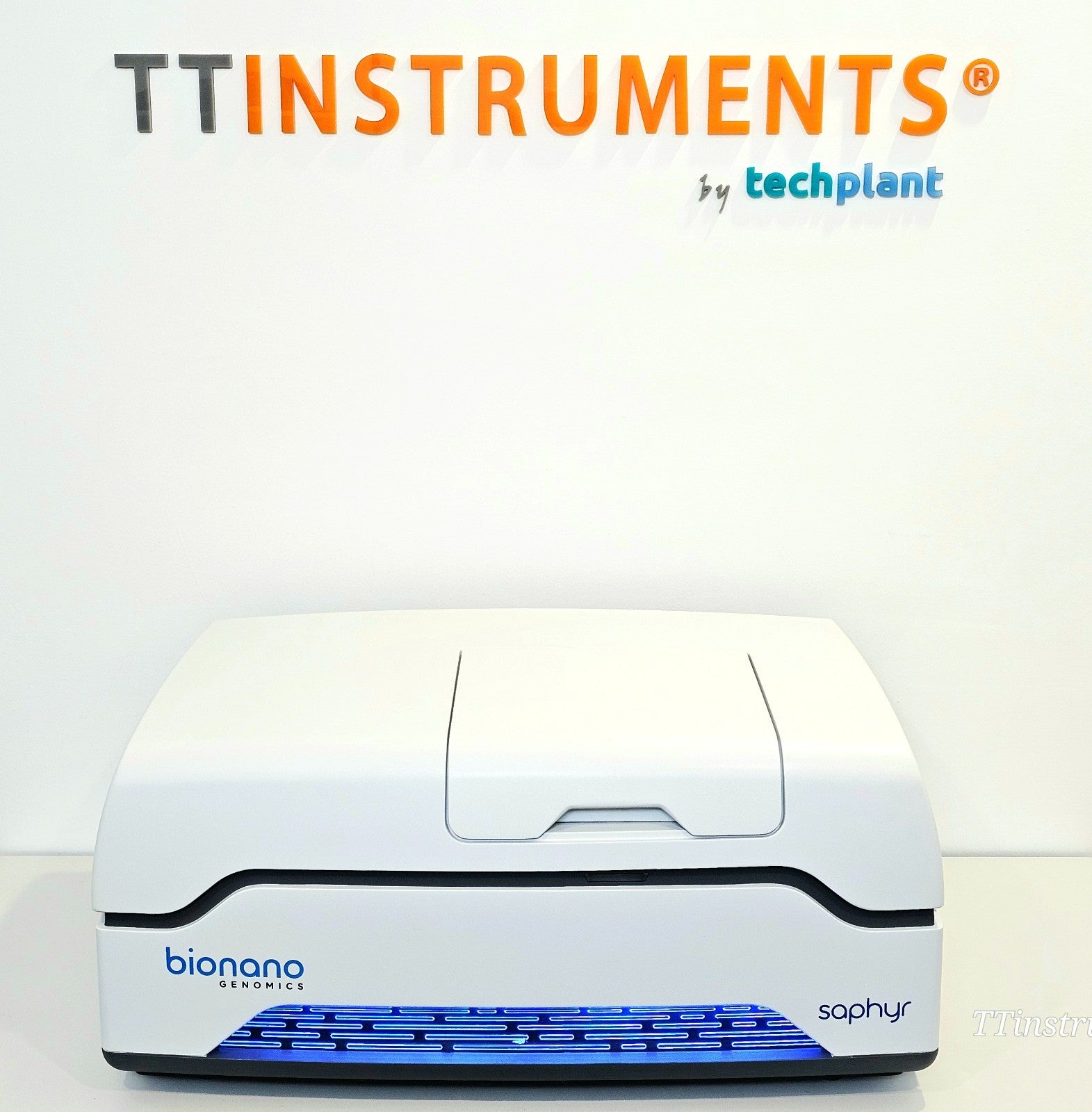

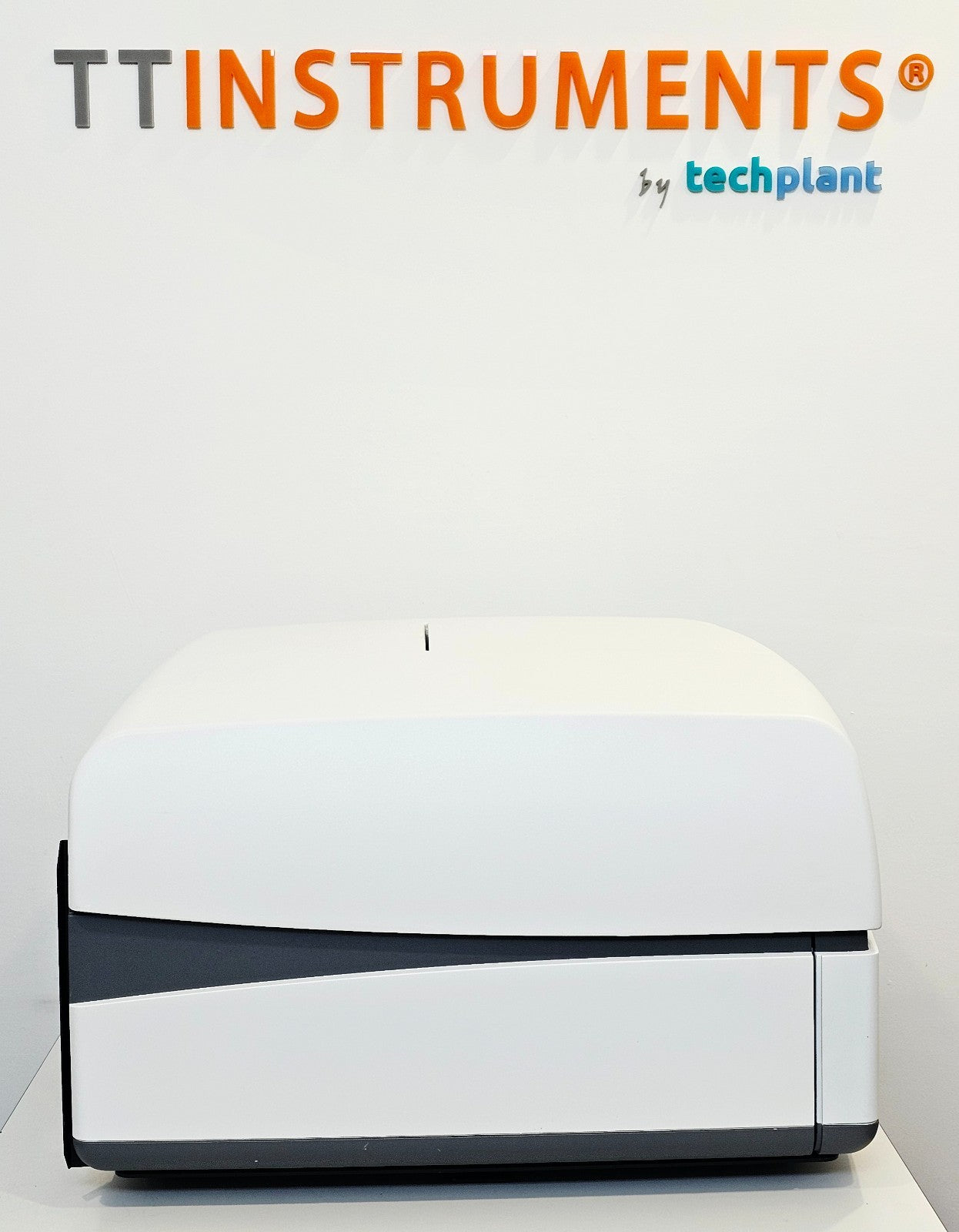

This Bionano Saphyr Optical Genome Mapping System (REF 60396, manufactured April 2022) is offered in excellent cosmetic condition. The instrument powers on correctly, displaying a solid blue status light. No further functional testing has been carried out due to the absence of the required proprietary control software and licence. This listing is for the instrument hardware only.

Buyers are responsible for ensuring they have the appropriate Bionano Access™ software, instrument licence, Instrument Controller PC, Bionano Access Server, and any required Compute Server or support agreements necessary for operation. This instrument is designated For Research Use Only and is not for use in diagnostic procedures.

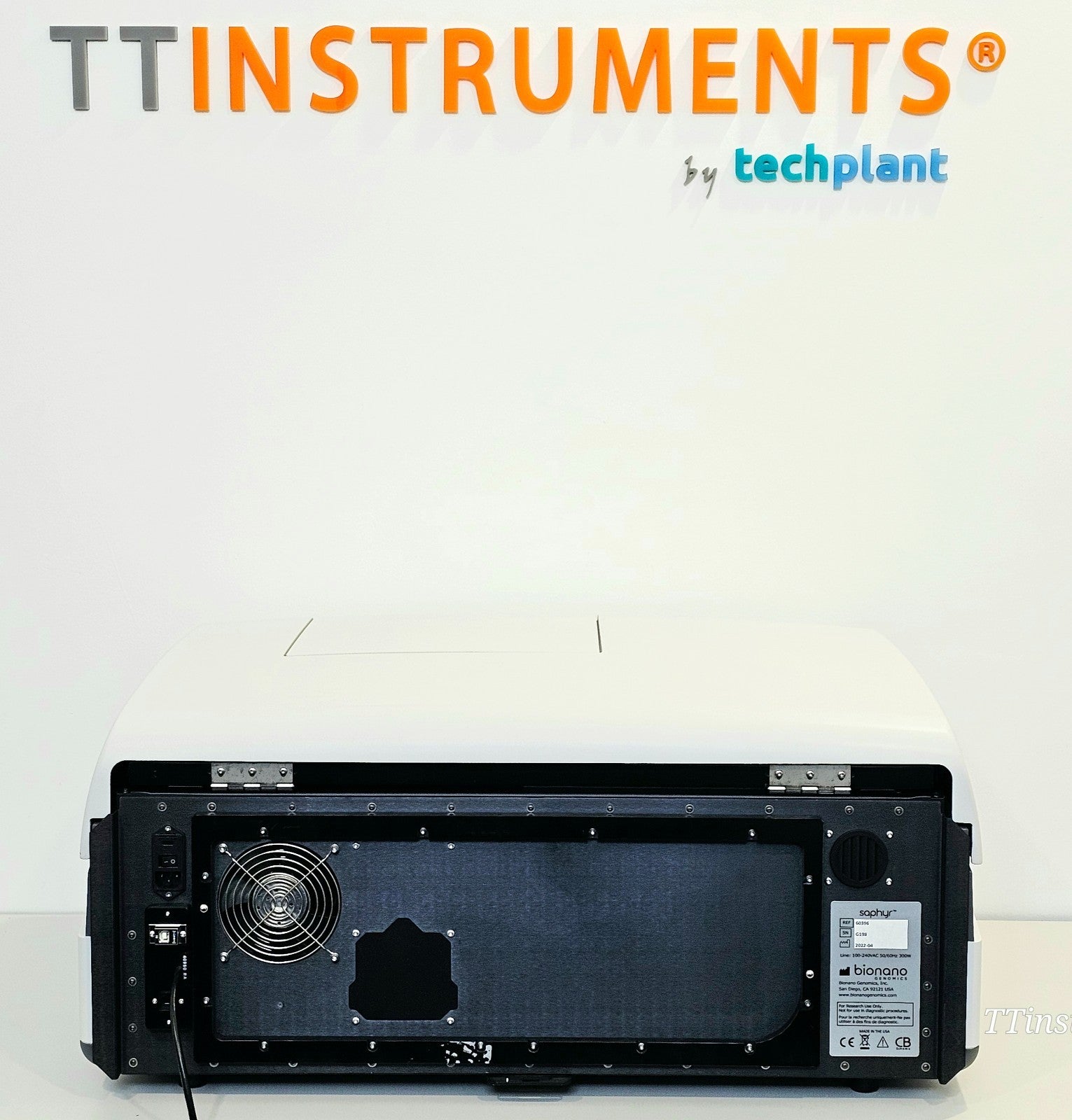

The unit is CE marked and CB Scheme certified, with a universal mains power input of 100–240 VAC, 50/60 Hz, 300 W.

Included with this unit:
• Bionano Saphyr Instrument (REF 60396)
• IEC mains power cable

The Bionano Saphyr™ is a high-throughput optical genome mapping (OGM) system designed for ultra-sensitive and ultra-specific structural variation detection across the whole genome. It enables researchers and clinicians to accelerate the search for new diagnostics and therapeutic targets, and to advance digital cytogenetics as a systematic alternative to traditional methods.

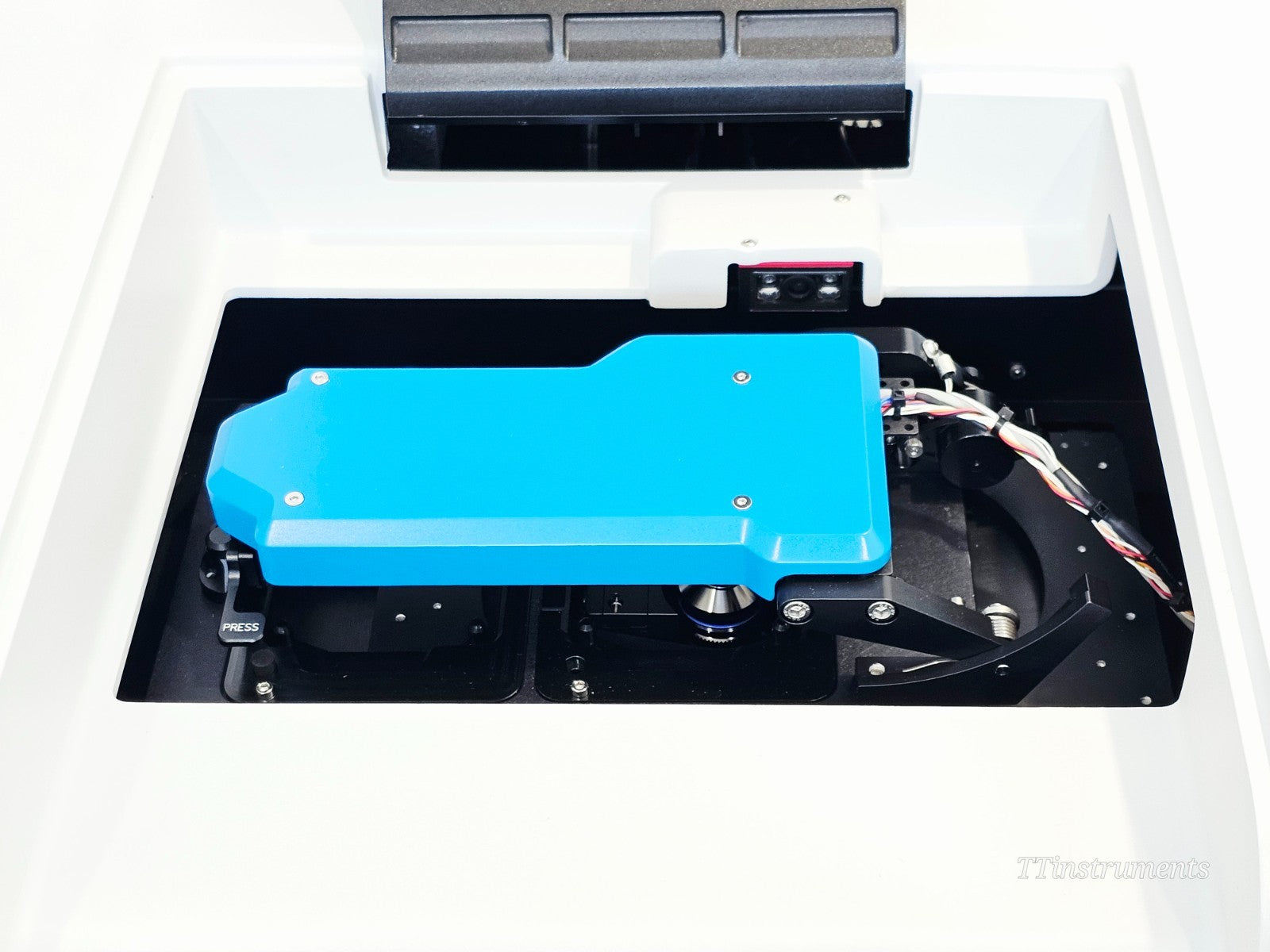

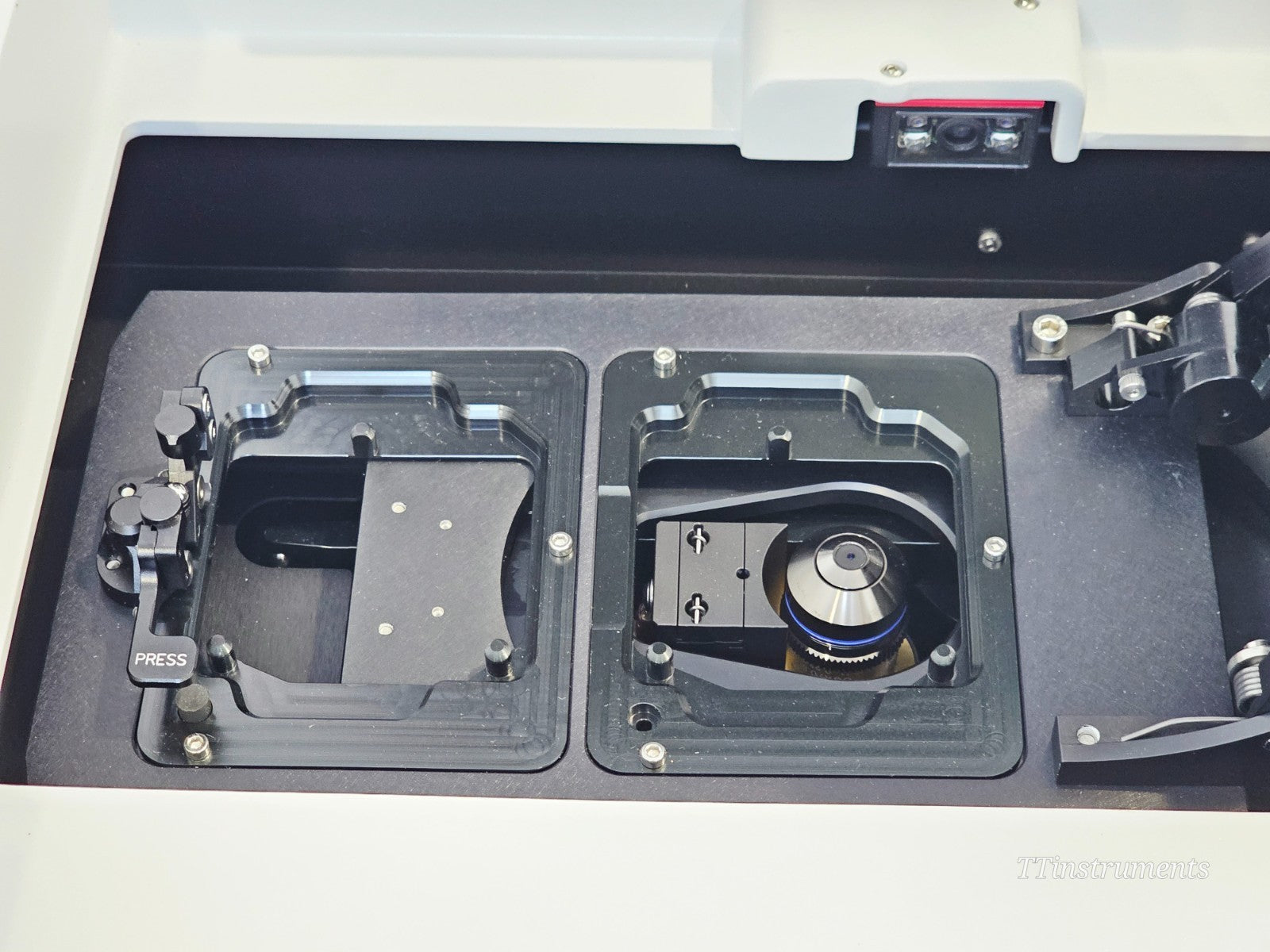

The Saphyr system images ultra-high molecular weight (UHMW) DNA in its native state using proprietary NanoChannel arrays within the Saphyr Chip consumable. Hundreds of thousands of massively parallel nanochannels linearise long, labelled DNA molecules for direct high-resolution imaging. Machine learning-based adaptive loading and automatic run optimisation enable walk-away scanning with maximum throughput.

Key highlights:
- Detects all classes of structural variants (SVs) including insertions, deletions, inversions, translocations, duplications, and copy number variants
- SV detection down to 500 bp resolution with sensitivity far exceeding NGS and conventional cytogenetic techniques
- Variant allele frequency (VAF) detection routinely at 5%; lower VAF achievable by extending run time
- 100× human genome coverage in as little as 6 hours; 400× coverage in 24 hours
- Up to 6 samples per run (2 chips × 3 flowcells per chip)
- Sample-to-structural variation call in as little as 3–4 days
- Automated Saphyr Assure health monitoring service (optional)
- Applications: constitutional SV discovery, cancer/somatic variant analysis, de novo genome assembly, NGS hybrid scaffolding, rare variant analysis

Molecule size range: 150,000 bp to multi-megabase pairs
SV detection resolution: Down to 500 bp
Variant allele frequency: Routinely 5%; extendable to lower VAF
Throughput: 100× genome coverage in ≤6 hours; 400× in 24 hours
Chip output: Up to 15 Tbp per Saphyr Chip (human samples)
Samples per run: Up to 6 (2 chips, 3 flowcells each)
Power input: 100–240 VAC, 50/60 Hz, 300 W

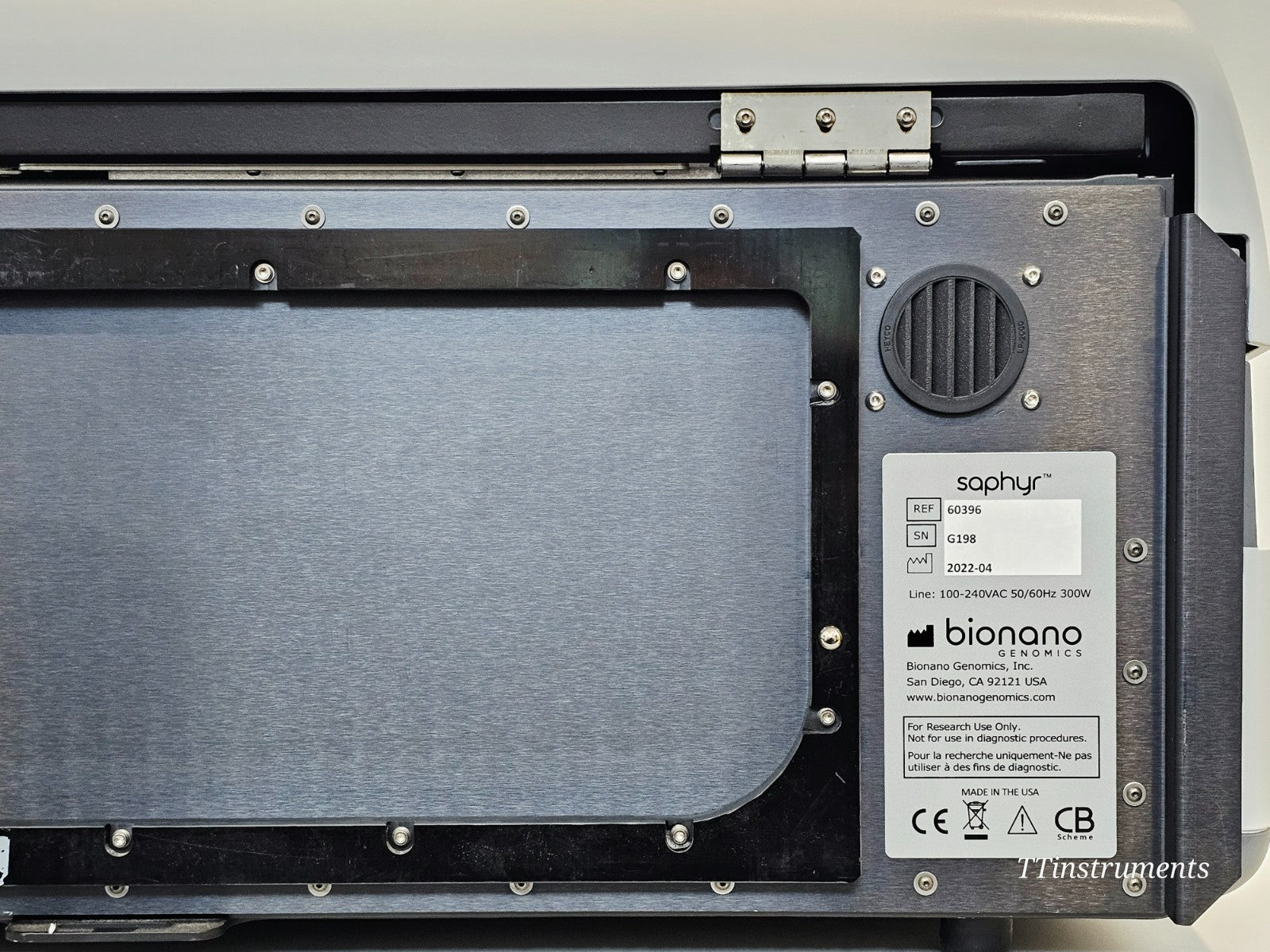

Manufacture date: 2022-04
REF: 60396
Regulatory: CE marked, CB Scheme; For Research Use Only

Bionano Saphyr datasheet: Download PDF
