Condition: Used

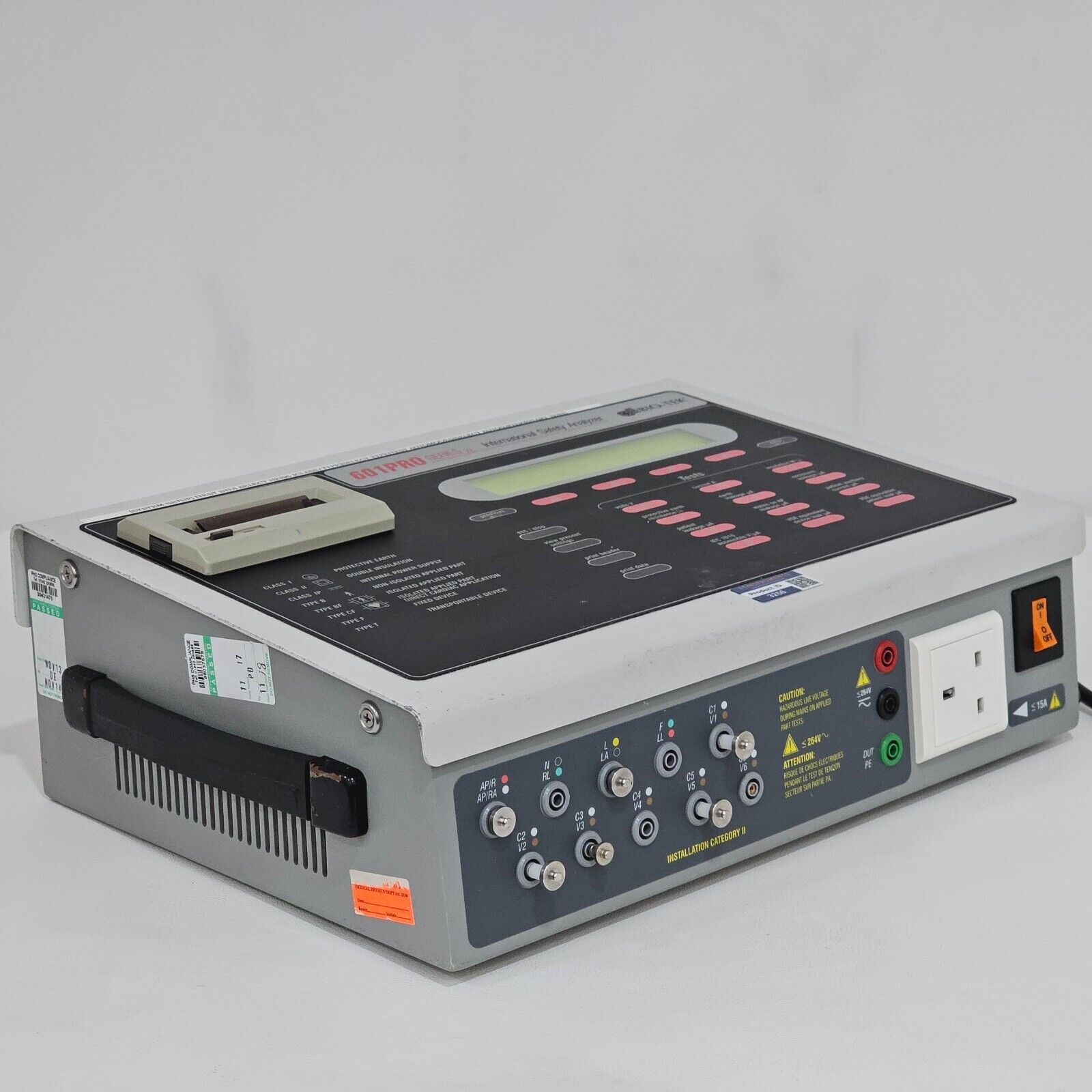

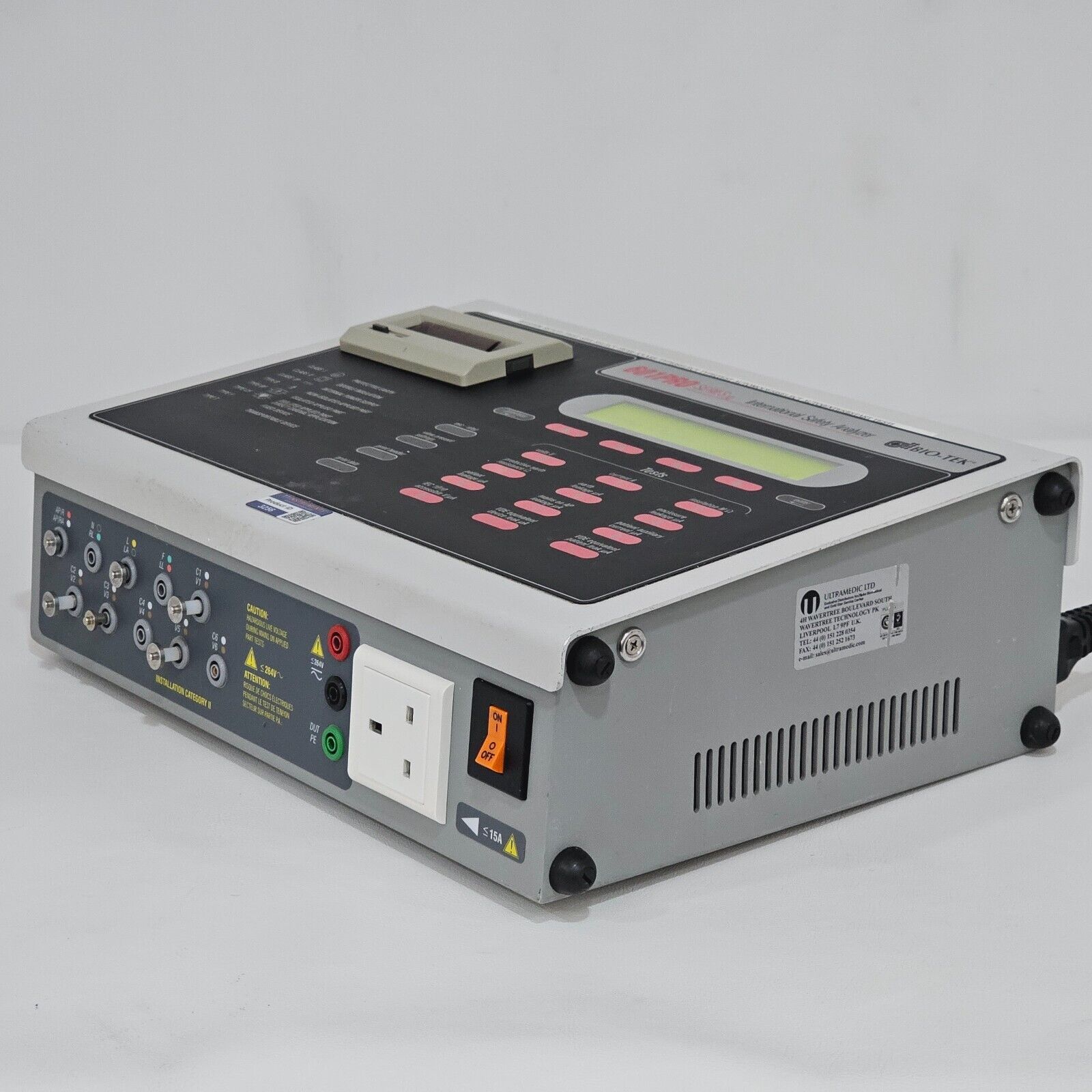

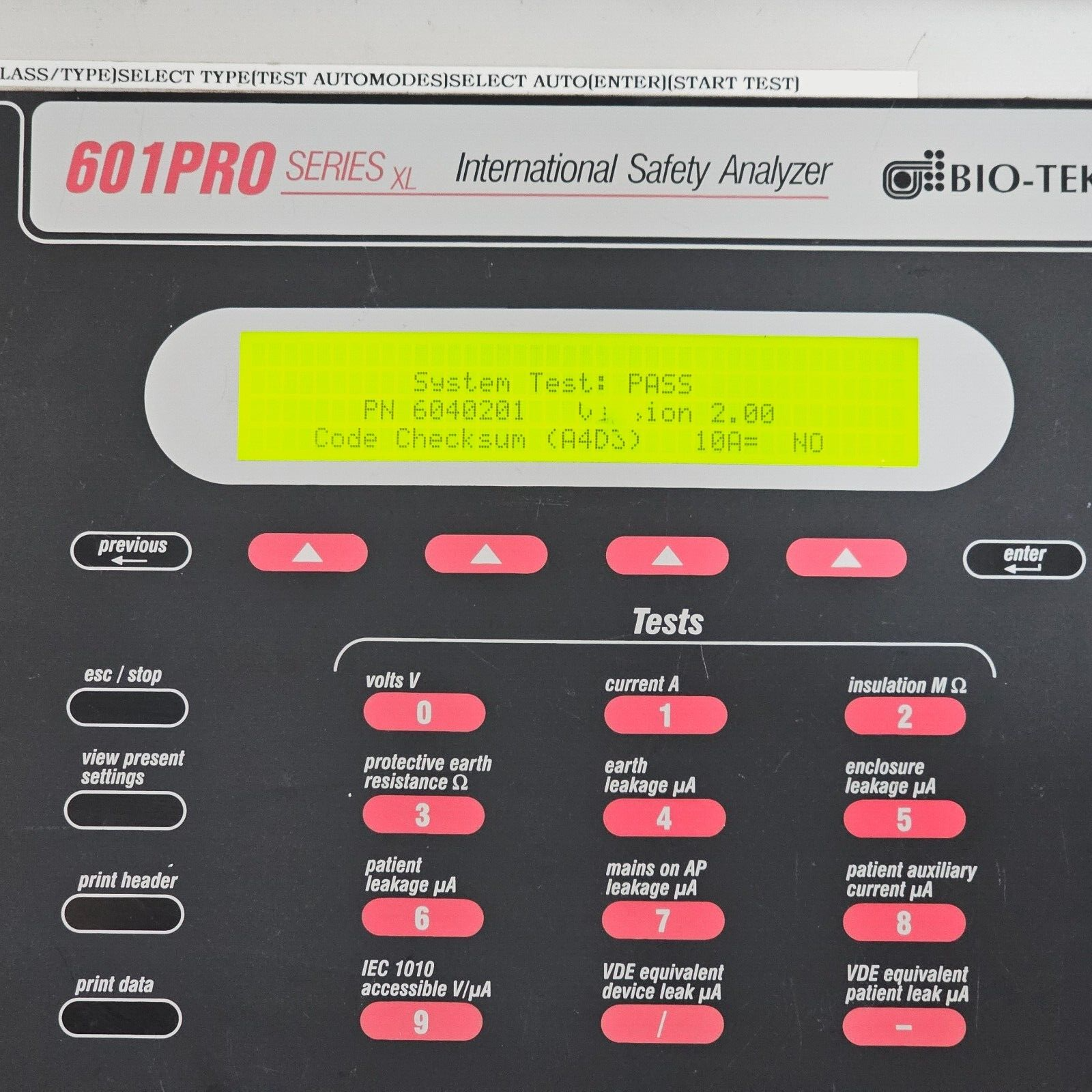

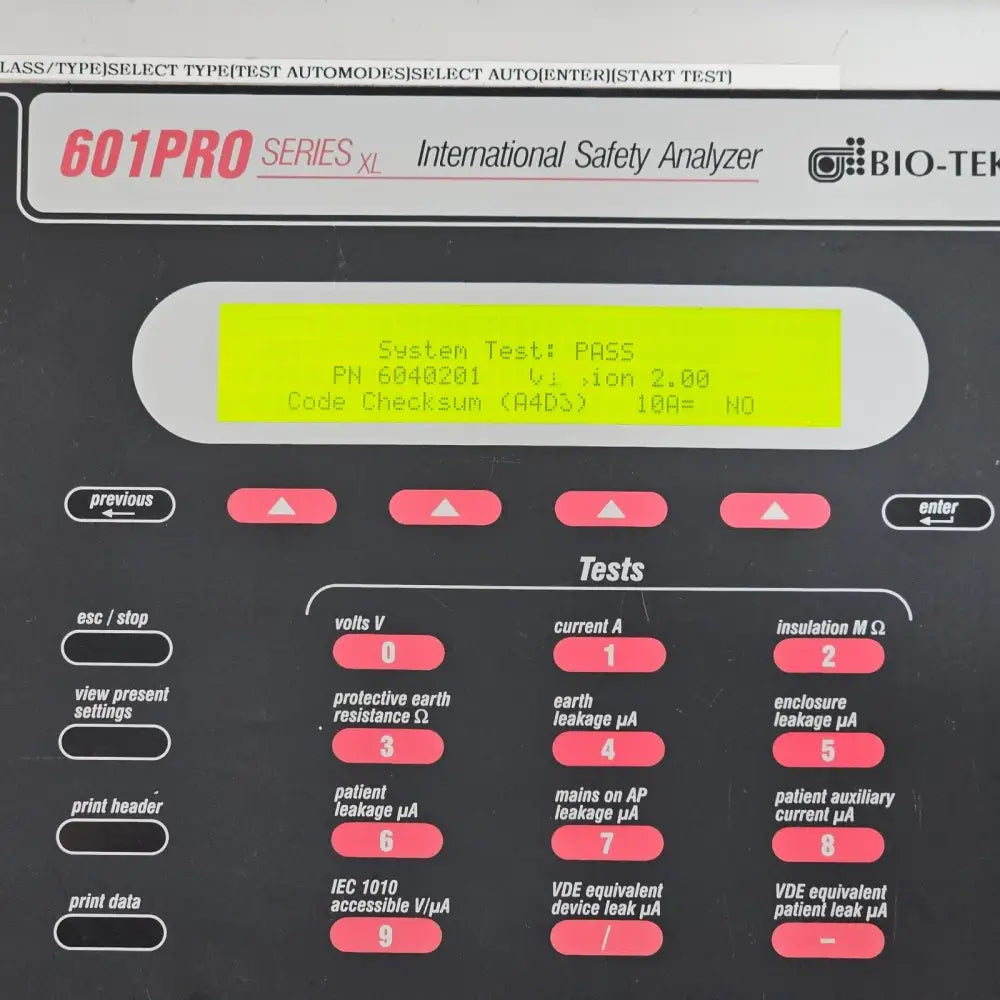

This BIO-TEK 601PRO XL Series International Safety Analyzer is in used condition and is fully functional — system test and self-test pass. Minor pixel irregularities are present towards the middle-right of the display, which do not materially affect instrument operation or readability. No power cord is included.

Included with this unit:
• BIO-TEK 601PRO XL International Safety Analyzer (unit only)

Not included:
• Power cord

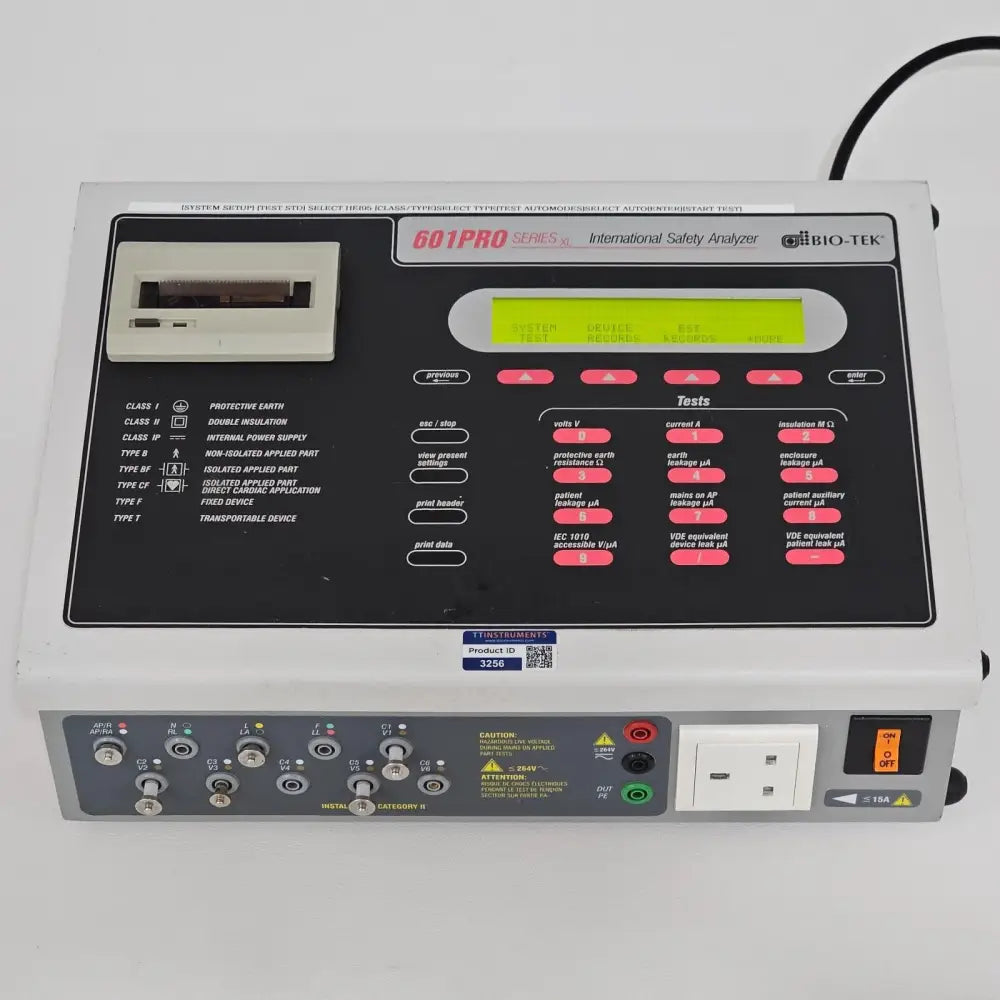

The BIO-TEK (Fluke Biomedical) ISA601 Pro SeriesXL is an automated international electrical safety analyzer designed to verify that hospital and laboratory electromedical equipment meets stringent global safety standards. Originally manufactured by Bio-Tek Instruments, Inc. and later sold under the Fluke Biomedical brand, the 601PRO XL performs a comprehensive suite of electrical safety tests in manual, auto, step, and computer-controlled modes.

The analyzer supports multiple international and regional test standards, including IEC 60601-1, VDE 751.1, HEI 95 (UK), ANSI/AAMI ES1, IEC 62353, EN 60601-1, EN 61010-1, and AAMI test loads (user selectable). It is widely used by biomedical engineers and equipment technicians in hospitals, clinics, and laboratories.

Key Features:
- Automated step and auto test sequences for rapid safety verification
- Multiple enclosure leakage point testing

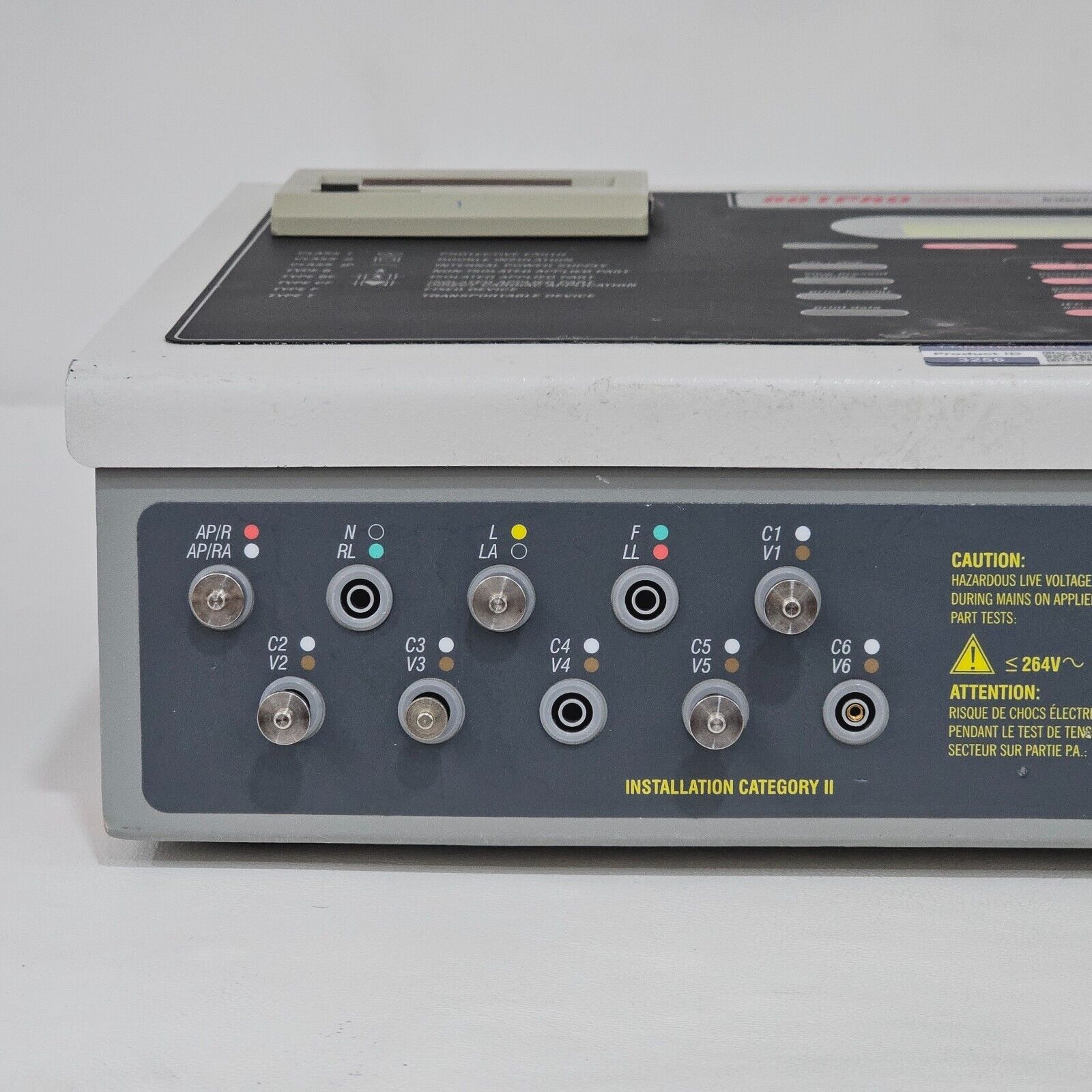

- Multiple patient applied part types supported (Type B, BF, CF)
- User-programmable test sequences
- Memory for up to 1,000 device information records

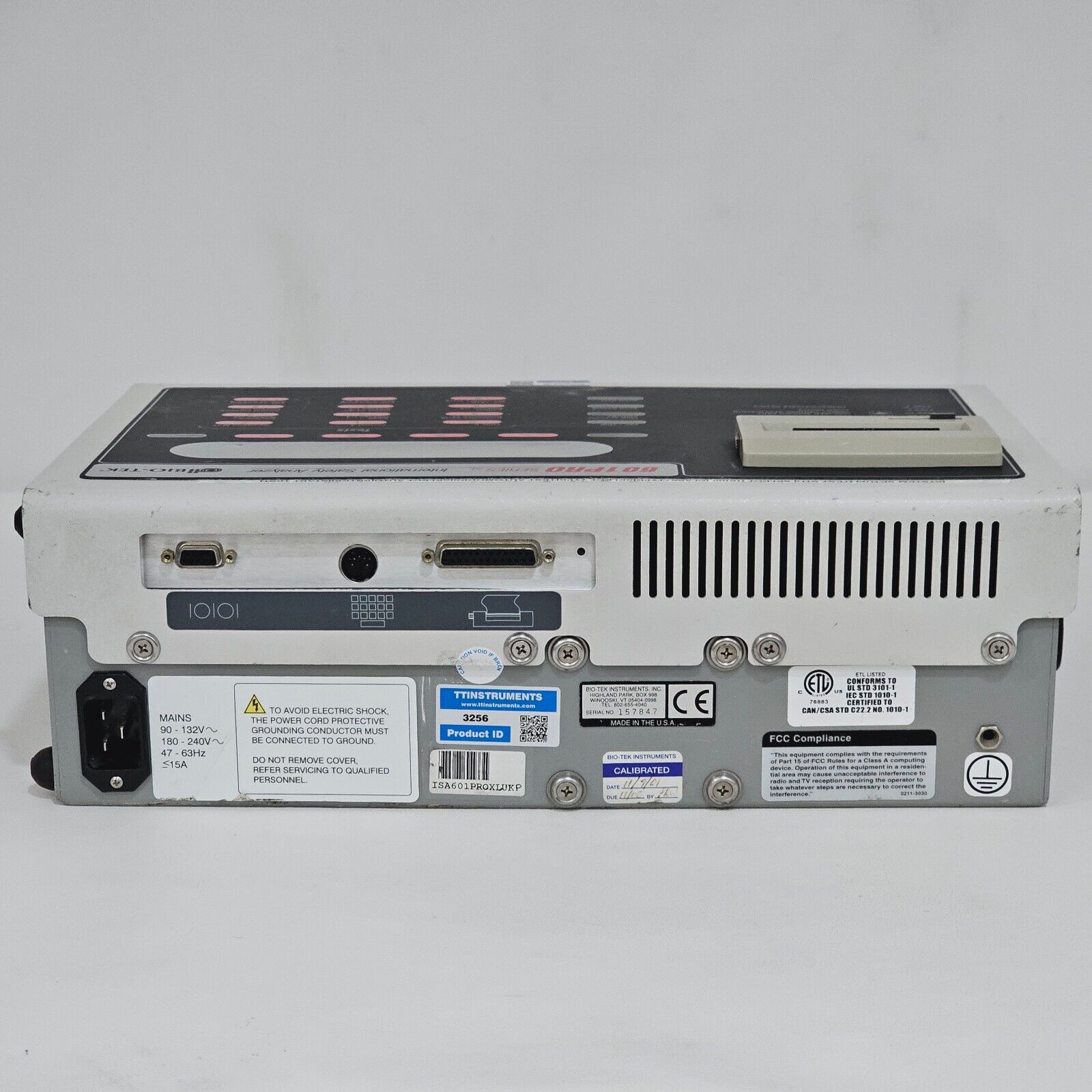

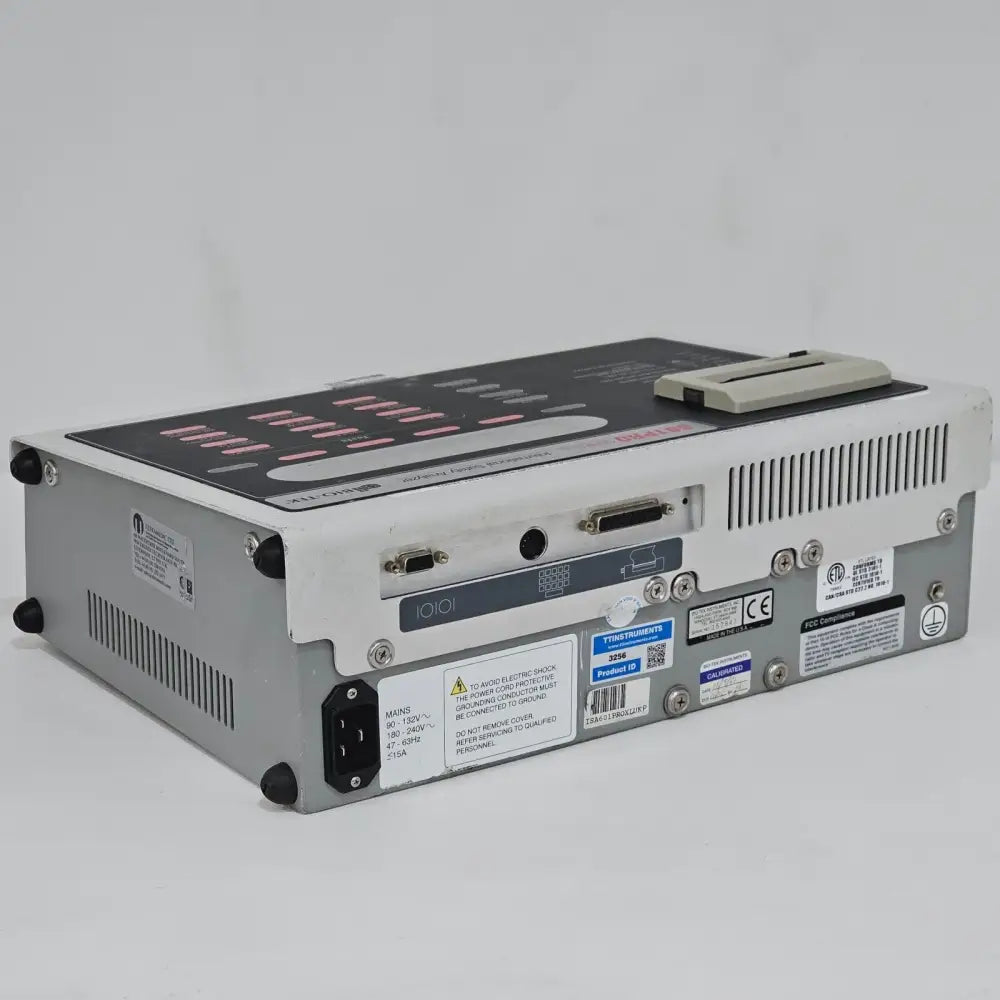

- ASCII data transfer via RS-232 for PC connectivity
- Internal audio feedback on key entry and pass/fail results
- Optional built-in thermal printer available

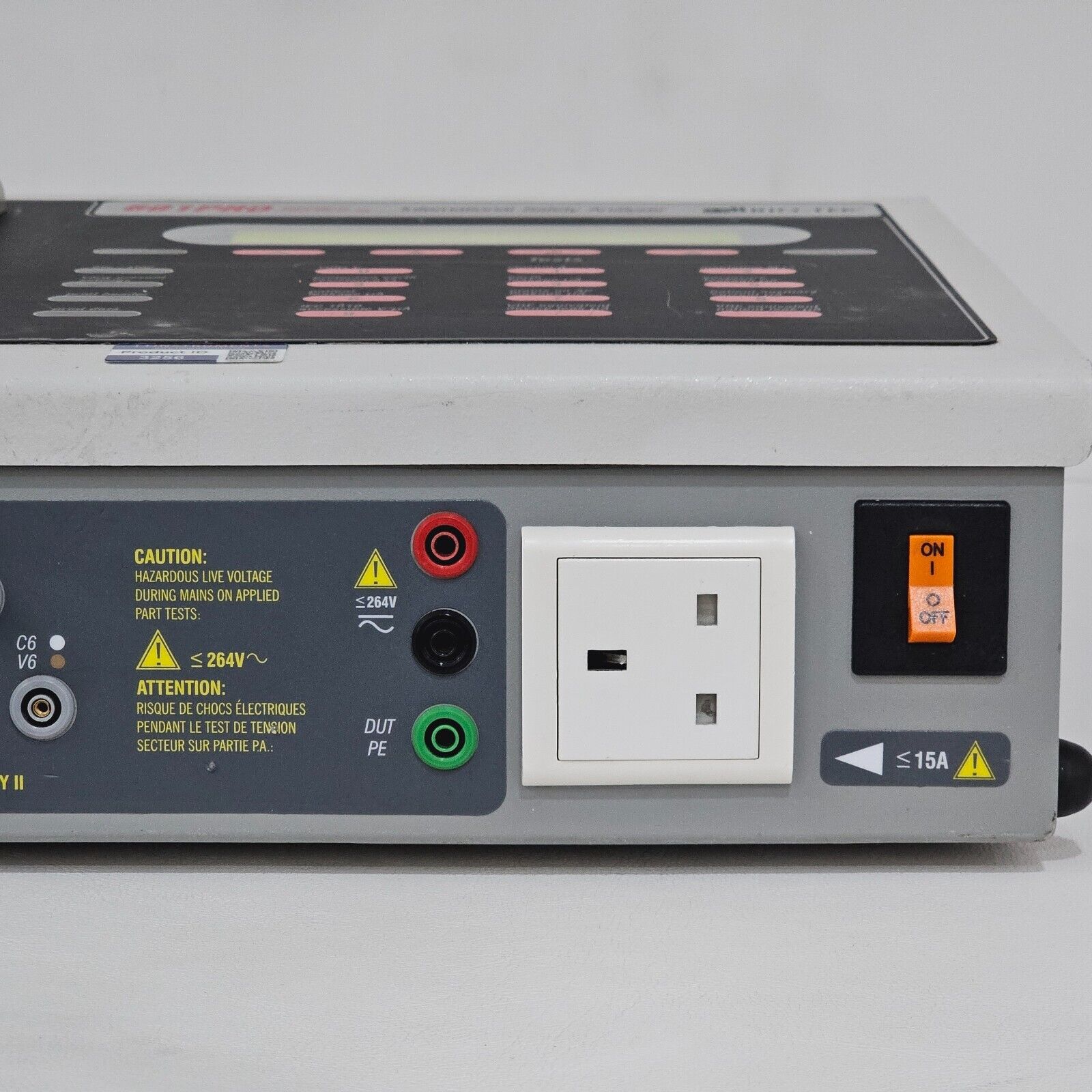

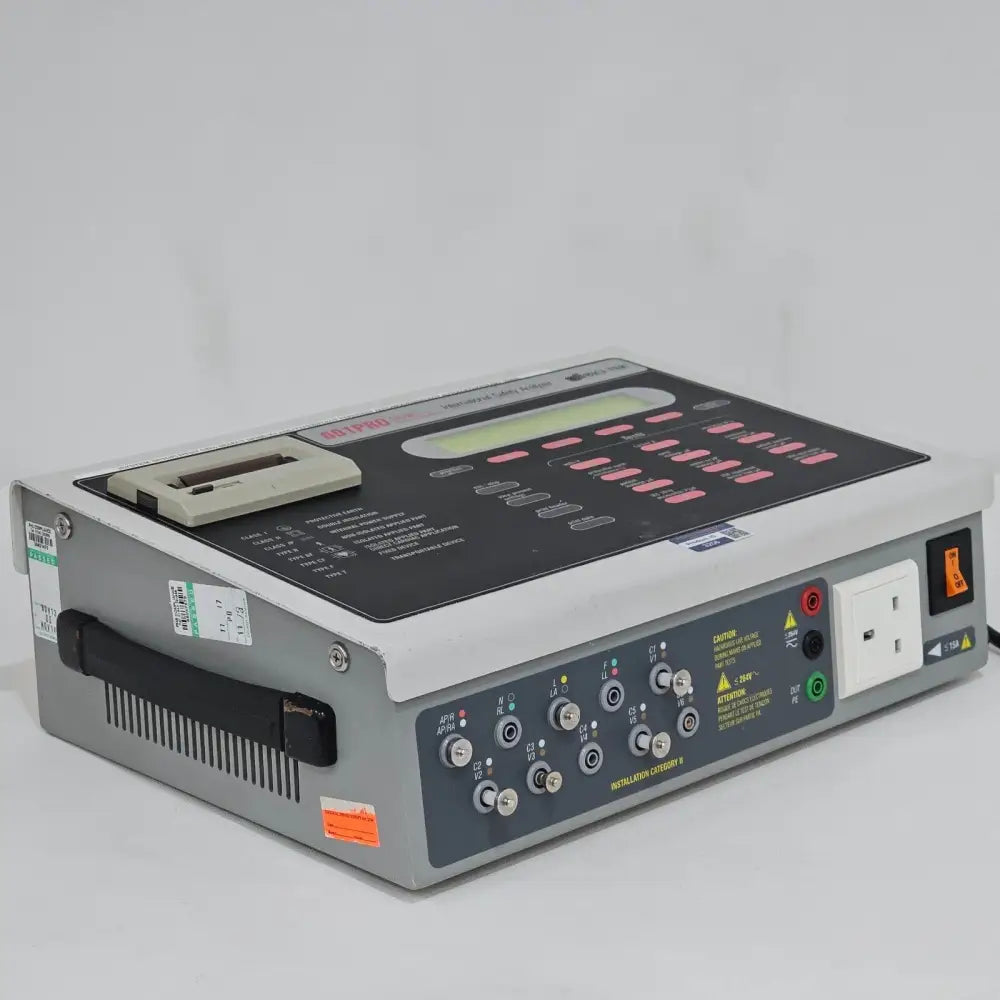

- Front panel receptacle with switchable polarity, earth open, and L2 configurations

Specifications:
Voltage Range: 0 to 300 V True RMS
Voltage Accuracy: DC–100 Hz ±1.5% of reading ±1 LSD
Leakage Current Measurement Range: 0.1 µA to 20 mA
Earth Leakage Measurement Range: 0.1 mA to 20 mA
Ground Continuity Measurement Range: 0.01 Ω to 5 Ω
Insulation Resistance Measurement Range: 0.1 MΩ to 50 MΩ
Test Voltage Range: 0–300 VDC
Test Current for Earth Resistance: 1 A or 10 A (selectable)
Earth Resistance Limit: <0.2 Ω (for leakage testing clearance)
Patient Applied Parts Test Impedances: 1 kΩ, 2 kΩ, 3 kΩ, 4 kΩ, 5 kΩ, 10 kΩ, 15 kΩ
Patient Auxiliary Parts Test Impedances: 1.5 kΩ, 3 kΩ, 4.5 kΩ, 6 kΩ, 7.5 kΩ, 15 kΩ
RS-232 Default Baud Rate: 2400 (configurable)
Display: Backlit LCD
Power Supply: AC Mains
Dimensions (approx.): 250 mm x 100 mm x 200 mm
Weight (approx.): 2.5 kg
Safety Standards: IEC 60601-1, IEC 62353, ANSI/AAMI ES1, VDE 751.1, HEI 95, EN 60601-1

BIO-TEK 601PRO XL International Safety Analyzer Operator's Manual (Fluke Biomedical official PDF): Download PDF

BIO-TEK 601PRO IEC Safety Analyzer User Manual (iFixit hosted PDF): Download PDF
