BIO-RAD PX1 PCR Plate Sealer MFD 11/2022
Model: PX1
Condition: Used
In stock: 0
SKU: 3279 4C03
- Misc Test Equipment
Choose options
Condition: Used

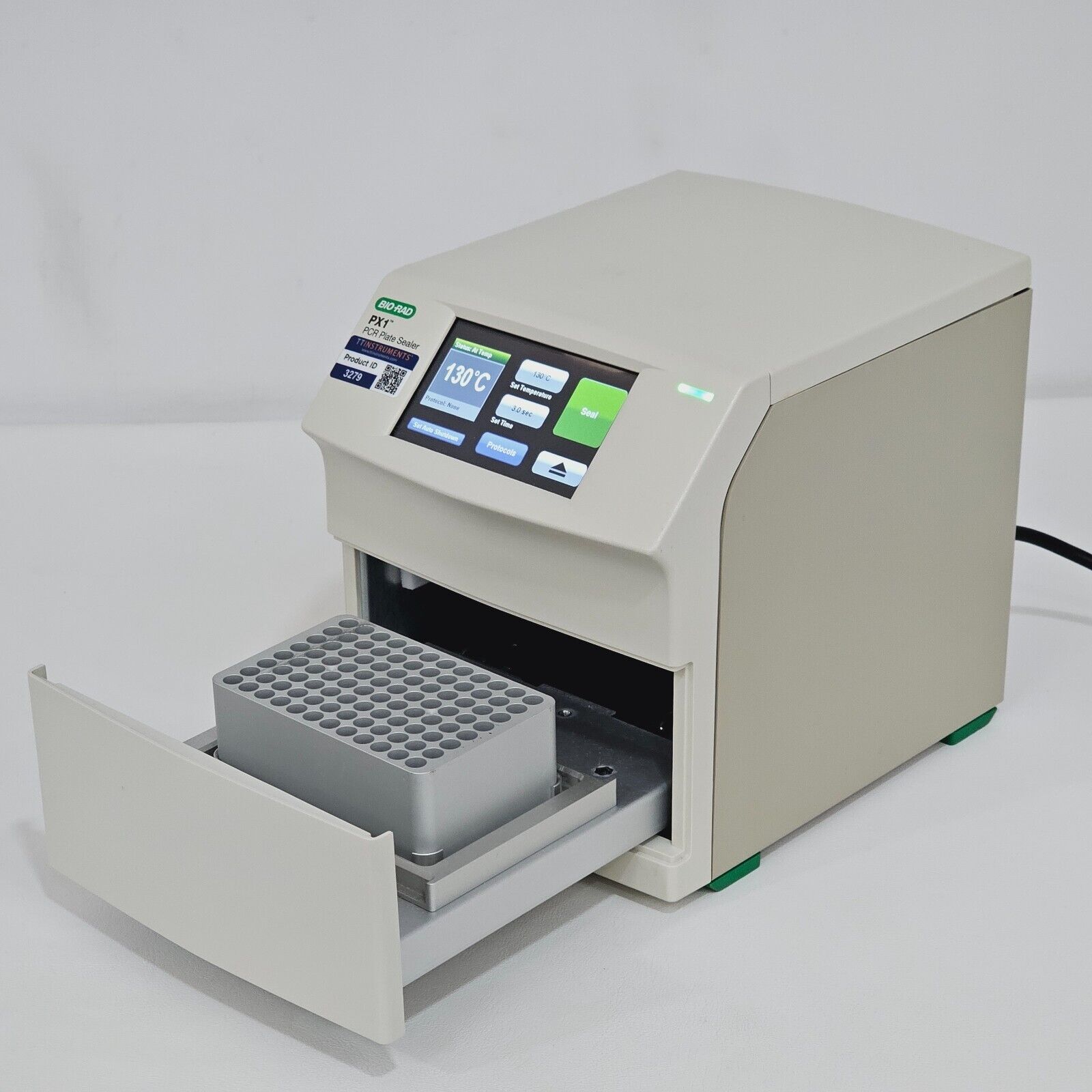

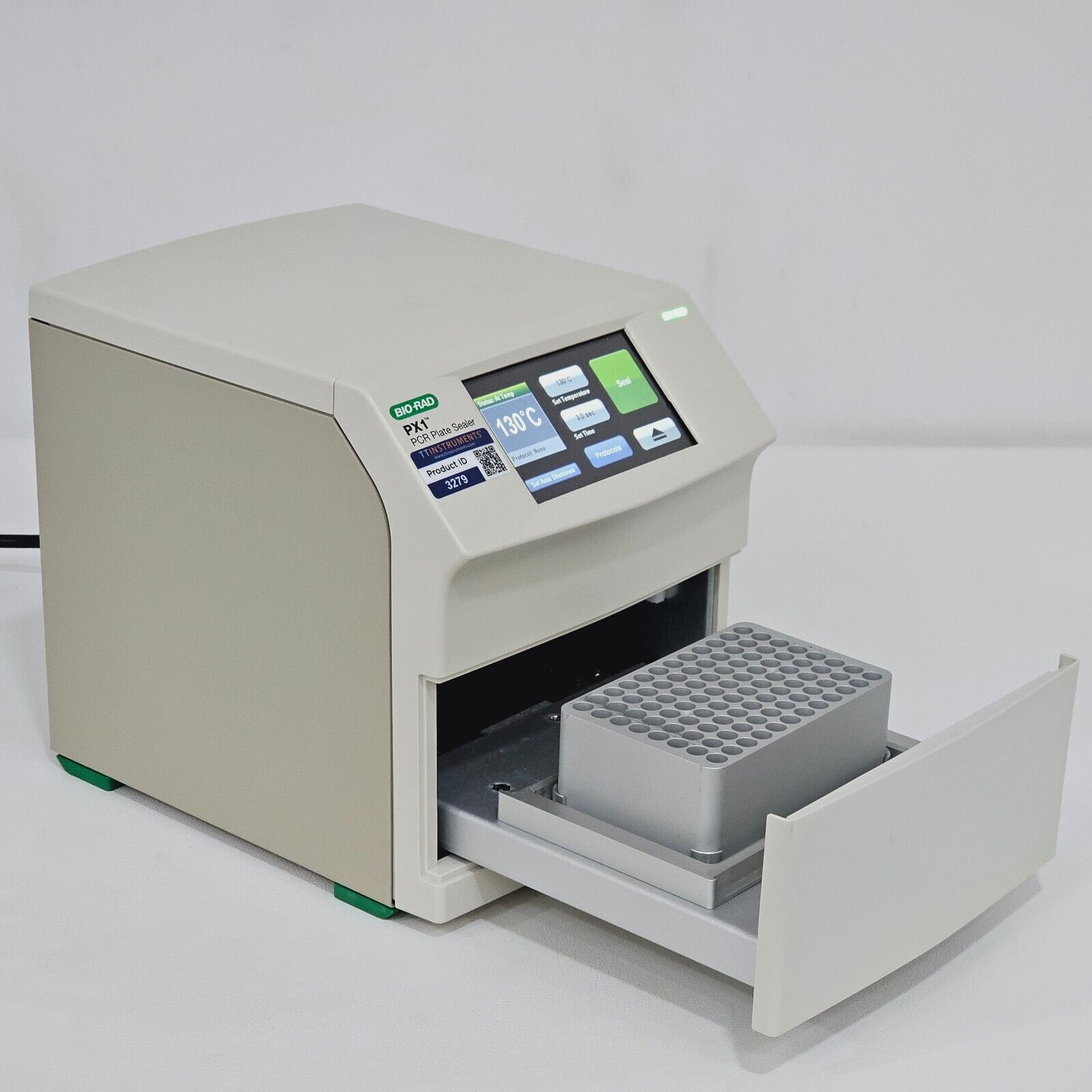

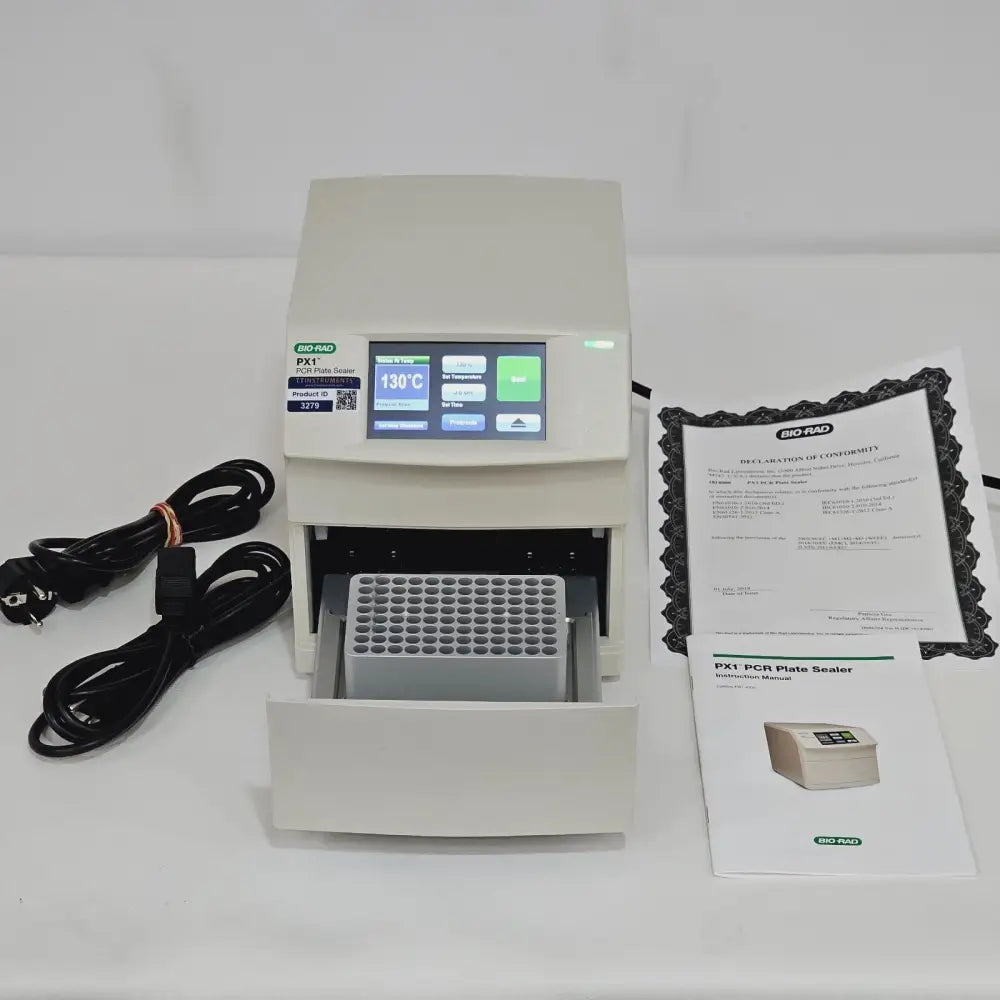

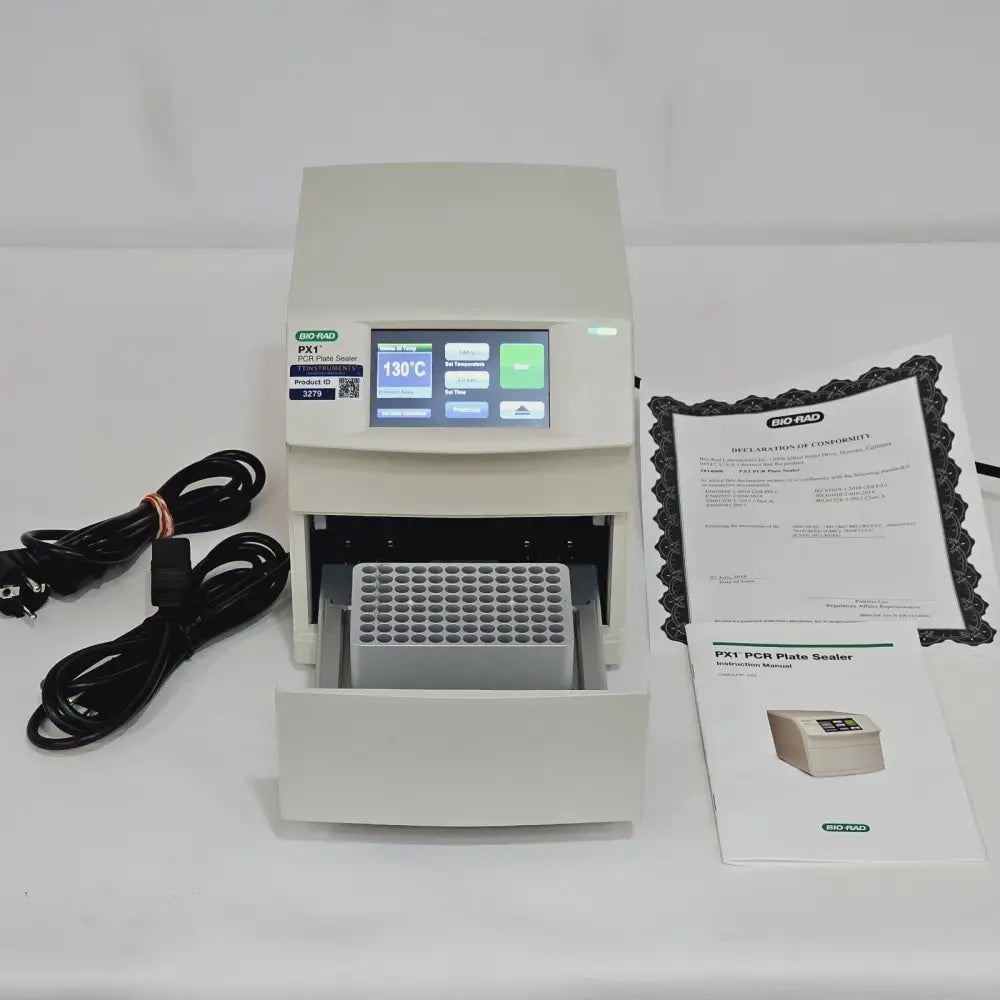

Bio-Rad PX1 PCR Plate Sealer in good working condition, manufactured November 2022. Supplied with the plate support block. Suitable for PCR, qPCR, and ddPCR laboratory workflows.
Included with this unit:
• Plate support block (holds 96-well and 384-well plates)
The Bio-Rad PX1 PCR Plate Sealer is a semi-automated heat sealing instrument designed for sealing PCR microplates in thermal cycling workflows. It applies heat and pressure to fuse a sealing film or foil to the rims of PCR plate wells, delivering consistent and uniform sealing across the entire plate. The instrument is suited for PCR, qPCR, and Droplet Digital PCR (ddPCR) applications where minimising sample evaporation is critical to data reliability.

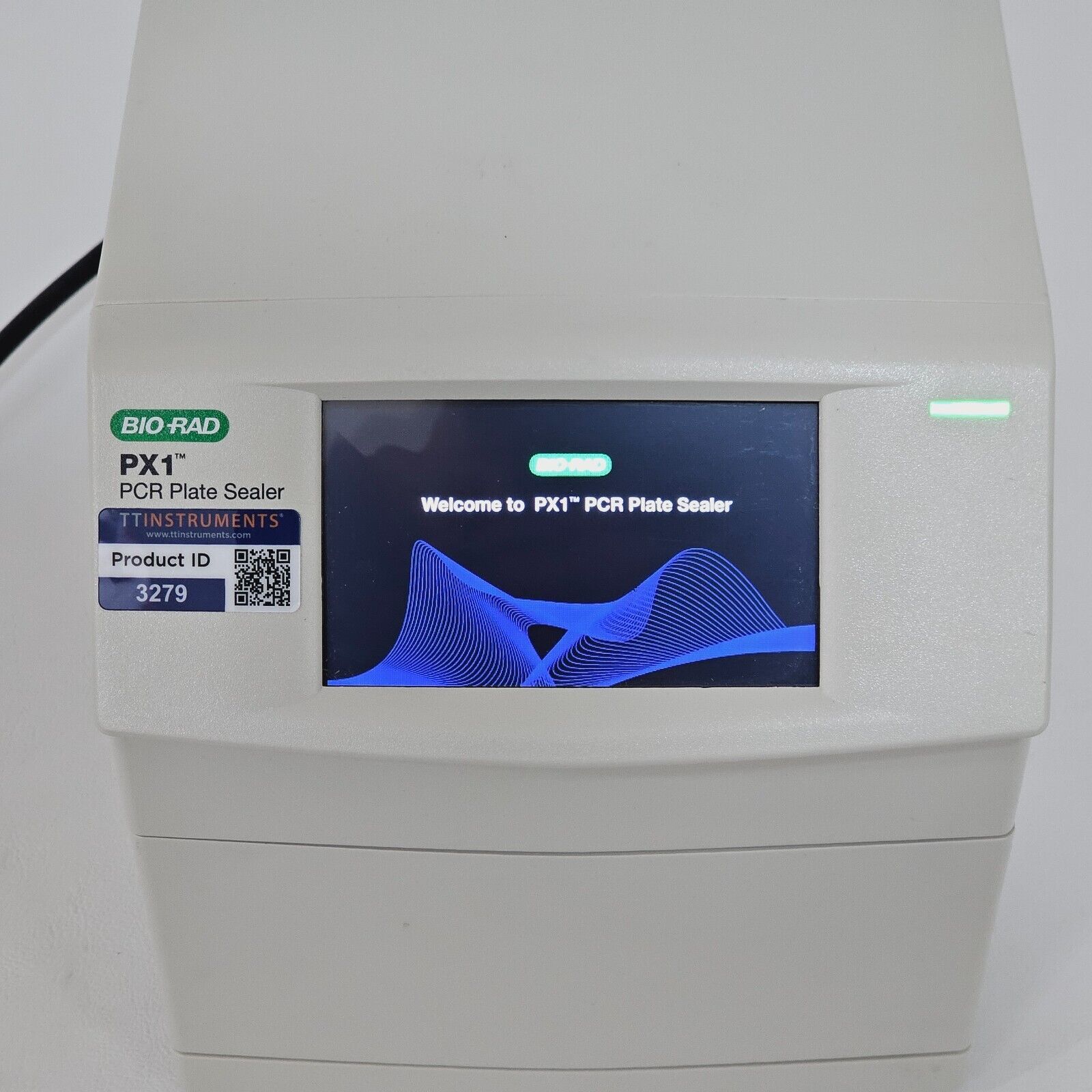

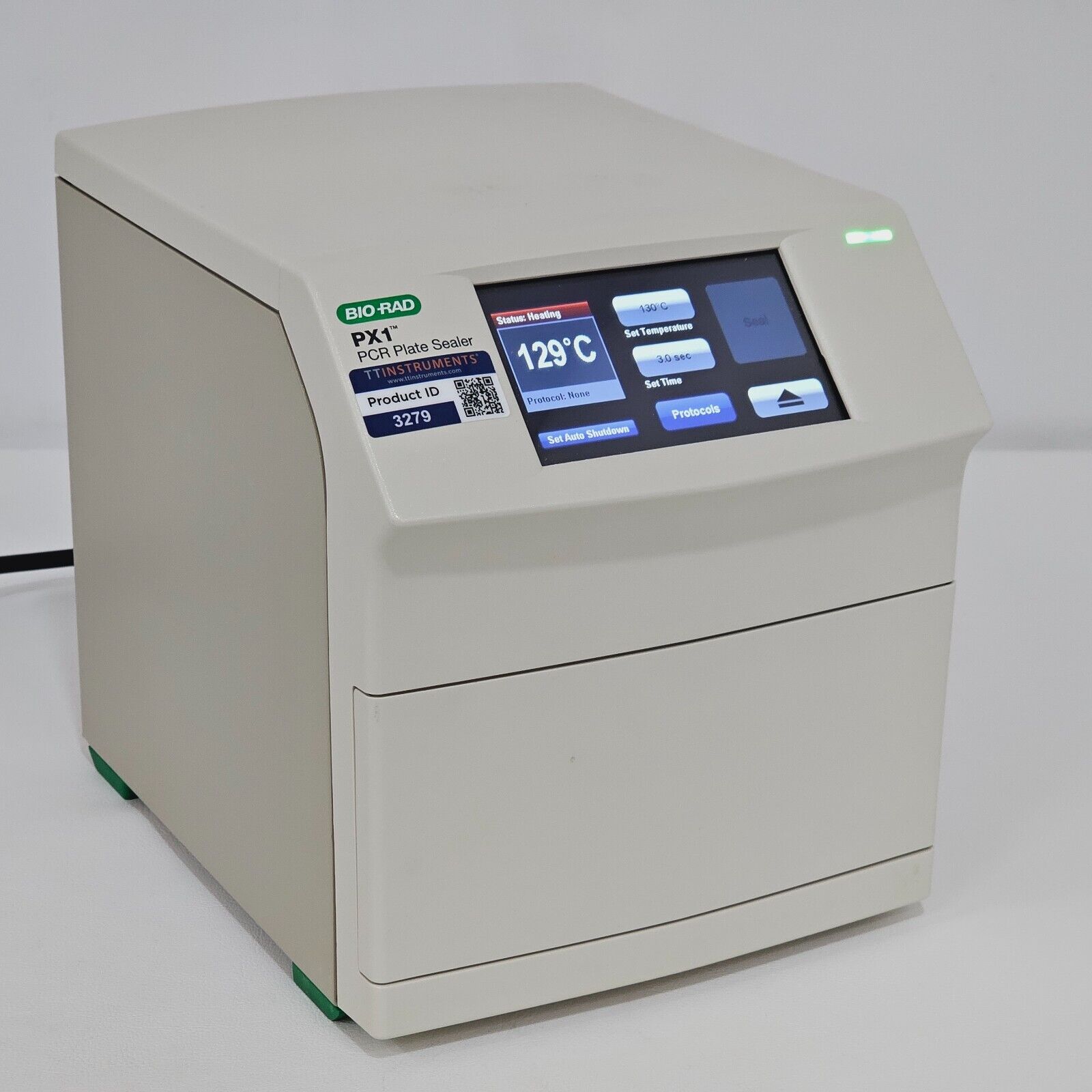

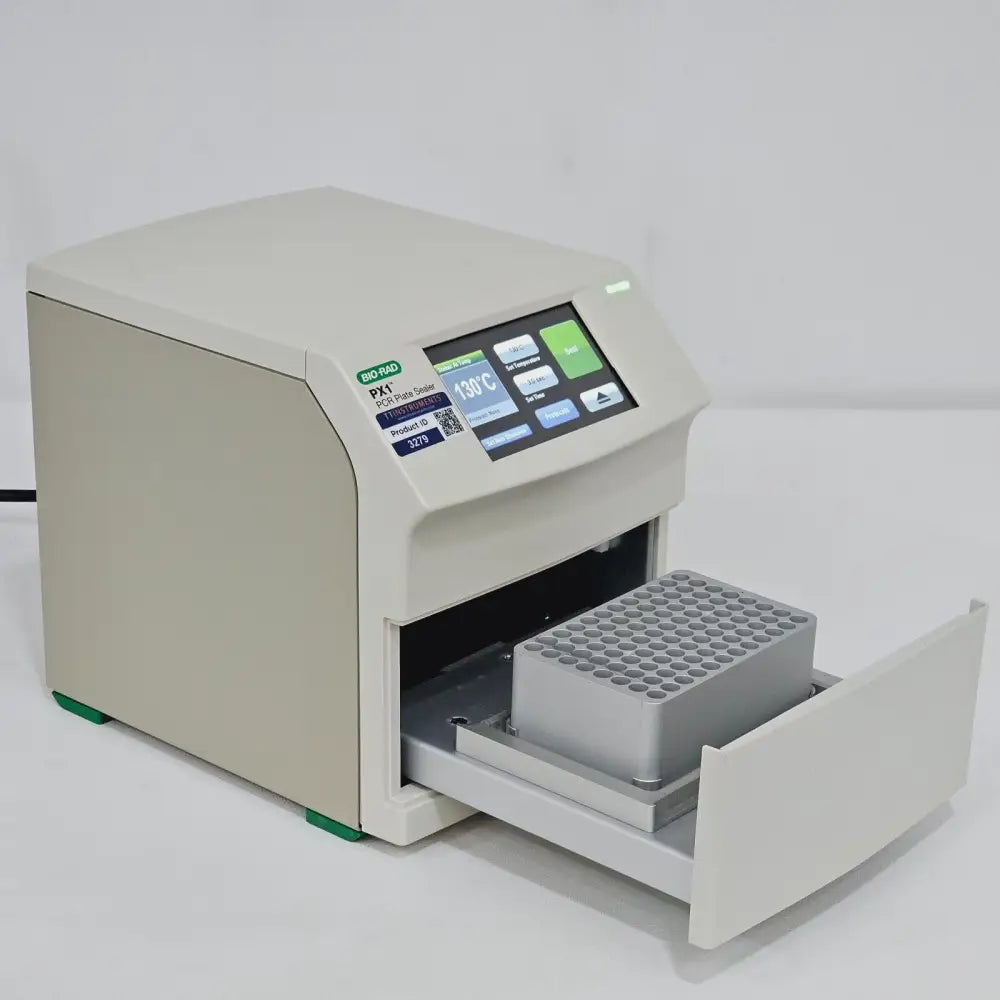

The PX1 features an intuitive colour touch-screen interface that displays instrument status, platen temperature, protocol name, set temperature, and sealing time. Up to 12 unique sealing protocols can be stored and recalled, eliminating the need to manually re-enter optimised parameters. The adjustable auto-shutdown feature turns off the heater after a user-defined period of inactivity, improving laboratory safety and energy efficiency.
Key Features:
- Semi-automated sealing removes human variability and increases reproducibility
- Ready to seal in less than 3 minutes from switch-on
- Compatible with a wide range of Bio-Rad heat-sealing films and foils (optically clear, peelable, pierceable foil, and non-pierceable)
- Small footprint suitable for busy laboratory benches
- Non-stick, easy-clean heated platen surface
- Supports 96-well and 384-well standard and low-profile PCR plates
Technical Specifications:

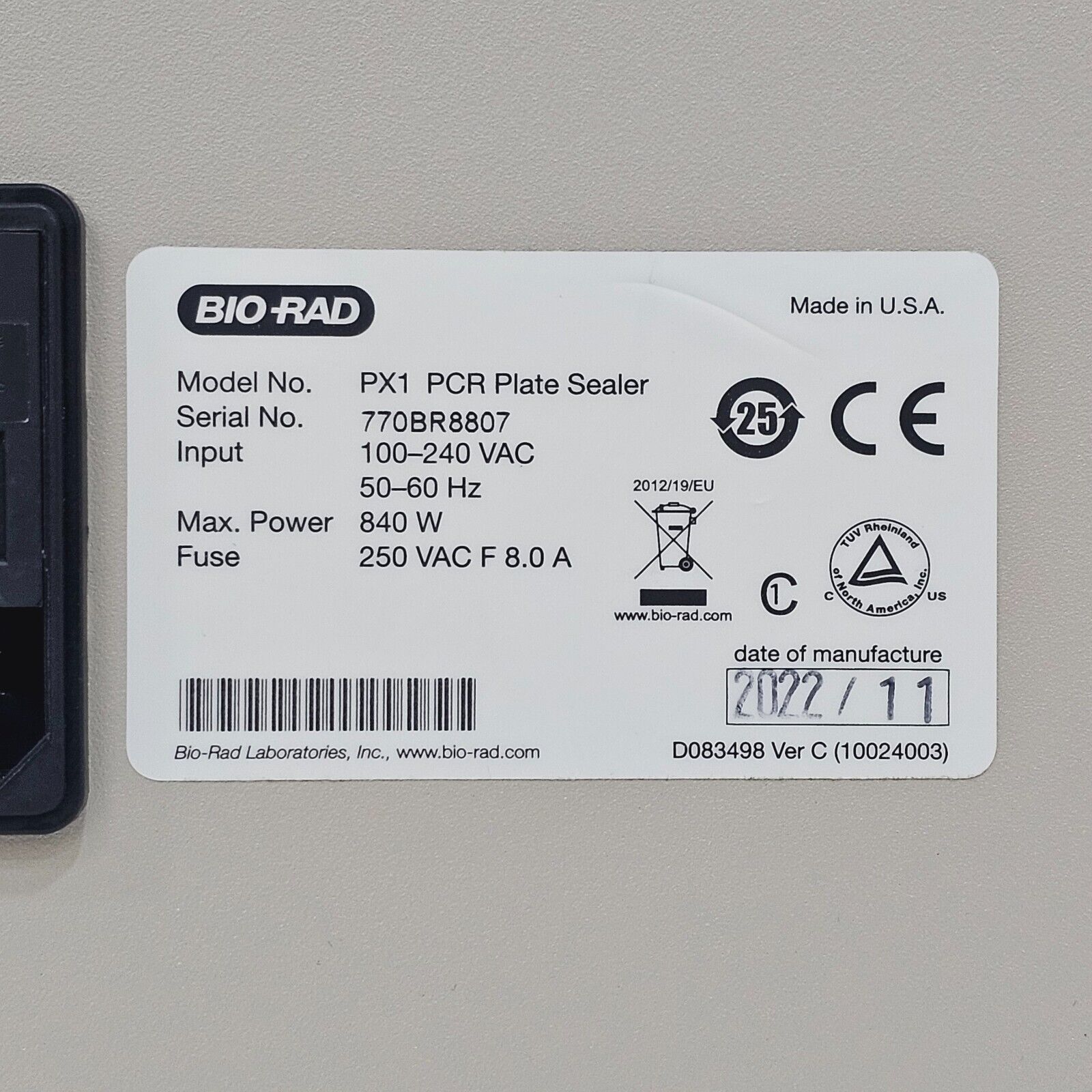

Power Supply: 100–240 V, 50/60 Hz
Power Consumption: 840 W
Sealing Temperature Range: 100°C to 200°C
Sealing Time Range: 1–10 seconds
Warm-up Time: Less than 3 minutes
Compatible Plate Formats: 96-well and 384-well (standard and low profile)
Protocol Storage: Up to 12 user-defined sealing protocols
Dimensions (W x D x H): 10.4" x 17.7" x 10.2" (264 mm x 449 mm x 259 mm)
Interface: Colour touch-screen
Catalog Number: 1814000
Regulatory Compliance: IEC 61010-1, IEC 61010-2-010
Bio-Rad PX1 PCR Plate Sealer Instruction Manual (Catalog #181-4000): Download PDF
Bio-Rad PX1 PCR Plate Sealer and Heat Sealing Consumables Brochure (Bulletin 6257): Download PDF
Product Overview
Condition: Used
Bio-Rad PX1 PCR Plate Sealer in good working condition, manufactured November 2022. Supplied with the plate support block. Suitable for PCR, qPCR, and ddPCR laboratory workflows.
Included with this unit:
• Plate support block (holds 96-well and 384-well plates)
Manufacturer's Description
The Bio-Rad PX1 PCR Plate Sealer is a semi-automated heat sealing instrument designed for sealing PCR microplates in thermal cycling workflows. It applies heat and pressure to fuse a sealing film or foil to the rims of PCR plate wells, delivering consistent and uniform sealing across the entire plate. The instrument is suited for PCR, qPCR, and Droplet Digital PCR (ddPCR) applications where minimising sample evaporation is critical to data reliability.
The PX1 features an intuitive colour touch-screen interface that displays instrument status, platen temperature, protocol name, set temperature, and sealing time. Up to 12 unique sealing protocols can be stored and recalled, eliminating the need to manually re-enter optimised parameters. The adjustable auto-shutdown feature turns off the heater after a user-defined period of inactivity, improving laboratory safety and energy efficiency.
Key Features:
- Semi-automated sealing removes human variability and increases reproducibility
- Ready to seal in less than 3 minutes from switch-on
- Compatible with a wide range of Bio-Rad heat-sealing films and foils (optically clear, peelable, pierceable foil, and non-pierceable)
- Small footprint suitable for busy laboratory benches
- Non-stick, easy-clean heated platen surface
- Supports 96-well and 384-well standard and low-profile PCR plates
Technical Specifications:
Power Supply: 100–240 V, 50/60 Hz
Power Consumption: 840 W
Sealing Temperature Range: 100°C to 200°C
Sealing Time Range: 1–10 seconds
Warm-up Time: Less than 3 minutes
Compatible Plate Formats: 96-well and 384-well (standard and low profile)
Protocol Storage: Up to 12 user-defined sealing protocols
Dimensions (W x D x H): 10.4" x 17.7" x 10.2" (264 mm x 449 mm x 259 mm)
Interface: Colour touch-screen
Catalog Number: 1814000
Regulatory Compliance: IEC 61010-1, IEC 61010-2-010
Resources
Bio-Rad PX1 PCR Plate Sealer Instruction Manual (Catalog #181-4000): Download PDF
Bio-Rad PX1 PCR Plate Sealer and Heat Sealing Consumables Brochure (Bulletin 6257): Download PDF
