Condition: Used

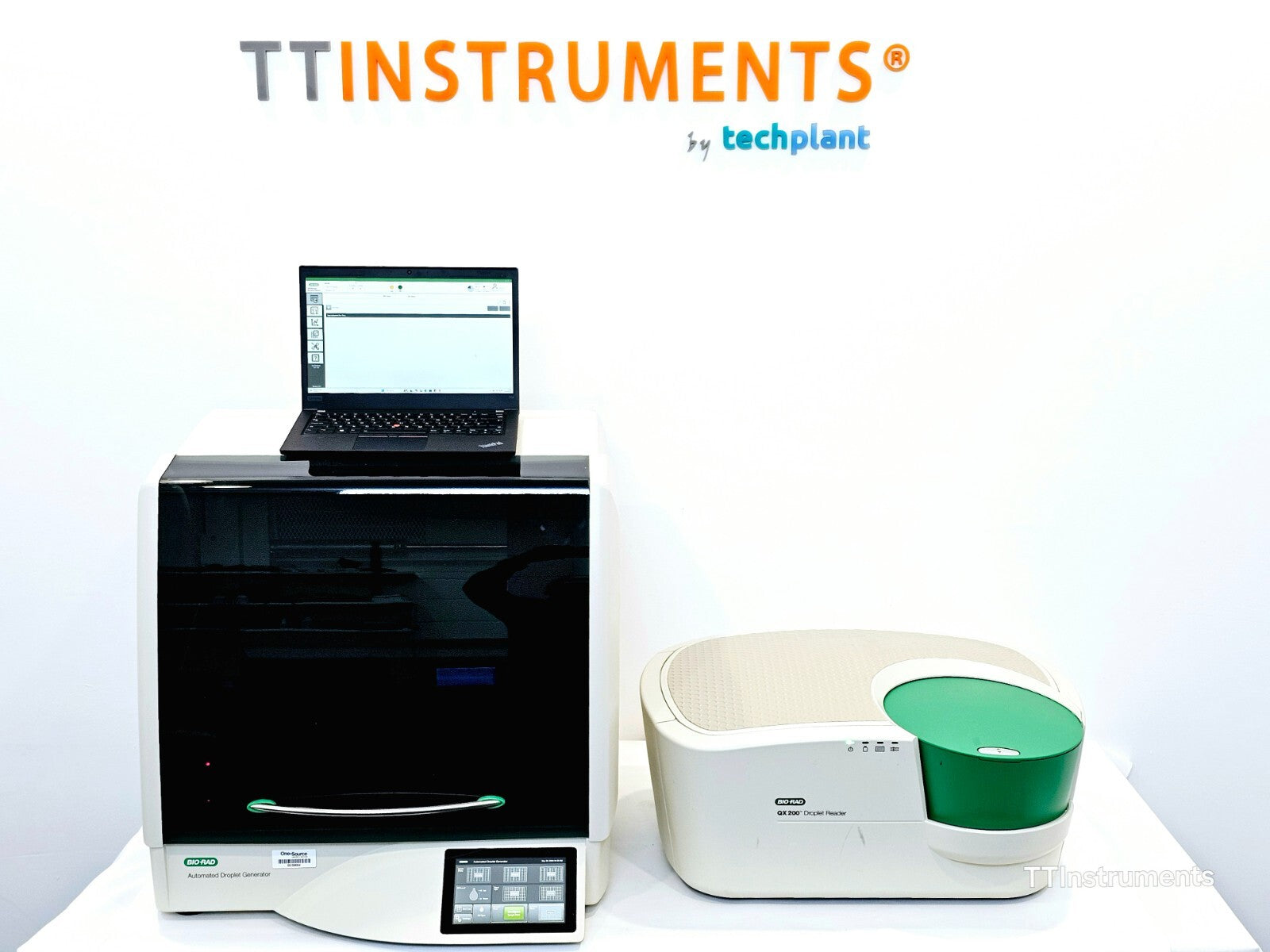

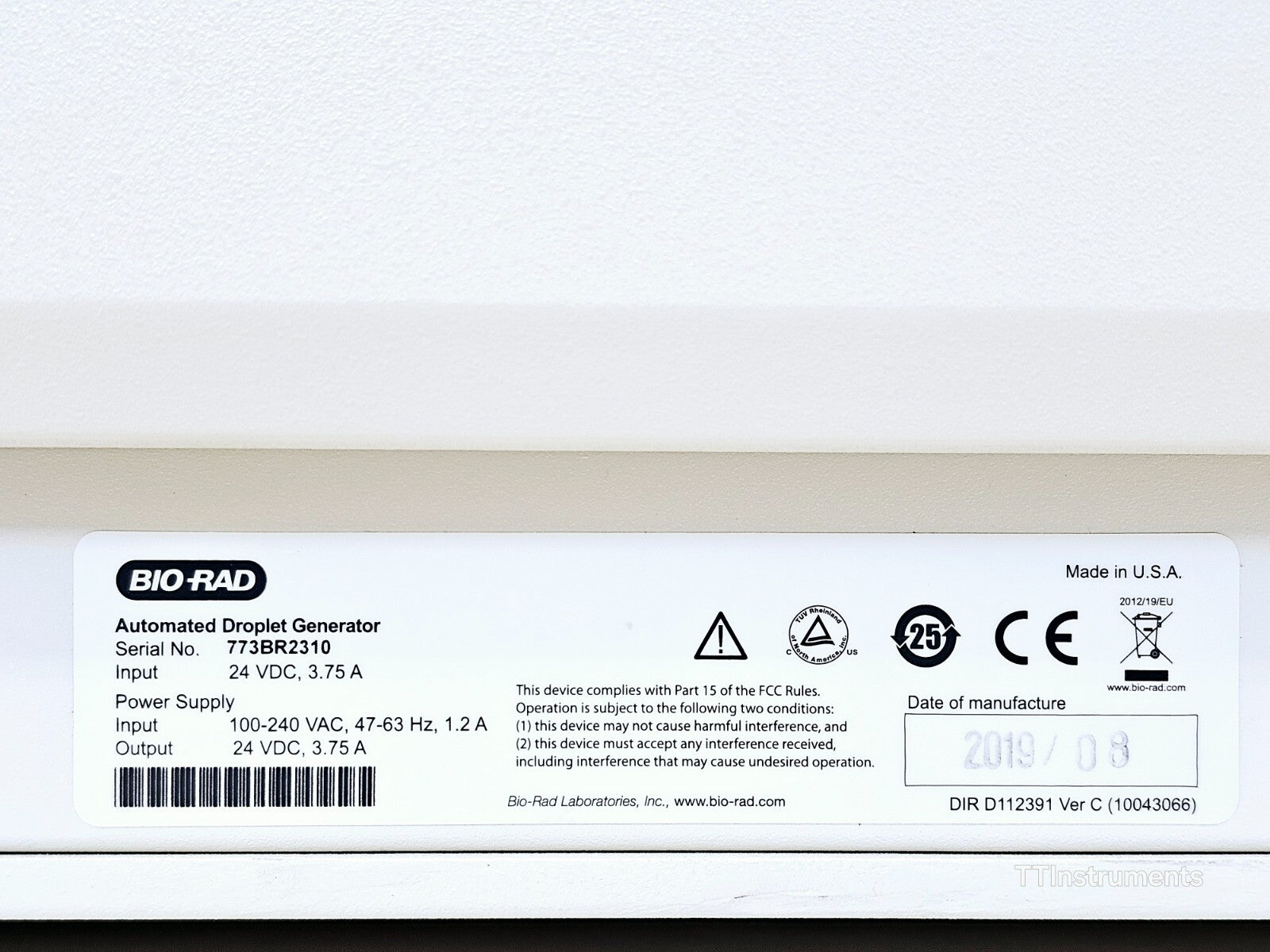

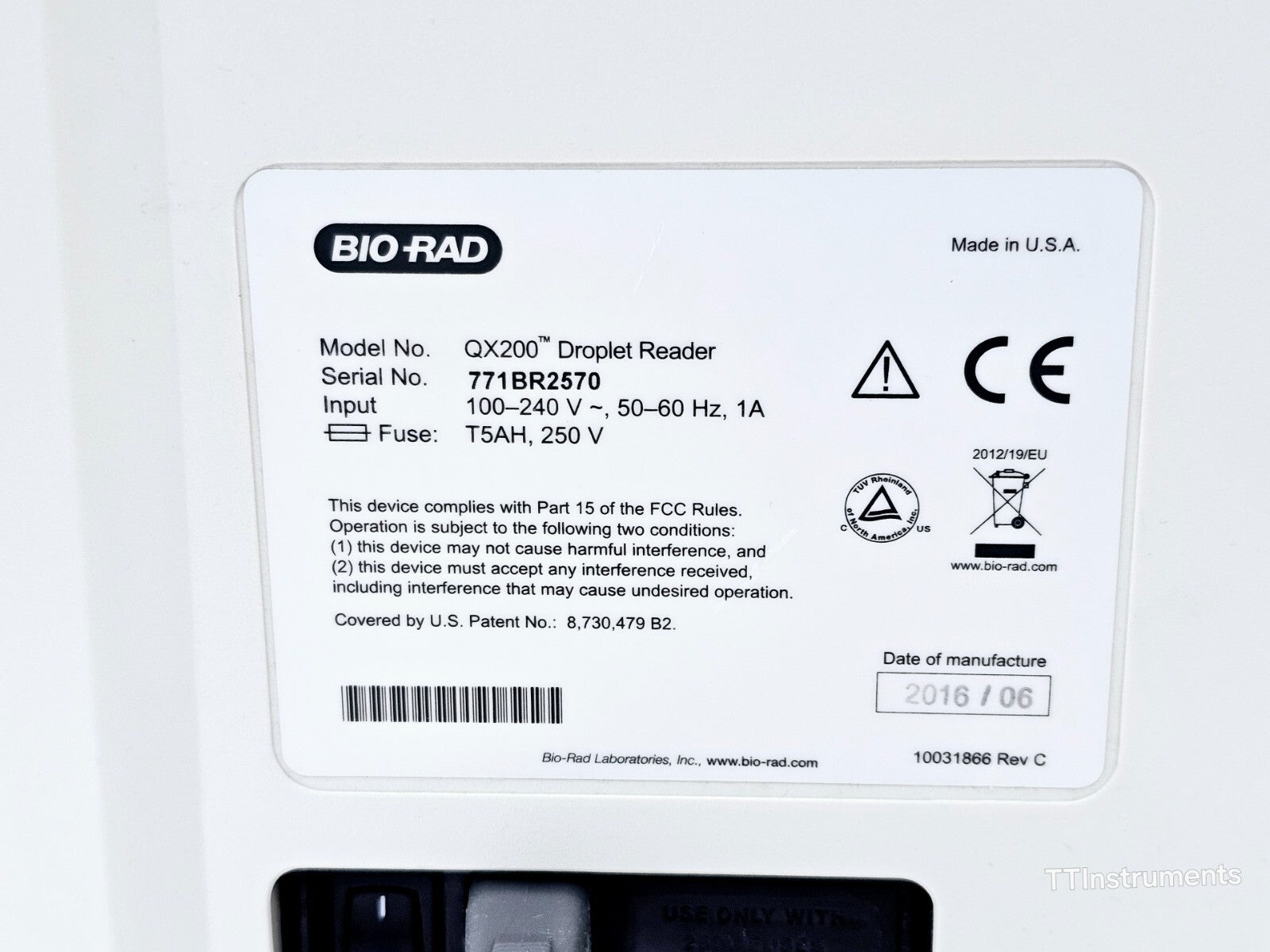

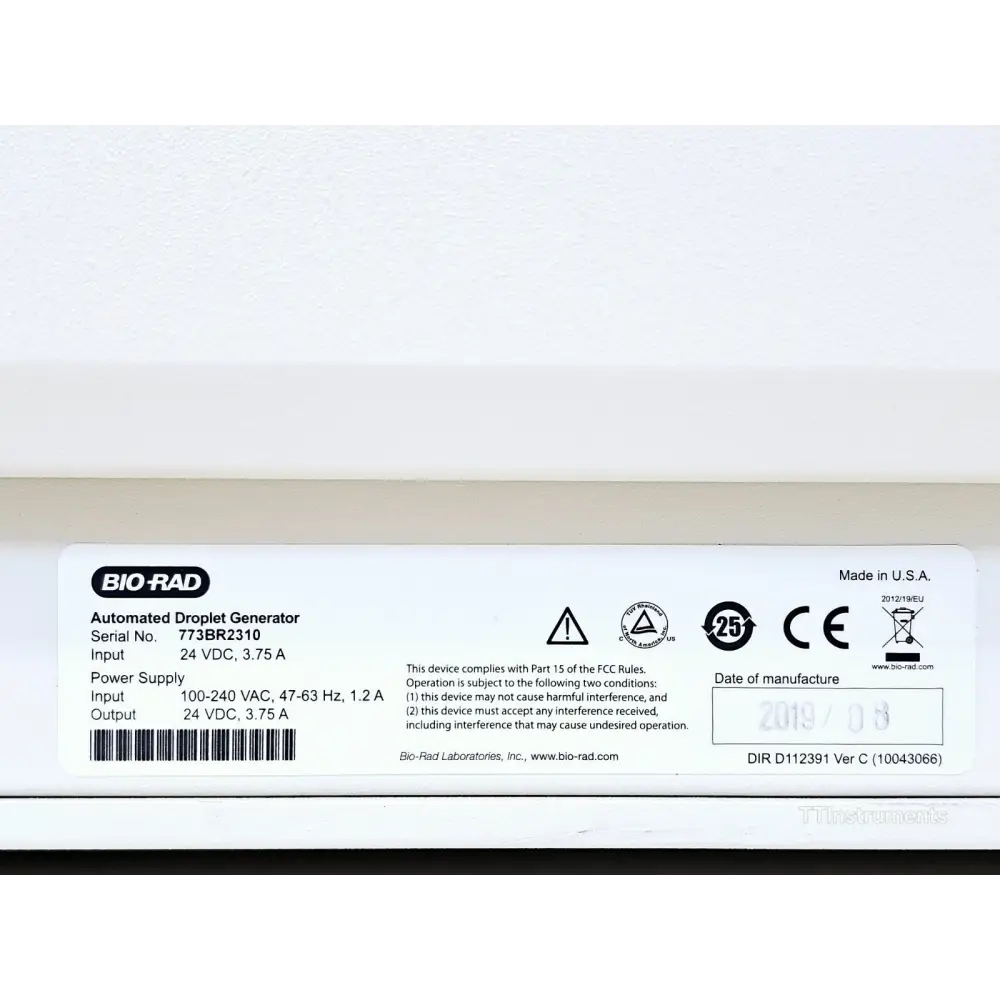

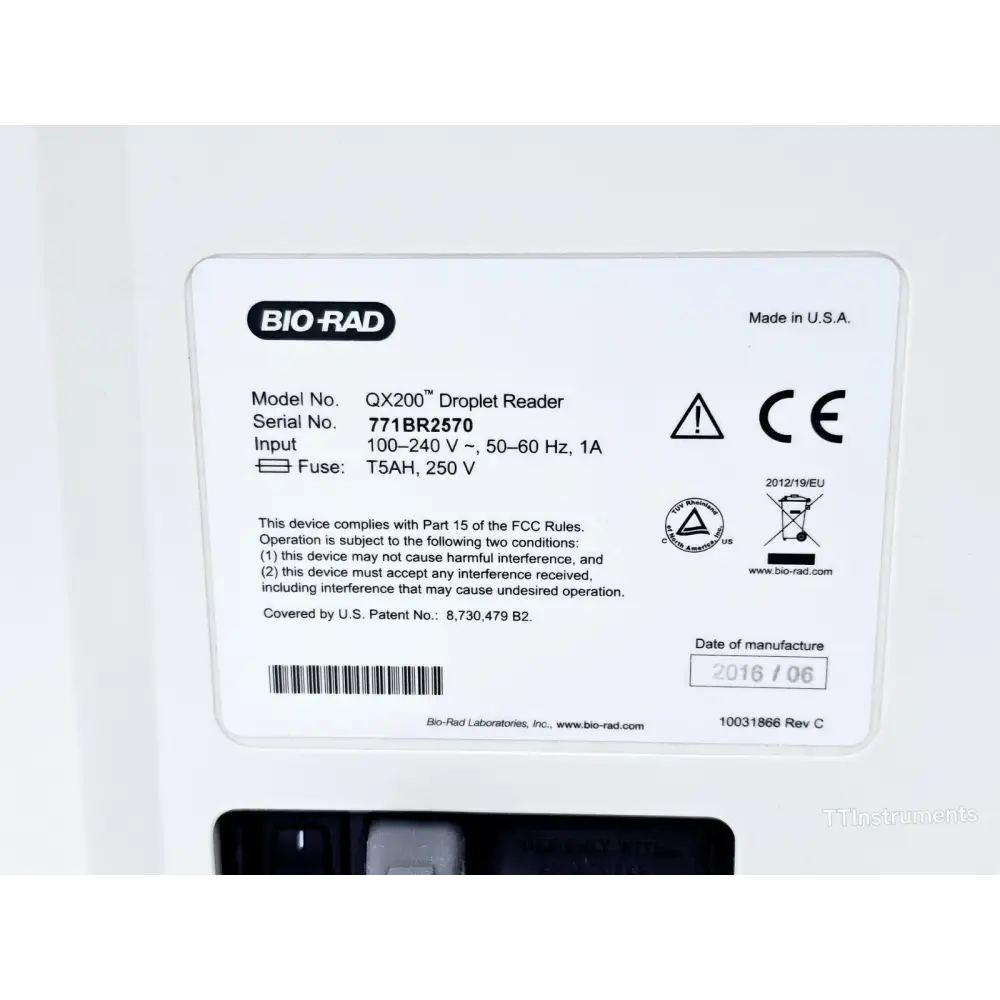

A low-usage Bio-Rad QX200 AutoDG ddPCR system tested and confirmed fully functional. The Automated Droplet Generator was manufactured in 2019 and the QX200 Droplet Reader in 2016. A laptop has been pre-loaded with QX Manager Software; the software confirms calibration of the QX200 is OK. Minor cosmetic imperfections are present but do not affect performance. Please note the reader requires approximately 15 minutes to warm up before use.

Included in the sale:
• Bio-Rad QX200 Droplet Reader
• Bio-Rad Automated Droplet Generator (AutoDG)

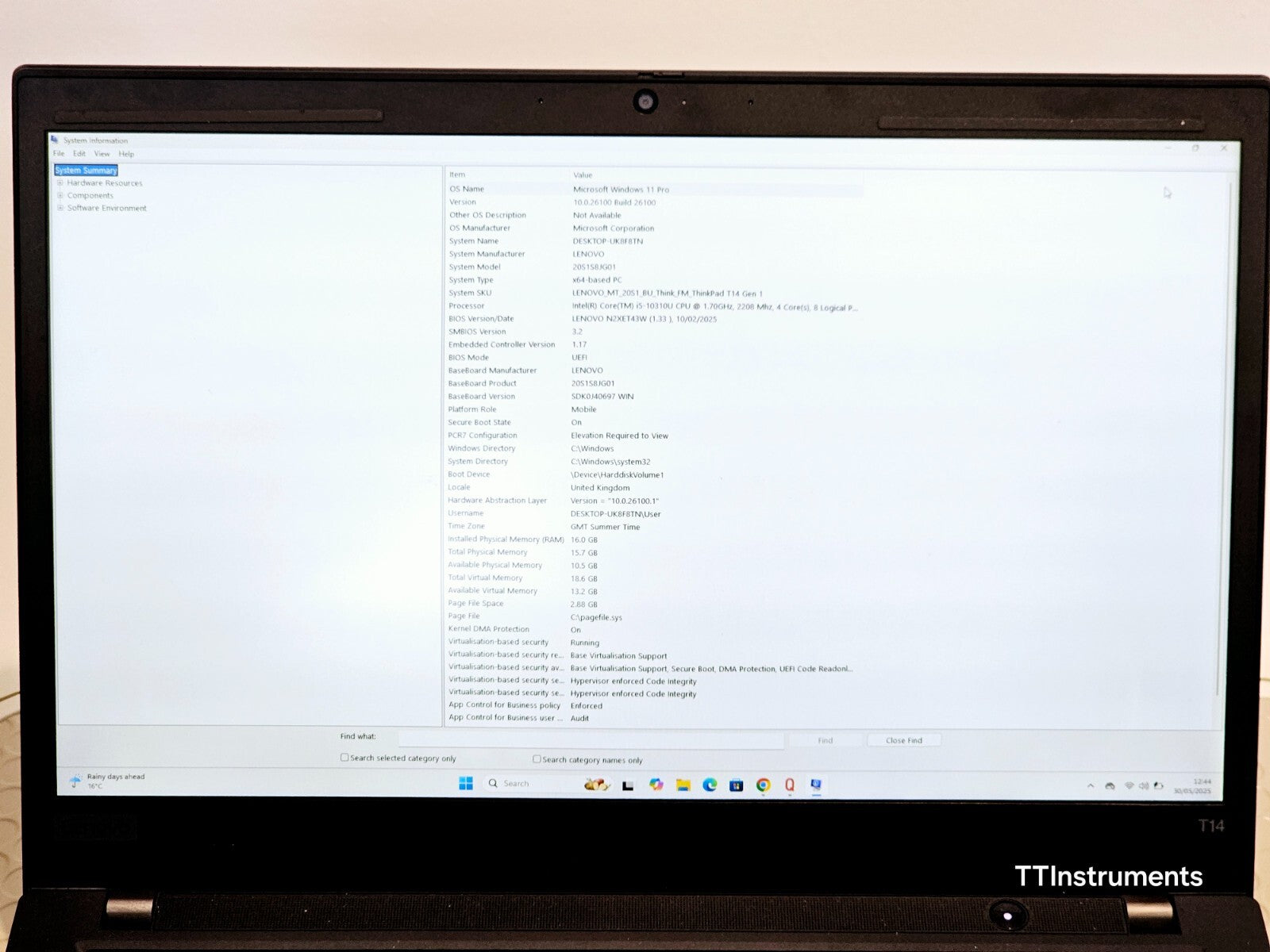

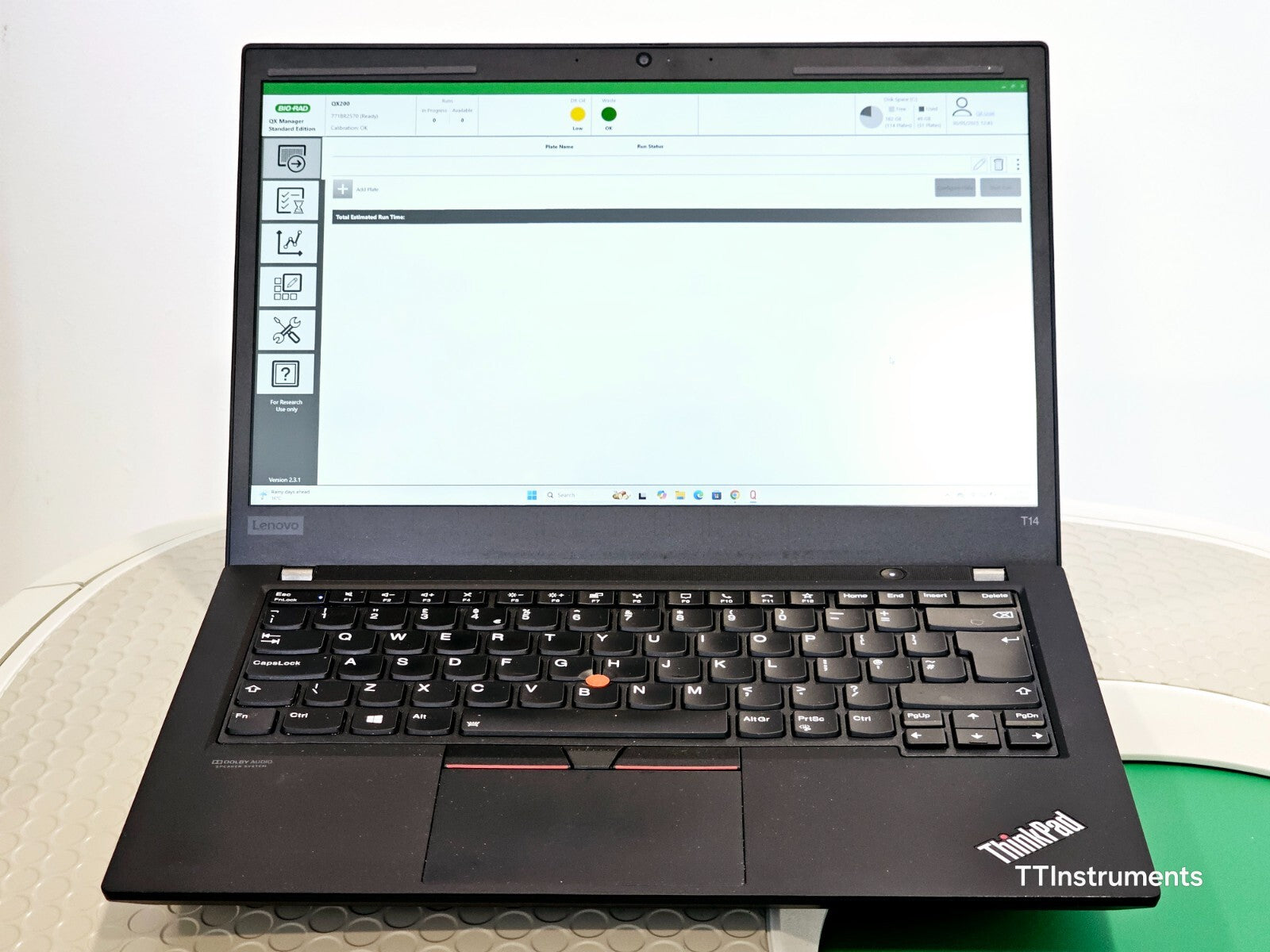

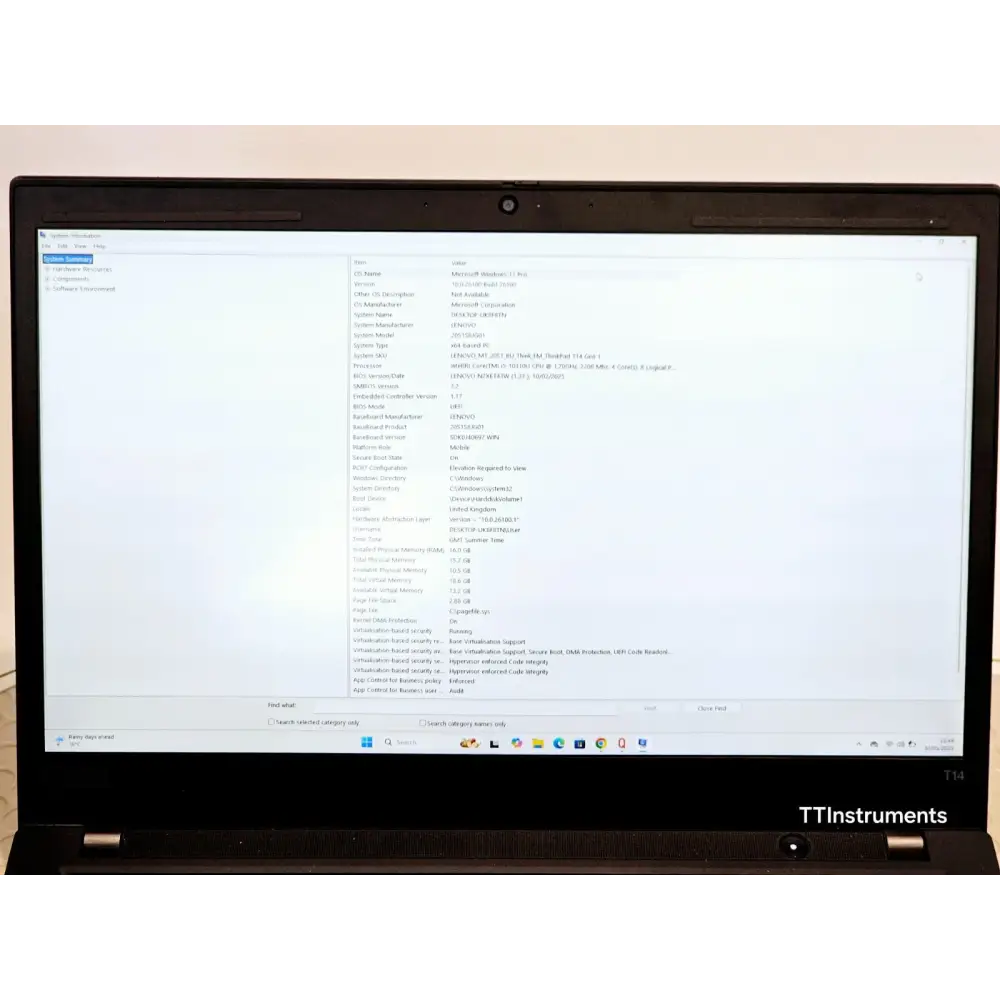

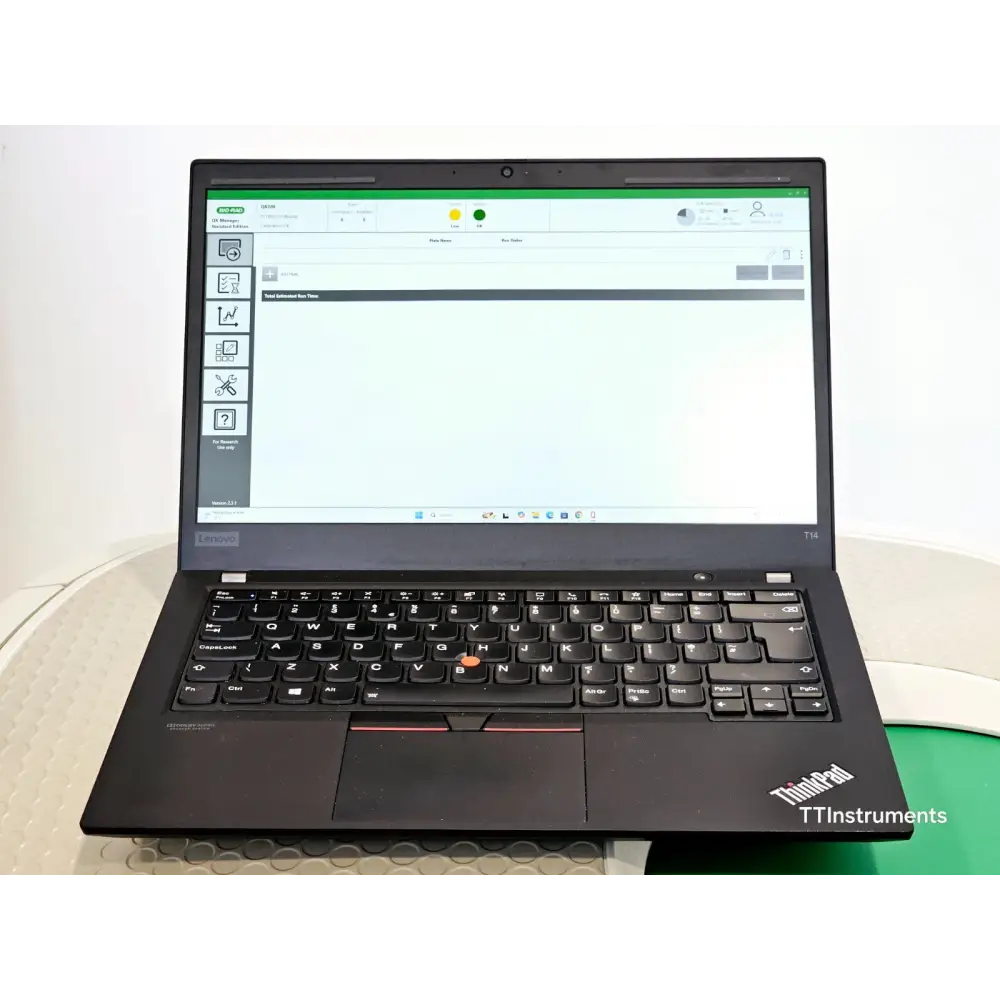

• Laptop pre-loaded with QX Manager Software
• Power supplies

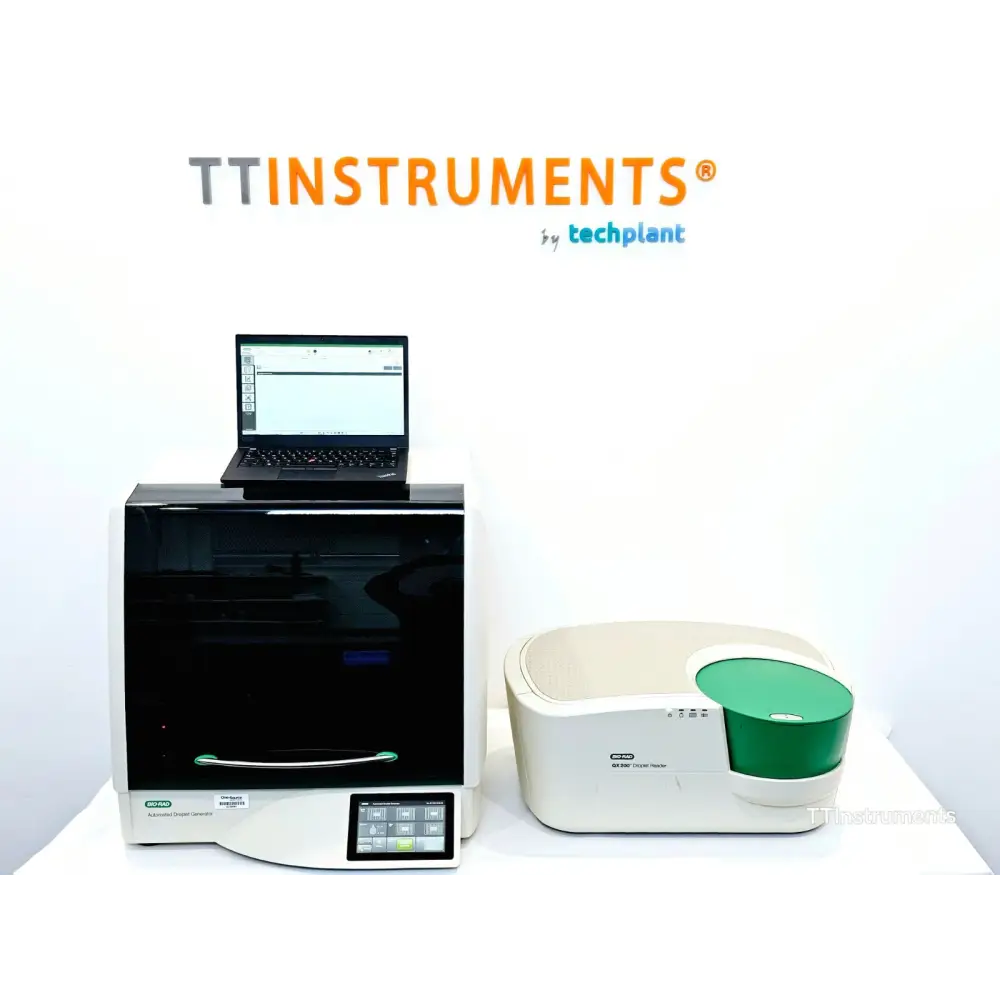

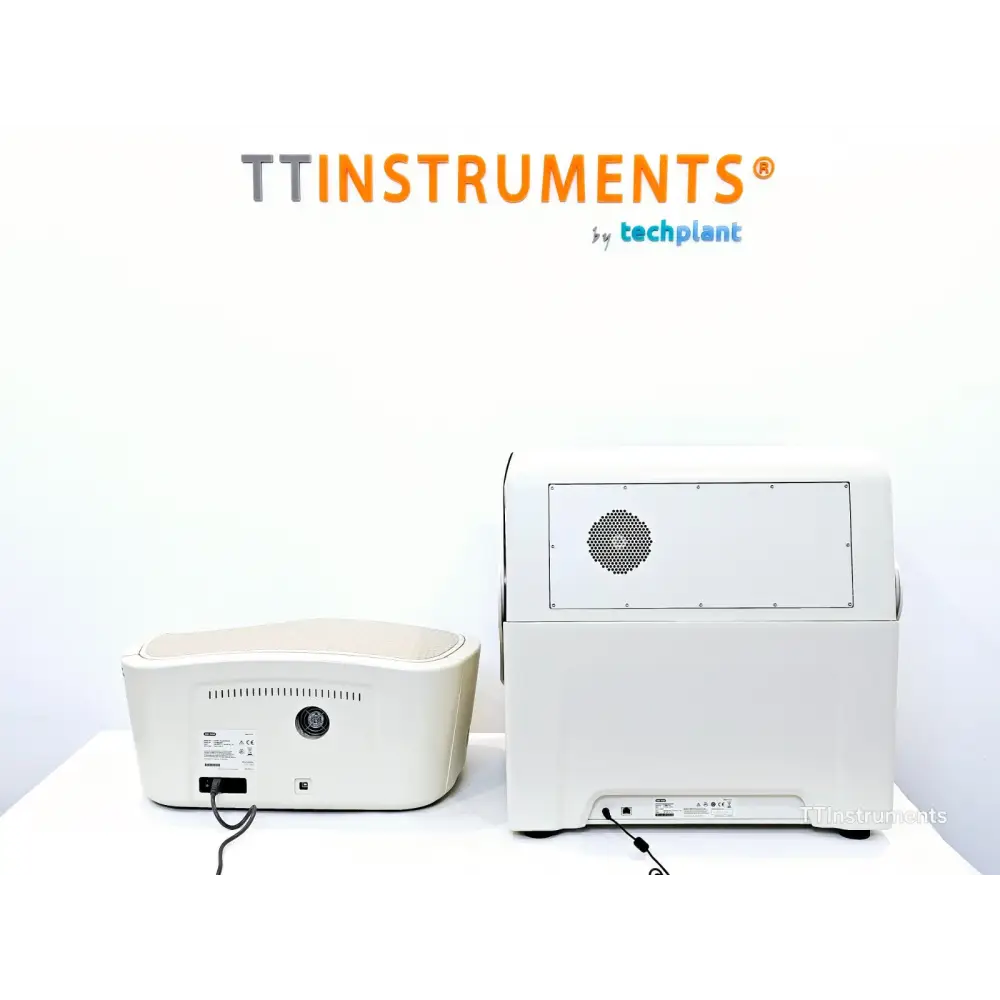

Bio-Rad QX200 AutoDG Droplet Digital PCR (ddPCR) System

The QX200 AutoDG Droplet Digital PCR System provides absolute quantification of target DNA or RNA molecules for EvaGreen and probe-based ddPCR applications. The system combines the Automated Droplet Generator (AutoDG) with the QX200 Droplet Reader to deliver a streamlined, high-throughput digital PCR workflow.

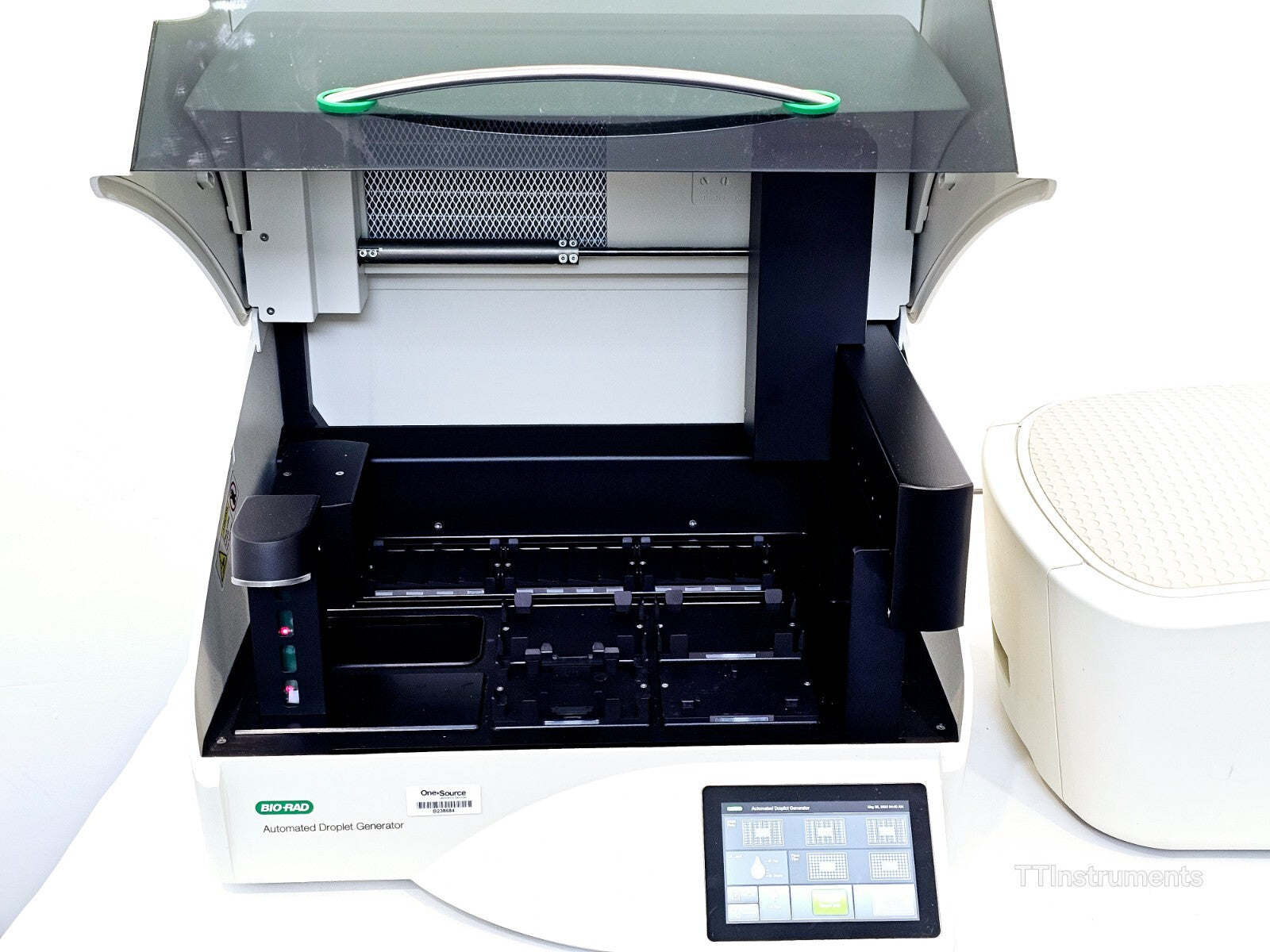

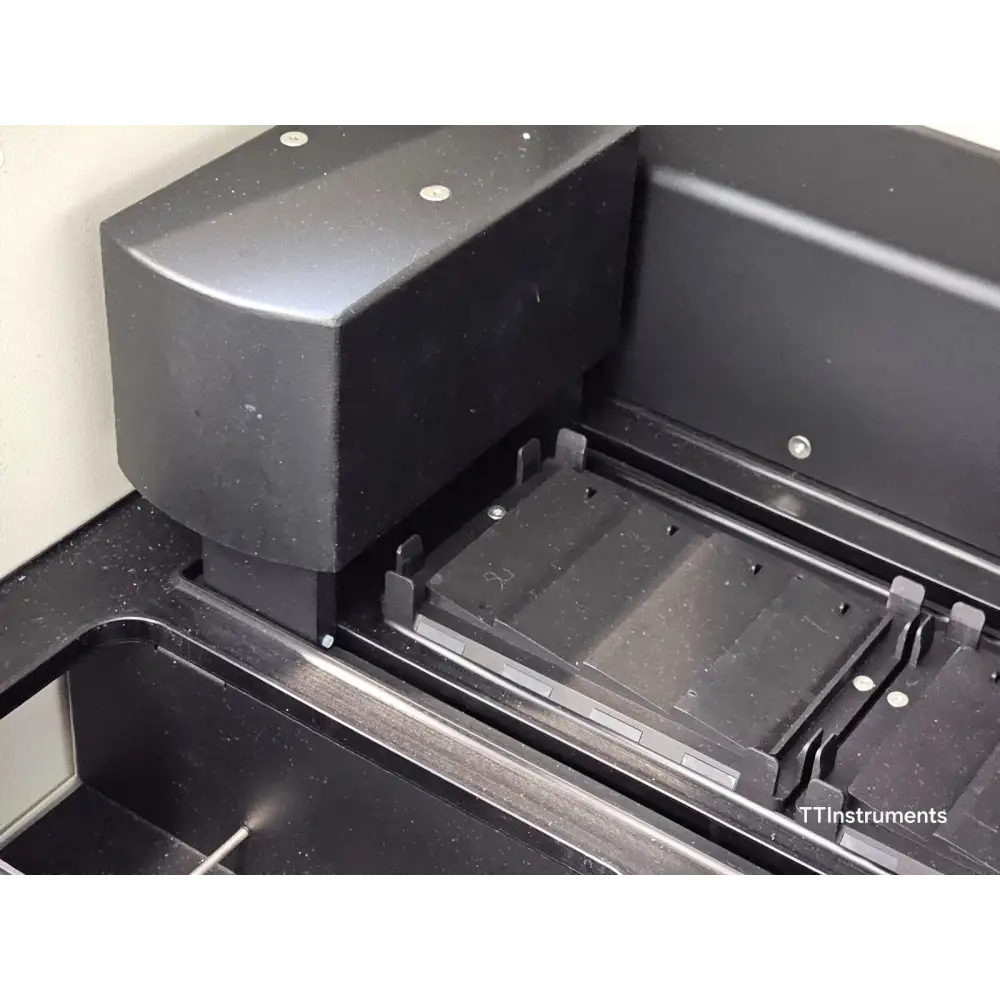

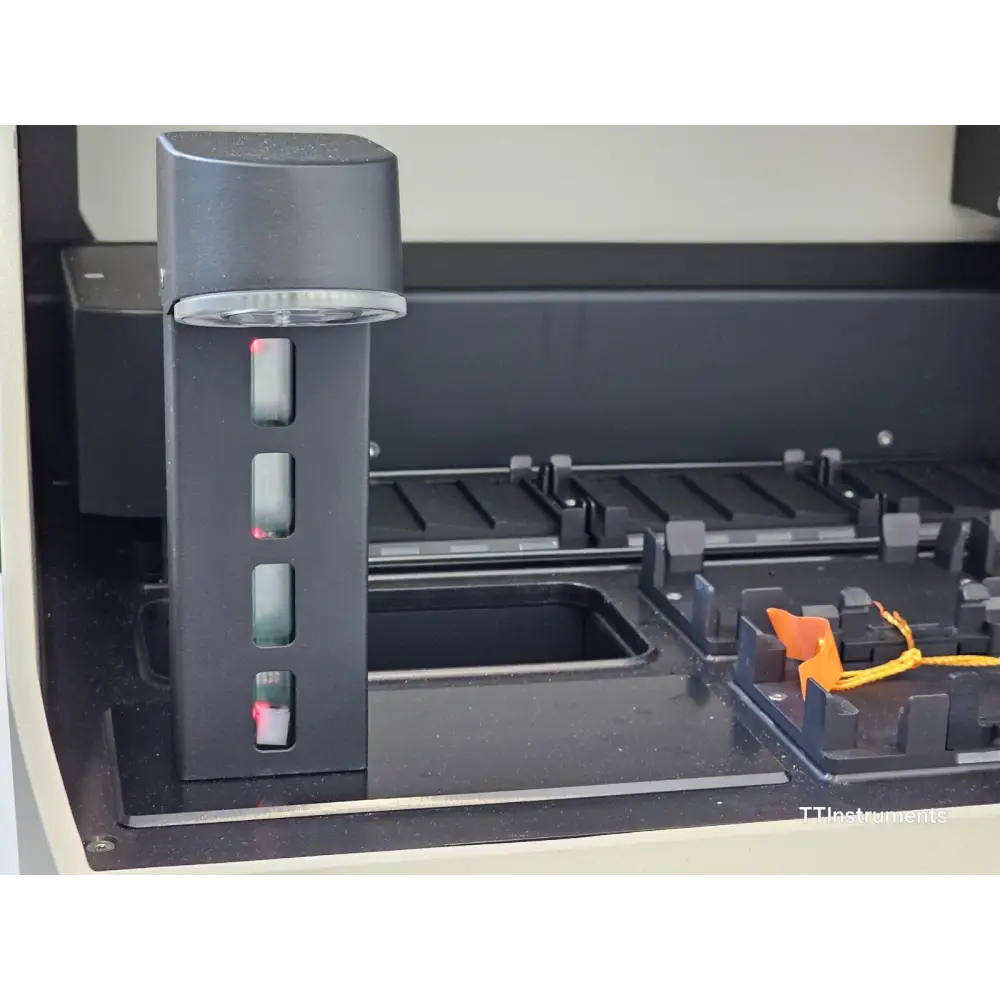

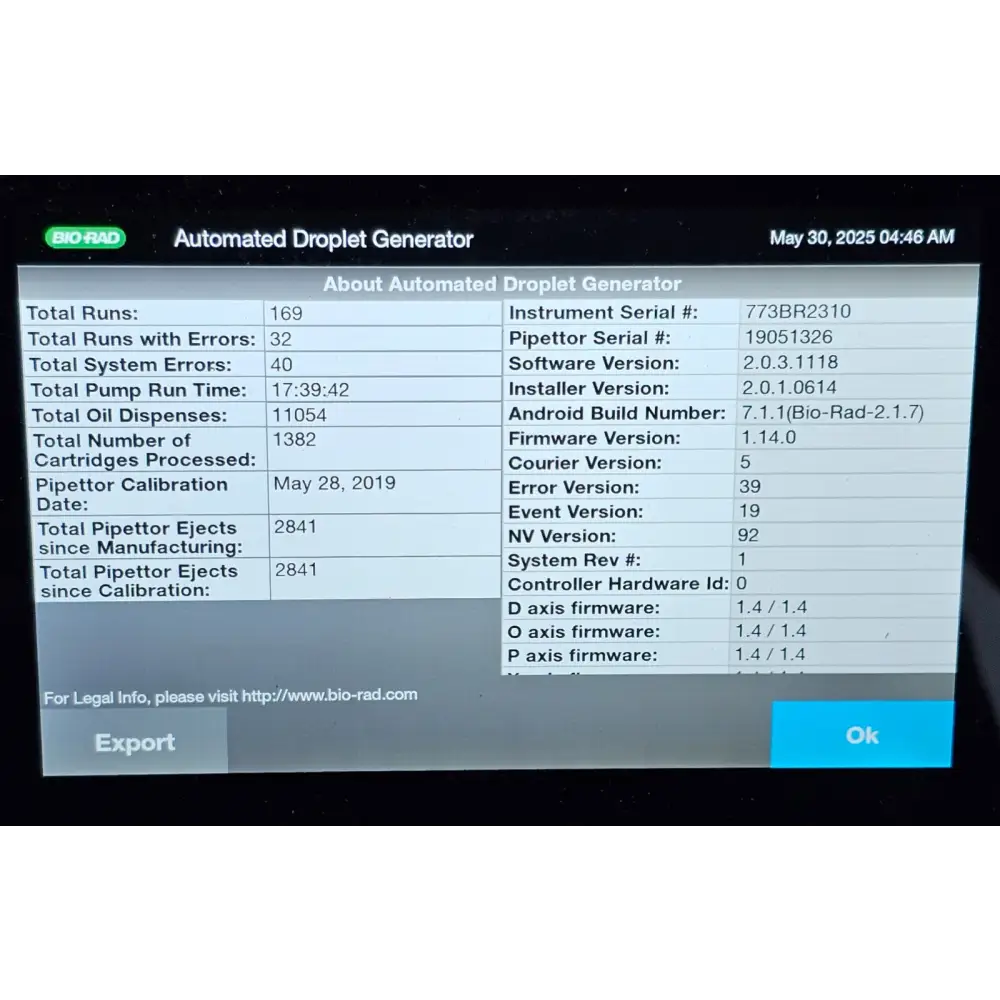

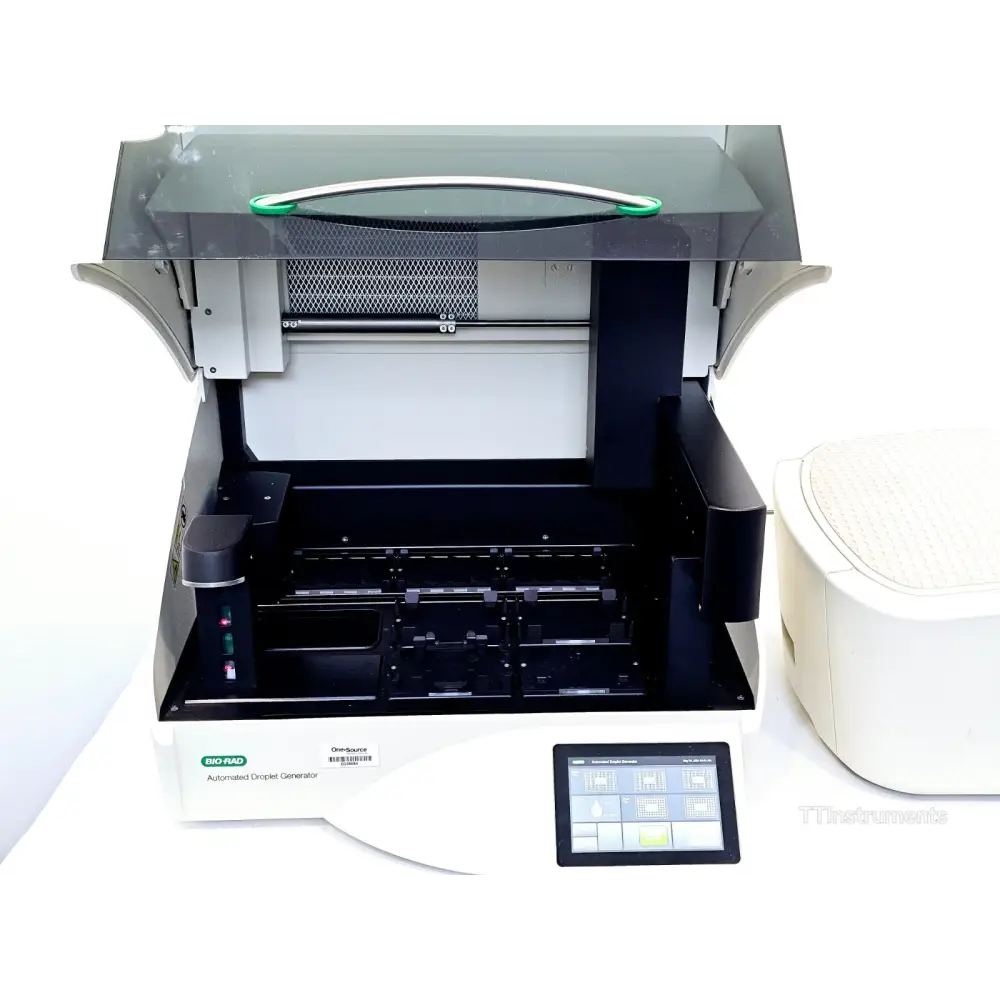

Automated Droplet Generator (AutoDG) — Cat. #1864101:

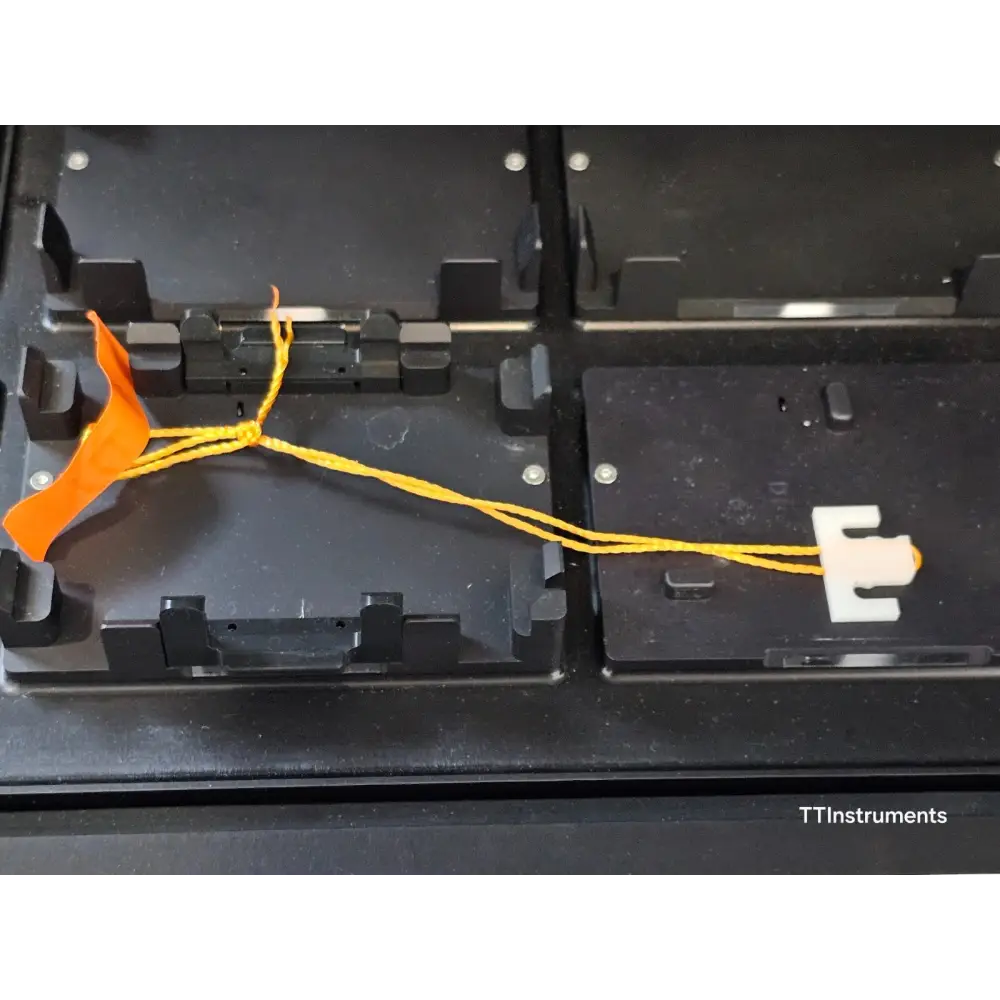

The AutoDG Instrument partitions each sample in a 96-well PCR plate into approximately 20,000 uniform nanoliter-sized droplets in which nucleic acid molecules are randomly distributed. Every droplet serves as an individual PCR reaction. After partitioning, the plate is sealed with the PX1 Plate Sealer and PCR is run to endpoint in a thermal cycler.

Key AutoDG Features:
Sample throughput: Up to 96 samples per plate
Droplet generation time: Under 45 minutes for a full 96-well plate
Hands-on loading time: Less than 5 minutes
Droplet count per sample: ~20,000 nanoliter-sized droplets

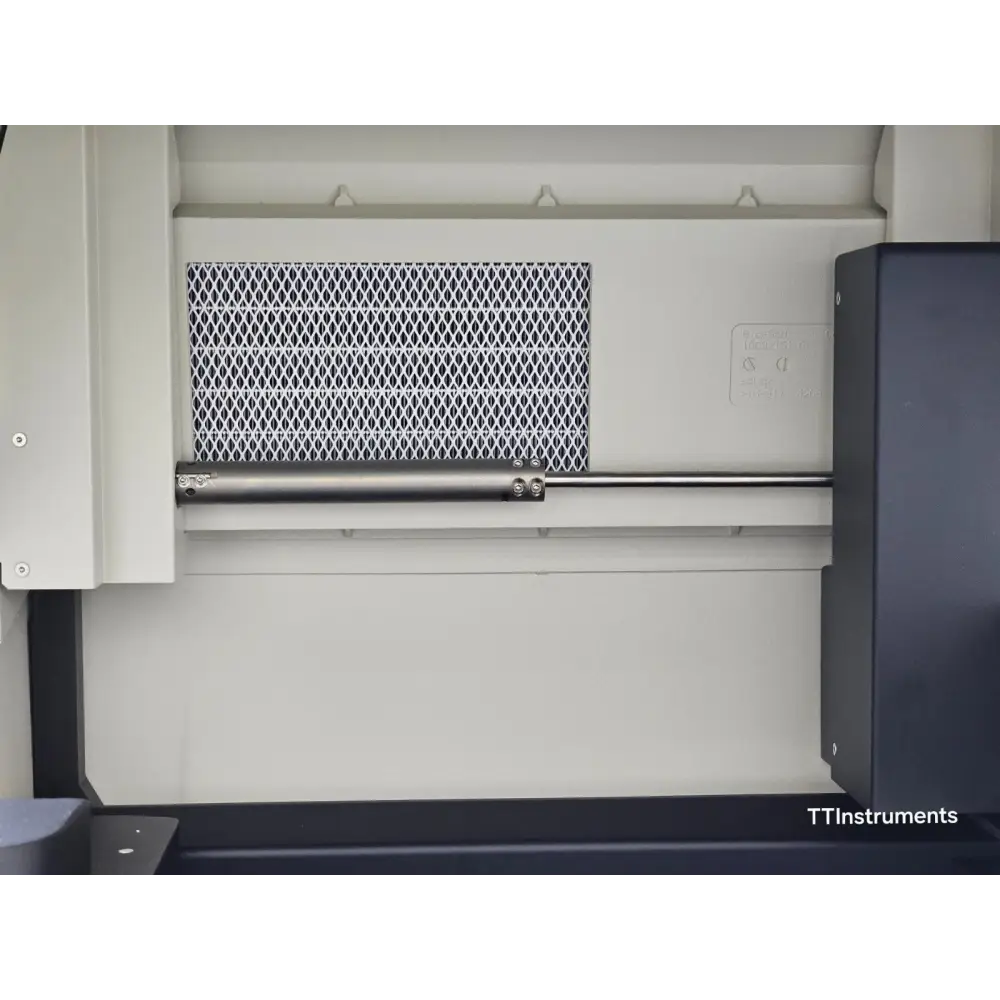

Enclosure: HEPA-filtered to reduce contamination risk

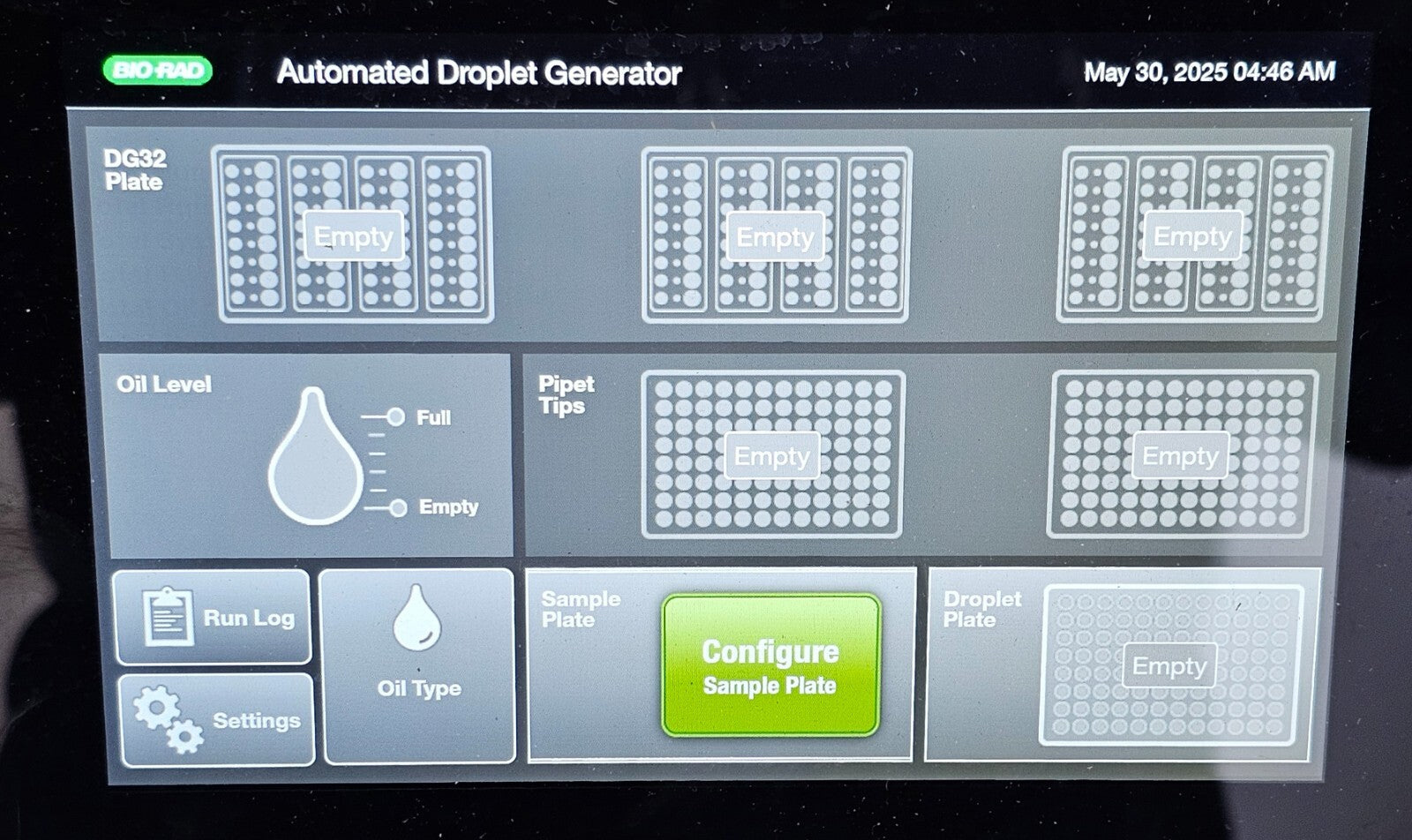

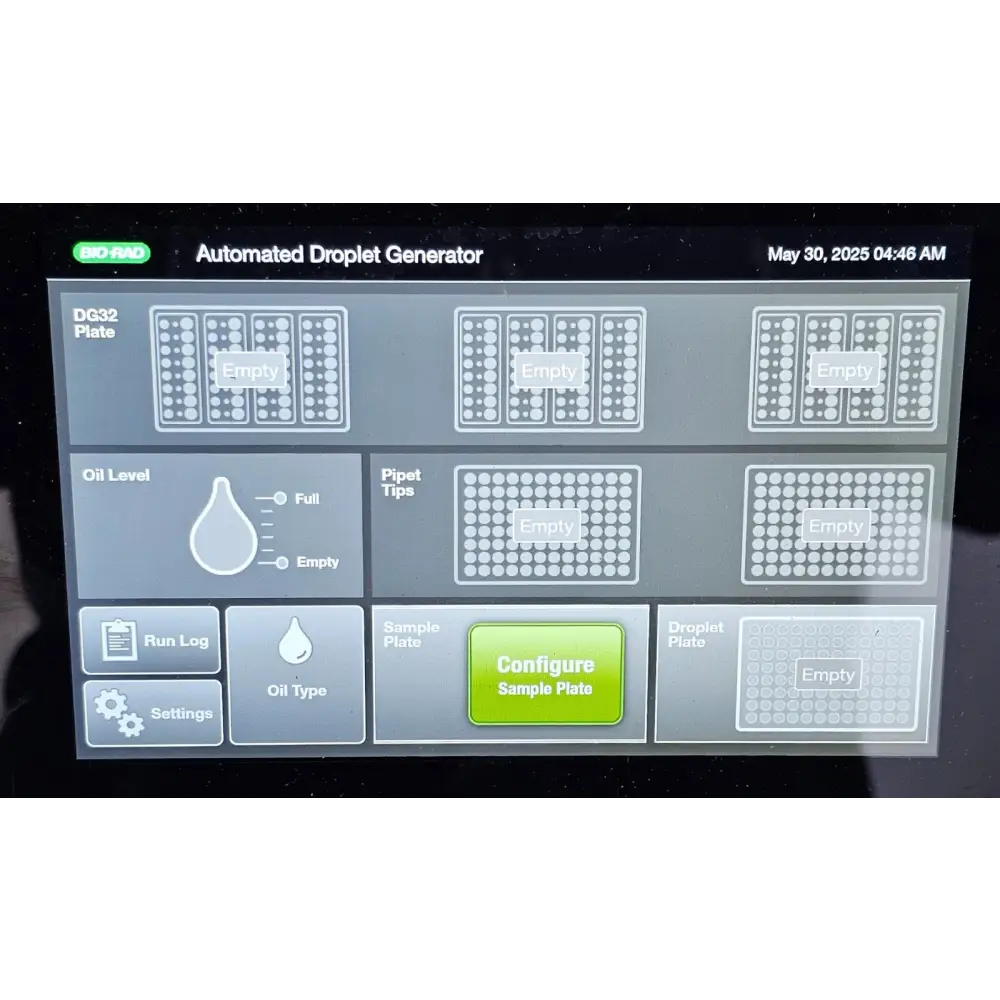

Interface: Large colour touchscreen with LED-guided loading
Plate layout: User-definable in increments of 8 wells
Compatibility: QX200 and QX600 ddPCR workflows
Scalability: One AutoDG can sustain 4–5 droplet readers running continuously
Consumable format: SBS-standard access, automation-friendly

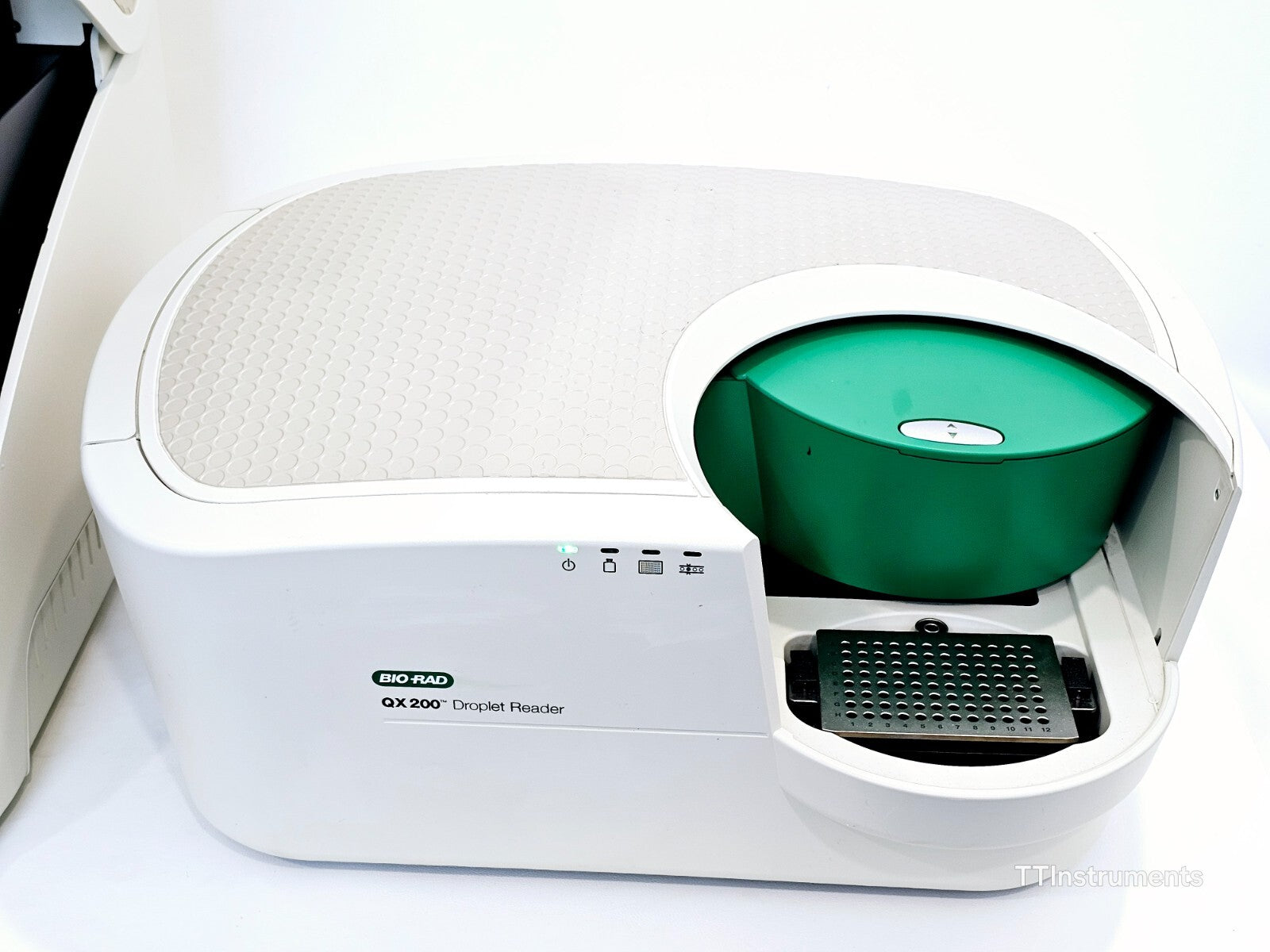

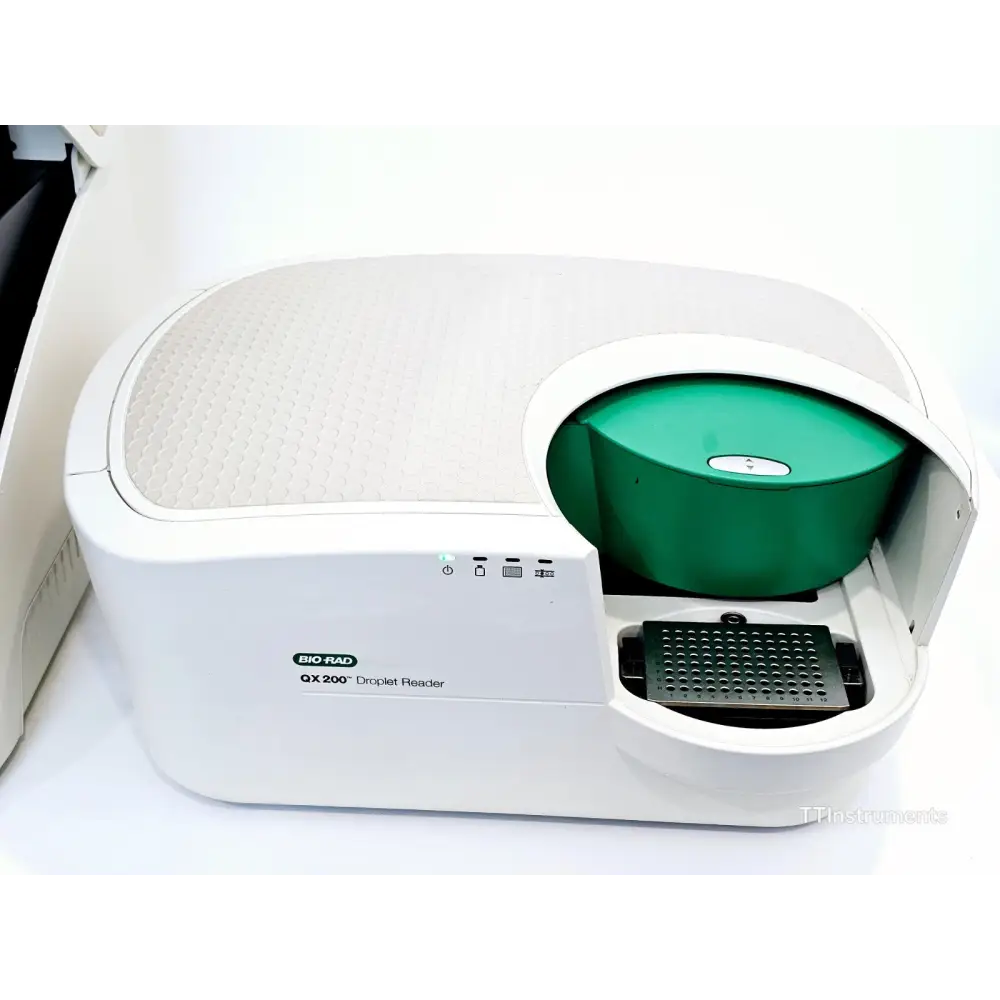

QX200 Droplet Reader — Cat. #1864003 / #17005228:

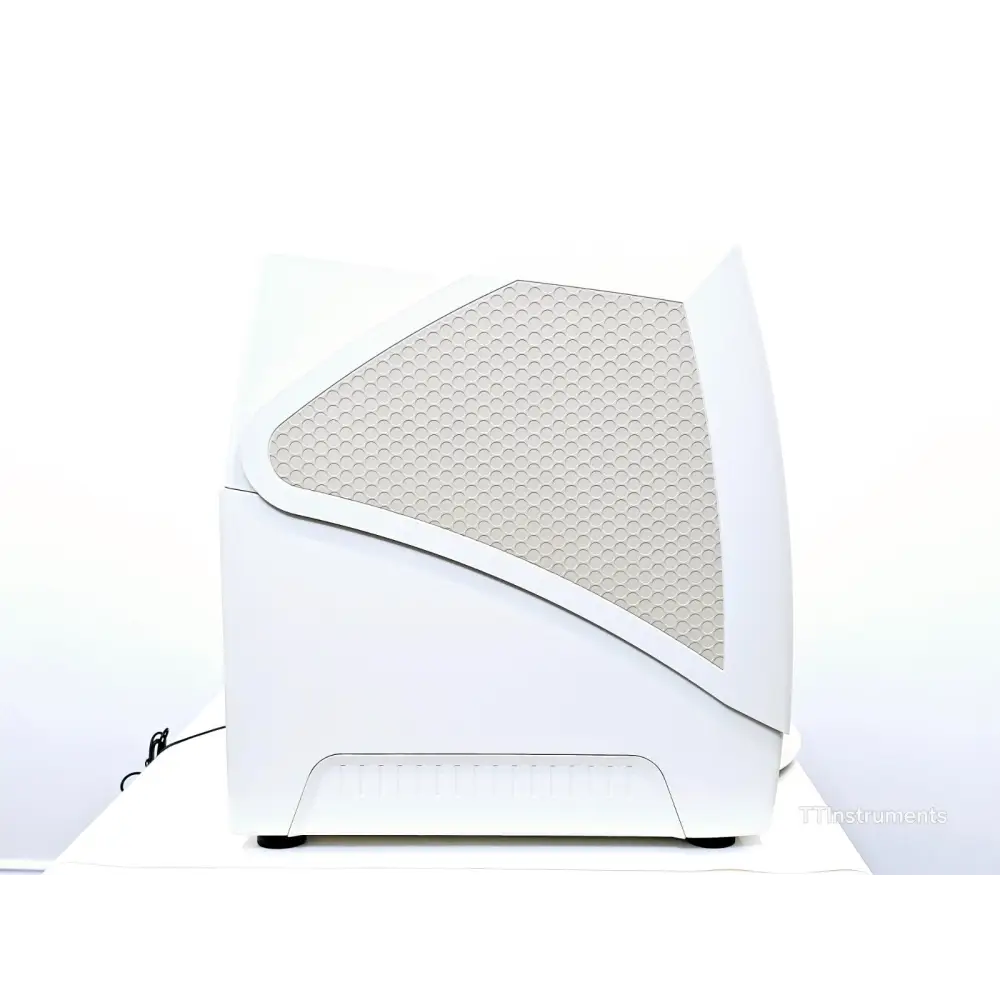

The QX200 Droplet Reader counts PCR-positive and PCR-negative droplets using a two-colour optical detection system to complete the second step of the ddPCR workflow. Droplets are sipped and a singulator streams them single-file past the detector.

Key QX200 Droplet Reader Specifications:
Sample capacity per run: 1–96 samples
Starting sample volume: 20 µl
Sample illumination: Light-emitting diodes (LEDs)
Sample detection: Multi-pixel photon counter (MPPC)
Detection channels: FAM/EvaGreen (Ch1), HEX/VIC (Ch2)
Chemistry compatibility: TaqMan hydrolysis probe (FAM/VIC, FAM/HEX) and EvaGreen intercalating dye

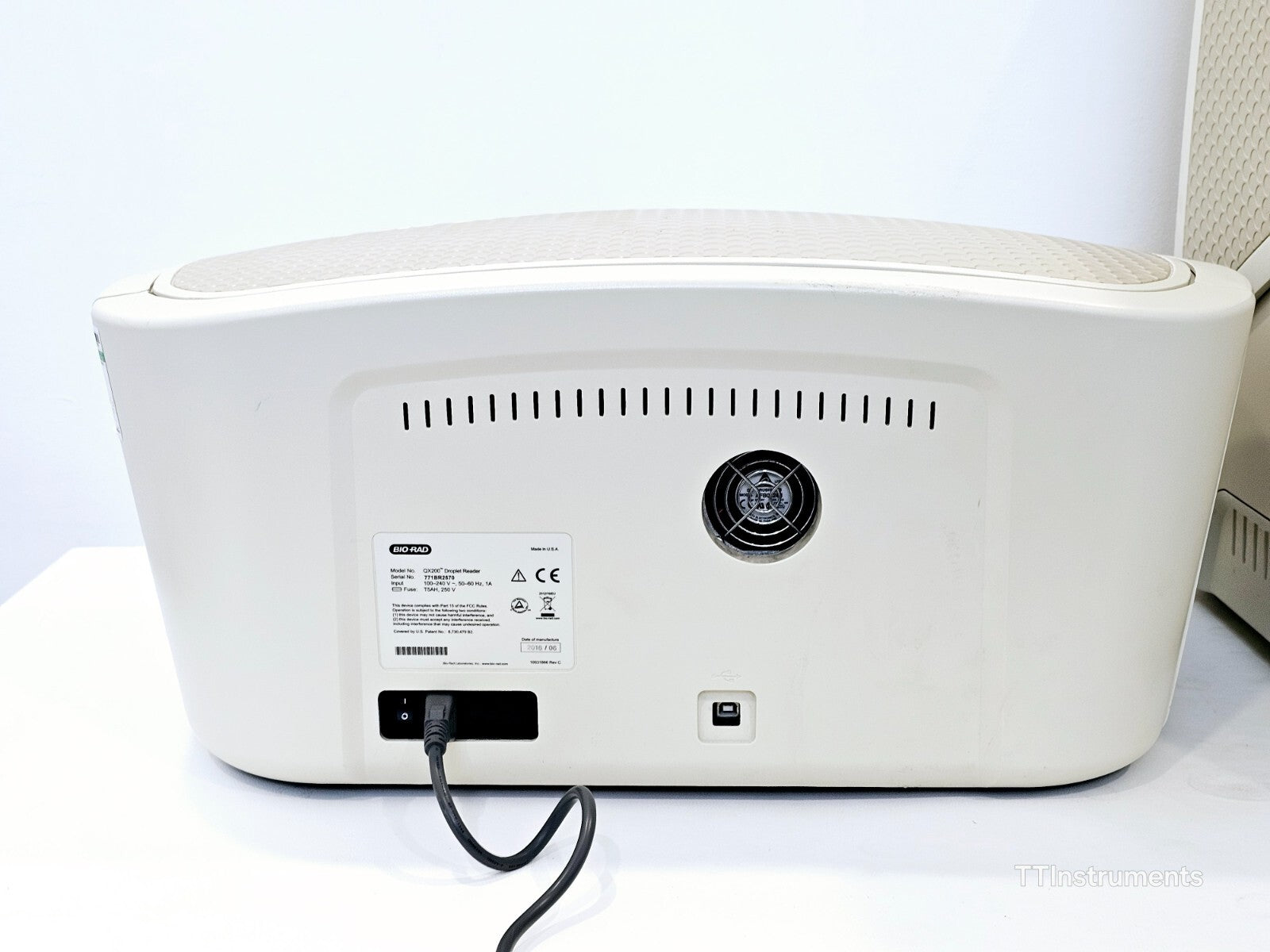

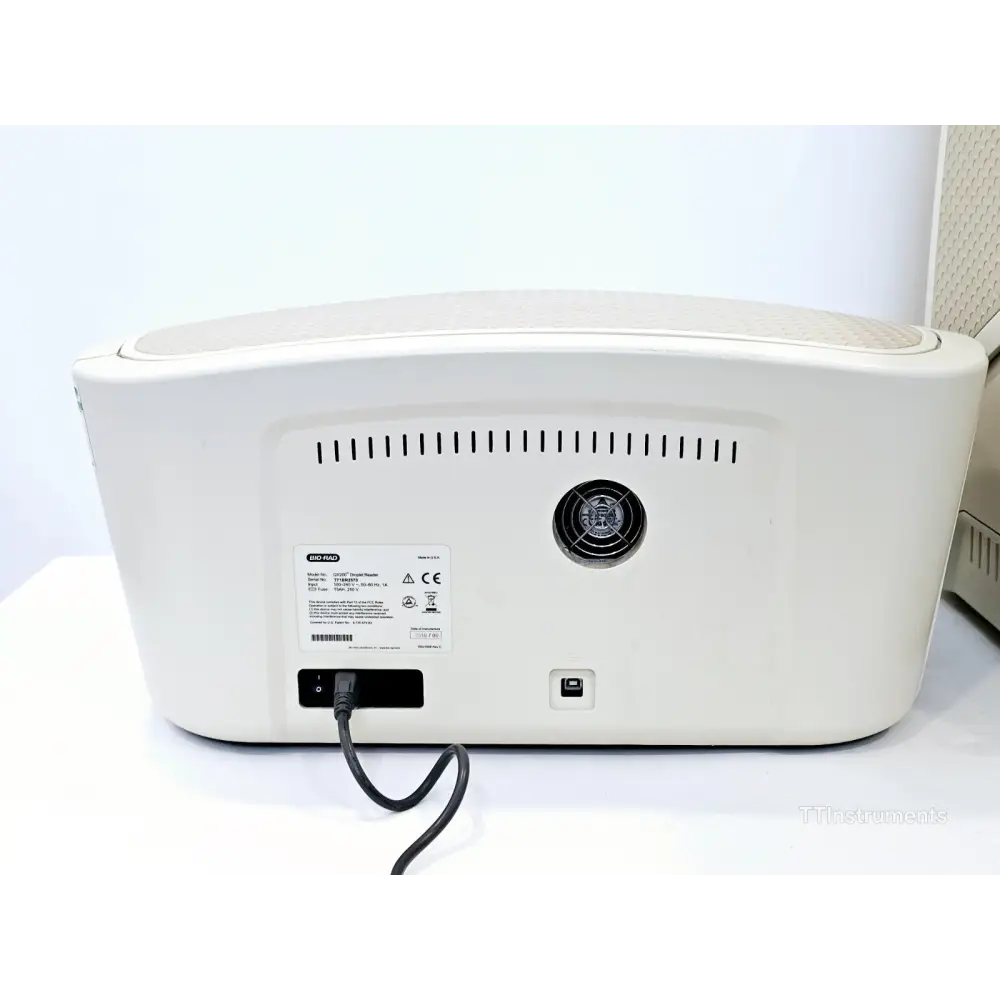

Connectivity: USB 2.0 to laptop PC running QuantaSoft or QX Manager Software
Compliance: IEC 61010-1:2010, EN61010-1:2010, EN 61326-1:2013 (Class A), UL 61010-1:2012

Typical Applications:
Cancer biomarker detection and rare mutation analysis
Copy number variation (CNV) measurement
Gene expression analysis (mRNA, miRNA)
Pathogen detection and viral load quantification
NGS library quantification
GMO testing and food safety screening
Environmental monitoring

Bio-Rad QX200 Droplet Reader and QuantaSoft Software Instruction Manual (Bulletin 10031906): Download PDF

Bio-Rad QX200 Droplet Generator Instruction Manual (Bulletin 10031907): Download PDF

Bio-Rad Automated Droplet Generator Instruction Manual (Catalog #186-4101) — third-party hosted copy: Download PDF

Bio-Rad QX200 Droplet Reader and QX Manager Software Standard Edition User Guide (Bulletin 10000107223): Download PDF

Bio-Rad QX200 Droplet Reader and QX Developer Software User Guide Version 1.1 (Bulletin 10000118144): Download PDF
